Glastender LC65 User manual

Operation Manual and Parts Directory
Glastender, Inc. · 5400 North Michigan Road · Saginaw, MI · 48604-9780
800.748.0423 · 989.752.4275 · Fax [phone] · www.glastender.com
LC65, LC85, LC86, LC44, LC47
Draft Pro remote Glycol line chillers
© 2007 Glastender, Inc.
LC44
LC65
Rev. 04-19-17

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
inDex
Topic Page
Line Chiller Specifications and Wiring Diagrams.......................................1-5
LC65....................................................................................................... 1
LC85....................................................................................................... 2
LC86....................................................................................................... 3
LC44....................................................................................................... 4
LC47....................................................................................................... 5
Inspection Upon Arrival ................................................................................. 6
Set-Up Remote Glycol Line Chiller ............................................................... 6
Electrical Hook-Up ......................................................................................... 6
Glycol Line Connection.................................................................................. 6
Glycol Filling.................................................................................................. 7
Unit Start-Up................................................................................................... 7
Cold Control Adjustment................................................................................ 8
System Start-Up.............................................................................................. 8
Trouble Shooting ............................................................................................ 9
Typical Installation Detail............................................................................. 10

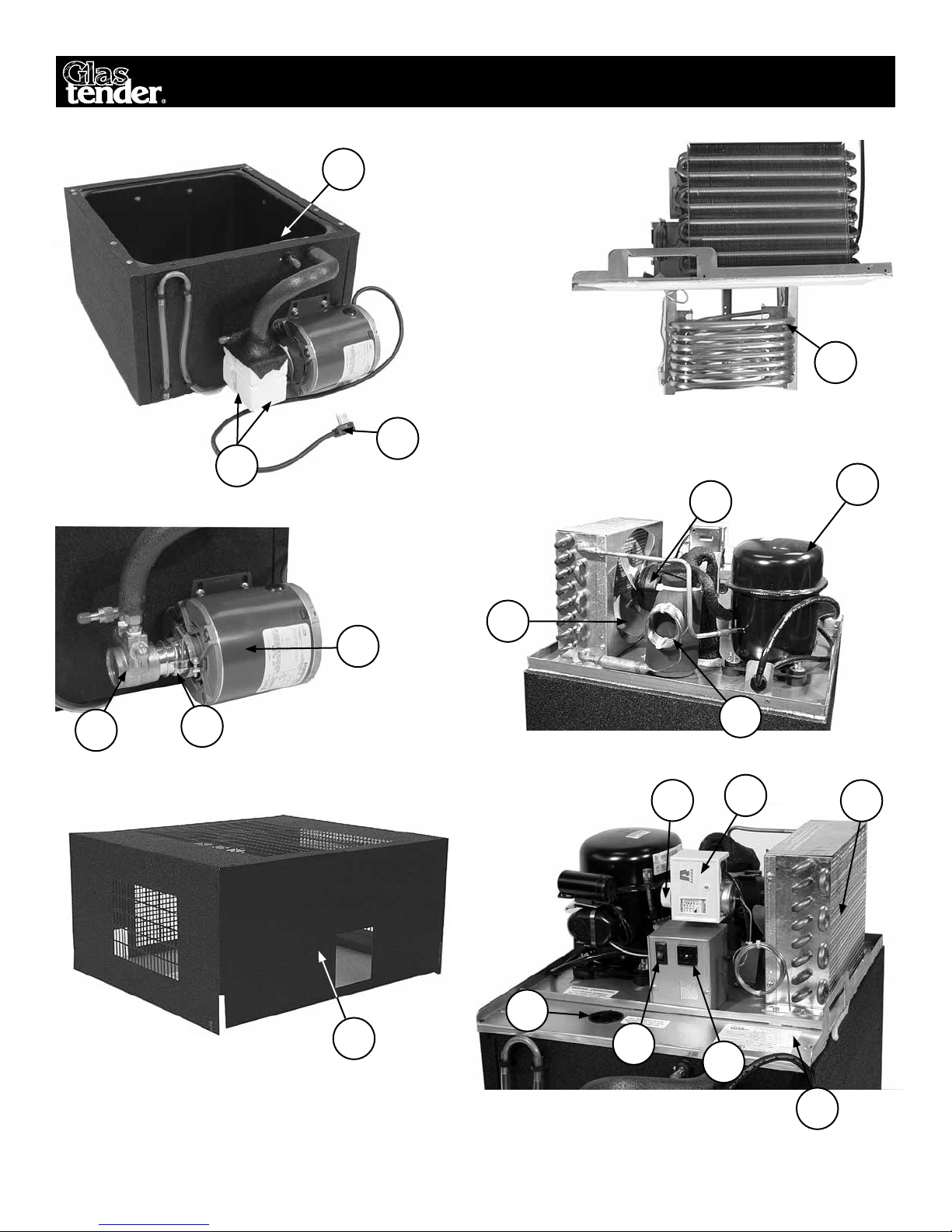

Parts Directory .........................................................................................11-20
LC65................................................................................................11-12
LC85................................................................................................13-14
LC86................................................................................................15-16
LC44................................................................................................17-18
LC47................................................................................................19-20
Remote Beer Line Chiller Accessories......................................................... 21
Installation Notes .......................................................................................... 22
Warranty........................................................................................................ 23

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
1
lc65 sPecifications
LC65
StanDarD Features
• Modular lift-out refrigeration system for easy
in-field service
• High capacity refrigeration and recirculation for
high volume and remote long distance installations
• CFC-free R134a refrigerant
• Light-weight, roto-molded glycol bath with drain
• Polyurethane foamed-in-place insulation
NOTE: Clearance of 12” required around unit for
maintenance and air flow.
Dimensions
• Height - 20.0” (49.5 cm)
• Width - 18.0” (45.7 cm)
• Depth - 25.75” (50.2 cm)
Electrical
• 115V, 1 phase, 60 Hz, 10.8 full load amps
• 230V, 1 phase, 50 Hz, 5.8 full load amps
• Dedicated 15 amp circuit is required
• Includes a 8-foot grounded cord
Refrigeration
• 1/3 HP R134a lift-out high temperature condensing unit
Glycol Bath Capacity
• 7.5 U.S. gallons (28.4 l)
Maximum Distance to Taps
• 125 ft (22.9 m)
Circulating Pump
• 60 gph (227 lph)
Circulating Motor
• 1/3 HP (.25 kW)
Shipping Weight
• 92 lbs (41.8 kg)
Operating Weight
• 152 lbs (69.1 kg)
Shipping Cube
• 9.5 cu ft (.28 cu m)
Options
• 4” Adjustable legs (up to 5-1/2”)
lc65 WirinG DiaGram
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
COMPRESSOR
GREEN
GREEN
RECIRC MOTOR
OPTIONAL
RECIRC MOTOR
GREEN
MAIN POWER
SUPPLY
230v/60hz
CONDENSER FAN
TERMINAL BLOCK
TEMPERATURE CONTROL
M
MM
RED
RED
RED
RED
RED
RED
OVERLOAD
COMMON
RUN START
RELAY START

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 2
lc85 sPecifications
StanDarD Features
• Modular lift-out refrigeration system for easy
in-field service
• High capacity refrigeration and recirculation for
high volume and remote long distance installations
• CFC-free R134a refrigerant
• Light-weight, roto-molded glycol bath with drain
• Polyurethane foamed-in-place insulation
NOTE: Clearance of 12” required around unit for
maximum air flow and 20” of overhead
clearance for servicing compressor.
Dimensions
• Height - 22.25” (56.5 cm)
• Width - 26.75” (67.9 cm)
• Depth - 16.50” (41.9 cm)
Electrical
• 115V, 1 phase, 60 Hz, 10.8 full load amps
• 230V, 1 phase, 50 Hz, 5.8 full load amps
• Dedicated 15 amp circuit is required
• Includes a 8-foot grounded cord
Refrigeration
• 1/3 HP R134a lift-out high temperature condensing unit
Glycol Bath Capacity
• 14.80 U.S. gallons (56.0 l)
Maximum Distance to Taps
• 125 ft (38.1 m)
Circulating Pump
• 60 gph (227 lph)
Circulating Motor
• 1/3 HP (.25 kW)
Shipping Weight
• 107 lbs (48.5 kg)
Operating Weight
• 225 lbs (102 kg)
Shipping Cube
• 9.5 cu ft (.28 cu m)
Options
• 4” Adjustable legs (up to 5-1/2”)
lc85 WirinG DiaGram
LC85
BLACK
BLACK
BLACK
BLACK
BLACK
TERMINAL BLOCK
OPTIONAL
RECIRC MOTOR
LC86 ONLY
RECIRC MOTOR
COMPRESSOR
OPTIONAL
RECIRC SWITCH
LC86 ONLY
RECIRC SWITCH
GREEN
RECEPTICAL
CONDENSER FAN
TEMPERATURE CONTROL
GREEN
MAIN POWER
SUPPLY
115v/60hz
M
M
M
WHITE
WHITE
WHITE
WHITE
RUN START
RELAY START
COMMON
OVERLOAD

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
3
lc86 sPecifications
StanDarD Features
• Modular lift-out refrigeration system for easy
in-field service
• High capacity refrigeration and recirculation for
high volume and remote long distance installations
• CFC-free R134a refrigerant
• Light-weight, roto-molded glycol bath with drain
• Polyurethane foamed-in-place insulation
NOTE: Clearance of 12” required around unit for
maximum air flow and 20” of overhead
clearance for servicing compressor.
Dimensions
• Height - 24.25” (61.6 cm)
• Width - 26.75” (67.9 cm)
• Depth - 16.50” (41.9 cm)
Electrical
• 115V, 1 phase, 60 Hz, 16.0 full load amps
• 230V, 1 phase, 50 Hz, 8.0 full load amps
• Dedicated 20 amp circuit is required
• Includes a 8-foot grounded cord
Refrigeration
• 1/2 HP R134a lift-out high temperature condensing unit
Glycol Bath Capacity
• 14.80 U.S. gallons (56.0 l)
Maximum Distance to Taps
• 250 ft (53.4 m)
Circulating Pump
• 60 gph (227 lph)
Circulating Motor
• 1/3 HP (.25 kW)
Shipping Weight
• 125 lbs (56.7 kg)
Operating Weight
• 243 lbs (110 kg)
Shipping Cube
• 9.5 cu ft (.28 cu m)
Options
• Additional recirculating pump kit
• 4” Adjustable legs (up to 5-1/2”)
lc86 WirinG DiaGram
BLACK
BLACK
BLACK
BLACK
BLACK
TERMINAL BLOCK
OPTIONAL
RECIRC MOTOR
LC86 ONLY
RECIRC MOTOR
COMPRESSOR
OPTIONAL
RECIRC SWITCH
LC86 ONLY
RECIRC SWITCH
GREEN
RECEPTICAL
CONDENSER FAN
TEMPERATURE CONTROL
GREEN
MAIN POWER
SUPPLY
115v/60hz
M
M
M
WHITE
WHITE
WHITE
WHITE
RUN START
RELAY START
COMMON
OVERLOAD
LC86

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 4
lc44 sPecifications
StanDarD Features
• Modular lift-out refrigeration system for easy
in-field service
• High capacity refrigeration and recirculation for
high volume and remote long distance installations
• CFC-free R134a refrigerant
• Light-weight, roto-molded glycol bath with drain
• Polyurethane foamed-in-place insulation
NOTE: Clearance of 12” required around unit for
maximum air flow and 20” of overhead
clearance for servicing compressor.
Dimensions
• Height - 30.56” (77.6 cm)
• Width - 20.125” (51.1 cm)
• Depth - 25.125” (63.8 cm)
Electrical
• 115V, 1 phase, 60 Hz, 16.0 full load amps
• 230V, 1 phase, 50 Hz, 8.0 full load amps
• Dedicated 20 amp circuit is required
• Includes a 8-foot grounded cord
Refrigeration
• 1/2 HP R134a lift-out high temperature con-
densing unit
Glycol Bath Capacity
• 16.25 U.S. gallons (61.78 l)
Maximum Distance to Taps
• 250 ft (53.4 m)
Circulating Pump
• 60 gph (227 lph)
Circulating Motor
• 1/3 HP (.25 kW)
Shipping Weight
• 125 lbs (56.82 kg)
Operating Weight
• 243 lbs (110.45 kg)
Shipping Cube
• 12.75 cu ft (.36 cu m)
Options
• Additional recirculating pump kit
• 4” Adjustable legs (up to 5-1/2”)
lc44 WirinG DiaGram
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
RECEPTICAL
OPTIONAL
COMPRESSOR
POWER SWITCH
RECIRC MOTOR
OPTIONAL
RECIRC MOTOR
RECEPTICAL
GREEN
MAIN POWER
SUPPLY
115v/60hz
CONDENSER FAN
TERMINAL BLOCK
TERMINAL BLOCK
TEMPERATURE CONTROL
M
MM
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
OVERLOAD
COMMON
RUN START
RELAY START
LC44

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
5
lc47 sPecifications
LC47
StanDarD Features
• Modular lift-out refrigeration system for easy
in-field service
• High capacity refrigeration and recirculation for
high volume and remote long distance installations
• CFC-free R134a refrigerant
• Light-weight, roto-molded glycol bath with drain
• Polyurethane foamed-in-place insulation
NOTE: Clearance of 12” required around unit for
maximum air flow and 20” of overhead
clearance for servicing compressor.
Dimensions
• Height - 34.56” (87.7 cm)
• Width - 20.125” (51.1 cm)
• Depth - 25.125” (63.8 cm)
Electrical
• 230V, 1 phase, 60 Hz, 12.4 full load amps
• Dedicated 20 amp circuit is required
• Includes a 8-foot grounded cord
Refrigeration
• 3/4 HP R134a lift-out medium temperature con-
densing unit
Glycol Bath Capacity
• 16.25 U.S. gallons (61.78 l)
Maximum Distance to Taps
• 400 ft (91.5 m)
Circulating Pump
• 60 gph (227 lph)
Circulating Motor
• 1/3 HP (.25 kW)
Shipping Weight
• 155 lbs (70.34 kg)
Operating Weight
• 273 lbs (123.87 kg)
Shipping Cube
• 12.75 cu ft (.36 cu m)
Options
• Additional recirculating pump kit
• 4” Adjustable legs (up to 5-1/2”)
lc47 WirinG DiaGram
BLACK
BLACK
BLACK
BLACK
BLACK
COMPRESSOR
RECIRC MOTOR
OPTIONAL
RECIRC MOTOR
GREEN
MAIN POWER
SUPPLY
230v/60hz
CONDENSER FAN
TERMINAL BLOCK
TERMINAL BLOCK
TEMPERATURE CONTROL
RED
BLACK
GREEN
RED
BLACK
GREEN
M
MM
RED
RED
RED
RED
OVERLOAD
COMMON
RUN START
RELAY START

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 6
1. insPection uPon arrival:
Immediately upon arrival, a visual inspection of the carton should be made to determine if there is
evidence of damage in shipment. Following uncrating, make an inspection for any signs of external
damage.
2. set-uPof remote Glycol line chiller:
Once the survey of the location has been completed to determine the positioning of the remote glycol
line chiller and the connecting draft beer dispensing stations (refer to the specification sheet to be
certain that the trunk line will be within the recommended distance), make the necessary provisions
to locate the unit and provide for the electrical services.
The ideal set-up is to mount the glycol line chiller on a proper machine stand that is easily accessible
for routine maintenance and service.
In less-than-ideal circumstances, it may be necessary to locate the unit on top of the walk-in cooler or
on the floor.
NOTE: Do not locate the glycol chiller in the walk-in cooler, as the cold ambient temperature
will reduce the cooling performance of the unit.
Ensure that the unit receives adequate ventilation, by avoiding obstructions to the air
intake and exhaust grillwork on the unit.
If the unit is located on the floor:
• Ensure the cabinet is sealed to the floor with NSF listed silicon RTV sealant applied around the
entire bottom edge of the cabinet.
• Optional 4” legs and base plate may be installed to the bottom of the cabinet.
3. electrical hook-uP:
Models LC65 and LC85 are supplied with a 15 Amp grounded cord and plug that connects at the rear
of the unit. Models LC86, LC44, and LC47 are supplied with a 20 Amp grounded cord and plug that
connects at the rear of the unit. A corresponding 15 Amp or 20 Amp grounded receptacle, depending
on the line chiller model used, must be installed within reach of the factory installed cord and plug.
4. Glycol line connection:
Install the insulated trunk line between the walk-in cooler, the glycol chiller and the dispensing
station(s).
insPection anD set-uP

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
7
5. Glycol fillinG:
The LC65 glycol bath capacity is 7.5 gallons (US). The LC85 and the LC86 glycol bath capacity is
14.8 gallons (US). The LC44 and LC47 glycol bath capacity is 16.25 gallons (US).
Glycol supplied by Glastender, Inc. may be diluted to a ratio of (1) part glycol to (2) parts water for
freeze protection down to 0ºF (-18ºC) or a ratio of (1) part glycol and (3) parts water for freeze protec-
tion down to 10ºF (-12ºC). These mix ratios are recommended, since the refrigeration system is not
capable of lowering the temperature of the glycol bath below 15ºF (-9.4ºC)
For glycol not supplied by Glastender, Inc. please consult the glycol manufacturer’s recommended mix-
ing ratio for the desired operating temperature.
NOTE: Do not place full strength glycol (undiluted) in the bath, as it will reduce the efficiency
of the refrigeration system and may result in damage to the recirculation pump due to
increased viscosity of cold glycol.
NOTE: Select and use only a propylene glycol product that meets FDA (Food and Drug
Administration) regulations as a food grade product. Any substitution of food grade
glycol with automotive anti-freeze or other products will expose people to hazardous
chemicals.
Fill the bath with glycol mixture by placing funnel in the fill hole (remove black plug in refrigeration
deck platform). Pour in the glycol mixture until the level in the bath reaches the top, and the liquid
begins to flow slightly from the overflow tube at the front of the unit.
6. unit start-uP:
• Plug in unit to fifteen (15) or twenty (20) amp protected circuit (Refer to Step 3, Electrical Hook Up).
• Models LC65 and LC44 have a power switch that allows the condensing unit and recirculating pump
to operate when is the on position.
• Once models LC85 and LC86 are plugged in, the condensing unit will operate. There is a separate
power switch to operate recirculating pump.
• Once the LC47 is plugged in, both the condensing unit and the recirculating pump will operate.
• Check all glycol circuit line connections for leaks.
• Once the pump has operated for a few minutes and the glycol circuit lines are fully flooded, the bath
will need to be topped-off with additional glycol mixture.
Glycol fillinG anD unit start-uP

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 8
7. Cold Control Adjustment:
8. system start-uP:
It is a good practice to operate the glycol recirculation system for sixty (60) minutes before run-
ning beer through to the remote dispensing station(s). This enables the glycol circuit to be checked
for leaks. Also, recirculating cold glycol through the lines enables the temperature inside the trunk
line to stabilize before beer is introduced.
• Once the refrigeration unit and the glycol recirculating pump have operated for sixty (60)
minutes or more, the beer product can be connected and drawn through the trunk line
• Check the system for leaks.
• Thoroughly insulate all line joints in the trunk line and dispensing station(s).
NOTE: Be certain to close off the trunk line end with insulating tape at the point where
the glycol recirculating lines enter, otherwise condensation will occur on exposed
lines.
Scale
Adjusting Knob
Cold Control
colD control aDjustment anD system start-uP

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
9
9. trouble shootinG:
Complaints of warm beer...
• Check the temperature of walk-in beer cooler.
• Check the glycol bath temperature.
• Check that recirculating pump is operating.
Refrigeration Compressor Will Not Run...
• Check that the unit is getting electrical power.
• Check that cold control is working.
• Check that all wiring connections are secure.
Refrigeration Compressor Runs But Stops...
• Check for dirt build-up on condenser coil surface.
• Check that there is no obstruction of air flow into the cabinet.
• Ensure that enough voltage is supplied to the unit.
Refrigeration Compressor Runs But Not Cooling...
• Check for refrigerant leaks.
Noisy or Hot Recirculating Pump...
• Ensure that glycol bath is not frozen.
• Ensure that the glycol solution has been properly diluted.
• Check motor and pump coupling for wear.
Recirculation Pump Not Working...
• Ensure that pump and motor coupling has not worn free.
• Check power supply to the motor.
• Replace worn pump.
trouble shootinG

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 10
tyPical installation Detail
8
7
6
5
PRIMARY REGULATOR
(STEP DOWN PRESSURE
TO BELOW 60 POUNDS)
4
3
2
1
KEG TAP
RED CO2
AIR LINE
TO KEG
CLEAR JUMPER LINES
CONNECT THE KEG
TO THE BEER PUMP
BEER LINES FROM LINE
SET ARE CONNECTED TO
THE BEER PUMPS
RESTRICTION LINES ON TOWER ARE CONNECTED TO THE BEER LINE SET (DO NOT CHANGE LENGTH WITHOUT CONSULTING THE FACTORY)
TWO GLYCOL LINES GO
THRU CHASE, SO GLYCOL
CAN CIRCULATE BACK
TO THE LINE CHILLER.
(MUST INSULATE LINES
INSIDE WALK-IN TO
PREVENT ICE BUILD-UP.)
INSULATED LINE CONTAINING
IN AND OUT GLYCOL LINES
MAIN CO2 LINE FROM
TANK MOUNT REGULATOR
RUNS TO WALK-IN COOLER
CO2 EXHAUST LINE
FROM BEER PUMPS
BEER PUMP
SECONDARY REGULATORS CONTROL CO2 PRESSURE TO KEGS
BEER LINES GOING TO NEXT PANEL AS NECESSARY
SIDE ELEVATION
OF BEER TOWER
ON BAR TOP
WALK-IN
COOLER
LINE
CHILLER
CHASEWAY
CO2
POWER
KEG KEG KEG
CO2 LINE GOING TO NEXT BEER PUMP PANEL AS NECESSARY
BEER PUMP REGULATOR CONTROLS CO2 PRESSURE TO BEER PUMPS

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
11
lc65 comPressor anD relateD Parts
1
2
19
7
9
8
6
11
10
12
3
18 17
14
15
16
13
5
4

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 12
lc65 comPressor anD relateD Parts
Part no. olD Part no. DescriPtion Price
1. 06001439 GT-035014 1/3 HP 134A Tecumseh compressor $435.00
2. 09000336 GT-035109 Condenser fan motor 85.00
09000483 GT-031537 Bracket, condenser fan motor mounting 4.00
3. 09000299 GT-032805 Fan blade, condenser, 3 blade 10.50
4. 09000463 GT-041306 Filter dryer, suction line accumulator, 40.00
and cap tube assembly
5. 09000293 GT-032615 Condenser coil 125.00
6. 09000296 GT-032626 Evaporator 110.00
7. 09000340 GT-035119 Recirculating pump motor 350.00
8. 09000331 GT-034536 Pump, glycol, 60 gph, brass 225.00
9. 00000006 GT-031115 Clamp, recirculating pump 3.00
10. 06001595 Insulation, pump, white (set of two pieces) 9.00
11. 09000413 GT-037117 Main cabinet tank 115.00
12. 09000402 GT-036172 Cover, LC65 114.00
13. 09000420 GT-037443 Complete refrigeration deck 960.00
14. 09000436 GT-038497 Plug, black, 1 3/4˝hole .50
15. 06001412 GT-033421 Rocker switch 5.00
16. 06001409 GT-033304 Snap in receptacle 5.00
17. 09000303 GT-033207 Thermostat 160.00
18. 09000429 GT-038474 Knob, thermostat 4.00
09000261 GT-031404 Exterior power cord, 104˝20.00
19. 06001313 GT-031400 Condensing unit power cord 20.00

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
13
lc85 comPressor anD relateD Parts
1
2
3
4
5
16 6
7
8
9
10
11
12
13
14
15
17
18
19

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 14
lc85 comPressor anD relateD Parts
Part no. olD Part no. DescriPtion Price
1. 06001439 GT-035014 1/3 HP 134A Tecumseh compressor $435.00
2. 09000336 GT-035109 Condenser fan motor 85.00
3. 09000483 GT-031537 Bracket, condenser fan motor mounting 4.00
4. 09000299 GT-032805 Fan blade, condenser, 3 blade 10.50
5. 09000463 GT-041306 Filter dryer, suction line accumulator, 40.00
and cap tube assembly
6. 09000293 GT-032615 Condenser coil 125.00
7. 09000291 GT-032598 Evaporator coil, LC 83, 84 & 85 Copper 110.00
8. 09000340 GT-035119 Recirculating pump motor 350.00
9. 09000331 GT-034536 Pump, glycol, 60 gph, brass 225.00
00000006 GT-031115 Clamp, recirculating pump 3.00
10. 06001595 Insulation, pump, white (set of two pieces) 9.00
11. 09000410 GT-037110 Main cabinet tank 130.00
12. 09000399 GT-036158 Cover, LC85 160.00
09000417 GT-037437 Complete refrigeration deck 900.00
13. 09000436 GT-038497 Plug, black, 1 3/4˝hole .50
14. 06001412 GT-033421 Rocker switch 5.00
15. 06001409 GT-033304 Snap in receptacle 5.00
16. 09000303 GT-033207 Thermostat 160.00
17. 09000429 GT-038474 Knob, thermostat 4.00
18. 09000261 GT-031404 Exterior power cord, 104˝20.00
19. 06001313 GT-031400 Condensing Unit Power Cord 20.00

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
15
lc86 comPressor anD relateD Parts
21
4
3
6
13
5
7
9
16
11
12
15
14
17
18
8
10

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 16
lc86 comPressor anD relateD Parts
Part no. olD Part no. DescriPtion Price
1. 09000334 GT-035015 1/2 HP R134A Tecumseh compressor $720.00
2. 09000336 GT-035109 Condenser fan motor, 9w, 115v 85.00
3. 09000483 GT-031537 Bracket, condenser fan motor mounting 4.00
4. 09000299 GT-032805 Fan blade, condenser 10.50
5. 09000462 GT-041305 Filter dryer, suction line accumulator, 41.00
and cap tube assembly
6. 09000293 GT-032615 Condenser coil 125.00
7. 09000290 GT-032597 Evaporator coil, copper, LC 86 220.00
8. 09000340 GT-035119 Recirculating pump motor, 1/3 hp, 115v 350.00
9. 09000331 GT-034536 Pump, glycol, 60 gph, brass 225.00
00000006 GT-031115 Clamp, recirculating pump 3.00
10. 06001595 Insulation, pump, white (set of two pieces) 9.00
11. 09000410 GT-037110 Main cabinet tank 130.00
12. 09000400 GT-036159 Cover, complete LC-86 176.00
09000421 GT-037445 Complete refrigeration deck 1350.00
13. 09000436 GT-036497 Plug, black, 1 3/4˝hole .50
06001412 GT-033421 Rocker switch 5.00
14. 06001409 GT-033304 Snap in receptacle 5.00
15. 09000303 GT-033207 Thermostat 160.00
16. 09000429 GT-038474 Knob, thermostat 4.00
17. 09000261 GT-031404 Exterior power cord, 104” 20.00
18. 06001313 GT-031400 Condensing Unit Power Cord 20.00

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
17
lc44 comPressor anD relateD Parts
3
8
10
9
7
19
11
2
16
13
14
1
6
5
15
17
4
18
12
