Glastender MF24 Series User manual

Operation Manual and Parts Directory
Glastender, Inc. · 5400 North Michigan Road · Saginaw, MI · 48604-9780
800.748.0423 · 989.752.4275 · Fax [phone] · www.glastender.com
© 2010 Glastender, Inc.
Rev. 12-19-11

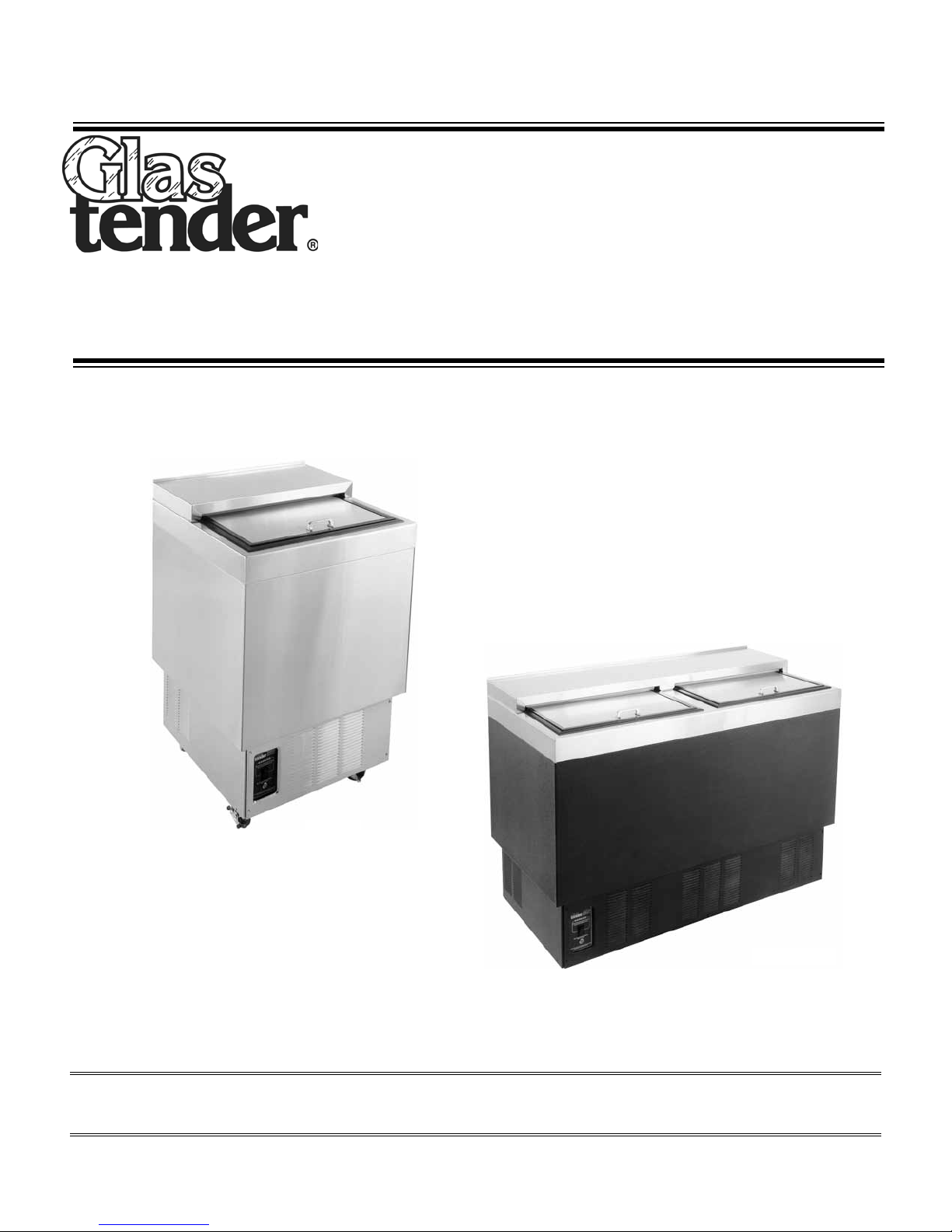

MF24-S
MF48-B2
MF24, MF36, MF48
Mug Frosters and Plate Chillers

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
ii
index
toPiC Page
Terms and Conditions .................................................................... 1
Warranty Statement ........................................................................ 2
Installation ...................................................................................... 3
Operation ........................................................................................ 4
Cleaning Instructions ..................................................................... 4
Electrical and Refrigeration Specifications ................................... 5

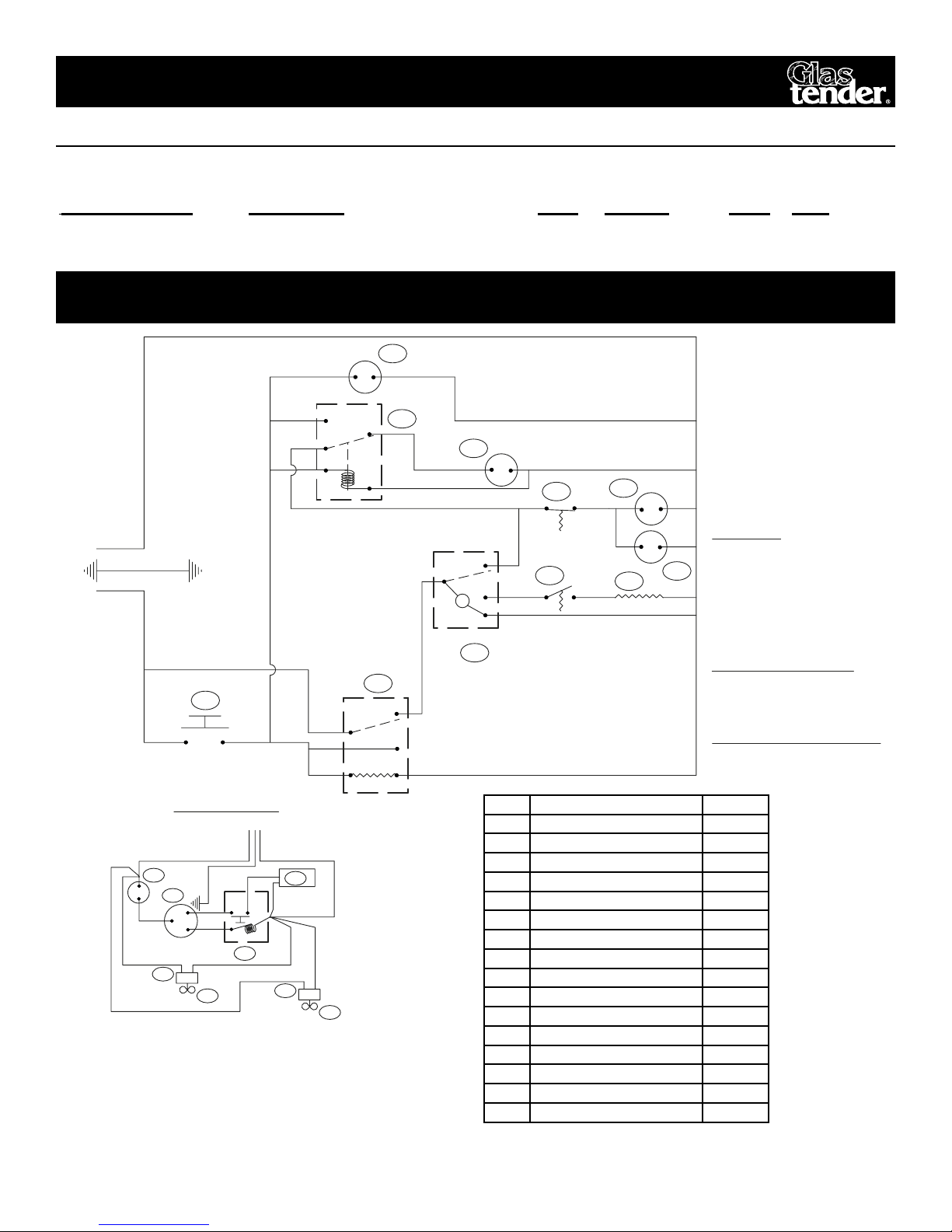

Wiring Diagram ............................................................................. 5
Compressor and condenser related parts ....................................6-7

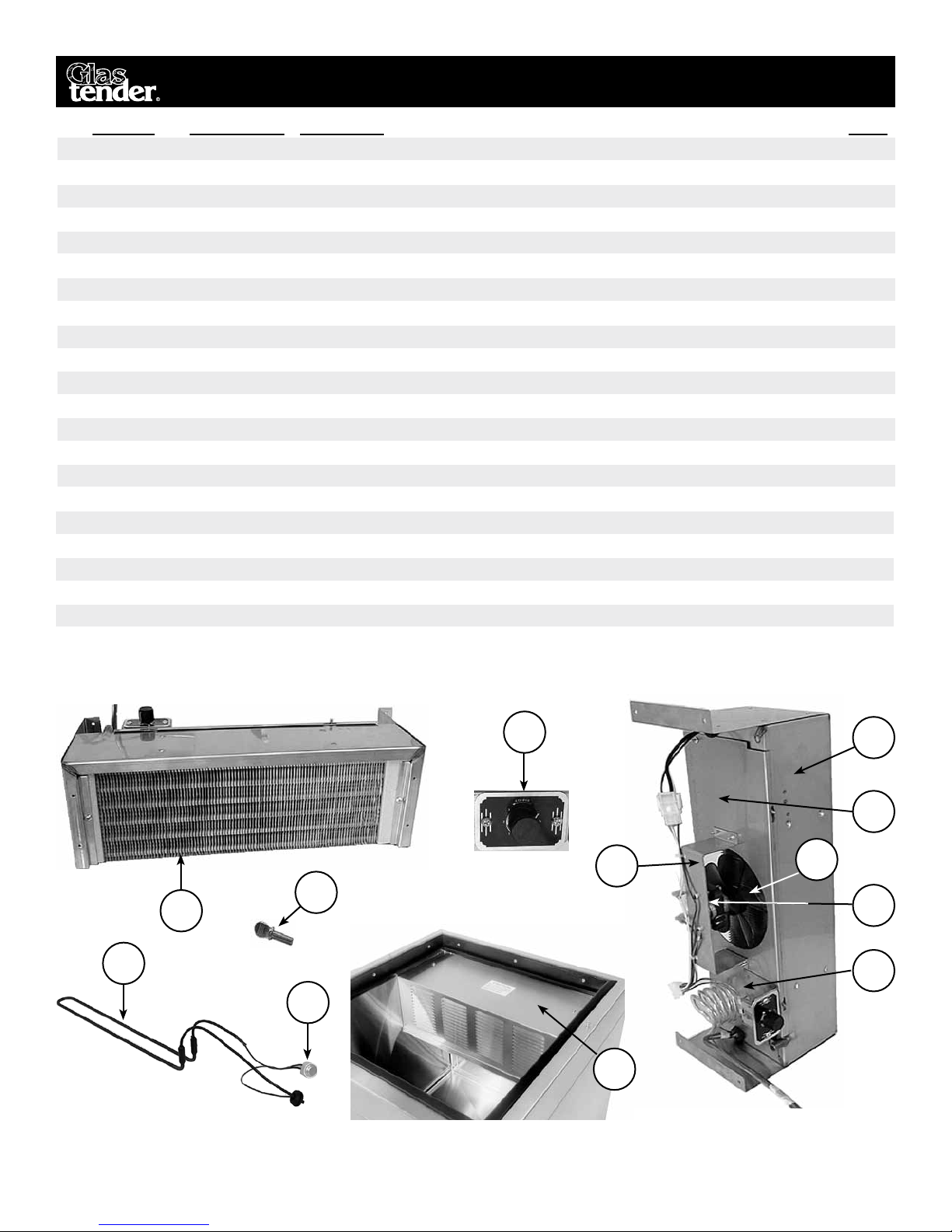

Evaporator and related parts ..........................................................8

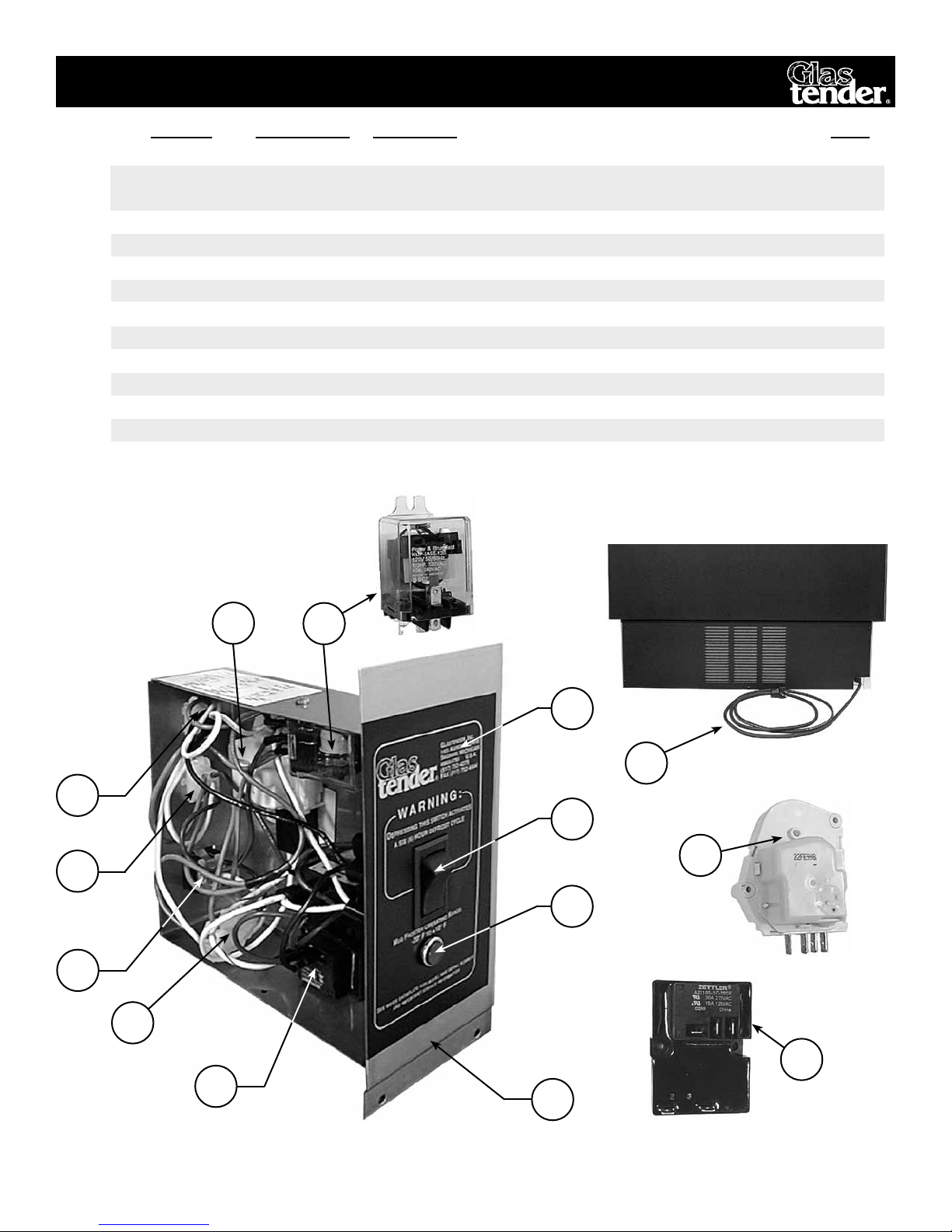

Electrical Components ................................................................... 9
Shelving and related parts ............................................................ 10
Doors, tops and related parts ....................................................... 11

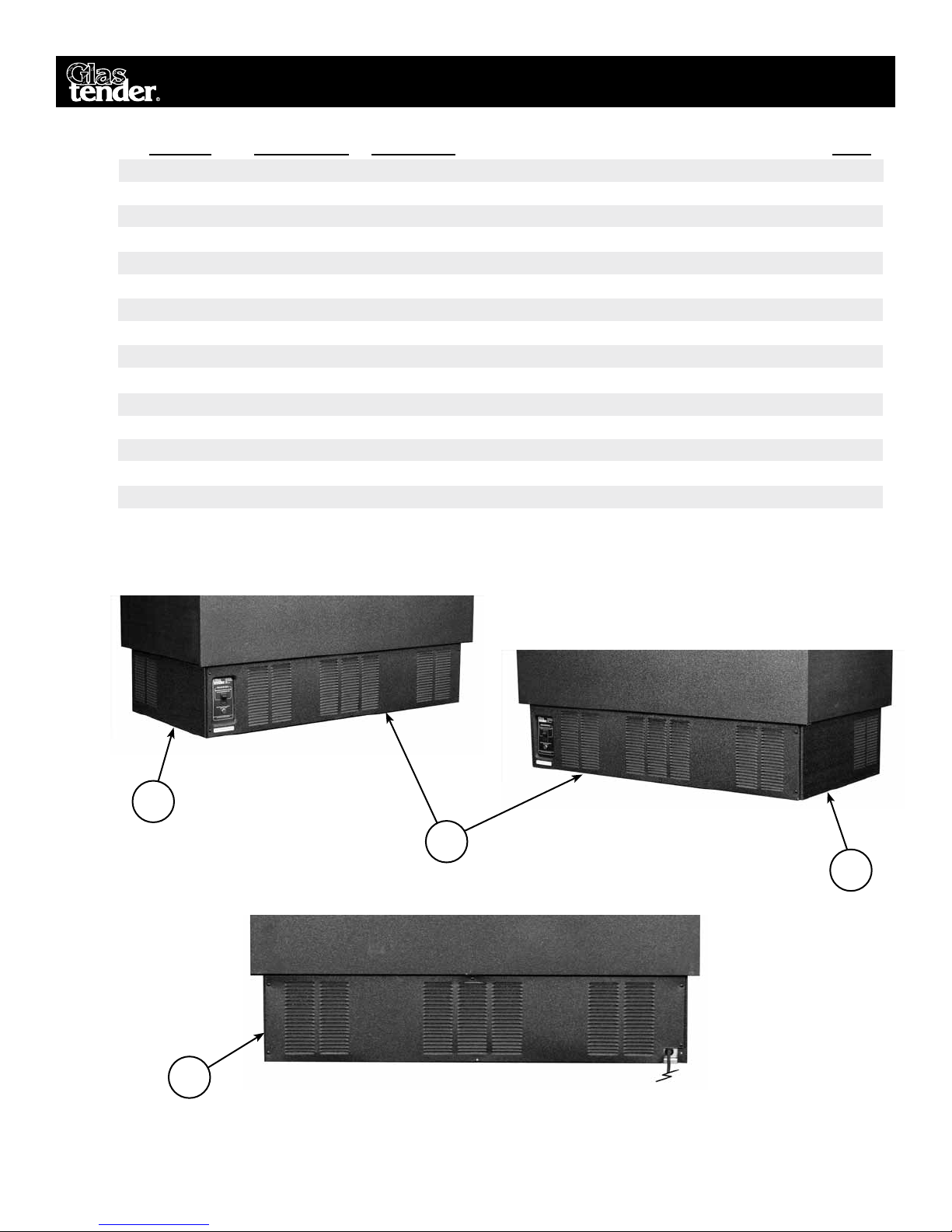

Refrigeration compartment covers ..............................................12
220 Volt Electrical Parts .............................................................. 13
Installation Notes ......................................................................... 13

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 1
terMs and Conditions
PriCes:
All prices are LIST. Applicable taxes will be added.
Quotations:
Unless otherwise stated, quotations are effective for 30 days only.
aCCePtanCe:
All orders are subject to acceptance by Glastender, Inc.’s headquarters in
Saginaw, Michigan. Possession of the Product Directory and Price List
is not an offer to sell.
shiPMents:
F.O.B. factory in Saginaw, Michigan. Freight terms are Third Party or
Collect if shipped directly to you. Prepay and Add to Invoice freight
terms are available upon request. The approximate shipping weights of
all products are listed with the prices. Partial shipments will be made
unless otherwise specified by the customer. Surface freight classifica-
tions are:
Glasswashers, Line Chillers - Class 92.5
Cocktail Stations, Underbar Equipment - Class 85
Bar Die/Underbar Equipment – Class 125
Refrigeration Equipment, 48” long or smaller - Class 100
Refrigeration Equipment, greater than 48” long - Class 110
All small items are evaluated to see the most cost effective means for
shipment. Many small items ship via UPS or FedEx; however, when
dimensional weight is excessive DB Schenker, UPS Supply Chain, or
even common LTL carriers are the most cost effective choice. Spare
parts orders received before 1:00 PM EST can usually be shipped the
same day.
The order department is happy to assist with routing or shipping ques-
tions.
PayMent terMs:
Cash should be included with all orders unless credit terms have been
arranged. To establish credit, banking and trade references are required.
A convenient credit application is available upon request. Payment via
credit card is not our normal means of receiving payment. Visa and
MasterCard will be accepted, but must be charged at the time of ship-
ment. In addition, a payment via credit card for orders totaling more than
$500 will incur a 3% convenience fee on the total transaction amount.
delivery:
The majority of equipment is manufactured to order and typically ships
within three to six weeks after complete order information is received by
the factory. In-stock equipment typically ships within two to three days
of the factory receiving complete order information.
returns:
Items specified as “Manufactured to Order” are NOT returnable.
A Return Material Authorization (RMA) number must be issued by the
factory in advance for any items that are returnable. The RMA number
MUST be noted on the outside of the returned package. Returns must be
received within 90 days of the RMA issue date. Shipping charges must
be prepaid. A minimum 20% restocking charge will be applied to all
authorized returns if received in new, unused condition in the original
packaging.
The above conditions apply to spare part returns, except spare part
returns must be received within 30 days of original shipment for elec-
tronic or electrical parts or within 90 days for all other parts.
loss or daMage:
For customer routed shipments, Glastender, Inc. is not responsible for
any loss, damage, or delay of merchandise during shipment. Such transit
claims must be filed with the carrier. Merchandise must be examined on
arrival. If shortages occur, Glastender, Inc. must be notified in writing
within five (5) days of delivery to honor any shortage claim. Glastender
will assume responsibility for freight claims on Prepay and Add ship-
ments but the customer must inspect freight and note any damage upon
receipt. Failure to do so may result in losses at the customer’s expense.
CustoM orders:
Custom orders must be paid in advance and are not subject to cancel-
lation.
laMinates:
Some products include common, readily available plastic laminates of
the customer’s selection. There may be an additional charge if uncom-
mon varieties are ordered.
05/18/10

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
2
Warranty stateMent
APPLICABLE TO ALL PRODUCTS SOLD WITHIN THE UNITED STATES AND CANADA
LABOR: Glastender, Inc. warrants all products to be free of defects
in material and workmanship. In established areas, a start-up is
included with glasswasher models GT-24 and GT-30. A 1-year labor
warranty applies to the following glasswashers: all GW24 models,
GT-18 models purchased at May 1, 2011 or later pricing, and GT-24
and GT-30 models purchased at January 1, 2012 or later pricing. Self-
contained refrigeration models, except beer line chillers, include a
1-year labor warranty, for the duration of one year from date of instal-
lation or up to 18 months from date of factory shipment, whichever
occurs sooner. For warranty labor claims beyond 15 months from the
date of factory shipment, proof of date of installation or occupancy
must be provided. Authorization for labor must be obtained from
Glastender within the warranty period and prior to the service being per-
formed. Labor warranty applies to the United States and Canada only.
PARTS: Within one year from date of installation or 18 months from
date of factory shipment, whichever occurs sooner, Glastender, Inc.
will replace any part or assembly found defective under normal use and
service. Field replacement parts include a warranty of 90 days from date
of installation.
FOUR YEAR ADDITIONAL COMPRESSOR WARRANTY: Glastender
will warrant to the original user the compressor for all self-contained
refrigeration models for an additional four years following the regular
one-year warranty period. This plan applies to the compressor only.
A warranty claim form MUST accompany all returned defective
parts or assemblies. This form MUST be completed in full. Failure
to do so may result in delay or denial of credit. Any defective part or
assembly must be returned to Glastender, Inc., Saginaw, Michigan,
with all transportation and delivery charges prepaid. Warranty repairs
or replacements will be shipped FOB factory in Saginaw, Michigan.
Reimbursement for applicable freight charges covers ground service only.
Glastender provides in-warranty repairs during a service company’s
regular working days and hours. There is no provision for payment
of a premium rate during “overtime” hours. When warranty service is
requested during other than normal working hours, the end user will be
charged the premium portion of the overtime rate.
The warranty does not cover equipment subjected to accidents, freight
damage, alterations from the original design, improper power and/or
plumbing hookups, improper chemical use, general misuse, or lack
of routine required maintenance as determined by Glastender, Inc.
Installation, normal control adjustments, general maintenance, correct-
ing an installation error, or service calls that reveal the unit is function-
ing normally will not be reimbursed under warranty.
Condenser coils on self-contained refrigeration products must be
cleaned regularly. Failure to provide adequate air flow to a refrigeration
unit will void the warranty.
Glastender shall not be liable for loss of use, revenue, or prof-
it, or for any other indirect, incidental, special, or consequential
damage including, but not limited to, product spoilage or loss.
This warranty is conditioned upon Glastender receiving notice of any
defect subject to this warranty within sixty (60) days of its discovery
by the end user or dealer. All products are warranted only for the initial
place of installation. Removal of a product automatically terminates
this warranty.
SECOND YEAR EXTENDED PARTS & LABOR WARRANTY:
Glastender’s one-year parts and labor warranty on self-contained refrig-
eration units, excluding beer line chillers, can be extended to two years
with the purchase of a two year parts and labor warranty. Specify part
number EWR2 ($150 net price) when ordering.
EXPORT WARRANTY - One year parts only.
EXCLUSION OF WARRANTIES
EXCEPT AS PROVIDED ABOVE, GLASTENDER MAKES
NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
OR NON-INFRINGEMENT.
LIMITATION OF REMEDIES AND DAMAGES
If Buyer makes a valid and timely claim as outlined above, Glastender’s
liability and Buyer’s remedies under this agreement will be limited solely
to labor charges authorized and/or replacement or credit, at Glastender’s
option, with respect to Products returned at Buyer’s expense within thir-
ty (30) days after warranty repair. GLASTENDER’S LIABILITY WILL
IN NO EVENT BE GREATER IN AMOUNT THAN THE PURCHASE
PRICE OF THE RETURNED PRODUCTS. GLASTENDER
WILL NOT BE LIABLE UNDER ANY CIRCUMSTANCE FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING,
BUT NOT LIMITED TO, LABOR COSTS EXCEPT AS COVERED
UNDER OUR WARRANTY, LOST PROFITS OR THE LOSS OF
PERISHABLE PRODUCTS RESULTING FROM THE USE OF OR
INABILITY TO USE OUR PRODUCTS OR FROM OUR PRODUCTS’
INCORPORATION INTO OR BECOMING A COMPONENT OF
ANY OTHER PRODUCT. NEITHER PARTY WILL HAVE ANY
NEGLIGENCE OR OTHER TORT LIABILITY TO THE OTHER, OR
TO ANY THIRD PARTY, ARISING FROM ANY BREACH OF THIS
AGREEMENT.
GOVERNING LAW - JURISDICTION
The terms and conditions of an order are to be governed and construed
according to the laws of the State of Michigan, without regard to conflict
of laws principles. Buyer hereby consents to the jurisdiction and venue
of the courts located in Saginaw County, Michigan.
No representative, distributor, dealer, or any other person is authorized
to modify this warranty. This warranty replaces all other written or
verbal warranties.
NOTE: Glastender, Inc.’s policy of constant quality improvement
means that prices, specifications, and policies are subject to change
without notice. Questions regarding this warranty should be directed to
Glastender’s Customer Service Representative.
11/11/11
IMPORTANT!!
Attention Refrigeration Service Companies
Please review the important warranty information on this page. If you
believe a service call should be covered by the factory, please call
the factory for authorization between 8AM and 5PM EST, Monday
through Friday.

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 3
introduCtion
This manual describes the operational features of Mug Froster/Plate Chiller models MF24, MF36, and MF48. Please review this
information before attempting installation and operation.
Long term, trouble-free service will follow if good housekeeping and maintenance procedures are followed. Thank you for
selecting Glastender, Inc. products.
utility reQuireMents and ConneCtions
• Electrical: 115 Volt AC, 1 Phase, 60 Hz, 6.7 Full Load Amps. A separate 15 Amp circuit is recommended. A 6-foot
grounded cord is included.
• Plumbing: None required. Automatic condensate evaporator is included.
unCrating and start-uP instruCtions
All Mug Frosters and Plate Chiller models are shipped in one carton. These steps should be followed:
1. If legs or casters are included, bolt them to the base with the bolts provided.
2. Unwrap power cord from base.
3. Position Mug Froster/Plate Chiller and level and/or seal as required (see page 2).
4. Install shelves.
5. Plug into 115 volt AC outlet.
6. Load with mugs, glasses, plates, etc.
7. Your Glastender Mug Froster/Plate Chiller is now ready for use.
installation
sealing Mug Froster and Plate Chiller Base to Floor
To comply with NSF & health codes. The Mug Froster base must be sealed to the floor using NSF listed sealant.
Place a bead of sealant along outer edges of the base and remove excess with disposable towel.

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
4
oPeration
The Mug Froster/Plate Chiller is designed to chill mugs, glasses, plates, etc. that will appear “frosted” when removed. The
operating temperature range of 0°F (-18°C) to 35°F (2°C).
The Mug Froster/Plate Chiller should be filled with dry, room-temperature mugs, glasses, plates, etc. to allow maximum
chilling. During business hours, the Mug Froster/Plate Chiller can be loaded with additional dry, room-temperature mugs,
glasses, plates, etc. Allow 30 minutes for chilling.
The Mug Froster/Plate Chiller includes an automatic defrost system. Defrosting will occur every six hours for approxi-
mately 20 minutes. During the defrost cycle, the fan inside the Mug Froster/Plate Chiller will turn off and a small amount
of mist may appear if the top is opened.
There is also a manual defrost system controlled by a switch located on the front left bottom of the Mug Froster/Plate
Chiller. This is used when there is ice or snow accumulation inside. An end-of-the-day or weekly schedule can be estab-
lished for the activation of this manual defrost cycle.
When the manual defrost switch is pushed, a light will turn on and the Mug Froster/Plate Chiller will go into a six-hour
defrost. After six hours, the Mug Froster/Plate Chiller will resume normal operation.
If the manual defrost switch is accidentally pushed, the defrost cycle can be terminated by unplugging the power cord
for three seconds.
oPeration and Cleaning
Cleaning instruCtions
Cleaning is essential to sustaining the integrity of your equipment and preventing corrosion.
ESTIMATED CLEANING TIME: 5 to 10 minutes per unit daily, 30 minutes quarterly
FREQUENCY: Daily cleaning of exterior & door gaskets. Quarterly cleaning of interior, including shelves.
PROCEDURE:
1. A non-chlorine based cleaner or mild detergent and warm water applied with a soft cloth or sponge to all contact sur-
faces.
2. Immediately rinse off cleaning agent(s), using clean warm water, clean soft cloth or sponge.
3. Dry with a soft clean cloth, removing standing water as soon as possible.
NOTES:
1. Never use hydrochloric acid, wire brushes, steel wool, scrapers, or chlorine based cleaners on stainless steel surfaces,
since they will break down the passivity layer and allow corrosion to occur.
2. On stainless steel surfaces, you may use a soft bristle brush or Scotch-Brite® pad for more stubborn stains. Always
scrub with the direction of the grain. Follow with a thorough cleaning as described above.
3. Deposits from food preparation must be properly removed. Even hard water deposits will rust stainless steel, if not
removed.
4. Repeated cleaning may dry up black-vinyl-clad steel (exterior) surfaces of the cooler. Armor All® or similar product
can bring back the shine. Apply the product to a cloth and then rub into the surface, rather than spraying it directly onto
the black-vinyl-clad surface.
5. The cooler door gaskets are most often overlooked when cleaning. Failure to clean them regularly will lead to prema-
ture failure, since alcohol and moisture build-up breaks down the gasket material.
6. Mug frosters have a manual defrost timer switch on the front near the bottom, which will activate a 6-hour defrost cycle.
Depressing the switch before you close for the evening will remove excess frost build-up on the interior liner. This pro-
cedure should be done as often as is necessary. It should also be done the night before the quarterly interior cleaning.

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 5
RECOMMENDED
15 AMP. SERVICE
115 VOLT
POWER
NEUTRAL
GROUND
1
2
11
10
6
15
13
5
12
3
16
14
5
7
8
3
4
9
6
COMPRESSOR WIRING
ELECTRICAL RATINGS
TOTAL AMPS
Evaporator Fan Motor
Condensing Unit Fan Motor
Compressor
All wires are 16 Gauge
115V, Single Phase, 60Hz, 3 wire.
W/R = White W/ Red
W = White
P = Purple
R = Red
O = Orange
BR = Brown
BL = Blue
B = Black
LEGEND
P
P
2
1
B
W
P
P
B
W
B
7
A
2
5
P
P
6.67
.28 AMP
4
3
.49 AMP
5.90 AMP
W
C
M
W
M
S
B
1
2
W
OPENS ABOVE +45°F
M
3
5
1
4
2
W/R
BR
R
O
BL
W
W
W
O
W
W
W
eleCtriCal
eleCtriCal and reFrigeration sPeCiFiCations
design
Model reFrigerant Pressure
(L-to-R length) eleCtriCal tyPe Charge high loW
24”, 36”, 48” 115V, 1Ph., 60 Hz., 6.7 Amp R404A 8.5oz. 350 175
Wiring diagraM
ITEM DESCRIPTION PART #
1 6 HR. MANUAL DEFROST LIGHT 07000171
2 EVAPORATOR FAN RELAY 07000166
3 EVAPORATOR FAN 06001445
4 THERMOSTAT 07000621
5 COMPRESSOR, TECUMSEH 07000175
6 CONDENSER FAN MOTOR 06001449
7 AUTOMATIC DEFROST 06001397
8 DEFROST THERMOSTAT 07000165
9 DEFROST HEATER 07000169
10 MANUAL DEFROST SWITCH 07000257
11 6 HR. MANUAL DEFROST 07000156
12 OVERLOAD 07000128
13 START RELAY 07000168
14 CAPACITOR 06001380
15 CONDENSER FAN BLADE 07000155
16 EVAPORATOR FAN BLADE 09000298

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
6
9
12
21
11
4
6
10
8
13
17
7
1
3
2
CoMPressor and Condenser related Parts
20
16
15
8
14
19
18
5

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 7
CoMPressor and Condenser related Parts
Part no. old Part no. desCriPtion PriCe
07000258 GT-036350 Condensing Unit, Complete, R404A Aspera $900.00
06001639 GT-036351 Condensing Unit, Complete, R404A Tecumseh 980.00
07000173 GT-035008 1/3 HP Aspera compressor, R404A 450.00
1. 07000151 GT-032203 Start capacitor for 1/3 HP R404A Aspera compressor 25.00
2. 06001675 GT-034115 Relay for 1/3 HP R404A Aspera compressor 15.00
3. 07000127 Overload protector for R404 Aspera compressor 15.00
4. 07000175 GT-035026 1/3 HP Tecumseh compressor, R404A (after 1/00) 375.00
5. 06001380 GT-032206 Start capacitor for 1/3 HP R404A Tecumseh compressor 20.00
07000168 GT-034112 Relay for 1/3 HP R404A Tecumseh compressor 18.00
07000128 GT-031207 Overload protector for 1/3 HP R404A Tecumseh compressor 12.00
6. 06001449 GT-035114 Condenser fan motor, 6W 95.00
7. 06001321 GT-031515 Bracket, condenser fan motor mounting 5.00
8. 07000155 GT-032803 Fan blade, condenser, 5 blade 10.00
9. 07000179 GT-035714 Nut, fan blade mounting 1.00
10. 07000152 GT-032302 Fan shroud, condenser 15.00
11. 06001385 Filter dryer, 1/4" x 1/4" 20.00
12. 06001384 GT-032501 Suction line accumulator 40.00
13. 08000078 GT-032607 Condenser coil 145.00
14. 07000230 GT-038016 Pan, condensate, MF24, MF36 and MF48 (after 1998) 70.00
15. 07000260 GT-038001 Pan, condensate, MF36 and MF48 (prior to 1998) 65.00
16. 08000125 GT-038006 Pan, condensate, MF24 (prior to 1998) 60.00
17. 07000237 GT-038207 Wicking material, consists of 14 - 2 1/2” x 6” pieces, 34.00
MF24, 36 & 48 (after 1998)
18. 07000234 GT-038201 Wicking material, consists of 11 9” pieces, MF36 & MF48 24.00
(prior to 1998)
19. 07000235 GT-038203 Wicking material, consists to 11 4” pieces, MF24 14.00
(prior to 1998)
20. 06001461 GT-035290 Elbow, 1/2” x 1/2” plastic barb 2.00
21. 06001345 GT-031716 Tubing, drain, clear plastic. 1/2” ID x 5/8” OD, per foot 1.45
06001313 GT-031400 Condensing unit power cord 20.00
07000724 Tubing, capillary, .049x64" 20.00

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
8
4
2
5
8
1
evaPorator and related Parts
7
9
3
6
12
10
11
Part no. old Part no. desCriPtion PriCe
1. 07000310 GT-031514 Bracket, evaporator fan motor $14.00
2. 07000134 GT-031516 Temperature control mounting bracket, prior to
SN 404104830N 10.00
3. 07000153 GT-032303 Evaporator fan box back, prior to
SN 404104830N 24.00
07000362 Cover, evaporator back,
SN 404104830N and after 24.00
4. 07000380 Evaporator coil replacement kit 180.00
5. 09000298 GT-032804 Fan blade, evaporator, 5 blade 5.00
6. 07000621 Thermostat, includes knob, plate, and tubing 50.00
7. 07000165 GT-033413 Defrost sensor 26.00
8. 07000169 GT-034704 Defrost heater 60.00
9. 06001445 GT-035107 Fan motor, evaporator 35.00
10. 07000182 GT-036100 Cover, front, evaporator, MF24, MF36, prior to
SN 404104830N 54.00
07000184 GT-036102 Cover, front, evaporator, MF48, prior to
SN 404104830N 54.00
07000364 Cover, front, evaporator, MF24, MF36, MF48,
SN 404104830N and after 54.00
07000183 GT-036101 Cover, bottom, evaporator, MF24, MF36, prior to
SN 404104830N 42.00
07000360 Cover, bottom, evaporator, MF24, MF36,
SN 404104830N and after 42.00
07000185 GT-036103 Cover, bottom, evaporator, MF48, prior to
SN 404104830N 42.00
07000361 Cover, bottom, evaporator, MF48,
SN 404104830N and after 42.00
11. 07000228 GT-037420 Evaporator housing, prior to
SN 404104830N 60.00
07000365 Drain pan, evaporator MF24, MF36,
SN 404104830N and after 60.00
07000366 Drain pan, evaporator MF48,
SN 404104830N and after 60.00
12. 06001573 GT-038725 10-32” x 1/2” thumbscrew (4 required) (2 req prior to
SN 404104830N ) 1.00

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 9
eleCtriCal CoMPonents
1
3
4
2
8
10
12
4
7
6
5
11
9
3
Part no. old Part no. desCriPtion PriCe
1. 06001314 GT-031401 Exterior power cord, 11’ $35.00
07000599 Replacement powercord assembly, 40.00
includes (06001572 01000669 06001314)
2. 07000246 GT-031608 Decal, control module 7.00
3. 06001397 GT-033000 Automatic defrost 32.00
4. 07000156 GT-033001 Manual defrost timer (6 hr) 90.00
5. 01000547 GT-033301 Receptacle, 3 wire, mate-n-lok 1.00
6. 06001634 GT-033302 Receptacle, 6 wire, mate-n-lok 1.50
7. 06001409 GT-033304 Receptacle, compressor 5.00
8. 07000257 GT-033401 Manual defrost switch 20.00
9. 07000166 GT-034105 Evaporator fan relay 40.00
10. 07000171 GT-034907 Manual defrost light, red 10.00
11. 07000176 GT-035519 Wiring harness, control module 50.00
12. 07000227 GT-037419 Control module, complete 400.00

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
10
6789
10
1234
5
Part no. old Part no. desCriPtion PriCe
1. 07000030 GT-031517 10” shelf bracket (MF36 = 1) (MF48 = 2 prior to SN 404104830N ) $6.00
2. 07000029 GT-031518 20” shelf bracket (MF24 = 3) 12.00
07000371 24” shelf bracket (MF48 = 1
SN 404104830N and after) 14.00
3. 07000135 GT-031519 32” shelf bracket (MF36 = 3) 15.00
4. 07000136 GT-031520 44” shelf bracket (MF48 = 3) 18.00
5. 07000159 GT-033104 Shelf, 19-5/8” x 19-5/8” [MF24 = 1 (bottom), 50.00
MF36 = 1 (bottom), MF48 = 2 (bottom)]
6. 07000160 GT-033105 Shelf, 9-13/16” x 19-5/8” [MF24 = 2 (middle), 35.00
MF36 = 2 (middle), MF48 = 2 (middle)]
7. 07000158 GT-033100 Shelf, 4” x 19-5/8” [MF48 = 1 (bottom)] 35.00
8. 07000161 GT-033107 Shelf, 9-13/16” x 12-1/8” 30.00
[MF24 = 2 (top), MF36 = 2 (top), MF48 = 2 (top)]
9. 07000162 GT-033108 Shelf, 12” x 19-5/8” [MF36 = 3 (bottom, middle, top), 40.00
MF48 = 4 (middle, top)]
10. 06001573 GT-038725 10/32” x 1/2” thumbscrew 1.00
Complete Shelf Kits
07000223 GT-036918 Complete shelf kit for MF24 (includes: 1 - 07000159, 180.00
2 - 07000160, 2 - 07000161)
07000224 GT-036919 Complete shelf kit for MF36 (includes: 1- 07000159, 300.00
2 - 07000160, 2 - 07000161, 3 - 07000162)
07000225 GT-036920 Complete shelf kit for MF48 (includes: 2 - 07000159, 425.00
2 - 07000160, 1- 07000158, 2 - 07000161, 4 - 07000162)
shelving and related Parts
MF24 = 1
MF36 = 1
MF48 = 2
MF24 = 2
MF36 = 2
MF48 = 2
MF24 = 0
MF36 = 0
MF48 = 1
MF24 = 2
MF36 = 2
MF48 = 2
MF24 = 0
MF36 = 3
MF48 = 4
19-5/8″
19-5/8″ 19-5/8″
9-13/16″
19-5/8″ 19-5/8″
12-1/8″
4″
9-13/16″
12″
07000159 07000160 07000158 07000161 07000162

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 11
doors, toPs, and related Parts
Part no. old Part no. desCriPtion PriCe
07000129 GT-031311 Gasket, wiper, 24” top, 21-1/2” long $10.00
1. 07000130 GT-031312 Gasket, wiper, 36” top, 33-1/2” long 14.00
07000212 GT-036213 Sliding door, 21”, MF24 120.00
(for permanent breaker strip models, 1993 only)
07000213 GT-036214 Sliding door, 20-3/16”, MF24 126.00
07000261 GT-036215 Sliding door, 33”, MF36 180.00
(for permanent breaker strip models, 1993 only)
2. 07000214 GT-036216 Sliding door, 32-3/16”, MF36 192.00
07000231 GT-038113 Top, MF24 126.00
3. 07000232 GT-038114 Top, MF36 192.00
07000233 GT-038115 Top, MF48 252.00
07000238 GT-038437 Breaker strip, 24” and 48” sliding door opening, 4 pieces 25.00
4. 07000239 GT-038438 Breaker strip, 36” sliding door opening, 4 pieces 35.00
4
2
3
1
Part no. old Part no. desCriPtion PriCe
1. 07000030 GT-031517 10” shelf bracket (MF36 = 1) (MF48 = 2 prior to SN 404104830N ) $6.00
2. 07000029 GT-031518 20” shelf bracket (MF24 = 3) 12.00
07000371 24” shelf bracket (MF48 = 1
SN 404104830N and after) 14.00
3. 07000135 GT-031519 32” shelf bracket (MF36 = 3) 15.00
4. 07000136 GT-031520 44” shelf bracket (MF48 = 3) 18.00
5. 07000159 GT-033104 Shelf, 19-5/8” x 19-5/8” [MF24 = 1 (bottom), 50.00
MF36 = 1 (bottom), MF48 = 2 (bottom)]
6. 07000160 GT-033105 Shelf, 9-13/16” x 19-5/8” [MF24 = 2 (middle), 35.00
MF36 = 2 (middle), MF48 = 2 (middle)]
7. 07000158 GT-033100 Shelf, 4” x 19-5/8” [MF48 = 1 (bottom)] 35.00
8. 07000161 GT-033107 Shelf, 9-13/16” x 12-1/8” 30.00
[MF24 = 2 (top), MF36 = 2 (top), MF48 = 2 (top)]
9. 07000162 GT-033108 Shelf, 12” x 19-5/8” [MF36 = 3 (bottom, middle, top), 40.00
MF48 = 4 (middle, top)]
10. 06001573 GT-038725 10/32” x 1/2” thumbscrew 1.00
Complete Shelf Kits
07000223 GT-036918 Complete shelf kit for MF24 (includes: 1 - 07000159, 180.00
2 - 07000160, 2 - 07000161)
07000224 GT-036919 Complete shelf kit for MF36 (includes: 1- 07000159, 300.00
2 - 07000160, 2 - 07000161, 3 - 07000162)
07000225 GT-036920 Complete shelf kit for MF48 (includes: 2 - 07000159, 425.00
2 - 07000160, 1- 07000158, 2 - 07000161, 4 - 07000162)

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
12
reFrigeration CoMPartMent Covers
Part no. old Part no. desCriPtion PriCe
07000186 GT-036105 Front, black vinyl-clad, MF24 $33.00
07000187 GT-036106 Front, stainless steel, MF24 48.00
07000188 GT-036107 Front, black vinyl-clad, MF36 44.00
07000189 GT-036108 Front, stainless steel, MF36 72.00
1. 07000190 GT-036109 Front, black vinyl-clad, MF48 55.00
07000191 GT-036110 Front, stainless steel, MF48 96.00
07000192 GT-036111 Back, black vinyl-clad, MF24 40.00
07000193 GT-036112 Back, stainless steel, MF24 80.00
07000194 GT-036113 Back, black vinyl-clad, MF36 50.00
07000195 GT-036114 Back, stainless steel, MF36 100.00
2. 07000196 GT-036115 Back, black vinyl-clad, MF48 55.00
07000197 GT-036116 Back, stainless steel, MF48 96.00
3. 07000198 GT-036117 Side, left, black vinyl-clad, all models 40.00
07000199 GT-036118 Side, left, stainless steel, all models 80.00
4. 07000200 GT-036119 Side, right, black vinyl-clad, all models 40.00
07000201 GT-036120 Side, right, stainless steel, all models 80.00
Model MF48
Front view
Rear view
4
1
3
2
Front view

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 13
Installation Notes
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
Original System Installer
Company: _____________________________________________
Address: _____________________________________________
_____________________________________________
City, State, Zip: _____________________________________________
Phone Number: _____________________________________________
Fax Number: _____________________________________________
Contact: _____________________________________________
Part no. desCriPtion PriCe
06001438 Compressor, 1/3 HP, 220/50Hz, R404A $510.00
06001793 Start capacitor, for 1/3 HP R404A and R22 compressor, 220/50Hz 25.00
06001794 Relay, compressor, 1/3 HP, 220V/50Hz, R404A 10.00
06001795 Overload for 1/3 HP R404A compressor, 220/50Hz 15.00
06001451 Motor, condenser fan, 9 watt, 220V 50/60 Hz 120.00
06001448 Motor, evaporator fan, 220V 50.00
07000170 Defrost heater, 220V 115.00
06001398 Defrost timer, automatic, 220V, 50 cycle 32.00
07000157 Defrost timer, manual, 220V, 50 cycle, 6 hour 132.00
01000591 Light, power, green, 220 VAC 6.00
07000167 Relay, evaporator fan, 220V 72.50
220 volt eleCtriCal Parts
