Operation Manual, Parts Directory and Price List
MFV24
Reach-InMug chIlleRs
MFV24-SS(L)
with optional casters
Rev 08-26-08

InstallatIon
Introduction.............................................................................. 1
Utility requirements and connections ...................................... 1
Uncrating and start-up instructions.......................................... 1
Operation.................................................................................. 1
Cleaning instructions ............................................................... 2
Floor sealing instructions......................................................... 2
Electrical and refrigeration specifications ...............................2
servIce and Parts
Terms and Conditions .............................................................. 3
Warranty statement .................................................................. 3
WIrIng dIagram.......................................................................... 4
Parts and servIce

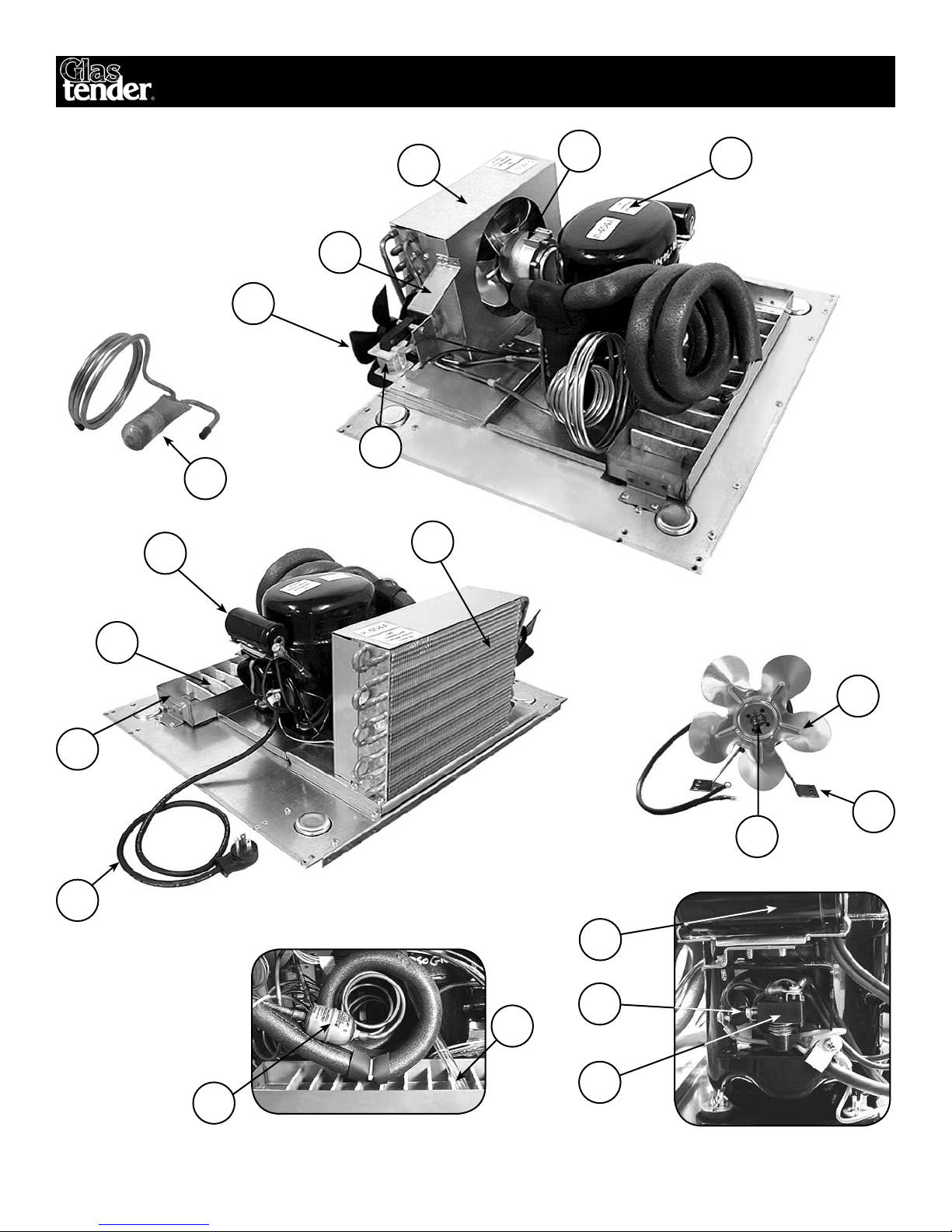

Compressor and condenser related parts ..............................5-6
Evaporator and related parts .................................................... 7
Electrical components.............................................................. 8
Shelving and related parts........................................................ 9
Doors, tops and related parts ................................................. 10
Refrigeration compartment covers ........................................ 11
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
Index

1
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
InstallatIon
IntroductIon
This manual describes the operational features of the Reach-In Mug Chiller model MFV24. Please review this information
before attempting installation and operation.
Long term, trouble-free service will follow if good housekeeping and maintenance procedures are followed. Thank you for
selecting Glastender, Inc. products.
utIlIty requIrements and connectIons
• Electrical: 115 Volt AC, 1 Phase, 60 Hz, 8.55 Full Load Amps. A separate 15 Amp circuit is recommended. A 6-foot
grounded cord is included.
• Plumbing: Automatic condensate evaporator is included. No drain connection required.
uncratIng and start-uPInstructIons
All Reach-In Mug Chiller models are shipped in one carton. These steps should be followed:
1. If legs or casters are included, bolt them to the base with the bolts provided.
2. Unwrap power cord from base.
3. Position the Reach-In Mug Chiller and level and/or seal as required (see page 2).
4. Install shelves.
5. Plug into 115 volt AC outlet.
6. Load with mugs, glasses, plates, etc.
7. Your Glastender Reach-In Mug Chiller is now ready for use.
oPeratIon
The Reach-In Mug Chiller is designed to chill mugs, glasses, plates, etc. that will appear “frosted” when removed. The operating
temperature range of 0°F(-18°C) to 35°F(2°C).
The Reach-In Mug Chiller should be filled with dry, room-temperature mugs, glasses, plates, etc. to allow maximum chilling.
During business hours, the Reach-In Mug Chiller can be loaded with additional dry, room-temperature mugs, glasses, plates,
etc. Allow 30 minutes for chilling.
The Reach-In Mug Chiller includes an automatic defrost system. Defrosting will occur every six hours for approximately 20
minutes. During the defrost cycle, the fan inside the Reach-In Mug Chiller will turn off and a small amount of mist may appear
if the door is opened.
There is also a manual defrost system controlled by a switch located on the front left bottom of the Reach-In Mug Chiller. This
is used when there is ice or snow accumulation inside. An end-of-the-day or weekly schedule can be established for the activa-
tion of this manual defrost cycle.
When the manual defrost switch is pushed, a light will turn on and the Reach-In Mug Chiller will go into a six-hour defrost.
After six hours, the Reach-In Mug Chiller will resume normal operation.
If the manual defrost switch is accidentally pushed, the defrost cycle can be terminated by unplugging the power cord for
three seconds.

electrIcal and refrIgeratIon sPecIfIcatIons
cleanIng InstructIons
Cleaning is essential to sustaining the integrity of your equipment and preventing corrosion.
ESTIMATED CLEANING TIME: 5 to 10 minutes per unit daily, 45 minutes quarterly
FREQUENCY: Daily cleaning of exterior & door gaskets. Quarterly cleaning of interior, including shelves.
PROCEDURE:
1. A non-chlorine based cleaner or mild detergent and warm water applied with a soft cloth or sponge to all contact surfaces.
2. Immediately rinse off cleaning agent(s), using clean warm water, clean soft cloth or sponge.
3. Dry with a soft clean cloth, removing standing water as soon as possible.
NOTES:
1. Never use hydrochloric acid, wire brushes, steel wool, scrapers, or chlorine based cleaners on stainless steel surfaces,
since they will break down the passivity layer and allow corrosion to occur.
2. On stainless steel surfaces, you may use a soft bristle brush or Scotch-Brite®pad for more stubborn stains. Always
scrub with the direction of the grain. Follow with a thorough cleaning as described above.
3. Deposits from food preparation must be properly removed. Even hard water deposits will rust stainless steel, if
not removed.
4. Repeated cleaning may dry up black-vinyl-clad steel (exterior) surfaces of the cooler. Armor All®or similar product
can bring back the shine. Apply the product to a cloth and then rub into the surface, rather than spraying it directly onto
the black-vinyl-clad surface.
5. The cooler door gaskets are most often overlooked when cleaning. Failure to clean them regularly will lead to prema-
ture failure, since alcohol and moisture build-up breaks down the gasket material.

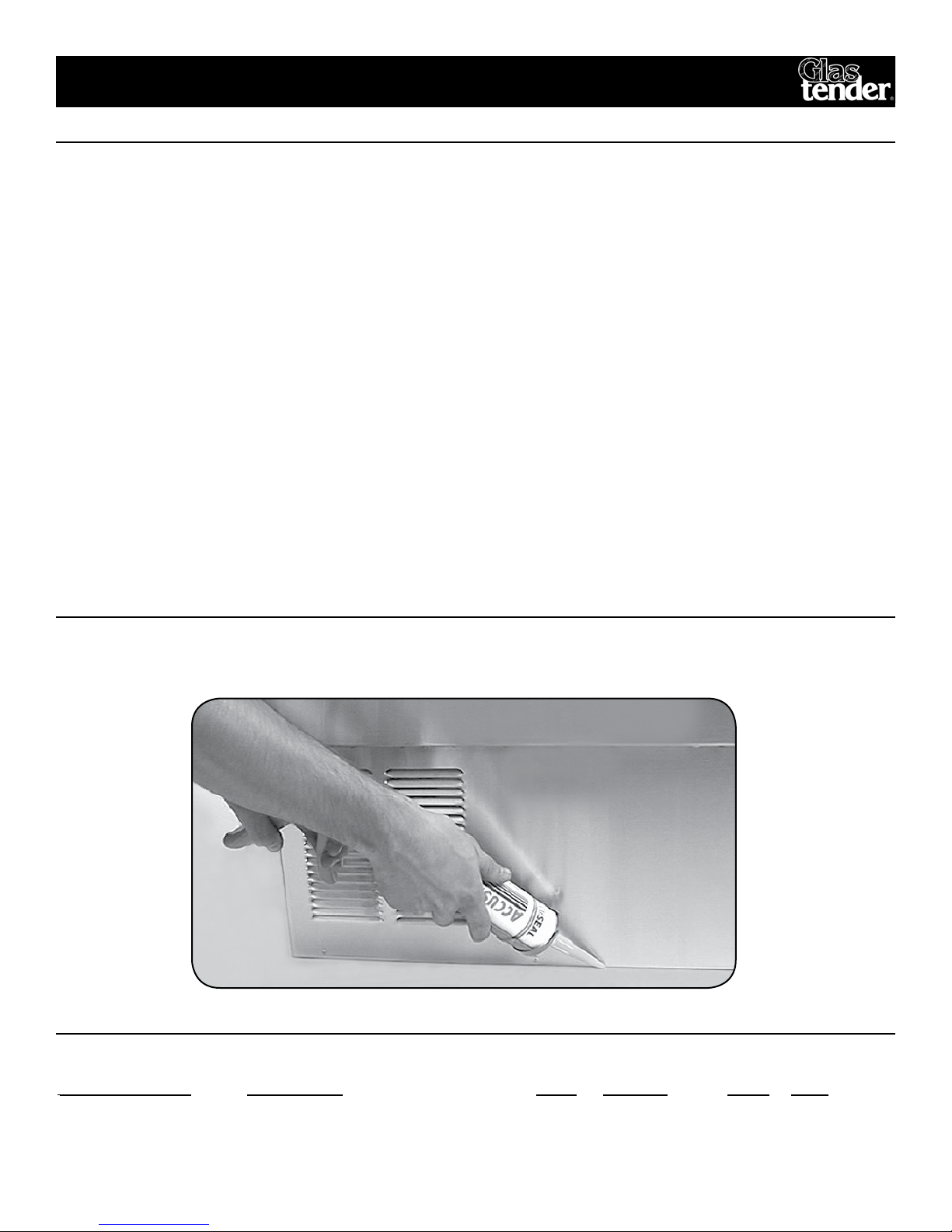

sealIng reach-Inmug chIller Base to floor
To comply with NSF & health codes. The Reach-In Mug Chiller base must be sealed to the floor using NSF listed sealant.
Place a bead of sealant along outer edges of the base and remove excess with disposable towel.
2
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
InstallatIon
desIgn
model refrIgerant Pressure
(L-to-R length) electrIcal tyPe charge hIgh loW
24” 115V, 1Ph., 60 Hz., 8.55 Amp R404A 9.75oz. 350 175

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
3
PrIces:
All prices are LIST. Applicable taxes will be added.
quotatIons:
Unless otherwise stated, quotations are effective for 30 days only.
accePtance:
All orders are subject to acceptance by Glastender, Inc.’s headquarters
in Saginaw, Michigan. Possession of the Parts Directory and Price List
is not an offer to sell.
shIPments:
F.O.B. factory in Saginaw, Michigan. Partial shipments will be made
unless otherwise specified by the customer. Orders are shipped via UPS
or DHL unless otherwise specified.
Payment terms:
Cash should be included with all orders unless credit terms have been
arranged. To establish credit, banking and trade references are required.
A convenient credit application is available upon request. Visa and
Mastercard are also accepted.
delIvery:
Varies according to prior production commitments, but parts orders
generally ship within two working days.
returns:
A Return Authorization (RA) number must be issued by the factory in
advance for any items that are returnable. The RA number MUST be
noted on the outside of the returned package. Returns must be received
within 90 days of the RA issue date. Shipping charges must be prepaid.
A 20% handling charge will be applied to all authorized returns if
received in new, unused condition in the original packaging.
loss or damage:
Glastender, Inc. is not responsible for any loss, damage, or delay of
merchandise during shipment. Such transit claims must be filed with
the carrier. Merchandise must be examined on arrival. If shortages
occur, Glastender, Inc. must be notified in writing within five (5) days
of delivery to honor any shortage claim.
NOTE: Glastender, Inc.’s policy of constant quality improvement means
that prices, specifications, and policies are subject to change without
notice.
IMPORTANT!!
Attention Refrigeration Service Companies
Please review the important warranty information on this page. If you believe a
service call should be covered by the factory, please call the factory for authorization
between 8AM and 5PM EST, Monday through Friday.
terms and condItIons
Warranty statement
LABOR: Glastender, Inc. warrants all products to be free of defects in
material and workmanship. In established areas, a start-up and a 90-
day labor warranty are included with glasswasher models GT-24 and
GT-30. The GT-18 series glasswashers include a 90-day labor warranty.
Self-contained refrigeration models, except beer line chillers, include a
1-year labor warranty, for the duration of one year from date of instal-
lation or up to 18 months from date of factory shipment, whichever
occurs sooner. For warranty labor claims beyond 15 months from the
date of factory shipment, proof of date of installation or occupancy must
be provided. Authorization for labor must be obtained from Glastender
within the warranty period and prior to the service being performed.
Labor warranty applies to the United States and Canada only.
PARTS: Within one year from date of installation, or 15 months from
date of factory shipment, whichever occurs sooner, Glastender, Inc.
will replace any part or assembly found defective under normal use and
service. Field replacement parts include a warranty of 90 days from date
of installation. All self-contained refrigeration models include a 5-year
compressor warranty.
A warranty claim form MUST accompany all returned defective parts or
assemblies. This form MUST be completed in full. Failure to do so may
result in delay or denial of credit. Any defective part or assembly must
be returned to Glastender, Inc., Saginaw, Michigan, with all transporta-
tion and delivery charges prepaid. Warranty repairs or replacements will
be shipped FOB factory in Saginaw, Michigan.
The warranty does not cover equipment subjected to accidents, freight
damage, alterations, improper power and/or plumbing hookups, improp-
er chemical use, general misuse, or lack of routine required maintenance
as determined by Glastender, Inc.
No representative, distributor, dealer, or any other person is authorized
to modify this warranty. This warranty replaces all other written or
verbal warranties.
NOTE: Glastender, Inc.’s policy of constant quality improvement
means that prices, specifications, and policies are subject to change
without notice. Questions regarding this warranty should be directed to
Glastender’s Customer Service Representative.
03/01/07

4
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
WIrIng dIagram
10
11
2
1
14
15
6
13
5
12
8
7
9
3
5
4
6
16
3
Mug Froster
MFV Wiring
BL
O = Orange
W/R = White W/ Red
W = White
P = Purple
R = Red
P
BR = Brown
BL = Blue
B = Black
LEGEND
4
3
2
1
P
RECOMMENDED
15 AMP. SERVICE
115 VOLT
POWER
NEUTRAL
B
B
GROUND
W
P
P
5
W/R
P
B
7
A
2
5
W
115V, Single Phase, 60Hz, 3 wire.
Condensing Unit Fan Motor
TOTAL AMPS
Evaporator Fan Motor
Compressor
All wires are 16 Gauge
8.85
.53 AMP
.82 AMP
7.60 AMP
ELECTRICAL RATINGS
W
1/26/95
COMPRESSOR WIRING
C
M
W
M
S
B
1
2
M3
1
4
2R
OPENS ABOVE +45°F
BR
O O
OVERLOAD PROTECTOR,1/3hp R404a, TECUMSEH12
FAN BLADE, CONDENSER,5 BLADE
RELAY, 1/3hp R404a,TECUMSEH COMPRESSOR
START CAPACITOR, 1/3hp R404a,TECUMSEH COMPRESSOR
13
14
15
W
W
W
DEFROST HEATER, 115v
SWITCH,MANUAL DEFROST,START AND CYCLETEST
MANUAL DEFROST TIMER, 6 HOUR
COMPRESSOR,1/3 hp,R404a, (TECUMSEH) AFTER 01/2002
CONDENSER, FAN MOTOR, 6W
SENSOR, DEFROST
DEFROST TIMER, AUTOMATIC, 115v 6-HOUR, PARAGON
MOTOR, EVAPORATOR FAN, 115v
TEMPERATURE CONTROL W/KNOB
RELAY, EVAPORATOR FAN,115v,MUG FROSTER
9
10
11
5
6
8
7
3
4
2
W
W
W
W
LIGHT, MANUAL DEFROST, RED, 125v1
ITEM DESCRIPTION
07000128
07000155
06001380
07000168
07000156
07000257
07000169
07000165
06001397
07000175
06001449
06001445
07000276
07000166
07000171
MT#
GT-033000
GT-034112
GT-031207
GT-032206
GT-032803
GT-033413
GT-033001
GT-033401
GT-034704
GT-035107
GT-035114
GT-035026
GT-034105
GT-034907
GT#
W
B
HEATER
GLASS DOOR
OPTIONAL
FOR MFV-24
16 EVAPORATOR FAN BLADE,5 BLADE, BLACK GT-032804 09000298
P

22
1
9
13
5
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
16
2
3
4
comPressor and condenser related Parts
12
10
18
2
20
19
17
23
21
15
14
11

comPressor and condenser related Parts
6
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
7
8
5
6
Tecumseh 1/3 HP Compressor
Tecumseh 1/3 HP Compressor
Part no. old Part no. descrIPtIon PrIce
1. 07000173 GT-035008 1/3 HP Aspera compressor, R404A (prior to 01/00) $450.00
2. 07000151 GT-032203 Start Capacitor, Aspera 1/3 HP R404A compressor 25.00
3. 06001414 GT-034103 Relay for 1/3 HP Aspera, R404A compressor 14.00
4. 07000127 GT-031205 Overload protector, Aspera 1/3 HP R404A compressor 12.00
5. 07000175 GT-035026 1/3 HP Tecumseh compressor, R404A (after 01/00) 375.00
6. 06001380 GT-032206 Start Capacitor, for Tecumseh 1/3 HP R404A compressor 20.00
7. 07000168 GT-034112 Relay for Tecumseh 1/3 HP R404A compressor 18.00
8. 07000128 GT-031207 Overload protector, for Tecumseh 1/3 HP R404A compressor 12.00
9. 06001449 GT-035114 Motor, condenser fan, 6W 95.00
10. 07000155 GT-032803 Fan blade, condenser, 5 blade (metal) 10.00
11. 06001321 GT-031515 Bracket, condenser fan motor mounting (metal) 5.00
12. 07000179 GT-035714 Nut, condenser fan blade mounting 1.00
13. 07000152 GT-032302 Fan shroud, condenser 15.00
14. 06001445 GT-035107 Motor, circulation fan 35.00
15. 09000298 GT-032804 Fan blade, circulation fan, five blade (black plastic) 5.00
16. 07000133 Bracket, circulation fan motor 20.00
17. 06001384 GT-032501 Suction line accumulator 40.00
18. 08000078 GT-032607 Condenser coil 145.00
19. 08000125 GT-038006 Pan, condensate 60.00
20. 07000235 GT-038203 Wicking material, 4”, consists of 11 pieces 14.00
21. 06001345 GT-031716 Tubing, drain, clear plastic, 1/2” ID x 5/8” OD, per foot 1.45
22. 06004028 Filter dryer with service port 25.00
23. 06001313 GT-031400 Condensing unit power cord 20.00

7
4
10
14
3
7
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
evaPorator and related Parts
9
2
5
815
13
11
12
Part no. old Part no. descrIPtIon PrIce
07000380 Evaporator coil replacement kit, prior to SN 404105086N $180.00
1. 07000504 Evaporator coil SN 404105068N and after 160.00
2. 06001445 GT-035107 Fan motor, evaporator 35.00
3. 07000310 GT-031514 Bracket, evaporator fan motor 14.00
4. 09000298 GT-032804 Fan blade, evaporator, 5 blade (black plastic) 5.00
5. 07000153 GT-032303 Evaporator fan box back, prior to
SN 404105086N 24.00
6. 07000362 Evaporator fan box back,
SN 404105086N and after 24.00
7. 07000134 GT-031516 Temperature control mounting bracket, prior to SN 404105086N 10.00
8. 07000276 Temperature control, includes knob, 0°F to 35°F operating range 50.00
9. 07000165 GT-033413 Defrost sensor 26.00
10. 07000169 GT-034704 Defrost heater 60.00
11. 07000228 GT-037420 Evaporator housing, prior to SN 404105086N 60.00
07000365 Evaporator housing, SN 404105086N and after 60.00
12. 07000141 GT-031549 Evaporator mounting bracket 12.00
13. 07000182 GT-036100 Cover, front, evaporator, prior to SN 404105086N 54.00
07000364 Cover, front, evaporator, SN 404105086N and after 54.00
07000183 GT-036101 Cover, bottom, evaporator, prior to SN 404105086N 42.00
07000360 Cover, bottom, evaporator, SN 404105086N and after 42.00
14. 07000154 GT-032508 Cap tube, .036” x 60” 20.00
15. 06001574 GT-038833 10-32” x 1/2” thumbscrew (4 required) (2 req prior to
SN 404105086N ) 1.50
1
6
Unit prior to
SN 404105086N
SN 404105068N
and after

8
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
electrIcal comPonents
1
93
4
2
8
10
12
4
7
6
5
11
9
3
Part no. old Part no. descrIPtIon PrIce
1. 06001314 GT-031401 Exterior power cord, 11’ $35.00
07000599 Replacement powercord assembly, 40.00
includes (06001572 01000669 06001314)
2. 07000246 GT-031608 Decal, control module 7.00
3. 06001397 GT-033000 Automatic defrost 32.00
4. 07000156 GT-033001 Manual defrost timer (6 hr) 90.00
5. 01000547 GT-033301 Receptacle, 3 wire, mate-n-lok 1.00
6. 06001634 GT-033302 Receptacle, 6 wire, mate-n-lok 1.50
7. 06001409 GT-033304 Receptacle, compressor 5.00
8. 07000257 GT-033401 Manual defrost switch 20.00
9. 07000166 GT-034105 Evaporator fan relay 40.00
10. 07000171 GT-034907 Manual defrost light, red 10.00
11. 07000176 GT-035519 Wiring harness, control module 50.00
12. 07000227 GT-037419 Control module, complete 1,090.00

9
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
4
5
shelvIng and related Parts
MFV24 = 2 MFV24 = 1
Entire Shelving kits for: MFV24 = 07000226
3
2
1
Part no. old Part no. descrIPtIon PrIce
1. 07000139 GT-031547 8” shelf bracket (2 required) $10.00
2. 07000140 GT-031548 14” shelf bracket (2 required) 16.00
3. 07000159 GT-033104 Shelf, 19-5/8” x 19-5/8”, bottom & middle (2 required) 40.00
4. 07000160 GT-033105 Shelf, 9-13/16” x 19-5/8”, top (1 required) 35.00
07000226 GT-036943 Shelf kit (07000159 = 2, 07000160 = 1) 115.00
5. 06001574 GT-038833 10-32” x 1/2” thumbscrew, ss 1.50

10
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
doors, toPs, and related Parts
3
2
1
7
4
5
6
Part no. old Part no. descrIPtIon PrIce
1. 06001462 GT-035402 Door handle, mirror finish stainless steel $60.00
06001653 GT-035401 Door handle, polished brass 110.00
07000218 GT-036260 Door, black vinyl-clad 308.00
2. 07000219 GT-036261 Door, stainless steel 408.00
07000220 GT-036262 Door, unlaminated 308.00
07000221 GT-036263 Door, laminated 440.00
07000372 Door, heated black vinyl-clad glass, right hinge 926.00
07000373 Door, heated black vinyl-clad glass, left hinge 926.00
07000374 Door, heated stainless glass, right hinge 1082.00
07000375 Door, heated stainless glass, left hinge 1082.00
07000376 Door, heated laminated glass, right hinge 1058.00
07000377 Door, heated laminated glass, left hinge 1058.00
3. 06001710 GT-038121 Top, stainless steel 240.00
07000265 GT-038122 Top, laminated 385.00
06001536 GT-036602 Door lock, stainless 36.00
06004009 Key, #806, for stainless cooler door lock (06001536) 4.00
06001535 GT-036601 Door lock, brass 43.00
06004010 Key, #606, for brass cooler door lock (06001535) 4.00
4. 07000356 Lock bracket 5.00
5. 06001363 GT-032105 Hinge set and brackets, right (complete with screws) 35.00
06001364 GT-032106 Hinge set and brackets, left (complete with screws) 35.00
07000267 GT-032109 Lock bracket for wood door 5.00
06001365 GT-032107 Hinge set and brackets, for wood door, right 40.00
(complete with screws)
07000268 GT-032108 Hinge set and brackets, for wood door, left 40.00
(complete with screws)
6. 06001569 GT-038495 Bushing, cooler door hinge, (black) 1.00
7. 06001485 GT-036012 Washer, nylon, cooler door hinge 1.00
8. 07000131 GT-031325 Gasket, door, 22-7/16” x 22-13/16” 42.00
8

11
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com

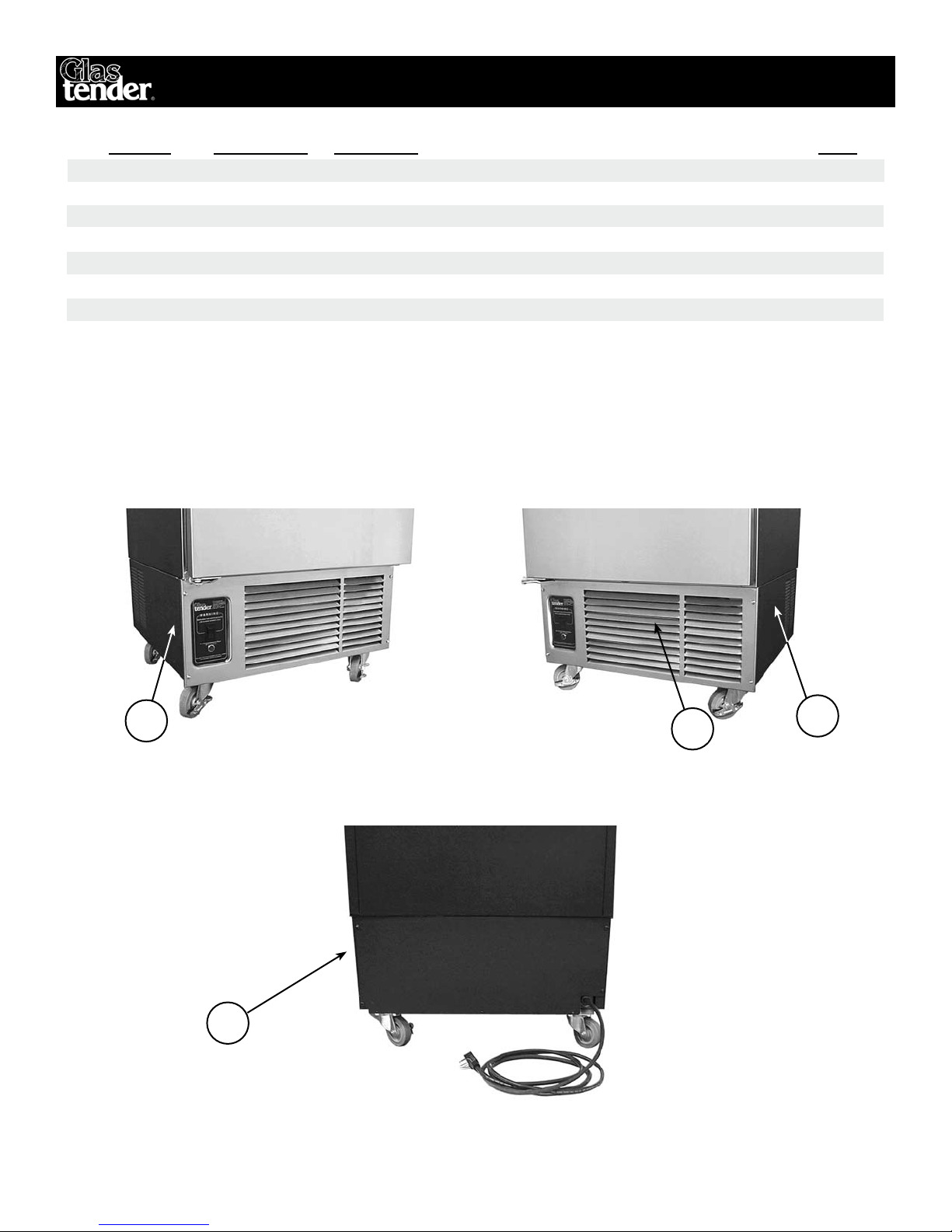

refrIgeratIon comPartment covers
Front view
Rear view
4
1
3
2
Front view
Part no. old Part no. descrIPtIon PrIce
07000204 GT-036163 Front, black vinyl-clad $28.00
1. 07000205 GT-036165 Front, stainless steel 42.00
2. 07000206 GT-036166 Back, black vinyl-clad 28.00
07000207 GT-036167 Back, stainless steel 42.00
3. 07000209 GT-036169 Side, left, stainless steel 36.00
07000210 GT-036170 Side, left, black vinyl-clad 22.00
4. 07000211 GT-036171 Side, right, stainless steel 36.00
07000208 GT-036168 Side, right, black vinyl-clad 22.00

Expect more
more flexibility
more features
Glastender has the most complete line of bar equipment and
the ability to manufacture custom units, giving you virtually
unlimited design exibility. Each piece of equipment is
engineered with features that enhance your efciency, ease
your maintenance, and prolong the life of your investment.
The exibility you want. The features you need.
Glastender. Expect more.
UNPARALLELED UNDERBAR DESIGN & ENGINEERING
GLASSWASHERS • COCKTAIL STATIONS • COOLERS • FROSTERS • BEER SYSTEMS
