GLIDEAWAY Comfort Base Lifestyle Series User manual

PRELUDE
Base
Comfort
®
Lifestyle Series
OWNER MANUAL

1
Safety Information ...........................................................................2
What Is Included ...............................................................................5
Assembly - Base ...............................................................................6

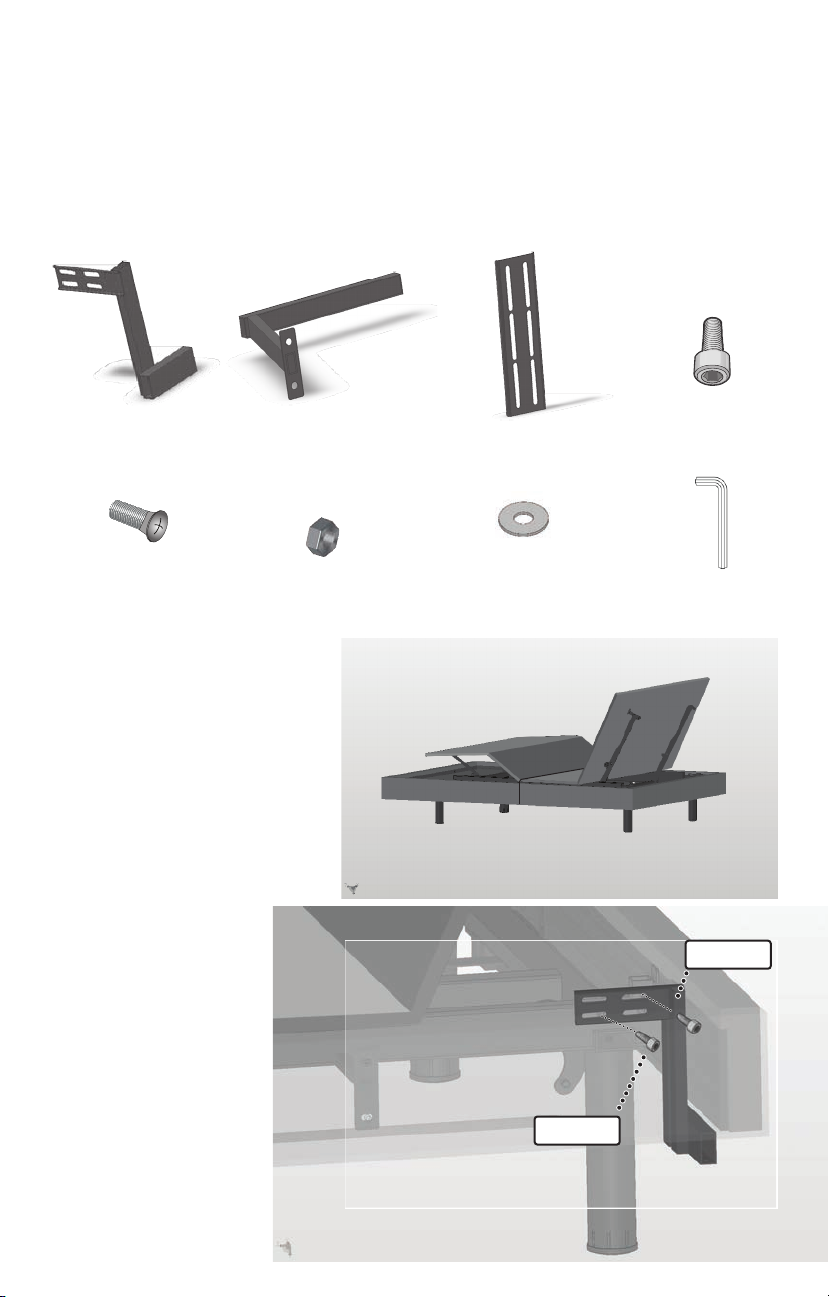

Assembly - Head Board Bracket ................................................14
Location of Controls - Remote ..................................................16
Operation - Main ...........................................................................17
Troubleshooting .............................................................................18

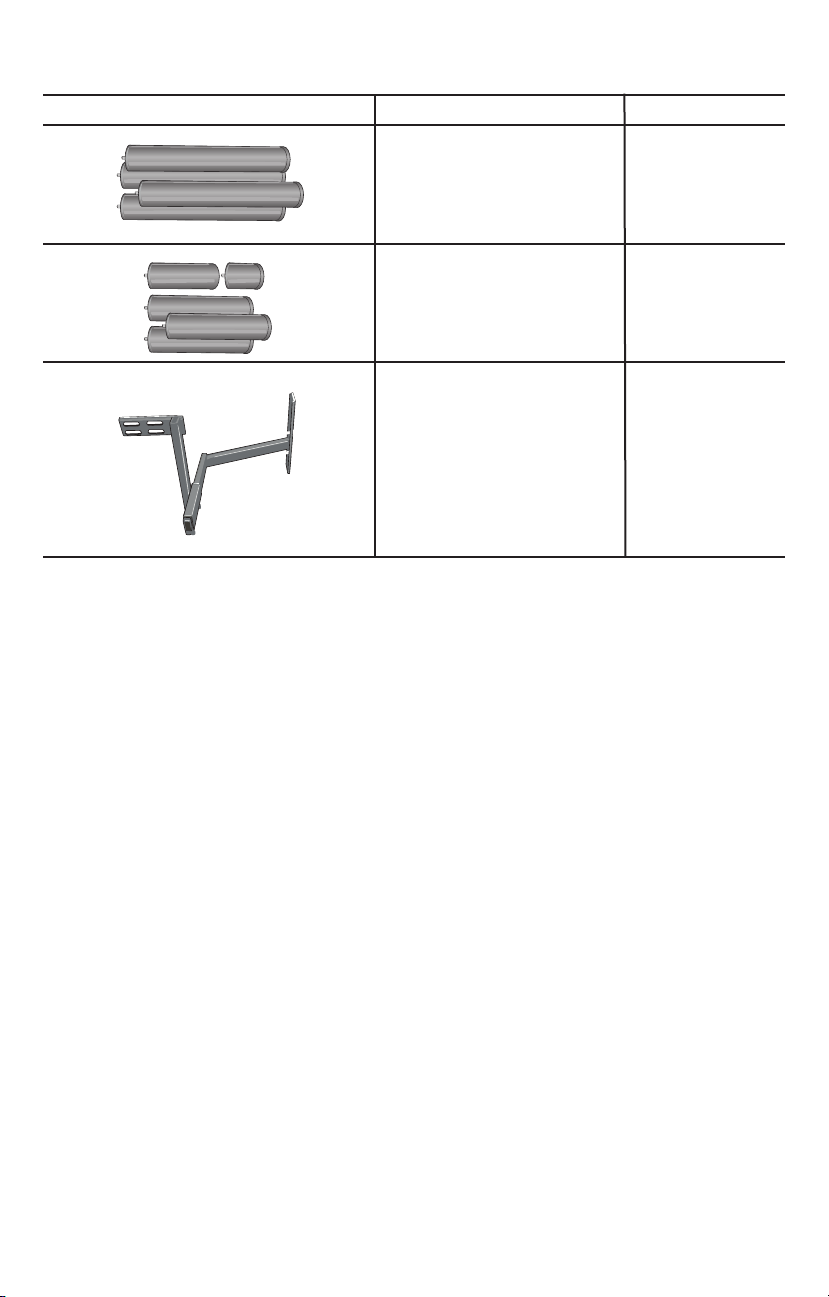

Available Accessories ....................................................................19
Specifications..................................................................................19
Technical Assistance .....................................................................19
Service Requirements ..................................................................19
Cleaning ...........................................................................................19
Warranty ..........................................................................................21
Registration .....................................................................................22
Contents
User Info
Please take a moment and write down the serial number in the space provided below, in
case you need to refer to it in the future. This information can be found by raising the
head section of the bed.
SKU: CB075
Serial Number ________________________________________________________
This number will be required for future service claims.

2
SAFETY INFORMATION
ATTENTION!
IMPORTANT SAFETY INSTRUCTIONS. SAVE THIS MANUAL!
PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE USING
THIS PRODUCT. PROPER OPERATION OF YOUR ADJUSTABLE BED IS
NECESSARY TO ENSURE THE LONG LIFE AND DURABILITY YOU
EXPECT FROM A HIGH-QUALITY PRODUCT. THE MANUFACTURER
HAS TESTED AND INSPECTED THIS PRODUCT PRIOR TO SHIPMENT.
ELECTRICAL SAFETY
Always unplug this adjustable bed from the electrical outlet before any cleaning or
maintenance of the adjustable bed. To safely disconnect, remove the plug from the outlet.
Keep cord away from heated surfaces. Use only indoors.
Discontinue use of this adjustable bed and contact the manufacturer for repair if:
(1) it has a damaged cord or plug, (2) it is not working properly, or (3) it has been dropped
or damaged.
FOR OPTIMAL SAFETY, YOUR ADJUSTABLE BED SHOULD BE PLUGGED INTO A SURGE
PROTECTOR (not supplied with this adjustable bed).
BATTERY PRECAUTIONS
Follow these precautions when using batteries in this device:
1. Warning – Danger of explosion if battery is incorrectly replaced. Replace only with the
6LR61 9V batteries.
2. Be sure to follow the correct polarity when installing the batteries as indicated in the
battery compartment. A reversed battery may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline, Rechargeable and
Carbon-zinc) or old batteries with fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to prevent
damage or injury from possible battery leakage.
5. Do not try to recharge a battery not intended to be recharged; it can overheat and
rupture. (Follow battery manufacturer’s directions.)
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO MOISTURE.

3
SAFETY INFORMATION
WARRANTY WARNING!
This bed is specifically designed to require no maintenance by you, the user. Any opening
or tampering with the control box, motors or hand controls (with the exception of
the battery compartment, if equipped) will void the warranty. Do not attempt to alter
component wiring or adjust or modify the structure of the product in any way or the
warranty will be void. Only those authorized may conduct repairs or part replacement on
your adjustable bed.
IN-HOME USE ONLY
This adjustable bed is designed exclusively for in-home use.
HOSPITAL/MEDICAL DISCLAIMER: This base is NOT designed for hospital or medical use
(In-Home or Commercial) and is NOT designed to meet medical or hospital standards. Do
not use this base with TENT TYPE oxygen therapy equipment or use near explosive gases.
PRODUCT RATINGS
Lift Motor Restrictions: The lift motors in this bed are NOT designed to operate
continuously for more than one (1) minute over an eight (8) minute time period, or
approximately 12% duty cycle. To ensure reliable functionality and full life of this product,
do not attempt to exceed these limits.
NOTE: Attempting to circumvent or exceed this rating will shorten the life expectancy
of the product and may void the warranty.
Weight Restrictions: The recommended weight limits on our adjustable beds are:
Queen: 600 lb Full/XL: 500 lb Twin/XL: 400 lb (800 lb if using two twins as a King)
The structure of the bed will support the recommended weight when distributed evenly
across the bed.
The head and foot sections are not designed to individually support or lift this
amount of weight.
For optimal performance and integrity of structure, entering and exiting the adjustable bed
with the bed in the flat position is recommended.
NOTE: Exceeding the recommended weight restrictions could damage your
adjustable bed and void your warranty.

4
SAFETY INFORMATION
SMALL CHILDREN AND PETS WARNING
Immediately dispose of all packing materials as they can pose a smothering risk to small
children and pets. Injury could also occur if children or pets are permitted to play on or
under the bed. Do not allow children to operate this bed without adult supervision.
LUBRICATION AND CLEANING
This product is designed to be maintenance-free. The lift motors are permanently
lubricated and sealed — no additional lubrication is required. Do not apply lubricant to lift
motor lead screws or any nylon nuts or the base may inadvertently creep downward from
the elevated position.
LIFT WARNING
DO NOT SIT ON THE HEAD OR FOOT SECTIONS WHILE IN THE RAISED POSITION, OR
DURING LIFT OR LOWERING CYCLES.
MOVING AFTER INSTALLATION
Do not place adjustable bed base vertically on its head or foot sections. This may cause
injury to persons or damage to base.
WARNING!
To reduce the risk of burns, fire, electric shock, or injury to persons:
• Unplug from outlet before putting on or taking off accessories.
• Close supervision is necessary when this base is used by, or near children, invalids,
disabled persons, or pets.
• Use this base only for its intended use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
• Never operate this base if it has a damaged cord or plug, is not working properly, has
been dropped or damaged, or dropped in water.
• Keep the cord away from heated surfaces.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or where oxygen is
being administered.
• To disconnect, remove plug from outlet.
• DO NOT USE NEAR PEOPLE USING OR WEARING MEDICAL DEVICES. FOR
HOUSEHOLD/RESIDENTIAL USE ONLY.

5

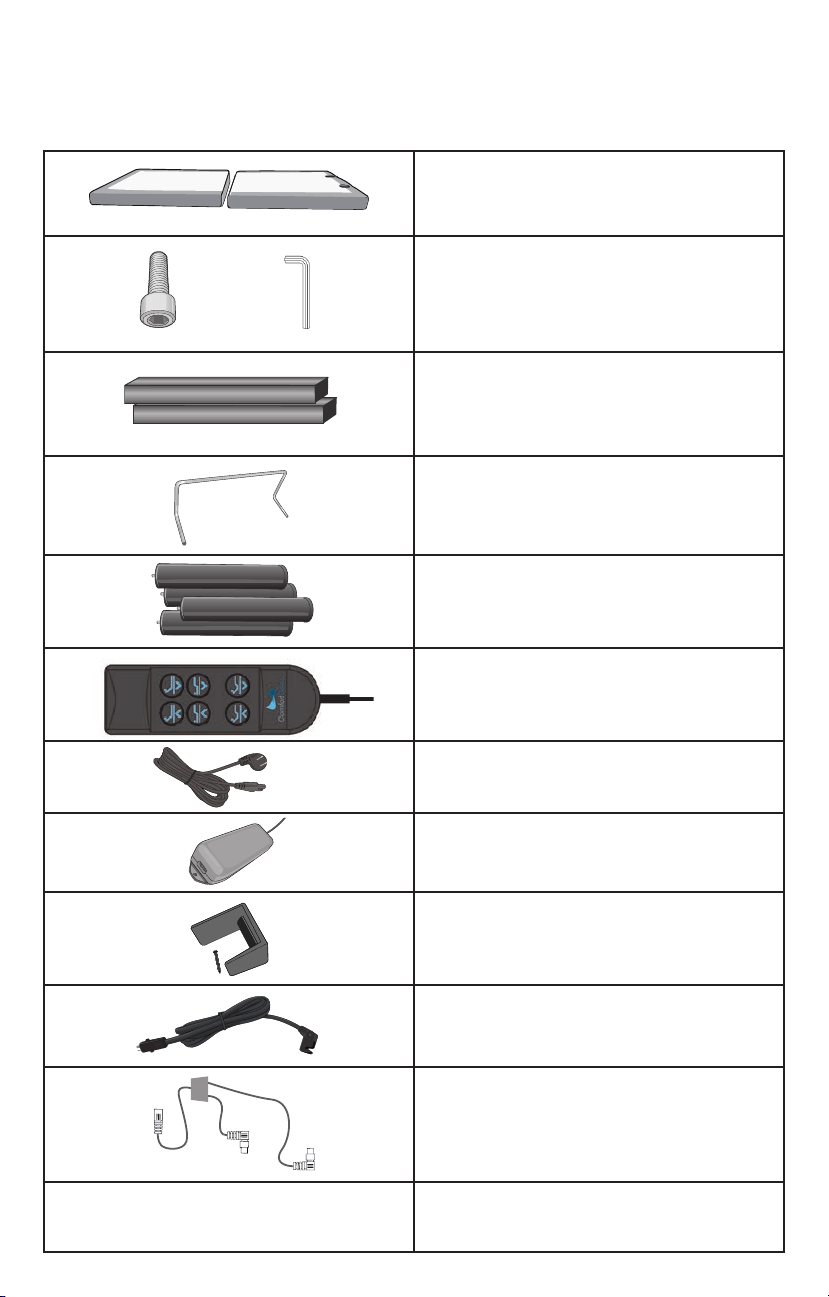

WHAT IS INCLUDED
Before discarding any packing materials, check the adjustable base shipping carton and
verify the following items are included:
(2) Base Pieces
(8) Hex Bolts with (1) Allen Key
(2) Connecting Rods
(1) Foot Mattress Retainer
(4) Legs
(1) Remote Control
(1) AC Cord
(1) Power Supply
(1) Remote Clip and Screw
(1) DC Power Cord
(1) Y-Cable (Twin XLs only)
*For connecting two Twin size beds to
form a King.
Also included:
(2) 9V Batteries (1) Owner’s Manual
x8

6
ASSEMBLY - BASE
It is HIGHLY recommended to use two people for the installation of this product. To
assemble, please perform the following steps:

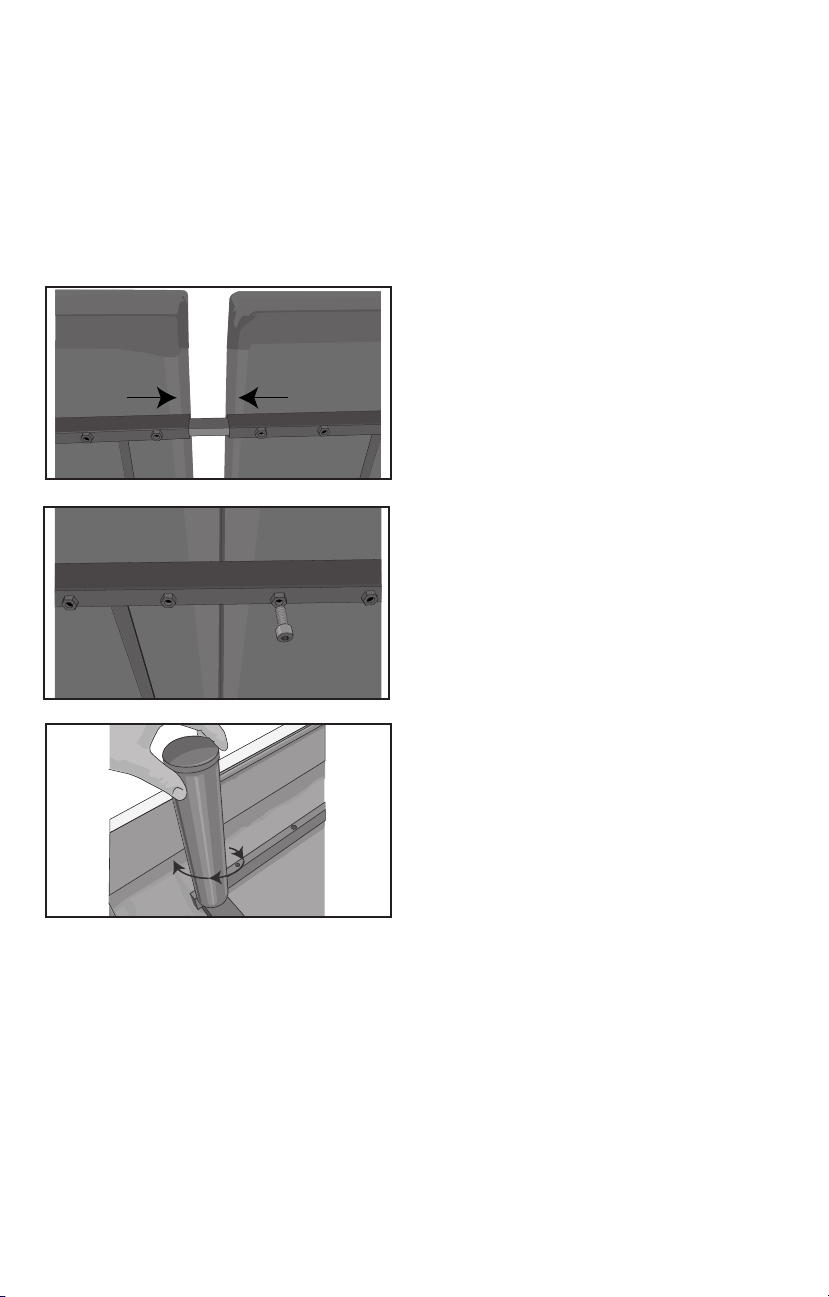

1 Carefully lift both Base Pieces from the shipping carton, keeping the unit’s top-
side down. Remove the plastic wrapping
from the bottom to access the bases.
2 Insert the Connecting Rods into one of the Base Pieces and then slide the other
Base Piece onto the Connecting Rods as
shown.
3 Secure the Base Pieces to each other using the eight hex bolts (four hex bolts
for each Connecting Rod) making sure to
hand tighten each and then tighten 1/4
turn more, as over-tightening could cause
damage to the frame or Connecting Rod.
4 Insert the legs into the threaded holes at each corner of the base by inserting
the leg and rotating clockwise until tight.
There must not be any gap or wobble
in the leg in order to avoid risk of injury
or damage to the base which may void
warranty.
See the diagram on the following page when
assembling one Base.
See the diagram on page 8 when connecting
two Twin XL bases to form a King.

7

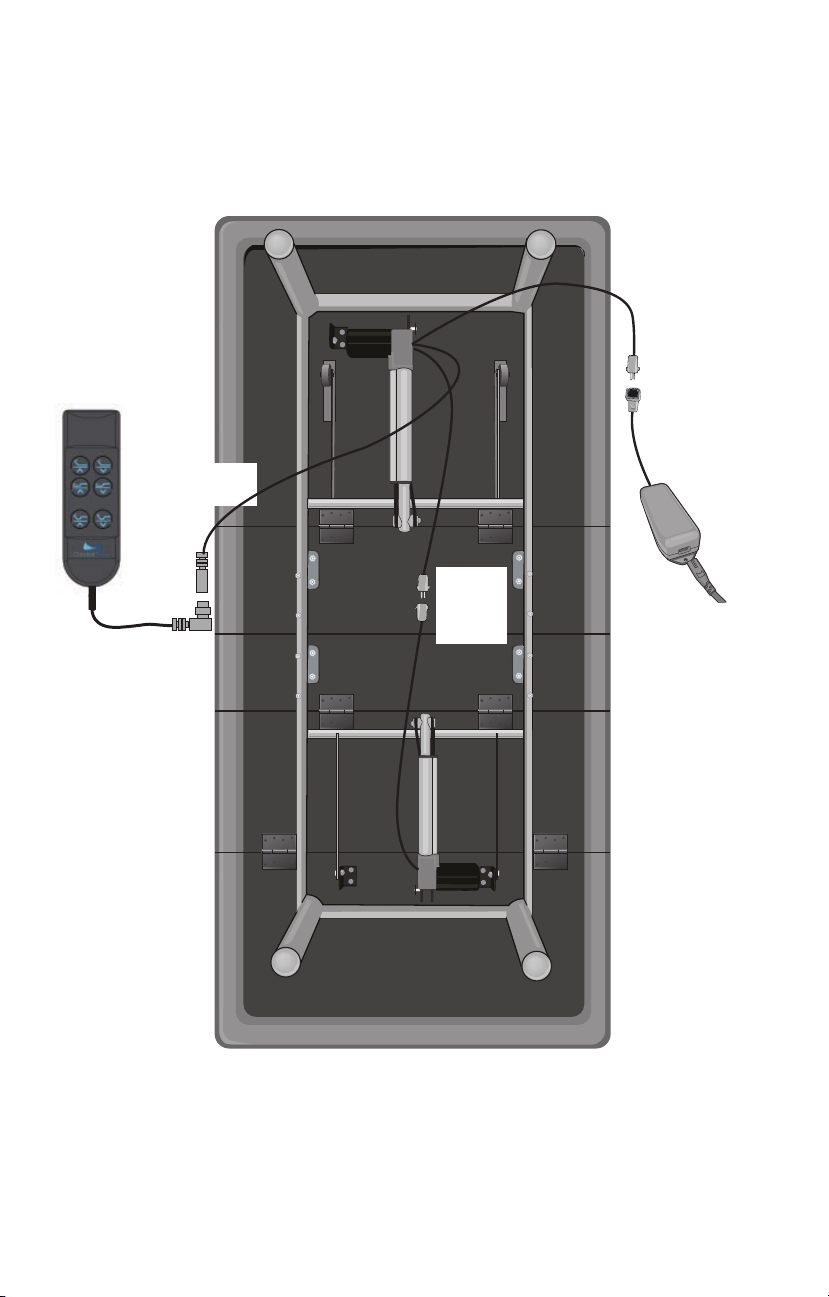

ASSEMBLY - BASE
a
Please Refer to diagram when assembling the adjustable bed.
To AC
Outlet
Power Supply
DC Power Cord
Motor-to-DC
Cable
Foot and
Head Motor
Connector
Cables
Remote
Cable
Motor-to-Remote
Cable
FIGURE
NOTE: Make sure wires connected to Power Supply and Remote are routed UNDER the
main metal frame and lifting mechanism.
Routing wires on top of the metal frame are likely to result in damage to the base which
may void the warranty.

8
ASSEMBLY - BASE
b
Please refer to the diagram when connecting two Twin XL bases to form a King.
To AC
Outlet
Foot and
Head Motor
Connector
Cables
To AC
Outlet
Y-Cable
Motor-to-Remote
Cable
Motor-to-Remote
Cable
Remote
Cable
Motor-to-DC
Cable
Motor-to-DC
Cable
Power
Supply
DC Power Cord
DC Power Cord
Power
Supply
Foot and
Head Motor
Connector
Cables
FIGURE
BASE 1
NOTE: Make sure wires
connected to Power
Supply, Remote and
Y-cable are routed
UNDER the main metal
frame and lifting
mechanism.
Routing wires on top
of the metal frame are
likely to result in damage
to the base which may
void the warranty.

9
ASSEMBLY - BASE
To AC
Outlet
Foot and
Head Motor
Connector
Cables
To AC
Outlet
Y-Cable
Motor-to-Remote
Cable
Motor-to-Remote
Cable
Remote
Cable
Motor-to-DC
Cable
Motor-to-DC
Cable
Power
Supply
DC Power Cord
DC Power Cord
Power
Supply
Foot and
Head Motor
Connector
Cables
BASE 2

10
ASSEMBLY - BASE
For steps 5 and 6, refer to figure a
on page 7.

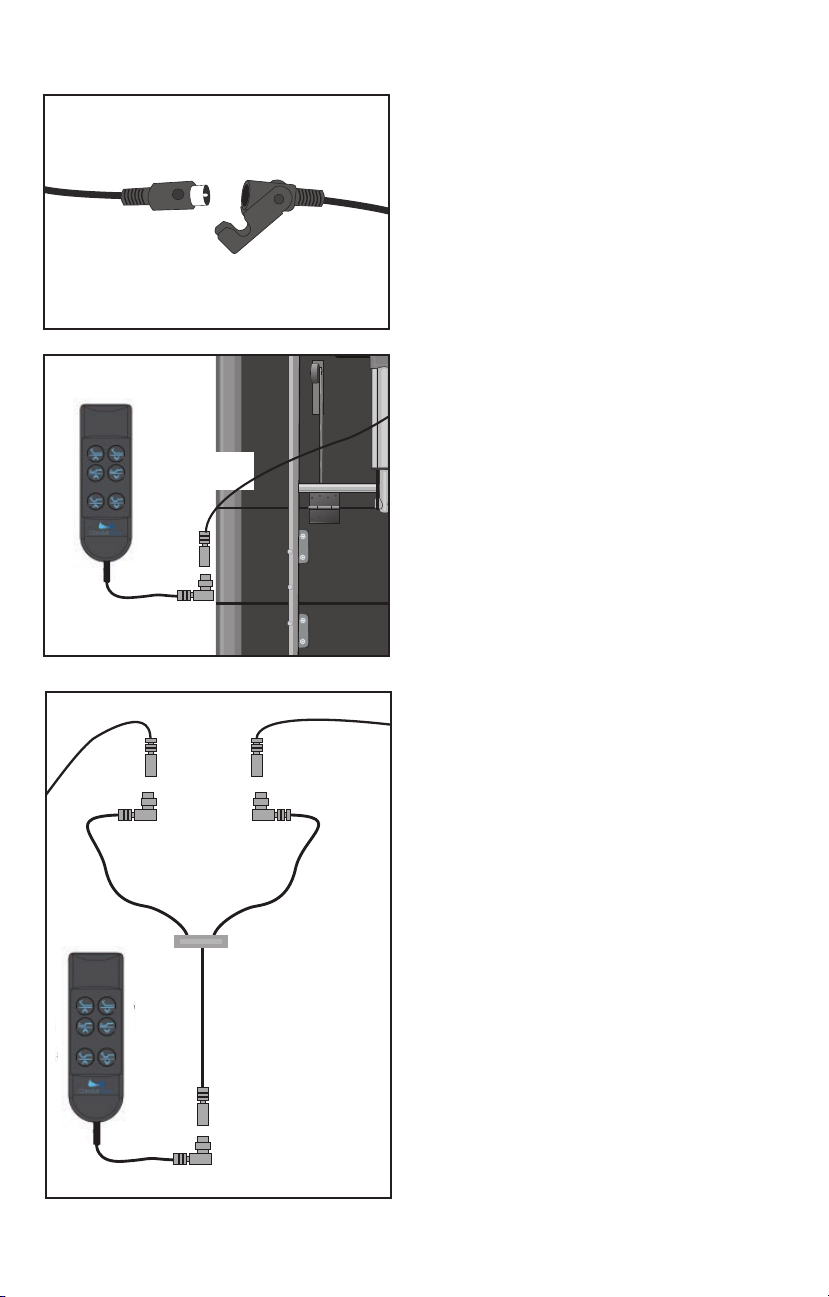

5 Connect the Foot motor connector cable to the Head motor connector cable.
Note: The Head and Foot motors are labeled on the respective motor.
6 Remove the remote from the box. Attach the remote to the motor-to-remote cable
on the Head motor as shown. Slide until
it snaps for a secure connection. Attach
remote clip to remote (optional).
When connecting two Twin XL beds
to form a King, refer to figure b on
pages 8 and 9.
CONNECTING TWO TWIN XL BASES TO FORM A KING: If setting up two Twin XL
bases to use with one king size mattress,
connect the “female” end of the Y-Cable
to the remote and then the two “male”
ends to each base frame’s Head Motor
connector.
NOTE: Only one remote is used when connecting as a King.
To AC
Outlet
Power Supply
DC Power Cord
Motor-to-DC
Cable
Foot and
Head Motor
Connector
Cables
Remote
Cable
Motor-to-Remote
Cable
To AC
Outlet
Foot and
Head Motor
Connector
Cables
To AC
Outlet
Y-Cable
Motor-to-Remote
Cable
Motor-to-Remote
Cable
Remote
Cable
Motor-to-DC
Cable
Motor-to-DC
Cable
Power
Supply
DC Power Cord
DC Power Cord
Power
Supply
Foot and
Head Motor
Connector
Cables
Motor-to-Remote Cable
Motor-to-Remote
Cable

11
ASSEMBLY - BASE
7 Insert one end of the DC cord into the power supply. Insert the other end with
locking clip into the cable coming from the
Head Motor. Lock the connection using
the locking clip.
8 Insert the AC cord into the power supply.
IMPORTANT: DO NOT PLUG THE
BASE INTO THE AC OUTLET YET.
9 Remove the Mattress Retainer Bar from the bottom of the base. Finish
removing the plastic packaging
from the base to orient into final
position. Carefully rotate the base on
its side, then lift and place on legs.
IMPORTANT: DO NOT LEAN THE BED
AGAINST THE INSTALLED LEGS TO
TURN OVER.
10 Insert the Mattress Retainer Bar upright as shown.
11 Insert the Retainer Clip securely.
To Motor
Locking Clip

12
AC Plug AC Outlet
ASSEMBLY - BASE
BASE POWER SUPPLY
12 Turn the power supply upside down to access the battery cover, then slide the
battery cover off.
13 Insert the two 9V batteries (included) into the compartment and slide the
cover back on.
NOTE: The battery backup will allow for the bed to be lowered if a power
outage occurs. It is not recommended
to do anything except lower the bed as
the battery backup will not last if the
features are continually used.
14 Insert AC plug into an AC outlet having 100-240V AC, 50/60Hz.

13
ASSEMBLY - BASE
15 Initial use of base requires additional time. Simply press the Head Up button
on the remote until the head section
begins to lift. Then press the Foot Up
button on the remote until the foot
section begins to lift.
NOTE: If attaching headboard brackets
(available seperately) to the base, see
the included instructions. Otherwise,
place the desired mattress onto the
base and enjoy your new adjustable
base!

14
Assembly - Head Board Bracket
Headboard brackets may not be standard with purchase of adjustable base and can be
purchased separately. See page 16 to purchase.
IMPORTANT: The head board bracket must be assembled to the base AFTER the bed
base has been completely assembled. After assembling the bed according to the
owner’s manual, see this sheet to assemble the head board bracket.
Unpack the kit and make sure the following is included:
PART A
Qty: 2
PART C
Qty: 2
PART B
Qty: 2
PART E
M8 Bolt
Qty: 4
PART D
M8x16mm Hex Bolt
Qty: 8
PART F
M8 Nut
Qty: 4 PART H
Allen Key
Qty: 1
PART G
Washer 10 Zinc
Qty: 4
Completely raise the
headsection of the bed
to access the frame to
which the headboard
bracket will mount.
Identify the two thread-
ed holes that will be used
to mount bed attach-
ment ( Part A) in Step #2
1
Line up the holes in the
bed attachment (Part A)
with the two threaded
holes on the bed base.
Make sure the horizontal
tting of the bed attach-
ment (Part A) points
towards the inside of the
bed. Insert two screws
(Part D) provided with the
kit into the threaded holes
and tighten with the Allen
key (Part H) provided with
the kit.
2
Assembly - Head Board Bracket
IMPORTANT: The head board bracket must be assembled to the base AFTER the bed
base has been completely assembled. After assembling the bed according to the
owner’s manual, see this sheet to assemble the head board bracket.
What is Included?
Unpack the kit and make sure the following is included:
Fig. 1
PART A
PART D
Fig. 2
Bed Attachment Horizontal Shaft Head Board Attachment Plate

15
3Attach the head board
attachment plate (Part C)
to the horizontal shaft
(Part B) using the two at
head self locking screws
(Part E), two washers (Part
G) and two nuts (Part F)
provided with the kit.
5Adjust the position of
the head board
attachment plates (Part
C) to the right or the left
of the bed as desired by
moving the horizontal
shaft (Part B) left and
right in the horizontal
tting of the bed
attachment (Part A).
Once positioned
correctly tighten screws
(Part D) to hold in place.
To adjust the position of the head board attachment plates (Part C)
vertically, loosen nuts and screws from step 3. Tighten when the
appropriate height for your head board is met.
Install the head board using the line of 3 oval holes on the outside
of the head board attachment plate.
WARNING: The end of the horizontal shaft (Part B) must always
extend beyond the end of the horizontal tting of the bed
attachment! (Part A) (See Fig. 5 Arrow)
Assembly - Head Board Bracket
4Insert, from the
outside of the bed,
the horizontal shaft
(Part B) into the
horizontal tting of
the bed attachment
(Part A).
PART C
PART B
PART D
Fig. 5
PART A
PART B
Fig. 4
PART A
PART C
PART B PART E
PART F
PART G
Fig. 3
PART A
Qty: 2
PART C
Qty: 2
PART B
Qty: 2
PART E
M8 Bolt
Qty: 4
PART D
M8x16mm Hex Bolt
Qty: 8
PART F
M8 Nut
Qty: 4 PART H
Allen Key
Qty: 1
PART G
Washer 10 Zinc
Qty: 4
Completely raise the
headsection of the bed
to access the frame to
which the headboard
bracket will mount.
Identify the two thread-
ed holes that will be used
to mount bed attach-
ment ( Part A) in Step #2
1
Line up the holes in the
bed attachment (Part A)
with the two threaded
holes on the bed base.
Make sure the horizontal
tting of the bed attach-
ment (Part A) points
towards the inside of the
bed. Insert two screws
(Part D) provided with the
kit into the threaded holes
and tighten with the Allen
key (Part H) provided with
the kit.
2
Assembly - Head Board Bracket
IMPORTANT: The head board bracket must be assembled to the base AFTER the bed
base has been completely assembled. After assembling the bed according to the
owner’s manual, see this sheet to assemble the head board bracket.
What is Included?
Unpack the kit and make sure the following is included:
Fig. 1
PART A
PART D
Fig. 2
Bed Attachment Horizontal Shaft Head Board Attachment Plate

16
LOCATION OF CONTROLS - REMOTE

17
OPERATION - MAIN
Press and hold the Head Up (
10 M IN 20 M IN 3 0 MI N
ANTI
SN OR E
MEMORY
A
ZG FLAT
MEMORY
B
TIMER/
ALL OFF
INTENSITY
SPEED
) button
to raise the head position. Release button
when desired position is reached.
Press and hold the Head Down (
10 M IN 20 M IN 3 0 MI N
ANTI
SN OR E
MEMORY
A
ZG FLAT
MEMORY
B
TIMER/
ALL OFF
INTENSITY
SPEED
) button
to lower the head position. Release button
when desired position is reached.
Press and hold the Feet Up (
10 M IN 20 M IN 3 0 MI N
ANTI
SN OR E
MEMORY
A
ZG FLAT
MEMORY
B
TIMER/
ALL OFF
INTENSITY
SPEED
) button
to raise the feet position. Release button
when desired position is reached.
Press and hold the Feet Down (
10 M IN 20 M IN 3 0 MI N
ANTI
SN OR E
MEMORY
A
ZG FLAT
MEMORY
B
TIMER/
ALL OFF
INTENSITY
SPEED
) button
to lower the feet position. Release button
when desired position is reached.
Press and hold the Head/Feet Up (
10 M IN 20 M IN 3 0 MI N
ANTI
SN OR E
MEMORY
A
ZG FLAT
MEMORY
B
TIMER/
ALL OFF
INTENSITY
SPEED
)
button to raise both the head and feet
positions. Release button when desired
position is reached.
Press and hold the Head/Feet Down (
10 M IN 20 M IN 3 0 MI N
ANTI
SN OR E
MEMORY
A
ZG FLAT
MEMORY
B
TIMER/
ALL OFF
INTENSITY
SPEED
)
button to lower both the head and feet
positions. Release button when desired
position is reached.
FL AT
ZG
10 M I N 2 0 M I N 30 M I N
ANTI
SNORE
MEMORY
A
MEMORY
B
TIMER/
ALL OFF
INTENSITY
SPEED
FL AT
ZG
10 M I N 2 0 M I N 30 M I N
ANTI
SNORE
MEMORY
A
MEMORY
B
TIMER/
ALL OFF
INTENSITY
SPEED
FL AT
ZG
10 M I N 2 0 M I N 30 M I N
ANTI
SNORE
MEMORY
A
MEMORY
B
TIMER/
ALL OFF
INTENSITY
SPEED
FL AT
ZG
10 M I N 2 0 M I N 30 M I N
ANTI
SNORE
MEMORY
A
MEMORY
B
TIMER/
ALL OFF
INTENSITY
SPEED
FL AT
ZG
10 M I N 2 0 M I N 30 M I N
ANTI
SNORE
MEMORY
A
MEMORY
B
TIMER/
ALL OFF
INTENSITY
SPEED
FL AT
ZG
10 M I N 2 0 M I N 30 M I N
ANTI
SNORE
MEMORY
A
MEMORY
B
TIMER/
ALL OFF
INTENSITY
SPEED

18
TROUBLESHOOTING
In the event the Comfort Base’s base fails to operate, investigate the symptoms and
possible solutions provided below:
No features of the base
will activate.
Head section will
elevate, but will not
return to the horizontal
(flat) position.
Head Lift Function has
minor interference
during operation.
• Unplug power cord, wait 30 seconds and plug in to reset
electronic components.
• Defective surge protection device or electrical outlet. Test
outlet by plugging in another working appliance.
• Electrical circuit breaker may be tripped. Check electrical
circuit breaker box to verify.
• Make sure Remote Control is plugged into the Head Motor.
• Base mechanism may be obstructed. Elevate base and
check for obstruction. Remove obstruction.
• Headboard may be too close to the edge of the mattress.
Verify that distance between headboard brackets and
mattress is sufficient. Adjust if required.
• Make sure that you are following the duty cycle of the
motor (do not operate more than one (1) minute over
an eight (8) minute period, or approximately a 12% duty
cycle).
• Press the lift buttons squarely and accurately.

19
AVAILABLE ACCESSORIES
Item Part Number
High Prole Legs
(Overall Bed Height 18.5”) CB12LEG18.5
Multi-Height Low
Profile Leg (Overall Bed CB12LEGEX8-11.5
height 8” or 11.5”)
Headboard Bracket Kit CB075HBBRKT
To order an accessory, please call 1-800-428-5222
