GLIDEAWAY MOTION 400 User manual

motion
MOTION 400
OWNER’S MANUAL
REV 06.30.20

2
OWNER’S MANUAL: MOTION 400
2
CONTENTS
SAFETY INFORMATION 3
WHAT IS INCLUDED 6
ASSEMBLY 7
REMOTE GUIDE 10
OPERATION 11
PAIRING REMOTE 13
TROUBLESHOOTING 14
REPROGRAMMING REMOTE 15
ACCESSORIES 16
BASE HEIGHT GUIDE 17
RESOURCES 17
USER INFO
Please take a moment and write down the serial number in the space provided below, in case you need to
refer to it in the future. This information can be found by raising the head section of the bed.
SKU: GM-A4Z
Serial Number _____________________
This number will be required for future service claims.

3
OWNER’S MANUAL: MOTION 400
ATTENTION!
IMPORTANT SAFETY INSTRUCTIONS. SAVE THIS MANUAL!
PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE USING THIS PRODUCT.
PROPER OPERATION OF YOUR ADJUSTABLE BED IS NECESSARY TO ENSURE THE LONG LIFE
AND DURABILITY YOU EXPECT FROM A HIGH-QUALITY PRODUCT. THE MANUFACTURER HAS
TESTED AND INSPECTED THIS PRODUCT PRIOR TO SHIPMENT.
RADIO FREQUENCY IS 2.4Ghz.
This device complies with part 15 of the FCC Rules and Industry Canada’s license exempt RSSs.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation of the device.
Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void
the user’s right to operate the device. The input voltage is AC100-240 50/60HZ; the output voltage is DC29V 1.8A.
Total USB power output is 2 AMP.
ELECTRICAL SAFETY
Always unplug this adjustable bed from the electrical outlet before any cleaning or maintenance of the adjustable bed.
To safely disconnect, remove the plug from the outlet. Keep cord away from heated surfaces. Use only indoors.
Discontinue use of this adjustable bed and contact the manufacturer for repair if:
1. It has a damaged cord or plug,
2. It is not working properly, or
3. It has been dropped or damaged.
FOR OPTIMAL SAFETY, YOUR ADJUSTABLE BED SHOULD BE PLUGGED INTO A SURGE PROTECTOR
(not supplied with this adjustable bed).
BATTERY PRECAUTIONS
Follow these precautions when using batteries in this device:
1. Warning – Danger of explosion if battery is incorrectly replaced. Replace only with the 6LR61 9V batteries and LR03
AAA batteries.
2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment.
A reversed battery may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline, Rechargeable and Carbon-zinc) or old batteries with
fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from
possible battery leakage.
5. Do not try to recharge a battery not intended to be recharged; it can overheat and rupture.
(Follow battery manufacturer’s directions.)
OPEN BOX IN
FLAT POSITION
DANGER!
DO NOT OPEN FROM
VERTICAL POSITION. THIS
CAN DAMAGE BASE.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO MOISTURE.
SAFETY INFORMATION

4
OWNER’S MANUAL: MOTION 400
SAFETY INFORMATION
WARRANTY WARNING!
This bed is specically designed to require no maintenance by you, the user. Any opening or tamper-
ing with the control box, motors or hand controls (with the exception of the battery compartment, if
equipped) will void the warranty. Do not attempt to alter component wiring or adjust or modify the struc-
ture of the product in any way or the warranty will be void. Only those authorized may conduct repairs or
part replacement on your adjustable bed.
IN-HOME USE ONLY
This adjustable bed is designed exclusively for in-home use.
HOSPITAL/COMMERCIAL DISCLAIMER
This base is NOT designed for commercial or hospital use and is NOT designed to meet hospital standards.
Do not use this base with TENT TYPE oxygen therapy equipment or use near explosive gases.
PRODUCT RATINGS
Lift Motor Restrictions:
The lift motors in this bed are NOT designed to operate continuously for more than one (1) minute over a
nine (9) minute time period, or approximately 12% duty cycle. To ensure reliable functionality and full life
of this product, do not attempt to exceed these limits. NOTE: Attempting to circumvent or exceed this
rating will shorten the life expectancy of the product and may void the warranty.
Weight Restrictions:
The recommended weight limits on our adjustable beds are:
■ 1/pc King: 800 lb
■ Queen: 600 lb
■ Full/XL: 500 lb
■ Twin/XL: 400 lb (800 lb if using two twin XLs as a King)
—
■ The structure of the bed will support the recommended weight when distributed evenly
across the bed.
■ The head and foot sections are not designed to individually support or lift this amount of weight.
■ For optimal performance and integrity of structure, entering and exiting the adjustable bed with
the bed in the at position is recommended.
■ NOTE: Exceeding the recommended weight restrictions could damage your adjustable bed
and void your warranty.

5
OWNER’S MANUAL: MOTION 400
SAFETY INFORMATION
SMALL CHILDREN AND PETS WARNING
Immediately dispose of all packing materials, as they can pose a smothering risk to small children and pets.
Injury could also occur if children or pets are permitted to play on or under the bed. Do not allow children to
operate this bed without adult supervision.
LUBRICATION AND CLEANING
This product is designed to be maintenance free. The lift motors are permanently lubricated and sealed—no
additional lubrication is required. Do not apply lubricant to lift motor lead screws or any nylon nuts or the
base may inadvertently creep downward from the elevated position.
LIFT WARNING
DO NOT SIT ON THE HEAD OR FOOT SECTIONS WHILE IN THE RAISED POSITION, OR DURING LIFT OR
LOWERING CYCLES.
MOVING AFTER INSTALLATION
Do not place adjustable bed base vertically on its head or foot sections. This may cause injury to persons or
damage to base.
WARNING!
To reduce the risk of burns, re, electric shock, or injury to persons:
■ Unplug from outlet before putting on or taking off accessories.
■ Close supervision is necessary when this base is used by, or near children, invalids,
disabled persons, or pets.
■ Use this base only for its intended use as described in these instructions.
Do not use attachments not recommended by the manufacturer.
■ Never operate this base if it has a damaged cord or plug, is not working properly,
has been dropped or damaged, or dropped in water.
■ Keep the cord away from heated surfaces.
■ Never drop or insert any object into any opening.
■ Do not use outdoors.
■ Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
■ To disconnect, remove plug from outlet.
■ DO NOT USE NEAR PEOPLE USING OR WEARING MEDICAL DEVICES.
FOR HOUSEHOLD/RESIDENTIAL USE ONLY.

6
OWNER’S MANUAL: MOTION 400

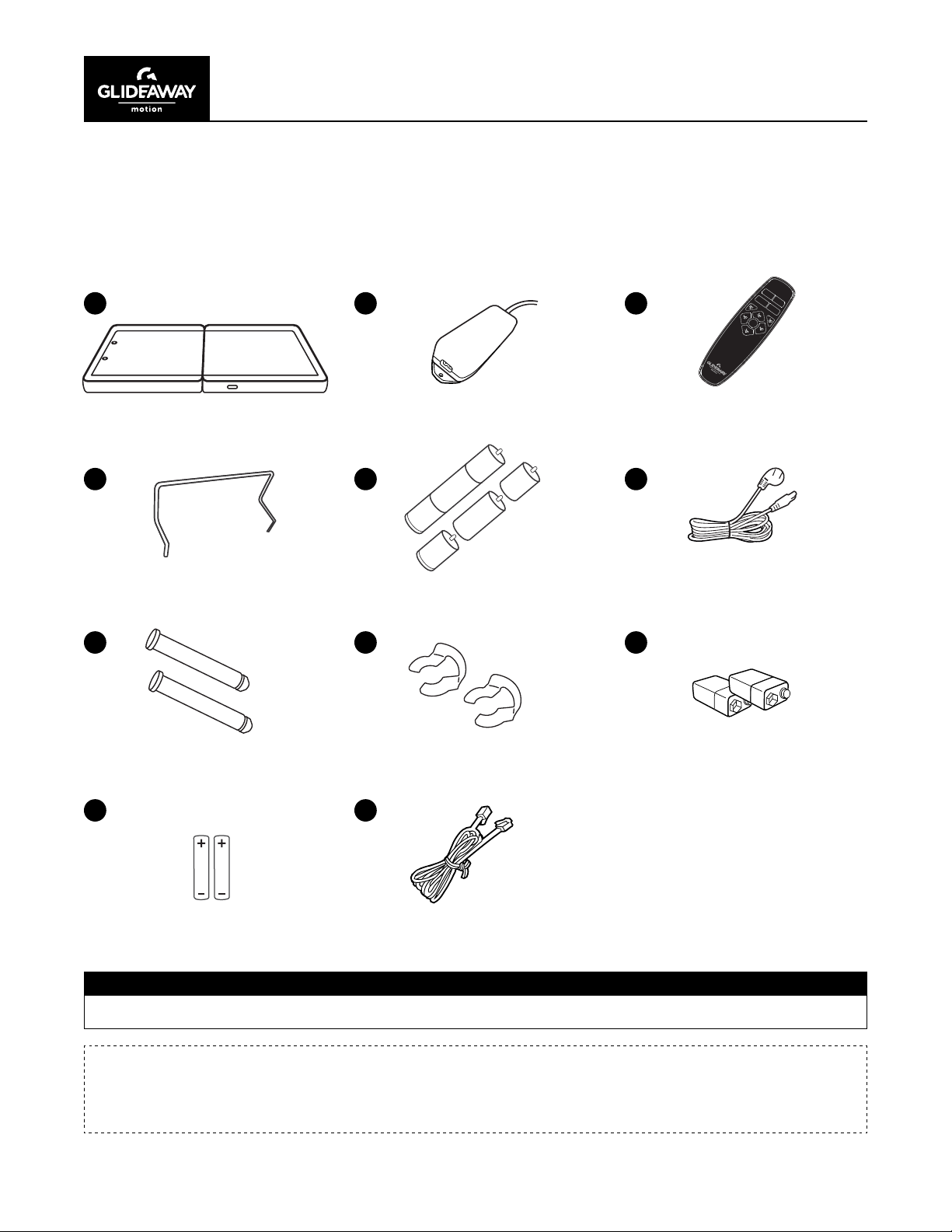

WHAT’S INCLUDED
Before discarding any packing materials, check the adjustable base
shipping carton and verify the following items are included:
(6) Legs
(2) Retainer Clips(2) Hinge Pins
(2) AAA Batteries
(1) AC Power Cord
(2) 9V Batteries
(1) Sync Cable
(1) Remote Control(1) Power Supply
(1) Foot Mattress Retainer
NOTE:
Carefully lift base from the shipping carton, keeping the unit’s top-side down.
Remove the plastic wrapping from the bottom to access the base.
IMPORTANT:
USE 2 PEOPLE TO LIFT BASE TO AVOID DAMAGE.
D E
G H I
J K
x6
x2x2x2
x2
B C
F
ZG
MEMORY
A
FLAT
POSITION S
MEMORY
B
ANTI
SNORE
A
for use with TXL,
SCK, SQ models only

7
OWNER’S MANUAL: MOTION 400
KEEP HANDS CLEAR OF HINGE PINCH POINT
Lay the base at before unfolding base.
ASSEMBLY
It is HIGHLY recommended to use two people for the installation of this product.
To assemble, please perform the following steps:
Carefully lift the base from the shipping carton, keeping the unit’s topside down.
Remove the plastic wrapping from the bottom to access the bases.
Insert hinge pins and secure with retaining clips.
Repeat on both sides of base.
Lay base at and unfold topside down.
Insert all 6 legs into the threaded holes and securely tighten
before turning base over for use. There must not be any gap
or wobble in the leg in order to avoid risk of injury or dam-
age to the base which may void warranty.
If installing on a platform base or foundation, do not install
legs. Follow the instructions included in the MULTIFUNC-
TION BRACKET accessory kit.
E
A
1
2
3
4
H
G

8
OWNER’S MANUAL: MOTION 400
ASSEMBLY
LOCK
TO OUTLET
F
F
B
Insert DC cord from
base into the power
supply.
Insert the AC cord into
the power supply.
Carefully rotate the base on its side, then lift and place on legs.
WARNING
DO NOT TILT or LEAN base on the installed legs when turning base over.
5
6
7
L
B

9
OWNER’S MANUAL: MOTION 400
ASSEMBLY

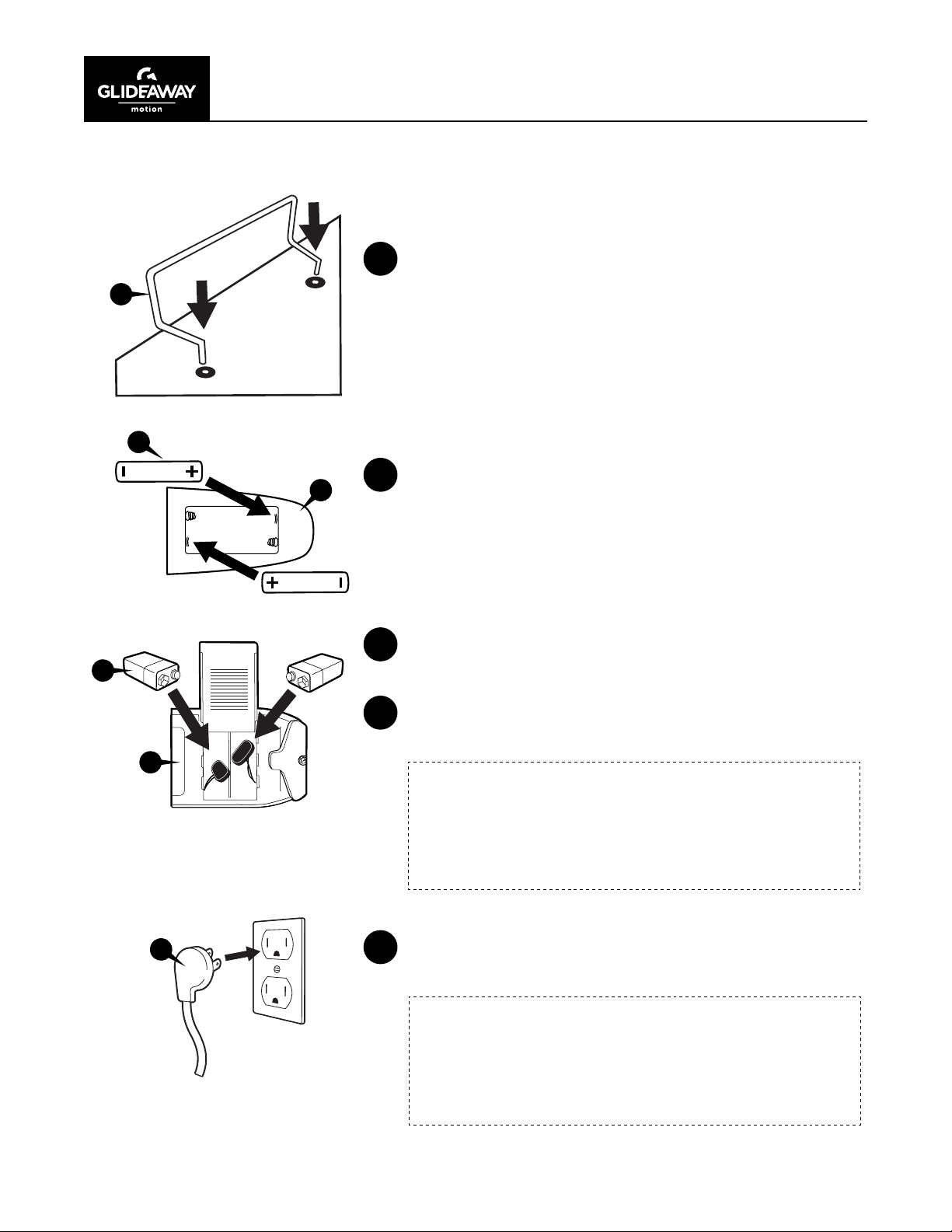

Lift the battery cover and insert the two AAA size batteries
(included) into the remote as shown in the gure.
Replace the battery cover.
Remote is already linked with the base.
Insert the mattress retainer bar upright as shown.
Turn the power supply upside down to access the battery
cover, then slide the battery cover off.
Insert the two 9V batteries (included) into the compartment
and slide the cover back on.
NOTE:
The battery backup will allow for the bed to be lowered
if a power outage occurs. It is not recommended to do
anything except lower the bed, as the battery backup will
not last if the features are continually used.
B
I
D
J
C
Insert AC plug into an AC outlet having 100-240V AC,
50/60Hz. Avoid outlets that work only with light switch.
F
NOTE:
If attaching headboard brackets (available separately) to
the base, see the included instructions. Otherwise, place
the desired mattress onto the base and enjoy your new
adjustable base!
8
9
10
11
12

10
OWNER’S MANUAL: MOTION 400

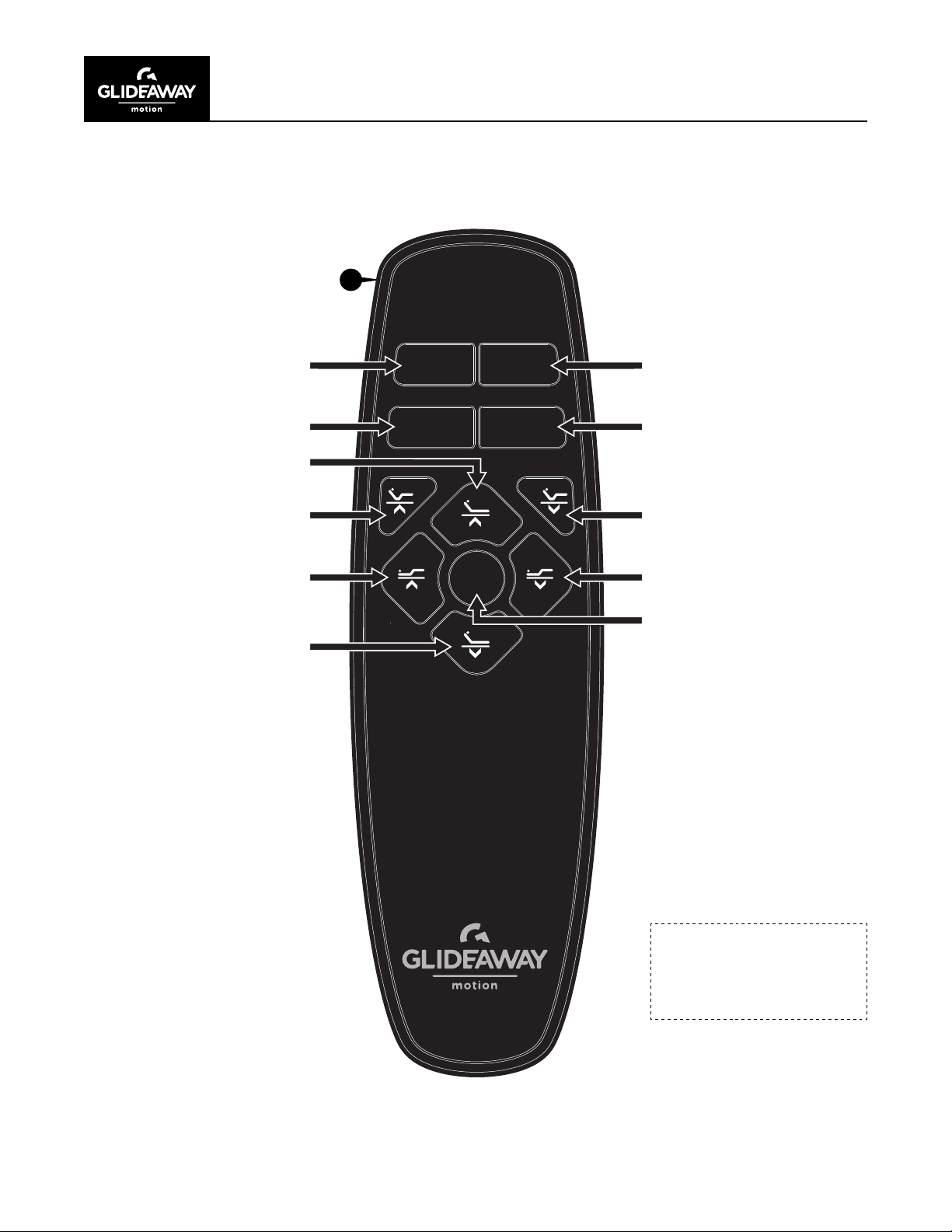

REMOTE GUIDE
Anti Snore Position
Memory Position A Memory Position B
Zero Gravity Position
Foot Down
Flat
Head Up
Head Up + Foot Up Head Down + Foot Down
Foot Up
Head Down
C
ZG
MEMORY
A
MEMORY
B
FLAT
POSITIONS
ANTI
SNORE
NOTE:
Some buttons require a
double click to function.

11
OWNER’S MANUAL: MOTION 400
ZG
ANTI
SNORE

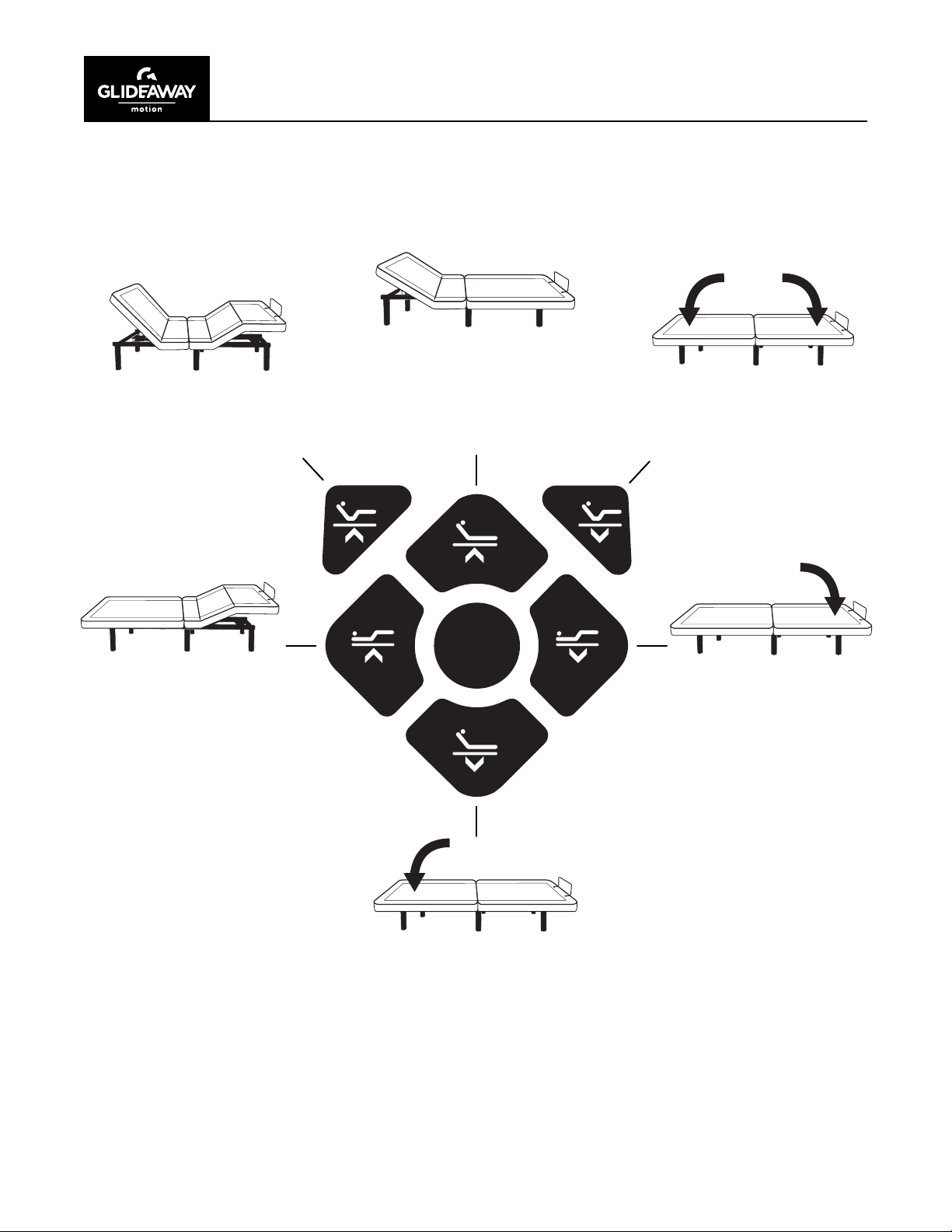

OPERATION
Adjust head and/or foot
section(s) to desired positions.
Press and hold MEMORY A
button until the back-light on
remote ashes. Release button
and wait for ash to stop. Button
has now been programmed.
Repeat process if new preset
position is desired.
Adjust head and/or foot
section(s) to desired positions.
Press and hold MEMORY B
button until the back-light on
remote ashes. Release button
and wait for ash to stop. Button
has now been programmed.
Repeat process if new preset
position is desired.
MEMORY
A
MEMORY
B
Press the ZERO GR AVITY
button to move the head and foot
to the ZERO GR AVITY position.
This action can be stopped at any
time by pressing another button.
Press the ANTI-SNORE button
and the head will go to the
ANTI-SNORE position. This
action can be stopped at any
time by pressing another button.

12
OWNER’S MANUAL: MOTION 400
FLAT
OPERATION
Press and hold the HEAD
UP button to raise the
head position. Release
button when desired
position is reached.
Press and hold the FOOT
UP button to raise the
foot position. Release
button when desired
position is reached.
Press and hold the HEAD
UP + FOOT UP button to
raise the head and foot
simultaneously. Release
button when desired
position is reached.
Press and hold the HEAD
DOWN + FOOT DOWN
button to lower the head
and foot simultaneously.
Release button when
desired position is
reached.
Press and hold the HEAD
DOWN button to lower
the head position. Release
button when desired
position is reached.
Press and hold the FOOT
DOWN button to lower
the foot position. Release
button when desired
position is reached.

13
OWNER’S MANUAL: MOTION 400
PAIRING REMOTE
Simultaneously press and hold the HEAD UP and HEAD
DOWN buttons on remote until the remote back lights
ash and stay lit, then release remote buttons.

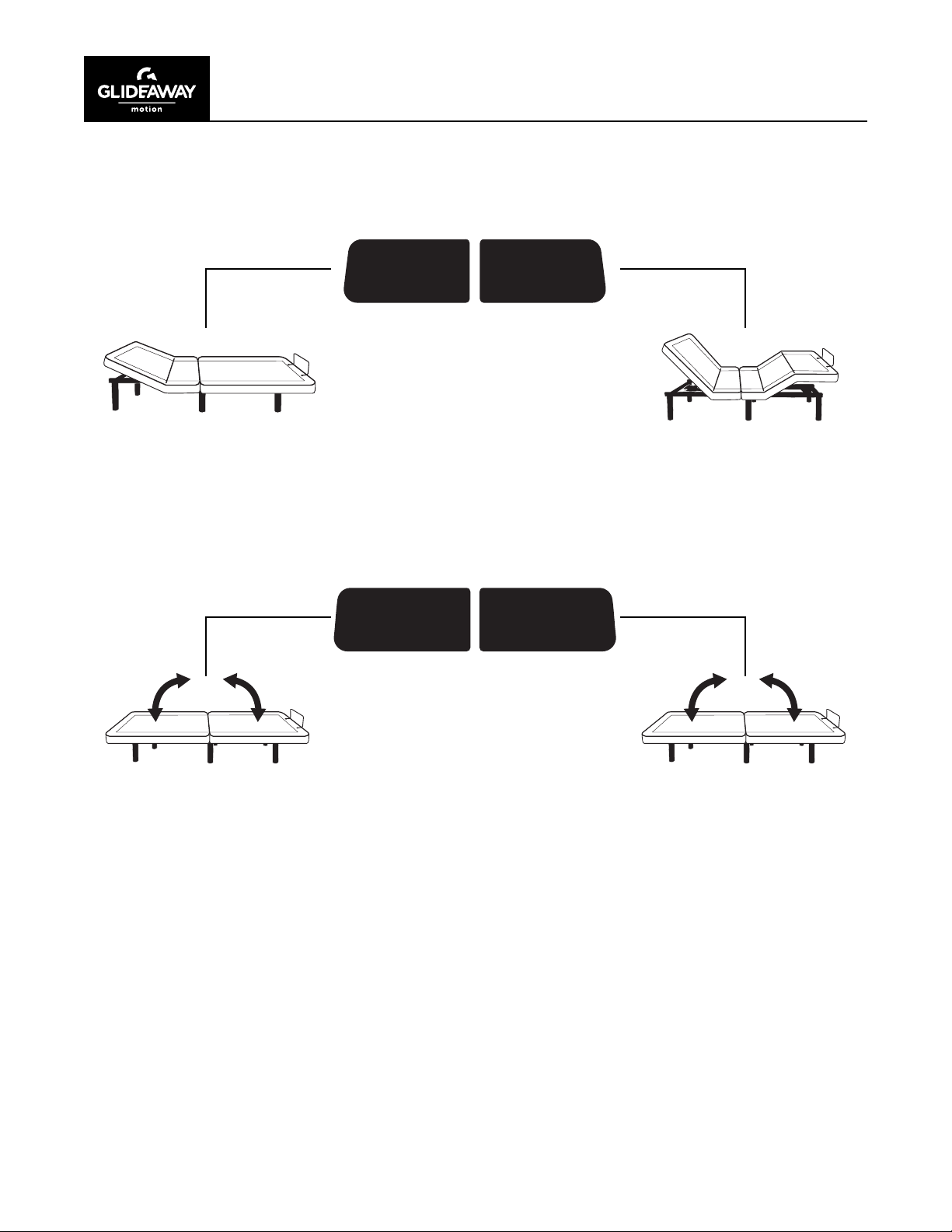

PAIRING REMOTE TO BASE
Double click the PAIR button on the control box
(light will turn blue during the pairing process).
With both bases in FLAT position, connect each base to the other
by inserting SYNC CABLE into each control box slot labeled sync.
PAIRING REMOTE TO BASE
SYNCING 2 BASES TO ACT AS ONE
If SYNCING 2 bases (TXL, SCK, SQ) together, follow these instructions.
NOTE:
Your base comes with a ready-to-use, factory paired remote.
Pairing instructions are for replacement remotes or trouble
shooting purposes.

14
OWNER’S MANUAL: MOTION 400
TROUBLESHOOTING
In the event the base fails to operate, investigate the symptoms and possible solutions provided below:
Remote control illuminates and appears to be operable, but no features of the base will activate.
■ Unplug power cord, wait 30 seconds and plug in to reset electronic components.
■ Defective surge protection device or electrical outlet. Test outlet by plugging in another working appliance.
■ Electrical circuit breaker may be tripped. Check electrical service breaker box to verify.
■ Re-pair the remote control (see Pairing Remote section of this manual for programming procedures).
■ Replace batteries in the remote control & re-pair remote control.
No features of the base will activate.
■ Unplug power cord, wait 30 seconds and plug in to reset electronic components.
■ Defective surge protection device or electrical outlet. Test outlet by plugging in another working appliance.
■ Electrical circuit breaker may be tripped. Check electrical circuit breaker box to verify.
Remote control will not illuminate.
■ Replace batteries in the remote control.
Head section will elevate, but will not return to the horizontal (at) position.
■ Base mechanism may be obstructed. Elevate base and check for obstruction. Remove obstruction.
■ Headboard may be too close to the edge of the mattress. Verify that distance between headboard brack-
ets and mattress is sufcient. Adjust if required.
Head or foot lift function has minor interference during operation.
■ Check batteries in remote, replace if necessary.
■ Make sure that you are following the duty cycle of the motor (do not operate more than
one (1) minute over a nine (9) minute period, or approximately a 12% duty cycle).
■ Press the lift buttons squarely and accurately.
■ Control box may be experiencing common Radio Frequency Interference from other
radio transmitting devices (see Pairing Remote section).
Reset remote to original factory settings.
■ To reset the factory ANTI-SNORE, ZERO GRAVITY, MEMORY A and MEMORY B settings, hold down the
FL AT and ZERO-GR AVITY buttons until the back light blinks.
Bases are not well synced to one another.
■ Refer to the REPROGRAMMING REMOTE section; page 15.
NOTE:
EMERGENCY LOWERING: If you cannot nd the remote control, locate, press
and hold the PAIR button located on the main control box on the bottom of the
bed (shown to the left).

15
OWNER’S MANUAL: MOTION 400
REPROGRAMMING REMOTE
When syncing 2 TXL, SQ, SCK bases, the ANTI-SNORE, ZERO GRAVITY, MEMORY A and MEMORY B
may need to be reprogrammed to match the 2 bases to the same program.
1
1
1
2
2
2
ANTI-SNORE
After connecting the sync cable into both bases, press the
FL AT button on the remote.
Press the HEAD UP button until the 2 bases are at a 10 degree
angle. Push and hold the ANTI-SNORE button until the remote
back lights blink.
ZERO GRAVITY
Press the FLAT button on the remote.
Press the HEAD UP button until the 2 bases reach the 15
degree angle. Next, push FOOT UP button until the foot
section of both bases reach the 25 degree angle. Next, press
and hold the ZERO GRAVITY button until the remote back
lights blink.
SETTING MEMORY A OR MEMORY B
Press the FLAT button on the remote.
Using the HEAD UP and FOOT UP, adjust the base to a
comfortable position. Next, press and hold MEMORY A button
until the remote back lights blink.
Repeat this process for the MEMORY B position.
ANTI
SNORE
ZG
FLAT
FLAT
FLAT
MEMORY
AMEMORY B

16
OWNER’S MANUAL: MOTION 400
X6
X4
X2
HIGH PROFILE LEG KIT
Raise height of base to 20”.
SKU: GM6LEGEXT
MULTIFUNCTION BRACKET KIT
NOTE: 2 MULTIFUNCTION BRACKET KITS
required for connecting 2 platform bases.
NOTE: Not to be used with ELEVATION KIT.
SKU: GM-ZCAZ-1 (TWIN and TWIN XL)
SKU: GM-ZCAZ-2 (FULL, QUEEN and KING)
HEADBOARD BRACKET KIT
Attach base to headboard.
SKU: CB18HBBRKT
ACCESSORIES
HI-LO LIFT KIT
Raises and lowers bed.
SKU: RXSYS2-TXL (TWIN XL KIT)
SKU: RX2.AZ-TXL (TWIN XL BRACKETS)
SKU: RXSYS2-Q (QUEEN KIT)
SKU: RX2.AZ-Q (QUEEN BRACKETS)

17
OWNER’S MANUAL: MOTION 400
LEG CONFIGURATION HEIGHT FROM FLOOR
NO LEG INSTALLED 4 1/2”
STANDARD 3-IN-1 15”
TWO LEG SECTIONS INSTALLED 11 1/2”
ONE LEG SECTION INSTALLED 8”
OPTIONAL HIGH PROFILE LEG 20”
BASE HEIGHT GUIDE
RESOURCES
Accessory Orders and Customer Service 1-855-581-3095
Warranty information is available at glideaway.com

MOTION 400
SLEEP WELL. LIVE BETTER. BE YOUR BEST.
8226 LACKLAND RD. ST. LOUIS, MO 63114 | GLIDEAWAY.COM | 314.426.3999
