Globus Magnum XL User manual

Rev 3 – 12.11.2020 1

Rev 3 – 12.11.2020 2

Rev 3 – 12.11.2020 3
DEAR CUSTOMER
THANK YOU FOR CHOOSING A GLOBUS PRODUCT. WE REMAIN AT YOUR
DISPOSAL FOR ANY ASSISTANCE OR ADVICE YOU MAY NEED
DOMINO s.r.l.
via Vittorio Veneto 52
31013 - Codognè - TV - Italy
Tel. [phone]
Fax. [phone]
e-mail:[email protected]
www.globuscorporation.com
The device has been manufactured in compliance with applicable technical
standards and has been certified, in compliance with Directive 93/42/EEC as amended
by directive 2007/47 on medical devices, by the Notified Body Kiwa Cermet Italia, Via
Cadriano 23, 40057 Granarolo dell’Emilia (BO) Italy (n. 0476), in order to ensure product
safety.

Rev 3 – 12.11.2020 4
Table of contents
TECHNICAL FEATURES.......................................................................................................................6
Device ...............................................................................................................................................6
Storage and transport conditions..................................................................................................6
Use conditions ..................................................................................................................................6
Magnetic intensity that can be emitted with flexible diffusers ..................................................6
Power supply ....................................................................................................................................6
EQUIPMENT........................................................................................................................................6
Accessories description...................................................................................................................7
Magnum Test....................................................................................................................................7
INTENDED USE ...................................................................................................................................9
INSTRUCTIONS FOR THE USE OF THE WATER-PROOF CASE .........................................................10
CONNECTIONS ..............................................................................................................................11
Device .............................................................................................................................................11
Connect the diffusers ....................................................................................................................11
LABELLING AND SYMBOLS .............................................................................................................12
Device .............................................................................................................................................13
DASHBOARD AND KEYBOARD......................................................................................................14
Display/Interface ...........................................................................................................................15
ALARMS ...........................................................................................................................................15
WARNINGS AND CONTRAINDICATIONS ......................................................................................16
Mandatory behavior .....................................................................................................................16
Instructions before use ..................................................................................................................16
Warnings during the use................................................................................................................17
Side effects .....................................................................................................................................17
Contraindications ..........................................................................................................................17
MAINTENANCE AND CLEANING...................................................................................................18
Maintenance and cleaning of the device ................................................................................18
Maintenance and cleaning of the diffusers (or solenoids) ......................................................18
Soft solenoid and soft mat 4 cleaning ........................................................................................18
Pocket Pro Cleaning .....................................................................................................................18
Cleaning the flexible solenoids ....................................................................................................19
Diffuser check.................................................................................................................................19

Rev 3 – 12.11.2020 5
Disposal of the device...................................................................................................................19
INSTRUCTIONS FOR USE..................................................................................................................20
EASY PROGRAM .............................................................................................................................20
EDITING THE PARAMETERS QUICKLY ON EASY PROGRAM.........................................................20
SAVING A PROGRAM QUICKLY FROM THE PROGRAM LIST TO EASY PROGRAM ...................21
START PROGRAM............................................................................................................................22
“LAST 10” MENU..............................................................................................................................24
“SETUP” MENU.................................................................................................................................28
ACTION PRINCIPLE AND APPLICATION METHOD........................................................................29
What is magnetotherapy..............................................................................................................29
The treatment parameters ...........................................................................................................29
General Application Methods .....................................................................................................31
The solenoids ..................................................................................................................................31
INDICATIONS ABOUT THE PROGRAMS .........................................................................................34
PROGRAM LIST................................................................................................................................37
WARRANTY CONDITIONS...............................................................................................................38

Rev 3 – 12.11.2020 6
TECHNICAL FEATURES
Device
Size: 100x160x35 mm
Weight: 296 g
Protection level: IP 20 + IP 02
Storage and transport conditions
The storage and transportation of the device and its accessories, in their original packag-
ing, are subject to the following limits:
Storage and transportation temperature: From -25°C to 70°C
Max. relative humidity: 0% -93%
If the accessories are not stored into the original package, please comply with the stor-
age conditions of the single products.
Use conditions
Temperature: from 0°C to 35°C
Maximum relative humidity: from 15% to 93%
Atmospheric pressure: from 700 hPa to 1060 hPa
Magnetic intensity that can be emitted with flexible diffusers
140 Gauss on average per channel
280 Gauss on average on the whole (for 2 channels)
Output channels for solenoid connection: 2 channels
Adjustable frequency: from 5 to 200 Hz
Power supply
Brand: GLOBTEK
Model: GTM41060-2512
PRI: 100-240Vac 50-60Hz Max 0,6A
SEC: 12V 2.08A
Polarity:
EQUIPMENT
The Magnetotherapy device equipment includes the diffuser; therefore, please check
that the package contains the complete equipment.
If some elements are missing, contact your authorized retailer immediately.
Check that the device and the diffuser are intact.
- 1 or 2 diffusers (see table 1 with different configurations)
- Power supply (see technical features)
- Operating manual

Rev 3 – 12.11.2020 7
- Device and waterproof case IP 02
- Carrying bag
The device can be used with some optional accessories. To purchase these accessories,
please contact your dealer.
CODE MODEL SOLENOIDS
G3216 MAGNUM XL 1 flexible solenoid
G4279 MAGNUM XL (SOFT SOL.) 2 single SOFT solenoids
Accessories description
Magnum devices can be used with some optional accessories.

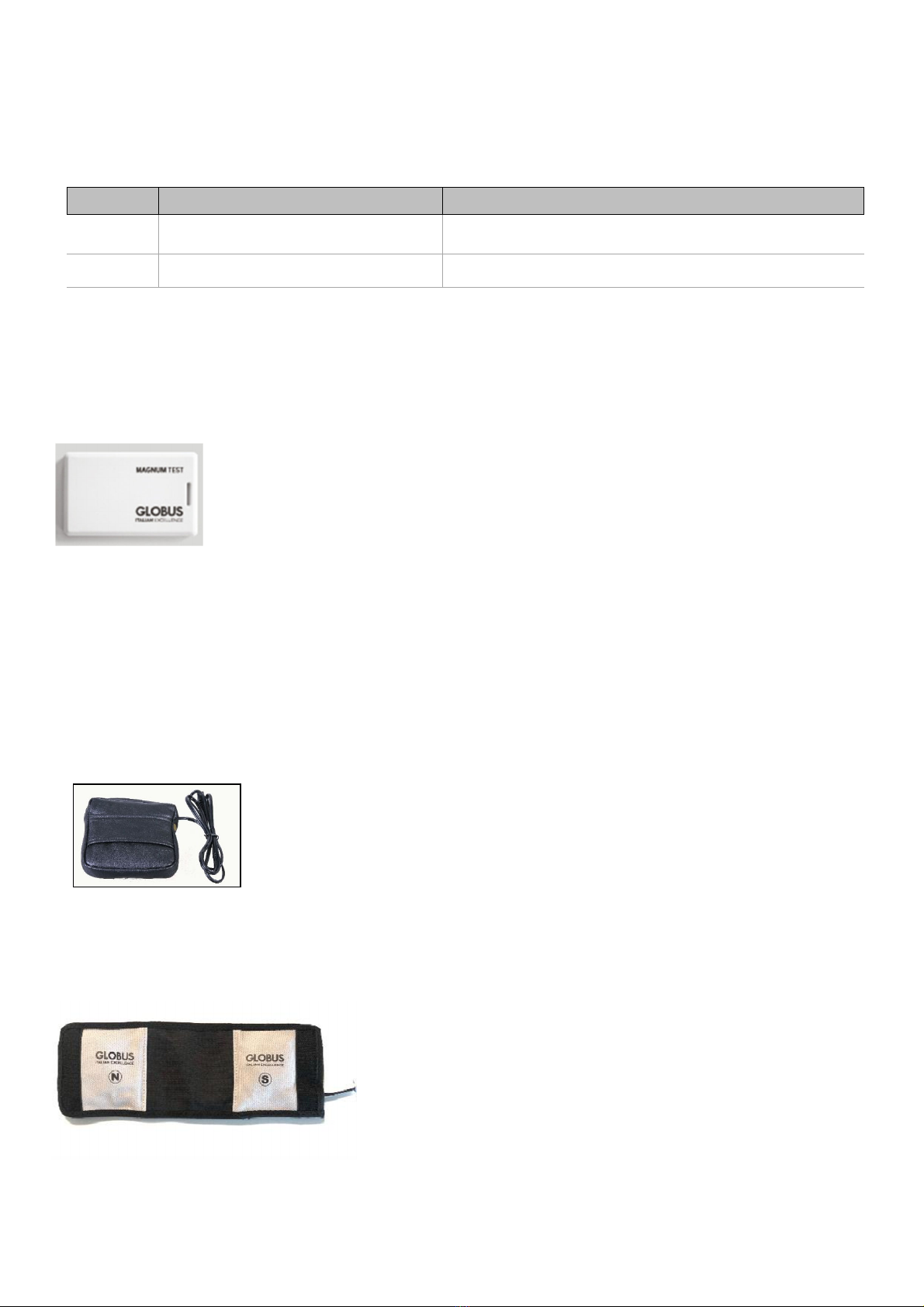

Magnum Test
The Magnum Test is used to check that the solenoids work properly. Connect the solenoid
to the device, start a program, put the box upon a coil and check that a vibration is felt.
G0699 Battery pack (Ni-MH 7.2 V 1.8 Ah): if you purchase the optional battery pack, you'll
be able to make the device operate for a short period without connection to the mains.
G4275 Single soft solenoid
Soft and comfortable 1-turn solenoid, easily cleanable and sanitizable fabric. Size 12x12
cm.
G1407 Flexible solenoid
Flexible solenoid with two coils, made by comfortable cotton fabric, with elastic central
insert to facilitate positioning on the different anatomical areas. Size 30x10 cm.

Rev 3 – 12.11.2020 8

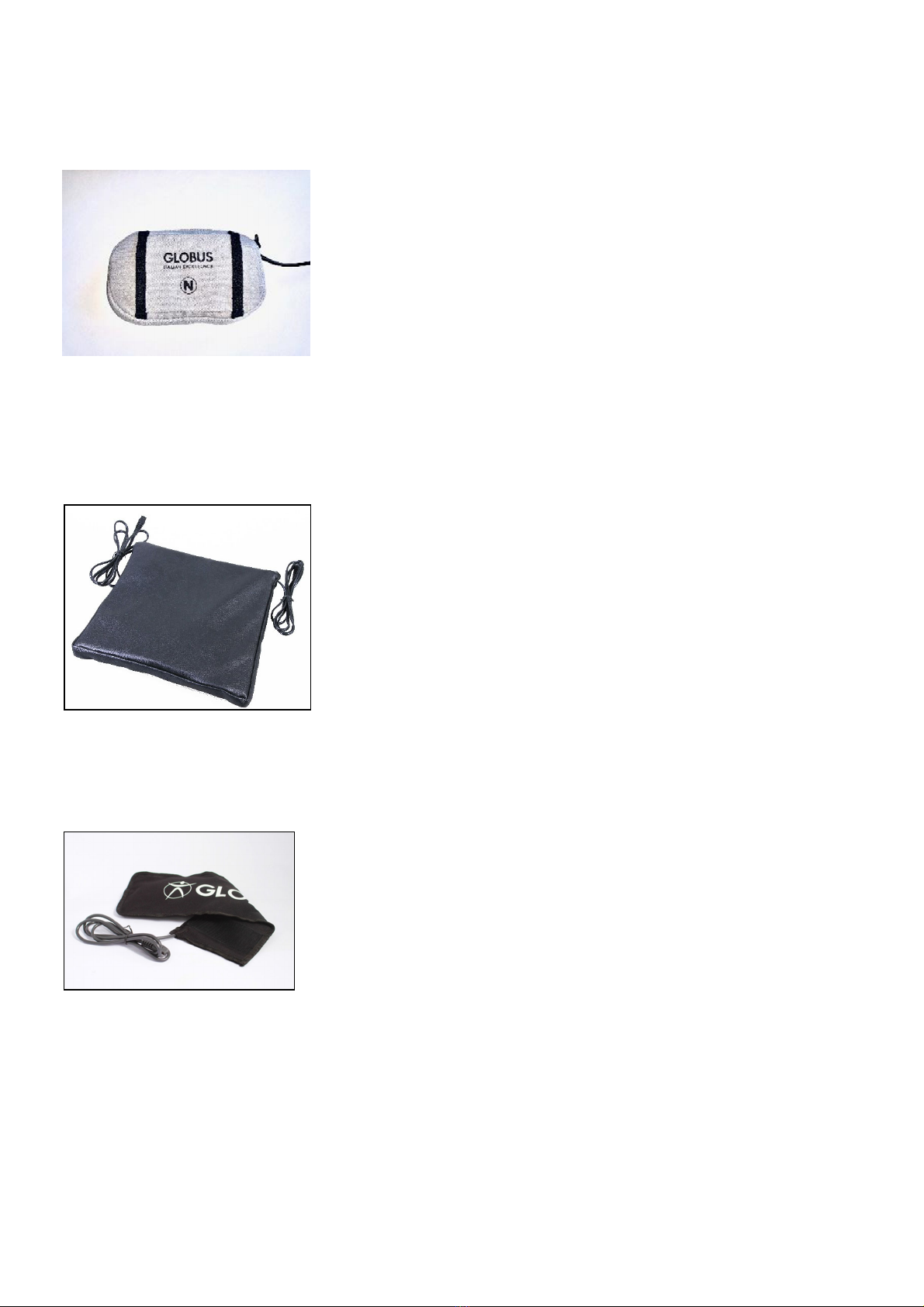

G5988 Pocket Pro Solenoid
Solenoid consisting of two coils inserted in a soft pad and stored inside a zip-up case that
is easily washable and sanitized (see chapter on maintenance and cleaning). Dimensions
15,5x9,5 cm
G4276 Soft mat 4
Soft and comfortable two-channel mat, made up of 4 total spires, whose material is easy
to clean and sanitizable. It is ideal for lumbar applications,
in the hips, feet and hands.
Size 25x25 cm
G1408 Flexible solenoid contains 4 coils all north-oriented towards the same side, partic-
ularly suited to cover a vast surface, such as the back or the femur.
Size 40x15cm
These solenoids can be used individually by placing them directly on the treatment area
or, by purchasing two, they can be used in opposed mode.

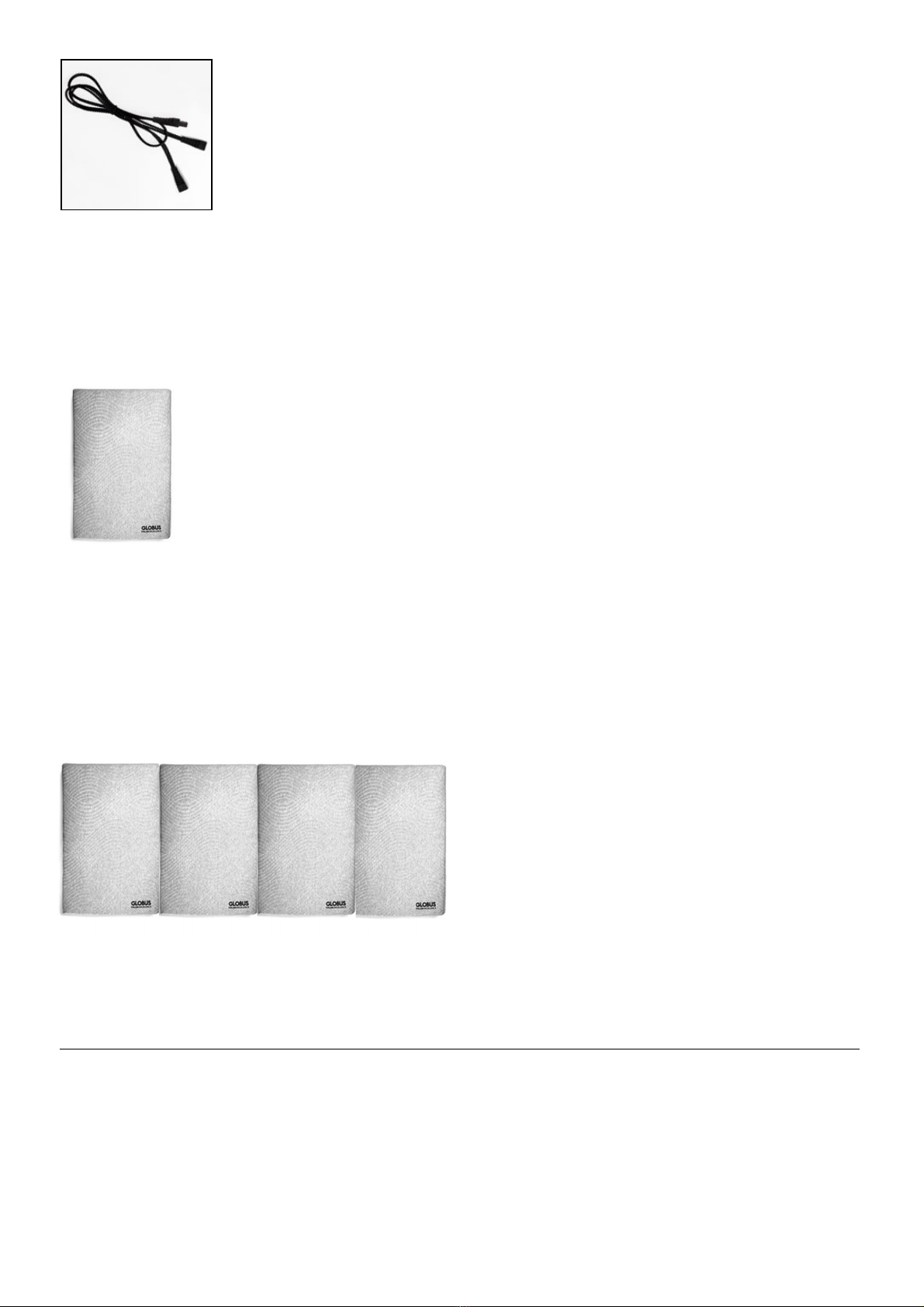

G4277 Magneto splitting cable
With this accessory, you can split the channels by using, for example, 2 single SOFT sole-
noids on the same channel or two rigid solenoids or two flexible solenoids.
Warning: the y cable only works by connecting solenoids of the same type.

Rev 3 – 12.11.2020 9
Mats
G5944 100 Memory Foam Mat: the new Globus mat with a double layer of Memory
Foam and 4 solenoids inside. It's particularly suited for long treatments during which the
user, though remaining in contact with the mat, is free to move without being tied to the
device through the traditional solenoids.
Total body memory Foam : the new mat with two layers of Memory Foam, composed of
four sections, each of which can contain up to 4 solenoids. The Memory Foam B-Mat
memory is positioned above the traditional mat and it is particularly suitable for treat-
ments during the night or for people with motor difficulties and bedridden. The Total body
Memory Foam Mat is available in different versions:
G5947 Total Body 200 Memory Foam Mat: 2 of 4 active mats, total number of solenoids: 8
G5948 Total Body 400 Memory Foam Mat: 4 of 4 active mats, total number of solenoids: 16
For further information, visit our website www.globuscorporation.com.
In order to purchase these accessories, please contact your dealer.
INTENDED USE
The product has an estimated usable life of 5 years. We recommend returning the device
to the manufacturer and/or authorized center every 2 years for maintenance and safety
checks.
Magnum XL has been designed to be used in the following operating environments:
- domestic environment;
- clinics;

Rev 3 – 12.11.2020 10
- physiotherapy centers;
- rehabilitation in general;
- pain treatments in general;
- for aesthetic and sport purposes;
The use of this equipment is allowed to the patient (appropriately informed of the condi-
tions of use of the apparatus) and the medical staff.
CE0476 does not refer to non-medical treatments.
INSTRUCTIONS FOR THE USE OF THE WATER-PROOF CASE
To ensure the IP 22 water-proof level in home use, put the device into the water-proof
case included in the equipment. Then pressure-close the zip and let the cables come out
of the upper corner of the case. Use a twist tie to seal the closure on the corner. Com-
plete the insertion as in the picture below.

Rev 3 – 12.11.2020 11

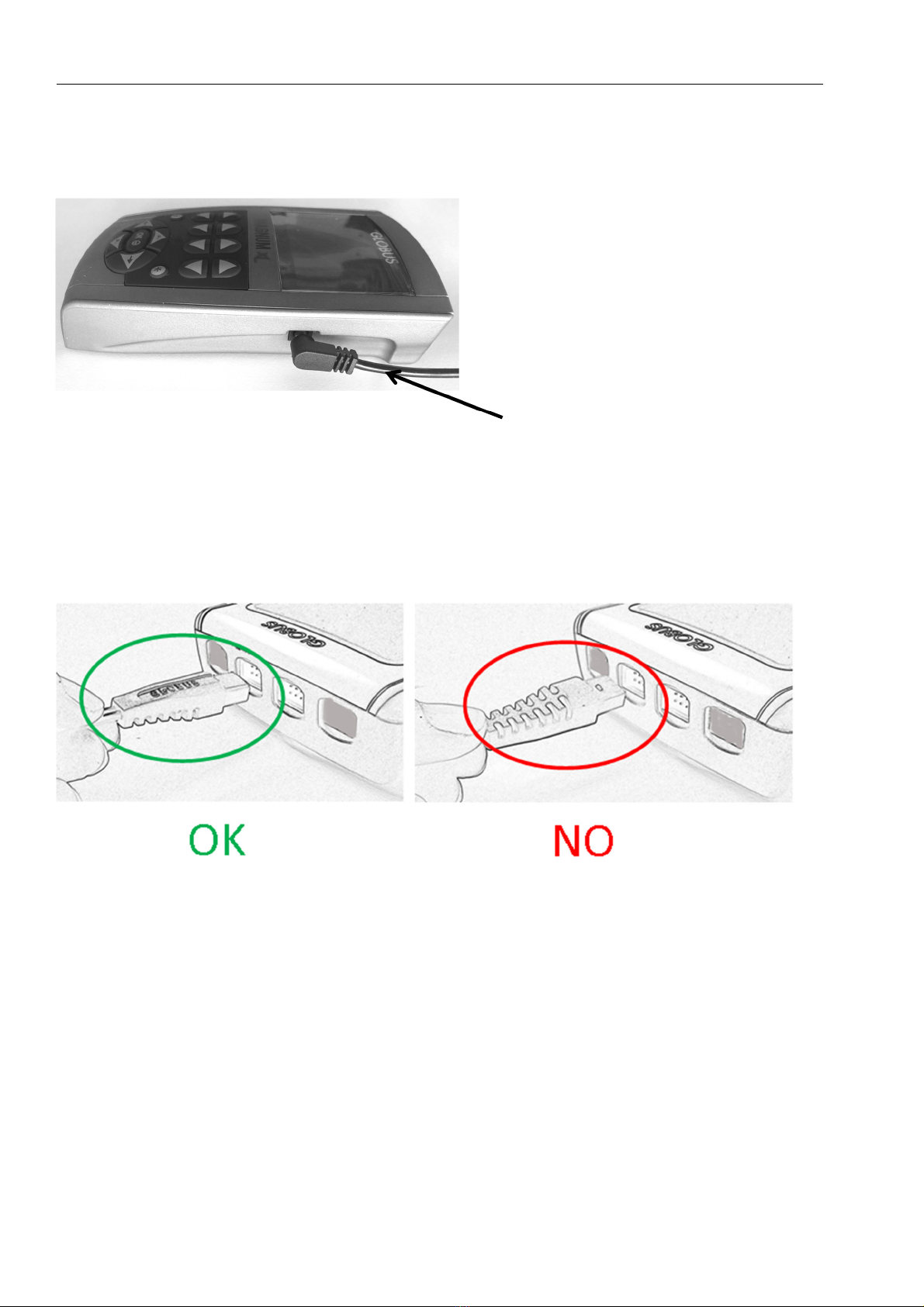

CONNECTIONS
Device
Magnum XL operates connected to the mains. To connect the power supply to the con-
nector, plug it as shown below.
Warning: If the case, the cable or the connector of the power supply show signs of wear
or damage, replace the product instantly.
Connect the diffusers
To connect the diffusers to the device, plug the connectors to the specific inlets in the
upper part of the unit (see picture). Cables should be inserted with grooves downwards.
WARNING: do not unplug the solenoids (diffusers) if the unit is operating.

Rev 3 – 12.11.2020 12
LABELLING AND SYMBOLS
It refers to the manufacturer
Warning: the applied parts can reach temperatures that
may cause redness or burns.
Keep the device dry
This symbol on your device indicates that it complies with
the requirements of the directives on medical devices
(93/42/EEC 47/2007EEC). The number of the notified
body is 0476.
It indicates that this is a class II device.
It indicates that this device has BF-type applied parts.
WEEE symbol (Waste of Electrical and Electronic
Equipment). Recycling symbol.
The WEEE symbol used for this product indicates that the
product cannot be treated as a household waste. The
proper disposal of the product will contribute to
protecting the environment. For further information on
the recycling of this product, please contact the
concerned office of your local body, the household
waste management company or the store where the
product was purchased.
It indicates that the product has been produced in
compliance with the directive 2011/65/EEC.
It indicates the optimal temperature for the storage and
transportation of the product.
It informs the operator that it is compulsory to read the
manual before using the device.
IP20-IP02
It indicates water protection
It informs the client of the compulsory behavior
It indicates the pressure of the environment in which the
device and the accessories are transported and stored.

Rev 3 – 12.11.2020 13
It indicates the humidity of the environment where the
device and the accessories are used and stored.
Model It indicates the power supply model
PRI Output electric features of the power supply
SEC Output electric features of the power supply
Input power Input electric features of the device
Output freq. It indicates the frequency range of the magnetic field
emitted by the device
Output power
It indicates the maximum magnetic field emitted by the
device
Type It indicates the device type
Device
The image is just for indication. For technical data see the first chapter.
Input PWR: GTM41060-2512 IP20
PRI: 100-240Vac 50-60Hz Max 0,6A
SEC: 12Vdc 2,08A
Output Freq.: 5 – 200Hz
Output Power: 140 Gauss
Magneto: MAGNUM XL
*MJ0431700001*
SN: MJ0431700001

Rev 3 – 12.11.2020 14

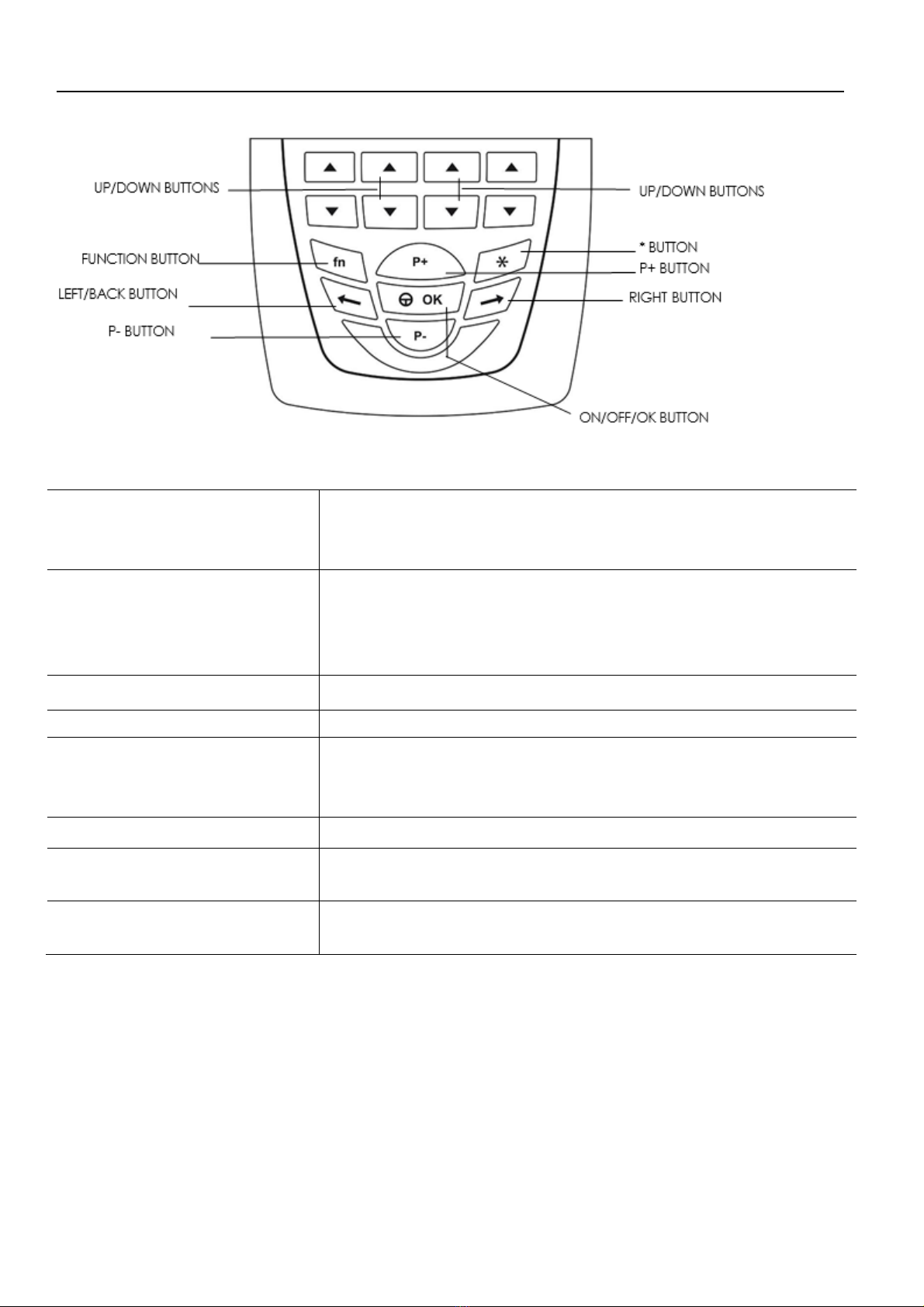

DASHBOARD AND KEYBOARD
ON/OFF/OK Button It confirms the selection. While a program is running, it ac-
tivates the pause.
3” = On/Off.
Back/left button Moves the selection to the left.
To go back to the previous selection.
If pressed for 3'' while the program is running, it returns to
the previous selection.
P+ Button Moves the selection upwards.
P- Button Moves the selection downwards.
Forward/right button Moves the selection to the right.
If pressed for 3'' while the program is running, it goes to
the next phase.
* Button Display peak Gauss emitted by the machine
Function (fn) Button To adjust treatment duration (see use instructions para-
graph)
Increase-decrease buttons
They change treatment parameters
To regulate the Gauss value of the magnetic field

Rev 3 – 12.11.2020 15
)

Display/Interface
ALARMS
Compliance
Certifications: CE MDD certificate
Acoustic signals comply with directive 60601-1-8.
Open circuit
The device is equipped with a power-emission control system.
Before starting any treatment, it is therefore necessary to ensure that the diffuser is
connected to the device and placed on the area to be treated.
Correct emission of power The treatment proceeds correctly.
Cable not connected Check that the cable is connected to the
right output.
Device in pause mode Press OK to continue the treatment.
NOTE:
If the unplugged cable message appears, verify that the device, the cables and the
diffuser are intact and correctly used.
If the problem persists, please contact the customer care.
Type of power
supply
Program
name
Duration
Power in Gauss
Indicators
of
Solenoid 1 Solenoid 2
FRACTURES
TIMEGAUSS
50
G 1 h :00 m
2
1

Rev 3 – 12.11.2020 16
WARNINGS AND CONTRAINDICATIONS
Mandatory behavior
To ensure maximum safety, the device must be used respecting the rules and the limita-
tions indicated by the user manual.
If the packaging, the cable or the connector of the power supply unit show signs of wear
or damage, replace them instantly.
Before connecting the device to the mains by its power supply, ensure that the building
wiring complies with the directives in force in your country. Make sure that the power sup-
ply will be easily unplugged from the mains.
The manufacturer declines any responsibility for any use that differs from what is indicated
and prescribed in this manual.
The full or partial reproduction in any form and by any electronic or mechanical means of
the texts and/or pictures contained in this manual without the written authorization of the
manufacturer is forbidden.
Instructions before use
Consult your family doctor before use.
Do not use Magnum XL combined with other electronic devices, especially if they main-
tain vital functions. Read the tables at the end of the present handbook for a correct use
of Magnum XL. If the device is used nearby or on other devices, make sure it works
properly.
- It is recommended to read carefully the entire operating manual before using the de-
vice; keep carefully this operating manual.
-The unit must be used only with the diffusers provided with the original equipment (Glo-
bus brand) and according to the therapeutic modalities described in this manual.
- Before each use always check the integrity of the device. This is a fundamental require-
ment for carrying out the therapy; do not use the device if the buttons or the cables are
defective or malfunctioning.
The device:
It must be used only by people over 18 or applied on subjects from the age of 15 under
the supervision of people aged less than 18 years and, in any event, who are able to un-
derstand and take action.
- it must be used following the indications and under the physician’s or physiotherapist’s
control;
- It must be kept out of the reach of children;
- if there is any health problem, it must be used only after seeing a physician;
- once you have turned the device on, make sure that on the display the software version
and the
model of the device appear, it means that the device is working and it is ready to be
used;
Otherwise, if all the segments appear on the monitor, shut down the device and restart it.
If the problem persists, contact the customer care and do not use the device.

Rev 3 – 12.11.2020 17
Warnings during the use
The device is intended for continuous functioning.
While using Magnum XL, please comply with the following indications:
- in the case of damaged cables, they must be replaced with original parts and not used
anymore;
- the device must be kept out of the reach of any pet that could damage it and con-
taminate it with parasites;
- the cables of the device, the diffusers and the power supply should not be wrapped
around people's neck to avoid any risk of strangulation and suffocation;
- the mobile and fixed radio communication devices could influence the functioning of
the electromedical device: see the tables attached to this manual.
- during the use the temperature of the diffusers can rise and cause an unpleasant sensa-
tion, redness or irritation. We suggest to:
- consult the doctor;
- put a sponge cloth (towel) in between;
- reduce the power emitted and prolong the treatment.
Side effects
It has been pointed out: general intolerance to magnetic fields therapy such as sleepi-
ness, restlessness, insomnia and nausea. According to our experience these effects are
extremely rare and were mainly observed during the treatment of the cervical spine. In
case of onset of the events, avoid sessions longer than 30 consecutive minutes.
Contraindications
Absolute contraindication: treatment of patients with cardiac pacemakers or other per-
manent (e.g. vertebral) electrostimulators.
Contraindications:
- patient with cardiac rhythm disorders;
- dermatitis and fungal infections;
- hemorrhagic tendency;
- severe ischemic diseases;
- during the menstrual cycle if particularly abundant;
- this treatment is not indicated for pregnant women, wearers of electrical prosthesis,
hearing aids and intrauterine devices;
- do not carry out this treatment together with TENS and/or HOLTER;
- do not use in areas with metal prosthesis (screws, nails, etc..) made of ferromagnetic ma-
terial and in areas with means of magnetizable endotissue synthesis. If you have any
doubt, see your physician;
- do not use on children under fifteen;
- do not use on noble organs (ovaries, heart, head, etc.);
- do not use in the case of fever;
- in the case of tumor diseases it is necessary to see your physician or oncologist before us-
ing magnetotherapy;
- in the case of severe imbalances of blood pressure;

Rev 3 – 12.11.2020 18
- do not use in the case of tuberculosis.
MAINTENANCE AND CLEANING
Maintenance and cleaning of the device
- In case of real or alleged malfunctioning, do not tamper with the device and do not try
to repair it by yourself. Do not intervene on the device and do not open it. Only special-
ized and authorized centers can repair it.
- To clean it, turn the device off and disconnect it from the electric line.
- Do not clean the device with diluent, diesel, kerosene, alcohol or chemicals.
- If the device accidentally falls in the water, do not use it and contact an Authorized
Support Service.
- After a long period without use, make sure that the device works properly (contact Au-
thorized Support Center).
- Maintenance must be made only with original products and spare parts.
- The improper use of non-original products and spare parts entails the non-compliance of
the product.
- It is recommendable to clean the device after every use.
Maintenance and cleaning of the diffusers (or solenoids)
Handle the diffuser with care.
Inappropriate handling may affect its features.
Do not tie or twist the connection cable.
For cleaning, disconnect the transducer form the device.
Do not plunge the transducers into liquids and do not use liquids directly on them. Use a
dampened cloth.
Do not use sprays, liquids or solvents near the transducer.
Avoid using aggressive solvents, alcohol or detergents that may damage the case.
Soft solenoid and soft mat 4 cleaning
For cleaning use only Amuchina or Quaternary ammonium salts diluted in distilled water in
a percentage equal to 0.2 - 0.3%. At the end of cleaning, the solenoids must be perfectly
dried with the use of a clean cloth.
In case of liquid penetration, do not use the solenoid and contact an authorized service
center.
The cleaning process is expected to take place at the end of each use.
Pocket Pro Cleaning
The casing of Pocket Pro solenoid can be machine washed at 40 ° with mild soap. Do not
tumble dry.
Cleaning procedure:
- remove the pad containing the coils from the case;
- after washing and drying the case, reinsert the pad containing the two coils. Pay atten-
tion to re-insertion: the two N (indicating North) printed on the coils must be positioned on
the same side as the N printed on the case.

Rev 3 – 12.11.2020 19
Cleaning the flexible solenoids
- To clean these solenoids, use a clean cloth moistened with Amuchina or quaternary
ammonium salts diluted in distilled water in a percentage equal to 0.2 - 0.3%. Allow the
accessory to dry completely before using it again.
- Alternatively, sanitize the solenoid with steam appliances (steam gun, steam iron…). To
have an antibacterial result, use a jet of at least 100 ° temperature, trying to keep a dis-
tance of about 10 cm from the accessory, and perform steps of a few seconds for each
side.
Diffuser check
At every cleaning of the transducer and in any case after every treatment, it is necessary
to check that it has no tears or other forms of wear that could make it inefficient.
If the transducer is not intact, replace it immediately.
Disposal of the device
Do not throw the device or parts of it into the fire; dispose of the product in the special-
ized centers and respecting the regulations in force in your country.
When the product has to be disposed of, the user can give it back to the retailer when
purchasing a new device.
Correct waste separation or following the above-mentioned procedure contribute to
avoiding possible negative effects on environment and health and promote the reuse
and/or recycle of the materials that compose the device. The illegal disposal of the prod-
uct entails the application of administrative fines in accordance with applicable regula-
tions.

Rev 3 – 12.11.2020 20
Magnum XL
Easy Program
Program List
Advanced
INSTRUCTIONS FOR USE
Turn on/off
To turn on or off, press and hold OK until the acoustic signal is heard.
Homepage
Use P+ and P- to make the selection and press OK to confirm your choice.
EASY PROGRAM
This function allows to start a magnetotherapy treatment in few simple clicks.
The parameters can be edited quickly by pressing the increase and decrease buttons
placed below each parameter.
To start the treatment, just connect the solenoids and press OK.
At the first start, the program is set with the parameters of a generic anti-inflammatory
program.
EDITING THE PARAMETERS QUICKLY ON EASY PROGRAM
To change the Gauss, the frequency and the duration of the therapy, use the first three
pairs of increase/decrease buttons (highlighted in yellow in the picture below). Each but-
ton edits the corresponding parameter on the screen.
PROGRAM LIST
EASY PROGRAM ADVANCED
TURNING ON
Press OK to start
the treatment
