GMC REDEYE DB250SMS User manual

1
1800W
DOUBLE BEVEL SLIDE COMPOUND MITRE SAW
WITH DUAL LASER LINE
DB250SMS/DB305SMS
GECOMBINEERDE VERSTEKZAAG MET DUBBELE AFSCHUINING
SCHUIFMECHANISME EN DUBBELE LASERLIJN
SCIE COMBINEE A ONGLETS ET DOUBLE INCLINAISON
A FONCTION COULISSANTE
ET DOUBLE LIGNE LASER
KAPP- UND GEHRUNGSSÄGE MIT
BEIDSEITIGER NEIGUNG, ZUGFUNKTION
UND DOPPELTEM LASERSTRAHL
TRONCATRICE RADIALE CON DOPPIA
INCLINAZIONE E SISTEMA DI SCORRIMENTO
CON DOPPIA LINEA LASER
SIERRA INGLETADORA COMPUESTA
DESLIZANTE DE DOBLE BISEL
CON DOBLE GUÍA LÁSER

2
GB
Contents
Description of symbols 3
Specifications 3
General safety instructions 4
Safety rules for laser lights 5
Additional safety rules for mitre saws 5
Accessories 7
Know your product 8
Unpacking 9
Transportation 9
Bench mounting 9
Stabiliser bar 9
Release knob 9
Slide lock 9
Mitre table lock 10
Bevel lock 10
Bevel adjuster 10
Clamp assembly 10
Spindle lock button 10
Rotating lower blade guard 10
Dust bag 11
Attaching the side bars 11
Trench depth adjustment 11
Turning on and off 11
Turning on the laser line generator 11
Setting the table square with the blade 12
Setting the fence square with the table 13
Changing a blade 13
Cross-cutting (without slide action) 15
Cross-cutting (with slide action) 15
Bevel cut 16
Compound mitre cut 16
Adjusting the laser lines 17
Using the laserguide system 17
Maintenance 18
Power cord maintenance 18
Cleaning 18
General inspection 18
Introduction
Thank you for purchasing this GMC Tool. These instructions
contain information necessary for safe and effective
operation of this product. This product has unique features.
Even if you are familiar with similar products, please read
this manual carefully to make sure you get the full benefit
from them. Keep this manual close to hand and ensure all
users of this tool have read and fully understand them.
Guarantee
To register your guarantee visit our web site at
www.gmctools.com and enter your details*.
Your details will be included on our mailing list
(unless indicated otherwise) for information
on future releases. Details provided will not be made
available to any third party.
Purchase Record
Date of Purchase:
Model:
Serial Number:________________________________
(located on motor housing)
Retain your receipt as proof of purchase.
If registered within 30 days of purchase GMC guarantees
to the purchaser of this product that if any part proves to
be defective due to faulty materials or workmanship within
24 MONTHS from the date of original purchase, GMC will
repair, or at its discretion replace, the faulty part free of
charge. This guarantee does not apply to commercial use
nor does it extend to normal wear and tear or damage as
a result of accident, abuse or misuse.
* Register online within 30 days of purchase.
Terms & conditions apply.
This does not affect your statutory rights.

GB
3
Environmental Protection
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
local authority or retailer for recycling advice
Description of symbols
The rating plate on your tool may show symbols.
These represent important information about the
product or instructions on its use.
Read instruction Manual.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Double insulated for additional protection.
Conforms to relevant legislation and safety
standards.
Declaration Of Conformity
The Undersigned: Mr Philip Ellis as authorized by: GMC
Declare that:
PRODUCT CODE: DB250SMS/DB305SMS
DESCRIPTION: Double Bevel Slide Compound Mitre Saw
Electric power: 230-240V~ 50Hz 1800W
CONFORMS TO THE FOLLOWING DIRECTIVES:
• Directive 2004/108/EC Electromagnetic Compatability
• Directive 2006/95/EC Low Voltage Directive
• Directive 98/37/EC Machinery Directive
• Directive 2002/95/EC RoHS
• EN 61029-1: 2000+A11+A12, EN 61029-2-9: 2002
• EN 60825-1: 1994+A1+A2, EN 55014-1: 2000+A1+A2
• EN 55014-2: 1997+A1, EN 61000-3-2: 2006, EN 61000-3-11:2000
THE TECHNICAL DOCUMENTATION IS KEPT BY GMC
Date: 01/11/10
Signed by:
Mr Philip Ellis, Managing Director
Specifications
DB250SMS DB305SMS
Input power: 1800W 1800W
No load speed: 5000min-1 5000min-1
Blade size: Ø250mm Ø305mm
x Ø30mm bore x Ø30mm bore
Number of teeth: 24 30
Mitre table angles: 0° to 52° 0° to 52°
left & right left & right
Bevel cuts: 0° to 45° 0° to 45°
left & right left & right
Straight cut:
0° x 0°: 280mm x 80mm 305mm x 95mm
Mitre cut:
45° (L&R) x 0°: 196mm x 80mm 215mm x 95mm
52° (L&R) x 0°: 170mm x 80mm 186mm x 95mm
Bevel cut:
0° x 45° (R): 280mm x 27mm 305mm x 42mm
0° x 45° (L): 280mm x 52mm 305mm x 52mm
Compound mitre cut:
45° (R) x 45° (R): 196mm x 27mm 215mm x 42mm
52° (R) x 45° (R): 170mm x 27mm 186mm x 42mm
45° (L) x 45° (L): 196mm x 52mm 215mm x 52mm
52° (L) x 45° (L): 170mm x 52mm 186mm x 52mm
Weight: 25.7 kg 25.72kg
Noise and Vibration Data:
A Weighted Sound Pressure: 98dB(A)
A Weighted Sound Power: 111dB(A)
Uncertainty: 3dB(A)
Typical Weighted Vibration: 7.14m/s2
Uncertainty: 1.5m/s2
The sound intensity level for the operator may exceed
85dB(A) and sound protection measures are necessary

4
GB
GENERAL SAFETY INSTRUCTIONS
WARNING. Read all safety warnings and all
instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery operated (cordless)
power tool.
1. WORK AREA SAFETY
a. Keep work area clean and well lit. Cluttered and dark
areas invite accidents.
b. Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
c. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
2. ELECTRICAL SAFETY
a. Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adaptor plugs
with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the
risk of electric shock.
e. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3. PERSONAL SAFETY
a. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
b. Use safety equipment. Always wear eye protection.
Safety equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c. Avoid accidental starting. Ensure the switch is in the
off position before plugging in. Carrying power tools with
your finger on the switch or plugging in power tools that
have the switch on invites accidents.
d. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result
in personal injury.
e. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
f. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away from
moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
g. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of these devices
can reduce dust related hazards.
4. POWER TOOL USE AND CARE
a. Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the job
better and safer at the rate for which it was designed.

GB
5
b. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source before
making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool
or these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
e. Always unplug your power tool when leaving
unattended. Such preventative safety measures
reduce the risk of starting the power tool accidentally
by untrained users.
f. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power tools
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
g. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
h. Use the power tool, accessories and tool bits etc.,
in accordance with these instructions and in the
manner intended for the particular type of power
tool, taking into account the working conditions and
the work to be performed. Use of the power tool for
operations different from those intended could result in
a hazardous situation.
5. SERVICE
a. Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
WARNING. Do not stare directly at the laser beam.
A hazard may exist if you deliberately stare into the beam,
please observe all safety rules as follows;
• The laser shall be used and maintained in accordance
with the manufacturer’s instructions.
• Never aim the beam at any person or an object other
than the workpiece.
• The laser beam shall not be deliberately aimed at
personnel and shall be prevented from being directed
towards the eye of a person for longer than 0.25s.
• Always ensure the laser beam is aimed at a sturdy
workpiece without reflective surfaces. I.e. wood or
rough coated surfaces are acceptable. Bright shiny
reflective sheet steel or the like is not suitable for laser
use as the reflective surface could direct the beam back
at the operator.
• Do not change the laser light assembly with a different
type. Repairs must be carried out by the laser
manufacturer or an authorised agent.
Product Wave Length: 650nm,
Output Power: ≤1mW
EN 60825-1:1994+A2:2001+A1:2002
CAUTION. Use of controls or adjustments or performance
of procedures other than those specified herein may result
in hazardous radiation exposure.
Please refer to the relevant EN standards, and EN60825 for
more information on Lasers.
Additional safety rules for mitre saws
WARNINGS. Before connecting a tool to a power source
(mains switch power point receptacle, outlet, etc.) be sure
that the voltage supply is the same as that specified on the
nameplate of the tool. A power source with a voltage greater
than that specified for the tool can result in serious injury to
the user, as well as damage to the tool.
If in doubt, do not plug in the tool.
Using a power source with a voltage less than the
nameplate rating is harmful to the motor.
Your tool is double insulated for additional protection against

6
GB
a possible electrical insulation failure within the tool.
Always remove the plug from the mains socket before
making any adjustments or maintenance, including
changing the blade.
• When operating the saw, use safety equipment including
safety goggles or shield, ear protection, dust mask and
protective clothing including safety gloves.
• Ensure that there is adequate general or localised
lighting.
• Do not use the saw unless the guards are in place.
• Do not use the saw to cut metal or masonry.
• Do not let anyone under 18 years operate this saw.
• Ensure that the operator is adequately trained in the use,
adjustment and operation of the machine.
• Do not use this saw to cut firewood.
• Keep the area free of tripping hazards.
• Report faults in the machine, including guards and saw
blades, as soon as they are discovered.
• Ensure that the machine is always fixed to a bench,
whenever possible.
• Always stand to one side when operating the saw.
• Never use a cracked or distorted saw blade.
• When cutting round wood, use clamps that prevent the
workpiece from turning on both sides of the blade.
• Never use your hands to remove sawdust, chips or waste
close by the blade.
• Use only blades as recommended by the manufacturer
and which conform to EN 847-1.
• Do not use blades of High Speed Steel (HSS blades).
• If the table insert is damaged or worn, have it replaced by
an authorised service centre.
• Rags, cloths, cord and string and the like should never be
left around the work area.
• Avoid cutting nails. Inspect the workpiece and remove all
nails and other foreign objects before beginning sawing.
• Support the work properly.
• Refrain from removing any cut-offs or other parts of the
workpiece from the cutting area whilst the machine is
running and the saw head is not in the rest position.
• Do not attempt to free a jammed blade before first
switching off the machine.
• Do not slow or stop a blade with a piece of wood. Let the
blade come to rest naturally.
• If you are interrupted when operating the saw, complete
the process and switch off before looking up.
• Periodically check that all nuts, bolts and other fixings are
properly tightened.
• Do not store materials or equipment above a machine in
such a way that they could fall into it.
• Always hold the saw on parts that are insulated. If you
accidentally cut into hidden wiring or the saw’s own cable,
the metal parts of the saw will become “live”. Switch off at
the mains and remove the plug immediately.
• Never saw near combustible liquids or gases.
• Note the direction of rotation of the motor and the blade.
• Do not lock the movable guard in the open position and
always ensure that it is working properly, freely rotating
and returning to fully cover the teeth of the blade.
• Connect the saw to a dust collection devise and ensure
that it is operated properly. As the operator of the saw,
please make sure that you understand factors that
influence exposure to dust, including the type of material
to be machined, the importance of local extraction and
the proper adjustment of hoods/baffles/shoots of your
dust extraction system. We recommend that you always
wear a dust mask when operating this saw.
• Wear gloves when handling saw blades and
rough materials.
• Saw blades shall be carried in a holder wherever possible.

GB
7
• Select saw blades in relation to the material being cut.
• Use correctly sharpened saw blades and observe the
maximum speed marked on the blade.
• Take additional care when trenching (slotting).
• The mitre saw can be safely carried by the carrying
handle but only once it has been removed from the mains
power and secured in the locked down position.
• Ensure that the arm is properly secure when bevelling.
• Keep the floor area around the machine level, well
maintained and free of loose materials.
• Ensure that you are trained in the use, adjustment and
operation of the machine.
• Do not remove any cut-offs from the cutting area until
the guard is fully locked in placed and the blade has
come to rest.
• When cutting long pieces which extend well over the table
width, ensure that the ends are adequately supported at
the same height as the saw table top. Supports should
be positioned in such a way to ensure that the workpiece
does not fall to the ground once the cut has been made.
A number of supports at regular intervals may be required
if the workpiece is extremely long.
Wear goggles
Wear earmuffs
Wear a breathing mask
Accessories
The GMC DB250SMS / DB305SMS Double Bevel Slide
Compound Mitre Saw is supplied with the following
accessories as standard:
• Saw blade (fitted)
• Workpiece clamp
• 6mm Hex key
• Side bars x 2
• Stabiliser Bar
• Dust bag
• Instruction manual

8
GB
Know your product
Before using the saw, familiarise yourself with all
the operating features and safety requirements.
1. Laser light assembly
2. Laser light on/off switch
3. Laser cover
4. Laser pitch control
5. Saw arm
6. Release knob
7. Operating handle
8. Carrying handle
9. Upper fixed blade guard
10. Clamp assembly
11. Clamp assembly lock (x2)
12. Rotating blade guard
13. Guard retraction arm
14. Blade bolt cover
15. Dust bag
16. Bevel lock
17. Bevel scale
18. 0° Bevel adjuster
19. Fence
20. 6mm Hex key
21. Mitre table
22. Mitre scale
23. Table insert (kerf plate)
24. Switch trigger
25. Mitre lock
26. Spindle lock
27. Dust extraction port
28. Slide bars
29. Slide lock
30. Trenching depth
adjustment screw
31. Trenching stop
32. Trenching depth lock nut
33. 45° Bevel adjustment
screw (left)
34. 45° Bevel adjustment
screw (right)
35. 0° Bevel adjustment screw
36. Release latch
37. Side support bars (x2)
38. Side support bar location
holes (2 sets)
39. Side support bar
locking screws
40. Stabiliser bar
415
20
33
34 3518
1
9
3
7
10
11
12
13
14
17
19
21
22
23
24
25
32
31
30
36
37 38
39
26
6
8
16
27
28
29
40
5
2

GB
9
Unpacking
Due to modern mass production techniques, it is unlikely
that your GMC Power Tool is faulty or that a part is missing.
If you find anything wrong, do not operate the tool until the
parts have been replaced or the fault has been rectified.
Failure to do so could result in serious personal injury.
1. Remove all loose parts from the carton.
2. Remove the packing materials from around the saw.
3. Using the carrying handle (8) carefully lift the saw from
the carton and place it on a level work surface.
4. The saw has been shipped with the saw arm locked in
the down position. To release the saw arm, push down
on the top of the saw arm, pull on the release knob (6),
rotate it 45° and let go, slowly raise the saw arm.
WARNING. Do not lift the saw whilst holding on to the
guards. Use the carrying handle (8).
Transportation
Lift the mitre saw only when the
saw arm is locked in the down
position, the saw is switched
off and the plug is removed
from the power point.
Only lift the saw by the
carrying handle (8) or outer
castings (Fig. A). Do not lift
the saw using the guard or
operating handle (7).
Bench mounting
The saw base has holes in
each corner to facilitate bench
mounting (Fig. B).
1. Mount the saw to a level,
horizontal bench or work
table using bolts (not
supplied) and fix the saw to
the bench using 4 bolts.
2. If desired, you can mount the saw to a piece of 13mm or
thicker plywood which can then be clamped to your work
support or moved to other job sites and re-clamped.
CAUTION. Make sure that the mounting surface is not
warped as an uneven surface can cause binding and
inaccurate sawing.
Stabiliser bar
When the saw is not fitted
to a bench, always fit the
stabiliser bar (40) into the
holes at the rear of the saw
base (Fig. C). The stabiliser
helps prevent the saw from
tipping backwards when the
slide action is used.
Release knob
The release knob (6) is
provided for holding the
cutting head down whilst
transporting or storing the
mitre saw (Fig. D). The saw
must never be used with
the release knob locking the
head down.
Slide lock
When tightened, the slide
lock (29) prevents the
saw head from sliding.
Tighten the slide lock during
transportation (Fig. E).
A
B
C
D
E

10
GB

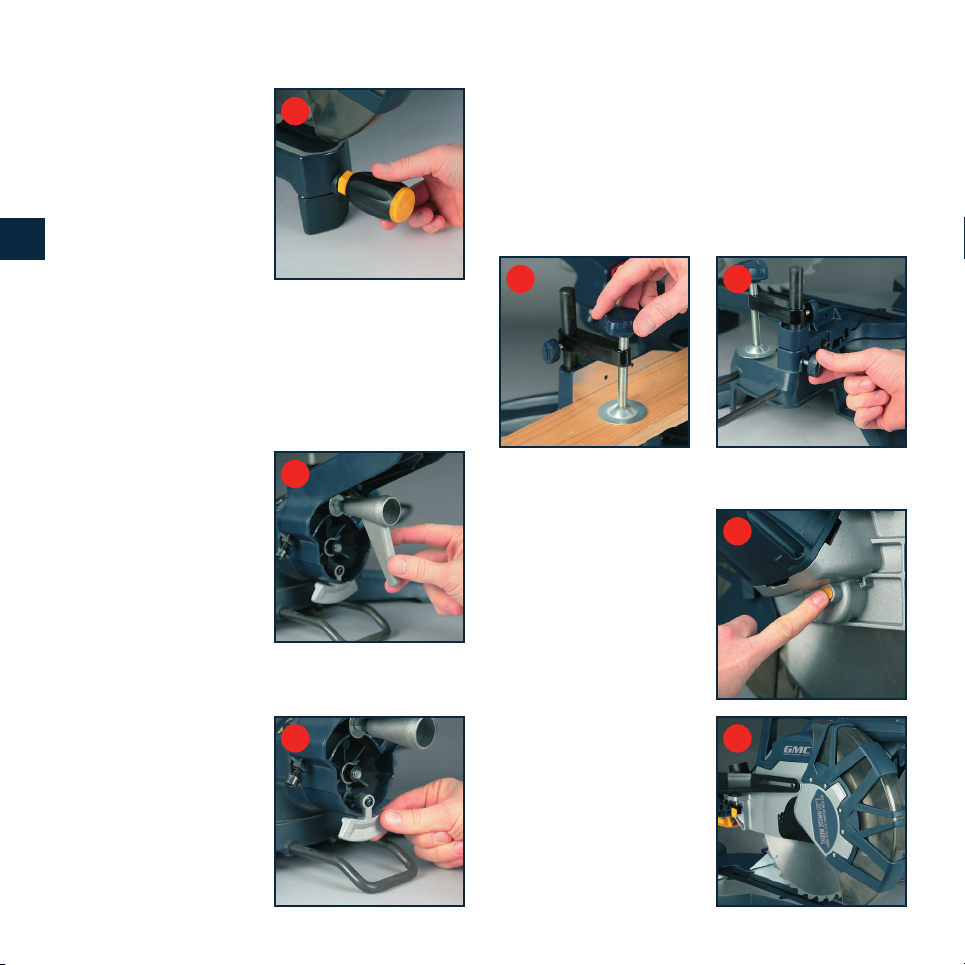

Mitre table lock
The mitre table lock (25) is
used to lock the table at the
desired mitre angle (Fig. F).
The mitre saw cuts from 0°
to 45° both left and right. To
adjust the mitre angle loosen
the mitre table lock and using
the mitre table handle adjust
the mitre angle to the desired
position. The mitre table
features positive click stops at 0°, 15°, 22.5°, 30° and 45°
for quick setting of common mitre angles.
WARNING. Be sure to tighten the mitre table lock before
making a cut. Failure to do so could result in the table
moving during the cut and cause serious personal injury.
Bevel lock
The bevel lock (16) is used to
set the blade at the desired
bevel angle (Fig. G). The
mitre saw bevel cuts from 0°
to 45° to the left and right. To
adjust the bevel angle loosen
the bevel lock and pull out the
0° bevel adjuster (18). Adjust
the saw arm to the desired
bevel angle.
WARNING. Be sure to tighten
the bevel lock before making a cut. Failure to do so could
result in the saw arm moving during the cut and cause
serious personal injury.0°
Bevel adjuster
The bevel adjuster (18)
needs to be pulled out before
the bevel angle can be
adjusted (Fig. H).
To return the saw arm to the vertical (0° bevel)
position move the saw arm to the left and push in the
0° bevel adjuster.
Return the saw blade to the vertical position, it will automatically
stop at the 0° bevel position. Tighten the bevel lock.
Clamp assembly
The clamp assembly (10) can be mounted to the fence,
either side of the saw blade, to suit the task at hand (Fig. I).
Use the clamp assembly lock (11) at the back of the fence
to secure the clamp assembly in position (Fig. J).
Spindle lock button
The spindle lock button (26)
prevents the blade in the
saw from rotating (Fig. K).
Depress and hold the
spindle lock button while
installing, changing, or
removing the blade.
Rotating lower
blade guard
The rotating lower blade
guard (12) provides
protection from both sides of
the blade (Fig. L). It retracts
over the upper blade guard
(9) as the saw is lowered into
the workpiece.
I J
F
G
H
K
L

GB
11
Dust bag
The dust bag (15) fits over
the dust extraction port (27).
For more efficient operation,
empty the dust bag when it
is no more than half full. This
allows better air flow through
the bag (Fig. M).
Attaching
the side bars
The side support bars (37)
help to support the material
when working with long
workpieces. There are two
location holes (38) for a
support bar on either side of
the table. Loosen the lock
screws (39) with the 6mm
hex key. Ensure the side
bars are fully inserted before
using them to support the
workpiece (Fig. N).
The side support bar
locking screws (39) must
be tightened to secure the
support bars in position
(Fig. O).
Trench depth
adjustment
In its normal position, the
trenching stop (31) permits
the saw blade to cut right
through a workpiece. When
the saw arm is lifted, the
trenching stop can be moved
to the left so that the trenching
depth adjustment screw (30)
contacts the stop as the saw
arm is lowered. (Fig. P). This
restricts the cut to a “trench” in the workpiece. The depth
of the trench can be adjusted with the trenching depth
adjustment screw (30) (Fig. Q) and locked in position with
the trenching depth lock nut (32) (Fig. R).
Turning on and off
1. To turn the saw on depress
and hold the on/off trigger
switch (24) (Fig. S).
2. To turn the saw off release
the on/off trigger switch (24).
Turning on the laser
line generator
The laser line generator emits
2 intense narrow beams of
pure red light to guide you as
you cut.
It improves operator cutting
vision, enables faster set-up,
increases accuracy and
improves safety. To turn on
the laser lines press the laser
light on/off switch (2) (Fig. T).
To turn off the laser press the
laser light on/off switch (2)
one more time.
R
M
N
O
P
Q
S
T

12
GB

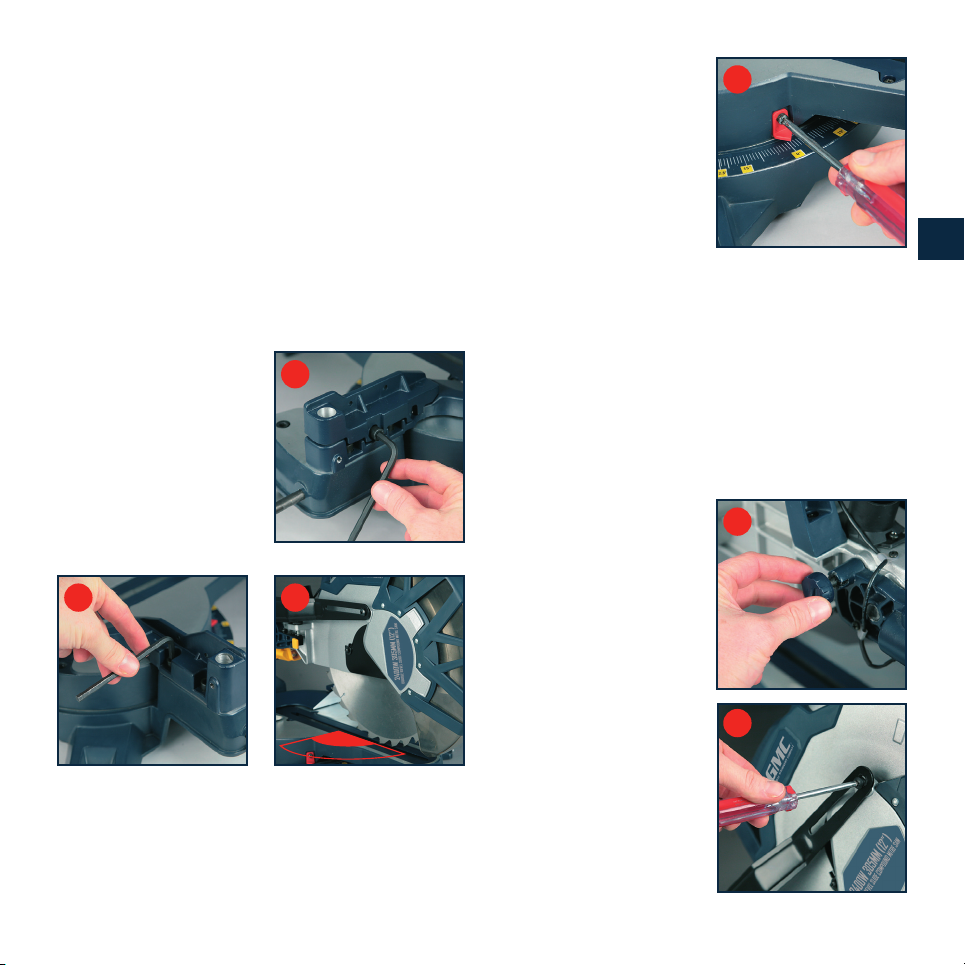

Setting the table square with the blade
1. Make sure that the electrical plug is removed from
the power point.
2. Push the saw arm (5) down to its lowest position and
engage the release knob (6) to hold the saw arm in the
transport position.
3. Loosen the mitre lock (25)
(Fig. U).
4. Rotate the table (21)
until the pointer is
positioned at 0º.
5. Tighten the mitre lock (25).
6. Loosen the bevel lock (16)
and set the saw arm (5) at
0º bevel (the blade at 90º to
the mitre table). Tighten the
bevel lock (16) (Fig. V).
7. Place a set square against
the table (21) and the flat part of the blade. (Fig. W)
Note. Make sure that the square contacts the flat part of
the saw blade, not the teeth.
8. Rotate the blade by hand and check the blade-to-table
alignment at several points.
9. The edge of the set square and the saw blade should
be parallel.
10. If the saw blade angles away from the set square,
adjust as follows.
11. Use a 13mm wrench or adjustable wrench to loosen the
lock nut securing the 0°
bevel adjustment screw
(35) (Fig. X). Also, loosen
the bevel lock (16).
12. Adjust the 0° bevel
adjustment screw (35)
with the 6mm hex key to
bring the saw blade into
alignment with the square
(Fig. Y).
13. Loosen the 2 Phillips head screws holding the pointer
of the bevel scale (17) and adjust the position of the
pointer so that it accurately indicates zero on the scale
(Fig. Z). Retighten the screw.
14. Retighten the bevel lock (16) and the lock nut securing
the 0° bevel adjustment screw (35).
Note. The above procedure can also be used to check the
angle of the saw blade to the table at either 45º bevel angle
to the left or to the right. The 45° bevel adjustment screws
(33 & 34) are on opposite sides of the saw arm. You will
U
V
X
W
90°
Y Z
a b

GB
13
require a 13mm wrench or adjustable wrench (not supplied)
for the lock nut (Fig. a) and the 6mm hex key for the set
screws (Fig. b).
Setting the fence square with the table
1. Make sure that the electrical plug is removed from the
power point.
2. Push the saw arm (5) down to its lowest position and
engage the release knob (6) to hold the saw arm in the
transport position.
3. Loosen the mitre lock (25).
4. Rotate the table (21) until the pointer is positioned at 0º.
5. Tighten the mitre lock (25).
6. Using the 6mm hex key
loosen the hex screw
securing the top piece of
the right hand side fence
(Fig. c) and remove this
top section.
7. Using the 6mm hex key
provided, loosen the four
screws securing the fence
(19) to the base (Fig. d).
8. Place a square against the fence (19) and alongside the
blade (Fig. e).
9. Adjust the fence (19) until it is square with the blade.
10. Tighten the screws securing the fence (19).
11. Loosen the Phillips head screw holding the pointer of
the mitre scale (22)
and adjust it so that it
accurately indicates the
zero position on the mitre
scale (Fig. f).
12. Retighten the screw
securing the mitre
scale pointer.
13. Replace the top section of
the fence and secure the
hex screw using the 6mm hex key.
Changing a blade
DANGER! Never try to use a blade larger than the stated
capacity of the saw. It might come into contact with the
blade guards. Never use a blade that is too thick to allow the
outer blade washer to engage with the flats on the spindle.
It will prevent the blade screw from properly securing the
blade on the spindle. Do not use the saw to cut metal or
masonry. Ensure that any spacers and spindle rings that
may be required suit the spindle and the blade fitted.
1. Make sure that the electrical
plug is removed from the
power point.
2. Push down on the operating
handle (7) and pull the
release knob (6) to
disengage the saw arm (5).
The release knob (6) can be
turned so that it is held in the
retracted position (Fig. g).
3. Raise the saw arm (5) to
its highest position.
4. Using a Phillips head
screwdriver loosen and
remove the screw that
secures the guard retraction
arm (13) to the rotating
blade guard (Fig h).
c
d e
90°
f
g
h

14
GB
5. Using a Phillips head screwdriver loosen (Fig. i) and
remove the screw that
secures the blade bolt
cover (14).
6. Pull the rotating blade
guard (12) down then
swing it up together with
the blade bolt cover (14).
When the rotating blade
guard (12) is positioned
over the upper fixed blade
guard (9) it is possible to
access the blade bolt
(Fig. j).
7. Hold the rotating guard (12)
up and press the spindle
lock button (26) (Fig. k).
Rotate the blade until the
spindle locks.
8. Use the 6mm hex key provided to loosen and remove the
blade bolt. (Loosen in a clockwise direction as the blade
screw has a left hand thread) (Fig. l).
9. Remove the flat washer and outer blade washer and
the blade.
10. Wipe a drop of oil onto the inner blade washer and the
outer blade washer where they contact the blade.
11. Fit the new blade onto the spindle taking care that the
inner blade washer sits behind the blade (Fig. m).
CAUTION. To ensure correct
blade rotation, always install
the blade with the blade
teeth and the arrow printed
on the side of the blade
pointing down. The direction
of blade rotation is also
stamped with an arrow on the
upper blade guard.
12. Replace the outer blade
washer (Fig. n).
13. Depress the spindle
lock button (26) and
replace the flat washer
and blade bolt.
14. Use the 6mm hex key
to tighten the blade bolt
securely (tighten in an
anti-clockwise direction).
15. Lower the blade guard,
hold the rotating lower
blade guard (12) and
blade bolt cover (14) in
position and tighten the
fixing screw (Fig. o).
16. Replace the guard
retraction arm and secure
onto the rotating blade
guard (Fig p).
17. Check that the blade
guard operates correctly
and covers the blade as
the saw arm is lowered.
18. Connect the saw
to the power supply
and run the blade to
make certain that it is
operating correctly.
i
j
k l
m
n
o
p

GB
15

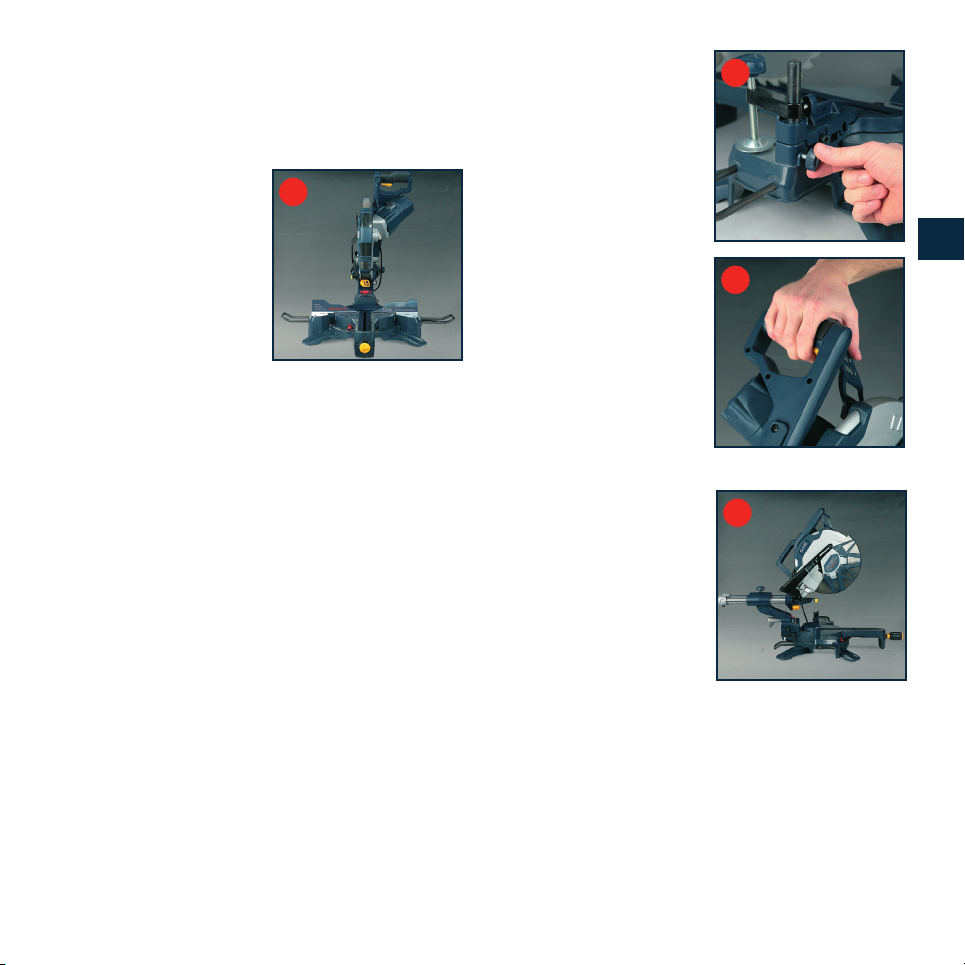

Cross-cutting (without slide action)
When cutting a narrow piece of wood it is not necessary to
use the slide mechanism. In these cases ensure that the
slide lock (29) is screwed down to prevent the saw arm
from sliding.
A crosscut is made by cutting
across the grain of the
workpiece. A 90º crosscut is
made with the mitre table set
at 0º (Fig. q). Mitre crosscuts
are made with the table set at
some angle other than zero.
1. Pull on the release knob
(6) and lift the saw arm (5)
to its full height.
2. Loosen the mitre lock (25).
3. Rotate the mitre table (21) until the pointer aligns with
the desired angle.
4. Retighten the mitre lock (25).
WARNING. Be sure to tighten the mitre lock before making
a cut. Failure to do so could result in the table moving
during the cut and cause serious personal injury.
5. Place the workpiece flat on the table with one edge
securely against the fence (19). If the board is warped,
place the convex side against the fence. If the concave
side is placed against the fence, the board could break
and jam the blade.
6. When cutting long pieces of timber, support the opposite
end of the timber with the side support bars (37), a roller
stand or a work surface that is level with the saw table.
7. Use the clamp assembly (10) to secure the workpiece
wherever possible.
8. It is possible to remove the clamp assembly (10) by
loosening the clamp assembly lock (11) and moving
it to the other side of the table. Make sure the clamp
assembly lock is tight before using the clamp (Fig. r).
9. Before turning on the saw,
perform a dry run of the
cutting operation to check
that there are no problems.
10. Hold the operating handle
(7) firmly and squeeze
the switch trigger (24).
Allow the blade to reach
maximum speed.
11. Press the release latch
(36) (Fig. s) and slowly
lower the blade into and
through the workpiece.
12. Release the switch trigger
(24) and allow the saw
blade to stop rotating
before raising the blade
out of the workpiece.
Wait until the blade stops
before removing the
workpiece.
Cross-cutting
(with slide action)
When cutting wide workpieces,
first unscrew the slide lock (29).
1. Pull on the release knob (6),
raise the saw arm (5) to its
highest position and slide it
towards you (Fig. t).
2. Hold the handle firmly and squeeze the switch trigger
(24). Allow the blade to reach maximum speed.
3. Press the release latch (36) and slowly lower the blade
into the workpiece and slide it away from you at the same
time until the workpiece is cut.
4. Release the switch trigger (24) and allow the saw
blade to stop rotating before raising the blade out of the
workpiece. Wait until the blade stops before removing
the workpiece.
q
r
s
t

16
GB
Bevel cut
A bevel cut is made by
cutting across the grain of
the workpiece with the blade
angled to the fence and mitre
table. The mitre table is set
at the zero degree position
and the blade set at an angle
between 0º and 45º (Fig. u).
Use the slide action when
cutting wide workpieces.
1. Pull on the release knob (6) and lift the saw arm to its
full height.
2. Loosen the mitre lock (25).
3. Rotate the mitre table (21) until the pointer aligns with
zero on the mitre scale (22).
4. Retighten the mitre lock (25).
WARNING. Be sure to tighten the mitre lock before making
a cut. Failure to do so could result in the table moving
during the cut, causing serious personal injury.
5. Loosen the bevel lock (16) and pull out the 0º bevel
adjuster. Move the saw arm (5) to the left or right to the
desired bevel angle (between 0º and 45º). Tighten the
bevel lock (16).
6. Place the workpiece flat on the table with one edge
securely against the fence (19). If the board is warped,
place the convex side against the fence. If the concave
side is placed against the fence, the board could break
and jam the blade.
7. When cutting long pieces of timber, support the opposite
end of the timber with the side bars (37), a roller stand or
a work surface that is level with the saw table.
8. Use the clamp assembly (10) to secure the workpiece
wherever possible.
9. It is possible to remove the clamp assembly (10) by
loosening the clamp assembly lock (11) and moving
it to the other side of the table. Make sure the clamp
assembly lock is tight before using the clamp.
10. Before turning on the saw, perform a dry run of the
cutting operation to check that there are no problems.
11. Hold the operating handle (7) firmly and squeeze the
switch trigger (24). Allow the blade to reach maximum
speed.
12. Press the release latch (36) and slowly lower the blade
into and through the workpiece.
13. Release the switch trigger (24) and allow the saw
blade to stop rotating before raising the blade out of the
workpiece. Wait until the blade stops before removing
the workpiece.
Compound mitre cut
A compound mitre cut involves
using a mitre angle and a
bevel angle at the same
time (Fig. v). It is used in
making picture frames, to cut
mouldings, making boxes
with sloping sides and for roof
framing. Always make a test
cut on a piece of scrap wood before cutting into the good
material.
Use the slide action when cutting wide workpieces.
1. Pull on the release knob (6) and lift the saw arm to
its full height.
2. Loosen the mitre lock (25).
3. Rotate the mitre table (21) until the pointer aligns with the
desired angle on the mitre scale (22).
4. Retighten the mitre lock (25).
WARNING. Be sure to tighten the mitre lock before making
a cut. Failure to do so could result in the table moving
during the cut, causing serious personal injury.
5. Loosen the bevel lock (16) and pull out the 0º bevel
adjuster (18) and move the saw arm (5) to the left or
right to the desired bevel angle (between 0º and 45º).
Tighten the bevel lock (16).
u
v

GB
17
6. Place the workpiece flat on the table with one edge
securely against the fence (19). If the board is warped,
place the convex side against the fence. If the concave
side is placed against the fence, the board could break
and jam the blade.
7. When cutting long pieces of timber, support the opposite
end of the timber with the side bars (37), a roller stand or
a work surface that is level with the saw table.
8. Use the clamp assembly (10) to secure the workpiece
wherever possible.
9. It is possible to remove the clamp assembly (10) by
loosening the clamp assembly lock (11) and moving
it to the other side of the table. Make sure the clamp
assembly lock is tight before using the clamp.
10. Before turning on the saw, perform a dry run of the
cutting operation to check that there are no problems.
11. Hold the operating handle (7) firmly and squeeze
the switch trigger (24). Allow the blade to reach
maximum speed.
12. Press the release latch (36) and slowly lower the blade
into and through the workpiece.
13. Release the switch trigger (24) and allow the saw
blade to stop rotating before raising the blade out of the
workpiece. Wait until the blade stops before removing
the workpiece.
Adjusting the laser lines
The lower laser is factory set to emit a laser line along the
right-hand side of the blade. The upper laser is factory set
to emit a laser line to the left-hand side of the blade. This
upper laser can be adjusted by the operator to suit blades of
different kerf widths.
To adjust the position of the upper laser, proceed as follows:
1. Remove the laser cover by pulling it towards you.
2. Switch on the laser lights with the on/off switch (2)
(Fig. w).
3. Using a Phillips head screwdriver (not supplied), adjust
the position of the line from the upper laser by turning the
laser pitch control (4) (Fig. x).
4. Adjust until the left-hand laser line is aligned with the
left-hand side of the blade.
5. Switch off the laser lights.
Using the laserguide system
WARNINGS
Do not stare directly at the
laser beam.
Never aim the beam at any
person or an object other
than the workpiece.
Do not deliberately aim the
beam at personnel and
ensure that it is not directed
towards the eye of a person
for longer than 0.25s.
Always ensure the laser beam is aimed at a sturdy
workpiece without reflective surfaces. Wood or rough coated
surfaces are acceptable. Bright shiny reflective surfaces
are not suitable for laser use as the reflective surface could
direct the beam back at the operator.
Always remember to switch off the laser on/off switch (2)
after finishing a job. Only turn the laser beam on when the
workpiece is on the mitre saw table.
1. Mark the line of the cut on the workpiece.
2. Adjust the angle of mitre and bevel of the cut as required.
w x
y

18
GB
3. Switch on the laser light on/off switch (2).
4. Clamp the workpiece in position using the laser lines to
align the blade with the pencil mark on the workpiece.
Note. To cut to the left-hand side of the blade, align the left-
hand laser line with the pencil mark. To cut to the right-hand
side of the blade, align the right-hand laser line with the
pencil mark.
5. Plug in the machine and start the motor.
6. Press the release latch (36).
7. When the blade is at its maximum speed (approximately
2 seconds), lower the blade through the workpiece.
8. After completing the cut, switch off the laser light
on/off switch (2).
9. After each use, clean the laser light assembly (1) as
described below:
• Switch off the laser light switch (2) and then remove the
plug from the power point.
• With the saw arm (5) in the raised position, use a
soft brush to dust away the sawdust build-up around
the assembly.
Note. Wear eye protection whilst brushing the dust away.
Maintenance
WARNING. Always ensure that the tool is switched off and
the plug is removed from the power point before making
and adjustments or maintenance procedures.
Power cord maintenance
If the supply cord needs replacing, the task must be carried
out by the manufacturer, the manufacturer’s agent, or an
authorised service centre in order to avoid a safety hazard.
Cleaning
1. Keep the tool’s air vents unclogged and clean at all times.
2. Remove dust and dirt regularly. Cleaning is best done
with a soft brush or a rag.
3. Re-lubricate all moving parts at regular intervals.
4. Never use caustic agents to clean plastic parts.
CAUTION. Do not use cleaning agents to clean the
plastic parts of the saw. A mild detergent on a damp cloth
is recommended.
General inspection
Regularly check that all the fixing screws are tight.
They may vibrate loose over time.

GB
19

20
NL
Inhoud
Beschrijving symbolen 21
Specificaties 21
Algemene veiligheidsinstructies 22
Veiligheidsregels voor laserlicht 22
Aanvullende veiligheidsregels voor verstekzagen 24
Accessoires 26
Ken uw product 27
Uitpakken 28
Transport 28
Monteren op een werkbank 28
Stabilisatorstang 28
Vrijgaveknop 28
Schuifvergrendeling 28
Vergrendeling verstektafel 29
Afschuiningsvergrendeling 29
Stelknop afschuining 29
Klemconstructie 29
Spilvergrendelingsknop 29
Roterende onderste zaagkap 30
Stofzak 30
De zijstangen bevestigen 30
Instelling gleufdiepte 30
Aan- en uitschakelen 30
De laserlijngenerator inschakelen 31
De tafel haaks op het zaagblad zetten 31
De geleider haaks op de tafel zetten 32
Zaagblad vervangen 32
Doorsnede zagen (zonder schuiven) 33
Doorsnede zagen (met schuiven) 35
Afschuiningssnede 35
Gecombineerde versteksnede 36
De laserlijnen instellen 36
Het laserlijnsysteem gebruiken 37
Onderhoud 38
Onderhoud elektriciteitssnoer 38
Reinigen 38
Algemene inspectie 38
Introductie
Hartelijk dank voor de aanschaf van dit GMC-
gereedschap. Deze instructies bevatten informatie die u
nodig hebt voor een veilige en doeltreffende bediening
van dit product. Dit product heeft unieke kenmerken. Zelfs
als u vertrouwd bent met gelijksoortige producten dient u
deze handleiding zorgvuldig door te lezen, zodat u in staat
bent alle voordelen te benutten. Houd deze handleiding
bij de hand en zorg ervoor dat alle gebruikers van dit
gereedschap de handleiding hebben gelezen en volledig
hebben begrepen.
Garantie
Om uw garantie te registreren, gaat u naar onze website
www.gmctools.com en voert u uw gegevens in*.
Uw gegevens worden opgeslagen in onze mailinglist (tenzij
u anders aangeeft) voor informatie over nieuwe producten.
Uw persoonlijke gegevens worden niet aan derde partijen
doorgegeven.
Aankoopgegevens
Datum van aankoop:
Model:
Serienummer:________________________________
(bevindt zich op motorbehuizing)
Bewaar uw aankoopbon als aankoopbewijs.
Indien u binnen de 30 dagen na aankoop registreert,
garandeert GMC de koper van dit product dat indien
een onderdeel binnen 24 MAANDEN na de datum van
de oorspronkelijke aankoop materiaal- of fabricagefouten
vertoont, GMC het defecte onderdeel gratis repareert of,
naar eigen goedvinden, vervangt. Deze garantie geldt niet
voor commercieel gebruik, normale slijtage of schade ten
gevolge van een ongeluk, verkeerd gebruik of misbruik.
*Registreer online binnen 30 dagen na aankoop.
Algemene voorwaarden zijn van toepassing.
Dit heeft geen invloed op uw wettelijke rechten als
consument.
