XRS-330C Quick Start Guide
Compact Hideaway 80 Channel UHF CB Radio
The full Instruction Manual can be downloaded from www.gme.net.au
In the box
Introduction
Your GME XRS-330C 80-channel CB radio is designed and manufactured in Australia and
is the most advanced UHF Citizen Band radio available. It combines the very latest in
electronic hardware and software to produce an extremely compact mobile radio with
innovative features and outstanding speci cations and performance. The XRS Connect
speaker microphone with OLED display and front mounted speaker provides clear sound
and total control from the palm of your hand. XRS Connect are the first UHF radios with
an app to configure and control the radio. Visit gme.net.au/GETXRS for more
information.
IMPORTANT INFORMATION CONCERNING UHF CB RADIO
The use of the Citizen Band radio service is licensed in Australia by the Australian
Communications and Media Authority (ACMA) Radio communications (Citizens
Band Radio Station Class Licence and in New Zealand by the Ministry of Economic
Development New Zealand (MED)).
A General User Radio Licence for Citizens Band radio and operation is subject to
conditions contained in those licences.
The class licence for users and equipment operating in the CB/PRS 477 MHz band was
amended in 2011 to include 80 channels. This radio meets the 80 channel standard.
Further information and updates are available from the ACMA at www.acma.gov.au and
the MED, Radio Spectrum Management at: www.rsm.govt.nz
Emergency channels
The ACMA has allocated channels 5/35 for emergency use only. Channel 5 is the primary
Simplex Emergency Channel. Where a Channel 5 repeater is available, you should select
Duplex on CH 5.
NOTE: Channel 35 is the input channel for the Channel 5 repeater therefore Channel 35
should also not be used for anything other than emergency transmissions.
•XRS-330C 5 watt UHF CB radio
•Mounting cradle (MK031)
•XRS Connect speaker microphone (MC664B)
•Microphone extension lead (LE040)
•8 pin to 8 pin adaptor (AD008)
•Microphone clip (MB206)
•DC lead (LE09)
•Screw pack
•Quick start guide
1

Microphone
Push to talk
Programmable
(XRS) function key
Power
Priority
Channel/Up
Menu/Enter
Channel/Down
Back
Programmable
(Top) key
OLED display
Scan
Duplex
Squelch
Speaker
Volume +
Volume -
2
Telemetry Channels
ACMA regulations have allocated channels 22 and 23 for telemetry only applications
and have prohibited the transmission of speech on these channels. Consequently your
radio has a transmit-inhibit applied to channels 22 and 23. Currently transmissions on
channels 61, 62 and 63 are also inhibited and these channels are reserved for future use.
GENERAL OPERATION
Controls
Summary of basic controls
For a detailed description please refer to the full instruction manual available from the
GME website.
Receiving
Power: Press and hold the key to turn the radio on or o.
Volume: Press the or keys to adjust the volume.
Selecting
Channels:
Press the or keys to select a channel.

Squelch: Press the SQL key to open or close the squelch.
Duplex
Mode:
To enable or disable Duplex on a repeater channel, select the required
repeater channel (1 - 8, 41 - 48) then press the DUP key. The
icon will appear whenever Duplex is enabled on the current channel.
Priority
Channel:
To store a Priority channel, select the required channel then hold the
PRI key. To recall a Priority channel press the PRI key. The ‘PRI’ icon
is displayed whenever the Priority channel is selected.
Transmitting
IMPORTANT: Always listen to ensure the channel is free before transmitting.
To transmit, press the PTT on the microphone. The icon will appear. Hold the
microphone about 3-5 cm from your face and speak at a normal voice level. Release the
PTT when you have nished talking, the icon will disappear.
Menu
The Menu provides access to all the settings, adjustments and functions in the radio.
All menu items are controlled using the MENU, , and BACK keys.
To access the menu, press the MENU key. Scroll through the list of menu items using
the or keys. To select an item, press the MENU key. To step back through the
menu, or to exit the current screen, hold the BACK key.
3
MAIN WIRING AND CONNECTION
UHF antenna
Optional extension
speaker
12V DC
Connector plug
Red+
Fuse
-Black
Coax cable
MC664B
microphone

Antenna connection
It is essential to select a good quality, high eciency, 477 MHz antenna. A poor quality
antenna or one not designed for the specic frequency band you are using will give
very poor performance.
Connect to the antenna cable to the rear antenna socket using an FME coaxial
connector.
INSTALLATION
Mounting option 1
Inserting the microphone
Plug the microphone’s 8 pin plug into
the socket on the front of the main unit.
4
Mounting option 2
Screw mounting
cradle to a rm surface.
Mounting the radio
Orientate the holes in the chassis with
those in the cradle arms then insert and
tighten the gimbal knobs.

XRS Connect apps
The GME XRS Connect app is the easy way to customise, update and maintain your XRS
Connect radio. To download the free XRS Connect app for iOS or Android go to the App
Store or Google Play and search for ‘XRS Connect’.
The GME XRS Location Services app is used with the XRS Connect radio and is available
for iOS and Android devices. It connects to the XRS Connect radio using Bluetooth. To
use XRS Location Services, download the app to your mobile device and update the
radio rmware. XRS Location Services allows users to share their location using the
mobile device’s GPS location.
Bluetooth
Secure Pairing
Use to turn secure PIN pairing on or o for your Bluetooth connection. If secure pairing
is turned on when pairing your mobile device with the XRS radio for the rst time, you
will be asked to conrm a security PIN on both the mobile device with the XRS location
services app and your radio. With Secure pair turned on you must put the radio into Pair
mode using the Pair menu option before connecting your XRS Location Services app.
Pair
When Secure Pairing is turned on you must select Pair in the Bluetooth menu to put the
radio into pair mode before you can connect for the rst time. Pair mode will timeout
after 90 seconds.
5

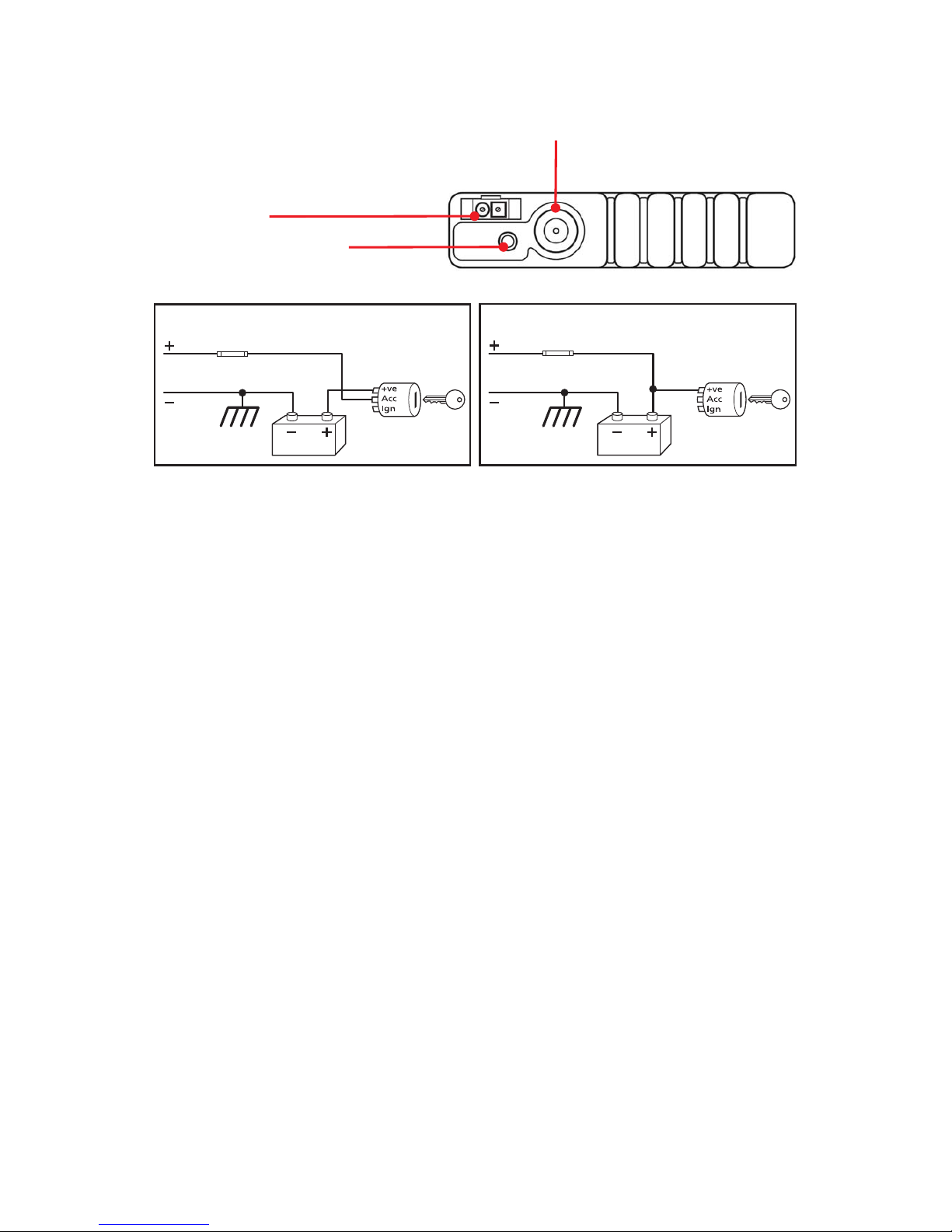

Radio remains ON when ignition switch is OFF
RED Fuse
BLACK
Chassis
Car battery
Ingnition Switch
To Radio
Fuse
Radio turns ON and OFF with ignition switch
RED
BLACK
Chassis
Car battery
Ingnition Switch
To Radio
12V DC socket
Extension speaker socket
Antenna socket
Wiring
Connect the power lead, antenna cable
and extension speaker to the sockets on
the radio’s rear panel.

Drawing No: 49449-4 Part No: 311035
Requires Bluetooth® 2.1 (Android 5.0 or later) or Bluetooth® 4.0 (iOS 9.0 or later).
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and
any use of such marks by GME is under license. Other trademarks and trade names are those of their
respective owners.
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App
Store is a service mark of Apple Inc.
Google Play and the Google Play logo are trademarks of Google Inc.
A division of Standard Communications Pty Ltd.
Head Oce: PO Box 96, Winston Hills, NSW 2153,
Australia. New Zealand: PO Box 58446 Botany, Auckland, 2163, NZ. T: [phone].
All international enquiries email: [email protected]
Standard Communications Warranty against Defects
This warranty against defects is given by Standard Communications Pty
Ltd ACN 000 346 814 (We, us, our or GME). Our contact details are set
out in clause 2.7.
1. Consumer guarantees
1.1 Our goods come with guarantees that cannot be excluded under
the Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have
the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
1.2 To the extent we are able, we exclude all other conditions, warranties
and obligations which would otherwise be implied.
2. Warranty against defects
2.1 This warranty is in addition to and does not limit, exclude or restrict
your rights under the Competition and Consumer Act 2010 (Australia).
or any other mandatory protection laws that may apply.
2.2 We warrant our goods to be free from defects in materials and
workmanship for the warranty period (see warranty table) from
the date of original sale (or another period we agree to in writing).
Subject to our obligations under clause 1.2, we will at our option,
either repair or replace goods which we are satised are defective.
We warrant any replacement parts for the remainder of the period of
warranty for the goods into which they are incorporated.
2.3 To the extent permitted by law, our sole liability for breach of a
condition, warranty or other obligation implied by law is limited
(a) in the case of goods we supply, to any one of the following as we
decide –
(i) the replacement of the goods or the supply of equivalent
goods;
(ii) the repair of the goods;
(iii) the cost of repairing the goods or of acquiring equivalent
goods;
(b) in the case of services we suppl+y, to any one of the following as
we decide –
(i) the supplying of the services again;
(ii) the cost of having the services supplied again.
2.4 For repairs outside the warranty period, we warrant our repairs to
be free from defects in materials and workmanship for three months
from the date of the original repair. We agree to re-repair or replace
(at our option) any materials or workmanship which we are satised
are defective.
2.5 We warrant that we will perform services with reasonable care and
skill and agree to investigate any complaint regarding our services
made in good faith. If we are satised that the complaint is justied,
and as our sole liability to you under this warranty (to the extent
permitted at law), we agree to supply those services again at no extra
charge to you.
2.6 To make a warranty claim you must before the end of the applicable
warranty period (see warranty table), at your own cost, return the
goods you allege are defective, provide written details of the defect,
and give us an original or copy of the sales invoice or some other
evidence showing details of the transaction.
2.7 Send your claim to:
Standard Communications Pty Ltd.
PO Box 96 Winston Hills, NSW 2153, Australia.
Tel: [phone] Fax: [phone]
Email: [email protected]
2.8 If we determine that your goods are defective, we will pay for
the cost of returning the repaired or replaced goods to you, and
reimburse you for your reasonable expenses of sending your
warranty claim to us.
3. What this warranty does not cover
3.1 This warranty will not apply in relation to:
(a) goods modied or altered in any way;
(b) defects and damage caused by use with non Standard
Communications products;
(c) repairs performed other than by our authorised representative;
(d) defects or damage resulting from misuse, accident, impact or
neglect;
(e) goods improperly installed or used in a manner contrary to the
relevant instruction manual; or
(f) goods where the serial number has been removed or made
illegible.
4. Warranty period
4.1 We provide the following warranty on GME products. No repair or
replacement during the warranty period will renew or extend the
warranty period past the period from original date of purchase.
PRODUCT TYPE WARRANTY
PERIOD
477 MHz UHF CB mobile radios 5 years
