GMI D6212Q User manual

D6212 - SIL 2 Quadruple Repeater Power Supply G.M. International ISM0455-0
SIL 2 Quadruple Repeater Power Supply
DIN-Rail and Termination Board
Model D6212Q
D6212Q
INSTRUCTION MANUAL

D6212 - SIL 2 Quadruple Repeater Power Supply G.M. International ISM0455-0
2
General Description:
The quadruple channel Repeater Power Supply D6212Q provides a fully floating DC supply for energizing conventional 2-wire 0/4-20 mA transmitters, and repeats the current to drive
a load in applications requiring SIL 2 level (according to IEC 61508:2010) in safety related systems for high risk industries.
Function:
4 channels analog input for 2-wire loop powered transmitters (or separately powered inputs, only for channels 1 and 2), providing isolation between input, output and supply,
and current source output signals. The module is fully configurable to achieve any desired input/output combination: any number of outputs can be independently linked to each input.
Output function can be configured as: adder, subtractor, low/high selector. An optically coupled open-drain alarm output with user-settable trip point is also provided.
Modbus RTU RS-485 output is available on Bus connector to interface digital device.
Configurability:
Totally software configurable (no jumpers or switches), by PC via USB with PPC5092 adapter and related configurator software or by RS485 Modbus output, in order to choose: input
signal range, linear or reverse output signal, alarm trip point, low, high, window or fault repeater alarm mode, hysteresis, delay time.
Mounting on standard DIN-Rail, with or without Power Bus, or on customized Termination Boards.
Technical Data
Characteristics
Supply:
24 Vdc nom (21.5 to 30 Vdc) reverse polarity protected, ripple within voltage limits ≤5 Vpp, 2 A time lag fuse internally protected.
Current consumption @ 24 V: 200 mA max. with 20 mA input/output for 4 channels.
Power dissipation: 2.75 W max. with 24 V supply voltage and 20 mA input/output for 4 channels.
Isolation (Test Voltage):
In/Out 1.5 KV; In/Supply 1.5 KV; Out/Supply 500 V; In/Alarm 1.5 KV; Supply/Alarm 500 V; Out/Alarm 500 V.
Input:
0/4 to 20 mA (2 wire Tx current limited at ≈25 mA) and separately powered inputs (only for channels 1 and 2).
Transmitter line voltage:
14.5 V typical at 20 mA with max. 20 mVrms ripple, 14.0 V minimum.
Integration time: 500 ms.
Resolution / Visualization: 1 μA.
Fault: Out-of-range (burnout) fault detection can be enabled or disabled. Any analog output can be programmed to detect fault condition forcing downscale or highscale.
Alarm can be programmed to detect fault condition. Fault conditions are also signalled via Power Bus or Termination Board and by a red LED on the front panel (one for each channel).
Out-of-range: low and high separated trip point values are fully programmable.
Output:
0/4 to 20 mA, on max. 300 Ωload source mode, current limited at about 25 mA.
Response time: 100 ms max. (10 to 90 % step change).
Output ripple: ≤20 mVrms on 250 Ω.
Modbus Output: for parameter configuration and burnout / fault indication. Modbus RTU protocol up to 57.6 Kbit/s with RS-485 connection on Power Bus connector.
Alarm:
Trip point range: within rated limits of the input sensors.
Output: voltage free SPST photoMOS: 100 mA, 60 Vdc (≤1 V voltage drop).
Performance:
Ref. Conditions 24 V supply, 250 Ωloads, 23 ± 1 °C ambient temperature.
Calibration accuracy: ≤± 0.05 % of full scale on inputs and outputs.
Linearity error: ≤± 0.05 % of full scale on inputs and outputs.
Supply voltage influence: ≤± 0.02 % of full scale for a min to max supply change.
Load influence: ≤± 0.02 % of full scale for a 0 to 100 % load resistance change.
Temperature influence: ≤± 0.01% of input full scale and ≤± 0.005 % of output full scale for a 1 °C change.
Compatibility:
CE mark compliant, conforms to Directives: 2014/30/EU EMC, 2014/35/EU LVD, 2011/65/EU RoHS.
Environmental conditions:
Operating: temperature limits -40 to + 70 °C, relative humidity 95 %, up to 55 °C.
Storage: temperature limits -45 to + 80 °C.
Max altitude: 2000 m a.s.l.
Approvals:
SIL 2 conforms to IEC61508:2010 Ed.2.
Mounting:
EN/IEC60715 TH 35 DIN-Rail, with or without Power Bus or on customized Termination Board.
Weight: about 120 g.
Connection: by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm2.
Protection class: IP 20.
Dimensions: Width 22.5 mm, Depth 123 mm, Height 120 mm.

G.M. International ISM0455-0 D6212 - SIL 2 Quadruple Repeater Power Supply 3
Front Panel and Features
Quadruple channels for 2 wires Transmitters or externally powered transmitters.
0/4-20 mA Input, Output Signals.
Input and Output short circuit proof.
Source current Outputs.
Modbus RTU RS-485 Output.
Fully programmable operating parameters.
High Accuracy, µP controlled A/D converter.
Three port isolation, Input / Output / Supply.
EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1, EN61326-3-1 for safety system.
High Density, four channels per unit.
Out of range (Burnout) fault detection
Open-drain alarm output with user-settable trip point
Simplified installation using standard DIN-Rail and plug-in terminal blocks or customized Termination Boards.
Terminal block connections
+ Output Ch 1
1
- Output Ch 1
2
+ Output Ch 2
3
- Output Ch 2
4
+ Output Ch 3
5
- Output Ch 3
6
+ Power Supply 24 Vdc
9
- Power Supply 24 Vdc
10
Alarm out
11
Alarm out
12
+ Output Ch 4
7
- Output Ch 4
8
+ Input for 2 Wire Transmitters Ch 1
13
- Input for 2 Wire Transmitters Ch 1
14
+ Input for 2 Wire Transmitters Ch 2
15
- Input for 2 Wire Transmitters Ch 2
16
+ Input for 2 Wire Transmitters Ch 3
17
- Input for 2 Wire Transmitters Ch 3
18
+ Input for External Powered Transmitters Ch 1
21
- Input for External Powered Transmitters Ch 1
22
+ Input for External Powered Transmitters Ch 2
23
- Input for External Powered Transmitters Ch 2
24
+ Input for 2 Wire Transmitters Ch 4
19
- Input for 2 Wire Transmitters Ch 4
20
Ordering Information
Model: D6212
4 channels Q
Power Bus and DIN-Rail accessories:
Connector JDFT050 Cover and fix MCHP196
Terminal block male MOR017 Terminal block female MOR022
Operating parameters are programmable from PC by the GM Pocket Portable Adapter PPC5092 via USB serial line and SWC5090 Configurator software.
D6212
4 3 2 1
8 7 6 5
12 11 10 9
13 14 15 16
17 18 19 20
21 22 23 24

D6212 - SIL 2 Quadruple Repeater Power Supply G.M. International ISM0455-0
4

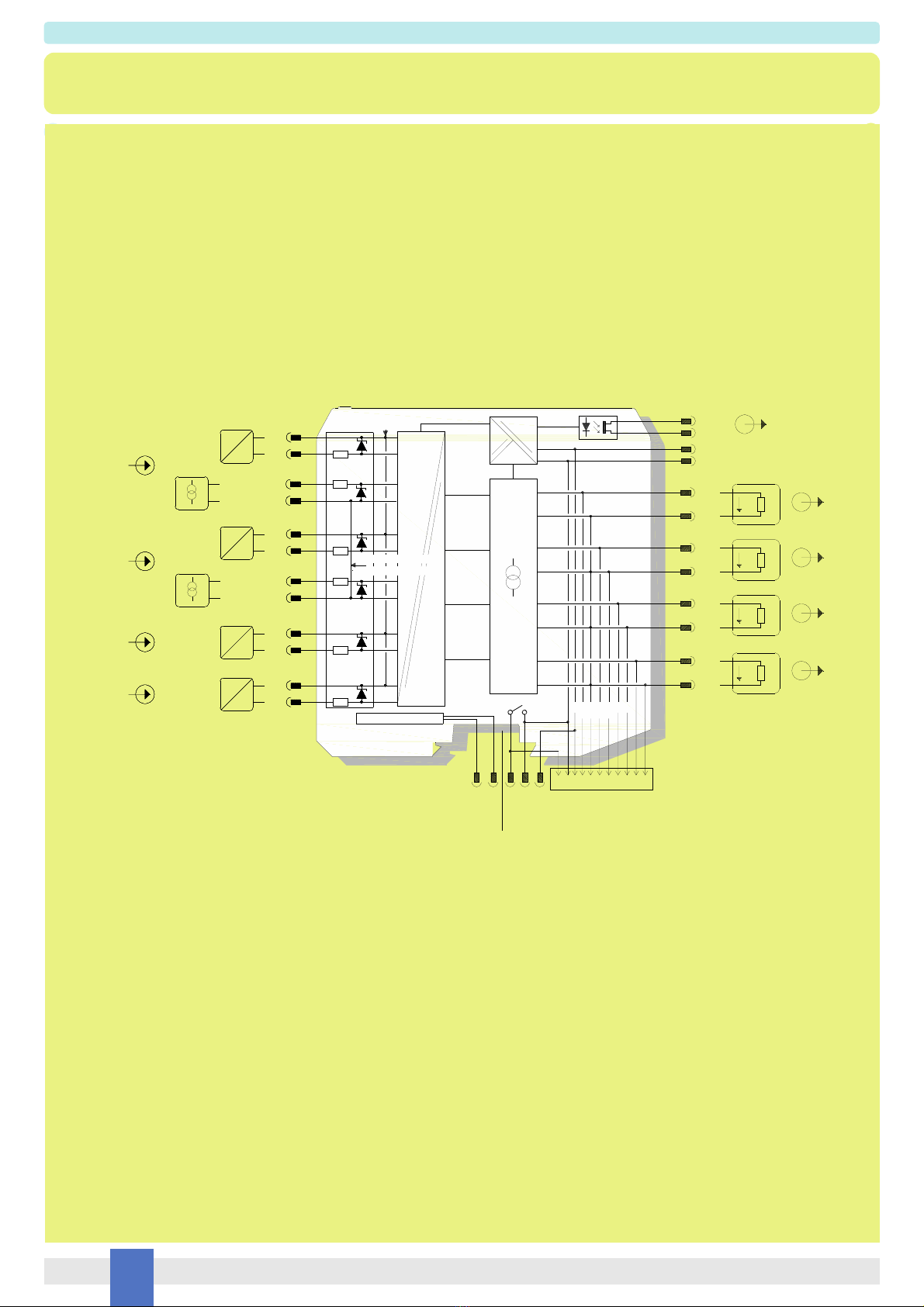

Function Diagram
MODEL D5212Q
=
=
13
14
11
12
1
2
Alarm Out
Out 1
+
-
I
?
In 1
Out 2
Out 3
Out 4
Common negative
connection
=
=
Termination
board
connector
+
-
F
Power and
Fault Bus
Modbus RS485
A-
B+
Modbus RS485
for configuration
=
9 +
10 - Supply 24 Vdc
3
4
5
6
7
8
13
14
I
?13
14
I
?13
14
I
?
21
22
+
-
15
16
+
-
I
?
I
?
I
?
I
?
23
24
+
-
17
18
+
-
I
?
In 3 I
?
I
?
I
?
19
20
+
-
I
?+
-
I
?+
-
I
?+
-
I
?
In 2
In 4
2 Wire Tx
2 Wire Tx
External Powered Tx
2 Wire Tx
2 Wire Tx
Common positive connection
for passive transmitter input
(SIL 2)
(SIL 2)
(SIL 2)
(SIL 2)
Common negative connection
for active transmitter input
External Powered Tx
RLmA
+
-
Source I
RLmA
+
-
Source I
RLmA
+
-
Source I
RLmA
+
-
Source I
D6212Q

G.M. International ISM0455-0 D6212 - SIL 2 Quadruple Repeater Power Supply 5
D6212 must be installed, operated and maintained only by qualified personnel, in accordance to the relevant national/international installation standards.
Failure to properly installation or use of the equipment may risk to damage the unit or severe personal injury.
The unit cannot be repaired by the end user and must be returned to the manufacturer or his authorized representative. Any unauthorized modification must be avoided.
Warning
Operation
The quadruple channel Repeater Power Supply D6212Q provides a fully floating DC supply for energizing conventional 2-wire 0/4-20 mA transmitters, and repeats the currentto drive a
load in applications requiring SIL 2 (according to IEC 61508:2010) in safety related systems for high risk industries.
4 channels analog input for 2-wire loop powered transmitters (or separately powered inputs, only for channels 1 and 2), providing isolation between input, output and supply, and current
source output signals. The module is fully configurable to achieve any desired input/output combination: any number of outputs can be independently linked to each input.
Output function can be configured as: adder, subtractor, low/high selector. An optically coupled open-drain alarm output with user-settable trip point is also provided.
Modbus RTU RS-485 output is available on Bus connector to interface digital device.
Presence of supply power is displayed by a “POWER ON” green signaling LED; fault for each channel and alarm conditions are signaled by related red front panel LED.
Installation
D6212 is a quadruple repeater power supply housed in a plastic enclosure suitable for installation on EN/IEC60715 TH 35 DIN-Rail, with or without Power Bus or on customized
Termination Board. D6212Q unit can be mounted with any orientation over the entire ambient temperature range.
Electrical connections are accommodated by polarized plug-in removable screw terminal blocks which can be plugged in/out into a powered unit without suffering or causing any
damage. Connect only one individual conductor per each clamping point, use conductors up to 2.5 mm² (13 AWG) and a torque value of 0.5-0.6 Nm. Use only cables that are suitable
for a temperature of at least 85°C. The wiring cables have to be proportionate in base to the current and the length of the cable.
On the section “Function Diagram” and enclosure side a block diagram identifies all connections.
Identify the function and location of each connection terminal using the wiring diagram on the corresponding section, as an example:
Connect 24 Vdc power supply positive at terminal “9” and negative at terminal “10”.
Connect positive output of analog channel 1 (mA source mode) at terminal “1” and negative output (common to all channels) at “2” (channel 1).
For other channels connect terminals “3” and “4” for channel 2, terminals “5” and “6” for channel 3, “7” and “8” for channel 4.
Connect alarm output at terminals “11” and “12”.
In case of a 2 wire input transmitter, connect the wires at terminal “13” for positive and “14” for negative (channel 1), or “15” for positive and “16” for negative (channel 2), or “17” for
positive and “18” for negative (channel 3), or “19” for positive and “20” for negative (channel 4). Note that positive terminals of all channels are in common.
For separately powered transmitters, connect input signal at terminal “21” for positive and “22” for negative (channel 1), or “23” for positive and “24” for negative (channel 2). Note that
negative terminals of all channels are in common.
Connect alarm transistors checking the load rating to be within the maximum rating (100 mA at 60 V (≤1.0 V voltage drop)).
The enclosure provides, according to EN60529, an IP20 minimum degree of protection (or similar to NEMA Standard 250 type 1). The equipment shall only be used in an area of at least
pollution degree 2, as defined in IEC 60664-1.
The end user is responsible to ensure that the operating temperature of the module is not exceeded in the end use application
Units must be protected against dirt, dust, extreme mechanical (e.g. vibration, impact and shock) and thermal stress, and casual contacts. If enclosure needs to be cleaned use only a
cloth lightly moistened by a mixture of detergent in water.
Any penetration of cleaning liquid must be avoided to prevent damage to the unit. Any unauthorized card modification must be avoided.
D6212Q unit must be connected to SELV or PELV supplies.
All circuits connected to D6212Q unit must comply with the overvoltage category II (or better) according to EN/IEC60664-1.
Start-up
Before powering the unit check that all wires are properly connected, particularly supply conductors and their polarity, input and output wires.
Check conductors for exposed wires that could touch each other causing dangerous unwanted shorts.
Turn on power, the “power on” green led must be lit, for 2 wire transmitter connection the supply voltage on each channel must be ≥14 V, output signal should be corresponding to the
input from the transmitter, alarm LED should reflect the input variable condition with respect to trip points setting.
If possible change the transmitter output and check the corresponding output.

D6212 - SIL 2 Quadruple Repeater Power Supply G.M. International ISM0455-0
6

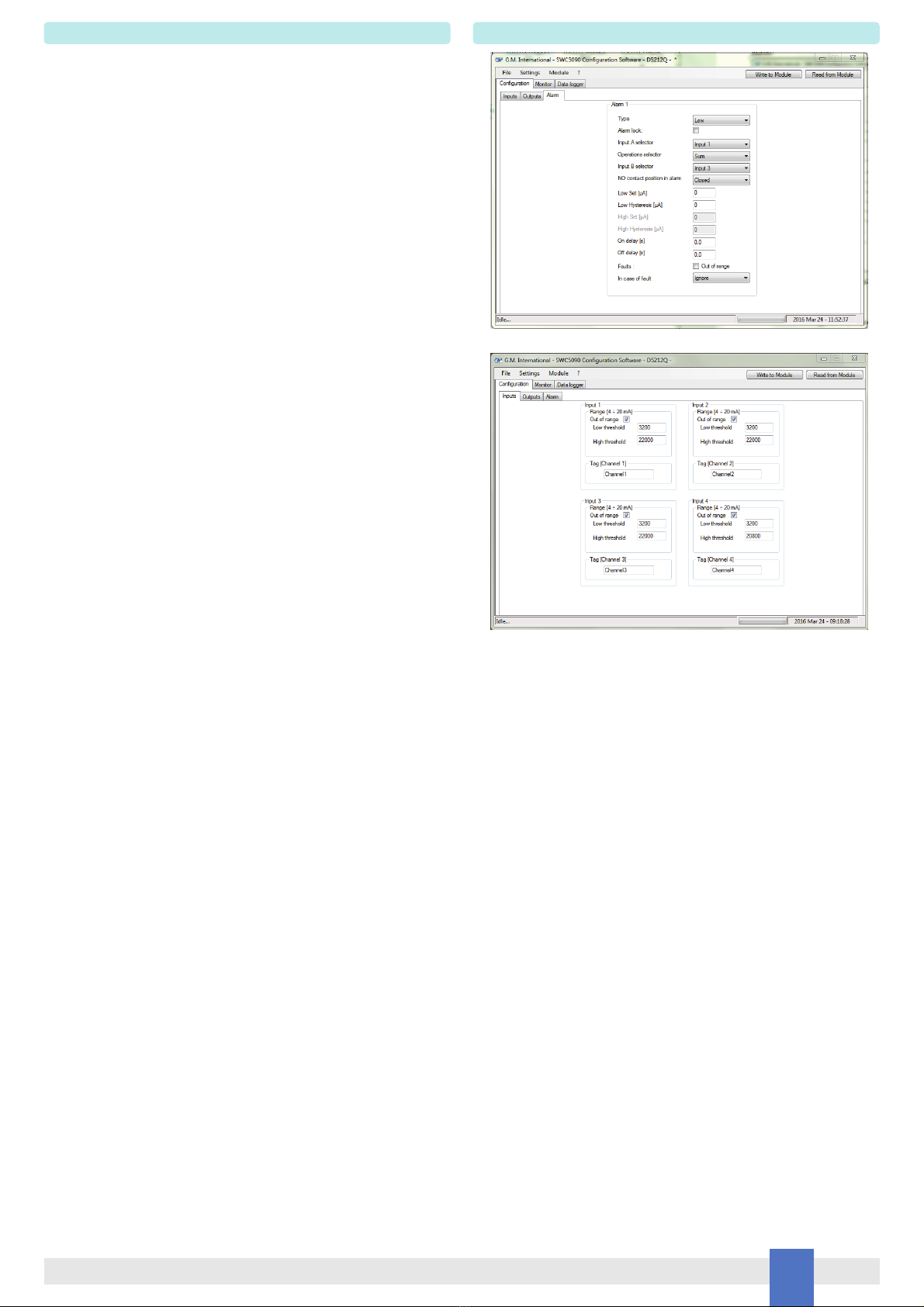

Configuration parameters: Screenshots:
The SWC5090 is able to continuously scan the module and display the real-time values
on screen. Note that while the module is being monitored, configuration screens are
disabled.
The display shows all the monitored parameters:
Input: represents the value read from field.
Output: represents the theoretical output value.
Alarm status: is represented by a led, which is red when activated.
Faults: is represented by a led, which is red when activated
Graph: shows only the variable chosen from the monitored values box.
INPUT:
Out of range:
Low threshold: input value below which the fault is triggered
High threshold: input value above which the fault is triggered
Tag:
16 alphanumerical characters
OUTPUT:
Type:
0-20 mA Source
4-20 mA Source
Custom Source all output parameters are fully customizable
Downscale: analog output downscale in normal working condition (range 0 to 24 mA)
Upscale: analog output upscale in normal working condition (range 0 to 24 mA)
Under range: analog output value in under range condition (range 0 to 24 mA)
Over range: analog output value in over range condition (range 0 to 24 mA)
Fault output value: analog output value in case of fault condition (range 0 to 24 mA)
Fault in case of: analog output is forced to “Fault Output Value” when input is out of
configured range
Advanced settings: When the advanced settings button is clicked, the following
settings box is shown.

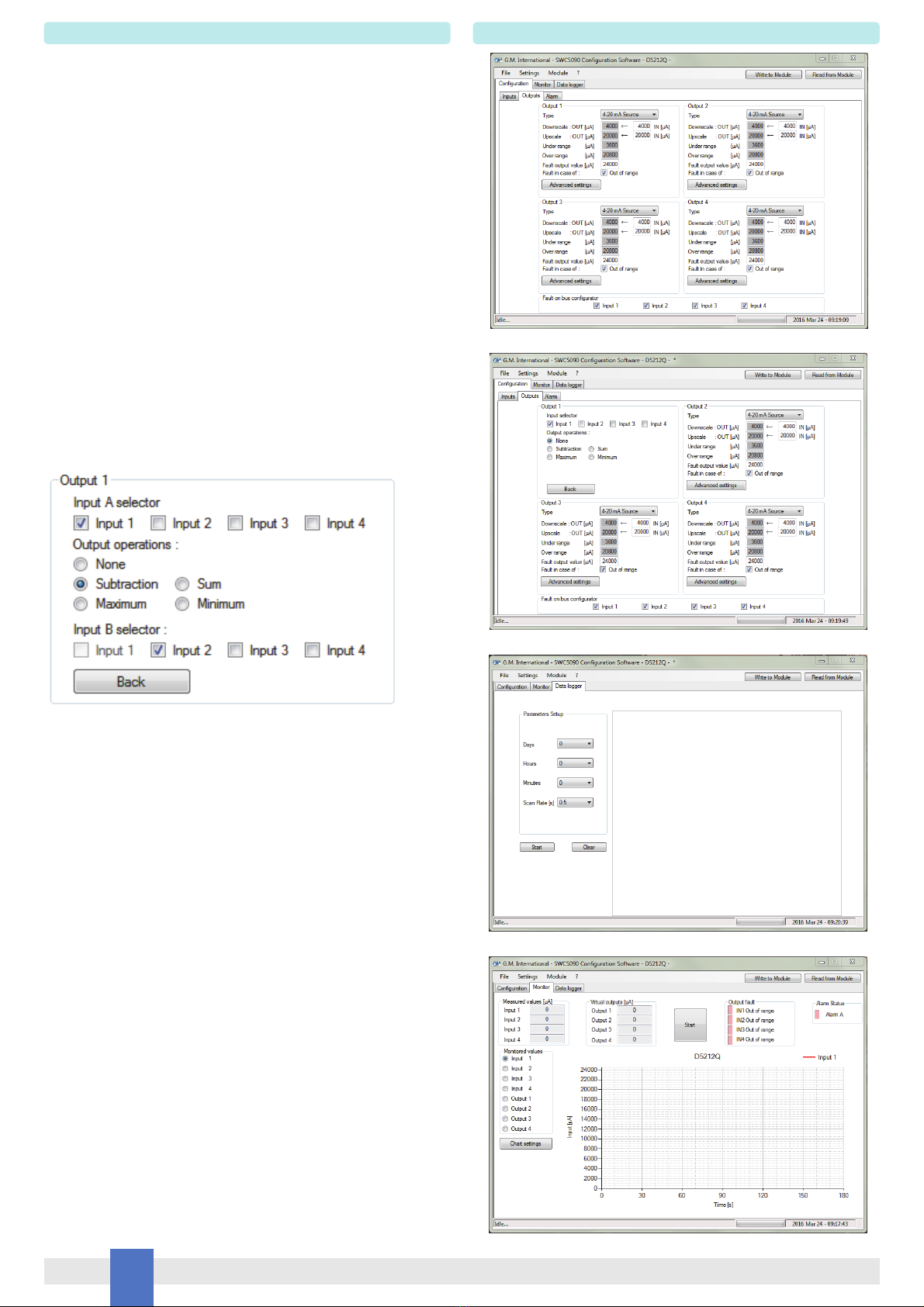

Input A selector:
Input 1: output represent Input1
Input 2: output represent Input2
Input 3: output represent Input3
Input 4: output represent Input4
Output operations:
None: output operations are disabled.
Subtraction: analog output represents the subtraction of the two selected
input channels.
Sum: analog output represents the sum of the two selected input channels.
Maximum: analog output represents the higher of the two selected input ch.
Minimum: analog output represents the lower of the two selected input channels.
Input B selector: (it is shown when the output operations selected is not None)
Input 1: represents the second operand used for the output operation.
Input 2: represents the second operand used for the output operation.
Input 3: represents the second operand used for the output operation.
Input 4: represents the second operand used for the output operation.
Monitor
Data logger Configuration
Output Configuration
Output Advanced

G.M. International ISM0455-0 D6212 - SIL 2 Quadruple Repeater Power Supply 7
Configuration parameters: Screenshots:
ALARM:
Type:
None: alarm is disabled
Low: alarm is triggered when input descends below “Low Set”
High: alarm is triggered when input ascends above “High Set”
Window: alarm is triggered below “Low Set” and above “High Set”
Alarm lock:
alarm is inhibited until source ascends above or descends below the configuration
parameters, and then, it behaves as standard configuration.
Input A selector:
Input 1: alarm is triggered on Input1
Input 2: alarm is triggered on Input2
Input 3: alarm is triggered on Input3
Input 4: alarm is triggered on Input4
Output operations:
None: output operations are disabled.
Subtraction:analog output represents the subtraction of the two selected input ch.
Sum: analog output represents the sum of the two selected input channels.
Maximum: analog output represents the higher of the two selected input channels
Minimum: analog output represents the lower of the two selected input channels
Input B selector: (it is shown when the output operations selected is not None)
Input 1: represents the second operand used for the output operation
Input 2: represents the second operand used for the output operation
Input 3: represents the second operand used for the output operation
Input 4: represents the second operand used for the output operation
NO contact position in alarm:
Open: alarm output is closed under regular working conditions,
and it opens in case of alarm
Closed: alarm output is open under regular working conditions, and it closes
in case of alarm
Low Set:
input value below which the alarm is triggered (in Low, Window)
Low Hysteresis:
hysteresis on the low set value
High Set:
Input value above which the alarm is triggered
High Hysteresis:
hysteresis on the high set value
On Delay:
time for which the input has to be in alarm condition before the alarm output is triggered,
configurable from 0 to 1000 seconds in steps of 100 ms
Off Delay:
time for which the input has to be in normal condition before the alarm output is
deactivated, configurable from 0 to 1000 seconds in steps of 100 ms.
FAULT:
alarm is triggered when input is out of configured range
In case of fault:
Ignore: alarm is not affected
Lock status: remains in the same status as it was before fault occurred
Alarm active: alarm is triggered
Alarm inactive: alarm is deactivated
Alarm Configuration
Input Configuration

D6212 - SIL 2 Quadruple Repeater Power Supply G.M. International ISM0455-0
8
Param. Description Notes Type (11)
0 G.M. Factory Code
Identification
Data R
1 Instrument Code
2 Option Code
3 Hardware Release
4 Software Release
5 to 15 Reserved
16 Modbus Address Communication
Data R/W17 Modbus Baudrate
18 Modbus Format
64 Input1 measured value(Low 16 bits) (1)
Input (Field)
Data R
65 Input1 measured value(High 16 bits) (1)
66 Input2 measured value(Low 16 bits) (1)
67 Input2 measured value(High 16 bits) (1)
68 Input3 measured value(Low 16 bits) (1)
69 Input3 measured value(High 16 bits) (1)
70 Input4 measured value(Low 16 bits) (1)
71 Input4 measured value(High 16 bits) (1)
72 Input1 fault (2)
73 Input2 fault (2)
74 Input3 fault (2)
75 Input4 fault (2)
102 Input1 Downscale (Low 16 bits) (1)
Input (Field)
Configuration R/W
103 Input1 Downscale (High 16 bits) (1)
104 Input1 Upscale (Low 16 bits) (1)
105 Input1 Upscale (High 16 bits) (1)
106 Input1 Fault Switch (3)
107 Input1 Low Range Fault (Low 16 bits) (1)
108 Input1 Low Range Fault (High 16 bits) (1)
109 Input1 High Range Fault (Low 16 bits) (1)
110 Input1 High Range Fault (High 16 bits) (1)
111 Input2 Downscale (Low 16 bits) (1)
112 Input2 Downscale (High 16 bits) (1)
113 Input2 Upscale (Low 16 bits) (1)
114 Input2 Upscale (High 16 bits) (1)
115 Input2 Fault Switch (3)
116 Input2 Low Range Fault (Low 16 bits) (1)
117 Input2 Low Range Fault (High 16 bits) (1)
118 Input2 High Range Fault (Low 16 bits) (1)
119 Input2 High Range Fault (High 16 bits) (1)
120 Input3 Downscale (Low 16 bits) (1)
121 Input3 Downscale (High 16 bits) (1)
122 Input3 Upscale (Low 16 bits) (1)
123 Input3 Upscale (High 16 bits) (1)
124 Input3 Fault Switch (3)
125 Input3 Low Range Fault (Low 16 bits) (1)
126 Input3 Low Range Fault (High 16 bits) (1)
127 Input3 High Range Fault (Low 16 bits) (1)
128 Input3 High Range Fault (High 16 bits) (1)
129 Input4 Downscale (Low 16 bits) (1)
130 Input4 Downscale (High 16 bits) (1)
131 Input4 Upscale (Low 16 bits) (1)
132 Input4 Upscale (High 16 bits) (1)
133 Input4 Fault Switch (3)
134 Input4 Low Range Fault (Low 16 bits) (1)
135 Input4 Low Range Fault (High 16 bits) (1)
136 Input4 High Range Fault (Low 16 bits) (1)
137 Input4 High Range Fault (High 16 bits) (1)
160 Output1 Downscale (Low 16 bits) (1)
Output
Configuration R/W
161 Output1 Downscale (High 16 bits) (1)
162 Output1 Upscale (Low 16 bits)(1)
163 Output1 Upscale (High 16 bits)(1)
164 Output1 Under Range (Low 16 bits)(1)
165 Output1 Under Range (High 16 bits)(1)
166 Output1 Over Range (Low 16 bits)(1)
167 Output1 Over Range (High 16 bits)(1)
168 Output1 Fault Current (Low 16 bits)(1)
169 Output1 Fault Current (High 16 bits)(1)
170 Output1 Fault Mask(3)
172 Output1 InputA Selector(4)
173 Output1 InputB Selector(4)
174 Output1 Operation(5)
175 Output2 Downscale (Low 16 bits)(1)
176 Output2 Downscale (High 16 bits)(1)
177 Output2 Upscale (Low 16 bits)(1)
178 Output2 Upscale (High 16 bits)(1)
179 Output2 Under Range (Low 16 bits)(1)
180 Output2 Under Range (High 16 bits)(1)
181 Output2 Over Range (Low 16 bits)(1)
182 Output2 Over Range (High 16 bits)(1)
183 Output2 Fault Current (Low 16 bits)(1)
184 Output2 Fault Current (High 16 bits)(1)
185 Output2 Fault Mask(3)
187 Output2 InputA Selector(4)
188 Output2 InputB Selector (4)
189 Output2 Operation (5)
190 Output3 Downscale (Low 16 bits) (1)
191 Output3 Downscale (High 16 bits) (1)
192 Output3 Upscale (Low 16 bits) (1)
193 Output3 Upscale (High 16 bits) (1)
Supported ModBus Parameters: ModBus parameters details:
Supported ModBus Baudrates
Index Baudrate
0 4800
1 9600
2 19200
3 38400
4 57600
Address 18: Supported Modbus Formats
High Byte Low Byte
Bit position
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Termination resistance (1 = enabled)
Endianness 32 bit Data (0 = Little; 1 = Big)
Supported Modbus Parity:
0 8 data bit, no parity, 1 stop bit
1 8 data bit, even parity, 1 stop bit
2 8 data bit, odd parity, 1 stop bit

G.M. International ISM0455-0 D6212 - SIL 2 Quadruple Repeater Power Supply 9
Param. Description Notes Type (11)
Output
Configuration R/W
194 Output3 Under Range (Low 16 bits) (1)
195 Output3 Under Range (High 16 bits) (1)
196 Output3 Over Range (Low 16 bits) (1)
197 Output3 Over Range (High 16 bits) (1)
198 Output3 Fault Current (Low 16 bits) (1)
199 Output3 Fault Current (High 16 bits) (1)
200 Output3 Fault Mask (3)
202 Output3 InputA Selector (4)
203 Output3 InputB Selector (4)
204 Output3 Operation (5)
205 Output4 Downscale (Low 16 bits) (1)
206 Output4 Downscale (High 16 bits) (1)
207 Output4 Upscale (Low 16 bits) (1)
208 Output4 Upscale (High 16 bits) (1)
209 Output4 Under Range (Low 16 bits) (1)
210 Output4 Under Range (High 16 bits) (1)
211 Output4 Over Range (Low 16 bits) (1)
212 Output4 Over Range (High 16 bits) (1)
213 Output4 Fault Current (Low 16 bits) (1)
214 Output4 Fault Current (High 16 bits) (1)
215 Output4 Fault Mask (3)
217 Output4 InputA Selector (4)
218 Output4 InputB Selector (4)
219 Output4 Operation (5)
220 Fault Bus Configuration (4) Fault Config. R/W
240 Alarm Configuration (6)
Alarm Control R/W
242 Alarm Startup Lock (7)
243 Alarm Fault Configuration (8)
244 Alarm Fault Mask (3)
245 Contact Position in Case of Alarm (9)
246 Delay to Alarm Issue (10)
247 Delay to Alarm Removal (10)
248 Alarm Low Threshold (Low 16 bits) (1)
249 Alarm Low Threshold (High 16 bits) (1)
250 Alarm Low Threshold Hysteresis (Low 16 bits) (1)
251 Alarm Low Threshold Hysteresis (High 16 bits) (1)
252 Alarm High Threshold (Low 16 bits) (1)
253 Alarm High Threshold (High 16 bits) (1)
254 Alarm High Threshold Hysteresis (Low 16 bits) (1)
255 Alarm High Threshold Hysteresis (High 16 bits) (1)
256 Alarm InputA Selector (4)
257 Alarm InputB Selector (4)
258 Alarm Operation Selector (5)
464 EEPROM Write Command W
548 Output 1 virtual value (Low 16 bits) (1) Output Data R
549 Output 1 virtual value (High 16 bits) (1) Output Data R
553 Output 2 virtual value (Low 16 bits) (1) Output Data R
554 Output 2 virtual value (High 16 bits) (1) Output Data R
558 Output 3 virtual value (Low 16 bits) (1) Output Data R
559 Output 3 virtual value (High 16 bits) (1) Output Data R
563 Output 4 virtual value (Low 16 bits) (1) Output Data R
564 Output 4 virtual value (High 16 bits) (1) Output Data R
567 Alarm status (7) Alarm Data R
600 Ch. 1 chars 0, 1 Tags R/W
601 Ch. 1 chars 2, 3 Tags R/W
602 Ch. 1 chars 4, 5 Tags R/W
603 Ch. 1 chars 6, 7 Tags R/W
604 Ch. 1 chars 8, 9 Tags R/W
605 Ch. 1 chars 10, 11 Tags R/W
606 Ch. 1 chars 12, 13 Tags R/W
607 Ch. 1 chars 14, 15 Tags R/W
608 Ch. 2 chars 0, 1 Tags R/W
609 Ch. 2 chars 2, 3 Tags R/W
610 Ch. 2 chars 4, 5 Tags R/W
611 Ch. 2 chars 6, 7 Tags R/W
612 Ch. 2 chars 8, 9 Tags R/W
613 Ch. 2 chars 10, 11 Tags R/W
614 Ch. 2 chars 12, 13 Tags R/W
615 Ch. 2 chars 14, 15 Tags R/W
616 Ch. 3 chars 0, 1 Tags R/W
617 Ch. 3 chars 2, 3 Tags R/W
618 Ch. 3 chars 4, 5 Tags R/W
619 Ch. 3 chars 6, 7 Tags R/W
620 Ch. 3 chars 8, 9 Tags R/W
621 Ch. 3 chars 10, 11 Tags R/W
622 Ch. 3 chars 12, 13 Tags R/W
623 Ch. 3 chars 14, 15 Tags R/W
624 Ch. 4 chars 0, 1 Tags R/W
625 Ch. 4 chars 2, 3 Tags R/W
626 Ch. 4 chars 4, 5 Tags R/W
627 Ch. 4 chars 6, 7 Tags R/W
628 Ch. 4 chars 8, 9 Tags R/W
629 Ch. 4 chars 10, 11 Tags R/W
630 Ch. 4 chars 12, 13 Tags R/W
631 Ch. 4 chars 14, 15 Tags R/W
Supported ModBus Parameters: ModBus parameters details:
Notes:
(1) Expressed in 100 nA
(2) 0 = No fault,
1 = Input out of range
(3) 0 = Ignore input fault,
1 = Report input out of range
(4) 0 = Input1,
1 = Input2,
2 = Input3,
3 = Input4
(5) 0 = None,
1 = Sum,
2 = Subtraction,
3 = Maximum,
4 = Minimum
(6) 0 = None,
1 = Low,
2 = High,
3 = Window,
4 = Fault repeater
(7) 0 = Inactive,
1 = Active
(8) 0 = Ignore,
1 = Lock status,
2 = Alarm active,
3 = Alarm inactive
(9) 0 = Open,
1 = Closed
(10) Expressed in tenths of seconds
(11) Parameter type:
R = read only,
W = write only,
R/W = read and write
1 Save Input/Output Configuration
2 Save Modbus configuration
8 Save Tags
Address 464: EEPROM Write
High Byte Low Byte
Bit position
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
