2. GENERAL INFORMATION
Congratulations on purchasing your Go Power! IC Series Inverter/Charger. The IC Series Inverter/Charger combines the functions
of a pure sine wave inverter, battery charger and AC transfer switch into one unit - saving space, installation time, and system
complexity. The IC Series is designed for mobile and home power applications.
• Pure Sine Wave Inverter Output - assures the AC output voltage is perfectly reliable even when limited external AC
power is available
• 50-amp leg AC pass-through capability (Neutral rated to 50A)
• Multi-stage battery charging
• Inverter mounted ON/OFF switch with LED indicator
• Built in handles for easy installation
• Battery Temperature Sensor (BTS) provides automatic battery temperature compensation for optimum charging even
during extreme temperature changes
Combined with the numerous DC power systems Go Power! manufactures and sells, the IC Series allows you to enjoy the luxuries
that electricity provides, with or without a campsite hookup. This manual will aid in the process of installing the Go Power! IC Se-
ries Inverter/Charger. Please read and understand this manual before installing the Go Power! IC Series Inverter/Charger. Please
retain this manual for future reference.
Record the unit’s model and serial number below. It is much easier and quicker to record this information now at the pre-installation
stage.
Model Number:
Serial Number:
Date of Install:
Battery Bank Information: (size, install date, battery type)
Product Packaging
Please safely store the packing the IC Series was delivered in or recycle the packaging components as outlined
below:
LDPE
Low Density
Polyetheylene
CFB
3
4
7
CFB
3
4
7
CFB
3
4
7
CFB
3
4
7
CFB
3
4
7
Corrugated berboard
main box
Plastic
foam protection
Plastic
accessories bag
www.earth911.com/recycling-center-search-guides
Local recycling centeRs can be found here:
Corrugated
Recycles
www.corrugated.org
People. Planet. Prot.
Carmanah Technologies

gpelectric.com | [page 3]
1. CONTENTS
2. GENERAL INFORMATION.......................................................................................................... 4
2.1 CAUTIONS.........................................................................................................................................................4
2.2 DISCLAIMERS...................................................................................................................................................7
2.3 IC SERIES KIT PARTS......................................................................................................................................7
2.3.1 PARTS CHECKLIST ............................................................................................................................7
2.4 UNIT FEATURES...............................................................................................................................................8
2.5 UNIT DIMENSIONS .........................................................................................................................................10
2.6 UNIT ACCESSORIES......................................................................................................................................11
2.7 INSTALLATION TOOLS AND MATERIALS ....................................................................................................11
3. INSTALLATION.......................................................................................................................... 11
3.1 TYPICAL Inverter/Charger SYSTEM OVERVIEW.......................................................................................... 12
3.2 LOCATION AND ENVIRONMENTAL REQUIREMENTS .............................................................................. 16
3.3 MOUNTING THE Inverter/Charger .................................................................................................................17
3.3.1 MOUNTING THE DRIP SHIELD 17
3.4 GENERAL WIRING SPECIFICATIONS..........................................................................................................18
3.5 DC WIRING.....................................................................................................................................................19
3.5.1 DC WIRE SIZING..............................................................................................................................20
3.5.2 DC OVERCURRENT PROTECTION AND DC DISCONNECT ........................................................ 20
3.5.3 PREPARING THE DC CABLES .......................................................................................................20
3.5.4 DC CABLE CONNECTIONS.............................................................................................................20
3.5.5 BATTERY TEMPERATURE SENSOR .............................................................................................21
3.5.6 WIRING THE Inverter/Charger TO THE BATTERY BANK............................................................... 22
3.5.7 BATTERY LAYOUTS........................................................................................................................ 23
3.5.8 DC GROUNDING..............................................................................................................................24
3.6 AC WIRING.....................................................................................................................................................25
3.6.1 AC POWER SOURCES.................................................................................................................... 26
3.6.2 AC WIRE SIZE AND OVERCURRENT PROTECTION.................................................................... 26
3.6.3 GFCI (GROUND FAULT CIRCUIT INTERRUPTION) OUTLETS..................................................... 26
3.6.4 AC TERMINAL BLOCK CONNECTIONS .........................................................................................27
3.6.5 AC CABLE CONNECTIONS............................................................................................................. 28
 3.6.6ACWIRING1-SinglePhase,≤30AService,SingleIN/SingleOUT................................................30
3.6.7 AC WIRING 2 - Single Phase, 30A> Service, Single IN /Single OUT............................................... 31
3.6.8 AC WIRING 3 - Split Phase, 50A Service, Dual IN, Dual OUT, Option 1 .........................................32
3.6.9 AC WIRING 4 - Split Phase, 50A Service, Dual IN, Dual OUT, Option 2 .........................................33
3.6.10 GROUNDING THE INVERTER - AC GROUNDING.........................................................................34
3.6.11 DISABLING THE NEUTRAL TO CHASSIS GROUND CONNECTION............................................35
3.6.12 GROUNDING ON BOATS ................................................................................................................36
3.7 FINAL INSPECTION .......................................................................................................................................37
3.8 TESTING THE INSTALLATION...................................................................................................................... 37
3.9 WARNING LABELS ........................................................................................................................................37
4. OPERATION .............................................................................................................................. 38
4.1 GENERAL OPERATING NOTES ....................................................................................................................38
4.2 AC POWER Pass-through MODE ...................................................................................................................40
4.3 CHARGING MODE ..........................................................................................................................................41
4.4 POWER SHARING MODE ..............................................................................................................................42
4.5 GENERATOR MODE.......................................................................................................................................43
4.6 INVERTING MODE..........................................................................................................................................44
4.7 BATTERY TEMPERATURE SENSOR OPERATION ......................................................................................45
4.8 FACTORY DEFAULT VALUES .......................................................................................................................45
4.9 IC SERIES FAULT CONDITIONS ...................................................................................................................46
4.10 MAINTENANCE AND TROUBLESHOOTING .................................................................................................46
5. SPECIFICATIONS ..................................................................................................................... 48
6. IMPORTANT SAFETY INSTRUCTIONS....................................................................................50
7. WARRANTY RETURN PROCEDURE....................................................................................... 51
8. PRODUCT END OF LIFE INFORMATION - RECYCLING........................................................ 52
www.earth911.com/recycling-center-search-guides
.......................................................................................................

[page 4] | gpelectric.com
2.1 CAUTIONS/WARNINGS
This document contains important safety instructions for the products produced by Go Power! Read all instructions and
cautionary markings on the product and on any accessories or additional equipment included in the installation. Failure to
follow these instructions could result in severe shock or possible electrocution. Use extreme caution at all times to prevent
accidents.
All electrical work must be performed in accordance with local and national electrical codes. These instructions are for use
byqualiedpersonnelwhomeetalllocalandgovernmentalcoderequirementsforlicensingandtrainingfortheinstallationof
electrical power systems with AC and DC voltage up to 600 volts.
Installation,maintenance,andconnectionofinvertersmustbeperformedbyqualiedpersonnel,incompliancewithlocal
electrical standards, wiring rules, and the requirements of local power authorities and/or companies.
Safety regulations relevant to the location shall be followed during installation, operation, and maintenance. Improper
operation may have a risk of electric shock or damage to equipment and property.
General Safety
WARNING!
Limitations on Use
CAUTION!
Equipment Damage
This equipment is NOT intended for use with life support equipment
or other medical equipment or devices.
This product is designed for indoor/compartment installation. It
must not be exposed to any liquids or moisture of any type.
Only use components or accessories recommended or sold by Go
Power! or its authorized agents.
IMPORTANT
Do not attempt to install this equipment if it appears to be damaged
in any way. See the Warranty section for instructions on returning
the equipment.
Note
WARNING!
Hazard to Human Life
This type of notation indicates that the hazard could be harmful to
human life.
WARNING!
Shock Hazard Danger of Shock or electrocution.
WARNING!
Burn/Fire Hazard Dangerofhotsurfaceand/orre.
CAUTION!
Hazard to Equipment
This type of notation indicates that the hazard may cause damage
to the equipment.
IMPORTANT
This type of notation indicates that the information provided is
important to the installation, operation, and/or maintenance of
the equipment. Failure to follow the recommendations in such a
notation could result in annulment of the equipment warranty.
i
i
2.GENERAL INFORMATION

gpelectric.com | [page 5]
GENERAL INFORMATION
Personal Safety
WARNING!
Personal Injury
Use safe lifting techniques when lifting this equipment as
recommended by the Occupational Safety and Health Association
(OSHA) or other local codes.
Use standard safety equipment when working on this equipment,
such as safety glasses, ear protection, steel-toed safety boots,
safety hard hats, etc.
Use standard safety practices when working with electrical
equipment. (Remove all jewelry, use insulated tools, wear cotton
clothing, etc.)
Never work alone when installing or servicing this equipment. Have
someone nearby that can assist if necessary.
Do not touch the Inverter/Charger during operation. The
temperature of some parts of the inverter may exceed 60° during
operation. Let it cool for at least 5 minutes after shutdown before
touching it.
Ensure that children, pets, and other animals are kept away from
the inverter, solar arrays, battery bank, and utility grid components.
Iftheequipmentisusedinamannernotspeciedbythe
manufacturer, the protection provided by the equipment may be
impaired.
Equipment Safety
WARNING!
Lethal Voltage
Reviewthesystemcongurationtoidentifyallpossiblesources
of energy. Ensure ALL sources of power are disconnected before
performing any installation or maintenance on this equipment.
Conrmthattheterminalsarede-energizedusingavalidated
voltmeter (rated for a minimum 1000 VAC and 1000 VDC) to verify
the de-energized condition.
Donotperformanyservicingotherthanthatspeciedinthe
installationinstructionsunlessqualiedtodoso,orhavebeen
instructed to do so by Go Power! Technical Support personnel.
To avoid electric shock, disconnect the DC input and AC input of
the inverter at least 5 minutes before performing any installation
or maintenance.
Do not tighten the AC and DC terminals or pull on the AC and DC
wiring when the inverter is running.
WARNING!
Fire Hazard
Donotkeepcombustibleorammablematerialsinthesameroom
with the equipment. Some products contain relays with moving
parts and are not ignition-protected.
Ensure AC, DC, and ground cable sizes conform to local codes.
See product manuals for minimum size requirements.
Ensure all conductors are in good condition.
Do not operate the unit with damaged or substandard cabling.

[page 6] | gpelectric.com
CAUTION!
Equipment Damage
When connecting cables from the inverter to the battery terminals,
ensure the proper polarity is observed. Connecting the cables
incorrectly can damage or destroy the equipment and the warranty
may be annulled.
Thoroughly inspect the equipment prior to energizing. Verify that no
tools or equipment have been inadvertently left behind.
Ensure clearance requirements are strictly enforced.
Keepallventsclearofobstructionsthatcanpreventproperairow
around, or through, the unit.
CAUTION!
Equipment Damage
Static electricity may damage electronic components. Take
appropriate steps to prevent such damage to the inverter;
otherwise, the warranty may be annulled.
Battery Safety
WARNING!
Explosion, Electrocution, or
Fire Hazard
Ensure the cables (conductors) are properly sized.
Ensure clearance requirements around the batteries are strictly
enforced.
Ensure the area around the batteries is well ventilated and clean
of debris.
Neversmoke,orallowasparkorame,nearthebatteries.
Always use insulated tools. Avoid dropping tools onto batteries or
other electrical parts.
Never charge a frozen battery.
Never use old or untested batteries. Check each battery’s label for
age, type, and date code to ensure all batteries are identical.
If a battery must be removed, always remove the grounded terminal
fromthebatteryrst.Makesurealldevicesarede-energizedor
disconnected to avoid causing a spark.
IMPORTANT
Use the battery types recommended by Go Power!. Follow the
battery manufacturer’s recommendations for installation and
maintenance.
Insulate batteries as appropriate against freezing temperatures. A
discharged battery will freeze more easily than a charged one.
If a remote or automatic generator control system is used, disable
the starting circuit and/or disconnect the generator from its starting
battery while performing maintenance to prevent accidental starting.
Wear complete eye and clothing protection when working
with batteries. Avoid touching bare skin or eyes while working
near batteries.
Keep plenty of fresh water and soap nearby in case battery acid
contacts skin, clothing, or eyes.
If battery acid contacts skin or clothing, wash immediately with soap
andwater.Ifacidenterstheeye,immediatelyooditwithcold
running water for at least 20 minutes and get medical attention as
soon as possible.
i
GENERAL INFORMATION

gpelectric.com | [page 7]

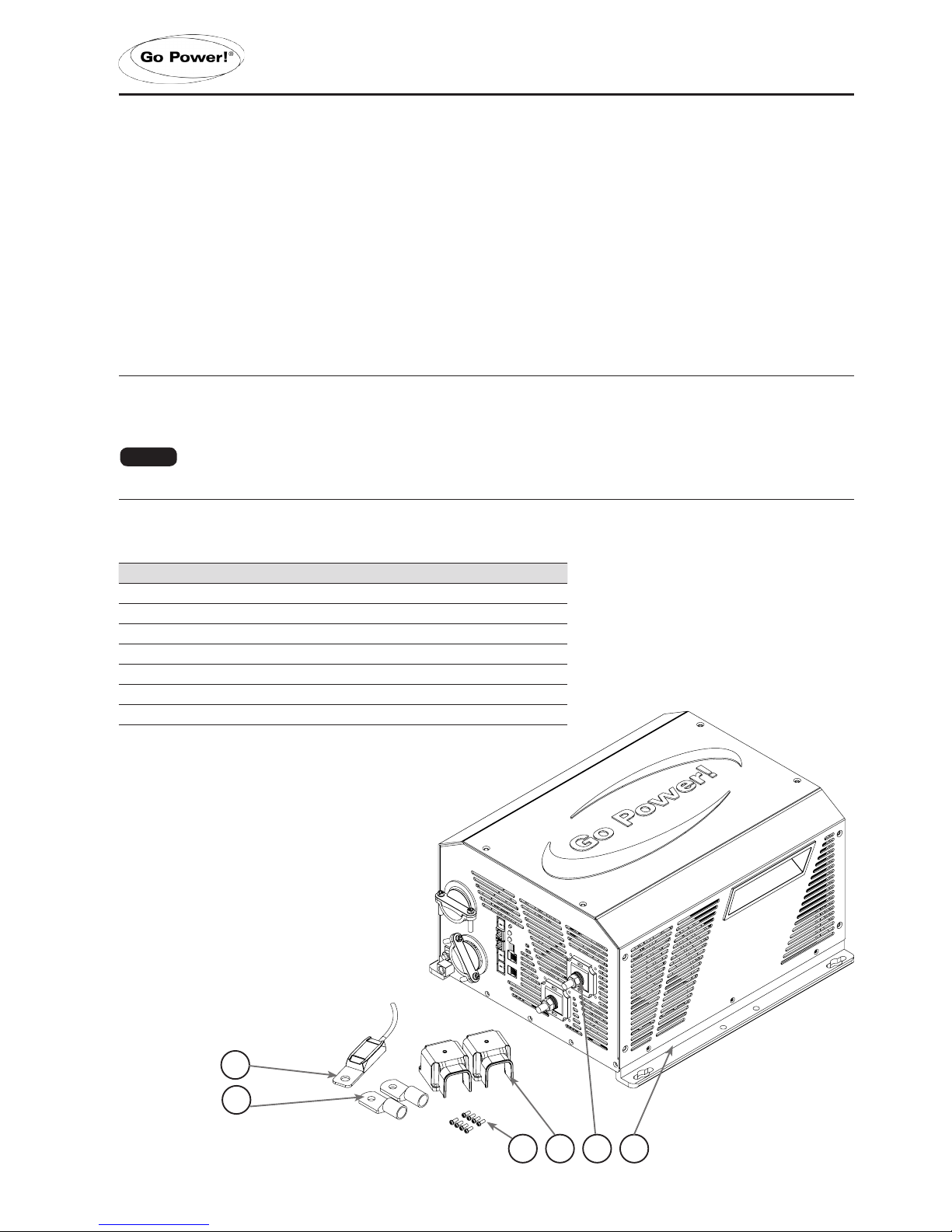

2.3 GP-IC-2000 KIT PARTS
Please unpack and make sure all parts shown in the list below are included in the kit. If any parts are missing please
contact Go Power!’s customer service team at [email protected] or 1.866.247.6527.
Note
2.3.1 PARTS CHECKLIST
2.2 DISCLAIMERS
IMPORTANT: Please follow installation and wiring instructions exactly as outlined to ensure safety. We recommend installation
by an RV technician or professional electrician to ensure adherence to relevant electrical codes. We have made every reasonable
e󰀨orttoensuretheaccuracyoftheinstructionsinthismanual,butGoPower!doesnotguaranteethattheinformationiserrorfree,
nor do we make any other representation, warranty, or guarantee that the information is accurate, correct, reliable, or current. The
specicationsinthismanualareforreferencepurposesonlyandaresubjecttochangewithoutnotice.Foradditionalinformation
please see www.gpelectric.com.
DISCLAIMER: Go Power! disclaims liability for any direct, indirect, or incidental damages caused by, or in case of, installation
not performed following the instructions and cautions in this manual. Go Power! will refuse requests for exchanges or returns,
resulting from the purchase and installation of items which do not comply with local codes. To avoid such concerns Go Power!
recommends installation by a professional electrician or RV technician. Examples that are shown within this manual are for
illustrative purposes only.
ITEM # DESCRIPTION
01 IC Series Inverter/Charger 1
02 Battery Temperature Sensor 1
03 DC Terminal Covers (Black and Red) 2
04 Phillips screw 8
05 M8 x 1.25 Nut, Split Washer, Flat Washer (installed on DC Terminals) 2
06 Ring Lug 2
07 Spanish Warning Label (not shown below) 1
GENERAL INFORMATION
1
2
6
3 54

[page 8] | gpelectric.com

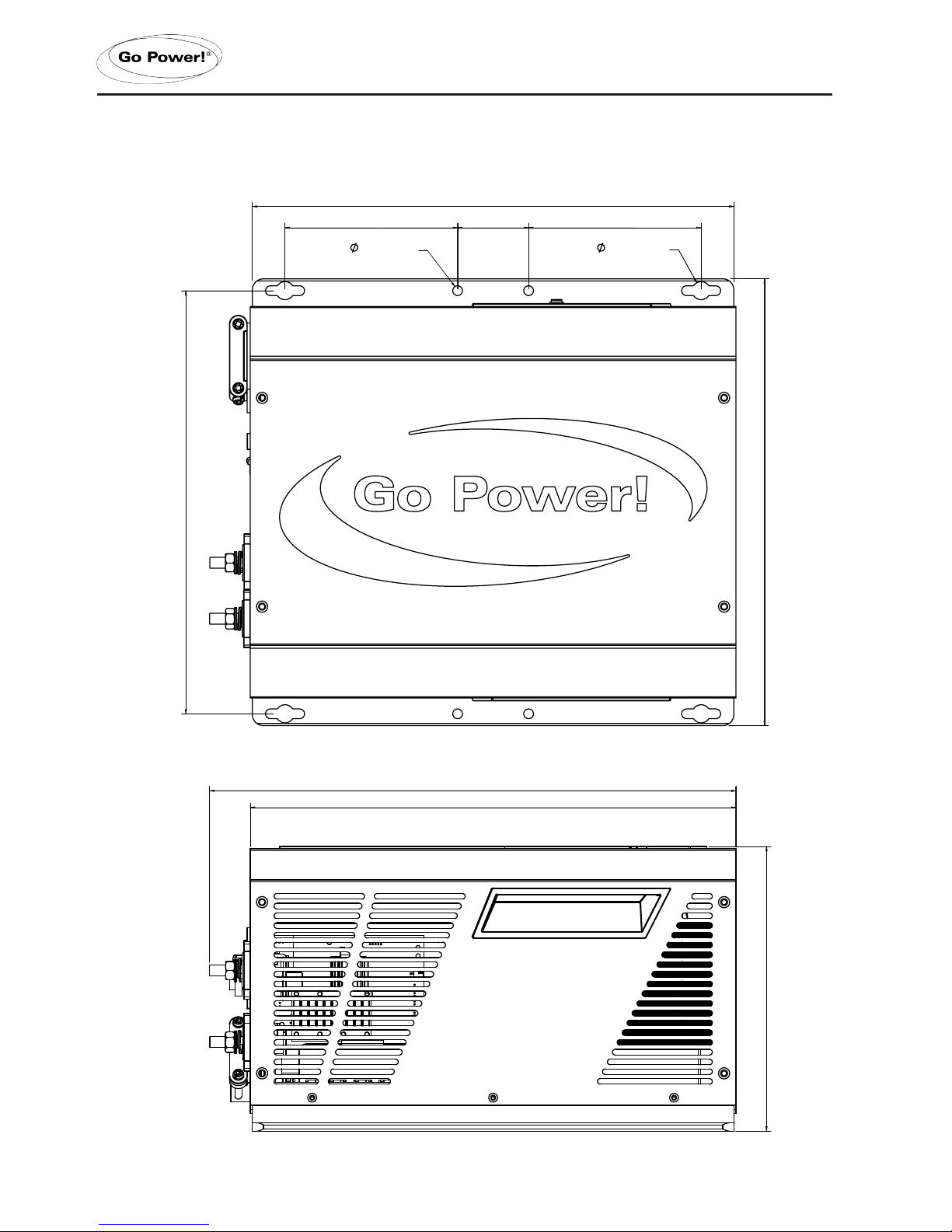

(304mm)
12”
(51mm)
2”
(124mm)
4.9” (124mm) 4.9”
(346mm)
13.6”
(7mm) (13mm)
.28”
(321mm)
12.6”
.51”
(205mm)
8.1”
(349mm)
13.7”
(378mm)
14.9”
REMOTE
BATTERY
TEMP
ON/OFF
STATUS
INV. / CHR.
MODE
AC INPUT
INV. AC
OUTPUT
NEG -
POS +
BATTERY
TEMP
REMOTE
CAUTION:
• TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT. OVERHEATING MAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. • TO REDUCE RISK OF
ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRAL PROTECTION AGAINST OVERLOADS. • CHARGE ONLY LEAD ACID TYPE
RECHARGEABLE BATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PAS COUVRIR NI OBSTRUER LES OUVERTURES D’AÉRATION. NE
PAS MONTER LE PRODUIT DANS UN COMPARTIMENT SANS AUCUN DÉGAGEMENT. RISQUE DE SURCHAUFFE. •
RISQUE DE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENTAUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRE RÉPARÉE PAR L’UTILISATEUR. CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. • POUR RÉDUIRE LES
RISQUES DE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LA PLUIE OU À LA PULVÉRISATION. • L’ORIENTATION
DE LA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTION INTÉGRALE CONTRE LA SURCHARGE. • NE CHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANT CHACUNE 6 ou 12 CELLULES.
WARNING:
• THIS EQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCEARCS OR SPARKS. TO PREVENT FIRE OR
EXPLOSION, DO NOT INSTALL IN COMPARTMENTS CONTAINING BATTERIES OR FLAMMABLE MATERIALS. • RISK
OF ELECTRIC SHOCK. USE ONLY THE GROUND-FAULT CIRCUIT-INTERRUPTER RECEPTACLE OR CIRCUIT
BREAKER SPECIFIED IN THE INSTALLATION AND OPERATING INSTRUCTIONS SUPPLIED WITH THIS UNIT. OTHER
TYPES MAY FAIL TO OPERATE PROPERLY WHEN CONNECTED TO THIS UNIT. • RISK OF ELECTRIC SHOCK,
HEATSINKS ARE NOT BONDED TO GROUND, TEST BEFORE TOUCHING. • INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
• CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DES ARCS ÉLECTRIQUES OU DES
ÉTINCELLES. POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANS UN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGE ÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSE OU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATION FOURNI AVEC CE
PRODUIT. LES AUTRES TYPES PEUVENT NE PAS FONCTIONNER CORRECTEMENT LORSQU’ILS SONT
CONNECTÉS À CE PRODUIT. • RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTER AVANT DE TOUCHER. • PRÉVU POUR UNE UTILISATION CONTINUE.
DANGER:
• TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERY SPACE OR AREA IN WHICH IGNITION
- PROTECTED EQUIPMENT IS REQUIRED.
• POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINE OU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENT PROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
REMOTE
BATTERY
TEMP
ON/OFF
STATUS
INV. / CHR.
MODE
AC INPUT
INV. AC
OUTPUT
NEG -
POS +
CAUTION:
• TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT. OVERHEATING MAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. • TO REDUCE RISK OF
ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRAL PROTECTION AGAINST OVERLOADS. • CHARGE ONLY LEAD ACID TYPE
RECHARGEABLE BATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PAS COUVRIR NI OBSTRUER LES OUVERTURES D’AÉRATION. NE
PAS MONTER LE PRODUIT DANS UN COMPARTIMENT SANS AUCUN DÉGAGEMENT. RISQUE DE SURCHAUFFE. •
RISQUE DE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENTAUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRE RÉPARÉE PAR L’UTILISATEUR. CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. • POUR RÉDUIRE LES
RISQUES DE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LA PLUIE OU À LA PULVÉRISATION. • L’ORIENTATION
DE LA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTION INTÉGRALE CONTRE LA SURCHARGE. • NE CHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANT CHACUNE 6 ou 12 CELLULES.
WARNING:
• THIS EQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCEARCS OR SPARKS. TO PREVENT FIRE OR
EXPLOSION, DO NOT INSTALL IN COMPARTMENTS CONTAINING BATTERIES OR FLAMMABLE MATERIALS. • RISK
OF ELECTRIC SHOCK. USE ONLY THE GROUND-FAULT CIRCUIT-INTERRUPTER RECEPTACLE OR CIRCUIT
BREAKER SPECIFIED IN THE INSTALLATION AND OPERATING INSTRUCTIONS SUPPLIED WITH THIS UNIT. OTHER
TYPES MAY FAIL TO OPERATE PROPERLY WHEN CONNECTED TO THIS UNIT. • RISK OF ELECTRIC SHOCK,
HEATSINKS ARE NOT BONDED TO GROUND, TEST BEFORE TOUCHING. • INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
• CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DES ARCS ÉLECTRIQUES OU DES
ÉTINCELLES. POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANS UN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGE ÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSE OU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATION FOURNI AVEC CE
PRODUIT. LES AUTRES TYPES PEUVENT NE PAS FONCTIONNER CORRECTEMENT LORSQU’ILS SONT
CONNECTÉS À CE PRODUIT. • RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTER AVANT DE TOUCHER. • PRÉVU POUR UNE UTILISATION CONTINUE.
DANGER:
• TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERY SPACE OR AREA IN WHICH IGNITION
- PROTECTED EQUIPMENT IS REQUIRED.
• POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINE OU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENT PROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
CAUTION:
• TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT. OVERHEATING MAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. • TO REDUCE RISK OF
ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRAL PROTECTION AGAINST OVERLOADS. • CHARGE ONLY LEAD ACID TYPE
RECHARGEABLE BATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PAS COUVRIR NI OBSTRUER LES OUVERTURES D’AÉRATION. NE
PAS MONTER LE PRODUIT DANS UN COMPARTIMENT SANS AUCUN DÉGAGEMENT. RISQUE DE SURCHAUFFE. •
RISQUE DE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENTAUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRE RÉPARÉE PAR L’UTILISATEUR. CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. • POUR RÉDUIRE LES
RISQUES DE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LA PLUIE OU À LA PULVÉRISATION. • L’ORIENTATION
DE LA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTION INTÉGRALE CONTRE LA SURCHARGE. • NE CHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANT CHACUNE 6 ou 12 CELLULES.
WARNING:
• THIS EQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCEARCS OR SPARKS. TO PREVENT FIRE OR
EXPLOSION, DO NOT INSTALL IN COMPARTMENTS CONTAINING BATTERIES OR FLAMMABLE MATERIALS. • RISK
OF ELECTRIC SHOCK. USE ONLY THE GROUND-FAULT CIRCUIT-INTERRUPTER RECEPTACLE OR CIRCUIT
BREAKER SPECIFIED IN THE INSTALLATION AND OPERATING INSTRUCTIONS SUPPLIED WITH THIS UNIT. OTHER
TYPES MAY FAIL TO OPERATE PROPERLY WHEN CONNECTED TO THIS UNIT. • RISK OF ELECTRIC SHOCK,
HEATSINKS ARE NOT BONDED TO GROUND, TEST BEFORE TOUCHING. • INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
• CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DES ARCS ÉLECTRIQUES OU DES
ÉTINCELLES. POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANS UN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGE ÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSE OU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATION FOURNI AVEC CE
PRODUIT. LES AUTRES TYPES PEUVENT NE PAS FONCTIONNER CORRECTEMENT LORSQU’ILS SONT
CONNECTÉS À CE PRODUIT. • RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTER AVANT DE TOUCHER. • PRÉVU POUR UNE UTILISATION CONTINUE.
DANGER:
• TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERY SPACE OR AREA IN WHICH IGNITION
- PROTECTED EQUIPMENT IS REQUIRED.
• POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINE OU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENT PROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
Temperature Sensor
®
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
Inverter Operation
● Continuous Output Power (-20~40°C): 2000VA ●DC Input: 12.6V
●Maximum Continuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●Maximum Continuous Output Current: 16.7AAC ●Surge Power: 3400 Real Watts (5 seconds) ●THD: <5%
Charger Operation
Bypass Operation
Continuous Charger Current (-20~40°C) : 100 [email protected] VDC nominal with 120VAC / 60Hz (15 AAC) input●
Input / Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage: 120VAC●
●
●
Maximum AC Input Current: 50AAC
●
Maximum Power: 12000 VA
●DC Output Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conforms to UL 458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSA C22.2 No. 107.1-01
5GW2
MQ7275
MARINE POWER INVERTER
5DA7
E198012
POWER INVERTER E483757
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
Inverter Operation
● Continuous Output Power (-20~40°C): 2000VA ●DC Input: 12.6V
●Maximum Continuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●Maximum Continuous Output Current: 16.7AAC ●Surge Power: 3400 Real Watts (5 seconds) ●THD: <5%
Charger Operation
Bypass Operation
Continuous Charger Current (-20~40°C) : 100 [email protected] VDC nominal with 120 VAC / 60Hz (15AAC) input●
Input / Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage: 120VAC●
●
●
Maximum AC Input Current: 50AAC
●
Maximum Power: 12000 VA
●DC Output Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conforms to UL 458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSA C22.2 No. 107.1-01
5GW2
MQ7275
MARINE POWER INVERTER
5DA7
E198012
POWER INVERTER E483757
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
Inverter Operation
● Continuous Output Power (-20~40°C): 2000VA ●DC Input: 12.6V
●Maximum Continuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●Maximum Continuous Output Current: 16.7AAC ●Surge Power: 3400 Real Watts (5 seconds) ●THD: <5%
Charger Operation
Bypass Operation
Continuous Charger Current (-20~40°C) : 100 [email protected] VDC nominal with 120VAC / 60Hz (15 AAC) input●
Input / Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage: 120VAC●
●
●
Maximum AC Input Current: 50AAC
●
Maximum Power: 12000 VA
●DC Output Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conforms to UL 458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSA C22.2 No. 107.1-01
5GW2
MQ7275
MARINE POWER INVERTER
5DA7
E198012
POWER INVERTER E483757
4
9
1
1
9
8
7
6
5
4
3
2
7
8
2
DC Ground
Terminal
AC Entry/Exit
Terminals
Status LED
Positive (+)
DC Terminal
Intake Air
Vents (and on
right side)
Negative (-)
DC Terminal
Mounting
Flange
Power
ON/OFF Switch
Dip
Switches
Remote Control
Port
Battery Sensor
Port
Inverter/Charger
Mode
6
5
11
10
1112 10
3
GENERAL INFORMATION

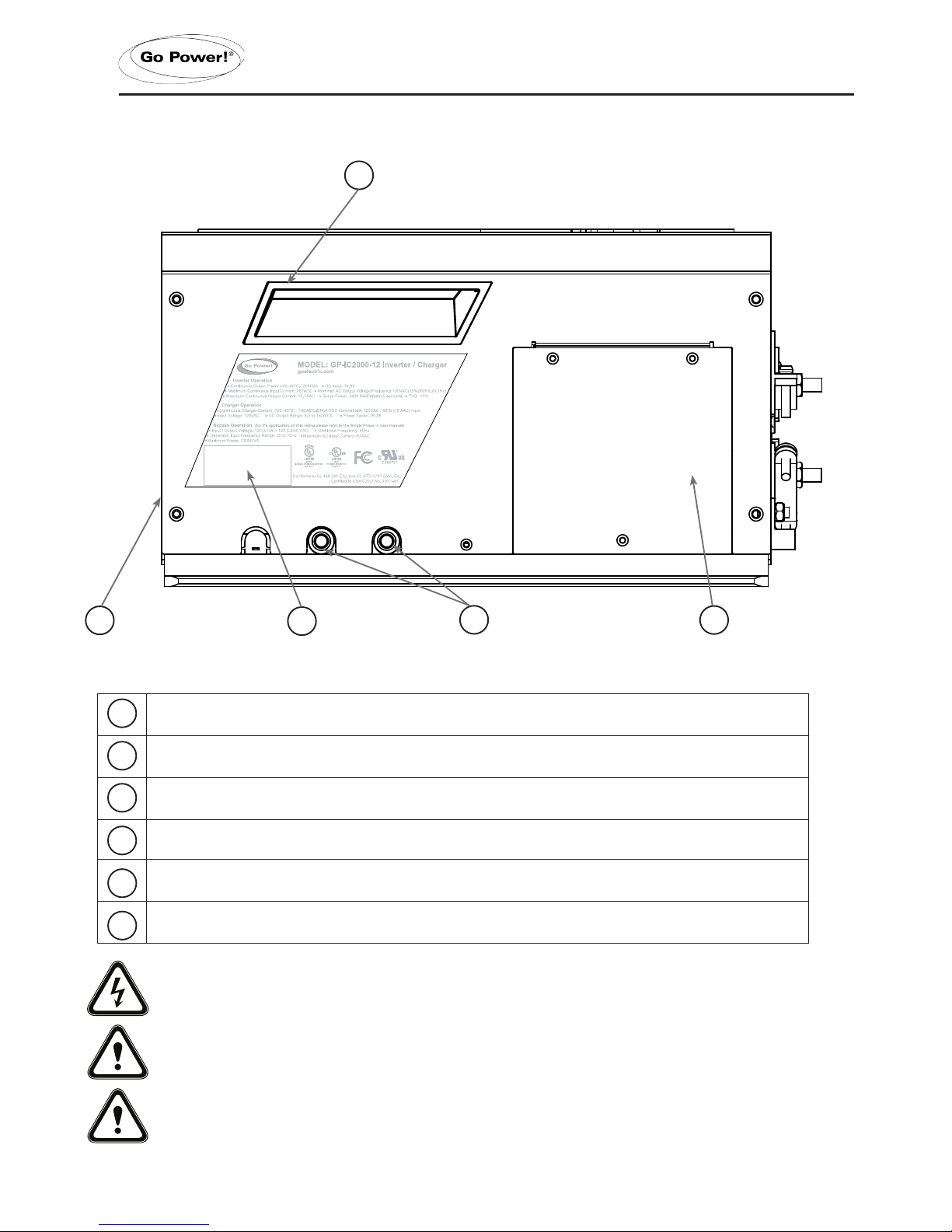

2.4 UNIT FEATURES
AC Entry/Exit Terminals - Two 1-3/8” knockouts provided to accommodate up to 1-1/4” 50 amp RV Cable. Strain relief
clamps provided to secure the AC input and output wires.
DC Ground Terminal - Use this connection to ground the exposed chassis of the inverter to the DC grounding system.
This terminal accepts CU/AL conductors from #14 to #2 AWG (2.1 to 33.6mm2).
Remote Control Port - Use this port to connect the optional remote control unit to the Inverter/Charger.
Battery Temperature Sensor Port - Use this port to connect the battery temperature sensor to the Inverter/Charger.
Mounting Flange - Use this to secure the Inverter/Charger to the mounting surface.
Negative (-) DC Terminal - Use this connection point to secure the battery bank negative (-) cable to the Inverter/Charger.
Always ensure the DC terminal cover is used to protect this terminal.
Positive (+) DC Terminal - Use this connection point to secure the battery bank positive (+) cable to the Inverter/Charger.
Always ensure the DC terminal cover is used to protect this terminal.
Intake Air Vents - These cut-outs are used as ventilation openings. Air is drawn in through the front of the Inverter/Charger
and passes through to keep the electronics cool for optimum performance.
Status LED - Green, Red Blink, Red Fast Blink, Orange Solid, Orange Blink & Orange Fast Blink Status. See page 38 for
further explanation.
Inverter/Charger LED - Inverter Mode = Solid Green
Charging Mode = Green Blink
Power ON/OFF Switch - Thispushbuttonswitchcanbeusedtoturntheuniton/o󰀨.Warning!PowerOFFdoesnotdis-
connect the batteries or AC power source. Therefore, the “AC output load” is still active.

gpelectric.com | [page 9]
(304mm)
12”
(51mm)
2”
(124mm)
4.9” (124mm) 4.9”
(346mm)
13.6”
(7mm) (13mm)
.28”
(321mm)
12.6”
.51”
(205mm)
8.1”
(349mm)
13.7”
(378mm)
14.9”
REMOTE
BATTERY
TEMP
ON/OFF
STATUS
INV. / CHR.
MODE
AC INPUT
INV. AC
OUTPUT
NEG -
POS +
BATTERY
TEMP
REMOTE
CAUTION:
• TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT. OVERHEATING MAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. • TO REDUCE RISK OF
ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRAL PROTECTION AGAINST OVERLOADS. • CHARGE ONLY LEAD ACID TYPE
RECHARGEABLE BATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PAS COUVRIR NI OBSTRUER LES OUVERTURES D’AÉRATION. NE
PAS MONTER LE PRODUIT DANS UN COMPARTIMENT SANS AUCUN DÉGAGEMENT. RISQUE DE SURCHAUFFE. •
RISQUE DE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENTAUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRE RÉPARÉE PAR L’UTILISATEUR. CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. • POUR RÉDUIRE LES
RISQUES DE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LA PLUIE OU À LA PULVÉRISATION. • L’ORIENTATION
DE LA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTION INTÉGRALE CONTRE LA SURCHARGE. • NE CHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANT CHACUNE 6 ou 12 CELLULES.
WARNING:
• THIS EQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCEARCS OR SPARKS. TO PREVENT FIRE OR
EXPLOSION, DO NOT INSTALL IN COMPARTMENTS CONTAINING BATTERIES OR FLAMMABLE MATERIALS. • RISK
OF ELECTRIC SHOCK. USE ONLY THE GROUND-FAULT CIRCUIT-INTERRUPTER RECEPTACLE OR CIRCUIT
BREAKER SPECIFIED IN THE INSTALLATION AND OPERATING INSTRUCTIONS SUPPLIED WITH THIS UNIT. OTHER
TYPES MAY FAIL TO OPERATE PROPERLY WHEN CONNECTED TO THIS UNIT. • RISK OF ELECTRIC SHOCK,
HEATSINKS ARE NOT BONDED TO GROUND, TEST BEFORE TOUCHING. • INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
• CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DES ARCS ÉLECTRIQUES OU DES
ÉTINCELLES. POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANS UN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGE ÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSE OU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATION FOURNI AVEC CE
PRODUIT. LES AUTRES TYPES PEUVENT NE PAS FONCTIONNER CORRECTEMENT LORSQU’ILS SONT
CONNECTÉS À CE PRODUIT. • RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTER AVANT DE TOUCHER. • PRÉVU POUR UNE UTILISATION CONTINUE.
DANGER:
• TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERY SPACE OR AREA IN WHICH IGNITION
- PROTECTED EQUIPMENT IS REQUIRED.
• POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINE OU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENT PROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
REMOTE
BATTERY
TEMP
ON/OFF
STATUS
INV. / CHR.
MODE
AC INPUT
INV. AC
OUTPUT
NEG -
POS +
CAUTION:
• TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT. OVERHEATING MAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. • TO REDUCE RISK OF
ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRAL PROTECTION AGAINST OVERLOADS. • CHARGE ONLY LEAD ACID TYPE
RECHARGEABLE BATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PAS COUVRIR NI OBSTRUER LES OUVERTURES D’AÉRATION. NE
PAS MONTER LE PRODUIT DANS UN COMPARTIMENT SANS AUCUN DÉGAGEMENT. RISQUE DE SURCHAUFFE. •
RISQUE DE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENTAUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRE RÉPARÉE PAR L’UTILISATEUR. CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. • POUR RÉDUIRE LES
RISQUES DE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LA PLUIE OU À LA PULVÉRISATION. • L’ORIENTATION
DE LA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTION INTÉGRALE CONTRE LA SURCHARGE. • NE CHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANT CHACUNE 6 ou 12 CELLULES.
WARNING:
• THIS EQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCEARCS OR SPARKS. TO PREVENT FIRE OR
EXPLOSION, DO NOT INSTALL IN COMPARTMENTS CONTAINING BATTERIES OR FLAMMABLE MATERIALS. • RISK
OF ELECTRIC SHOCK. USE ONLY THE GROUND-FAULT CIRCUIT-INTERRUPTER RECEPTACLE OR CIRCUIT
BREAKER SPECIFIED IN THE INSTALLATION AND OPERATING INSTRUCTIONS SUPPLIED WITH THIS UNIT. OTHER
TYPES MAY FAIL TO OPERATE PROPERLY WHEN CONNECTED TO THIS UNIT. • RISK OF ELECTRIC SHOCK,
HEATSINKS ARE NOT BONDED TO GROUND, TEST BEFORE TOUCHING. • INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
• CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DES ARCS ÉLECTRIQUES OU DES
ÉTINCELLES. POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANS UN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGE ÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSE OU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATION FOURNI AVEC CE
PRODUIT. LES AUTRES TYPES PEUVENT NE PAS FONCTIONNER CORRECTEMENT LORSQU’ILS SONT
CONNECTÉS À CE PRODUIT. • RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTER AVANT DE TOUCHER. • PRÉVU POUR UNE UTILISATION CONTINUE.
DANGER:
• TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERY SPACE OR AREA IN WHICH IGNITION
- PROTECTED EQUIPMENT IS REQUIRED.
• POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINE OU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENT PROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
CAUTION:
• TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT. OVERHEATING MAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. • TO REDUCE RISK OF
ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRAL PROTECTION AGAINST OVERLOADS. • CHARGE ONLY LEAD ACID TYPE
RECHARGEABLE BATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PAS COUVRIR NI OBSTRUER LES OUVERTURES D’AÉRATION. NE
PAS MONTER LE PRODUIT DANS UN COMPARTIMENT SANS AUCUN DÉGAGEMENT. RISQUE DE SURCHAUFFE. •
RISQUE DE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENTAUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRE RÉPARÉE PAR L’UTILISATEUR. CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. • POUR RÉDUIRE LES
RISQUES DE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LA PLUIE OU À LA PULVÉRISATION. • L’ORIENTATION
DE LA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTION INTÉGRALE CONTRE LA SURCHARGE. • NE CHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANT CHACUNE 6 ou 12 CELLULES.
WARNING:
• THIS EQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCEARCS OR SPARKS. TO PREVENT FIRE OR
EXPLOSION, DO NOT INSTALL IN COMPARTMENTS CONTAINING BATTERIES OR FLAMMABLE MATERIALS. • RISK
OF ELECTRIC SHOCK. USE ONLY THE GROUND-FAULT CIRCUIT-INTERRUPTER RECEPTACLE OR CIRCUIT
BREAKER SPECIFIED IN THE INSTALLATION AND OPERATING INSTRUCTIONS SUPPLIED WITH THIS UNIT. OTHER
TYPES MAY FAIL TO OPERATE PROPERLY WHEN CONNECTED TO THIS UNIT. • RISK OF ELECTRIC SHOCK,
HEATSINKS ARE NOT BONDED TO GROUND, TEST BEFORE TOUCHING. • INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
• CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DES ARCS ÉLECTRIQUES OU DES
ÉTINCELLES. POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANS UN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGE ÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSE OU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATION FOURNI AVEC CE
PRODUIT. LES AUTRES TYPES PEUVENT NE PAS FONCTIONNER CORRECTEMENT LORSQU’ILS SONT
CONNECTÉS À CE PRODUIT. • RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTER AVANT DE TOUCHER. • PRÉVU POUR UNE UTILISATION CONTINUE.
DANGER:
• TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERY SPACE OR AREA IN WHICH IGNITION
- PROTECTED EQUIPMENT IS REQUIRED.
• POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINE OU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENT PROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
Temperature Sensor
®
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
Inverter Operation
● Continuous Output Power (-20~40°C): 2000VA ●DC Input: 12.6V
●Maximum Continuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●Maximum Continuous Output Current: 16.7AAC ●Surge Power: 3400 Real Watts (5 seconds) ●THD: <5%
Charger Operation
Bypass Operation
Continuous Charger Current (-20~40°C) : 100 [email protected] VDC nominal with 120 VAC / 60Hz (15AAC) input●
Input / Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage: 120VAC●
●
●
Maximum AC Input Current: 50AAC
●
Maximum Power: 12000 VA
●DC Output Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conforms to UL 458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSA C22.2 No. 107.1-01
5GW2
MQ7275
MARINE POWER INVERTER
5DA7
E198012
POWER INVERTER E483757
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
Inverter Operation
● Continuous Output Power (-20~40°C): 2000VA ●DC Input: 12.6V
●Maximum Continuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●Maximum Continuous Output Current: 16.7AAC ●Surge Power: 3400 Real Watts (5 seconds) ●THD: <5%
Charger Operation
Bypass Operation
Continuous Charger Current (-20~40°C) : 100 [email protected] VDC nominal with 120VAC / 60Hz (15 AAC) input●
Input / Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage: 120VAC●
●
●
Maximum AC Input Current: 50AAC
●
Maximum Power: 12000 VA
●DC Output Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conforms to UL 458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSA C22.2 No. 107.1-01
5GW2
MQ7275
MARINE POWER INVERTER
5DA7
E198012
POWER INVERTER E483757
17 Built-in
Handles
AC Input Circuit
Breakers
Serial Number
Label
Exhaust Air Vents
(Back side) AC Access Cover
Positive (+)
DC Terminal
Intake Air
Vents (and on
right side)
Negative (-)
DC Terminal
Mounting
Flange
CAUTION: This Inverter does not include any output circuit breakers. So 20A branch-rated circuit breakers must be
installed in the inverter’s output wiring (breaker panel).
WARNING: Turning the unit OFF does not disconnect the batteries or AC power source. Therefore, the “AC output
load” is still active.
CAUTION: The Inverter’s internal transfer AC transfer relay is rated for 50 amps per leg. The pass-through current
must be no greater than 50 amps per leg or damage to the relays and/or the input circuit breakers may occur.
15
14
13 16
12
13
14
15
16
17
GENERAL INFORMATION
Dip Switches - Reserved for future use.
Exhaust Air Vents - These cut-outs are used as ventilation openings. Air is drawn in through the front of the Inverter/
Charger and passes through to keep the electronics cool for optimum performance.
Serial Number Label - Thislabeldisplaystheunitserialnumber,dateofmanufacture,andInverter/Chargerspecications.
AC Input Circuit Breaker - CB1 & CB2 - These circuit breakers protect the unit’s internal charger wiring and pass-through
relay when in AC pass-through mode. Press in to reset. The input circuit breakers are not branch-rated.
AC Access Cover - Remove this panel to access the internal wiring terminal block. This terminal block is used to hardwire
all inverter AC input and output wiring connections.
Built-In Handles - Use these handles to safely move the Inverter/Charger.
Please note: Label shown is for a GP-IC-2000. Please refer to the label on your Inverter/Charger for accurate information.

[page 10] | gpelectric.com
GENERAL INFORMATION
(304mm)
12”
(51mm)
2”
(124mm)
4.9”
(124mm)
4.9”
(346mm)
13.6”
(7mm) (13mm)
.28”
(321mm)
12.6”
.51”
(205mm)
8.1”
(349mm)
13.7”
(378mm)
14.9”
REMOTE
BATTERY
TEMP
ON/OFF
STATUS
INV. / CHR.
MODE
AC INPUT
INV. AC
OUTPUT
NEG -
POS +
BATTERY
TEMP
REMOTE
CAUTION:
• TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT. OVERHEATING MAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. • TO REDUCE RISK OF
ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRAL PROTECTION AGAINST OVERLOADS. • CHARGE ONLY LEADACID TYPE
RECHARGEABLE BATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PAS COUVRIR NI OBSTRUER LES OUVERTURES D’AÉRATION. NE
PAS MONTER LE PRODUIT DANS UN COMPARTIMENT SANS AUCUN DÉGAGEMENT. RISQUE DE SURCHAUFFE. •
RISQUE DE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENTAUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRE RÉPARÉE PAR L’UTILISATEUR. CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. • POUR RÉDUIRE LES
RISQUES DE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LAPLUIE OU À LA PULVÉRISATION. • L’ORIENTATION
DE LA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTION INTÉGRALE CONTRE LA SURCHARGE. • NE CHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANT CHACUNE 6 ou 12 CELLULES.
WARNING:
• THIS EQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCE ARCS OR SPARKS. TO PREVENT FIRE OR
EXPLOSION, DO NOT INSTALL IN COMPARTMENTS CONTAINING BATTERIES OR FLAMMABLE MATERIALS. • RISK
OF ELECTRIC SHOCK. USE ONLY THE GROUND-FAULT CIRCUIT-INTERRUPTER RECEPTACLE OR CIRCUIT
BREAKER SPECIFIED IN THE INSTALLATION AND OPERATING INSTRUCTIONS SUPPLIED WITHTHIS UNIT. OTHER
TYPES MAY FAIL TO OPERATE PROPERLY WHEN CONNECTED TO THIS UNIT. • RISK OF ELECTRIC SHOCK,
HEATSINKS ARE NOTBONDED TO GROUND, TEST BEFORE TOUCHING. • INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
• CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DESARCS ÉLECTRIQUES OU DES
ÉTINCELLES. POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANS UN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGE ÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSE OU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATION FOURNIAVEC CE
PRODUIT. LESAUTRES TYPES PEUVENT NE PAS FONCTIONNER CORRECTEMENT LORSQU’ILS SONT
CONNECTÉS À CE PRODUIT. • RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTER AVANT DE TOUCHER. • PRÉVU POUR UNE UTILISATION CONTINUE.
DANGER:
• TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERY SPACE ORAREA IN WHICH IGNITION
- PROTECTED EQUIPMENT IS REQUIRED.
• POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINE OU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENTPROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
REMOTE
BATTERY
TEMP
ON/OFF
STATUS
INV. / CHR.
MODE
AC INPUT
INV. AC
OUTPUT
NEG -
POS +
CAUTION:
• TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT. OVERHEATING MAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. • TO REDUCE RISK OF
ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRAL PROTECTION AGAINST OVERLOADS. • CHARGE ONLY LEADACID TYPE
RECHARGEABLE BATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PAS COUVRIR NI OBSTRUER LES OUVERTURES D’AÉRATION. NE
PAS MONTER LE PRODUIT DANS UN COMPARTIMENT SANS AUCUN DÉGAGEMENT. RISQUE DE SURCHAUFFE. •
RISQUE DE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENTAUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRE RÉPARÉE PAR L’UTILISATEUR. CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. • POUR RÉDUIRE LES
RISQUES DE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LAPLUIE OU À LA PULVÉRISATION. • L’ORIENTATION
DE LA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTION INTÉGRALE CONTRE LA SURCHARGE. • NE CHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANT CHACUNE 6 ou 12 CELLULES.
WARNING:
• THIS EQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCE ARCS OR SPARKS. TO PREVENT FIRE OR
EXPLOSION, DO NOT INSTALL IN COMPARTMENTS CONTAINING BATTERIES OR FLAMMABLE MATERIALS. • RISK
OF ELECTRIC SHOCK. USE ONLY THE GROUND-FAULT CIRCUIT-INTERRUPTER RECEPTACLE OR CIRCUIT
BREAKER SPECIFIED IN THE INSTALLATION AND OPERATING INSTRUCTIONS SUPPLIED WITHTHIS UNIT. OTHER
TYPES MAY FAIL TO OPERATE PROPERLY WHEN CONNECTED TO THIS UNIT. • RISK OF ELECTRIC SHOCK,
HEATSINKS ARE NOTBONDED TO GROUND, TEST BEFORE TOUCHING. • INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
• CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DESARCS ÉLECTRIQUES OU DES
ÉTINCELLES. POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANS UN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGE ÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSE OU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATION FOURNIAVEC CE
PRODUIT. LESAUTRES TYPES PEUVENT NE PAS FONCTIONNER CORRECTEMENT LORSQU’ILS SONT
CONNECTÉS À CE PRODUIT. • RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTER AVANT DE TOUCHER. • PRÉVU POUR UNE UTILISATION CONTINUE.
DANGER:
• TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERY SPACE ORAREA IN WHICH IGNITION
- PROTECTED EQUIPMENT IS REQUIRED.
• POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINE OU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENTPROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
CAUTION:
• TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT. OVERHEATING MAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. • TO REDUCE RISK OF
ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRAL PROTECTION AGAINST OVERLOADS. • CHARGE ONLY LEADACID TYPE
RECHARGEABLE BATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PAS COUVRIR NI OBSTRUER LES OUVERTURES D’AÉRATION. NE
PAS MONTER LE PRODUIT DANS UN COMPARTIMENT SANS AUCUN DÉGAGEMENT. RISQUE DE SURCHAUFFE. •
RISQUE DE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENTAUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRE RÉPARÉE PAR L’UTILISATEUR. CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. • POUR RÉDUIRE LES
RISQUES DE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LAPLUIE OU À LA PULVÉRISATION. • L’ORIENTATION
DE LA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTION INTÉGRALE CONTRE LA SURCHARGE. • NE CHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANT CHACUNE 6 ou 12 CELLULES.
WARNING:
• THIS EQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCE ARCS OR SPARKS. TO PREVENT FIRE OR
EXPLOSION, DO NOT INSTALL IN COMPARTMENTS CONTAINING BATTERIES OR FLAMMABLE MATERIALS. • RISK
OF ELECTRIC SHOCK. USE ONLY THE GROUND-FAULT CIRCUIT-INTERRUPTER RECEPTACLE OR CIRCUIT
BREAKER SPECIFIED IN THE INSTALLATION AND OPERATING INSTRUCTIONS SUPPLIED WITHTHIS UNIT. OTHER
TYPES MAY FAIL TO OPERATE PROPERLY WHEN CONNECTED TO THIS UNIT. • RISK OF ELECTRIC SHOCK,
HEATSINKS ARE NOTBONDED TO GROUND, TEST BEFORE TOUCHING. • INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
• CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DESARCS ÉLECTRIQUES OU DES
ÉTINCELLES. POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANS UN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGE ÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSE OU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATION FOURNIAVEC CE
PRODUIT. LESAUTRES TYPES PEUVENT NE PAS FONCTIONNER CORRECTEMENT LORSQU’ILS SONT
CONNECTÉS À CE PRODUIT. • RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTER AVANT DE TOUCHER. • PRÉVU POUR UNE UTILISATION CONTINUE.
DANGER:
• TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERY SPACE ORAREA IN WHICH IGNITION
- PROTECTED EQUIPMENT IS REQUIRED.
• POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINE OU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENTPROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
Temperature Sensor
®
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
Inverter Operation
● Continuous Output Power (-20~40°C): 2000VA ●DC Input: 12.6V
●Maximum Continuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●Maximum Continuous Output Current: 16.7AAC ●Surge Power: 3400 Real Watts (5 seconds) ●THD: <5%
Charger Operation
Bypass Operation
Continuous Charger Current (-20~40°C) : 100 [email protected] VDC nominal with 120VAC / 60Hz (15 AAC) input●
Input / Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage: 120VAC●
●
●
Maximum AC Input Current: 50AAC
●
Maximum Power: 12000 VA
●DC Output Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conforms to UL 458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSA C22.2 No. 107.1-01
5GW2
MQ7275
MARINE POWER INVERTER
5DA7
E198012
POWER INVERTER E483757
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
Inverter Operation
● Continuous Output Power (-20~40°C): 2000VA ●DC Input: 12.6V
●Maximum Continuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●Maximum Continuous Output Current: 16.7AAC ●Surge Power: 3400 Real Watts (5 seconds) ●THD: <5%
Charger Operation
Bypass Operation
Continuous Charger Current (-20~40°C) : 100 [email protected] VDC nominal with 120VAC / 60Hz (15 AAC) input●
Input / Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage: 120VAC●
●
●
Maximum AC Input Current: 50AAC
●
Maximum Power: 12000 VA
●DC Output Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conforms to UL 458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSA C22.2 No. 107.1-01
5GW2
MQ7275
MARINE POWER INVERTER
5DA7
E198012
POWER INVERTER E483757
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
Inverter Operation
● Continuous Output Power (-20~40°C): 2000VA ●DC Input: 12.6V
●Maximum Continuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●Maximum Continuous Output Current: 16.7AAC ●Surge Power: 3400 Real Watts (5 seconds) ●THD: <5%
Charger Operation
Bypass Operation
Continuous Charger Current (-20~40°C) : 100 [email protected] VDC nominal with 120VAC / 60Hz (15 AAC) input●
Input / Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage: 120VAC●
●
●
Maximum AC Input Current: 50AAC
●
Maximum Power: 12000 VA
●DC Output Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conforms to UL 458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSA C22.2 No. 107.1-01
5GW2
MQ7275
MARINE POWER INVERTER
5DA7
E198012
POWER INVERTER E483757
2.5 UNIT DIMENSIONS

gpelectric.com | [page 11]

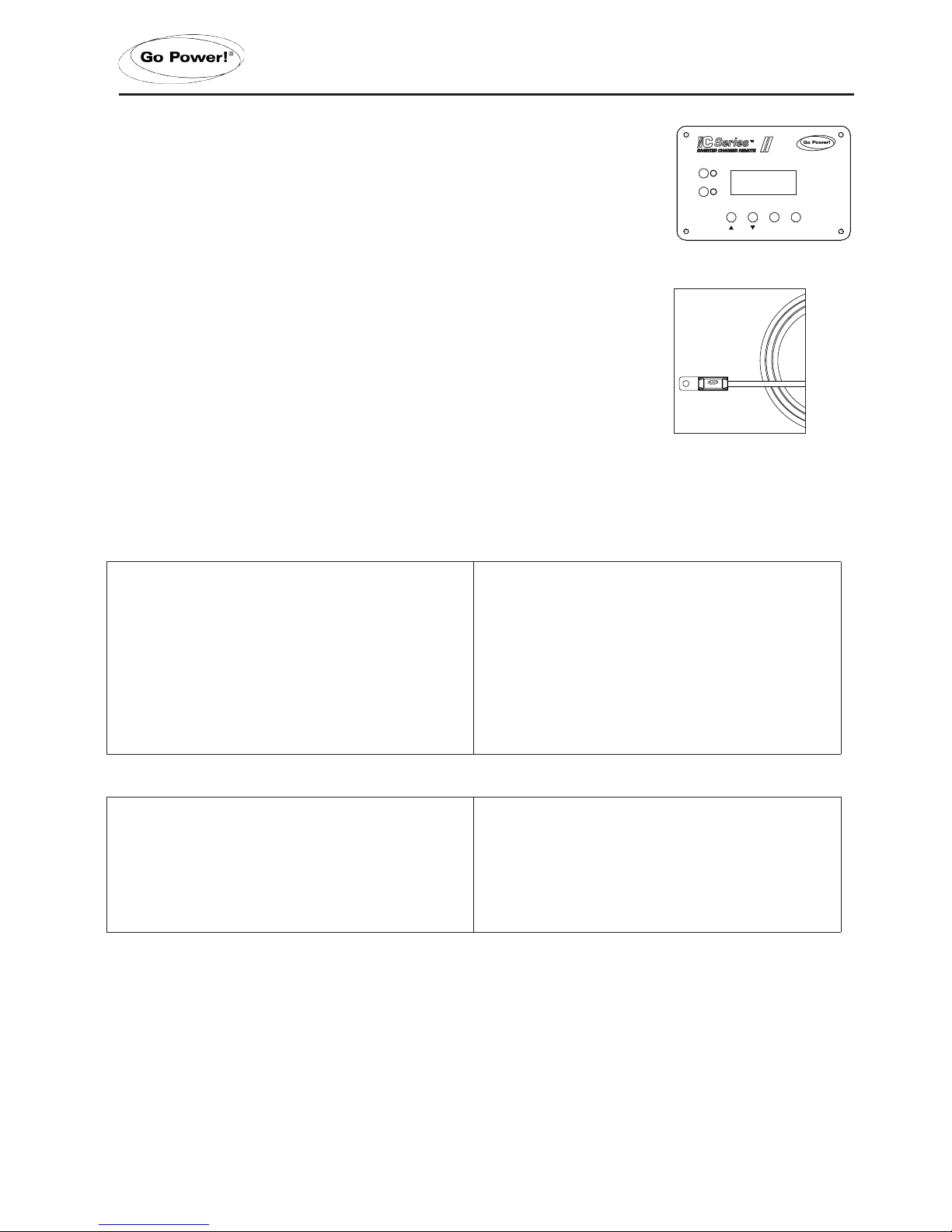

2.6 UNIT ACCESSORIES
The IC Series Inverter/Charger has two accessories available:
• IC 2000 series remote (not included).
• Battery temperature sensor (included).
IC 2000 Remote
This remote control device can be used for monitoring the performance of the unit. It is also
used to program certain settings on the Inverter, Charger, and AC pass-through.
Battery Temperature Sensor (BTS)
This sensor monitors the temperature of the battery bank. The temperature data is used to
provide optimum battery charging even during extreme temperature changes.
GENERAL INFORMATION
(304mm)
12”
(51mm)
2”
(124mm)
4.9”
(124mm)
4.9”
(346mm)
13.6”
(7mm) (13mm)
.28”
(321mm)
12.6”
.51”
(205mm)
8.1”
(349mm)
13.7”
(378mm)
14.9”
REMOTE
BATTERY
TEMP
ON/OFF
STATUS
INV. / CHR.
MODE
AC INPUT
INV. AC
OUTPUT
NEG -
POS +
BATTERY
TEMP
REMOTE
CAUTION:
•TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT.OVERHEATINGMAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLEPARTS INSIDE. REFERSERVICING TO QUALIFIED SERVICE PERSONNEL. •TO REDUCE RISK OF
ELECTRICSHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRAL PROTECTION AGAINST OVERLOADS. • CHARGE ONLY LEAD ACID TYPE
RECHARGEABLEBATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PAS COUVRIR NI OBSTRUER LES OUVERTURESD’AÉRATION. NE
PASMONTER LE PRODUIT DANS UN COMPARTIMENT SANSAUCUN DÉGAGEMENT. RISQUEDE SURCHAUFFE. •
RISQUEDE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENT AUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRERÉPARÉE PAR L’UTILISATEUR.CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. •POUR RÉDUIRE LES
RISQUESDE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LA PLUIE OU À LA PULVÉRISATION. • L’ORIENTATION
DELA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTIONINTÉGRALE CONTRE LA SURCHARGE. • NE CHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANTCHACUNE 6 ou 12 CELLULES.
WARNING:
• THIS EQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCE ARCS OR SPARKS.TO PREVENTFIRE OR
EXPLOSION,DO NOT INSTALL IN COMPARTMENTS CONTAININGBATTERIES OR FLAMMABLE MATERIALS. • RISK
OFELECTRIC SHOCK. USE ONLY THE GROUND-FAULTCIRCUIT-INTERRUPTER RECEPTACLE OR CIRCUIT
BREAKERSPECIFIED IN THE INSTALLATION AND OPERATINGINSTRUCTIONS SUPPLIED WITH THIS UNIT. OTHER
TYPESMAY FAIL TO OPERATE PROPERLYWHEN CONNECTED TO THIS UNIT. • RISK OF ELECTRIC SHOCK,
HEATSINKSARE NOT BONDED TO GROUND, TEST BEFORE TOUCHING. • INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
•CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DES ARCS ÉLECTRIQUES OU DES
ÉTINCELLES.POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANSUN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGEÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSEOU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATIONFOURNI AVEC CE
PRODUIT.LES AUTRES TYPES PEUVENT NE PASFONCTIONNER CORRECTEMENT LORSQU’ILS SONT
CONNECTÉSÀ CE PRODUIT. •RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTERAVANT DE TOUCHER. •PRÉVU POUR UNE UTILISATION CONTINUE.
DANGER:
•TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERY SPACEOR AREA IN WHICH IGNITION
-PROTECTED EQUIPMENT IS REQUIRED.
•POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINEOU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENT PROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
REMOTE
BATTERY
TEMP
ON/OFF
STATUS
INV. / CHR.
MODE
AC INPUT
INV. AC
OUTPUT
NEG -
POS +
CAUTION:
•TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT.OVERHEATINGMAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLEPARTS INSIDE. REFERSERVICING TO QUALIFIED SERVICE PERSONNEL. •TO REDUCE RISK OF
ELECTRICSHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRAL PROTECTION AGAINST OVERLOADS. • CHARGE ONLY LEAD ACID TYPE
RECHARGEABLEBATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PAS COUVRIR NI OBSTRUER LES OUVERTURESD’AÉRATION. NE
PASMONTER LE PRODUIT DANS UN COMPARTIMENT SANSAUCUN DÉGAGEMENT. RISQUEDE SURCHAUFFE. •
RISQUEDE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENT AUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRERÉPARÉE PAR L’UTILISATEUR.CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. •POUR RÉDUIRE LES
RISQUESDE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LA PLUIE OU À LA PULVÉRISATION. • L’ORIENTATION
DELA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTIONINTÉGRALE CONTRE LA SURCHARGE. • NE CHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANTCHACUNE 6 ou 12 CELLULES.
WARNING:
• THIS EQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCE ARCS OR SPARKS.TO PREVENTFIRE OR
EXPLOSION,DO NOT INSTALL IN COMPARTMENTS CONTAININGBATTERIES OR FLAMMABLE MATERIALS. • RISK
OFELECTRIC SHOCK. USE ONLY THE GROUND-FAULTCIRCUIT-INTERRUPTER RECEPTACLE OR CIRCUIT
BREAKERSPECIFIED IN THE INSTALLATION AND OPERATINGINSTRUCTIONS SUPPLIED WITH THIS UNIT. OTHER
TYPESMAY FAIL TO OPERATE PROPERLYWHEN CONNECTED TO THIS UNIT. • RISK OF ELECTRIC SHOCK,
HEATSINKSARE NOT BONDED TO GROUND, TEST BEFORE TOUCHING. • INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
•CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DES ARCS ÉLECTRIQUES OU DES
ÉTINCELLES.POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANSUN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGEÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSEOU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATIONFOURNI AVEC CE
PRODUIT.LES AUTRES TYPES PEUVENT NE PASFONCTIONNER CORRECTEMENT LORSQU’ILS SONT
CONNECTÉSÀ CE PRODUIT. •RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTERAVANT DE TOUCHER. •PRÉVU POUR UNE UTILISATION CONTINUE.
DANGER:
•TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERY SPACEOR AREA IN WHICH IGNITION
-PROTECTED EQUIPMENT IS REQUIRED.
•POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINEOU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENT PROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
CAUTION:
•TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT.OVERHEATINGMAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLEPARTS INSIDE. REFERSERVICING TO QUALIFIED SERVICE PERSONNEL. •TO REDUCE RISK OF
ELECTRICSHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRAL PROTECTION AGAINST OVERLOADS. • CHARGE ONLY LEAD ACID TYPE
RECHARGEABLEBATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PAS COUVRIR NI OBSTRUER LES OUVERTURESD’AÉRATION. NE
PASMONTER LE PRODUIT DANS UN COMPARTIMENT SANSAUCUN DÉGAGEMENT. RISQUEDE SURCHAUFFE. •
RISQUEDE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENT AUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRERÉPARÉE PAR L’UTILISATEUR.CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. •POUR RÉDUIRE LES
RISQUESDE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LA PLUIE OU À LA PULVÉRISATION. • L’ORIENTATION
DELA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTIONINTÉGRALE CONTRE LA SURCHARGE. • NE CHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANTCHACUNE 6 ou 12 CELLULES.
WARNING:
• THIS EQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCE ARCS OR SPARKS.TO PREVENTFIRE OR
EXPLOSION,DO NOT INSTALL IN COMPARTMENTS CONTAININGBATTERIES OR FLAMMABLE MATERIALS. • RISK
OFELECTRIC SHOCK. USE ONLY THE GROUND-FAULTCIRCUIT-INTERRUPTER RECEPTACLE OR CIRCUIT
BREAKERSPECIFIED IN THE INSTALLATION AND OPERATINGINSTRUCTIONS SUPPLIED WITH THIS UNIT. OTHER
TYPESMAY FAIL TO OPERATE PROPERLYWHEN CONNECTED TO THIS UNIT. • RISK OF ELECTRIC SHOCK,
HEATSINKSARE NOT BONDED TO GROUND, TEST BEFORE TOUCHING. • INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
•CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DES ARCS ÉLECTRIQUES OU DES
ÉTINCELLES.POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANSUN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGEÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSEOU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATIONFOURNI AVEC CE
PRODUIT.LES AUTRES TYPES PEUVENT NE PASFONCTIONNER CORRECTEMENT LORSQU’ILS SONT
CONNECTÉSÀ CE PRODUIT. •RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTERAVANT DE TOUCHER. •PRÉVU POUR UNE UTILISATION CONTINUE.
DANGER:
•TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERY SPACEOR AREA IN WHICH IGNITION
-PROTECTED EQUIPMENT IS REQUIRED.
•POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINEOU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENT PROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
Temperature Sensor
®
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
Inverter Operation
● Continuous Output Power (-20~40°C): 2000VA ●DC Input: 12.6V
●Maximum Continuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●Maximum Continuous Output Current: 16.7AAC ●SurgePower: 3400 Real Watts (5 seconds) ●THD: <5%
Charger Operation
Bypass Operation
Continuous Charger Current (-20~40°C) : 100 [email protected] VDC nominal with 120VAC / 60Hz (15 AAC) input●
Input / Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage:120VAC●
●
●
MaximumAC Input Current: 50 AAC
●
Maximum Power: 12000 VA
●DC Output Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conforms to UL458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSAC22.2 No. 107.1-01
5GW2
MQ7275
MARINEPOWER INVERTER
5DA7
E198012
POWERINVERTER E483757
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
Inverter Operation
● ContinuousOutput Power (-20~40°C): 2000VA ●DCInput: 12.6V
●MaximumContinuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●MaximumContinuous Output Current: 16.7AAC ●Surge Power: 3400 Real Watts (5 seconds) ●THD: <5%
Charger Operation
Bypass Operation
ContinuousCharger Current (-20~40°C) : 100[email protected] VDC nominal with 120 VAC / 60Hz(15 AAC) input●
Input/ Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage: 120VAC●
●
●
Maximum AC Input Current: 50 AAC
●
Maximum Power: 12000 VA
●DCOutput Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conformsto UL 458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSA C22.2 No. 107.1-01
5GW2
MQ7275
MARINEPOWERINVERTER
5DA7
E198012
POWERINVERTER E483757
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
Inverter Operation
● Continuous Output Power (-20~40°C): 2000VA ●DC Input: 12.6V
●Maximum Continuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●Maximum Continuous Output Current: 16.7AAC ●SurgePower: 3400 Real Watts (5 seconds) ●THD: <5%
Charger Operation
Bypass Operation
Continuous Charger Current (-20~40°C) : 100 [email protected] VDC nominal with 120VAC / 60Hz (15 AAC) input●
Input / Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage:120VAC●
●
●
MaximumAC Input Current: 50 AAC
●
Maximum Power: 12000 VA
●DC Output Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conforms to UL458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSAC22.2 No. 107.1-01
5GW2
MQ7275
MARINEPOWER INVERTER
5DA7
E198012
POWERINVERTER E483757
SHORE POWER
UNIT READINGS
INVERTER
ON/OFF
CHARGER
ON/OFF
ENTER / SET BACK
UNIT SETUP
REMOTE SETTINGS
®
2.7 REQUIRED TOOLS AND MATERIALS
Required Tools
a. 13mm or adjustable wrench
b. Screwdriver (Phillips & Flathead)
c. Wire strippers and cutters
d. Electric hand drill and drill bits
Optional Tools
e. Keyhole saw
f. Pencil or marker
g. Pliers
h. Caulking gun
i. Sealant
j. Digital multimeter
k. Torque driver
l. Butt splice crimping tool
Materials
a. Conduit
b. Strain-reliefs
c. Electrical tape (Black, Red, Green, Blue, Brown, White)
d. Zip-ties
e. Mounting hardware

[page 12] | gpelectric.com
Cable to
IC Series
FM
80
30 Amp
Breaker
Fuse
Block
Battery Bank
MC4 Connector
Refrigerator
Vent Cover
100W or 160W
Solar Panel
Mate 2
Legend
Remote
10 Ft Extension Cable
10AWG (Included)
25 Ft Cable
10AWG (Included)
For this system we
recommend a minimum of
6 batteries / 600 Amp Hour
Battery Bank
RV Console
Area
Solar
Controller
Cable to
Battery Bank
Battery Bank
Solar Panels
Cables From
Solar Charge Controller
Internal
View
GP-IC-Remote
Cable to
Inverter
Refrigerator
Vent Cover
100W or 160W
Solar Panel
Solar
Controller
Fuse
Block
Inverter
Inverter
Remote
AC
Loads
AC
Panel
Transfer
Switch
Fuse
Block
Converter /
Charger
Shore Power
/ Generator
AC Power OUTPUT
- to RV appliances
IC Series
Inverter/Charger
IC Series
Inverter/Charger
Cables to/from
Battery Bank
AC Power INPUT
- from Shore Power/Generator
(Fuses/Breakers not shown)
TYPICAL RV INSTALLATION
3. INSTALLATION
3.1 TYPICAL SYSTEM OVERVIEW
The following diagrams on pages 12-15 show how the GP-IC-2000 is typically installed in a mobile RV application. The diagrams
show where the Inverter/Charger is installed and how the mobile power system can be integrated with a Go Power! RV Solar Kit
(sold separately by Go Power; please contact us directly.)

gpelectric.com | [page 13]
Cable to
IC Series
FM
80
30 Amp
Breaker
Fuse
Block
Battery Bank
MC4 Connector
Refrigerator
Vent Cover
100W or 160W
Solar Panel
Mate 2
Legend
Remote
10 Ft Extension Cable
10AWG (Included)
25 Ft Cable
10AWG (Included)
For this system we
recommend a minimum of
6 batteries / 600 Amp Hour
Battery Bank
RV Console
Area
Solar
Controller
Cable to
Battery Bank
Battery Bank
Solar Panels
Cables From
Solar Charge Controller
Internal
View
GP-IC-Remote
Cable to
Inverter
Refrigerator
Vent Cover
100W or 160W
Solar Panel
Solar
Controller
Fuse
Block
Inverter
Inverter
Remote
AC
Loads
AC
Panel
Transfer
Switch
Fuse
Block
Converter /
Charger
Shore Power
/ Generator
AC Power OUTPUT
- to RV appliances
IC Series
Inverter/Charger
IC Series
Inverter/Charger
Cables to/from
Battery Bank
AC Power INPUT
- from Shore Power/Generator
(Fuses/Breakers not shown)
INSTALLATION

[page 14] | gpelectric.com
ON
OFF
Shore Power
120/240 VAC
Generator Power
120/240 VAC
Main Panel
Sub Panel
120 VAC
240 VAC
(cabin install)
Remote Control (Optional)
AC Transfer Switch
Solar Panel
Solar Panel
Solar Charge
Controller
Refrigerator
Vent Cover
or
Cable Entry Plate
Fuse
Battery Temperature Sensor
Typical RV Solar Kit
(sold separately by Go Power)
Battery Disconnect Switch
(not required if circuit breaker is used)
Battery Bank
Fuse or Circuit Breaker
IC Series Inverter/Charger
To Battery
Bank
To Battery
Bank
DC Panel
Earth Ground (RV, Boat Ground)
120 VAC
INSTALLATION

gpelectric.com | [page 15]
ON
OFF
Shore Power
120/240 VAC
Generator Power
120/240 VAC
Main Panel
Sub Panel
120 VAC
240 VAC
(cabin install)
Remote Control (Optional)
AC Transfer Switch
Solar Panel
Solar Panel
Solar Charge
Controller
Refrigerator
Vent Cover
or
Cable Entry Plate
Fuse
Battery Temperature Sensor
Typical RV Solar Kit
(sold separately by Go Power)
Battery Disconnect Switch
(not required if circuit breaker is used)
Battery Bank
Fuse or Circuit Breaker
IC Series Inverter/Charger
To Battery
Bank
To Battery
Bank
DC Panel
Earth Ground (RV, Boat Ground)
120 VAC
INSTALLATION

[page 16] | gpelectric.com
3.2 LOCATION AND ENVIRONMENTAL REQUIREMENTS
The IC Series Inverter/Charger must be installed in a location that meets the following requirements:
1. TEMPERATURE
Make sure the Inverter/Charger is installed in a location where the normal air temperature is between 0 °C and 50 °C. The cooler
the better within this range. Note the IC Series maximum output wattage will derate in temperatures above 45 °C.
2. MOISTURE
DonotallowwaterorotheruidstocomeintocontactwiththeICSeriesInverter/Charger.Donotexposetorain,snow,orwater.
CAUTION! Equipment Damage. Installing the IC Series Inverter/Charger in environments where moisture may
occurwillcausetheInverter/Chargertobeexposedtotheharmfule󰀨ectsofcorrosiveenvironmentsandtheservice
life of certain components will be compromised and not covered by the warranty.
3. VENTILATION
For optimum Inverter/Charger performance the IC Series Inverter/Charger must be installed so the front, side and rear air vents
arenotblockedorobstructedinanyway.DonotinstalltheInverter/Chargerinanareawithlimitedairow.Allowasmuch
space around the Inverter/Charger as possible, leaving at least 6” of airspace clearance around all ventilation areas.
CAUTION! Equipment Damage. Do not mount the Inverter/Charger in a zero clearance compartment. Do not cover
the ventilation openings. Overheating and mechanical failure may occur.
4. FIRE
InstalltheInverter/Chargerawayfromthebatterybank,awayfromanyammableorcombustiblematerial(paper,ammable
liquids,gasoline,cloths)thatmaybeignitedbyheat,sparks,orames.NeverplacetheInverter/Chargerdirectlyabovethe
battery bank. Gases from the batteries will corrode and damage the Inverter/Charger. Never allow battery acid to drip onto the unit.
5. ACCESSIBILITY/ORIENTATION
DonotblockaccesstotheICSeriesremotecontrolandbatterytemperatureaccessports,statusLEDsandtheOn/O󰀨switch.
Allow enough room to access the AC and DC wiring terminals and connections as they will need to be checked and tightened
periodically. The Inverter/Charger must be installed in one of the approved mounting orientations detailed on page 17.
6. CLEAN
The Inverter/Charger should be installed in a location which is clean and limits the introduction of dust, fumes, insects, or rodents
that could enter and block the Inverter/Charger’s ventilation openings.
7. PROXIMITY TO BATTERY BANK
The Inverter/Charger should be located as close to the batteries as possible but not within the same compartment. The length
andsizeoftheDCCableswilla󰀨ectperformance.LongDCwirestendtolosee󰀩ciencyandreducetheoverallperformanceof
the Inverter/Charger. Use the DC cables recommended on page 20.
INSTALLATION

gpelectric.com | [page 17]
3.3 MOUNTING THE INVERTER/CHARGER
Before connecting any wires to the Inverter/Charger the unit must be mounted securely in a location which meets the
requirements detailed in section 3.2.
The GP-IC-2000 weighs: 39 lbs (17.6kg). The GP-IC-000 weighs: 39 lbs (17.6kg). Take the necessary precautions required whilst
lifting, moving and installing the unit. It is recommended to use two people whilst mounting the unit. All mounting surfaces and
hardware must be capable of supporting at least twice the weight of the Inverter/Charger.
The Inverter/Charger base can reach high temperatures and should be mounted on a noncombustible surface.
The GP-IC-2000 must be mounted in the positions highlighted below to meet regulatory requirements.
After determining the mounting position use the dimensions on page 10 or use the base of the Inverter/Charger to mark the mounting
screw locations. Mount the unit with the appropriate mounting hardware (not supplied). Ensure the unit is fastened securely.
INSTALLATION
(304mm)
12”
(51mm)
2”
(124mm)
4.9”
(124mm)
4.9”
(346mm)
13.6”
(7mm) (13mm)
.28”
(321mm)
12.6”
.51”
(205mm)
8.1”
(349mm)
13.7”
(378mm)
14.9”
REMOTE
BATTERY
TEMP
ON/OFF
STATUS
INV. / CHR.
MODE
AC INPUT
INV. AC
OUTPUT
NEG -
POS +
BATTERY
TEMP
REMOTE
CAUTION:
•TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT.OVERHEATINGMAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLEPARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. •TO REDUCE RISK OF
ELECTRICSHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRALPROTECTION AGAINST OVERLOADS. •CHARGE ONLY LEAD ACIDTYPE
RECHARGEABLEBATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PASCOUVRIR NI OBSTRUER LES OUVERTURES D’AÉRATION. NE
PASMONTER LE PRODUIT DANS UN COMPARTIMENT SANSAUCUN DÉGAGEMENT. RISQUE DE SURCHAUFFE. •
RISQUEDE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENT AUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRERÉPARÉE PAR L’UTILISATEUR.CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. • POUR RÉDUIRE LES
RISQUESDE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LA PLUIE OU À LAPULVÉRISATION. • L’ORIENTATION
DELA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTIONINTÉGRALE CONTRE LA SURCHARGE. • NE CHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANTCHACUNE 6 ou 12 CELLULES.
WARNING:
• THIS EQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCEARCS OR SPARKS. TO PREVENT FIRE OR
EXPLOSION,DO NOT INSTALL IN COMPARTMENTSCONTAINING BATTERIES OR FLAMMABLE MATERIALS. • RISK
OFELECTRIC SHOCK. USE ONLY THE GROUND-FAULTCIRCUIT-INTERRUPTER RECEPTACLE OR CIRCUIT
BREAKERSPECIFIED IN THE INSTALLATIONAND OPERATING INSTRUCTIONS SUPPLIED WITH THIS UNIT. OTHER
TYPESMAY FAIL TO OPERATE PROPERLYWHEN CONNECTED TO THIS UNIT. • RISK OF ELECTRIC SHOCK,
HEATSINKSARE NOT BONDED TO GROUND, TESTBEFORE TOUCHING. •INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
•CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DES ARCS ÉLECTRIQUES OU DES
ÉTINCELLES.POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANSUN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGEÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSEOU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATIONFOURNI AVEC CE
PRODUIT.LES AUTRES TYPES PEUVENT NE PASFONCTIONNER CORRECTEMENT LORSQU’ILS SONT
CONNECTÉSÀ CE PRODUIT. • RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTERAVANT DE TOUCHER. •PRÉVU POUR UNE UTILISATION CONTINUE.
DANGER:
•TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERYSPACE OR AREA IN WHICH IGNITION
-PROTECTED EQUIPMENT IS REQUIRED.
•POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINEOU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENT PROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
REMOTE
BATTERY
TEMP
ON/OFF
STATUS
INV. / CHR.
MODE
AC INPUT
INV. AC
OUTPUT
NEG -
POS +
CAUTION:
•TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT.OVERHEATINGMAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLEPARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. •TO REDUCE RISK OF
ELECTRICSHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRALPROTECTION AGAINST OVERLOADS. •CHARGE ONLY LEAD ACIDTYPE
RECHARGEABLEBATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PASCOUVRIR NI OBSTRUER LES OUVERTURES D’AÉRATION. NE
PASMONTER LE PRODUIT DANS UN COMPARTIMENT SANSAUCUN DÉGAGEMENT. RISQUE DE SURCHAUFFE. •
RISQUEDE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENT AUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRERÉPARÉE PAR L’UTILISATEUR.CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. • POUR RÉDUIRE LES
RISQUESDE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LA PLUIE OU À LAPULVÉRISATION. • L’ORIENTATION
DELA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTIONINTÉGRALE CONTRE LA SURCHARGE. • NE CHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANTCHACUNE 6 ou 12 CELLULES.
WARNING:
• THIS EQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCEARCS OR SPARKS. TO PREVENT FIRE OR
EXPLOSION,DO NOT INSTALL IN COMPARTMENTSCONTAINING BATTERIES OR FLAMMABLE MATERIALS. • RISK
OFELECTRIC SHOCK. USE ONLY THE GROUND-FAULTCIRCUIT-INTERRUPTER RECEPTACLE OR CIRCUIT
BREAKERSPECIFIED IN THE INSTALLATIONAND OPERATING INSTRUCTIONS SUPPLIED WITH THIS UNIT. OTHER
TYPESMAY FAIL TO OPERATE PROPERLYWHEN CONNECTED TO THIS UNIT. • RISK OF ELECTRIC SHOCK,
HEATSINKSARE NOT BONDED TO GROUND, TESTBEFORE TOUCHING. •INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
•CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DES ARCS ÉLECTRIQUES OU DES
ÉTINCELLES.POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANSUN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGEÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSEOU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATIONFOURNI AVEC CE
PRODUIT.LES AUTRES TYPES PEUVENT NE PASFONCTIONNER CORRECTEMENT LORSQU’ILS SONT
CONNECTÉSÀ CE PRODUIT. • RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTERAVANT DE TOUCHER. •PRÉVU POUR UNE UTILISATION CONTINUE.
DANGER:
•TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERYSPACE OR AREA IN WHICH IGNITION
-PROTECTED EQUIPMENT IS REQUIRED.
•POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINEOU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENT PROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
CAUTION:
•TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT.OVERHEATINGMAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLEPARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. •TO REDUCE RISK OF
ELECTRICSHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRALPROTECTION AGAINST OVERLOADS. •CHARGE ONLY LEAD ACIDTYPE
RECHARGEABLEBATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PASCOUVRIR NI OBSTRUER LES OUVERTURES D’AÉRATION. NE
PASMONTER LE PRODUIT DANS UN COMPARTIMENT SANSAUCUN DÉGAGEMENT. RISQUE DE SURCHAUFFE. •
RISQUEDE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENT AUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRERÉPARÉE PAR L’UTILISATEUR.CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. • POUR RÉDUIRE LES
RISQUESDE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LA PLUIE OU À LAPULVÉRISATION. • L’ORIENTATION
DELA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTIONINTÉGRALE CONTRE LA SURCHARGE. • NE CHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANTCHACUNE 6 ou 12 CELLULES.
WARNING:
• THIS EQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCEARCS OR SPARKS. TO PREVENT FIRE OR
EXPLOSION,DO NOT INSTALL IN COMPARTMENTSCONTAINING BATTERIES OR FLAMMABLE MATERIALS. • RISK
OFELECTRIC SHOCK. USE ONLY THE GROUND-FAULTCIRCUIT-INTERRUPTER RECEPTACLE OR CIRCUIT
BREAKERSPECIFIED IN THE INSTALLATIONAND OPERATING INSTRUCTIONS SUPPLIED WITH THIS UNIT. OTHER
TYPESMAY FAIL TO OPERATE PROPERLYWHEN CONNECTED TO THIS UNIT. • RISK OF ELECTRIC SHOCK,
HEATSINKSARE NOT BONDED TO GROUND, TESTBEFORE TOUCHING. •INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
•CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DES ARCS ÉLECTRIQUES OU DES
ÉTINCELLES.POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANSUN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGEÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSEOU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATIONFOURNI AVEC CE
PRODUIT.LES AUTRES TYPES PEUVENT NE PASFONCTIONNER CORRECTEMENT LORSQU’ILS SONT
CONNECTÉSÀ CE PRODUIT. • RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTERAVANT DE TOUCHER. •PRÉVU POUR UNE UTILISATION CONTINUE.
DANGER:
•TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERYSPACE OR AREA IN WHICH IGNITION
-PROTECTED EQUIPMENT IS REQUIRED.
•POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINEOU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENT PROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
TemperatureSensor
®
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
InverterOperation
● ContinuousOutput Power (-20~40°C): 2000VA ●DCInput: 12.6V
●MaximumContinuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●MaximumContinuous Output Current: 16.7AAC ●SurgePower: 3400 Real Watts (5 seconds) ●THD:<5%
ChargerOperation
BypassOperation
ContinuousCharger Current (-20~40°C) : 100[email protected] VDC nominal with 120 VAC/ 60Hz (15 AAC) input●
Input/ Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage: 120VAC●
●
●
Maximum AC Input Current: 50AAC
●
Maximum Power: 12000 VA
●DCOutput Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conformsto UL 458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSA C22.2 No. 107.1-01
5GW2
MQ7275
MARINEPOWERINVERTER
5DA7
E198012
POWERINVERTER E483757
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
InverterOperation
● ContinuousOutput Power (-20~40°C): 2000VA ●DCInput: 12.6V
●MaximumContinuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●MaximumContinuous Output Current: 16.7AAC ●SurgePower: 3400 Real Watts (5 seconds) ●THD: <5%
ChargerOperation
BypassOperation
ContinuousCharger Current (-20~40°C): 100 [email protected] VDC nominal with 120VAC / 60Hz (15 AAC) input●
Input/ Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage: 120VAC●
●
●
Maximum AC Input Current: 50AAC
●
Maximum Power: 12000 VA
●DCOutput Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conformsto UL 458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSA C22.2 No. 107.1-01
5GW2
MQ7275
MARINEPOWERINVERTER
5DA7
E198012
POWERINVERTER E483757
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
InverterOperation
● ContinuousOutput Power (-20~40°C): 2000VA ●DCInput: 12.6V
●MaximumContinuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●MaximumContinuous Output Current: 16.7AAC ●SurgePower: 3400 Real Watts (5 seconds) ●THD:<5%
ChargerOperation
BypassOperation
ContinuousCharger Current (-20~40°C) : 100[email protected] VDC nominal with 120 VAC/ 60Hz (15 AAC) input●
Input/ Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage: 120VAC●
●
●
Maximum AC Input Current: 50AAC
●
Maximum Power: 12000 VA
●DCOutput Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conformsto UL 458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSA C22.2 No. 107.1-01
5GW2
MQ7275
MARINEPOWERINVERTER
5DA7
E198012
POWERINVERTER E483757
WALL MOUNT, DC TERMINALS RIGHT
(304mm)
12”
(51mm)
2”
(124mm)
4.9” (124mm) 4.9”
(346mm)
13.6”
(7mm) (13mm)
.28”
(321mm)
12.6”
.51”
(205mm)
8.1”
(349mm)
13.7”
(378mm)
14.9”
REMOTE
BATTERY
TEMP
ON/OFF
STATUS
INV. / CHR.
MODE
AC INPUT
INV. AC
OUTPUT
NEG -
POS +
BATTERY
TEMP
REMOTE
CAUTION:
•TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT.OVERHEATINGMAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLEPARTS INSIDE. REFERSERVICING TO QUALIFIED SERVICE PERSONNEL. • TOREDUCE RISK OF
ELECTRICSHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRAL PROTECTION AGAINST OVERLOADS. •CHARGE ONLY LEAD ACID TYPE
RECHARGEABLEBATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PAS COUVRIR NI OBSTRUER LES OUVERTURES D’AÉRATION.NE
PASMONTER LE PRODUIT DANS UN COMPARTIMENT SANS AUCUN DÉGAGEMENT. RISQUE DE SURCHAUFFE. •
RISQUEDE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENT AUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRERÉPARÉE PAR L’UTILISATEUR.CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. • POUR RÉDUIRE LES
RISQUESDE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LA PLUIE OU À LA PULVÉRISATION. • L’ORIENTATION
DELA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTIONINTÉGRALE CONTRE LA SURCHARGE. • NECHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANTCHACUNE 6 ou 12 CELLULES.
WARNING:
• THISEQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCEARCS OR SPARKS. TO PREVENTFIRE OR
EXPLOSION,DO NOT INSTALL IN COMPARTMENTS CONTAININGBATTERIES OR FLAMMABLE MATERIALS. •RISK
OFELECTRIC SHOCK. USE ONLY THE GROUND-FAULT CIRCUIT-INTERRUPTERRECEPTACLE OR CIRCUIT
BREAKERSPECIFIED IN THE INSTALLATION AND OPERATINGINSTRUCTIONS SUPPLIED WITH THIS UNIT. OTHER
TYPESMAY FAIL TO OPERATE PROPERLYWHEN CONNECTED TO THIS UNIT. •RISK OF ELECTRIC SHOCK,
HEATSINKSARE NOT BONDED TO GROUND, TEST BEFORE TOUCHING. • INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
•CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DES ARCS ÉLECTRIQUES OU DES
ÉTINCELLES.POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANSUN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGEÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSEOU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATION FOURNIAVEC CE
PRODUIT.LES AUTRES TYPES PEUVENT NE PAS FONCTIONNER CORRECTEMENTLORSQU’ILS SONT
CONNECTÉSÀ CE PRODUIT. •RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTERAVANT DE TOUCHER. • PRÉVU POUR UNE UTILISATIONCONTINUE.
DANGER:
•TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERY SPACEOR AREA IN WHICH IGNITION
-PROTECTED EQUIPMENT IS REQUIRED.
•POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINEOU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENT PROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
REMOTE
BATTERY
TEMP
ON/OFF
STATUS
INV. / CHR.
MODE
AC INPUT
INV. AC
OUTPUT
NEG -
POS +
CAUTION:
•TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT.OVERHEATINGMAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLEPARTS INSIDE. REFERSERVICING TO QUALIFIED SERVICE PERSONNEL. • TOREDUCE RISK OF
ELECTRICSHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRAL PROTECTION AGAINST OVERLOADS. •CHARGE ONLY LEAD ACID TYPE
RECHARGEABLEBATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PAS COUVRIR NI OBSTRUER LES OUVERTURES D’AÉRATION.NE
PASMONTER LE PRODUIT DANS UN COMPARTIMENT SANS AUCUN DÉGAGEMENT. RISQUE DE SURCHAUFFE. •
RISQUEDE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENT AUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRERÉPARÉE PAR L’UTILISATEUR.CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. • POUR RÉDUIRE LES
RISQUESDE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LA PLUIE OU À LA PULVÉRISATION. • L’ORIENTATION
DELA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTIONINTÉGRALE CONTRE LA SURCHARGE. • NECHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANTCHACUNE 6 ou 12 CELLULES.
WARNING:
• THISEQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCEARCS OR SPARKS. TO PREVENTFIRE OR
EXPLOSION,DO NOT INSTALL IN COMPARTMENTS CONTAININGBATTERIES OR FLAMMABLE MATERIALS. •RISK
OFELECTRIC SHOCK. USE ONLY THE GROUND-FAULT CIRCUIT-INTERRUPTERRECEPTACLE OR CIRCUIT
BREAKERSPECIFIED IN THE INSTALLATION AND OPERATINGINSTRUCTIONS SUPPLIED WITH THIS UNIT. OTHER
TYPESMAY FAIL TO OPERATE PROPERLYWHEN CONNECTED TO THIS UNIT. •RISK OF ELECTRIC SHOCK,
HEATSINKSARE NOT BONDED TO GROUND, TEST BEFORE TOUCHING. • INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
•CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DES ARCS ÉLECTRIQUES OU DES
ÉTINCELLES.POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANSUN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGEÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSEOU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATION FOURNIAVEC CE
PRODUIT.LES AUTRES TYPES PEUVENT NE PAS FONCTIONNER CORRECTEMENTLORSQU’ILS SONT
CONNECTÉSÀ CE PRODUIT. •RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTERAVANT DE TOUCHER. • PRÉVU POUR UNE UTILISATIONCONTINUE.
DANGER:
•TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERY SPACEOR AREA IN WHICH IGNITION
-PROTECTED EQUIPMENT IS REQUIRED.
•POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINEOU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENT PROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
CAUTION:
•TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT.OVERHEATINGMAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLEPARTS INSIDE. REFERSERVICING TO QUALIFIED SERVICE PERSONNEL. • TOREDUCE RISK OF
ELECTRICSHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRAL PROTECTION AGAINST OVERLOADS. •CHARGE ONLY LEAD ACID TYPE
RECHARGEABLEBATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PAS COUVRIR NI OBSTRUER LES OUVERTURES D’AÉRATION.NE
PASMONTER LE PRODUIT DANS UN COMPARTIMENT SANS AUCUN DÉGAGEMENT. RISQUE DE SURCHAUFFE. •
RISQUEDE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENT AUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRERÉPARÉE PAR L’UTILISATEUR.CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. • POUR RÉDUIRE LES
RISQUESDE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LA PLUIE OU À LA PULVÉRISATION. • L’ORIENTATION
DELA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTIONINTÉGRALE CONTRE LA SURCHARGE. • NECHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANTCHACUNE 6 ou 12 CELLULES.
WARNING:
• THISEQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCEARCS OR SPARKS. TO PREVENTFIRE OR
EXPLOSION,DO NOT INSTALL IN COMPARTMENTS CONTAININGBATTERIES OR FLAMMABLE MATERIALS. •RISK
OFELECTRIC SHOCK. USE ONLY THE GROUND-FAULT CIRCUIT-INTERRUPTERRECEPTACLE OR CIRCUIT
BREAKERSPECIFIED IN THE INSTALLATION AND OPERATINGINSTRUCTIONS SUPPLIED WITH THIS UNIT. OTHER
TYPESMAY FAIL TO OPERATE PROPERLYWHEN CONNECTED TO THIS UNIT. •RISK OF ELECTRIC SHOCK,
HEATSINKSARE NOT BONDED TO GROUND, TEST BEFORE TOUCHING. • INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
•CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DES ARCS ÉLECTRIQUES OU DES
ÉTINCELLES.POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANSUN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGEÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSEOU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATION FOURNIAVEC CE
PRODUIT.LES AUTRES TYPES PEUVENT NE PAS FONCTIONNER CORRECTEMENTLORSQU’ILS SONT
CONNECTÉSÀ CE PRODUIT. •RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTERAVANT DE TOUCHER. • PRÉVU POUR UNE UTILISATIONCONTINUE.
DANGER:
•TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERY SPACEOR AREA IN WHICH IGNITION
-PROTECTED EQUIPMENT IS REQUIRED.
•POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINEOU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENT PROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
Temperature Sensor
®
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
Inverter Operation
● Continuous Output Power (-20~40°C): 2000VA ●DC Input: 12.6V
●Maximum Continuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●Maximum Continuous Output Current: 16.7AAC ●SurgePower: 3400 Real Watts (5 seconds) ●THD: <5%
Charger Operation
Bypass Operation
Continuous Charger Current (-20~40°C) : 100 [email protected] VDC nominal with 120VAC / 60Hz (15 AAC) input●
Input / Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage:120VAC●
●
●
MaximumAC Input Current: 50 AAC
●
Maximum Power: 12000 VA
●DC Output Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conforms to UL458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSAC22.2 No. 107.1-01
5GW2
MQ7275
MARINEPOWER INVERTER
5DA7
E198012
POWERINVERTER E483757
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
Inverter Operation
● Continuous Output Power (-20~40°C): 2000VA ●DC Input: 12.6V
●Maximum Continuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●Maximum Continuous Output Current: 16.7AAC ●SurgePower: 3400 Real Watts (5 seconds) ●THD: <5%
Charger Operation
Bypass Operation
Continuous Charger Current (-20~40°C) : 100 [email protected] VDC nominal with 120VAC / 60Hz (15 AAC) input●
Input / Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage:120VAC●
●
●
MaximumAC Input Current: 50 AAC
●
Maximum Power: 12000 VA
●DCOutput Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conforms to UL458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSAC22.2 No. 107.1-01
5GW2
MQ7275
MARINEPOWER INVERTER
5DA7
E198012
POWERINVERTER E483757
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
Inverter Operation
● Continuous Output Power (-20~40°C): 2000VA ●DC Input: 12.6V
●Maximum Continuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●Maximum Continuous Output Current: 16.7AAC ●SurgePower: 3400 Real Watts (5 seconds) ●THD: <5%
Charger Operation
Bypass Operation
Continuous Charger Current (-20~40°C) : 100 [email protected] VDC nominal with 120VAC / 60Hz (15 AAC) input●
Input / Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage:120VAC●
●
●
MaximumAC Input Current: 50 AAC
●
Maximum Power: 12000 VA
●DC Output Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conforms to UL458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSAC22.2 No. 107.1-01
5GW2
MQ7275
MARINEPOWER INVERTER
5DA7
E198012
POWERINVERTER E483757
HORIZONTAL MOUNT, BASE UPHORIZONTAL MOUNT, BASE DOWN
(304mm)
12”
(51mm)
2”
(124mm)
4.9” (124mm) 4.9”
(346mm)
13.6”
(7mm) (13mm)
.28”
(321mm)
12.6”
.51”
(205mm)
8.1”
(349mm)
13.7”
(378mm)
14.9”
REMOTE
BATTERY
TEMP
ON/OFF
STATUS
INV. / CHR.
MODE
AC INPUT
INV. AC
OUTPUT
NEG -
POS +
BATTERY
TEMP
REMOTE
CAUTION:
•TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT.OVERHEATINGMAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLEPARTS INSIDE. REFERSERVICING TO QUALIFIED SERVICE PERSONNEL. •TO REDUCE RISK OF
ELECTRICSHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRAL PROTECTION AGAINST OVERLOADS. • CHARGE ONLY LEAD ACID TYPE
RECHARGEABLEBATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PAS COUVRIR NI OBSTRUER LES OUVERTURES D’AÉRATION.NE
PASMONTER LE PRODUIT DANS UN COMPARTIMENT SANS AUCUN DÉGAGEMENT. RISQUE DE SURCHAUFFE. •
RISQUEDE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENT AUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRERÉPARÉE PAR L’UTILISATEUR.CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. •POUR RÉDUIRE LES
RISQUESDE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LA PLUIE OU À LA PULVÉRISATION. • L’ORIENTATION
DELA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTIONINTÉGRALE CONTRE LA SURCHARGE. • NECHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANTCHACUNE 6 ou 12 CELLULES.
WARNING:
• THISEQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCEARCS OR SPARKS. TO PREVENTFIRE OR
EXPLOSION,DO NOT INSTALL IN COMPARTMENTS CONTAININGBATTERIES OR FLAMMABLE MATERIALS. •RISK
OFELECTRIC SHOCK. USE ONLY THE GROUND-FAULT CIRCUIT-INTERRUPTERRECEPTACLE OR CIRCUIT
BREAKERSPECIFIED IN THE INSTALLATION AND OPERATINGINSTRUCTIONS SUPPLIED WITH THIS UNIT. OTHER
TYPESMAY FAIL TO OPERATE PROPERLYWHEN CONNECTED TO THIS UNIT. •RISK OF ELECTRIC SHOCK,
HEATSINKSARE NOT BONDED TO GROUND, TEST BEFORE TOUCHING. • INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
•CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DES ARCS ÉLECTRIQUES OU DES
ÉTINCELLES.POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANSUN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGEÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSEOU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATION FOURNIAVEC CE
PRODUIT.LES AUTRES TYPES PEUVENT NE PAS FONCTIONNER CORRECTEMENTLORSQU’ILS SONT
CONNECTÉSÀ CE PRODUIT. •RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTERAVANT DE TOUCHER. • PRÉVU POUR UNE UTILISATIONCONTINUE.
DANGER:
•TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERY SPACEOR AREA IN WHICH IGNITION
-PROTECTED EQUIPMENT IS REQUIRED.
•POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINEOU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENT PROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
REMOTE
BATTERY
TEMP
ON/OFF
STATUS
INV. / CHR.
MODE
AC INPUT
INV. AC
OUTPUT
NEG -
POS +
CAUTION:
•TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT.OVERHEATINGMAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLEPARTS INSIDE. REFERSERVICING TO QUALIFIED SERVICE PERSONNEL. •TO REDUCE RISK OF
ELECTRICSHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRAL PROTECTION AGAINST OVERLOADS. • CHARGE ONLY LEAD ACID TYPE
RECHARGEABLEBATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PAS COUVRIR NI OBSTRUER LES OUVERTURES D’AÉRATION.NE
PASMONTER LE PRODUIT DANS UN COMPARTIMENT SANS AUCUN DÉGAGEMENT. RISQUE DE SURCHAUFFE. •
RISQUEDE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENT AUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRERÉPARÉE PAR L’UTILISATEUR.CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. •POUR RÉDUIRE LES
RISQUESDE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LA PLUIE OU À LA PULVÉRISATION. • L’ORIENTATION
DELA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTIONINTÉGRALE CONTRE LA SURCHARGE. • NECHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANTCHACUNE 6 ou 12 CELLULES.
WARNING:
• THISEQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCEARCS OR SPARKS. TO PREVENTFIRE OR
EXPLOSION,DO NOT INSTALL IN COMPARTMENTS CONTAININGBATTERIES OR FLAMMABLE MATERIALS. •RISK
OFELECTRIC SHOCK. USE ONLY THE GROUND-FAULT CIRCUIT-INTERRUPTERRECEPTACLE OR CIRCUIT
BREAKERSPECIFIED IN THE INSTALLATION AND OPERATINGINSTRUCTIONS SUPPLIED WITH THIS UNIT. OTHER
TYPESMAY FAIL TO OPERATE PROPERLYWHEN CONNECTED TO THIS UNIT. •RISK OF ELECTRIC SHOCK,
HEATSINKSARE NOT BONDED TO GROUND, TEST BEFORE TOUCHING. • INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
•CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DES ARCS ÉLECTRIQUES OU DES
ÉTINCELLES.POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANSUN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGEÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSEOU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATION FOURNIAVEC CE
PRODUIT.LES AUTRES TYPES PEUVENT NE PAS FONCTIONNER CORRECTEMENTLORSQU’ILS SONT
CONNECTÉSÀ CE PRODUIT. •RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTERAVANT DE TOUCHER. • PRÉVU POUR UNE UTILISATIONCONTINUE.
DANGER:
•TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERY SPACEOR AREA IN WHICH IGNITION
-PROTECTED EQUIPMENT IS REQUIRED.
•POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINEOU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENT PROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
CAUTION:
•TO PREVENT FIRE, DO NOT COVER OR OBSTRUCT VENTILATION OPENINGS. DO NOT MOUNT IN ZERO-CLEARANCE
COMPARTMENT.OVERHEATINGMAY RESULT. • RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER
SERVICEABLEPARTS INSIDE. REFERSERVICING TO QUALIFIED SERVICE PERSONNEL. •TO REDUCE RISK OF
ELECTRICSHOCK, DO NOT EXPOSE TO RAIN OR SPRAY. • BATTERY POLARITY MUST BE CORRECT OR DAMAGE WILL
RESULT. • PROVIDED WITH INTEGRAL PROTECTION AGAINST OVERLOADS. • CHARGE ONLY LEAD ACID TYPE
RECHARGEABLEBATTERIES, EACH 6 or 12 CELLS IN THE BATTERY.
MISE EN GARDE:
• POUR PRÉVENIR LES RISQUES D’INCENDIE, NE PAS COUVRIR NI OBSTRUER LES OUVERTURES D’AÉRATION.NE
PASMONTER LE PRODUIT DANS UN COMPARTIMENT SANS AUCUN DÉGAGEMENT. RISQUE DE SURCHAUFFE. •
RISQUEDE DÉCHARGE ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE, NE CONTIENT AUCUNE PIÈCE SUSCEPTIBLE
D’ÊTRERÉPARÉE PAR L’UTILISATEUR.CONFIEZ L’ENTRETIEN À DU PERSONNEL QUALIFIÉ. •POUR RÉDUIRE LES
RISQUESDE DÉCHARGE ÉLECTRIQUE, NE PAS L’EXPOSER À LA PLUIE OU À LA PULVÉRISATION. • L’ORIENTATION
DELA POLARITÉ DES PILES DOIT ÊTRE CORRECTE, AU RISQUE D’ENDOMMAG ER LE PRODUIT. • FOURNI AVEC UNE
PROTECTIONINTÉGRALE CONTRE LA SURCHARGE. • NECHARGER QUE DES PILES AU PLOMB RECHARGEABLES
CONTENANTCHACUNE 6 ou 12 CELLULES.
WARNING:
• THISEQUIPMENT EMPLOYS COMPONENTS THAT TEND TO PRODUCEARCS OR SPARKS. TO PREVENTFIRE OR
EXPLOSION,DO NOT INSTALL IN COMPARTMENTS CONTAININGBATTERIES OR FLAMMABLE MATERIALS. •RISK
OFELECTRIC SHOCK. USE ONLY THE GROUND-FAULT CIRCUIT-INTERRUPTERRECEPTACLE OR CIRCUIT
BREAKERSPECIFIED IN THE INSTALLATION AND OPERATINGINSTRUCTIONS SUPPLIED WITH THIS UNIT. OTHER
TYPESMAY FAIL TO OPERATE PROPERLYWHEN CONNECTED TO THIS UNIT. •RISK OF ELECTRIC SHOCK,
HEATSINKSARE NOT BONDED TO GROUND, TEST BEFORE TOUCHING. • INTENDED FOR CONTINUOUS DUTY.
AVERTISSEMENT:
•CET ÉQUIPEMENT EMPLOIE DES COMPOSANTS POUVANT PROVOQUER DES ARCS ÉLECTRIQUES OU DES
ÉTINCELLES.POUR PRÉVENIR LES RISQUES D’INCENDIE OU D’EXPLOSION, NE PAS INSTALLER LE PRODUIT
DANSUN COMPARTIMENT CONTENANT DES PILES OU DES MATÉRIAUX INFLAMMABLES. • RISQUE DE
DÉCHARGEÉLECTRIQUE. UTILISER UNIQUEMENT LE RÉCEPTACLE D’INTERRUPTEUR DE CIRCUIT DE MISE À LA
MASSEOU LE COUPE-CIRCUIT INDIQUÉS DANS LE MANUEL D’INSTALLATION ET D’UTILISATION FOURNIAVEC CE
PRODUIT.LES AUTRES TYPES PEUVENT NE PAS FONCTIONNER CORRECTEMENTLORSQU’ILS SONT
CONNECTÉSÀ CE PRODUIT. •RISQUE DE DÉCHARGE ÉLECTRIQUE, PUITS THERMIQUES NON MIS À LA TERRE,
TESTERAVANT DE TOUCHER. • PRÉVU POUR UNE UTILISATIONCONTINUE.
DANGER:
•TO REDUCE THE RISK OF EXPLOSION - DO NOT INSTALL IN MACHINERY SPACEOR AREA IN WHICH IGNITION
-PROTECTED EQUIPMENT IS REQUIRED.
•POUR RÉDUIRE LE RISQUE D’EXPLOSION, NE PAS INSTALLER LE PRODUIT DANS UN COMPARTIMENT
MACHINEOU UNE ZONE CONTENANT UN ALLUMAGE — L’ÉQUIPEMENT PROTÉGÉ EST EXIGÉ
CB2
INPUT
50A
CB1
INPUT
50A
Temperature Sensor
®
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
Inverter Operation
● Continuous Output Power (-20~40°C): 2000VA ●DC Input: 12.6V
●Maximum Continuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●Maximum Continuous Output Current: 16.7AAC ●SurgePower: 3400 Real Watts (5 seconds) ●THD: <5%
Charger Operation
Bypass Operation
Continuous Charger Current (-20~40°C) : 100 [email protected] VDC nominal with 120VAC / 60Hz (15 AAC) input●
Input / Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage:120VAC●
●
●
MaximumAC Input Current: 50 AAC
●
Maximum Power: 12000 VA
●DC Output Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conforms to UL458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSAC22.2 No. 107.1-01
5GW2
MQ7275
MARINEPOWER INVERTER
5DA7
E198012
POWERINVERTER E483757
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
Inverter Operation
● Continuous Output Power (-20~40°C): 2000VA ●DC Input: 12.6V
●Maximum Continuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●Maximum Continuous Output Current: 16.7AAC ●SurgePower: 3400 Real Watts (5 seconds) ●THD: <5%
Charger Operation
Bypass Operation
Continuous Charger Current (-20~40°C) : 100 [email protected] VDC nominal with 120VAC / 60Hz (15 AAC) input●
Input / Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage:120VAC●
●
●
MaximumAC Input Current: 50 AAC
●
Maximum Power: 12000 VA
●DC Output Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conforms to UL458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSAC22.2 No. 107.1-01
5GW2
MQ7275
MARINEPOWER INVERTER
5DA7
E198012
POWERINVERTER E483757
®MODEL: GP-IC2000-12 Inverter / Charger
gpelectric.com
Inverter Operation
● Continuous Output Power (-20~40°C): 2000VA ●DC Input: 12.6V
●Maximum Continuous Input Current: 267ADC ●Nominal AC Output Voltage/Frequency:120VAC(±5%)/60Hz(±0.1Hz)
●Maximum Continuous Output Current: 16.7AAC ●SurgePower: 3400 Real Watts (5 seconds) ●THD: <5%
Charger Operation
Bypass Operation
Continuous Charger Current (-20~40°C) : 100 [email protected] VDC nominal with 120VAC / 60Hz (15 AAC) input●
Input / Output Voltage: 120 (L1-N) / 120 (L2-N) VAC●
Input Voltage:120VAC●
●
●
MaximumAC Input Current: 50 AAC
●
Maximum Power: 12000 VA
●DC Output Range: 8.5 to 16.5VDC
Grid Input Frequency: 60Hz●
Generator Input Frequency Range: 50 to 70Hz●
Power Factor: >0.98
Conforms to UL458 (6th Ed.) and UL STD 1741 (2nd. Ed.)
Certified to CSAC22.2 No. 107.1-01
5GW2
MQ7275
MARINEPOWER INVERTER
5DA7
E198012
POWERINVERTER E483757
3.3.1 MOUNTING THE DRIP SHIELD
The IC Series Inverter/Charger is Marine UL listed. In order to properly mount the Inverter/Charger in a marine application,
you must use a drip shield. Please follow the installation instructions below.
Step 1
Use the screws to mount the Drip Shield on the wall.
Step 1
Use the screws to mount the product on the wall, and the product mounng required as follow:
a. The mounng height from the ground to product requires at least 70 cm.
b. The bulkhead size requires at least longer 20cm than the product each side.
Wall Mount
Ceiling Mount
Step 2
Use the screws to mount the product under the Drip Shield.
Please make sure the height from the ground to product
at least 70 cm.
Drip shield
28”
Bulkheads
28”
8”
8”
8”
8”
Step 1
Use the screws to mount the Drip Shield on the wall.
Step 1
Use the screws to mount the product on the wall, and the product mounng required as follow:
a. The mounng height from the ground to product requires at least 70 cm.
b. The bulkhead size requires at least longer 20cm than the product each side.
Wall Mount
Ceiling Mount
Step 2
Use the screws to mount the product under the Drip Shield.
Please make sure the height from the ground to product
at least 70 cm.
Drip shield
28”
Bulkheads
28”
8”
8”
8”
8”
Step 1
Use the screws to mount the Drip Shield on the wall.
Step 1
Use the screws to mount the product on the wall, and the product mounng required as follow:
a. The mounng height from the ground to product requires at least 70 cm.
b. The bulkhead size requires at least longer 20cm than the product each side.
Wall Mount
Ceiling Mount
Step 2
Use the screws to mount the product under the Drip Shield.
Please make sure the height from the ground to product
at least 70 cm.
Drip shield
28”
Bulkheads
28”
8”
8”
8”
8”
1. Use the
screws to
mount the
drip shield
on the wall.
1. Use the
screws to
mount the drip
shield and
the Inverter/
Charger
together to the
ceiling.
2. Use the screws to
mount the GP-
IC-2000 under the
drip shield. Please
make sure the
height from the
ground to the GP-
IC-2000 is at least
28” (71cm).
2. Ensure the
Inverter/Charger is
centered and that
there is at least
8” (20cm)of space
between it and the
WALL MOUNT
CEILING MOUNT
Step 1
Use the screws to mount the Drip Shield on the wall.
Step 1
Use the screws to mount the product on the wall, and the product mounng required as follow:
a. The mounng height from the ground to product requires at least 70 cm.
b. The bulkhead size requires at least longer 20cm than the product each side.
Wall Mount
Ceiling Mount
Step 2
Use the screws to mount the product under the Drip Shield.
Please make sure the height from the ground to product
at least 70 cm.
Drip shield
28”
Bulkheads
28”
8”
8”
8”
8”

[page 18] | gpelectric.com
3.4 GENERAL WIRING SPECIFICATIONS
The following sections detail how the IC Series Inverter/Charger should be wired. Before starting any wiring, read and understand
these instructions. Wiring should meet all local codes and standards and be performed by qualied personnel such
as a licensed electrician. The NEC (National Electrical Code) and CEC (Canadian Electrical Code) provide the standards
for safely wiring, wire sizes, over-current protection, installation methods, and requirements.
IC Series systems can handle power from multiple sources (utility, generator, and batteries) which make the wiring hazardous
and challenging.
The input and output AC and DC circuits are isolated from the Inverter/Charger chassis. The Inverter/Charger grounding is
the responsibility of the installer in accordance with NEC/CEC or the local electrical codes.
CABLE PROTECTION
All the DC and AC cables leading to/from the Inverter/Charger must be protected as required by code. This can be accomplished
using jacketed (armored) cable or by feeding the wire through conduit.
CABLE STRAIN RELIEF & TORQUE REQUIREMENTS
The Inverter/Charger AC input/output terminals can handle multi-core cables up to 1.3” diameter. If using large diameter cable
it is highly recommended to use additional (non-metallic) cable strain relief clamps mounted outside the Inverter/Charger.
These will ease the torque and leverage forces which could be present at the cable entry/exit locations.
Torque all AC and DC wiring connections to 16 in lbf (1.8 N-m), make sure the connections are secure, and re-check all
connections periodically (at least every 6 months; more frequently for heavy RV use) to make sure they remain secure.
CABLE REQUIREMENTS
• Protect all conductors that may be at risk of physical damage by using conduit, tape, or place them in a raceway.
• Do not mix AC and DC Wiring in the same conduit or panel. Where DC wiring must cross AC, try to make sure
the wires cross perpendicular to each other.
• Both AC and DC over-current protection must be provided.
• The Inverter/Charger requires a reliable negative and ground return path to the battery.
• Use only copper wires with a minimum temperature rating of 75 °C.
CABLE LAYOUT PLANNING
Before connecting any cables, determine all cable routes to/from the Inverter/Charger.
• AC Input cables from the external transfer switch (if using shore and generator).
• DC Input cables from the batteries.
• AC Output cables from the Inverter/Charger to the AC breaker panel.
• Battery Temperature Sensor cable from the Inverter/Charger to the batteries.
• Remote Control cable to the Inverter/Charger.
• Ground wiring to/from the Inverter/Charger.
INSTALLATION

gpelectric.com | [page 19]
3.5 DC WIRING
The cables linking the Inverter/Charger to the battery bank are the DC cables. These cables handle the Direct Current power
used to charge the batteries (Charging Mode) and power the main appliances (Inverter Mode). It is important to select the correct
wire size and to provide adequate over-current protection between the Inverter/Charger and battery bank.
INSTALLATION
The following points must be observed for the DC Wiring.
• The DC positive and negative cables connected to the Inverter/Charger from the battery bank should be linked
together with zip ties or electrical tape every 6” (15cm). This helps to reduce radio frequency interference and
reducesthee󰀨ectsofinductance,bothofwhichimprovetheInverter/Chargerwaveformandreducethewearof
theltercapacitors.
• To ensure optimum Inverter/Charger performance, the number of connections between the battery bank and
the Inverter/Charger unit should be minimized except from the over-current and battery disconnect devices. All
additional connection points will cause extra voltage drops.
• The Battery bank voltage must match the DC voltage required by the IC Series, which is 12V. Do not connect a
24V battery bank to the Inverter/Charger.
• All DC cable wire terminations should use crimped and sealed copper ring terminal lugs. Lugs with an 8mm (5/16”)
hole should be used to connect the DC cables to the Inverter/Charger’s DC terminals.
• Make sure all cables have a smooth bend radius and no kinks are present.
• Colour code all DC Cables coming to/from the battery bank. Use colored electrical tape or heat shrink tubing.
Red for positive (+), Black for negative (-), and Green for DC ground.
Main Panel
Sub Panel
120 VAC
120 VAC
240 VAC
ON
OFF

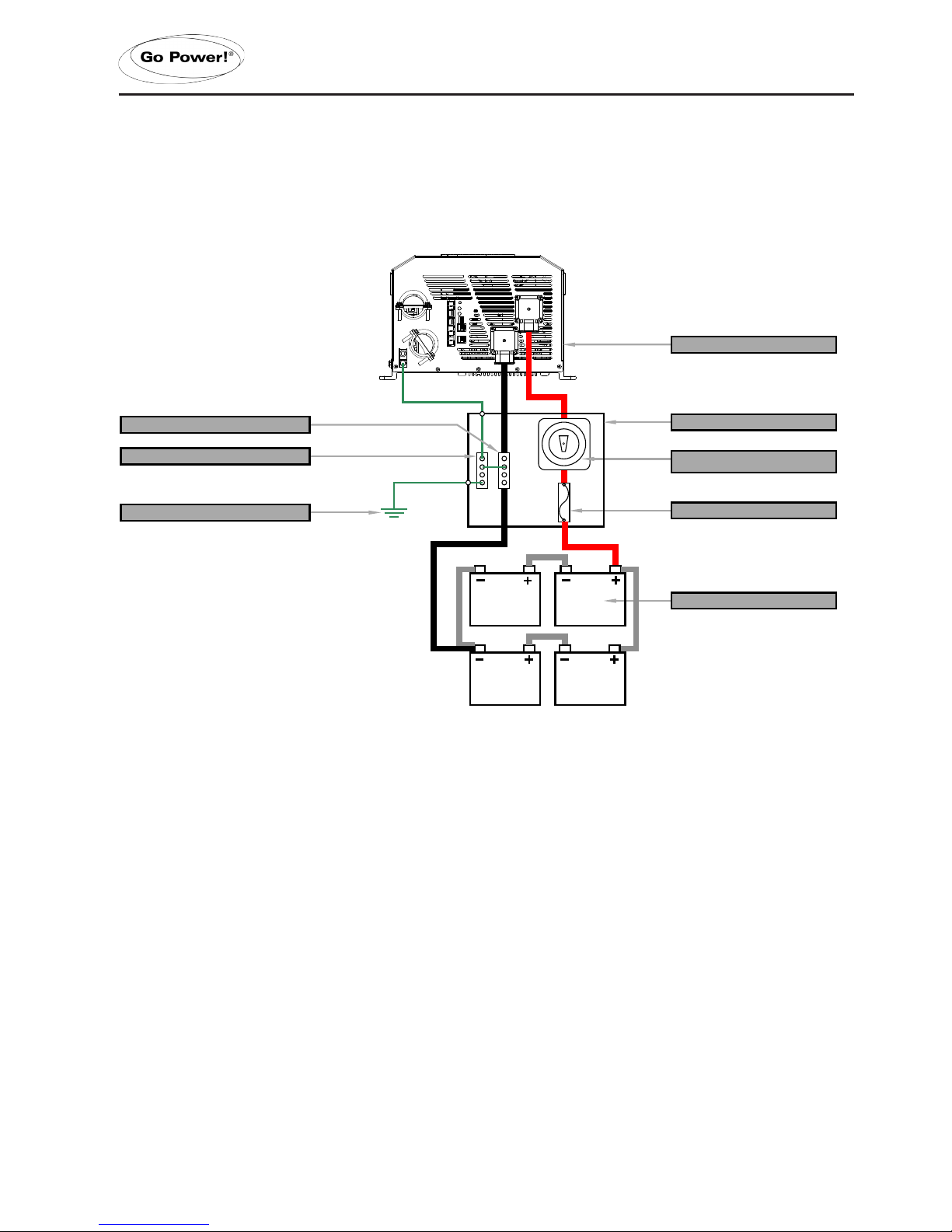

Battery Bank
Fuse or Circuit Breaker
IC Series Inverter/Charger
DC Panel
Earth Ground (RV, Boat Ground)
Equipment Grounding Bus Bar
Negative Bus Bar
Battery Charging Voltage
BULK
ABSORPTION
FINAL (FLOAT)
Battery Charging Current
Time
Battery Disconnect Switch
(not required if circuit breaker is used)
ON
OFF
D
C
A
B
6v
6v 6v
6v

[page 20] | gpelectric.com
3.5.1 DC WIRE SIZING
ThedistancebetweenthebatterybankandtheInverter/Chargershouldbeasshortaspossibletoachievemaximume󰀩ciency
andtoreducerehazards.Thecablesshouldbeasshortaspossibleandtheoveralllengthofbothcablesaddedtogether
should be less than 10 ft (3m) to comply with code requirements. Keeping your wire runs as short as possible helps to prevent
low voltage shutdowns and nuisance tripping of the DC breaker because of increased current draw. The table below shows the
recommended DC cable size, fuses/circuit breakers, and DC grounding cable sizes for the IC Series (Note: these values are
correct for cables in free air, not conduit)
DC Cable Size Inline Fuse/Circuit
Breaker
Overall Length of
Positive and Negative
Cable combined
Recommended
Go Power! DC Kit
DC Grounding Cable
Size
No. 2/0 AWG 300A Class T 5 ft (1.5m) #4 No. 6 AWG
No. 4/0 AWG 400A Class T 10 ft (3m) #5 No. 6 AWG
3.5.2 DC OVERCURRENT PROTECTION AND DC DISCONNECT
Batteries are capable of providing very large currents in case of a short circuit. If this occurs with no DC overcurrent protection,
itwillresultinoverheatingandmeltingofthecablesandpossiblyseriousinjuryand/orre.
DC overcurrent protection is not included with the IC Series. It must be installed between the Inverter/Charger and battery bank
for safety reasons and to comply with code regulations.
Use a very fast acting DC fuse or circuit breaker in the positive cable, the fuse should be installed as close to possible to the
battery positive terminal. Ideally the fuse/circuit breaker should be installed within 18” (45cm of the battery). The fuse required
for DC Cable lengths up to 5ft is detailed in the above table.
Inallinstallationsabatterydisconnectswitchisrequired.Ifyouinstallacircuitbreakerforovercurrentprotectionthiswillsu󰀩ce
as a disconnect switch. If you install a fuse for overcurrent protection, then a separate disconnect switch will need to be installed.
3.5.3 PREPARING THE DC CABLES
Go Power! supplies 2 ring lugs with the IC Series, which can be used for the Inverter/Charger end of the DC Cables. Source the
correct ring terminals for the batteries you are using.
• Cut the negative and positive cables to the required length.
• Stripo󰀨enoughinsulationsoyoucaninstalltheringlugsprovided.
• Use the correct crimp connector to install the ring lugs.
• Attach the connectors to both ends of both cables. Make sure no stray wire strands protrude from the connectors.
3.5.4 DC CABLE CONNECTIONS
When installing the battery cable ring lug onto the Inverter/Charger DC terminal and the battery post, do not put anything between
the ring lug and the metal surface. Incorrectly installed hardware causes a high resistance connection which could lead to poor
Inverter/Chargerperformanceandmaymeltthecableandterminalconnections.Refertoguresonpage21toconnectthe
DC Cables and to install the hardware correctly. Use a 13mm wrench or socket to tighten the M8 x 1.25mm Nuts. Tighten the
terminal connections securely. Periodically check the connections to make sure they remain tight and secure.
To help prevent seizing and corrosion around the terminals, the use of an anti-seize lubricant is highly recommended. Apply the
antioxidant grease or spray after all the connections are made and tightened.
INSTALLATION
