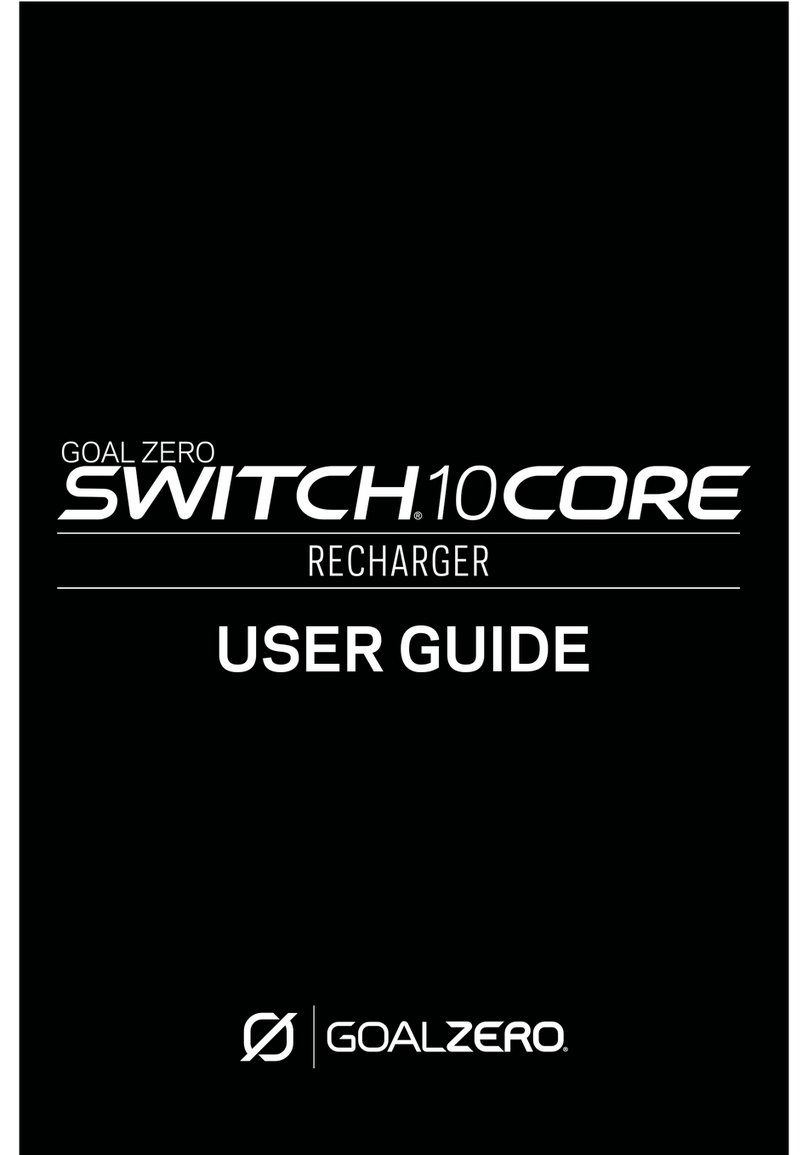

GOAL ZERO switch 10 core User manual

1

1
Table of Contents
Get To Know Your Gear 2
Charge It 4
Solar Ready ℠ 5
Charge Your Gear 6
Troubleshooting 7
Technical Specifications 8
Français 10-17
日本語 18-25
Deutsch 26-33
Español 34-41

2 3
GET TO KNOW YOUR GEAR
Metal Collar
Flip-out
Charging Tip
USB Output
Flip-out Charging Tip
Battery
Indicator Light

2 3
GET TO KNOW YOUR GEAR
Metal Collar
Flip-out
Charging Tip
USB Output
Flip-out Charging Tip
Battery
Indicator Light

4 5
CHARGE IT
1. Using the flip-out charging USB tip, plug Goal Zero
Switch 10 into any live USB port and charge up in 3
hours.
2. Know it’s charging when the blue indicator lights
illuminate and flash.
3. Goal Zero Switch 10 is ready to go when all lights are
illuminated and holding steady.
Goal Zero Switch 10 allows for pass-through power so
you can charge your gear and Goal Zero Switch 10 at
the same time.
Check the battery level of Goal Zero Switch 10 by
pressing the button next to the indicator lights.
3 Hrs 1 Recharge
Goal Zero
Switch 10 Core
USB Port Phone
SOLAR READY℠
Goal Zero Switch 10 is engineered to charge quickly
from Goal Zero’s Nomad® Solar Panels.
1. Using the flip-out charging USB tip, plug Goal Zero
Switch 10 into the USB port on the back of the
Nomad panel.
2. Know it’s charging when the blue lights illuminate
and flash.
3. Goal Zero Switch 10 is ready to go when all lights are
illuminated and holding steady.
3 Hrs
Full Sun
1 Recharge
Goal Zero
Switch 10 Core
Nomad 7 Plus
Solar Panel
Sold Separately
Phone

4 5
CHARGE IT
1. Using the flip-out charging USB tip, plug Goal Zero
Switch 10 into any live USB port and charge up in 3
hours.
2. Know it’s charging when the blue indicator lights
illuminate and flash.
3. Goal Zero Switch 10 is ready to go when all lights are
illuminated and holding steady.
Goal Zero Switch 10 allows for pass-through power so
you can charge your gear and Goal Zero Switch 10 at
the same time.
Check the battery level of Goal Zero Switch 10 by
pressing the button next to the indicator lights.
3 Hrs 1 Recharge
Goal Zero
Switch 10 Core
USB Port Phone
SOLAR READY℠
Goal Zero Switch 10 is engineered to charge quickly
from Goal Zero’s Nomad® Solar Panels.
1. Using the flip-out charging USB tip, plug Goal Zero
Switch 10 into the USB port on the back of the
Nomad panel.
2. Know it’s charging when the blue lights illuminate
and flash.
3. Goal Zero Switch 10 is ready to go when all lights are
illuminated and holding steady.
3 Hrs
Full Sun
1 Recharge
Goal Zero
Switch 10 Core
Nomad 7 Plus
Solar Panel
Sold Separately
Phone

6 7
Goal Zero Switch 10 is designed to charge POVcameras,
phones, and other handheld USB-powered gear.
1. Using your gear’s charging cable, plug into Goal
Zero Switch 10’s USB output.
2. Goal Zero Switch 10 will automatically begin
charging when you plug in your gear.
You can also use the micro-USB cable included with
Switch 10 to charge compatible devices.
CHARGE YOUR GEAR TROUBLESHOOTING
Goal Zero Switch 10 Reset:
Plug Goal Zero Switch 10 into any live USB port to reset it.
Phone
1x
Tablet
25% Boost
What It Powers:
POV Camera
2x
7”

6 7
Goal Zero Switch 10 is designed to charge POVcameras,
phones, and other handheld USB-powered gear.
1. Using your gear’s charging cable, plug into Goal
Zero Switch 10’s USB output.
2. Goal Zero Switch 10 will automatically begin
charging when you plug in your gear.
You can also use the micro-USB cable included with
Switch 10 to charge compatible devices.
CHARGE YOUR GEAR TROUBLESHOOTING
Goal Zero Switch 10 Reset:
Plug Goal Zero Switch 10 into any live USB port to reset it.
Phone
1x
Tablet
25% Boost
What It Powers:
POV Camera
2x
7”

8 9
Ports:
USB port (output) 5V, up to 1.5A (7.5W max),
regulated
USB port (input) 5V, up to 1A (5W max)
General:
Chainable No
Weight 4 oz (113g)
Dimensions 4.5 x 1 x 1 in (11.4 x 2.5 x
2.5 cm)
Operating usage temp. 32-104 F (0-40 C)
Certs
Warranty 12 months
Goal Zero Switch 10 Core Recharger
TECHNICAL SPECIFICATIONS
Be sure to ACTIVATE YOUR WARRANTY
at goalzero.com/warranty
Charge times:
GOAL ZERO Nomad
7 Plus 3-5 hrs
USB Source 3 hrs
Battery:
Cell chemistry Li-ion NMC
Cell type 18650
Cell capacity 9.4Wh (3.6V, 2600mAh)
Lifecycles hundreds of cycles
Shelf-life Keep plugged in, or charge
every 3-6 months
Fuses none
Management system Charging and low-battery
protection built-in

8 9
Ports:
USB port (output) 5V, up to 1.5A (7.5W max),
regulated
USB port (input) 5V, up to 1A (5W max)
General:
Chainable No
Weight 4 oz (113g)
Dimensions 4.5 x 1 x 1 in (11.4 x 2.5 x
2.5 cm)
Operating usage temp. 32-104 F (0-40 C)
Certs
Warranty 12 months
Goal Zero Switch 10 Core Recharger
TECHNICAL SPECIFICATIONS
Be sure to ACTIVATE YOUR WARRANTY
at goalzero.com/warranty
Charge times:
GOAL ZERO Nomad
7 Plus 3-5 hrs
USB Source 3 hrs
Battery:
Cell chemistry Li-ion NMC
Cell type 18650
Cell capacity 9.4Wh (3.6V, 2600mAh)
Lifecycles hundreds of cycles
Shelf-life Keep plugged in, or charge
every 3-6 months
Fuses none
Management system Charging and low-battery
protection built-in
