GoldenDesigns LS2 User manual

LS2 / LS3
2 and 3 Person Sauna
Owner’s Manual
CARBON MODEL SAUNAS
SAUNAS ARE FOR INDOOR USE ONLY
120VAC 15AMP Dedicated Circuit Required (2 Person Models)
120VAC 20AMP Dedicated Circuit Required (3 Person Models)
Carefully and thoroughly read this Owner’s Manual before using/operating
the sauna. We recommend keeping this Owner’s Manual for regular review
and future reference.

2
What Are Infrared Rays?
Infrared is the band of light we perceive as heat. We cannot see this band of light with
the naked eye, but we can feel this type of light in the form of heat. Our sun produces
most of its energy output in the infrared segment of the spectrum. Infrared rays heat your
body without having to heat the air in-between. This process is called conversion.
The infrared is divided into 3 segments by wavelengths measured in microns: Near
Infrared –0.76-1.5 microns; Middle Infrared –1.5-5.6 microns; and Far Infrared –5.6-
1000 microns. Among these segments, Far Infrared penetrates organic substances such
as the human body two to three inches so that the warming effect is very uniform.
Health Benefits
Because infrared rays penetrate the body through conversion, there is a deep heating
effect in both the muscle tissues and internal organs without putting too much burden on
the heart.
Our body reacts to the increased heating through the natural cooling process of
perspiring. Through the perspiration process, acid and waste residue like toxins,
sodium, alcohol, nicotine, cholesterol, and the potentially carcinogenic heavy metals are
removed from the cells (especially zinc, lead, nickel, cadmium, etc.). The pores of our
skin open and discharge waste products shedding any old skin cells leaving the skin
glowing and clean, with improved tone, elasticity, texture, and color.

3
Health Benefits Include, But Are Not Limited To:
*Pain relief from Rheumatoid Arthritis
*Relaxes muscle spasms
*Increases blood circulation
*Cardiovascular conditioning
*Clears rashes, acne
*Reduces cellulite
*Removes toxins and mineral waste
*Reduces stress and fatigue
*Enhances skin tone
DISCLAIMER
The infrared rays emitted by your sauna are reported to offer a wide range of possible
therapeutic benefits based on research completed over the last 40 years from all around
the world. These benefits are presented for reference purposes only and no implication
of infrared saunas creating a cure for or treating any disease is implied nor should it be
inferred. If you have a medical/health condition, are taking prescription drugs, or have
acute joint injuries, please consult with your medical physician before using the sauna.
Persons with surgical implants (metal pins/rods, artificial joints, silicone, or other types of
surgical implants) typically do not experience any adverse effects, but should also
consult their medical physician or surgeon before using the sauna room.
What are electric and magnetic fields?
Electric and magnetic fields are a basic force of nature (like gravity), generated by
electricity. They are found almost everywhere. Electric and magnetic fields are found in
nature, where they are created by such things as lightning and static electricity.
Manmade
fields are found wherever people use electricity, such as near powerlines and electrical
appliances. Like sound, electric and magnetic fields are made of a mixture of
components
and so can be described in many different ways. Both have wave-like properties
such as strength and “frequency” (how often they cycle back and forth). Sound can be
loud (strong) or soft (weak), high or low pitched (different frequencies), suddenly loud or
constant in tone, and pure or jarring. Similarly, electric and magnetic fields are a mixture
of components. They can be strong or weak, have a high or low frequency, have sudden
increases in strength (“transients”) or a constant strength, and consist of one pure
frequency or several (called “harmonics”). For example, the strength of a field can be
weak and constant, as in most nighttime home environments, or it can be strong and
vary from high to low every few seconds, as from an electric blanket set on high.

4
Powerlines and wiring in buildings and appliances generate 50 and 60 Hertz fields,
sometimes referred to as “power frequency” fields. Hertz is the unit for measuring the
frequency of fields in the number of wave cycles each second. The lower the frequency
of a field, the lower its energy. Power frequency fields are low frequency fields and have
low energy levels. Microwave and x-ray fields are high frequency fields and have high
energy levels. Below are some EMF measurements.
EMF Levels from Common Homes Sources
After many years and numerous studies on EMF exposure, no government body
including the Occupational Safety and Health Administration (OSHA) have established
permissible exposure limits (PEL). Currently, there is no consensus on the potential
health hazard from any exposure to EMF. The mainstream scientific evidence suggests
that low-power, low-frequency, electromagnetic radiation associated with household
currents like that of the infrared sauna does not constitute a short or long term health
hazard.
Sauna Maintenance
Since infrared saunas do not require hot rocks, water, or steam to operate, they require
very little maintenance. You can simply wipe it down with water –use a damp, soft, and
clean cloth. Do not use any chemical based cleaning agents as they can be
absorbed into the wood and be released into your sauna during use.

5

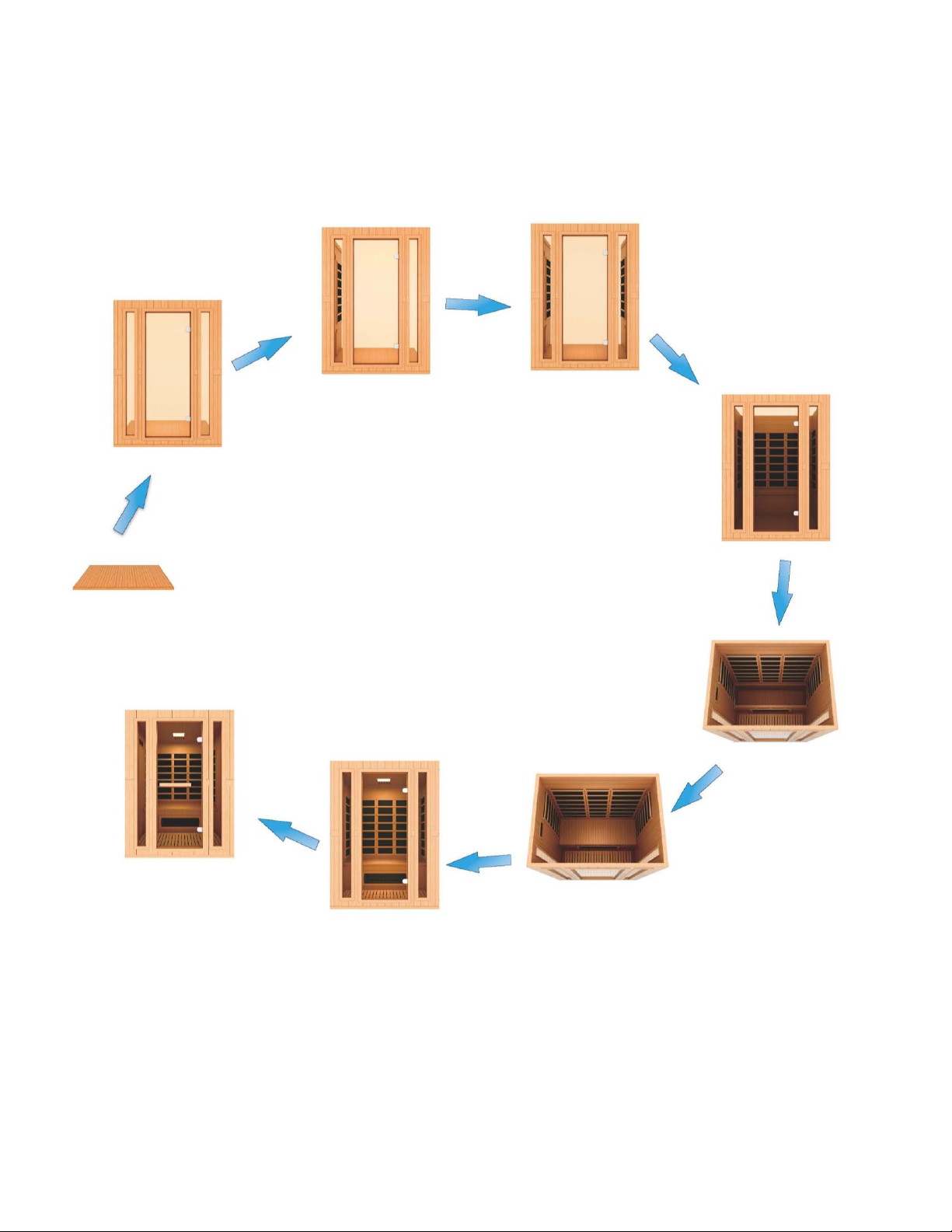

*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY*
LS2
*The above assembly diagrams are for quick reference visual guides
only. All sauna models are not shown. Parts and accessories may vary.
Parts subject to change.

6
*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY*
LS3
*The above assembly diagrams are for quick reference visual guides only.
All sauna models are not shown. Parts and accessories may vary. Parts
subject to change.

7
TABLE OF CONTENTS
Product Introduction 7
Parts Description 8
Assembly Instructions 12
Operating the Sauna 16
Tips for Using Your Sauna 19
Safety Instructions 19
Safeguards for Your Sauna 20
Troubleshooting Guide 21
Warranty 23
Warranty Card 25
WARNING: Visually inspect all heaters before assembly to make sure they are
not damaged. Any excessive vibrations during transport could cause damage
to the heating elements. DO NOT START the sauna if damage is detected!
Contact your dealer or manufacturer for troubleshooting and replacement
parts.
1. Product Introduction
The infrared sauna room is composed of a wood cabin, infrared heat emitters, and a
control system. The wood cabin includes a FRONT PANEL, REAR PANEL, LEFT
SIDE PANEL, RIGHT SIDE PANEL, BENCH, BENCH EMITTER PANEL, FLOOR
PANEL, ROOF PANEL, and ROOF COVER. The infrared sauna
comes with control panels, a drink shelf (optional), a reading lamp/color light, and
infrared heat emitters.
NOTE: Your model sauna has been completely assembled and tested prior to
packaging. The rear wall panel is intentional warped as part of the overall design.
Two adults will be needed to assemble the sauna room. Please note that
backrests are sold separeately.
CAUTION: Exit Sauna Immediately If You Feel Dizzy, Sleepy,
Or Any Discomfort.

8
PARTS DESCRIPTION
LS2
LS3
(optional)
*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*

9
I. Power Supply
The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and
has input/outputs connected to it. (see figure 3)
Figure 3
II. MP3 Auxiliary Socket (optional on models with Bluetooth)
The MP3 Auxiliary Socket allows you to connect a MP3 player or radio (with auxiliary out function) to the
speakers for your listening pleasure. (see figure 4)
Figure 4
III. Component Labeling
The wiring harness and heater cords are labeled. Use the labeling to identify the different connections

10
IV. Buckles
A. External Buckles
The external buckles are used to connect the wall panels together. (see figure 5)
Figure 5
V. Panel Descriptions
For easier installation, please understand and distinguish the differences between each panel.
A. Floor Panel
When the floor panel faces upward, you will find (2) raised short moldings on the sides and
(2) raised long moldings on the front and rear for LSIF-02. You will find (2) long moldings on
the front and rear for LSIF-03 (front and rear are the same). (see figure 7)
LS2 LS3
Front Of Sauna Room
Figure 7
B. Understanding The Difference Between The Top And Bottom Of The Wall Panels
The (4) panels are in the upright position when the moldings are at the top. The moldings will
face inward. (see figure 8)

11
Figure 8
C. Wall Panels Buckle Together
Buckles are used to fasten the wall panels together. The buckles are mounted on the exterior
side of the wall panels. The buckle loop fastens to the buckle arm to mount the wall panels
together. (see figure 9)
Figure 9
D. Understanding The Difference Between The Inside And Outside Of The Rear Panel
You will find the heat emitters on the inside of the wall panels.

12
Assembly Instructions
A. Choose a good location to install the sauna
1. The location must be dry, leveled, and away from any source of water
2. MAIN POWER cord must be easily accessible
3. Two adults are required for installation
4. Wood cabin installation order: Floor Panel Front Panel Right Side Panel Left Side
Panel Rear Panel Bench Emitter Panel & Floor Emitter Panel Bench Roof
Panel Roof Cover
5. Tools Required: Philips Screwdriver and Ladder
B. Installing the FLOOR PANEL
1. Place the FLOOR PANEL on the floor. Make sure the front side of the FLOOR PANEL is
facing the correct direction. (see Panel Descriptions)
C. Installing the FRONT PANEL and SIDE PANELS
1. Remove the protection paper (tape, if present) from the buckles. Place the FRONT
PANEL onto the recessed area on the FLOOR PANEL and up against the long molding on
the FLOOR PANEL. Align the buckle loops on the RIGHT SIDE PANEL with the buckle
arms on the FRONT PANEL and fasten together. Make sure all the buckle loops and buckle
arms are fasten together and in the closed position. Do the same for the LEFT SIDE
PANEL and FRONT PANEL. The top of each of all three wall panels should be flush and
even. (see figure 10)
Figure 10

13
D. Installing the REAR PANEL
1. Remove the protection paper (tape, if present) from the buckles. Place the REAR PANEL
onto the recessed area on the FLOOR PANEL and up against the long molding. Attach the
REAR PANEL to the SIDE PANELS and buckle the loops and arms together. (see figure 11)
Figure 11
E. Installing the FLOOR EMITTER PANEL, BENCH HEAT EMITTER PANEL, and BENCH
1. Install the FLOOR EMITTER PANEL by placing it on top of the FLOOR PANEL. The heater cord
should be at the rear side as it will need to connect to the port on the REAR WALL PANEL.
Please note that the FLOOR EMITTER PANEL cord will run underneath the BENCH HEAT
EMITTER PANEL assembly (look for the cutout).
2. Installing the BENCH HEAT EMITTER PANEL can be a little tricky. You will need to slide the
BENCH HEAT EMITTER PANEL into place at an angle as indicated in the pictures below.
Please note that the image is for installation of the BENCH HEAT EMITTER PANEL only and the
actual BENCH HEAT EMITTER PANEL may not appear exactly like your BENCH HEAT
EMITTER PANEL. (see Figure 12)
3. Plug in the BENCH HEAT EMITTER connector to the corresponding inlet located on the
REAR WALL PANEL. Also and if you have not already done so, plug in the FLOOR EMITTER
PANEL to the inlet located on the REAR WALL PANEL. (see Figure 13)
4. Install the BENCH by sliding it inward at a slight angle over the BENCH HEAT EMITTER
PANEL. It will slide along the horizontal bench guides on the side panels. Slide the BENCH
all the way in and against the REAR WALL PANEL. Make sure to install the BENCH with the
smooth and finished side facing upward. If screws were provided, use them to screw down
the bench at the rear. (see Figure 14)

14
Figure 12
Figure 13
Figure 14
F. Installing the ROOF PANEL
1. The side with the power supply box faces upward.
2. Be careful of the wires coming from the wall panels when you set the ROOF PANEL down onto
the wall panels. Feed the wires up and onto the ROOF PANEL. Do the same for any wiring
harnesses coming from the SIDE or FRONT PANELS.
3. Be careful not to force the ROOF PANEL into place. Make sure that the wires are properly fed
up and onto the ROOF PANEL (see figure 15)
5. When all the wires are fed up and onto the ROOF PANEL, you can lower the ROOF PANEL into
place. Installing the ROOF COVER is in Section I. On some models, the ROOF COVER may
already be screwed down.
6. The four 2” screws taped to the four sides of the ROOF PANEL or with the Owner’s Manual
can be used to mount the ROOF PANEL to each of the wall panels. This is optional.
Figure 15

15
G. Connecting the plugs on the ROOF PANEL
1. Connect the plugs according to the respective labels.
2. Be sure that all of the connections are connected snug and tight.
Figure 16
H. Installing the TEMPERATURE SENSOR
1. Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR.
Situate the TEMPERATURE SENSOR so that it is vertical, pointing downward. (see figure
20)
Figure 20
Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in case the
TEMPERATURE SENSOR is damaged in transit. The manufacturer decides this according to
sauna models and packaging.
I. Putting on the ROOF COVER
1. Place the ROOF COVER over the top of the sauna. Be cautious when pulling the power
cord through the circular hole in the roof cover. Gently place the ROOF COVER onto the
ROOF PANEL. When the edges are aligned, screw the ROOF COVER to the roof panel.
(see figure 21)
Figure 21

16
J. Optional MP3 Shelf
1. If your sauna comes with the optional MP3 shelf, use the two screws provided to mount the
self on either the side panels or front panel. (see figure 22)
Figure 22
Operating the Sauna
NOTE: Please check and confirm that the connections to the POWER SUPPLY, HEAT
EMITTERS, and TEMPERATURE SENSOR are connected properly. The power supply
voltage and frequency must match the requested voltage and frequency of the sauna
(120VAC 15AMP Dedicated Circuit or 120VAC 20AMP Dedicated Circuit). This is a
residential /semi-commercial appliance. For every (3) hours ON, the unit must have (1)
hour OFF.
Since many materials absorb the infrared rays, minimal clothing is recommended for
maximum effect. The infrared sauna emitters are designed to heat you and not
necessarily the air inside the sauna. It is not a hot box like a traditional sauna. The
temperature gauge is a guide for your safety. It is recommended that you drink water
before, during, and after sauna use to prevent dehydration since body fluids will be lost
through perspiration. It is not recommended to shower after use since the pores in your
skin will be open and could possibly absorb anything in the water.

17
1. Precautions
a. Please make sure your wall outlet meets the specifications required. Failure to meet
the requirements may cause safety risks.
b. Set the temperature and time to a comfortable level. The average used temperature range is
between 118ºF – 122ºF. The average sauna session is approximately 20 – 30 minutes. It is
recommended that you pre-heat the sauna room to the desired temperature before
entering. Note: If the ambient temperature is below 72℉, the sauna will take longer to pre-
heat. It is not recommended to use the sauna in an environment with an ambient temperature
below 60℉.
c. Drink water prior to, during, and after your sauna session to replenish body fluids.
d. After 2 hours of continuous use, the sauna needs to be shut down for one hour.
e. To avoid burns, do not touch the heating element.
2. Operating The Sauna
a. Review the electrical label on the sauna and then plug the sauna into the proper wall outlet. No
other appliance can be operated on the same electrical breaker as the sauna when the sauna is
in use. Proceed in turning on the sauna room using the ON/OFF button to activate the sauna.
b. The sauna should be unplugged when not in use. If you do not have access to the plug, it is
recommended to use a heavy duty surge protector.
c. To set the temperature, press the temperature buttons to increase or decrease the
temperature to the desired temperature. If the “Heat" light is on, the temperature setting will
increase one degree every time the button is pressed. If pressed for three seconds, the
setting will increase quickly. Decrease the temperature in the same manner by pressing the
button. After the sauna reaches the desired temperature, the “Heat” light will turn off.
d. Press the button to turn the light ON and OFF. If you want to use the Color Light

18
Therapy System:
1. While the interior light is ON, press and hold down the button for 2 seconds.
You will notice “2n” in the LED display. This indicates you are in the “light” mode. If
you do not press any buttons for approximately 15 seconds, the “2n” will change back
to the Timer mode.
2. While the “2n” is displayed, you can now turn the exterior light ON/OFF by pressing the
button in the section of the control panel.
3. You can also turn the interior light ON/OFF by pressing the button in the
section of the control panel.
4. While the interior light is on and the “2n” is still displayed in the LED display, you can
press the button to scroll through the different colors within the Color Light
Therapy System. You will notice that you have two selections for “white”:
A. The first selection for “white” will allow the colors to go through a sequence of
the different shades of colors.
B. The second selection for “white” will continue to display the white light.
5. To return back to the Timer mode, press the button.
e. You can operate the sauna with the ceiling vent in the open or closed position based on personal
preference.
f. After your sauna session is over, you can turn the control panel off by pressing the ON/OFF
button. You can unplug the sauna cord to protect the electronics from power surges.
g. To set the time, press the buttons. Press or buttons to set the timer from 5
to 60 minutes. If pressed for three seconds, the timer will increase/decrease quickly. When the
time expires, the timer will buzz and the sauna will shut off automatically. Please note that the
radio and light will have to be physically turned OFF is they are ON. To extend the sauna
session, reset the timer again by pressing the .
h. The Fahrenheit and Centigrade display can be switched by pressing and holding the
TEMPERATURE side buttons and at the same time and then pressing the .
i. The Bluetooth function is built into the Control Panel. For the Bluetooth function, you first will
need to pair your device with the sauna room. Open your device’s Settings Menu and then locate
and open Bluetooth. You will find “BT-AUDIO” or “Sauna BT”. Now you can pair your device.
Once pairing is successful, your device will be connected. You will control the volume and
choose the music on your device.
j. The MP3 Jack will allow you to connect your musical device using the AUX wire. Plug one end
of the AUX wire into your musical device and the other end into the MP3 Jack at the ceiling. Do
not leave the AUX wire connected at the ceiling when not using this function as it may cause
static interference at the speakers. You will control the volume and choose the music on your
device. When you disconnect the MP3 wire, the sound system will automatically return back to
the Bluetooth mode.
CAUTION: Exit sauna immediately if you feel dizzy, sleepy, or any discomfort.

19
Tips for using Your Sauna
1) If you take a hot/warm shower or bath before using your sauna, you may perspire more and
experience more comfort.
2) Drink water prior to, during, and after your sauna session to replenish body fluids.
3) To regulate the set temperature inside the sauna to your comfort level, use the movable roof
ventilation or leave the door open slightly. The roof ventilation is installed on the sauna and used
based on personal preference.
4) Use 2 or 3 towels during your sauna session. Fold one of the towels several times and place it on the
bench. This towel will absorb some of your perspiration while adding comfort as you sit on the bench.
Place another towel on the floor to absorb perspiration as it falls from your body(onlyonCeramicModel
Saunas). Be sure not to place any towels over the floor heat emitters. Use a third towel to wipe
perspiration from your body from time to time.
5) At the first sign of a cold or flu, increasing your sauna sessions may be beneficial in boosting your
immune system and decreasing the reproductive rate of
viruses.
6) To help relieve sore and tense muscles, massage the affected areas during your sauna session.
7) To treat your ankles and feet more effectively, you can elevate them and move them close to one of
the heat emitters to achieve a deep heating effect.
8) To utilize the sauna's heat therapy effect, put oil or treatment into your hair and wrap it with a towel.
After your sauna session is over, rinse your hair thoroughly. Please follow the product directions for
the intended benefits.
9) The peaceful and relaxed state rendered by a sauna session may help you to sleep easier and deeper.
10) To conserve energy consumption, please unplug your sauna when not in use.
11) After the sauna session is over, do not jump into the shower or bath immediately. Because your body
was heated up during the sauna session, it will continue to perspire even after the heat emitters are off.
Sit in the sauna with the door open slightly and let your body cool down. Once your body has cooled
down and you feel comfortable, you can exit the sauna. After about twenty minutes and when your
body has completely cooled down, you can take a shower to rinse the perspiration off your body.
Safety Instructions
1.) Read and follow all instructions carefully before using the sauna.
2.) When installing and using the electrical equipment, safety precautions should always be followed.
3.) To reduce the risk of injury, do not allow children to use the sauna unless they are closely supervised at
all times by an adult.
4.) Do not use the sauna immediately following strenuous exercises. Wait at least 30 minutes to allow
the body to cool down completely.
5.) Pregnant or possibly pregnant women should contact their physician prior to using the sauna.
Excessive temperature has a high potential for causing fetal damage during pregnancy.
6.) Hyperthermia Danger: the normal body temperature can't rise above 39°C (103°F). Symptoms of
excessive hyperthermia include dizziness, lethargy, drowsiness, and fainting. The effects of excessive
hyperthermia may include failure to perceive heat, physical inability to exit sauna, unawareness of
impending hazard, unconsciousness and fetal damage in pregnant women. Hyperthermia could make
your body's core temperature rise. Setting desired temperature to an excessively high temperature is
not recommended.
7.) The use of alcohol, drugs, or medications prior to or during the sauna session may lead to
unconsciousness and/or other harmful physical injuries.
8.) Persons suffering from obesity or with a medical history of heart disease, low or high blood
pressure, circulatory system problems, or diabetes should consult a physician prior to using
the sauna.

20
9.) Persons using medications should consult a physician before using the sauna. Some medications
may induce drowsiness while others may affect the heart rate, blood pressure, and/or blood
circulation.
10) Exercise care before and after sauna use.
11) Never sleep inside the sauna.
12) Do not use any type of cleaning agents on the interior of the sauna. Only wipe down with a cloth
and water.
13) Do not stack or store any object on top or inside the sauna.
14) If the power supply cord becomes damaged, it must be replaced immediately by the manufacturer or its
agent. If you find the power cord is too hot or that the electrical equipment may be experiencing
technical problems, please contact the manufacturer or its agent immediately to avoid hazardous
conditions.
15) Do not use the sauna during an electrical storm to avoid risk of shock.
16) Do not continuously switch the power on and off as it will compromise the life of the electrical
components.
17) Your hands must be dry and free of moisture before plugging and unplugging cords and wiring harnesses
from the power supply and circuit boards. Never operate the sauna with wet hands or wet feet to avoid
risk of electric shock. Never touch the metal prongs of the plug.
18) Do not attempt to make any repairs yourself. If a problem occurs with the sauna, please contact seller,
distributor, or the manufacturer to avoid safety risks. Unauthorized repair attempts will void the
manufacturer’s warranty.
19) Please make sure the outlet power supply meets the specifications required. Failure to
meet the requirements may cause safety risks.
20) Some sauna models are equipped with reading and roof lamps. Because the lamp temperature
will become very hot once powered on, do not attempt to touch the lamp to avoid being burned.
Do not attempt to touch it for at least 20 minutes after it has been powered off.
21) Do not pour water or any other liquids on the infrared emitters. Do not bump, hit, or break
the heating elements as it may cause an electrical short and pose a safety risk.
22) Do not make any modifications to the sauna, the sauna structure, or the sauna components.
23) Prior to each sauna session, the sauna room is to be inspected for correct operation. If for any reason
your sauna room does not seem to be operating properly, discontinue use and contact the manufacturer.
Safeguards For Your Sauna
1. Do not install the sauna near water, near a bathtub, near a shower, in a wet basement, or near a
swimming pool.
2. Do not use liquid cleaners or aerosol cleansers inside the sauna. Unplug the sauna from the wall
outlet before cleaning. Use plain water and a soft cloth for cleaning.
3. The power supply cord should be routed so that it is not walked on or pinched by any object that may
be placed against it.
4. When replacement parts are required, be sure they meet the specified requirements of the manufacturer.
Unauthorized substitutes may result in fire, electric shock, or other hazardous conditions. After any
repairs, please ask the service technician to perform safety checks to determine that your sauna is
working properly.
5. Do not use any wall receptacle adapter, surge protector, or extension cord between the sauna cord and
wall receptacle.
