GoldenDesigns P6 Series User manual

1
P6-Series
Infrared Sauna Instruction Manual
Model: P6-H356-01
3 Person FAR Infrared Sauna
CARBON MODEL SAUNA
FOR INDOOR USE ONLY
120VAC 20AMP Dedicated Circuit Required
Carefully and thoroughly read this Owner’s Manual before using/operating the
sauna. We recommend keeping this Owner’s Manual for regular review and
future reference.

2
TABLEOFCONTENTS
Packing List 2
Visual Assembly Diagrams 6
Parts Description 7
Assembly Instructions 12
Operating the Sauna 19
Tips for Using Your Sauna 22
Safety Instructions 22
Safeguards for Your Sauna 24
Troubleshooting Guide 24
Warranty 28
Warranty Card 21
WARNING: Visually inspect all heaters before assembly to make sure they are
not damaged. Any excessive vibrations during transport could cause damage to
the heating elements. DO NOT START the sauna if damage is detected! Contact
your dealer or manufacturer for troubleshooting and replacement parts.
Packing List (main panels)
1pc Floor Panel 1pc Right Back Panel 1pc Left Back Panel
1pc Right Side Panel 1pc Left Side Panel 1pc Front Panel
1pc Roof Panel 1pc Roof Cover 1pc Right Bench
1pc Left Bench 1pc Right Bench Heater Panel 1pc Left Bench Heater Panel
NOTE: Your model sauna has been completely assembled and tested prior to
packaging. The rear wall panel is intentional warped as part of the overall design.
Two adults will be needed to assemble the sauna room.
CAUTION: Exit Sauna Immediately If You Feel Dizzy, Sleepy, Or
Any Discomfort.

3
What Are Infrared Rays?
Infrared is the band of light we perceive as heat. We cannot see this band of light with the
naked eye, but we can feel this type of light in the form of heat. Our sun produces most of
its energy output in the infrared segment of the spectrum. Infrared rays heat your body
without having to heat the air in-between. This process is called conversion.
The infrared is divided into 3 segments by wavelengths measured in microns: Near
Infrared –0.76-1.5 microns; Middle Infrared –1.5-5.6 microns; and Far Infrared –5.6-1000
microns. Among these segments, Far Infrared penetrates organic substances such as the
human body two to three inches so that the warming effect is very uniform.
ARE INFRARED RAYS SAFE?
Because infrared rays are part of sunlight, they are not only safe but also highly beneficial
to our bodies on a cellular level. Health professionals have used infrared heat lamps for
decades to treat muscle and joint problems. In hospital baby care units, incubators are
often equipped with infrared heating systems to keep newborn babies warm.
WHAT IS AN ELECTROMAGNETIC FIELD (also known as EMF)?
An Electromagnetic Field is a physical field produced by electrically charged objects. It is
one of the fundamental forces of nature. The field can be viewed as the combination of
an electric field and a magnetic field. The electric field is produced by stationary charges
and the magnetic field by moving charges referred to as currents. The magnetic field is
measured in milligauss (mG). Our sauna products have been developed to have low EMF.
Our Low EMF carbon heater panels range between an average of 5mG-10mG at about
two inches from the heater panel, our Ultra Low EMF carbon heater panels range between

4
3mG-5mG, and our Near Zero EMF/Full Spectrum models range at less than 3mG (NIR
heaters range at about 5mG-7mG at the same approximate 2 inches)

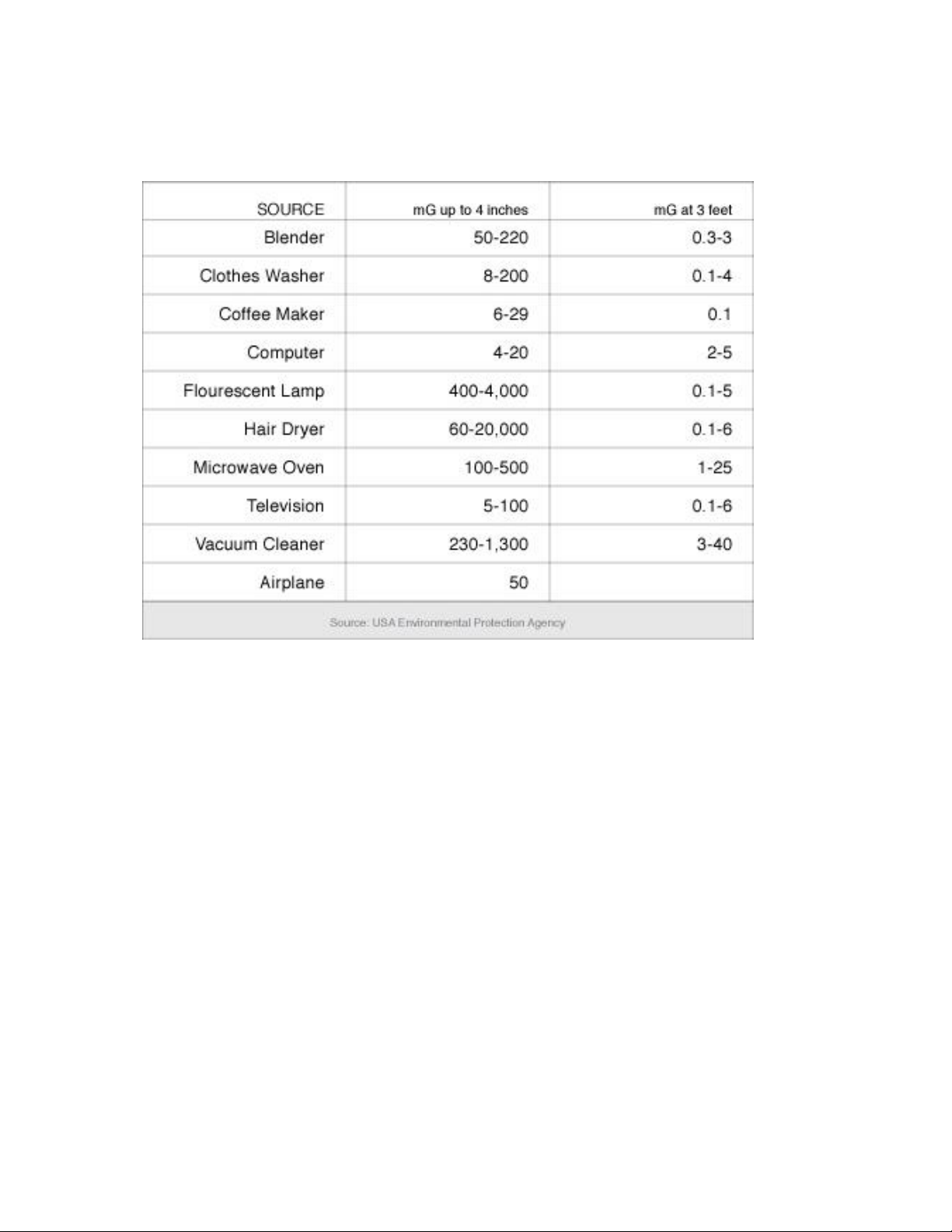

EMF Levels from Common Homes Sources
After many years and numerous studies on EMF exposure, no government body including
the Occupational Safety and Health Administration (OSHA) have established permissible
exposure limits (PEL). Currently, there is no consensus on the potential health hazard from
any exposure to EMF. The mainstream scientific evidence suggests that low-power, low-
frequency, electromagnetic radiation associated with household currents like that of the
infrared sauna does not constitute a short- or long-term health hazard.
DISCLAIMER
The infrared rays emitted by your sauna are reported to offer a wide range of possible
therapeutic benefits based on research completed over the last 40 years from all around
the world. These benefits are presented for reference purposes only and no implication of
infrared saunas creating a cure for or treating any disease is implied nor should it be
inferred. If you have a medical/health condition, are taking prescription drugs, or have
acute joint injuries, please consult with your medical physician before using the sauna.
Persons with surgical implants (metal pins/rods, artificial joints, silicone, or other types of
surgical implants) typically do not experience any adverse effects, but should also consult
their medical physician or surgeon before using the sauna room.

5

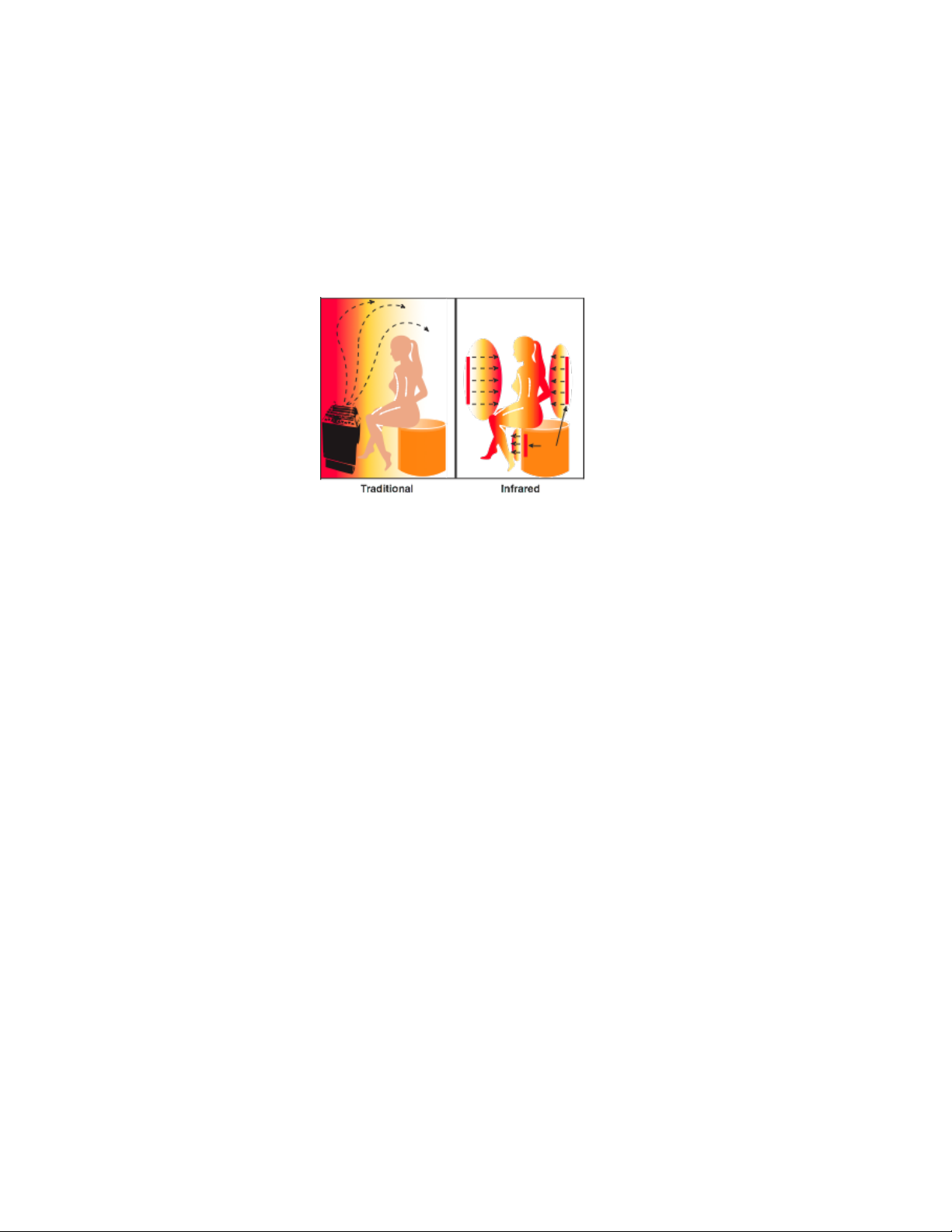

HOW IT WORKS
Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to
directly penetrate into the body's tissue to produce perspiration. Traditional saunas use
steam to heat the air inside the sauna, which then heats your body until you begin to
perspire. In order for this to be effective, temperatures would need to reach in the
upwards of 190 degrees Fahrenheit. Infrared saunas only need a temperature of up to 120
degrees Fahrenheit to obtain the same effect. This lower temperature makes the
environment more tolerable and allows you to breathe easier.
Health Benefits
Because infrared rays penetrate the body through conversion, there is a deep heating
effect in both the muscle tissues and internal organs without putting too much burden on
the heart.
Our body reacts to the increased heating through the natural cooling process of perspiring.
Through the perspiration process, acid and waste residue like toxins, sodium, alcohol,
nicotine, cholesterol, and the potentially carcinogenic heavy metals are removed from the
cells (especially zinc, lead, nickel, cadmium, etc.). The pores of our skin open and
discharge waste products shedding any old skin cells leaving the skin glowing and clean,
with improved tone, elasticity, texture, and color.
Health Benefits Include, But Are Not Limited To:
*Pain relief from Rheumatoid Arthritis *Relaxes muscle spasms *Reduces cellulite
*Increases blood circulation *Clears, rashes, acne *Enhances skin tone
*Cardiovascular conditioning *Reduces stress & fatigue *Removes toxins
Sauna Maintenance
Since infrared saunas do not require hot rocks, water, or steam to operate, they require
very little maintenance. You can simply wipe it down with water –use a damp, soft, and
clean cloth. Do not use any chemical-based cleaning agents as they can be absorbed
into the wood and be released into your sauna during use.
.

6
*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY*

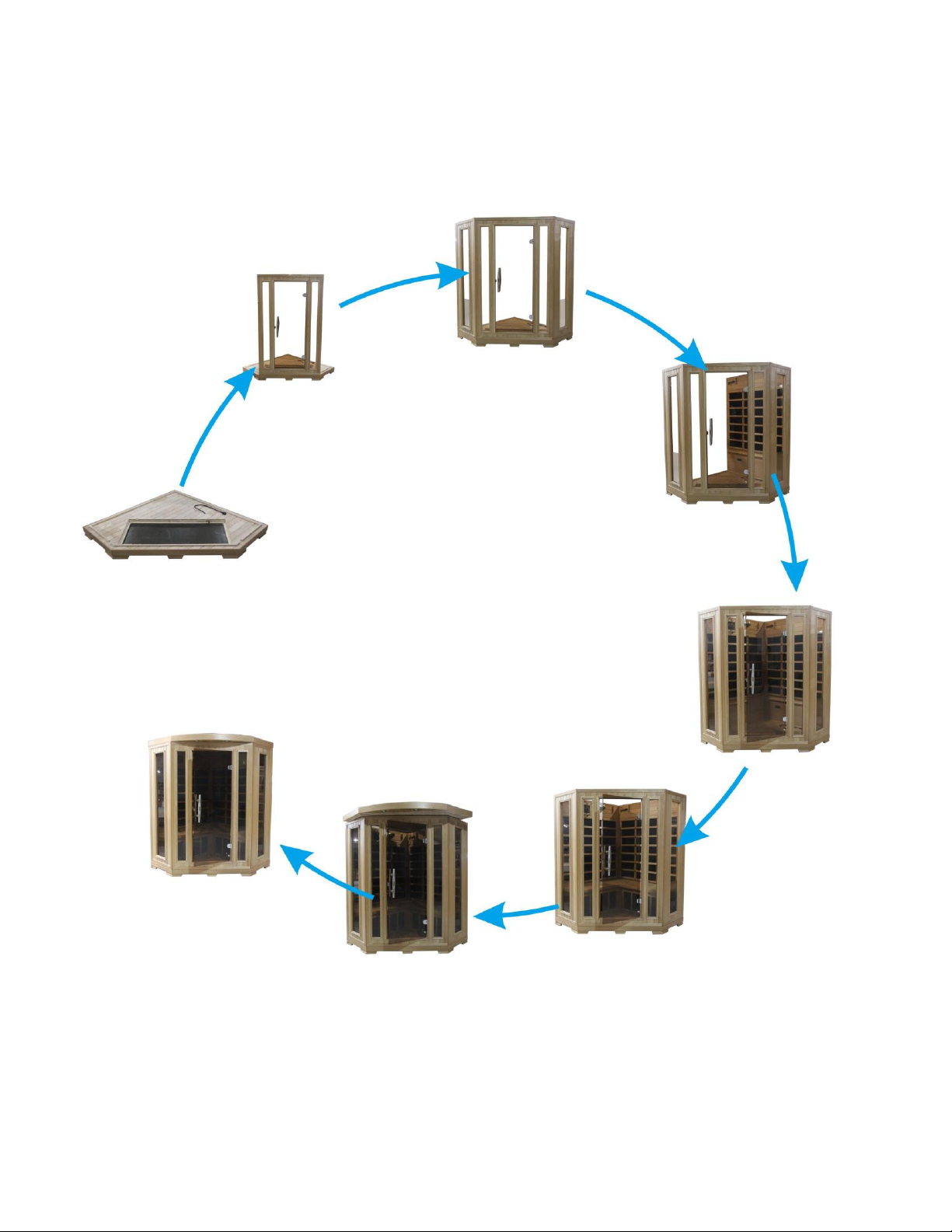

Visual Assembly Diagrams
P6-H356-01
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE. BACKRESTS SOLD SEPARATELY.

7

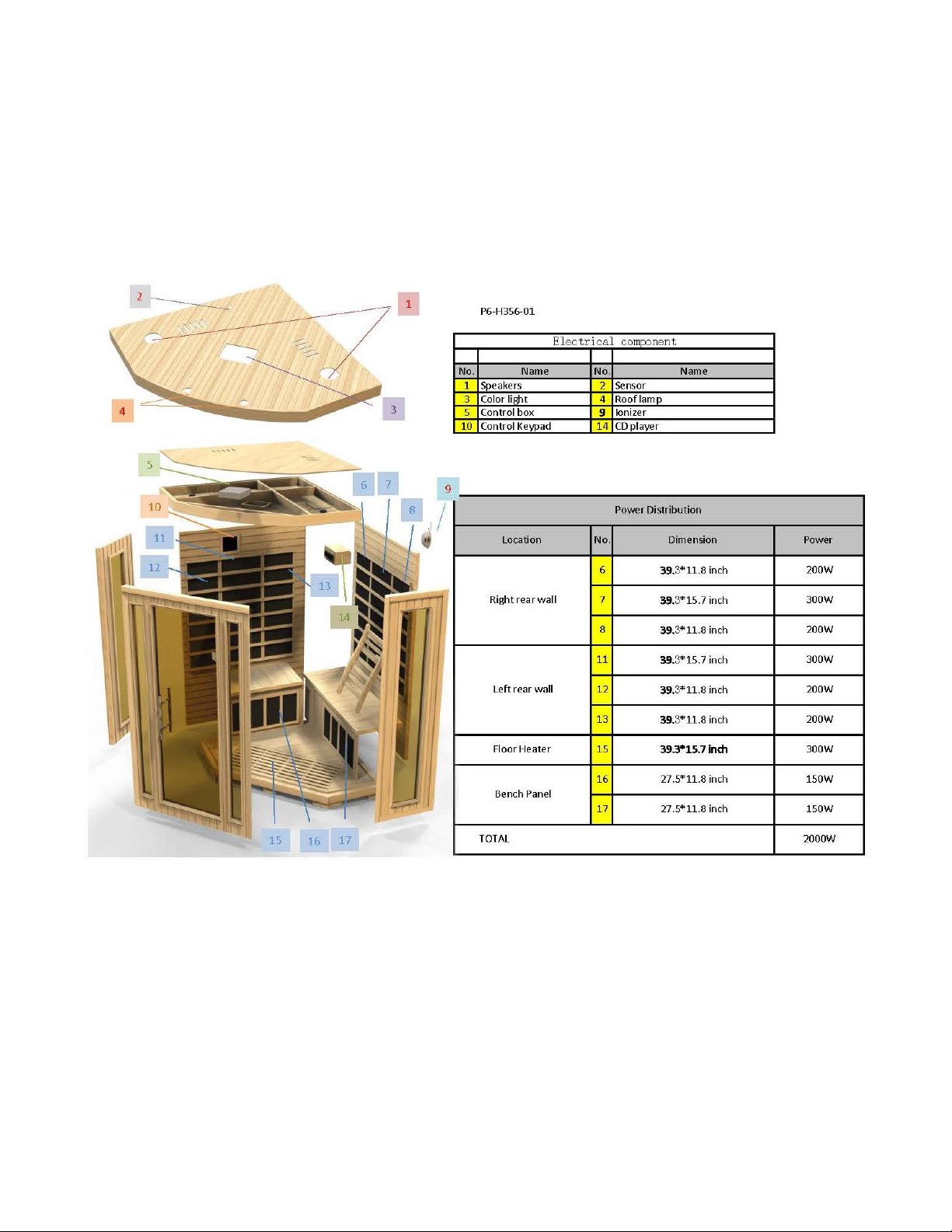

PARTS DESCRIPTION
P6-H356-01
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE. BACKRESTS SOLD SEPARATELY.

8
Highlights

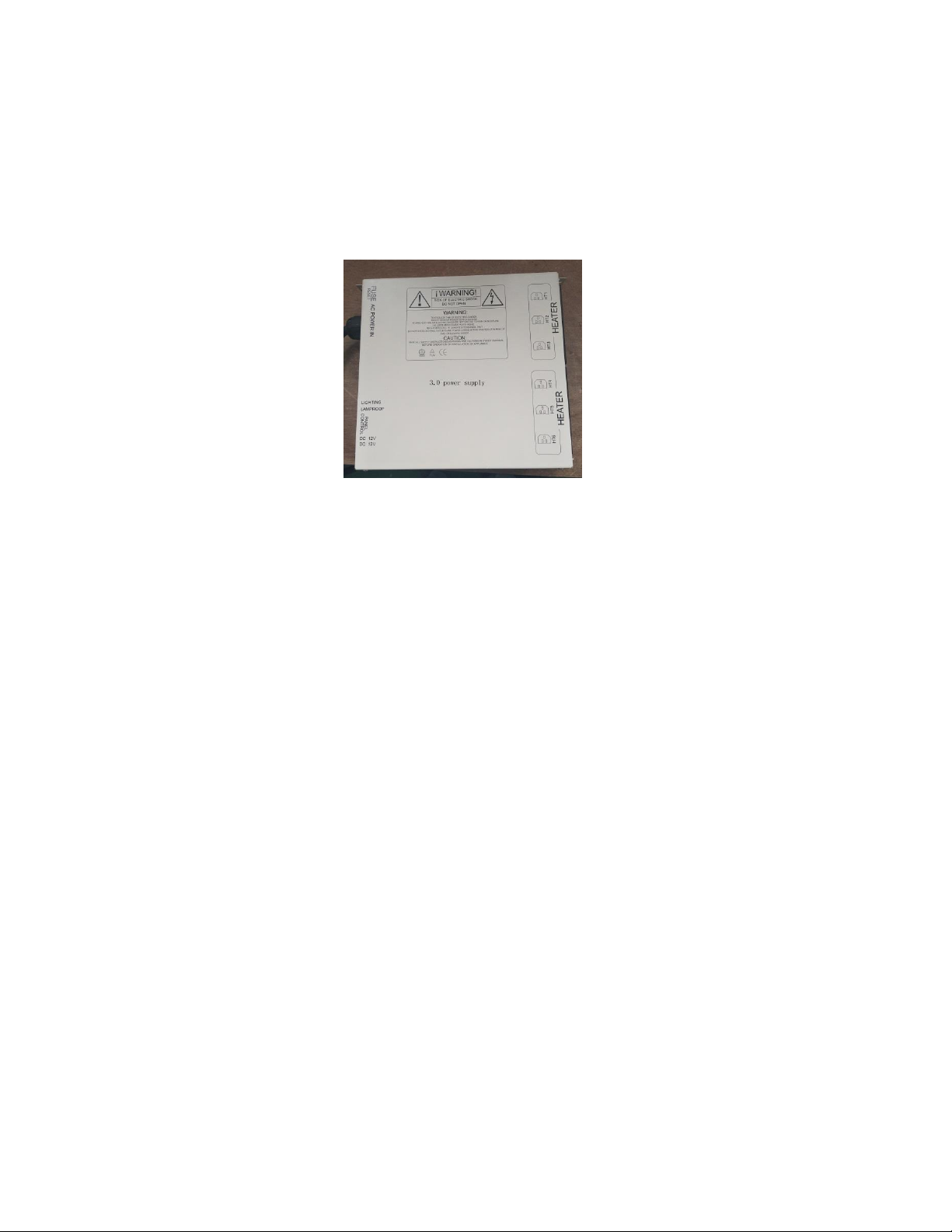

I. Power Supply (Control Box)
The POWER SUPPLY is the control center of the sauna room. It is installed on the
topside of the ROOF PANEL and has inputs/outputs connected to it. (see Figure 1)
Figure 1
POWER IN - main power of the sauna room
HT1, HT2, HT3, HT4, HT5, HT6 –heat emitter cords
LAMPROOF –roof lamp power (optional)
LIGHTING –chromotherapy lights
PANEL CONTROL –control panel
FUSE RESET –protects against power
II. Component Labeling
Power Cord –Main power cord connects the POWER SUPPLY to the
dedicated wall outlet
HT1, HT2, HT3, HT4, HT5, HT6 –Heater cords connect the heat emitters to
the POWER SUPPLY at these ports (HT5 & HT6 are not used on most
models)
Lighting –Connects the interior lighting to the POWER SUPPLY at this port
LampRoof –Connects the exterior roof lights to the POWER SUPPLY at this
port
Panel Control –Connects the Control Panel through the CTRL harness to
the Power Supply at this port
L/R Speakers –Connects the speakers through these wires to the Control
Panel

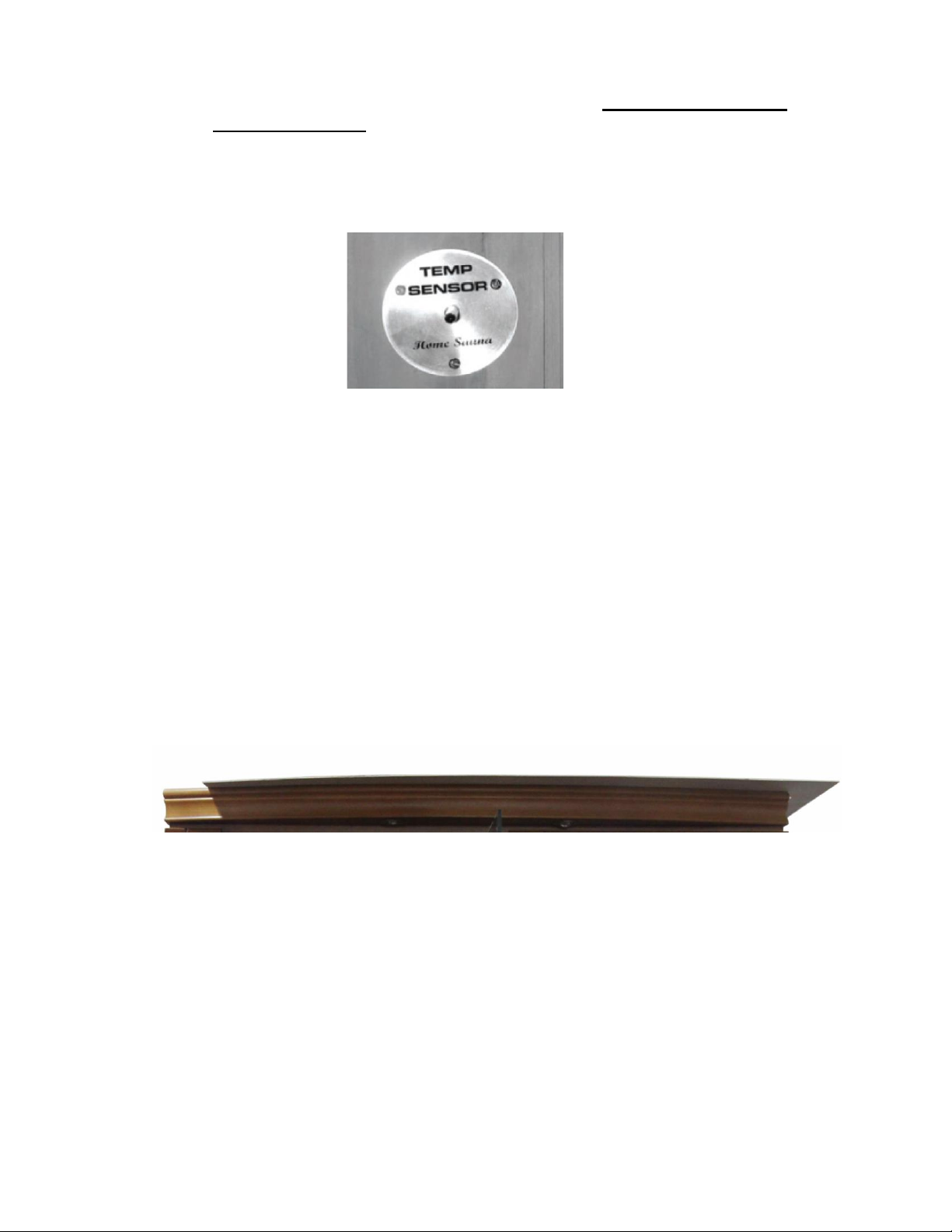

Temp Sensor –Connects the Temperature Sensor through this wire to the
Control Panel

9

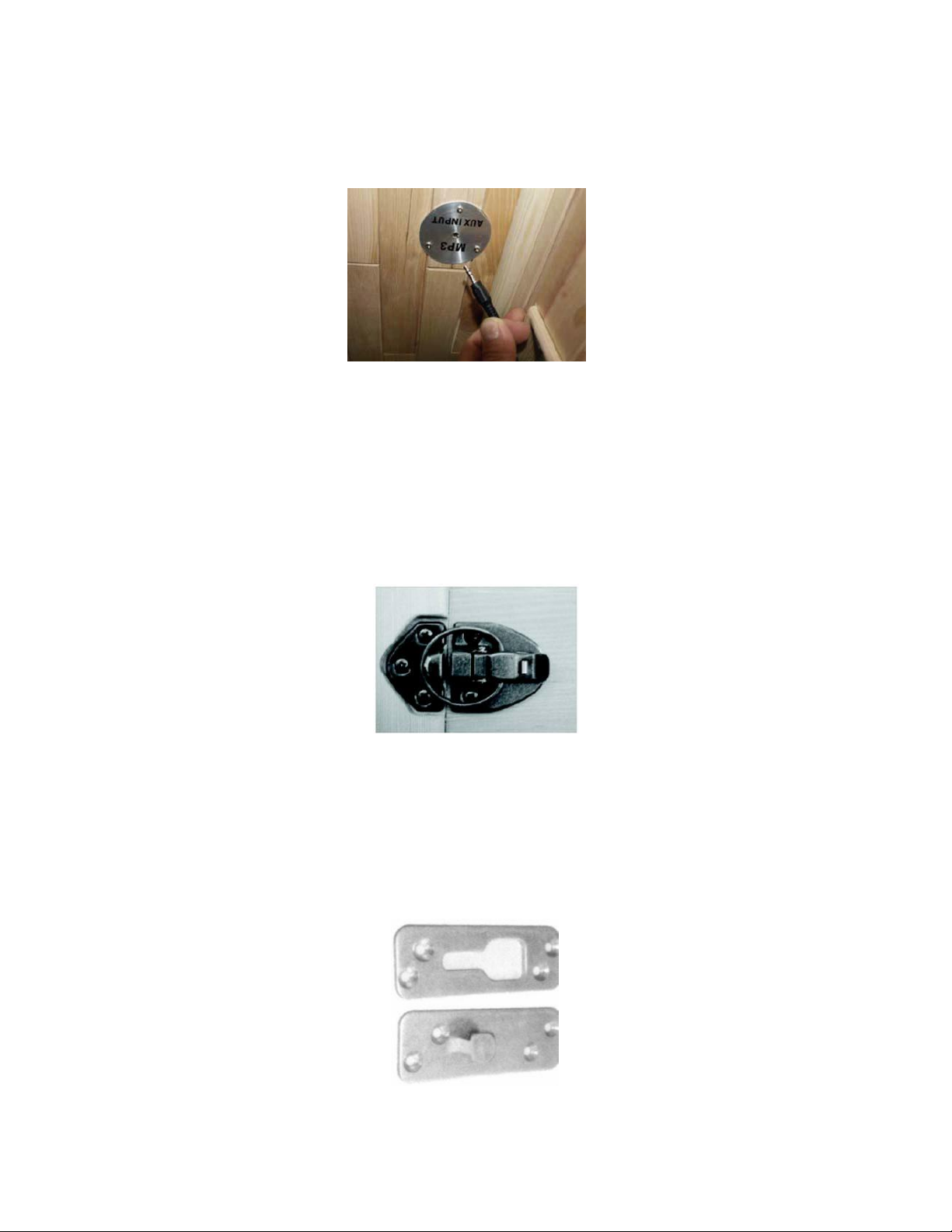

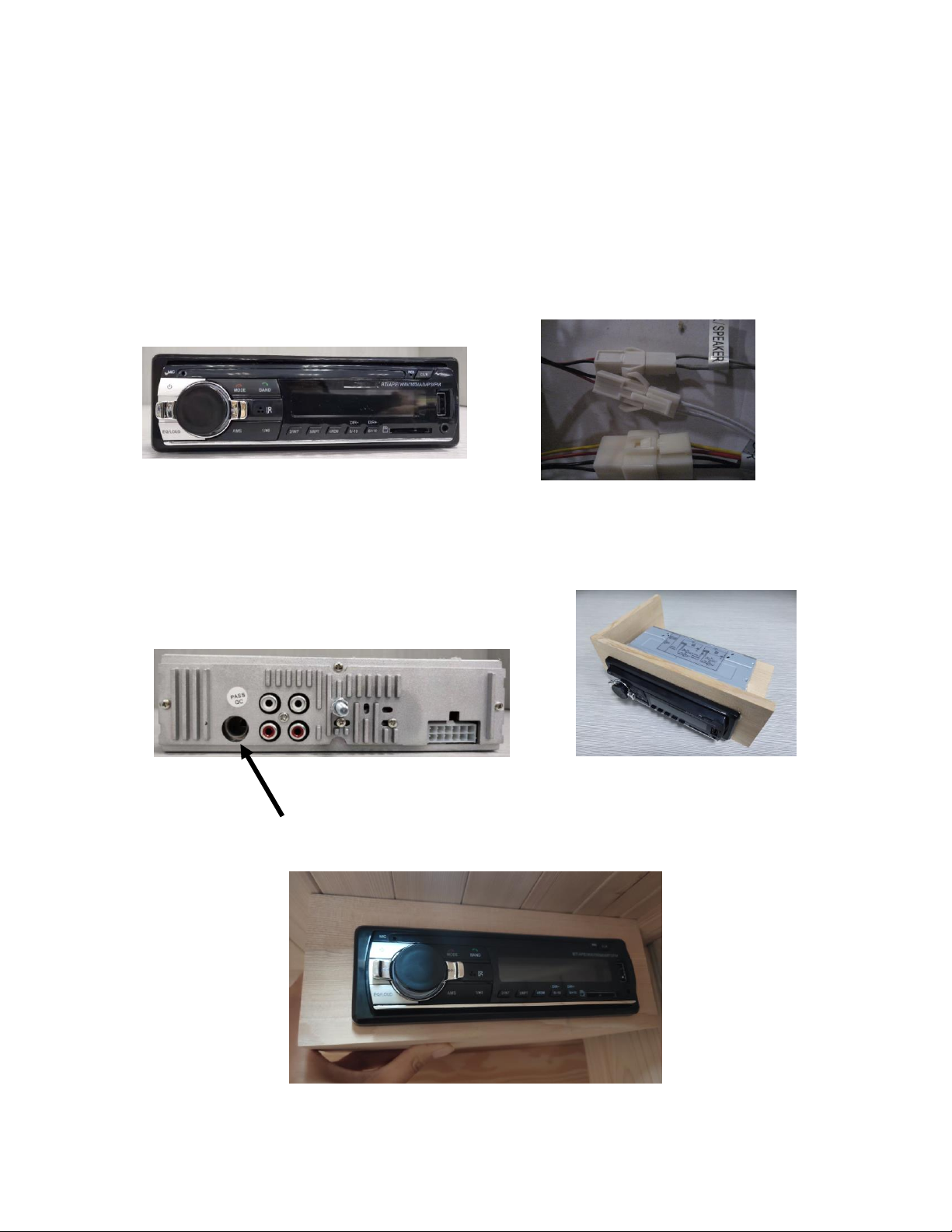

III. MP3 Auxiliary Port
The MP3 Auxiliary Port allows you to connect a MP3 player or other device with the
auxiliary function to the speakers in the sauna room for your listening pleasure. (see
Figure 2)
Figure 2

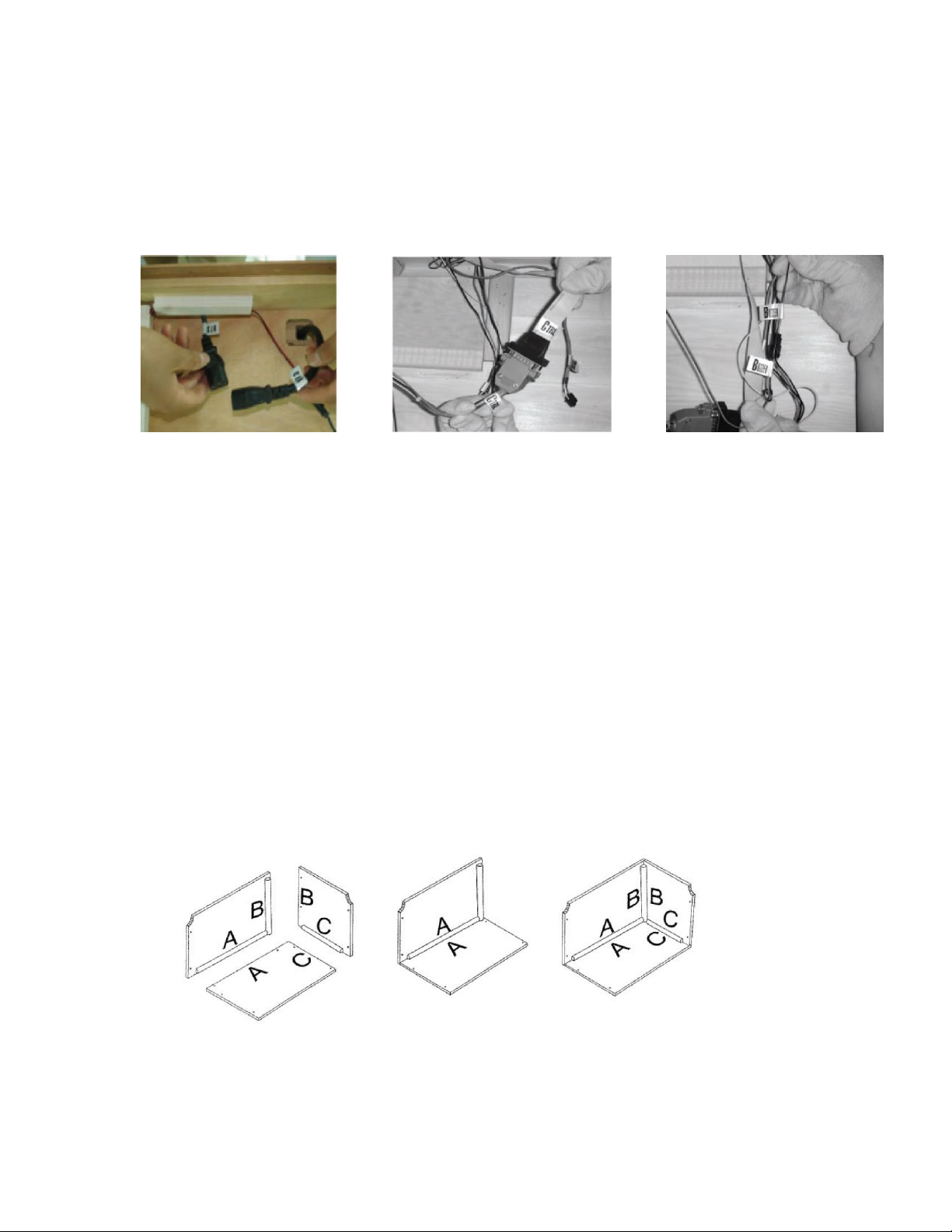

IV. Buckles and Guide & Guide Inserts
A. External Buckles
The external buckles are used to connect the LEFT and RIGHT SIDE
PANELS to the REAR PANEL and FRONT WALL PANELS. (see
Figure 3)
Figure 3
B. Guide & Guide Inserts
The Guide & Guide Inserts are used to connect the SIDE WALL
PANELS to FRONT WALL PANEL. (see Figure 3a)
Figure 3a

10

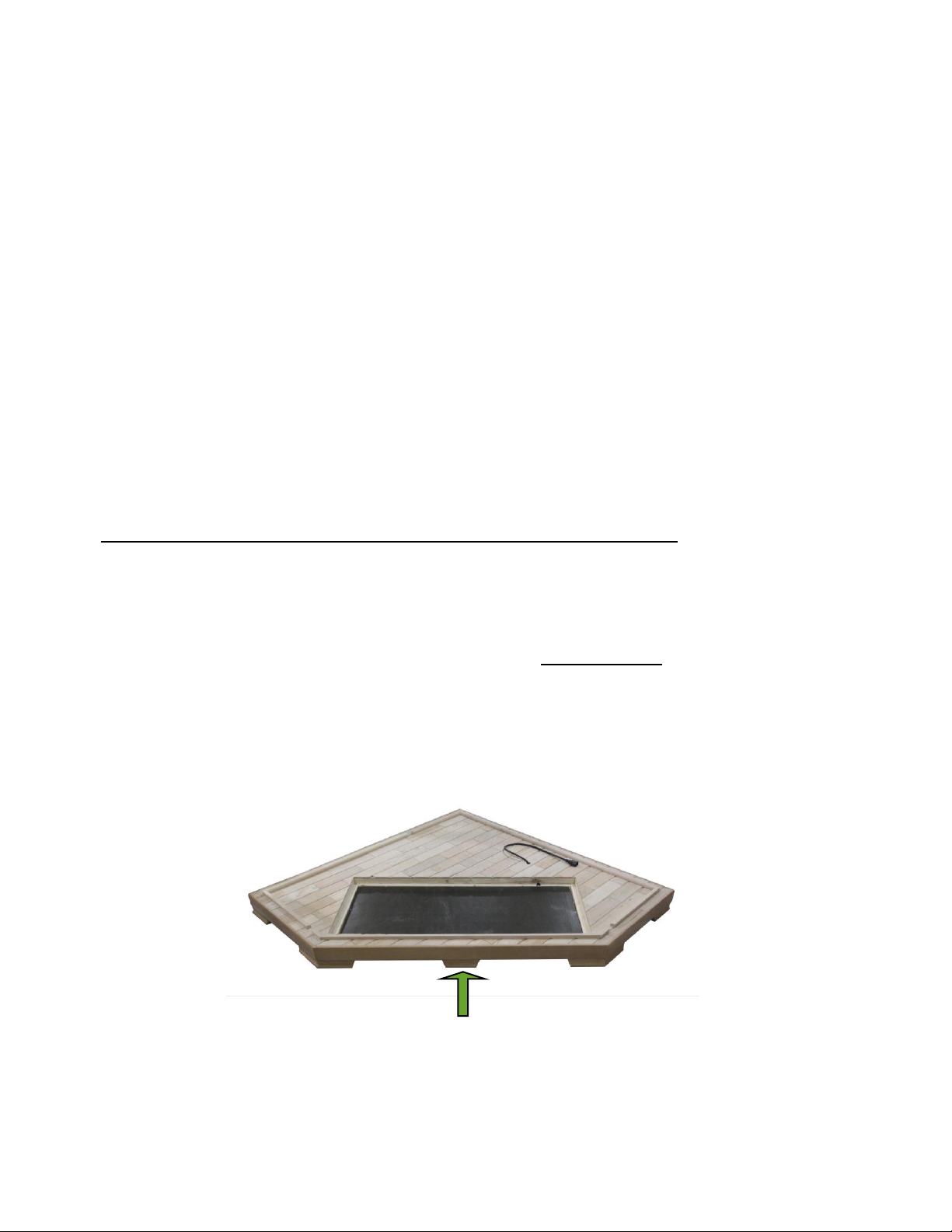

V. Wood Guide Inserts on the Floor Panel
The FLOOR HEAT EMITTER PANEL is typically located towards the front of the sauna
room. The arrows in Figure 4 below are indicating where the wall panels will be placed
up onto the FLOOR PANEL. All models will have the raised ¼ round molding on the top
side of the FLOOR PANEL. The floor heater cord should be towards the rear on the
right side. (see Figure 4)
Figure 4
VI. Panel Descriptions
For easier installation, please understand and distinguish the differences between each
panel.
A. Floor Panel
When you place the FLOOR PANEL at its designated location, leave enough
space so that you are able to move around the FLOOR PANEL in order to install
the sauna wall panels. To identify the front of the FLOOR PANEL, see the
diagram below. (see Figure 5)
Figure 5 Front of Sauna Room

11

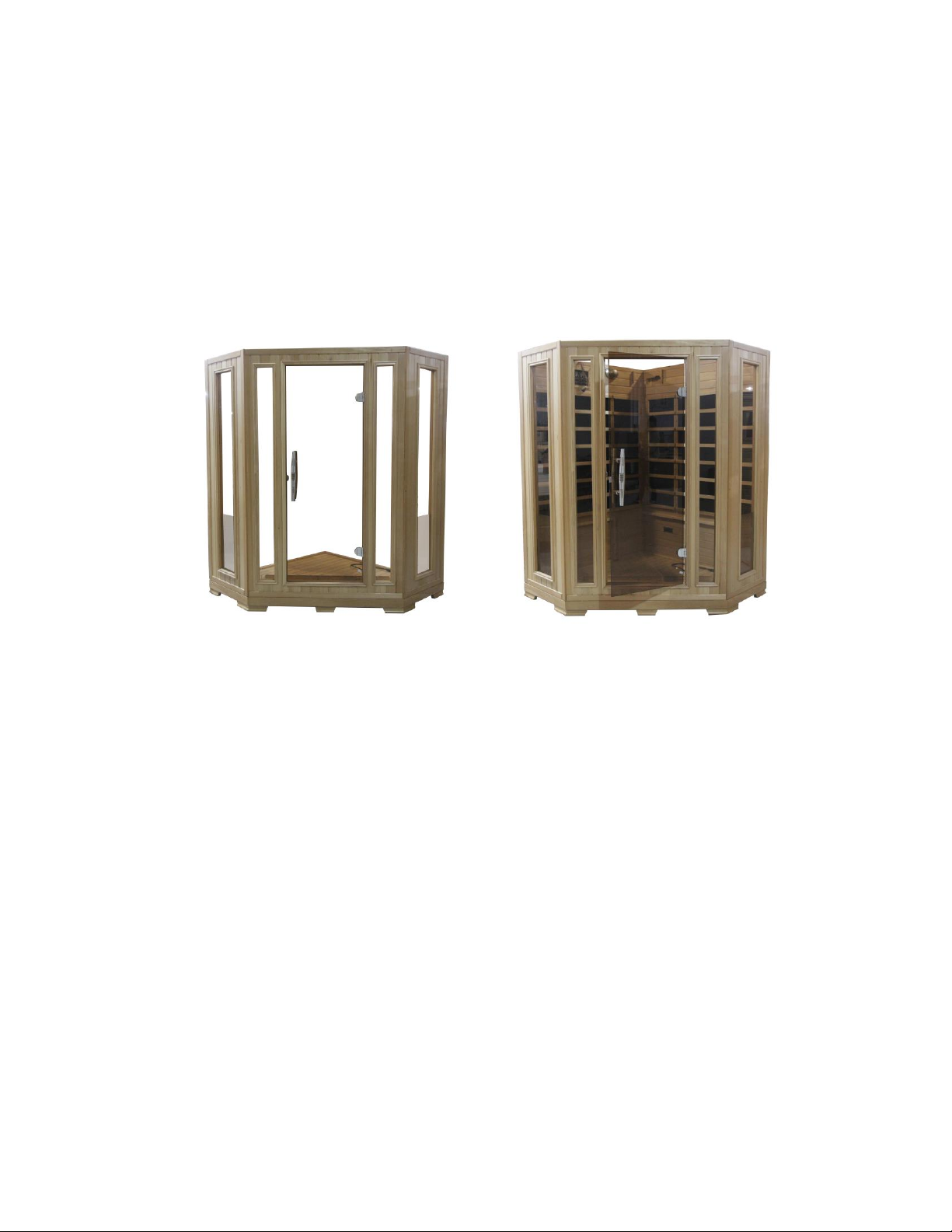

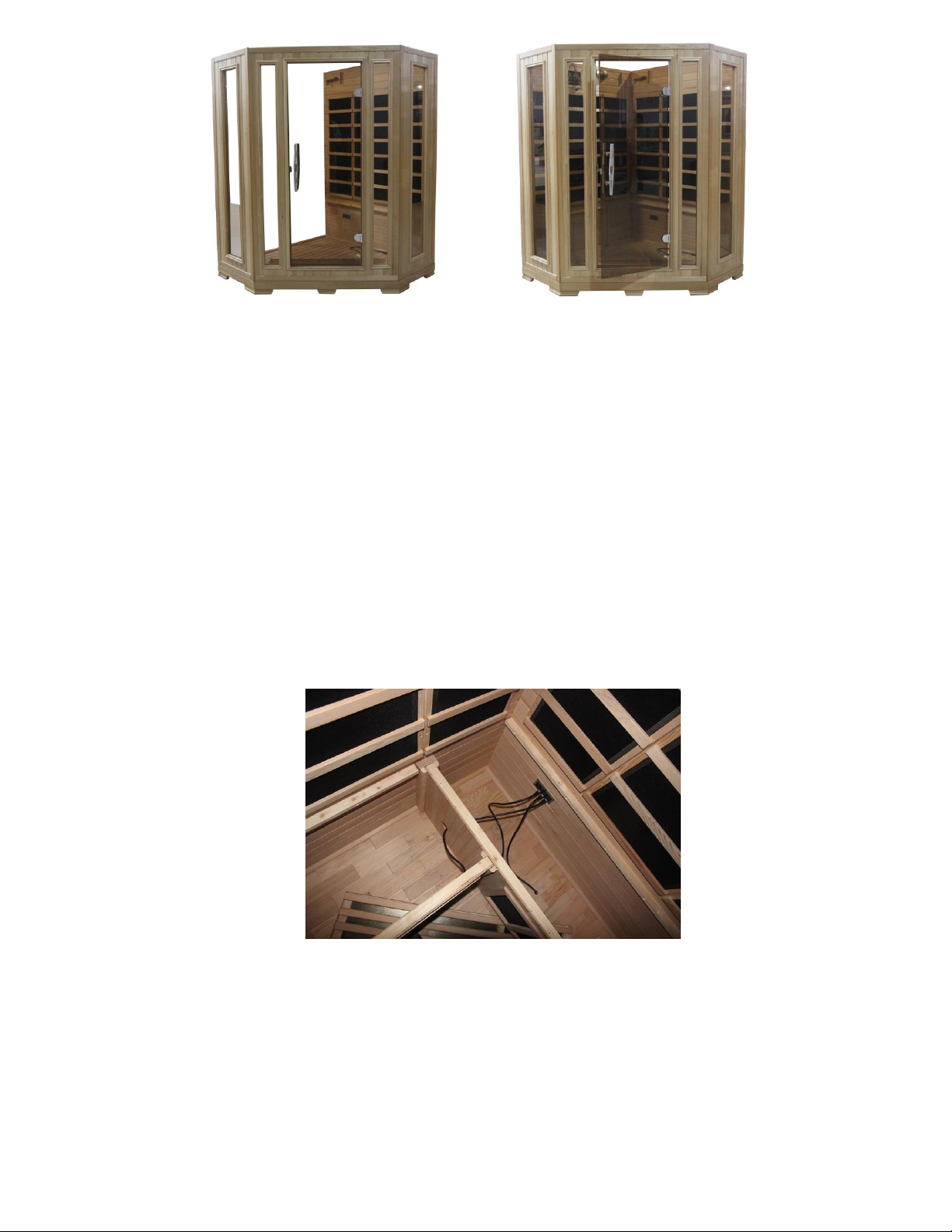

B. Understanding The Wall Panels
The SIDE WALL PANELS will have a single stationary glass panel in each of
them. The REAR WALL PANELS will have 3 heat emitter panels each. Both
REAR WALL PANELS will have heater cords coming from the top of each wall
panel which will be connected on the roof once the ROOF PANEL is placed on
top. The external buckles on the sauna room will connect the REAR WALL
PANELS to each other and the REAR WALL PANELS to the LEFT SIDE
WALL PANEL and RIGHT SIDE WALL PANEL. The guide and guide inserts
will connect the LEFT SIDE WALL PANEL and RIGHT SIDE WALL PANEL to
the FRONT WALL PANEL. (see Figure 6 and Figure 7)
Figure 6 Figure 7
C. Roof Panel
The ROOF PANEL houses the power supply, speakers and reading lamp. Once
installed, all the wiring harnesses, plugs, and connections will sit on the exterior
side of the roof panel.

12
Assembly Instructions
Please note that your sauna has been completely assembled and tested at the
factory prior to packaging. Please further note that the rear wall panel is intentional
warped as part of the overall design. Two adults will be needed to assemble the
sauna room.
A. Choose a good location to assemble the sauna
1. The location must be dry, leveled, and away from any source of water
2. MAIN POWER cord must be easily accessible
3. Two adults are required for installation
4. Wood cabin installation order: Floor Panel - Front Wall Panel with
Glass Door - Right Side Wall Panel - Left Side Wall Panel - Rear Wall
Panel - Bench Heat Emitter Panel - Bench - Roof Panel - Roof
Cover
5. Tools Required: Philips Screwdriver and Ladder
PLEASE NOTE THAT SOME MODELS WILL VARY IN ASSEMBLY.
B. Installing the FLOOR PANEL
Place the FLOOR PANEL on the floor. Some models have wood braces
that must be installed on the underside of the FLOOR PANEL. Please
check to see if such wood braces were packed in the box containing the
FLOOR PANEL. If so, mount according to the designated labels located on
the underside of the FLOOR PANEL. Once installed, turn the FLOOR
PANEL right side up. Make sure the front side of the FLOOR PANEL is
facing the correct direction. (see Panel Descriptions) (see Figure 8)
Figure 8 Front of Sauna Room

13

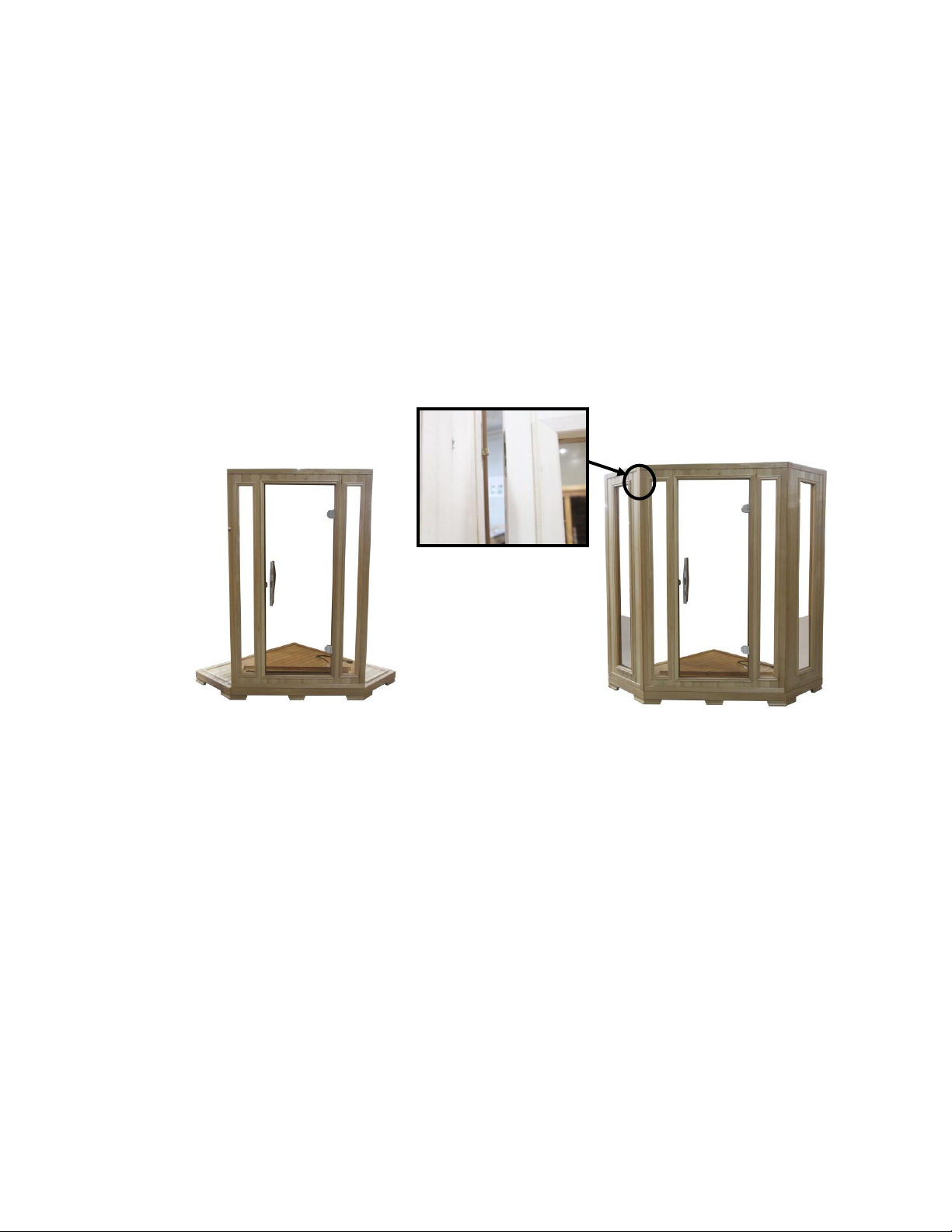

C. Installing the FRONT WALL PANEL, RIGHT SIDE WALL PANEL, and
LEFT SIDE WALL PANEL
Place the FRONT WALL PANEL up and onto the FLOOR PANEL. Align the
guide and guide inserts on the FRONT WALL PANEL and the LEFT SIDE
WALL PANEL (or RIGHT SIDE WALL PANEL as the order of installing the
side wall panels is not important). Once aligned, lift the LEFT SIDE WALL
PANEL up and onto the FRONT WALL PANEL. Pull down on the LEFT
SIDE WALL PANEL to make sure it is snug and locked into place. Make
sure the top of the two wall panels are flush with each other. Do the same
for the RIGHT SIDE WALL PANEL (or LEFT SIDE WALL PANEL depending
on which side you installed first). (see Figure 9) Please note that the black
protection corners used to protect the corners of the glass door can be
removed and discarded.
Figure 9
D. Installing the REAR WALL PANELS
Remove any protection paper/tape from the external buckles. Place the
RIGHT REAR WALL PANEL up and onto the FLOOR PANEL. Next, attach
the RIGHT REAR WALL PANEL to the RIGHT SIDE WALL PANEL using the
buckles to latch together. Now you can place the LEFT REAR WALL PANEL
up and onto the FLOOR PANEL. Attach both sides of the LEFT REAR
WALL PANEL to the LEFT SIDE WALL PANEL and RIGHT REAR WALL
PANEL. (see Figure 10 and Figure 11)

14
Figure 10 Figure 11
E. Installing the BENCH HEAT EMITTER PANELs and BENCH
1. Slide down the longer of the two BENCH EMITTER PANELs by lining
up its sides with the vertical guides on the RIGHT SIDE WALL PANEL
and LEFT REAR WALL PANEL. Make sure it slides all the way down.
Next, do the same with the short of the BENCH EMITTER PANEL.
Feed the heater cord of the shorter BENCH EMITTER PANEL through
the hole in the longer BENCH EMITTER PANEL and connect it into the
rear wall outlet. Also, connect the heater cord of the longer BENCH
EMITTER PANEL into the rear wall outlet. Then connect the heater
cord coming out of the FLOOR PANEL into the rear wall outlet. Please
note that you will have one extra outlet that will not be used on your
model sauna. (see Figure 12)
Figure 12
2. Now you can install the BENCHES by sliding them over the horizontal
bench guides on the rear wall panels. Make sure to install the
BENCHES with the smooth and finished sides facing up. First, install the
longer of the two BENCHES. Slide it in at an angle as seen in Figure 13.

15
Once the longer BENCH is installed, you can install the shorter BENCH.
Make sure both BENCHES fit snug up against the rear wall panels. (see
Figure 13)
Figure 13
F. Installing the ROOF PANEL
1. The side of the ROOF PANEL with the power supply (control box) is the
top of the roof panel.
2. The edge nearest the power supply is typically towards the front of the
ROOF PANEL. Be careful of the wires coming from the SIDE and REAR
WALL PANELS when you set the ROOF PANEL down onto the panels.
Feed the wires through the holes in the ROOF PANEL. Feed the control
cable and buzzer plug up through the ROOF PANEL.
3. Be careful not to force the ROOF PANEL into place. Make sure that the
wires are properly fed through the holes. Furthermore, make sure the
ROOF PANEL sits snugly onto all of the wall panels. Pull down on the
ROOF PANEL slightly to make sure it is secured in place. (see Figure
14)
Figure 14

16
G. Connecting the plugs on the ROOF PANEL
1. Connect the plugs according to their respective labels. (see Figure 15)
2. Connect the CTRL plug from the power supply box to the CTRL plug
from the control panel. Then screw together. (see Figure 16)
3. Connect the buzzer connection. (see Figure 17)
Figure 15 Figure 16 Figure 17
H. Assembling the RADIO BOX
1. Locate the wood sides for the Radio Housing Box. There is one for
the front, side, and bottom. (see Figure 18)
2. Attach “A” on side panel with “A” on bottom panel and insert screws.
3. Attach “B” on front with “B” on side panel and “C” on front panel with “C”
on bottom panel and insert screws.
4. Screw the Radio Housing Box to the REAR PANELS. The back opening
(the larger opening) on the Radio Housing Box will face the RIGHT
REAR PANEL. The front opening (the small opening and where the
CD/radio is inserted) on the Radio Housing Box will face the LEFT SIDE
PANEL.
Figure 18

17
I. Installing the RADIO (radio model subject to change)
1. Locate the RADIO and remove it from any packaging. (see Figure 19)
2. Connect the plug from the RADIO with the plug coming down from the roof
and the left/right speaker plugs. (see Figure 20)
3. Connect the antenna plug to the RADIO. (see Figure 21)
4. Insert the RADIO into the RADIO BOX. It is not necessary to mount the
RADIO once you slide it into the RADIO WOOD BOX because the radio
will just sit in place. (see Figure 22 and Figure 23)
Figure 19
Figure 20
Figure 21 Figure 22
Figure 23

18
J. Installing the TEMPERATURE SENSOR and optional accessories
(varies by model)
Enter the sauna and remove the protective covering (masking tape) from the
TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it
is vertical and pointing downward. (see Figure 24)
Figure 24
Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in
case the TEMPERATURE SENSOR is damaged during transit. The manufacturer
decides this according to sauna models and packaging.
K. Putting on the ROOF COVER
Place the ROOF COVER over the top of the sauna. Be cautious when
pulling the power cord through the hole in the roof cover. Gently place the
ROOF COVER onto the ROOF PANEL. When the edges are aligned, screw
the ROOF COVER to the roof panel. (see Figure 25)
Figure 25
ASSEMBLY COMPLETE!

19
Operating the Sauna
Control Panel
Power On/Off: Press to control the main power of the sauna
Power Indicator: Indicates the status of the sauna’s main power
Work Start/Stop: Press to control the working functions of the
sauna
Work Indicator: Indicates the working status of the sauna
Heat Indicator: Indicates the status of heating function
Light: Press to control the lighting function
Time Display: Displays the heating time of the sauna in minutes
Time: Press to adjust the setting of the timer
Temperature Display: Displays the actual interior temperature of
the sauna room in
0
C/
0
F
Temperature: Press to adjust the temperature setting
0C/0F: Press to change the temperature display between 0
C/
0
F
1. Plug the sauna into the wall outlet.
2. Press the POWER button once. The POWER light will come on, the TIME DISPLAY
will show 90 (minutes), the TEMPERATURE DISPLAY will show 1510F / 660C, and
the control panel will flash.
3. Press the up/down arrows under the TIME DISPLAY to adjust the amount of time you
want the sauna to remain on. Press the C/F button to choose between Celsius and
Fahrenheit. Press the up/down arrows under the TEMPERATURE DISPLAY to adjust
the temperature setting. Once you have set these adjustments to the desired settings,
press the START/WORK button. If you do not press the button for 5 seconds, the
control panel will stop flashing and the set-up values will be memorized. The WORK
and HEAT lights will now be on and the emitters will now be generating heat. You can
either pre-heat the sauna to the set temperature before entering or sit inside the sauna
as the temperature rises to the set temperature. Please keep in mind that you will
increase the time it takes for the sauna to reach the set temperature if you enter the
sauna room before it has reached the set temperature.
4. During your sauna session, set-up time will count down the minutes one by one. You
can use the up/down arrows to adjust the time. If you do choose to adjust the time,
the control panel will flash and the emitters will stop generating heat. Once you set the
time to the desired setting, then press the START/WORK button twice and the control
panel will stop flashing and heat will began coming from the emitters once again.
5. Heating times do vary. Generally, it will take approximately twenty to thirty minutes to
preheat the sauna to the average used temperature range of approximately 118
degrees Fahrenheit / 48 degrees Celsius. When the ambient temperature is low,
heating requires additional time. For the first few times of use, you may use 115

20
degrees Fahrenheit / 46 degrees Celsius as a reference starting point for a time period
of about 20 to 30 minutes (this represents the actual time you are in the sauna at the
desired temperature). As you become more comfortable and familiar with the sauna,
you can increase the temperature and time period according to your personal
preference.
6. When the temperature is at the set-up value, the digital control will maintain the set
temperature. The WORK light will remain on and the HEAT light will turn off. The
emitters will stop generating heat. Once the inside temperature drops approximately 4
degrees Fahrenheit, the HEAT light will turn back on and heat will again be generated
by the emitters. With the digital control, the inside temperature will always remain
around the set-up value.
7. Reading lamps and/or roof lamps and/or color therapy lamps are operated by pressing
the respective buttons located towards the center of the control panel. These lamps
are offered on some models and are not available on all models.
8. Color Lighting can be operated as follows: First, you will need to install the battery.
Once the battery has been inserted into the remote, you are ready to operate the color
therapy lighting system . Press the READING LIGHT button on the sauna control
panel. The white light will come on. While pointing the remote at the ceiling light, you
can press any of the colors on the remote and that color will be displayed. You can
use the SHADE button on the remote to go through a sequence of colors. If you want
to turn the light off during your sauna session, you can press the POWER button on
the remote. Please note: You must be inside the sauna room for the remote to
work.
Please note that the lights and music will remain ON for approximately 15 minutes
when the time on the control panel has timed out.
9. Bluetooth can be used on the sauna room. You first will need to pair your device with
the sauna room. Open your device’s Settings Menu and then locate and open
Bluetooth. You will find “iSauna” or “BT100” or “Bluetooth”. Now you can pair your
device. Once pairing is successful, your device will be connected. Please note that
you must unpair/disconnect from Bluetooth if your sauna model has the optional MP3
Jack at the ceiling and you choose to use the Aux Wire to connect to the speaker
