Goldendesigns Gdi-b002-01 User manual

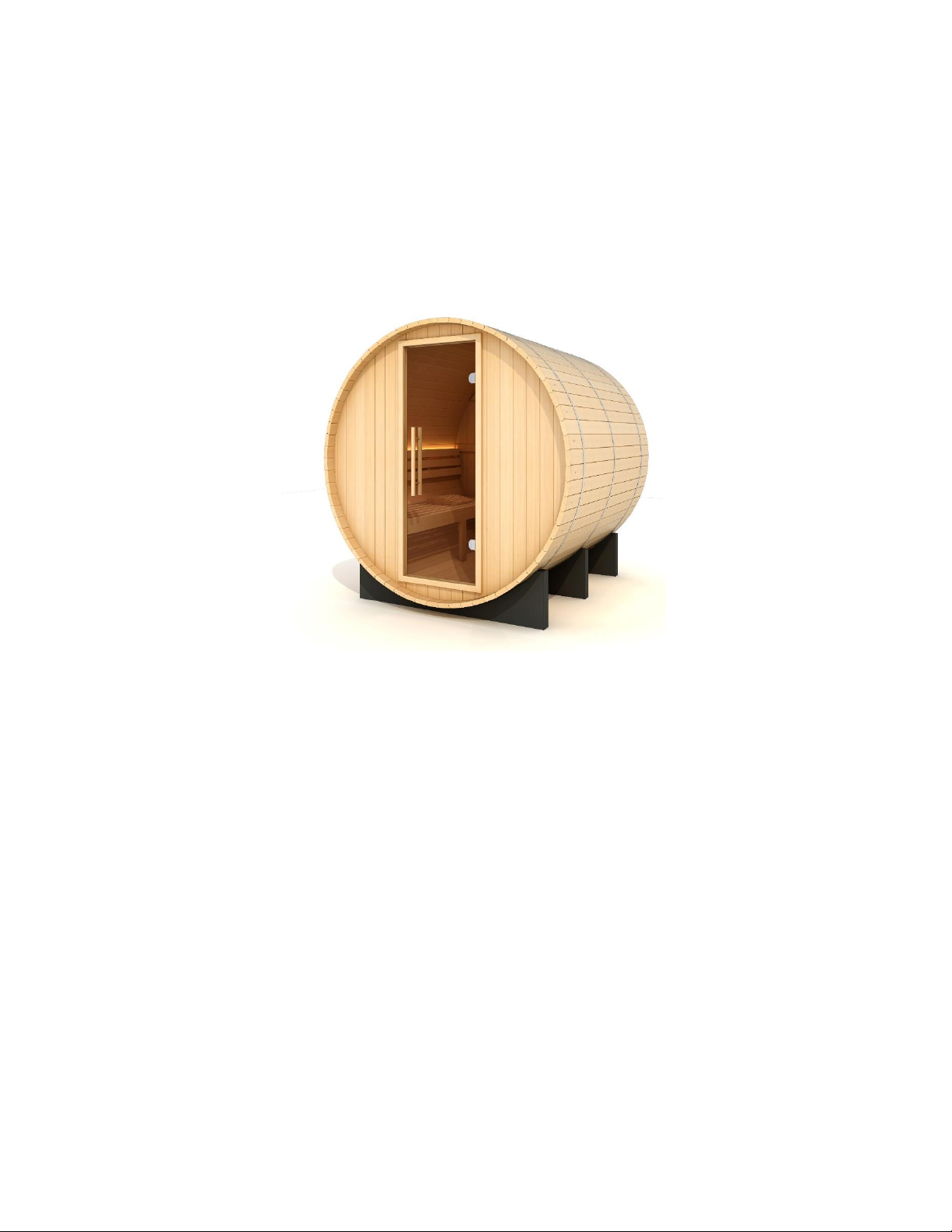

Red Cedar Barrel Sauna

2, 4, & 6 Person Models

GDI-B002-01/GDI-B004-01/GDI-B006-01

OWNER’S MANUAL

FOR BARREL MODEL SAUNAS

REQUIRES 120VAC 15 AMP CIRCUIT (FOR THE LIGHTING)

Carefully and thoroughly read this Owner’s Manual before using/operating the

sauna. We recommend keeping this Owner’s Manual for regular review and future

reference. Follow your local codes and ordinances. The stove heater power

requirements do vary among manufacturer. The stove heater must be installed by

a certified licensed electrician per the manufacturer’s manual. The stove heater

must be installed per the electrical code in your area with reference to the breaker

and wire sizes. Models are subject to change.

Thankyouforyourpurchase. As you remove the parts from the boxes, be sure to examine

them for damages. If your unit has any damages or missing parts, please contact Golden

Designs Inc. See the Warranty section for more information.

A Certified Licensed Electrician will be needed to install the electrical wiring. Due to the

heat of the sauna, it is required that copper wire with 90oCelsius rating be used.

Aluminum wiring cannot be used in this application. Consult with your electrician

regarding the electrical requirements in your area. All wiring must be in accordance with

all national, state, and local codes and regulations. Your electrician will supply the

needed wiring and connections.

Excluding models specifically designed to be placed directly in the outdoor weather

elements, your sauna can be placed either indoors or outdoors. Sauna models without a

specific outdoor roofing cannot be placed directly in the weather elements. These

models, if placed outdoors, can be placed under a covered structural such as a patio.

The barrel sauna models can be placed in the outdoors. Before assembling, make sure

the surface in which the sauna will be placed on is level/dry and can support the weight of

the sauna and its occupants. We recommend a concrete base or wood deck to support

the sauna. If you will be placing the sauna directly on the ground, you must use such

materials as concrete cinder blocks or other similar supporting structure to prevent the

sauna from settling into the ground over time.

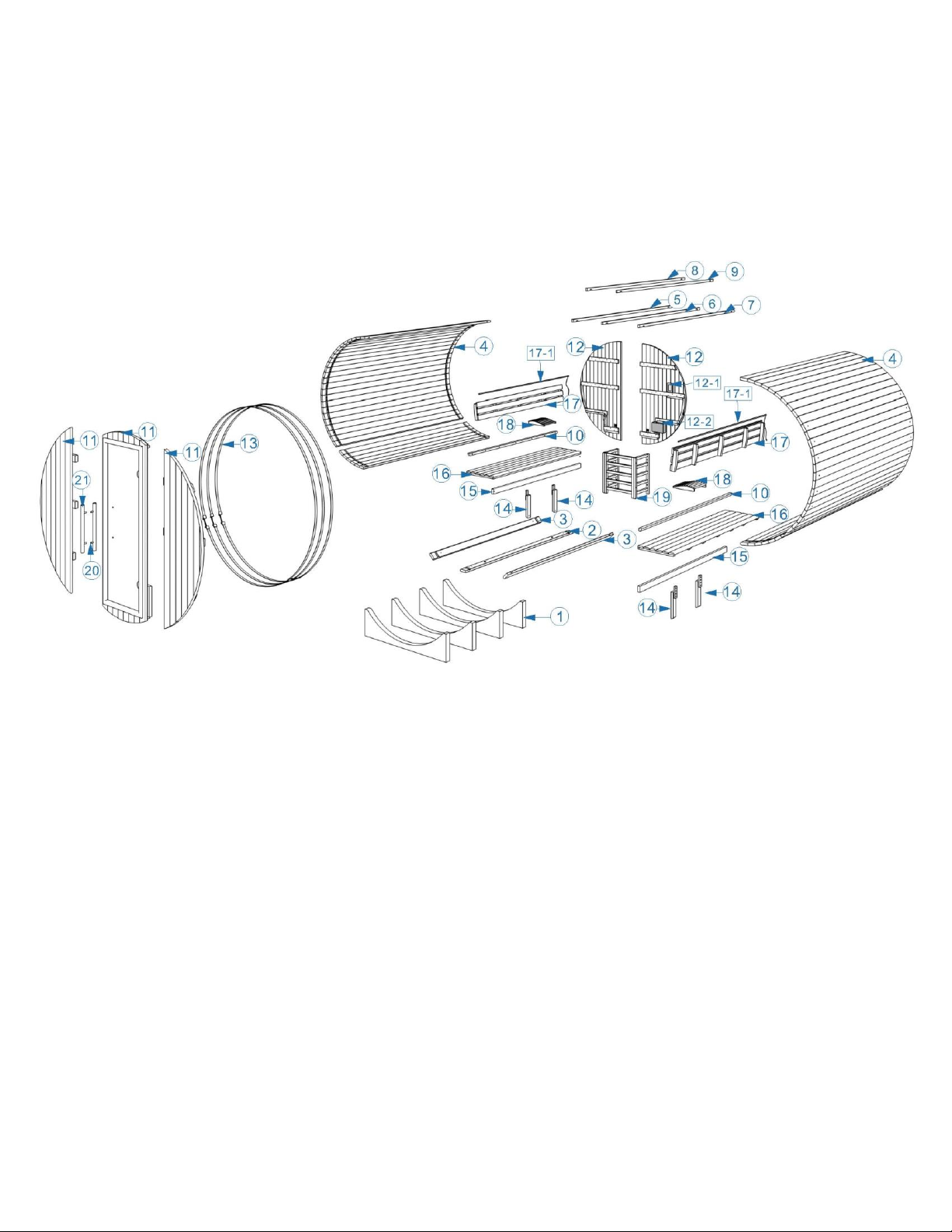

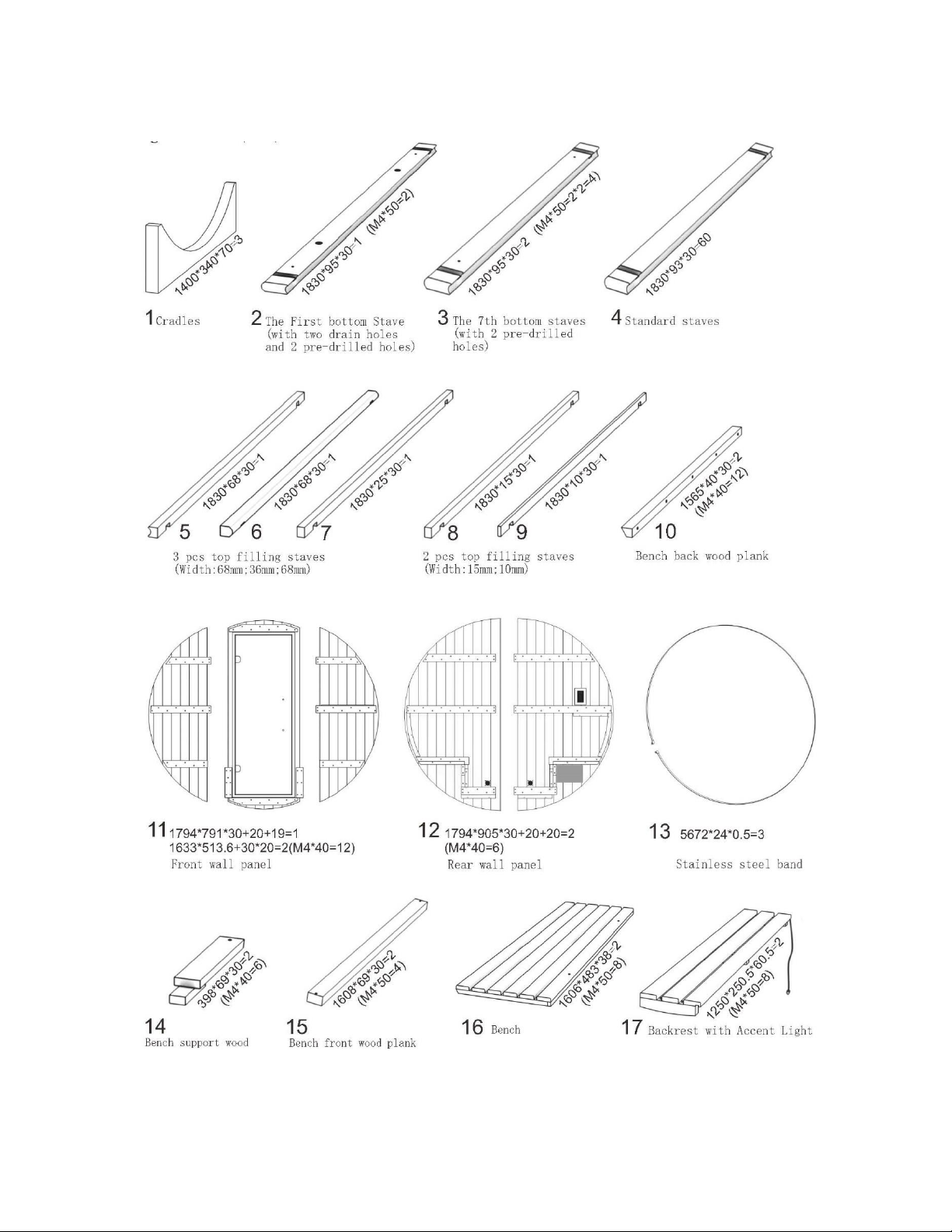

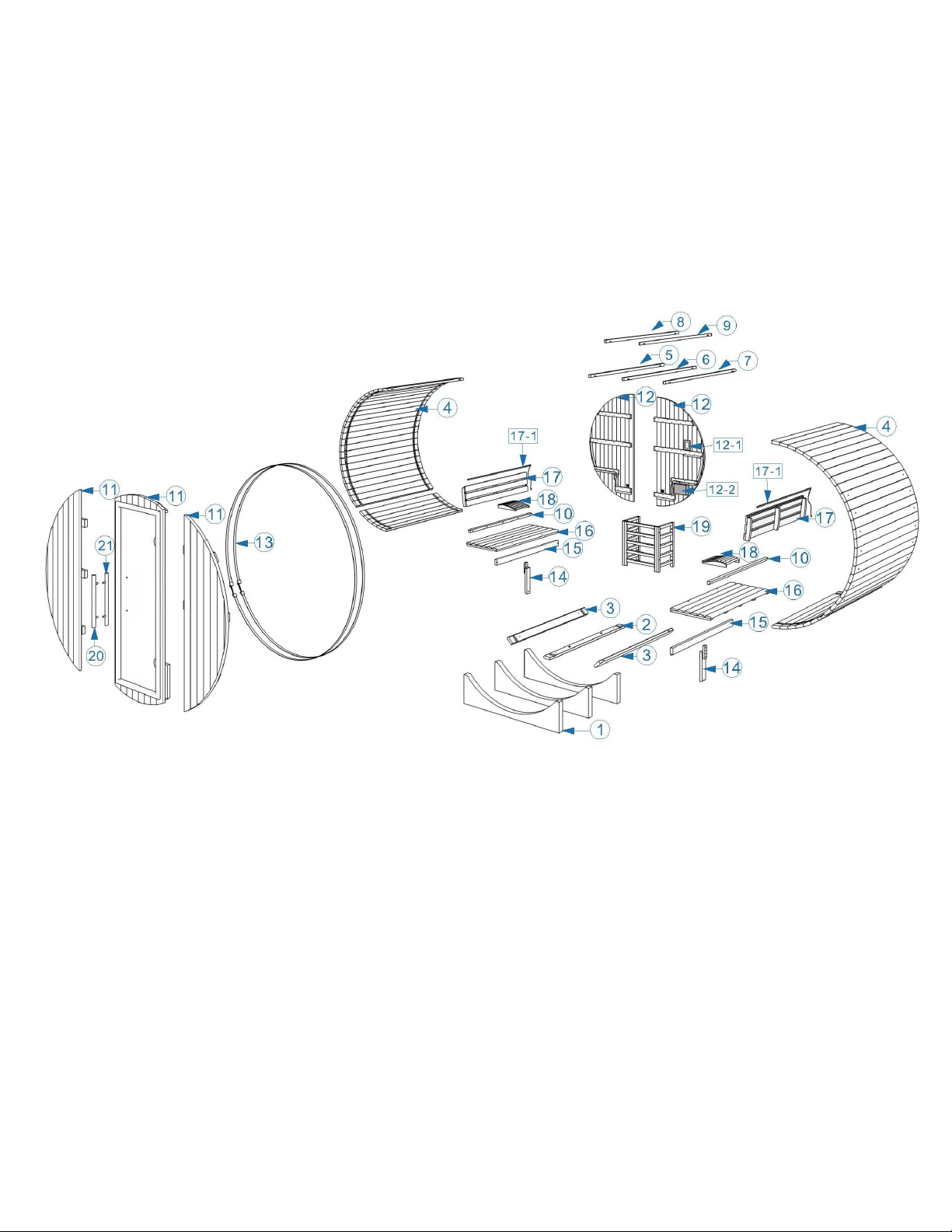

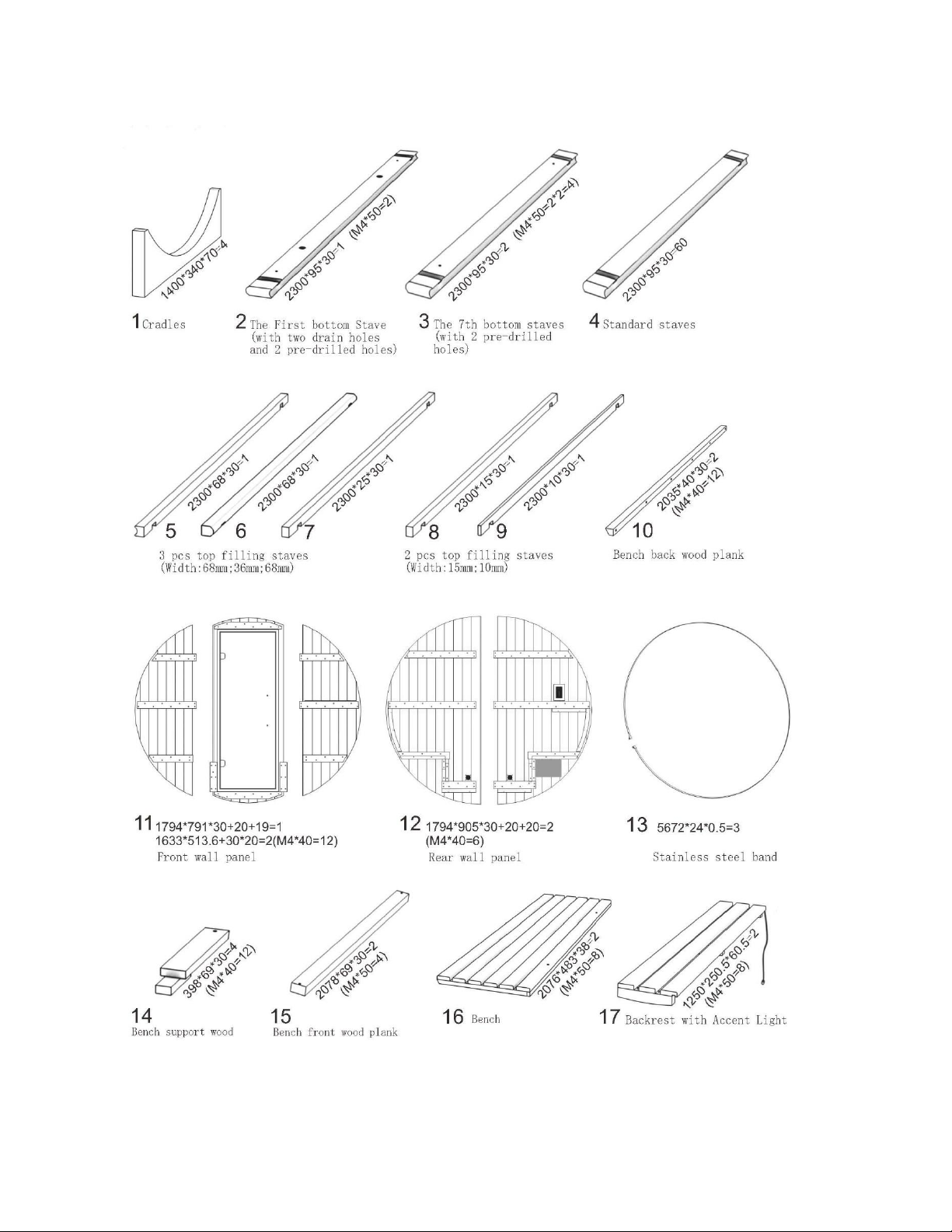

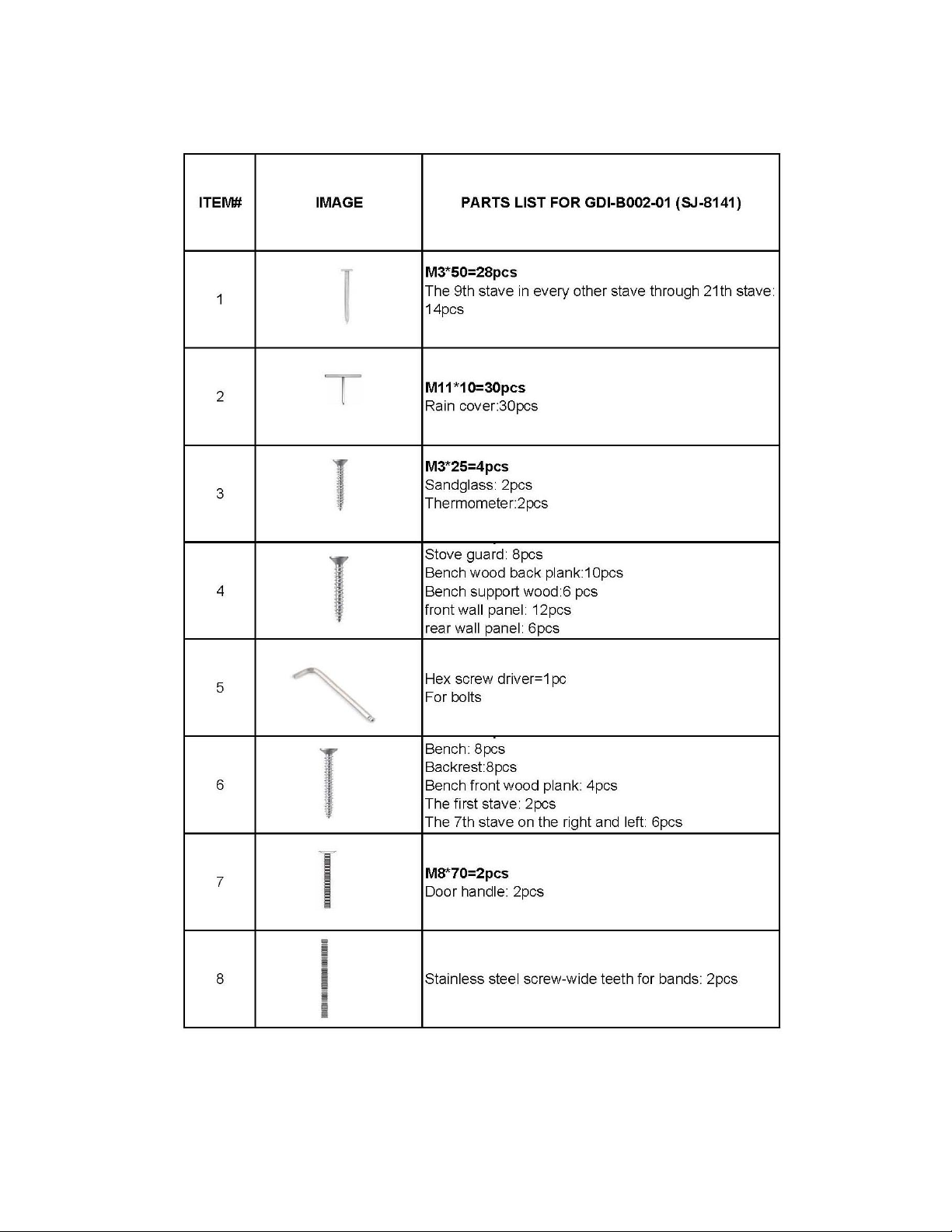

Once you have removed the parts from the boxes, you will want to take a look at the

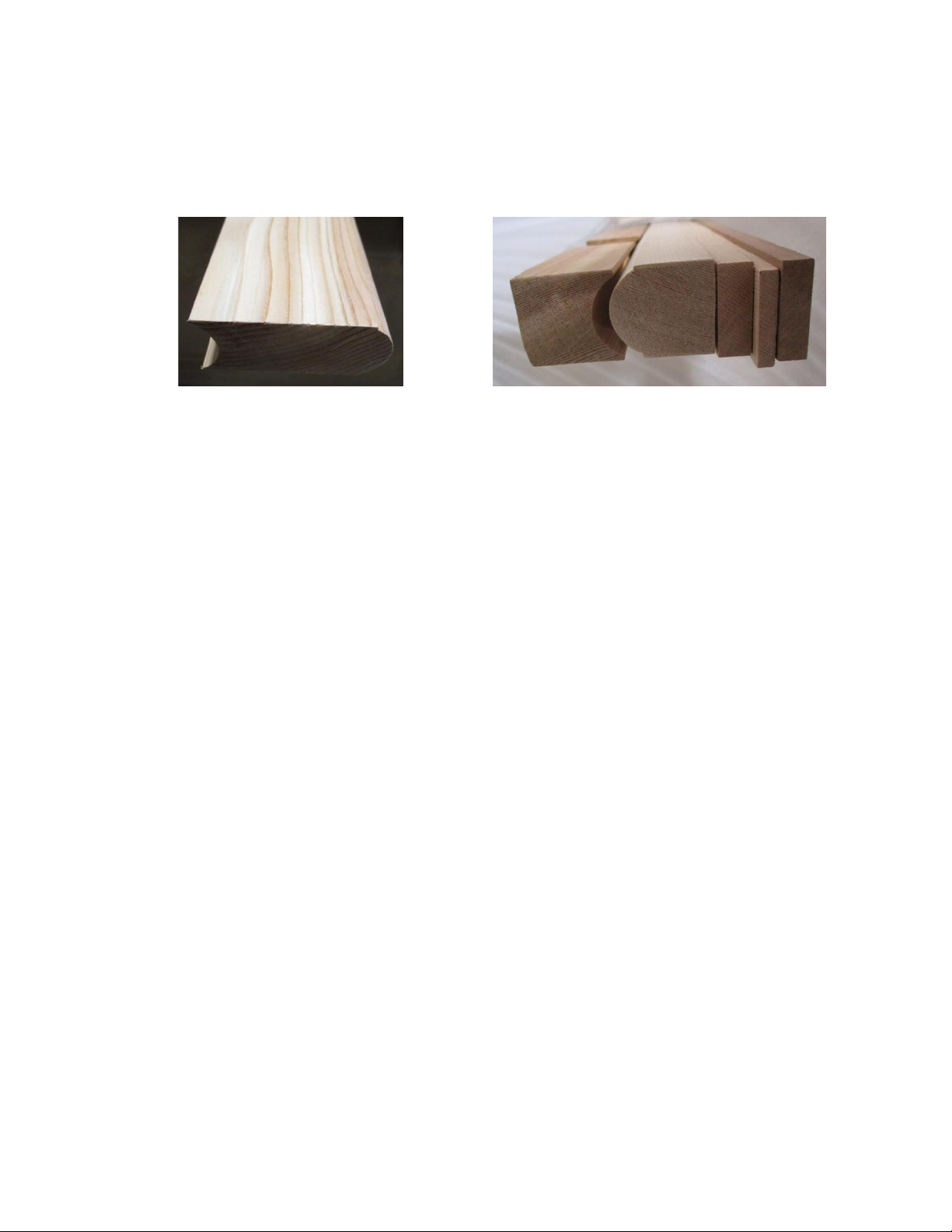

parts for identification. For the barrel saunas, you will want to carefully inspect the staves

for placement. We do use a higher grade of wood, but wood is still a natural resource

and you may find blemishes or knots. You will want to use the less attractive staves on

the floor instead of higher up on the walls.

For sauna models specifically designed to be outdoors, the wood can withstand the

weather elements with proper maintenance. The outdoor model saunas were designed

to be placed in the rain and sun. Please note that the natural weathering elements will

change the color of the wood over time. For barrel saunas and other sauna models

placed directly in the weather elements, you will have some water seepage, especially at

the top and sides due to the porous characteristics of the wood and how the staves and

wood planks fit together. The water seepage will not damage the sauna and usually dries

quickly when the sauna is in operation.

FOLLOW ALL INSTRUCTIONS AND BE CAUTIOUS OF SAFETY SYMBOLS. All electrical

wiring must be performed by a qualified licensed electrician. While the barrel sauna comes in

different sizes and features, the information within this manual is applicable to each.

High Voltage Symbol: Be cautious as there is the presence of a high voltage current that flows

through the equipment!

General Caution Symbol: Be cautious as the equipment uses electrical current that can

cause serious injury.

1. Please read this Owner’s Manual thoroughly before use. This will allow the user to

become familiar with the operation of the control system. Please keep the Owner’s

Manual available for future reference. If any technical assistance or repairing is

needed, please contact the manufacturer.

2. The sauna can be installed outdoors. Please note that water will seep between the

staves due to the porous nature of the wood. When not in use and placed outdoors, a

rain cover is recommended to cover the sauna room if your model does not come with

an actual outdoor roof. Please note that water seepage will not hurt the wood and will

usually dry quickly due to the heated environment. If you want to keep the sauna

completely dry, you will need to install the sauna under a covered structure.

3. To reduce the risk of electric shock and/or fire, do not expose the control system to

direct water contact or rain. Do not open the cover to the control system as there are

high tension fittings that can be dangerous. Only dealer authorized qualified

technicians should make any needed or necessary repairs at any time.

4. Any repairs, alterations, or modifications to the control system are not authorized

unless by an approved repair technician. Any non-authorized repairs, alterations, or

modifications can lead to serious injuries and can cause the unit to work outside its

intended specifications parameters.

5. Any non-authorized repairs, alterations, or modifications will void the warranty.

6. Before connecting the unit to a power source, please make sure that all wires, cords,

and connections are connected properly. If there are any concerns, please consult

with a certified electrician.

7. Make sure that the sauna is placed in a well-ventilated area. It should not be place in

an area with other thermal-radiating objects. Make sure that the vents will not be

obstructed for proper air flow.

8. When the equipment is not going to be used for an extended period of time, you can

shut the main power source to the sauna or turn OFF the dedicated circuit breaker.

9. Allow 30 seconds between turning the control system “On” and “Off”. By allowing 30

seconds between powering the control system “On” and “Off” will prolong the life of

the unit.

10.Confirm that you adhere to the correct power requirements of the control system.

Connecting the control system to other than the required voltage can damage the

control system and possibly cause serious injury. It is very important that the load

parameters are consistent with that needed by the control system. Always consult

with a certified electrician.

11. Red Cedar Wood and its rich aroma can cause an extremely small percentage

of the population to have an adverse reaction known as Multiple Chemical Sensitivity

(MCS). While this is not a universally recognized disorder in the medical field, certain

consumers have an adverse physical reaction to low levels of many common

chemicals and cannot tolerate any aromatic oils, shampoos with perfumes infused or

certain herbs with natural aromas. However, for the majority of the population,

Canadian Red Cedar is the sauna wood of choice.

12. Children must use the sauna under the care of adults and only after consulting with a

medical doctor. Never play in or around the sauna. Never put animals into the

sauna room.

13. The power cord and plug must be located out of the reach of children and away from

any water source. Please consult with a certified electrician for safety concerns.

14. Never insert body parts or any other objects into the heater. Never put any foreign

objects on or in the heater. Please follow the heater instructions and safety

precautions.

15. Never use or store flammable liquids/gases near or inside the sauna.

16. Never store items or objects on top of the sauna.

17. Never use the sauna or heater if the power cord is damaged. Contact Customer

Service immediately and do not use the sauna.

18. Never touch the heater parts or any electrical parts with wet hands.

19. Never use the sauna in a weather storm.

20. Make sure that the barrel sauna sits on a level surface and the surface can support

the weight of the sauna (when filled with users) which can exceed 1000 lbs. A

concrete slab, concrete pavers, gravel, cinder blocks, or solid wood deck is always

best for outdoor installations. In addition, be sure that the support cradles rest on

cinder blocks or other structures so as to prevent sinking/settling into the ground.

21. Never complete unauthorized repairs on the sauna or the heater.

22. For every (4) hours of use, the sauna should be shut down for (1) hour to prevent

overheating and premature deterioration of the equipment.

23. Never use the sauna in combination with alcohol, medication, or drugs.

24. Pregnant women should never use the sauna. Women should also not use the

sauna during their menstrual cycle.

25. If you have any medical condition, you must consult with your medical doctor before

using the sauna.

26. Be cautious not to over extend yourself after an intense exercise workout by using

the sauna. You can let the body cool down for 10 - 20 minutes before entering the

sauna. Do not spend more than 40 minutes in the sauna at any one time.

27. Prolonged exposure to high temperatures can cause burns. Stop using the sauna

immediately if you experience overheating, dizziness, weakness, sleepiness, or

fainting.

28. Consult with your medical doctor before using the sauna if you suffer from diabetes,

blood circulation disease, blood pressure issues, heart disease, or obesity.

29. Watch your head when enter and exiting the sauna.

30. Never clean the sauna with chemical-based cleaners or detergents. You can clean

the sauna with any non-toxic, water based cleaner.

31. Make sure the vents are always unobstructed.

32. Being that the sauna will operate in different climates (some areas are colder than

others), it is not recommended to use the traditional sauna above 190 degrees

Fahrenheit / 88 degrees Celsius.

33. To avoid a hazard, do clean the sauna floor of all perspiration and debris after each

sauna session.

READ ALL INSTRUCTIONS THOROUGHLY BEFORE

ASSEMBLY.

TABLE OF CONTENTS

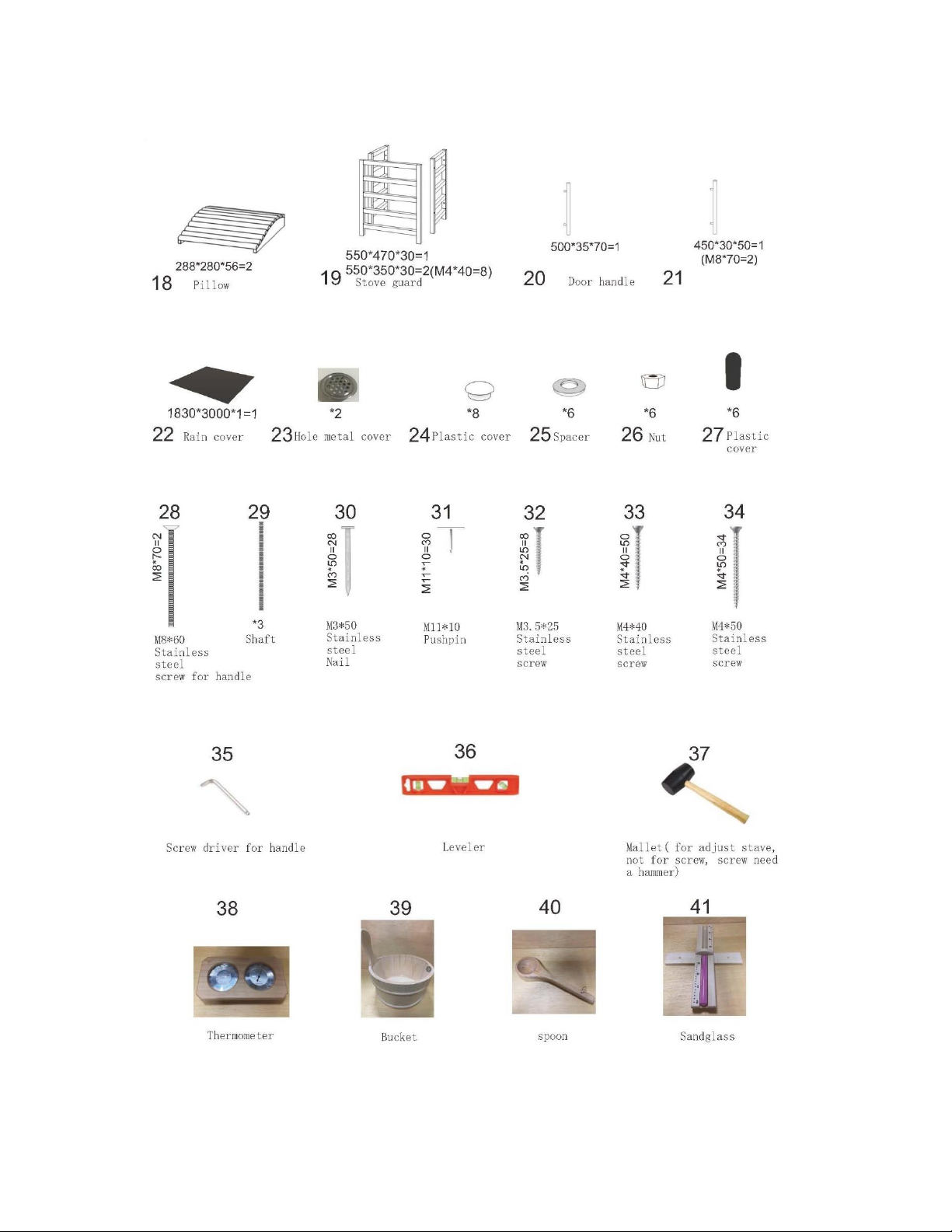

Components 7

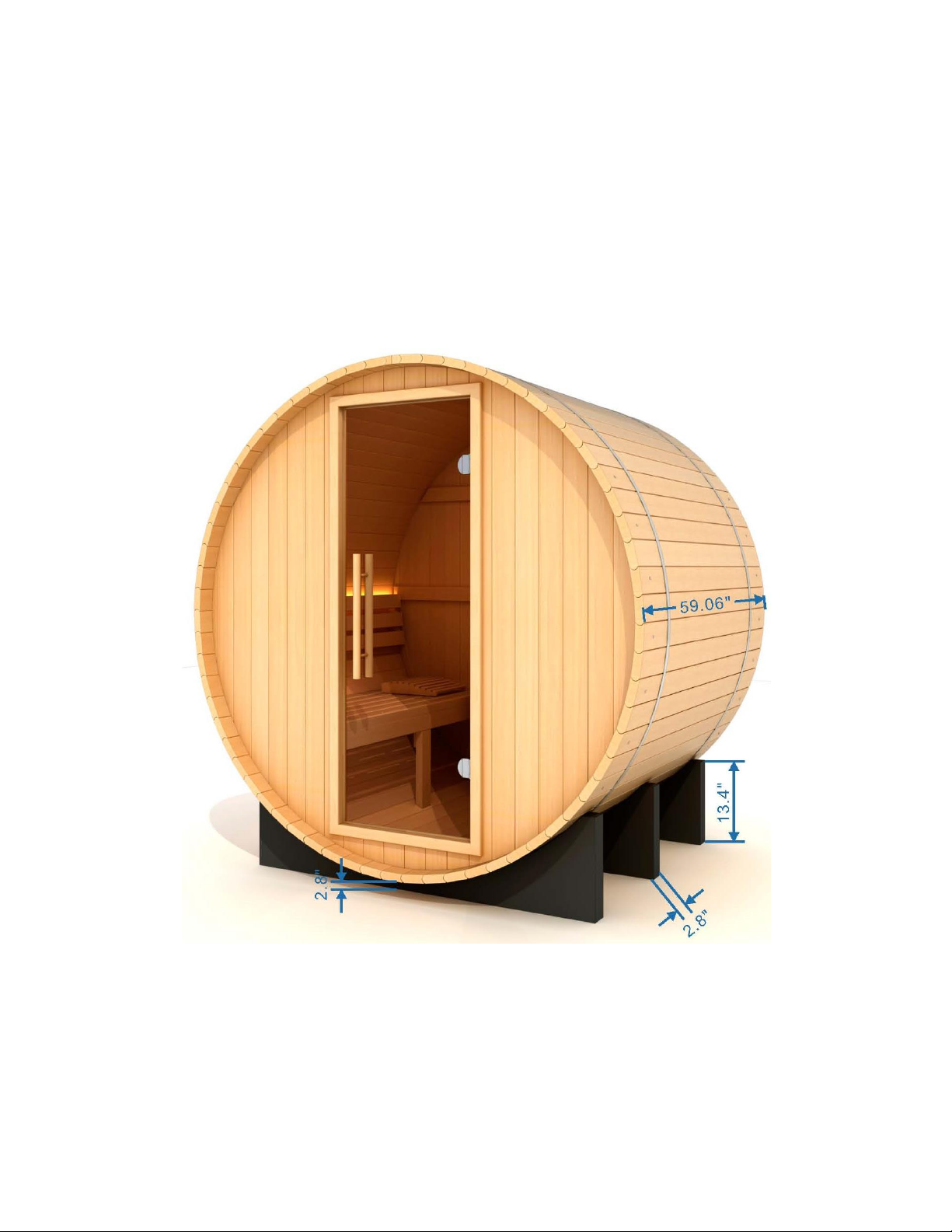

Basic Dimensions 20

Assembly Instructions 23

Using the Barrel Sauna 37

Tips for Using Your Sauna 41

Safety Instructions 41

Safeguards for Your Sauna 43

Troubleshooting 44

Warranty 45

Warranty Card 47

WARNING: Visually inspect all heaters before assembly to make sure they are

not damaged. Any excessive vibrations during transport could cause damage

to the heating elements. DO NOT START the sauna if damage is detected!

Contact your dealer or manufacturer for troubleshooting and replacement

parts. The wood is naturally resistant to the weather elements, but the

weathering elements can affect the wood over time.

PLEASE NOTE: The pictures and diagrams shown within this owner’s manual are

representations of this model. Actual models may vary. Design and construction

are subject to change. If installed outdoors and over time, water may seep

between the gaps of the construction. This would be considered normal. When

not in use and placed outdoors, a water proof cover is recommended to cover the

sauna room.

CAUTION: Exit sauna immediately if you feel dizzy, sleepy, or

any discomfort.
