GoldenDesigns Nebula User manual

GDI-8010-01 / GDI-8020-01 / GDI-8030-01 /
GDI-8040-01 / GDI-8530-01
1-2, 2, 3, & 4 Person Saunas
OWNER’S MANUAL
FOR CARBON MODEL SAUNAS
INDOOR USE ONLY
120VAC 15 AMP DEDICATED CIRCUIT (GDI-8010-01 / GDI-8020-01)
120VAC 20 AMP DEDICATED CIRCUIT (GDI-8030-01 / GDI-8040-01 / GDI-8530-01)
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.

*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY*

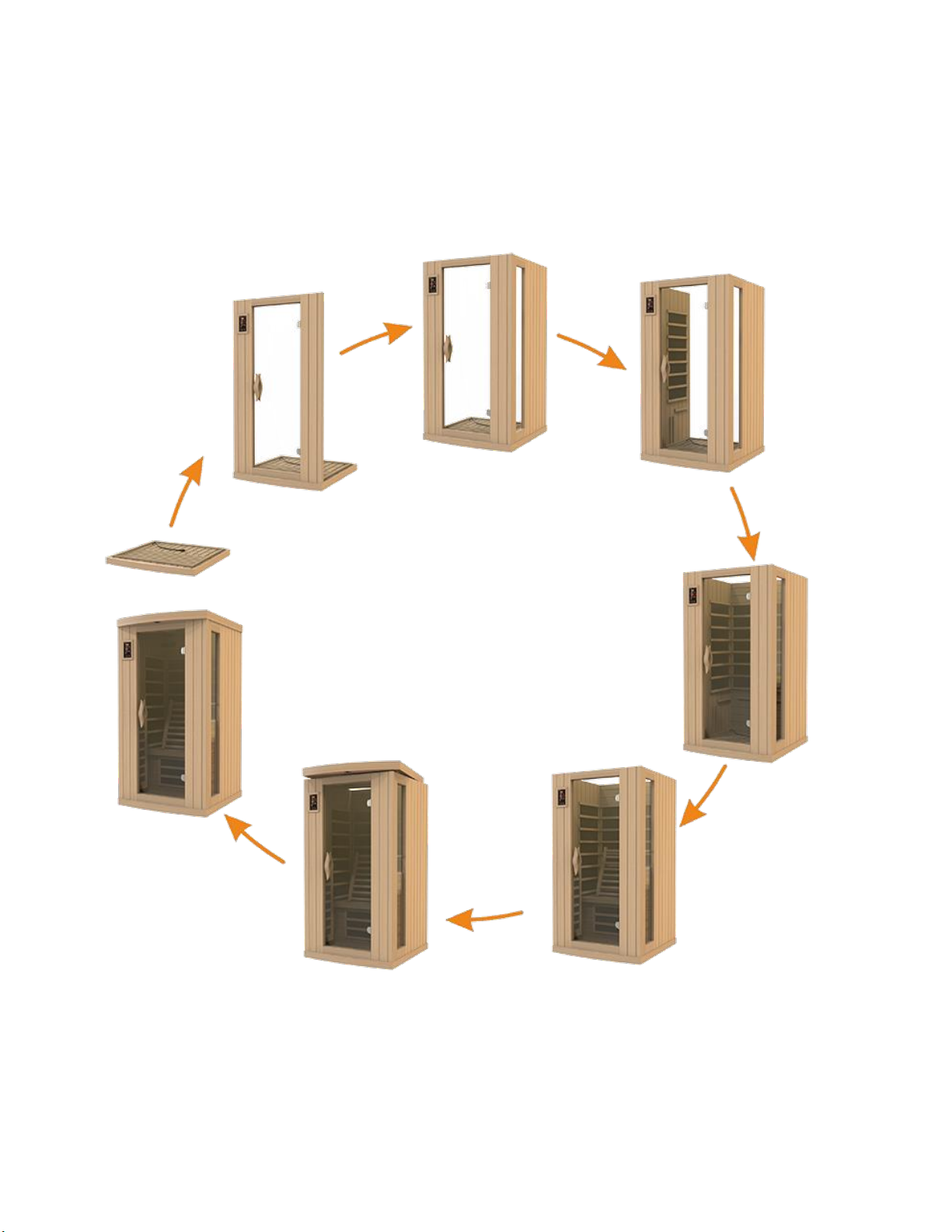

GDI-8010-01
*The above assembly diagram i s for a quick reference visual guide only. All
sauna models are not shown. Parts and accessories may vary and are
subject to change. Near Infrared Heaters and backrests are sold separately.
Use of the optional NEAR Infrared Heaters will increase the EMF.

*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY*
GDI-8020-01
*The above assembly diagram i s for a quick reference visual guide only. All
sauna models are not shown. Parts and accessories may vary and are
subject to change. Near Infrared Heaters and backrests are sold separately.
Use of the optional NEAR Infrared Heaters will increase the EMF.

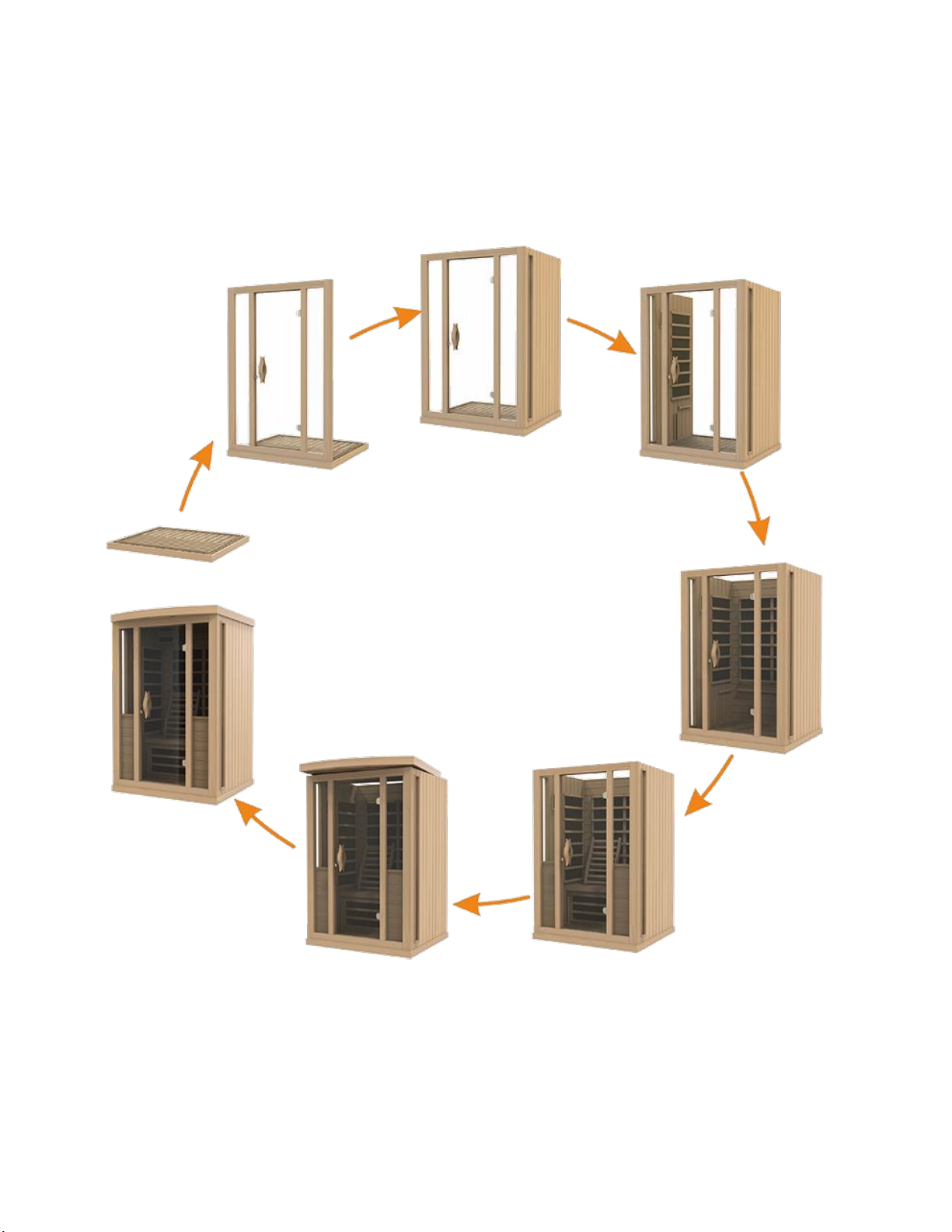

*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY*
GDI-8030-01
*The above assembly diagram i s for a quick
reference visual guide only. All
sauna models are not shown. Parts and accessories may vary and are subject
to change. Near Infrared Heaters and backrests are sold separately.
Use of the optional NEAR Infrared Heaters will increase the EMF.

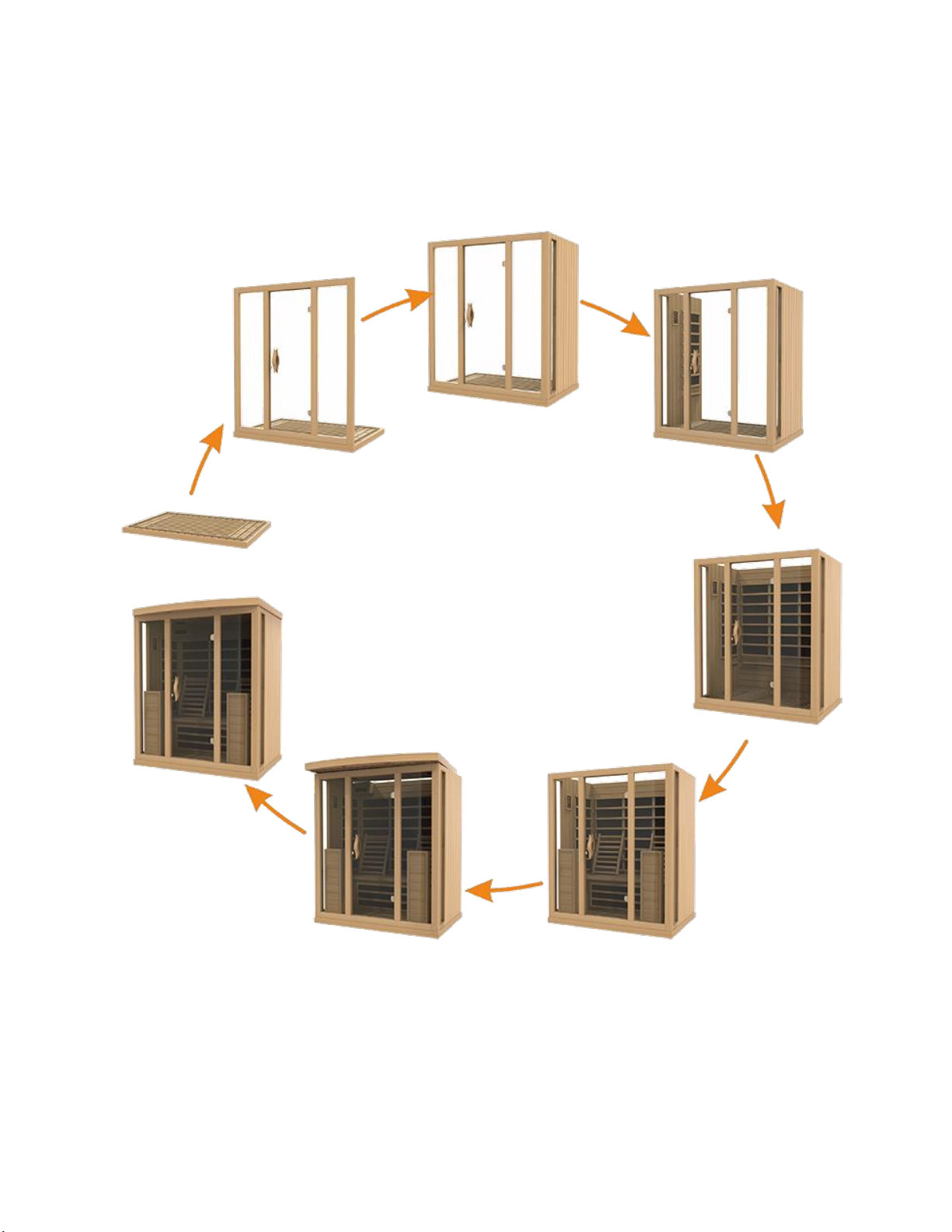

*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY*
GDI-8040-01
*The above assembly diagram i s for a quick
reference visual guide only. All
sauna models are not shown. Parts and accessories may vary and are subject
to change. Near Infrared Heaters and backrests are sold separately.
Use of the optional NEAR Infrared Heaters will increase the EMF.

*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY*
GDI-8530-01
*The above assembly diagram i s for a quick
reference visual guide only. All
sauna models are not shown. Parts and accessories may vary and are subject
to change. Near Infrared Heaters and backrests are sold separately.
Use of the optional NEAR Infrared Heaters will increase the EMF.

WHAT ARE INFRARED RAYS?
Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can
feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of
the spectrum. Infrared rays heat your body without having to heat the air in-between. This process is called
conversion.
The infrared is divided into 3 segments by wavelengths measured in microns: near infrared: 0.76-1.5 microns;
middle infrared: 1.5-5.6 microns; and far infrared: 5.6-1000 microns. Among these segments, only far infrared
penetrates organic substances such as the human body two to three inches so that the warming effect is very
uniform.
ARE INFRARED RAYS SAFE?
Because infrared rays are part of sunlight, they are not only safe but also highly beneficial to our bodies on a
cellular level. Health professionals have used infrared heat lamps for decades to treat muscle and joint
problems. In hospital baby care units, incubators are often equipped with infrared heating systems to keep
newborn babies warm.
WHAT IS AN ELECTROMAGNETIC FIELD (also known as EMF)?
An Electromagnetic Field is a physical field produced by electrically charged objects. It is one of the
fundamental forces of nature. The field can be viewed as the combination of an electric field and a magnetic
field. The electric field is produced by stationary charges and the magnetic field by moving charges referred
to as currents. Although all of our sauna products have been developed to have low EMF, this specific
model uses our advance carbon panel technology which significantly reduces the amount of EMF exposure
resulting in ultra-low EMF or less than 3 milligauss (mG).

8

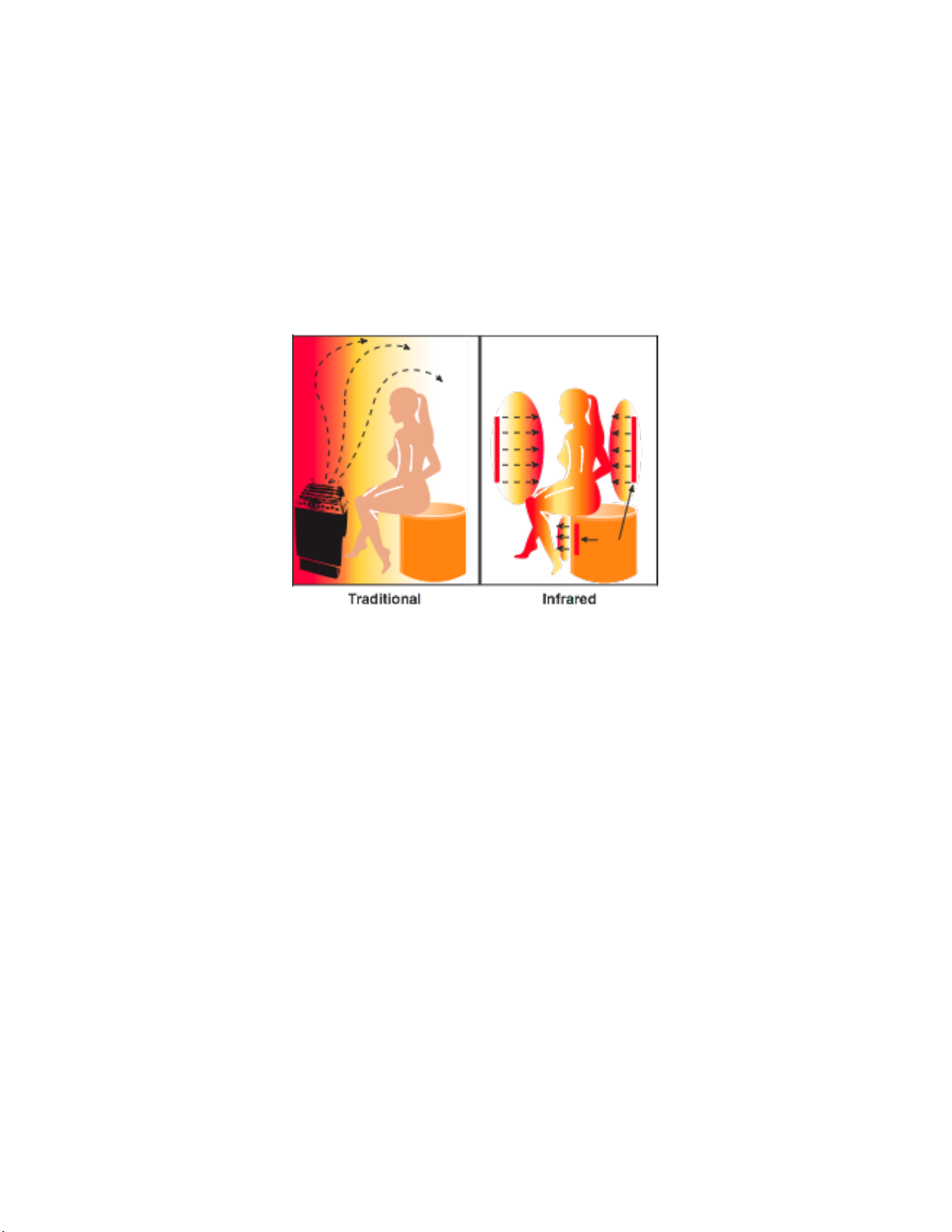

HOW IT WORKS
Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into
the body's tissue to produce perspiration.
Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to
perspire. In order for this to be effective, temperatures would need to reach in the upwards of 190 degrees
Fahrenheit. Infrared saunas only need a temperature of up to 120 degrees Fahrenheit to obtain the same
effect. This lower temperature makes the environment more tolerable and allows you to breathe easier.
BENEFITS
Because infrared rays penetrate the body through conversion, there is a deep heating effect in both the muscle
tissues and internal organs without putting too much burden on the heart.
Our body reacts to the increased heating through the natural cooling process of perspiring. Through the
perspiration process, acid and waste residue like toxins, sodium, alcohol, nicotine, cholesterol and the
potentially carcinogenic heavy metals are removed from the cells (especially zinc, lead, nickel, cadmium,
etc). The pores of our skin open and discharge waste products shedding any old skin cells leaving the skin
glowing and clean, with improved tone, elasticity, texture, and color.
Over the last 25 years, Japanese and Chinese researchers and clinicians have completed extensive research
on infrared treatments and have reported many provocative findings. In Japan, there is an "infrared society"
composed of medical doctors and physical therapists dedicated to furthering infrared research. Their findings
support the health benefits of infrared therapy as a method of healing.

9
Benefits include, but are not limited to:
- Pain relief from Rheumatoid Arthritis
- Relaxing muscle spasms
- Increases blood circulation
- Cardiovascular conditioning
- Clears rashes, acne
- Reduces cellulite
- Removes toxins and mineral waste
- Reduces stress and fatigue
- Enhances skin tone
SAUNA MAINTENANCE
Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little
maintenance. You can simply wipe it down with water and a soft clean cloth. Do not use any cleaning
chemicals as they can be absorbed into the wood and be released into your sauna during use.
DISCLAIMER
The infrared rays emitted by your sauna are reported to offer a wide range of possible therapeutic benefits
based on research completed over the last 25 years from all around the world. These benefits are presented
for reference purposes only and no implication of infrared saunas creating a cure for or treating any disease is
implied nor should it be inferred. If you have a health condition, are taking prescription drugs, or have acute
joint injuries, please consult your physician before starting infrared therapy. Persons with surgical implants
(metal pins and rods, artificial joints, silicone, or other types of surgical implants) typically do not experience
any adverse effects, but should also consult their physician or surgeon before starting infrared therapy.
CAUTION: Exit sauna immediately if you feel dizzy,
sleepy, or any discomfort.

10
TABLE OF CONTENTS
Product Introduction 10
Parts Description 11
Assembly Instructions 19
Operating the Sauna 25
Tips for Using Your Sauna 29
Safety Instructions 29
Safeguards for Your Sauna 30
Troubleshooting Guide 31
Warranty 32
Warranty Card 35
WARNING: Visually inspect all heaters before assembly to make sure they are not
damaged. Any excessive vibrations during transport could cause damage to the
heating elements. DO NOT START the sauna if damage is detected! Contact your
dealer or manufacturer for troubleshooting and replacement parts.
1. Product Introduction
The infrared sauna room is composed of a wood cabin, infrared heat emitters, and a control system. The
wood cabin includes a FLOOR PANEL, RIGHT SIDE WALL PANEL, FRONT PANEL with GLASS DOOR,
LEFT SIDE WALL PANEL, REAR WALL PANEL, ROOF PANEL, BENCH HEAT EMITTER PANEL, and
BENCH. The infrared sauna comes with an interior control panel, drink shelf (optional), reading lamp, MP3
AUX Input jack, speakers, and infrared heat emitters.
NOTE: The pictures and diagrams shown within this owner’s manual are representations of this model.
Actual model may vary. Design and Construction are subject to change.

11

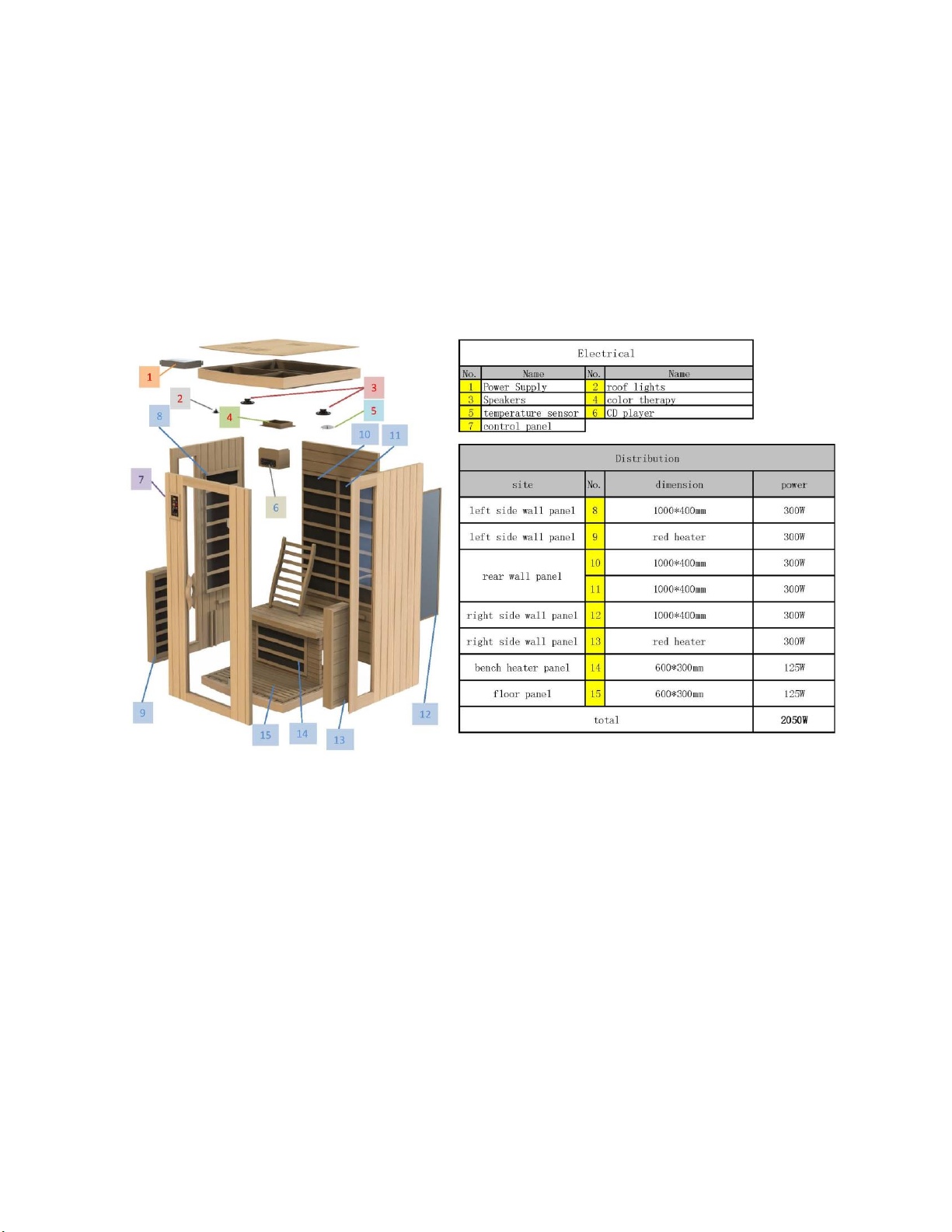

PARTS DESCRIPTION
GDI-8010-01
NOTE: The pictures and diagrams shown within this owner’s manual are representations of this model.
Actual model may vary. Design and Construction are subject to change. Backrests are sold
separately.

12
PARTS DESCRIPTION
GDI-8020-01
NOTE: The pictures and diagrams shown within this owner’s manual are representations of this model.
Actual model may vary. Design and Construction are subject to change. Backrests are sold
separately.

13

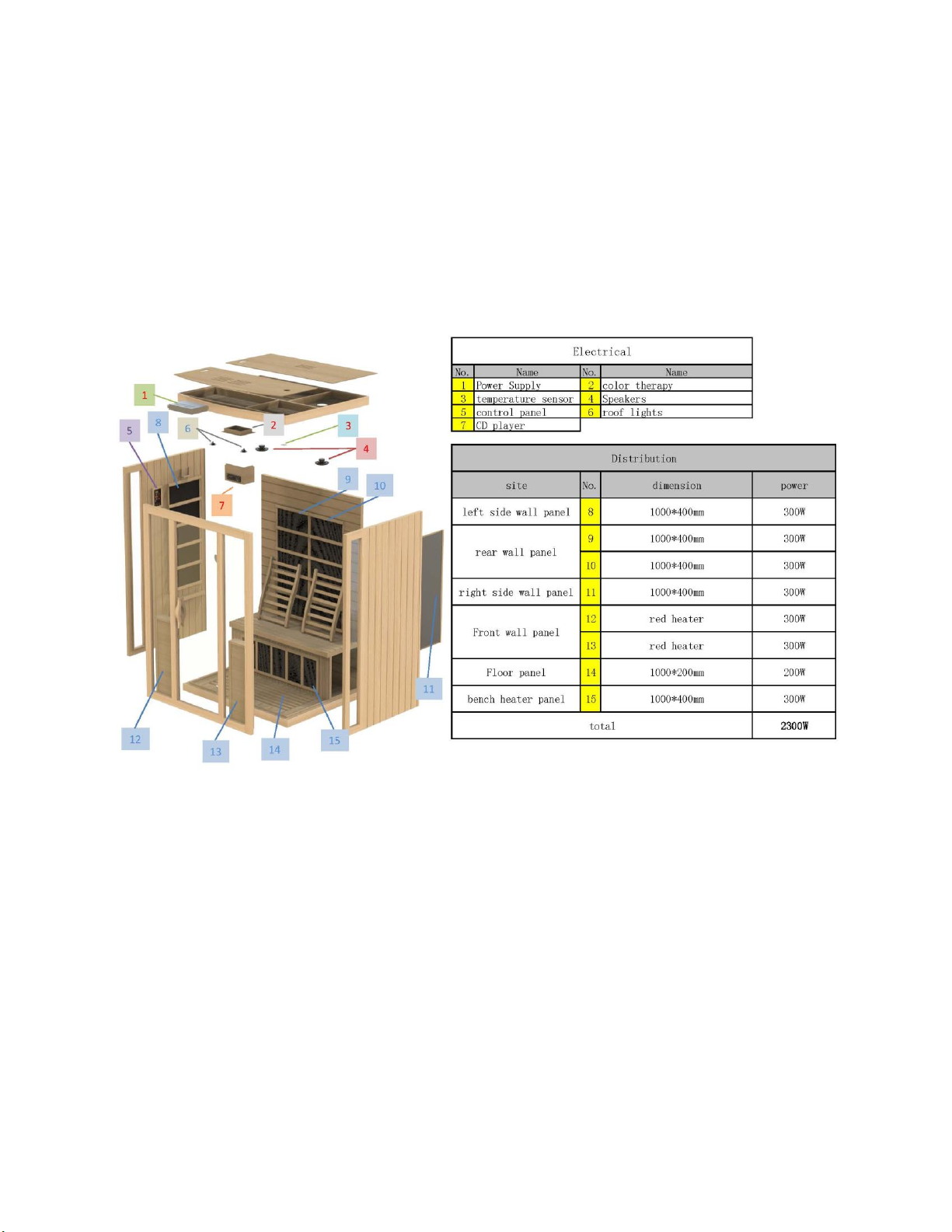

PARTS DESCRIPTION
GDI-8030-01
NOTE: The pictures and diagrams shown within this owner’s manual are representations of this model.
Actual model may vary. Design and Construction are subject to change. Backrests are sold
separately.

14
PARTS DESCRIPTION
GDI-8040-01
NOTE: The pictures and diagrams shown within this owner’s manual are representations of this model.
Actual model may vary. Design and Construction are subject to change. Backrests are sold
separately.

15
PARTS DESCRIPTION
GDI-8530-01
NOTE: The pictures and diagrams shown within this owner’s manual are representations of this model.
Actual model may vary. Design and Construction are subject to change. Backrests are sold
separately.

16

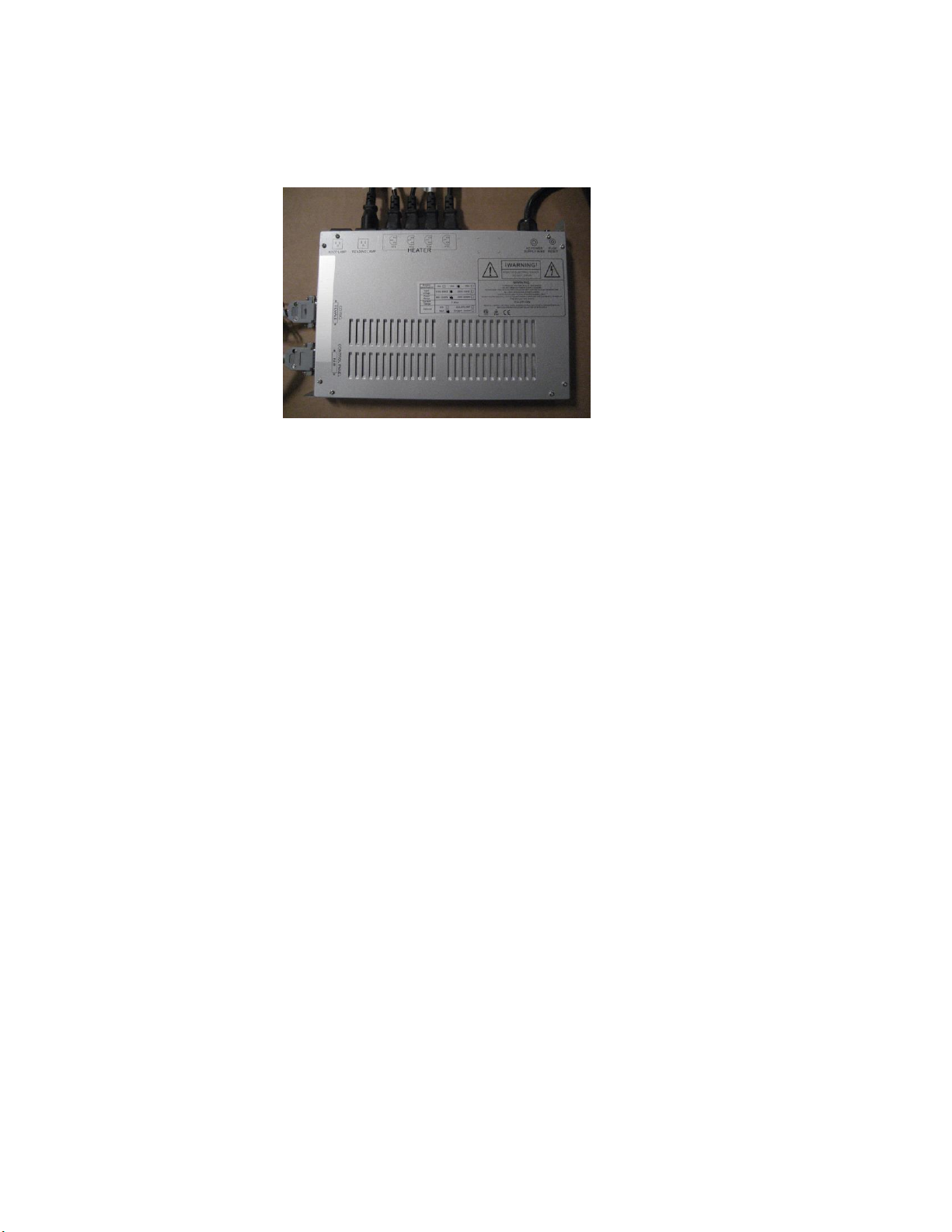

I. Power Supply (Control Box)
The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and
has input/outputs connected to it as seen below. (see Figure 1)
Figure 1
MAIN POWER main power of the sauna room
HT1, HT2, HT3, HT4 emitter power output cords
LIGHT reading lamp power output cord
ROOF LAMP roof lamp power output cord (optional)
CTRL control panel connection
CD/SIG signal cable group
II. Component Labeling
POWER Power Cord
HT1, HT2, HT3, HT4 Emitter (heater) power cords
LIGHT Reading lamp connector
ROOF LAMP Roof lamp connector (not available on all models)
COLOR LAMP Color lamp connector (not available on all models)
CTRL Control panel connector
CD/SIG For speakers/temperature sensor/buzzer/etc. connectors
CD-POWER CD/radio power connector (not available on all models)
FAN-POWER CD/radio fan power connector (not available on all models)
ANALOG AUDIO Audio frequency signal connector
L/SPEAKER Left speaker connector
R/SPEAKER Right speaker connector
BUZZER Buzzer connector
TEMP SENSOR Temperature sensor

17

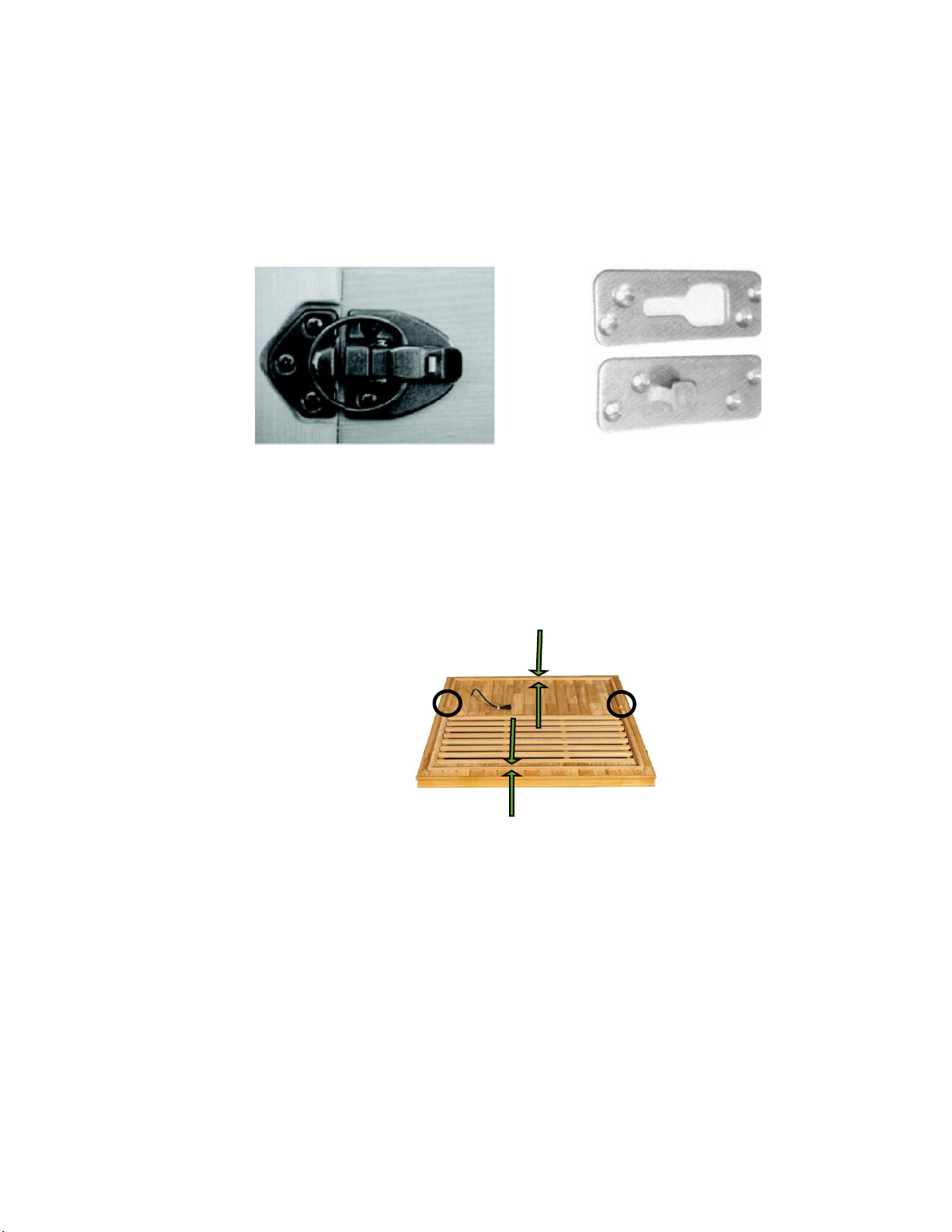

III. Buckles
A. External Buckles
The external buckles are used to connect the REAR WALL PANEL to the LEFT SIDE WALL
PANEL and RIGHT SIDE WALL PANEL. The Metal Guide Insert Brackets connect the FRONT
WALL PANEL to the LEFT SIDE WALL PANEL and RIGHT SIDE WALL PANEL. (see Figure 2
and 2a)
Figure 2 Figure 2a
B. Wood Guide Inserts on the Floor Panel
The wood guide inserts are located on the FLOOR PANEL and allow the FRONT WALL PANEL
and REAR WALL PANEL to seat snugly into place on the FLOOR PANEL. Please note that 3-
person model saunas will have a notch cutout on the side moldings for the BENCH HEAT
EMITTER PANEL. Side moldings are not apparent on 2-person model saunas. (see Figure 3)
Notch Cutout
Figure 3
IV. Panel Descriptions
For easier installation, please understand and distinguish the differences between each panel.
A. Floor Panel
When you place the FLOOR PANEL at its designated location, leave enough space so that you
are able to move around the FLOOR PANEL in order to install the sauna wall panels. To identify
the front of the FLOOR PANEL, see the diagram below. The black heater cords (not all of the
cords are shown in the image below) coming out of the floor will be towards the rear of the sauna
room. (see Figure 4)

18
Figure 4 Front of Sauna Room Floor Panel with Optional Near Infrared
Heater Outlets
B. Understanding The Wall Panels
The SIDE WALL PANELS will have 1 carbon heat emitter panel on each wall. There will be 2 or 3
carbon heat emitter panels on the REAR WALL PANEL depending on your model sauna. The
REAR WALL PANEL and SIDE WALL PANELS will have heater cords coming from the top of
each wall panel which will be connected on the roof once the ROOF PANEL is placed on top. The
buckles on the REAR WALL PANEL will connect with the SIDE WALL PANELS. The FRONT
WALL PANEL has the front glass door. (see Figure 5 and Figure 6)
Figure 5 Figure 6
C. Roof Panel
The ROOF PANEL houses the power supply, speakers, MP3 AUX jack, and reading lamp.
Once installed, all the wiring harnesses, plugs, and connections will sit on the exterior side of the
roof panel.

19
Assembly Instructions
A. Choose a good location to assemble the sauna
1. The location must be dry, leveled, and away from any source of water
2. MAIN POWER cord must be easily accessible
3. Two adults are required for installation
4. Wood cabin installation order: Floor Panel Front Wall Panel with Glass Door Right Side
Wall Panel Left Side Wall Panel Rear Wall Panel Bench Heat Emitter Panel Bench
Roof Panel Roof Cover
5. Tools Required: Philips Screwdriver and Ladder
PLEASE NOTE THAT SOME MODELS WILL VARY IN ASSEMBLY.
B. Installing the FLOOR PANEL
1. Place the FLOOR PANEL on the floor. Make sure the front side of the FLOOR PANEL is facing
the correct direction. Please note that all of the heater cords coming out of the topside of the
floor panel are not shown in the image below. (see Panel Descriptions) (see Figure 7)
Figure 7
Front of Sauna Room
C. Installing the FRONT WALL PANEL, RIGHT SIDE WALL PANEL, and LEFT SIDE WALL
PANEL
1. Place the FRONT WALL PANEL up onto the FLOOR PANEL. Align the Metal Guide Insert
Brackets on the FRONT WALL PANEL and the LEFT SIDE WALL PANEL. The LEFT SIDE
WALL PANEL will need to be lifted in order to lock the Metal Guide Insert Brackets onto the
FRONT WALL PANEL. Secure into place by pulling downward on the LEFT SIDE WALL
PANEL. Make sure the Metal Guide Insert Brackets are locked into place and the top of the
FRONT WALL PANEL is flush with the LEFT SIDE WALL PANEL. Do the same for the
RIGHT SIDE WALL PANEL. (see Figure 8 and Figure 9)

20
Figure 8 Figure 9
D. Installing the REAR WALL PANEL
1. Remove the protection paper/tape from the buckles on the REAR WALL PANEL if present.
Place the REAR WALL PANEL up onto the FLOOR PANEL. Next, attach the REAR WALL
PANEL to the LEFT SIDE WALL PANEL and use the buckles to latch together. Do the same
for the RIGHT SIDE WALL PANEL. (see Figure 10)
Figure 10
E. Installing the FLOOR HEATER, BENCH HEAT EMITTER PANEL, and BENCH
1. Installing the BENCH HEAT EMITTER PANEL can be a little tricky. You will need to slide the
BENCH HEAT EMITTER PANEL into place at an angle as indicated in the pictures below.
(see Figure 11)
2. Plug in the BENCH HEAT EMITTER, FLOOR HEATER, and NEAR Infrared Heater cords into
the corresponding wall outlets located on the REAR WALL and SIDE WALLS. Please note
that the outlets have the same amount of power and so which ever cord is closest to the outlet
can be plugged into that outlet (as long as each cord reaches the applicable outlet).
3. Install the BENCH at an angle with the smooth and finished side facing upwards as also seen
in Figure 13. Then slide it over the horizontal bench guides on the side panels. Slide the
BENCH all the way in and against the REAR WALL PANEL. If screws were provided, it is
optional to use them to screw down the bench.
