golmar Nexa User manual

23
Este producto es conforme con las disposiciones de las Directivas Europeas
aplicables respecto a la Seguridad Eléctrica y la Compatibilidad2006/95/CEE
Electromagnética , así como con la ampliación en la Directiva del2004/108/CEE
Marcado CE .93/68/CEE
This product meets the essentials requirements of applicable European
Directives regarding Electrical Safety , Electromagnetic Compatibility2006/95/ECC
2004/108/ECC 93/68/ECC, and as amended for CE Marking .
NOTA: El funcionamiento de este equipo está sujeto a las siguientes
condiciones:
(1) Este dispositivo no puede provocar interferencias dañinas, y (2)
debe aceptar cualquier interferencia recibida, incluyendo las que
pueden provocar un funcionamiento no deseado.
NOTE: Operation is subject to the following conditions:
(1) This device may not cause harmful interference, and (2) this device
must accept any received interference, including the ones that may
cause undesired operation.
CONFORMIDAD/COMPLIANCE/CONFORMITÉ
T N 301KIT 4 EN rev.0 14 6
Code 50123637
Installation manual
Nexa
Standalone
keypad
access control
[e-mail]
www.golmar.es
Golmar se reserva el derecho a cualquier modificación sin previo aviso.
Golmar se réserve le droit de toute modification sans préavis.
Golmar reserves the right to make any modifications without prior notice.
GOLMAR S.A.
C/ Silici, 13
08940- Cornellá de Llobregat
SPAIN

1
INTRODUCTION
STARTING RECOMMENDATIONS
OThe fitting and handling of this equipment must be carried out by .authorised personnel
OAlways before making modifications to the equipment.disconnect the power supply
ODo not overtighten the screws on the transformer terminal block.
OThe wiring must run at least away from any .40 cm other wiring
OBefore connecting the equipment, check the wiring of the access control module and transformer(s).
OAlways follow the instructions contained in this manual.
INDEX
First of all we would like to thank you and congratulate you for purchasing this product manufactured by
Golmar.
Our commitment to satisfying our customers can be seen from our ISO-9001 certification and from the
manufacturing of products like this one.
Its advanced technology and exacting quality control will ensure that customers and users enjoy the many
features this system offers. To obtain the maximum benefit from these features and a properly wired
installation, we kindly recommend that you spend a few minutes of your time reading this manual.
OStandalone numeric keypad access control module.
OBacklit keypad.
OPower 12Vac or 18-24Vdc.
OCombinable with "Nexa Modular" and "Nexa Stainless Steel Modular panels (see pp. 19-21 for
installation type).
O2 potential-free relay outputs (NO, C, NC) and digital panic output (to alarm centre) with 999
activation codes.
O4, 5 or 6 digit programmable codes.
OPossibility of using the same user code for the different relays and digital panic output.
ORelays 1 and 2 with three potential-free contacts (NO, C, NC), configurable by programming in
stable or impulse mode (maximum load: 18 Vac/1A 18VA or 24Vdc/0.75A 18W).
OImpulse mode activation time programmable from 1 to 99 seconds for each relay and digital panic
output.
OLock activation time programmable from 3 to 15 minutes.
OWrong code lock programmable for 3 to 9 attempts and at a lower interval also programmable from
1 to 15 minutes.
O2 inputs for external relay 1 activation button (PL1) and relay 2 (PL2) “door opening”.
O‘JP1’for tamper alarm activation.jumper
OInternal beeper system (programming, button presses, correct codes, tamper alarm activated, wrong
codes, etc.).
OLEDs on the front to operating status (standby, correct code, wrong code, locked,indicate
programming, etc.).
2SYSTEM CHARACTERISTICS
OInstall or modify the equipment without the power connected.
OThe handling of this equipment must be byinstallation and performed authorised personnel.
ODo not the access control moduleuse excessive force when tightening connector screws.
OThe entire installation must be at least away from any .40 cm other wiring
OIn the power supply unit:
wDo not the .use excessive force when tightening connector screws
wInstall the transformer in a dry and protected .place without risk of drip or water projections
wAvoid to place it near to heating sources, in dusty locations or smoky enviroments.
wDo not block ventilation holes of the unit so that air can circulate freely.
wTo transformer t be firmly .avoid damage, the has o fixed
wTo prevent electric shock, do not remove the protection cover or handle the wiring connected to the terminals.
OAlways follow the instructions contained in this manual.
SAFETY PRECAUTIONS
INSTALLATION WITH 'NEXA M' / 'NEXA I’PANELS
OIf the access control module is to be fitted to a or panel,' ’ ‘ ’Nexa Modular Nexa ModularInox door
follow the mounting instructions contained in the manual supplied with the panel and disregard the
content of pp. 3-4 of this manual. Connect and program the module as described in this manual.

1
INTRODUCTION
STARTING RECOMMENDATIONS
OThe fitting and handling of this equipment must be carried out by .authorised personnel
OAlways before making modifications to the equipment.disconnect the power supply
ODo not overtighten the screws on the transformer terminal block.
OThe wiring must run at least away from any .40 cm other wiring
OBefore connecting the equipment, check the wiring of the access control module and transformer(s).
OAlways follow the instructions contained in this manual.
INDEX
First of all we would like to thank you and congratulate you for purchasing this product manufactured by
Golmar.
Our commitment to satisfying our customers can be seen from our ISO-9001 certification and from the
manufacturing of products like this one.
Its advanced technology and exacting quality control will ensure that customers and users enjoy the many
features this system offers. To obtain the maximum benefit from these features and a properly wired
installation, we kindly recommend that you spend a few minutes of your time reading this manual.
OStandalone numeric keypad access control module.
OBacklit keypad.
OPower 12Vac or 18-24Vdc.
OCombinable with "Nexa Modular" and "Nexa Stainless Steel Modular panels (see pp. 19-21 for
installation type).
O2 potential-free relay outputs (NO, C, NC) and digital panic output (to alarm centre) with 999
activation codes.
O4, 5 or 6 digit programmable codes.
OPossibility of using the same user code for the different relays and digital panic output.
ORelays 1 and 2 with three potential-free contacts (NO, C, NC), configurable by programming in
stable or impulse mode (maximum load: 18 Vac/1A 18VA or 24Vdc/0.75A 18W).
OImpulse mode activation time programmable from 1 to 99 seconds for each relay and digital panic
output.
OLock activation time programmable from 3 to 15 minutes.
OWrong code lock programmable for 3 to 9 attempts and at a lower interval also programmable from
1 to 15 minutes.
O2 inputs for external relay 1 activation button (PL1) and relay 2 (PL2) “door opening”.
O‘JP1’for tamper alarm activation.jumper
OInternal beeper system (programming, button presses, correct codes, tamper alarm activated, wrong
codes, etc.).
OLEDs on the front to operating status (standby, correct code, wrong code, locked,indicate
programming, etc.).
2SYSTEM CHARACTERISTICS
OInstall or modify the equipment without the power connected.
OThe handling of this equipment must be byinstallation and performed authorised personnel.
ODo not the access control moduleuse excessive force when tightening connector screws.
OThe entire installation must be at least away from any .40 cm other wiring
OIn the power supply unit:
wDo not the .use excessive force when tightening connector screws
wInstall the transformer in a dry and protected .place without risk of drip or water projections
wAvoid to place it near to heating sources, in dusty locations or smoky enviroments.
wDo not block ventilation holes of the unit so that air can circulate freely.
wTo transformer t be firmly .avoid damage, the has o fixed
wTo prevent electric shock, do not remove the protection cover or handle the wiring connected to the terminals.
OAlways follow the instructions contained in this manual.
SAFETY PRECAUTIONS
INSTALLATION WITH 'NEXA M' / 'NEXA I’PANELS
OIf the access control module is to be fitted to a or panel,' ’ ‘ ’Nexa Modular Nexa ModularInox door
follow the mounting instructions contained in the manual supplied with the panel and disregard the
content of pp. 3-4 of this manual. Connect and program the module as described in this manual.

34
MODULE INSTALLATION
Installing the TF-104 transformer.
To wall mount the transformer,
position the fastening tabs.
Drill two 6mm diameter holes
and insert the wall plugs.
Fix the transformer with the
specified screws.
The transformer can be mounted onto a DIN rail (3 elements) by applying slight pressure.
To remove the transformer from the rail, use a flat screwdriver and lever it off,
as shown in the drawing.
Install the transformer in a dry and protected .place
Please note that current regulations stipulate
that the transformer must be protected by a thermo-
magnetic bcircuit reaker.
DIN 46277
MODULE INSTALLATION
POWER SUPPLY UNIT INSTALLATION
Embedding box .positioning
1650
1850
1450
Break through the hole to allow the entry of the cable
into the bottom section of the embedding box.
Place the embedding box.
Pass the cable through the hole.
Embed the box and ensure that it is level
and flush.
Once embedded, remove the protective
stickers from the screw holes.
Make a hole in the wall so that the top of the module is located at a height of 1.65m.
Hole dimensions:
Embedding box NCEV-90CS: 99(W) x 13 5(H) x (D) mm.2, 56,5
The module has been designed to withstand all environmental conditions. We do however
recommend taking extra precautions to prolong its life (covered areas , etc.)., rainproof covers

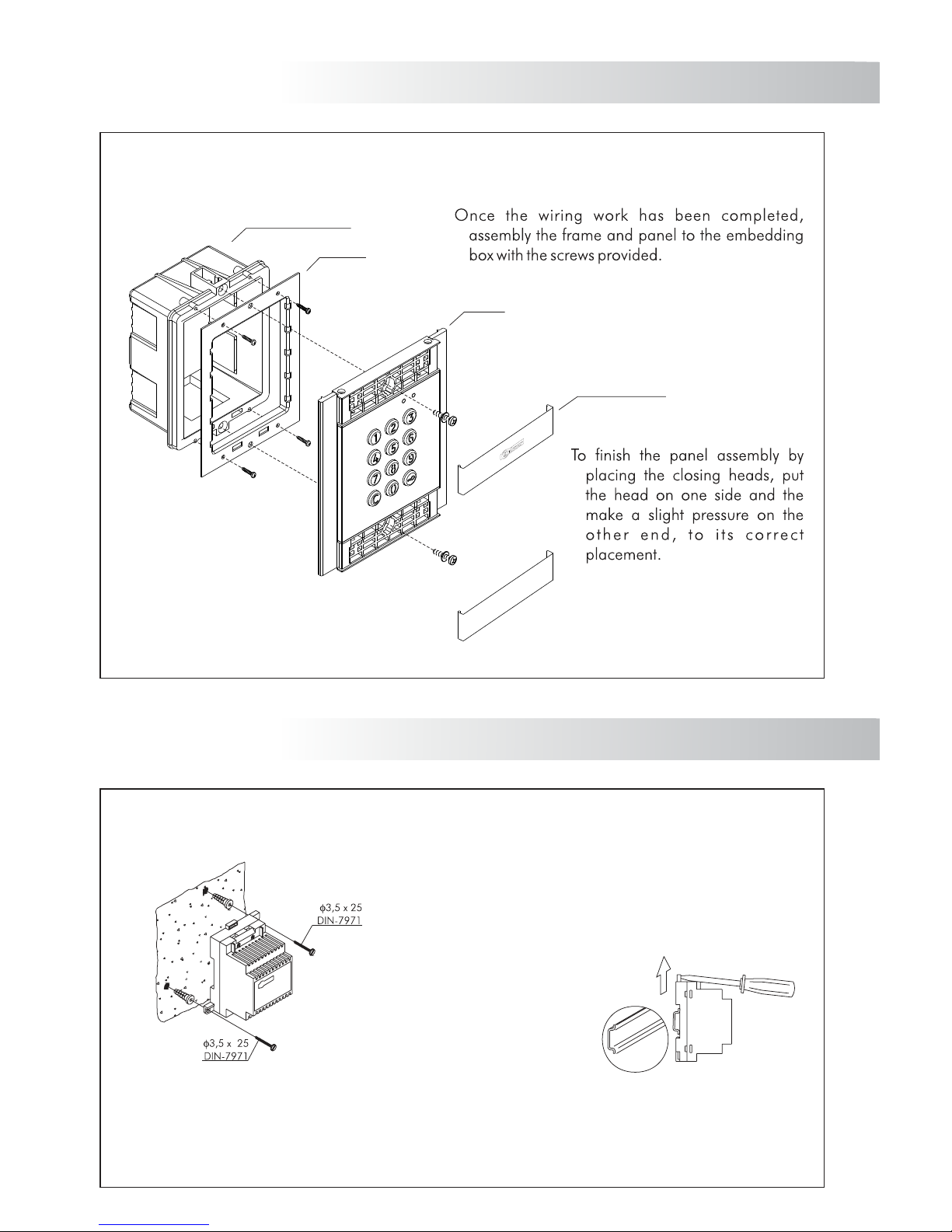

Assembly the frame and closing the panel.
Embedding box
Frame
Panel
Closing heads

34
MODULE INSTALLATION
Installing the TF-104 transformer.
To wall mount the transformer,
position the fastening tabs.
Drill two 6mm diameter holes
and insert the wall plugs.
Fix the transformer with the
specified screws.
The transformer can be mounted onto a DIN rail (3 elements) by applying slight pressure.
To remove the transformer from the rail, use a flat screwdriver and lever it off,
as shown in the drawing.
Install the transformer in a dry and protected .place
Please note that current regulations stipulate
that the transformer must be protected by a thermo-
magnetic bcircuit reaker.
DIN 46277
MODULE INSTALLATION
POWER SUPPLY UNIT INSTALLATION
Embedding box .positioning
1650
1850
1450
Break through the hole to allow the entry of the cable
into the bottom section of the embedding box.
Place the embedding box.
Pass the cable through the hole.
Embed the box and ensure that it is level
and flush.
Once embedded, remove the protective
stickers from the screw holes.
Make a hole in the wall so that the top of the module is located at a height of 1.65m.
Hole dimensions:
Embedding box NCEV-90CS: 99(W) x 13 5(H) x (D) mm.2, 56,5
The module has been designed to withstand all environmental conditions. We do however
recommend taking extra precautions to prolong its life (covered areas , etc.)., rainproof covers
Assembly the frame and closing the panel.
Embedding box
Frame
Panel
Closing heads

56MODULE DESCRIPTION
Self-testing LED description.
The wiring terminals are located at the
back of the module and correspond to
the following connections:
MODULE DESCRIPTION
Module description.
power supply.
normally open output relay 1.
common relay 1.
normally closed output relay 1.
normally open output relay 2.
common relay 2.
normally closed output relay 1.
panic output.
negative.
input for external relay 1 button.push
input for external relay 2 button.push
~, ~ :
NA1 :
C1 :
NC1 :
NA2 :
C2 :
NC2 :
P :
:
PL1 :
PL2 :
_
Tamper alarm mode activated. In this mode, the module’s keypad operation and external
buttons are disabled. The LEDs and the keypad’s backlight are turned off and a constant
audible alarm and the “P”panic output of the open collector (3 seconds every minute) are
activated. Alarm mode ends when the JP1 bridge is replaced.
Normal operation, alarm not activated.
The microswitch is located the left side of the module.SW1 at
JP1
JP1 description.jumper
The , located the right of the terminal block, activatesJP1 jumper at
the tamper alarm.
SW1 microswitch description.
It enables the “special installer”pin code to be reset to the assigned
factory code.
Proceed as follows: Set microswitch no. 1 to ON. The module will emit 2 beeps and the
green LED on the front will light up for 1 second. Then set the microswitch to OFF (the code is
now the one assigned at the factory). If, during this process, the access control module was
locked, the “special unlock”pin code will also be reset to the assigned factory code.
No standalone access control function .( OFF position)placed to
*
( ) Factory setting.
( )
Red Green
The self-testing LEDs are located on the upper right side of the front of the
module.
Locked Quick blink
Correct code On
Wrong code 4 blinksquick
Standby
Normal
Operation
On
Off
On (1 second)
Off
Off
Normal Slow blink Off
Confirm field Slow blink
Confirm sequence Slow blink
Wrong code 4 blinksquick
2 blinksquick
4 blinksquick
Off
Red EDL Green EDL
Programming
mode
Normal
Beep description.
The access control module features an internal beeper for reproducing operation beeps.
Confirm field 2 beepsquick
Confirm sequence 4 beepsquick
Cancel 1 long beep (0.5 sec)
Programming
Operation
5 beepsquick
Error 1 long beep (1 sec)
Key press 1 beepquick
Dura i nt o
Alarm activated 1 constant beep

56MODULE DESCRIPTION
Self-testing LED description.
The wiring terminals are located at the
back of the module and correspond to
the following connections:
MODULE DESCRIPTION
Module description.
power supply.
normally open output relay 1.
common relay 1.
normally closed output relay 1.
normally open output relay 2.
common relay 2.
normally closed output relay 1.
panic output.
negative.
input for external relay 1 button.push
input for external relay 2 button.push
~, ~ :
NA1 :
C1 :
NC1 :
NA2 :
C2 :
NC2 :
P :
:
PL1 :
PL2 :
_
Tamper alarm mode activated. In this mode, the module’s keypad operation and external
buttons are disabled. The LEDs and the keypad’s backlight are turned off and a constant
audible alarm and the “P”panic output of the open collector (3 seconds every minute) are
activated. Alarm mode ends when the JP1 bridge is replaced.
Normal operation, alarm not activated.
The microswitch is located the left side of the module.SW1 at
JP1
JP1 description.jumper
The , located the right of the terminal block, activatesJP1 jumper at
the tamper alarm.
SW1 microswitch description.
It enables the “special installer”pin code to be reset to the assigned
factory code.
Proceed as follows: Set microswitch no. 1 to ON. The module will emit 2 beeps and the
green LED on the front will light up for 1 second. Then set the microswitch to OFF (the code is
now the one assigned at the factory). If, during this process, the access control module was
locked, the “special unlock”pin code will also be reset to the assigned factory code.
No standalone access control function .( OFF position)placed to
*
( ) Factory setting.
( )
Red Green
The self-testing LEDs are located on the upper right side of the front of the
module.
Locked Quick blink
Correct code On
Wrong code 4 blinksquick
Standby
Normal
Operation
On
Off
On (1 second)
Off
Off
Normal Slow blink Off
Confirm field Slow blink
Confirm sequence Slow blink
Wrong code 4 blinksquick
2 blinksquick
4 blinksquick
Off
Red EDL Green EDL
Programming
mode
Normal
Beep description.
The access control module features an internal beeper for reproducing operation beeps.
Confirm field 2 beepsquick
Confirm sequence 4 beepsquick
Cancel 1 long beep (0.5 sec)
Programming
Operation
5 beepsquick
Error 1 long beep (1 sec)
Key press 1 beepquick
Dura i nt o
Alarm activated 1 constant beep

C
78MODULE PROGRAMMING
Programming mode entry and exit.
Programming mode structure and sequence.
MODULE OPERATION
4
0
1 0 03
C C C
2
4
Module in standby mode.
In standby mode, the module can perform the following operations:
Activation of external buttons: Allows activation of relay outputs 1 and 2 by means of external
buttons PL1 and PL2 respectively.
The button can be configured by means of programming to activate and deactivate the output by
pressing the button or activate the output by pressing the button and deactivate after a period of
between 1 and 99 seconds.
Through the keypad:
Special default codes: (bear in mind the number of digits in the code).
Administrator code: 271800. 2718 if the number of digits configured = 4.
CP1 button code: 111100. 1111 if the number of digits configured = 4.
CP2 button code: 222200. 2222 if the number of digits configured = 4.
Unlock code: 333300. 3333 if the number of digits configured = 4.
Opening through the user code: Allows activation of the outputs (relay 1/relay 2/panic)
associated with the existing user. Press the key button, followed by the user code.
“key button” + “user code”.
Administrator code: Allows entry into programming mode. Also enables the panel to be unlocked
if it has been previously locked. Press the key button three times and then enter the administrator
code.
“key button” + “key button” + “key button” + “administrator code”.
CP1 button code: Enables or disables external button PL1 and/or PL2 associated with the CP1
code. Press the key button three times and then enter the CP1 code.
“key button” + “key button” + “key button” + “CP1 code”.
CP2 button code: Enables or disables external button PL1 and/or PL2 associated with the CP2
code. Press the key button three times and then enter the CP2 code.
“key button” + “key button” + “key button” + “CP2 code”.
Unlock code: Allows the module to be unlocked only if it has previously been locked. Press the key
button three times and then enter the unlock code.
“key button” + “key button” + “key button” + “unlock code”.
Change user code: Allows users to change their own codes. Does not modify the outputs (relay
1/relay 2/panic) associated with the user. Press the key button twice, followed by the current user
code, then press the key button again, followed by the new user code, and then press the key
button a final time. The new user code must have the same number of digits as the current user
code and cannot be the same as an existing user code.
“key button” + “key button” + “current user code” + “key button” + “new user code”
+ “key button”.
To enter programming mode, press the key button three times and then enter secret administrator code
“271800”.
key button + key + key + administrator code.
To exit programming mode, press the C button (cancel) once if it is in a programming field or twice if
not.
If, after 2 minutes, no key has been pressed, it exits programming mode.
Programming mode entry and exit is confirmed by the emitting of 5 beeps.quick
Important:
Bear in mind the number of digits in the configured code (factory setting 2718 = 4).
*
( )
*
( )
Programming of the keypad functions is performed by entering the field or function code,
followed by the field value(s).
Once in programming mode, the programming sequence is as follows:
Enter the field code: this code is always 1 digit. The keypad will emit 2
quick confirmation beeps.
Enter the value of the field being programmed. Once the value has been
entered, the keypad will emit 2 quick confirmation beeps. To finish
programming the field, press the key button and the keypad will emit 4
quick confirmation beeps.
Note: If, after 15 seconds, no key has been pressed, a long error beep
will be emitted and the field code will need to be re-entered.
Enter the code of the following field or press the C button (cancel) to exit
programming mode.
If an incorrect value has been entered, press the C button (cancel). The keypad will emit a long
confirmation beep. If the field code was being entered, even after the confirmation beep, exit
this menu and re-enter the field code.
2
C
2 2 2
CC
Field Field value Field value Field value Finish
C
*
( )
4
2 7 1 8
1ó

C
78MODULE PROGRAMMING
Programming mode entry and exit.
Programming mode structure and sequence.
MODULE OPERATION
4
0
1 0 03
C C C
2
4
Module in standby mode.
In standby mode, the module can perform the following operations:
Activation of external buttons: Allows activation of relay outputs 1 and 2 by means of external
buttons PL1 and PL2 respectively.
The button can be configured by means of programming to activate and deactivate the output by
pressing the button or activate the output by pressing the button and deactivate after a period of
between 1 and 99 seconds.
Through the keypad:
Special default codes: (bear in mind the number of digits in the code).
Administrator code: 271800. 2718 if the number of digits configured = 4.
CP1 button code: 111100. 1111 if the number of digits configured = 4.
CP2 button code: 222200. 2222 if the number of digits configured = 4.
Unlock code: 333300. 3333 if the number of digits configured = 4.
Opening through the user code: Allows activation of the outputs (relay 1/relay 2/panic)
associated with the existing user. Press the key button, followed by the user code.
“key button” + “user code”.
Administrator code: Allows entry into programming mode. Also enables the panel to be unlocked
if it has been previously locked. Press the key button three times and then enter the administrator
code.
“key button” + “key button” + “key button” + “administrator code”.
CP1 button code: Enables or disables external button PL1 and/or PL2 associated with the CP1
code. Press the key button three times and then enter the CP1 code.
“key button” + “key button” + “key button” + “CP1 code”.
CP2 button code: Enables or disables external button PL1 and/or PL2 associated with the CP2
code. Press the key button three times and then enter the CP2 code.
“key button” + “key button” + “key button” + “CP2 code”.
Unlock code: Allows the module to be unlocked only if it has previously been locked. Press the key
button three times and then enter the unlock code.
“key button” + “key button” + “key button” + “unlock code”.
Change user code: Allows users to change their own codes. Does not modify the outputs (relay
1/relay 2/panic) associated with the user. Press the key button twice, followed by the current user
code, then press the key button again, followed by the new user code, and then press the key
button a final time. The new user code must have the same number of digits as the current user
code and cannot be the same as an existing user code.
“key button” + “key button” + “current user code” + “key button” + “new user code”
+ “key button”.
To enter programming mode, press the key button three times and then enter secret administrator code
“271800”.
key button + key + key + administrator code.
To exit programming mode, press the C button (cancel) once if it is in a programming field or twice if
not.
If, after 2 minutes, no key has been pressed, it exits programming mode.
Programming mode entry and exit is confirmed by the emitting of 5 beeps.quick
Important:
Bear in mind the number of digits in the configured code (factory setting 2718 = 4).
*
( )
*
( )
Programming of the keypad functions is performed by entering the field or function code,
followed by the field value(s).
Once in programming mode, the programming sequence is as follows:
Enter the field code: this code is always 1 digit. The keypad will emit 2
quick confirmation beeps.
Enter the value of the field being programmed. Once the value has been
entered, the keypad will emit 2 quick confirmation beeps. To finish
programming the field, press the key button and the keypad will emit 4
quick confirmation beeps.
Note: If, after 15 seconds, no key has been pressed, a long error beep
will be emitted and the field code will need to be re-entered.
Enter the code of the following field or press the C button (cancel) to exit
programming mode.
If an incorrect value has been entered, press the C button (cancel). The keypad will emit a long
confirmation beep. If the field code was being entered, even after the confirmation beep, exit
this menu and re-enter the field code.
2
C
2 2 2
CC
Field Field value Field value Field value Finish
C
*
( )
4
2 7 1 8
1ó

9
0
10 MODULE PROGRAMMING
MODULE PROGRAMMING

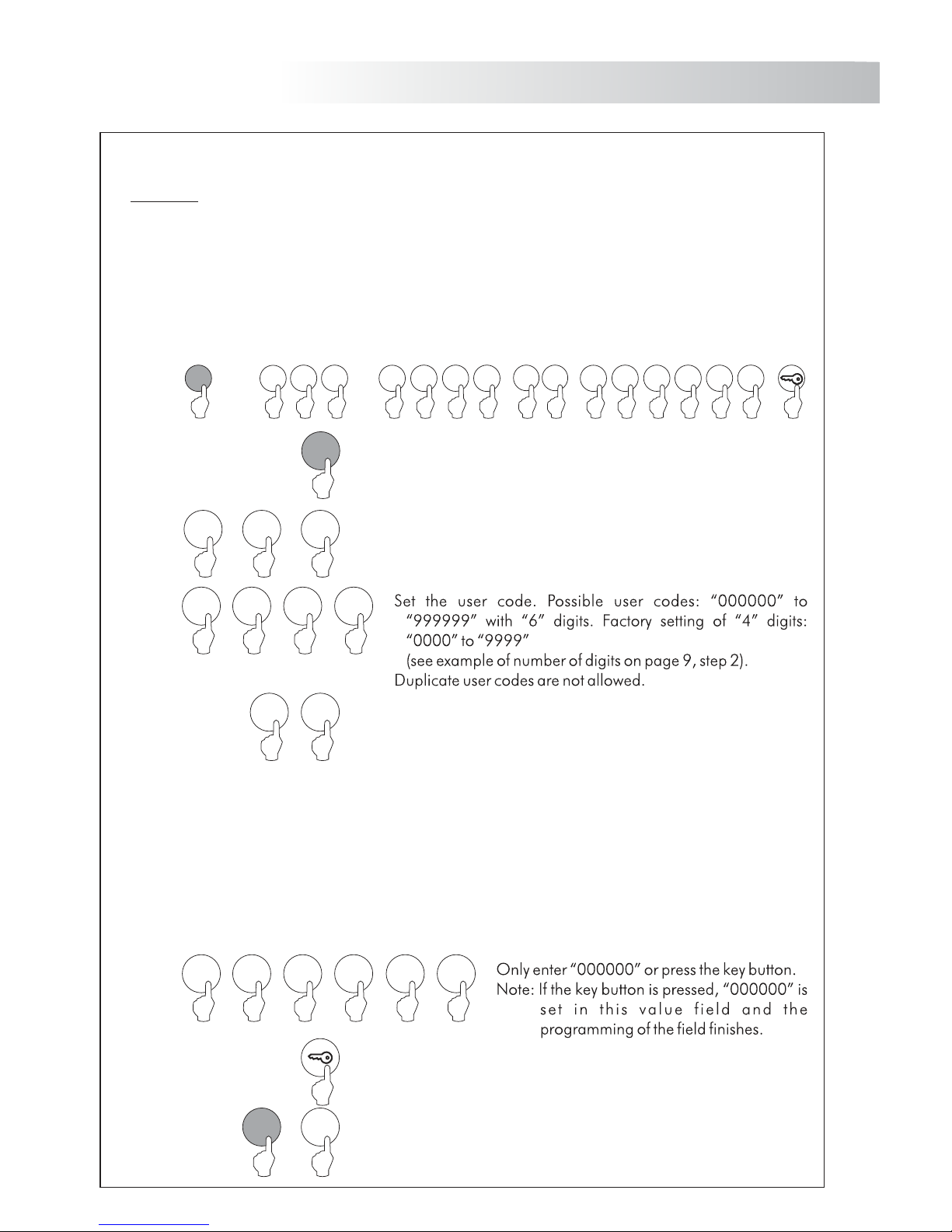

Programming mode fields. Programming mode fields.
Press the key button to finish programming the field.
5 6
4or or
0
Continued from previous page
Continued Continued
The module comes programmed with factory settings except for the activation codes (user), which are
left empty for security reasons. For system operation tailored to the needs of the user, check all of the
values in all of the fields. The fields do not need to be programmed in numerical order.
Field "0": Configuring the number of digits in the activation codes (user) and special codes.
(1)
2 7 1 8
Key button + key + key + administrator code
Enter programming mode:
Bear in mind the number of digits in the configured code (factory setting 2718 = 4).
(1)
Step 2: Then press the field number:
Step 1: Press the key button three times and then enter the administrator code.
Press “0”to select field “0”.
456
Steps: Field + number of digits + key button.
or or
Then press the number of the next field to configure or press
the C button (cancel) to exit programming mode.
1 C
or
(Step 1)
(Step 2)
(Step 3)
(Step 4)
Set the number of digits for the “user”activation codes and special
codes. Enter 4, 5 or 6 digits.
The factory setting has 4 digits.
To change this value, add or remove 1 or 2 zeros from the end
of the existing codes, for example:
Administrator code 2718 (“factory setting”4 digits).
Administrator code 2718 (5 digits).0
Administrator code 2718 (6 digits).00
1
0 1
0
1
Field "1": Programming a new activation code (user).
Press “1”to select field “1”.
0 0 1
Steps: Field + memory position user code outputs + bus code + key.+ +
2 C
or
(Step 1)
(Step 2)
(Step 4)
( 7)Step
Set the memory position number for the location of the new user
code.
Possible memory positions: “001”to “999”.
Allows new user codes (from “0000”to “9999”) to be created and outputs to be assigned for
activation with the created codes.
Note: Depending on the number of digits configured in field “0”(factory setting = 4).
Number of digits = 4, user codes from “0000”to “9999”.
Number of digits = 5, user codes from “00000”to “99999”.
Number of digits = 6, user codes from “000000”to “999999”.
0 0 0 0 0 0 0 0 0 0 0
0 0
0
(Step 3)
0
Set the output(s) that the user code entered in step 3 will activate.
Enter one of the following options or press the key button :
"00" : relay 1+relay 2+panic output (terminal “P”on the terminal block).
"01" : relay 1.
"02" : relay 2.
"03" : relay 1 + relay 2.
"04" : panic output (terminal “P”on the terminal block).
"05" : relay 1 + panic output (terminal “P”on the terminal block).
"06" : relay 2 + panic output (terminal “P”on the terminal block).
Note: If the key button is pressed, option “ ” is set in this value field:3
relay 1 , in the value field “bus code”as “000000”+ relay 2
and the programming of the field finishes.
With access control module V03 or later.
0
0 0
0
( 5)Step
00 0
*
( )
*
( )
*
( )
*
( )
( 6)Step Press the key button to finish programming the field.
Note: It is not necessary to press the key button if it has already
been pressed in step 4 or 5.
Then press the number of the next field to configure or press the C
button (cancel) to exit programming mode.
Factory setting
0
0

9
0
10 MODULE PROGRAMMING
MODULE PROGRAMMING
Programming mode fields. Programming mode fields.
Press the key button to finish programming the field.
5 6
4or or
0
Continued from previous page
Continued Continued
The module comes programmed with factory settings except for the activation codes (user), which are
left empty for security reasons. For system operation tailored to the needs of the user, check all of the
values in all of the fields. The fields do not need to be programmed in numerical order.
Field "0": Configuring the number of digits in the activation codes (user) and special codes.
(1)
2 7 1 8
Key button + key + key + administrator code
Enter programming mode:
Bear in mind the number of digits in the configured code (factory setting 2718 = 4).
(1)
Step 2: Then press the field number:
Step 1: Press the key button three times and then enter the administrator code.
Press “0”to select field “0”.
456
Steps: Field + number of digits + key button.
or or
Then press the number of the next field to configure or press
the C button (cancel) to exit programming mode.
1 C
or
(Step 1)
(Step 2)
(Step 3)
(Step 4)
Set the number of digits for the “user”activation codes and special
codes. Enter 4, 5 or 6 digits.
The factory setting has 4 digits.
To change this value, add or remove 1 or 2 zeros from the end
of the existing codes, for example:
Administrator code 2718 (“factory setting”4 digits).
Administrator code 2718 (5 digits).0
Administrator code 2718 (6 digits).00
1
0 1
0
1
Field "1": Programming a new activation code (user).
Press “1”to select field “1”.
0 0 1
Steps: Field + memory position user code outputs + bus code + key.+ +
2 C
or
(Step 1)
(Step 2)
(Step 4)
( 7)Step
Set the memory position number for the location of the new user
code.
Possible memory positions: “001”to “999”.
Allows new user codes (from “0000”to “9999”) to be created and outputs to be assigned for
activation with the created codes.
Note: Depending on the number of digits configured in field “0”(factory setting = 4).
Number of digits = 4, user codes from “0000”to “9999”.
Number of digits = 5, user codes from “00000”to “99999”.
Number of digits = 6, user codes from “000000”to “999999”.
0 0 0 0 0 0 0 0 0 0 0
0 0
0
(Step 3)
0
Set the output(s) that the user code entered in step 3 will activate.
Enter one of the following options or press the key button :
"00" : relay 1+relay 2+panic output (terminal “P”on the terminal block).
"01" : relay 1.
"02" : relay 2.
"03" : relay 1 + relay 2.
"04" : panic output (terminal “P”on the terminal block).
"05" : relay 1 + panic output (terminal “P”on the terminal block).
"06" : relay 2 + panic output (terminal “P”on the terminal block).
Note: If the key button is pressed, option “ ” is set in this value field:3
relay 1 , in the value field “bus code”as “000000”+ relay 2
and the programming of the field finishes.
With access control module V03 or later.
0
0 0
0
( 5)Step
00 0
*
( )
*
( )
*
( )
*
( )
( 6)Step Press the key button to finish programming the field.
Note: It is not necessary to press the key button if it has already
been pressed in step 4 or 5.
Then press the number of the next field to configure or press the C
button (cancel) to exit programming mode.
Factory setting
0
0

11 12 MODULE PROGRAMMING
MODULE PROGRAMMING
Programming mode fields.
Continued from previous page
Continued
2
Field "2": Changing special codes.
Press “2”to select field “2”.
Steps: Field + special code + code + key button.
3 C
or
( 1)Step
( 5)Step
Set the special code to select for subsequent code changes.
Enter one of the following options:
"0" : Select the administrator code.
"1" : Select the CP1 button code.
"2" : Select the CP2 button code.
"3" : Select the unlock button code.
Allows the current code of the special codes to be changed (see p. . The new special code must have7)
the same number of digits as the current code.
Duplicate special codes are not allowed.
Note: Depending on the number of digits configured in field “0”(factory setting = 4).
Number of digits = 4, special codes from “0000”to “9999”.
Number of digits = 5, special codes from “00000”to “99999”.
Number of digits = 6, special codes from “000000”to “999999”.
0 0
0
( 3)Step Set a new code number. Possible special codes: “000000”to
“999999”with “6”digits. Factory setting of “4”digits:
“0000”to “9999”(see example of number of digits on p. 9,
step 2).
Duplicate special codes are not allowed.
0
( 4)Step Press the key button to finish programming the field.
Then press the number of the next field to configure or press the C
button (cancel) to exit programming mode.
200 0 00 1 2
or or
3
or
2 3
1
( 2)Step
0or or or
Programming mode fields.
Continued from previous page
Continued
3
Field "3": Deleting user codes.
Press “4”to select field “4”.
Steps: Field + memory position + key + key button.
4 C
or
( 1)Step
( 4)Step
Set the number of the existing memory position to select for deletion.
Not : Possible memory positions: “001”to “999”.e
Enter an existing memory position to be deleted.
If the value “000”is entered, all memory positions will be deleted.
Allows the deletion of existing user codes.
Note: Possible memory positions: “001”to “999”.
( 3)Step
Then press the number of the next field to configure or press the C
button (cancel) to exit programming mode.
300 1
( 2)Step
0 1
0
Press the key button twice to confirm the deletion and finish
programming the field.

11 12 MODULE PROGRAMMING
MODULE PROGRAMMING
Programming mode fields.
Continued from previous page
Continued
2
Field "2": Changing special codes.
Press “2”to select field “2”.
Steps: Field + special code + code + key button.
3 C
or
( 1)Step
( 5)Step
Set the special code to select for subsequent code changes.
Enter one of the following options:
"0" : Select the administrator code.
"1" : Select the CP1 button code.
"2" : Select the CP2 button code.
"3" : Select the unlock button code.
Allows the current code of the special codes to be changed (see p. . The new special code must have7)
the same number of digits as the current code.
Duplicate special codes are not allowed.
Note: Depending on the number of digits configured in field “0”(factory setting = 4).
Number of digits = 4, special codes from “0000”to “9999”.
Number of digits = 5, special codes from “00000”to “99999”.
Number of digits = 6, special codes from “000000”to “999999”.
0 0
0
( 3)Step Set a new code number. Possible special codes: “000000”to
“999999”with “6”digits. Factory setting of “4”digits:
“0000”to “9999”(see example of number of digits on p. 9,
step 2).
Duplicate special codes are not allowed.
0
( 4)Step Press the key button to finish programming the field.
Then press the number of the next field to configure or press the C
button (cancel) to exit programming mode.
200 0 00 1 2
or or
3
or
2 3
1
( 2)Step
0or or or
Programming mode fields.
Continued from previous page
Continued
3
Field "3": Deleting user codes.
Press “4”to select field “4”.
Steps: Field + memory position + key + key button.
4 C
or
( 1)Step
( 4)Step
Set the number of the existing memory position to select for deletion.
Not : Possible memory positions: “001”to “999”.e
Enter an existing memory position to be deleted.
If the value “000”is entered, all memory positions will be deleted.
Allows the deletion of existing user codes.
Note: Possible memory positions: “001”to “999”.
( 3)Step
Then press the number of the next field to configure or press the C
button (cancel) to exit programming mode.
300 1
( 2)Step
0 1
0
Press the key button twice to confirm the deletion and finish
programming the field.

13 14 MODULE PROGRAMMING
MODULE PROGRAMMING
Programming mode fields.
Continued from previous page
Continued
4
Field "4": Configuring the outputs.
Press “4”to select field “4”.
Steps: Field + output number + output mode + activation time + key button.
5 C
or
( 1)Step
( 6)Step
Set the output to be selected for configuration.
Enter one of the following options:
"1" : Select relay 1 output.
"2" : Select relay 2 output.
"4" : Select panic output.
Allows the outputs of relay 1 and relay 2 and the panic output (terminal “P”of the terminal block) to be
configured.
The configuration of the outputs of relay 1 and relay 2 and the panic output is common to all valid user
codes.
The outputs of relay 1 and relay 2 and the panic output can be activated in impulse mode (01 to 99
seconds) or in stable mode.
1
0
( 3)Step Set the activation mode of the output selected in step 2. Enter one of
the following options:
"0" : mode.Activation time
"1" : Stable mode.
( 5)Step Press the key button to finish programming the field.
Note: It is not necessary to press the key button if it has already
been pressed in step 4.
Then press the number of the next field to configure or press the C
button (cancel) to exit programming mode.
41 2
ó
4
ó
4
2
( 2)Step
1or or
0 1
ó
0 1
or
( 4)Step Set the activation time of the output selected in step 2. Only takes
effect if the output is set as impulse in step 3.
Enter a value from “01”to “99”seconds or press the key button.
Note: If the key button is pressed, this field is set with a value of “03”
seconds and the programming of the field finishes.
1
0
*
( )
*
( )
Programming mode fields.
Continued from previous page
Continued
5
Field "5": Configuring the external buttons.
Press “5”to select field “5”.
Steps:Field + button + button mode + activation time + key button.push push
6 C
or
( 1)Step
(Step 6)
Set the external button to select for configuration. Enter one of the
following options:
"1" : Select external button PL1.
"2" : Select external button PL2.
Allows external buttons PL1 and PL2 to be configured with the following modes:
-Allows the button to: Always be enabled or, through button codes CP1 or CP2, enable/disable the
functioning of the button.
-Allows an activation time for external buttons PL1 and PL2 of between “01”and “99”seconds for
relay 1 and relay 2 outputs respectively. Only takes effect if the relay output of the external button
has been configured in mode (see p. 13, “field 3”).activation time
Note: External buttons PL1 and PL2 activate relays 1 and 2 respectively.
2
1
( 3)Step Set the button mode selected in step 2.
Enter one of the following options:
"0" : Always enabled.
"1" : Enable/disable function with the CP1 button code.
"2" : Enable/disable function with the CP2 button code.
(Step 5) Press the key button to finish programming the field.
Note: It is not necessary to press the key button if it has already
been pressed in step 4.
Then press the number of the next field to configure or press the C
button (cancel) to exit programming mode.
50 1
ó
2
ó
2
1
( 2)Step
0or or
1 2
ó
0 1
or
( 4)Step Set the activation time for the external button selected in step 2. Only
takes effect if the relay output has been configured in activation time
mode (see p. 13, “field 3”).
Enter a value from “01”to “99”seconds or press the key button.
Note: If the key button is pressed, this field is set with a value of “03”
seconds and the programming of the field finishes.
1
0
*
( )
*
( )

13 14 MODULE PROGRAMMING
MODULE PROGRAMMING
Programming mode fields.
Continued from previous page
Continued
4
Field "4": Configuring the outputs.
Press “4”to select field “4”.
Steps: Field + output number + output mode + activation time + key button.
5 C
or
( 1)Step
( 6)Step
Set the output to be selected for configuration.
Enter one of the following options:
"1" : Select relay 1 output.
"2" : Select relay 2 output.
"4" : Select panic output.
Allows the outputs of relay 1 and relay 2 and the panic output (terminal “P”of the terminal block) to be
configured.
The configuration of the outputs of relay 1 and relay 2 and the panic output is common to all valid user
codes.
The outputs of relay 1 and relay 2 and the panic output can be activated in impulse mode (01 to 99
seconds) or in stable mode.
1
0
( 3)Step Set the activation mode of the output selected in step 2. Enter one of
the following options:
"0" : mode.Activation time
"1" : Stable mode.
( 5)Step Press the key button to finish programming the field.
Note: It is not necessary to press the key button if it has already
been pressed in step 4.
Then press the number of the next field to configure or press the C
button (cancel) to exit programming mode.
41 2
ó
4
ó
4
2
( 2)Step
1or or
0 1
ó
0 1
or
( 4)Step Set the activation time of the output selected in step 2. Only takes
effect if the output is set as impulse in step 3.
Enter a value from “01”to “99”seconds or press the key button.
Note: If the key button is pressed, this field is set with a value of “03”
seconds and the programming of the field finishes.
1
0
*
( )
*
( )
Programming mode fields.
Continued from previous page
Continued
5
Field "5": Configuring the external buttons.
Press “5”to select field “5”.
Steps:Field + button + button mode + activation time + key button.push push
6 C
or
( 1)Step
(Step 6)
Set the external button to select for configuration. Enter one of the
following options:
"1" : Select external button PL1.
"2" : Select external button PL2.
Allows external buttons PL1 and PL2 to be configured with the following modes:
-Allows the button to: Always be enabled or, through button codes CP1 or CP2, enable/disable the
functioning of the button.
-Allows an activation time for external buttons PL1 and PL2 of between “01”and “99”seconds for
relay 1 and relay 2 outputs respectively. Only takes effect if the relay output of the external button
has been configured in mode (see p. 13, “field 3”).activation time
Note: External buttons PL1 and PL2 activate relays 1 and 2 respectively.
2
1
( 3)Step Set the button mode selected in step 2.
Enter one of the following options:
"0" : Always enabled.
"1" : Enable/disable function with the CP1 button code.
"2" : Enable/disable function with the CP2 button code.
(Step 5) Press the key button to finish programming the field.
Note: It is not necessary to press the key button if it has already
been pressed in step 4.
Then press the number of the next field to configure or press the C
button (cancel) to exit programming mode.
50 1
ó
2
ó
2
1
( 2)Step
0or or
1 2
ó
0 1
or
( 4)Step Set the activation time for the external button selected in step 2. Only
takes effect if the relay output has been configured in activation time
mode (see p. 13, “field 3”).
Enter a value from “01”to “99”seconds or press the key button.
Note: If the key button is pressed, this field is set with a value of “03”
seconds and the programming of the field finishes.
1
0
*
( )
*
( )

15 16 MODULE PROGRAMMING
MODULE PROGRAMMING
Programming mode fields.
Continued from previous page
Continued
6
Field "6": Configuring lock mode.
Press “6”to select field “6”.
Steps: Field + lock mode + time between attempts + lock time + panic output + key.
7 C
or
(Step 1)
(Step 7)
Set the access control module’s lock mode.
Enter one of the following options:
"0" : Never locks.
"3" to "9" : Locks after “3”to “9”failed attempts to enter the user
code.
Allows the access control module’s lock mode to be configured.
1
0
(Step 3) Set the minimum amount of time that must elapse between failed
attempts before the access control module is locked. Only takes
effect if option “0”has not been selected in step 2.
The times to select are “01”to “15”minutes or press the key button.
Note: If the key button is pressed, this field value is set as “03”
minutes minutes, the “lock time”field value is “03”, the “panic
output”value field is “0”and the programming of thenot activated
field finishes.
(Step 6) Press the key button to finish programming the field.
Note: It is not necessary to press the key button if it has already
been pressed in steps 3, 4 or 5.
Then press the number of the next field to configure or press the C
button (cancel) to exit programming mode.
60
0
(Step 2)
0 1
ó
(Step 4)
1
0
*
( )
*
( )
0 30 1
*
( )
*
( )
(Step 5) Set the activation of the panic output (terminal “P”of the terminal block)
during lock mode. Only takes effect if option “0”has not been
selected in step 2.
Enter one of the following options or press the key button:
"0" : Output not activated.
"1" : Output activated (for 3 seconds in intervals of 1 minute).
Note: If the key button is pressed, the field value is set as “0”and the
programming of the field finishes.
1
0
*
( )
*
( )
or
Programming mode fields.
Continued from previous page
Continued
7
Field "7": Configuring the identification ID of the access control module (Not configuring).
Press “7”to select field “7”.
Steps: Field + ID code + key button.
8 C
or
(Step 1)
(Step 4)
Set an identification code (ID) for the access control module.
Note: Possible identification codes (ID): “000”to “999”.
Allows an identification code (ID) to be configured for the access control module.
Note: Possible identification codes (ID): “000”to “999”.
IMPORTANT: This programming field for standalone access control.is not applicable
(Step 3)
Then press the number of the next field to configure or press the C
button (cancel) to exit programming mode.
700 0
(Step 2)
0 0
0
Press the key button to finish programming the field.

15 16 MODULE PROGRAMMING
MODULE PROGRAMMING
Programming mode fields.
Continued from previous page
Continued
6
Field "6": Configuring lock mode.
Press “6”to select field “6”.
Steps: Field + lock mode + time between attempts + lock time + panic output + key.
7 C
or
(Step 1)
(Step 7)
Set the access control module’s lock mode.
Enter one of the following options:
"0" : Never locks.
"3" to "9" : Locks after “3”to “9”failed attempts to enter the user
code.
Allows the access control module’s lock mode to be configured.
1
0
(Step 3) Set the minimum amount of time that must elapse between failed
attempts before the access control module is locked. Only takes
effect if option “0”has not been selected in step 2.
The times to select are “01”to “15”minutes or press the key button.
Note: If the key button is pressed, this field value is set as “03”
minutes minutes, the “lock time”field value is “03”, the “panic
output”value field is “0”and the programming of thenot activated
field finishes.
(Step 6) Press the key button to finish programming the field.
Note: It is not necessary to press the key button if it has already
been pressed in steps 3, 4 or 5.
Then press the number of the next field to configure or press the C
button (cancel) to exit programming mode.
60
0
(Step 2)
0 1
ó
(Step 4)
1
0
*
( )
*
( )
0 30 1
*
( )
*
( )
(Step 5) Set the activation of the panic output (terminal “P”of the terminal block)
during lock mode. Only takes effect if option “0”has not been
selected in step 2.
Enter one of the following options or press the key button:
"0" : Output not activated.
"1" : Output activated (for 3 seconds in intervals of 1 minute).
Note: If the key button is pressed, the field value is set as “0”and the
programming of the field finishes.
1
0
*
( )
*
( )
or
Programming mode fields.
Continued from previous page
Continued
7
Field "7": Configuring the identification ID of the access control module (Not configuring).
Press “7”to select field “7”.
Steps: Field + ID code + key button.
8 C
or
(Step 1)
(Step 4)
Set an identification code (ID) for the access control module.
Note: Possible identification codes (ID): “000”to “999”.
Allows an identification code (ID) to be configured for the access control module.
Note: Possible identification codes (ID): “000”to “999”.
IMPORTANT: This programming field for standalone access control.is not applicable
(Step 3)
Then press the number of the next field to configure or press the C
button (cancel) to exit programming mode.
700 0
(Step 2)
0 0
0
Press the key button to finish programming the field.

17 18 MODULE PROGRAMMING
MODULE PROGRAMMING
9
Press the key button to finish programming the field.
0 1
or
9
Field "9": Configuring the keypad sound.
Press “9”to select field “9”.
0 1
Steps: Field + keypad sound + key button.
or
C
(Step 1)
(Step 2)
(Step 3)
(Step 4)
Allows a beep to be heard when pressing the access control
module’s keypad buttons.
Enter one of the following options:
"0" : No keypad sound.
"1" : Keypad sound.
Programming mode fields.
Continued from previous page
Allows a beep to be heard when pressing the access control module’s keypad buttons.
Then press the C button (cancel) to exit programming mode.
Factory settings.
The access control module has the following factory default settings:
- Bear in mind the number of digits in the code (see p. 7).Special codes:
Administrator code: 271800. 2718 if the number of digits configured = 4.
CP1 button code: 111100. 1111 if the number of digits configured = 4.
CP2 button code: 222200. 2222 if the number of digits configured = 4.
Unlock code: 333300. 3333 if the number of digits configured = 4.
- Programming field “0”(p. 9).Number of digits in user and special codes:
Step 2 : –4 digit code."4"
- Programming field (p. 13).Configuring relay 1: "4"
Step 3 : "0" Impulse.
Step 4 : "03" Activation time (seconds).
- Programming field "4" (p. 13).Configuring relay 2:
Step 3 :"0" Impulse.
Step 4 : "03" Activation time (seconds).
- Configuring the panic output: Programming field "4" (p. 13).
Step 3 : "0" .Activation time mode
Step 4 : "10" Activation time (seconds).
- Configuring external button PL1: Programming field "5" (p. 14).
Step 3 : "1" Enable/disable the functioning of the button with button code CP1.
Step 4 : "10" Activation time (seconds).
- Configuring external button PL2: Programming field "5" (p. 14).
Step 3 : "2" Enable/disable the functioning of the button with button code CP2.
Step 4 : "05" Activation time (seconds).
- Configuring lock mode: Programming field "6" (p. 15).
Step 2 : "3" Maximum number of failed attempts to enter user code.
Step 3 : "03" Minimum time between failed attempts (minutes).
Step 4 : "03" Duration of lock mode (minutes).
Step 5 : "1" The panic output is activated during lock mode.
- Configuring the identification ID: Programming field "7" (p. 16) (Not configuring).
Step 2 : "000" Identification ID. Do not modify this field value.
- Configuring depth of field: Programming field "8" (p. 17) (Not configuring).
Step 2 : "3" Depth of field. Do not modify this field value.
Step 3 : "0" Direct call disabled. Do not modify this field value.
- Configuring keypad sound: Programming field "9" (see p. 17).
Step 2 : "1" Beep when keypad buttons pressed (activated).
8
Field "8": Configuring depth of field ).(Not configuring
Press “8”to select field “8”.
Steps: Field+ number of calling code digits + direct call + key button.
9 C
or
(Step 1)
(Step 5)
Set the number of digits in the calling code.
Enter one of the following options:
"1" or "2" or "3"
Allows the number of digits in the calling code to be configured.
IMPORTANT: This programming field is for standalone access control.not applicable
(Step 4)
Then press the number of the next field to configure or press the C
button (cancel) to exit programming mode.
8
(Step 2)
2 3
1
Press the key button to finish programming the field.
1 2
or
3
or
or or
0 1
or
Set the direct call: by entering a call code on the keypad if necessary
or do not press the key button to confirm.
Enter one of the following options:
"0" : Disable.
"1" : Enable.
(Step 3)
0 1
or

17 18 MODULE PROGRAMMING
MODULE PROGRAMMING
9
Press the key button to finish programming the field.
0 1
or
9
Field "9": Configuring the keypad sound.
Press “9”to select field “9”.
0 1
Steps: Field + keypad sound + key button.
or
C
(Step 1)
(Step 2)
(Step 3)
(Step 4)
Allows a beep to be heard when pressing the access control
module’s keypad buttons.
Enter one of the following options:
"0" : No keypad sound.
"1" : Keypad sound.
Programming mode fields.
Continued from previous page
Allows a beep to be heard when pressing the access control module’s keypad buttons.
Then press the C button (cancel) to exit programming mode.
Factory settings.
The access control module has the following factory default settings:
- Bear in mind the number of digits in the code (see p. 7).Special codes:
Administrator code: 271800. 2718 if the number of digits configured = 4.
CP1 button code: 111100. 1111 if the number of digits configured = 4.
CP2 button code: 222200. 2222 if the number of digits configured = 4.
Unlock code: 333300. 3333 if the number of digits configured = 4.
- Programming field “0”(p. 9).Number of digits in user and special codes:
Step 2 : –4 digit code."4"
- Programming field (p. 13).Configuring relay 1: "4"
Step 3 : "0" Impulse.
Step 4 : "03" Activation time (seconds).
- Programming field "4" (p. 13).Configuring relay 2:
Step 3 :"0" Impulse.
Step 4 : "03" Activation time (seconds).
- Configuring the panic output: Programming field "4" (p. 13).
Step 3 : "0" .Activation time mode
Step 4 : "10" Activation time (seconds).
- Configuring external button PL1: Programming field "5" (p. 14).
Step 3 : "1" Enable/disable the functioning of the button with button code CP1.
Step 4 : "10" Activation time (seconds).
- Configuring external button PL2: Programming field "5" (p. 14).
Step 3 : "2" Enable/disable the functioning of the button with button code CP2.
Step 4 : "05" Activation time (seconds).
- Configuring lock mode: Programming field "6" (p. 15).
Step 2 : "3" Maximum number of failed attempts to enter user code.
Step 3 : "03" Minimum time between failed attempts (minutes).
Step 4 : "03" Duration of lock mode (minutes).
Step 5 : "1" The panic output is activated during lock mode.
- Configuring the identification ID: Programming field "7" (p. 16) (Not configuring).
Step 2 : "000" Identification ID. Do not modify this field value.
- Configuring depth of field: Programming field "8" (p. 17) (Not configuring).
Step 2 : "3" Depth of field. Do not modify this field value.
Step 3 : "0" Direct call disabled. Do not modify this field value.
- Configuring keypad sound: Programming field "9" (see p. 17).
Step 2 : "1" Beep when keypad buttons pressed (activated).
8
Field "8": Configuring depth of field ).(Not configuring
Press “8”to select field “8”.
Steps: Field+ number of calling code digits + direct call + key button.
9 C
or
(Step 1)
(Step 5)
Set the number of digits in the calling code.
Enter one of the following options:
"1" or "2" or "3"
Allows the number of digits in the calling code to be configured.
IMPORTANT: This programming field is for standalone access control.not applicable
(Step 4)
Then press the number of the next field to configure or press the C
button (cancel) to exit programming mode.
8
(Step 2)
2 3
1
Press the key button to finish programming the field.
1 2
or
3
or
or or
0 1
or
Set the direct call: by entering a call code on the keypad if necessary
or do not press the key button to confirm.
Enter one of the following options:
"0" : Disable.
"1" : Enable.
(Step 3)
0 1
or

20 INSTALLATION SDIAGRAM
LOCK RELEASE INSTALLATION
Combined with ‘Nexa Modular/Nexa Inox Modular door’panels.
Panels with sound module
EL63 / E 642 L 2
Access control module
N3301
C2NC1 NC2
CN1
P
~ ~
SEC
+
-
PRI
~~
Main
CN1
+
- -
+CV1CV2
CV10I1 I2 P1
CN1
~1~2
Panels with sound module
E 655L
Access control module
N3301
SEC
~~
PRI
~~
Main
(*)
Panels with sound module
E 651L
Access control module
N3301
SEC
~~
PRI
~~
Main
Audio door entry systems with one access door and 4+'n' installation.
Audio door entry systems with several access doors and 4+'n' installation.
Electronic or video access control systems with digital installation.
Lock release installation.
If the lock release is to be fitted to a metal door, use a Ø3.5mm
drill bit and thread the hole made.
For wooden doors, use a Ø3mm drill bit.
M 4 x 8
DIN-7972
DIN-963
INSTALLATION DIAGRAMS
Combined with ‘Nexa Modular/Nexa ’panels.Inox Modular door
(*) Lock release systems connected to audio door entry systems with
4+'n' installation operate at 12V AC:
Place the varistor supplied with the access control module on the
lock release terminals directly.
Continued from previous page
Continued
19
10
1
9
2
8
3
7
4
6
5
CN3
C1NA1 NA2 PL1 PL2
-
5 3 CVCVC2NC1 NC2
CN1
P
~ ~ C1NA1 NA2 PL1 PL2
-
CV10I1 I2 P1
CN1
~1~2
5 3 CVCVC2NC1 NC2
CN1
P
~ ~ C1NA1 NA2 PL1 PL2
-
CO
(*)
Panels with sound module
EL63 -R5/ EL64 -R52 2
Access control module
N3301
C2NC1 NC2
CN1
P
~ ~
SEC
+
-
PRI
~~
Main
CN1
+
-
+CV1CV2
C1NA1 NA2 PL1 PL2
--
+12
-
