Goodman GSZ/VSZ 13 SEER User manual

GSZ/VSZ 13 SEER
Split System Heat Pumps
•RefertoServiceManualRS6200006forinstallation,operation,andtroubleshootinginformation.
•Allsafetyinformation must be followedasprovided in the ServiceManual.
•RefertotheappropriatePartsCatalog for part number information.
•Models listed on page 3.
RT6212006r10
December2011
Copyright © 2007-2011 Goodman Manufacturing Company, L.P.
®TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUALAL
ALAL
AL
This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman does
not assume any responsibility for property damage or personal injury due to improper service
procedures or services performed by an unqualified person.

PRODUCT IDENTIFICATION
2
The model number is used for positive identification of component parts used in manufacturing. Please use this number
whenrequestingserviceorpartsinformation.
WARNING
WARNING HIGH VOLTAGE!
Disconnect ALL power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal
injury or death.
Installation and repair of this unit
should be performed ONLY by
individuals meeting (at a mini-
mum) the requirements of an "entry level technician", as
specifiedbytheAir-Conditioning,Heating,andRefrigera-
tion Institute (AHRI). Attempting to install or repair this
unit without such background may result in product
damage, personal injury or death.
Goodman will not be responsible
for any injury or property damage
arising from improper service or
service procedures. If you install or perform service on
this unit, you assume responsibility for any personal
injury or property damage which may result. Many juris-
dictions require a license to install or service heating and
air conditioning equipment.
WARNING
WARNING WARNING
WARNING
G S Z 13 024 1 A A
PRODUCT
FAMILY:
S: Split System
PRODUCT TYPE:
C: Condenser R-22
X: Condenser R-410A
H: Heat Pump R-22
Z: Heat Pump R-410A
SEER:
SEER Rating
BRAND:
G: Goodman® Brand
(Standard Feature Set Model)
S: Goodman®Deluxe
V: Value NOMINAL
CAPACITY
018: 1.5 Tons
024: 2 Tons
030: 2.5 tons
036: 3 Tons
042: 3.5 Tons
048: 4 Tons
060: 5 tons
ELECTRICAL:
1: 208-230v
1ph/60Hz
3: 208-230v
3ph/60Hz
4: 460v
3ph/60Hz
MAJOR REVISION:
A: Initial Release
MINOR REVISION:
A: Initial Release

PRODUCT IDENTIFICATION
3
The United States Environmental Protection Agency (“EPA”) has issued various regulations re-
garding the introduction and disposal of refrigerants introduced into this unit. Failure to follow
these regulations may harm the environment and can lead to the imposition of substantial fines.
These regulations may vary by jurisdiction. Should questions arise, contact your local EPA office.
WARNING
WARNING
Do not connect or use any device
thatisnotdesigncertifiedbyGood-
man for use with this unit. Serious
property damage, personal injury, reduced unit perfor-
mance and/or hazardous conditions may result from the
use of such non-approved devices.
WARNING
WARNING To prevent the risk of property
damage, personal injury, or death,
do not store combustible materi-
als or use gasoline or other flammable liquids or vapors
in the vicinity of this appliance.
WARNING
WARNING
The model number is used for positive identification of component parts used in manufacturing. Please use this number
whenrequestingserviceorpartsinformation.
* Indicates minor revision & is not used for order entry or inventory management
GSZ130181A*
GSZ130241A*
GSZ130301A*
GSZ130361A*
GSZ130421A*
GSZ130481A*
GSZ130601A*
GSZ130241B*
GSZ130361B*
GSZ130363A*
GSZ130483A*
GSZ130484A*
GSZ130603A*
GSZ130604A*
VSZ130181A*
VSZ130241A*
VSZ130301A*
VSZ130361A*
VSZ130421A*
VSZ130481A*
VSZ130601A*
VSZ130241B*
VSZ130361B*

PRODUCT DESIGN
4
GSZ/VSZ13modelsareavailablein11/2 through5tonsizes
and use R-410A refrigerant.They are designedfor 208/230
voltsinglephase applications.
SelectGSZ13modelsare available in 208/230 and 460 volt
3-phaseapplications. These modelsuseR-410Arefrigerant.
The condenser air is pulled through the condenser coil by a
direct drive propeller fan. This condenser air is then dis-
charged out of the top of the cabinet.
These units are designed for free air discharge, so no addi-
tional resistance like duct work shall be attached.
The suction and liquid line connections on present models
areof the sweat type for field pipingwithrefrigeranttypecop-
per. Front seating valves are factory installed to accept the
fieldruncopper. The total refrigerantcharge for a normal in-
stallationis factoryinstalledinthe condensingunit.GSZunits
are charged for the matching evaporator coil and a 15 foot
refrigerantlineset.
Systems should be properly sized by heat gain and loss
calculations made according to methods of the Air Condi-
tioning Contractors Association (ACCA) or equivalent. It is
the contractors responsibility to ensure the system has ad-
equate capacity to heat or cool the conditioned space.
GSZ/VSZ models use high-efficiency Copeland®scroll
"Ultratech"compressors which are specificallydesgined for
R-410Arefrigerant. There are a number of design character-
isticswhichare different from thescroll compared to the tra-
ditionalreciprocatingcompressor.
"Ultratech" Series scroll compressors with Copeland®
ComfortAlert diagnositics will not have a discharge thermo-
stat. Some of the early model scroll compressors required
dischargethermostats.
Due to their design Scroll compressors are inherently more
tolerantofsmall quantities of liquid refrigerant.
NOTE: Eventhough thecompressorsectionof a Scrollcom-
pressor is more tolerant of liquid refrigerant, continued
floodback or flooded start conditions may wash oil from the
bearingsurfacescausing premature bearing failure.
"Ultratech" Series scroll compressors use "POE" or
polyolesteroil whichisNOT compatiblewithmineraloilbased
lubricants like 3GS. "POE" oil must be used if additional oil
isrequired.
WARNING
To avoid possible injury, explosion or death, practice
safe handling of refrigerants.
Operating pressures and amp draws may differ from stan-
dardreciprocatingand/orscroll compressors. This informa-
tion may be found in the "Cooling Performance Data" sec-
tion.

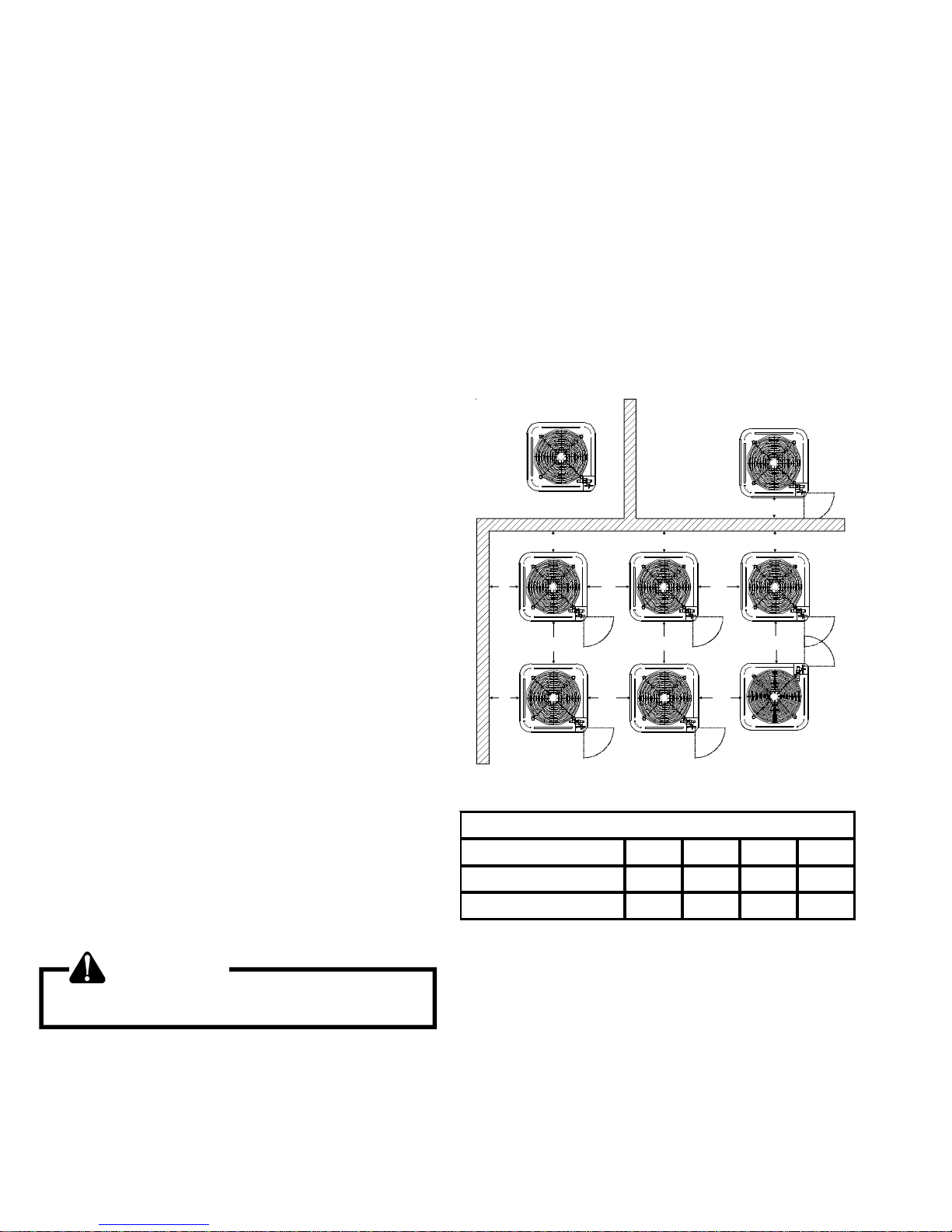

This unit is for outdoor installation only. Refer to minimum
figure for clearances from the sides of the unit to full walls
andother objects.
NOTE: This unit cannot be completely enclosed. At least
one side must be unrestricted.
Theseclearanceswillhelpavoidairrecirculation.Ifinstalling
two or more units at the same location, allow at least 24
inches between units. If only one side is restricted (for ex-
ample, against the outside wall of a house), the unit may be
placed as close as 8" to that one wall.
DO NOT locate the unit:
* Directlyundera vent termination fora gas appliance.
* Within 3 feet of a clothes drier vent
* Wheretherefreezingofdefrostwaterwould create
ahazard
* Where water may rise into the unit.
Model Type A B C AA
Residential 10" 10" 18" 20"
Light Commercial 12" 12" 18" 24"
Minimum Airflow Clearance
OK!
OK!
AA AAA
A
CC
CCOK!
OK!
OK!
OK!
NOT
RECOMMENDED
AA
AA AA
AA
AA
B B B
B

PRODUCT DESIGN
5
Model Dimensions - W x Dx H
G/VSZ130181A* 26 x26 x32¼
G/VSZ130241A* 26 x26 x32¼
G/VSZ130241B* 26 x26 x32½
G/VSZ130301A* 26 x26 x32¼
G/VSZ130361A*
GSZ130363A* 29 x 29 x 38¼
G/VSZ130361B* 29 x29 x32½
G/VSZ130421A* 29 x29 x38¼
G/VSZ130481A*
GSZ130483A*
GSZ130484A* 29 x 29 x 34¼
G/VSZ130601A*
GZX130603A*
GSZ130604A* 35½ x35½ x34¼
Product Dimensions

HEAT PUMP SPECIFICATIONS
6
NOTE: This data is provided as a guide, it is important to electrically connect the unit and properly size fuses/circuit breakers and
wires in accordance with all national and/or local electrical codes. Use copper wire only.
Unit specifications are subject to change without notice. ALWAYS refer to the unit's serial plate for the most up-to-date general
and electrical information.
G/VSZ130[18-60]1A*
* Up to 24' in equivalent line length
(1) Wire size should be determined in accordance with National Electrical Codes; extensive wire runs will require larger wire sizes.
(2) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.
NOTES:
• Always check the S & R plate for electrical data on the unit being installed.
• Installer will need to supply 7/8" to 1-1/8" adapters for suction line connections (4 & 5 ton units).
• Installer will need to supply 3/4" to 7/8" adapters for suction line connections (3 ton unit).
• Unit is charged with refrigerant for 15' of 3/8" liquid line. System charge must be adjusted per Installation Instructions Final Charge
Procedure.
• Installation of these units requires the specified TXV Kit to be installed on the indoor coil. THE SPECIFIED TXV IS DETERMINED BY THE
OUTDOORUNIT,NOTTHEINDOORCOIL.
*SZ130181A *SZ130241A *SZ130301A *SZ130361A *SZ130421A *SZ130481A *SZ130601A
Nominal Capacities
Cooling Capacity, BTUH 18,000 24,000 30,000 36,000 42,000 48,000 60,000
Heating Capacity, BTUH 17,000 23,000 26,400 34,000 40,500 44,000 58,000
Compressor
R.L. Amps 9.0 12.8 14.1 16.6 17.9 19.8 26.4
L.R. Amps 48.0 58.3 73.0 79.0 112.0 109.0 134.0
Low Pressure Switch
Open 22 PSIG 22 PSIG 22 PSIG 22 PSIG 22 PSIG 22 PSIG 22 PSIG
Close 50 PSIG 50 PSIG 50 PSIG 50 PSIG 50 PSIG 50 PSIG 50 PSIG
High Pressure Switch
Open 610 PSIG 610 PSIG 610 PSIG 610 PSIG 610 PSIG 610 PSIG 610 PSIG
Close 420 PSIG 420 PSIG 420 PSIG 420 PSIG 420 PSIG 420 PSIG 420 PSIG
Condenser Fan Motor
Horsepower 1/6 1/6 1/6 1/4 1/4 1/4 1/4
F.L. Amps 1.10 1.10 1.10 1.50 1.50 1.50 1.50
Liquid Line, Inches O.D.* 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8"
SuctionLine,InchesO.D.* 3/4"3/4"3/4"3/4"7/8"7/8"7/8"
Refrigerant Charge 122.0 122.0 127.0 171.0 174.0 222.0 245.0
Power Supply 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1
Minimum Circuit Ampacity(1) 12.3 17.1 18.7 22.3 23.9 26.3 34.5
Maximum Overcurrent Device(2) 20 25 30 35 40 45 60
Electrical Conduit Size
Power Supply (Inches) 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4
Approximate Shipping Weight 198 198 202 232 235 240 266

HEAT PUMP SPECIFICATIONS
7
NOTE: This data is provided as a guide, it is important to electrically connect the unit and properly size fuses/circuit breakers and
wires in accordance with all national and/or local electrical codes. Use copper wire only.
Unit specifications are subject to change without notice. ALWAYS refer to the unit's serial plate for the most up-to-date general
and electrical information.
GSZ130[18, 42-60]1AC; GSZ130301AD; GSX130421AE
VSZ130[18,42-60]1AB/AD;VSZ130301AC/AE
* Up to 24' in equivalent line length
(1) Wire size should be determined in accordance with National Electrical Codes; extensive wire runs will require larger wire sizes.
(2) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.
NOTES:
• Always check the S & R plate for electrical data on the unit being installed.
• Installer will need to supply 7/8" to 1-1/8" adapters for suction line connections (4 & 5 ton units).
• Installer will need to supply 3/4" to 7/8" adapters for suction line connections (3 ton unit).
• Unit is charged with refrigerant for 15' of 3/8" liquid line. System charge must be adjusted per Installation Instructions Final Charge
Procedure.
• Installation of these units requires the specified TXV Kit to be installed on the indoor coil. THE SPECIFIED TXV IS DETERMINED BY THE
OUTDOORUNIT,NOTTHEINDOORCOIL.
GSZ130181AC VSZ130181AB VSZ130181AD GSZ130301AD VSZ130301AC
VSZ130301AE
GSZ130421AC VSZ130421AB VSZ130421AD GSZ130421AE GSZ130481AC VSZ130481AB VSZ130481AD GSZ130601AC VSZ130601AB
Nominal Capacities
Cooling Capacity, BTUH 18,000 18,000 30,000 30,000 42,000 42,000 48,000 60,000
Heating Capacity,BTUH 17,000 17,000 26,400 26,400 40,500 40,500 44,000 58,000
Compressor
R.L. Amps 9.0 9.0 14.1 14.1 17.9 17.9 19.9 26.4
L.R. Amps 48.0 48.0 73.0 73.0 112.0 112.0 109.0 134.0
Low Pressure Switch
Open 22 PSIG 22 PSIG 22 PSIG 22 PSIG 22 PSIG 22 PSIG 22 PSIG 22 PSIG
Close 50 PSIG 50 PSIG 50 PSIG 50 PSIG 50 PSIG 50 PSIG 50 PSIG 50 PSIG
High Pressure Switch
Open 610 PSIG 610 PSIG 610 PSIG 610 PSIG 610 PSIG 610 PSIG 610 PSIG 610 PSIG
Close 420 PSIG 420 PSIG 420 PSIG 420 PSIG 420 PSIG 420 PSIG 420 PSIG 420 PSIG
Condenser Fan Motor
Horsepower 1/6 1/8 1/6 1/8 1/4 1/4 1/4 1/4
F.L. Amps 1.10 0.7 1.10 0.7 1.50 1.50 1.50 1.50
Liquid Line, Inches O.D.* 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8"
Suction Line, Inches O.D.* 3/4" 3/4" 3/4" 3/4" 7/8" 7/8" 7/8" 7/8"
Refrigerant Charge 119.0 119.0 124.0 124.0 171.0 156.0 219.0 240.0
Power Supply 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1
Minimum Circuit Ampacity(1) 12.4 12.0 18.7 18.3 23.9 23.9 26.4 34.5
Maximum Overcurrent Device(2) 20 20 30 30 40 40 45 60
Electrical ConduitSize
Power Supply (Inches) 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4
Approximate Shipping Weight 198 198 202 202 235 235 240 266

HEAT PUMP SPECIFICATIONS
8
NOTE: This data is provided as a guide, it is important to electrically connect the unit and properly size fuses/circuit breakers and
wires in accordance with all national and/or local electrical codes. Use copper wire only.
Unit specifications are subject to change without notice. ALWAYS refer to the unit's serial plate for the most up-to-date general
and electrical information.
G/VSZ130[24,36]B*
(1) Wire size should be determined in accordance with National Electrical Codes; extensive wire runs will require larger wire sizes.
(2) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.
(3) Tested and rated in accordance with AHRI Standard 210/240
NOTES:
• Always check the S & R plate for electrical data on the unit being installed.
• Installer will need to supply 7/8" to 1-1/8" adapters for suction line connections (4 & 5 ton units).
• Installer will need to supply 3/4" to 7/8" adapters for suction line connections (3 ton unit).
• Unit is charged with refrigerant for 15' of 3/8" liquid line. System charge must be adjusted per Installation Instructions Final Charge
Procedure.
• Installation of these units requires the specified TXV Kit to be installed on the indoor coil. THE SPECIFIED TXV IS DETERMINED BY THE
OUTDOORUNIT,NOTTHEINDOORCOIL.
GSZ130241B* VSZ130241B*
VSZ130241BC
GSZ130361B* VSZ130361B* GSZ130361B* VSZ130361B*
GSZ130361BC
Nominal Capacities
Cooling Capacity, BTUH 24,000 24,000 36,000 36,000 36,000
Heating Capacity,BTUH 23,000 23,000 34,000 34,000 34,000
Compressor
R.L. Amps 12.8 12.8 16.7 16.7 16.7
L.R. Amps 58.3 58.3 79.0 79.0 79.0
Low Pressure Switch
Open 22 PSIG 22 PSIG 22 PSIG 22 PSIG 22 PSIG
Close 50 PSIG 50 PSIG 50 PSIG 50 PSIG 50 PSIG
High Pressure Switch
Open 610 PSIG 610 PSIG 610 PSIG 610 PSIG 610 PSIG
Close 420 PSIG 420 PSIG 420 PSIG 420 PSIG 420 PSIG
Condenser Fan Motor
Horsepower 1/6 1/8 1/4 1/4 1/4
F.L. Amps 1.10 0.7 1.50 1.50 1.50
Liquid Line, Inches O.D.* 3/8" 3/8" 3/8" 3/8" 3/8"
Suction Line, Inches O.D.* 3/4" 3/4" 3/4" 3/4" 3/4"
Refrigerant Charge 113.0 113.0 131.0 128.0 122.0
Power Supply 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1
Minimum Circuit Ampacity(1) 17.1 16.7 22.3 22.3 22.3
Maximum Overcurrent Device(2) 25 25 35 35 35
Electrical Conduit Size
Power Supply (Inches) 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4
Approximate Shipping Weight 198 198 232 232 232

HEAT PUMP SPECIFICATIONS
9
NOTE: This data is provided as a guide, it is important to electrically connect the unit and properly size fuses/circuit breakers and
wires in accordance with all national and/or local electrical codes. Use copper wire only.
Unit specifications are subject to change without notice. ALWAYS refer to the unit's serial plate for the most up-to-date general
and electrical information.
(1) Wire size should be determined in accordance with National Electrical Codes; extensive wire runs will require larger wire sizes.
(2) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.
(3) Tested and rated in accordance with AHRI Standard 210/240
NOTES:
• Always check the S & R plate for electrical data on the unit being installed.
• Installer will need to supply 7/8" to 1-1/8" adapters for suction line connections (4 & 5 ton units).
• Installer will need to supply 3/4" to 7/8" adapters for suction line connections (3 ton unit).
• Unit is charged with refrigerant for 15' of 3/8" liquid line. System charge must be adjusted per Installation Instructions Final Charge
Procedure.
• Installation of these units requires the specified TXV Kit to be installed on the indoor coil. THE SPECIFIED TXV IS DETERMINED BY THE
OUTDOORUNIT,NOTTHEINDOORCOIL.
GSZ130363A* GSZ130483A* GSZ130484A* GSZ130603A* GSZ130604A*
Nominal Capacities
Cooling Capacity, BTUH 36,000 48,000 48,000 60,000 60,000
Heating Capacity, BTUH 34,000 44,000 44,000 58,000 58,000
Decibels 74 76 76 75 75
Compressor
R.L. Amps 10.4 13.1 6.1 16.0 7.8
L.R. Amps 73.0 83.1 41.0 110.0 52.0
Type Scroll Scroll Scroll Scroll Scroll
Condenser Fan Motor
Horsepower 1/4 1/4 1/4 1/4 1/4
F.L. Amps 1.50 1.50 0.80 1.50 0.80
Refrigerant System
Liquid Line, Inches O.D.* 33/8" 3/8" 3/8" 3/8" 3/8"
Suction Line, Inches O.D.* 37/8" 1 1/8" 1 1/8" 1 1/8" 1 1/8"
Liquid Valve Connection, Inches O.D.* 3/8" 3/8" 3/8" 3/8" 3/8"
Suction Valve Connection, Inches O.D.* 3/4" 7/8" 7/8" 7/8" 7/8"
Refrigerant Charge 171.0 222.0 222.0 245.0 245.0
Piston Size 0.068 0.078 0.078 0.088 0.088
Power Supply 208/230-60-3 208/230-60-3 460-60-3 208/230-60-3 460-60-3
Minimum Circuit Ampacity(1) 14.5 17.9 8.4 21.5 10.6
Maximum Overcurrent Device(2) 20 30 15 35 15
Min / Max Volts 197 / 253 197 / 253 414 / 506 197 / 253 414 / 506
Electrical Conduit Size
Power Supply (Inches) 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4
Approximate Shipping Weight 232 235 234 262 261
GSZ130[36-60][3,4]A*

10
COOLING PERFORMANCE DATA G/VSZ130181A*
MODEL: G/VSZ130181A* / AR*F182416** EXPANDED PERFORMANCE DATA COOLING OPERATION
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 59636771596367715963677159 63 67 715963677159636771
MBh 17.1 17.7 19.4 - 16.7 17.3 18.9 - 16.3 16.9 18.5 - 15.9 16.4 18.0 - 15.1 15.6 17.1 - 14.0 14.5 15.9 -
S/T 0.74 0.62 0.43 - 0.77 0.64 0.45 - 0.79 0.66 0.46 - 0.82 0.68 0.47 - 0.85 0.71 0.49 - 0.85 0.71 0.49 -
T 17 15 11 - 17 15 11 - 17 15 11 - 18 15 12 - 17 15 11 - 16 14 11 -
675 KW 1.25 1.27 1.31 - 1.34 1.37 1.41 - 1.42 1.45 1.50 - 1.49 1.52 1.57 - 1.55 1.59 1.64 - 1.61 1.64 1.69 -
AMPS 4.5 4.6 4.8 - 4.9 5.0 5.2 - 5.3 5.4 5.6 - 5.7 5.8 6.0 - 6.0 6.2 6.4 - 6.4 6.5 6.8 -
HIPR 225 242 255 - 252 271 287 - 287 309 326 - 327 352 371 - 367 395 418 - 406 437 461 -
LO PR 109 116 126 - 115 122 133 - 119 127 139 - 125 133 146 - 131 140 152 - 136 144 158 -
MBh 16.6 17.2 18.8 - 16.2 16.8 18.4 - 15.8 16.4 17.9 - 15.4 16.0 17.5 - 14.6 15.2 16.6 - 13.6 14.0 15.4 -
S/T 0.71 0.59 0.41 - 0.73 0.61 0.43 - 0.75 0.63 0.44 - 0.78 0.65 0.45 - 0.81 0.67 0.47 - 0.81 0.68 0.47 -
T 18 16 12 - 18 16 12 - 18 16 12 - 18 16 12 - 18 16 12 - 17 15 11 -
70 600 KW 1.24 1.26 1.30 - 1.33 1.36 1.40 - 1.41 1.44 1.48 - 1.48 1.51 1.56 - 1.54 1.57 1.62 - 1.59 1.63 1.68 -
AMPS 4.5 4.6 4.7 - 4.8 4.9 5.1 - 5.2 5.4 5.6 - 5.6 5.7 5.9 - 6.0 6.1 6.3 - 6.3 6.5 6.7 -
HIPR 222 239 253 - 250 269 284 - 284 306 323 - 323 348 368 - 364 392 413 - 402 433 457 -
LO PR 108 114 125 - 114 121 132 - 118 126 137 - 124 132 144 - 130 138 151 - 134 143 156 -
MBh 15.3 15.8 17.4 - 14.9 15.5 16.9 - 14.6 15.1 16.5 - 14.2 14.7 16.1 - 13.5 14.0 15.3 - 12.5 13.0 14.2 -
S/T 0.68 0.57 0.40 - 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.63 0.43 - 0.78 0.65 0.45 - 0.78 0.66 0.45 -
T 18 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 18 16 12 - 17 15 11 -
525 KW 1.21 1.23 1.27 - 1.30 1.32 1.36 - 1.38 1.40 1.45 - 1.44 1.47 1.52 - 1.50 1.53 1.58 - 1.55 1.59 1.64 -
AMPS 4.3 4.5 4.6 - 4.7 4.8 5.0 - 5.1 5.2 5.4 - 5.5 5.6 5.8 - 5.8 5.9 6.1 - 6.1 6.3 6.5 -
HIPR 216 232 245 - 242 261 275 - 275 296 313 - 314 338 356 - 353 380 401 - 390 420 443 -
LO PR 104 111 121 - 110 117 128 - 115 122 133 - 120 128 140 - 126 134 146 - 130 139 151 -
MBh 17.34 17.85 19.32 20.74 16.94 17.44 18.87 20.26 16.53 17.02 18.43 19.78 16.13 16.61 17.98 19.29 15.32 15.78 17.08 18.33 14.19 14.61 15.82 16.98
S/T 0.84 0.76 0.57 0.37 0.88 0.78 0.59 0.38 0.90 0.80 0.61 0.39 0.93 0.83 0.63 0.40 0.96 0.86 0.65 0.42 0.97 0.87 0.66 0.42
T 20181510201915112019151120 19 15 112018151019171410
675 KW 1.26 1.28 1.32 1.36 1.35 1.38 1.42 1.46 1.43 1.46 1.51 1.56 1.50 1.54 1.58 1.64 1.57 1.60 1.65 1.70 1.62 1.65 1.71 1.76
AMPS4.64.74.85.04.95.05.25.45.35.55.75.95.7 5.9 6.0 6.36.16.26.46.76.46.66.87.1
HIPR 227 244 258 269 255 274 289 302 290 312 329 343 330 355 375 391 371 399 422 440 410 441 466 486
LO PR 110 117 127 136 116 123 135 143 120 128 140 149 127 135 147 157 133 141 154 164 137 146 159 170
MBh 16.8 17.3 18.8 20.1 16.4 16.9 18.3 19.7 16.1 16.5 17.9 19.2 15.7 16.1 17.5 18.7 14.9 15.3 16.6 17.8 13.8 14.2 15.4 16.5
S/T 0.810.720.550.350.840.750.570.360.860.770.580.370.88 0.79 0.60 0.38 0.92 0.82 0.62 0.40 0.93 0.83 0.63 0.40
T 21191611211916112119161121 20 16 11 21 19 16 11 20 18 15 10
75 600 KW 1.251.271.311.351.341.371.411.451.421.451.501.541.49 1.52 1.57 1.62 1.55 1.59 1.64 1.69 1.61 1.64 1.69 1.75
AMPS4.54.64.84.94.95.05.25.35.35.45.65.85.7 5.8 6.0 6.2 6.0 6.2 6.4 6.6 6.4 6.5 6.8 7.0
HIPR 225 242 255 266 252 271 287 299 287 309 326 340 327 352 371 387 368 396 418 436 406 437 461 481
LO PR 109 116 126 134 115 122 133 142 119 127 139 148 125 133 146 155 131 140 153 162 136 145 158 168
MBh 15.5 16.0 17.3 18.6 15.2 15.6 16.9 18.2 14.8 15.3 16.5 17.7 14.5 14.88 16.1 17.3 13.7 14.1 15.3 16.4 12.7 13.1 14.2 15.2
S/T 0.78 0.69 0.53 0.34 0.81 0.72 0.55 0.35 0.83 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.88 0.79 0.60 0.39 0.89 0.80 0.60 0.39
T 21191611212016112120161122 20 16 112120161120181510
525 KW 1.22 1.24 1.28 1.32 1.31 1.33 1.38 1.42 1.39 1.42 1.46 1.51 1.46 1.49 1.53 1.58 1.51 1.55 1.60 1.65 1.57 1.60 1.65 1.71
AMPS4.44.54.64.84.74.95.05.25.25.35.55.75.5 5.6 5.8 6.05.96.06.26.46.26.46.66.8
HIPR 218 235 248 258 245 263 278 290 278 299 316 330 317 341 360 376 357 384 405 423 394 424 448 467
LO PR 105 112 122 130 111 118 129 138 116 123 134 143 122 129 141 150 127 136 148 158 132 140 153 163
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan High and low pressures are measured at the liquid and suction service valves.
