Goodman SSZ 16 SEER Technical document

SSZ 16 SEER
Split System Heat Pumps
•Refer to Service Manual RS6200005 for installation, op-
eration, and troubleshooting information.
•All safety information must be followed as provided in the
Service Manual.
•Refer to the appropriate Parts Catalog for part number
information.
RT6214002 Rev. 2
September 2007
TECHNICALINFORMATION MANUAL
Copyright © 2006-2007 Goodman Manufacturing Company, L.P.
Models listed
on page 3
This manual is to be used by qualified, professionally trained HVAC techni-
cians only. Goodman does not assume any responsibility for property
damage or personal injury due to improper service procedures or services
performed by an unqualified person.
®

PRODUCT IDENTIFICATION
2
The model number is used for positive identification of component parts used in manufacturing. Please use this number
when requesting service or parts information.
WARNING
WARNING
WARNING
WARNING
HIGHVOLTAGE!
DisconnectALLpowerbeforeservicingorinstallingthisunit.Multiple
power sources may be present. Failure to do so may cause property
damage, personal injury or death.
Installation and repair of this unit should be performed ONLY by individu-
als meeting the requirements of an "entry level technician" as specified
by the Air Conditioning and Refrigeration Institute (ARI). Attempting to
install or repair this unit without such background may result in product
damage, personal injury or death.
WARNING
WARNING
Goodmanwillnotberesponsibleforanyinjury or propertydamagearising
from improper service or service procedures. If you install or perform
service on this unit, you assume responsibility for any personal injury or
property damage which may result. Many jurisdictions require a license to
install or service heating and air conditioning equipment.
S S Z 16 036 1 A A
Major Revision
SEER
SEER Rating
Nominal Capacity
Electrical
1: 208/230V/60Hz/1ph
3: 208/230V/60Hz/3ph
4: 460V/60Hz/3ph
Product Family
S: Split System
Product Type
Brand Name
024: 2 tons
036: 3 tons
048: 4 tons
060: 5 tons
G: Goodman
(Standard Feature Set Models)
S: Goodman
(High Feature Set Models)
C: Condenser R-22
X: Condenser R-410A
H: Heat Pump R-22
Z: Heat Pump R-410A
A: Initial Release
MinorRevision
A: Initial Release

PRODUCT IDENTIFICATION
3
WARNING
WARNING
WARNING
WARNING To prevent the risk of property damage, personal injury, or death, do not
store combustible materials or use gasoline or other flammable liquids or
vapors in the vicinity of this appliance.
Do not connect or use any device that is not design certified by Goodman
for use with this unit. Serious property damage, personal injury, reduced
unit performance and/or hazardous conditions may result from the use of
suchnon-approveddevices.
WARNING
WARNING The United States Environmental Protection Agency (“EPA”) has issued vari-
ous regulations regarding the introduction and disposal of refrigerants intro-
duced into this unit. Failure to follow these regulations may harm the envi-
ronment and can lead to the imposition of substantial fines. These regula-
tions may vary by jurisdiction. Should questions arise, contact your local
EPA office.
The model number is used for positive identification of component parts used in manufacturing. Please use this number
when requesting service or parts information.
* Indicates minor revision & is not used for order entry or inventory management
SSZ160241A*
SSZ160361A*
SSZ160481A*
SSZ160601A*

PRODUCT DESIGN
4
SSZ16 models are available in 2, 3, 4 and 5 ton sizes and
use R-410A refrigerant. They are designed for 208/230 volt
single phase applications.
The condenser air is pulled through the condenser coil by a
direct drive propeller fan. This condenser air is then dis-
charged out of the top of the cabinet.
These units are designed for free air discharge, so no addi-
tional resistance like duct work shall be attached.
The suction and liquid line connections on present models
are of the sweat type for field piping with refrigerant type cop-
per. Front seating valves are factory installed to accept the
field run copper. The total refrigerant charge for a normal in-
stallation is factory installed in the condensing unit. SSZ units
are charged for the matching evaporator coil and a 15 foot
refrigerant line set.
Systems should be properly sized by heat gain and loss
calculations made according to methods of the Air Condi-
tioning Contractors Association (ACCA) or equivalent. It is
the contractors responsibility to ensure the system has ad-
equate capacity to heat or cool the conditioned space.
SSZ16 models use high-efficiency Copeland®Scroll
"Ultratech" compressors which are specifically designed for
R-410A refrigerant. There are a number of design character-
istics which are different from the scroll compared to the tra-
ditional reciprocating compressor.
"Ultratech" Series scroll compressors will not have a dis-
charge thermostat, some of the early model scroll compres-
sors required discharge thermostats.
Due to their design Scroll compressors are inherently more
tolerant of small quantities of liquid refrigerant.
NOTE: Eventhough thecompressorsection ofaScroll com-
pressor is more tolerant of liquid refrigerant, continued
floodback or flooded start conditions may wash oil from the
bearingsurfacescausingprematurebearingfailure.
"Ultratech" Series scroll compressors use "POE" or
polyolester oil which is NOT compatible with mineral oil based
lubricants like 3GS. "POE" oil must be used if additional oil
is required.
WARNING
To avoid possible injury, explosion or death, practice
safe handling of refrigerants.
Operating pressures and amp draws may differ from stan-
dard reciprocating and/or scroll compressors. This informa-
tion may be found in the "Cooling Performance Data" sec-
tion.

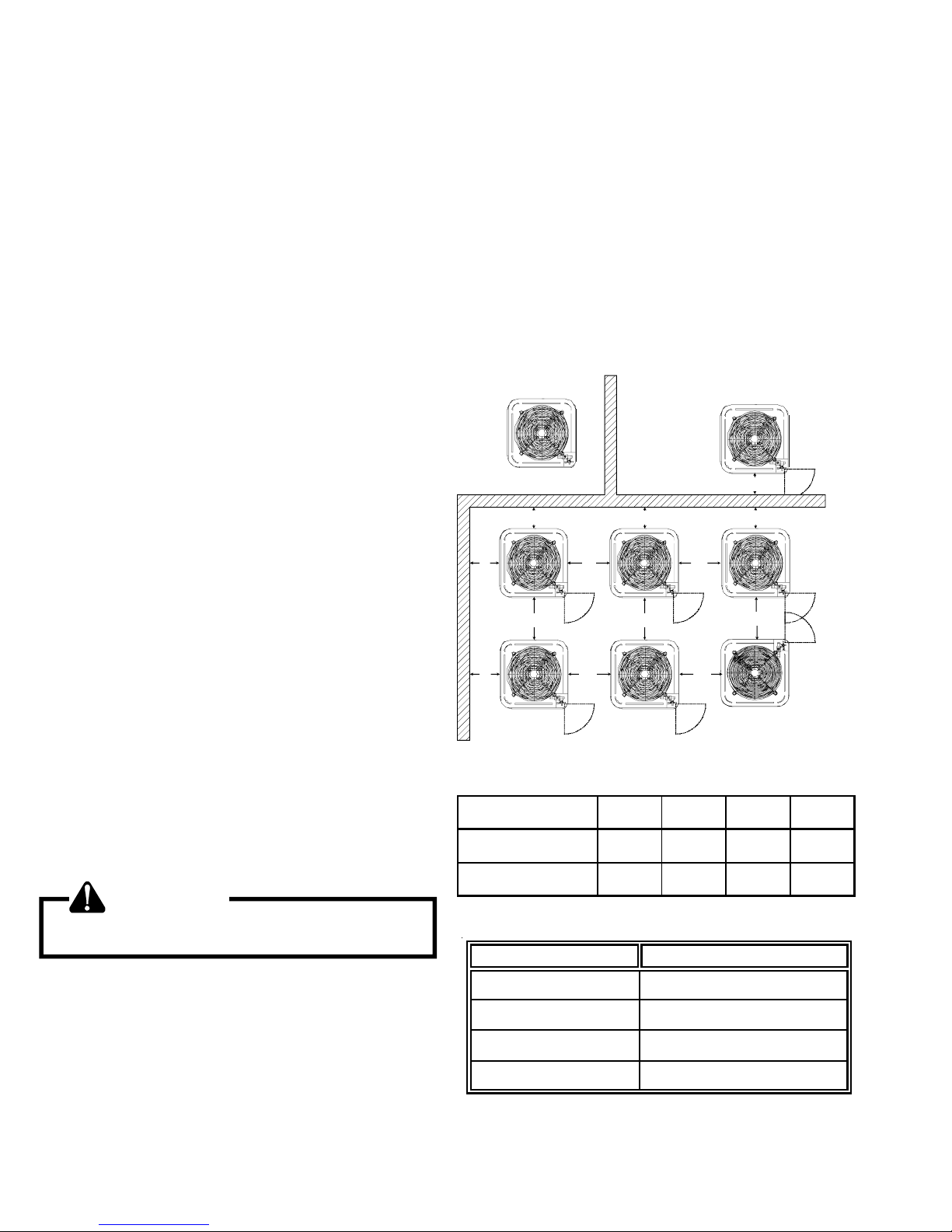

This unit is for outdoor installation only. Refer to minimum
figure for clearances from the sides of the unit to full walls
and other objects.
NOTE: This unit cannot be completely enclosed. At least
one side must be unrestricted.
These clearances will help avoid air recirculation. If installing
two or more units at the same location, allow at least 24
inches between units. If only one side is restricted (for ex-
ample, against the outside wall of a house), the unit may be
placed as close as 8" to that one wall.
DO NOT locate the unit:
* Directly under a vent termination for a gas appliance.
* Within 3 feet of a clothes drier vent
* Where the refreezing of defrost water would create
a hazard
* Where water may rise into the unit.
OK!
OK!
AA AAA
A
CC
CCOK!
OK!
OK!
OK!
NOT
RECOMMENDED
AA
AA AA
AA
AA
B B B
B
Model Type A B C AA
Residential 10" 10" 18" 20"
Light Commercial 12' 12" 18" 24"
Model Dimensions - W x D x H
SSZ160241A* 29 x 29 x 38¼
SSZ160361A* 35½ x 35½ x 38¼
SSZ160481A* 35½ x 35½ x 38¼
SSZ160601A* 35½ x 35½ x 38¼

HEAT PUMP SPECIFICATIONS
5
NOTE: This data is provided as a guide, it is important to electrically connect the unit and properly size fuses/circuit breakers and
wires in accordance with all national and/or local electrical codes. Use copper wire only.
Unit specifications are subject to change without notice. ALWAYS refer to the unit's serial plate for the most up-to-date general
and electrical information.
SSZ160241A* -SSZ160601A*
SSZ160241A* SSZ160361A* SSZ160481A* SSZ160601A*
Cooling Capacity, BTUH 24,000 36,000 48,000 60,000
Compressor
R.L. Amps 13.4 14.1 19.8 25.6
L.R. Amps 58.3 77.0 109.0 118.0
Low Pressure Switch
Open 22 PSIG 22 PSIG 22 PSIG 22 PSIG
Close 50 PSIG 50 PSIG 50 PSIG 50 PSIG
High Pressure Switch
Open 610 PSIG 610 PSIG 610 PSIG 610 PSIG
Close 420 PSIG 420 PSIG 420 PSIG 420 PSIG
Condenser Fan Motor
Horsepower 1/6 1/6 1/6 1/6
F.L. Amps 1.1 1.1 1.1 1.0
Liquid Line, Inches O.D.* 3/8" 3/8" 3/8" 3/8"
Suction Line, Inches O.D.* 3/4" 7/8" 1-1/8" 1-1/8"
Refrigerant Charge 160.0 190.0 285.0 280.0
Power Supply 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1
Minimum Circuit Ampacity(1) 17.9 18.7 25.7 33.0
Maximum Overcurrent Device(2) 30 30 40 50
Electrical Conduit Size
Power Supply (Inches) 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4
Approximate Shipping Weight 282 282 282 296
* Up to 24' in equivalent line length
(1) Wire size should be determined in accordance with National Electrical Codes; extensive wire runs will require larger wire sizes.
(2) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.
NOTES:
• Always check the S & R plate for electrical data on the unit being installed.
• Installer will need to supply 7/8" to 1-1/8" adapters for suction line connections (4 & 5 ton units).
• Installer will need to supply 3/4" to 7/8" adapters for suction line connections (3 ton unit).
• Unit is charged with refrigerant for 15' of 3/8" liquid line. System charge must be adjusted per Installation Instructions Final Charge
Procedure.
• Installation of these units requires the specified TXV Kit to be installed on the indoor coil. THE SPECIFIED TXV IS DETERMINED BY THE
OUTDOOR UNIT, NOT THE INDOOR COIL.

6
COOLING PERFORMANCE DATA SSZ160241A*
EXPANDED PERFORMANCE DATA COOLING OPERATION
MODEL: SSZ160241A* / CA*F3636*6A* + TXV / MBE1600**-1 Design Subcooling 7 ± 2 °F @ the liquid service valve, ARI 95 test conditions
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 23.5 24.4 26.7 - 23.0 23.8 26.1 - 22.4 23.2 25.5 - 21.9 22.7 24.8 - 20.8 21.5 23.6 - 19.3 20.0 21.9 -
S/T 0.78 0.65 0.45 - 0.81 0.68 0.47 - 0.83 0.69 0.48 - 0.86 0.72 0.50 - 0.89 0.74 0.52 - 0.90 0.75 0.52 -
Delta T 17 15 11 - 17 15 11 - 17 15 11 - 18 15 12 - 17 15 11 - 16 14 11 -
984 KW 1.44 1.47 1.51 - 1.55 1.58 1.63 - 1.64 1.68 1.73 - 1.73 1.77 1.82 - 1.80 1.84 1.90 - 1.86 1.91 1.97 -
AMPS 5.6 5.7 5.9 - 6.0 6.2 6.3 - 6.5 6.7 6.9 - 6.9 7.1 7.3 - 7.4 7.5 7.8 - 7.8 8.0 8.2 -
HI PR 213 230 242 - 239 258 272 - 272 293 309 - 310 334 352 - 349 375 396 - 385 415 438 -
LO PR 112 119 130 - 118 125 137 - 122 130 142 - 129 137 149 - 135 143 157 - 139 148 162 -
MBh 22.8 23.7 25.9 - 22.3 23.1 25.3 - 21.8 22.6 24.7 - 21.2 22.0 24.1 - 20.2 20.9 22.9 - 18.7 19.4 21.2 -
S/T 0.75 0.62 0.43 - 0.77 0.65 0.45 - 0.79 0.66 0.46 - 0.82 0.68 0.47 - 0.85 0.71 0.49 - 0.86 0.72 0.50 -
Delta T 18 15 12 - 18 16 12 - 18 16 12 - 18 16 12 - 18 16 12 - 17 15 11 -
70 875 KW 1.43 1.46 1.50 - 1.54 1.57 1.62 - 1.63 1.67 1.72 - 1.72 1.75 1.81 - 1.79 1.83 1.89 - 1.85 1.89 1.95 -
AMPS 5.5 5.7 5.8 - 6.0 6.1 6.3 - 6.5 6.6 6.8 - 6.9 7.0 7.3 - 7.3 7.5 7.7 - 7.7 7.9 8.2 -
HI PR 211 227 240 - 237 255 269 - 270 290 306 - 307 330 349 - 345 372 392 - 382 411 434 -
LO PR 110 117 128 - 117 124 136 - 121 129 141 - 127 136 148 - 133 142 155 - 138 147 160 -
MBh 21.1 21.8 23.9 - 20.6 21.3 23.4 - 20.1 20.8 22.8 - 19.6 20.3 22.3 - 18.6 19.3 21.1 - 17.3 17.9 19.6 -
S/T 0.72 0.60 0.42 - 0.75 0.62 0.43 - 0.76 0.64 0.44 - 0.79 0.66 0.46 - 0.82 0.68 0.47 - 0.83 0.69 0.48 -
Delta T 18 16 12 - 18 16 12 - 18 16 12 - 19 16 12 - 18 16 12 - 17 15 11 -
766 KW 1.39 1.42 1.47 - 1.50 1.53 1.58 - 1.59 1.63 1.68 - 1.67 1.71 1.76 - 1.74 1.78 1.84 - 1.80 1.84 1.90 -
AMPS 5.4 5.5 5.7 - 5.8 5.9 6.1 - 6.3 6.4 6.6 - 6.7 6.9 7.1 - 7.1 7.3 7.5 - 7.5 7.7 7.9 -
HI PR 205 220 233 - 230 247 261 - 261 281 297 - 298 320 338 - 335 360 381 - 370 398 421 -
LO PR 107 114 124 - 113 120 131 - 118 125 137 - 124 131 143 - 129 138 150 - 134 142 156 -
MBh 23.9 24.6 26.7 28.6 23.4 24.1 26.0 27.9 22.8 23.5 25.4 27.3 22.2 22.9 24.8 26.6 21.1 21.8 23.6 25.3 19.6 20.2 21.8 23.4
S/T 0.890.800.600.390.920.820.620.400.940.850.640.410.98 0.87 0.66 0.42 1.00 0.91 0.69 0.44 1.00 0.91 0.69 0.44
DeltaT20181510201915102019151020 19 15 11 20 18 15 10 18 17 14 10
984 KW 1.45 1.48 1.53 1.58 1.56 1.59 1.64 1.70 1.66 1.69 1.75 1.81 1.74 1.78 1.84 1.90 1.82 1.86 1.92 1.98 1.88 1.92 1.99 2.05
AMPS 5.6 5.8 5.9 6.2 6.1 6.2 6.4 6.6 6.6 6.7 6.9 7.2 7.0 7.2 7.4 7.7 7.4 7.6 7.9 8.1 7.9 8.0 8.3 8.6
HI PR 215 232 245 255 242 260 275 287 275 296 312 326 313 337 356 371 352 379 400 418 389 419 442 461
LO PR 113 120 131 139 119 127 138 147 124 132 144 153 130 138 151 161 136 145 158 168 141 150 164 174
MBh 23.2 23.9 25.9 27.8 22.7 23.4 25.3 27.1 22.1 22.8 24.7 26.5 21.6 22.2 24.1 25.8 20.5 21.1 22.9 24.5 19.0 19.6 21.2 22.7
S/T 0.850.760.570.370.880.790.590.380.900.810.610.390.93 0.83 0.63 0.41 0.97 0.86 0.65 0.42 0.97 0.87 0.66 0.42
DeltaT21191611211916112119161121 19 16 11 21 19 16 11 19 18 15 10
75 875 KW 1.44 1.47 1.51 1.56 1.55 1.58 1.63 1.68 1.64 1.68 1.73 1.79 1.73 1.77 1.83 1.89 1.80 1.84 1.90 1.97 1.86 1.91 1.97 2.04
AMPS 5.6 5.7 5.9 6.1 6.0 6.2 6.3 6.6 6.5 6.7 6.9 7.1 6.9 7.1 7.3 7.6 7.4 7.5 7.8 8.1 7.8 8.0 8.2 8.5
HI PR 213 230 242 253 239 258 272 284 272 293 309 323 310 334 352 368 349 375 396 413 385 415 438 457
LO PR 112 119 130 138 118 125 137 146 122 130 142 152 129 137 149 159 135 143 157 167 139 148 162 173
MBh 21.4 22.1 23.9 25.6 20.9 21.6 23.3 25.0 20.4 21.0 22.8 24.4 19.9 20.5 22.2 23.8 18.9 19.5 21.1 22.7 17.5 18.1 19.6 21.0
S/T 0.820.730.550.360.850.760.570.370.870.780.590.380.90 0.80 0.61 0.39 0.93 0.83 0.63 0.41 0.94 0.84 0.64 0.41
DeltaT21191611212016112120161121 20 16 11 21 19 16 11 20 18 15 10
766 KW 1.40 1.43 1.48 1.53 1.51 1.54 1.59 1.64 1.60 1.64 1.69 1.75 1.69 1.72 1.78 1.84 1.76 1.80 1.85 1.92 1.82 1.86 1.92 1.98
AMPS 5.4 5.6 5.7 5.9 5.9 6.0 6.2 6.4 6.3 6.5 6.7 6.9 6.8 6.9 7.1 7.4 7.2 7.3 7.6 7.9 7.6 7.8 8.0 8.3
HI PR 207 223 235 245 232 250 264 275 264 284 300 313 301 324 342 357 338 364 385 401 374 402 425 443
LO PR 108 115 126 134 114 122 133 141 119 126 138 147 125 133 145 154 131 139 152 162 135 144 157 167
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system power AMPS=outdoor unit amps (comp.+fan) High and low pressures are measured at the liquid and suction service valves.

7
COOLING PERFORMANCE DATA SSZ160241A*
EXPANDED PERFORMANCE DAT
A
COOLING OPERATION
MODEL: SSZ160241A* / CA*F3636*6A* + TXV / MBE1600**-1 Design Subcooling 7 ± 2 °F @ the liquid service valve, ARI 95 test conditions
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 59636771596367715963677159 63 67 715963677159636771
MBh 24.3 24.9 26.6 28.4 23.8 24.3 26.0 27.7 23.2 23.7 25.3 27.1 22.6 23.1 24.7 26.4 21.5 22.0 23.5 25.1 19.9 20.4 21.8 23.3
S/T 1.00 0.91 0.74 0.56 1.00 0.95 0.77 0.58 1.00 1.00 0.79 0.59 1.00 1.00 0.82 0.61 1.00 1.00 0.85 0.63 1.00 1.00 0.85 0.64
DeltaT23211815222219152222191521 22 19 152021191519191714
984 KW 1.46 1.49 1.54 1.59 1.57 1.61 1.66 1.71 1.67 1.71 1.76 1.82 1.76 1.80 1.86 1.92 1.83 1.87 1.93 2.00 1.90 1.94 2.00 2.07
AMPS5.75.86.06.26.16.36.56.76.66.87.07.27.1 7.2 7.5 7.77.57.77.98.27.98.18.48.7
HI PR 218 234 247 258 244 263 278 289 278 299 316 329 316 340 360 375 356 383 404 422 393 423 447 466
LO PR 114 121 132 141 120 128 140 149 125 133 145 155 131 140 152 162 138 146 160 170 142 151 165 176
MBh 23.6 24.1 25.8 27.6 23.1 23.6 25.2 26.9 22.5 23.0 24.6 26.3 22.0 22.5 24.0 25.7 20.9 21.3 22.8 24.4 19.3 19.8 21.1 22.6
S/T 0.93 0.87 0.71 0.53 0.96 0.90 0.74 0.55 0.99 0.93 0.75 0.56 1.00 0.96 0.78 0.58 1.00 0.99 0.81 0.60 1.00 1.00 0.82 0.61
DeltaT23221915232219162322201623 23 20 16 22 22 19 15 20 21 18 14
80 875 KW 1.45 1.48 1.53 1.58 1.56 1.59 1.64 1.70 1.66 1.69 1.75 1.81 1.74 1.78 1.84 1.90 1.82 1.86 1.92 1.98 1.88 1.92 1.99 2.05
AMPS5.65.85.96.26.16.26.46.66.66.76.97.27.0 7.2 7.4 7.77.47.67.98.17.98.08.38.6
HI PR 216 232 245 255 242 260 275 287 275 296 313 326 313 337 356 371 352 379 400 418 389 419 442 461
LO PR 113 120 131 139 119 127 138 147 124 132 144 153 130 138 151 161 136 145 158 168 141 150 164 174
MBh 21.8 22.3 23.8 25.5 21.3 21.8 23.3 24.9 20.8 21.3 22.7 24.3 20.3 20.7 22.2 23.7 19.3 19.7 21.0 22.5 17.9 18.2 19.5 20.8
S/T 0.90 0.84 0.68 0.51 0.93 0.87 0.71 0.53 0.95 0.89 0.73 0.54 0.98 0.92 0.75 0.56 1.02 0.96 0.78 0.58 1.03 0.97 0.79 0.59
DeltaT23232016242320162423201624 23 20 162423201622211815
766 KW 1.42 1.45 1.49 1.54 1.52 1.56 1.60 1.66 1.62 1.65 1.71 1.76 1.70 1.74 1.79 1.85 1.77 1.81 1.87 1.93 1.83 1.87 1.94 2.00
AMPS5.55.65.86.05.96.06.26.56.46.56.87.06.8 7.0 7.2 7.57.27.47.67.97.67.88.18.4
HI PR 209 225 238 248 235 252 267 278 267 287 303 316 304 327 345 360 342 368 388 405 378 406 429 448
LO PR 109 116 127 135 115 123 134 143 120 128 139 148 126 134 146 156 132 141 153 163 137 145 159 169
MBh 24.8 25.2 26.4 28.2 24.2 24.7 25.8 27.6 23.6 24.1 25.2 26.9 23.0 23.5 24.6 26.2 21.9 22.3 23.4 24.9 20.3 20.7 21.6 23.1
S/T 1.00 0.99 0.89 0.72 1.00 1.00 0.92 0.75 1.00 1.00 0.95 0.77 1.00 1.00 0.98 0.79 1.00 1.00 1.00 0.82 1.00 1.00 1.00 0.83
DeltaT23232219232322192222221922 22 22 192021221919192018
984 KW 1.47 1.50 1.55 1.60 1.59 1.62 1.67 1.73 1.69 1.72 1.78 1.84 1.77 1.81 1.87 1.93 1.85 1.89 1.95 2.02 1.91 1.95 2.02 2.09
AMPS5.75.96.06.36.26.36.56.76.76.87.17.37.1 7.3 7.5 7.87.67.78.08.38.08.28.58.8
HI PR 220 237 250 261 247 265 280 292 281 302 319 333 320 344 363 379 359 387 408 426 397 427 451 471
LO PR 115 122 134 142 121 129 141 150 126 134 147 156 133 141 154 164 139 148 161 172 144 153 167 178
MBh 24.0 24.5 25.7 27.4 23.5 23.9 25.1 26.8 22.9 23.4 24.5 26.1 22.4 22.8 23.9 25.5 21.2 21.7 22.7 24.2 19.7 20.1 21.0 22.4
S/T 0.98 0.94 0.85 0.69 1.00 0.97 0.88 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.93 0.76 1.00 1.00 0.97 0.78 1.00 1.00 0.97 0.79
DeltaT25242320252523202425232024 24 23 202223232021212219
85 875 KW 1.46 1.49 1.54 1.59 1.57 1.61 1.66 1.71 1.67 1.71 1.76 1.82 1.76 1.80 1.86 1.92 1.83 1.87 1.93 2.00 1.90 1.94 2.00 2.07
AMPS5.75.86.06.26.16.36.56.76.66.87.07.27.1 7.2 7.5 7.77.57.77.98.27.98.18.48.7
HI PR 218 234 247 258 244 263 278 289 278 299 316 329 316 340 360 375 356 383 404 422 393 423 447 466
LO PR 114 121 132 141 120 128 140 149 125 133 145 155 131 140 152 162 138 146 160 170 142 151 165 176
MBh 22.2 22.6 23.7 25.3 21.7 22.1 23.1 24.7 21.2 21.6 22.6 24.1 20.6 21.0 22.0 23.5 19.6 20.0 20.9 22.3 18.2 18.5 19.4 20.7
S/T 0.94 0.91 0.82 0.66 0.97 0.94 0.85 0.69 1.00 0.96 0.87 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.93 0.76 1.00 1.00 0.94 0.76
DeltaT25252320252524202525242025 25 24 212424232022222219
766 KW 1.43 1.46 1.50 1.55 1.54 1.57 1.62 1.67 1.63 1.67 1.72 1.78 1.72 1.75 1.81 1.87 1.79 1.83 1.89 1.95 1.85 1.89 1.95 2.02
AMPS5.55.75.86.06.06.16.36.56.56.66.87.16.9 7.0 7.3 7.57.37.57.78.07.77.98.28.5
HI PR 211 227 240 250 237 255 269 281 269 290 306 319 307 330 349 364 345 372 392 409 381 410 433 452
LO PR 110 117 128 137 117 124 135 144 121 129 141 150 127 135 148 157 133 142 155 165 138 147 160 171
Shaded area is ARI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system power AMPS=outdoor unit amps (comp.+fan) High and low pressures are measured at the liquid and suction service valves.

8
COOLING PERFORMANCE DATA
EXPANDED PERFORMANCE DATA COOLING OPERATION
MODEL: SSZ160361A* / CA*F4860*6A* + TXV / MBE2000**-1 Design Subcooling 9 ±3 °F @ the liquid service valve, ARI 95 test conditions
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 33.9 35.1 38.5 - 33.1 34.3 37.6 - 32.3 33.5 36.7 - 31.5 32.7 35.8 - 30.0 31.1 34.0 - 27.8 28.8 31.5 -
S/T 0.76 0.63 0.44 - 0.79 0.66 0.46 - 0.81 0.67 0.47 - 0.83 0.70 0.48 - 0.86 0.72 0.50 - 0.87 0.73 0.50 -
Delta T 18 15 12 - 18 15 12 - 18 15 12 - 18 15 12 - 18 15 12 - 16 14 11 -
1350 KW 1.98 2.03 2.09 - 2.14 2.19 2.26 - 2.28 2.33 2.40 - 2.40 2.45 2.53 - 2.50 2.56 2.64 - 2.59 2.65 2.74 -
AMPS 7.7 7.9 8.2 - 8.3 8.5 8.8 - 9.0 9.3 9.6 - 9.6 9.9 10.2 - 10.3 10.5 10.9 - 10.9 11.1 11.5 -
HI PR 217 233 246 - 243 261 276 - 276 297 314 - 315 339 358 - 354 381 402 - 391 421 445 -
LO PR 108 115 126 - 114 122 133 - 119 126 138 - 125 133 145 - 131 139 152 - 135 144 157 -
MBh 32.9 34.1 37.4 - 32.2 33.3 36.5 - 31.4 32.5 35.6 - 30.6 31.7 34.8 - 29.1 30.2 33.0 - 26.9 27.9 30.6 -
S/T 0.72 0.60 0.42 - 0.75 0.63 0.43 - 0.77 0.64 0.45 - 0.79 0.66 0.46 - 0.82 0.69 0.48 - 0.83 0.69 0.48 -
Delta T 18 16 12 - 18 16 12 - 19 16 12 - 19 16 12 - 18 16 12 - 17 15 11 -
70 1200 KW 1.97 2.01 2.07 - 2.12 2.17 2.24 - 2.26 2.31 2.38 - 2.38 2.43 2.51 - 2.48 2.53 2.62 - 2.57 2.62 2.71 -
AMPS 7.7 7.8 8.1 - 8.3 8.5 8.7 - 9.0 9.2 9.5 - 9.6 9.8 10.1 - 10.2 10.4 10.8 - 10.8 11.0 11.4 -
HI PR 214 231 244 - 241 259 273 - 274 294 311 - 312 335 354 - 351 377 398 - 387 417 440 -
LO PR 107 114 124 - 113 120 131 - 118 125 137 - 124 131 143 - 129 138 150 - 134 142 156 -
MBh 30.4 31.5 34.5 - 29.7 30.8 33.7 - 29.0 30.0 32.9 - 28.3 29.3 32.1 - 26.9 27.8 30.5 - 24.9 25.8 28.2 -
S/T 0.70 0.58 0.40 - 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.77 0.64 0.44 - 0.79 0.66 0.46 - 0.80 0.67 0.46 -
Delta T 19 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 17 15 11 -
1050 KW 1.92 1.96 2.02 - 2.07 2.11 2.18 - 2.20 2.25 2.32 - 2.32 2.37 2.45 - 2.42 2.47 2.55 - 2.50 2.56 2.64 -
AMPS 7.4 7.6 7.9 - 8.0 8.2 8.5 - 8.7 8.9 9.2 - 9.3 9.5 9.8 - 9.9 10.1 10.5 - 10.5 10.7 11.1 -
HI PR 208 224 236 - 233 251 265 - 265 286 302 - 302 325 343 - 340 366 386 - 376 404 427 -
LO PR 104 111 121 - 110 117 127 - 114 121 132 - 120 127 139 - 126 134 146 - 130 138 151 -
MBh 34.5 35.5 38.4 41.2 33.7 34.7 37.5 40.3 32.9 33.8 36.6 39.3 32.1 33.0 35.7 38.4 30.5 31.4 34.0 36.4 28.2 29.1 31.5 33.8
S/T 0.86 0.77 0.58 0.38 0.89 0.80 0.61 0.39 0.92 0.82 0.62 0.40 0.95 0.85 0.64 0.41 0.98 0.88 0.67 0.43 0.99 0.89 0.67 0.43
DeltaT20 19 1511 21 1915 11 21 19 151121 19 16 11 20 19 15 11 19 18 14 10
1350 KW 2.00 2.04 2.11 2.18 2.16 2.20 2.28 2.35 2.29 2.35 2.42 2.51 2.42 2.47 2.55 2.64 2.52 2.58 2.66 2.76 2.61 2.67 2.76 2.86
AMPS 7.8 8.0 8.2 8.5 8.4 8.6 8.9 9.2 9.1 9.3 9.6 10.0 9.7 10.0 10.3 10.7 10.4 10.6 11.0 11.4 11.0 11.2 11.6 12.0
HI PR 219 235 249 259 245 264 279 291 279 300 317 331 318 342 361 377 358 385 406 424 395 425 449 468
LO PR 109 116 127 135 115 123 134 143 120 128 139 148 126 134 146 156 132 141 153 163 137 145 159 169
MBh 33.5 34.5 37.3 40.0 32.7 33.7 36.4 39.1 31.9 32.9 35.6 38.2 31.1 32.1 34.7 37.2 29.6 30.5 33.0 35.4 27.4 28.2 30.5 32.8
S/T 0.82 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.87 0.78 0.59 0.38 0.90 0.81 0.61 0.39 0.94 0.84 0.63 0.41 0.94 0.85 0.64 0.41
DeltaT21 19 1611 21 2016 11 21 20 161122 20 16 11 21 20 16 11 20 18 15 10
75 1200 KW 1.98 2.03 2.09 2.16 2.14 2.19 2.26 2.33 2.28 2.33 2.40 2.48 2.40 2.45 2.53 2.62 2.50 2.56 2.64 2.73 2.59 2.65 2.74 2.83
AMPS 7.7 7.9 8.2 8.5 8.3 8.5 8.8 9.1 9.0 9.3 9.6 9.9 9.6 9.9 10.2 10.6 10.3 10.5 10.9 11.3 10.9 11.1 11.5 11.9
HI PR 217 233 246 257 243 261 276 288 276 297 314 328 315 339 358 373 354 381 402 420 391 421 445 464
LO PR 108 115 126 134 114 122 133 141 119 126 138 147 125 133 145 154 131 139 152 162 135 144 157 167
MBh 30.9 31.8 34.4 37.0 30.2 31.1 33.6 36.1 29.5 30.3 32.8 35.2 28.7 29.6 32.0 34.4 27.3 28.1 30.4 32.7 25.3 26.0 28.2 30.3
S/T 0.79 0.71 0.54 0.35 0.82 0.74 0.56 0.36 0.84 0.75 0.57 0.37 0.87 0.78 0.59 0.38 0.90 0.81 0.61 0.39 0.91 0.81 0.62 0.40
DeltaT21 20 1611 22 2016 11 22 20 161122 20 17 11 22 20 16 11 20 19 15 11
1050 KW 1.94 1.98 2.04 2.11 2.09 2.13 2.20 2.27 2.22 2.27 2.34 2.42 2.34 2.39 2.47 2.55 2.44 2.49 2.57 2.66 2.52 2.58 2.67 2.76
AMPS 7.5 7.7 7.9 8.2 8.1 8.3 8.6 8.9 8.8 9.0 9.3 9.6 9.4 9.6 9.9 10.3 10.0 10.2 10.6 11.0 10.6 10.8 11.2 11.6
HI PR 210 226 239 249 236 254 268 279 268 288 305 318 305 329 347 362 343 370 390 407 380 408 431 450
LO PR 105 112 122 130 111 118 129 137 115 123 134 143 121 129 141 150 127 135 147 157 131 140 152 162
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system power AMPS=outdoor unit amps (comp.+fan) High and low pressures are measured at the liquid and suction service valves.
SSZ160361A*

9
COOLING PERFORMANCE DATA
EXPANDED PERFORMANCE DATA COOLING OPERATION
MODEL: SSZ160361A* / CA*F4860*6A* + TXV / MBE2000**-1 Design Subcooling 9 ±3 °F @ the liquid service valve, ARI 95 test conditions
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 59 63 6771 59 6367 71 59 63 677159 63 67 715963677159636771
MBh 35.1 35.9 38.3 41.0 34.3 35.0 37.4 40.0 33.5 34.2 36.5 39.0 32.6 33.4 35.6 38.1 31.0 31.7 33.9 36.2 28.7 29.4 31.4 33.5
S/T 0.95 0.89 0.72 0.54 1.00 0.92 0.75 0.56 1.00 0.94 0.77 0.57 1.00 1.00 0.79 0.59 1.00 1.00 0.82 0.61 1.00 1.00 0.83 0.62
DeltaT23 22 1915 23 2219 15 23 22 191522 23 19 152122191520201814
1350 KW 2.02 2.06 2.13 2.20 2.17 2.22 2.29 2.37 2.31 2.37 2.44 2.53 2.44 2.49 2.58 2.66 2.54 2.60 2.69 2.78 2.63 2.69 2.78 2.88
AMPS 7.9 8.0 8.3 8.6 8.5 8.7 9.0 9.3 9.2 9.4 9.7 10.1 9.8 10.1 10.4 10.8 10.4 10.7 11.1 11.5 11.1 11.3 11.7 12.2
HI PR 221 238 251 262 248 267 282 294 282 303 320 334 321 346 365 381 361 389 411 428 399 430 454 473
LO PR 110 117 128 137 117 124 135 144 121 129 141 150 127 135 148 157 133 142 155 165 138 147 160 171
MBh 34.1 34.8 37.2 39.8 33.3 34.0 36.3 38.8 32.5 33.2 35.5 37.9 31.7 32.4 34.6 37.0 30.1 30.8 32.9 35.1 27.9 28.5 30.4 32.5
S/T 0.90 0.85 0.69 0.51 0.94 0.88 0.71 0.53 0.96 0.90 0.73 0.55 0.99 0.93 0.76 0.56 1.00 0.96 0.78 0.59 1.00 0.97 0.79 0.59
DeltaT24 23 2016 24 2320 16 24 23 201624 23 20 16 23 23 20 16 21 21 18 15
80 1200 KW 2.00 2.04 2.11 2.18 2.16 2.20 2.28 2.35 2.30 2.35 2.42 2.51 2.42 2.47 2.55 2.64 2.52 2.58 2.66 2.76 2.61 2.67 2.76 2.86
AMPS 7.8 8.0 8.2 8.5 8.4 8.6 8.9 9.2 9.1 9.3 9.6 10.0 9.7 10.0 10.3 10.7 10.4 10.6 11.0 11.4 11.0 11.2 11.6 12.0
HI PR 219 235 249 259 245 264 279 291 279 300 317 331 318 342 361 377 358 385 406 424 395 425 449 468
LO PR 109 116 127 135 115 123 134 143 120 128 139 148 126 134 146 156 132 141 153 163 137 145 159 169
MBh 31.4 32.1 34.3 36.7 30.7 31.4 33.5 35.8 30.0 30.6 32.7 35.0 29.3 29.9 31.9 34.1 27.8 28.4 30.3 32.4 25.7 26.3 28.1 30.0
S/T 0.87 0.82 0.66 0.50 0.90 0.85 0.69 0.51 0.92 0.87 0.71 0.53 0.95 0.90 0.73 0.54 0.99 0.93 0.76 0.57 1.00 0.94 0.76 0.57
DeltaT24 23 2016 24 2320 16 24 23 201624 23 20 162423201623221915
1050 KW 1.95 1.99 2.06 2.12 2.10 2.15 2.22 2.29 2.24 2.29 2.36 2.44 2.36 2.41 2.49 2.57 2.46 2.51 2.60 2.68 2.54 2.60 2.69 2.78
AMPS 7.6 7.8 8.0 8.3 8.2 8.4 8.6 9.0 8.9 9.1 9.4 9.7 9.5 9.7 10.0 10.4 10.1 10.3 10.7 11.1 10.7 10.9 11.3 11.7
HI PR 212 228 241 251 238 256 271 282 271 291 308 321 308 332 350 366 347 373 394 411 383 413 436 454
LO PR 106 113 123 131 112 119 130 139 116 124 135 144 122 130 142 151 128 136 149 158 133 141 154 164
MBh 35.71 36.40 38.12 40.67 34.88 35.55 37.23 39.72 34.04 34.70 36.35 38.78 33.21 33.86 35.46 37.83 31.55 32.16 33.69 35.94 29.23 29.79 31.20 33.29
S/T 0.99 0.96 0.86 0.70 1.00 0.99 0.90 0.73 1.00 1.00 0.92 0.74 1.00 1.00 0.95 0.77 1.00 1.00 0.98 0.80 1.00 1.00 0.99 0.80
DeltaT24 24 2219 24 2423 20 23 24 232023 23 23 202122232020202118
1350 KW 2.03 2.08 2.14 2.21 2.19 2.24 2.31 2.39 2.33 2.39 2.46 2.55 2.46 2.51 2.60 2.69 2.56 2.62 2.71 2.80 2.66 2.72 2.81 2.91
AMPS 7.9 8.1 8.4 8.7 8.6 8.8 9.0 9.4 9.3 9.5 9.8 10.2 9.9 10.2 10.5 10.9 10.5 10.8 11.2 11.6 11.2 11.4 11.8 12.3
HI PR 223 240 254 264 250 269 285 297 285 306 324 338 324 349 369 384 365 393 415 432 403 434 458 478
LO PR 111 119 129 138 118 125 137 146 122 130 142 151 129 137 149 159 135 143 157 167 139 148 162 172
MBh 34.7 35.3 37.0 39.5 33.9 34.5 36.1 38.6 33.1 33.7 35.3 37.6 32.2 32.9 34.4 36.7 30.6 31.2 32.7 34.9 28.4 28.9 30.3 32.3
S/T 0.95 0.91 0.82 0.67 0.98 0.95 0.85 0.69 1.00 0.97 0.88 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.94 0.76 1.00 1.00 0.95 0.77
DeltaT25 25 2320 25 2524 20 25 25 242025 25 24 212324242022222219
85 1200 KW 2.02 2.06 2.13 2.20 2.17 2.22 2.29 2.37 2.31 2.37 2.44 2.53 2.44 2.49 2.58 2.66 2.54 2.60 2.69 2.78 2.63 2.69 2.78 2.88
AMPS 7.9 8.0 8.3 8.6 8.5 8.7 9.0 9.3 9.2 9.4 9.7 10.1 9.8 10.1 10.4 10.8 10.4 10.7 11.1 11.5 11.1 11.3 11.7 12.2
HI PR 221 238 251 262 248 267 282 294 282 303 320 334 321 346 365 381 361 389 411 428 399 430 454 473
LO PR 110 117 128 137 117 124 135 144 121 129 141 150 127 135 148 157 133 142 155 165 138 147 160 171
MBh 32.0 32.6 34.2 36.4 31.3 31.9 33.4 35.6 30.5 31.1 32.6 34.7 29.8 30.3 31.8 33.9 28.3 28.8 30.2 32.2 26.2 26.7 28.0 29.8
S/T 0.91 0.88 0.79 0.64 0.95 0.91 0.82 0.67 0.97 0.94 0.84 0.69 1.00 0.97 0.87 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.91 0.74
DeltaT26 25 2421 26 2524 21 26 25 242126 26 24 212525242123232219
1050 KW 1.97 2.01 2.07 2.14 2.12 2.17 2.24 2.31 2.26 2.31 2.38 2.46 2.38 2.43 2.51 2.60 2.48 2.53 2.62 2.71 2.57 2.62 2.71 2.81
AMPS 7.6 7.8 8.1 8.4 8.3 8.4 8.7 9.0 9.0 9.2 9.5 9.8 9.6 9.8 10.1 10.5 10.2 10.4 10.8 11.2 10.8 11.0 11.4 11.8
HI PR 214 231 244 254 240 259 273 285 273 294 311 324 311 335 354 369 350 377 398 415 387 417 440 459
LO PR 107 114 124 132 113 120 131 140 118 125 137 145 123 131 143 153 129 138 150 160 134 142 155 166
Shaded area is ARI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system power AMPS=outdoor unit amps (comp.+fan) High and low pressures are measured at the liquid and suction service valves.
SSZ160361A*

10
COOLING PERFORMANCE DATA SSZ160481A*
EXPANDED PERFORMANCE DATA COOLING OPERATION
MODEL: SSZ160481A* / CA*F4860*6A* + TXV / MBE2000**-1 Design Subcooling 7 ± 2 °F @ the liquid service valve, ARI 95 test conditions
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 596367715963677159 63 677159 63 67 715963677159636771
MBh 46.5 48.2 52.9 - 45.5 47.1 51.6 - 44.4 46.0 50.4 - 43.3 44.9 49.2 - 41.1 42.6 46.7 - 38.1 39.5 43.3 -
S/T 0.77 0.64 0.45 - 0.80 0.67 0.46 - 0.82 0.69 0.47 - 0.85 0.71 0.49 - 0.88 0.73 0.51 - 0.89 0.74 0.51 -
DeltaT 19 16 12 - 19 17 13 - 19 17 13 - 19 17 13 - 19 16 13 - 18 15 12 -
1744 KW 2.68 2.73 2.82 - 2.88 2.94 3.04 - 3.06 3.13 3.23 - 3.22 3.29 3.40 - 3.35 3.43 3.54 - 3.47 3.55 3.66 -
AMPS 10.2 10.4 10.8 - 11.0 11.3 11.6 - 11.9 12.2 12.6 - 12.8 13.1 13.5 - 13.6 13.9 14.4 - 14.4 14.8 15.3 -
HI PR 213 229 242 - 239 257 271 - 272 292 309 - 309 333 351 - 348 374 395 - 384 414 437 -
LO PR 110 117 128 - 116 124 135 - 121 128 140 - 127 135 147 - 133 141 154 - 137 146 160 -
MBh 45.2 46.8 51.3 - 44.1 45.7 50.1 - 43.1 44.7 48.9 - 42.0 43.6 47.7 - 39.9 41.4 45.4 - 37.0 38.3 42.0 -
S/T 0.74 0.61 0.43 - 0.76 0.64 0.44 - 0.78 0.65 0.45 - 0.81 0.67 0.47 - 0.84 0.70 0.48 - 0.85 0.71 0.49 -
DeltaT 20 17 13 - 20 17 13 - 20 17 13 - 20 17 13 - 20 17 13 - 19 16 12 -
70 1550 KW 2.66 2.71 2.80 - 2.86 2.92 3.01 - 3.04 3.10 3.20 - 3.19 3.26 3.37 - 3.33 3.40 3.51 - 3.44 3.52 3.63 -
AMPS 10.1 10.3 10.7 - 10.9 11.2 11.5 - 11.8 12.1 12.5 - 12.7 13.0 13.4 - 13.5 13.8 14.3 - 14.3 14.6 15.1 -
HI PR 211 227 239 - 236 254 269 - 269 289 306 - 306 330 348 - 345 371 391 - 381 410 433 -
LO PR 109 116 126 - 115 122 134 - 119 127 139 - 126 134 146 - 132 140 153 - 136 145 158 -
MBh 41.7 43.2 47.4 - 40.7 42.2 46.3 - 39.8 41.2 45.2 - 38.8 40.2 44.1 - 36.9 38.2 41.9 - 34.1 35.4 38.8 -
S/T 0.71 0.59 0.41 - 0.74 0.61 0.43 - 0.75 0.63 0.44 - 0.78 0.65 0.45 - 0.81 0.67 0.47 - 0.81 0.68 0.47 -
DeltaT 20 17 13 - 20 18 13 - 20 18 13 - 20 18 13 - 20 17 13 - 19 16 12 -
1356 KW 2.60 2.65 2.73 - 2.79 2.85 2.94 - 2.96 3.03 3.12 - 3.11 3.18 3.28 - 3.24 3.31 3.42 - 3.35 3.43 3.54 -
AMPS 9.8 10.0 10.4 - 10.6 10.9 11.2 - 11.5 11.8 12.2 - 12.3 12.6 13.0 - 13.1 13.4 13.9 - 13.9 14.2 14.7 -
HI PR 204 220 232 - 229 247 261 - 261 281 296 - 297 320 338 - 334 360 380 - 369 397 420 -
LO PR 106 112 123 - 112 119 130 - 116 123 135 - 122 130 141 - 128 136 148 - 132 140 153 -
MBh 47.3 48.7 52.8 56.6 46.2 47.6 51.5 55.3 45.1 46.5 50.3 54.0 44.0 45.3 49.1 52.7 41.8 43.1 46.6 50.0 38.7 39.9 43.2 46.3
S/T 0.88 0.78 0.59 0.38 0.91 0.81 0.62 0.40 0.93 0.83 0.63 0.41 0.96 0.86 0.65 0.42 1.00 0.89 0.68 0.44 1.00 0.90 0.68 0.44
DeltaT 22 20 17 11 22 20 17 12 22 20 17 12 22 21 17 12 22 20 17 11 20 19 16 11
1744 KW 2.70 2.76 2.84 2.93 2.90 2.97 3.06 3.16 3.09 3.15 3.25 3.36 3.25 3.32 3.42 3.54 3.38 3.46 3.57 3.69 3.50 3.58 3.69 3.82
AMPS 10.3 10.5 10.9 11.3 11.1 11.4 11.7 12.2 12.1 12.4 12.8 13.2 12.9 13.2 13.6 14.2 13.7 14.1 14.5 15.1 14.5 14.9 15.4 16.0
HI PR 215 231 244 255 241 260 274 286 274 295 312 325 312 336 355 370 352 378 399 417 388 418 441 460
LO PR 111 118 129 137 117 125 136 145 122 130 142 151 128 136 149 158 134 143 156 166 139 148 161 172
MBh 46.0 47.3 51.2 55.0 44.9 46.2 50.0 53.7 43.8 45.1 48.8 52.4 42.8 44.0 47.6 51.1 40.6 41.8 45.3 48.6 37.6 38.7 41.9 45.0
S/T 0.84 0.75 0.57 0.36 0.87 0.78 0.59 0.38 0.89 0.80 0.60 0.39 0.92 0.82 0.62 0.40 0.95 0.85 0.64 0.41 0.96 0.86 0.65 0.42
DeltaT 23 21 17 12 23 21 17 12 23 21 17 12 23 21 18 12 23 21 17 12 21 20 16 11
75 1550 KW 2.68 2.73 2.82 2.91 2.88 2.94 3.04 3.13 3.06 3.13 3.23 3.33 3.22 3.29 3.40 3.51 3.35 3.43 3.54 3.66 3.47 3.55 3.66 3.79
AMPS 10.2 10.4 10.8 11.2 11.0 11.3 11.6 12.1 11.9 12.2 12.6 13.1 12.8 13.1 13.5 14.0 13.6 13.9 14.4 14.9 14.4 14.8 15.3 15.8
HI PR 213 229 242 252 239 257 271 283 272 292 309 322 309 333 352 367 348 375 395 412 385 414 437 456
LO PR 110 117 128 136 116 124 135 144 121 128 140 149 127 135 147 157 133 141 154 164 137 146 160 170
MBh 42.4 43.7 47.3 50.7 41.4 42.7 46.2 49.6 40.4 41.6 45.1 48.4 39.5 40.6 44.0 47.2 37.5 38.6 41.8 44.8 34.7 35.8 38.7 41.5
S/T 0.81 0.72 0.55 0.35 0.84 0.75 0.57 0.36 0.86 0.77 0.58 0.37 0.89 0.79 0.60 0.39 0.92 0.82 0.62 0.40 0.93 0.83 0.63 0.40
DeltaT 23 21 18 12 23 22 18 12 24 22 18 12 24 22 18 12 23 21 18 12 22 20 16 11
1356 KW 2.62 2.67 2.75 2.84 2.81 2.87 2.96 3.06 2.99 3.05 3.15 3.25 3.14 3.21 3.31 3.42 3.27 3.34 3.45 3.57 3.38 3.46 3.57 3.69
AMPS 9.9 10.1 10.5 10.9 10.7 11.0 11.3 11.7 11.6 11.9 12.3 12.8 12.4 12.7 13.1 13.6 13.2 13.5 14.0 14.5 14.0 14.3 14.8 15.4
HI PR 206 222 235 245 232 249 263 275 263 284 299 312 300 323 341 356 338 363 384 400 373 401 424 442
LO PR 107 113 124 132 113 120 131 139 117 125 136 145 123 131 143 152 129 137 150 159 133 142 155 165
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system power AMPS=outdoor unit amps (comp.+fan) High and low pressures are measured at the liquid and suction service valves.

11
COOLING PERFORMANCE DATA SSZ160481A*
EXPANDED PERFORMANCE DATA COOLING OPERATION
MODEL: SSZ160481A* / CA*F4860*6A* + TXV / MBE2000**-1 Design Subcooling 7 ± 2 °F @ the liquid service valve, ARI 95 test conditions
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 596367715963677159 63 677159 63 67 715963677159636771
MBh 48.2 49.2 52.6 56.2 47.1 48.1 51.4 54.9 45.9 46.9 50.1 53.6 44.8 45.8 48.9 52.3 42.6 43.5 46.5 49.7 39.4 40.3 43.1 46.0
S/T 0.96 0.90 0.73 0.55 1.00 0.94 0.76 0.57 1.00 0.96 0.78 0.58 1.00 1.00 0.81 0.60 1.00 1.00 0.84 0.63 1.00 1.00 0.84 0.63
DeltaT 24 23 20 16 25 24 21 16 24 24 21 16 24 24 21 17 22 23 20 16 21 21 19 15
1744 KW 2.72 2.78 2.87 2.96 2.93 2.99 3.09 3.19 3.11 3.18 3.28 3.39 3.27 3.34 3.45 3.57 3.41 3.49 3.60 3.72 3.53 3.61 3.73 3.85
AMPS 10.4 10.6 11.0 11.4 11.2 11.5 11.8 12.3 12.2 12.5 12.9 13.4 13.0 13.3 13.8 14.3 13.8 14.2 14.7 15.2 14.7 15.0 15.5 16.1
HI PR 217 234 247 257 244 262 277 289 277 298 315 328 316 340 359 374 355 382 403 421 392 422 446 465
LO PR 112 119 130 139 118 126 138 147 123 131 143 152 129 138 150 160 136 144 157 168 140 149 163 173
MBh 46.8 47.8 51.1 54.6 45.7 46.7 49.9 53.3 44.6 45.6 48.7 52.0 43.5 44.5 47.5 50.8 41.3 42.2 45.1 48.2 38.3 39.1 41.8 44.7
S/T 0.92 0.86 0.70 0.52 0.95 0.89 0.73 0.54 0.98 0.91 0.74 0.56 1.00 0.94 0.77 0.57 1.00 0.98 0.80 0.60 1.00 0.99 0.80 0.60
DeltaT 25 24 21 17 26 25 21 17 26 25 21 17 26 25 22 17 25 25 21 17 23 23 20 16
80 1550 KW 2.70 2.76 2.84 2.93 2.91 2.97 3.06 3.16 3.09 3.15 3.25 3.36 3.25 3.32 3.43 3.54 3.38 3.46 3.57 3.69 3.50 3.58 3.69 3.82
AMPS 10.3 10.5 10.9 11.3 11.1 11.4 11.7 12.2 12.1 12.4 12.8 13.2 12.9 13.2 13.6 14.2 13.7 14.1 14.5 15.1 14.5 14.9 15.4 16.0
HI PR 215 231 244 255 241 260 274 286 274 295 312 325 312 336 355 370 352 378 399 417 388 418 441 460
LO PR 111 118 129 137 117 125 136 145 122 130 142 151 128 136 149 158 134 143 156 166 139 148 161 172
MBh 43.2 44.1 47.1 50.4 42.2 43.1 46.0 49.2 41.2 42.1 44.9 48.0 40.2 41.0 43.8 46.9 38.2 39.0 41.7 44.5 35.3 36.1 38.6 41.2
S/T 0.88 0.83 0.68 0.50 0.92 0.86 0.70 0.52 0.94 0.88 0.72 0.54 0.97 0.91 0.74 0.55 1.01 0.94 0.77 0.57 1.02 0.95 0.78 0.58
DeltaT 26 25 22 17 26 25 22 17 26 25 22 17 26 25 22 18 26 25 22 17 24 23 20 16
1356 KW 2.64 2.69 2.77 2.86 2.84 2.90 2.99 3.08 3.01 3.08 3.17 3.28 3.17 3.24 3.34 3.45 3.30 3.37 3.48 3.60 3.41 3.49 3.60 3.72
AMPS 10.0 10.2 10.6 11.0 10.8 11.1 11.4 11.8 11.7 12.0 12.4 12.9 12.5 12.8 13.3 13.8 13.3 13.7 14.1 14.7 14.1 14.5 15.0 15.5
HI PR 209 224 237 247 234 252 266 277 266 286 302 315 303 326 344 359 341 367 388 404 377 405 428 447
LO PR 108 115 125 133 114 121 132 141 118 126 137 146 124 132 144 154 130 139 151 161 135 143 156 167
MBh 49.0 50.0 52.3 55.8 47.9 48.8 51.1 54.5 46.7 47.6 49.9 53.2 45.6 46.5 48.7 51.9 43.3 44.2 46.2 49.3 40.1 40.9 42.8 45.7
S/T 1.00 0.97 0.88 0.71 1.00 1.00 0.91 0.74 1.00 1.00 0.93 0.76 1.00 1.00 0.96 0.78 1.00 1.00 1.00 0.81 1.00 1.00 1.00 0.82
DeltaT 26 26 24 21 25 26 25 21 25 25 25 21 24 25 25 21 23 23 24 21 21 22 23 20
1744 KW 2.74 2.80 2.89 2.98 2.95 3.02 3.11 3.21 3.14 3.20 3.31 3.42 3.30 3.37 3.48 3.60 3.44 3.51 3.63 3.75 3.56 3.64 3.76 3.88
AMPS 10.5 10.7 11.1 11.5 11.3 11.6 12.0 12.4 12.3 12.6 13.0 13.5 13.1 13.4 13.9 14.4 14.0 14.3 14.8 15.4 14.8 15.2 15.7 16.3
HI PR 219 236 249 260 246 265 280 292 280 301 318 332 319 343 362 378 359 386 408 425 396 426 450 470
LO PR 113 121 132 140 120 127 139 148 124 132 144 154 131 139 152 162 137 146 159 169 142 151 164 175
MBh 47.6 48.5 50.8 54.2 46.5 47.4 49.6 52.9 45.4 46.3 48.4 51.7 44.3 45.1 47.3 50.4 42.1 42.9 44.9 47.9 39.0 39.7 41.6 44.4
S/T 0.96 0.93 0.84 0.68 1.00 0.96 0.87 0.70 1.00 0.99 0.89 0.72 1.00 1.00 0.92 0.75 1.00 1.00 0.95 0.77 1.00 1.00 0.96 0.78
DeltaT 27 27 25 22 27 27 26 22 27 27 26 22 26 27 26 22 25 25 25 22 23 24 24 21
85 1550 KW 2.72 2.78 2.87 2.96 2.93 2.99 3.09 3.19 3.11 3.18 3.28 3.39 3.27 3.34 3.45 3.57 3.41 3.49 3.60 3.72 3.53 3.61 3.73 3.85
AMPS 10.4 10.6 11.0 11.4 11.2 11.5 11.8 12.3 12.2 12.5 12.9 13.4 13.0 13.3 13.8 14.3 13.8 14.2 14.7 15.2 14.7 15.0 15.5 16.1
HI PR 217 234 247 257 244 262 277 289 277 298 315 328 316 340 359 374 355 382 403 421 392 422 446 465
LO PR 112 119 130 139 118 126 138 147 123 131 143 152 129 138 150 160 136 144 157 168 140 149 163 173
MBh 43.9 44.8 46.9 50.0 42.9 43.7 45.8 48.9 41.9 42.7 44.7 47.7 40.9 41.7 43.6 46.5 38.8 39.6 41.4 44.2 36.0 36.7 38.4 41.0
S/T 0.93 0.90 0.81 0.66 0.96 0.93 0.84 0.68 0.99 0.95 0.86 0.70 1.00 0.98 0.89 0.72 1.00 1.00 0.92 0.75 1.00 1.00 0.93 0.75
DeltaT 28 27 26 22 28 28 26 22 28 28 26 23 28 28 26 23 26 27 26 22 24 25 24 21
1356 KW 2.66 2.71 2.80 2.89 2.86 2.92 3.01 3.11 3.04 3.10 3.20 3.30 3.19 3.26 3.37 3.48 3.32 3.40 3.51 3.63 3.44 3.52 3.63 3.75
AMPS 10.1 10.3 10.7 11.1 10.9 11.2 11.5 12.0 11.8 12.1 12.5 13.0 12.6 13.0 13.4 13.9 13.5 13.8 14.3 14.8 14.3 14.6 15.1 15.7
HI PR 211 227 239 250 236 254 269 280 269 289 305 319 306 329 348 363 344 371 391 408 381 410 432 451
LO PR 109 116 126 135 115 122 133 142 119 127 139 148 125 133 146 155 131 140 153 163 136 145 158 168
Shaded area is ARI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system power AMPS=outdoor unit amps (comp.+fan) High and low pressures are measured at the liquid and suction service valves.

12
COOLING PERFORMANCE DATA SSZ160601A*
EXPANDED PERFORMANCE DATA COOLING OPERATION
MODEL: SSZ160601A* / CA*F4860*6A* + TXV / MBE2000**-1 Design Subcooling 7 ± 2 °F @ the liquid service valve, ARI 95 test conditions
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 596367715963677159 63 677159 63 67 715963677159636771
MBh 55.9 57.9 63.4 - 54.6 56.5 62.0 - 53.3 55.2 60.5 - 52.0 53.9 59.0 - 49.4 51.2 56.1 - 45.7 47.4 51.9 -
S/T 0.74 0.62 0.43 - 0.77 0.64 0.44 - 0.79 0.66 0.46 - 0.81 0.68 0.47 - 0.84 0.70 0.49 - 0.85 0.71 0.49 -
Delta T 19 16 12 - 19 16 13 - 19 16 13 - 19 17 13 - 19 16 12 - 18 15 12 -
2025 KW 3.57 3.65 3.77 - 3.85 3.94 4.07 - 4.10 4.20 4.34 - 4.32 4.42 4.57 - 4.51 4.61 4.77 - 4.67 4.78 4.94 -
AMPS 13.1 13.5 13.9 - 14.2 14.6 15.1 - 15.5 15.9 16.4 - 16.6 17.0 17.6 - 17.7 18.1 18.7 - 18.8 19.2 19.9 -
HI PR 214 230 243 - 240 258 273 - 273 294 310 - 311 334 353 - 350 376 397 - 386 416 439 -
LO PR 101 107 117 - 107 113 124 - 111 118 129 - 116 124 135 - 122 130 142 - 126 134 146 -
MBh 54.2 56.2 61.6 - 53.0 54.9 60.1 - 51.7 53.6 58.7 - 50.4 52.3 57.3 - 47.9 49.7 54.4 - 44.4 46.0 50.4 -
S/T 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.63 0.43 - 0.78 0.65 0.45 - 0.80 0.67 0.47 - 0.81 0.68 0.47 -
Delta T 20 17 13 - 20 17 13 - 20 17 13 - 20 17 13 - 20 17 13 - 18 16 12 -
70 1800 KW 3.54 3.62 3.74 - 3.82 3.91 4.04 - 4.07 4.16 4.30 - 4.29 4.38 4.53 - 4.47 4.58 4.73 - 4.63 4.74 4.90 -
AMPS 13.0 13.3 13.8 - 14.1 14.4 14.9 - 15.3 15.7 16.3 - 16.4 16.8 17.4 - 17.5 17.9 18.6 - 18.6 19.0 19.7 -
HI PR 212 228 241 - 238 256 270 - 270 291 307 - 308 331 350 - 346 373 393 - 382 412 435 -
LO PR 100 106 116 - 106 112 123 - 110 117 127 - 115 123 134 - 121 128 140 - 125 133 145 -
MBh 50.1 51.9 56.8 - 48.9 50.7 55.5 - 47.7 49.5 54.2 - 46.6 48.3 52.9 - 44.2 45.8 50.2 - 41.0 42.5 46.5 -
S/T 0.68 0.57 0.39 - 0.71 0.59 0.41 - 0.72 0.61 0.42 - 0.75 0.62 0.43 - 0.78 0.65 0.45 - 0.78 0.65 0.45 -
Delta T 20 17 13 - 20 17 13 - 20 17 13 - 20 18 13 - 20 17 13 - 19 16 12 -
1575 KW 3.46 3.53 3.64 - 3.73 3.81 3.93 - 3.97 4.06 4.19 - 4.18 4.27 4.42 - 4.36 4.46 4.61 - 4.51 4.62 4.77 -
AMPS 12.6 13.0 13.4 - 13.7 14.0 14.5 - 14.9 15.3 15.8 - 16.0 16.4 16.9 - 17.0 17.4 18.0 - 18.0 18.5 19.1 -
HI PR 205 221 233 - 230 248 262 - 262 282 298 - 298 321 339 - 336 361 382 - 371 399 422 -
LO PR 97 103 112 - 102 109 119 - 106 113 124 - 112 119 130 - 117 125 136 - 121 129 141 -
MBh 56.8 58.5 63.3 67.9 55.5 57.1 61.8 66.4 54.2 55.8 60.4 64.8 52.8 54.4 58.9 63.2 50.2 51.7 55.9 60.0 46.5 47.9 51.8 55.6
S/T 0.84 0.75 0.57 0.37 0.87 0.78 0.59 0.38 0.90 0.80 0.61 0.39 0.92 0.83 0.63 0.40 0.96 0.86 0.65 0.42 0.97 0.87 0.65 0.42
DeltaT222016112220171122 20 171122 20 17 12 22 20 16 11 20 19 15 11
2025 KW 3.60 3.68 3.80 3.93 3.89 3.97 4.10 4.24 4.14 4.23 4.37 4.52 4.36 4.46 4.61 4.77 4.55 4.65 4.81 4.98 4.71 4.82 4.99 5.16
AMPS 13.3 13.6 14.0 14.6 14.4 14.7 15.2 15.8 15.6 16.0 16.6 17.2 16.7 17.2 17.7 18.4 17.8 18.3 18.9 19.7 18.9 19.4 20.1 20.9
HI PR 216 232 245 256 242 261 275 287 276 297 313 327 314 338 357 372 353 380 401 419 390 420 443 463
LO PR 102 108 118 126 108 115 125 133 112 119 130 138 118 125 136 145 123 131 143 152 127 136 148 158
MBh 55.1 56.8 61.5 66.0 53.9 55.5 60.0 64.4 52.6 54.1 58.6 62.9 51.3 52.8 57.2 61.4 48.7 50.2 54.3 58.3 45.1 46.5 50.3 54.0
S/T 0.80 0.72 0.54 0.35 0.83 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.88 0.79 0.60 0.38 0.91 0.82 0.62 0.40 0.92 0.83 0.62 0.40
DeltaT232117122321171223 21 171223 21 17 12 23 21 17 12 21 20 16 11
75 1800 KW 3.57 3.65 3.77 3.89 3.85 3.94 4.07 4.21 4.10 4.20 4.34 4.48 4.32 4.42 4.57 4.73 4.51 4.62 4.77 4.94 4.67 4.78 4.94 5.12
AMPS 13.1 13.5 13.9 14.4 14.2 14.6 15.1 15.6 15.5 15.9 16.4 17.1 16.6 17.0 17.6 18.3 17.7 18.1 18.7 19.5 18.8 19.2 19.9 20.7
HI PR 214 230 243 253 240 258 273 284 273 294 310 323 311 335 353 368 350 376 397 414 386 416 439 458
LO PR 101 107 117 125 107 113 124 132 111 118 129 137 116 124 135 144 122 130 142 151 126 134 146 156
MBh 50.9 52.4 56.7 60.9 49.7 51.2 55.4 59.5 48.5 50.0 54.1 58.1 47.3 48.8 52.8 56.6 45.0 46.3 50.1 53.8 41.7 42.9 46.4 49.8
S/T 0.77 0.69 0.52 0.34 0.80 0.72 0.54 0.35 0.82 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.88 0.79 0.60 0.38 0.89 0.80 0.60 0.39
DeltaT232117122321181223 21 181223 22 18 12 23 21 17 12 22 20 16 11
1575 KW 3.48 3.56 3.67 3.80 3.76 3.84 3.97 4.10 4.00 4.09 4.23 4.37 4.21 4.31 4.45 4.61 4.40 4.50 4.65 4.81 4.55 4.66 4.82 4.98
AMPS 12.8 13.1 13.5 14.0 13.8 14.2 14.6 15.2 15.1 15.4 16.0 16.6 16.1 16.5 17.1 17.7 17.2 17.6 18.2 18.9 18.2 18.7 19.3 20.1
HI PR 207 223 236 246 233 250 265 276 265 285 301 314 302 324 343 357 339 365 385 402 375 403 426 444
LO PR 98 104 114 121 103 110 120 128 107 114 125 133 113 120 131 140 118 126 137 146 122 130 142 151
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system power AMPS=outdoor unit amps (comp.+fan) High and low pressures are measured at the liquid and suction service valves.

13
COOLING PERFORMANCE DATA SSZ160601A*
EXPANDED PERFORMANCE DATA COOLING OPERATION
MODEL: SSZ160601A* / CA*F4860*6A* + TXV / MBE2000**-1 Design Subcooling 7 ± 2 °F @ the liquid service valve, ARI 95 test conditions
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 596367715963677159 63 677159 63 67 715963677159636771
MBh 57.8 59.1 63.1 67.5 56.5 57.7 61.6 65.9 55.1 56.3 60.2 64.3 53.8 55.0 58.7 62.8 51.1 52.2 55.8 59.6 47.3 48.4 51.7 55.2
S/T 0.92 0.87 0.71 0.53 0.96 0.90 0.73 0.55 1.00 0.92 0.75 0.56 1.00 0.95 0.77 0.58 1.00 1.00 0.80 0.60 1.00 1.00 0.81 0.61
DeltaT242320162524201625 24 201624 24 21 162324201621221915
2025 KW 3.63 3.71 3.83 3.96 3.92 4.01 4.14 4.28 4.17 4.27 4.41 4.56 4.40 4.50 4.65 4.81 4.59 4.70 4.86 5.02 4.76 4.86 5.03 5.21
AMPS 13.4 13.7 14.2 14.7 14.5 14.9 15.4 15.9 15.8 16.2 16.7 17.4 16.9 17.3 17.9 18.6 18.0 18.5 19.1 19.9 19.1 19.6 20.3 21.1
HI PR 218 235 248 259 245 263 278 290 278 300 316 330 317 341 360 376 357 384 405 423 394 424 448 467
LO PR 103 109 120 127 109 116 126 134 113 120 131 140 119 126 138 147 124 132 144 154 129 137 149 159
MBh 56.1 57.4 61.3 65.5 54.8 56.0 59.9 64.0 53.5 54.7 58.4 62.5 52.2 53.4 57.0 60.9 49.6 50.7 54.2 57.9 45.9 46.9 50.2 53.6
S/T 0.88 0.83 0.67 0.50 0.91 0.86 0.70 0.52 0.94 0.88 0.71 0.53 0.97 0.91 0.74 0.55 1.00 0.94 0.77 0.57 1.00 0.95 0.77 0.58
DeltaT252421172625211726 25 211726 25 21 17 25 24 21 17 23 23 20 16
80 1800 KW 3.60 3.68 3.80 3.93 3.89 3.97 4.10 4.24 4.14 4.23 4.37 4.52 4.36 4.46 4.61 4.77 4.55 4.66 4.81 4.98 4.71 4.82 4.99 5.16
AMPS 13.3 13.6 14.0 14.6 14.4 14.7 15.2 15.8 15.6 16.0 16.6 17.2 16.7 17.2 17.8 18.4 17.8 18.3 18.9 19.7 18.9 19.4 20.1 20.9
HI PR 216 232 245 256 242 261 275 287 276 297 313 327 314 338 357 372 353 380 401 419 390 420 444 463
LO PR 102 108 118 126 108 115 125 133 112 119 130 138 118 125 137 145 123 131 143 152 127 136 148 158
MBh 51.8 52.9 56.6 60.5 50.6 51.7 55.2 59.1 49.4 50.5 53.9 57.6 48.2 49.2 52.6 56.2 45.8 46.8 50.0 53.4 42.4 43.3 46.3 49.5
S/T 0.85 0.80 0.65 0.48 0.88 0.83 0.67 0.50 0.90 0.85 0.69 0.52 0.93 0.87 0.71 0.53 0.97 0.91 0.74 0.55 0.98 0.92 0.74 0.56
DeltaT262521172625221726 25 221726 25 22 172625221724232016
1575 KW 3.51 3.59 3.71 3.83 3.79 3.87 4.00 4.14 4.03 4.13 4.26 4.41 4.25 4.35 4.49 4.65 4.43 4.54 4.69 4.85 4.59 4.70 4.86 5.03
AMPS 12.9 13.2 13.6 14.2 14.0 14.3 14.8 15.4 15.2 15.6 16.1 16.7 16.3 16.7 17.2 17.9 17.3 17.8 18.4 19.1 18.4 18.9 19.5 20.3
HI PR 210 225 238 248 235 253 267 279 267 288 304 317 305 328 346 361 343 369 389 406 379 407 430 449
LO PR 99 105 115 122 104 111 121 129 109 115 126 134 114 121 132 141 119 127 139 148 124 131 144 153
MBh 58.8 60.0 62.8 67.0 57.5 58.6 61.3 65.4 56.1 57.2 59.9 63.9 54.7 55.8 58.4 62.3 52.0 53.0 55.5 59.2 48.2 49.1 51.4 54.8
S/T 0.97 0.93 0.84 0.68 1.00 0.97 0.87 0.71 1.00 0.99 0.90 0.73 1.00 1.00 0.93 0.75 1.00 1.00 0.96 0.78 1.00 1.00 0.97 0.79
DeltaT262524212626242125 26 242125 25 25 212424242122222320
2025 KW 3.66 3.74 3.86 3.99 3.95 4.04 4.17 4.31 4.21 4.30 4.45 4.60 4.44 4.54 4.69 4.85 4.63 4.74 4.90 5.07 4.80 4.91 5.07 5.25
AMPS 13.5 13.8 14.3 14.8 14.6 15.0 15.5 16.1 15.9 16.3 16.9 17.5 17.1 17.5 18.1 18.8 18.2 18.6 19.3 20.0 19.3 19.8 20.5 21.3
HI PR 220 237 250 261 247 266 281 293 281 303 320 333 320 345 364 380 360 388 409 427 398 428 452 472
LO PR 104 111 121 129 110 117 128 136 114 121 133 141 120 128 139 148 126 134 146 155 130 138 151 161
MBh 57.1 58.2 61.0 65.0 55.8 56.9 59.6 63.5 54.5 55.5 58.1 62.0 53.1 54.2 56.7 60.5 50.5 51.4 53.9 57.5 46.7 47.7 49.9 53.2
S/T 0.92 0.89 0.80 0.65 0.96 0.92 0.83 0.68 0.98 0.95 0.86 0.69 1.00 0.98 0.88 0.72 1.00 1.00 0.92 0.74 1.00 1.00 0.92 0.75
DeltaT272725222727252227 27 252227 27 26 222626252224242420
85 1800 KW 3.63 3.71 3.83 3.96 3.92 4.01 4.14 4.28 4.17 4.27 4.41 4.56 4.40 4.50 4.65 4.81 4.59 4.70 4.86 5.02 4.76 4.86 5.03 5.21
AMPS 13.4 13.7 14.2 14.7 14.5 14.9 15.4 15.9 15.8 16.2 16.7 17.4 16.9 17.3 17.9 18.6 18.0 18.5 19.1 19.9 19.1 19.6 20.3 21.1
HI PR 218 235 248 259 245 263 278 290 278 300 316 330 317 341 360 376 357 384 405 423 394 424 448 467
LO PR 103 109 120 127 109 116 126 134 113 120 131 140 119 126 138 147 124 132 144 154 129 137 149 159
MBh 52.7 53.7 56.3 60.0 51.5 52.5 55.0 58.6 50.3 51.2 53.7 57.2 49.0 50.0 52.3 55.8 46.6 47.5 49.7 53.1 43.1 44.0 46.1 49.1
S/T 0.89 0.86 0.78 0.63 0.92 0.89 0.80 0.65 0.95 0.91 0.82 0.67 0.98 0.94 0.85 0.69 1.00 0.98 0.88 0.72 1.00 0.99 0.89 0.72
DeltaT272725222827262228 27 262228 28 26 232727262225252421
1575 KW 3.54 3.62 3.74 3.86 3.82 3.91 4.03 4.17 4.07 4.16 4.30 4.44 4.29 4.38 4.53 4.69 4.47 4.57 4.73 4.89 4.63 4.74 4.90 5.07
AMPS 13.0 13.3 13.8 14.3 14.1 14.4 14.9 15.5 15.3 15.7 16.3 16.9 16.4 16.8 17.4 18.1 17.5 17.9 18.6 19.3 18.6 19.0 19.7 20.5
HI PR 212 228 240 251 237 256 270 281 270 291 307 320 308 331 350 365 346 372 393 410 382 411 434 453
LO PR 100 106 116 123 105 112 122 130 110 117 127 136 115 122 134 142 121 128 140 149 125 133 145 154
Shaded area is ARI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system power AMPS=outdoor unit amps (comp.+fan) High and low pressures are measured at the liquid and suction service valves.

14
PERFORMANCE DATA
Outdoor
Temp. ° F. Total Btuh Sensible Btuh Latent Btuh Total Watts
75° 25,200 18,540 6,660 1,645
80° 24,900 18,553 6,347 1,697
85° 24,600 18,559 6,041 1,749
90° 24,300 18,628 5,672 1,795
95° 24,000 18,690 5,310 1,841
100° 23,400 18,568 4,832 1,880
105° 22,800 18,428 4,372 1,919
110° 21,960 17,824 4,136 1,952
115° 21,120 17,213 3,907 1,986
95° 22,239 18,503 3,736 1,768
TVAConditions @ 95° OD DB, 75° OD DB. 63° OD WB
SSZ160241A* / CA*F3636*6A*+TXV/ MBE1600**-1
Conditions: 80°F IDB, 67°F IWB @ 875 CFM
Outdoor
Temp. ° F. Total Btuh Sensible Btuh Latent Btuh Total Watts
75° 49,875 36,207 13,668 3,061
80° 49,281 36,231 13,050 3,158
85° 48,688 36,244 12,444 3,255
90° 48,094 36,379 11,715 3,340
95° 47,500 36,499 11,001 3,425
100° 46,313 36,261 10,051 3,497
105° 45,125 35,988 9,137 3,570
110° 43,463 34,808 8,655 3,632
115° 41,800 33,616 8,184 3,695
95° 44,015 36,134 7,881 3,290
SSZ160481A* / CA*F4860*6A*+TXV/ MBE2000**-1
Conditions: 80°F IDB, 67°F IWB @ 1550 CFM
TVA Conditions @ 95° OD DB, 75° OD DB. 63° OD WB
Outdoor
Temp. ° F. Total Btuh Sensible Btuh Latent Btuh Total Watts
75° 59,850 41,729 18,121 4,105
80° 59,138 41,757 17,381 4,239
85° 58,425 41,772 16,653 4,374
90° 57,713 41,927 15,786 4,493
95° 57,000 42,066 14,934 4,612
100° 55,575 41,791 13,784 4,712
105° 54,150 41,477 12,673 4,813
110° 52,155 40,116 12,039 4,901
115° 50,160 38,743 11,417 4,988
95° 52,818 41,645 11,173 4,423
TVA Conditions @ 95° OD DB, 75° OD DB. 63° OD WB
SSZ160601A* / CA*F4860*6A*+TXV/ MBE2000**-1
Conditions: 80°F IDB, 67°F IWB @ 1800 CFM
Outdoor
Temp. ° F. Total Btuh Sensible Btuh Latent Btuh Total Watts
75° 36,330 25,939 10,391 2,276
80° 35,898 25,956 9,941 2,350
85° 35,465 25,966 9,499 2,424
90° 35,033 26,062 8,970 2,489
95° 34,600 26,149 8,451 2,554
100° 33,735 25,978 7,757 2,609
105° 32,870 25,783 7,087 2,665
110° 31,659 24,937 6,722 2,713
115° 30,448 24,083 6,365 2,760
95° 32,062 25,887 6,175 2,451
TVA Conditions @ 95° OD DB, 75° OD DB. 63° OD WB
SSZ160361A* / CA*F4860*6A*+TXV/ MBE2000**-1
Conditions: 80°F IDB, 67°F IWB @ 1200 CFM

15
SPLIT SYSTEM HEATING PERFORMANCE
High pressure is measured at the liquid service valve (the smaller valve). AMPS = Outdoor unit amps (comp.+fan)
Low pressure is measured at the gauge port connection. KW = Total system power
Calculations are based on nominal CFM and 70 °F indoor dry bulb.
*Note:ShadedareaisARIRatingConditionsat 47°outdoorambienttemberature
EXPANDED PERFORMANCE DATA
MODEL: SSZ160241A* / CA*F3636*6A* + TXV / MBE1600**-1 HEATING OPERATION
Outdoor Ambient Temperature
65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10
MBh 30.2 28.6 26.9 25.1 24.0 23.3 21.6 19.9 18.7 17.3 15.9 15.0 14.4 13.0 11.5 10.0 8.6 7.0
Delta T 31.9 30.2 28.4 26.6 25.4 24.6 22.9 21.1 19.8 18.3 16.8 15.9 15.3 13.7 12.2 10.6 9.0 7.4
KW 1.79 1.75 1.72 1.68 1.66 1.65 1.62 1.58 1.68 1.64 1.60 1.58 1.56 1.52 1.48 1.45 1.41 1.37
AMPS 8.4 7.8 7.3 6.9 6.7 6.6 6.2 5.9 5.7 5.4 5.2 5.1 5.0 4.7 4.4 4.2 3.9 3.5
COP 4.93 4.76 4.57 4.37 4.22 4.13 3.91 3.69 3.26 3.08 2.91 2.79 2.71 2.49 2.27 2.03 1.78 1.50
EER 16.9 16.3 15.6 14.9 14.4 14.1 13.4 12.6 11.2 10.5 9.9 9.5 9.3 8.5 7.7 6.9 6.1 5.1
HI PR 349 334 322 307 300 295 283 272 260 249 239 233 229 220 212 203 196 189
LOPR144133125115108104968577696056544640332923
EXPANDED PERFORMANCE DATA
MODEL: SSZ160481A* / CA*F4860*6A* + TXV / MBE2000**-1 HEATING OPERATION
Outdoor Ambient Temperature
65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10
MBh 59.1 55.9 52.6 49.2 47.0 45.5 42.3 39.0 35.4 32.6 30.1 28.4 27.3 24.5 21.7 19.0 16.2 13.3
Delta T 35.3 33.4 31.4 29.4 28.1 27.2 25.3 23.3 21.1 19.5 18.0 17.0 16.3 14.7 13.0 11.3 9.7 7.9
KW 3.69 3.62 3.54 3.47 3.43 3.40 3.32 3.25 3.14 3.06 2.99 2.95 2.92 2.85 2.78 2.71 2.63 2.56
AMPS 17.6 16.3 15.2 14.3 13.8 13.5 12.7 12.1 11.5 11.0 10.5 10.2 10.1 9.6 8.9 8.4 7.7 6.9
COP 4.684.524.354.154.013.933.723.513.303.122.942.822.742.522.292.051.801.51
EER 16.0 15.5 14.9 14.2 13.7 13.4 12.7 12.0 11.3 10.7 10.0 9.6 9.4 8.6 7.8 7.0 6.1 5.2
HI PR 405 388 373 357 348 342 328 315 302 288 277 270 265 255 246 235 227 219
LO PR 140 130 122 112 106 102 94 83 75 67 59 55 53 45 39 33 28 22
EXPANDED PERFORMANCE DATA
MODEL: SSZ160601A* / CA*F4860*6A* + TXV / MBE2000**-1 HEATING OPERATION
Outdoor Ambient Temperature
65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10
MBh 71.6 67.8 63.8 59.7 57.0 55.2 51.3 47.3 44.9 41.4 38.1 36.0 34.7 31.1 27.6 24.0 20.5 16.8
Delta T 36.9 34.9 32.8 30.7 29.3 28.4 26.4 24.3 23.1 21.3 19.6 18.5 17.8 16.0 14.2 12.4 10.6 8.6
KW 4.73 4.63 4.53 4.44 4.38 4.34 4.25 4.15 4.27 4.16 4.06 4.00 3.96 3.86 3.76 3.66 3.55 3.45
AMPS 21.7 20.0 18.7 17.6 16.9 16.6 15.6 14.8 14.1 13.5 12.8 12.5 12.3 11.6 10.8 10.2 9.3 8.4
COP 4.444.294.123.943.813.733.543.343.082.912.752.632.562.362.151.921.691.42
EER 15.2 14.7 14.1 13.5 13.0 12.7 12.1 11.4 10.5 9.9 9.4 9.0 8.7 8.1 7.3 6.6 5.8 4.9
HI PR 395 379 364 348 340 334 321 308 295 282 270 264 259 249 240 230 222 214
LO PR 133 124 116 106 101 97 89 79 71 64 56 52 50 43 37 31 27 21
EXPANDED PERFORMANCE DATA
MODEL: SSZ160361A* / CA*F4860*6A*+TXV/ MBE2000**-1 HEATING OPERATION
Outdoor Ambient Temperature
65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10
MBh 43.2 40.9 38.5 36.0 34.4 33.3 31.0 28.6 26.2 24.2 22.2 21.0 20.2 18.1 16.1 14.0 12.0 9.8
Delta T 33.4 31.6 29.7 27.8 26.5 25.7 23.9 22.0 20.2 18.6 17.2 16.2 15.6 14.0 12.4 10.8 9.2 7.6
KW 2.70 2.65 2.59 2.54 2.51 2.48 2.43 2.37 2.46 2.40 2.34 2.31 2.28 2.22 2.16 2.11 2.05 1.99
AMPS 13.1 12.1 11.3 10.6 10.3 10.1 9.5 9.0 8.6 8.2 7.9 7.7 7.6 7.2 6.7 6.3 5.8 5.3
COP 4.684.524.354.154.023.933.733.523.122.952.782.672.592.392.171.951.711.44
EER 16.0 15.5 14.9 14.2 13.7 13.4 12.7 12.0 10.6 10.1 9.5 9.1 8.9 8.2 7.4 6.7 5.8 4.9
HI PR 389 373 359 343 335 329 316 303 291 277 266 260 255 246 236 227 218 211
LO PR 147 136 127 117 110 106 98 87 78 70 62 57 55 47 40 34 30 23

16
HEATING SPECIFICATIONS
*To obtain BTU capacity of unit with KW of auxiliary heat, multiply by 1000 (Example: 39.01 x 1000 = 39,010 BTU)
capacit
y
btuh c.o.p. 4.8 9.6 14.4 19.2
65 30.17 4.93 46.55 62.93 79.32 95.70
60 28.56 4.76 44.94 61.32 77.71 94.09
55 26.88 4.57 43.26 59.64 76.03 92.41
50 25.13 4.37 41.51 57.89 74.28 90.66
45 23.26 4.13 39.64 56.02 72.40 88.79
40 21.60 3.91 37.98 54.36 70.75 87.13
35 19.92 3.69 36.30 52.68 69.07 85.45
30 18.69 3.26 35.07 51.45 67.84 84.22
25 17.25 3.08 33.63 50.01 66.40 82.78
20 15.89 2.91 32.27 48.65 65.03 81.41
15 14.45 2.71 30.83 47.21 63.59 79.97
10 12.96 2.49 29.34 45.72 62.11 78.49
511.49 2.27 27.87 44.25 60.64 77.02
010.02 2.03 26.40 42.78 59.17 75.55
-5 8.55 1.78 24.93 41.31 57.70 74.08
-10 7.01 1.50 23.39 39.77 56.15 72.53
Outdoor
Ambient
°F.
SSZ160241A* / CA*F3636*6A*+TXV/ MBE1600**-1
Conditions: 875 CFM @ 70°F Indoor Air
Capacity of Unit
With KW of Auxiliary heat
Basic Unit without
Auxiliary Heat
capacity
btuh c.o.p. 4.8 9.6 14.4 19.2
65 59.08 4.68 75.46 91.84 108.23 124.61
60 55.93 4.52 72.31 88.69 105.08 121.46
55 52.64 4.35 69.02 85.40 101.79 118.17
50 49.21 4.15 65.59 81.97 98.36 114.74
45 45.54 3.93 61.93 78.31 94.69 111.07
40 42.30 3.72 58.68 75.06 91.45 107.83
35 39.01 3.51 55.39 71.77 88.16 104.54
30 35.37 3.30 51.75 68.13 84.52 100.90
25 32.64 3.12 49.03 65.41 81.79 98.17
20 30.06 2.94 46.44 62.83 79.21 95.59
15 27.34 2.74 43.72 60.10 76.48 92.87
10 24.53 2.52 40.91 57.29 73.67 90.06
521.74 2.29 38.13 54.51 70.89 87.27
018.96 2.05 35.34 51.73 68.11 84.49
-5 16.18 1.80 32.56 48.94 65.33 81.71
-10 13.26 1.51 29.64 46.02 62.40 78.79
Outdoor
Ambient
°F.
Basic Unit without
Auxiliary Heat
SSZ160481A* / CA*F4860*6A*+TXV/ MBE2000**-1
Conditions: 1550 CFM @ 70°F Indoor Air
Capacity of Unit
With KW of Auxiliary heat
capacit
y
btuh c.o.p. 4.8 9.6 14.4 19.2
65 71.65 4.44 88.03 104.41 120.80 137.18
60 67.83 4.29 84.21 100.59 116.98 133.36
55 63.84 4.12 80.22 96.60 112.99 129.37
50 59.68 3.94 76.06 92.44 108.83 125.21
45 55.23 3.73 71.62 88.00 104.38 120.76
40 51.30 3.54 67.68 84.06 100.45 116.83
35 47.31 3.34 63.69 80.07 96.46 112.84
30 44.86 3.08 61.24 77.62 94.00 110.39
25 41.40 2.91 57.78 74.16 90.55 106.93
20 38.12 2.75 54.51 70.89 87.27 103.65
15 34.67 2.56 51.05 67.43 83.82 100.20
10 31.10 2.36 47.49 63.87 80.25 96.63
527.58 2.15 43.96 60.34 76.72 93.11
024.05 1.92 40.43 56.81 73.20 89.58
-5 20.52 1.69 36.90 53.28 69.67 86.05
-10 16.81 1.42 33.19 49.58 65.96 82.34
SSZ160601A* / CA*F4860*6A*+TXV/ MBE2000**-1
Conditions:1800 CFM @ 70°F Indoor Air
Capacity of Unit
With KW of Auxiliary heat
Outdoor
Ambient
°F.
Basic Unit without
Auxiliary Heat
capacity
btuh c.o.p. 4.8 9.6 14.4 19.2
65 43.24 4.68 59.62 76.01 92.39 108.77
60 40.94 4.52 57.32 73.70 90.08 106.47
55 38.53 4.35 54.91 71.29 87.68 104.06
50 36.02 4.15 52.40 68.78 85.16 101.55
45 33.33 3.93 49.72 66.10 82.48 98.86
40 30.96 3.73 47.34 63.72 80.11 96.49
35 28.55 3.52 44.93 61.32 77.70 94.08
30 26.17 3.12 42.55 58.93 75.31 91.70
25 24.15 2.95 40.53 56.91 73.30 89.68
20 22.24 2.78 38.62 55.00 71.39 87.77
15 20.22 2.59 36.61 52.99 69.37 85.75
10 18.14 2.39 34.53 50.91 67.29 83.67
516.09 2.17 32.47 48.85 65.23 81.62
014.03 1.95 30.41 46.79 63.18 79.56
-5 11.97 1.71 28.35 44.73 61.12 77.50
-10 9.81 1.44 26.19 42.57 58.95 75.34
SSZ160361A* / CA*F4860*6A*+TXV/ MBE2000**-1
Conditions: 1200 CFM @ 70°F Indoor Air
Capacity of Unit
With KW of Auxiliary heat
Basic Unit without
Auxiliary Heat
Outdoor
Ambient
°F.

17
PERFORMANCE DATA PERFORMANCE TEST
All data based upon listed indoor dry bulb temperature. .00 inches external static pressure on coil of outdoor section. Indoor
air cubic feet per minute (CFM) as listed in the Performance Data Sheets:
If conditions vary from this, results will change as follows:
1. As indoor dry bulb temperatures increase, a slight increase will occur in indoor air temperature drop (Delta T). Low
and high side pressures and power will not change.
2. As indoor CFM decreases, a slight increase will occur in indoor temperature drop (Delta T). A slight decrease will
occur in low and high side pressures and power.
A properly operating unit should be within plus or minus 2 degrees of the subcooling value shown in the Heat Pump
Specifications.
A properly operating unit should be within plus or minus 3 degrees of the typical (Delta T) value shown.
A properly operating unit should be within plus or minus 7 PSIG of the HI PR shown.
A properly operating unit should be within plus or minus 3 PSIG of the LO PR shown.
A properly operating unit should be within plus or minus 3 Amps of the typical value shown.
NOTE: Pressures are measured at the liquid and suction service valve ports.

WIRING DIAGRAMS
18
WARNING HIGH VOLTAGE!
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS
UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO
DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
SSZ160[24-48]1A*
COMP
IO
T1
C
MAIN
R
AUX
5
S
SR
SA
21
RCCF
SC
T2
C
L1 L2
CH
C
F
MAIN
AUX
IO
CM
LPS
T1
L1
T2
L2
RD
SA (IF USED) NOTE 2
SC
RD BL
L2
T2
L1
T1
C
BK
BK BK RD
RD
BK
BL
YL/PK
YL
BL
RD
RCCF
F
CHERM
YL YL
YL
BR
RD
PU
YL
RD
SR
5
21
BK YL
BL
IO
CM
AUX
MAIN
BK
BR
PU
YL
C
R
S
RD
BK AUX
MAIN
COMP
BK
DFT
YL/PK
YL/PK LPS
DF1 DF2
HVDR
CH
W2
LVD R
O
R
O
OY
C
RVC
W2
RC
DFT
C
Y
DC
R
DFT
RVC
BK
RD
RD
BK
CH
BK
BK BK
DC
OR
C Y O O
BL
YL BK
RD
R R
RD
LVDR
W2 WH
DFT
RD
H V D R
DF2
DF1
BK
BK
HPS
COLOR CODE BK --------------- BLACK BL/PK ---------- BLUE/PINK STRIPE BR --------------- BROWN OR --------------- ORANGE PU --------------- PURPLE RD --------------- RED
WH -------------- WHITE YL --------------- YELLOW YL/PK--------- YELLOW/PINK STRIPE
WIRING CODE
FACTORY WIRING HIGH VOLTAGE LOW VOLTAGE OPTIONAL HIGH VOLTAGE FIELD WIRING HIGH VOLTAGE LOW VOLTAGE
COMPONENT CODE C --------------- CONTACTOR CH ------------- CRANKCASE HEATER CM ------------ OUTDOOR FAN MOTOR COMP -------- COMPRESSOR
DC ------------- DEFROST CONTROL DFT ----------- DEFROST THERMOSTAT HPS-------------HIGH PRESSURE SWITCH HVDR -------- HIGH VOLTAGE DEFROST RELAY IO -------------- INTERNAL OVERLOAD LPS ------------ LOW PRESSURE SWITCH LVDR --------- LOW VOLTAGE DEFROST RELAY LVJB ---------- LOW VOLTAGE JUNCTION BOX RCCF --------- RUN CAPACITOR FOR COMPRESSOR & FAN RVC ----------- REVERSING VALVE COIL
SA ------------- START ASSIST SC ------------- START CAPACITOR FOR COMPRESSOR (OPTIONAL) SR ------------- START RELAY FOR COMPRESSOR (OPTIONAL)
VENDOR : GOODMAN PRINT SHOP 01/06 0140R00029P
CONTROLS SHOWN WITH THERMOSTAT IN 'OFF' POSITION.
USE N.E.C. CLASS 2 WIRE
NOTES:
1) TO INDOOR UNIT LOW VOLTAGE
TERMINAL BLOCK & INDOOR THERMOSTAT. 2) START ASSIST FACTORY EQUIPPED WHEN REQUIRED.
3) CRANKCASE HEATER MAY BE
FACTORY OR FIELD INSTALLED.
OUTDOOR POWER SUPPLY
SEE RATING PLATE
LVJB
CONTROL BOX
OR
BL/PK
BL
RD
O
Y
C
R
NOTE 1
WH W2
ALTERNATE DOUBLE
POLE CONTACTOR
EQUIPMENT GROUND
USE COPPER
CONDUCTORS ONLY
(IF USED) NOTE 3
BL/PK HPS BL/PK
BL/PK
YL/PK
(IF USED)
ALTERNATE DOUBLE
POLE CONTACTOR ONLY
INDOOR POWER
SUPPLY
(IF USED) NOTE 3

WIRING DIAGRAMS
19
WARNING HIGH VOLTAGE!
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS
UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO
DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
SSZ160[60]1AA
USE N.E.C. CLASS 2 WIRE
NOTES:
1) TOINDOOR UNIT LOW VOLTAGE TERMINALBLOCK & INDOOR
THERMOSTAT. 2) START ASSIST FACTORY EQUIPPED WHEN REQUIRED. 3) CRANKCASE HEATER MAY BE FACTORY OR FIELD INSTALLED.
COMP
ALTERNATE DOUBLE
POLE CONTACTOR ONLY
IO
T1
C
MAIN
R
AUX
5
S
SR
SA
21
RCCF
SC
T2
C
L1L2
(IFUSED)
CH
C
F
MAIN
AUX
IO
CM
LPS
0140R00064
OR
PU
BL RD
O Y C R
NOTE 1
COLOR CODE BK --------------- BLACK
BL/PK ---------- BLUE/PINK STRIPE
BR --------------- BROWN OR --------------- ORANGE
PU --------------- PURPLE RD --------------- RED WH-------------- WHITE YL--------------- YELLOW YL/PK--------- YELLOW/PINK STRIPE
COMPONENT CODE C--------------- CONTACTOR CH ------------- CRANKCASE HEATER
CM ------------ OUTDOOR FAN MOTOR
CMR ---------- CONDENSER MOTOR RELAY
COMP -------- COMPRESSOR
CS ------------- COMPRESSOR SOLENOID
DC------------- DEFROST CONTROL
DFT ----------- DEFROST THERMOSTAT DT ------------- DISCHARGE THERMOSTAT
HPS-------------HIGHPRESSURE SWITCH
HVDR -------- HIGHVOLTAGE DEFROST RELAY
IO-------------- INTERNALOVERLOAD
LPS
------------ LOW PRESSURE SWITCH
LVDR --------- LOW VOLTAGE DEFROST RELAY
LVJB
---------- LOW VOLTAGE
JUNCTION BOX
RCCF
--------- RUN CAPACITOR FOR COMPRESSOR & FAN
RVC----------- REVERSING VALVE COIL
SA ------------- START ASSIST
SC
------------- START CAPACITOR FOR COMPRESSOR (OPTIONAL)
S
R
-------------
START RELAY FOR COMPRESSOR (OPTIONAL)
CONTROLS SHOWN WITHTHERMOSTAT IN 'OFF' POSITION.
OUTDOOR POWER SUPPLY
SEE RATING PLATE
WIRING CODE
FACTORY WIRING HIGHVOLTAGE LOW VOLTAGE OPTIONALHIGHVOLTAGE
FIELD WIRING
HIGHVOLTAGE LOW VOLTAGE
RD
SA (IFUSED)
NOTE 2
LVJB
CONTROL BOX
SC
RD BL
L2
T2
L1
T1
C
BK
BK BK RD
RD
BL
BL
YL/PK
PU
BL
RD
RCCF
F
CHERM
YL
YL
YL
BR
RD
PU
YL
RD
SR
5
21
BK YL
BL
IO
CM
AUX
MAIN
BK
BR
PU
YL
C
R
S
RD
BK AUX
MAIN
COMP
BK
DFT
YL/PK
LPS
EQUIPMENT GROUND
USE COPPER
CONDUCTORSONLY
DF1
DF2
(HIGH)
CH
(IFUSED) NOTE 3
W2
LVDR
O
R
O
OY
C
RVC
W2
INDOOR POWER
SUPPLY
RC
DFT
C
Y
DC
R
DFT
RVC
BK
RD
RD
BK
CH
(IFUSED) NOTE 3
BK
BK BK
WHW2
DC
OR
CYOO
BL
PUBK
RD
RR
RD
LVDR
W2
WH
DFT
RD
H V D R
DF2
DF1
BK
BK
HPS
BL/PKHPS BL/PK
BL/PK
BK
C
CS
CMR
LPS
O O
OY
C
RVC
W2
RC
HPS
Y2 C
Y2
CS
13
DFT
(LOW)
5
4 2
HDVR
CMR
(HIGH)
(LOW)
RD
DT BK
BK
YL/PK
CS
C
Y2
13
4
25
CMR
L2
T2
L1
T1
ALTERNATE
DOUBLE POLE
CONTACTOR
BK
BK
BL
BL
RD RD
YLY2
BL/PK
Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.

WIRING DIAGRAMS
20
WARNING HIGH VOLTAGE!
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS
UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO
DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
SSZ160[60]1AB/AC
Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
USE N.E.C. CLASS 2 WIRE
NOTES: 1) TO INDOOR UNIT LOW VOLTAGE TERMINAL BLOCK & INDOOR THERMOSTAT. 2) START ASSIST FACTORY EQUIPPED WHEN REQUIRED. 3) CRANKCASE HEATER MAY BE FACTORY OR FIELD INSTALLED.
COMP
ALTERNATE DOUBLE
POLE CONTACTOR ONLY
IO
T1
C
MAIN
R
AUX
5
S
SR
SA
21
RCCF
SC
T2
C
L1 L2
(IF USED)
CH
C
F
MAIN
AUX
IO
CM
LPS
0140R00114 Rev. A
OR
PU
BL RD
O Y C R
NOTE 1
COLOR CODE BK --------------- BLACK BL/PK ---------- BLUE/PINK STRIPE BR --------------- BROWN OR --------------- ORANGE PU --------------- PURPLE RD --------------- RED WH -------------- WHITE YL --------------- YELLOW YL/PK--------- YELLOW/PINK STRIPE
COMPONENT CODE C --------------- CONTACTOR CH ------------- CRANKCASE HEATER CM ------------ OUTDOOR FAN MOTOR CMR ---------- CONDENSER MOTOR RELAY COMP -------- COMPRESSOR CS ------------- COMPRESSOR SOLENOID DC ------------- DEFROST CONTROL DFT ----------- DEFROST THERMOSTAT DT ------------- DISCHARGE THERMOSTAT HPS-------------HIGH PRESSURE SWITCH HVDR -------- HIGH VOLTAGE DEFROST RELAY IO -------------- INTERNAL OVERLOAD LPS ------------ LOW PRESSURE SWITCH LVDR --------- LOW V OLTAGE DEFROST RELAY LVJB ---------- LOW VOLTAGE JUNCTION BOX RCCF --------- RUN CAPACITOR FOR COMPRESSOR & FAN RVC ----------- REVERSING VALVE COIL SA ------------- START ASSIST SC ------------- START CAPACITOR FOR COMPRESSOR (OPTIONAL) SR ------------- START RELAY FOR COMPRESSOR (OPTIONAL) CONTROLS SHOWN WITH THERMOSTAT IN 'OFF' POSITION.
OUTDOOR POWER SUPPLY
SEE RATING PLATE
WIRING CODE
FACTO RY WIRING HIGH VOLTAGE LOW VOLTAGE OPTIONAL HIGH VOLTAGE FIELD WIRING HIGH VOLTAGE LOW VOLTAGE
RD
SA (IF USED) NOTE 2
LVJB
CONTROL BOX
SC
RD BL
L2
T2
L1
T1
C
BK
BK BK RD
RD
BL
BL
PU
BL
RD
RCCF
F
CHERM
YL
YL
YL
BR
RD
PU
YL
RD
SR
5
21
BK YL
BL
IO
CM
AUX
MAIN
BK
BR
PU
YL
C
R
S
RD
BK AUX
MAIN
COMP
BK
DFT
YL/PK
LPS
EQUIPMENT GROUND
USE COPPER
CONDUCTORS ONLY
DF1
DF2
(HIGH)
CH
(IF USED) NOTE 3
W2
LVDR
O
R
O
O
C
RVC
W2
INDOOR POWER
SUPPLY
RC
DFT
C
Y
DC
R
DFT
RVC
BK
RD
RD
BK
CH
(IF USED) NOTE 3
BK
BK BK
WH W2
DC
OR
C Y O O
BL
PU BK
RD
R R
RD
LVDR
W2 WH
DFT
RD
H V D R
DF2
DF1
BK
BK
HPS
BL/PK HPS BL/PK
BL/PK
BK
C
CS
CMR
LPS
O O
O
C
RVC
W2
RC
HPS
Y2 C
Y2
CS
13
DFT
(LOW)
5
4 2
HDVR
CMR
(HIGH)
(LOW)
RD
DT BK
BK
YL/PK
CS
C
Y2
1 3
4
25
CMR
L2
T2
L1
T1
ALTERNATE
DOUBLE POLE
CONTACTOR
BK
BK
BL
BL
RD RD
YL Y2
BL/PK
Y
