Goodmans Oxford BT User manual

USER MANUAL
MODEL: OXFORD BT
OXFORD DAB+ FM RADIO WITH BLUETOOTH AND NFC
OXFORD BT

0
Welcome
1
Troubleshooting
5
Technical Specifications
6
Customer Support
7
Your Oxford BT
2.1 In The Box
2.2 Top View
2.3 Side View
2.4 Rear View
2
Quick Setup
3.1 Connecting
3.2 Setup Diagram
3
Features4
OFF-ON VOL control
4.1 Turn off-on
4.2 Adjust Volume/Tune
PRESET button
4.3 Store Stations as Presets
4.4 Recall a Preset
SCAN button
4.5 Auto Scan
MODE/MENU button
4.6 Switch Between DAB/FM/Bluetooth Modes
4.7 Menu Options in DAB Mode
4.8 Menu Options in FM Mode
4.9 System Settings
EXTERNAL DEVICES
4.10 Using Headphones
4.11 Play an External Source

0
OXFORD BT
Welcome
Thank you for choosing this Goodmans product. We’ve been
making electronics for the British people for 70 years. Each of
our projects has been carefully designed to be great at what
it does and this one is no exception. We hope you enjoy your
new Oxford BT.
1
Your Oxford BT
2
In The Box
Carefully remove your Oxford BT from the box.
Inside the box you will find:
• Oxford BT
• Mains power supply lead
• Quick Start Guide
• Guarantee Booklet
If any of these items are missing contact
Customer Support at www.goodmans.co.uk/support
2.1
Mains Power
Your Oxford BT requires a mains supply of 230V AC ~ 50 Hz.
Please ensure that your mains supply is compatible before use.
Disconnect the power cord from the mains when not in use.
Position of DAB Digital Radio
Place on a flat, stable surface that is not subject to vibrations.
Avoid the following locations:
• Where it is exposed to direct sunlight
• Where it is close to heat radiating sources
• Where the humidity is high and ventilation is poor
• Where it is dusty
Adjusting the Aerial
Fully extend the aerial to ensure good reception in both DAB and
FM Radio modes. It may be necessary to alter the position of the
DAB+ FM Radio and/or the aerial to achieve the best signal.
Using Headphones
Headphones require a 3.5mm diameter stereo plug and
an impedance of 8-32 ohms.
Headphones are not supplied with this DAB+ FM Radio.

0
OXFORD BT
Top View
Rear View
Side View
2.2
2.4
2.3
OFF-ON VOL control
Switch to turn the unit off
and on or to adjust the volume.
control
Switch to navigate between
stations, one by one.
PRESET button
Press and hold to save a station
as a preset. To tune into a preset
station, simply press the button.
PLAY/INF button
Press to customise the information
displayed on the screen.
BACK button
Press to revert back to the
previous settings.
SCAN button
Press the SCAN button
to perform a full scan.
MODE/MENU button
Press to switch between DAB,
FM and Bluetooth modes, or press
and hold to display menu options.
SELECT button
Press to make a selection.
A
C
F
D
E
B
G
H
I
K
J
Aerial
AC-In socket
Used to connect the DAB+ FM Radio
to the mains power supply.
Aux-ln socket
Used to connect external audio
sources to the DAB+ FM Radio.
Headphone socket
Plug in headphones to listen
to the radio.
NFC feature
Tap a NFC compatible device to
the NFC symbol to stream music
wirelessly from your mobile devices.
M
L
L
K
M
AB C D E
F HG
I
J

0
OXFORD BT
Quick Setup3
Connecting
1. Connect the power cable to your Oxford BT and mains supply.
2. Raise and extend the aerial.
3. Turn radio on by switching the off-on vol control upwards.
4. The first time the radio is switched on, it will start up
in DAB mode. It will automatically scan for the available
radio stations.
5. In DAB mode, the control allows you to navigate
between different stations. Press SELECT button
to choose the one you want to listen to.
3.1

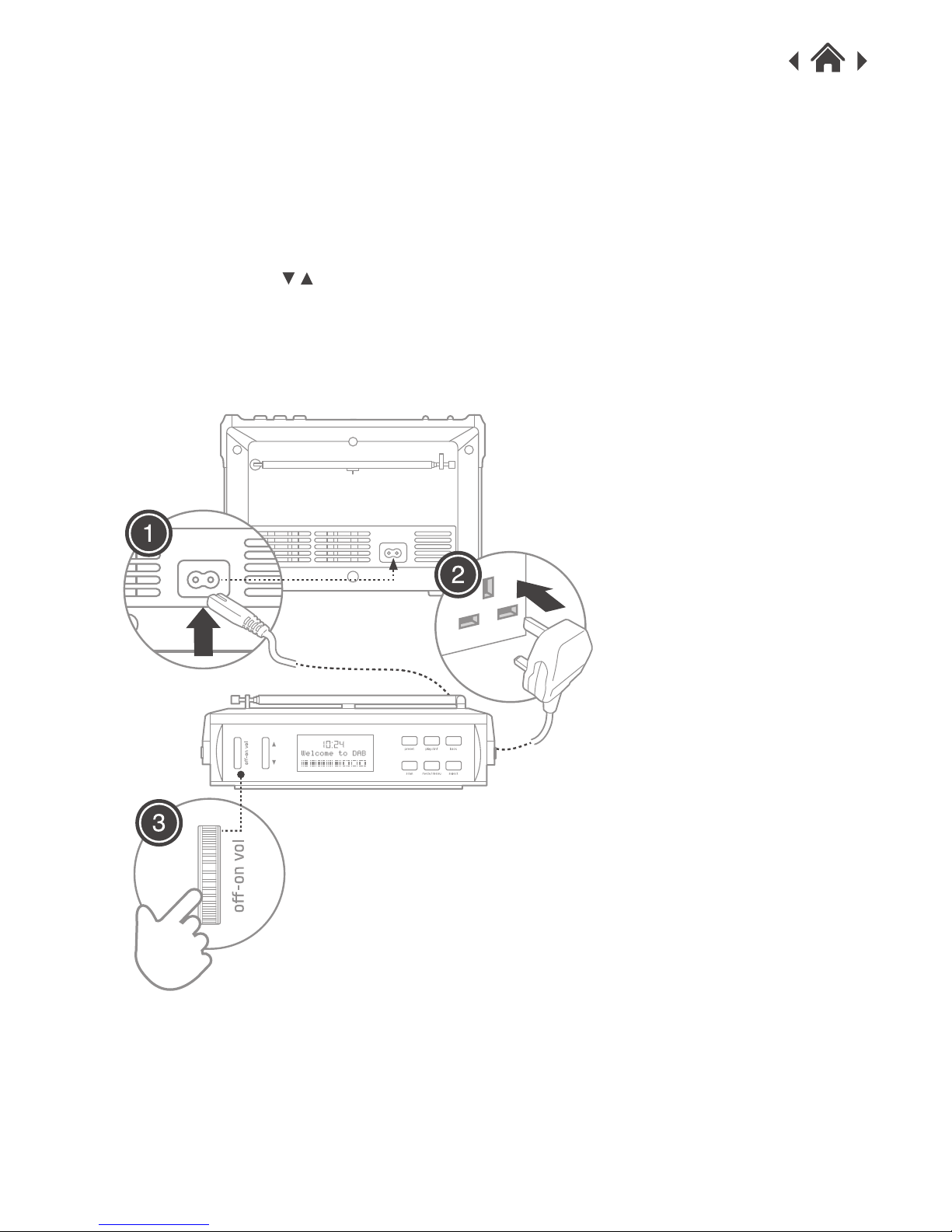

Setup Diagram
3.2

0
OXFORD BT
OFF-ON VOL control
PRESET button
Features4
Turn off-on
1. Turn on the Oxford BT by switching the OFF-ON VOL
control upwards until it clicks. The first time the device
is switched on, it will start up DAB mode. It will
automatically scan for the available radio stations to fig.1.
2. To power off the device turn the control downwards.
4.1
Adjust Volume
Adjust the volume by turning the control up/down as required.
4.2
4.3 Store Stations as Preset
Your Oxford BT can store stations as presets in both DAB and
FM mode. This will allow you to quickly tune to a saved station
or frequency.
1. Tune to the station you would like to save as a preset
in either FM or DAB mode just as you would for normal
listening, then press and hold the PRESET button for a few
seconds until the LCD displays “Preset store #: (Empty)”
or “#: saved radio station”
2. Navigate using the control to select the preset number,
then press the SELECT button to confirm your option.
“Preset #stored” will show on the display.
f i g .1
Recall a Preset
To play a station you have saved as a preset:
1. Select the band (DAB or FM) of the station you would like
to listen to by pressing the MODE/MENU button.
2. Press the PRESET button once and then using the control
to navigate between the preset numbers. Once you got to the
desired preset station, press the SELECT button to confirm.
4.4
Welcome to DAB

0
OXFORD BT
fig.3
DAB
<Full scan >
MODE/MENU button
4.6 Switching Between DAB/FM/Bluetooth Modes
1. The first time your Oxford BT is switched on, it will start
up DAB mode.
2. If the radio is in DAB mode, press the MODE/MENU button
repeatedly to switch to FM or Bluetooth mode.
3. Once in FM mode, your DAB Digital Radio will tune to
the start of the available FM range (87.50MHz) or the last
FM station listed to fig.2.
4. To manually change the FM frequency, turn the
control to change the frequency by 0.05MHz.
5. Alternatively, you can select Bluetooth NFC to stream
music wirelessly from your mobile devices.
4.7 Menu Options in DAB Mode
1. In DAB mode, press and hold MODE/MENU button
to display the menu list to fig.3.
2. Turn the control to navigate between the menu options.
3. Choose your preferred option and press the SELECT button
to confirm.
fig.2
BBC R4
Woman’s Hour
SCAN button
4.5 DAB Auto Scan
Press the SCAN button to perform a full scan automatically.
Once a scan is completed, the radio returns to play the
previously-selected station or first station on the station list.
Note: If no radio station found, it shows “No DAB Station”.
For a better reception, extend the antenna or do the full
scan again in another place.
FM Auto Scan
Press the SCAN button to search for the next available
FM station.
Connect to your Bluetooth enabled device
1. Switch on the Bluetooth on your device (smartphone, tablet,
computer), then search and select ‘Oxford BT’ to connect.
2. If your device is NFC compatible, touch the symbol
on the right-hand side of your Oxford BT to pair.
3. Enter ‘0000’ if the device asks for a passcode.

0
OXFORD BT
DRC (Dynamic Range Compression)
This function reduces the difference between the loudest and
quietest audio being broadcasted. The options available are:
0 1/2 1 (1 is the default as marked by the asterisk).
1. In the menu, turn control to bring up “DRC” through
the list of menu, then press SELECT button to confirm.
2. Switch control to navigate between the
available settings.
3. Choose the preferred one and press SELECT button
to confirm.
DRC only works if it is enabled by the broadcaster
for a specific station.
Prune
This option removes all weak or invalid stations indicated
by a ‘?’ in front of the station name.
1. In the menu list, turn control to display “Prune”
and press SELECT button to confirm.
2. Switch control to navigate between “Yes” and “No”.
3. Press SELECT button to make the choice.
Manual Tune
Manually tune your DAB+ FM Radio to a particular channel
or frequency. This can be useful for adjusting your antenna
to achieve the best possible reception and scanning
a particular channel to update the station list.
1. In the menu, turn control to bring up “Manual tune”,
then press SELECT button to confirm.
2. Switch control to select a particular channel/frequency
and then press SELECT button to confirm the setting to fig.4.
The display shows a live indication of the received signal
strength on the selected frequency. Adjustments to your
antenna will be shown in the received signal strength displayed.
fig.4
7C 192.352MHz
Full Scan
You can retune your DAB radio stations to store new stations
or tune to a new region. Your preset stations will remain stored
when you perform a full scan retune.
System
You can browse and configure features like: time, BD address,
SW version, Factory Reset, Language, Backlight.

0
OXFORD BT
Audio Setting
Your Oxford BT is a mono radio but if you need to improve
the quality of the sound, you can choose from the following
available options:
1. Turn control to bring up “Audio setting” and press
SELECT button.
2. Select between the two available settings “Stereo allowed”
and “Forced mono”.
3. Activate the preferred option by pressing SELECT button.
4. The display will automatically return in 30 seconds,
or press the BACK button to return to the radio display.
Scan Setting
By default, FM scans stop at all available station irrespective
of the signal strength, which may result in poor quality sound
from weak stations.
1. In the FM menu, turn control to bring up
“Scan setting”, then press SELECT button.
2. You can select between “Strong stations only”
and “All stations”.
3. Activate your choice by pressing the SELECT button.
4.8 Menu Options in FM Mode
1. In FM mode, press and hold MODE/MENU button
to access the menu list.
2. Navigate between the menu options using control.
3. Press the SELECT button to make your choice.
System
Just as in DAB mode, you can view and configure
features like: time, BD address, SW version, Factory Reset,
Language, Backlight.

0
OXFORD BT
Factory reset
You can perform a system reset to restore factory settings.
Performing a system reset will also retune your stored digital
radio stations and remove any stored presets on the digital radio.
1. Press the MODE/MENU button, then using the control
bring up ‘System Settings’ and press the SELECT button
to conrm.
2. Use the control to select ‘Factory Reset’. Press the
SELECT button to conrm.
3. Use the control to select to select ‘Yes’ or ‘No’ and
press SELECT button to conrm.
Additional system settings
Your Oxford BT features a number of extra settings to allow
you to customise your device: Backlight, language settings
as well as allowing you to identify the radio’s software version
Press the MODE/MENU button, then use the control to
browse through the available options. When desired setting is
displayed press the SELECT button to begin making changes
to the settings. SELECT button to confirm.
System Settings4.9
Setting the time manually
Manual time settings such as the time and date format can
be accessed using the System submenu. To change time
and date settings:
1. Press the MODE/MENU button, then using the control
bring up ‘System Settings’ and press the SELECT button
to conrm.
2. Select the ‘Time’ option by switching control and then
SELECT button to conrm.
In this menu you can automatically update the time (Auto update),
set the time format (Set 12/24 hour), set the date format (Set date
format) and set the time and date (Set Time/Date).
Use the control and SELECT button to navigate and change
options within this menu.
EXTERNAL DEVICES
4.10 Using Headphones
You can listen to your radio using headphones,
just plug the 3.5mm jack into your Oxford BT.
4.11 Play an External Source
Connect your MP3 or smartphone via a 3.5mm jack
to enable AUX input mode.

0
OXFORD BT
Problem What to do
There is no sound from my radio
Check that the volume is not set to the minimum.
Make sure that the radio has been able to locate
DAB/FM stations.
The display shows ‘NO SERVICES
AVAILABLE’ in DAB mode
Make sure that DAB coverage exists in your area.
Try adjusting the position of the aerial or location
of the radio.
Poor reception
As with any radio service, there will be areas
of weak signal that may cause poor reception.
Follow the instructions for Manual Tuning
on 4.7 and adjust the aerial while monitoring
the signal strength until the optimum
signal is obtained. If reception is still poor,
try re-locating the radio to another part of the room.
I cannot access secondary services
At the time of publishing this manual not many
secondary services are available in the UK.
This will increase as more DAB stations start
broadcasting. If a secondary service station
is available, the secondary indicator ‘>>’
will be displayed next to the station name.
Some of the buttons on the
DAB Digital Radio are not working
This may be caused by electrostatic discharge.
Turn the DAB Digital Radio off, disconnect the
mains plug and reconnect after a few seconds.
Troubleshooting5

0
OXFORD BT
Model Number OXFORD BT
Power Supply 230V AC ~ 50 Hz
Speaker Output Power 1 x 1W RMS
Frequency Range FM: 87.5-108 MHz
DAB: 174-240 MHz
LCD Display High Resolution Display
Max Power Consumption 6.5W
Dimensions 260mm(W) x 85mm(D) x 165mm(H)
Inclusive of aerial and handle mounts
Technical Specification6
www.goodmans.co.uk
Customer Support7
For all product support, warranty or returns;
please go to www.goodmans.co.uk/support
MIC3952/120515
