Gorenje FM6A Series Operating and maintenance manual

DETAILED
INSTRUCTIONS
FOR USE OF A
COMBINED FREE
STANDING COOKER
www.gorenje.comwww.gorenje.com
GB IE MT
FK6A...
FM6A...

We thank you for your
trust and the purchase of our
appliance.
This detailed instruction manual is
supplied to make the use of this
product easier. The instructions
should allow you to learn about your
new appliance as quickly as possible.
Make sure you have received an
undamaged appliance. If you do find
transport damage, please contact the
seller from which you purchased the
appliance, or the regional warehouse
from which it was supplied. The
telephone number can be found on
the invoice or on the delivery note.
These instructions are only valid if
the country symbol is printed on
the appliance. If there is NO country
symbol on the appliance, please
consult the technical instructions for
adjusting the appliance according
to the requirements for use in the
relevant country.
The appliance has to be connected
in compliance with the effective
regulations, and it may only be used
in well ventilated areas. Read the
instructions before connecting or
using the appliance.
Instructions for use are also available
at our website:
http://www. gorenje.com
Important information
Tip, note

3
CONTENTS
586316
INTRODUCTION
USING THE
APPLIANCE
MAINTENANCE
& CLEANING
TROUBLE-
SHOOTING
OTHER
4 IMPORTANT SAFETY INSTRUCTIONS
8 Before connecting the appliance
9 COMBINED FREE STANDING COOKER
13 Control unit
14 Appliance data - data plate
15 USING THE APPLIANCE
15 Before using the appliance for the first time
15 Cooking hob (depending on the model)
20 Oven
23 Choosing the settings
25 Selecting additional functions/extras
27 Starting the cooking process
27 Switching off the oven
28 Descriptions of systems (cooking modes) and cooking tables
44 MAINTENANCE & CLEANING
45 Conventional oven cleaning
45 Cleaning the glass ceramic surface
47 Gas burner
48 Using the aqua clean function to clean the oven
49 Removing and cleaning wire and telescopic extendible guides
50 Cleaning and installing the catalytic inserts
51 Removing and inserting the oven door
54 Removing and inserting the oven door glass pane
56 Replacing the bulb
57 SPECIAL WARNINGS AND FAULT REPORTING
59 INSTALLATION AND CONNECTION INSTRUCTIONS
65 NOZZLE TABLE
67 DISPOSAL

4
586316
IMPORTANT SAFETY
INSTRUCTIONS
CAREFULLY READ THE INSTRUCTIONS AND SAVE THEM
FOR FUTURE REFERENCE
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements. Children younger than 8 years of age shall
be kept away unless continuously supervised.
WARNING: The accessible parts of the appliance may
become hot during use. Young children should be kept
away from the oven.
The appliance becomes very hot during use. Be careful not
to touch the oven heaters.
WARNING: Danger of fire: do not store items on the
cooking surfaces.
WARNING: Unattended cooking on a hob with fat or oil
can be dangerous and may result in fire. NEVER try to
extinguish a fire with water, but switch off the appliance
and then cover flame e.g. with a lid or a fire proof blanket.

5
586316
CAUTION: The cooking process has to be supervised.
A short term cooking process has to be supervised
continuously.
WARNING: Before replacing the light bulb, make sure the
appliance has been disconnected from the mains power, in
order to prevent the hazard of an electric shock.
CAUTION: This appliance is for cooking purposes only. It
must not be used for other purposes, for example room
heating.
The appliance is not intended to be controlled by external
timers or separate remote controll system.
WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or hob guards incorporated in the appliance. The
use of inappropriate guards can cause accidents.
WARNING: If the surface is cracked, switch off the
appliance to avoid the possibility of electric shock. Switch
off all cooking zones using their respective controls and
remove the fuse or trip the main circuit breaker so that the
appliance is fully isolated from the power mains.
If the glass door of the oven is cracked or damaged, do not
use the oven and contact the service.
For appliance connection use a 5 x 1,5 mm2cord with mark
H05VV-F5G1,5 or better. Cord must be installed by service
agent or similary qualified person.
The appliance is intended to be placed directly on the floor,
without any supports or plinths.

6
586316
Metalic objects such as knives, forks, spoons and lids should
not be placed on the hob surface since they can get hot.
After use, switch off the hob element by its control and do
not rely on the pan detector.
Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass or the glass of hinged lids of
the hob (where appropriate), since they can scratch the
surface, which may result in shattering of the glass.
The appliance must not be installed behind a decorative
door in order to avoid overheating.
Do not use steam cleaners or high-pressure cleaners to
clean the appliance, as this may result in an electric shock.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
- CAUTION: possibility of tilting.
- WARNING: In order to prevent
tipping of the appliance, stabilising
means must be installed. Refer to the
instructions for installation.

7
586316
Only use the temperature probe recommended for this
oven.
Make sure the lid is clean and that there is no liquid spilt
on it before raising it. The lid may be lacquer-coated or
glass. It may only be closed when the cooking zones have
completely cooled down.
Appliance must be connected to fixed wiring which is in
accordance with the witing rules.
Appliance must be connected to fixed wiring which has
incorporated means of disconnection. Fixed wiring must be
made in accordance with the wiring rules.
The appliance is intended for household
use. Do not use it for any other purpose,
such as room heating, drying of pets or
other animals, paper, fabrics, herbs etc. As
this may lead to injury or fire hazard.
The appliance may only be connected
by an expert authorized by the gas
distribution company or an authorized
service center. All relevant legislation and
local gas distributor's technical conditions
for connection to the gas mains should be
complied with.
Unauthorized service and repair can result
in risk of explosion, electric shock, or short
circuit and consequently personal injury
and damage to the appliance. Such tasks
may only be carried out by an authorized
expert
Before installing and connecting the
appliance, make sure the local connection
conditions and characteristics (gas type
and pressure) are compatible with the
appliance set-up.
The set-up of the appliance is specified on
the rating plate.
This appliance is not connected to a
combustion products evacuation device.
It shall be installed and connected in
accordance with current installation
regulations.
This is a class 2/1 appliance. The appliance
may touch the adjacent cabinets on both
sides when placed in a row. On one side,
a tall cabinet – taller than the appliance –
may be placed at a distance of at least 10
cm from the appliance. On the other side,
only a cabinet of the same height may be
placed. Pay attention to correct placement
of the burner parts.
Do not install the appliance near powerful
sources of heat, such as solid fuel stoves,
because high temperature near them can
damage the appliance.
Close the main inlet valve if you do not
intend to use the burners for a longer
period of time (e.g. before going on
vacation).

8
586316
BEFORE CONNECTING THE APPLIANCE
Carefully read the instructions for use before connecting the
appliance. Repair or any warranty claim resulting from incorrect
connection or use of the appliance shall not be covered by the
warranty.
If the power cords of appliances located
near this appliance are caught in the oven
door, they can be damaged, which may in
turn result in a short circuit. Therefore, keep
the power cords of other appliances at a
safe distance.
Appliance operation is safe with and
without tray guides.
If you observe any faults on the gas
installation or smell gas in the room:
• immediately shut o the gas supply or
close the gas cylinder;
• put out any open fi re and extinguish any
tobacco product;
• do not switch on any electrical
appliances (including lights);
• thoroughly ventilate the room – open the
windows;
• immediately inform the service centre or
an authorized natural gas distributor.
Do not line the oven walls with aluminium
foil and do not place baking trays or other
cookware on the oven bottom. Aluminium
foil would prevent air circulation in the
oven, hinder the cooking process, and ruin
the enamel coating.
Oven door become very hot during
operation. A third glass is installed for extra
protection, reducing the temperature of the
outside surface (only with some models).
Oven door hinges may be damaged when
under excessive load. Do not place heavy
pans on open oven door and do not lean
against open oven door when cleaning the
oven cavity.
Never stand on the open oven door and do
not let children sit on it.
Make sure the vents are never covered or
obstructed in any other way.
CAUTION:The use of a gas cooking
appliance results in the production of heat,
moisture and products of combustion in
the room in which it is installed. Ensure
that the kitchen is well ventilated especially
when the appliance is in use: keep
natural ventilation holes open or install a
mechanical ventilation device (mechanical
extractor hood).
Prolonged intensive use of the appliance
may call for additional ventilation, for
example opening of a window, or more
effective ventilation, for example increasing
the level of mechanical ventilation where
present.
The appliance is heavy. For carrying the
appliance at least 2 persons are needed.

9
COMBINED FREE STANDING
COOKER

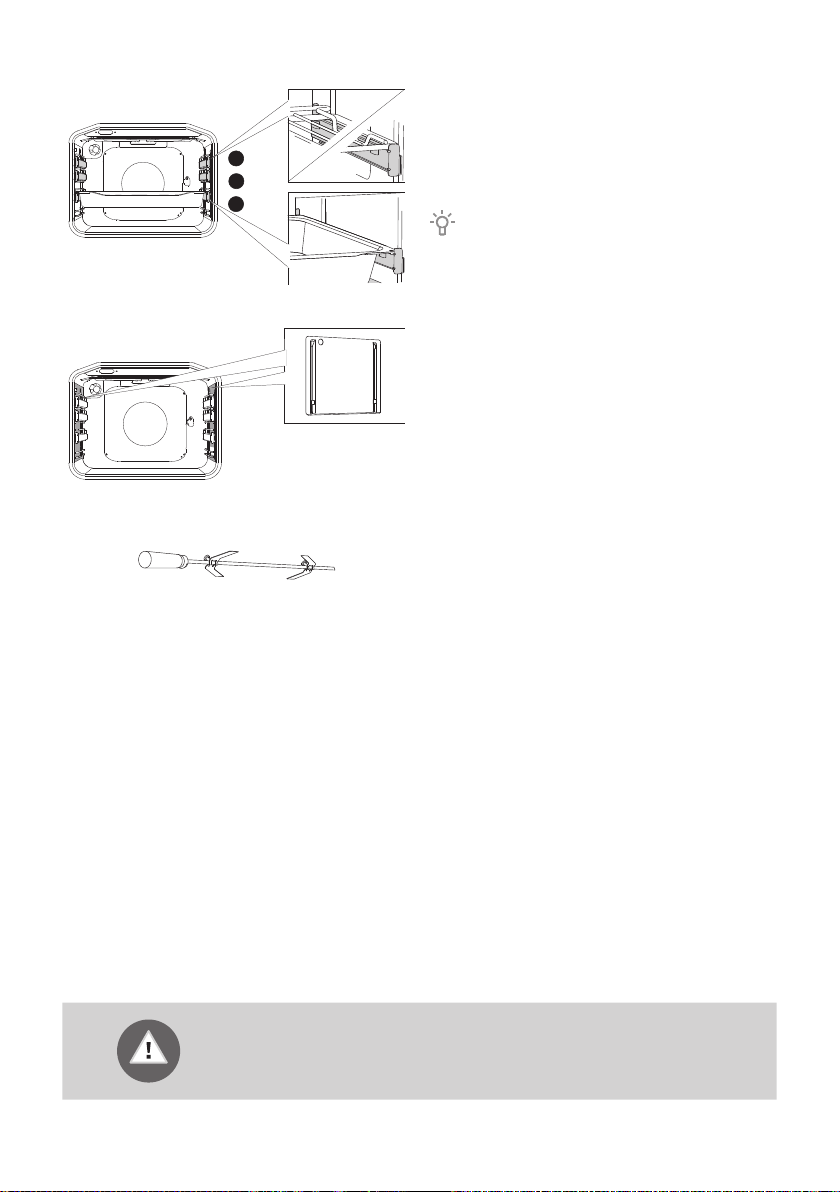

DESCRIPTION OF THE APPLIANCE AND EQUIPMENT
(depending on the model)
Lid
Door
Guides –
cooking
levels
4
3
2
1

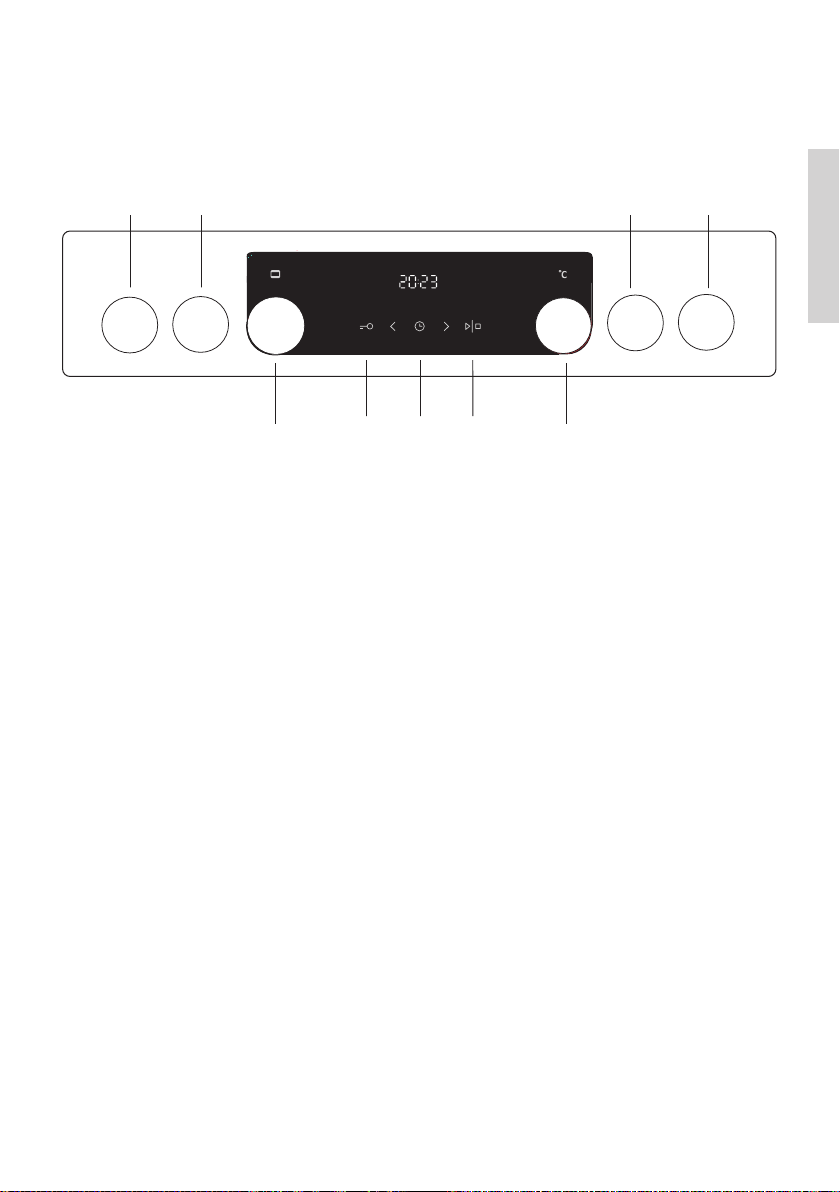

Control unit
Adjustable feet
Door switch
Door handle
Cooking hob (conventional or
glass ceramic)
Drawer/Clampshell drawer
Plinth
586316
Since the appliances for which these instructions were drawn up may have different
equipment, some functions or equipment may be described in the manual that may not be
present in your appliances.
APPLIANCE LID
Make sure the lid is clean and that there is no liquid spilt on it before raising it. The lid
may be lacquer-coated or glass. It may only be closed when the cooking zones have
completely cooled down.

10
586316
APPLIANCE DRAWER
Do not store combustible, explosive, volatile or temperature-
sensitive items (such as paper, dish cloths, plastic bags, cleaners
or detergents and spray cans) in the oven's storage drawer, as
they can ignite during over operation and cause a fire.
PUSH-PULL KNOB
Slightly push the knob until it pops out; then, rotate it.
After each use, rotate the knob back to the "off" position and push it back in. The
push-pull knob can only be pushed back when the switch is in the "off" position.
CONTROL LIGHTS
When the oven is switched on, the yellow signal light is on.
The yellow light is on whenever any appliance function is activated (depending on the
model).
Oven lighting will be switched on automatically when the cooking system is selected.
WIRE GUIDES
The wire guides allow preparation of the food on four levels (please note that the levels/
guides are counted from the bottom up).
Guides 3 and 4 are intended for grilling.
TELESCOPIC PULL-OUT GUIDES
Telescopic pull-out guides may be fitted for the 2nd, 3rd, and 4th level.
Pull-out guides can be partly or fully extendible.
EMBOSSED GUIDES
The oven has stamped side grooves in three levels for inserting of the grid.
OVEN DOOR SWITCH
The switch deactivates oven heating and the fan when the oven door is opened during the
cooking process. When the door is closed, the switch turns the heaters back on.
COOLING FAN
The appliance is fitted with a cooling fan that cools the housing and the appliance control
panel. After the oven is switched off, the cooling fan continues to operate for a short while
in order to cool the oven.
The symbol on the product or its packaging indicates that glass
lids may shatter when heated. Turn off all the burners before
shutting the lid.

11
586316
OVEN EQUIPMENT AND ACCESSORIES (depending on the model)
GLASS BAKING DISH is used for cooking
with all oven systems. It can also be used as
a serving tray.
The GRID is used for grilling or as support
for a pan, baking tray or baking dish with
the food.
There is a safety latch on the grid.
Therefore, lift the grid slightly at the front
when pulling it out from the oven.
Use the BAKING TRAY for cooking of all
types of meat, fish and vegetables, as well as
for catching the drippings when cooking on
the wire rack.
The DEEP BAKING TRAY is used for roasting
meat and baking moist pastry. It can also be
used as a drip tray.
Never place the deep baking tray in the
first guide during the cooking process, except
when grilling food or using the roasting spit
and you are only using the deep tray as a drip
tray.
As baking accessories heat up, their
form may change. This does not affect
their functionality and their original form
will be restored when they cool down.
The grid or the tray should always be
inserted into the groove between the two
wire profiles.

12
586316
With telescopic extendible guides, first pull
out the guides of one level and place the
grid or the baking tray onto them. Then,
push them in with your hand as far as they
will go.
Close the oven door when the
telescopic guides are retracted all the way
into the oven.
CATALYTIC INSERTS prevent the spraying
fat from sticking to sides of the oven cavity.
The TURNSPIT (meat skewer) is used
for roasting meat. The set consists of a
skewer support, skewer with screws, and a
removable handle.
2
3
4
The appliance and some of the accessible parts tend to heat up
during cooking. Use oven mitts.

13
CONTROL UNIT
(depending on the model)
NOTE:
Symbols of cooking systems may be located on the knob or on the front panel
(depending on the appliance model).
The keys will respond better if you touch them with a larger area of your fingertip. Each
time you press a key, a short acoustic signal will be sounded.
4a 4b 4c
12
35
67
1COOKING ZONE KNOB, FRONT LEFT
2COOKING ZONE KNOB, REAR LEFT
3COOKING SYSTEM SELECTOR KNOB
4a CHILD LOCK KEY
4bCLOCK KEY
4c START/STOP KEY
5TEMPERATURE KNOB
6COOKING ZONE KNOB, REAR RIGHT
7COOKING ZONE KNOB, FRONT RIGHT
586316

14
APPLIANCE DATA - DATA PLATE
(depending on the model)
586316
The rating plate indicating the basic
information about the appliance is located
at the edge of the oven and it is visible
when the oven door is opened.
ASerial number
BModel
CType
DTrademark
ECode
FTechnical information
GCompliance indications / symbols
H Factory settings for gas type

15
586316
USING THE APPLIANCE
BEFORE USING THE APPLIANCE FOR THE
FIRST TIME
Upon receiving the appliance, remove all parts, including any transport equipment, from
the oven.
Clean all accessories and utensils with warm water and regular detergent. Do not use any
abrasive cleaners.
When the oven heats up for the first time, the characteristic smell of a new appliance will
be emitted. Ventilate the room thoroughly during the first operation.
After you receive your appliance, please wipe the entire cooking hob, including the
cooking zones, with a damp cloth
If your hob has a glass ceramic surface, clean it with a damp cloth and some washing-
up liquid. Do not use aggressive cleaners, such as abrasive cleaners that could cause
scratches, abrasive dishwashing sponges, or stain removers.
1. Cooking zone rear left
2. Cooking zone rear right
3. Cooking zone front right
4. Cooking zone front left
COOKING HOB (depending on the model)

16
586316
GLASS CERAMIC COOKING SURFACE
- The heating zone will quickly reach the set power or temperature, while the area around
the hot cooking zones will remain cook.
- The hob is resistant to temperature changes.
- Using the glass ceramic hob as a storage area may result in scratches or other damage
to it.
- Do not use aluminium or plastic cookware on hot cooking zones. Do not place any
plastic objects or aluminium foil on the glass ceramic hob.
- Do not use the glass ceramic hob if it is cracked or broken. If a sharp object falls on
the hob, the hob may break. The consequences of such occurrence may be visible
immediately or only after a while. If any visible crack appears in the hob, immediately cut
o the power supply to the appliance.
CONTROL OF THE TWO-RING COOKING
ZONE:
The area of the two-ring cooking zone
can adapt to the size and the form of your
cookware.
To activate the larger heating zone, rotate
the cooking zone knob as far as it will go
(a click will be heard), then set the desired
power level.
RESIDUAL HEAT INDICATOR
Every cooking zone has a signal light that
lights up when the cooking zone is hot.
When the cooking zone cools down, the
signal light goes out. The residual heat
indicator may also light up if a hot pot or
pan is placed on a cool cooking zone.

17
586316
- Use quality cookware with flat and stable
bottom.
- Pan bottom and cooking zone diameters
should be the same.
- Tempered glass cookware with special
ground bottom may be used on the
cooking zones if its diameter fits that
of the cooking zones. Cookware with
larger diameter may crack due to thermal
tension.
- Make sure the pot or pan is in the middle
of the cooking zone.
- When using a pressure cooker, keep an eye on it until the right pressure is reached.
First, set the cooking zone to maximum power; then, following the pressure cooker
manufacturer's instructions, use the relevant sensor to decrease the cooking power at
the right time.
- Make sure there is enough liquid in the pressure cooker, or any other pot or pan. Due to
overheating, using an empty pot on the cooking zone may result in damage to both the
pot and the cooking zone.
- When using special cookware, observe the manufacturer's instructions.
ENERGY SAVING TIPS
- Diameter of the pot and pan bottoms should match the diameter of the cooking zone. If
the pot or pan is too small, a part of the heat will be lost, and the cooking zone may be
damaged.
- If the cooking process allows, use a lid.
- Cookware should be suitably sized given the amount of food. When you cook a small
amount of food in a large pot or pan, more energy is lost.
- If a dish takes a long time to cook, use a pressure cooker.
- Vegetables, potatoes etc. may be cooked in a smaller amount of water. The food will
cook just as well, as long as the pot is tightly closed with a lid. After bringing the water
to boiling, reduce the heat to a level that is just suces to maintain a slow simmer.
TIPS REGARDING YOUR COOKWARE

18
586316
- Correct choice of cookware allows optimum cooking
time and gas consumption. Cookware diameter is the
most important in this respect.
- If a pot or a pan is too small, the flames reaching over
the edge of its bottom will damage it. Moreover, gas
consumption will be higher.
- Combustion of gas also requires air. If the pot or pan
is too large, there is not enough air and the burning
eciency is decreased.
Gas hob reducer (only with some models) Use the gas
hob reducer when cooking in a container of smaller
diameter. Place it on the grid over the auxiliary burner.
Burner type Container diameter
Large (3.0 kW) 220-260 mm
Normal (1.9 kW) 160-220 mm
Auxiliary (1.0 kW) 120-140 mm
Multi-ring burner (3,5kw) 220-260 mm
TIPS REGARDING YOUR COOKWARE
GAS BURNERS
- To sear the food, set the burner to maximum power first, and then continue to cook at
minimum power.
- Always place the burner cap accurately on the burner crown. Make sure the slots in the
burner crown are never blocked.
Burner crown cap
Burner crown with burner cap support
Thermocouple (or thermoelectric safety device, only with
some models)
Spark plug
Nozzle

19
586316
BURNER IGNITION AND OPERATION (depending on the model)
Always press the knob before rotating it.
Cooking power levels are indicated on the knobs with a large and a
small flame symbol. Rotate the knob over the large flame position
to the small flame position and back. Operating range is
between the two flame symbols.
Settings between and are not recommended. In this range, the
flame is unstable and may be extinguished.
Place the pot or pan on the grid above the burner before
igniting it (applies to three-ring, double-ring, and mini-wok burner).
To turn off a burner, rotate the knob to the right to position .
Single-handed ignition
To ignite a gas burner, press the corresponding knob and rotate it
to the maximum power position. Electric spark from the spark plug
will be activated and the gas will ignite.
Two-handed ignition
To ignite a gas burner, press the corresponding knob and rotate
it to the maximum power position. Press the spark plug button.
Electric spark from the spark plug will be activated and the gas will
ignite.
Electric ignition will only work if the power cord is connected
to the mains power. If electric ignition does not work due to a
power supply failure or damp spark plugs, the gas can still be
ignited with a match or a lighter. After ignition, keep the knob
depressed for approximately 10 more seconds until the flame is
stabilized.
If the burner does not ignite in 15 seconds, close it and wait for at
least 1 minute. Then repeat the ignition process.
If the flame on a burner is extinguished (regardless of the
reason), close the burner and wait for 1 minute before trying to
ignite it again.

20
1Set the clock by touching the or keys, and confirm the setting by touching the
key.
If you press and hold the value
adjustment key, the rate at which the set
value is being changed will increase.
CHANGING THE CLOCK SETTING
Clock settings may be changed when no timer function is activated. To set the current
time (clock), touch the CLOCK key several times to select the symbol.
586316
OVEN
SWITCHING ON AND SETTINGS
After connecting your appliance or after an extended power outage, 12:00 will flash on
the display and the symbol will light up .
Set the time of day.
SETTING THE CLOCK
