Gorenje EI647A21X2 Operating and maintenance manual

www.gorenje.comwww.gorenje.com
EN
DETAILED
INSTRUCTIONS
FOR USE OF AN
INDUCTION FREE
STANDING COOKER

We thank you for your
trust and the purchase of our
appliance.
This detailed instruction manual is
supplied to make the use of this
product easier. The instructions
should allow you to learn about your
new appliance as quickly as possible.
Make sure you have received an
undamaged appliance. If you do find
transport damage, please contact the
seller from which you purchased the
appliance, or the regional warehouse
from which it was supplied. The
telephone number can be found on
the invoice or on the delivery note.
Instructions for installation and
connection are supplied on a
separate sheet.
Instructions for use are also available
at our website:
www.gorenje.com / < http://www.
gorenje.com />
Important information
Tip, note

3
CONTENTS
480756
4 INDUCTION FREE STANDING COOKER
8 Control unit
10 Technical specifications
11 IMPORTANT SAFETY INSTRUCTIONS
13 Before connecting the oven:
14 BEFORE USING THE APPLIANCE FOR THE FIRST TIME
15 INDUCTION COOKING SURFACE
15 Glass ceramic cooking surface
17 Induction cookware
19 Operating the induction cooking hob
23 STEPS OF THE COOKING PROCESS (1–6)
23 Step 1: SWITCHING ON AND SETTINGS
24 Step 2: CHOOSING THE COOKING SYSTEM
26 Step 3: CHOOSING THE SETTINGS
29 Step 4: SSELECTING ADDITIONAL FUNCTIONS
31 Step 5: STARTING THE COOKING PROCESS
31 Step 6: SWITCHING OFF THE OVEN
32 DESCRIPTIONS OF SYSTEMS (COOKING MODES) AND COOKING
TABLES
50 MAINTENANCE & CLEANING
51 Cleaning the glass ceramic surface
53 Conventional oven cleaning
54 Using the aqua clean function to clean the oven
55 Removing and cleaning wire and telescopic extendible guides
56 Installing the catalytic inserts
57 Cleaning the oven cavity ceiling
58 Removing and inserting the oven oor
61 Removing and inserting the oven door glass pane
62 Replacing the bulb
63 TROUBLESHOOTING TABLE
65 DISPOSAL
66 COOKING TEST
INTRODUCTION
PREPARING THE
APPLIANCE FOR
THE FIRST USE
COOKING STEPS
MAINTENANCE
& CLEANING
TROUBLE-
SHOOTING
OTHER

4

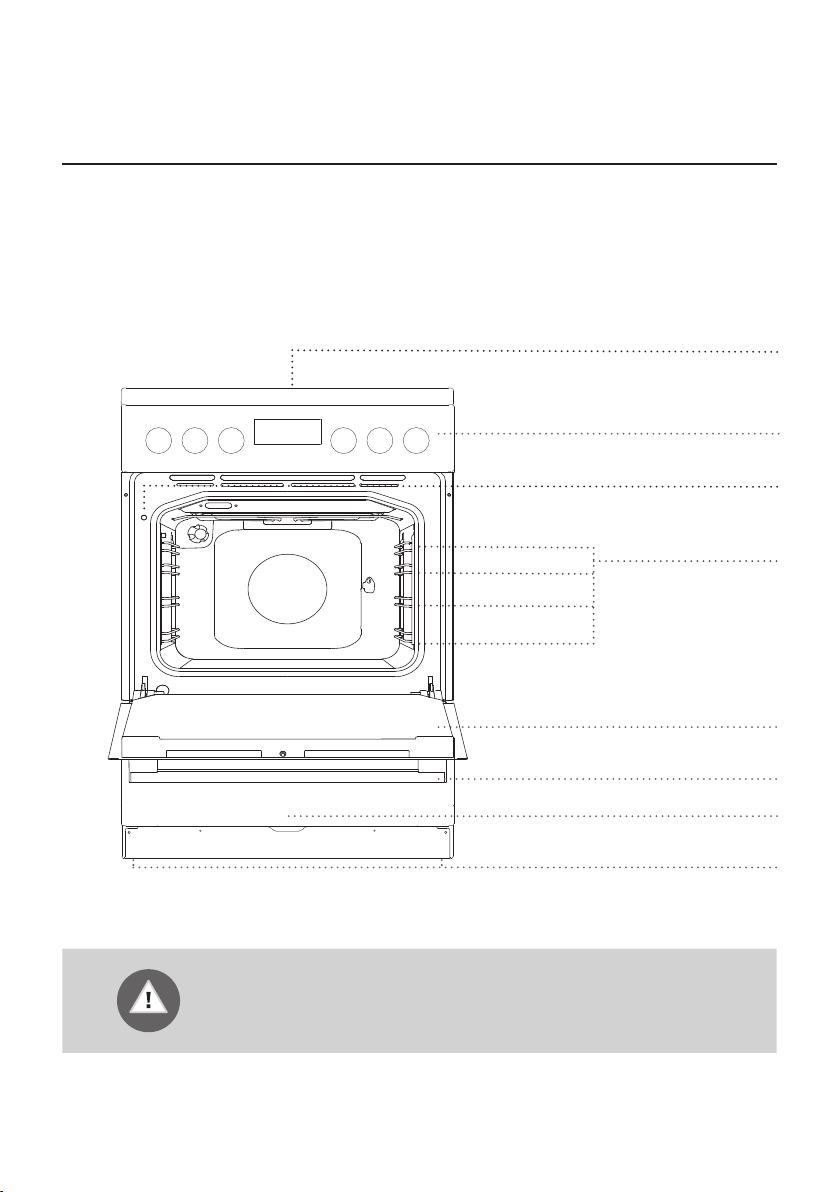

INDUCTION FREE STANDING
COOKER
(DESCRIPTION OF THE OVEN AND EQUIPMENT – DEPENDING ON
THE MODEL)
4
3
2
1
Cooking hob (conventional or
glass ceramic)
Door
Drawer
Guides – cooking
levels
Control unit
Adjustable feet
Door switch
Door handle
480756
Since the appliances for which these instructions were drawn up may have different
equipment, some functions or equipment may be described in the manual that may not be
present in your appliances.
APPLIANCE DRAWER
Do not store combustible, explosive, volatile or temperature-
sensitive items (such as paper, dish cloths, plastic bags, cleaners
or detergents and spray cans) in the oven's storage drawer, as
they can ignite during over operation and cause a fire.

5
480756
PUSH-PULL KNOB
Slightly push the knob until it pops out; then, rotate it.
After each use, rotate the knob back to the "off" position and push it back in. The
push-pull knob can only be pushed back when the switch is in the "off" position.
WIRE GUIDES
The wire guides allow preparation of the food on four levels (please note that the levels/
guides are counted from the bottom up).
Guides 3 and 4 are intended for grilling.
TELESCOPIC PULL-OUT GUIDES
Telescopic pull-out guides may be fitted for the 2nd, 3rd, and 4th level.
Pull-out guides can be partly or fully extendible.
OVEN DOOR SWITCH
The switch deactivates oven heating and the fan when the oven door is opened during the
cooking process. When the door is closed, the switch turns the heaters back on.
COOLING FAN
The appliance is fitted with a cooling fan that cools the housing and the appliance control
panel.
EXTENDED OPERATION OF THE COOLING FAN
After the oven is switched off, the cooling fan continues to operate for a short while in
order to cool the oven.

6
480756
OVEN EQUIPMENT AND ACCESSORIES
GLASS BAKING DISH is used for cooking
with all oven systems. It can also be used as
a serving tray.
The GRID is used for grilling or as support
for a pan, baking tray or baking dish with
the food.
There is a safety latch on the grid.
Therefore, lift the grid slightly at the front
when pulling it out from the oven.
The SHALLOW BAKING SHEET is used for
baking pastry and cakes.
The DEEP BAKING TRAY is used for roasting
meat and baking moist pastry. It can also be
used as a drip tray.
Never place the deep baking tray in the
first guide during the cooking process, except
when grilling food or using the roasting spit
and you are only using the deep tray as a drip
tray.
The grid or the tray should always be
inserted into the groove between the two
wire profiles.

7
480756
With telescopic extendible guides, first pull
out the guides of one level and place the
grid or the baking tray onto them. Then,
push them in with your hand as far as they
will go.
Close the oven door when the
telescopic guides are retracted all the way
into the oven.
CATALYTIC INSERTS prevent the spraying
fat from sticking to sides of the oven cavity.
The ROTISSERIE (meat skewer) is used
for roasting meat. The set consists of a
skewer support, skewer with screws, and a
removable handle.
PROBE for roasting larger chunks of meat.
2
3
4
The appliance and some of the accessible parts tend to heat up
during cooking. Use oven mitts.

8

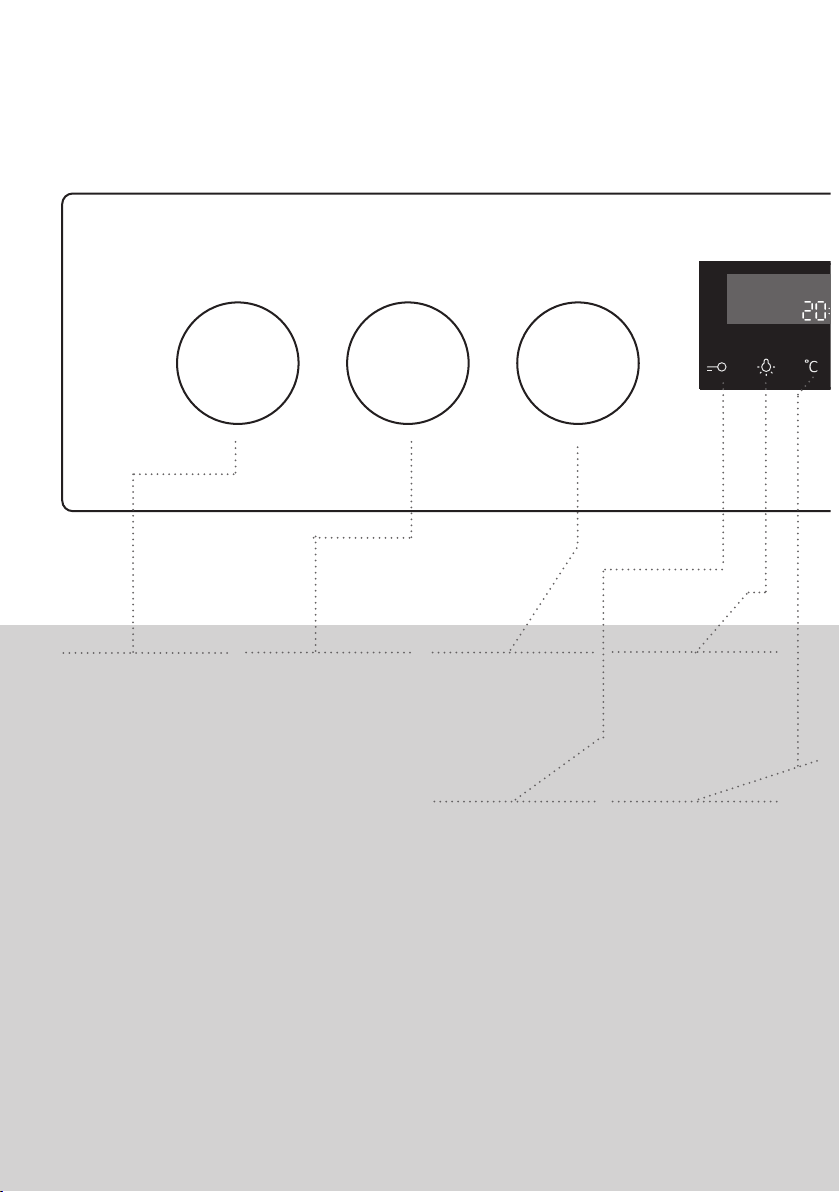

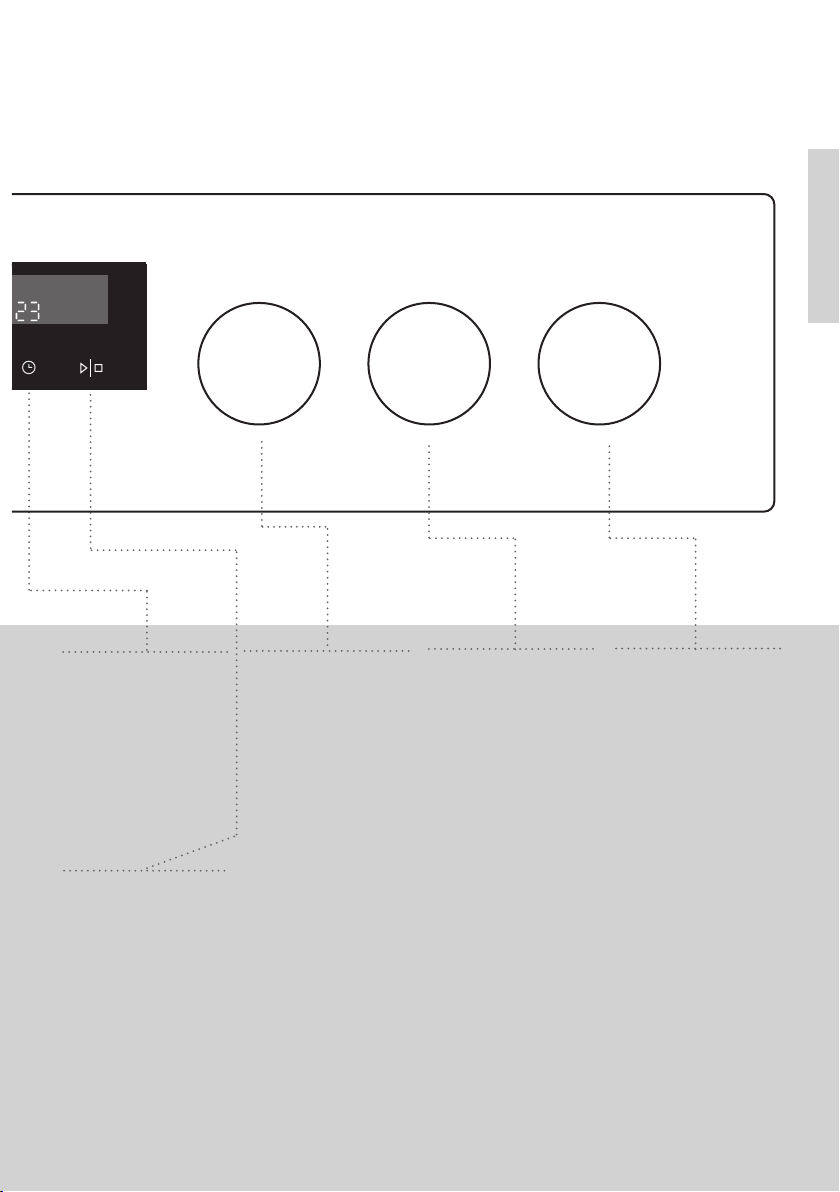

CONTROL UNIT
(DEPENDING ON THE MODEL)
1COOKING ZONE KNOB, REAR
LEFT 2COOKING
ZONE KNOB,
FRONT LEFT 3COOKING
SYSTEM
SELECTOR KNOB
4a CHILD LOCK KEY
4b OVEN LIGHTING
ON/OFF KEY
4c TEMPERA- TURE KEY
NOTE:
Symbols of cooking systems may be located on the knob or on the front panel
(depending on the appliance model).
480756

9
5SETTINGS KNOB (-/+)
Use this knob to
set the time and
temperature.
6COOKING ZONE KNOB, FRONT
RIGHT 7COOKING ZONE
KNOB, REAR
RIGHT
4e START/ STOP KEY
Use this key to
start or stop the
program.
4d ELECTRO- NIC TIMER
KEY
Cooking duration
End of cooking
Alarm
Clock
NOTE:
The keys will respond better if you touch them with a larger area of your fingertip. Each
time you press a key, a short acoustic signal will be sounded.
480756

10
TECHNICAL SPECIFICATIONS
(DEPENDING ON THE MODEL)
3.5 kW
xxxxxx
SER. Nr: XXXXXX
ART. Nr:
max
TN XXXXX
Pn :
TYPE:
XXXXXX
220-240V ~
220V-240V, 50/60Hz
480756
The rating plate indicating the
basic information about the
appliance is located at the edge
of the oven and it is visible when
the oven door is opened.

11
480756
IMPORTANT SAFETY
INSTRUCTIONS
CAREFULLY READ THE INSTRUCTIONS AND SAVE THEM
FOR FUTURE REFERENCE.
This appliance may only be used by children aged 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
supervision or instructions are provided to them concerning
use of the appliance in a safe way and if they understand
the hazards involved. Do not let the children play with the
appliance. Cleaning and user maintenance shall not be made
by children without supervision.
WARNING: The appliance and some of its accessible parts
may become very hot during use. Be careful not to touch
the heaters. Children younger than 8 years should be
constantly supervised.
The appliance becomes very hot during use. Be careful not
to touch the oven heaters.
WARNING: The accessible parts of the appliance may
become hot during use. Children should be kept away from
the oven.
WARNING: Danger of fire: do not store items on the
cooking surfaces.
WARNING: Unattended cooking on a hob with fat or oil can
be dangerous and may result in fire. Never try to extinguish
a fire with water, but switch off the appliance and then
cover flame with a lid or a damp cloth.

12
480756
WARNING: If the surface is cracked, switch off the appliance
to avoid the possibility of electric shock.
Only use the temperature probe recommended for use in
this oven.
WARNING: Before replacing the light bulb, make sure the
appliance has been disconnected from the power mains, in
order to prevent the hazard of an electric shock.
Do not place objects like knives, forks, spoons, or lids on the
induction cooking zone as they can become very hot.
Do not use abrasive cleaners or sharp metal scrapers to clean
the oven as they may damage the finish or the protective enamel
coating. Such damages may lead to cracking of the glass.
Do not use steam cleaners or high-pressure cleaners to clean the
cooking hob, as this may result in an electric shock.
The appliance is not intended to be controlled by external timers
or special control systems.
The appliance is intended for household
use. Do not use it for any other purpose,
such as room heating, drying of pets or
other animals, paper, fabrics, herbs etc. as
this may lead to injury or fire hazard.
The appliance is intended to be placed
directly on the floor, without any supports
or plinths.
The appliance may only be connected to
the power mains by an authorized service
technician or expert.
Tampering with the appliance or non-
professional repair thereof may result
in risk of severe injury or damage to the
product.
If the power cords of other appliances
located near this appliance are caught
in the oven door, they may be damaged,
which may in turn result in a short circuit.
Therefore, keep the power cords of other
appliances at a safe distance.
If the power cord is damaged, it should
be replaced by the manufacturer or an
authorized service technician, in order to
avoid hazard.
Do not line the oven walls with aluminium
foil and do not place baking trays or other
cookware on the oven bottom. Aluminium
foil would prevent air circulation in the
oven, hinder the cooking process, and ruin
the enamel coating.

13
480756
BEFORE CONNECTING THE OVEN:
Carefully read the instructions for use before connecting the
appliance. Repair or any warranty claim resulting from incorrect
connection or use of the appliance shall not be covered by the
warranty.
Oven door become very hot during
operation. A third glass is installed for extra
protection, reducing the temperature of the
outside surface (only with some models).
Oven door hinges may be damaged when
under excessive load. Do not place heavy
pans on open oven door and do not lean
against open oven door when cleaning the
oven cavity. Never stand on the open oven
door and do not let children to sit on it.
Appliance operation is safe with and
without tray guides.
Make sure the vents are never covered or
obstructed in any other way.

14
480756
BEFORE USING THE APPLIANCE
FOR THE FIRST TIME
If your hob has a glass ceramic surface, clean it with a damp cloth and some washing-
up liquid. Do not use aggressive cleaners, such as abrasive cleaners that could cause
scratches, abrasive dishwashing sponges, or stain removers.
Upon receiving the appliance, remove all parts, including any transport equipment, from
the oven.
Clean all accessories and utensils with warm water and regular detergent. Do not use any
abrasive cleaners.
When the oven heats up for the first time, the characteristic smell of a new appliance will
be emitted. Ventilate the room thoroughly during the first operation.

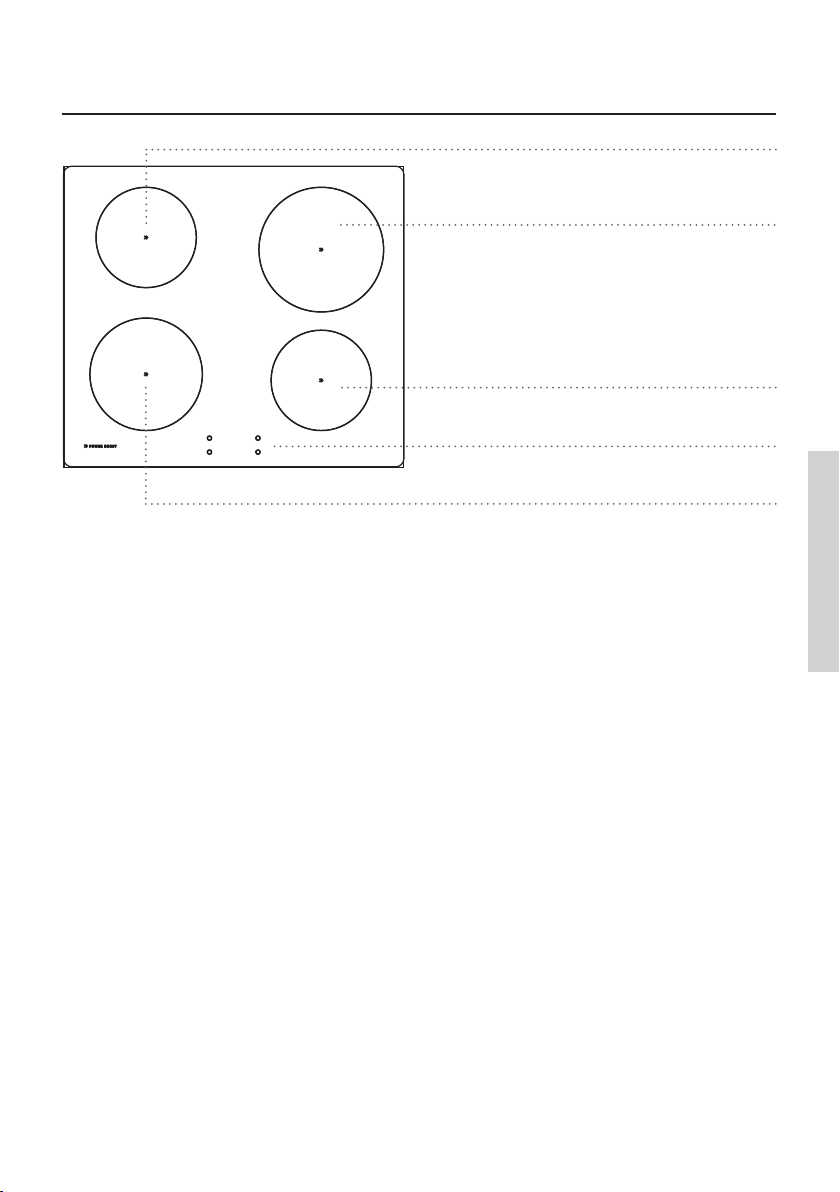

15
induction cooking zone rear
left
induction cooking zone rear
right
induction cooking zone front
right
induction cooking zone front
left
Power level and residual heat
display module
480756
GLASS CERAMIC COOKING SURFACE
- The hob is resistant to temperature changes.
- The hob is also impact-resistant. Even if the cookware is placed onto the hob roughly,
the hob will not be damaged.
- Using the glass ceramic hob as a storage area may result in scratches or other damage
to it.
- Do not use the glass ceramic hob if it is cracked or broken. If a sharp object falls on
the hob, the hob may break. The consequences of such occurrence may be visible
immediately or only after a while. If any visible crack appears in the hob, immediately
cut o the power supply to the appliance.
- Make sure the cooking zone and the cookware bottom is clean and dry. This will allow
better conduction of heat and prevent any damage to the heating surface. Do not place
empty cookware on the cooking zone.
INDUCTION COOKING SURFACE

16
480756
If sugar or food with high sugar content is spilled over a hot class
ceramic hob, immediately wipe the hob or remove the sugar with
a scraper, even if the cooking zone is still hot. This will prevent
any damage to the class ceramic surface.
Do not use detergents and other cleaners to clean a hot glass
ceramic hob as this could damage the surface.
- The cooking hob is fitted with highly ecient induction cooking
zones. The heat is generated directly in the bottom of the pan
where it is needed the most. This avoids any losses through the
glass ceramic surface. Power consumption is considerably lower
than in conventional cooking zones with radiation heaters.
- The glass ceramic cooking zone is not heated directly, but only
indirectly with the heat radiated back by the pan. After the
cooking zone is switched o, this heat is indicated as »residual
heat«.

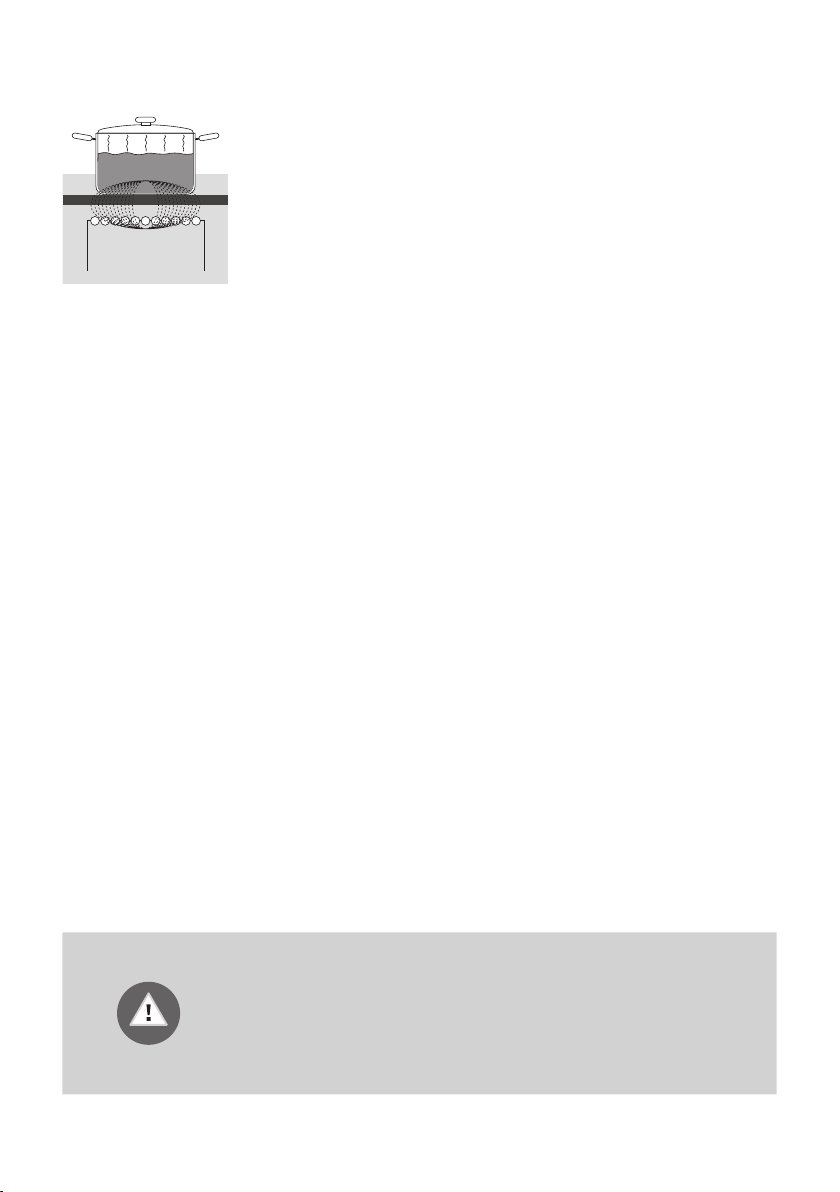

- In induction cooking zones, heating is made possible by the
induction coil installed under the glass ceramic surface. The coil
induces a magnetic field which generates eddy currents in the
bottom of a ferromagnetic pan (i.e. a pan that a magnet will
adhere to), which in turn heats the pan.
INDUCTION COOKING ZONE OPERATING PRINCIPLE

17
480756
- The induction will work correctly if you use suitable cookware.
- Make sure the pot or pan is in the middle of the cooking zone.
- Suitable cookware includes cookware made of steel, enamel-
coated steel pans, or cast iron pans.
- Unsuitable cookware: alloy steel cookware with copper or
aluminium bottom, and glass cookware.
- The magnet test: Use a small magnet to check whether the
pan or pot bottom is ferromagnetic. If the magnet sticks to the
bottom of the pan, then it is suitable for an induction cooker.
- When using a pressure cooker, keep an eye on it until the right pressure is reached.
First, set the cooking zone to maximum power; then, following the pressure cooker
manufacturer's instructions, use the relevant sensor to decrease the cooking power at
the right time.
- Make sure there is enough liquid in the pressure cooker, or any other pot or pan. Due to
overheating, using an empty pot on the cooking zone may result in damage to both the
pot and the cooking zone.
- When using special cookware, observe the manufacturer's instructions.
Cooking zones Minimum pan bottom diameter
Ø 160 mm Ø 110 mm
Ø 180 mm Ø 110 mm
Ø 200 mm Ø 145 mm
INDUCTION COOKWARE
COOKWARE SUITABLE FOR AN INDUCTION HOB

18
480756
PAN RECOGNITION
- Even if there is no pot or pan on the cooking zone or if the pan
used has a diameter that is smaller than the diameter of the
cooking zone, there will be no losses of energy.
- If the pan is much smaller than the cooking zone, there is a
possibility that it will not be recognized by the cooking zone.
When the cooking zone is activated, the sign »U« will appear on
the cooking power display. If a pan is placed on the induction
cooking zone within the next ten minutes, the hob will recognize
it and switch on with the selected cooking power. As soon as the
pan is removed from the cooking zone, the power supply is cut
o.
- If a smaller pan or pot is placed on the cooking zone and it is
recognized, the hob will only use as much power as necessary
given the pan size.
ENERGY SAVING TIPS
- When purchasing cookware, note that the diameter indicated on the pan usually
pertains to the upper edge or the lid, which is normally larger than the diameter of the
pan bottom.
- If a dish takes a long time to cook, use a pressure cooker. Make sure there is always
sucient liquid in the pressure cooker. If an empty cooker is placed on the cooking hob,
it may overheat which in turn may lead to damage to both the pot and the cooking
zone.
- Whenever possible, close the pot or pan with a suitably sized lid. Use cookware that
fits the amount of food you are cooking. Cooking in a large partly full pot will consume
much more energy.

19
480756
OPERATING THE INDUCTION COOKING
HOB

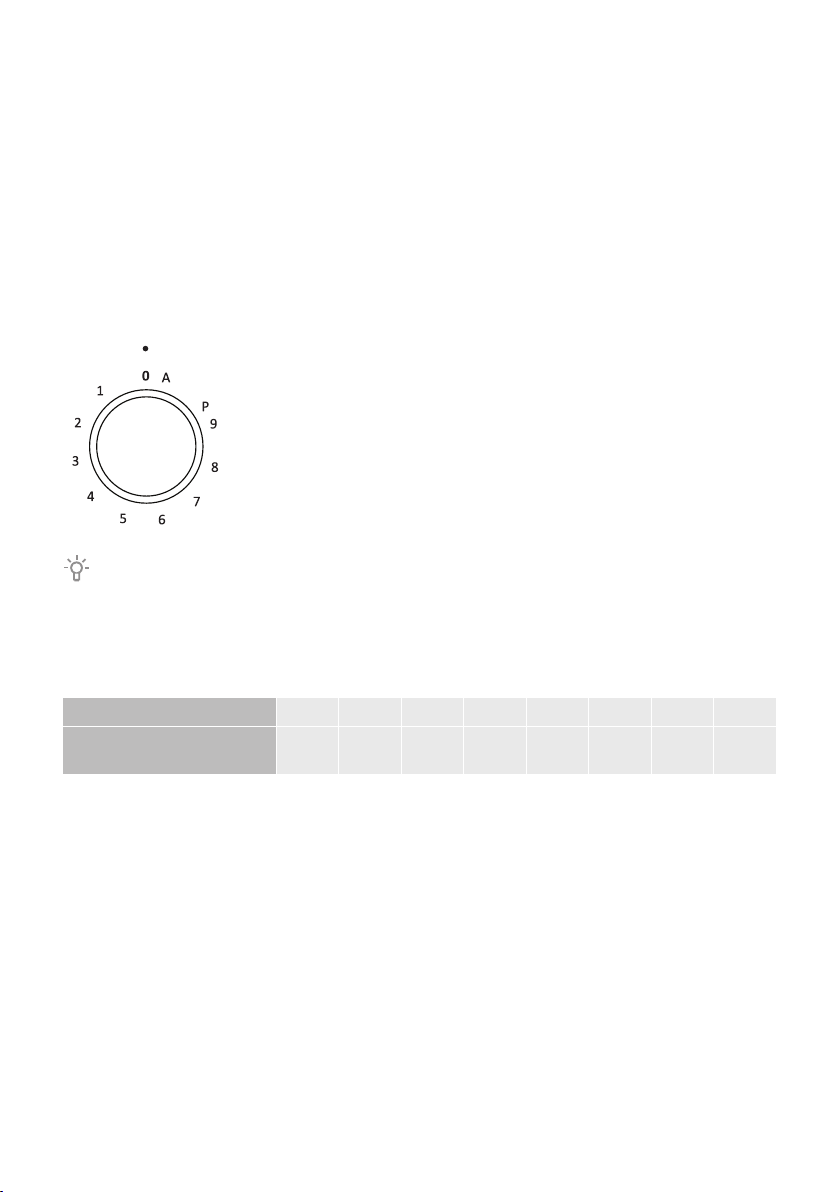

COOKING POWER LEVELS
Switch on the cooking zone using the knobs on the control panel.
Level Purpose
0Switched off, using the residual heat
1 - 2 Keeping the food warm, slow cooking of smaller amounts (lowest setting)
3Slow cooking (follow-up cooking after the initial power boost)
4 - 5 Slow cooking (follow-up cooking) of large amounts, pan-roasting of larger
chunks
6Searing and browning
7 - 8 Searing
9Cooking of large amounts, searing
P"Power boost" setting, also suitable for very large amounts of food
AAutomatic rapid heating
(P) – POWER BOOST
For rapid cooking, power boost can be activated for any cooking zone.
The front left cooking zone features the extra power function. In this zone, extra
power is activated for five minutes; then, the zone automatically switches to level 9.
Rotate the knob to the right until the "P" sign. The sign "P" will
appear on the power level display unit. Power Boost will be
deactivated as soon as you decrease the power level.

20
480756
AUTOMATIC RAPID HEATING
All cooking zones are fitted with a special mechanism that sets the cooking power to
maximum at the start of the cooking process, regardless of the actual power setting. After
a while, the cooking zone power switches back to the initially set level (1 to 8).
The rapid heating system is suitable for dishes that have to be heated up and then
cooked for a longer period of time without the need for constant supervision.
The rapid heating system is not suitable for braising, frying or sautéing, food that
requires frequent turning, basting, or mixing, or food that has to boil for a longer period of
time in a pressure cooker.
The rapid heating function can be deactivated by reducing the cooking power level.
If the power stetting knob remains in the "0" position after the rapid heating function is
activated, this function will be switched off after 3 seconds.
If the pot or pan is removed from the cooking zone, and returned within ten minutes,
heating with the automatic rapid heating system will resume and continue until the end.
Power level settings 12345678
Automatic rapid heating
duration (seconds) 48 144 230 312 408 120 168 216
RESIDUAL HEAT INDICATOR
The glass ceramic cooking zone is not heated directly, but only indirectly with the heat
radiated back by the pan.
As long as the symbol "H" is lit up after the hob has been switched off, there is residual
heat in the cooking zone, which can be used to keep the food warm or for defrosting.
When the "H" sign disappears, the cooking zone may still be hot. Risk of burns!
Rotate the knob all the way to the right to the symbol "A" and
hold it for two seconds until a beep is heard. Then, set the desired
cooking level. "A" and selected power level will alternate on the
power level display. When the power boost heating time expires,
the cooking zone automatically switches to the selected level
which will then be continuously displayed.
