We thank you for your
trust and the purchase of our
appliance.
This detailed instruction manual is
supplied to make the use of this
product easier. The instructions
should allow you to learn about your
new appliance as quickly as possible.
Make sure you have received an
undamaged appliance. If you do find
transport damage, please contact the
seller from which you purchased the
appliance, or the regional warehouse
from which it was supplied. The
telephone number can be found on
the invoice or on the delivery note.
Instructions for installation and
connection are supplied on a
separate sheet.
These instructions are only valid if
the country symbol is printed on
the appliance. If there is NO country
symbol on the appliance, please
consult the technical instructions for
adjusting the appliance according
to the requirements for use in the
relevant country.
The appliance has to be connected
in compliance with the effective
regulations, and it may only be used
in well ventilated areas. Read the
instructions before connecting or
using the appliance.
Instructions for use are also available
at our website:
http://www. gorenje.com
Important information
Tip, note
685932_en.indd 2685932_en.indd 2 14. 10. 2020 13:22:3314. 10. 2020 13:22:33

3
CONTENTS
685932
INTRODUCTION
USING THE
APPLIANCE
MAINTENANCE
& CLEANING
TROUBLE-
SHOOTING
4 IMPORTANT SAFETY INSTRUCTIONS
8 Before connecting the appliance
9 COMBINED FREE STANDING COOKER
13 Control unit
14 Appliance data - data plate
15 USING THE APPLIANCE
15 Before using the appliance for the first time
15 Cooking hob (depending on the model)
18 Oven
21 Choosing the settings
23 Selecting additional functions/extras
25 Starting the cooking process
25 Switching off the oven
26 Descriptions of cooking systems and cooking table
41 MAINTENANCE & CLEANING
42 Conventional oven cleaning
42 Gas burner
43 Using the aqua clean function to clean the oven
44 Removing and cleaning wire and telescopic extendible guides
45 Cleaning and installing the catalytic inserts
46 Removing and inserting the oven door
49 Removing and inserting the oven door glass pane
51 Replacing the bulb
52 SPECIAL WARNINGS AND FAULT REPORTING
54 INSTALLATION AND CONNECTION INSTRUCTIONS
60 NOZZLE TABLE
62 DISPOSAL
OTHER
INSTALLATION
INSTRUCTIONS
685932_en.indd 3685932_en.indd 3 14. 10. 2020 13:22:3314. 10. 2020 13:22:33

4
685932
IMPORTANT SAFETY
INSTRUCTIONS
CAREFULLY READ THE INSTRUCTIONS AND SAVE THEM
FOR FUTURE REFERENCE
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements. Children younger than 8 years of age shall
be kept away unless continuously supervised.
WARNING: The accessible parts of the appliance may
become hot during use. Young children should be kept
away from the oven.
The appliance becomes very hot during use. Be careful not
to touch the oven heaters.
WARNING: Danger of fire: do not store items on the
cooking surfaces.
WARNING: Unattended cooking on a hob with fat or oil
can be dangerous and may result in fire. NEVER try to
extinguish a fire with water, but switch off the appliance
and then cover flame e.g. with a lid or a fire proof blanket..
685932_en.indd 4685932_en.indd 4 14. 10. 2020 13:22:3314. 10. 2020 13:22:33

5
685932
CAUTION: The cooking process has to be supervised.
A short term cooking process has to be supervised
continuously.
WARNING: Before replacing the light bulb, make sure the
appliance has been disconnected from the mains power, in
order to prevent the hazard of an electric shock.
CAUTION: This appliance is for cooking purposes only. It
must not be used for other purposes, for example room
heating.
The appliance is not intended to be controlled by external
timers or separate remote controll system.
WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or hob guards incorporated in the appliance. The
use of inappropriate guards can cause accidents.
WARNING: If the surface is cracked, switch off the appliance
to avoid the possibility of electric shock.
For appliance connection use a 5 x 1,5 mm2cord with mark
H05VV-F5G1,5 or better. Cord must be installed by service
agent or similary quialified person.
The appliance is intended to be placed directly on the floor,
without any supports or plinths.
Metalic objects such as knives, forks, spoons and lids should
not be placed on the hob surface since they can get hot..
Afte ruse, switch off the hob element by its control and do
not rely on the pan detector.
685932_en.indd 5685932_en.indd 5 14. 10. 2020 13:22:3314. 10. 2020 13:22:33

6
685932
Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass or the glass of hinged lids of
the hob (where appropriate), since they can scratch the
surface, which may result in shattering of the glass.
The appliance must not be installed behind a decorative
door in order to avoid overheating.
Do not use steam cleaners or high-pressure cleaners to
clean the cooking hob, as this may result in an electric
shock.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
Only use the temperature probe recommended for this oven.
Make sure the lid is clean and that there is no liquid spilt
on it before raising it. The lid may be lacquer-coated or
glass. It may only be closed when the cooking zones have
completely cooled down.
- CAUTION: possibility of tilting.
- WARNING: In order to prevent
tipping of the appliance, stabilising
means must be installed. Refer to the
instructions for installation.
685932_en.indd 6685932_en.indd 6 14. 10. 2020 13:22:3414. 10. 2020 13:22:34

7
685932
The appliance is intended for household
use. Do not use it for any other purpose,
such as room heating, drying of pets or
other animals, paper, fabrics, herbs etc. As
this may lead to injury or fire hazard.
The appliance may only be connected
by an expert authorized by the gas
distribution company or an authorized
service center. All relevant legislation and
local gas distributor's technical conditions
for connection to the gas mains should be
complied with.
Unauthorized service and repair can result
in risk of explosion, electric shock, or short
circuit and consequently personal injury
and damage to the appliance.
Such tasks may only be carried out by an
authorized expert.
Before installing and connecting the
appliance, make sure the local connection
conditions and characteristics (gas type
and pressure) are compatible with the
appliance set-up.
The set-up of the appliance is specified on
the rating plate.
This appliance is not connected to a
combustion products evacuation device.
It shall be installed and connected in
accordance with current installation
regulations. Particular attention shall
be given to the relevant requirements
regarding ventilation.
This is a class 2/1 appliance. The appliance
may touch the adjacent cabinets on both
sides when placed in a row. On one side,
a tall cabinet – taller than the appliance –
may be placed at a distance of at least 10
cm from the appliance. On the other side,
only a cabinet of the same height may be
placed.
Pay attention to correct placement of the
burner parts..
Do not install the appliance near powerful
sources of heat, such as solid fuel stoves,
because high temperature near them can
damage the appliance.
Close the main inlet valve if you do not
intend to use the burners for a longer
period of time (e.g. before going on
vacation).
Oven door hinges may be damaged when
under excessive load. Do not place heavy
pans on open oven door and do not lean
against open oven door when cleaning the
oven cavity. Never stand on the open oven
door and do not let children sit on it.
Appliance operation is safe with and
without tray guides.
If the power cord is damaged, it should
be replaced by the manufacturer or an
authorized service technician, in order to
avoid hazard.
Appliance must be connected to fixed wiring which is in
accordance with the witing rules.
Appliance must be connected to fixed wiring which has
incorporated means of disconnection. Fixed wiring must be
made in accordance with the wiring rules.
685932_en.indd 7685932_en.indd 7 14. 10. 2020 13:22:3414. 10. 2020 13:22:34

8
685932
BEFORE CONNECTING THE APPLIANCE
Carefully read the instructions for use before connecting the
appliance. Repair or any warranty claim resulting from incorrect
connection or use of the appliance shall not be covered by the
warranty.
If you observe any faults on the gas
installation or smell gas in the room:
• immediately shut o the gas supply or
close the gas cylinder;
• put out any open fi re and extinguish any
tobacco product;
• do not switch on any electrical
appliances (including lights);
• thoroughly ventilate the room – open the
windows;
• immediately inform the service centre or
an authorized natural gas distributor.
Do not line the oven walls with aluminium
foil and do not place baking trays or other
cookware on the oven bottom. Aluminium
foil would prevent air circulation in the
oven, hinder the cooking process, and ruin
the enamel coating.
Oven door become very hot during
operation. A third glass is installed for extra
protection, reducing the temperature of the
outside surface (only with some models).
Oven door hinges may be damaged when
under excessive load. Do not place heavy
pans on open oven door and do not lean
against open oven door when cleaning the
oven cavity.
Never stand on the open oven door and do
not let children sit on it.
Make sure the vents are never covered or
obstructed in any other way.
CAUTION:The use of a gas cooking
appliance results in the production of heat,
moisture and products of combustion in
the room in which it is installed. Ensure
that the kitchen is well ventilated especially
when the appliance is in use: keep
natural ventilation holes open or install a
mechanical ventilation device (mechanical
extractor hood).
Prolonged intensive use of the appliance
may call for additional ventilation, for
example opening of a window, or more
effective ventilation, for example increasing
the level of mechanical ventilation where
present.
The appliance is heavy. For carrying the
appliance at least 2 persons are needed.
685932_en.indd 8685932_en.indd 8 14. 10. 2020 13:22:3414. 10. 2020 13:22:34

9
COMBINED FREE STANDING
COOKER

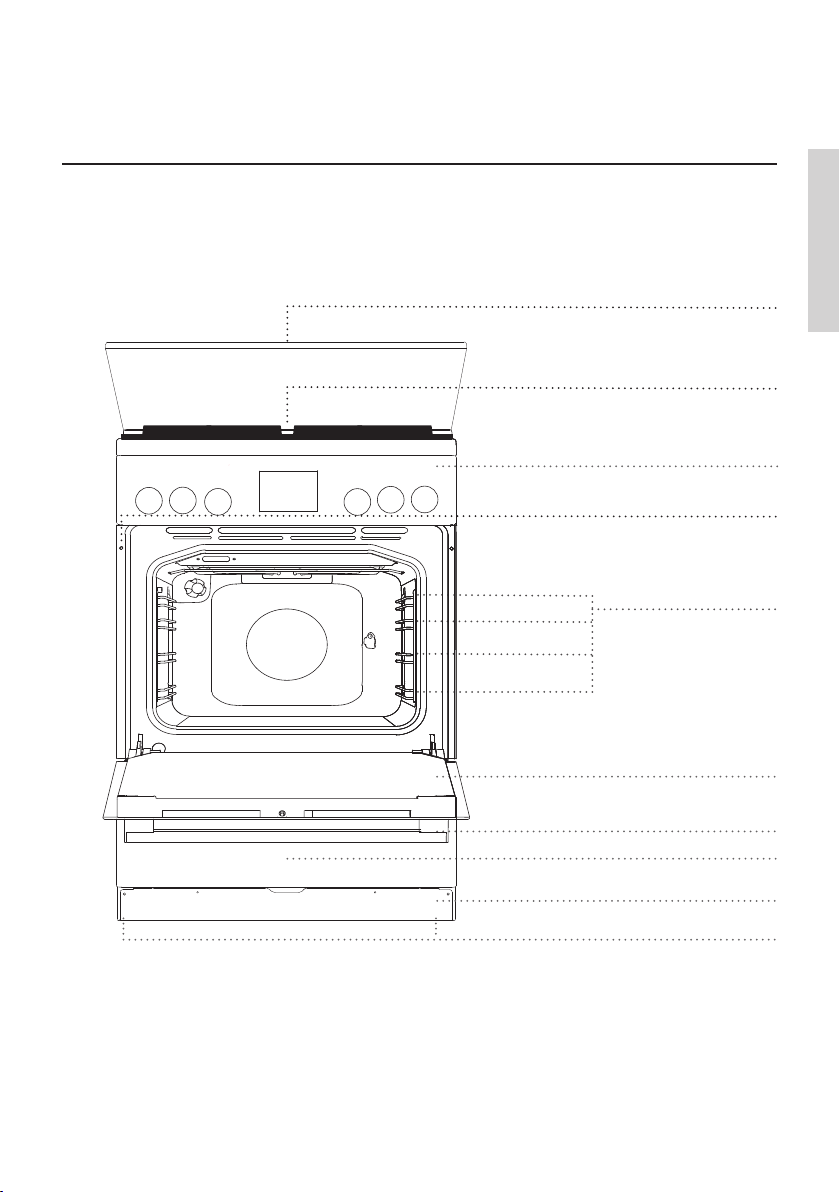

DESCRIPTION OF THE OVEN AND EQUIPMENT
(depending on the model)
Lid
Door
Drawer/Clamshell drawer
Guides –
cooking
levels
4
3
2
1
Control unit
Adjustable feet
Door switch
Door handle
Combined or gas hob
Plinth
685932
Since the appliances for which these instructions were drawn up may have different
equipment, some functions or equipment may be described in the manual that may not be
present in your appliances.
APPLIANCE LID
Make sure the lid is clean and that there is no liquid spilt on it before raising it. The lid
may be lacquer-coated or glass. It may only be closed when the cooking zones have
completely cooled down.
685932_en.indd 9685932_en.indd 9 14. 10. 2020 13:22:3414. 10. 2020 13:22:34

10
685932
APPLIANCE DRAWER
Do not store combustible, explosive, volatile or temperature-
sensitive items (such as paper, dish cloths, plastic bags, cleaners
or detergents and spray cans) in the oven's storage drawer, as
they can ignite during excessive operation and cause a fire.
CONTROL LIGHT
When the oven is switched on, the yellow signal light is on.
The yellow light is on whenever any appliance function is activated (depending on the
model).
When a function is selected, the dial of the selected knob will be lit up. These appliances
do not have a yellow light (only with some models).
Oven lighting will be switched on automatically when the cooking system is selected.
WIRE GUIDES
The wire guides allow preparation of the food on four levels.
TELESCOPIC PULL-OUT GUIDES
Telescopic pull-out guides may be fitted for the 2nd, 3rd, and 4th level.
Pull-out guides can be partly or fully extendible.
EMBOSSED GUIDES
The oven has stamped side grooves in three levels for inserting of the grid.
OVEN DOOR SWITCH
The switch deactivates oven heating and the fan when the oven door is opened during the
cooking process. When the door is closed, the switch turns the heaters back on.
COOLING FAN
The appliance is fitted with a cooling fan that cools the housing, door and the appliance
control panel.
After the oven is switched off, the cooling fan continues to operate for a short while in
order to cool the oven.
The symbol on the product or its packaging indicates that glass
lids may shatter when heated. Turn off all the burners before
shutting the lid.
685932_en.indd 10685932_en.indd 10 14. 10. 2020 13:22:3414. 10. 2020 13:22:34

11
685932

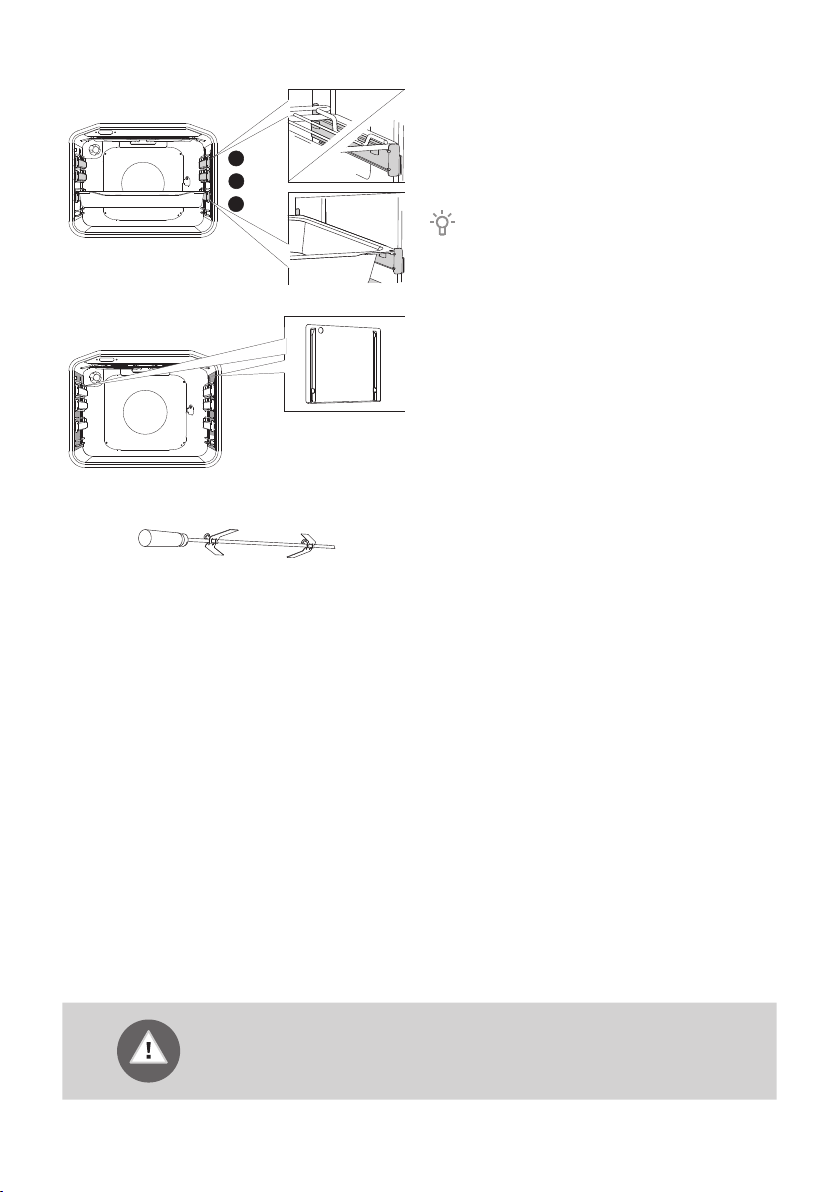

OVEN EQUIPMENT AND ACCESSORIES (depending on the model)
GLASS BAKING DISH is used for cooking
with all oven systems. It can also be used as
a serving tray.
The GRID is used for grilling or as support
for a pan, baking tray or baking dish with
the food.
There is a safety latch on the grid.
Therefore, lift the grid slightly at the front
when pulling it out from the oven.
Use the BAKING TRAY for cooking of all
types of meat, fish and vegetables, as well as
for catching the drippings when cooking on
the wire rack.
The DEEP BAKING TRAY is used for roasting
meat and baking moist pastry. It can also be
used as a drip tray.
Never place the deep baking tray in the
first guide during the cooking process, except
when grilling food or using the roasting spit
and you are only using the deep tray as a drip
tray.
As baking accessories heat up, their
form may change. This does not affect
their functionality and their original form
will be restored when they cool down.
The grid or the tray should always be
inserted into the groove between the two
wire profiles.
685932_en.indd 11685932_en.indd 11 14. 10. 2020 13:22:3514. 10. 2020 13:22:35

12
685932
With telescopic extendible guides, first pull
out the guides of one level and place the
grid or the baking tray onto them. Then,
push them in with your hand as far as they
will go.
Close the oven door when the
telescopic guides are retracted all the way
into the oven.
CATALYTIC INSERTS prevent the fat from
sticking to sides of the oven cavity.
The TURNSPIT (meat skewer) is used
for roasting meat. The set consists of a
skewer support, skewer with screws, and a
removable handle.
(depending on the model)
2
3
4
The appliance and some of the accessible parts tend to heat up
during cooking. Use oven mitts.
685932_en.indd 12685932_en.indd 12 14. 10. 2020 13:22:3614. 10. 2020 13:22:36

13
CONTROL UNIT
(depending on the model)
NOTE:
Symbols of cooking systems may be located on the knob or on the front panel
(depending on the appliance model).
The keys will respond better if you touch them with a larger area of your fingertip. Each
time you press a key, a short acoustic signal will be sounded.
12 673 5
4a 4b 4c

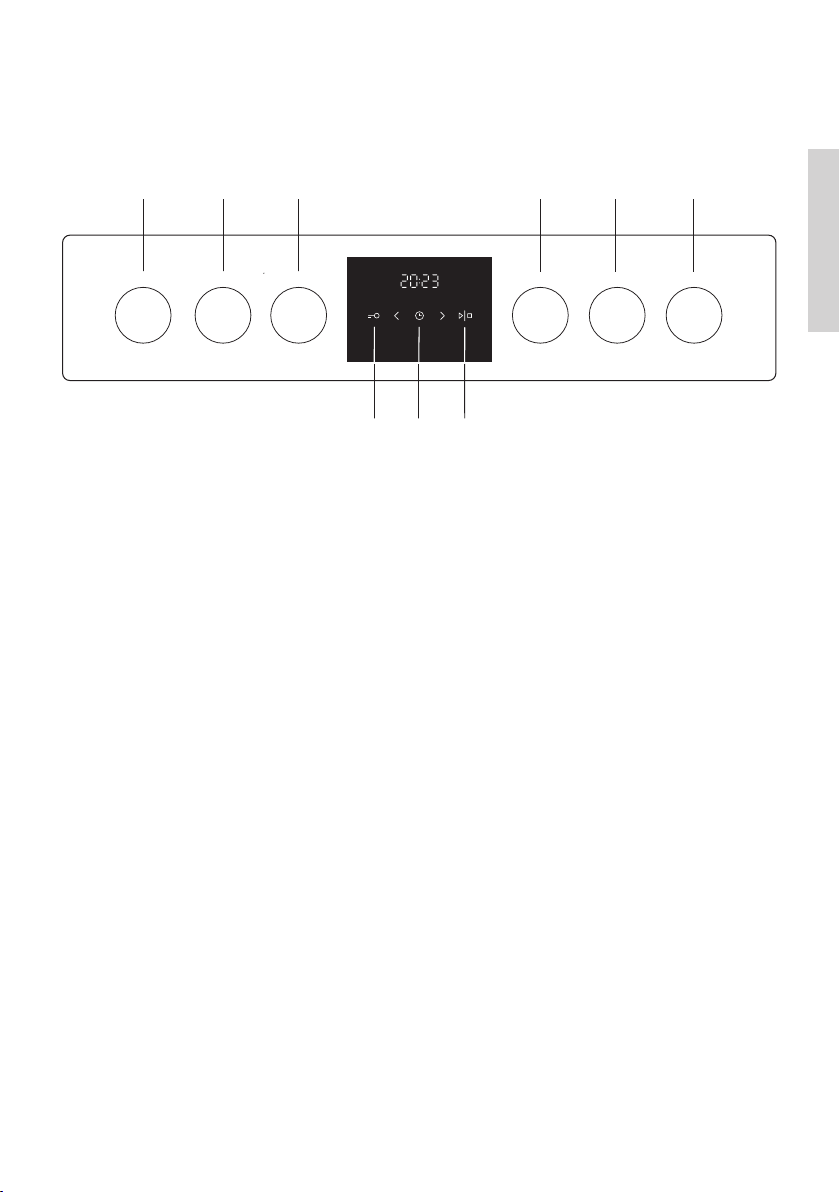

1COOKING ZONE KNOB, FRONT LEFT
2COOKING ZONE KNOB, REAR LEFT
3COOKING SYSTEM SELECTOR KNOB
4a CHILD LOCK KEY
4bCLOCK AND TIMER SELECTION KNOB
4c START/STOP KEY
5TEMPERATURE KNOB
6COOKING ZONE KNOB, REAR RIGHT
7COOKING ZONE KNOB, FRONT RIGHT
685932
685932_en.indd 13685932_en.indd 13 14. 10. 2020 13:22:3714. 10. 2020 13:22:37

14
APPLIANCE DATA - DATA PLATE
(depending on the model)
685932

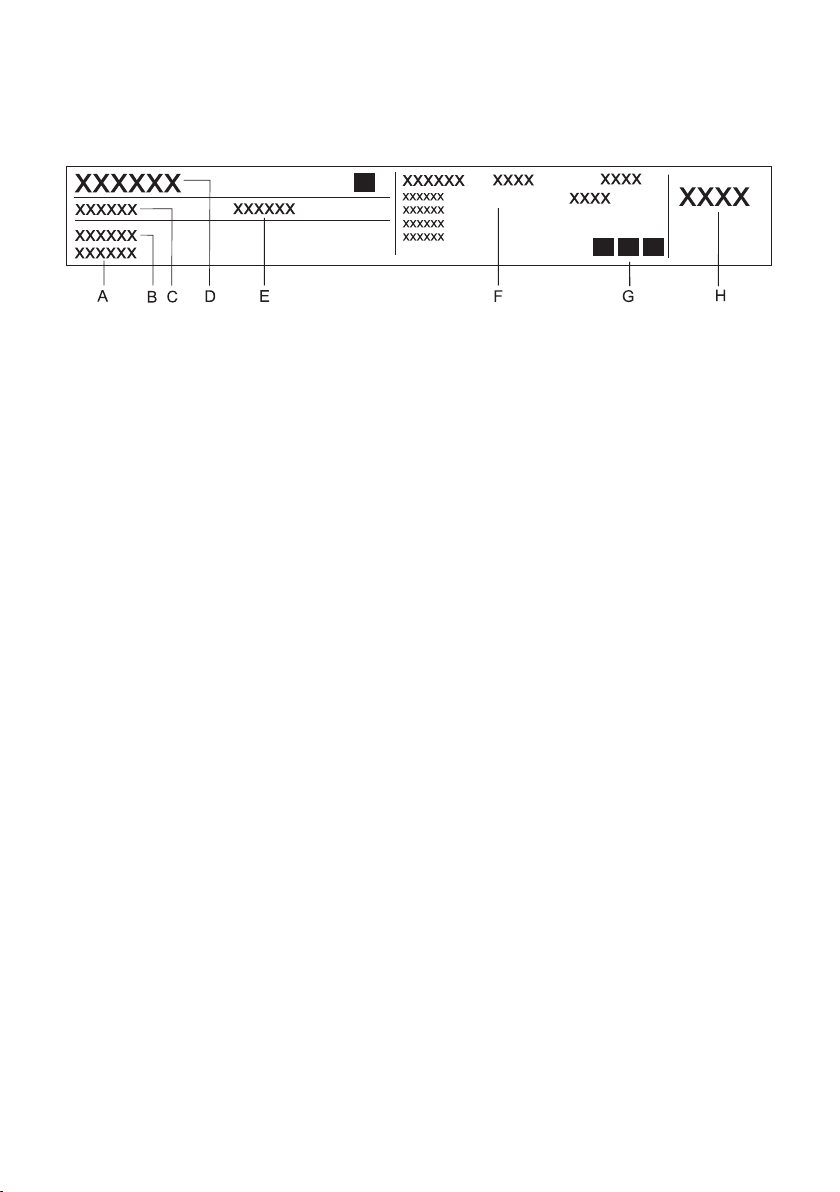

The rating plate, indicating the basic information about the appliance, is located on the
edge of the oven and it is visible when the oven door is opened.
ASerial number
BModel
CType
DTrademark
ECode
FTechnical information
GCompliance indications / symbols
H Factory settings for gas type
685932_en.indd 14685932_en.indd 14 14. 10. 2020 13:22:3714. 10. 2020 13:22:37

15
685932
USING THE APPLIANCE
BEFORE USING THE APPLIANCE FOR THE
FIRST TIME
Upon receiving the appliance, remove all parts, including any transport equipment, from
the oven.
Clean all accessories and utensils with warm water and regular detergent. Do not use any
abrasive cleaners.
When the oven heats up for the first time, the characteristic smell of a new appliance will
be emitted. Ventilate the room thoroughly during the first operation.
If your cooking hob has conventional cooking zones, switch them on to the maximum
power for 3 to 5 minutes without any cookware on them. As the cooking zones heat
up, some smoke may appear on the cooking hob surface. Thus, the cooking zone finish
reaches its maximum resistance.

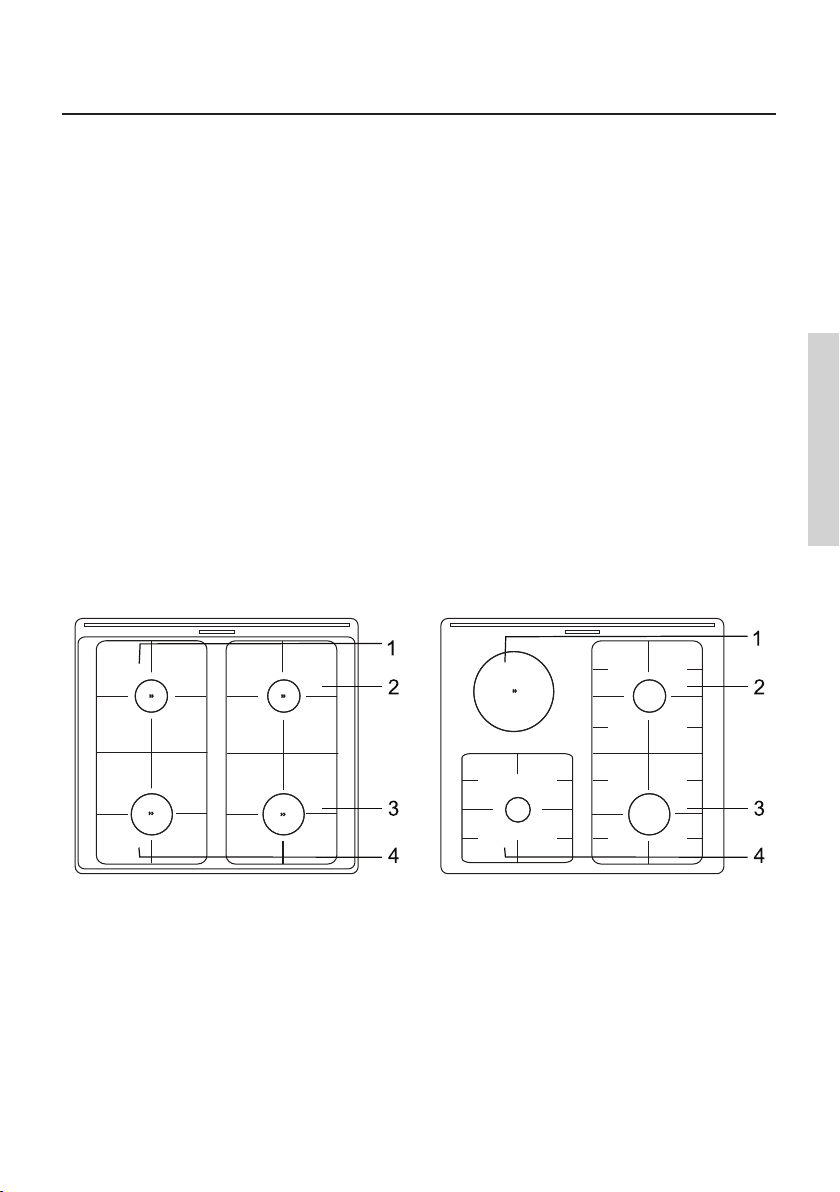

1. Cooking zone rear left
2. Cooking zone rear right
3. Cooking zone front right
4. Cooking zone front left
COOKING HOB (depending on the model)
685932_en.indd 15685932_en.indd 15 14. 10. 2020 13:22:3714. 10. 2020 13:22:37

16
685932
GAS BURNERS
- To sear the food, set the burner to maximum power first, and then continue to cook at
minimum power.
- Always place the burner cap accurately on the burner crown. Make sure the slots in the
burner crown are never blocked.
- Correct choice of cookware allows optimum cooking
time and gas consumption. Cookware diameter is the
most important in this respect.
- If a pot or a pan is too small, the flames reaching over
the edge of its bottom will damage it. Moreover, gas
consumption will be higher.
- Combustion of gas also requires air. If the pot or pan
is too large, there is not enough air and the burning
eciency is decreased.
Gas hob reducer (only with some models) Use the gas
hob reducer when cooking in a container of smaller
diameter. Place it on the grid over the auxiliary burner.
Burner type Container diameter
Large (3.0 kW) 220-260 mm
Normal (1.9 kW) 160-220 mm
Auxiliary (1.9 kW) 120-140 mm
Multi-ring burner (3.5 kW) 220-260 mm
Burner crown cap
Burner crown with burner cap support
Thermocouple (or thermoelectric safety device, only with
some models)
Spark plug
Nozzle
TIPS REGARDING YOUR COOKWARE
685932_en.indd 16685932_en.indd 16 14. 10. 2020 13:22:3814. 10. 2020 13:22:38

17
685932
If the burner does not ignite in 15 seconds, close it and wait for at
least 1 minute. Then repeat the ignition process.
If the flame on a burner is extinguished (regardless of the
reason), close the burner and wait for 1 minute before trying to
ignite it again.

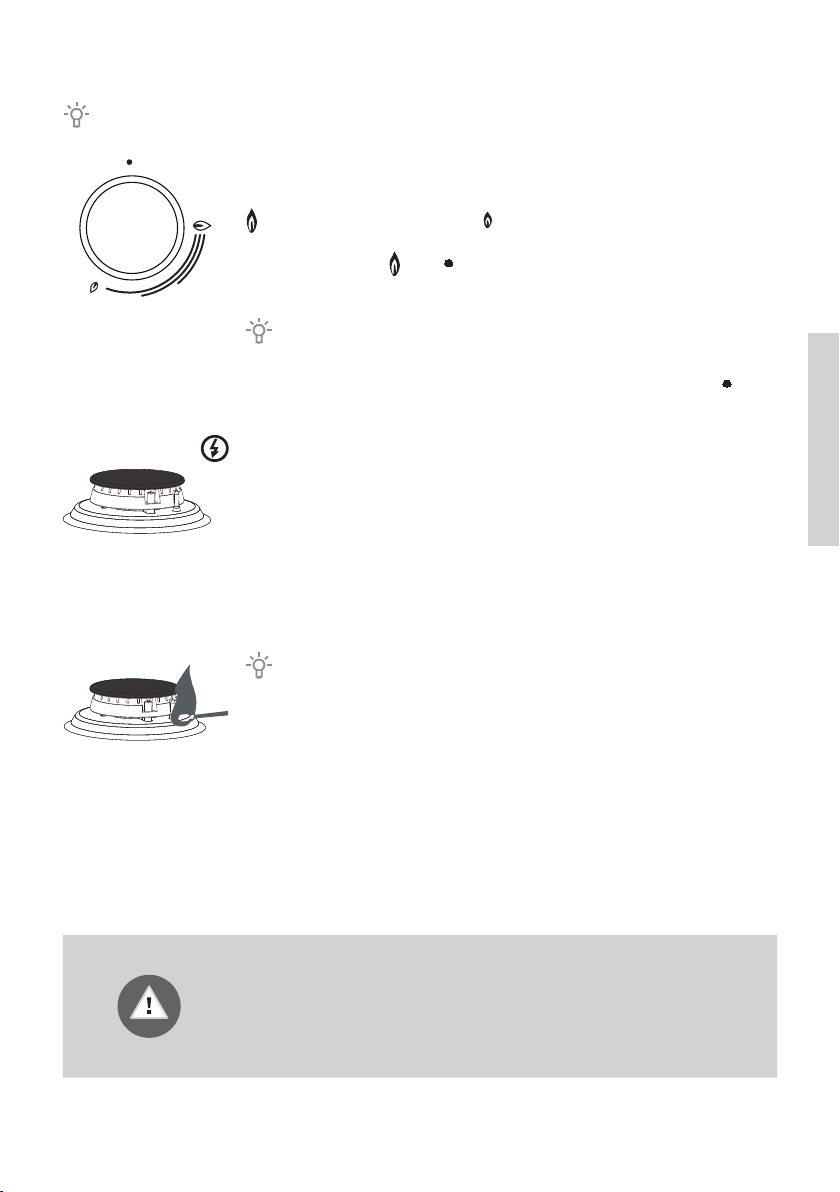

BURNER IGNITION AND OPERATION (depending on the model)
Always press the knob before rotating it.
Cooking power levels are indicated on the knobs with a large and a
small flame symbol. Rotate the knob over the large flame position
to the small flame position and back. Operating range is
between the two flame symbols.
Settings between and are not recommended. In this range, the
flame is unstable and may be extinguished.
Place the pot or pan on the grid above the burner before
igniting it (applies to three-ring, double-ring, and mini-wok burner).
To turn off a burner, rotate the knob to the right to position .
Single-handed ignition
To ignite a gas burner, press the corresponding knob and rotate it
to the maximum power position. Electric spark from the spark plug
will be activated and the gas will ignite.
Two-handed ignition
To ignite a gas burner, press the corresponding knob and rotate
it to the maximum power position. Press the spark plug button.
Electric spark from the spark plug will be activated and the gas will
ignite.
Electric ignition will only work if the power cord is connected
to the mains power. If electric ignition does not work due to a
power supply failure or damp spark plugs, the gas can still be
ignited with a match or a lighter. After ignition, keep the knob
depressed for approximately 10 more seconds until the flame is
stabilized.
685932_en.indd 17685932_en.indd 17 14. 10. 2020 13:22:3814. 10. 2020 13:22:38

18
1Set the clock by touching the or keys,
and confirm the setting by touching the
key.
If you press and hold the value
adjustment key, the rate at which the set
value is being changed will increase.
CHANGING THE CLOCK SETTING
Clock settings may be changed when no timer function is activated. To set the current
time (clock), touch the CLOCK key several times to select the symbol.
685932
OVEN
SWITCHING ON AND SETTINGS
After connecting your appliance or after an extended power outage, 12:00 will flash on
the display and the symbol will light up .
Set the time of day.
SETTING THE CLOCK
685932_en.indd 18685932_en.indd 18 14. 10. 2020 13:22:3914. 10. 2020 13:22:39

19

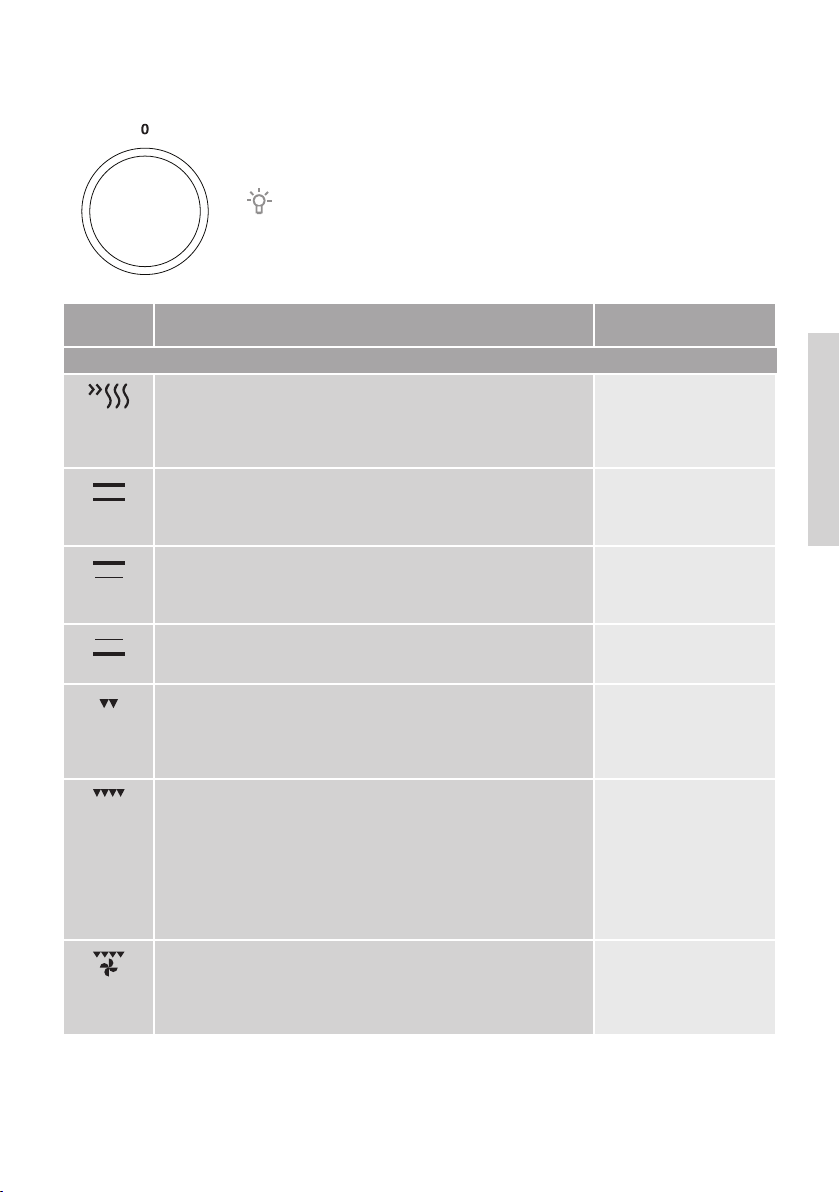

CHOOSING THE COOKING SYSTEM (depending on the model)

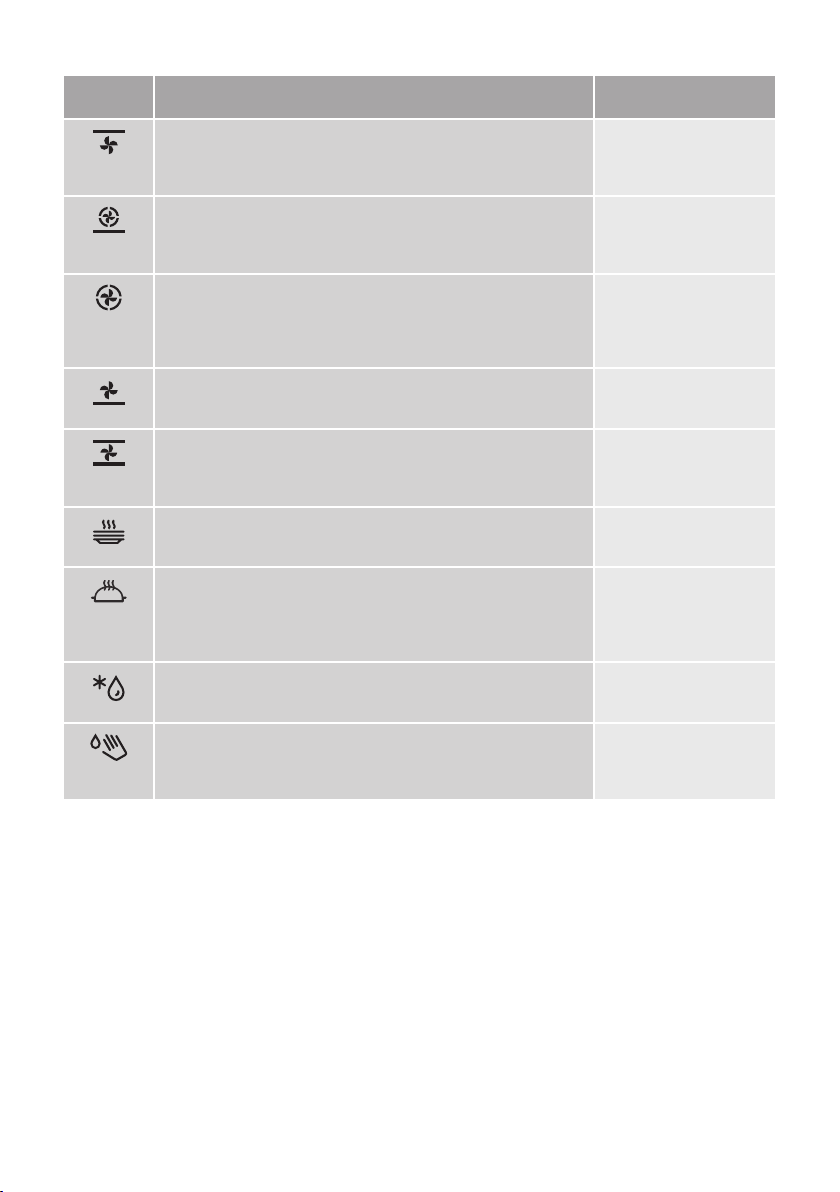

SYSTEM DESCRIPTION SUGGESTED
TEMPERATURE °C
COOKING SYSTEMS
RAPID PREHEAT
Use this function if you wish to heat the oven to the desired
temperature as quickly as possible. This function is not
appropriate for cooking food. When the oven heats up to the
desired temperature, the heating process is completed.
160
UPPER AND BOTTOM HEATER
The heaters in the bottom and in the ceiling of the oven
cavity will radiate heat evenly into the oven interior. Pastry or
meat can only be baked/roasted at a single height level.
200
TOP HEATER
Only the heater on the oven cavity ceiling will radiate heat
onto the food. Use it to brown the upper side of your dish
(final browning).
180
BOTTOM HEATER
Only the heater on the bottom of the oven cavity will radiate
heat. Use this heater to brown the lower side of the dish.
180
GRILL
Only grill heater, a part of the large grill set, will operate.
This system is used for grilling a smaller amount of open
sandwiches or beer sausages, and for toasting bread.
Maximal alowed temperature: 230°C.
220
LARGE GRILL
The upper heater and the grill heater will operate. The heat
is radiated directly by the grill heater installed in the oven
ceiling. To boost the heating effect, the upper heater is
activated as well.
This combination is used for grilling a smaller amount of
open sandwiches, meat or beer sausages, and for toasting
bread.
Maximal alowed temperature: 230°C.
220
GRILL WITH FAN
Grill heater and the fan will operate. This combination is used
to grill meat and to roast larger chunks of meat or poultry at
a single height level. It is also appropriate for dishes au gratin
and for browning to a crispy crust.
170
Rotate the knob (left and right) to select the cooking system (see
program table, depending on the model).
Settings can also be changed during the cooking process.
685932
685932_en.indd 19685932_en.indd 19 14. 10. 2020 13:22:4014. 10. 2020 13:22:40

20
SYSTEM DESCRIPTION SUGGESTED
TEMPERATURE °C
TOP HEATER AND FAN
The top (upper) heater and the fan will operate. Use this
system to roast larger chunks of meat and poultry. It is also
suitable for dishes au gratin.
170
HOT AIR AND BOTTOM HEATER
The bottom heater, the round heater, and the hot air fan will
operate. This is used to bake pizza, moist pastry, fruitcakes,
leavened dough and shortcrust.
200
HOT AIR
Round heater and the fan will operate. The fan installed in the
back wall of the oven cavity makes sure the hot air constantly
circulates around the roast or pastry. This mode is used for
roasting meat and baking pastry.
180
BOTTOM HEATER AND FAN
This is used for baking leavened but low-rising pastry and for
preserving fruit and vegetables.
180
TOP AND BOTTOM HEATER WITH FAN
Both heaters and the fan are activated. The fan allows even
circulation of hot air inside the oven. It is used for baking
pastry, for defrosting, and for drying fruit and vegetables.
180
PLATE WARMER
Use this function to reheat your dinnerware (plates, cups)
before serving food in it to keep the food warm longer.
60
GENTLEBAKE 1)
This feature allows gentle, slow, and even baking that leaves
the food soft and juicy. It is suitable for roasting meat,
cooking fish, and baking pastry on a single rack.
Set the temperature in the range from 140 to 220°C.
180
DEFROSTING
The air circulates with no heaters activated. Only the fan will
be activated. This is used to slowly thaw frozen food.
-
AQUA CLEAN
Only the bottom heater will radiate heat. Use this function to
remove stains and food residues from the oven. The program
takes 30 minutes.
70
1) It is used for determining the energy efficiency class pursuant to the EN 60350-1
standard.
685932
685932_en.indd 20685932_en.indd 20 14. 10. 2020 13:22:4214. 10. 2020 13:22:42
