Gorenje E6120SD User manual

DETAILED
INSTRUCTIONS
FOR USE OF ELECTRIC
FREE STANDING
COOKER
www.gorenje.comwww.gorenje.com
GB IE MT
577024_en.indd 1577024_en.indd 1 28. 02. 2022 13:02:4228. 02. 2022 13:02:42

We thank you for your
trust and the purchase of our
appliance.
This detailed instruction manual is
supplied to make the use of this
product easier. The instructions
should allow you to learn about your
new appliance as quickly as possible.
Make sure you have received an
undamaged appliance. If you do find
transport damage, please contact the
seller from which you purchased the
appliance, or the regional warehouse
from which it was supplied. The
telephone number can be found on
the invoice or on the delivery note.
Instructions for use are also available
at our website:
www.gorenje.com
Important information
Tip, note
577024_en.indd 2577024_en.indd 2 28. 02. 2022 13:03:0428. 02. 2022 13:03:04

3
CONTENTS
577024
INTRODUCTION
PREPARING THE
APPLIANCE FOR
THE FIRST USE
MAINTENANCE
& CLEANING
TROUBLE-
SHOOTING
4 IMPORTANT SAFETY INSTRUCTIONS
8 Before connecting the appliance
9 ELECTRIC FREE STANDING COOKER
13 Control unit

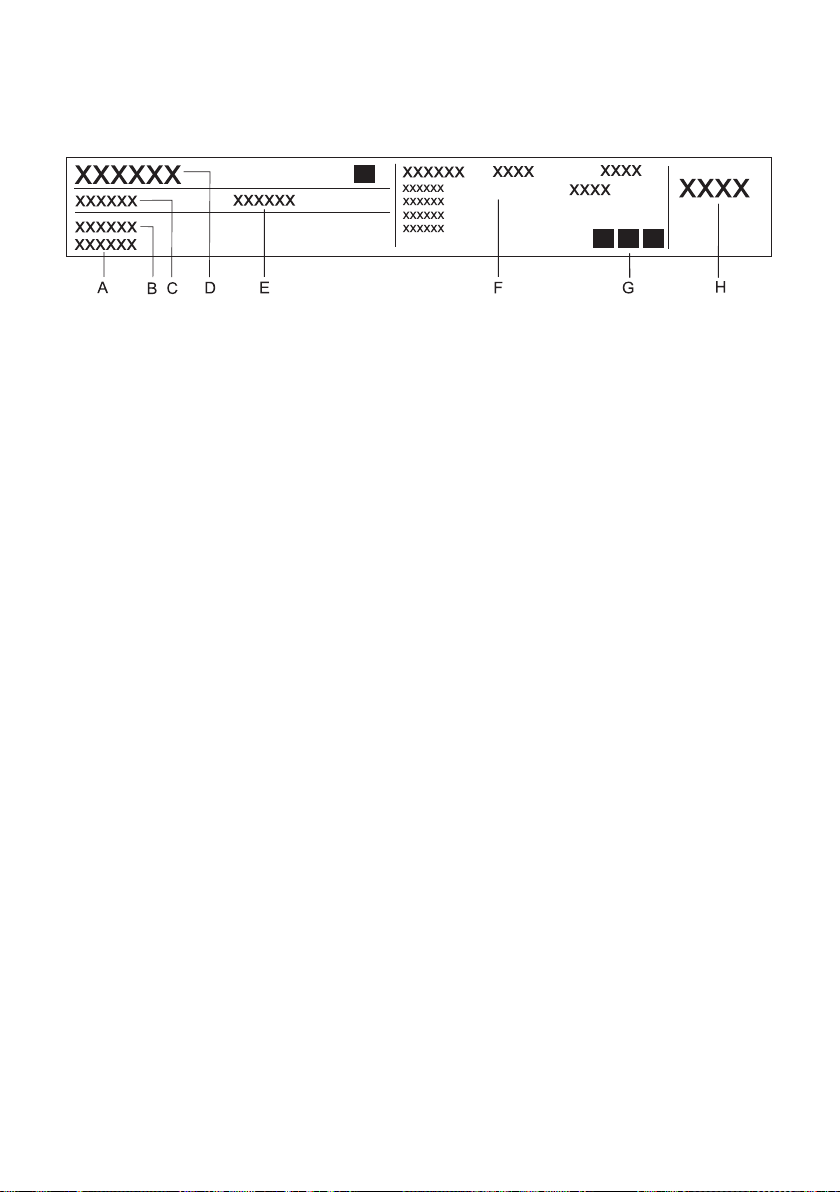

14 Appliance data - data plate
15 USING THE APPLIANCE
15 Before using the appliance for the first time
15 Cooking hob
19 Oven
19 Choosing the cooking system (depending on the model)
21 Choosing the settings
21 Starting the cooking process
21 Switching off the oven
22 Descriptions of cooking systems and cooking table
38 MAINTENANCE & CLEANING
39 Cleaning the cooking hobs
39 Conventional oven cleaning
40 Cleaning the glass ceramic surface
42 Using the aqua clean function to clean the oven
43 Removing and cleaning wire and telescopic extendible guides
44 Cleaning and installing the catalytic inserts
45 Removing and inserting the oven door
48 Removing and inserting the oven door glass pane
50 Replacing the bulb
51 SPECIAL WARNINGS AND FAULT REPORTING
52 INSTALLATION AND CONNECTION INSTRUCTIONS
55 DISPOSAL
OTHER
577024_en.indd 3577024_en.indd 3 28. 02. 2022 13:03:0428. 02. 2022 13:03:04

4
577024
IMPORTANT SAFETY
INSTRUCTIONS
CAREFULLY READ THE INSTRUCTIONS AND SAVE THEM
FOR FUTURE REFERENCE
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements. Children younger than 8 years of age shall
be kept away unless continuously supervised.
WARNING: The accessible parts of the appliance may
become hot during use. Young children should be kept
away from the oven.
The appliance becomes very hot during use. Be careful not
to touch the oven heaters.
WARNING: Danger of fire: do not store items on the
cooking surfaces.
WARNING: Unattended cooking on a hob with fat or oil
can be dangerous and may result in fire. NEVER try to
extinguish a fire with water, but switch off the appliance
and then cover flame e.g. with a lid or a fire proof blanket
577024_en.indd 4577024_en.indd 4 28. 02. 2022 13:03:0428. 02. 2022 13:03:04

5
577024
CAUTION: The cooking process has to be supervised.
A short term cooking process has to be supervised
continuously.
WARNING: Before replacing the light bulb, make sure the
appliance has been disconnected from the mains power, in
order to prevent the hazard of an electric shock.
CAUTION: This appliance is for cooking purposes only. It
must not be used for other purposes, for example room
heating.
The appliance is not intended to be controlled by external
timers or separate remote controll system.
WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or hob guards incorporated in the appliance. The
use of inappropriate guards can cause accidents.
WARNING: If the surface is cracked, switch off the appliance
to avoid the possibility of electric shock.
For appliance connection use a 5 x 1,5 mm2cord with mark
H05VV-F5G1,5 or better. Cord must be installed by service
agent or similary qualified person.
The appliance is intended to be placed directly on the floor,
without any supports or plinths.
Metalic objects such as knives, forks, spoons and lids should
not be placed on the hob surface since they can get hot.
After use, switch off the hob element by its control and do
not rely on the pan detector.
577024_en.indd 5577024_en.indd 5 28. 02. 2022 13:03:0428. 02. 2022 13:03:04

6
577024
Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass or the glass of hinged lids of
the hob (where appropriate), since they can scratch the
surface, which may result in shattering of the glass.
The appliance must not be installed behind a decorative
door in order to avoid overheating.
Do not use steam cleaners or high-pressure cleaners to
clean the appliance, as this may result in an electric shock.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
- CAUTION: possibility of tilting.
- WARNING: In order to prevent
tipping of the appliance, stabilising
means must be installed. Refer to the
instructions for installation.
577024_en.indd 6577024_en.indd 6 28. 02. 2022 13:03:0428. 02. 2022 13:03:04

7
577024
Only use the temperature probe recommended for this
oven.
Make sure the lid is clean and that there is no liquid spilt
on it before raising it. The lid may be lacquer-coated or
glass. It may only be closed when the cooking zones have
completely cooled down.
Appliance must be connected to fixed wiring which is in
accordance with the witing rules.
Appliance must be connected to fixed wiring which has
incorporated means of disconnection. Fixed wiring must be
made in accordance with the wiring rules.
The appliance is intended for household
use. Do not use it for any other purpose,
such as room heating, drying of pets or
other animals, paper, fabrics, herbs etc. As
this may lead to injury or fire hazard.
Unauthorized service and repair can result
in risk of explosion, electric shock, or short
circuit and consequently personal injury
and damage to the appliance. Such tasks
may only be carried out by an authorized
expert.
The set-up of the appliance is specified on
the rating plate.
This appliance is not connected to a
combustion products evacuation device.
It shall be installed and connected in
accordance with current installation
regulations. Particular attention shall
be given to the relevant requirements
regarding ventilation.
Oven door hinges may be damaged when
under excessive load. Do not place heavy
pans on open oven door and do not lean
against open oven door when cleaning the
oven cavity. Never stand on the open oven
door and do not let children sit on it.
Appliance operation is safe with and
without tray guides.
Do not line the oven walls with aluminium
foil and do not place baking trays or other
cookware on the oven bottom. Aluminium
foil would prevent air circulation in the
oven, hinder the cooking process, and ruin
the enamel coating.
Oven door become very hot during
operation.
A third glass is installed for extra
protection, reducing the temperature of the
outside surface (only with some models).
577024_en.indd 7577024_en.indd 7 28. 02. 2022 13:03:0528. 02. 2022 13:03:05

8
577024
BEFORE CONNECTING THE APPLIANCE
Carefully read the instructions for use before connecting the
appliance. Repair or any warranty claim resulting from incorrect
connection or use of the appliance shall not be covered by the
warranty.
Oven door hinges may be damaged when
under excessive load. Do not place heavy
pans on open oven door and do not lean
against open oven door when cleaning the
oven cavity.
Never stand on the open oven door and do
not let children sit on it.
Make sure the vents are never covered or
obstructed in any other way.
The appliance is heavy. For carrying the
appliance at least 2 persons are needed.
577024_en.indd 8577024_en.indd 8 28. 02. 2022 13:03:0528. 02. 2022 13:03:05

9
ELECTRIC FREE STANDING
COOKER
DESCRIPTION OF THE APPLIANCE AND EQUIPMENT (depending on the
model)
Lid
Door
Drawer/Clampshell drawer
Guides –
cooking
levels
4
3
2
1
Control unit
Adjustable feet
Door switch
Door handle
Cooking hob (conventional or
glass ceramic)
Plinth
577024
Since the appliances for which these instructions were drawn up may have different
equipment, some functions or equipment may be described in the manual that may not be
present in your appliances.
APPLIANCE LID
Make sure the lid is clean and that there is no liquid spilt on it before raising it. The lid
may be lacquer-coated or glass. It may only be closed when the cooking zones have
completely cooled down.
The symbol on the product or its packaging indicates that glass
lids may shatter when heated. Turn off all the burners before
shutting the lid.
577024_en.indd 9577024_en.indd 9 28. 02. 2022 13:03:0528. 02. 2022 13:03:05

10
577024
APPLIANCE DRAWER
Do not store combustible, explosive, volatile or temperature-
sensitive items (such as paper, dish cloths, plastic bags, cleaners
or detergents and spray cans) in the oven's storage drawer, as
they can ignite during excessive operation and cause a fire.
PUSH-PULL KNOB
Slightly push the knob until it pops out; then, rotate it.
After each use, rotate the knob back to the "off" position and push it back in. The
push-pull knob can only be pushed back when the switch is in the "off" position.
CONTROL LIGHT
When the oven is switched on, the yellow signal light is on.
The yellow light is on whenever any appliance function is activated (depending on the
model).
The red light is no when the oven heaters are activated. When the selected temperature is
reached, the red light is switched off.
When a function is selected, the dial of the selected knob will be lit up. These appliances
do not have a yellow light (only with some models).
Oven lighting will be switched on automatically when the cooking system is selected.
WIRE GUIDES
The wire guides allow preparation of the food on four levels.
TELESCOPIC PULL-OUT GUIDES
Telescopic pull-out guides may be fitted for the 2nd, 3rd, and 4th level.
Pull-out guides can be partly or fully extendible.
EMBOSSED GUIDES
The oven has stamped side grooves in three levels for inserting of the grid.
OVEN DOOR SWITCH
The switch deactivates oven heating and the fan when the oven door is opened during the
cooking process. When the door is closed, the switch turns the heaters back on.
COOLING FAN
The appliance is fitted with a cooling fan that cools the housing, door and the appliance
control panel.
After the oven is switched off, the cooling fan continues to operate for a short while in
order to cool the oven.
577024_en.indd 10577024_en.indd 10 28. 02. 2022 13:03:0528. 02. 2022 13:03:05

11
577024
OVEN EQUIPMENT AND ACCESSORIES (depending on the model)
GLASS BAKING DISH is used for cooking
with all oven systems. It can also be used as
a serving tray.
The GRID is used for grilling or as support
for a pan, baking tray or baking dish with
the food.
There is a safety latch on the grid.
Therefore, lift the grid slightly at the front
when pulling it out from the oven.
The SHALLOW BAKING SHEET is used for
baking pastry and cakes.
The DEEP BAKING TRAY is used for roasting
meat and baking moist pastry. It can also be
used as a drip tray.
Never place the deep baking tray in the
first guide during the cooking process, except
when grilling food or using the roasting spit
and you are only using the deep tray as a drip
tray.
As baking accessories heat up, their
form may change. This does not affect
their functionality and their original form
will be restored when they cool down.
The grid or the tray should always be
inserted into the groove between the two
wire profiles.
Rešetka naj bo vstavljena tako, da je
ograjica v notranjosti pečice.
577024_en.indd 11577024_en.indd 11 28. 02. 2022 13:03:0528. 02. 2022 13:03:05

12
577024
With telescopic extendible guides, first pull
out the guides of one level and place the
grid or the baking tray onto them. Then,
push them in with your hand as far as they
will go.
Close the oven door when the
telescopic guides are retracted all the way
into the oven.
CATALYTIC INSERTS prevent the spraying
fat from sticking to sides of the oven cavity.
The TURNSPIT (meat skewer) is used
for roasting meat. The set consists of a
skewer support, skewer with screws, and a
removable handle.
2
3
4
The appliance and some of the accessible parts tend to heat up
during cooking. Use oven mitts.
577024_en.indd 12577024_en.indd 12 28. 02. 2022 13:03:0628. 02. 2022 13:03:06

13
CONTROL UNIT
(depending on the model)
1COOKING ZONE KNOB, FRONT LEFT
2COOKING ZONE KNOB, REAR LEFT
3COOKING SYSTEM SELECTOR KNOB
4MINUTE MINDER, COUNTDOWN TIMER (depending on the model)
5TEMPERATURE KNOB
6COOKING ZONE KNOB, REAR RIGHT
4COOKING ZONE KNOB, FRONT RIGHT
NOTE:
Symbols of cooking systems may be located on the knob or on the front panel
(depending on the appliance model).
The keys will respond better if you touch them with a larger area of your fingertip. Each
time you press a key, a short acoustic signal will be sounded.
123 5674
577024
577024_en.indd 13577024_en.indd 13 28. 02. 2022 13:03:0728. 02. 2022 13:03:07

14
APPLIANCE DATA - DATA PLATE
(depending on the model)
577024
The rating plate indicating the basic
information about the appliance is located
at the edge of the oven and it is visible
when the oven door is opened.
ASerial number
BModel
CType
DTrademark
ECode
FTechnical information
GCompliance indications / symbols
H Factory settings for gas type
577024_en.indd 14577024_en.indd 14 28. 02. 2022 13:03:0728. 02. 2022 13:03:07

15
1
2
4
3
577024
USING THE APPLIANCE
BEFORE USING THE APPLIANCE FOR THE
FIRST TIME
Upon receiving the appliance, remove all parts, including any transport equipment, from
the oven.
Clean all accessories and utensils with warm water and regular detergent. Do not use any
abrasive cleaners.
When the oven heats up for the first time, the characteristic smell of a new appliance will
be emitted. Ventilate the room thoroughly during the first operation.
After you receive your appliance, please wipe the entire cooking hob, including the
cooking zones, with a damp cloth
If your cooking hob has conventional cooking zones, switch them on to the maximum
power for 3 to 5 minutes without any cookware on them. As the cooking zones heat
up, some smoke may appear on the cooking hob surface. Thus, the cooking zone finish
reaches its maximum resistance.
If your hob has a glass ceramic surface, clean it with a damp cloth and some washing-
up liquid. Do not use aggressive cleaners, such as abrasive cleaners that could cause
scratches, abrasive dishwashing sponges, or stain removers.
COOKING HOB
1Cooking zone rear left
2Cooking zone rear right
3Cooking zone front left
4Cooking zone front right
577024_en.indd 15577024_en.indd 15 28. 02. 2022 13:03:0728. 02. 2022 13:03:07

16
577024
Rapid cooking zones (only with some models) can operate with greater power than
regular cooking zones, which means they can heat up more quickly.
These cooking zones are indicated with a red dot in the middle. After repeated heating
and cleaning, this dot may disappear.
Rotate the knob to switch on the cooking
zone. Cooking zone heating power can be set
in steps from 1 to 6 or continuously from 1 to 4.
Switch off the cooking zone 3 – 5 minutes
before the end of the cooking process to
make use of the residual heat and save power.
In case of prolonged use of cast iron plates, the area of the plate
and the edge of the cooking zone may discolour. Service in such
case is not covered by the warranty.
CONVENTIONAL HOBS
- Make sure the cooking zone and the cookware bottom is clean and dry. This will allow better
conduction of heat and prevent any damage to the heating surface.
- Overheated fat and oil on the cooking zones may ignite. Therefore, be careful when cooking
with fat or oil and always control the cooking process.
- Do not place wet cookware or lids covered in steam on the cooking zones. Moisture may
damage the cooking zones.
- Do not cool down the hot cookware by placing it on the cooking zones that were not in use,
because the condensate that will appear under the cookware bottom may aid corrosion.
577024_en.indd 16577024_en.indd 16 28. 02. 2022 13:03:0828. 02. 2022 13:03:08

17
577024
GLASS CERAMIC COOKING SURFACE
- The heating zone will quickly reach the set power or temperature, while the area around
the hot cooking zones will remain cook.
- The hob is resistant to temperature changes.
- Using the glass ceramic hob as a storage area may result in scratches or other damage
to it.
- Do not use aluminium or plastic cookware on hot cooking zones. Do not place any
plastic objects or aluminium foil on the glass ceramic hob.
- Do not use the glass ceramic hob if it is cracked or broken. If a sharp object falls on
the hob, the hob may break. The consequences of such occurrence may be visible
immediately or only after a while. If any visible crack appears in the hob, immediately cut
o the power supply to the appliance.
CONTROL OF THE TWO-RING COOKING
ZONE:
The area of the two-ring cooking zone
can adapt to the size and the form of your
cookware.
To activate the larger heating zone, rotate
the cooking zone knob as far as it will go
(a click will be heard), then set the desired
power level.
RESIDUAL HEAT INDICATOR
Every cooking zone has a signal light that
lights up when the cooking zone is hot.
When the cooking zone cools down, the
signal light goes out. The residual heat
indicator may also light up if a hot pot or
pan is placed on a cool cooking zone.
CONTROLLING A SINGLE-ZONE COOKING
HOB
577024_en.indd 17577024_en.indd 17 28. 02. 2022 13:03:0828. 02. 2022 13:03:08

18
577024
- Use quality cookware with flat and stable
bottom.
- Pan bottom and cooking zone diameters
should be the same.
- Tempered glass cookware with special
ground bottom may be used on the
cooking zones if its diameter fits that
of the cooking zones. Cookware with
larger diameter may crack due to thermal
tension.
- Make sure the pot or pan is in the middle
of the cooking zone.
- When using a pressure cooker, keep an eye on it until the right pressure is reached.
First, set the cooking zone to maximum power; then, following the pressure cooker
manufacturer's instructions, use the relevant sensor to decrease the cooking power at
the right time.
- Make sure there is enough liquid in the pressure cooker, or any other pot or pan. Due to
overheating, using an empty pot on the cooking zone may result in damage to both the
pot and the cooking zone.
- When using special cookware, observe the manufacturer's instructions.
ENERGY SAVING TIPS
- Diameter of the pot and pan bottoms should match the diameter of the cooking zone. If
the pot or pan is too small, a part of the heat will be lost, and the cooking zone may be
damaged.
- If the cooking process allows, use a lid.
- Cookware should be suitably sized given the amount of food. When you cook a small
amount of food in a large pot or pan, more energy is lost.
- If a dish takes a long time to cook, use a pressure cooker.
- Vegetables, potatoes etc. may be cooked in a smaller amount of water. The food will
cook just as well, as long as the pot is tightly closed with a lid. After bringing the water
to a boil, reduce the heat to a level that just suces to maintain a slow simmer.
TIPS REGARDING YOUR COOKWARE
577024_en.indd 18577024_en.indd 18 28. 02. 2022 13:03:0928. 02. 2022 13:03:09

19
CHOOSING THE COOKING SYSTEM
(depending on the model)
SYSTEM DESCRIPTION SUGGESTED
TEMPERATURE °C
COOKING SYSTEMS
RAPID PREHEAT
Use this function if you wish to heat the oven to the desired
temperature as quickly as possible. This function is not
appropriate for cooking food. When the oven heats up to the
desired temperature, the heating process is completed.
160
TOP AND BOTTOM HEATER
The heaters in the bottom and in the ceiling of the oven
cavity will radiate heat evenly into the oven interior. Pastry or
meat can only be baked/roasted a single height level.
200
TOP HEATER
Only the heater on the oven cavity ceiling will radiate heat
onto the food. Use it to brown the upper side of your dish
(final browning).
180
BOTTOM HEATER
Only the heater on the bottom of the oven cavity will radiate
heat. Use this heater to brown the lower side of the dish.
180
GRILL
Only grill heater (a part of the large grill set) will operate.
This system is used for grilling a smaller amount of open
sandwiches or beer sausages, and for toasting bread.
Maximal allowed temperature: 230°C
220
LARGE GRILL
The upper heater and the grill heater will operate. The heat
is radiated directly by the grill heater installed in the oven
ceiling. To boost the heating effect, the upper heater is
activated as well.
This combination is used for grilling a smaller amount of
open sandwiches, meat or beer sausages and for toasting
bread.
Maximal allowed temperature: 230°C
220
Rotate the knob (left and right) to select the cooking system (see
program table, depending on the model).
Settings can also be changed during the cooking process.
577024
OVEN
577024_en.indd 19577024_en.indd 19 28. 02. 2022 13:03:1028. 02. 2022 13:03:10

20
577024
SYSTEM DESCRIPTION SUGGESTED
TEMPERATURE °C
GRILL WITH FAN
Grill heater and the fan will operate. This combination is used
to grill meat and to roast larger chunks of meat or poultry
on a single height level. It is also appropriate for dishes "au
gratin" and for browning to a crispy crust.
170
TOP HEATER AND FAN
The top (upper) heater and the fan will operate. Use this
system to roast larger chunks of meat and poultry. It is also
suitable for dishes au gratin.
170
HOT AIR AND BOTTOM HEATER
The bottom heater, the round heater, and the hot air fan will
operate. This is used to bake pizza, moist pastry, fruitcakes,
leavened dough and shortcrust.
200
HOT AIR
Round heater and the fan will operate. The fan, installed
in the back wall of the oven cavity, makes sure the hot air
constantly circulates around the roast or pastry. This mode is
used for roasting meat and baking pastry.
180
BOTTOM HEATER AND FAN
This is used for baking leavened but low-rising pastry and for
preserving fruit and vegetables.
180
TOP AND BOTTOM HEATER WITH FAN
Both heaters and the fan are activated. The fan allows even
circulation of hot air inside the oven. It is used for baking
pastry, for defrosting, and for drying fruits and vegetables.
180
PLATE WARMER
Use this function to reheat your dinnerware (plates, cups)
before serving food in it to keep the food warm longer.
60
GENTLEBAKE 1)
This feature allows gentle, slow, and even baking that leaves
the food soft and juicy. It is suitable for roasting meat,
cooking fish, and baking pastry on a single rack.
Set the temperature in the range from 140 to 220°C.
180
DEFROSTING
The air circulates with no heaters activated. Only the fan will
be activated. This is used to slowly thaw frozen food.
-
AQUA CLEAN
Only the bottom heater will radiate heat. Use this function to
remove stains and food residues from the oven. The program
takes 30 minutes.
70
1) It is used for determining the energy efficiency class pursuant to the EN 60350-1
standard.
577024_en.indd 20577024_en.indd 20 28. 02. 2022 13:03:1228. 02. 2022 13:03:12
