Graco ARGOS 65 User manual

© 2014 Graco PD270222C 7/14 US
READ THIS MANUAL
Do not install or use this child restraint until
you read and understand the instructions in this
manual. FAILURE TO PROPERLY USETHIS CHILD
RESTRAINT INCREASESTHE RISK OF SERIOUS
INJURYOR DEATH INASUDDEN STOP OR CRASH.
Child Restraint/Booster Seat
Owner’s Manual
ARGOSTM 65

2
Table of Contents
1.0 Warnings to Parents and Other
Users.....................4-5
2.0 Registration Information.........6
2.1 Register Your Child Restraint .6
2.2 For Recall Information.......6
2.3 If You Need Help...........7
3.0 UsefulInformation.............7
3.1 Certification...............7
3.2 Child Restraint Useful Life....7
3.3 Second Hand Child Restraint .7
4.0 Features...................8-9
5.0 Assembling the Child
Restraint.................10-13
6.0 WARNINGS..............14-15
7.0 Height and Weight Limitations . ..16
7.1 WITHBuilt-inHarness......16
7.2 WITHOUT Built-in Harness. .17
7.3 WITHOUT Back Support....18
8.0 Choosing anAppropriate Vehicle
Seat Location ...............19
8.1 Vehicle Seat Location
Requirements............19
8.2 Vehicle Seat Belt
Requirements............20
8.3 SAFE Vehicle Seat Belt
Systems................20
8.4 For Built-in Harness Only . .21
8.5 WITH or WITHOUT Built-in
Harness................22
8.6 To Install Locking Clip .....23
8.7 UNSAFE Vehicle Belt
Systems.............24-25
9.0 LATCH.....................26
9.1 WhatisLATCH?.......26-27
9.2 LATCHSystem...........28
10.0Using Child Restraint WITH
Built-inHarness...........29-31

3
Table of Contents (cont.)
11.0 Securing the Child Restraint
in Your Vehicle ...............32
11.1 Using a Child Restraint WITH a
Built-inHarness..........32
11.2 With a Vehicle Lap or
Lap/shoulder belt ......32-33
11.3WithLATCH..........34-35
12.0Securing Your Child in the
Child Restraint ............36-38
13.0Adjust Head Support/Harness
Straps......................39
14.0CheckHarnessSystem........40
15.0Harness Removal..........41-45
16.0Using Your Child Restraint WITHOUT
Built-inHarness...........46-48
17.0Securing Child & Booster Seat in
Vehicle .....................49
18.0Adjusting Head Support in
Booster Mode................50
19.0 Removing Back Support ....51-53
20.0 Securing Child in Vehicle Belt
with Shoulder Belt
Positioning Clip ...........54-57
21.0 Using the Tether..............58
21.1 Storing LATCH and Tether. .59
22.0 Airplane Use ................60
23.0Accessories.................61
23.1 Body Support and Harness
Covers.................61
24.0 Recline Foot ................62
24.1 Buckle Cleaning Process. . .63
25.0 Care and Maintenance ........64
26.0 To Remove Head Support and
SeatCovers..............65-66
27.0 Replacement Parts, Warranty
and Owners Manual Storage ....68

4
1.0 Warnings to Parents and Other Users

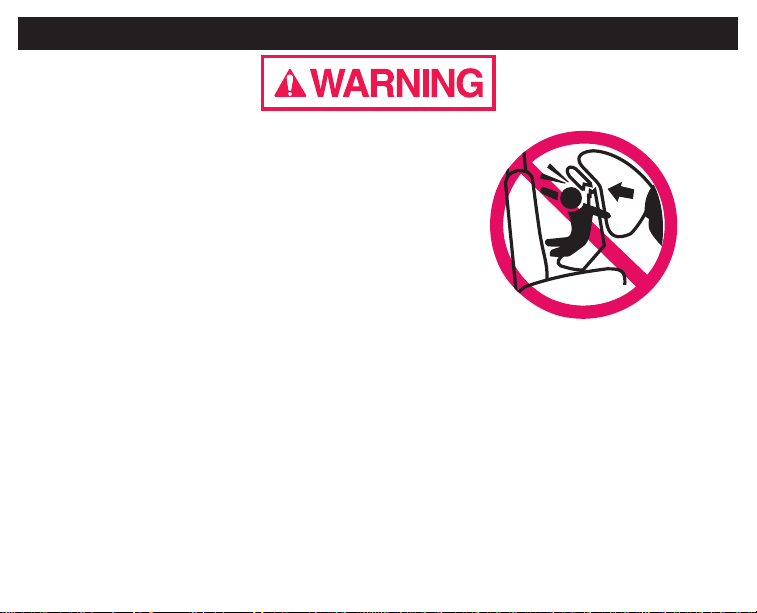

NEVER PLACE THIS CHILD RESTRAINT
REAR-FACING IN A VEHICLE SEATING LOCATION
THAT HAS AN ACTIVE FRONT AIR BAG. If an air bag
inflates, it can hit the child and child restraint with great
force and cause serious injury or death to your child. Refer
to your vehicle owner’s manual for information about side
air bags and child restraint installation.

5
Failure to properly use this child restraint increases the risk of serious injury or death in a sharp
turn, sudden stop or crash. Your child’s safety depends on you installing and using this child
restraint correctly.
(YHQLIXVLQJWKLVFKLOGUHVWUDLQWVHHPVHDV\WR¿JXUHRXWRQ\RXURZQLWLVYHU\LPSRUWDQWWR5($'
THE OWNER’S MANUALand the vehicle owner’s manual.
Your child’s safety depends on:
1. Choosing the correct mode of use for the child restraint depending on your child’s size.
2. Inserting the harness straps (if needed) in the proper slots for your child.
3. Selecting a suitable location for the child restraint in your vehicle.
4. Properly routing the vehicle seat belt or LATCH.
5. Properly securing the child restraint in the vehicle using a seat belt designed to restrain
both the child restraint and your child or by using LATCH. Many seat belts are NOT safe to use
with this child restraint, even though they can easily be threaded through or around the child
restraint!
6. Properly securing your child in the child restraint.

6
2.0 Registration Information
3OHDVH¿OOLQWKHDERYHLQIRUPDWLRQ7KHPRGHOQXPEHUDQGGDWHRIPDQXIDFWXUHFDQEHIRXQGRQ
a label on the child restraint. Fill out the prepaid registration postcard attached to the harness and
mail it today.
Child restraints could be recalled for safety reasons. You must register this restraint to be reached
in a recall. Send your name, address, and the restraint’s model number and manufacturing date to:
Graco Children’s Products Inc.
Attn: Customer Service
3 Glenlake Parkway, Atlanta, GA 30328
or call 1-800-345-4109 or register online at:
http://www.gracobaby.com/carseatregistration
2.1 Register Your Child Restraint
Call the U.S. Government’s Vehicle Safety Hotline at: 1-888-327-4236
(TTY:1-800-424-9153), or go to http://www.NHTSA.gov or contact Graco:
1-800-345-4109 or www.gracobaby.com
2.2 For Recall Information
Model Number:
Date of Manufacture:
Purchase Date:

7
3.2 Child Restraint Useful Life
Please contact our Customer Service Department with any questions you may have concerning
parts, use, or maintenance. When you contact us, please have your product’s model and
GDWHRIPDQXIDFWXUHUHDG\VRWKDWZHPD\KHOS\RXHI¿FLHQWO\7KHVHQXPEHUVFDQEHIRXQG
on a label on the child restraint.
USA: 1-800-345-4109 or www.gracobaby.com
www.cpsc.gov
www.NHTSA.gov
www.seatcheck.org
2.3 If You Need Help
THIS CHILD RESTRAINT
CONFORMS to all applicable
Federal Motor Vehicle Safety
6WDQGDUGVDQGLVFHUWL¿HGIRU
use in motor vehicles.
,WLVFHUWL¿HGIRUXVHLQ$LUFUDIW
only when used with the
built-in harness. When used
as a booster without the
harness, this restraint is not
FHUWL¿HGIRUXVHLQDLUFUDIW
3.1&HUWLÀFDWLRQ
Graco Children’s Products Inc. advises against loaning or
passing along a child restraint.
3.3 Second Hand Child Restraint
3.0 Useful Information
STOP using this child restraint and throw it away 10 years after
the date of manufacture. Look for this sticker on rear of child
restraint: MODEL
Date of Manufacture
GRACO CHILDREN'S PRODUCTS, INC.
ATLANTA, GA 30328 1-800-345-4109
Made in China
PD206938A
NAME
year month day

8

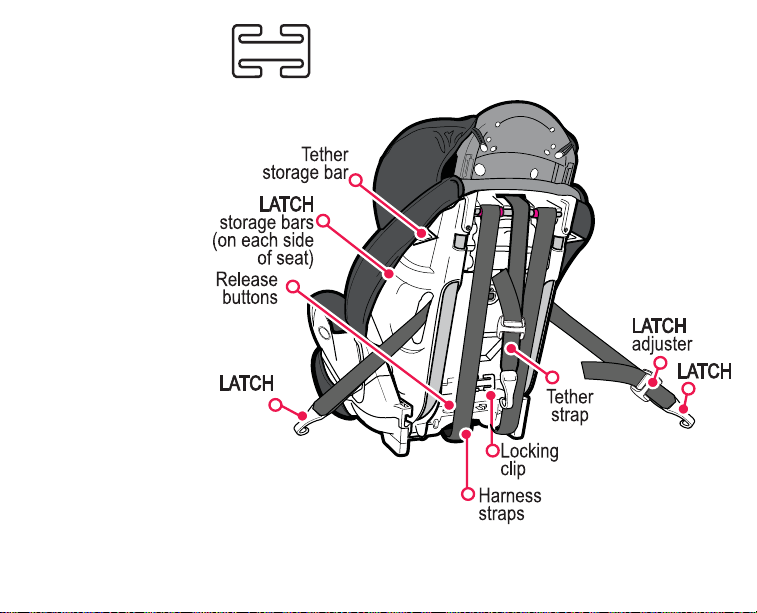

4.0 Features

9
The locking clip is stored
on the back of the child
restraint. You will need
to use it with certain
types of vehicle seat
belts.
United States Federal
Motor Vehicle Safety
Standards have
GH¿QHGDV\VWHPIRU
installing child restraints
in vehicles. The system
is called LATCH (Lower
Anchors and Tethers
for CHildren). LATCH
may ONLY be used
IN PLACE of vehicle belt
if vehicle is equipped
with LATCH anchor
points. Please refer to
vehicle owners manual
for LATCH locations in
vehicles.

10


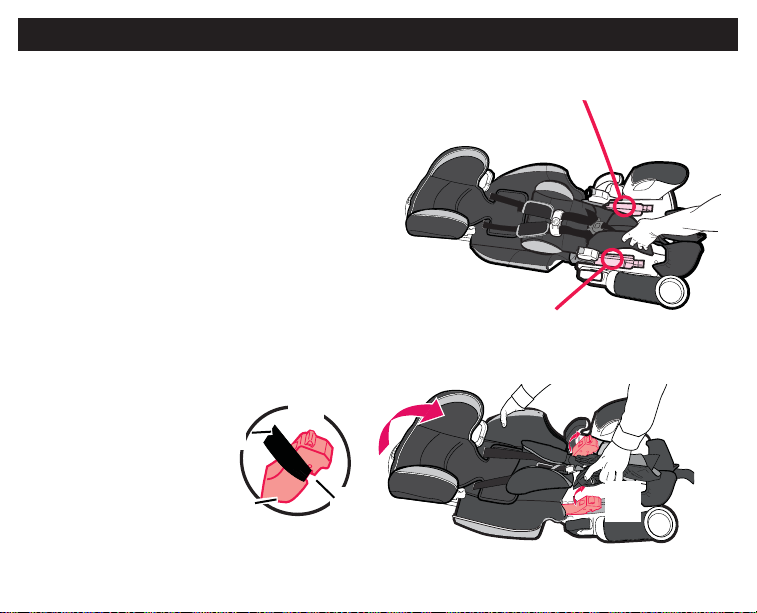

1. Lay child restraint flat on back. Grab seat pad
fabric in sitting area to expose the gutters .
MAKE SURE all hands, fingers and other objects
are clear of the gutters.
2. MAKE sure the harness straps are securely
attached within the “T”-shaped slots around the
arms as shown .
With your other hand, raise seat back so that
both arms LOCK into the gutters .
KEEP GUTTERS CLEAR
KEEP GUTTERS CLEAR
A r m
Harness Strap
T-slot
5.0 Assembling the Child Restraint
Adult assembly required.



11
3.Arms should CLICK into the gutters.
Seat assembly should appear as shown .
CLICK!


12
4.Attach 4 elastic loops from the seat pad under
the seat exactly as shown in .
5. Pull elastic loop on the seat pad through the
vehicle belt guide on side of seat and attach to
hook as shown . Repeat on other side.



13
6. The assembly is now complete.

14

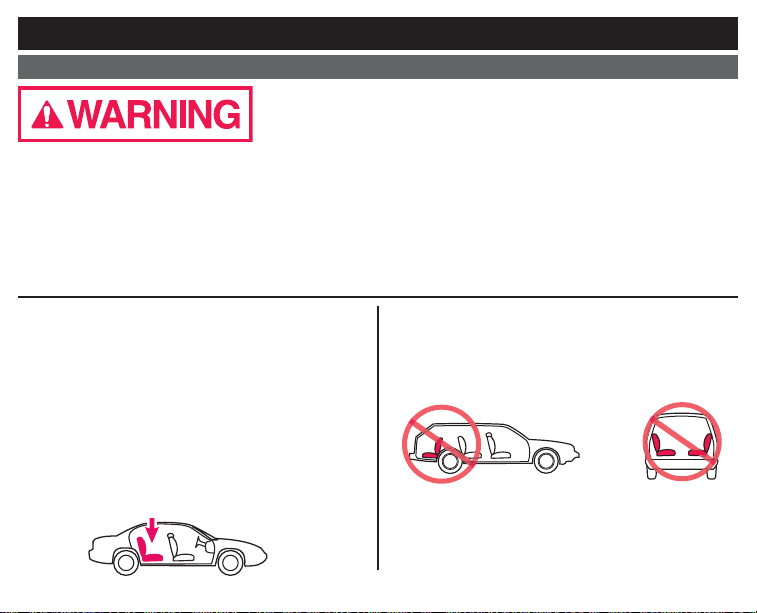

6.0 WARNINGS
•DO NOT use locking clip in booster mode.
•According to accident statistics,
CHILDRENARE SAFER WHEN PROPERLY
RESTRAINED IN REAR VEHICLE
SEATING POSITIONS, RATHER THAN
FRONT SEATING POSITIONS. For a
vehicle with a front passenger air bag, refer to
your vehicle owner’s manual as well as these
instructions for child restraint installation.
• NEVER LEAVE YOUR CHILD
UNATTENDED.
• NO CHILD RESTRAINT CAN GUARANTEE
PROTECTION FROM INJURY. However,
proper use of this child restraint reduces the
risk of serious injury or death to your child.
• DO NOT INSTALL OR USE THIS CHILD
RESTRAINT UNTILYOU READAND
UNDERSTAND THE INSTRUCTIONS IN THIS
MANUALAND IN YOUR VEHICLE OWNER’S
MANUAL. DO NOT let others install or use the
child restraint unless they understand how to
use it.
•FAILURE TO PROPERLY USE THIS CHILD
RESTRAINT INCREASES THE RISK OF
SERIOUS INJURY OR DEATH IN ASHARP
TURN, SUDDEN STOPOR CRASH. Your child
can be injured in a vehicle even if you are not
in a crash. Sudden braking and sharp turns
can injure your child if the child restraint is not
properly installed or if your child is not properly
secured in the child restraint.

15
• NEVER LEAVE ACHILD RESTRAINT
UNSECURED IN YOUR VEHICLE.An
unsecured child restraint can be thrown around
and may injure occupants in a sharp turn,
sudden stop or crash. Remove it or make sure
that it is securely belted in the vehicle. If not
using LATCH and tether,make sure LATCH
and tether connectors are properly stored on
back of seat.
• REPLACE THE CHILD RESTRAINTAFTER
AN ACCIDENT OF ANY KIND. An accident
can cause damage to the child restraint that
you cannot see.
• DO NOT MODIFY YOUR CHILD
RESTRAINT or use any accessories or parts
supplied by other manufacturers.
• NEVER USE CHILD RESTRAINT IF IT HAS
DAMAGED OR MISSING PARTS. Do not use
a cut, frayed or damaged child restraint
harness, LATCH belt or vehicle seat belt.
• THE CHILD RESTRAINT CAN BECOME
VERY HOT IF LEFT IN THE SUN. Contact with
these parts can burn your child’s skin.Always
touch the surface of any metal or plastic parts
before putting your child in the child restraint.
• NEVER GIVE THIS CHILD RESTRAINT to
someone else without also giving them this
manual.
• NEVER USEASECOND-HAND CHILD
RESTRAINT or a child restraint whose history
you do not know.
DO NOT USE THIS child restraint without
properly assembling it.

16
FAILURE TO USE CHILD RESTRAINT INA MANNER APPROPRIATE FOR YOUR CHILD’S
SIZE MAY INCREASE THE RISK OF SERIOUS INJURY OR DEATH. Instructions for the use of
this child restraint differ greatly depending on the size of your child. Be sure you are using the child
restraint in the correct mode and with the correct features for your child.
7.0 Height and Weight Limitations
Your child must meet all requirements:
• Weight: 20 to 65 lb (mass between 9 and 30 kg)
• Height: 27 to 49 in. (69 and 125 cm) in height
•At least one year old and can sit upright unassisted
• The harness straps must be EVEN with or just
ABOVE the child’s shoulders.
7.1 WITH Built-In Harness

17
7.2 WITHOUT Built-in Harness
Your child must meet all requirements:
• Weight: 30 to 100 lb
(mass between 14 and 45 kg)
• Height: 38 to 57 in.
(96 and 145 cm) in height
•Approximately 3-10 years of age

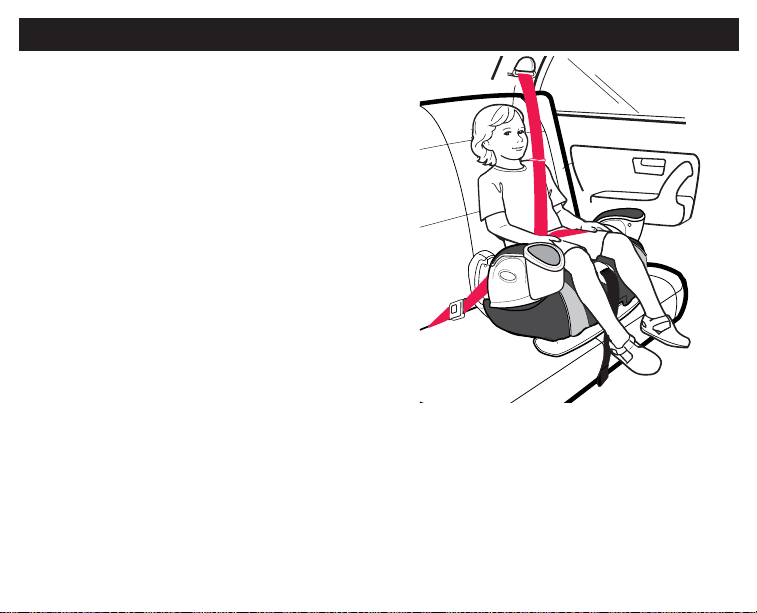

• The shoulder belt MUST lie across child’s
shoulder as shown and the lap portion of the
belt is positioned low on the child’s hips.
• Child’s ears are BELOW top of head support.
If tops of ears are above top of head support,
child is too large for seat.
If child is between 30 and 65 lb (14 and
30 kg) and the shoulders are below the
harness slots, we highly recommend use of
the built-in harness for as long as possible
(up to 65 lb (30 kg).

18
7.3 WITHOUT Back Support
Your child must meet all requirements:
• Weigh between 40 and 120 lb.
(mass between 18 and 54 kg),
• and are between 40 and 57 in.
(101 and 145 cm) in height,
•Approximately 4-10 years of age
• The shoulder belt MUST lie across child’s
shoulder as shown and the lap portion of the
belt is positioned low on the child’s hips.
When sitting on the booster seat, your child’s
ears should be below the top of the vehicle seat
cushion / head support.
Your Graco booster seat can be used with or
without the back support as long as all
requirements are met.

19
8.0 Choosing an Appropriate Vehicle Seat Location
8.1 Vehicle Seat Location Requirements
• Children are safer when properly
restrained in rear vehicle seating positions.
Whenever possible secure the child restraint in
the center position of the seat directly behind
the front seats. However, this position is
sometimes equipped with a lap belt only and
cannot be used when this child restraint is
used without the built-in harness.
• The vehicle seat must face forward.
Do not use child restraints on rear-facing or
side-facing vehicle seats.
Some seating positions in your vehicle may not be safe for this child restraint. Some vehicles do
not have any seating positions that can be used safely with the child restraint. If you are not sure
where to place the child restraint in your vehicle, consult your vehicle owner’s manual or call
Graco Children’s Products Inc.,1-800-345-4109.
IMPROPER PLACEMENT OF THE CHILD RESTRAINT
INCREASES THE RISK OF SERIOUS INJURY OR DEATH.

20
8.2 Vehicle Seat Belt Requirements
8.3 SAFE Vehicle Seat Belt Systems
MANY SEAT BELT SYSTEMS ARE NOT SAFE TO USE
WITH THE CHILD RESTRAINT. THE VEHICLE SEAT BELT
MUST BE DESIGNED TO HOLD THE CHILD RESTRAINT
TIGHTLY AT ALL TIMES. Pay careful attention to these systems; some of the seat belts that
are not safe to use look very much like seat belts that are safe to use. If you are unsure,
consult your vehicle owner’s manual or call Graco Children’s Products Inc., 1-800-345-4109.
THE FOLLOWING BELT SYSTEMS CAN BE USED WITH YOUR CHILD RESTRAINT, IF the
seat location meets all other requirements of these instructions and those in your vehicle owner's
manual. LATCH can be used in place of the following vehicle belt systems if your vehicle is
equipped with LATCH anchor points. Please refer to vehicle owners manual for LATCH locations.
