Graco SnugRide SnugLock 30 User manual

Graco SnugRide SnugLock 30 Infant Car Seat
CLICK! That's the sound of a secure install.
The SnugRide® SnugLock 30 infant car seat has a hassle-free installation using either vehicle
seat belt or UAS. The seat helps protect rear-facing infants from 4-30 lbs and up to 30". In
three easy steps, you can feel confident you've got a secure install with the unique SnugLock
Technology. The base, with its 4-position recline and easy-to-read level indicator, helps
eliminate installation guesswork. Click Connect technology provides a secure one-step
attachment to all Graco Click Connect strollers, making it easy to create a custom travel
system that best fits your lifestyle.
Product #: 046-2374-0 Fashion: ARI

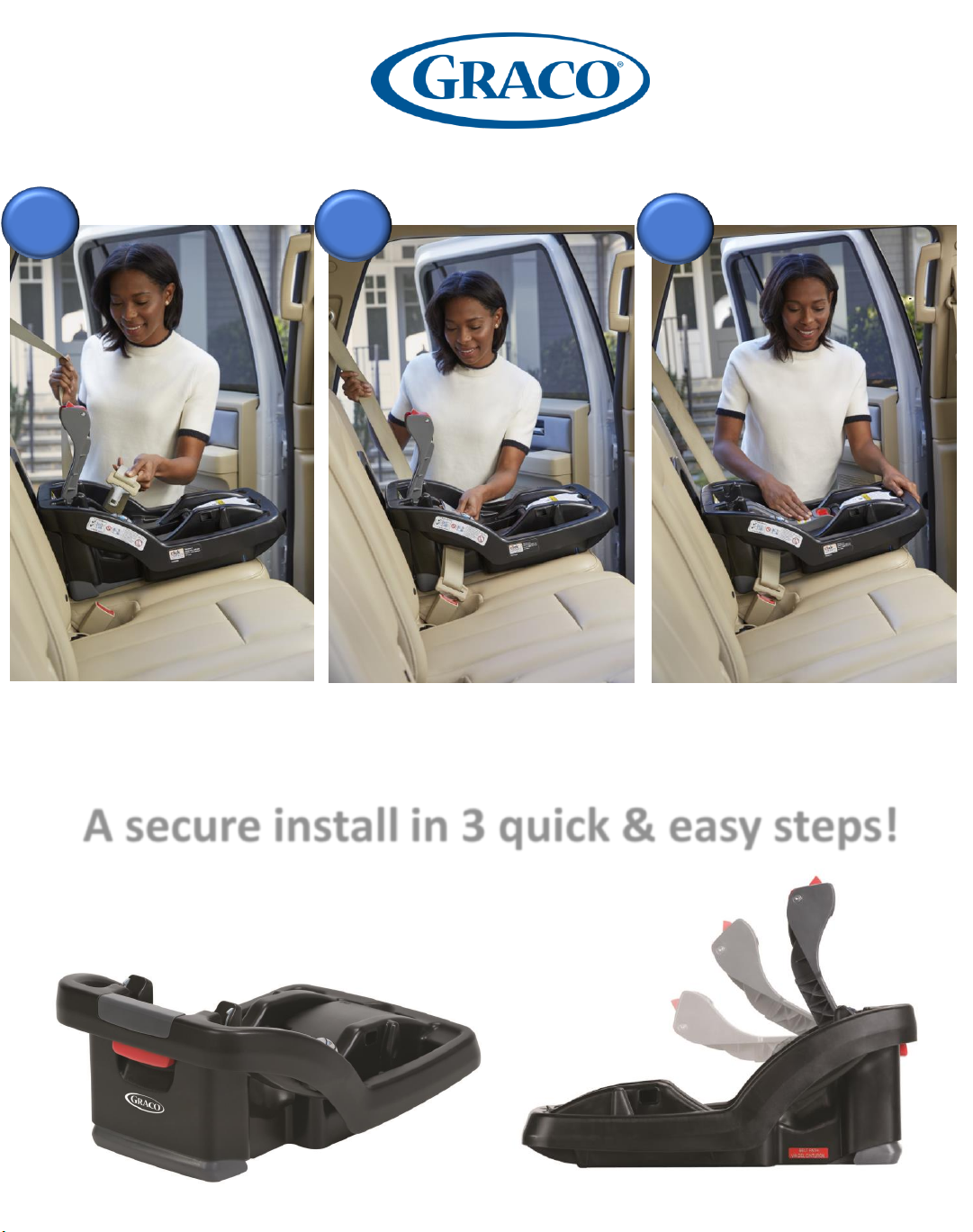

A secure install in 3 quick & easy steps!
123

1
2
3
4
5
6
Easy to remove newborn head and body
support cushions for when baby grows.
Rotating canopy provides
shade and sun protection for
your baby.
5 point front-adjust
harness is easy to use
to help secure your
child.
A convenient compartment
stores both the UAS connectors
and manual when not in use.
SnugLock base technology features a hassle-
free 3-step installation. The adjustable base
has 4 recline positions that lets you
customize fit to your vehicle.
The 4-position recline
base and easy-to-read
level indicator helps
eliminate installation
guesswork.

Committed to Car Seat Safety.
Safety Tested
• Side Impact Tested*
• New Car Assessment Program (NCAP) – peak crash force
approximately 2X Car Seat Standard
• Extreme Car Interior Temperatures
*In addition to meeting or exceeding all applicable Canada safety standards,
the SnugRide® SnugLock™ 35 Infant Car Seat has been side impact tested for
occupant retention by the harness system.
Graco knows that safety is your number
one priority when choosing a car seat for
your most precious cargo! The Graco
SnugRide® SnugLock™ 35 Infant Car Seat
undergoes rigorous safety testing, so it’s
no wonder parents feel confident and
secure when they fasten a Graco 5-point
harness around their little one.
SafeSeat™ Engineering is a series of
testing protocols developed by Graco
Car Seat Engineers and Test Technicians
to improve the safety of our car seats. All
Graco car seats are engineered and
crash tested to meet or exceed Canada
standard CMVSS 213.2.

Do not install or use this
child restraint until you
read, understand and
follow the instructions
in this manual and the
warnings on the car seat.
FAILURE TO PROPERLY
USE THIS
CHILD RESTRAINT
INCREASES THE
RISK OF SERIOUS
INJURY OR DEATH IN
A SUDDEN STOP OR
CRASH.
KEEP INSTRUCTIONS
FOR FUTURE USE.
www.gracobaby.ca
NWL0000697195B 11/18
Read This Instruction Manual
INFANT CAR SEAT
SNUGRIDE®SNUGLOCK™30

2
1-A Quick Guide to Your Manual
1-B Before You Begin
1-C Safety Warnings
2-A Car Seat Features
2-B Remove Car Seat from Base
2-C Attach Car Seat to Base
2-D Adjusting Carry Handle
2-E Recline the Base
2-F Choosing Vehicle Seat Location
2-G Choosing UAS or Seat Belt
2-H What Is UAS
3-A Rear-Facing Checklist
3-B Install With Base With UAS Strap
3-C Install With Base With Vehicle Seat Belt
3-D Install Without Base With Vehicle Seat Belt
Important Pages 4-13
Features Pages 14-23
Rear-Facing Use Pages 24-45

3
4-A Adjust Harness to Fit Child
4-B Adjust Buckle to Fit Child
4-C Securing Child in Car Seat
4-D Removing Child
Securing Child Pages 46-58
Carrier Use Pages 59-60
Vehicle Information Pages 61-71
6-A Additional UAS Information
6-B How to Remove UAS
6-C Unsafe Vehicle Seats
6-D Vehicle Seat Belts
Accessories Page 72-73
Care & Cleaning Pages 74-78
8-A Cleaning Seat Pad
8-B Cleaning Buckle

1 Important
4
1-A Quick Guide to Your Manual
This car seat is for children 1.8-14 kg (4-30 lb)
and 42-76 cm (16.5-30 in).
Get to Know Your Car Seat
Review section 2-A to see all of the features of this infant car seat.
What Seating Location Should I Use?
Which Installation Method Should I Use?
This infant car seat base can be installed in your vehicle using
either the vehicle seat belt OR the Universal Anchorage System
(UAS). Both are equally safe to use. DO NOT USE BOTH AT THE
SAME TIME.
This infant car seat carrier can be installed without the base in your
vehicle using only the vehicle seat belt. UAS is not available to
install the carrier.
The best seating location for this infant car seat is one that:
• Is recommended by your vehicle owner’s manual, and
• Results in a secure installation of this car seat.
Never place a child rear-facing in a seating position with
an active front air bag.
Review section 6 of this manual AND your vehicle owner’s manual.

1 Important
5
When Installing Base
UAS System
UAS consists of
lower anchors, which are
built-in to your vehicle, and
connecting hooks that are
built-in your car seat.
Vehicle Seat Belt
There are two types of
vehicle seat belts that can
be used. Lap/Shoulder Seat
Belt or Lap Only Seat Belt.
Review section 3-B of this
manual AND your vehicle
owner’s manual.
Review section 3-C of this
manual AND your vehicle
owner’s manual.
When Installing Carrier
Vehicle Seat Belt
There are two types of vehicle seat belts that can be used.
Lap/Shoulder Seat Belt or Lap Only Seat Belt.
Review section 3-D of this
manual AND your vehicle
owner’s manual.

1 Important
6

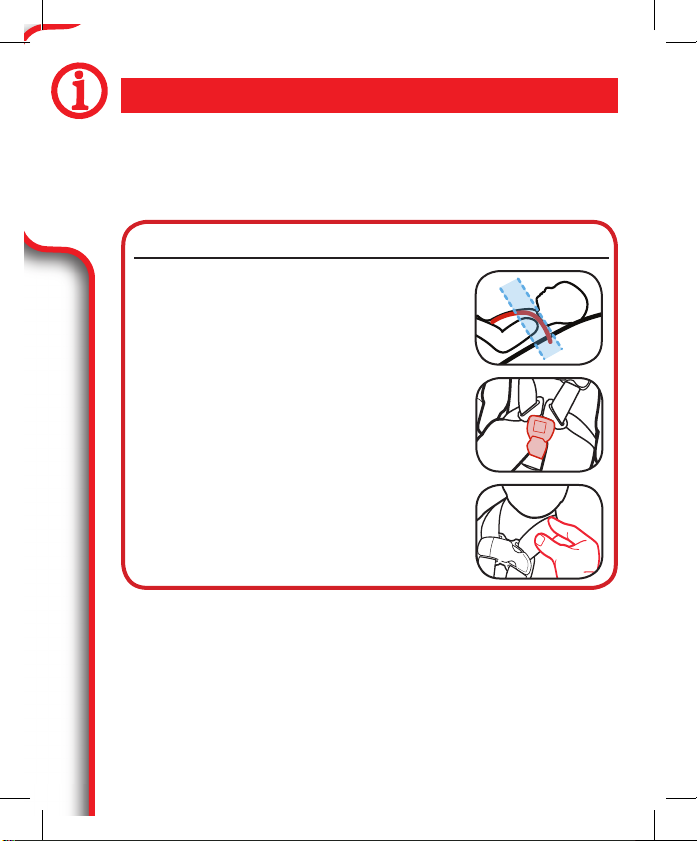

Does Your Seat Fit Your Child Correctly?
To make sure your child is secured properly, review section 4 to
understand all of the actions you need to take to properly adjust
the car seat to fit your child.
You Need To Adjust:
Buckle Position
The correct slot is the one that is closest to
your child without being underneath them.
Review section 4-B.
Harness Tightness
If your fingers slide off the harness straps
without pinching the straps, it is tight enough.
Review section 4-C.
Harness Height
Harness straps at or just below the child’s
shoulders.
Review section 4-A.

1 Important
7

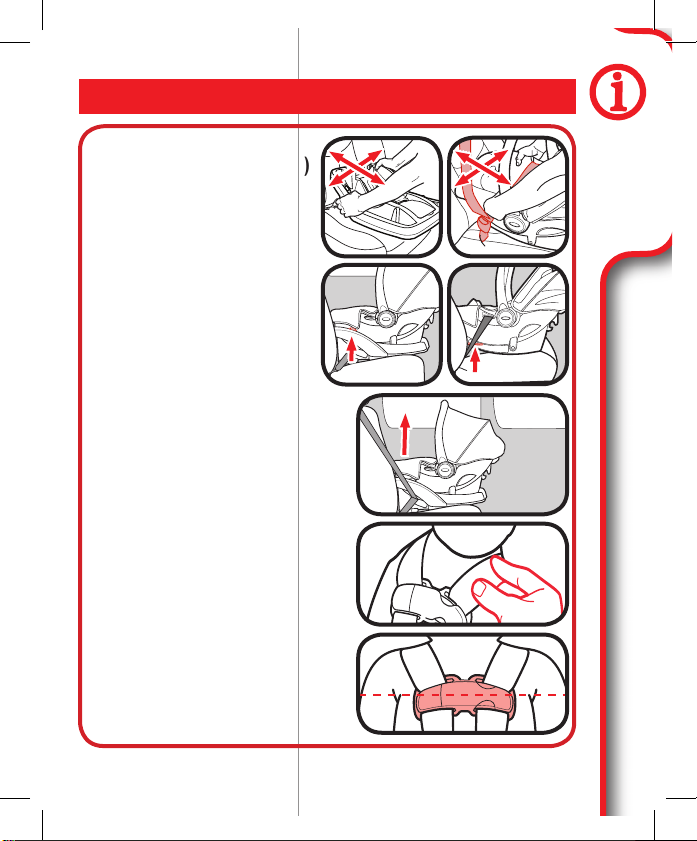

Did You Do Everything Correctly?
Base or Car Seat Does Not
Move More Than 2.5 cm (1 in)
At The Belt Path
Review section 3.
Car Seat Level to Ground
Review sections 2-E and 3.
Car Seat Is Properly Attached
To Base
Review section 2-C.
Cannot Pinch Harness
Harness straps at or just below
the child’s shoulders.
Review section 4-C.
Chest Clip Even With Armpits
Review section 4-C.

1 Important
8
1-B Before You Begin
Please fill out the prepaid registration postcard attached to the
harness and mail it in today or register online at www.gracobaby.ca
Child restraints could be recalled for safety reasons. You must
register this restraint to be reached in a recall. Send your name,
address, and the restraint’s model number and manufacturing date
to:
Newell Industries Canada Inc.
P.O. Box 20090 Oaktown Plaza,
Oakville, ON L6K 3Y7
or call 1-800-345-4109
For recall information, call the Customer Service in Canada at
www.gracobaby.ca or at 1-800-345-4109.
Register This Child Restraint
Your child’s safety depends on you. No car seat can guarantee
protection from injury in every situation, but proper use helps reduce
the risk of serious injury or death.
Even if this car seat seems easy to figure out on your own, you must
follow the detailed instructions in this instruction manual to ensure
the steps below are performed correctly.

1 Important
9
Model Name_________________________
Model Number _______________________
Date of Manufacture __________________
Date of Purchase _____________________
For future reference or if you change addresses, record the model
name, model number, date of manufacture, and purchase date
of this car seat below. You can find this information either on the
registration card if you still have it or on the date label located on the
back of the car seat.
Please contact our Customer Service Department with any
questions you may have concerning parts, use, or maintenance.
When you contact us, please have your product’s model number
and date of manufacture ready so that we may help you efficiently.
These numbers can be found on a sticker on the underside of your
infant restraint.
www.gracobaby.ca • 1-800-345-4109
If You Need Help
This child restraint meets or exceeds all applicable requirements of
Canada Motor Vehicle Safety Standards 213 and 213.1 for use in
motor vehicles.
Certification

1 Important
10
When installing in an airplane without the base, install the same
way as you would in an automobile with a lap only belt. Contact the
airline for their specific polices.
This child restraint is certified for use in aircraft when used
without the base. Use only on forward-facing aircraft seats.
Follow the instructions for vehicle installation. See sections
3-D and 6-D Lap Belt Installation.
This child restraint’s base is NOT certified for use in
aircraft.
Aircraft Installation
STOP using this car seat and throw it away 7 years after the date of
manufacture. Look for date of manufacture label on back of the car
seat.
Graco Children’s Products Inc. advises against loaning or passing
along a car seat unless you know the complete history of the
product. We also advise against purchasing a car seat second hand.
Car Seat’s Useful Life
Protect vehicle seat. Use a car seat mat, towel, or thin blanket under
and behind car seat.
Car seat parts can get very hot in the sun or warm weather. To
avoid burns, always check before putting child in car seat.
Vehicle Seat Protection
Warm Weather Use

1 Important
11
1-C Safety Warnings
No car seat can guarantee protection from
injury in every situation, but proper use
helps reduce the risk of serious injury or
death. READ THIS MANUAL CAREFULLY.
Failure to follow these instructions and child
restraint’s labels can result in child striking the
vehicle’s interior during a sudden stop or crash.
! NEVER PLACE THIS CHILD RESTRAINT
REAR-FACING IN A VEHICLE SEATING
LOCATION THAT HAS AN ACTIVE
FRONT AIR BAG.
If an air bag inflates, it can hit the child and car seat
with great force and cause serious injury or death
to your child.
! Review your vehicle owner’s manual for more information
about air bags and car seat use.
! If your vehicle does not have a back seat, review your
vehicle owner’s manual.

1 Important
12
!Children are safer riding rear-facing and should ride
rear-facing as long as possible, until they reach the
maximum rear-facing height or weight rating for their
car seat. Graco convertible and all-in-one car seats
have higher rear-facing limits that will allow children
to ride rear-facing longer after outgrowing their infant
car seat. Be sure to check your Provincial/Territorial
Laws, as well as AAP and Transport Canada
recommendations, for car seat usage.
!This child restraint must only be used with children
weighing between 1.8-14 kg (4-30 lb).
!Select a suitable location for the car seat in your
vehicle.
!Secure car seat with a vehicle seat belt or UAS that is
properly routed as shown in this manual.
!Vehicle seat belt system MUST hold car seat securely.
Not all vehicle seat belts can be used with a car seat.
!If vehicle seat belt does not hold car seat securely,
read “Vehicle Seat Belts” section 6-D and your vehicle
owner’s manual.
!Always secure car seat with UAS or a vehicle seat belt,
even when unoccupied. In a crash, an unsecured car
seat can injure passengers.
!DO NOT use car seat if it is damaged or missing parts.
! If car seat is in a crash, it must be replaced. DO NOT use
it again! A crash can cause unseen damage and using it
again could result in serious injury or death.

1 Important
13
! DO NOT use accessories or parts other than those
provided by Graco except for a thin towel or mat to
protect your vehicle seat or a rolled towels or pool
noodles to help get your car seat level. Their use could
alter the performance of the car seat.
! DO NOT remove UAS system from car seat. If using vehicle
seat belt to secure car seat, UAS hooks must be stored.
! Never leave child unattended, even when sleeping. Child
may become tangled in harness straps and suffocate or
strangle.
! Rear-facing car seat must be properly leveled:
• Too reclined can result in injury or ejection.
• Too upright can result in breathing difficulties.

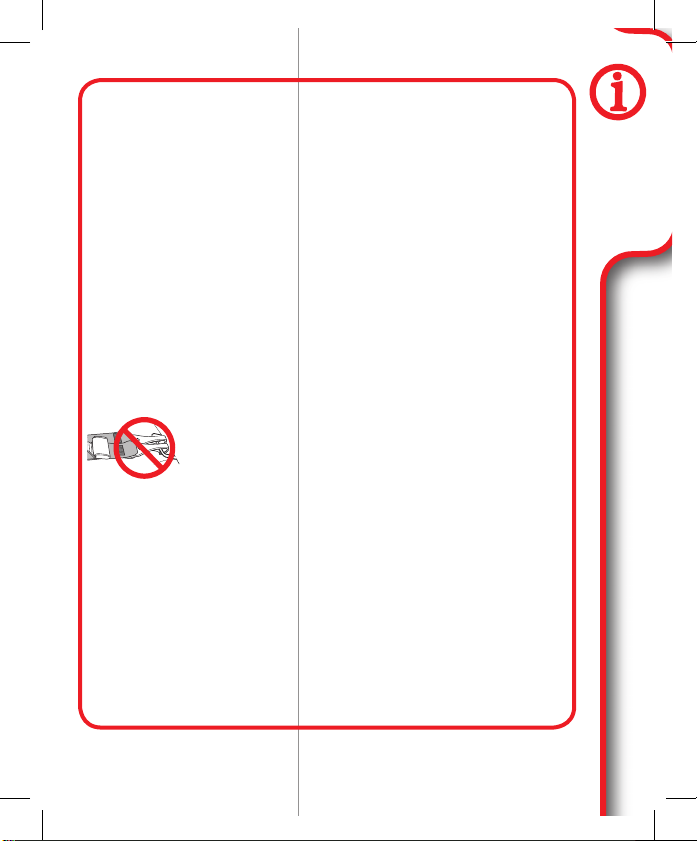

! Never attach two UAS hooks to one vehicle
lower anchor point unless specifically
allowed by the vehicle manufacturer.
! Do not use both the vehicle seat belt and UAS strap at
the same time when using the car seat rear-facing.
! This restraint system may only be used in these classes
of vehicles: passenger cars, multi-purpose passenger
vehicles and trucks that have vehicle lap/shoulder belts.

2 Features
14

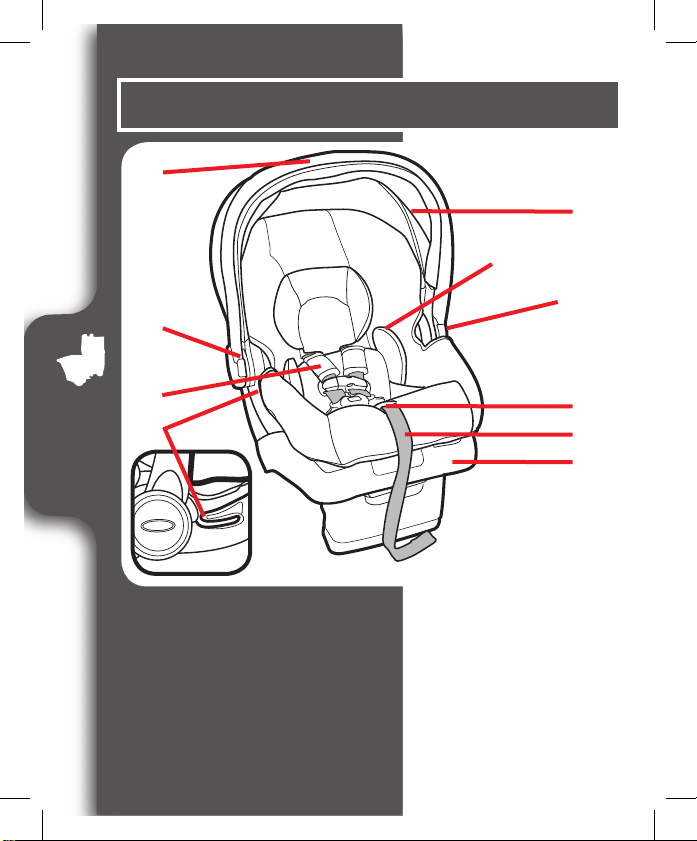

2-A Car Seat Features
A
B
E
A Carry Handle
B Canopy
C Body Support
D Handle Adjustment Buttons
E Harness Covers
F Rear-Facing Belt Path
(When Used Without Base)
D
G Harness Release Lever
(Under Pad)
H Harness Adjustment
Strap
I Removable Base
H
F
G
C
D
I

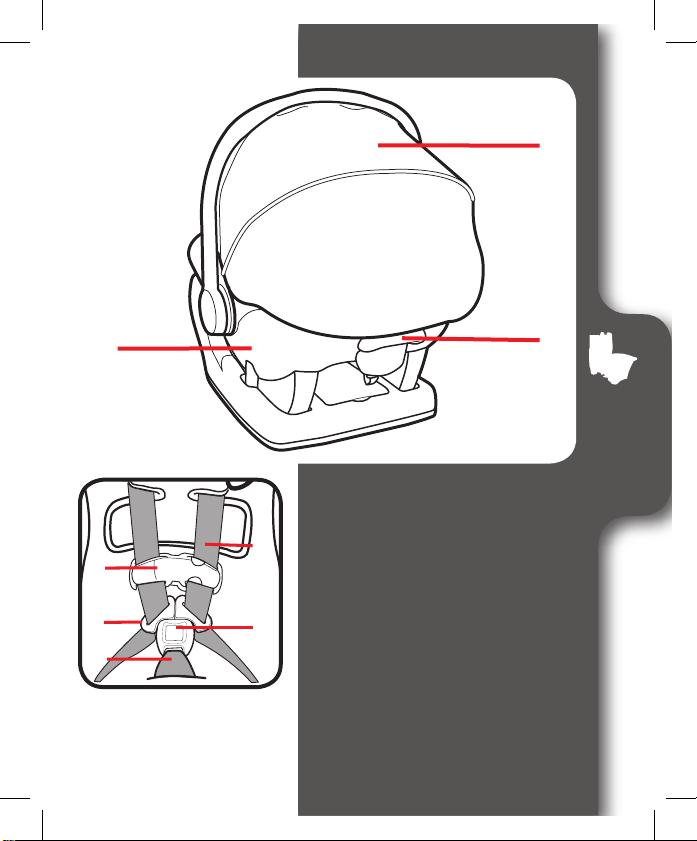

2 Features
15
B
JK
J Car Seat Shell
K Base Release Lever
L Chest Clip
M Harness Straps
N Buckle Tongues
O Buckle
P Buckle Strap
LM
NO
P

2 Features
16
A
B
D
F
C
A Base Release Lever
B Harness Strap Slots
C Locking Clip
D Harness Straps
E Buckle Metal Clip
F Splitter Plate
G Carrier Level To Ground Line
(when used without base)
16
E
