Graco LineLazer ES 1000 Use and care manual

LineLazer ES 2000
LineLazer ES 1000
For the application of line striping materials.
For professional use only.
Not approved for use in explosive atmospheres or hazardous locations.
Maximum Operating Pressure: 3300 psi (22.8 MPa, 228 bar)
Important Safety Instructions
Read all warnings and instructions in this manual and in related manuals
before using the equipment. Be familiar with the controls and the proper
usage of the equipment. Save these instructions.
Related Manuals:
ES 1000 ES 2000
311254 Gun 311254 Gun
334599 Pump 310643 Pump
3A3428 Auto-Layout Application Methods
Operation, Repair, Parts
LineLazer™ ES 1000 / ES 2000
Airless Line Striper 3A4603J
EN
Use only genuine Graco replacement parts.
The use of non-Graco replacement parts may void warranty.

LineLazer V LiveLook Display
30 3A4603J Operation, Repair, Parts
LineLazer V LiveLook Display
ES 2000 (Standard Series)

LineLazer V LiveLook Display
3A4603J Operation, Repair, Parts 31

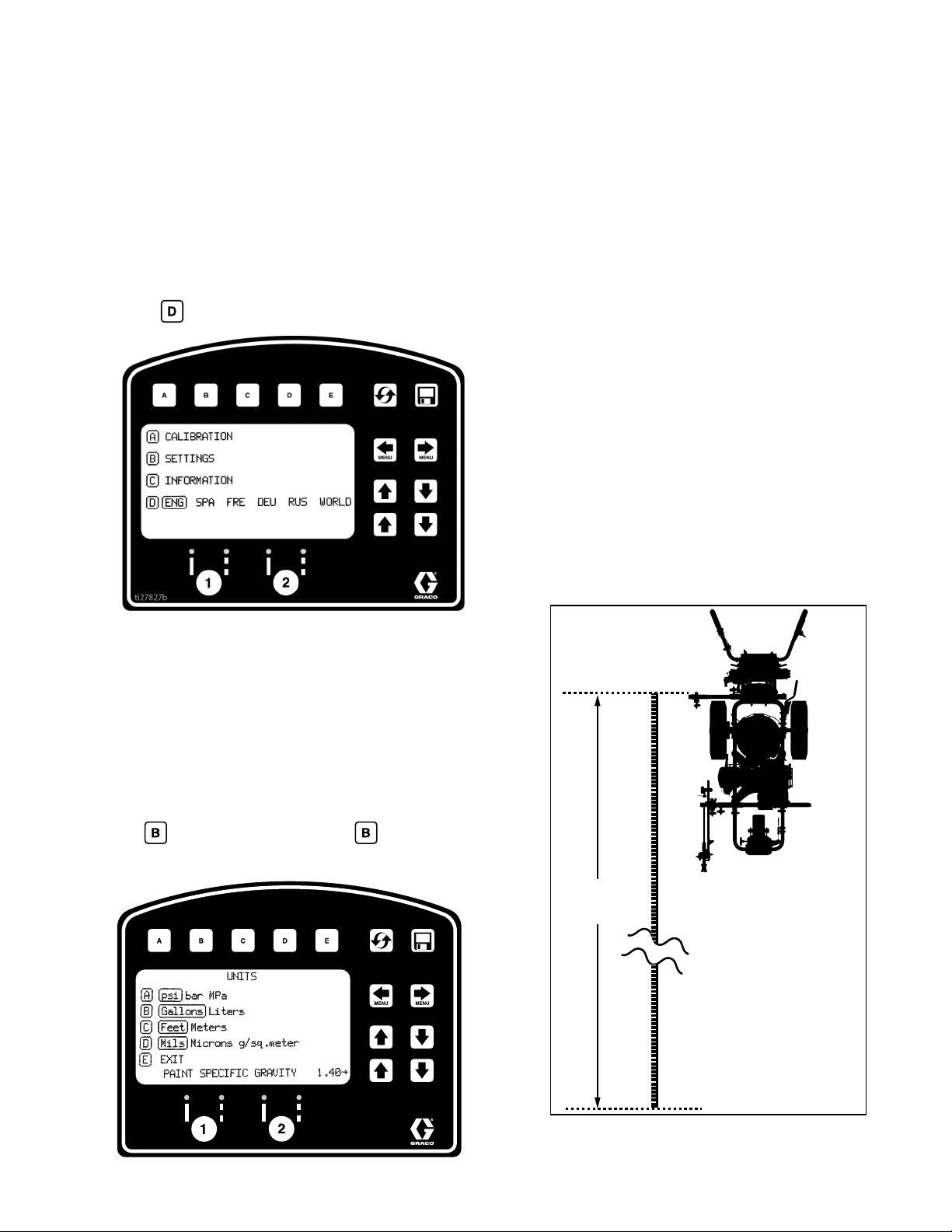

Initial Setup (ES 2000 Standard Series)
The initial setup prepares the striper for operation based
on a number of user entered parameters. Language
selections and the units of measure selections can be
set before you start or changed later.
Language
From Setup/Information select appropriate language by
pressing until the language is outlined.
ENG = English
SPA = Spanish
FRE = French
DEU = German
RUS = Russian
WORLD = Symbols see World Key Symbol, page
113.
NOTE: Language can be changed later.
Units
Press to enter settings and then again to enter
units. Select appropriate units of measure.
US Units
Pressure = psi
Volume = gallons
Distance = feet
Line Thickness = mil
SI Units
Pressure = bar (MPa available)
Volume = liters
Distance = meters
Line thickness = micron (g/m2 available)
Paint Specific Gravity = Use UP and DOWN arrows
to set specific gravity. Required to determine paint
thickness.
NOTE: All units can be changed individually at any
time.
Calibration
1. Check rear tire pressure 55 ± 5 psi (379 ± 34 kpa)
and fill if necessary.
2. Extend steel tape to distance greater than 26 ft.
(8m).
ti27828a
26 Ft.
8M
ti27829a

LineLazer V LiveLook Display
32 3A4603J Operation, Repair, Parts

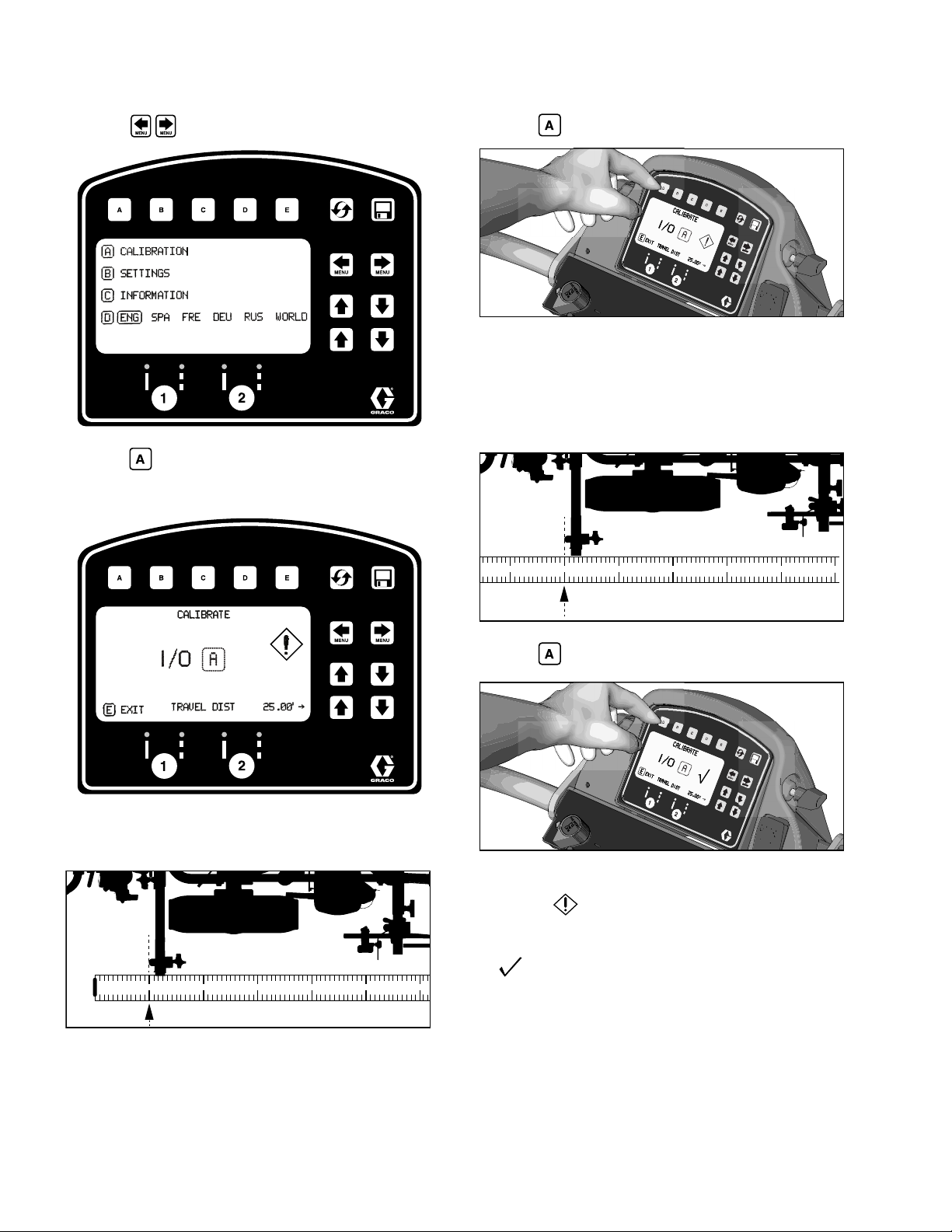

3. Press to select Setup/Information.
4. Press for Calibration. Set TRAVEL DIST to 25 ft
(7.6m) or longer. Longer distances ensure better
accuracy, depending on conditions.
\
5. Align part of the unit with 1 foot (30.5cm) on steel
tape.
6. Push to start calibration.
7. Move striper forward. Keep unit aligned with steel
tape.
8. Stop when chosen part of unit aligns with 26-ft (8m),
or distance entered, on steel tape (25-ft./ 7.6m dis-
tance).
9. Push to complete calibration.
•Calibration is not complete when the exclamation
symbol is displayed.
•Calibration is finished when the check mark symbol
is displayed.
10. Calibration is now complete.
Go to Measure Mode (ES2000 Standard Series), page
34, and verify accuracy by measuring the tape.
ti27827a
ti27830a
1FT 2FT 3FT 4FT 5 FT 6 F
ti27831a
ti27826a
26 FT 27 FT 28 FT 29 FT 30 FT 31 F25 FT
ti27832a
ti27941a

LineLazer V LiveLook Display
3A4603J Operation, Repair, Parts 33
Striping Mode (ES2000 Standard Series)
* Not active in Standard Series. Upgrade to HP Auto
Series with P/N 25N711.
Operating in Striping Mode
1. Make sure ON/OFF switch is ON position.
2. Set pump switch to ON.
3. Pull trigger to spray.
Ref. Description
1 Resets Distance, Gallons, Mils
*2 Job logging
3 Scroll between menu screens
4 Line width adjustment buttons
*5 Auto gun buttons
6 MIL thickness. While spraying “Instant MIL avg” is
displayed. When stopped total “Job MIL avg” is
displayed.
7 Total gallons sprayed
8 Total line length sprayed.
9 Pressure
ti27890a

LineLazer V LiveLook Display
34 3A4603J Operation, Repair, Parts

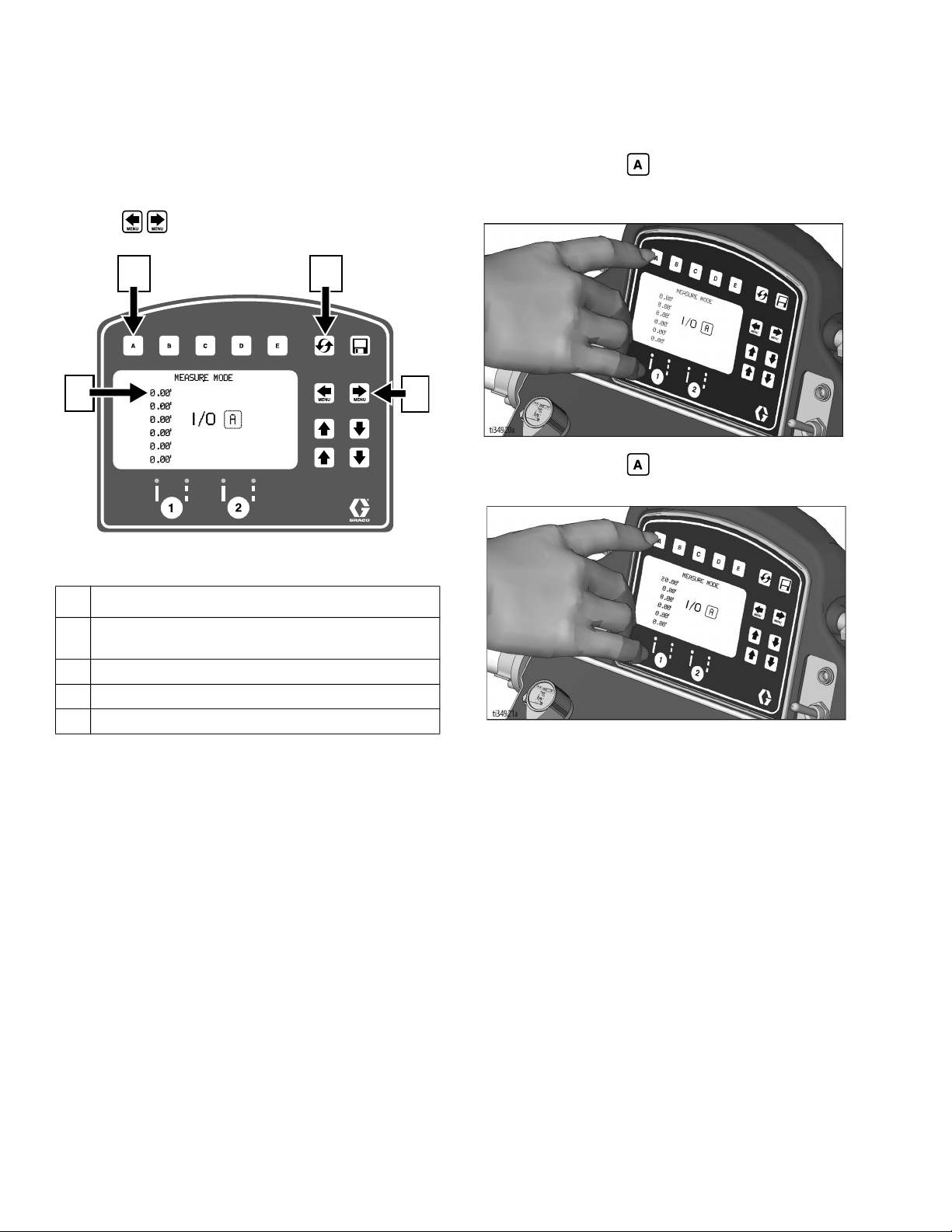

Measure Mode (ES2000 Standard Series)
Measure Mode replaces a tape measure to measure
distances when laying out an area to be striped.
1. Use to select Measure Mode.
2. Press and release . Move striper forwards or
backwards. (Moving backwards is a negative dis-
tance.)
3. Press and release to end measured length. Up
to six lengths are viewable.
Ref. Description
1 Press to start measurement, Press to stop
measurement
2 Hold to reset values to zero
3 Scroll between main menu screens
4 Last measurement taken
ti27834a
1 2
3
4

LineLazer V LiveLook Display
3A4603J Operation, Repair, Parts 35
Setup/Information
Use to select Setup/Information.
Press to select Language.
See Language, page 31.
See Calibration, page 31.
See Settings, page 36.
See Information, page 37.
ti27835b

LineLazer V LiveLook Display
36 3A4603J Operation, Repair, Parts

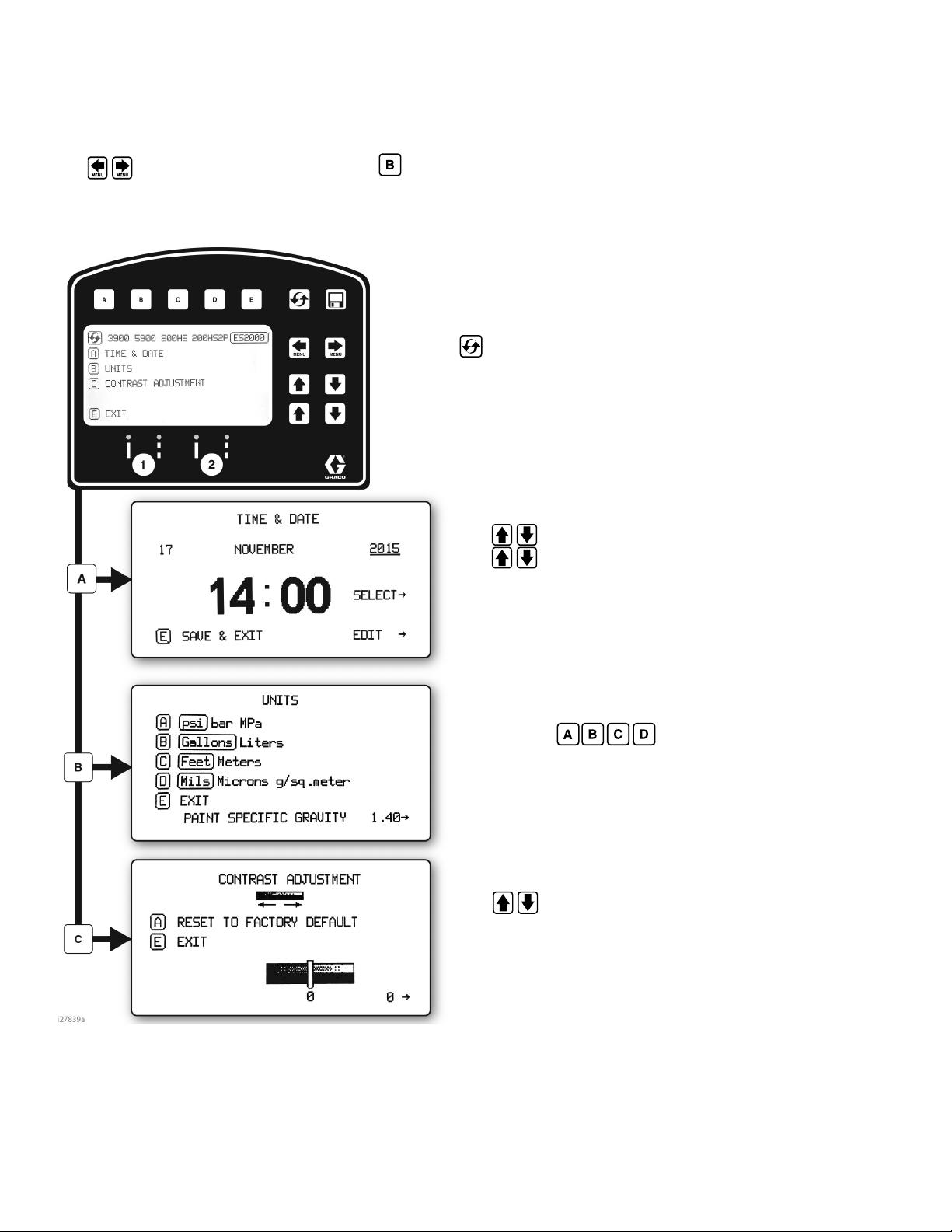

Settings
Use to select Setup/Information. Press to
open Settings Menu.
Chooses the machine type. Necessary for accurate
gallon counting.
Use to set time and date.
Use
Set units with
Use to adjust screen contrast to the desired
value.

LineLazer V LiveLook Display
3A4603J Operation, Repair, Parts 37
Information
Use to select Setup/Information. Press to
open Information Menu.
Displays and logs life data and striper information.
View and test functionality of components.
Logs last four error codes that occurred.
Code Description
02 = Over pressure
03 = No transducer detected
Reset error codes
Stroke Counter
Pressure Transducer
Distance Sensor
Touch Pad Buttons
Battery Voltage

ES2000 (HP Auto Series)
38 3A4603J Operation, Repair, Parts
ES2000 (HP Auto Series)

LineLazer V LiveLook Display
3A4603J Operation, Repair, Parts 39
LineLazer V LiveLook Display
ES2000 (HP Auto Series)

LineLazer V LiveLook Display
40 3A4603J Operation, Repair, Parts

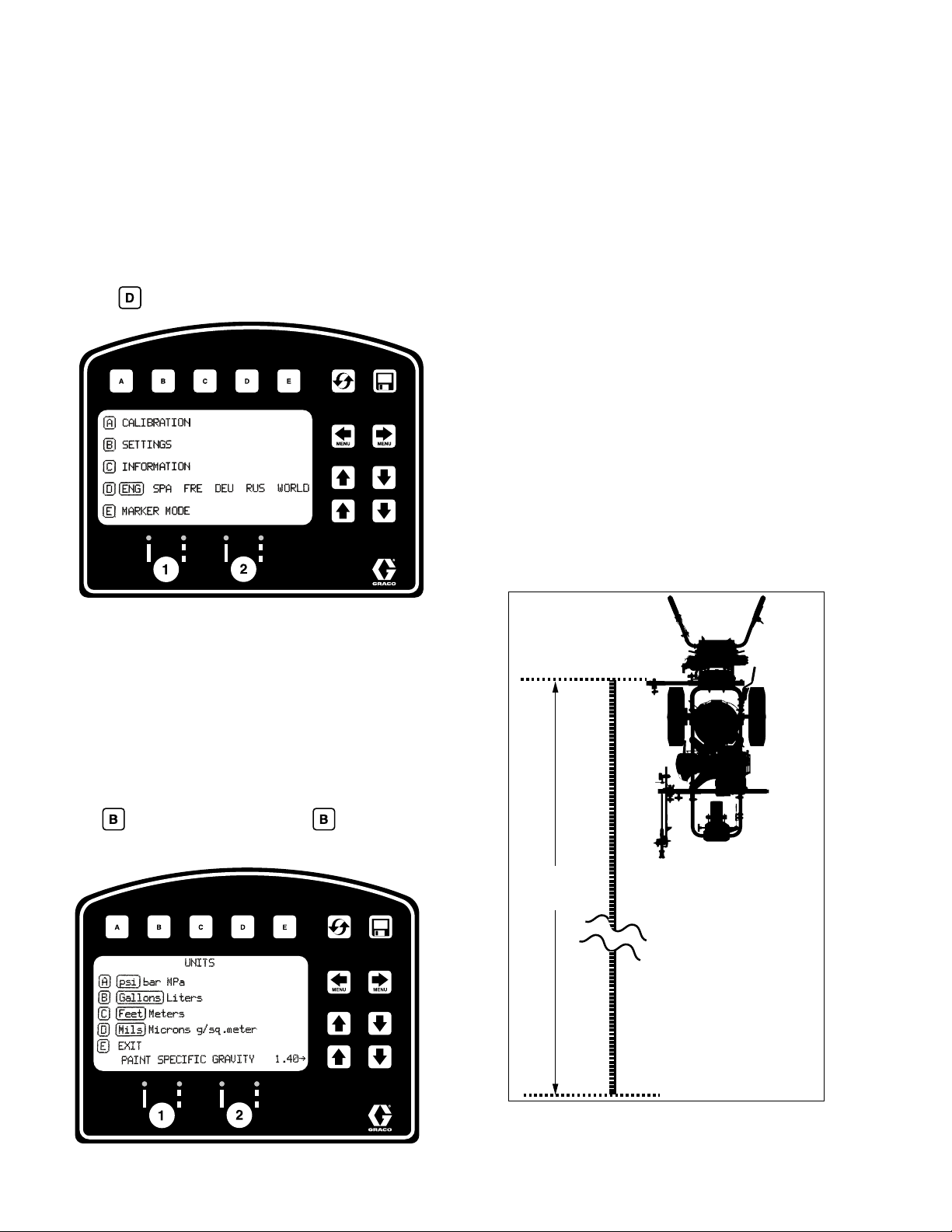

Initial Setup (ES2000 HP Auto Series)
The initial setup prepares the striper for operation based
on a number of user entered parameters. Language
selections and the units of measure selections can be
set before you start or changed later.
Language
From Setup/Information select appropriate language by
pressing until the language is outlined.
ENG = English
SPA = Spanish
FRE = French
DEU = German
RUS = Russian
WORLD = Symbols see World Key Symbol, page
113.
NOTE: Language can be changed later.
Units
Press to enter settings and then again to enter
units. Select appropriate units of measure.
US Units
Pressure = psi
Volume = gallons
Distance = feet
Line Thickness = mil
SI Units
Pressure = bar (MPa available)
Volume = liters
Distance = meters
Line thickness = micron (g/m2 available)
Paint Specific Gravity = Use UP and DOWN arrows
to set specific gravity. Required to determine paint
thickness.
NOTE: All units can be changed individually at any
time.
Calibration
1. Check rear tire pressure 55 ± 5 psi (379 ± 34 kpa)
and fill if necessary.
2. Extend steel tape to distance greater than 26 ft.
(8m).
ti27827a
ti27828a
26 Ft.
8M
ti27829a

LineLazer V LiveLook Display
3A4603J Operation, Repair, Parts 41

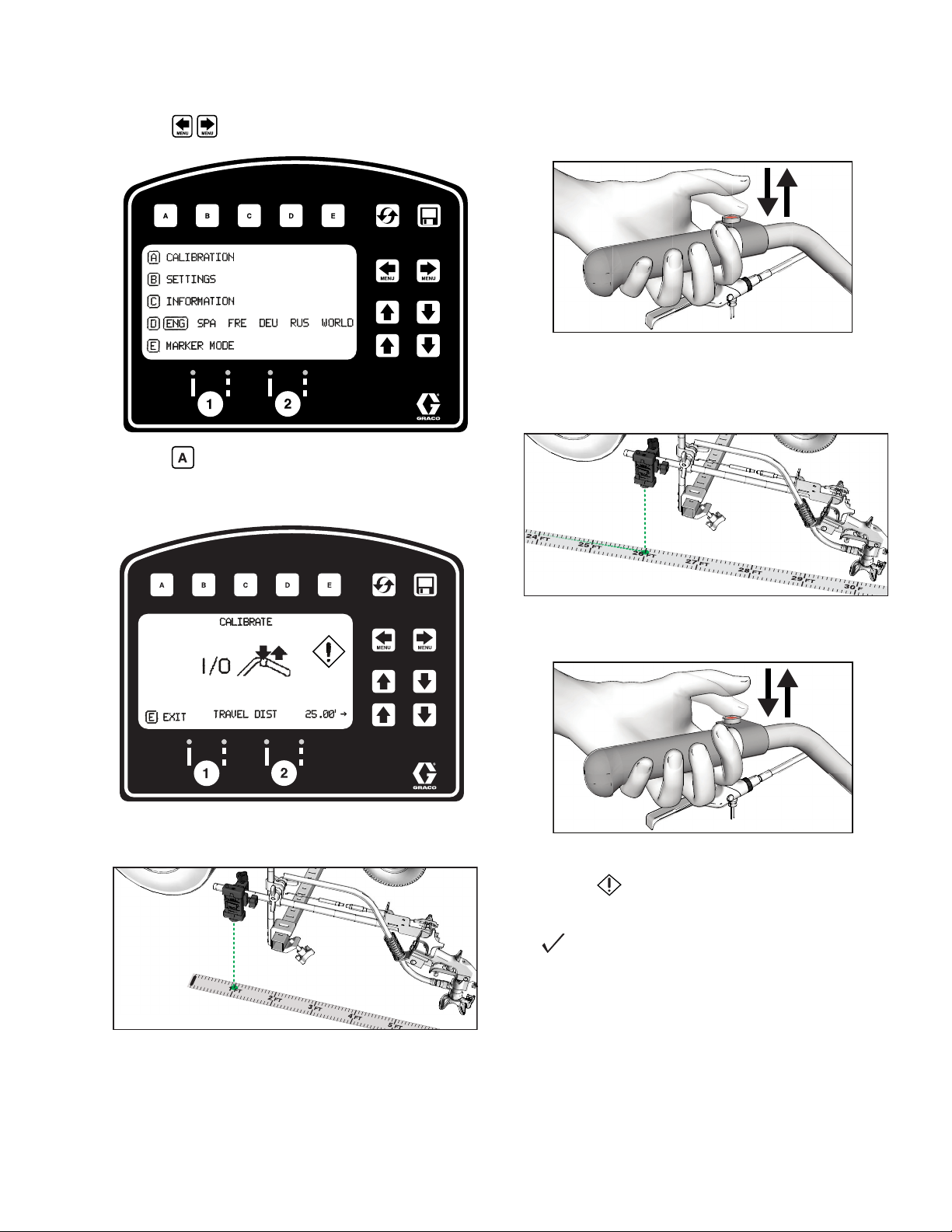

3. Press to select Setup/Information.
4. Press for Calibration. Set TRAVEL DIST to 25 ft
(7.6m) or longer. Longer distances ensure better
accuracy, depending on conditions.
5. Turn on laser and align laser dot with 1 foot
(30.5cm) on steel tape.
6. Press and release gun trigger control to start cali-
bration.
7. Move striper forward. Keep laser dot on steel tape.
8. Stop when laser aligns with 26-ft (8m) or distance
entered on steel tape (25-ft./7.6m distance).
9. Press and release gun trigger control to complete
calibration.
•Calibration is not complete when the exclamation
symbol is displayed.
•Calibration is finished when the check mark symbol
is displayed.
10. Calibration is now complete.
ti27827a
ti27830a
ti27841a
ti27912a
ti27843a
ti27912a

LineLazer V LiveLook Display
42 3A4603J Operation, Repair, Parts

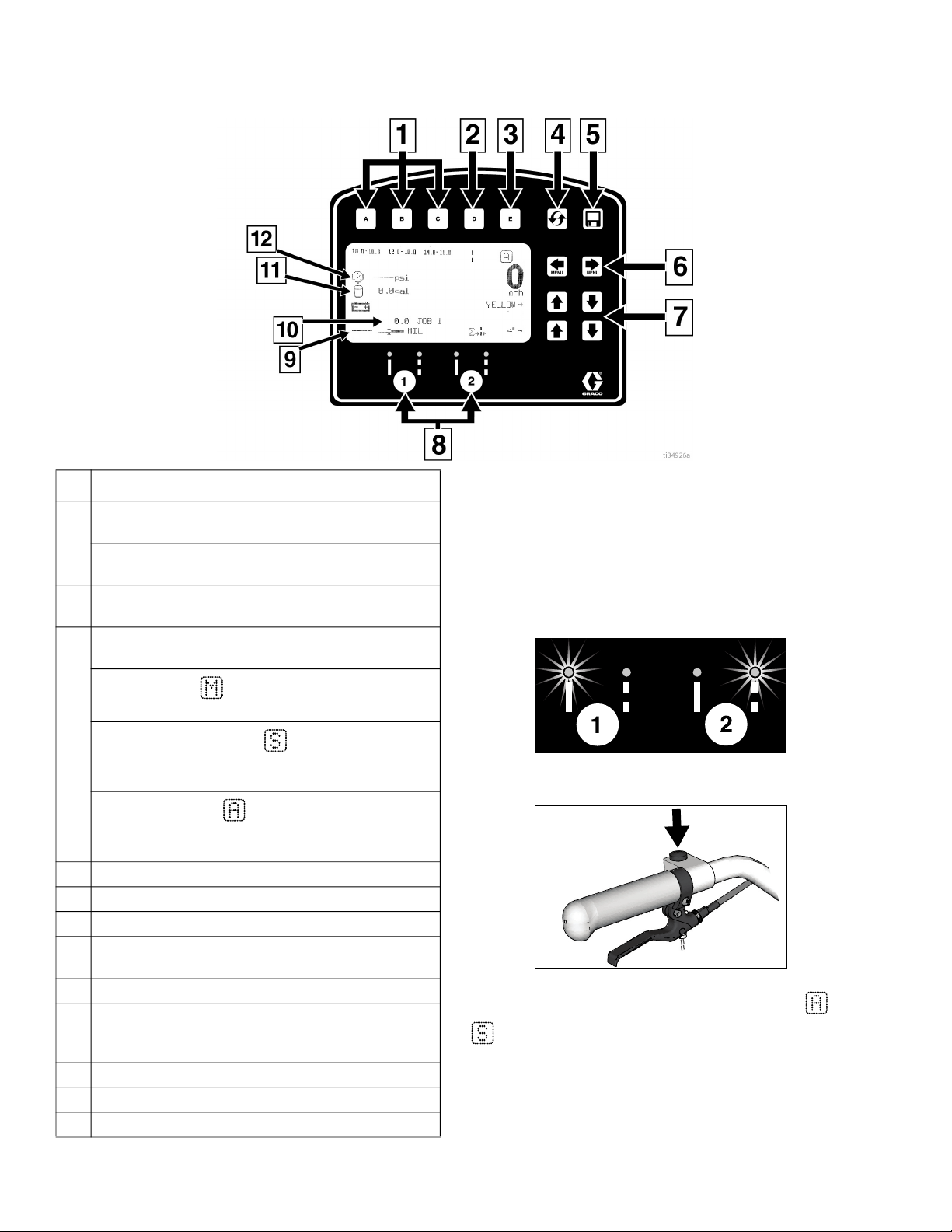

Striping Mode (ES2000 HP Auto Series)
Operating in Striping Mode
Striper must be running before activating gun trigger
control.
1. Make sure ON/OFF switch is ON position.
2. Use gun activation buttons to select guns and line
type.
3. Press gun trigger control to begin spraying.
In Automatic Mode or Semi-Automatic Mode the or
will flash when gun trigger control is pressed to sig-
nal mode is active.
Ref. Description
1
Select a “Favorite”, press for less than one sec-
ond.
Save a “Favorite”, press and hold for more than
three seconds.
2 Cycles between viewing line width or paint and
space value.
3
Cycles between Manual Mode, Semi-Automatic
Mode, Automatic Mode.
Manual Mode : Press and hold gun trigger
control to stripe.
Semi-Automatic Mode : Press and release
gun trigger control to stripe the programmed
length one time when in Skip Mode.
Automatic Mode : Press and release gun
trigger control to start striping. Press and release
button again to stop.
4 Resets trip distance.
5 Job Data Logger, page 52.
6 Scrolls between menu screens.
7 Paint and Space length OR line width adjustment
buttons.
8 Auto guns activation buttons.
9 MIL thickness. While spraying “Instant MIL avg” is
displayed. When stopped total “Job MIL avg” is
displayed.
10 Total gallons (liters) sprayed.
11 Total line length sprayed.
12 Pressure
ti27913a
ti27881a

LineLazer V LiveLook Display
3A4603J Operation, Repair, Parts 43

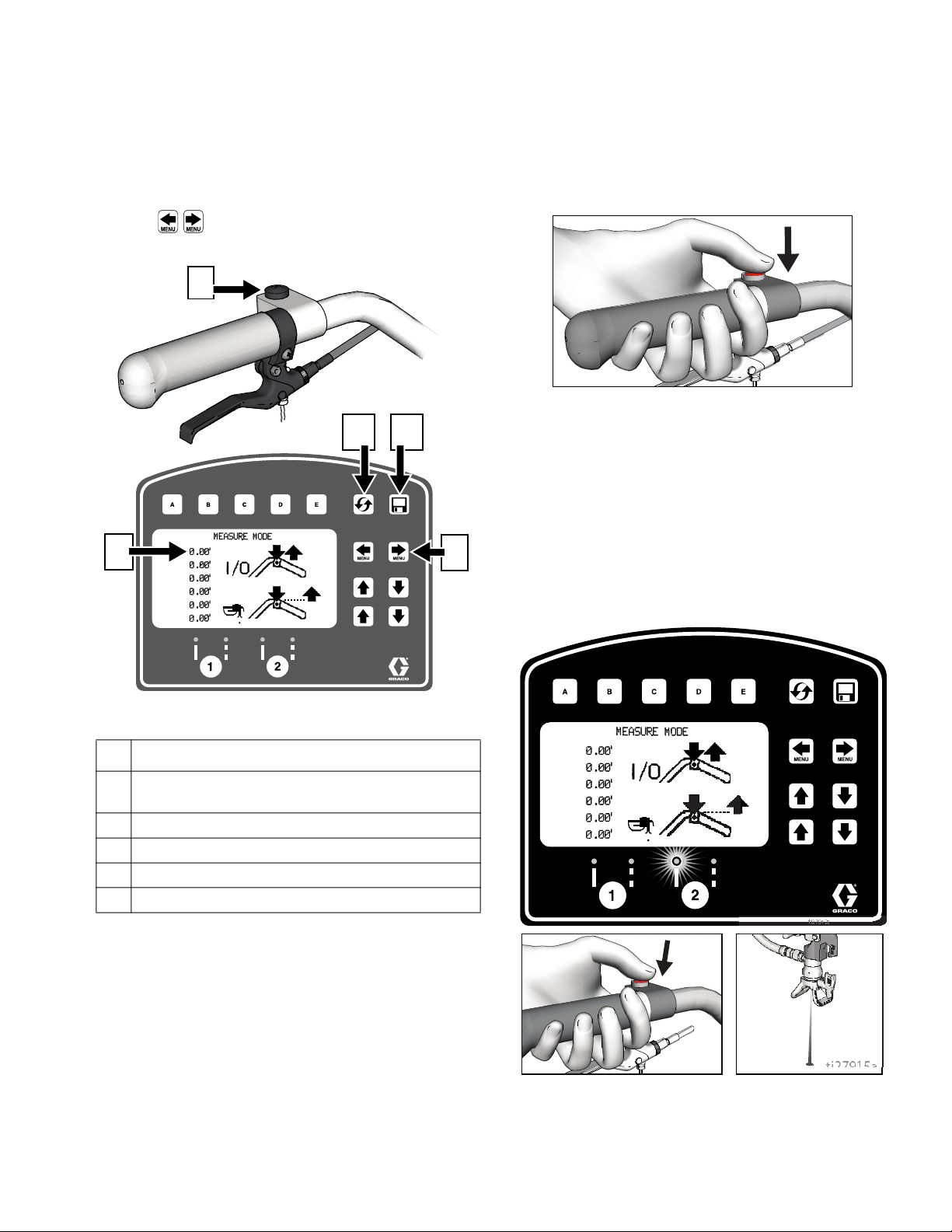

Measure Mode (ES2000 HP Auto Series)
Measure Mode replaces a tape measure to measure
distances when laying out an area to be striped.
1. Use to select Measure Mode.
2. Press and release gun trigger control. Move striper
forwards or backwards. (Moving backwards is a
negative distance.)
3. Press and release gun trigger control to end mea-
sured length. Up to six lengths are viewable.
The most recent measured length is also saved as the
measured distance in the Stall Calculator display. See
Stall Calculator, page 45.
If an auto gun is activated, press and hold gun trigger
control at any time to apply a dot. If trigger is held while
striper is moving, a dot is marked every 12-inches
(30.5cm).
Ref. Description
1 Press to start measurement, Press to stop
measurement.
2 Hold to reset values to zero.
3 Job Data Logger, page 52.
4 Scroll between main menu screens
5 Last measurement taken
ti27914a
2 3
54
1
ti27842a
ti27915a
ti27842a

LineLazer V LiveLook Display
44 3A4603J Operation, Repair, Parts

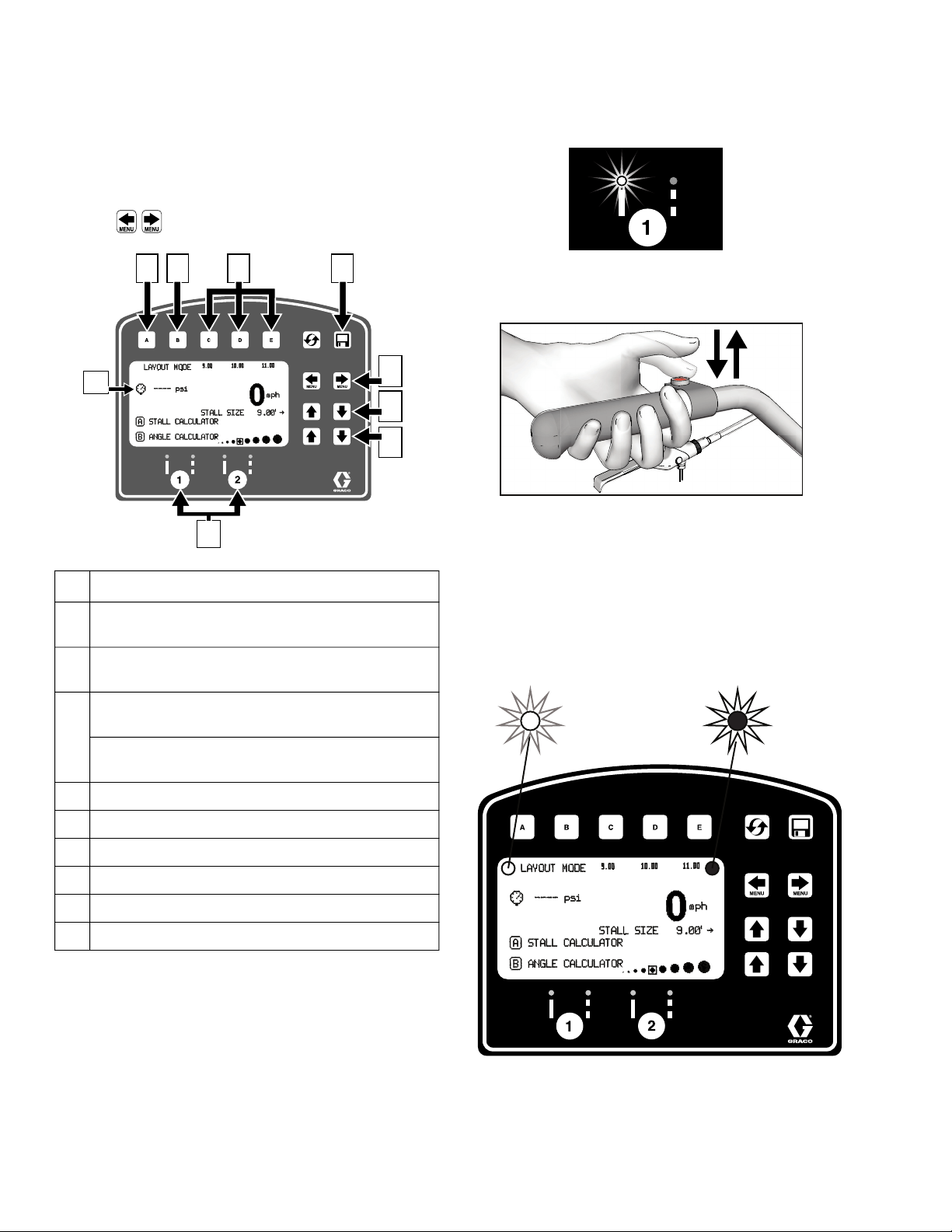

Layout Mode
Layout Mode is used to calculate and mark parking lot
stalls.
1. Use to select Layout Mode.
2. Use gun activation buttons to select guns.
3. Press and release gun trigger control and move
striper forward.
4. Striper default is to place a dot every 9.0 ft (2.7m) to
mark the stall size. Stall size is adjustable.
5. Dots are laid down until gun trigger control is
pressed and released again.
An indicator on the screen alternately flash when gun
trigger control is pressed to signal mode is active.
Ref. Description
1 Opens Stall Calculator Menu.
See Stall Calculator, page 45.
2 Opens Angle Calculator Menu.
See Angle Calculator, page 46.
3
Select a “Favorite”, press for less than one
second.

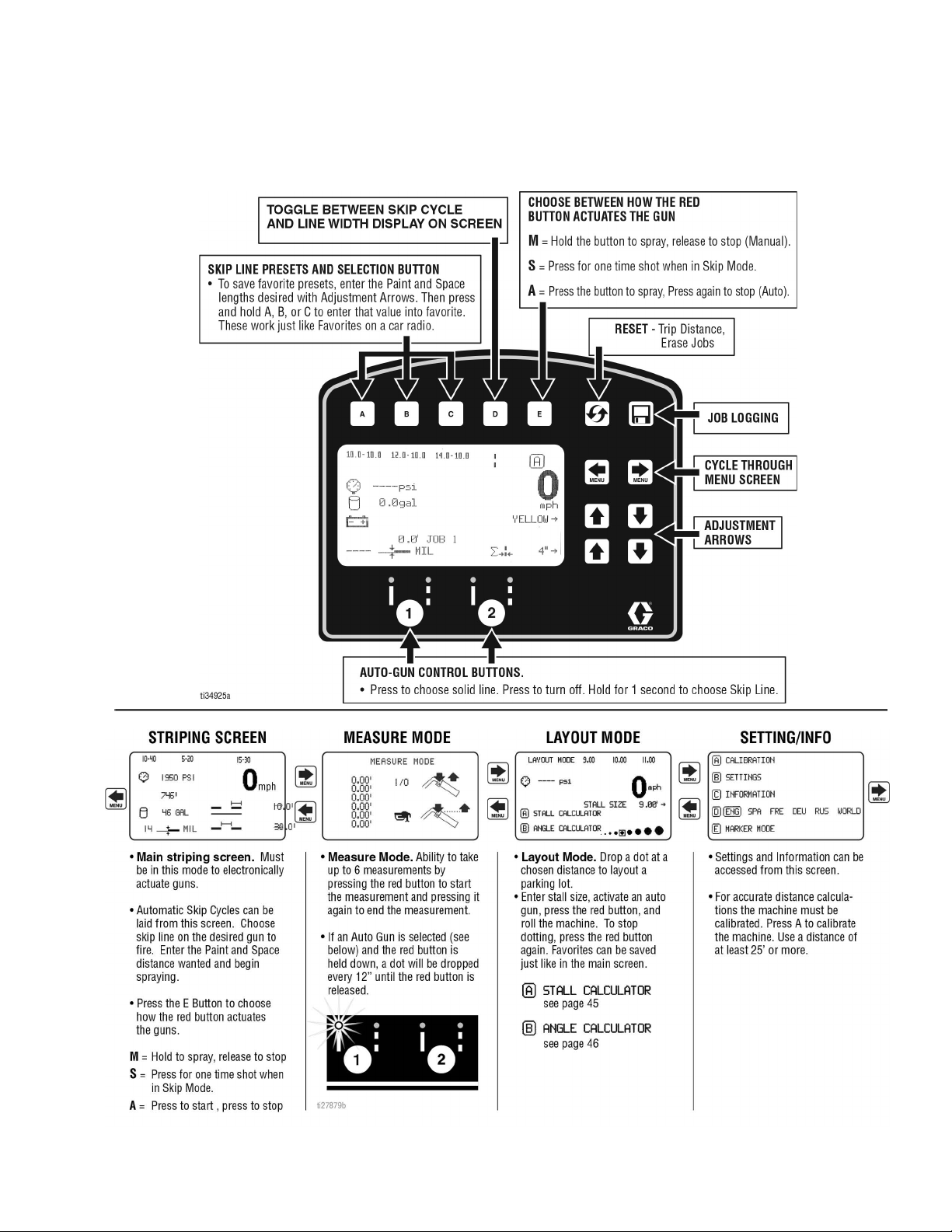

Save a “Favorite”, press and hold for more than
three seconds.
4 Job Data Logging, page 52.
5 Scroll between menu screens.
6 Adjust stall size/dot spacing.
7 Adjust dot size.
8 Auto Gun activation buttons.
9 Pressure.
1
9
234
5
6
7
8ti27916a
ti27918a
ti27912a
ti27849a

LineLazer V LiveLook Display
3A4603J Operation, Repair, Parts 45
Stall Calculator
Stall Calculator is used to set the stall size. The striper
divides the measured length by the stall size to
determine the number of stalls that will fit in the length
measured. User can adjust number of stalls to a round
number and stall width is calculated.
1. Use to select Layout Mode. Press to
open Stall Calculator Menu.
2. The most recent length measured in Measure Mode
is automatically displayed. Press gun trigger control
to start a new measurement. Press again to stop
measuring.
When measuring between curbs, the distance from
the back tire/curb to the gun/laser dot, can be
accounted for by setting the Offset (x) value.
a. Back the striper up to the curb, then use a tape
measure to measure from where the tire touches
the curb to the laser dot on the ground.
b. Use to enter the offset (x) value.
c. This value can be stored by holding for 2
seconds.
d. The value stored under can be added to the
measured distance before or after the
measurement is taken between the curbs.
e. The offset (x) value can also be adjusted before or
after the measurement is taken by using .
Stall size and calculated number of stalls are both
adjustable.
3. Press to return to Layout Mode. The Stall size
is saved and displayed on the Layout Mode screen.
4. Press and release gun trigger control to start
marking dots. Press and release gun trigger control
again to stop.
Ref. Description
1 Opens Angle Calculator Menu.
See Angle Calculator, page 46.
2 Exits and returns stall size to Layout Mode.
3 Measured distance.
4 Calculated # of stalls. Changing the number of
stalls will change the stall size.
5 Adjusts number of stalls.
6 Stall size. Changing stall size changes the
calculated # of stalls.
7 Adjusts stall size.
8 Press to start measurement, Press to stop
measurement.
9 Adjust Offset (x).
10 Stores Offset (x). Hold for 2 seconds to store
value.

LineLazer V LiveLook Display
46 3A4603J Operation, Repair, Parts
Angle Calculator
Angle Calculator is used to determine the offset value
and dot spacing value for a layout.
1. Use to select Layout Mode. Press to
open Angle Calculator Menu.
2. Dot spacing (B) and offset (C) are calculated based
on the parameters entered:
Stall angle
Stall depth
Stall size (width)
Line Length
3. Press to transfer calculated off set distance to
Layout Mode. Save this value in favorites if desired.
Ref. Description
1 Transfers calculated dot spacing, B, to Layout
Mode.
2 Transfers calculated off set, C, to Layout Mode.
3 Exits and returns to Layout Mode without
transferring any values.
4 Data Logging.
5 Select input variables.
6 Adjust the variable selected.
7 Calculated dot spacing, B.
8 Calculated off set, C.
1
7
8
2 3 4
5
6
ti27850a
STALL
SIZE
LINE
LENGTH
BC
STALL
DEPTH
OFF SET
ANGLE
DOT SPACING
ti27857a

LineLazer V LiveLook Display
3A4603J Operation, Repair, Parts 47

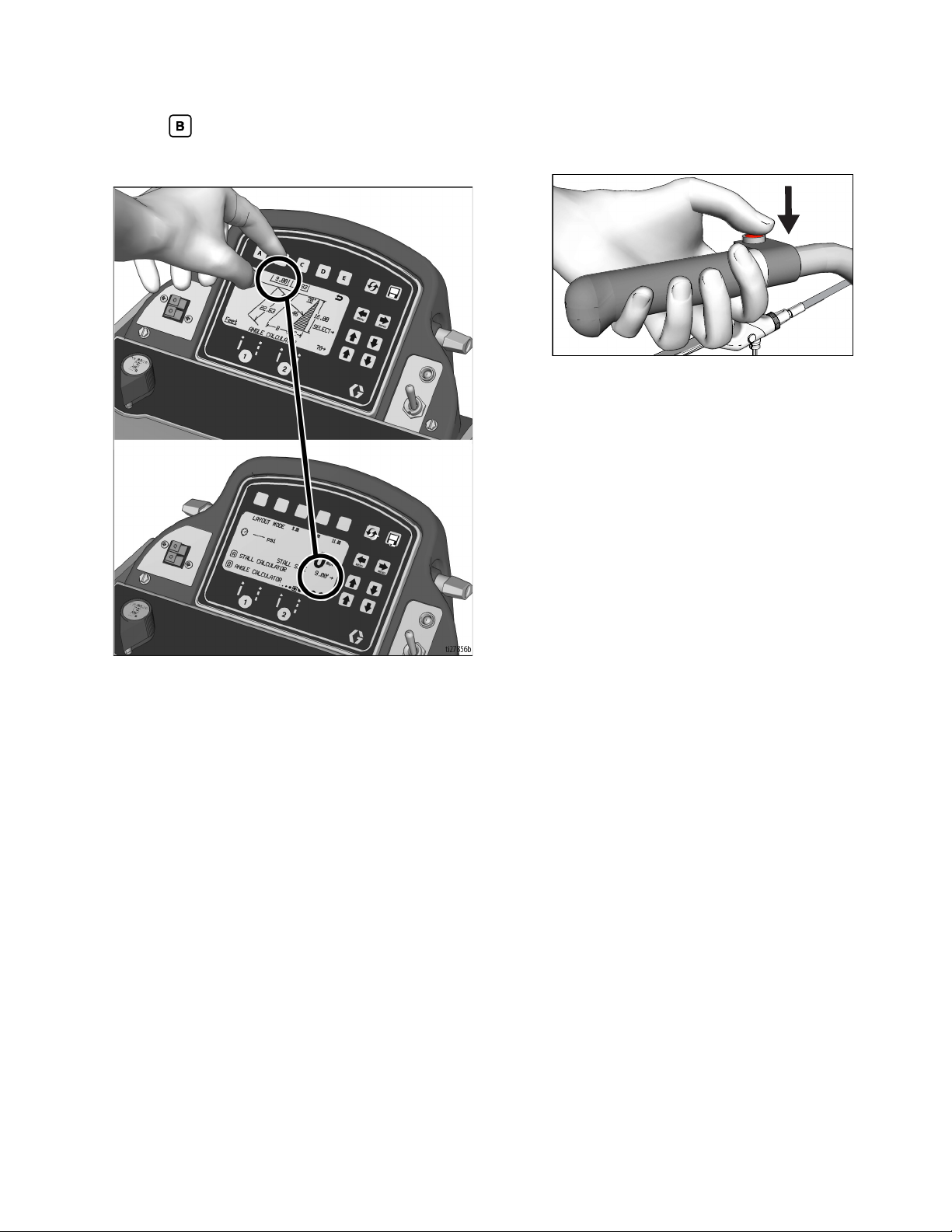

4. Press to transfer calculated dot spacing
distance to Layout Mode. Save this value in
favorites if desired.
5. Press and release gun trigger control to start
marking stall size dots. Press and release gun
trigger control to stop marking.
ti27842a

LineLazer V LiveLook Display
48 3A4603J Operation, Repair, Parts
Setup/Information
Use to select Setup/Information.
Press to select Language.
See Language, page 31.
See Calibration, page 31.
See Settings, page 49.
See Information, page 50.
See Marker Layout Mode, page 51.
