Liquid Dispensing Systems 312394B
PR70 Feed Systems All Models
For use in dispensing of sealants and adhesives
Important Safety
Instructions
Read all warnings and
instructions in this manual.
This manual is supplemental and
only covers some very specific
warnings and instructions as they
pertain to the feed systems. Please
refer to manual 312393 for a
complete list of warnings, wetted
materials, warranty information
and instructions for the entire
machine.
PROVEN QUALITY, LEADING TECHNOLOGY.
GRACO OHIO INC. 8400 PORT JACKSON AVE. NW NORTH CANTON, OH 44720-5464
Phone: [phone] Fax: [phone] www.liquidcontrol.com
[email protected] [email protected]
Copyright 2007, Graco Inc is a registered to I.S. EN ISO 9001

Table of Contents
Table of Contents
Table of Contents ..................................................................................................2
Supplied Manuals ..................................................................................................3
Related Manuals ....................................................................................................3
Warnings ................................................................................................................4
Identify Your Feed System....................................................................................6
On-Board Polyethylene Feed Systems................................................................7
Polyethylene Lid Options ..........................................................................................................................................8
Low Level Sensor Option..........................................................................................................................................8
Low Level Sensor Calibration ...................................................................................................................................9
Low-Level Sensor LED Indicators and Trouble Shooting.........................................................................................9
Installation / Maintenance and Repair ....................................................................................................................10
Assembly Diagrams / Spare Parts..........................................................................................................................12
On-Board Stainless Steel Feed Systems...........................................................24
Stainless Steel On-Board Lids................................................................................................................................25
Installation, Operation, Maintenance and Repair...................................................................................................26
Vacuum Degas Procedure ..................................................................................28
Installing or Replacing Low Level Sensors on SST Tanks..............................31
Assembly Diagrams / Spare Parts..........................................................................................................................33
Accumulators.......................................................................................................47
General Setup.........................................................................................................................................................47
Accumulator Low Level Sensors ............................................................................................................................53
Off-Board Stainless Steel Feed Systems ..........................................................54
Stainless Steel Off-Board Lids................................................................................................................................55
Level Sensors ......................................................................................................71
312394B 2 of 71

Manuals
Supplied Manuals
The following manuals will be supplied with the PR70. PR70 Operation
Refer to these documents for detailed machine Part Description
information. 312393 Manual, Operation & Maintenance
PR70
PR70 Feed System
Part Description
312394 Manual, Tank/Feed System, PR70
Dispense Valve, MD2
Part Description
312185 Manual, Dispense Valve, MD2
* Heat Control Module(s)
Part Description
312413 Manual, Heat Control, Tank/Hoses
Related Manuals
The following manuals are for accessories to be used PR70 Operation
with the PR70 machine. Part Description
312393 Manual, Operation & Maintenance
PR70
PR70 Feed System
Part Description
312394 Manual, Tank/Feed System, PR70
Dispense Valve, MD2
Part Description
312185 Manual, Dispense Valve, MD2
Heat Control Module(s)
Part Description
312413 Manual, Heat Control, Tank/Hoses
* The Heat Control Module manual is not provided for machines which do not have a Heated Tank and/or
Hose component.
312394B 3 of 71

Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama-
tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer
back to these warnings. Additional, product-specific warnings may be found throughout the body of this manual
where applicable.
WARNING
ELECTRIC SHOCK HAZARD
Improper grounding, setup, or usage of the system can cause electric shock.
• Turn off and disconnect power cord before servicing equipment.
• Use only grounded electrical outlets.
• Use only 3-wire extension cords.
• Ensure ground prongs are intact on sprayer and extension cords.
• Do not expose to rain. Store indoors.
SKIN INJECTION HAZARD
High-pressure fluid from dispense valve, hose leaks, or ruptured components will pierce skin. This may
look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical
treatment.
• Do not point dispense valve at anyone or at any part of the body.
• Do not put your hand over the end of the dispense nozzle.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read MSDS’s to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
• Always wear impervious gloves when spraying or cleaning equipment.
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent
fire and explosion:
• Use and clean equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords or turn lights on or off when flammable fumes are present.
• Ground equipment, personnel, object being sprayed, and conductive objects in work area. See
Grounding instructions.
• Use only Graco grounded hoses.
• Check gun resistance daily.
• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment
until you identify and correct the problem.
• Do not flush with gun electrostatics on. Do not turn on electrostatics until all solvent is removed from
system.
• Keep a working fire extinguisher in the work area.
312394B 4 of 71

Warnings
WARNING
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information about
your material, request MSDS forms from distributor or retailer.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manu-
facturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
MOVING PARTS HAZARD
Moving parts can pinch or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment,
follow the Pressure Relief Procedure in this manual. Disconnect power or air supply.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating area
of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic fumes,
burns, and hearing loss. This equipment includes but is not limited to:
• Protective eyewear
• Clothing and respirator as recommended by the fluid and solvent manufacturer
• Gloves
• Hearing protection
BURN HAZARD
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe burns,
do not touch hot fluid or equipment. Wait until equipment/fluid has cooled completely.
312394B 5 of 71

Feed System Identification
Identify Your Feed System
1. Your machine should include one of 5 feed system
options (see Figure 1 below)
A. On-Board Dual Polyethylene Tanks
B. On-Board Stainless Steel Tanks
C. 1-1/2” NPT Flange for attaching your own
feed package
D. A ccumulators
E. Off-Board Stainless Steel Tanks
F. Combination of One On-Board & One Off-
board Stainless Steel Tank
2. Each feed system has a variety of possible
options which will be covered in detail in
subsequent sections of this manual. Once you
have identified your feed system, please refer
back to the table of contents for the location of
your specific information
A. B C.
D. E. F.

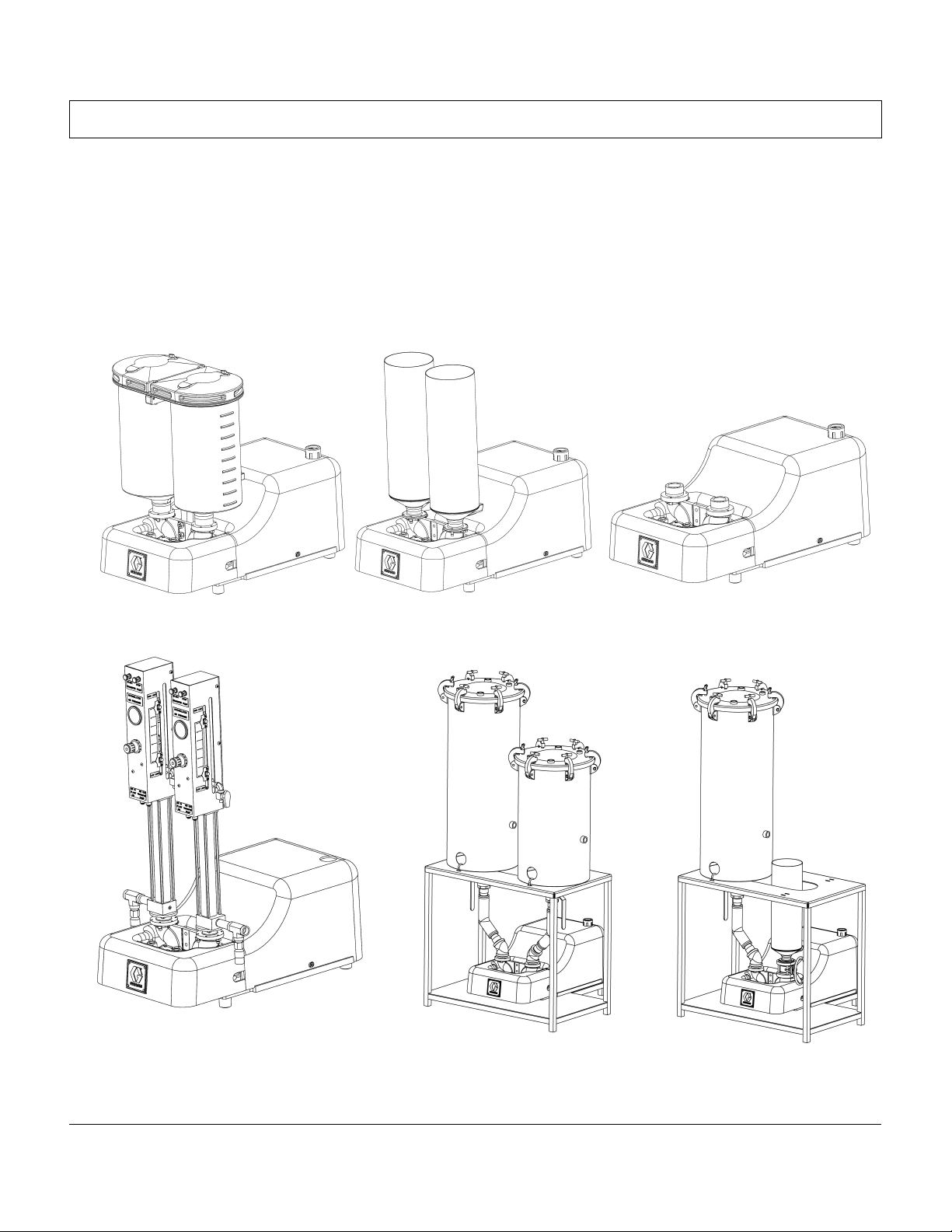

Figure 1: Typical PR70 (without HMI, hoses or dispense valves. Off-Board Tanks assemblies may or may not
come with the stand shown here)
312394B 6 of 71

On-Board Polyethylene Feed Systems
On-Board Polyethylene Feed Systems

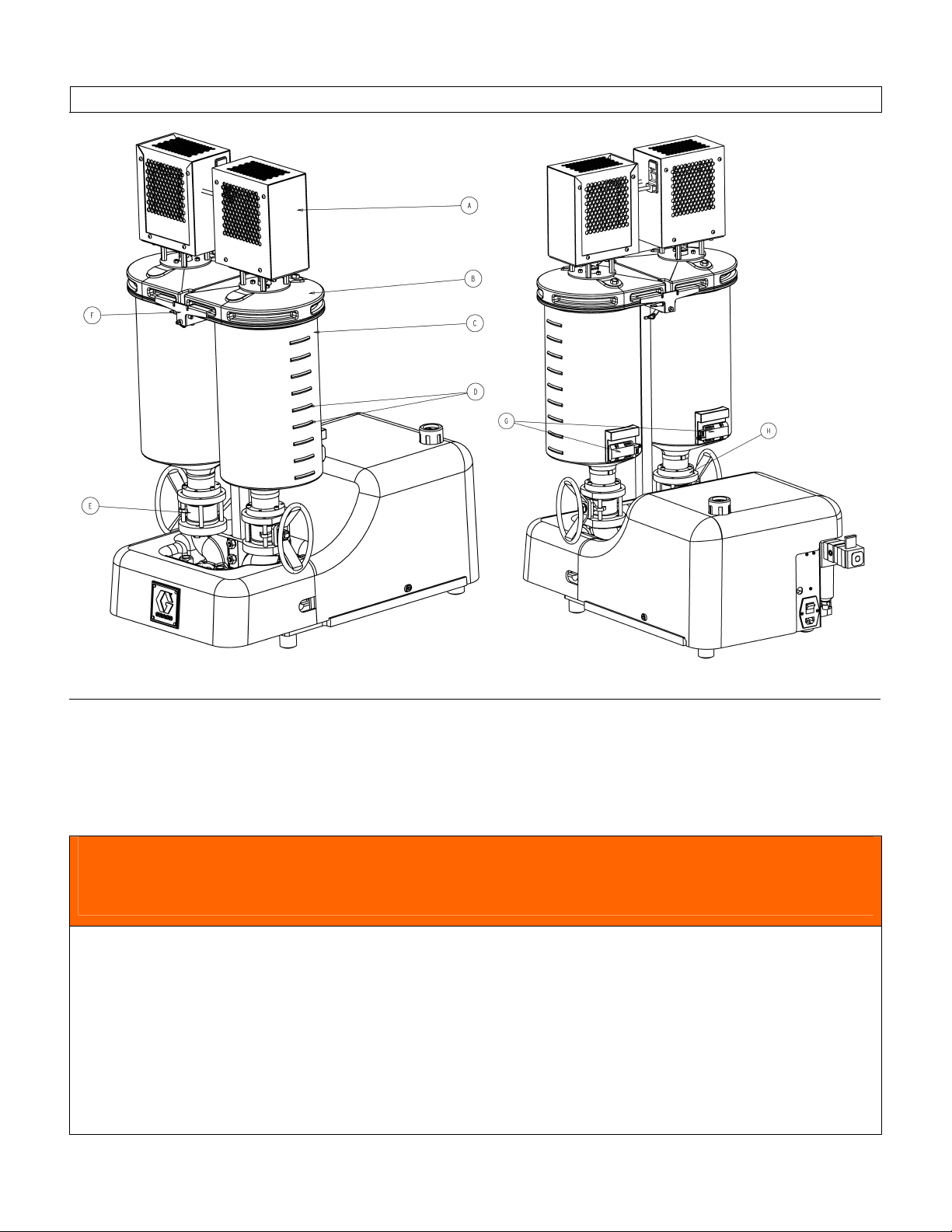

Figure 2: On-Board Polyethylene Feed Systems
KEY:
A: Agitators (Optional) E: Ball Valve Shut-Off Assemblies (Optional)
B: Polyethylene Tank Lids F: Lid Clamp Assembly (Comes with Agitator Assembly)
C: 8L Dual Polyethylene Tank G: Low Level Sensors (Optional)
D: Liter Markers H: Lock Rings
CAUTION
• DO NOT HEAT THE POLYETHYLENE TANK ASSEMBLIES
• DO NOT PRESSURE FEED THE POLYETHYLENE TANK ASSEMBLIES
• DO NOT VACUUM DEGAS THE POLYETHYLENE TANK ASSEMBLIES
• DO NOT USE TANK ASSEMBLIES AS SUPPORT WHILE FILLING FROM
LARGER CONTAINERS
• CHECK THE BREATHERS ON THE LIDS REGULARLY TO ENSURE
THEY ARE NOT CLOGGED AND AIR IS FLOWING FREELY
312394B 7 of 71

On-Board Polyethylene Feed Systems
Polyethylene Lid Options
3. Polyethylene tanks have two lid options (see figure 2 below):
A. Plain with breather
B. With Electric Agitator (120VAC or 240VAC)
C. With Pneumatic Agitator
4. Regardless of lid type, begin by placing in the tank with the two flat side facing each other as shown above in
Figure 2
A.
B. C.
Figure 3: Possible Polyethylene Lids
Low Level Sensor Option
5. If your tanks come with the Low-Level Sensors already installed, they will already be calibrated during factory
installation. However, if you order them at a later date, please follow the instructions below
NOTE: SENSORS MUST BE INSTALLED AND CALIBRATED ON AN EMPTY
TANK!
6. Install sensors as shown below with the screws
provided with the sensor kit
7. Plug the connector on the sensor into the connector
on the base machine
Figure 4: Low Level Sensor Installation Figure 5: Low Level Sensor Harness Installion
312394B 8 of 71

On-Board Polyethylene Feed Systems
Be careful when reaching into the tanks to verify that the sensors are
functioning. Read all manufacturer’s warning and material MSDS to know the
specific hazards of the material used. Wear respirator, gloves and other
protective clothing as necessary before dispensing material.
Low Level Sensor Calibration
8. After plugging in the harness, locate the TEACH
ELEMENT in the area called out in the illustration to
the right. It will be marked with a “bullseye.”
A. Activate the teach element by holding a
screw-driver near the bullseye. Only hold the
screw-driver there until the GREEN LED
begins flashing, but no more than five (5)
seconds
B. After a short time, the GREEN LED will stay lit
continuously.
C. You are now in OPERATING MODE for that
sensor. Repeat with the other sensor.
9. If the tank is clean and you wish to check the sensor
and make sure it’s working before dumping material
in, you can simply reach your hand down inside the
tank and touch the tank wall in the sensor area. A
GREEN and YELLOW light illuminated at the same
time means the sensor is detecting your hand.
10. If the tank is empty, but not clean, please refer to
your MSDS sheets to determine what protective
measures must be taken before reaching into the
tank.
11. Please refer to manual 312393A for instructions on
interfacing the new sensors with your machine’s
HMI
Figure 6: Low Level Sensor Calibration
Low-Level Sensor LED Indicators and Trouble Shooting
Green LED • ON = Unit is ready for operation
• Flashes Slowly (1Hz) = Adjustment mode in empty state
• Flashes Quickly (2Hz) = Adjustment mode full state
• OFF = Locking mode
Yellow LED • OFF = Switching output disabled
• ON = Switching output enabled
Red LED • ON = close to reaching the switching threshold
• Flashes Quickly (8Hz) = Adjustment Error, Internal Fault
Red & Yellow
LED’s Together
• Flashing Quickly (2Hz) simultaneously = Short Circuit in the switching output
Please note that the RED LED DOES NOT INDICATE MALFUNCTION of the unit. It indicates that the internal
sensor signal is near the switching threshold
312394B 9 of 71

On-Board Polyethylene Feed Systems
Be careful when interacting with the polyethylene feed systems due to the contents
of the tanks. Read all manufacturer’s warning and material MSDS to know the
specific hazards of the material used. Wear respirator, gloves and other protective
clothing as necessary before dispensing material.
Always unplug the agitators from their power source (electric or pneumatic) before
performing any maintenance.
Hearing protection may be required if sitting in close proximity to the pneumatic
agitators
Installation / Maintenance and Repair

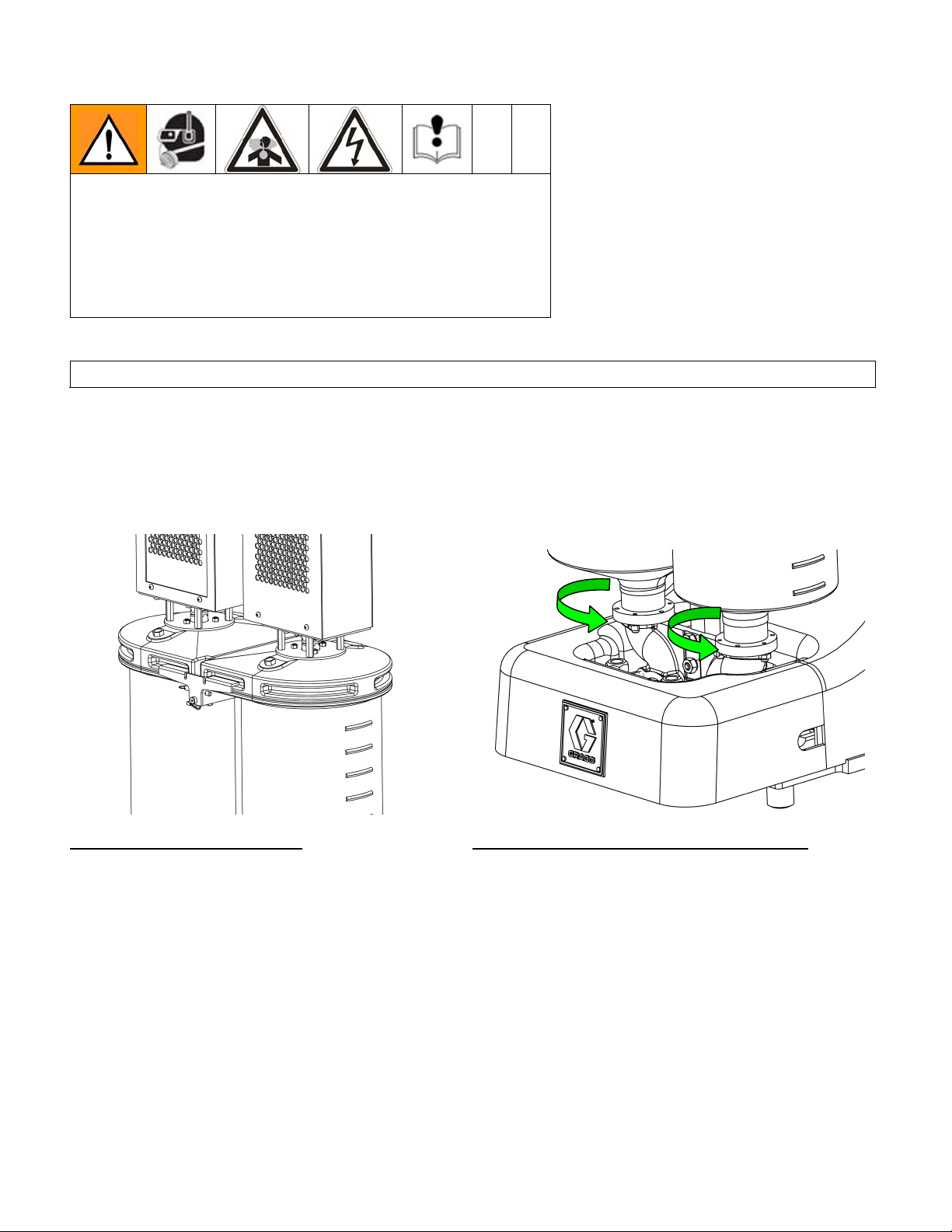

12. If the lids come with agitator assemblies, the
upright support comes with an extra clamp
assembly on both sides. Rotate the clamp up to
the position shown below (Figure 4), slide it all the
way into the handle areas as shown and insert the
tethered quick-release pin into the hole in the
support upright.
13. If necessary, to remove tanks from pump housing,
remove the two top screws holding the tank to
upright support and loosen (Note: There is no
need to completely remove) the six (6) socket
head cap screws that hold the tank to the pump
housing and rotate the lock rings counter
clockwise and lift the tanks off
Figure 7: Final Clamp Position Figure 8: Tank Removal From Pump Housing
312394B 10 of 71

On-Board Polyethylene Feed Systems
14. If necessary, to remove tanks from pump housing,
remove the two top screws holding the tank to
upright support and remove the six (6) socket head
cap screws that hold the tank to the ball valve
assembly and lift the tanks off.
15. If necessary, to remove tank and ball valve
assembly from pump housing, remove the two top
screws holding the tank to upright support and
loosen (Note: There is no need to completely
remove) the six (6) socket head cap screws that
hold the tank to the pump housing and rotate the
ball valve assemblies counter clockwise and lift the
tanks off
Figure 9: Tank Removal From Ball Valve Assembly Figure 10: Ball Valve Assembly Removal
16. Agitator assemblies require their own outlet and
power cable which will be provided with the unit.
Simply plug the appropriate in to a 120V/60Hz
Outlet and turn the power switch on.
17. If necessary, the fuse can be replaced by sliding
open the fuse drawer, removing the existing fuse
and replacing with the new one.
Figure 11: Final Clamp Position Figure 12: Tank Removal From Pump Housing
312394B 11 of 71

On-Board Polyethylene Feed Systems
Assembly Diagrams / Spare Parts
All O-rings used on the Polyethylene Tanks are coated with Krytox GPL-203 to aid in initial
assembly. MSDS sheets are available upon request

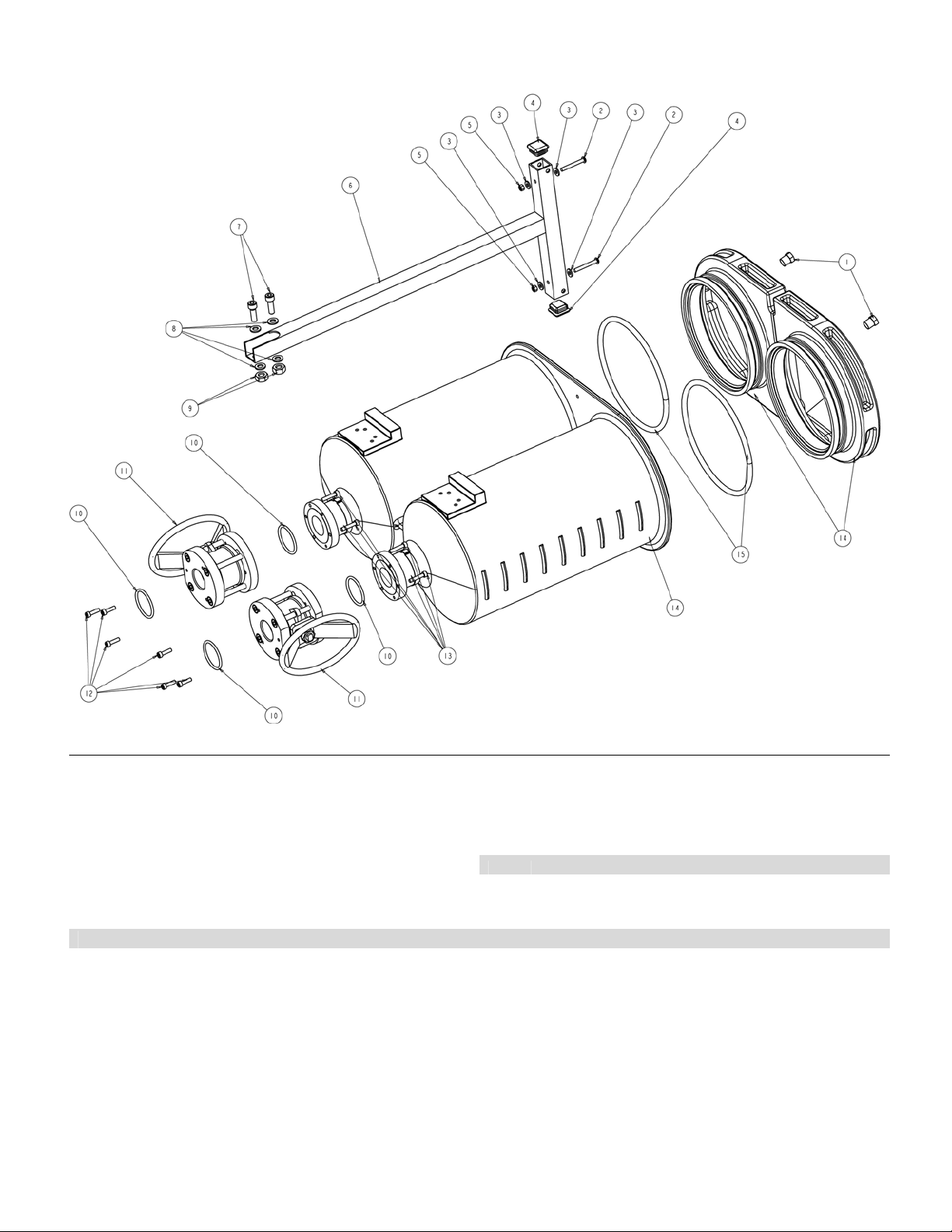

Figure 13: Standard On-Board PE Tank Assembly (P/N 255241)
1 120909 BREATHER 8 120908 WASHER,FLAT,M8,SST
2 120902 SCREW,SHCS,M5X0.8X40MM,SST 9 120906 NUT,HEX,LOCK,M8X1.25,SST
3 120907 WASHER,FLAT,#10,SST 10 95/0223/00 O-RING,VIT,BBC
4 120915 CAP PLUG 11 120904 SCREW,SHCS,M5X0.8X18MM,SST
5 120905 NUT,HEX,LOCK,M5X0.8,SST 12 15K838 TANK,DUAL,8L
6 15K842 SUPPORT,TANK 13 15K840 O-RING
7 120913 SCREW,SHC,M8X1.25X25,MS,E
PART NUMBER CANNOT BE ORDERED AS A SPARE. TANK REPLACEMENT KIT 255479 MUST BE ORDERED
312394B 12 of 71

On-Board Polyethylene Feed Systems

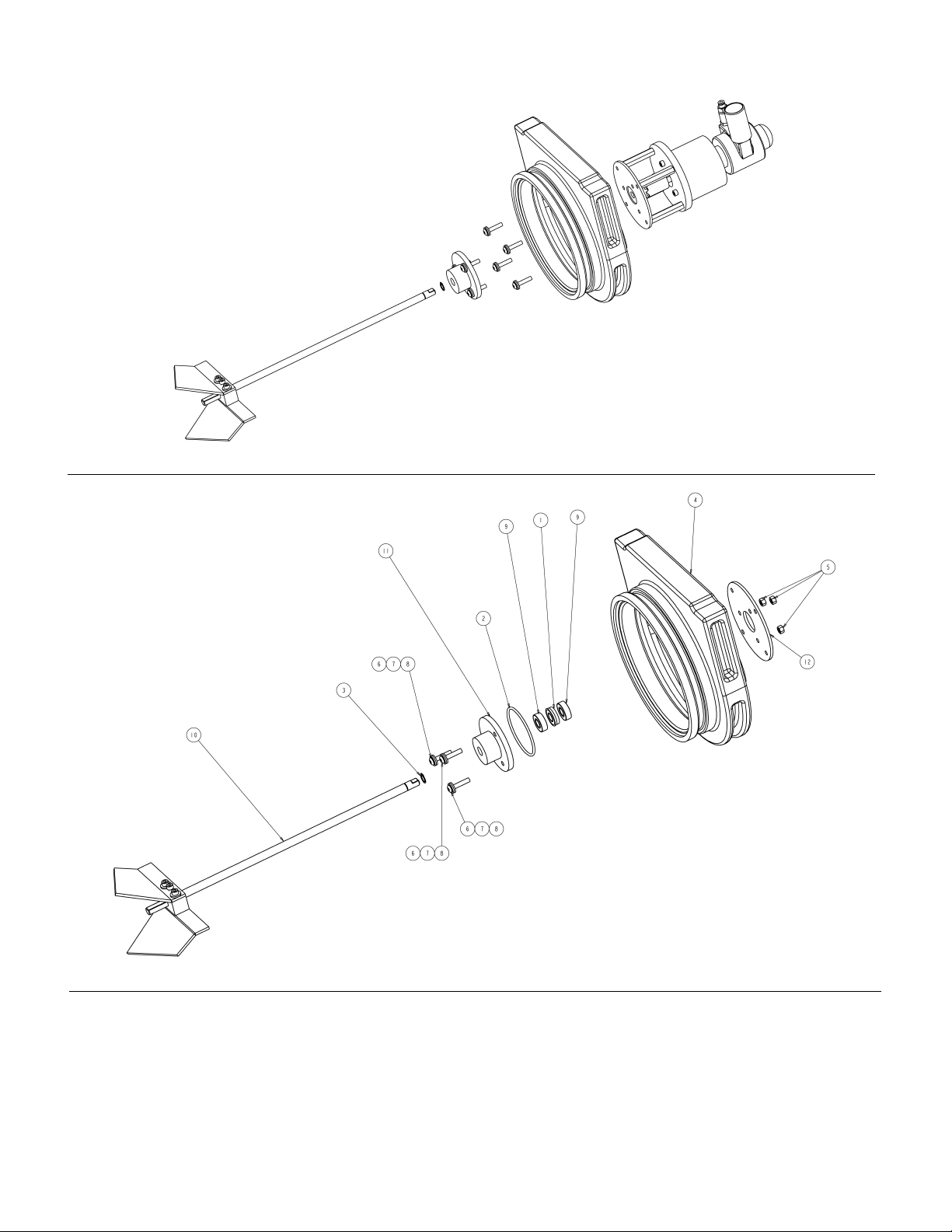

Figure 14: PE ELECTRIC AGITATOR View 1 of 3 (Overall View) (P/Ns: 255246 & 255503)
Figure 15: PE ELECTRIC AGITATOR View 2 of 3 (Lower View) (P/N 255246 & 255503)
1 84/2215-A/11 COUPLING,ALIGNMENT,1"OD,HUB,3/8ID 8 120907 WASHER,FLAT,#10,SST
2 84/2215-B/11 COUPLING,ALIGNMENT,1"OD,DISK,NYLON 9 120928 SCREW,BHCS,M5X0.8X25MM SST
3 95/0842/11 POSIPAK,3/8IDX7/8OD,STD,P/VIT 10 120930 WASHER,SEAL
4 95/0864/00 O-RING,VIT,ADA 11 121173 BEARING,BALL,3/8"IDX7/8"ODX9/32"WIDE SLD
5 96/0817/99 RING,RET,EXT,0.375,MS>@@@ 12 255724 AGITATOR,SHAFT AND BLADE ASSY
6 ****** LID REPRESENTATION (REFERENCE ONLY) 13 15K884 HOUSING,BEARING
7 120905 NUT,HEX,LOCK,M5X0.8,SST 14 15K886 DISK,SUPPORT
312394B 13 of 71

On-Board Polyethylene Feed Systems

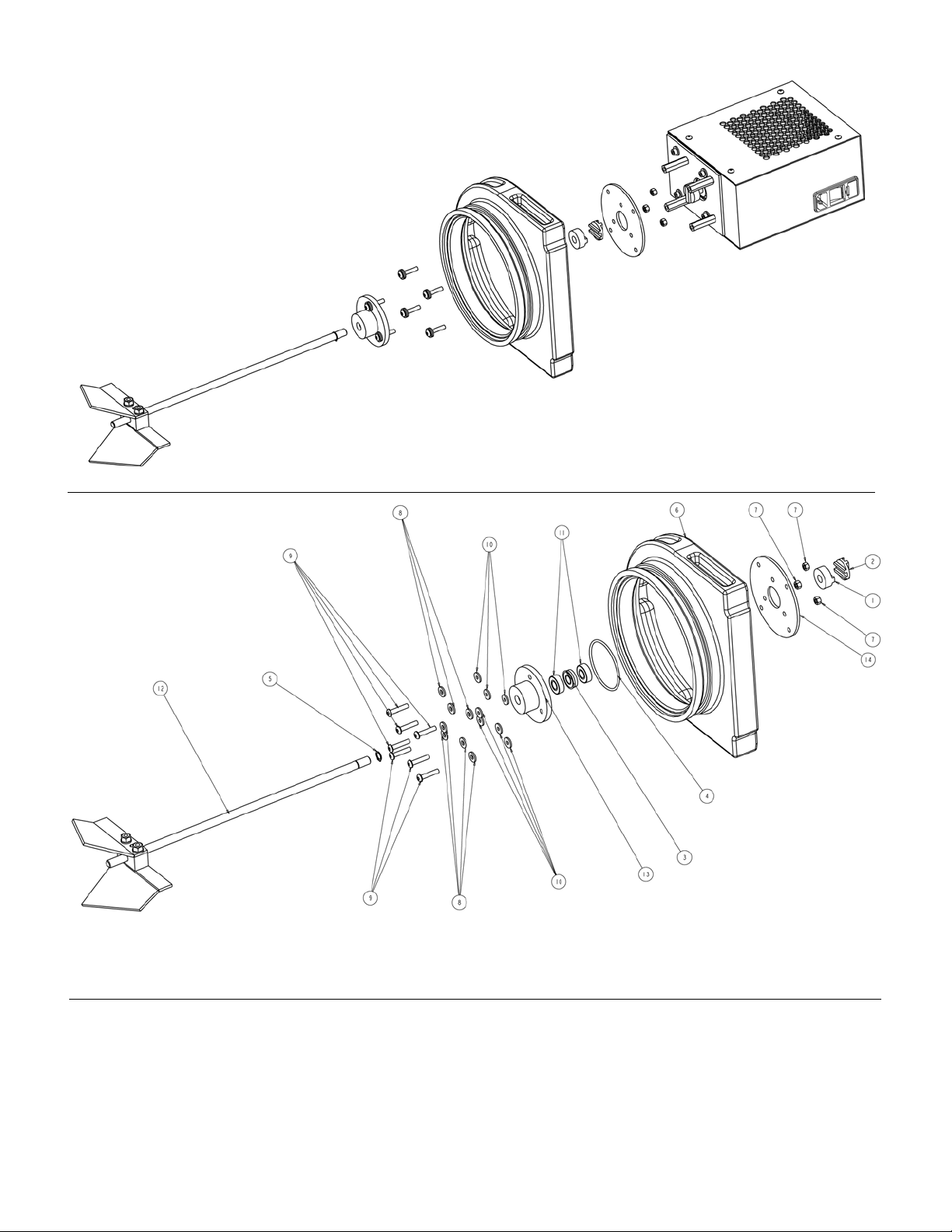

Figure 16: PE ELECTRIC AGITATOR View 3 of 3 (Motor Assembly View) (P/N 255246 & 255503)
P/N: 255246 AGITATOR ASSY, 120V
1 01/2218/97 ENCLOSURE,AGITATOR,ELEC,PRMV/F,HD>NOTES 8 81/2218-1/11 GEARMOTOR,50RPM,60IN-
LB,120V,W/FAN,1.2A>
2 ****** BOTTOM OF ENCLOSURE (REFERENCE ONLY) 9 84/2215-A/11 COUPLING,ALIGNMENT,1"OD,HUB,3/8ID
3 01/2219/97 PLATE,ADAPTER,ELEC AGIT,HD,PRM 10 96/0271/99 SCREW,BHCS,8-32X0.31,MS,E@@@
4 81/1040/11 CONNECTOR,AC,2P,250V,10A,DPST,W/FUSE HLD 11 120907 WASHER,FLAT,#10,SST
5 81/1040-1/11 FUSEDRAWER,AC CONN,2P,250V,10A,W/BAR,5MM 12 120960 SCREW,BHCS,M5X0.8X20MM
6 ***** POWER CORD (REFERENCE ONLY) 13 120961 SCREW,SHCS,10-32X.75"
7 81/1053-1.6/11 FUSE,5X20MM,1.6A,TIME DELAY 14 15K885 SPACER
P/N: 255503 AGITATOR ASSY, 240V
1 01/2218/97 ENCLOSURE,AGITATOR,ELEC,PRMV/F,HD>NOTES 8 81/2218-2/11 GEARMOTOR,50RPM,60IN-
LB,240V,W/FAN,1.2A>
2 ****** BOTTOM OF ENCLOSURE (REFERENCE ONLY) 9 84/2215-A/11 COUPLING,ALIGNMENT,1"OD,HUB,3/8ID
3 01/2219/97 PLATE,ADAPTER,ELEC AGIT,HD,PRM 10 96/0271/99 SCREW,BHCS,8-32X0.31,MS,E@@@
4 81/1040/11 CONNECTOR,AC,2P,250V,10A,DPST,W/FUSE HLD 11 120907 WASHER,FLAT,#10,SST
5 81/1040-1/11 FUSEDRAWER,AC CONN,2P,250V,10A,W/BAR,5MM 12 120960 SCREW,BHCS,M5X0.8X20MM
6 ***** POWER CORD (REFERENCE ONLY) 13 120961 SCREW,SHCS,10-32X.75"
7 81/1053-1.6/11 FUSE,5X20MM,1.6A,TIME DELAY 14 15K885 SPACER
312394B 14 of 71

On-Board Polyethylene Feed Systems

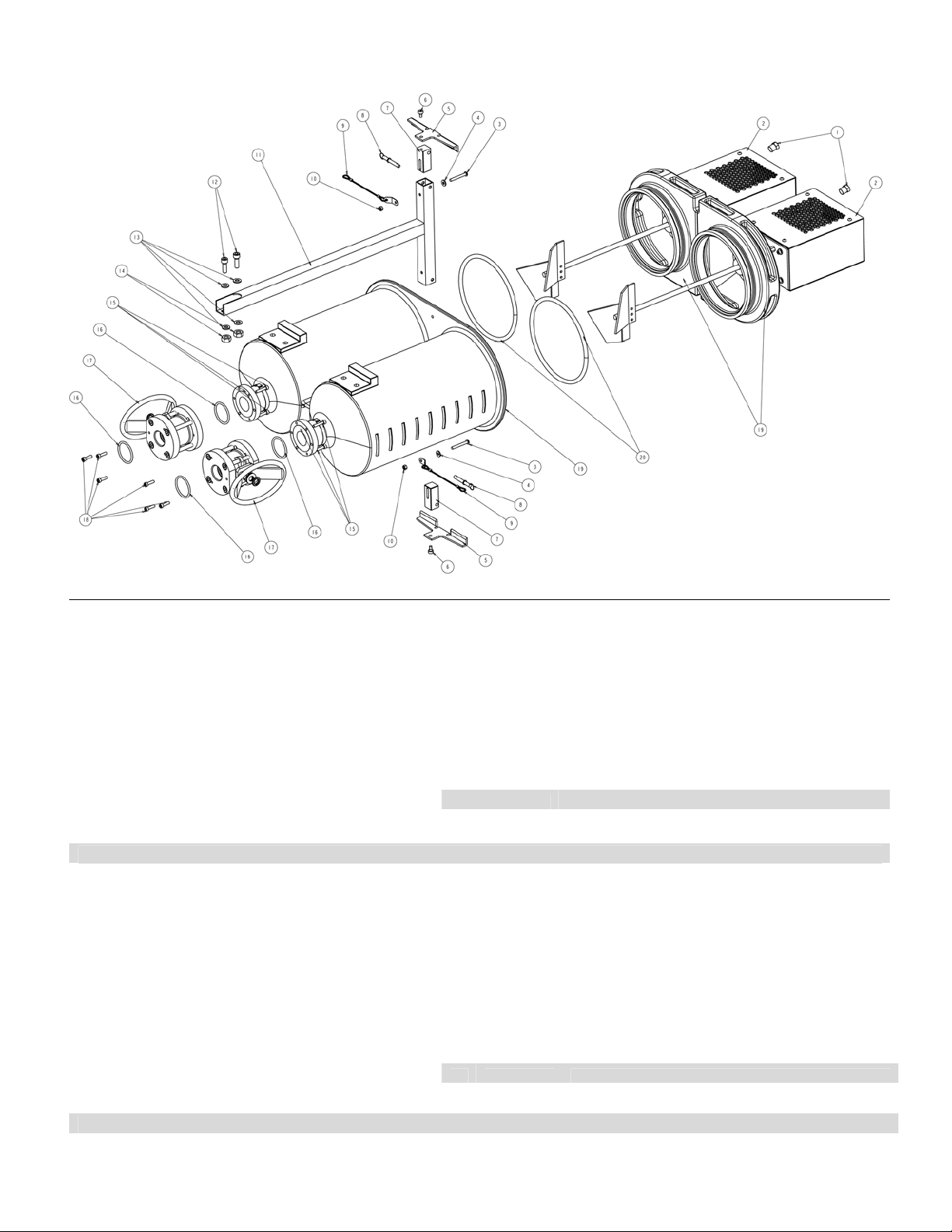

Figure 17: TANK ASSY, DUAL 8L PE WITH AGITATOR(S) (P/Ns 255250, 255251, LC0126, &LC0127)
P/N 255250 TANK ASSY, DUAL 8L PE WITH 1 AGITATOR, 120V
1 120909 BREATHER 10 120905 NUT,HEX,LOCK,M5X0.8,SST
2 255246 AGITATOR ASSY,8L DUAL PE TANKS,120V 11 15K842 SUPPORT,TANK
3 120902 SCREW,SHCS,M5X0.8X40MM,SST 12 120913 SCREW,SHC,M8X1.25X25,MS,E
4 120907 WASHER,FLAT,#10,SST 13 120908 WASHER,FLAT,M8,SST
5 15K883 CLAMP,LID 14 120906 NUT,HEX,LOCK,M8X1.25,SST
6 120929 SCREW,SHOULDER,M5X0.8X6MM 15 95/0223/00 O-RING,VIT,BBC
7 15K882 RETAINER,SLIDER 16 120904 SCREW,SHCS,M5X0.8X18MM,SST
8 120927 FASTENER,QUICK RELEASE PIN 17 15K840 O-RING
9 120925 RETAINER,LANYARD WITH TAB 18 15K839 TANK ASSY,8L DUAL PE WITH ONE AGITATOR>
PART NUMBER CANNOT BE ORDERED AS A SPARE. TANK REPLACEMENT KIT 255480 MUST BE ORDERED
P/N LC0126 TANK ASSY, DUAL 8L PE WITH 1 AGITATOR, 240V
1 120909 BREATHER 10 120905 NUT,HEX,LOCK,M5X0.8,SST
2 255503 AGITATOR ASSY,8L DUAL PE TANKS,240V 11 15K842 SUPPORT,TANK
3 120902 SCREW,SHCS,M5X0.8X40MM,SST 12 120913 SCREW,SHC,M8X1.25X25,MS,E
4 120907 WASHER,FLAT,#10,SST 13 120908 WASHER,FLAT,M8,SST
5 15K883 CLAMP,LID 14 120906 NUT,HEX,LOCK,M8X1.25,SST
6 120929 SCREW,SHOULDER,M5X0.8X6MM 15 95/0223/00 O-RING,VIT,BBC
7 15K882 RETAINER,SLIDER 16 120904 SCREW,SHCS,M5X0.8X18MM,SST
8 120927 FASTENER,QUICK RELEASE PIN 17 15K840 O-RING
9 120925 RETAINER,LANYARD WITH TAB 18 15K839 TANK ASSY,8L DUAL PE WITH ONE AGITATOR>
PART NUMBER CANNOT BE ORDERED AS A SPARE. TANK REPLACEMENT KIT 255480 MUST BE ORDERED
312394B 15 of 71

On-Board Polyethylene Feed Systems
P/N 255251 TANK ASSY, DUAL 8L PE WITH 2 AGITATORS, 120V
1 120909 BREATHER 10 120905 NUT,HEX,LOCK,M5X0.8,SST
2 255246 AGITATOR ASSY,8L DUAL PE TANKS,120V 11 15K842 SUPPORT,TANK
3 120902 SCREW,SHCS,M5X0.8X40MM,SST 12 120913 SCREW,SHC,M8X1.25X25,MS,E
4 120907 WASHER,FLAT,#10,SST 13 120908 WASHER,FLAT,M8,SST
5 15K883 CLAMP,LID 14 120906 NUT,HEX,LOCK,M8X1.25,SST
6 120929 SCREW,SHOULDER,M5X0.8X6MM 15 95/0223/00 O-RING,VIT,BBC
7 15K882 RETAINER,SLIDER 16 120904 SCREW,SHCS,M5X0.8X18MM,SST
8 120927 FASTENER,QUICK RELEASE PIN 17 15K840 O-RING
9 120925 RETAINER,LANYARD WITH TAB 18 15K923 TANK ASSY,8L DUAL PE WITH TWO AGITATORS>
PART NUMBER CANNOT BE ORDERED AS A SPARE. TANK REPLACEMENT KIT 255481 MUST BE ORDERED
P/N LC0127 TANK ASSY, DUAL 8L PE WITH 2 AGITATORS 240V
1 120909 BREATHER 10 120905 NUT,HEX,LOCK,M5X0.8,SST
2 255503 AGITATOR ASSY,8L DUAL PE TANKS,240V 11 15K842 SUPPORT,TANK
3 120902 SCREW,SHCS,M5X0.8X40MM,SST 12 120913 SCREW,SHC,M8X1.25X25,MS,E
4 120907 WASHER,FLAT,#10,SST 13 120908 WASHER,FLAT,M8,SST
5 15K883 CLAMP,LID 14 120906 NUT,HEX,LOCK,M8X1.25,SST
6 120929 SCREW,SHOULDER,M5X0.8X6MM 15 95/0223/00 O-RING,VIT,BBC
7 15K882 RETAINER,SLIDER 16 120904 SCREW,SHCS,M5X0.8X18MM,SST
8 120927 FASTENER,QUICK RELEASE PIN 17 15K840 O-RING
9 120925 RETAINER,LANYARD WITH TAB 18 15K923 TANK ASSY,8L DUAL PE WITH TWO AGITATORS>
PART NUMBER CANNOT BE ORDERED AS A SPARE. TANK REPLACEMENT KIT 255481 MUST BE ORDERED
312394B 16 of 71

On-Board Polyethylene Feed Systems
Figure 18: TANK ASSY, DUAL 8L PE WITH SHUTOFF (P/N 255281)
1 120909 BREATHER 9 120906 NUT,HEX,LOCK,M8X1.25,SST
2 120902 SCREW,SHCS,M5X0.8X40MM,SST 10 95/0223/00 O-RING,VIT,BBC
3 120907 WASHER,FLAT,#10,SST 11 255280 BALL VALVE ASSEMBLY
4 120915 CAP PLUG 12 120904 SCREW,SHCS,M5X0.8X18MM,SST
5 120905 NUT,HEX,LOCK,M5X0.8,SST 13 121013 SCREW,M5X0.8X25MM,SST,SHCS
6 15M226 BALLAST,SUPPORT,8L PE TANK WITH BV 14 15K838 TANK,DUAL,8L
7 120913 SCREW,SHC,M8X1.25X25,MS,E 15 15K840 O-RING
8 120908 WASHER,FLAT,M8,SST
PART NUMBER CANNOT BE ORDERED AS A SPARE. TANK REPLACEMENT KIT 255479 MUST BE ORDERED
312394B 17 of 71

On-Board Polyethylene Feed Systems
Figure 19: TANK ASSY, 8L PE WITH BALL VALVE & AGITATOR(S) (P/Ns 255282, 255283, LC0128 & LC0129)
P/N 255282 TANK ASSY, DUAL 8L PE WITH BALL VALVE & 1 AGITATOR,120V
1 120909 BREATHER 11 15M226 BALLAST,SUPPORT,8L PE TANK WITH BV
2 255246 AGITATOR ASSY,8L DUAL PE TANKS,120V 12 120913 SCREW,SHC,M8X1.25X25,MS,E
3 120902 SCREW,SHCS,M5X0.8X40MM,SST 13 120908 WASHER,FLAT,M8,SST
4 120907 WASHER,FLAT,#10,SST 14 120906 NUT,HEX,LOCK,M8X1.25,SST
5 15K883 CLAMP,LID 15 121013 SCREW,M5X0.8X25MM,SST,SHCS
6 120929 SCREW,SHOULDER,M5X0.8X6MM 16 95/0223/00 O-RING,VIT,BBC
7 15K882 RETAINER,SLIDER 17 255280 BALL VALVE ASSEMBLY
8 120927 FASTENER,QUICK RELEASE PIN 18 120904 SCREW,SHCS,M5X0.8X18MM,SST
9 120925 RETAINER,LANYARD WITH TAB 19 15K839 TANK ASSY,8L DUAL PE WITH ONE AGITATOR>
10 120905 NUT,HEX,LOCK,M5X0.8,SST 20 15K840 O-RING
PART NUMBER CANNOT BE ORDERED AS A SPARE. TANK REPLACEMENT KIT 255480 MUST BE ORDERED
P/N LC0128 TANK ASSY, DUAL 8L PE WITH BALL VALVE & 2 AGITATORS,240V
1 120909 BREATHER 11 15M226 BALLAST,SUPPORT,8L PE TANK WITH BV
2 255503 AGITATOR ASSY,8L DUAL PE TANKS,240V 12 120913 SCREW,SHC,M8X1.25X25,MS,E
3 120902 SCREW,SHCS,M5X0.8X40MM,SST 13 120908 WASHER,FLAT,M8,SST
4 120907 WASHER,FLAT,#10,SST 14 120906 NUT,HEX,LOCK,M8X1.25,SST
5 15K883 CLAMP,LID 15 121013 SCREW,M5X0.8X25MM,SST,SHCS
6 120929 SCREW,SHOULDER,M5X0.8X6MM 16 95/0223/00 O-RING,VIT,BBC
7 15K882 RETAINER,SLIDER 17 255280 BALL VALVE ASSEMBLY
8 120927 FASTENER,QUICK RELEASE PIN 18 120904 SCREW,SHCS,M5X0.8X18MM,SST
9 120925 RETAINER,LANYARD WITH TAB 19 15K839 TANK ASSY,8L DUAL PE WITH ONE AGITATOR>
10 120905 NUT,HEX,LOCK,M5X0.8,SST 20 15K840 O-RING
PART NUMBER CANNOT BE ORDERED AS A SPARE. TANK REPLACEMENT KIT 255480 MUST BE ORDERED
312394B 18 of 71

On-Board Polyethylene Feed Systems
P/N 255283 TANK ASSY, DUAL 8L PE WITH BALL VALVE & 2 AGITATORS 120V
1 120909 BREATHER 11 15M226 BALLAST,SUPPORT,8L PE TANK WITH BV
2 255246 AGITATOR ASSY,8L DUAL PE TANKS,120V 12 120913 SCREW,SHC,M8X1.25X25,MS,E
3 120902 SCREW,SHCS,M5X0.8X40MM,SST 13 120908 WASHER,FLAT,M8,SST
4 120907 WASHER,FLAT,#10,SST 14 120906 NUT,HEX,LOCK,M8X1.25,SST
5 15K883 CLAMP,LID 15 121013 SCREW,M5X0.8X25MM,SST,SHCS
6 120929 SCREW,SHOULDER,M5X0.8X6MM 16 95/0223/00 O-RING,VIT,BBC
7 15K882 RETAINER,SLIDER 17 255280 BALL VALVE ASSEMBLY
8 120927 FASTENER,QUICK RELEASE PIN 18 120904 SCREW,SHCS,M5X0.8X18MM,SST
9 120925 RETAINER,LANYARD WITH TAB 19 15K923 TANK ASSY,8L DUAL PE WITH TWO AGITATORS>
10 120905 NUT,HEX,LOCK,M5X0.8,SST 20 15K840 O-RING
PART NUMBER CANNOT BE ORDERED AS A SPARE. TANK REPLACEMENT KIT 255481 MUST BE ORDERED
P/N LC0129 TANK ASSY, DUAL 8L PE WITH BALL VALVE & 2 AGITATORS 240V
1 120909 BREATHER 11 15M226 BALLAST,SUPPORT,8L PE TANK WITH BV
2 255503 AGITATOR ASSY,8L DUAL PE TANKS,240V 12 120913 SCREW,SHC,M8X1.25X25,MS,E
3 120902 SCREW,SHCS,M5X0.8X40MM,SST 13 120908 WASHER,FLAT,M8,SST
4 120907 WASHER,FLAT,#10,SST 14 120906 NUT,HEX,LOCK,M8X1.25,SST
5 15K883 CLAMP,LID 15 121013 SCREW,M5X0.8X25MM,SST,SHCS
6 120929 SCREW,SHOULDER,M5X0.8X6MM 16 95/0223/00 O-RING,VIT,BBC
7 15K882 RETAINER,SLIDER 17 255280 BALL VALVE ASSEMBLY
8 120927 FASTENER,QUICK RELEASE PIN 18 120904 SCREW,SHCS,M5X0.8X18MM,SST
9 120925 RETAINER,LANYARD WITH TAB 19 15K923 TANK ASSY,8L DUAL PE WITH TWO AGITATORS>
10 120905 NUT,HEX,LOCK,M5X0.8,SST 20 15K840 O-RING
PART NUMBER CANNOT BE ORDERED AS A SPARE. TANK REPLACEMENT KIT 255481 MUST BE ORDERED
312394B 19 of 71

On-Board Polyethylene Feed Systems
Figure 20: PE PNEUMATIC AGITATOR View 1 of 3 (Overall View) (P/Ns: 255730)
Figure 21: PE PNEUMATIC AGITATOR View 2 of 3 (Lower View) (P/N 255730)
1 95/0842/11 POSIPAK,3/8IDX7/8OD,STD,P/VIT 7 120928 SCREW,BHCS,M5X0.8X25MM SST
2 95/0864/00 O-RING,VIT,ADA 8 120930 WASHER,SEAL
3 96/0817/99 RING, RET,EXT,0.375,MS>@@@ 9 121173 BEARING,BALL,3/8"IDX7/8"ODX9/32"WIDE SLD
4 ****** LID REPRESENTATION (REFERENCE ONLY) 10 255724 AGITATOR,SHAFT AND BLADE ASSY
5 120905 NUT,HEX,LOCK,M5X0.8,SST 11 15K884 HOUSING,BEARING
6 120907 WASHER,FLAT,#10,SST 12 15K886 DISK,SUPPORT
312394B 20 of 71
