METERED AUTOMATIC SHUT-OFF NOZZLE 333469E
FOR DIESEL EXHAUST FLUID (DEF) (ISO 22241) EN • FR • ES
NOT APPROVED FOR USE IN EXPLOSIVE
ATMOSPHERES OR HAZARDOUS LOCATIONS
MODEL 127650
MAX WPR 345 kPa (3.4 bar) (50 psi)
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions

2 M0303
EN INDEX
A GENERAL WARNINGS 3
B FIRST AID RULES 3
B1 WARNINGS 4
C BECOMING ACQUAINTED WITH THE DEF DISPENSING NOZZLE WITH METER 5
C1 INTENDED USE 5
D TECHNICAL DATA 6
E INSTALLATION 6
F MODES OF OPERATION 7
F1 MECHANICAL CHARACTERISTICS 7
F2 ELECTRONIC CHARACTERISTICS 7
F3 PREVENTION MISFILLING (optional) 8
G PRELIMINARY CHECK 9
H INITIAL START UP 10
I1 USER BUTTONS 10
I2 BATTERY HOUSING 11
J DAILY USE 11
J1 DISPENSING IN NORMAL MODE 11
J1.1 PARTIAL RESET (NORMAL MODE) 12
J1.2 RESETTING THE RESET TOTAL 12
J2 DISPENSING WITH FLOW RATE MODE DISPLAY 12
J2.1 PARTIAL RESET (FLOW RATE MODE) 13
K CALIBRATION 14
K1 WHY CALIBRATE? 14
K2 DEFINITIONS 14
K3 KEY 14
K4 CALIBRATION MODE 14
K4.1 DISPLAY OF CURRENT CALIBRATION FACTOR
AND RESTORING FACTORY FACTOR. 15
K4.2 IN FIELD CALIBRATION 15
K 4.2.1 IN-FIELD CALIBRATION PROCEDURE 16
K 4.3 DIRECT MODIFICATION OF K FACTOR 17
L METER CONFIGURATION 18
M MAINTENANCE 19
N MALFUNCTIONS 20
N1 MECHANICAL MALFUNCTIONS 20
N2 ELECTRONIC MALFUNCTIONS 20
O TECHNICAL DATA 21
P DEMOLITION AND DISPOSAL 21
Q DIMENSIONS 22
R EC-DECLARATION OF CONFORMITY 23
WARRANTY 24

M0303 3
EN
A GENERAL WARNINGS
Important
precautions
To ensure operator safety and to protect the pump from
potential damage, workers must be fully acquainted with
this instruction manual before performing any operation.
Symbols used
in the manual
The following symbols will be used throughout the manual
to highlight safety information and precautions of particular
importance:
WARNING
This symbol indicates safe working practices for
operators and/or potentially exposed persons.
NOTICE
This symbol indicates that there is risk of damage to
the equipment and/or its components.
NOTE
This symbol indicates useful information.
Manual preser-
vation
This manual should be complete and legible throughout.
It should remain available to end users and specialist
installation and maintenance technicians for consultation at
any time.
Reproduction
rights
All reproduction rights are reserved by Graco Inc. The text
cannot be reprinted without written permission
B FIRST AID RULES
Contact with the
flui In the event of problems developing following EYE/SKIN
CONTACT, INHALATION or INGESTION of the treated product,
please refer to the SAFETY DATA SHEET of the fluid handle .
WARNING
EQUIPMENT MISUSE HAZARD
Keep the product to be dispensed away from eyes and skin
Keep the product to be dispensed out of reach of children
The nozzle must only be used for the purposes for which it
was designed
Using unsuitable component parts and materials
could be hazardous
Not checking correct part installation could be hazard-
ous.

4 M0303
EN B1 WARNINGS
The following warnings are for the setup, use, grounding, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols refer to
procedure-specific risks. When these symbols appear in the body of this manual or on warn-
ing labels, refer back to these Warnings. Product-specific hazard symbols and warnings not
covered in this section may apear thoughout the body of this manual where applicable.
WARNING
FIRE AND
EXPLOSION When flammable fluid
are present in the work
area, such as gasoline and
windshield wiper flui ,
be aware that flammabl
fumes can ignite or ex-
plode. To help prevent fi e
and explosion:
Use equipment only in will ventilated area.
Eliminate all ignition sources, such as
cigarettes and portable electric lamps.
Keep work area free of debris, including rags
and spilled or open containers of solvent and
gasoline.
Do not plug or unplug power cords or turn
lights on or off when flammable fumes are
present.
Ground all equipment in the work area.
Stop operation immediately if static spark-
ing occurs or if you feel a shock. Do not use
equipment until you identify and correct the
problem.
Keep a working fi e extinguisher in the work
area.
EQUIPMENT
MISUSE
!
Misuse can cause death
or serious injury Do not operate the unit when fatigued or un- der the influen e of drugs or alcohol.
Do not exceed the maximum working pres-
sure or temperature rating of the lowest rated
system component. See Technical Data in all
equipment manuals.
Use fluids and solvents that are compatible
with equipment wetted parts. See Technical
Data in all equipment manuals. Read flui
and solvent manufacturer’s warnings. For
complete information about your material,
request MSDS from distributor or retailer.
Do not leave the work area while equipment
is energized or under pressure.
Turn off all equipment when equipment is
not in use.
Check equipment daily. Repair or replace worn
or damaged parts immediately with genuine
manufacturer’s replacement parts only.
Do not alter or modify equipment. Altera-
tions or modific tions may void agency ap-
provals and create safety hazards.
Make sure all equipment is rated and approved
for the environment in which you are using it.
Use equipment only for it intended purpose.
Call your distributor for information.
Route hoses and cables away from traffi areas,
sharp edges, moving parts, and hot surfaces.
Do not kink or over bend hoses or use hoses
to pull equipment.
Keep children and animals away from work area.
Comply with all applicable safety regulations.
Toxic Fluid
or Fumes
Hazard
Toxic fluids or fumes ca
cause serious injury or
death if splashed in the
eyes or on skin, inhaled, or
swallowed.
Read MSDS’s to know the specific hazards of
the fluids ou are using.
Store hazardous fluid in approved contain-
ers, and dispose of it according to applicable
guidelines.

M0303 5
EN
Prolonged contact with the treated product may cause skin irritation: always wear protec-
tive gloves during dispensing
Personal
Protective
Equipment
Wear appropriate protec-
tive equipment when in
the work area to help pre-
vent serious injury, includ-
ing eye injury, hearing loss,
inhalation of toxic fumes,
and burns.
This equipment includes but is not limited to:
Protective eyewear, safety shoes, close-fittin
clothing and hearing protection.
Respirators, protective clothing, and gloves as
recommended by the fluid and solvent manu-
facturer.
Wear protective equipment that is suited to the
operations that need to be performed and re-
sistant to cleaning products.
C BECOMING ACQUAINTED WITH THE DEF
DISPENSING NOZZLE WITH METER
FOREWORD Dispenser nozzle featuring integrated meter, made of non-conduc-
tive plastic and designed for use with water/urea solution (AUS32/
DEF). The meter integrated with the nozzle uses a turbine measur-
ing system and interfaces with the user by means of the LCD display.
The nozzle is also compatible with water.
C1 INTENDED USE
WATER/UREA SOLUTION - D.E.F. - AUS 32, ACCORDING TO DIN 70070,
WATER,
CONDITIONS OF USE
AND ENVIRONMEN-
TAL CONDITIONS
Refer to the product technical sheets

6 M0303
EN D TECHNICAL DATA
Part number Min. fl w-rate Max. fl w-rate Pressure loss at 35 l/ min (9.3 gpm) Inlet thread with swivel External diameter hose-end fittin Max. operating pressure Weight
127650 15 l/min 45 l/min 0.9 bar 1” GAS 20 mm 3.5 bar 0.8 Kg
4 gpm 12 gpm 13 psi 1” BSP .787 in 50 psi 1.8 lb
NOTE The wetted materials used in this device are :
stainless steel, plastic and rubber suitable for AdBlue.
E INSTALLATION
FOREWORD The automatic nozzles are supplied ready for use.
The nozzle features SWIVEL hose-end fitting (complete
with O-ring) useful for connecting to the supply hose.
TO ENSURE PERFECT OPERATION, THE DEVICE MUST BE
USED TO DISPENSE FLUIDS WITH CHARACTERISTICS FALL-
ING WITHIN THE FOLLOWING PARAMETERS:
- Qmin .: 15 l/min / 4 gpm -- Qmax: 45 l/min / 12 gpm
- Pmin. : 1,5 bar / 22 psi - - Pmax: 3,5 bar / 50 psi
NOTICE During installation, use adequate sealants, being
careful no residues remain inside the hose.
So as not to negatively affect product operation,
couple the hose-end fitting with the hose without
using tools such as pliers, etc.
Assembly will be easier if the swivel hose-end fitting
is already fitted on the nozzle.
Make sure the hoses and the suction tank are with-
out threading scale or residues which could dam-
age the nozzle and the accessories.
NOTICE Apply adequate sealants on the male threads of the
connections and swivels
Do not use PTFE tape
NO PTFE TAPE

M0303 7
EN
F MODES OF OPERATION
F1 MECHANICAL CHARACTERISTICS
FOREWORD The main feature of these nozzles is that they are easy to
use.
Two operating modes are available:
1
ASSISTED MODE Dispense by operating the nozzle lever. To interrupt dis- pensing manually, release the lever.
2
AUTOMATIC MODE Use the opening lever lock device for automatic dispens- ing.
To continue dispensing after automatic stop, the lever
must be fully released before proceeding to operate it
again.
To interrupt dispensing in manual mode, press the lever
again, thereby releasing the device, and then release.
NOTICE DO NOT USE THE NOZZLE OUTSIDE THE PARAM-
ETERS INDICATED ON THE ”TECHNICAL DATA”
CHART
NOTICE Dispensing is automatically interrupted due to the
shut-off device, which operates when the level of the
liquid reaches the end of the spout.
F2 ELECTRONIC CHARACTERISTICS
NOTICE The user can choose between two different operating
modes:
1 - Normal Mode
Normal Mode: Mode with display of Partial and Total dispensed quantities
2 - Flow rate Mode Flow Rate Mode: Mode with display of Flow Rate, as well as Partial
dispensed quantity.
NOTE The meter features a non-volatile memory for storing the dis-
pensing data, even in the event of a complete power break
for long periods. The measurement electronics and the LCD
display are fitted in the top part of the meter which remains
isolated from the fluid-bath measurement chamber and sealed
from the outside by means of a cover.

8 M0303
EN F3 PREVENTION MISFILLING (optional)
PREMISE Refuelling with the nozzle equipped with “magnet switch”
is only possible in combination with the “magnet adapter”
, so misfuelling into tanks is made impossible
OPERATION The “magnet switch” is a fi ed magnetic field within the
filler necks of the nozzle. This opens the magnet switch in
the spout, so it is only possible to dispense from the tank
where the magnet adaptor is installed.
NOTICE Nozzles equipped with “magnet switch” work only
in combination with the “magnet adapter”. The
“magnet adapter” is an optional to be bought
separately.
PART NUMBER DESCRIPTION PICTURE
127652 Magnet switch misfil spou
127654 Magnet adapter misfi
adapter (installs into DN40
filler necks only

M0303 9
EN
G PRELIMINARY CHECK
NOTICE Check the correct operation of the lock device, ac-
cording to the following procedure:
1Take a graduated receptacle with a capacity of 20 litres (5
gal)
LOW
CLIP
2Begin dispensing into the receptacle, setting the lever in
the minimum fl w position, until the receptacle is full.
5 cm
3Keeping the lever open, make sure the spout is sub-
merged by about 5 cm (2 inches).
4The nozzle must stop, with a click of the lever.
MEDIUM
CLIP HIGH CLIP
5Repeat the same operations with the lever in medium-
fl w and maximum-fl w position.
Check the correct operation of the stop device as de-
scribed above.
6If the nozzle stops during dispensing, check and reduce
the fl w.
7If the dispensing stop device fails to operate, replace the
nozzle.

10 M0303
EN H INITIAL START UP
FOREWORD Only start dispensing after making sure that assembly and
installation have been correctly performed.
WARNING TOXIC FLUID OR FUMES HAZARD
The faulty operation of this device could cause the spill
of liquids that are hazardous for people and the envi-
ronment.
NOTICE It is a good practice to only operate the nozzle lever
after making sure the spout has been properly in-
serted in the mouth of the tank to be filled.
NOTICE When using for the first time and every time the
nozzle is used, following the connection of the sup-
ply hose, gently operate the lever to enable the air
to escape from the circuit, until normal operation is
achieved.
NOTICE Check the correct operation of the automatic stop
device once the tank is full.
NOTICE Keep fresh water in nozzle path to prevent DEF
crystals from forming on nozzle end. The nozzle au-
tomatic shut off may fail if crystallization plugs the
nozzle orifice. The nozzle tip must be submerged in
water when the nozzle is holstered.
I FEATURES

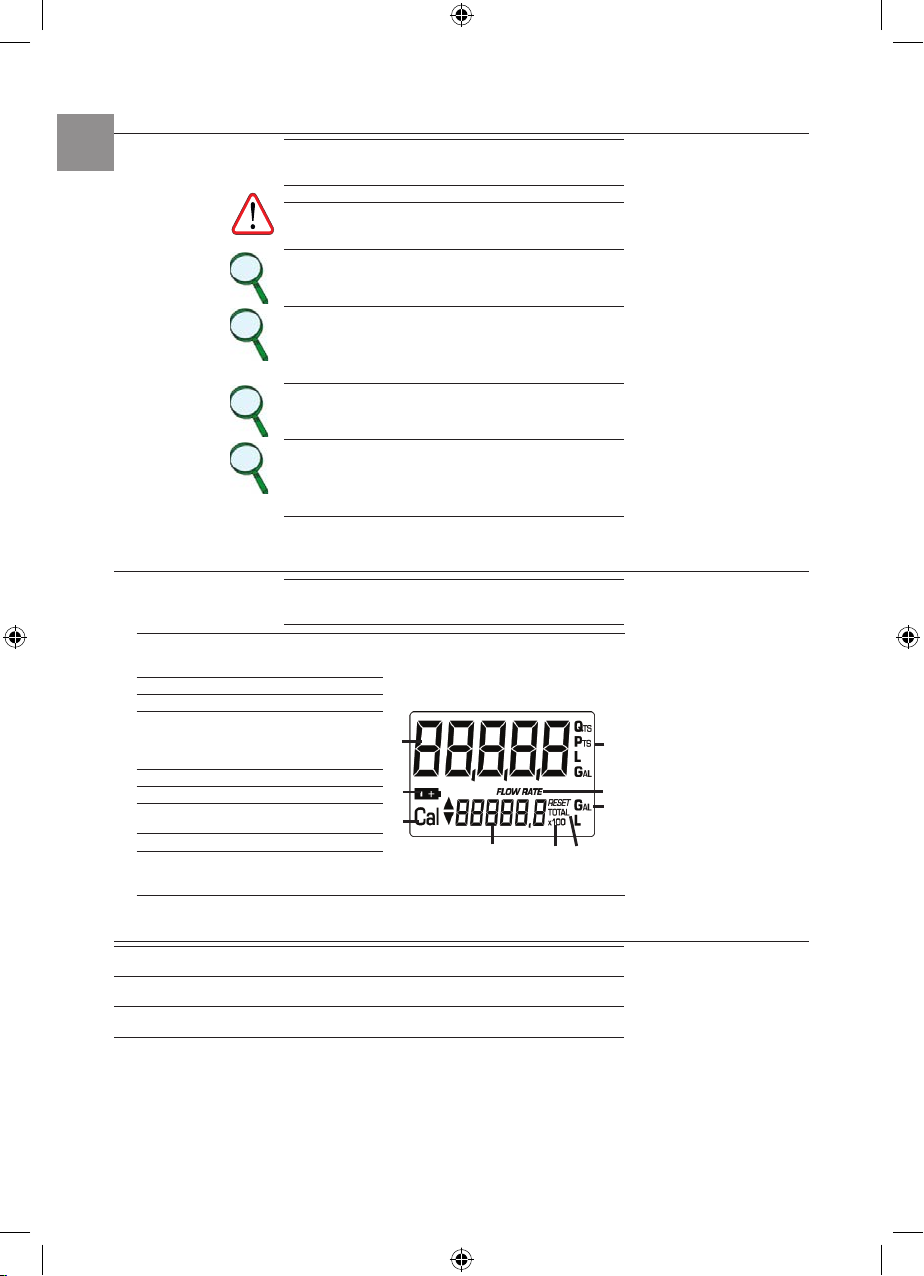

FOREWORD The “LCD” of the METER features two numerical registers and various
indications displayed to the user only when the applicable function so
requires.
1
Partial register (5 figu es with moving comma
FROM 0.1 to 99999) indicating the volume dis-
pensed since the reset button was last pressed
456
9
7
1
2
3
8
2
Indication of battery charge
3
Indication of calibration mode
4
Totals register (6 figu es with moving comma FROM
0.1 to 999999), that can indicate two types of Total:
4.1. General Total that cannot be reset (TOTAL)
4.2. Resettable total (Reset TOTAL)
5
Indication of total multiplication factor (x10 / x100 )
6
Indication of type of total, (TOTAL / Reset TOTAL);
7
Indication of unit of measurement of Totals:
L=Litres Gal=Gallons
8Indication of Flow Rate mode
9
Indication of unit of measurement of Partial:
Qts=Quarts Pts=Pints
L=Litres Gal=Gallons
I1 USER BUTTONS
FOREWORD The METER features two buttons (RESET and CAL) which individually perform two
main functions and, together, other secondary functions.
MAIN FUNCTIONS
PERFORMED
- for the RESET key, resetting the partial register and Reset Total
- for the CAL key, entering instrument calibration mode
SECONDARY
FUNCTIONS
Used together, the two keys permit entering configu ation mode where the de-
sired unit of measurement can be set.

M0303 11
EN
I2 BATTERY HOUSING
WARNING
FIRE AND EXPLOSION HAZARD
Battery replacement may create a static discharge
which has potential to ignite an explosive atmo-
sphere. Always replace batteries in a non-explosive
atmosphere (non-hazardous) location.
NOTICE The meter is powered by two 1.5V standard type batteries (size
AAA). The battery housing is easily accessible and is closed by a
cover with seal. Everything is easily removable by taking off the
rubber protection around the nozzle and loosening the screws
which secure the cover.
J DAILY USE
FOREWORD The only operations that need to be done for daily use are partial and/or reset-
table total register resetting. Occasionally the meter may need to be configu ed
or calibrated. To do so, please refer to the relevant chapters.
Below are the two typical normal operation displays. One display page shows the partial and reset total
registers. The other shows the partial and general total. Switchover from resettable total to general total
display is automatic and tied to phases and times that are in factory set and cannot be changed.
NOTE 6 digits are available for Totals, plus two icons x 10 / x100. The
increment sequence is the following:
0.0 -> 99999.9 -> 999999 -> 100000 x 10 -> 999999 x 10
->100000 x 100 -> 999999 x 100
J1 DISPENSING IN NORMAL MODE
FOREWORD Normal mode is the standard dispensing. While the count is made, the partial and
resettable total are displayed at the same time (reset total).
NOTE Should one of the keys be accidentally pressed during dispens-
ing, this will have no effect.
stand by A few seconds after dispensing has ended, on the lower register, the display
switches from resettable total to general total: the word reset above the word
total disappears, and the reset total is replaced by the general total. This situation
is called standby and remains stable until the user operates the meter again.

12 M0303

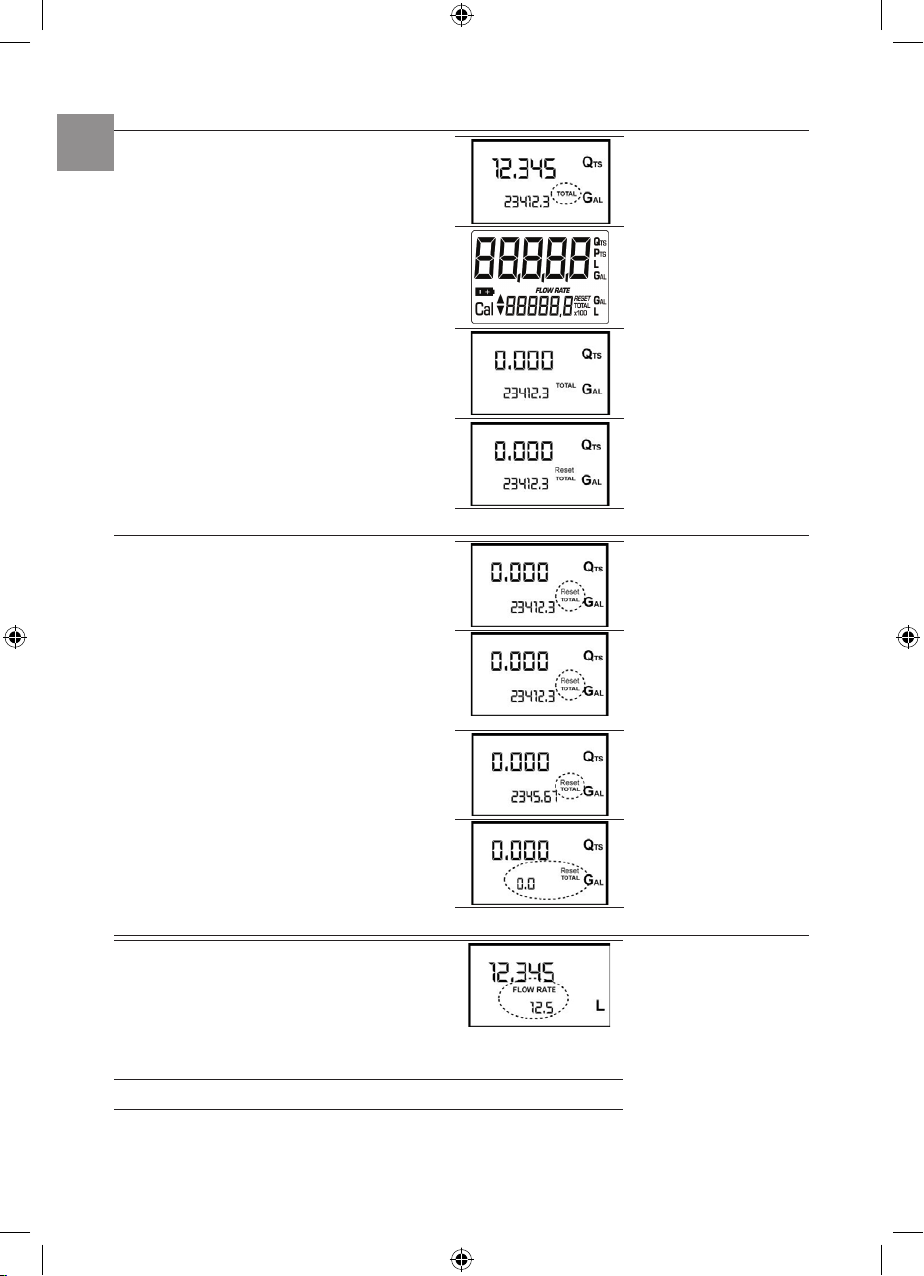

EN J1.1 PARTIAL RESET (NORMAL MODE)
The partial register can be reset by pressing the reset key when the
meter is in standby, meaning when the display screen shows the
word “TOTAL”.
After pressing the reset key, during reset, the display screen first of
all shows all the lit-up digits and then all the digits that are not lit up.
At the end of the process, a display page is first of all shown with the
reset partial and the reset total
and, after a few moments, the reset total is replaced by the non reset-
tableTotal.
J1.2 RESETTING THE RESET TOTAL
The reset total resetting operation can only be performed after reset-
ting the partial register. The reset total can in fact be reset by pressing
the reset key at length while the display screen shows reset total as
on the following display page:
Schematically, the steps to be taken are:
1Wait for the display to show normal standby display page (with
total only displayed)
2Press the reset key quickly
3 The meter starts to reset the partia
4While the display page showing the reset total is displayed
Press the reset key again for at least 1 second
5The display screen again shows all the segments of the display
followed by all the switched-off segments and finally shows
the display page where the reset Reset Total is shown.

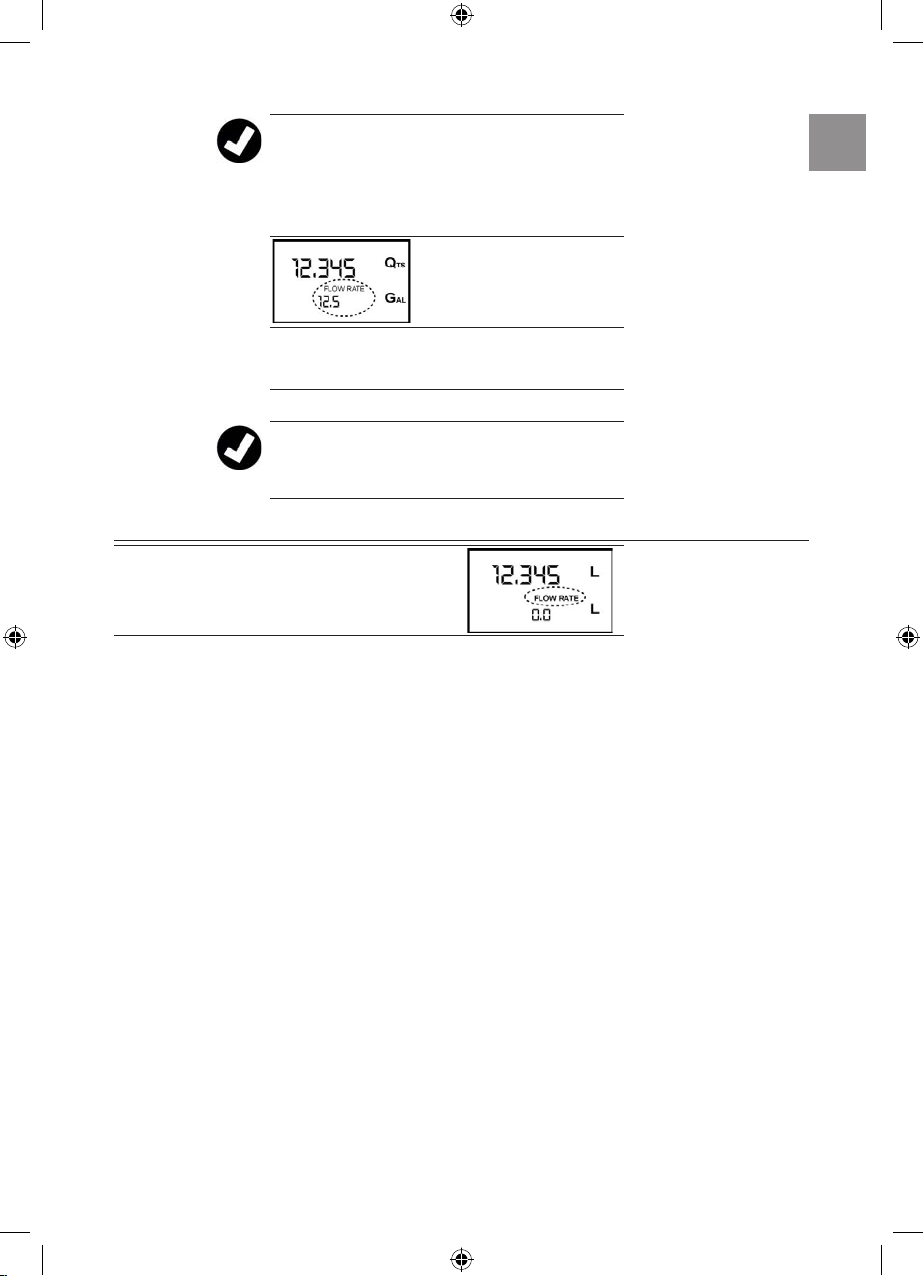

J2 DISPENSING WITH FLOW RATE MODE DISPLAY
It is possible to dispense fluid , displaying at the same time::
1the dispensed partial
2the Flow Rate in [Partial Unit / minute] as shown on the following
display page:
Procedure for entering this mode:
1wait for the Remote Display to go to Standby, meaning the display screen shows Total only
2quickly press the CAL key.
3Start dispensing
The fl w rate is updated every 0.7 seconds. Consequently, the display could be relatively unstable at
lower fl w rates. The higher the fl w rate, the more stable the displayed value.

M0303 13
EN
NOTE The flow rate is measured with reference to the
unit of measurement of the Partial. For this reason,
in case of the unit of measurement of the Partial
and Total being different, as in the example shown
below, it should be remembered that the indicated
flow rate relates to the unit of measurement of the
partial. In the example shown, the flow rate is ex-
pressed in Qts/min.
The word “Gal” remaining alongside the fl w rate refers to
the register of the Totals (Reset or NON Reset) which are
again displayed when exiting from the fl w rate reading
mode.
To return to “Normal” mode, press the CAL key again. If one of the two keys RESET or
CAL is accidentally pressed during the count, this will have no eect.
NOTE Even though in this mode they are not displayed, both
the Reset Total and the General Total (Total) increase.
Their value can be checked after dispensing has
terminated, returning to “Normal” mode, by quickly
pressing CAL.
J2.1 PARTIAL RESET (FLOW RATE MODE)
To reset the Partial Register, finish dispensing and wait for the Remote
Display to show a Flow Rate of 0.0 as indicated in the illustration
then quickly press RESET

14 M0303
EN K CALIBRATION
K1 WHY CALIBRATE?
NOTICE When working in extreme operating or flow conditions, (close
to minimum or maximum acceptable range values), it may be
a good idea to calibrate in the field, in the real conditions in
which the meter has to work..
K2 DEFINITIONS
CALIBRATION FAC-
TOR OR
“K FACTOR”
Multiplication factor applied by the system to the electrical pulses received, to
transform these into measured fluid unit .
FACTORY K
FACTOR
Factory-set default factor. It is equal to 1,000. This calibration factor ensures ut-
most precision in the following operating conditions:
Fluid water/urea solution
Temperature: 20°C
Flow rate: 15 - 45 ltr/min - 4-12 gpm
Even after any changes have been made by the user, the factory k factor can be
restored by means of a simple procedure.
USER K FACTOR: Customized calibration factor, meaning modified y calibration.

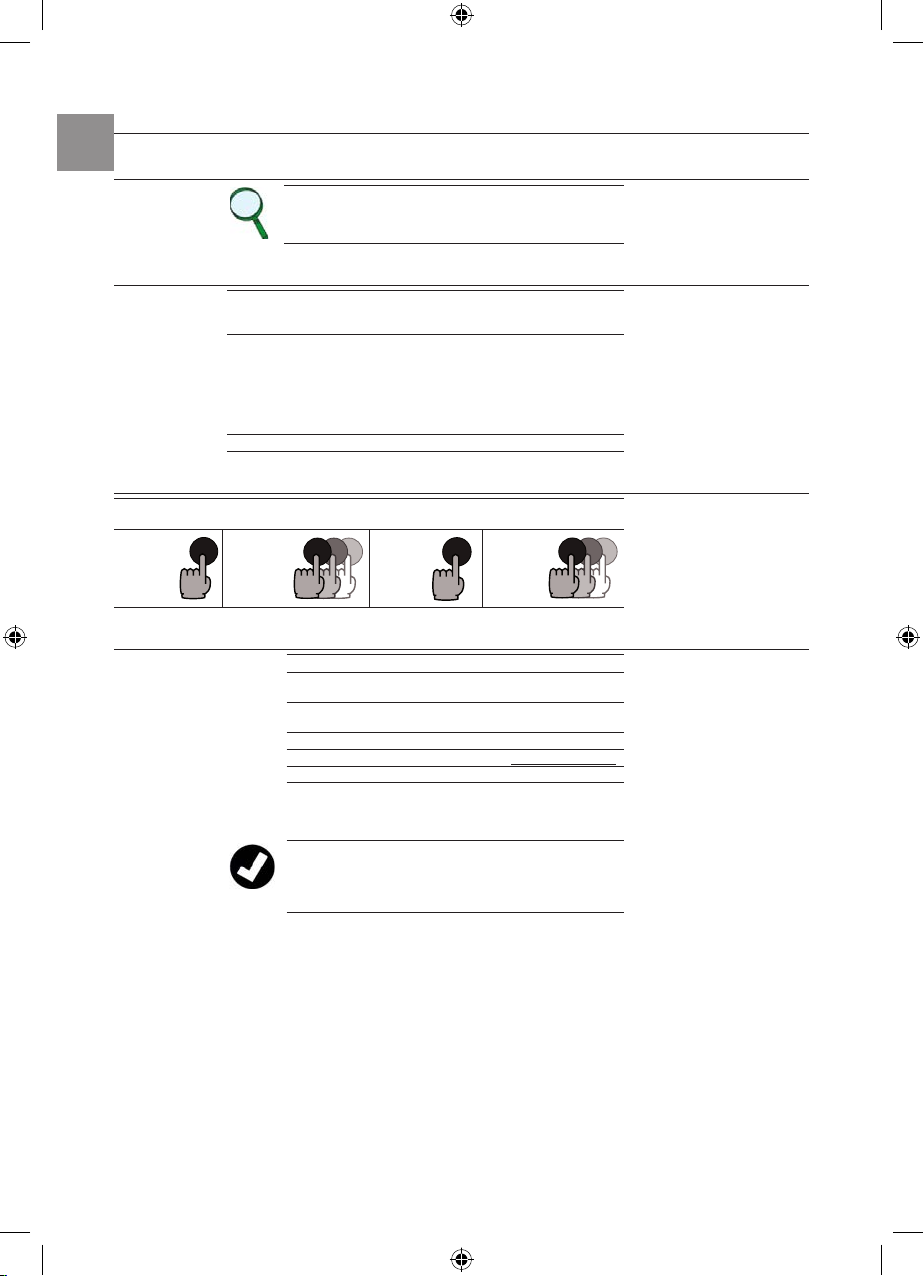

K3 KEY
LEGEND CALIBRATE MEANS PERFORMING ACTIONS ON THE METER KEYS. BELOW IS THE
LEGEND OF THE SYMBOLS USED TO DESCRIBE THE ACTIONS TO BE PERFORMED
SHORT
PRES-
SURE OF
CAL KEY
CAL
LONG
PRESSURE
OF cal
KEY
CALCAL
CAL
short
pressure
of reset
key
RESET
long
pressure
of reset
key
RESET
RESET
RESET
K4 CALIBRATION MODE
Why calibrate? 1Display the currently used calibration factor:
2Return to factory calibration (Factory K Factor) after a previous cali-
bration by the user
3Change the calibration factor using one of the two previously indi-
cated procedures
FOREWORD Two procedures are available for changing the Calibration Factor:
1In-Field Calibration, performed by means of a dispensing operation
2
Direct Calibration, performed by directly changing the calibration factor
In calibration mode, the partial and total dispensed quantities indicated on the display screen take on
dierent meanings according to the calibration procedure phase.
In calibration mode, the meter cannot be used for normal dispensing operations.
In “Calibration” mode, the totals are not increased
NOTE The meter features a non-volatile memory that keeps the
data concerning calibration and total dispensed quantity
stored for an indefinite time, even in the case of a long
power break; after changing the batteries, calibration
need not be repeated.

M0303 15
EN
K4.1 DISPLAY OF CURRENT CALIBRATION
FACTOR AND RESTORING FACTORY FACTOR.
CALCAL
CAL
By pressing the CAL key while the meter is in
Standby, the display page appears showing the
current calibration factor used. If no calibration
has ever been performed, or the factory setting
has been restored after previous calibrations,
the following display page will appear: The
word “Fact” abbreviation for “factory” shows
that the factory calibration factor is being used
If, on the other hand, calibrations have been
made by the user, the display page will appear
showing the currently used calibration factor ( in
our example 0,998) . The word “user” indicates a
calibration factor set by the user is being used..
CAL
The fl w chart alongside shows
the switchover logic from one
display page to another
In this condition, the Reset key
permits switching from User fac-
tor to Factory factor.
To confi m the choice of cali-
bration factor, quickly press
CAL while “User” or “Fact” are
displayed.
After the restart cycle, the K24
uses the calibration factor that
has just been confi med
CAL
CALCAL
CAL
RESET
RESET
TIME OUT
NOTE When the Factory Factor is confirmed, the old User factor is
deleted from the memory
K4.2 IN FIELD CALIBRATION
FOREWORD This procedure calls for the fluid to be dispensed into a graduated sample con-
tainer in real operating conditions ( fl w rate, viscosity, etc.) requiring maximum
precision.
NOTE For correct meter calibration, it is most important to:
1 When the Factory Factor is confi med, the old User factor is deleted from the
memory
2 use a precise Sample Container with a capacity of not less than 5 litres, featuring
an accurate graduated indicator.
3 ensure calibration dispensing is done at a constant fl w rate equivalent to that of
normal use, until the container is full;
4 Not reduce the fl w rate to reach the graduated area of the container during
the final dispensing stage (the correct method during the final stages of sample
container filling onsists in making short top-ups at normal operation fl w rate) ;
5 after dispensing, wait a few minutes to make sure any air bubbles are eliminated
from the sample container; only read the Real value at the end of this stage, dur-
ing which the level in the container could drop.
6 Carefully follow the procedure indicated below.

16 M0303
EN K 4.2.1 IN-FIELD CALIBRATION PROCEDURE
ACTION DISPLAY
1
NONE
NEXT in Standby
2
CALCAL
CAL
LONG CAL key keying
The NEXT enters calibration mode, shows <<CAL>> and displays
the calibration factor in use instead of partial. The words “Fact” and
“USER” indicate which of the two factors (factory or user) is currently
in use.
Important: This factor is that which the instrument also uses for fiel
calibration measurement operations
3
RESET
RESET
RESET
LONG RESET key keying
The NEXT shows “CAL” and the partial at zero. The NEXT is ready to
perform in-field calib ation.
4
DISPENSING INTO SAMPLE CONTAINER
Without pressing any key, start dispensing into the sample container
Dispensing can be interrupted and started again at will. Continue
dispensing until the level of the fluid in the sample ontainer has
reached the graduated area. There is no need to reach a preset
quantity.
Indicated value Real value
5
RESET
SHORT RESET key keying
The NEXT is informed that the calibration dispensing operation is
finishe .
Make sure dispensing is correctly finished before performing this operation.
To calibrate the NEXT, the value indicated by the partial totaliser (example
9.800) must be forced to the real value marked on the graduated sample
container. In the bottom left part of the display an arrow appears (upwards
and downwards), that shows the direction (increase or decrease) of the value
change displayed when the following operations 6 or 7 are performed.
6
RESET
SHORT RESET key keying
The arrow changes direction. The operation can be repeated to
alternate the direction of the arrow.
7
CALCAL
CAL
CAL
SHORT/LONG CAL key keying
The indicated value changes in the direction indicated by the arrow
- one unit for every short CAL key keying
- continually if the CAL key is kept pressed. The speed increase rises
by keeping the key pressed. If the desired value is exceeded, repeat
the operations from point (6).
8
RESET
RESET
RESET
NOTICE
LONG RESET key keying
The NEXT is informed that the calibration procedure is finishe .
Before performing this operation, make sure the INDICATED value is
the same as the REAL value.
.
Indicated value Real value
The NEXT calculates the new USER K FACTOR ; this calculation could
require a few seconds, depending on the correction to be madeù
If this operation is performed after action (5), without
changing the indicated value, the USER K FACTOR would
be the same as the FACTORY K FACTOR, thus it is ignored.

M0303 17
EN
9
NOTICE
NO OPERATION
At the end of the calculation, the new USER K FACTOR is shown for
a few seconds, after which the restart cycle is repeated to finall
achieve standby condition.
From now on, the indicated factor will become the
calibration factor used by the NEXT and will continue to
remain such even after a battery change
10
NO OPERATION
The NEXT stores the new work calibration factor and is ready to
begin dispensing, using the USER K FACTOR that has just been
calculated. .
K 4.3 DIRECT MODIFICATION OF K FACTOR
If normal NEXT operation shows a mean percentage error, this can be corrected by applying to the cur-
rently used calibration factor a correction of the same percentage. In this case, the percentage correction
of the USER K FACTOR must be calculated by the operator in the following way
New cal. Factor = Old Cal Factor * ( )
100 - E%
100
Example:
Error percentage found: E% - 0.9 %
CURRENT calibration factor: 1.000
New USER K FACTOR: 1.000 * [(100 – ( - 0.9))/100] = 1.000 * [(100 + 0.9)/100] = 1.009
If the NEXT indicates less than the real dispensed value (negative error) the new calibration factor
must be higher than the old one as shown in the example. The opposite applies if the NEXT shows
more than the real dispensed value (positive error).
ACTION DISPLAY
1
NONE
METER in Standby.
2
CALCAL
CAL
LONG CAL KEY KEYING
NEXT enters calibration mode, shows “CAL” and displays the
calibration factor being used instead of the partial. The words “Fact”
and “User” indicate which of the two factors (factory or user) is
currently being used.
3
RESET
RESET
RESET
LONG RESET KEY KEYING
The NEXT shows “CAL” and the zero partial total.
NEXT is ready to perform in-field calib ation by dispensing – see
previous paragraph.
4
RESET
RESET
RESET
LONG RESET KEY KEYING
We now go on to Direct change of the calibration factor: the word
“Direct” appears together with the Currently Used calibration factor.
In the bottom left part of the display, an arrow appears (upwards
or downwards) defining the di ection (increase or decrease) of
change of the displayed value when subsequent operations 5 or 6
are performed.
5
RESET
SHORT RESET KEY KEYING
Changes the direction of the arrow. The operation can be repeated
to alternate the direction of the arrow.
6
CALCAL
CAL
CAL
SHORT/LONG CAL KEY KEYING
The indicated value changes in the direction indicated by the arrow
- one unit for every short CAL key keying
- continually if the CAL key is kept pressed. The speed increase rises
by keeping the key pressed. If the desired value is exceeded, repeat
the operations from point (5).
7
RESET
RESET
RESET
LONG RESET KEY KEYING
The NEXT is informed that the calibration procedure is finishe .
Before performing this operation, make sure the INDICATED value
is that required.

18 M0303
EN
8
NOTICE
NO OPERATION
At the end of the calculation, the new USER K FACTOR is shown for
a few seconds, after which the restart cycle is repeated to finall
achieve standby condition.
From now on, the indicated factor will become the
calibration factor used by the NEXT and will continue
to remain such even after a battery change
9
NO OPERATION
The NEXT stores the new work calibration factor and is ready to
begin dispensing, using the USER K FACTOR that has just been
changed.
L METER CONFIGURATION
The METER feature a menu with which the user can select the main measurement unit, Quarts (Qts), Pints
(Pts), Litres (Lit), Gallons (Gal); The combination of the unit of measurement of the Partial register and that
of the Totals is predefined a cording to the following table:
Combination no. Unit of Measurement
Partial Register Unit of Measurement Totals Register
1Litres (L) Litres (L)
2Gallons (Gal) Gallons (Gal)
3Quarts (Qts) Gallons (Gal)
4Pints (Pts) Gallons (Gal)
To choose between the 4 available combinations:
1
Wait for the METER to go to Standby
2
then press the CAL and RESET keys together. Keep these pressed un-
til the word “UNIT” appears on the screen together with the unit of
measurement set at that time (in this example Litres / Litres )
3
RESET
Every short press of the RESET key, the various combinations of the
units of measurements are scrolled as shown below:
4
CALCAL
CAL
By pressing the CAL key at length, the new settings will be stored,
the METER will pass through the start cycle and will then be ready to
dispense in the set units.
Gal
Qts
Pts
Gal
RESET
RESET
RESET
NOTE
The Reset Total and Total registers will be automatically
changed to the new unit of measurement.
NO new calibration is required after changing the Unit of
Measurement.

M0303 19
EN
M MAINTENANCE
BATTERY
REPLACEMENT
Use 2x1.5 V alkaline batteries size AAA
WARNING
FIRE AND EXPLOSION HAZARD
Battery replacement may create a static discharge
which has potential to ignite an explosive atmo-
sphere. Always replace batteries in a non-explosive
atmosphere (non-hazardous) location.
The meter features two low-battery alarm levels:
1 When the battery charge falls below the first level on the LCD, the fi ed battery
symbol appears. In this condition, The meter continues to oper-
ate correctly, but the fi ed icon warns the user that it is ADVISABLE to change
the batteries.
2 If The meter operation continues without changing the batteries, the second
battery alarm level will be reached which will prevent operation. In this condi-
tion the battery icon starts to flash and is the only one to remain visible on
the LCD.
To change the batteries,
with reference to the
exploded diagram
positions, proceed as
follows
UNSCREW THE NUT
REMOVE THE COVER (1)
LOOSEN THE SCREW (2)
REMOVE THE COVER (3) RIGHT SIDE
CHANGE THE BATTERIES
ASSEMBLE EVERYTHING BACK ON THE SEAL AROUND THE COVER
HOUSING AND TAKE CARE TO PLACE
NOTICE DO NOT OVER-TIGHTEN THE SCREW
1
432
The meter will display the same Reset Total, the same Total and the
same Partial indicated before the batteries were changed. After
changing the batteries, the meter does not need calibrating again.
CLEANING Only one operation is necessary to clean the meter.
After removing the meter from the system where it was install in,
any residual elements can be removed by washing and rinsing with
meter If this operation does not restore a smooth rotation of the
turbine, it will have to be replaced.
NOTICE Do not discard the old batteries in the environment. Refer
to local disposal regulations.
Do not use compressed air onto the turbine in order to
avoid its damage because of an excessive rotation
PERIODICALLY CHECK THE CORRECT OPERATION OF THE
AUTOMATIC STOP DEVICE
IF FITTED, IT IS BEST TO PERIODICALLY CHECK THE FILTER
AND CLEAN IT EVERY 1000 LITRES OF TRANSFER.
PERIODICALLY CHECK THE TIGHTNESS OF THE CONNECTIONS

20 M0303
EN N MALFUNCTIONS
N1 MECHANICAL MALFUNCTIONS
WARNING
TOXIC FLUID OR FUMES HAZARD
Correct and regular maintenance of the nozzle
and of the system to which it is connected prevents
malfunctions and possible accidental and possible
accidental spills of hazardous liquids.
FOREWORD THE POSSIBLE CAUSES OF MALFUNCTION ARE MAINLY ATTRIBUT-
ABLE TO THREE FACTORS:
1 NOZZLE DIRTY IN INNER HOLE OF LIP AT END OF SPOUT
2 OPERATING PRESSURE OF LIQUID TO BE DISPENSED BELOW 0.5 bar
OR ABOVE 3.5 bar
3 FLOW RATE TOO LOW OR TOO HIGH
N2 ELECTRONIC MALFUNCTIONS
Problem Possible cause Remedial Action
LCD: no indication
Bad battery contact Check battery contacts
Not enough measurement
precision
Wrong K FACTOR With reference to paragraph H,
check the K FACTOR
The meter works below
minimum acceptable fl w rate.
Increase the fl w rate until an ac-
ceptable fl w rate range has been
achieved
Reduced or zero fl w rate TURBINE blocked Clean the TURBINE
The meter does not count, but
the fl w rate is correct
Incorrect installation of
gears after cleaning Repeat the reassembly procedure
Possible electronic card problems Contact your dealer
