© 1999 Graco 226-10-99 IS3556
Failure to follow these warnings and the assembly instructions
could result in serious injury or death.
Congratulations on your purchase of a
Graco®highchair!
Graco is the recognized leader in the
design and manufacture of qualit bab
products. We believe our new Graco®
highchair is a wise choice, promising
man hours of enjo ment for our bab .
Before using our highchair, please take a
few minutes to read this Owners Manual.
The short time ou spend reading these
instructions will help ou to use our
highchair properl .
lease save your Owners Manual
for future use.
Customer Satisfaction
Our goal is to make ever product the best it
can be! We are also committed to supporting our
products after purchase. If ou would like to speak
to Graco about our product, please contact our
Customer Service Department at 1-800-345-4109
or visit our Internet website, www.gracobab .com.
Our knowledgeable staff will be read to answer
an questions ou ma have concerning parts, use,
or maintenance. When ou call, please have the
model and serial numbers read so our call
ma be processed quickl and efficientl .
Model 3625
Highchair
NEVER LEAVE YOUR CHILD
UNATTENDED. Alwa s keep
our child in view.
Prevent serious injur or death from
falls or sliding out. Alwa s secure
child in the restraint.
FOLLOW ASSEMBLY INSTRUCTIONS CAREFULLY.
If ou experience an difficulties, please contact the
Customer Service Department.
THIS HIGHCHAIR IS DESIGNED TO BE USED b a child
between 6 months and 3 ears of age. Maximum weight
37 pounds (16.8 kg).
DO NOT FORCE TRAY against child. Use onl the five
adjustment positions. Be sure both adjustment fingers are
engaged in armrest slots.
DO NOT ADJUST the highchair with our child in it.
DISCONTINUE USING YOUR HIGHCHAIR should it
become damaged or broken.
CARE AND MAINTENANCE
FROM TIME TO TIME CHECK YOUR HIGHCHAIR for
loose screws, worn parts or torn material. Replace or repair
the parts as needed. Use onl Graco®replacement parts.
TO CLEAN HIGHCHAIR FRAME, use onl household soap
or detergent and warm water. NO BLEACH.
Secure our child at all
times with the restraint
s stem provided. The tra
is not designed to hold our
child in the highchair.
It is recommended that the
highchair be used onl b
children capable of sitting
upright unassisted.
STRANGULATION HAZARD:
DO NOT place highchair in an location
where there are cords, such as window
blind cords, drapes, phone cords, etc.

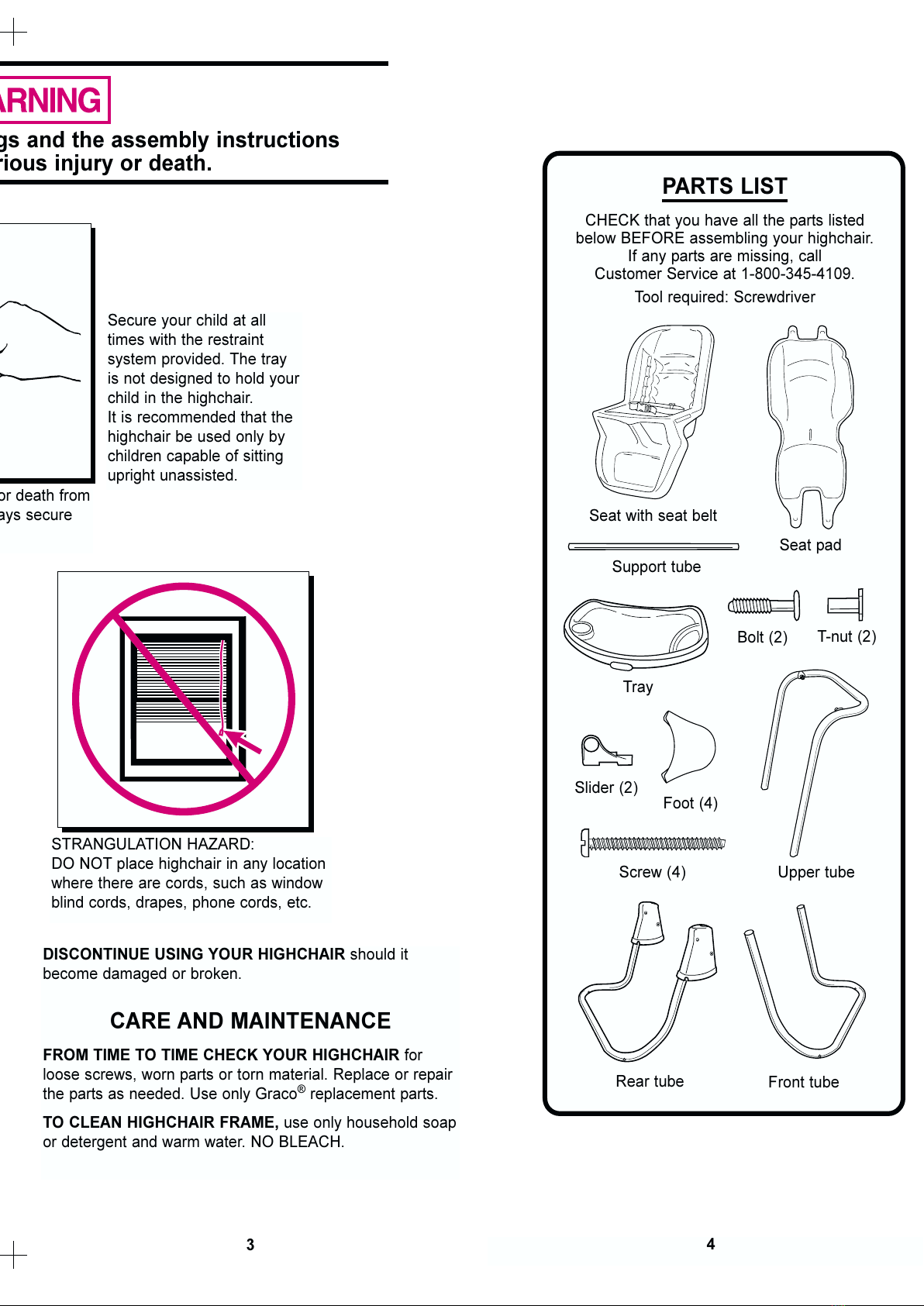

Seat with seat belt
Tra
Front tube
Screw (4)
Seat pad
Rear tube
Bolt (2) T-nut (2)
Upper tube
Foot (4)
Slider (2)
Support tube
ARTS LIST
CHECK that ou have all the parts listed
below BEFORE assembling our highchair.
If an parts are missing, call
Customer Service at 1-800-345-4109.
Tool required: Screwdriver
OWNERS
MANUAL
Model No. _______
Serial No. ________
Dear Customer,
Please fill in the
model and serial
numbers above
from the label on
the back of the
footrest of our
new highchair.
All manuals and user guides at all-guides.com
all-guides.com

2 4
3
© 1999 Graco 226-10-99 IS3556
Failure to follow these warnings and the assembly instructions
could result in serious injury or death.
Congratulations on your purchase of a
Graco®highchair!
Graco is the recognized leader in the
design and manufacture of qualit bab
products. We believe our new Graco®
highchair is a wise choice, promising
man hours of enjo ment for our bab .
Before using our highchair, please take a
few minutes to read this Owners Manual.
The short time ou spend reading these
instructions will help ou to use our
highchair properl .
lease save your Owners Manual
for future use.
Customer Satisfaction
Our goal is to make ever product the best it
can be! We are also committed to supporting our
products after purchase. If ou would like to speak
to Graco about our product, please contact our
Customer Service Department at 1-800-345-4109
or visit our Internet website, www.gracobab .com.
Our knowledgeable staff will be read to answer
an questions ou ma have concerning parts, use,
or maintenance. When ou call, please have the
model and serial numbers read so our call
ma be processed quickl and efficientl .
Model 3625
Highchair
NEVER LEAVE YOUR CHILD
UNATTENDED. Alwa s keep
our child in view.
Prevent serious injur or death from
falls or sliding out. Alwa s secure
child in the restraint.
FOLLOW ASSEMBLY INSTRUCTIONS CAREFULLY.
If ou experience an difficulties, please contact the
Customer Service Department.
THIS HIGHCHAIR IS DESIGNED TO BE USED b a child
between 6 months and 3 ears of age. Maximum weight
37 pounds (16.8 kg).
DO NOT FORCE TRAY against child. Use onl the five
adjustment positions. Be sure both adjustment fingers are
engaged in armrest slots.
DO NOT ADJUST the highchair with our child in it.
DISCONTINUE USING YOUR HIGHCHAIR should it
become damaged or broken.
CARE AND MAINTENANCE
FROM TIME TO TIME CHECK YOUR HIGHCHAIR for
loose screws, worn parts or torn material. Replace or repair
the parts as needed. Use onl Graco®replacement parts.
TO CLEAN HIGHCHAIR FRAME, use onl household soap
or detergent and warm water. NO BLEACH.
Secure our child at all
times with the restraint
s stem provided. The tra
is not designed to hold our
child in the highchair.
It is recommended that the
highchair be used onl b
children capable of sitting
upright unassisted.
STRANGULATION HAZARD:
DO NOT place highchair in an location
where there are cords, such as window
blind cords, drapes, phone cords, etc.
Seat with seat belt
Tra
Front tube
Screw (4)
Seat pad
Rear tube
Bolt (2) T-nut (2)
Upper tube
Foot (4)
Slider (2)
Support tube
ARTS LIST
CHECK that ou have all the parts listed
below BEFORE assembling our highchair.
If an parts are missing, call
Customer Service at 1-800-345-4109.
Tool required: Screwdriver
OWNERS
MANUAL
Model No. _______
Serial No. ________
Dear Customer,
Please fill in the
model and serial
numbers above
from the label on
the back of the
footrest of our
new highchair.
All manuals and user guides at all-guides.com

5
226-10-99 IS3556 6 87
Assembling
the Highchair
Step 1.
Hold front tube with ends up.
Place a foot (smooth side up)
at one curved corner of tube.
Insert a screw through tube
and into foot, then tighten.
Repeat with other corner
and both feet of rear tube.
Step 2.
La seat face down on the
floor as shown. Insert
support tube through both
collars on bottom of seat.
Step 3.
Mount a slider onto
each end of the
support tube. Slider
loops should be
facing UP, as shown.
Push end of slider
all the wa into collar.
Step 4.
Insert both ends of upper
tube into slider loops and
pull all the wa through as
shown.
Still holding ends of tube,
locate pegs. Push pegs
through the channel until
the pass the snap. Slide
pegs into first notch of
height-adjustment track.
Step 5.
Hold rear tube as shown.
Slide plastic brackets onto
upper tube.
Step 6.
Slide front tube onto upper
tube as far as it will go, until
the holes in the tubes line up.
Step 7.
Pull rear tube up until holes
in plastic bracket line up with
holes in the tubes.
CHECK that holes in upper
tube, front tube AND plastic
brackets all line up with each
other.
Insert a T-nut into one plastic bracket hole. It must pass
through both tubes, as shown enlarged below. Insert a
screw into other side of plastic bracket and screw it
into T-nut.
CHECK that tubes are securel connected b tr ing to pull
them apart.
Repeat for other plastic bracket.
Step 8.
Place seat pad in seat as
shown. Insert tabs of seat
pad into the corresponding
slots in the seat. From rear
of seat, hook all four tabs
over plastic anchors.
To Use Seat Belt
Step 1.
Snap buckle together as
shown. Adjust belt as needed
to get a snug fit around
our child.
Step 2.
Press on prongs at top and
bottom of buckle to release.
Collars
Support tube
Pegs
First notch of
height adjustment track
Both U
curves up
U curve
down
Plastic bracket
Set highchair upright.
It should look like this.
revent serious injury or death from falls
or sliding out. Always secure your child in the restraint.
Do not depend on the tray alone to hold your child.
If it becomes necessary to remove the seat belt,
follow these instructions:
Step 1.
First buckle the belt.
Then unthread end of
seat belt through the
buckle as shown.
Step 2.
Pull other end of the seat
belt through the belt retainer
as shown.
Step 3.
To rethread buckle, thread
the free end of the waist belt
back through the belt retainer.
The GRACO logo must be
on the front of the buckle.
Step 4.
Thread belt through
the buckle as shown.
The left end of the buckle
must be smooth side up
to thread the belt in the
buckle properl . The
other side of the buckle
has teeth.
If ou have difficult getting
the belt into the buckle, check
to make sure that the smooth
side of the buckle is up.
CHECK that the belt is
threaded correctl b pulling
on the seat belt. The belt
should not slip through
the buckle.
Smooth side
All manuals and user guides at all-guides.com

5
226-10-99 IS3556 6 87
Assembling
the Highchair
Step 1.
Hold front tube with ends up.
Place a foot (smooth side up)
at one curved corner of tube.
Insert a screw through tube
and into foot, then tighten.
Repeat with other corner
and both feet of rear tube.
Step 2.
La seat face down on the
floor as shown. Insert
support tube through both
collars on bottom of seat.
Step 3.
Mount a slider onto
each end of the
support tube. Slider
loops should be
facing UP, as shown.
Push end of slider
all the wa into collar.
Step 4.
Insert both ends of upper
tube into slider loops and
pull all the wa through as
shown.
Still holding ends of tube,
locate pegs. Push pegs
through the channel until
the pass the snap. Slide
pegs into first notch of
height-adjustment track.
Step 5.
Hold rear tube as shown.
Slide plastic brackets onto
upper tube.
Step 6.
Slide front tube onto upper
tube as far as it will go, until
the holes in the tubes line up.
Step 7.
Pull rear tube up until holes
in plastic bracket line up with
holes in the tubes.
CHECK that holes in upper
tube, front tube AND plastic
brackets all line up with each
other.
Insert a T-nut into one plastic bracket hole. It must pass
through both tubes, as shown enlarged below. Insert a
screw into other side of plastic bracket and screw it
into T-nut.
CHECK that tubes are securel connected b tr ing to pull
them apart.
Repeat for other plastic bracket.
Step 8.
Place seat pad in seat as
shown. Insert tabs of seat
pad into the corresponding
slots in the seat. From rear
of seat, hook all four tabs
over plastic anchors.
To Use Seat Belt
Step 1.
Snap buckle together as
shown. Adjust belt as needed
to get a snug fit around
our child.
Step 2.
Press on prongs at top and
bottom of buckle to release.
Collars
Support tube
Pegs
First notch of
height adjustment track
Both U
curves up
U curve
down
Plastic bracket
Set highchair upright.
It should look like this.
revent serious injury or death from falls
or sliding out. Always secure your child in the restraint.
Do not depend on the tray alone to hold your child.
If it becomes necessary to remove the seat belt,
follow these instructions:
Step 1.
First buckle the belt.
Then unthread end of
seat belt through the
buckle as shown.
Step 2.
Pull other end of the seat
belt through the belt retainer
as shown.
Step 3.
To rethread buckle, thread
the free end of the waist belt
back through the belt retainer.
The GRACO logo must be
on the front of the buckle.
Step 4.
Thread belt through
the buckle as shown.
The left end of the buckle
must be smooth side up
to thread the belt in the
buckle properl . The
other side of the buckle
has teeth.
If ou have difficult getting
the belt into the buckle, check
to make sure that the smooth
side of the buckle is up.
CHECK that the belt is
threaded correctl b pulling
on the seat belt. The belt
should not slip through
the buckle.
Smooth side
All manuals and user guides at all-guides.com

9
226-10-99 IS3557 10

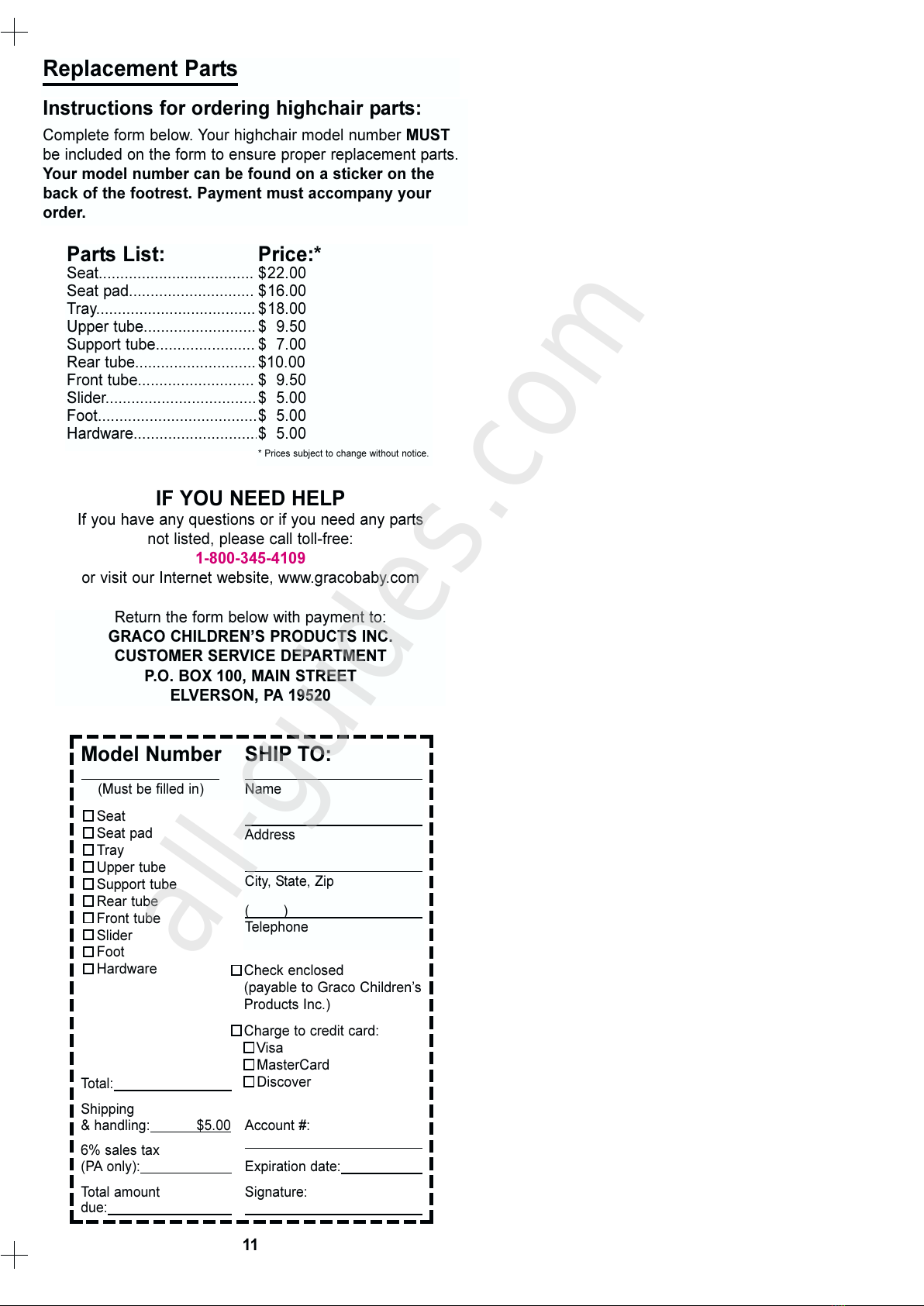

Replacement arts
Instructions for ordering highchair parts:
Complete form below. Your highchair model number MUST
be included on the form to ensure proper replacement parts.
Your model number can be found on a sticker on the
back of the footrest. ayment must accompany your
order.
Model Number
(Must be filled in)
SHI TO:
Name
Address
Cit , State, Zip
( )
Telephone
Check enclosed
(pa able to Graco Childrens
Products Inc.)
Charge to credit card:
Visa
MasterCard
Discover
Account #:
Expiration date:
Signature:
Seat
Seat pad
Tra
Upper tube
Support tube
Rear tube
Front tube
Slider
Foot
Hardware
arts List:
Seat....................................
Seat pad.............................
Tra .....................................
Upper tube..........................
Support tube.......................
Rear tube............................
Front tube...........................
Slider...................................
Foot.....................................
Hardware.............................
rice:*
$22.00
$16.00
$18.00
$ 9.50
$ 7.00
$10.00
$ 9.50
$ 5.00
$ 5.00
$ 5.00
* Prices subject to change without notice.
To Fold Highchair
La highchair on the
floor as shown. Press in
metal buttons at base of both
plastic brackets. Push rear
base down to fold highchair.
Pull UP
To Adjust Height
DO NOT
adjust the highchair with
your child in it.
Hold chair frame down
and lift seat firml to
free pegs from height-
adjustment notch. Slide
seat up or down in the
track, then snap it into
desired height setting.
When adjusting
height, be careful to
keep fingers away from
height-adjustment track.
There are five possible
height settings. The highchair
can be used as a toddler chair
b adjusting to the lower
height settings.
CHECK that both sides of
chair are snapped into the
desired height-adjustment
notch.
Return the form below with pa ment to:
GRACO CHILDRENS RODUCTS INC.
CUSTOMER SERVICE DE ARTMENT
.O. BOX 100, MAIN STREET
ELVERSON, A 19520
IF YOU NEED HEL
If ou have an questions or if ou need an parts
not listed, please call toll-free:
1-800-345-4109
or visit our Internet website, www.gracobab .com
Total:
Shipping
& handling: $5.00
6% sales tax
(PA onl ):
Total amount
due:
Push on
front button
To Use Tray
Place tra on armrests of
seat. Pull out side handles
under the tra . Put tra in
one of the five adjustment
positions, and release
side handles.
CHECK that tray is securely
attached by pulling forward
on the tray.
Use either the side handles
or the front button to adjust
the position of the tra .
DO NOT
force the tray against
your child. Keep your
childs hands and fingers
away from the tray when
adjusting the tray.
Tra ma be removed from
highchair b using the side
handles.
11
All manuals and user guides at all-guides.com

9
226-10-99 IS3557 10
Replacement arts
Instructions for ordering highchair parts:
Complete form below. Your highchair model number MUST
be included on the form to ensure proper replacement parts.
Your model number can be found on a sticker on the
back of the footrest. ayment must accompany your
order.
Model Number
(Must be filled in)
SHI TO:
Name
Address
Cit , State, Zip
( )
Telephone
Check enclosed
(pa able to Graco Childrens
Products Inc.)
Charge to credit card:
Visa
MasterCard
Discover
Account #:
Expiration date:
Signature:
Seat
Seat pad
Tra
Upper tube
Support tube
Rear tube
Front tube
Slider
Foot
Hardware
arts List:
Seat....................................
Seat pad.............................
Tra .....................................
Upper tube..........................
Support tube.......................
Rear tube............................
Front tube...........................
Slider...................................
Foot.....................................
Hardware.............................
rice:*
$22.00
$16.00
$18.00
$ 9.50
$ 7.00
$10.00
$ 9.50
$ 5.00
$ 5.00
$ 5.00
* Prices subject to change without notice.
To Fold Highchair
La highchair on the
floor as shown. Press in
metal buttons at base of both
plastic brackets. Push rear
base down to fold highchair.
Pull UP
To Adjust Height
DO NOT
adjust the highchair with
your child in it.
Hold chair frame down
and lift seat firml to
free pegs from height-
adjustment notch. Slide
seat up or down in the
track, then snap it into
desired height setting.
When adjusting
height, be careful to
keep fingers away from
height-adjustment track.
There are five possible
height settings. The highchair
can be used as a toddler chair
b adjusting to the lower
height settings.
CHECK that both sides of
chair are snapped into the
desired height-adjustment
notch.
Return the form below with pa ment to:
GRACO CHILDRENS RODUCTS INC.
CUSTOMER SERVICE DE ARTMENT
.O. BOX 100, MAIN STREET
ELVERSON, A 19520
IF YOU NEED HEL
If ou have an questions or if ou need an parts
not listed, please call toll-free:
1-800-345-4109
or visit our Internet website, www.gracobab .com
Total:
Shipping
& handling: $5.00
6% sales tax
(PA onl ):
Total amount
due:
Push on
front button
To Use Tray
Place tra on armrests of
seat. Pull out side handles
under the tra . Put tra in
one of the five adjustment
positions, and release
side handles.
CHECK that tray is securely
attached by pulling forward
on the tray.
Use either the side handles
or the front button to adjust
the position of the tra .
DO NOT
force the tray against
your child. Keep your
childs hands and fingers
away from the tray when
adjusting the tray.
Tra ma be removed from
highchair b using the side
handles.
11
All manuals and user guides at all-guides.com
all-guides.com
