Graco ExactaBlend 24R200 User manual

332511B
EN
Kit Instructions
ExactaBlend™AGP Advanced Glazing Proportioner
Heated Platen Kit
For heating bulk supply of medium to high viscosity polysulfide and urethane materials.
For professional use only.
Not approved for use in explosive atmospheres or hazardous locations.
24R200
Heated platen kit, high volume
Refer to ExactaBlend AGP Advanced Glazing Proportioner, Setup-Operation manual for maximum working pressure
and model information.
Important Safety Instructions
Read all warnings and instructions in this
manual and the ExactaBlend AGP Advanced
Glazing Proportioner, Setup-Operation man
ual. Save all instructions.

Related Manuals
2332511B
Related Manuals
Refer to ExactaBlend AGP Advanced Glazing Propor
tioner, Setup-Operation manual for the complete list of
related manuals.
Contents
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Description . . . . . . . . . . . . . . . . . . . . . . . 3
Power Requirements . . . . . . . . . . . . . . . . . . . . . 3
Component Identification . . . . . . . . . . . . . . . . . . . . 4
Heated Platen Kit . . . . . . . . . . . . . . . . . . . . . . . . 4
Heat Controller . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Platen Maintenance . . . . . . . . . . . . . . . . . . . . . 15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Common Problems . . . . . . . . . . . . . . . . . . . . . . 16
Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Replace Platen Heaters and Sensor . . . . . . . . . 18
Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Heated Platen Kit, 24R200 . . . . . . . . . . . . . . . . 20
Heat Enclosure, 24R870 . . . . . . . . . . . . . . . . . . 24
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 28
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 28

Warnings
332511B 3
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama
tion point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When
these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific
hazard symbols and warnings not covered in this section may appear throughout the body of this manual where
applicable.
Overview
System Description
The heated platen kit is a field installed kit to add heat to
the platen. The additional heat may change the viscosity
properties of the material and allow the material to flow
easier through the system.
Power Requirements
A 25A (minimum) - 30A (maximum) circuit breaker must
be installed on the incoming power supply.
* Add to power requirements of ExactaBlend AGP
Advanced Glazing Proportioner system. Amps maxi
mum per leg shown.
** 190-264 voltage range acceptable.
WARNINGWARNINGWARNING
WARNING
ELECTRIC SHOCK HAZARD
This equipment must be grounded. Improper grounding, setup, or usage of the system can cause electric
shock.
• Turn off and disconnect power at main switch before disconnecting any cables and before servicing
or installing equipment.
• Connect only to grounded power source.
• All electrical wiring must be done by a qualified electrician and comply with all local codes and
regulations.
BURN HAZARD
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe
burns:
• Do not touch hot fluid or equipment.
Nominal Voltage** Wattage Amps*
240 V 3,500 per Platen 20

Component Identification
4332511B
Component Identification
Heated Platen Kit
Key:
A RTD Temperature Sensor
BHeaterCoil
C Temperature Limit Switch
D Junction Box
E Heat Electrical Enclosure
F Main Power Switch
G Heater Power Switch
HHeatController

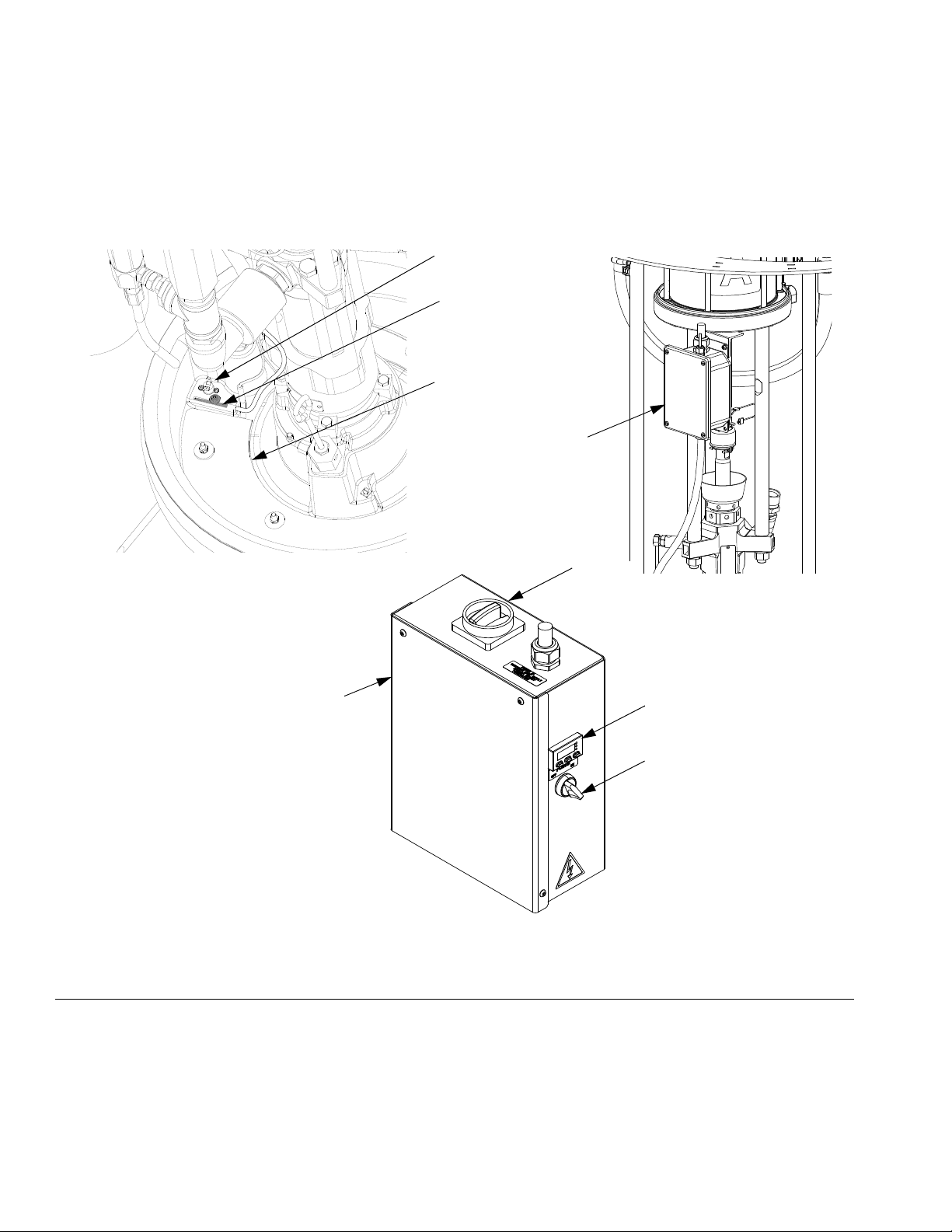

FIG. 1: Heated Platen Kit
E
A
B
C
D
F
G
H

Component Identification
332511B 5

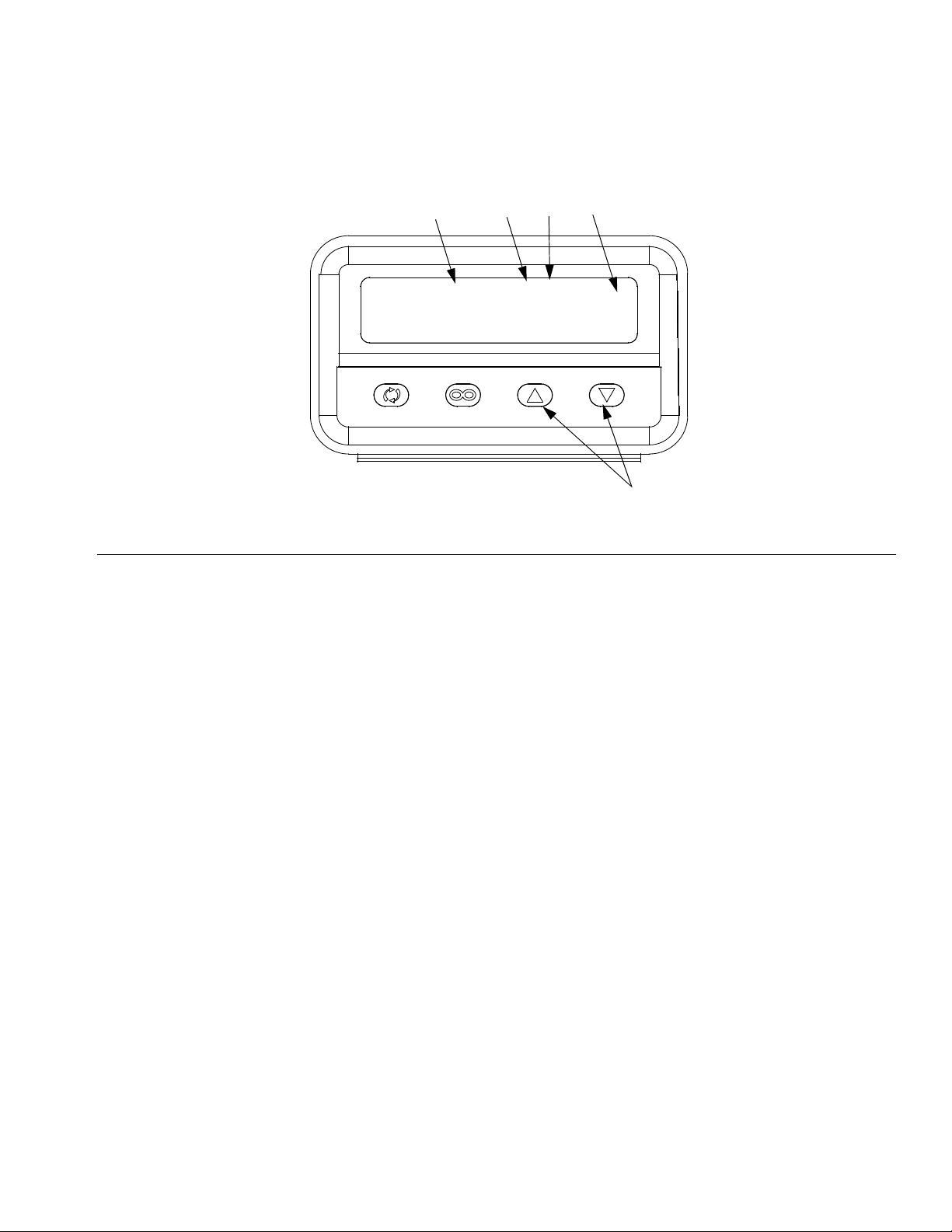

Heat Controller
Key:
AA Current Temperature
AB Power is Supplied to Heater
AC Power is Supplied to Heat Overtemp Contactor
AD Desired Temperature
AE Temperature Adjustment
FIG. 2: Heat Controller
70 90
1 2
AA AB AC AD
AE

Installation
6332511B
Installation
Grounding
Ground the system as instructed within this manual.
1. Access the Platen
a. Perform Change Drums procedure in the
Air-Powered Ram manual. Do not load a new
drum.
b. Perform Shutdown procedure in the Exacta
Blend AGP Advanced Glazing Proportioner,
Setup-Operation manual.
c. Thoroughly clean all material that may be found
on the top of the platen.
d. Turn off all sources of power to the machine.
To avoid serious injury or machine damage, all
electrical connections need to be done by a qualified
electrician in compliance with local codes.
The equipment must be grounded to reduce the risk
of static sparking and electric shock. Electric or static
sparking can cause fumes to ignite or explode.
Improper grounding can cause electric shock.
Grounding provides an escape wire for the electric
current.

Installation
332511B 7

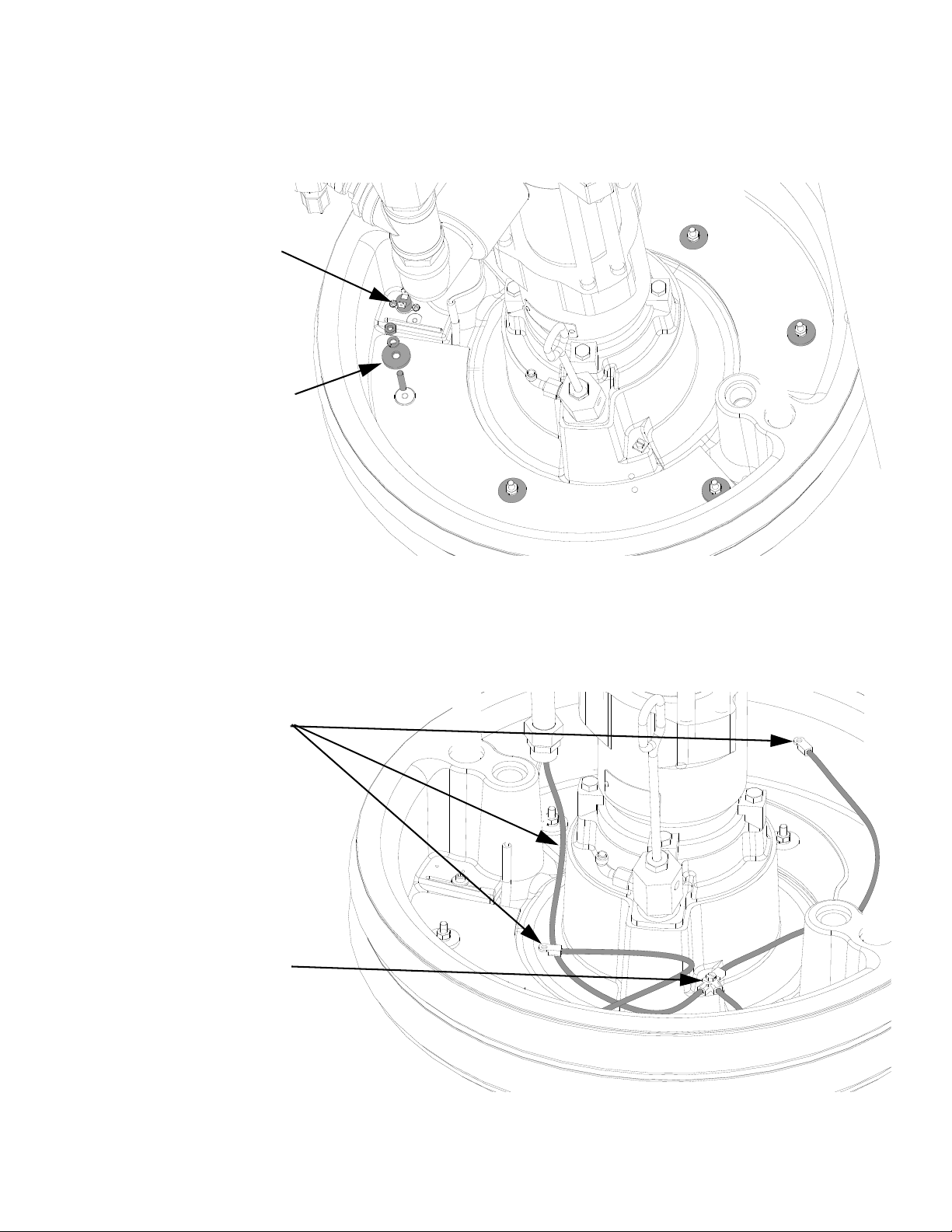

2. Install the Heat Coils and the Thermostat Switch.
3. Connect the Ground Wires.
Connect the ground wires to the terminal lug and to the platen covers (not shown in view). Attach the conduit to the
platen cover and route the wires through the conduit when connections are complete.
- (6) 1/4-20 Studs
- (6) Flat Washers
- (6) Lock Washers
- (6) Nuts
- (1) Thermostat
- (2) Washers
- (2) Screws
- (3) Ground Wires
- (2) Lock Washers
- (2) Nuts
- (1) Terminal Lug

Installation
8332511B

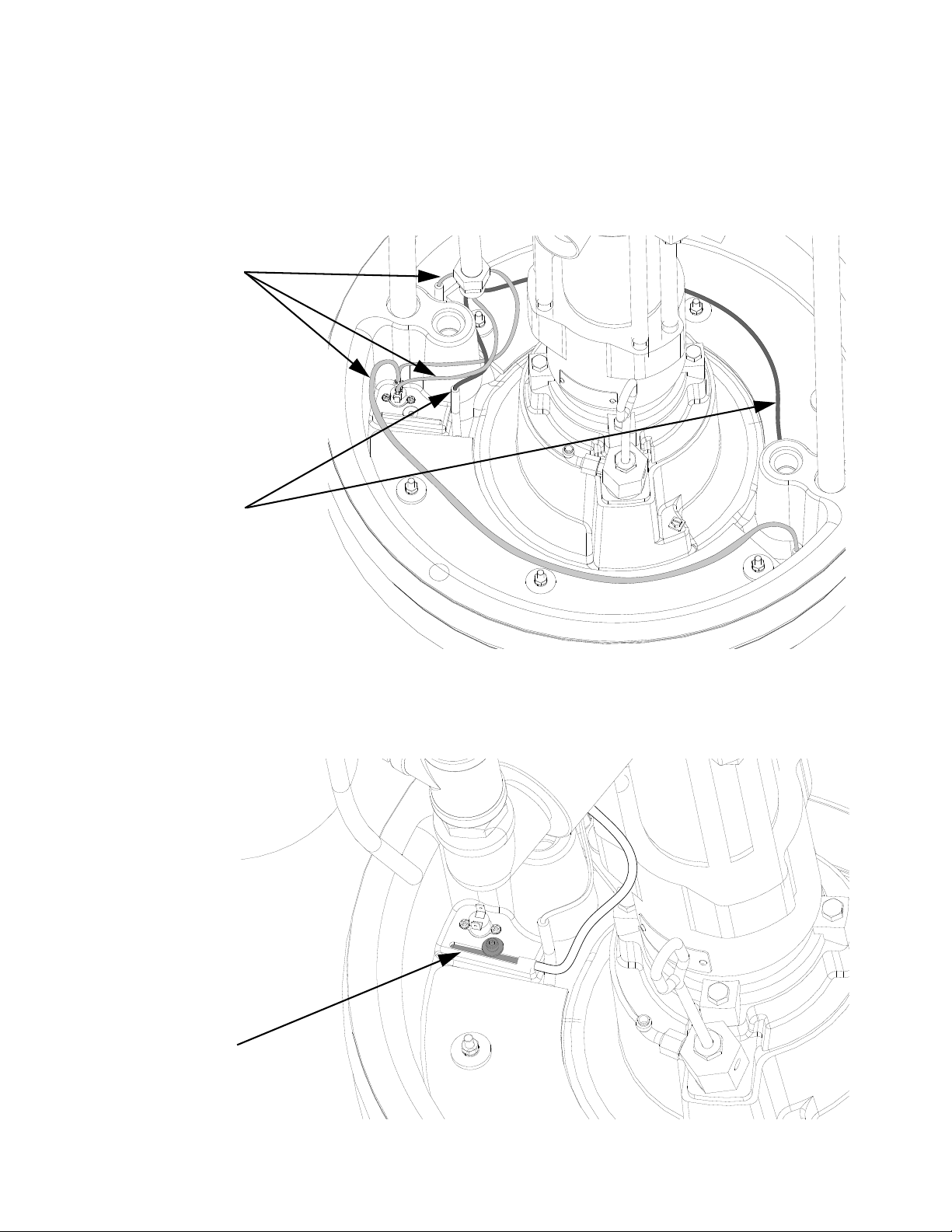

4. Connect the Power Leads.
Label “A” and “B” leads for identification in step 10. Route all the wires through the conduit when connections are
complete.
5. Mount the RTD.
Route the wire through the conduit when connections are complete.
- (2) “B” Leads
- (3) “A” Leads
- (1) RTD
- (1) Washer
- (1) M5 Screw

Installation
332511B 9

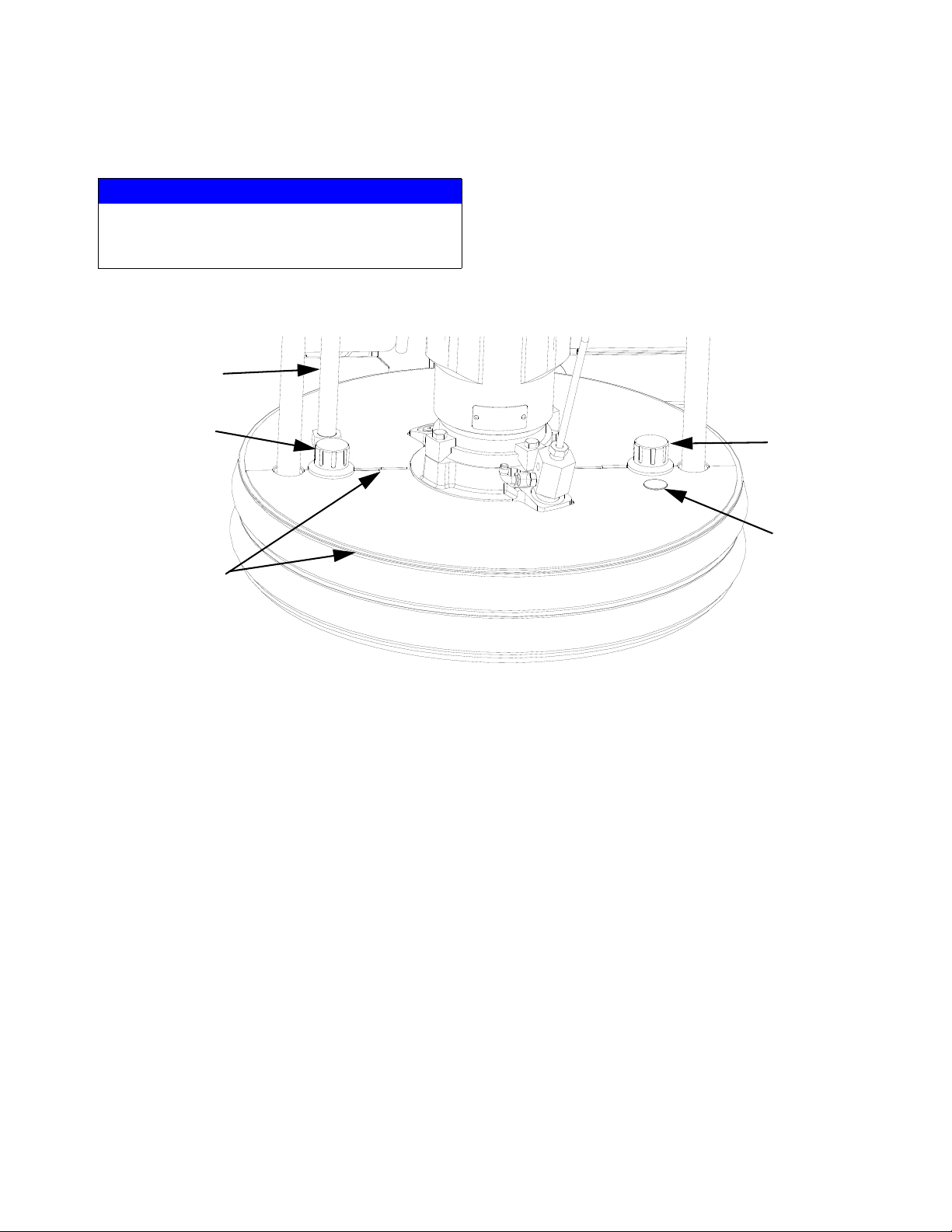

6. Attach the Platen Covers.
NOTE: Torque the platen cover fasteners to
60 +/- 10 in-lbs (6.8 +/- 1.1 N•m).
NOTICE
To prevent damage to wires, ensure wires are not
pinched when assembling and securing platen cov
ers.
- (1) Conduit
- (1) Fastener
- (2) Covers
- (1) Plug
- (1) Fastener

Installation
10 332511B

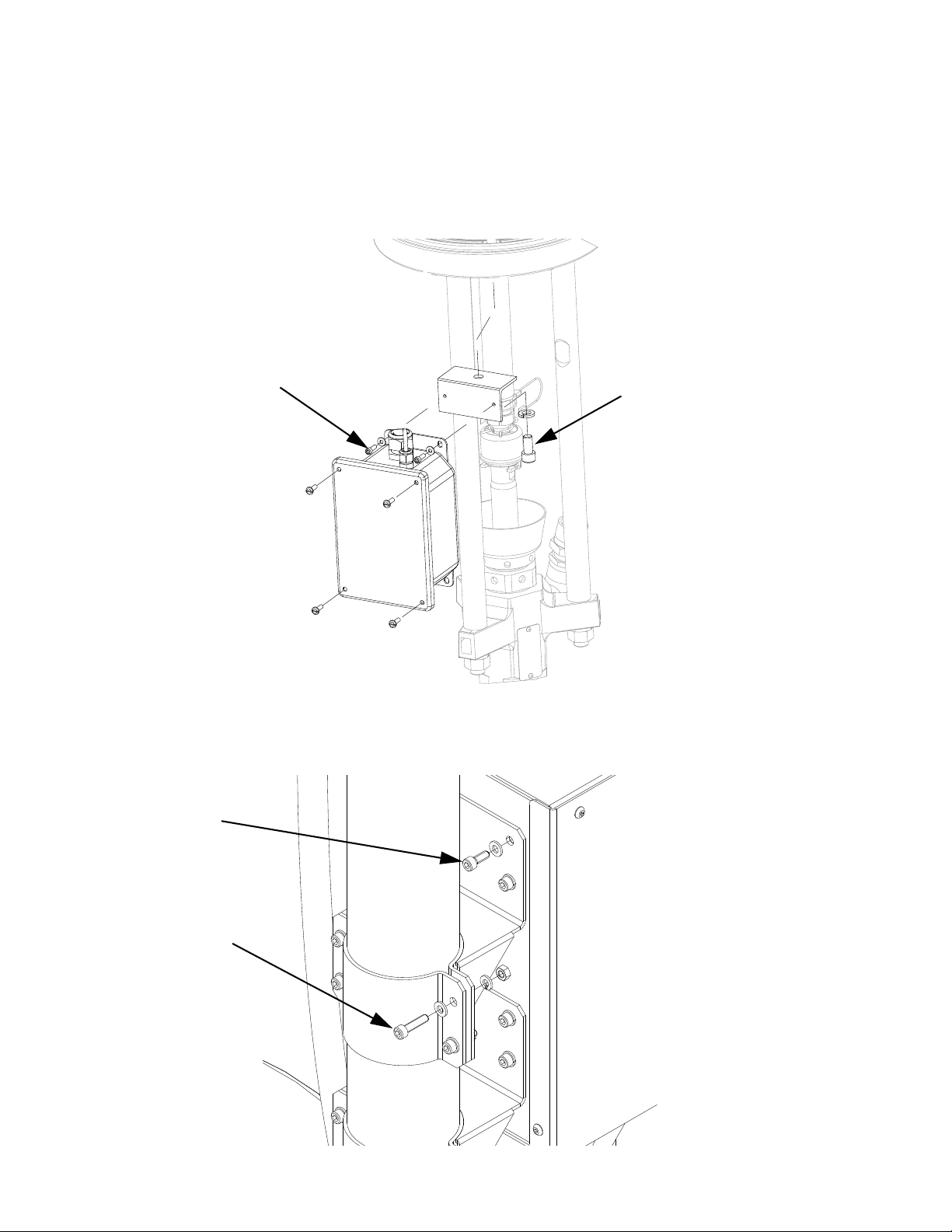

7. Mount the Junction Box.
a. Mount the junction box to the air motor located on the 55 gallon (208 liter) ram.
b. Route the conduit to the junction box from the platen.
8. Mount the Heat Electrical Panel on the 5 Gallon (19 liter) Ram.
- (1) 3/8-16 Bolt (Urethane)
- (1) M8 Bolt (Polysulfide)
- (1) Lock Washer
- (2) #8-32 Screws
- (2) Lock Washers
- (8) M6x16 Bolts
- (8) Washers
- (8) Lock Washers
- (8) Nuts
- (8) M6x25 Bolts
- (8) Washers
- (8) Lock Washers
- (8) Nuts

Installation
332511B 11
9. Route the Power Cord and Signal Cable to the Junction Box.
Secure the power cord and signal cable to the base (A) cross bar.
10.Connect the Leads in the Junction Box.
Connect “A” leads, “B” leads, ground, and signal cable within the junction box. Replace the cover.
Routing

Installation
12 332511B
11.Connect the Power Cable from the Heat Electrical Enclosure to
the Main Electrical Enclosure.
12.Connect Power to the Terminals and Ground.

Setup
332511B 13
Setup

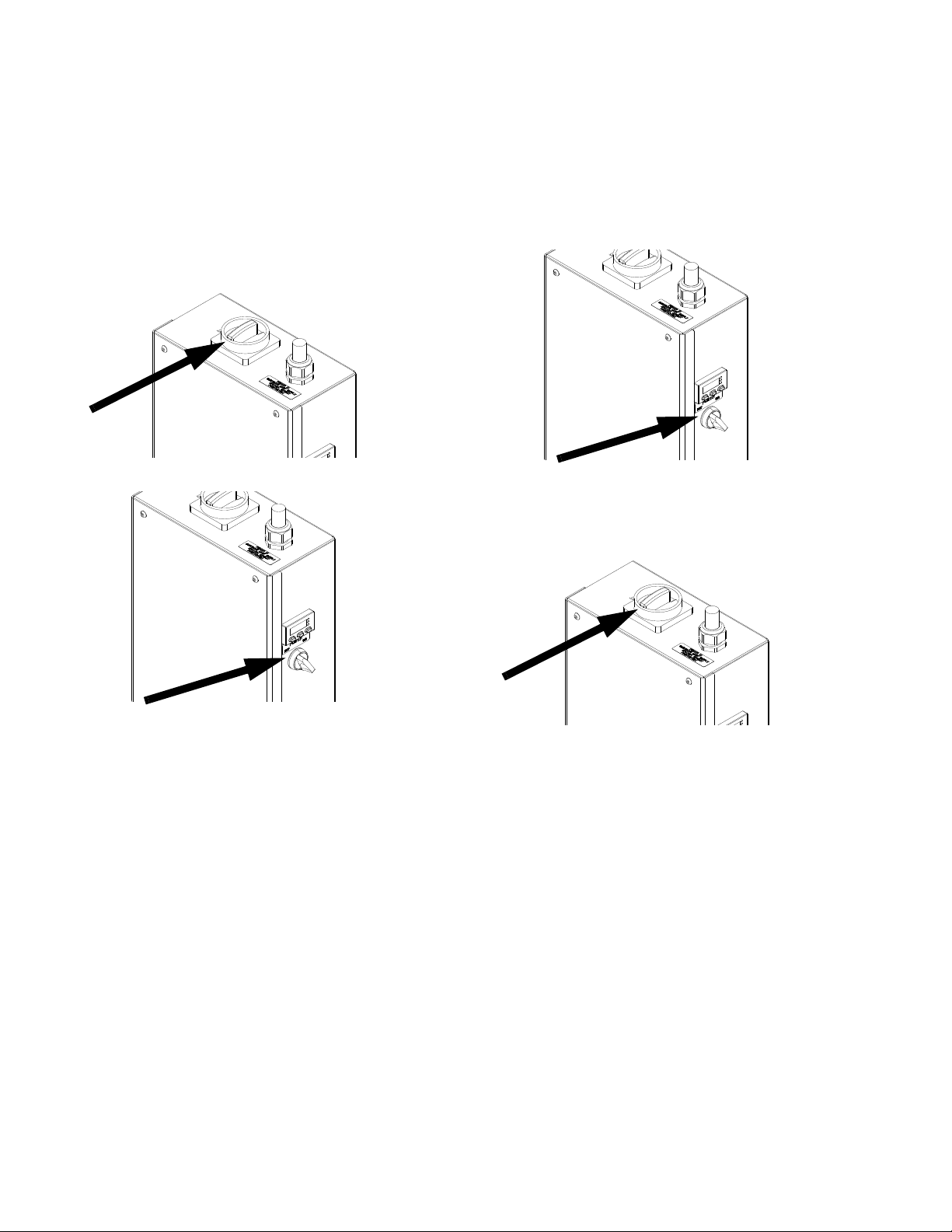

1. Turn the power on at the heated platen electrical
enclosure.
2. Turn the power on at the heater power switch.
3. Set the desired platen temperature by pressing
either the up or down arrow keys.
NOTE: Temperature is displayed in Fahrenheit.
70 90
1 2
Desired Temperature

Operation
14 332511B
Operation
Startup
1. Turn the power on at the heated platen electrical
enclosure.
2. Turn the power on at the heater power switch.
3. Set the desired temperature. Refer to page 5 for
details.
Shutdown
1. Turn the power off at the heater power switch.
NOTE: If the entire machine is to be disconnected from
electrical power, turn the power off at the heated platen
electrical enclosure.

Maintenance
332511B 15
Maintenance
Platen Maintenance
If the platen does not come out of the pail easily when
the pump is being raised, the air assist tube or check
valve may be plugged. A plugged valve prevents air
from reaching the underside of the plate to assist in rais
ing it from the pail.
1. Turn off main disconnect at the machine.
2. Allow equipment to cool.
3. Relieve pressure and disassemble air assist valve.
Refer to Supply Systems Repair-Parts manual.
4. Clear air assist tube in platen. Clean all parts of
valve and reassemble. Refer to Supply Systems
Repair-Parts manual.
5. Remove bleed stick from platen. Push bleed stick
through bleed relieve port (P) to remove material
residue. See FIG. 3.
6. Remove platen covers. See FIG. 3.
a. Remove platen cover fasteners (F).
b. Remove both platen covers (C) and ground wire
from platen.
7. Remove any excess fluid. Use a soft wire brush on
heater coils (H). See FIG. 3.
8. Inspect platen heater blocks (B) or heater (H) for
burn or melt spots. Replace platen heater if neces
sary. See FIG. 3.
9. Check for loose connections and damaged wires.
10. Follow steps in reverse order to reassemble platen.
NOTE: Torque platen cover fasteners (F) to 60 +/- 10
in-lbs (6.8 +/- 1.1 N•m) for 55 gallon platen.
Remove and Reinstall Platen Wipers
Refer to Supply Units Repair-Parts manual for instruc
tions.

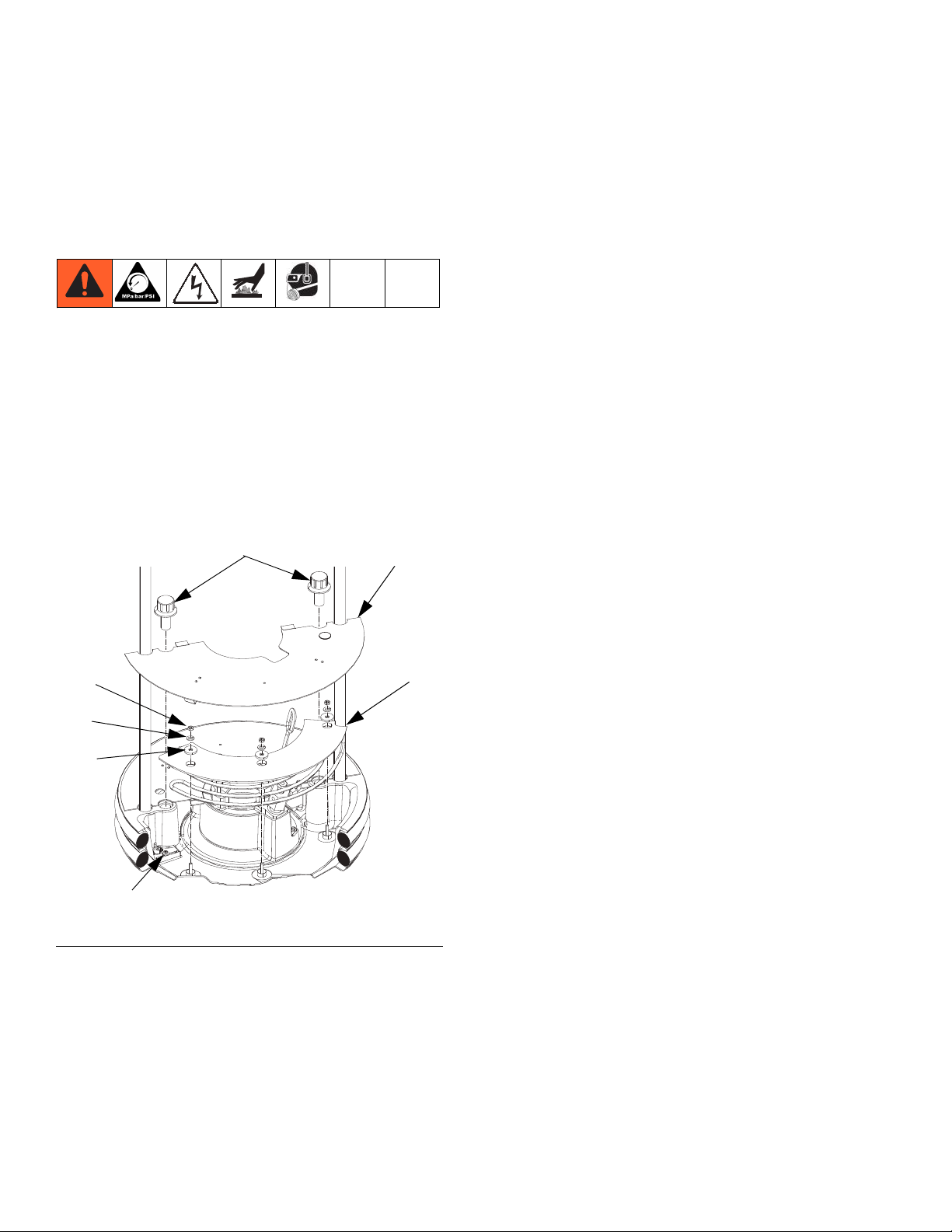

FIG. 3: Remove Platen Covers and Heaters
F
Bleed
Stick
C
H
B
P

Troubleshooting
16 332511B
Troubleshooting
Before performing any troubleshooting procedure:
1. Perform Pressure Relief Procedure In the Exacta
Blend AGP Advanced Glazing Proportioner,
Setup-Operation manual.
2. Turn off main disconnect at the machine.
3. Allow equipment to cool.
Try the recommended solutions in the order given for
each problem, to avoid unnecessary repairs. Also,
determine that all circuit breakers, switches, and con
trols are properly set and wiring is correct before assum
ing there is a problem.
Common Problems
Problem Cause Verification Solution
Heating is slow. Low power. Measure voltage across cir
cuit breakers. Voltage
should measure between
190 and 264 Vac.
1. If voltage is lower than
expected, use electrical
schematic to locate
faulty wiring or connec
tion.
2. Have a qualified electri
cian service electrical
components.
Heating over shoots. Defective solid state relay. Verify for given zone that
temperature does not
increase when zone is dis
abled.
Verify RTD wire or heater
power cord is attached to
correct heat module.
Replace relay.

Troubleshooting
332511B 17
No heat. Tripped circuit breaker. Visually check circuit
breaker for a tripped condi
tion.
Determine cause of tripped
circuit breaker. Then repair
fault and reset main circuit
breaker.
Low power. Measure voltage across cir
cuit breakers. Voltage
should measure between
190 and 264 Vac.
1. If voltage is lower than
expected, use electrical
schematic to locate
faulty wiring or connec
tion.
2. Have a qualified electri
cian service electrical
components.
Cable unplugged/loose
wire.
Check for loose or discon
nected wires and plugs.
Attach plug/wire.
Incorrect temperature set
point.
Verify zone has a correct
temperature setting on the
controller.
Enter Setup and enter cor
rect temperature.
Contactor not closing. Turn on heat for zone A1
and ensure contactor
closes.
1. Verify that there are no
other error conditions
that would prevent
heater from starting.
2. Replace contactor.
Problem Cause Verification Solution

Repair
18 332511B
Repair
Replace Platen Heaters and
Sensor
55 Gallon Platen Heater and Sensor
1. Turn off main disconnect at the machine.
2. Allow equipment to cool.
3. Remove both platen cover fasteners (F).
4. Remove both platen covers (C) and ground wire
from platen.
5. Remove platen heater blocks (B).
a. Use a hex wrench to remove three nuts (N) and
washers (L, W) from each heater block.
b. Remove screws from junction box cover.
Loosen strain relief nut, and remove junction
box cover.
c. Disconnect four platen heater wires (labeled A
and B) and RTD sensor (R) connector in the ter
minal box.
d. Remove screws and washers. Remove platen
heater blocks (B) and RTD sensor (R).
6. Install new platen heaters and RTD sensor (R).
Secure RTD sensor (R) with screw and washer.
Secure platen heater blocks with nuts and washers.
7. Label platen heater wires A and B. Reroute platen
heater wires and platen RTD sensor (R) through the
conduit to the junction box. Reconnect the four
wires to the appropriate terminal block A and B.
Reconnect the platen RTD sensor (R).
8. Reinstall junction box cover. Secure with screws
and tighten strain relief nut.
9. Reconnect ground wire, and install platen covers.
Secure platen covers with fasteners. Torque platen
cover fasteners to 60 in-lbs +/- 10 in-lbs (6.8 +/-
1.1 N•m).
FIG. 4: Replace Platen Heaters and RTD sensor (R)
C
B
W
N
F
L
R

Schematic
332511B 19
Schematic
140
149 147 145 142 110 138 136
134 132 130 128 126 124
122 120 118 114 116 112 108 106 104
102 100
141
148 144 146 143
111
139 137 135 133 131 129 127 125 123
121 119 115 117 113 109 107 105 103
101
50-60HZ
1PH/
220V/
DISC100
L21L2
L11L1
GND
CB CB
1L1
1L2
CB CB
1L1
1L2
20A
5A
1100 1120
1361
1381
3
4
CUSTOMER MUST SUPPLY BRANCH CIRCUIT PROTECTION
LABEL WITH WIRE NUMBERS MARKED AS SHOWN
SEE XXXXXX FOR LABELS
1360 1380
L1 T1
L2 T2
CON120
L3 T3
HARNESS
16U358
HARNESS
16U358
HARNESS
16U354
HARNESS
16U354
SSR130
A1 A2
HARNESS
16A522
+24VDC
SIGNAL
1300
1280
1370 1390
BLU
BRN
GND
HARNESS
16U365
CRM
C2 C1
1180
HARNESS
16U353 HARNESS
16U345
HARNESS
16U345
HARNESS
16U356
HARNESS
16U356
TC-1
1371 1391
AB
BA
GND
GND
GND
1371
1371
R-1
1392
1392
EXC
SIGNAL
15B137 THERM SW 16D383
RTD
HARNESS (16D383)
HARNESS
16A574
HARNESS
16A574
255733
255733
24E265
HARNESS
16A356
GND
1382
L1 T1
1
2
SSR130
5
6
7 8
POWER
OFF ON
OX
SW-1
SW-1
4 3 2 1
4 3 2 1
1
1

Parts
20 332511B
Parts
Heated Platen Kit, 24R200
FIG. 5: Heated Platen Kit
14
11
5,
26
6
2
2
3
5
22
23
28
11
7
14
