Graco ProControl 1KS User manual

Installation
ProControl™1KS 3A1163A
ENG
Automatic system for fluid management of single component coatings. Includes flow
control, flushing, and color change. For professional use only.
Approved for use in explosive atmospheres (except the EasyKey).
See pages 4-5 for model information, including maxi-
mum working pressure. Equipment approval labels are
on page 3. Some components shown are not included
with all systems.
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
TI16328a
#53 II 2 G

23A1163A
Contents
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Equipment Approvals . . . . . . . . . . . . . . . . . . . . . . . 3
System Configuration and Part Numbers . . . . . . . 4
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Important Two-Component Material Information . 9
Isocyanate Conditions . . . . . . . . . . . . . . . . . . . . . 9
Material Self-ignition . . . . . . . . . . . . . . . . . . . . . . 9
Keep Components A and B Separate . . . . . . . . . 9
Moisture Sensitivity of Isocyanates . . . . . . . . . . . 9
Changing Materials . . . . . . . . . . . . . . . . . . . . . . . 9
Component Identification and Definition . . . . . . 10
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Location Requirements . . . . . . . . . . . . . . . . . . . 12
Intrinsically Safe Installation Requirements . . . 12
Optional Cables . . . . . . . . . . . . . . . . . . . . . . . . . 12
General Information . . . . . . . . . . . . . . . . . . . . . . . 14
Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Air Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Air Connections . . . . . . . . . . . . . . . . . . . . . . . . . 17
Fluid Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Fluid Connections . . . . . . . . . . . . . . . . . . . . . . . 18
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Connect Main Power . . . . . . . . . . . . . . . . . . . . . 21
Connect EasyKey to Fluid Station Control . . . . . 22
Connect Color Change Module . . . . . . . . . . . . . 24
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Check Resistance . . . . . . . . . . . . . . . . . . . . . . . 27
Schematic Diagrams . . . . . . . . . . . . . . . . . . . . . . . 29
System Pneumatic Schematic . . . . . . . . . . . . . . 29
System Electrical Schematic . . . . . . . . . . . . . . . 30
Dimensions and Mounting Hole Layouts . . . . . . . 32
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 36
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 36

Related Manuals
3A1163A 3
Related Manuals
Component Manuals in English
Equipment Approvals
Equipment approvals appear on the following labels
which are attached to the Fluid Station Control Box and
EasyKey™. See FIG. 1 on page 4 for label locations.
Manual Description
3A1080 ProControl 1KS Operation
3A1164 ProControl 1KS Repair-Parts
312782 Dispense Valve
312783 Color Change Valve Stacks
312787 Color Change Module Kit
312784 Gun Flush Box Kits
310745 Gun Air Shutoff Kit
312786 Dump Valve and Third Purge Valve Kits
312785 Network Communication Kits
308778 G3000/G3000HR/G250/G250HR Flow
Meter
313599 Coriolis Flow Meter
313212 Gun Flush Box Integration Kit
313290 Floor Stand Kit
313542 Beacon Kit
313386 Basic Web Interface/Advanced Web
Interface
406800 15V825 Discrete I/O Board Kit
SERIES NO. MFG. YR.
PART NO.
AMPS
VOLTS 85-250 ~
2 AMPS MAX
POWER REQUIREMENTS
GRACO INC.
P.O. Box 1441
Minneapolis, MN
55440 U.S.A.
II (2) G
[Ex ia] IIA
FM08ATEX0072
Intrinsically safe connections
for Class I, Div 1, Group D
Ta = -20°C to 50°C
Install per 289833
CUS
277869
50/60 Hz
ProControl 1KS
Um: 250 V
.7 7 100
MAX AIR WPR
MPa bar PSI
FLUID PANEL
ProControl
PART NO. SERIES SERIAL
GRACO INC.
P.O. Box 1441
Minneapolis, MN
55440 U.S.A.
Intrinsically safe equipment
for Class I, Div 1, Group D, T3
Ta = -20°C to 50°C
Install per 289833 FM08ATEX0073
II 2 G
Ex ia IIA T3
.7 7 100
MAX AIR WPR
MPa bar PSI
1.31 13.1 190
MAX FLUID WPR
MPa bar PSI
PART NO. SERIES
Read Instruction Manual
Warning: Substitution of components
may impair intrinsic safety.
SERIAL
ProControl 1KS
Electronic Proportioner
MAX TEMP 50°C (122°F)
Intrinsically Safe (IS) System. Install
per IS Control Drawing No. 289833.
EasyKey Interface IS Associated
Apparatus for use in non hazardous
location, with IS Connection to Smart
Fluid Plate IS
Apparatus for use in:
Class I, Division 1, Group D T3 C
Hazardous Locations
Intrinsically safe
equipment for Class I,
Div 1, Group D, T3
Ta = -20°C to 50°C
CUS
FM08ATEX0074
II 2 G
Ex ia IIA T3
GRACO INC.
P.O. Box 1441
Minneapolis, MN
55440 U.S.A.
MFG. YR.
ATEX Certificate is listed here
ATEX Certificate is listed here
ATEX Certificate is listed here
EasyKey Label
Fluid Station Control Box Label
EasyKey and Fluid Station Control Box Label

System Configuration and Part Numbers
43A1163A
System Configuration and Part Numbers
Models
The part number for your equipment is printed on the equipment identification labels. See FIG. 1 for
location of the identification labels.
Part No. Series Description
Meter Flow Control
None G3000 Coriolis No Yes
262380 A ProControl 1KS ✔✔
262381 A ProControl 1KS ✔ ✔
262382 A ProControl 1KS ✔ ✔
262383 A ProControl 1KS ✔ ✔

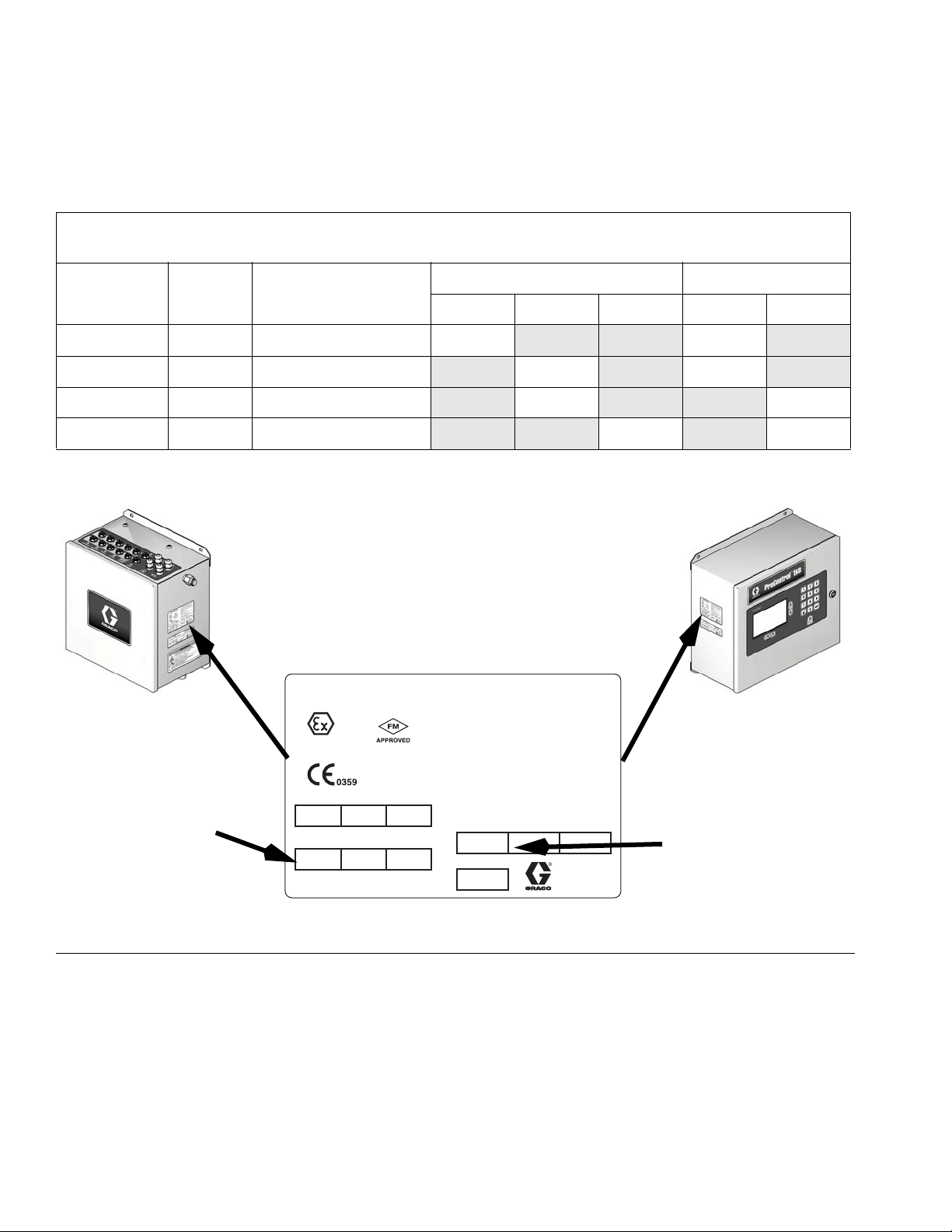

FIG. 1: Identification Label, ProControl 1KS Systems
.7 7 100
MAX AIR WPR
MPa bar PSI
1.31 13.1 190
MAX FLUID WPR
MPa bar PSI
PART NO. SERIES
Read Instruction Manual
Warning: Substitution of components
may impair intrinsic safety.
SERIAL
ProControl 1KS
Electronic Proportioner
MAX TEMP 50°C (122°F)
Intrinsically Safe (IS) System. Install
per IS Control Drawing No. 289833.
EasyKey Interface IS Associated
Apparatus for use in non hazardous
location, with IS Connection to Smart
Fluid Plate IS
Apparatus for use in:
Class I, Division 1, Group D T3 C
Hazardous Locations
Intrinsically safe
equipment for Class I,
Div 1, Group D, T3
Ta = -20°C to 50°C
CUS
FM08ATEX0074
II 2 G
Ex ia IIA T3
GRACO INC.
P.O. Box 1441
Minneapolis, MN
55440 U.S.A.
MFG. YR.
Label Location
on EasyKey
Label Location
on Fluid Station
Control Box
Maximum Fluid
Working Pressure
is listed here
TI15975a
TI15974a
Part Number

System Configuration and Part Numbers
3A1163A 5
Standard Features Accessories
Hazardous Location Approval
Models using a G3000, G3000HR, or intrinsically safe Coriolis meter for both A and B meters are approved for
installation in a Hazardous Location - Class I, Div I, Group D, T3 or Zone I Group IIA T3.
Maximum Working Pressure
Maximum working pressure rating is dependent on the fluid component options selected. The pressure rating is
based on the rating of the lowest rated fluid component. Refer to the component pressure ratings below.
Example: Model 262383 has a maximum working pressure of 190 psi (1.31 MPa, 13.1 bar).
Check the identification label on the EasyKey or fluid station for the system maximum working pressure.
See FIG. 1.
ProControl Fluid Components Maximum Working Pressure
Base System (no meter, no color/catalyst change option,
and no flow control [option). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4000 psi (27.58 MPa, 275.8 bar)
G3000 Meter Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4000 psi (27.58 MPa, 275.8 bar)
Coriolis Meter Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2300 psi (15.86 MPa, 158.6 bar)
Color Change Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 psi (2.07 MPa, 20.6 bar)
Flow Control Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .190 psi (1.31 MPa 13.1 bar)
Flow Meter Fluid Flow Rate Range
G3000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75-3800 cc/min. (0.02-1.0 gal./min.)
G3000HR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38-1900 cc/min. (0.01-0.50 gal./min.)
Coriolis Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-3800 cc/min. (0.005-1.00 gal./min.)
S3000 Solvent Meter (accessory) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38-1900 cc/min. (0.01-0.50 gal./min.)
Feature
EasyKey with LCD
RS 485 Network Cable, 50 ft (15.25 m)
Fiber Optic and Power Cables, 50 ft (15.25 m)
Fluid Station Control Box
Discrete I/O Board
A Side Dump Valve, if color valve(s) selected
Flow Control with 15 ft (4.57 m) Cable (if selected)
Basic Web Interface
Accessory
15V536 Solvent Flow Switch Kit
15V213 Power Cable, 100 ft (30.5 m)
15G710 Fiber Optic Cable, 100 ft (30.5 m)
15G614 Flow Control Extension Cable, 40 ft (12.2 m)
15W034 Strobe Light Alarm Indicator Kit
15V331 Gateway Ethernet Communication Kit
15V963 Gateway DeviceNet Communication Kit
15V964 Gateway Profibus Communication Kit
15V337 Advanced Web Interface

Warnings
63A1163A
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama-
tion point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When
these symbols appear in the body of this manual, refer back to these Warnings. Product-specific hazard symbols and
warnings not covered in this section may appear throughout the body of this manual where applicable.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help
prevent fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic
drop cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes
are present.
• Ground all equipment in the work area. See Grounding instructions.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail.
• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
ELECTRIC SHOCK HAZARD
This equipment must be grounded. Improper grounding, setup, or usage of the system can cause
electric shock.
• Turn off and disconnect power at main switch before disconnecting any cables and before servicing
equipment.
• Connect only to grounded power source.
• All electrical wiring must be done by a qualified electrician and comply with all local codes and
regulations.
INTRINSIC SAFETY
Intrinsically safe equipment that is installed improperly or connected to non-intrinsically safe equipment
will create a hazardous condition and can cause fire, explosion, or electric shock. Follow local
regulations and the following safety requirements.
• Only models with a G3000, G250, G3000HR, G250HR, or intrinsically safe Coriolis meter are
approved for installation in a Hazardous Location - Class I, Div I, Group D, T3 or Zone I Group IIA
T3.
• Do not install equipment approved only for a non-hazardous location in a hazardous area. See the
ID label for the intrinsic safety rating of your model.
• Do not substitute or modify system components as this may impair intrinsic safety.

Warnings
3A1163A 7
SKIN INJECTION HAZARD
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like
just a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
• Do not spray without tip guard and trigger guard installed.
• Engage trigger lock when not spraying.
• Do not point gun at anyone or at any part of the body.
• Do not put your hand over the spray tip.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Follow the Pressure Relief Procedure when you stop spraying and before cleaning, checking, or
servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses and couplings daily. Replace worn or damaged parts immediately.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request MSDS from distributor or retailer.
• Do not leave the work area while equipment is energized or under pressure. Turn off all equipment
and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
WARNING

Warnings
83A1163A
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read MSDSs to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
• Always wear chemically impermeable gloves when spraying, dispensing, or cleaning equipment.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, including eye injury, hearing loss,
inhalation of toxic fumes, and burns. This equipment includes but is not limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.
WARNING

Important Two-Component Material Information
3A1163A 9
Important Two-Component Material Information
Isocyanate Conditions
Material Self-ignition
Keep Components A and B
Separate
Moisture Sensitivity of
Isocyanates
Isocyanates (ISO) are catalysts used in two component
coatings. ISO will react with moisture (such as humidity)
to form small, hard, abrasive crystals, which become
suspended in the fluid. Eventually a film will form on the
surface and the ISO will begin to gel, increasing in vis-
cosity. If used, this partially cured ISO will reduce perfor-
mance and the life of all wetted parts.
NOTE: The amount of film formation and rate of crystal-
lization varies depending on the blend of ISO, the
humidity, and the temperature.
To prevent exposing ISO to moisture:
• Always use a sealed container with a desiccant
dryer in the vent, or a nitrogen atmosphere. Never
store ISO in an open container.
• Use moisture-proof hoses specifically designed for
ISO, such as those supplied with your system.
• Never use reclaimed solvents, which may contain
moisture. Always keep solvent containers closed
when not in use.
• Never use solvent on one side if it has been contam-
inated from the other side.
• Always lubricate threaded parts with ISO pump oil
or grease when reassembling.
Changing Materials
• When changing materials, flush the equipment mul-
tiple times to ensure it is thoroughly clean.
• Always clean the fluid inlet strainers after flushing.
• Check with your material manufacturer for chemical
compatibility.
• Most materials use ISO on the A side, but some use
ISO on the B side.
Spraying or dispensing materials containing isocya-
nates creates potentially harmful mists, vapors, and
atomized particulates.
Read material manufacturer’s warnings and mate-
rial MSDS to know specific hazards and precautions
related to isocyanates.
Prevent inhalation of isocyanate mists, vapors, and
atomized particulates by providing sufficient ventila-
tion in the work area. If sufficient ventilation is not
available, a supplied-air respirator is required for
everyone in the work area.
To prevent contact with isocyanates, appropriate
personal protective equipment, including chemically
impermeable gloves, boots, aprons, and goggles, is
also required for everyone in the work area.
Some materials may become self-igniting if applied
too thickly. Read material manufacturer’s warnings
and material MSDS.
Cross-contamination can result in cured material in
fluid lines which could cause serious injury or dam-
age equipment. To prevent cross-contamination of
the equipment’s wetted parts, never interchange
component A (isocyanate) and component B (resin)
parts.

Component Identification and Definition
10 3A1163A
Component Identification and Definition
See Table 1, and FIG. 2 for the system components.

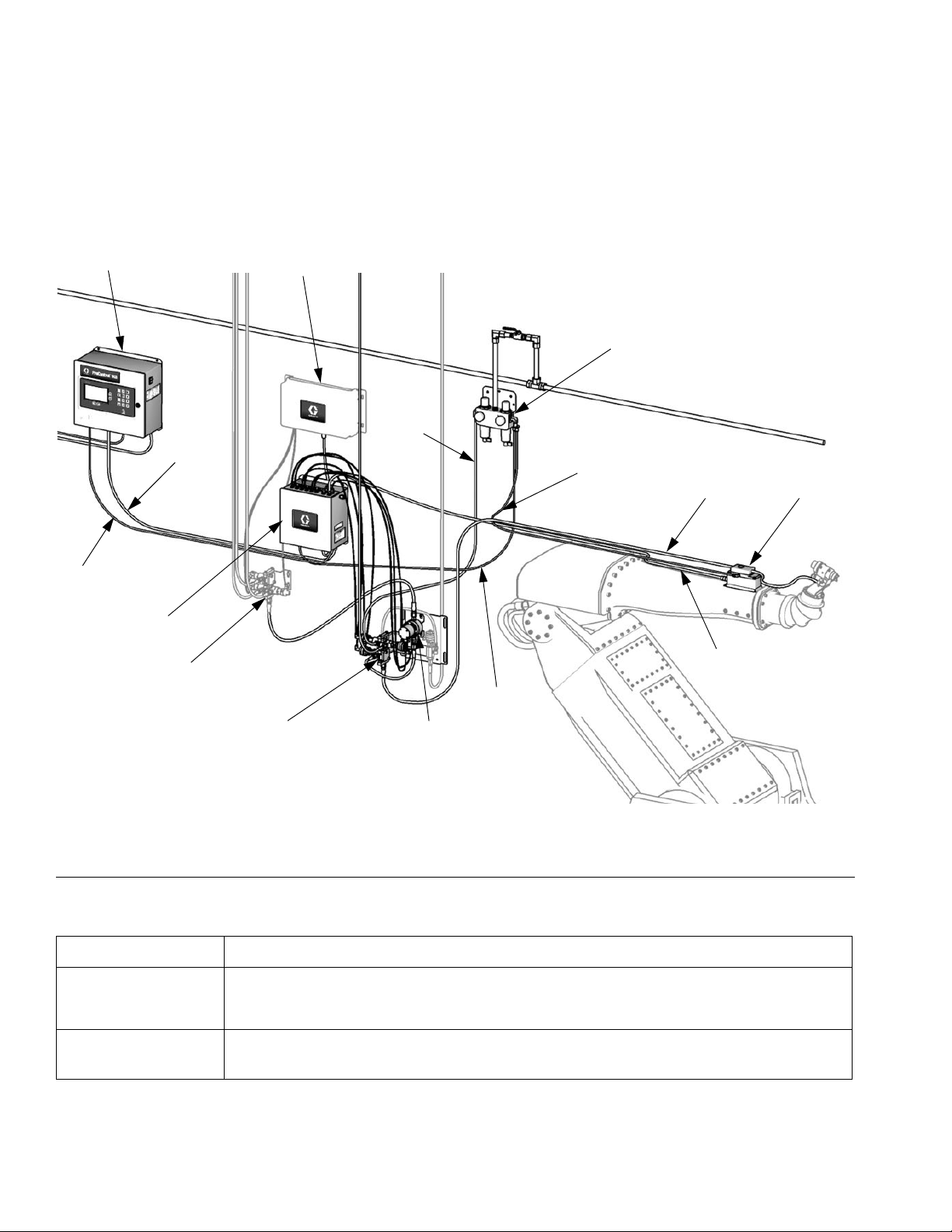

FIG. 2. ProControl 1KS System, shown with G3000 Meter, Color Change, and Flow Control
TI15961b
* See the ProControl 1KS
Repair-Parts manual for
optional cable lengths.
FO*
FC (see
FIG. 8)
PS*
EK
ACV
CCM
MAFM (see
FIG. 6)
Air Control
Module
Logic Air
Regulator
V/P Air
Purge
Air
Fluid
ST
FC Cable*
Table 1: Component Descriptions
Component Description
EasyKey (EK) Used to set up, display, operate, and monitor the system. The EasyKey accepts 85-250
VAC, 50/60 Hz line power and converts that power to acceptable low voltage and optical
signals used by other system components.
Fluid Station
Control Box (ST)
Includes air control solenoids. Its control board manages all fluid functions.

Component Identification and Definition
3A1163A 11

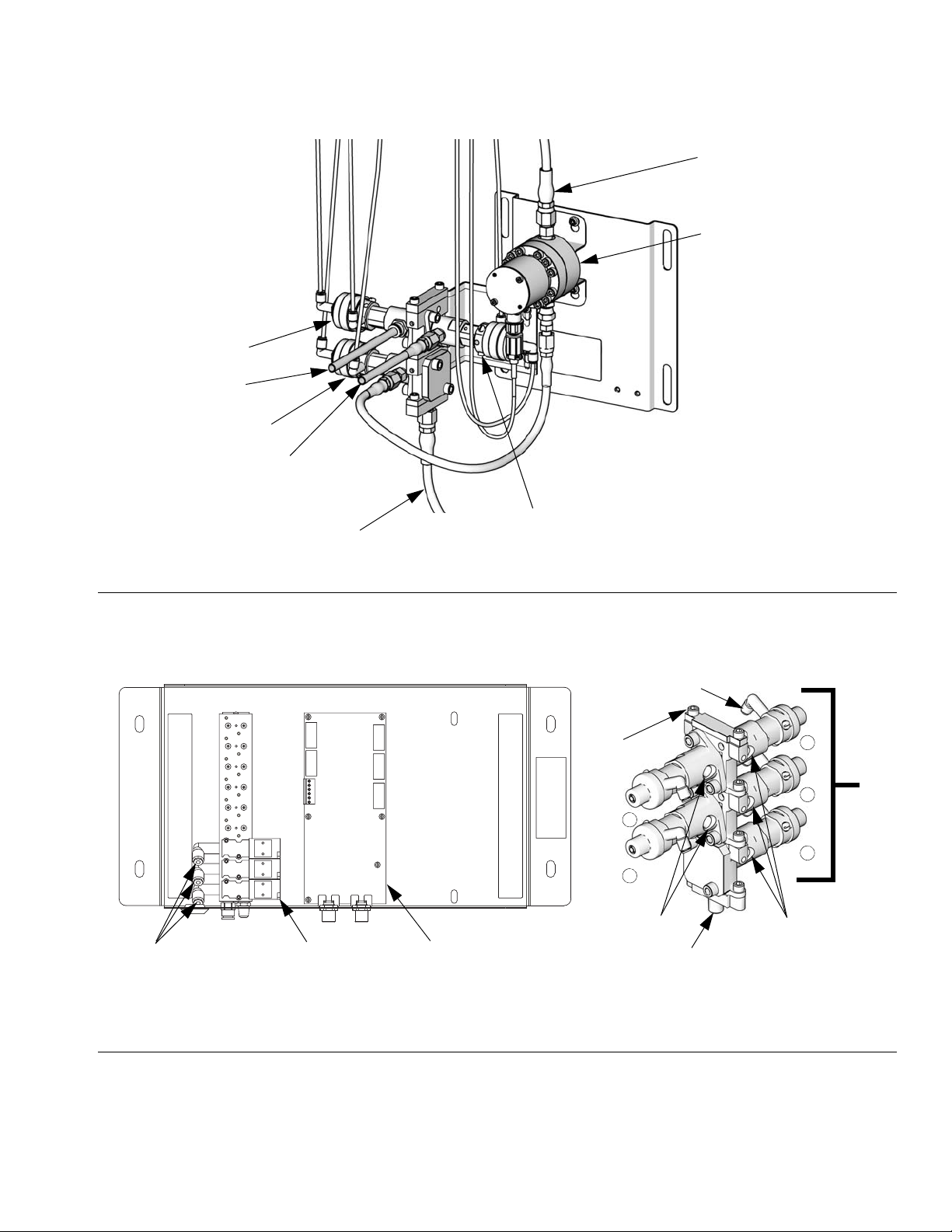

Fluid Manifold (FM) Includes wall mounting bracket and mountings for the fluid meter and the following valves:
•Pneumatically Operated Dose Valve for component A
•Purge Valves for solvent and air purge
Flow Meters (MA,
MS)
Four optional flow meters are available from Graco:
•G3000 is a general purpose gear meter typically used in flow ranges of 75-3800
cc/min. (0.02–1.0 gal/min.), pressures up to 4000 psi (28 MPa, 276 bar), and viscosi-
ties of 20–3000 centipoise. The K-factor is approximately 0.119 cc/pulse.
•G3000HR is a high resolution version of the G3000 meter. It is typically used in flow
ranges of 38–1900 cc/min. (0.01–0.5 gal/min.), pressures up to 4000 psi (28 MPa,
276 bar). and viscosities of 20–3000 centipoise. The K-factor is approximately 0.061
cc/pulse.
•S3000 is a gear meter used for solvents in flow ranges of 38-1900 cc/min. (0.01–0.50
gal/min.), pressures up to 3000 psi (21 MPa, 210 bar), and viscosities of 20–50 centi-
poise. The K-factor is approximately 0.021 cc/pulse.
•Coriolis is a specialty meter capable of a wide range of flow rates and viscosities.
This meter is available with 1/8 in. or 3/8 in. diameter fluid passages. For detailed
information on the Coriolis meter, see manual 313599.
The K-factor is user-settable; at lower flow rates use a lower K-factor.
➜1/8 in. fluid passages: set K-factor to .020 or .061.
➜3/8 in. fluid passages: set K-factor to .061 or 0.119.
Color Change
Valves (ACV) and
Color Change
Module (CCM)
An optional component. It is available as a color change valve stack for either low or high
pressure with up to 30 color change valves. Each stack includes one additional valve for
solvent to clean the fluid line between color changes.
Dual Fiber Optic
Cable (FO)
Used to communicate between the EasyKey and Fluid Station Control Box.
Fluid Station
Control Box Power
Supply Cable (PS)
Used to provide power to the Fluid Station Control Box.

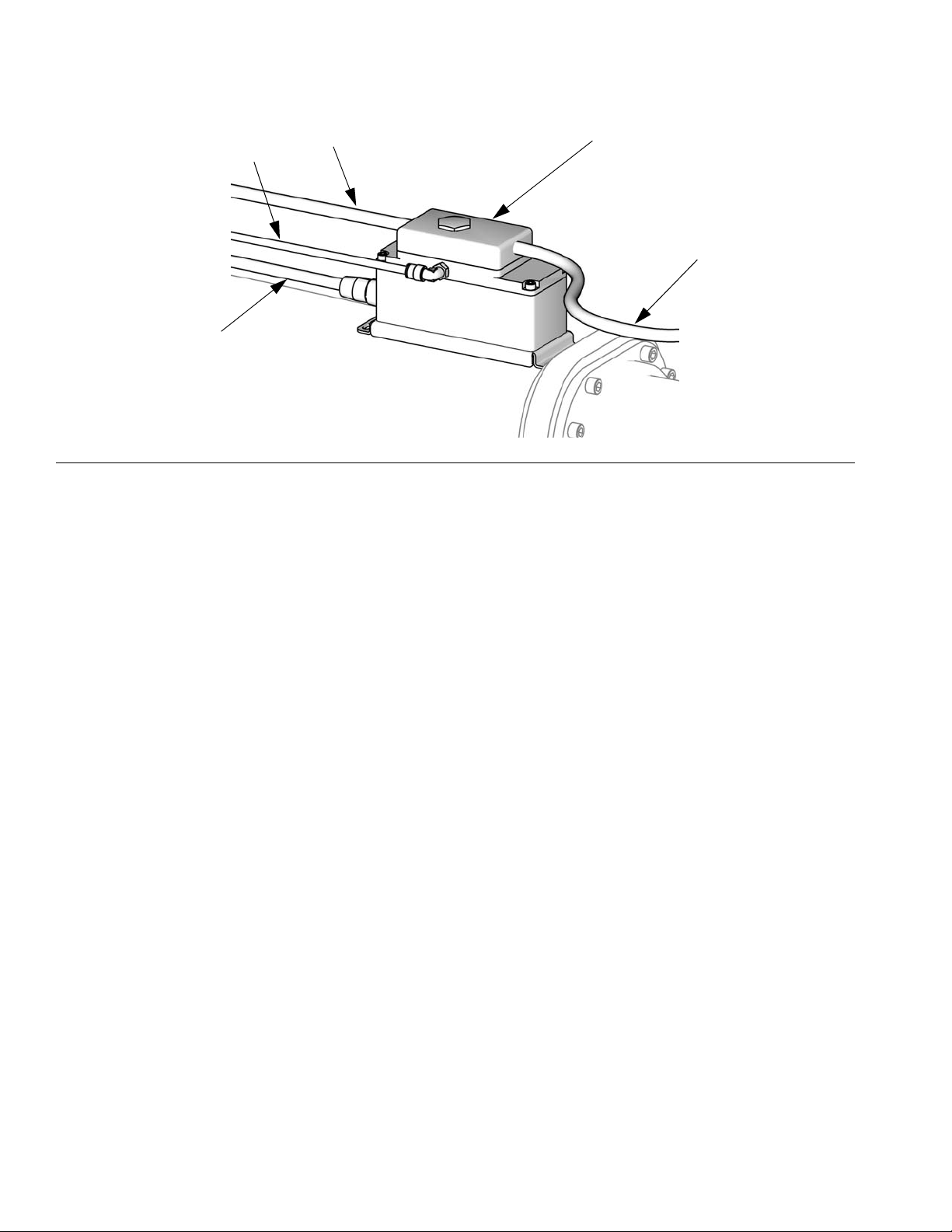

Flow Control
Regulator
Assembly (FC)
Includes an air operated fluid pressure regulator, fluid pressure sensor, voltage to air
pressure transducer and circuit board. The function of this unit is to receive the flow ana-
log signal and drive (manage) the desired flow rate.
Table 1: Component Descriptions
Component Description

Location
12 3A1163A
Location
Location Requirements
• Mount EasyKey and Fluid Station within 50 ft (15.2
m) of each other, using 15U533 cable.
NOTE: An optional 15V213 100 ft (30.5 m) cable is
also available.
•EasyKey: Install in the non-hazardous area at a
convenient location for the operator to view and
operate.
•Fluid Station: Install according to requirements for
Intrinsically Safe Installation (FIG. 3) and at a conve-
nient location to connect to paint and solvent sup-
plies.
NOTE: For an Intrinsically Safe Installation, the
Fluid Station may be located inside or outside the
hazardous location. Install according to appropriate
electrical codes.
Intrinsically Safe Installation
Requirements
See FIG. 3 on page 13.
1. The non-intrinsically safe terminals (power rail) must
not be connected to any device which uses or gen-
erates more than 250 Vrms or dc unless it has been
determined that the voltage has been adequately
isolated.
2. The installation must meet the requirements of the
National Electric Code, Canadian Electrical Code
Part I, NFPA 70, Article 504 Resp., Article 505 and
ANSI/ISA 12.06.01.
3. Multiple earthing of components is allowed only if
high integrity equipotential system is realized
between the points of bonding.
4. Do not operate system with safety barrier cover
removed.
5. For ATEX, install per EN 60079-14 and applicable
local and national codes.
6. Install Coriolis flow meters as explosion proof (USA,
Canada)/flameproof Ex d (ATEX) with passive intrin-
sically safe connections per the manufacturer’s
installation instructions and applicable codes.
7. Terminals 24 and 25 of optional Endress+Hauser
Coriolis flow meters installed using intrinsically safe
wiring methods. For the United States and Canada,
install all other wiring for Coriolis flow meters using
explosion proof wiring methods for Division I. For
ATEX installations, install all other wiring for Coriolis
flow meters using Flameproof, Ex d, wiring methods
for Zone 1. Observe manufacturer’s instructions for
installation and use.
8. For ATEX installations, interconnecting cabling
specified is Type A cable in accordance with EN
60079-14.
Optional Cables
Optional CAN cables and fiber optic cables are available
from Graco. See the ProControl 1KS Repair-Parts man-
ual for available part numbers and lengths.
Do not substitute or modify system components as this
may impair intrinsic safety. For installation, mainte-
nance or operation instructions, read instruction manu-
als. Do not install equipment approved only for
non-hazardous location in a hazardous area. See the
identification label (FIG. 1) on the EasyKey or fluid sta-
tion for the intrinsic safety rating for your model.

Location
3A1163A 13
FIG. 3. Intrinsically Safe Installation
NON-HAZARDOUS
LOCATION ONLY HAZARDOUS (CLASSIFIED) LOCATION
CLASS I, DIV I, GROUP D, T3 (US AND CANADA)
CLASS I, ZONE I GROUP IIA T3 (ATEX ONLY)
TAUB = -20°C TO 50°C
ProMix 2KS
EasyKey Interface
(with or without
display)
Safety
Barrier
ProMix 2KS Smart Fluid Plate
(Wall Panel or RoboMix Panel)
Flow
Meter
A
Flow
Meter
B
Booth Control
Module
FM08ATEX0073
Color & Catalyst
Change
Module 1
FM08ATEX0073
250 VAC Maximum
Supply Voltage
50’ I/S Power Cable
(3’, 6’, 10’, 15’, 25’,
100’ options)
50’ Fiber Optic
Communication
Cable (100’ option)
10’ I/S Power and
Communication
Cable (40’
extension option)
IS Control Drawing 289833
Cable Assemblies
Module 2
FM08ATEX0073
Flow Control
Regulator
Module
FM08ATEX0073
3’ CAN Color
Change Interface
(6’, 10’, 15’, 25’,
50’ 100’ options)
50’ CAN Booth
Control Interface
(3’, 6’, 10’, 15’,
25’, 100’ options)
3’ CAN
Network
Cable
NOTE: See Intrinsically Safe Installation
Requirements on page 12.
WARNING: Substitution of components
may impair intrinsic safety. For installation,
maintenance or operation instructions, see
instruction manual.
ADVERTISSEMENT: La substitution de
composants peut compromettre la securite
intrinseque.
FM08ATEX0074
SYSTEM ASSEMBLY CERTIFICATE
FM08ATEX0072
ASSOCIATED APPARATUS
FM08ATEX0073 INTRINSIC
SAFE APPARATUS
Coriolis Meter Options, DMT 00 ATEX E 074 X (No exceptions):
Size Graco P/N Endress+Hauser P/N
1/8” 15T633* 80A-04-A-SVW-9-A-N-A-B-B-A-S
3/8” 15T634* 801-08-A-999-9-A-N-A-B-B-A-S
Power
EasyKey
+24 Vdc
Common
Meter Terminal Block #
1
2
Signal
Fluid Plate Board J3 Terminal Meter Terminal Block #
Meter Position A B
Signal 3 6 24
Common 2 5 25
* For P/N 15T633 order Coriolis Meter Kit 15V806.
For P/N 15T634 order Coriolis Meter Kit 258151.
NOTE: This IS control drawing also applies to the
ProControl 1KS. See also FIG. 4 on page 15.

General Information
14 3A1163A
General Information
• Reference numbers and letters in parentheses in
the text refer to numbers and letters in the illustra-
tions.
•F
IG. 2 on page 10 shows the basic components of a
ProControl 1KS system, and FIG. 4 on page 15
shows a basic system layout. Contact your Graco
distributor for an actual system design.
• Be sure all accessories are adequately sized and
pressure-rated to meet system requirements.
• There must be a shutoff valve between each fluid
supply line and the ProMix system.
• A 100 mesh minimum fluid filter must be installed on
component A fluid supply line.
• To protect the EasyKey screens from paints and sol-
vents, clear-plastic protective shields are available
in packs of 10 (Part No. 197902). Clean the screens
with a dry cloth if necessary.
Wall Mounting
1. See Dimensions and Mounting Hole Layouts,
page 32.
2. Ensure that the wall and mounting hardware are
strong enough to support the weight of the equip-
ment, fluid, hoses, and stress caused during opera-
tion.
3. Using the equipment as a template, mark the
mounting holes on the wall at a convenient height
for the operator and so equipment is easily accessi-
ble for maintenance.
4. Drill mounting holes in the wall. Install anchors as
needed.
5. Bolt equipment securely.

Wall Mounting
3A1163A 15
FIG. 4. ProControl 1KS System Layout Drawing
TI16329a
EasyKey Interface
(with display)
Fluid System
Control Box
Optional Color Change Module
50’ I/S Power Cable
Flow Control
Regulator
Module
Optional Color
Change Valves
Air Control Module
5/32” Color Valve Air Supply
50’ Fiber Optic Cable
Air In
Fluid
Out
Fluid Manifold and
Flow Meter
Fluid Supply
10’ Flow Control Cable
Fluid Supply
1/4” V/P Air Supply
1/4” Purge
Air Supply
1/4” Logic Air Supply
Meter Cable
5/32” Air On/Off
Lines for Dose,
Air Purge, and
Solvent Purge
Valves
Solvent
Supply
Optional Booth Control
Fluid
In

Wall Mounting
16 3A1163A

Air Supply
3A1163A 17
Air Supply
Requirements
•Compressed air supply pressure: 75-100 psi
(517-700 kPa, 5.2-7 bar).
•Air hoses: use grounded hoses that are correctly
sized for your system.
•Air regulator and bleed-type shutoff valve:
include in each air line to fluid supply equipment.
Install an additional shutoff valve upstream of all air
line accessories to isolate them for servicing.
•Air line filter: a 10 micron or better air filter is rec-
ommended to filter oil and water out of the air supply
and help avoid paint contamination and clogged
solenoids. See FIG. 5.
Air Connections
See the System Pneumatic Schematic on page 29.
1. Tighten all ProControl system air and fluid line con-
nections as they may have loosened during ship-
ment.
2. Install a bleed-type air shutoff valve into the control
air filter inlet. See FIG. 5.
3. Connect a clean air supply line to the shutoff valve.
This air line supplies air to operate the gun, sole-
noids, and dispense valves.
NOTE: See Technical Data on page 35 for additional
air supply/consumption information.
4. lnstall a bleed-type shutoff valve into the air purge
valve inlet line.
5. See FIG. 6. Use the air purge valve tubing (AT, sup-
plied) to connect the air purge valve (APV) inlet to a
clean, dry air supply (install filters/dryers as
needed).
Trapped air can cause a pump or dispense valve to
cycle unexpectedly, which could result in serious injury
from splashing or moving parts. Use bleed-type shutoff
valves.
NOTICE
Use separate air supply lines for the following two
connections to avoid contaminating the purge air line
with fluid if the air purge valve and a check valve
failed.
NOTICE
The ProControl potlife timer will not function properly
when used with multiple guns operating simultane-
ously. To avoid having mixed material set in the equip-
ment, carefully monitor potlife by some other means.
If using a Graco electrostatic PRO™Gun, a shutoff
valve must be installed in the gun air line to shutoff the
atomizing and turbine air to the gun. Contact your
Graco distributor for information on air shutoff valves
for electrostatic applications.
FIG. 5. Air Supply Control
TI11895a
1
Install a bleed-type air
shutoff valve here.
1
1For Fluid
Station
Controls
Main Air Inlet
For Air
Purge Valve
For Air
Flow Switch
Air Filters

Fluid Supply
18 3A1163A
Fluid Supply
Requirements
ProControl models are available to operate air spray or
air-assisted systems with a capacity of up to 3800
cc/min.
• Fluid supply pressure tanks, feed pumps, or circulat-
ing systems can be used.
• Materials can be transferred from their original con-
tainers or from a central paint recirculating line.
• For an airless system, the user must supply a gun
trigger signal to the ProControl 1KS.
• See manual 313599 for Coriolis meter installation
and operation instructions.
NOTE: The fluid supply must be free of pressure spikes,
which are commonly caused by pump stroke change-
over. If necessary, install pressure regulators or a surge
tank on the ProControl fluid inlets to reduce pulsation.
Contact your Graco distributor for additional information.
Fluid Connections
1. Connect the solvent supply lines.
a. Connect the solvent supply line to the 1/4 npt(f)
solvent purge valve inlet. See FIG. 6.
b. Multiple color system: also connect a solvent
supply line to the color change stack (Q), top
valve 4 or 5. See FIG. 7.
2. Connect the component supply line(s).
➜Single color system: connect component
supply line to the component A flow meter
inlet.
➜Multiple color system: connect supply
lines to the color change valve stack (S)
inlets. See FIG. 7. The color number is
marked on the valve air supply line.
NOTE: Paint Recirculating System Only
• The color change valves have two fluid
ports for each individual valve. If you are
recirculating paint, plumb the valves in one
port and out the other.
• Another option is to use a tee fitting to recir-
culate.
NOTE: Verify that all unused fluid ports on the color
change valve stack are plugged before operation. An
open port will leak fluid.
NOTE: The fluid meter inlet has a fluid check valve to
prevent backflow from fluid supply pressure fluctuations.
Backflow can cause ratio inaccuracies.
3. Connect the gun fluid supply line between the fluid
regulator or fluid manifold outlets and the gun fluid
inlet.
Do not exceed the pressure rating of the lowest rated
component. See the identification label (FIG. 1 on
page 4).
To reduce the risk of injury, including fluid injection, you
must install a shutoff valve between each fluid supply
line and the fluid manifold assembly. Use the valves to
shut off fluid during maintenance and service.

Fluid Supply
3A1163A 19
FIG. 6. Fluid Manifold
TI15977a
MA
SPV
DVA
APV
AT
SS
FIH
FOH
FIG. 7. Color Change Valves Air and Fluid Connections
Q
S
1
2
4
5
3
Connect solvent valve
air line here
Color Change Board and Solenoid Valves
Color Change BoardSolenoids
Color Change Valve Stack
Connect air lines to
valves here
Fluid Inlets Fluid Inlets
Fluid Outlet
TI12824a TI11668a

Fluid Supply
20 3A1163A
FIG. 8. Flow Control Regulator
TI15976a
Regulator
V/P Air
FC Cable
FC
Fluid In
Fluid Out
