Operation, Parts
APX Electric Texture
Sprayers
For portable airless spraying of water-based materials only.
For professional use only.
Not approved for use in explosive atmosphere or hazardous locations.
Models: APX 6200 and APX 8200
See page 2 for model information, including maximum working pressure and approvals.
Important Safety Instructions
Read all warnings and instructions in this manual and related manuals.
Be familiar with the controls and the proper usage of the equipment.
Save these instructions.
Related Manuals
Gun – 309495 Pump – 332922
ti29970a
www.graco.com/techsupport
?? ??

Contents
23A4442B
Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Component Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Mixing Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Spray Tip Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Clear Tip Clog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
APX Cart Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
APX Pump and Motor Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
APX Control and Manifold Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
APX VIBRA-FLO Shaker Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
APX VIBRA-FLO Shaker Control Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Models
3000 psi (20.7MPa, 207bar) Maximum Working Pressure
VAC Model
230 Europe
Multi
APX 6200 17N343
APX 8200 17N350
APX 6200 with bag roller 17N344
APX 8200 with bag roller 17N351
230
CEE 7/7
APX 6200 17N345
APX 6200 with bag roller 17N346
APX 8200 17N352
APX 8200 with bag roller 17N353
230
LA
Asia/ANZ
APX 6200 17N347
APX 6200 with bag roller 17N348
APX 8200 17N354
APX 8200 with bag roller 17N355

Warnings
3A4442B 3
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this
equipment. The exclamation point symbol alerts you to a general warning and the hazard
symbols refer to procedure-specific risks. When these symbols appear in the body of this
manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols
and warnings not covered in this section may appear throughout the body of this manual
where applicable.
GROUNDING
This product must be grounded. In the event of an electrical short circuit, grounding
reducestheriskofelectricshockbyprovidinganescapewirefortheelectriccurrent.
This product is equipped with a cord having a grounding wire with an appropriate
groundingplug.Theplugmustbepluggedintoanoutletthatisproperlyinstalledand
grounded in accordance with all local codes and ordinances.
•Improper installation of the grounding plug is able to result in a risk of electric
shock.
•When repair or replacement of the cord or plug is required, do not connect the
grounding wire to either flat blade terminal.
•The wire with insulation having an outer surface that is green with or without
yellow stripes is the grounding wire.
•Checkwithaqualifiedelectricianorservicemanwhenthegroundinginstructions
are not completely understood, or when in doubt as to whether the product is
properly grounded.
•Donotmodifytheplugprovided;ifitdoes notfittheoutlet,havetheproperoutlet
installed by a qualified electrician.
•Thisproductisforuseonanominal230Vcircuitandhasagroundingplugsimilar
to the plugs illustrated below.
•Only connect the product to an outlet having the same configuration as the plug.
•Do not use an adapter with this product.
Extension Cords:
•Use only a 3-wire extension cord that has a grounding plug and a grounding
receptacle that accepts the plug on the product.
•Makesureyourextensioncordisnotdamaged.Ifanextensioncordisnecessary
use 12 AWG (2.5mm2) minimum to carry the current that the product draws.
•An undersized cord results in a drop in line voltage and loss of power and
overheating.
ti24583a

Warnings
43A4442B
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or
explode. To help prevent fire and explosion:
•Donotsprayorcleanwithflammablematerials.Usewater-basedmaterialsonly.
•Use equipment only in well ventilated area.
•Sprayer generates sparks. When flammable liquids are used near the sprayer,
keep sprayer at least 20 feet (6.1 meters) away from explosive vapors.
•Eliminate all ignition sources.
•Keep work area free of debris, including solvent, rags and gasoline.
•Ground all equipment in the work area. See Grounding instructions.
•Keep a working fire extinguisher in the work area.
SKIN INJECTION HAZARD
High-pressure spray is able to inject toxins into the body and cause serious bodily
injury. In the event that injection occurs, get immediate surgical treatment.
•Do not aim the gun at, or spray any person or animal.
•Keephandsand other body partsawayfromthe discharge.Forexample, do not
try to stop leaks with any part of the body.
•Always use the nozzle tip guard. Do not spray without nozzle tip guard in place.
•Use Graco nozzle tips.
•Use caution when cleaning and changing nozzle tips. In the case where the
nozzletipclogswhilespraying,followthePressureReliefProcedureforturning
off the unit and relieving the pressure before removing the nozzle tip to clean.
•Equipment maintains pressure after power is shut off. Do not leave the
equipment energized or under pressure while unattended. Follow the Pressure
Relief Procedure when the equipment is unattended or not in use, and before
servicing, cleaning, or removing parts.
•Check hoses and parts for signs of damage. Replace any damaged hoses or
parts.
•This system is capable of producing 3000 psi (207 bar, 20.7 MPa). Use Graco
replacementpartsoraccessoriesthatare rateda minimumof3000psi(207bar,
20.7 MPa).
•Always engage the trigger lock when not spraying. Verify the trigger lock is
functioning properly.
•Verify that all connections are secure before operating the unit.
•Knowhowtostoptheunitandbleedpressurequickly.Bethoroughlyfamiliarwith
the controls.

Warnings
3A4442B 5
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
•Always wear appropriate gloves, eye protection, and a respirator or mask when
painting.
•Donot operateorspray nearchildren.Keep childrenawayfromequipmentat all
times.
•Do not overreach or stand on an unstable support. Keep effective footing and
balance at all times.
•Stay alert and watch what you are doing.
•Do not operate the unit when fatigued or under the influence of drugs or alcohol.
•Do not kink or over-bend the material or air hose.
•Do not expose the hose to temperatures or to pressures in excess of those
specified by Graco.
•Do not use the hose as a strength member to pull or lift the equipment.
•Do not alter or modify equipment. Alterations or modifications may void agency
approvals and create safety hazards.
•Makesureallequipment isratedand approvedfortheenvironmentinwhich you
are using it.
ELECTRIC SHOCK HAZARD
This equipment must be grounded.Improper grounding, setup, or usage of the
system can cause electric shock.
•Turn off and disconnect power cord before servicing equipment.
•Connect only to grounded electrical outlets.
•Use only 3-wire extension cords.
•Ensure ground prongs are intact on power and extension cords.
•Do not expose to rain. Store indoors.
•Wait five minutes after disconnecting power cord before servicing.
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can
cause serious chemical reaction and equipment rupture. Failure to follow this
warning can result in death, serious injury, or property damage.
•Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated
hydrocarbon solvents or fluids containing such solvents.
•Do not use chlorine bleach.
•Many other fluids may contain chemicals that can react with aluminum. Contact
your material supplier for compatibility.

Warnings
63A4442B
MOVING PARTS HAZARD
Moving parts can pinch, cut, or amputate fingers and other body parts.
•Keep clear of moving parts.
•Do not operate equipment with protective guards or covers removed.
•Pressurized equipment can start without warning. Before checking, moving, or
servicing equipment, follow the Pressure Relief Procedure and disconnect all
power sources.
PLASTIC PARTS CLEANING SOLVENT HAZARD
Many solvents can degrade plastic parts and cause them to fail, which could cause
serious injury or property damage.
•Use only compatible water-based solvents to clean plastic structural or
pressure-containing parts.
•See Technical Specifications in this and all other equipment instruction
manuals. Read fluid and solvent manufacturer’s Safety Data Sheet (SDS) and
recommendations.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent
seriousinjury,includingeyeinjury,hearingloss,inhalationoftoxicfumes,andburns.
This protective equipment includes but is not limited to:
•Protective eyewear, and hearing protection.
•Respirators, protective clothing, and gloves as recommended by the fluid and
solvent manufacturer.

Component Identification
3A4442B 7
Component Identification
JK
A
B
C
D
E
F
GL
M
S
H
P
ti29971a
A
BC
E
D
H
R
KN
A Smart Control
B ON/OFF Switch
C Pressure Control
D VIBRA-FLO™ ON/OFF Switch
E VIBRA-FLO Control
F Power Cord
GDrainTube
H Prime / Spray Valve
JPump
K VIBRA-FLO Hopper Shaker
L Amp Switch
M Hopper with cover
N Hopper Strainer
P Trigger Lock
RHose
S Bag Roller (Optional)
Model/Serial Tag (Located on
bottom)

Preparation
83A4442B
Preparation
Grounding
This sprayer includes a ground wire with an
appropriate ground contact. The plug must
be plugged into an outlet that is properly
installed and grounded in accordance with all
local codes and ordinances.
Do not modify the plug provided; if it does not
fit the outlet, have the proper outlet installed
by a qualified electrician.
Power Switch
Select 10A or 16A depending on your circuit
rating.
230V units require 220-240 VAC, 50/60 Hz,
10 – 16A, 1 phase
Extension Cords
Use an extension cord with an undamaged
ground contact. If an extension cord is
necessary, use a 3-wire, 12 AWG (2.5 mm2)
minimum.
NOTE: Lighter gauge or longer extension
cords may reduce sprayer performance.
Generator Requirements
5000 W (5 kW) minimum.
ProGuard
The ProGuard protects the sprayer against
high and low voltage spikes. If the sprayer is
plugged into a power source that goes too
low or too high the sprayer stops operating.
VIBRA-FLO Shaker
Thehoppershaker vibratesthehopperwhich
assists in moving the material down to the
pump inlet at the bottom of the hopper.
Bag Roller (Optional)
Bags of material can be difficult to empty. A
bag roller provides a quick and easy way to
empty material bags directly into the hopper.
Mixing Material
NOTE: Correct material mixture is essential.
The pump and spray gun will not operate if
the mixture is too thick. Use water-based
materials only.
1. Mix the material and water in a
separate container.
Dry Mix
Carefully mix texture material and water
according to manufacturer instructions
on bag.
The equipment must be grounded to
reduce the risk of static sparking and
electric shock. An electric or static spark
can cause fumes to ignite or explode. An
improper ground can cause electric shock.
Agoodground provides an escape wire for
the electric current.
ti2496c
40 lb.
TEXTURE MIX
5 GAL

Preparation
3A4442B 9
Premix
Slowlyaddwatertoa5gallon(18.9liter)
bucket of premix.
2. Agitate to mix with mixing paddle, to a
smooth, lump-free consistency.
3. Make certain all dry powder clumps are
mixed throughly before pouring mixture
into the sprayer hopper.
PREMIX
5
GAL
ti2493b
NOTICE
Failure to make certain that all dry powder
is throughly mixed may cause tip or pump
clogging.
ti30766a

Preparation
10 3A4442B
Pressure Relief Procedure
Follow the Pressure Relief
Procedure whenever you see this
symbol.
1. Turn ON/OFF switch to the OFF
position. Wait 7 seconds for power to
dissipate.
2. Engage trigger lock. Always engage the
trigger lock when sprayer is stopped to
prevent the gun from being triggered
accidentally by hand or if dropped or
bumped.
3. Turn pressure control to lowest setting.
Disengage the trigger lock.
4. Trigger the gun to relieve pressure.
5. Engage trigger lock.
6. Putdrain tube inapail.Turn primevalve
down. Leave prime valve in the down
(drain) position until you are ready to
spray again.
7. If you suspect the spray tip or hose is
clogged or that pressure has not been
fully relieved:
a. VERY SLOWLY loosen the tip
guard retaining nut or the hose end
coupling to relieve pressure
gradually.
b. Loosen the nut or coupling
completely.
c. Clear hose or tip obstruction.
This equipment stays pressurized until
pressure is manually relieved. To help
prevent serious injury from pressurized
fluid, such as skin injection, splashed fluid
and moving parts, follow the Pressure
Relief Procedure whenever sprayer is
stopped and before sprayer is cleaned or
checked, and before equipment is
serviced.
ti29972a
ti29240a

Setup
3A4442B 11
Setup
When unpacking sprayer for the first time or
after long term storage perform setup
procedure. When first setup is performed
remove shipping plug from fluid outlet.
1. Connect Graco airless hose to fluid
outlet.Usewrenchestotightensecurely.
2. Connect whip hose (if applicable) and
gun to other end of hose. Apply thread
sealant and tighten securely.
3. Engage trigger lock.
4. Remove tip guard.
5. A hopper strainer is used to prevent
debris from entering the pump.
6. Fill throat packing nut with Graco TSL to
preventprematurepackingwear.Dothis
each time you spray.
7. Turn ON/OFF switch to the OFF
position.
8. Plug power supply cord into a properly
grounded electrical outlet.
ti29973a
ti29974b
ti29975a
ti29976a
ti29972a

Setup
12 3A4442B
9. Turn prime valve down to DRAIN
position.
10. Add flushing fluid to the hopper.
11. Turn ON/OFF switch to the ON position.
12. Turn prime valve horizontal. Disengage
trigger lock.
13. Hold a metal part of the gun firmly to a
grounded metal pail. Trigger gun and
flush until clean.
14. Turn ON/OFF switch to the OFF
position.
15. Engage trigger lock.
16. Sprayer is now ready to startup and
spray.
Bag Roller (Optional)

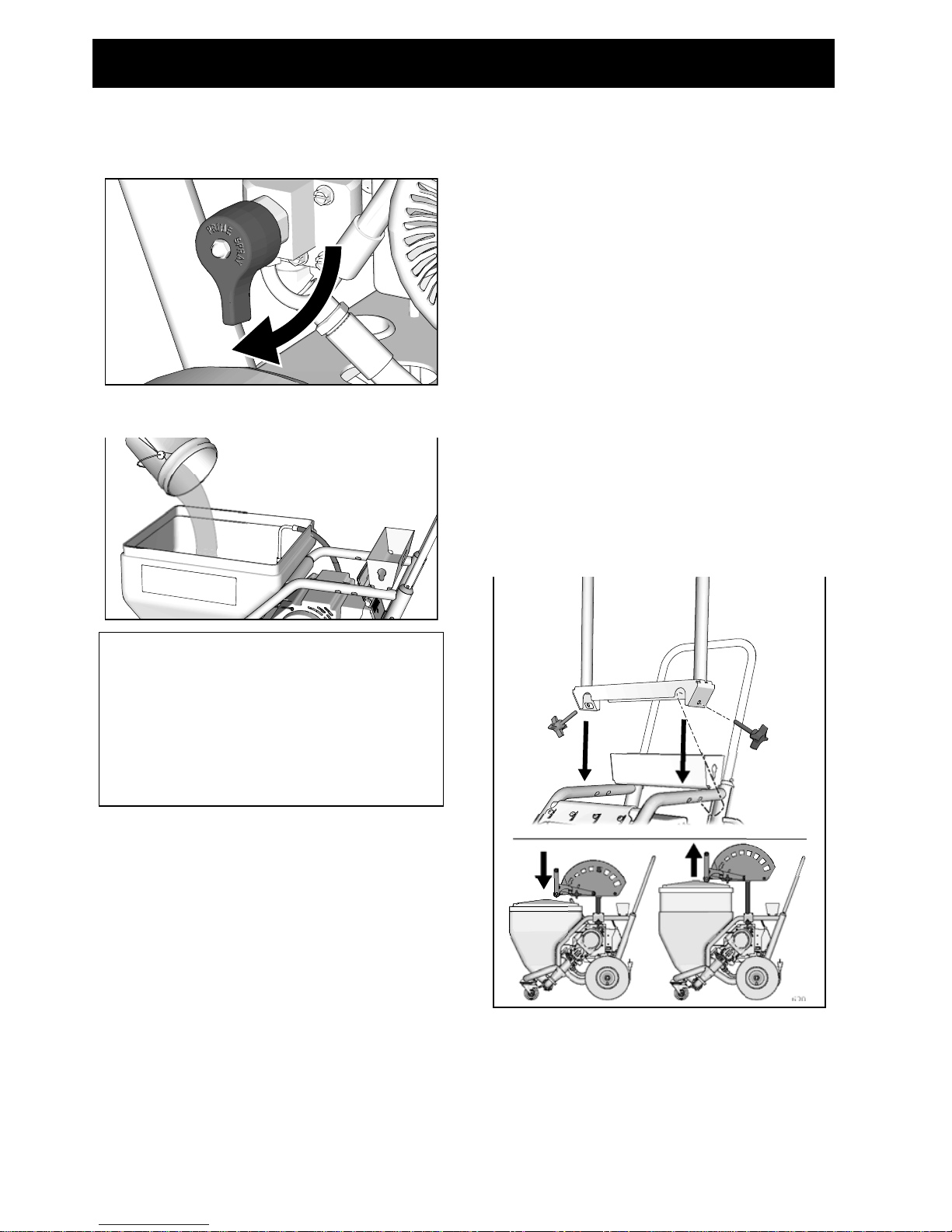

Assemble roller assembly to the sprayer:
•Secure bag roller mounting frame to
sprayer.
•Place roller assembly on the mounting
frame.
•OntheAPX6200modelpositionthebag
roller assembly in the lower position.
•OntheAPX8200modelpositionthebag
roller assembly in the upper position.
•Placebagrollerontopofthesprayerand
secure with hardware provided.
•The bag roller length is adjustable to
accommodate various material bag
lengths. Adjust by loosening the two
handle screws and sliding the extension
in or out.
•Increase bag roller tension by adjusting
the tension on the two screws.
Bag roller handle can be removed to avoid
damage when transporting sprayer.
NOTE: New sprayers are shipped with
storage fluid that must be flushed out prior
to using the sprayer.
Check flushing fluid for compatibility with
material that is to be sprayed. A secondary
flush with a compatible fluid may be
necessary. Use water for water-based
materials.
ti29977a
ti29978a
ti29979a

Start Up
3A4442B 13
Start Up
Perform the start up procedure each time the
sprayer is started for the first time after it has
been cleaned or stored.
1. Perform Pressure Relief Procedure,
page 10.
2. Turn pressure control to lowest
pressure.
3. Turn ON/OFF switch to the ON position.
4. Turn VIBRA-FLO ON/OFF switch to the
ON position.
5. Increasepressure1/2 turntostartmotor
and allow fluid to circulate through drain
tubefor15seconds;turnpressuredown.
6. Turn prime valve horizontal to SPRAY
position. Disengage trigger lock.
ti29980a
ti29981a
ti29982a
ti29983a
00:15s
1/2
50%
ti29240a

Start Up
14 3A4442B
7. Hold gun against grounded metal
flushing pail. Trigger gun and increase
fluid pressure 1/2 turn. Flush 1 minute.
8. Inspect for leaks. If leaks occur, perform
Pressure Relief Procedure, page 10.
Tightenfittings.Perform StartUp,steps
2 - 6. If no leaks, proceed to Prime
Pump, page 14.
Prime Pump
Prime the pump before placing the hopper
filter into the hopper.
1. Add 1-2 gallons (4-8 liters) of material to
the hopper.
2. Place drain tube deflector shield into
hopper or flushing pail. Note: Keep
deflector shield wet once it is in use.
3. Turn ON/OFFswitch to the ON position.
Turn prime valve down.
4. Increase pressure to start pump.
5. Install hopper filter by pushing it through
the material in the bottom of the hopper
until it is in place. Open end of the filter
should be pointed towards the pump
inlet.
6. Add remaining material to the hopper.
7. Turn VIBRA-FLO knob to maximum.
8. If the shaker is making excessive noise
turn the VIBRA-FLO knob to a lower
setting. Depending upon the supply
voltagetheshakermaynotoperateifthe
VIBRA-FLO is set too low.
9. Turn prime valve forward to SPRAY
position.
High-pressurespray isableto injecttoxins
into the body and cause serious bodily
injury. Do not stop leaks with hand or rag.
01:00m
50%
1/2
ti29984a
ti30653a

Start Up
3A4442B 15
10. Trigger gun again into flushing pail until
material appears. Move gun to hopper
and trigger for 20 seconds.
11. Engage trigger lock. Assemble tip and
guard,seeSprayTipInstallation,page
17.
Bag Roller
1. Place bag of material on the bag roller.
2. Hook bag handle over bag roller hook.
3. Adjustbagrollerlengthtothebaglength.
4. Turn bag roller handle until roller
contacts the bag.
5. Cut open the other end of the bag.
6. Turn bag roller handle to push contents
into the hopper.
7. Turn bag roller handle the opposite
direction to remove empty bag from the
roller.
VIBRA-FLO Shaker
Adjustment
The hopper shaker speed is adjusted by
adjusting the VIBRA-FLO knob on the
control.
1. Turn shaker ON/OFF switch to the ON
position.
2. Turn VIBRA-FLO knob to maximum.
3. If the shaker is making excessive noise
turn the VIBRA-FLO knob to a lower
setting. Depending upon the supply
voltagetheshakermaynotoperateifthe
VIBRA-FLO is set too low.
00:20s
ti30004a
ti29240a
ti29985a
ti30652a

Start Up
16 3A4442B
Shaker Armature/Coil Adjustment
The hopper shaker is shipped with the gap
preset for the best performance. If the
armature and coil is replaced or needs
adjustment, use a feeler gauge to adjust
shaker gap. Set gap to 0.042 – 0.052 inch
(1.06 – 1.32 mm).
1
2
3
4
5
ti30151a
ti30152a
ti30153a
ti30154a
ti30155a

Operation
3A4442B 17
Operation
Spray Tip Installation
1. Perform Pressure Relief Procedure,
page 10.
2. Engage trigger lock.

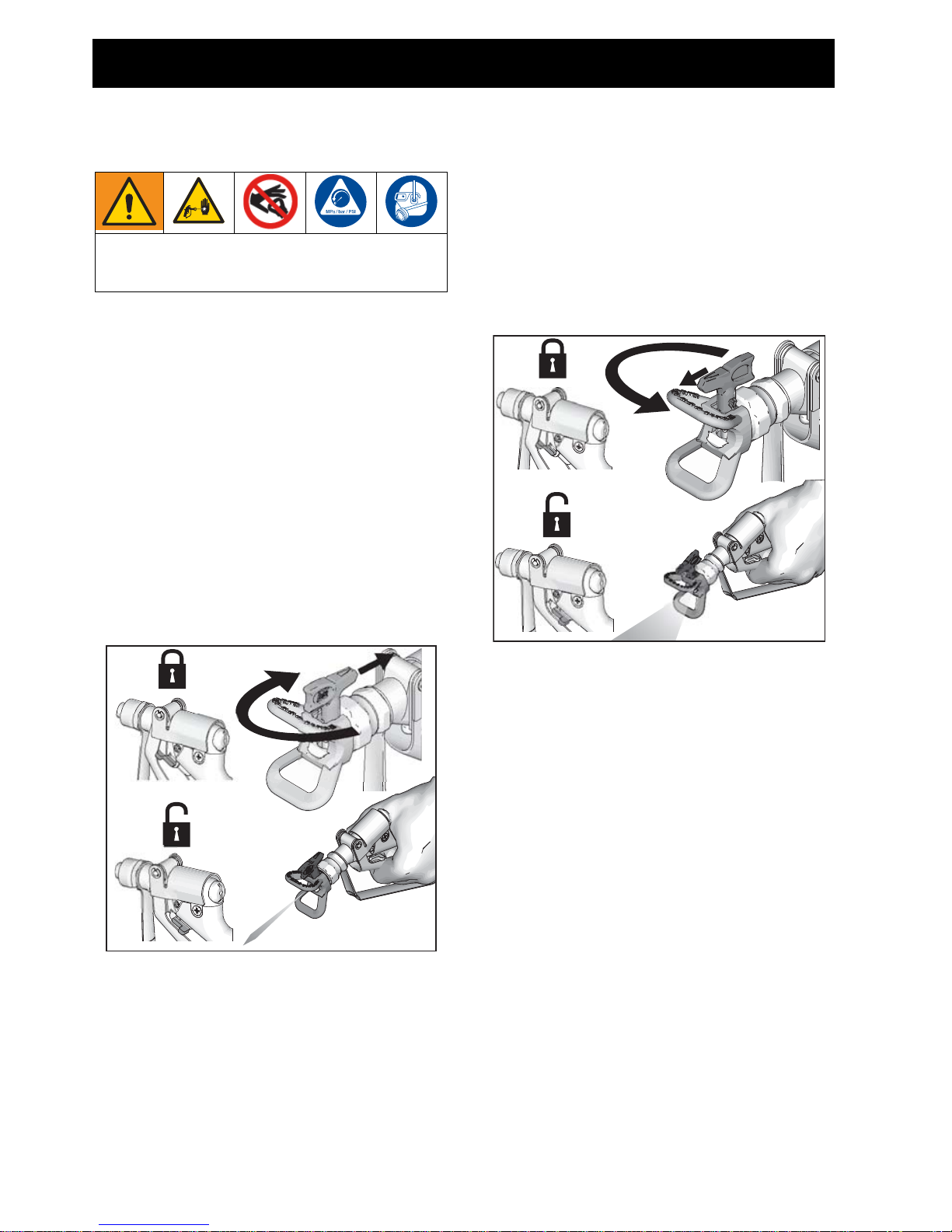

3. Verify spray tip and tip guard parts are
assembled in the order shown.
a. Use spray tip to align gasket and
seal in the tip guard.
b. Spray tip must be pushed all the
wayintothetipguard.Turnspraytip
to push down.
c. Turn the arrow shaped handle on
the spray tip forward to the spray
position.
4. Screw spray tip and tip guard assembly
onto the gun and tighten.
ti29241a
SPRAY TIP
RUBBER
GASKET/METAL
SEAL
RETAINING
NUT
TIP GUARD
ti29242a
ti29243a
ti29244a

Operation
18 3A4442B
Clear Tip Clog
To avoid tip clogs:
•When the gun is not in use for extended
periods of time, keep the tip “wet” and
perform Pressure Relief Procedure,
page 10.
•Keep tip clean and free of material.
•Engage trigger completely when
spraying. Partial trigger engagement
increases the chances of tip clogs.
1. Engage trigger lock. Rotate spray tip to
unclog position. Disengage trigger lock.
Trigger gun at waste area to clear clog.
UNCLOG
NOTE: If spray tip is difficult to rotate when
turning to the unclog position perform,
Pressure Relief Procedure, page 10, then
turn Prime/Spray valve to spray position and
repeat step 1.
2. Engage trigger lock. Rotate spray tip
back to spray position. Disengage
trigger lock and continue spraying.
SPRAY
Useful Tip
When spraying, if the gun is not used for a
significant period of time be sure to clean the
sprayer, or keep the gun “wet” by placing in
water or wrapping with a wet cloth. This
reduces the potential of the material drying in
the gun causing pack-out of the gun.
Toavoidseriousinjuryfromskininjectiondonot
put your hand in front of the spray tip when
installingorremovingthespraytipandtipguard.
ti29247a
ti29248a

Operation
3A4442B 19
ProGuard Error Codes
This sprayer protects itself against high and low voltage. One of three error codes is displayed
if the supply voltage is out of range.
Digital Tracking System
(DTS)
Operation Main Menu
Short press to move to next display. Press
and hold (5 seconds) to change units or reset
data.
1. Turn pressure to lowest setting. Trigger
guntorelievepressure.Turnprimevalve
down to DRAIN position.
2. Turn ON/OFFswitch to the ON position.
Pressure display appears. Dashes will
not appear unless pressure is less than
200 psi (14 bar, 1,4 MPa).
Error Code Definition
Multiple incoming voltage surges detected - unplug sprayer
and locate good voltage supply to prevent damage to
electronics.
Typicalcauseofthiserrorispluggingintoacircuitthatishigherthan
the rated voltage of the sprayer. Find a circuit that supplies the
correct voltage.
Incoming voltage too low for sprayer operation - unplug
sprayer and locate good voltage supply to prevent damage to
electronics.
Typical cause of this error is other equipment on the same circuit or
generator frequently turning on/off under load. Find a circuit that is
dedicated to the sprayer.
Sprayer plugged into wrong voltage - unplug sprayer and
locate correct voltage supply.
Typical cause of this error is a GFCI box that is wired for the wrong
voltage (240V vs. 120V). No damage has occurred to the sprayer.
Find a circuit with the correct voltage and the sprayer will run
correctly.
ti22719a
ti30005a

Operation
20 3A4442B
Change Display Units
Press and hold DTS button for 5 seconds to
change pressure units (psi, bar, MPa) to
desired units. Selection of bar or MPa
changes gallons to liters x 10. To change
displayunitsDTSmustbeinpressuredisplay
mode and pressure must be at zero.
Job Gallons
1. Short press DTS button to move to Job
Gallons (or liters x 10).
2. Press and hold to reset to zero.
NOTE: JOB scrolls past, then the
numberof gallonssprayed above400psi
(28 bar, 2.8 MPa) displays.
Lifetime Gallons
1. Short press DTS button to move to
Lifetime Gallons (or liters x 10).
NOTE: LIFE scrolls briefly, then the
number of gallons sprayed above
400 psi (28 bar, 2.8 MPa) displays.
ti22876b
ti22717b
ti22718b
