Graco TrueCoat 360 User manual

1
Read Owner’s Manual (3A9014) for complete instructions and
warnings. This quick guide is not a substitute for reading and
understanding all instruction manuals and warning labels supplied
with the equipment. Manuals are available at graco.com
Follow pressure relief procedure and wear protective
equipment including but not limited to protective eye wear.
SKIN INJECTION HAZARD: Keep clear of spray tip and leaks.
FIRE AND EXPLOSION HAZARD: Use only non-flammable or
water-based materials. Follow fire and explosion warnings
as listed in your manual.
FAILURE TO FOLLOW ALL WARNINGS CAN RESULT IN SERIOUS
INJURY, AMPUTATION, OR DEATH.
WARNING
SETUP
Prime Knob
1
Insert one FlexLiner™ into
the Cup Support.
2
Firmly tighten the Cup Lid onto the Cup
Support to ensure an air tight seal.
3
4
3Turn Prime Knob forward to
SPRAY position. Verify Spray
Tip is forward in SPRAY
position.
4
Point the sprayer into a
waste pail and pull the
Trigger for 5 seconds to
spray out storage fluid.
• To avoid pump damage,
if the sprayer does not
spray after 5 seconds
STOP and repeat STARTUP.
You are now ready to spray!
The Strainer’s Air Tube will prevent paint from
overfilling the cup. Fill the cup as follows:
4a. Watching the Funnel (not the cup) slowly
pour paint into the Funnel. When the
paint stops draining down, the cup is full.
4b. With Funnel and Strainer
still attached to cup, pour
excess paint from the
Funnel back into paint can.
4c. Lift up the Strainer and
look to verify you can see
crossbars in the bottom of
Funnel. If not, the cup is
overfilled, pour excess
paint from the Funnel
back into paint can.
4d.
Remove the Funnel/Strainer
from the cup and hook on
edge of paint can.
STARTUP
1
Install the cup onto the
sprayer as follows:
1a. Verify Pump Filter is
installed and clean.
1b. Align VacuValve
™
(on Cup Lid) with Prime
Knob (on sprayer).
1c. Push cup assembly onto
sprayer, twist to lock.
Note: Tilt the sprayer
such that the
VacuValve is
the highest point so
that all air in the FlexLiner can be
fully evacuated.
Note: If the paint stops draining but
you can see the cup is not full, use a
stir stick to scrape the captured debris
on the top of the Strainer until the
paint resumes draining.
QUICK GUIDE
Note: Verify there is no damage to
the top sealing edge of the FlexLiner,
such as a crease or fold. If damaged it
will leak air and lose prime.
Note: To ensure an airtight seal, the gasket
inside the Cup Lid is lubricated by the factory.
If lubrication has washed away, apply Seal
Lube (included) to the gasket.
Note:
This will purge all
air from the pump and cup.
Paint will not spray out, but will
recirculate through the pump and
back into the cup.
Funnel Strainer
Insert the Funnel into the Cup Lid, twist to
lock. Snap the Strainer into the Funnel to
strain your paint as you fill the cup.
4d4c
4b
4a
3
2
1
4
3
2d
2c
2a
2e
Prime the pump as follows:
2
2a. Verify Prime Knob is pointed
down to PRIME position.
2b. Plug the sprayer into a
grounded power source.
2c. Open the VacuValve cap and
gently squeeze the FlexLiner
until no more air bubbles
appear in the VacuValve.
2d. Continue to squeeze the
FlexLiner while pulling the
Trigger for 10 seconds.
2e. When no more air bubbles
appear in the VacuValve,
release the Trigger and
close the VacuValve cap.
SCAN TO WATCH
SETUP VIDEO
SCAN TO WATCH
STARTUP VIDEO
KNOW YOUR SPRAYER
*Speed control available on select models only.
VacuValve™
Cup
Lid
Pump
Filter Cup Support
Spray Tip
Guard
FlexLiner™
Trigger
Spray
Tip Prime Knob Speed
Control*
Turn Prime knob down
to PRIME position to
relieve system pressure.
Turn Prime Knob
forward to SPRAY
position to spray fluid.
Crossbars
5c
5b
4
Remove the cup assembly and Pump
Filter from the sprayer. Set sprayer
on a rag.
Cleanup and Storage
2
Remove Cup Lid and pour extra
paint back into paint can. Clean
all parts with warm water.
3
Circulate Cleaning Fluid:
Fill clean cup assembly half-full of
water and reattach to sprayer.
4a. Verify the Prime Knob is pointed
down to the PRIME position.
4b. Set Speed Control to highest
setting available.
4c. Turn the sprayer upside down
and trigger for 15 seconds.
4
Repeat Cleaning steps as needed
until sprayer is clean.
• Turn Prime Knob down to PRIME
position and unplug power cord.
• Remove Spray Tip. Clean Spray Tip,
Spray Tip Guard and Pump Filter with
warm water and an old toothbrush.
Reinstall Spray Tip and turn 90°for
storage. Empty remaining fluid from cup.
Wipe paint off outside of sprayer using a
soft cloth moistened with warm water.
6
Refill the cup following SETUP
Steps 3 & 4. Then follow STARTUP
instructions to proceed.
Reinstall the Pump Filter into the
pump. Set the sprayer on a rag.
Turn Prime Knob down to PRIME
position to relieve system pressure.

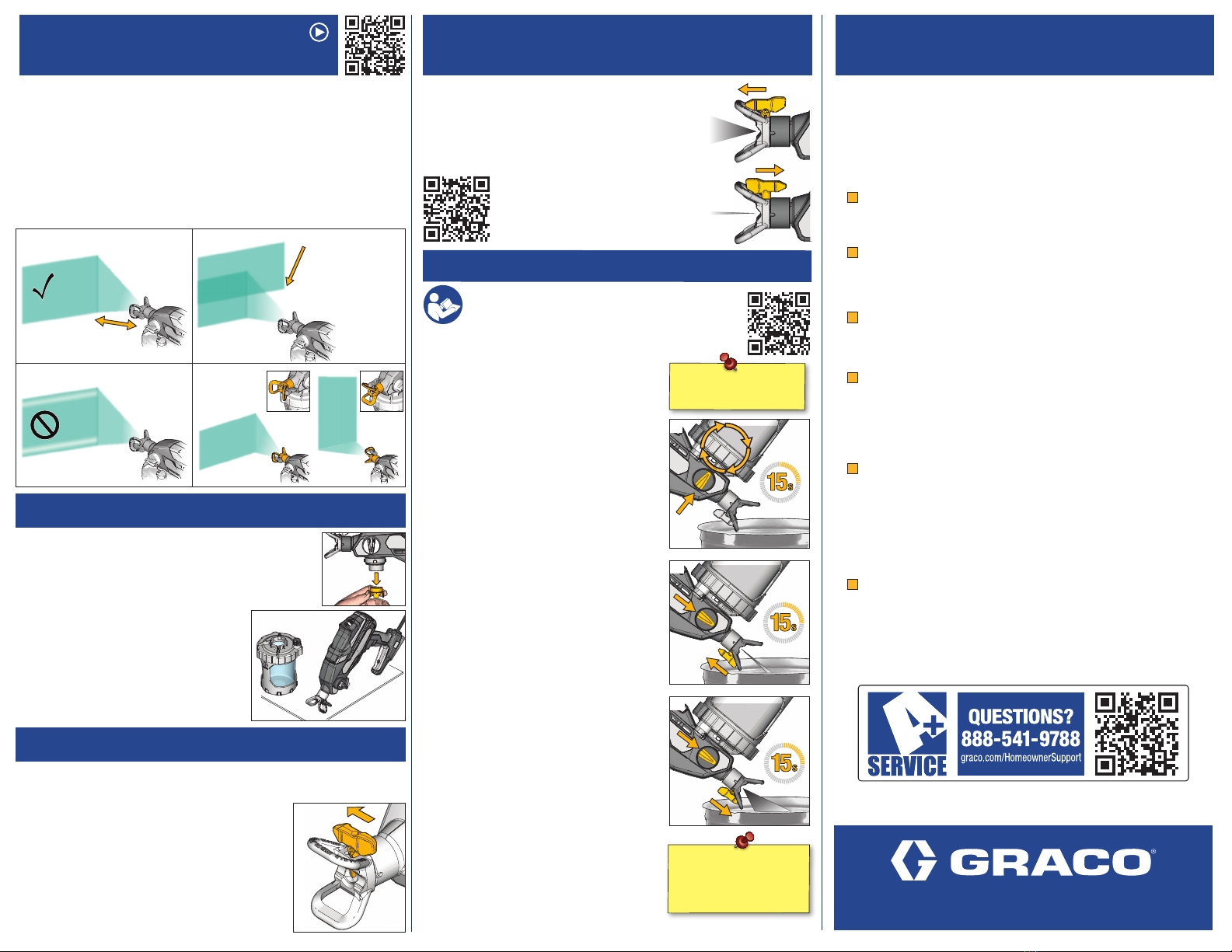

SPRAYING
CUP REFILLS
PAUSE IN SPRAYING
REVERSIBLE SPRAY TIPS TROUBLESHOOTING
Cleanup instructions are for water-based paints
only. See Owners Manual for oil-based cleanup and
for complete cleaning instructions.
1
Turn Prime Knob down to PRIME
position to relieve system pressure.
1
Remove the cup assembly from the
sprayer. Remove the Pump Filter and
clean debris from the filter screen. Spray Cleaning Fluid:
Refill cup assembly half-full of
clean water and reattach to sprayer.
5a. Turn the Prime Knob forward to
SPRAY position and Spray Tip to the
UNCLOG position.
5b. Turn the sprayer upside down and
trigger into a waste pail
for 15 seconds.
5c. Turn the Spray Tip to the SPRAY
position and trigger into a waste
pail for 15 seconds.
5
Note: Store Sprayer
filled with Pump Armor
™
(included) storage fluid
for trouble-free startup.
3A9103 Revision A, March 2022, Original Instructions. This Quick Guide contains English.
Source Manual: 3A9014, MM 3A9014. Copyright 2022
CLEANUP & STORAGE
If you encounter a Spray Tip clog,
Reverse the Spray Tip and spray into
a waste area to remove the clog.
Return the Spray Tip to spray position
to spray. See Owners Manual.
Your sprayer is shipped with Wide and Narrow Spray Tips.
• Blue Spray Tips are for spraying Paint and should
be used with the blue Pump Filter.
• Green Spray Tips are for spraying Stain and
should be used with the green Pump Filter.
(Green not included with all models)
3
4
2
1Turn Prime Knob down to PRIME position to
relieve presure. Unplug power cord.
2Turn Spray Tip 90˚ to seal orifice
from drying out.
Paint will dry quickly and cause clogs in the sprayer. Follow these
steps whenever you pause spraying for 5 minutes to 2 hours.
3Ensure sprayer is fully sealed.
Ensure VacuValve is closed and cup is
attached to sprayer with all air evacuated.
Make certain the sprayer is plugged into a grounded and
functional power source.
To avoid pump damage, NEVER run the sprayer
for more than 5 seconds without pumping fluid.
If the sprayer does not spray, try the steps below:
Verify Cup Lid is tight. An under tightened Cup Lid will allow
air to seep into the FlexLiner and cause a loss of prime.
• Add Seal Lube (included) to the Cup Lid gasket to
ensure an airtight seal.
Remove the Pump Filter from the pump inlet. Clean both
sides of the Pump Filter.
• While the Pump Filter is removed, inspect and
ensure no dried paint debris is collected inside
the pump inlet.
Make certain the Spray Tip is not clogged. See Owners
Manual for instructions on Unclogging Spray Tips.
Repeat STARTUP Procedure to ensure all air is evacuated
from the FlexLiner.
If the Sprayer sprays when upside down but not upright,
there is likely still an air leak into the cup. Try replacing
the FlexLiner and the VacuValve. (Extra of both included
with sprayer)
2
Good Spray Pattern
Pressure
too low
Tip Wear
TAILS - Gaps at edgesSpray Tip
Orientation
HorizontalVertical
12 in. (30 cm)
from surface
Release Trigger
before end of stroke.
Pull Trigger after
starting stroke.
Aim gun here to
overlap stroke by 50%
Set Speed Control to the lowest available setting.
1
SCAN TO WATCH
SPRAYING VIDEO
Note: Be sure to clean
inside the VacuValve!
SPRAY
UNCLOG
Pointing at a piece of scrap cardboard, pull the Trigger
to test the spray pattern. Adjust the following to achieve
desired spray pattern:
• Speed Control
• Distance from surface
• Hand Speed
• Spray Tip Orientation
