Graco 312585G Technical reference manual

Instructions - Parts
Hydra-Clean®Packages 312585G
EN
Package solutions for pressure washing applications. For use only with water and cleaning
solutions. For professional use only.
See page 3 for model information, including maximum working pressure.
Important Safety Instructions
Read all warnings and instructions in this manual and in
your respective pump manual. Save these instructions.
TI11267b
Cart Mount Packages
Wall Mount Packages
TI11273b
II 2 G

2312585G
Contents
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Wall Mount Packages . . . . . . . . . . . . . . . . . . . . . 6
Flush Before Using Equipment . . . . . . . . . . . . . . 6
Integrated Air Control Module . . . . . . . . . . . . . . . 6
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pressure Relief Procedure . . . . . . . . . . . . . . . . . 9
Cleaning Solutions . . . . . . . . . . . . . . . . . . . . . . . 9
Flushing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Starting the Pump . . . . . . . . . . . . . . . . . . . . . . . 10
Adjusting the Pump . . . . . . . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Disconnect the Displacement Pump . . . . . . . . . 13
Reconnect the Displacement Pump . . . . . . . . . 13

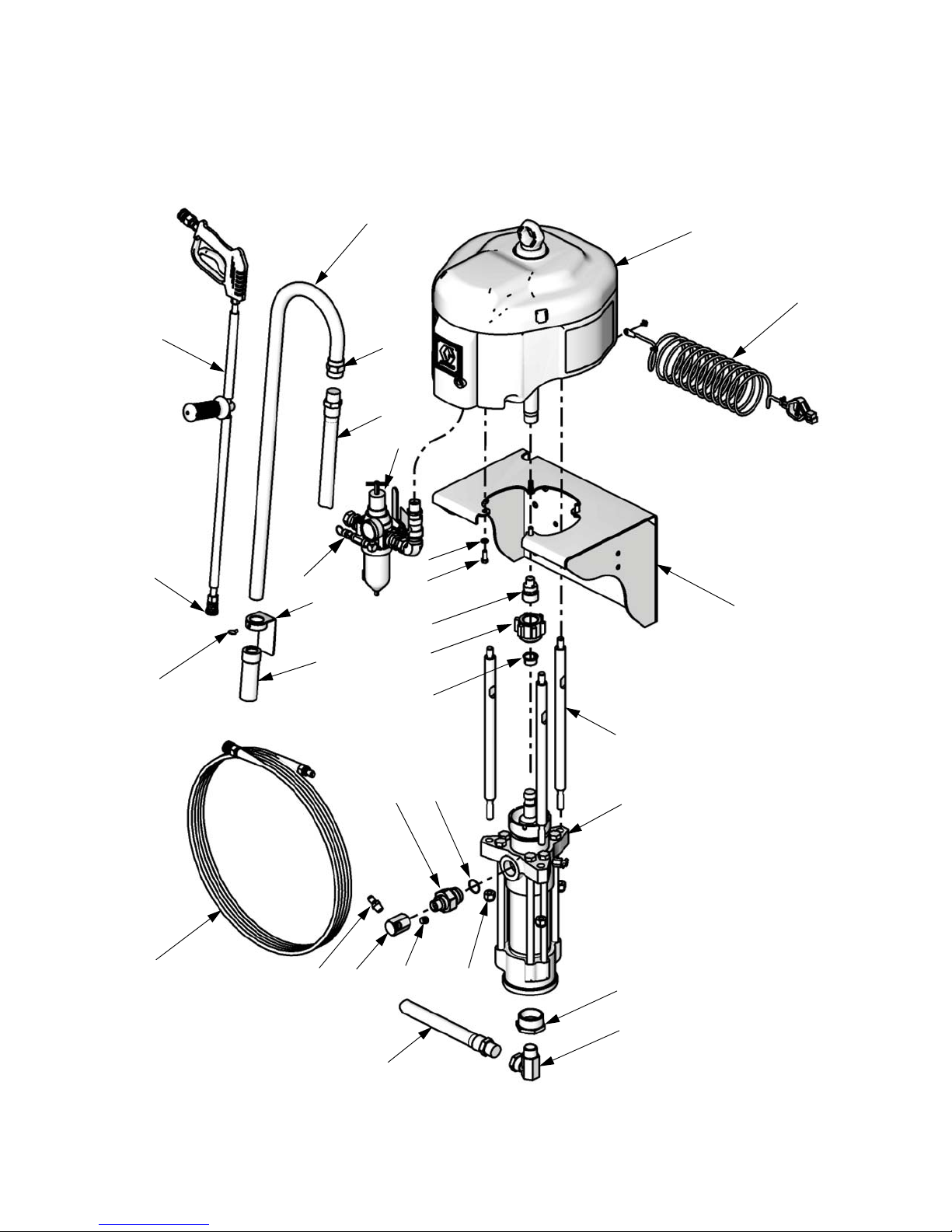

Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

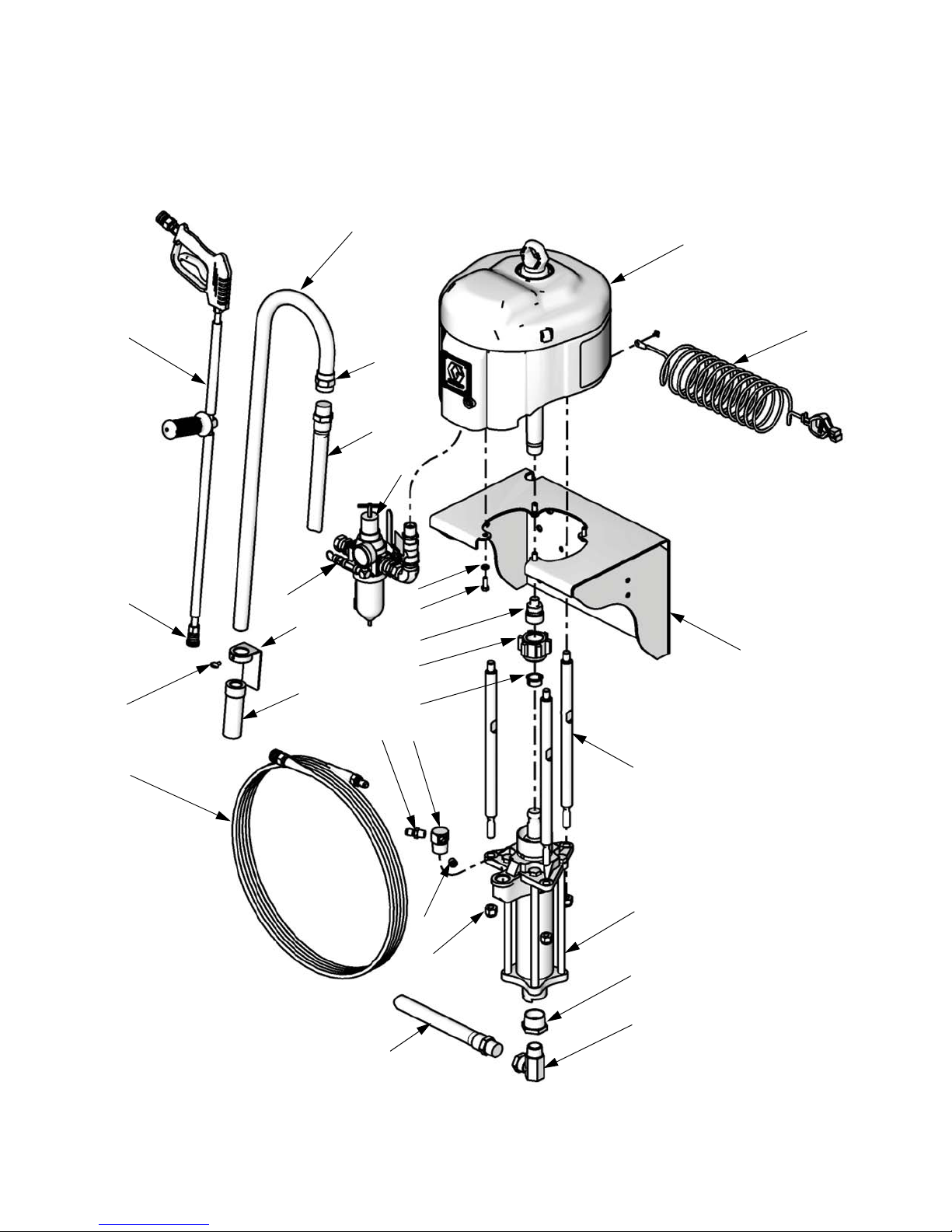

247549 Cart Mount Package . . . . . . . . . . . . . . 14
247550 Wall Mount Package . . . . . . . . . . . . . . 15
247551, 247553, and 258664
Cart Mount Packages . . . . . . . . . . . . . . . . . 16
247552, 247554, and 258665
Wall Mount Packages . . . . . . . . . . . . . . . . . 17
Parts Listings . . . . . . . . . . . . . . . . . . . . . . . . . . 18

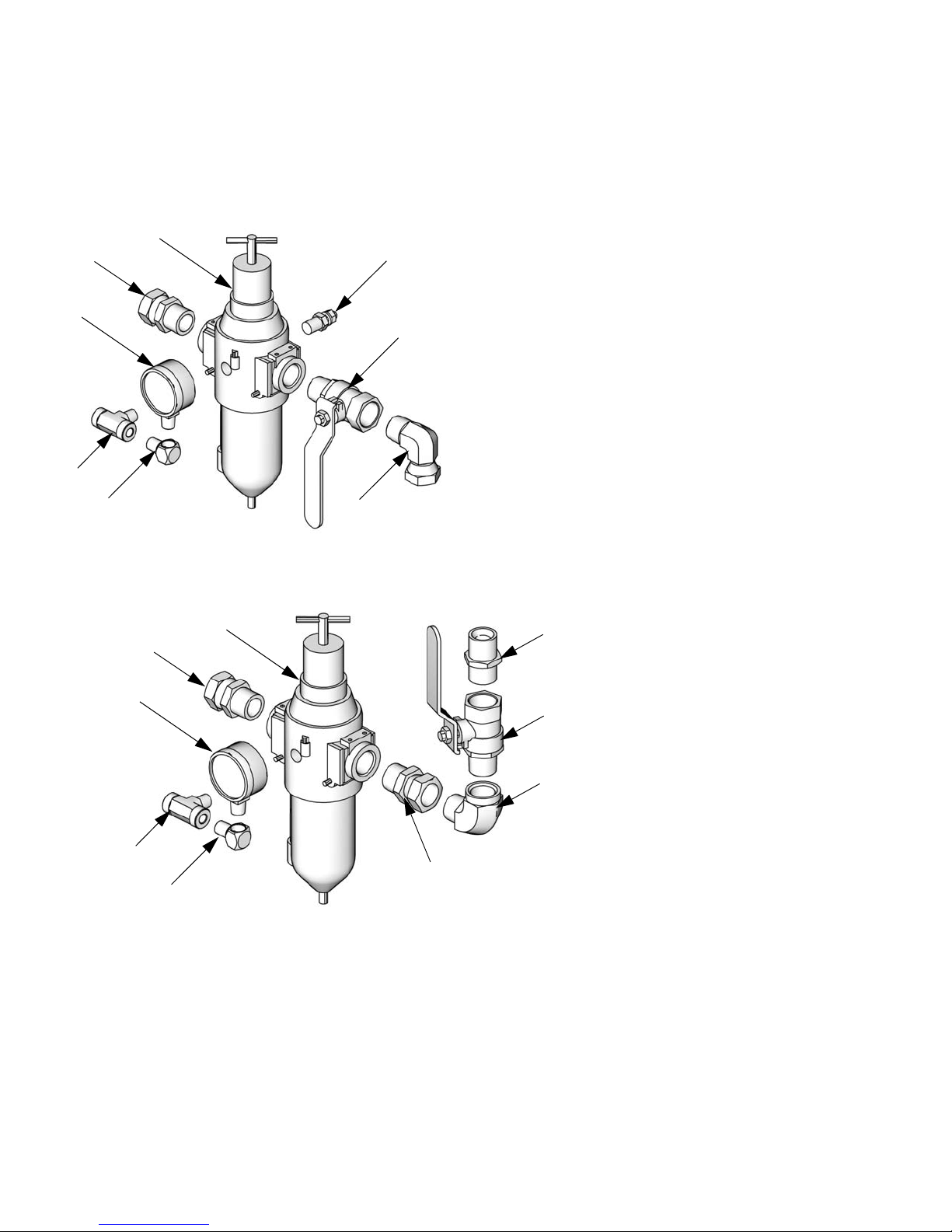

Air Regulator Assemblies . . . . . . . . . . . . . . . . . . . 20
24E013, for Cart-Mount Models . . . . . . . . . . . . 20
24E025, for Wall-Mount Models . . . . . . . . . . . . 20
Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Wall Mounting Bracket Diagram . . . . . . . . . . . . . . 22
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Pump Performance Tables . . . . . . . . . . . . . . . . . . 24
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 28
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . 28

Models
312585G 3
Models
Check your package’s identification plate (ID) for the
6-digit part number of your package. To order replace-
ment parts, see Parts starting on page 14.
Related Manuals
All packages include air controls, hose and gun,
and ground wire.
ID
TI11530A
Part No. Series
MaximumWorking
Pressure
psi (MPa, bar)
Maximum Air
Input
Pressure
psi (MPa, bar) Ratio
Displacement
Pump Size
(cc per cycle)
Includes:
Portable
Cart
Wall
Mount
247549 C 1250 (8.6, 86.2) 100 (0.7, 7.0) 12:1 550 cc ✔
247550 C 1250 (8.6, 86.2) 100 (0.7, 7.0) 12:1 550 cc ✔
247551 C 2275 (15.7, 156.9) 100 (0.7, 7.0) 23:1 580 cc ✔
247552 C 2275 (15.7, 156.9) 100 (0.7, 7.0) 23:1 580 cc ✔
247553 C 3065 (21.1, 211.3) 100 (0.7, 7.0) 30:1 430 cc ✔
247554 C 3065 (21.1, 211.3) 100 (0.7, 7.0) 30:1 430 cc ✔
258664 C 4000 (27.6, 275.8) 100 (0.7, 7.0) 40:1 290 cc ✔
258665 C 4000 (27.6, 275.8) 100 (0.7, 7.0) 40:1 290 cc ✔
Manual Description
312745 247599 Displacement Pump
311825 Dura-Flo Displacement Pump; 1800 and
2400
311827 Dura-Flo Displacement Pump; 600, 750,
900, and 1200
311238 NXT Air Motor
3A0293 Air Controls
308511 Hydra-Clean Spray Gun

Warnings
4312585G
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama-
tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back
to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where
applicable.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent
fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes
are present.
• Ground all equipment in the work area. See Grounding instructions.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail.
• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request MSDS forms from distributor or retailer.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manu-
facturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
SKIN INJECTION HAZARD
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just
a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
• Do not point gun at anyone or at any part of the body.
• Do not put your hand over the spray tip.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Do not spray without tip guard and trigger guard installed.
• Engage trigger lock when not spraying.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.

Warnings
312585G 5
MOVING PARTS HAZARD
Moving parts can pinch or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment,
follow the Pressure Relief Procedure in this manual. Disconnect power or air supply.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read MSDS’s to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
• Always wear impervious gloves when spraying or cleaning equipment.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic
fumes, burns, and hearing loss. This equipment includes but is not limited to:
• Protective eyewear
• Clothing and respirator as recommended by the fluid and solvent manufacturer
•Gloves
• Hearing protection
WARNING

Installation
6312585G
Installation
The Graco warranty will not apply if cleaning solutions
other than those recommended by Graco are used in
these units. Only use solutions that are not harmful to
the wetted parts. See the Technical Data in the displace-
ment pump manuals 311825, 311827, and 312745.
See FIG. 1. Connect the suction hose (P) between the
pump fluid inlet and the suction tube (R), using thread
sealant on the male threads. Screw on the suction tube
strainer. Place the suction tube in the supply drum, and
adjust it so it is 1 in. (25 mm) off the bottom of the drum.
Tighten the thumbscrew of the pipe hanger onto the
drum.
Connect the spray hose (S) to the pump outlet manifold.
For two gun spraying, remove the plug in the manifold
and connect another spray hose. Connect the spray gun
(T) to the hose (S). Use thread sealant on the male
threads.
Wall Mount Packages
1. Ensure the wall is strong enough to support the
weight of the pump assembly and accessories, fluid,
hoses, and stress caused during pump operation.
2. Ensure that the mounting location has sufficient
clearance for easy operator access.
3. Position the wall bracket at a convenient height,
ensuring that there is sufficient clearance for the
fluid suction line and for servicing the displacement
pump.
4. Drill four 7/16 in. (11 mm) holes using the bracket as
a template. Use any of the three mounting hole
groupings in the bracket. See Wall Mounting
Bracket Diagram, page 22.
5. Bolt the bracket securely to the wall using bolts and
washers designed to hold in the wall’s construction.
6. Attach the pump assembly to the mounting bracket.
7. Connect air and fluid hoses.
Flush Before Using Equipment
The equipment was tested with lightweight oil, which is
left in the fluid passages to protect parts. To avoid con-
taminating your fluid with oil, flush the equipment with a
compatible solvent before using the equipment. See
your respective pump manual. See Related Manuals on
page 3.
Air Controls
See FIG. 1. Air Controls are included with all packages.
The following parts are included (see 3A0293 for
detailed information):
•Bleed-type master air valve (D): required in your
system to relieve air trapped between it and the air
motor when the valve is closed.
•Pump regulator assembly (E): The regulator
adjusts air pressure to the motor and fluid outlet
pressure of pump. View the gauge (F) to read air
pressure. The filter removes harmful contaminants
from entering the air control module and air motor.
• Safety relief valve (G): automatically opens to
relieve air pressure, to prevent pump overpressur-
ization.
Trapped air can cause the pump to cycle unexpectedly,
which could result in serious injury from splashing or
moving parts.

Installation
312585G 7
A Displacement Pump
B Air Motor
C Air Controls (includes items D-G)
D Bleed-type Master Air Valve (required)
E Pump Air Regulator Assembly
F Air Pressure Gauge
G Safety Relief Valve
H Air Outlet to Pump
JAirInlet
K Air Line to Air Controls
L Air Line Shutoff Valve
M Air Line Filter
NPortableCart
P Fluid Suction Hose
R Fluid Suction Tube and Strainer
S Fluid Spray Hose
T Spray Gun and Wand
U Ground Wire (required)

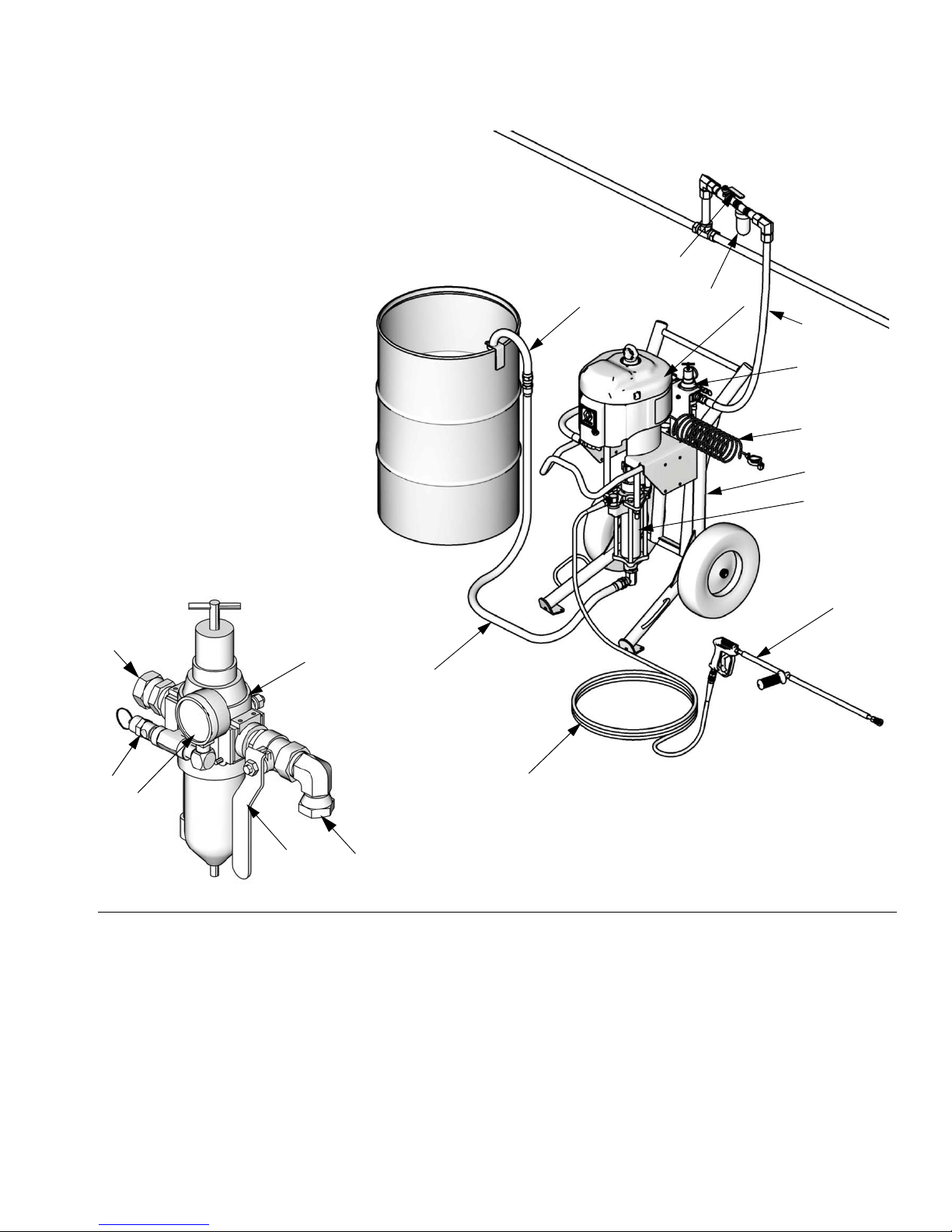

FIG. 1: Typical Installation (Cart Mount Package Shown)
TI11380b
Detail of Air Controls (C)
TI8322d
A
B
C
F
D
E
G
K
L
M
N
P
R
S
U
T
J
H

Installation
8312585G

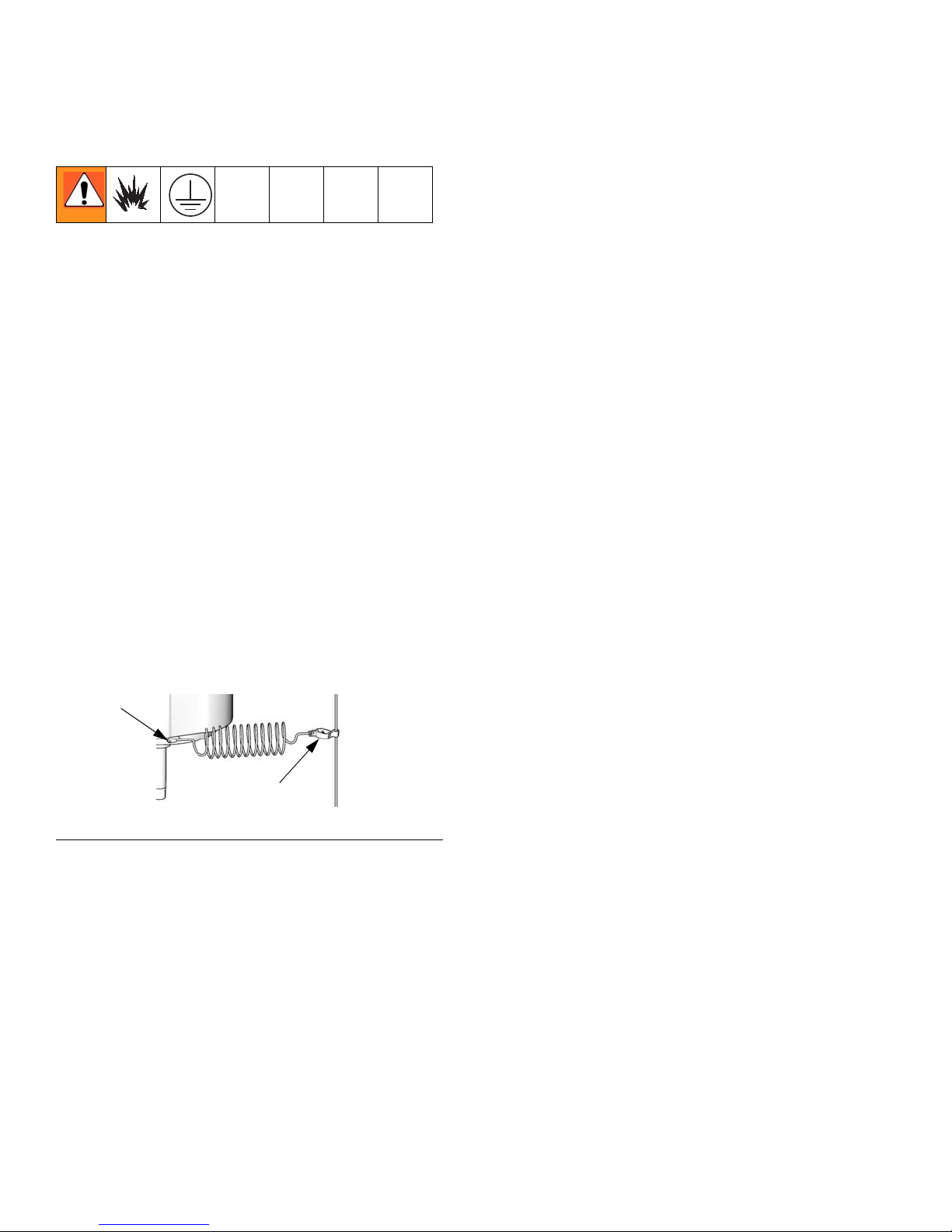

Grounding
Although water generally provides a natural electrical
ground, the following equipment must be grounded if the
cleaning chemicals are volatile.
The equipment must be grounded. Grounding reduces
the risk of static and electric shock by providing an
escape wire for the electrical current due to static build
up or in the event of a short circuit.
When cleaning in enclosed areas, such as storage
tanks, locate the pump and air compressor outside the
area and well away from it. Provide adequate ventilation.
If the area you are cleaning has stored flammable mate-
rials. take appropriate precautions to avoid static spark-
ing. Consult your local codes.
Pump: use supplied ground wire and clamp. See FIG. 2.
Use the ground screw (GS) and lockwasher (LW) to
attach the ground wire (U) at the rear of the air motor.
Tighten the screw securely. Connect the other end of the
ground wire to a true earth ground.
Air and fluid hoses: use only electrically conductive
hoses.
Air compressor: follow manufacturer’s recommenda-
tions.
Spray gun / Dispense valve: ground through connec-
tion to a properly grounded fluid hose and pump.
Fluid supply container: follow local code.
Object being sprayed: follow local code.
Solvent pails used when flushing: follow local code.
Use only conductive metal pails, placed on a grounded
surface. Do not place the pail on a nonconductive sur-
face, such as paper or cardboard, which interrupts
grounding continuity.
To maintain grounding continuity when flushing or
relieving pressure: hold metal part of the spray
gun/dispense valve firmly to the side of a grounded
metal pail, then trigger the gun/valve.
FIG. 2. Ground Wire
GS, LW
TI8250A
U

Operation
312585G 9
Operation
Pressure Relief Procedure
1. Engage the trigger lock.
2. Close the bleed-type master air valve to shutoff the
pump.
3. Disengage the trigger lock.
4. Hold a metal part of the gun firmly to a grounded
metal pail. Trigger the gun to relieve pressure.
5. Engage the trigger lock.
6. Open all fluid drain valves in the system, having a
waste container ready to catch drainage. Leave the
drain valve(s) open until you are ready to spray
again.
7. If you suspect the spray tip or hose is clogged or
that pressure has not been fully relieved after follow-
ing the steps above, VERY SLOWLY loosen the tip
guard retaining nut or hose end coupling to relieve
pressure gradually, then loosen completely. Clear
the hose or tip obstruction.
Cleaning Solutions
Prepare the cleaning solution according to the manufac-
turer’s instructions. Be sure to observe all warnings. If
you are using powdered cleaners, mix them thoroughly
in a separate pail before adding them to a supply drum.
Undissolved powders are extremely abrasive and may
damage pump parts.
Flushing
Hold a metal part of the gun/valve firmly to the side of a
grounded metal pail and use the lowest possible fluid
pressure during flushing.
Trapped air can cause the pump to cycle unexpectedly,
which could result in serious injury from splashing or
moving parts.
Wear appropriate protective clothing, such as water-
proof outerwear and eye goggles, according to the
cleaner manufacturer’s recommendations. Cleaning
chemicals may be toxic, and cause serious irritation to
your eyes or skin.
To reduce the risk of fluid injection injury, static spark-
ing, or splashing, relieve the pressure, and remove the
spray tip (spray guns only) before flushing.

Operation
10 312585G
Starting the Pump
1. Open the bleed-type master air valve (A).
2. Trigger the gun into a grounded metal pail, holding a
metal part of the gun firmly to the pail.
3. Slowly open the air regulator (E) until the pump
starts running.
4. Run the pump slowly until all the air is purged,
release the gun trigger, and lock the trigger safety -
the pump will start and stop as the gun is opened
and closed.
Adjusting the Pump
• Always use the lowest pressure necessary to get
the desired results.
• Never allow the pump to run dry of fluid being
pumped. A dry pump will quickly accelerate to a
high speed, possibly damaging itself. If your pump
accelerates quickly, or is running too fast, stop it
immediately and check the fluid supply. If the supply
container is empty and air has been pumped into
lines, prime the pump and lines with fluid, or flush
and leave filled with a compatible solvent. Be sure to
eliminate all air from the fluid system.
• The piston and intake check valves of displacement
pump 247599 are factory-set for light viscosity flu-
ids. This setting minimizes surging at pump stroke
changeover. To adjust the valves for heavier viscos-
ity fluids, see manual 312745.
• Always stop the pump at the bottom of its stroke to
prevent fluid from drying on the rod and damaging
the throat packings. When you finish pumping,
always relieve the pressure, page 9.
• If you are pumping fluid which dries, hardens, or
sets up, flush the system with a compatible solvent
as often as necessary to prevent a build up of dried
fluid in the pump or hoses.
• Every 40 hours of operation, check that the packing
nut is tight. Relieve the pressure, page 9. Then,
tighten the packing nut just snug - do not overtighten
or the packings may be damaged.

Operation
312585G 11

Troubleshooting
12 312585G
Troubleshooting
1. Relieve the pressure, page 9.
2. Check all possible causes and problems before dis-
assembling the pump.
* To determine if the fluid hose or gun is obstructed, relieve the pressure, page 9. Disconnect the fluid hose and
place a container at the pump fluid outlet to catch any fluid. Turn on the air power just enough to start the pump. If
the pump starts, the obstruction is in the fluid hose or gun.
Problem Cause Solution
Pump fails to operate. Restricted line or inadequate air supply;
closed or clogged valves.
Clear; increase air supply. Check that
valves are open.
Obstructed fluid hose or gun/valve; fluid
hose ID is too small.
Open, clear*; use hose with larger ID.
Fluid dried on displacement rod. Clean; always stop pump at bottom of
stroke; keep wet-cup 1/3 filled with com-
patible solvent.
Dirty, worn, or damaged motor parts. Clean or repair. See manual 311238.
Pump operates, but output low on both
strokes.
Restricted line or inadequate air supply;
closed or clogged valves.
Clear; increase air supply. Check that
valves are open.
Obstructed fluid hose or gun/valve; fluid
hose ID is too small.
Open, clear*; use hose with larger ID.
Bleeder valve open. Close.
Worn packings in displacement pump. Replace packings. See displacement
pump manual 311825 or 312745.
Pump operates, but output low on down-
stroke.
Held open or worn intake valve. Clear valve; service. See displacement
pump manual 311825 or 312745.
Pump operates, but output low on
upstroke.
Held open or worn piston valve or pack-
ings.
Clear valve; replace packings. See dis-
placement pump manual 311825 or
312745.
Erratic or accelerated pump speed. Exhausted fluid supply. Refill and prime.
Held open or worn piston valve or pack-
ings.
Clear valve; replace packings. See dis-
placement pump manual 311825 or
312745.
Held open or worn intake valve. Clear valve; service. See displacement
pump manual 311825 or 312745.

Repair
312585G 13
Repair
Disconnect the Displacement
Pump
See the Parts drawings on pages 14-17.
1. Flush the pump, if possible. Stop the pump at the
bottom of its stroke. Relieve the pressure, page 9.
2. Disconnect the air, fluid, and suction hoses.
3. Unscrew the coupling nut (14) from the connecting
rod adapter (11). Remove the coupling collars (13);
do not lose or drop them.
4. Hold the tie rod flats with a wrench to keep the rods
(9) from turning. Unscrew the nuts (12). Remove the
displacement pump (10).
5. To service the displacement pump, refer to manual
311825, 311827, or 312745, supplied. To service
the air motor, refer to manual 311238, supplied.
Reconnect the Displacement
Pump
See the Parts drawings on pages 14-17.
1. Screw the connecting rod adapter (11) to the air
motor shaft.
2. Screw the tie rods (9) into the air motor (6). Using a
wrench on the tie rod flats, torque to 50-60 ft-lb
(68-81 N•m).
3. Make sure the coupling nut (14) and coupling collars
(13) are in place on the displacement rod.
4. Use at least two people to hold the displacement
pump while another reconnects it to the motor (see
the WARNING at left). Orient the pump's fluid outlet
to the air inlet as noted under Disconnect the Dis-
placement Pump. Place the displacement pump
(10) on the tie rods (9).
5. Screw the nuts (12) onto the tie rods (9) and torque
to 50-60 ft-lb (68-81 N•m).
6. Screw the coupling nut (14) onto the connecting rod
adapter (11) loosely. Hold the connecting rod
adapter flats with a wrench to keep it from turning.
Use an adjustable wrench to tighten the coupling
nut. Torque to 90-100 ft-lb (121-135 N•m).
7. Reconnect all hoses. Reconnect the ground wire if it
was disconnected. Fill the wet-cup 1/3 full of Graco
Throat Seal Liquid or compatible solvent.
8. Turn on the air supply. Run the pump slowly to
ensure that it operates properly.
Do not lift the pump by the lift ring when the total weight
exceeds 250 kg (550 lb).
Use at least two people when lifting, moving, or discon-
necting the pump. If disconnecting the displacement
pump, be sure to securely brace the pump, or have two
people hold it while another disconnects it.
Before disconnecting the displacement pump (10)
from the motor (6), be sure to note the relative posi-
tion of the pump’s fluid outlet to the air inlet of the
motor. If the motor does not require servicing, leave
it attached to its mounting.

Parts
14 312585G
Parts
247549 Cart Mount Package
See parts listing on page 18.
TI11268b
1
7
3
4
5
6
2
8Ref. 20
41
23
15
14
13
16
21
11
22
19
17
18
9
10
12
20
24
25
26
27
28
29
30
37
38
39
40
1a
1b
1d
1c
66
67
67
68
64
63

Parts
312585G 15
247550 Wall Mount Package
See parts listing on page 18.
TI11270b
4
32
15
14
13
16
11
19
17
18
9
10
12
20
6
7
8
Ref. 20
23
21
22
24 25
26
30
37
31
68

Parts
16 312585G
247551, 247553, and 258664 Cart Mount Packages
See parts listing on page 18.
TI11272b
1
2
3
4
5
6
8
Ref. 20
41
23
14
13
21
11
22
19
18
9
10
20
24
25
26
27
28
29
30
37
38
39
40
33
15
17
12
34
16
1a
1b
1d
1c
66
67
7
67
68
64
63

Parts
312585G 17
247552, 247554, and 258665 Wall Mount Packages
See parts listing on page 18.
TI11274b
4
32
33
14
13
15
11
19
17 18
9
10
12
20
6
7
8
Ref. 20
23
21
22
24
25
26
30
37
31
34
16
68

Parts
18 312585G
Parts Listings
Common Parts
The following parts except #39, are used on all packages in this manual.
*Assemblies 258664 and 258665 do not include item 39
and contain Qty. 2 of item 41.
† The first two digits designate the fan angle. The last
three digits designate the orifice size in thousandths of
an inch.
Parts that Vary by Package
Ref. Part Description Qty.
4 100133 WASHER, lock; 3/8 4
8 244524 WIRE, ground 1
12 101712 NUT, lock; 5/8-11 3
16 101748 PLUG, pipe; 3/8 npt; sst 1
17 15T272 COUPLING, quick release; 3/8 npt 1
19 15T273 SWIVEL; 90°; 1 in. npt(m) x
1 in. npsm(f)
1
20 214959 HOSE, suction; 1 in. (25 mm) ID;
1 in. npt(m) sst fittings;
6 ft (1.83 m); nylon
1
21 166629 COUPLING; 1 in. npt(fbe) 1
22 166630 TUBE, suction; 1 in. (25 mm) ID;
1 in. npt(mbe); brass
1
23 205770 HANGER, pipe 1
24 100085 SCREW, thumb; 1/4-20 x
1/2 in. (13 mm)
1
25 15T284 STRAINER, fluid inlet; 60 mesh 1
26 247879 GUN, wand; sst and brass;
includes 32 in. (813 mm) sst wand;
see 308511
1
30 247878 HOSE, fluid; 3/8 in. (10 mm) ID;
sst quick disconnect fittings (m x f);
50 ft (15.2 m)
1
37 805584 TIP, spray, Q-type; 15090† 1
38 805538 TIP, spray, Q-type; 40030† 1
39* 805575 TIP, spray, Q-type; 00080 † 1
40 805549 TIP, spray, Q-type; 25045† 1
41* 805566 TIP, spray, Q-type; 40065 † 1
68 113498 VALVE, safety,
110 psi (0.76 MPa, 7.6 bar)
1
Ref. Part Description Qty.
Ref.
No. Description
Package Part Nos.
Qty247549 247550 247551 247552 247553 247554 258664 258665
1 CART; includes items 1a-1d 287884 287884 287884 287884 1
1a CAP, tube, round 113361 113361 113361 113361 2
1b WHEEL, semi-pneumatic 113362 113362 113362 113362 2
1c WASHER; 3/4 in. (19 mm) ID buy
locally
buy
locally
buy
locally
buy
locally
2
1d RING, retaining 113436 113436 113436 113436 2
2SPACER 15K296 15K296 15K296 15K296 1
3 SPACER, mounting 120465 120465 120465 120465 4
5NUT, hex; 3/8-16 100131 100131 100131 100131 4
6 MOTOR, air; see 311238 N34DN0 N34DN0 N65DN0 N65DN0 N65DN0 N65DN0 N65DN0 N65DN0 1
7REGULATOR, air, assembly;
see page 20.
24E013 24E025 24E013 24E025 24E013 24E025 24E013 24E025 1
9 ROD, tie; 14.656 in. (372 mm)
shoulder to shoulder
15T274 15T274 3
ROD, tie; 15.4 in. (391 mm)
shoulder to shoulder
15H562 15H562 15H562 15H562 15H562 15H562 3

Parts
312585G 19
10 PUMP, displacement;
see 312745
247599 247599 1
PUMP, displacement;
see 311825
241648 241648 1
PUMP, displacement;
see 311825
687055 687055 1
PUMP, displacement;
see 311827
24B923 24B923 1
11 ADAPTER; M38 x 2 x 3/4-16
unf
15H371 15H371 15H371 15H371 15H371 15H371 1
ADAPTER; 1 1/4-12 unf x
3/4-16 unf
15H370 15H370 1
13 COLLAR, coupling 184130 184130 184130 184130 184130 184130 184129 184129 2
14 NUT, coupling 184096 184096 184096 184096 184096 184096 186925 186925 1
15 MANIFOLD, fluid outlet;
1 in. npt(m) x 3/8 npt(f) x
3/8 npt(f)
166444 166444 166444 166444 1
MANIFOLD, fluid outlet; 3/4
npt(f) x 3/8 npt(f) x
3/8 npt(f); sst
15T275 15T275 15T275 15T275 1
18 BUSHING; 1-1/2 in. npt(m) x 1
in. npt(f); sst
15T271 15T271 1
BUSHING; 2 in. npt(m) x
1 in. npt(f)
102283 102283 102283 102283 102283 102283 1
27 HOLDER, tube and gun;
includes items 28 and 29
247622 247622 247622 247622 1
28 SCREW, machine, hex; 1/4-20
x 1 in. (25 mm)
113428 113428 113428 113428 2
29 NUT, lock, hex; 1/4-20; sst 109478 109478 109478 109478 2
31 WALL MOUNT BRACKET;
includes items 4 and 32;
see 311619
255143 255143 255143 255143 1
32 SCREW, cap, socket-hd;
3/8-16 x 1 in. (25 mm)
100101 100101 100101 100101 4
33 O-RING; PTFE 109213 109213 109213 109213 1
34 FITTING, outlet; M42 x 2.0 x
3/4 npt(m); sst
15B316 15B316 15B316 15B316 1
63 WASHER, lock 107542 107542 107542 107542 1
64 NUT, keps, hex; M8 x 1.25 113761 113761 113761 113761 1
66 ELBOW; 90°, 3/4-14 nps(m) x
3/4-14 npt(f)
160327 160327 160327 160327 1
67 HOSE, coupled, 30 in. (76 cm) 240900 240900 240900 240900 1
Ref.
No. Description
Package Part Nos.
Qty247549 247550 247551 247552 247553 247554 258664 258665

Air Regulator Assemblies
20 312585G
Air Regulator Assemblies
24E013, for Cart-Mount Models
24E025, for Wall-Mount Models
101
102
103
109
104
106
105
108
ti24677a
Ref. Part Description Qty.
101 116521 FILTER/REGULATOR, air 1
102 113218 VALVE, ball, vented, 3/4-14 npt 1
103 160327 ELBOW; 90°, 3/4-14 nps(m) x
3/4-14 npt(f)
1
104 100960 GAUGE, air pressure 1
105 100840 ELBOW, street, 1/4-18 npt 1
106 108638 TEE, pipe, 1/4-18 npt 1
108 157785 SWIVEL, 3/4-14 nps x 3/4-14 npt 1
109 194545 CONNECTOR, bulkhead 1
ti24678a
104
106
105
101
102
103
108
109
108
Ref. Part Description Qty.
101 116521 FILTER/REGULATOR, air 1
102 113218 VALVE, ball, vented, 3/4-14 npt 1
103 122327 ELBOW; 90°, 3/4-14 nps(m) x
3/4-14 npt(f)
1
104 100960 GAUGE, air pressure 1
105 100840 ELBOW, street, 1/4-18 npt 1
106 108638 TEE, pipe, 1/4-18 npt 1
108 157785 SWIVEL, 3/4-14 nps x 3/4-14 npt 2
109 160032 NIPPLE, 3/4 npt 1
