Graco 230 VAC EGP User manual

3A8558C
EN
Instruction Manual - Parts and Repair
230 VAC EGP
Oil Transfer Pump
For pumping non-flammable fluids, including motor oils, hydraulic fluid, and antifreeze. Do
not use to pump water. For professional use only.
25T821 Electric Gear Pump
3.2 gpm (12.1 lpm)
65 psi (0.45 MPa, 4.5 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual before using the equipment.
Save these instructions.

Contents
2 3A8558C
Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Typical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Mount Pump on Drum . . . . . . . . . . . . . . . . . . . . . 6
Mount Hose and Nozzle . . . . . . . . . . . . . . . . . . . 6
Electrical Installation
230 VAC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . 7
Duty Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Thermal Overload . . . . . . . . . . . . . . . . . . . . . . . . 7
Pump Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Recycling and Disposal . . . . . . . . . . . . . . . . . . . . . . 8
End of Product Life . . . . . . . . . . . . . . . . . . . . . . . 8
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Replace/Clean Suction Filter
P/N 133377 . . . . . . . . . . . . . . . . . . . . . . . . . 12
Pump Housing Assembly P/N 133372 . . . . . . . 12
Clean and Inspect Pump Gears. . . . . . . . . . . . . 13
Clean and Inspect Pressure Relief
Valve Assembly . . . . . . . . . . . . . . . . . . . . . . 16
Notes: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Kits and Accessories . . . . . . . . . . . . . . . . . . . . . . . 20
Pump Performance Chart . . . . . . . . . . . . . . . . . . . 22
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Technical Specifications . . . . . . . . . . . . . . . . . . . . 24
California Proposition 65 . . . . . . . . . . . . . . . . . . . . 25
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 26

Warnings
3A8558C 3
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks.
When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings.
Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this
manual where applicable.
WARNING
FIRE AND EXPLOSION HAZARD
When flammable fluids are present in the work area, such as gasoline and windshield wiper fluid, be
aware that flammable fumes can ignite or explode. To help prevent fire and explosion:
• Use equipment only in well-ventilated area.
• Eliminate all ignition sources, such as cigarettes and portable electric lamps.
• Ground all equipment in the work area.
• Keep work area free of debris, including rags and spilled or open containers of solvent and gasoline.
• Do not plug or unplug power cords or turn lights on or off when flammable fumes are present.
• Use only grounded hoses.
•Stop operation immediately if static sparking occurs or you feel a shock. Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
ELECTRIC SHOCK HAZARD
This equipment must be grounded. Improper grounding, setup, or usage of the system can cause
electric shock.
• Turn off and disconnect power cord before servicing equipment.
• Connect only to grounded electrical outlets.
• Use only 3-wire extension cords.
• Ensure ground prongs are intact on power and extension cords.
• Do not expose to rain. Store indoors.
BURN HAZARD
Equipment surfaces and fluid that is heated can become very hot during operation. To avoid severe
burns:
• Do not touch hot fluid or equipment.

Warnings
4 3A8558C
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Specifications in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical
Specifications in all equipment manuals. Read fluid and solvent manufacturer’s warnings. For
complete information about your material, request Safety Data Sheets (SDSs) from distributor or
retailer.
• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals and
create safety hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
PRESSURIZED EQUIPMENT HAZARD
Fluid from the equipment, leaks, or ruptured components can splash in the eyes or on skin and cause
serious injury.
• Follow the Pressure Relief Procedure when you stop spraying/dispensing and before cleaning,
checking, or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury, including
eye injury, hearing loss, inhalation of toxic fumes, and burns. Protective equipment includes but is not
limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.
WARNING

Typical Installation
3A8558C 5
Typical Installation

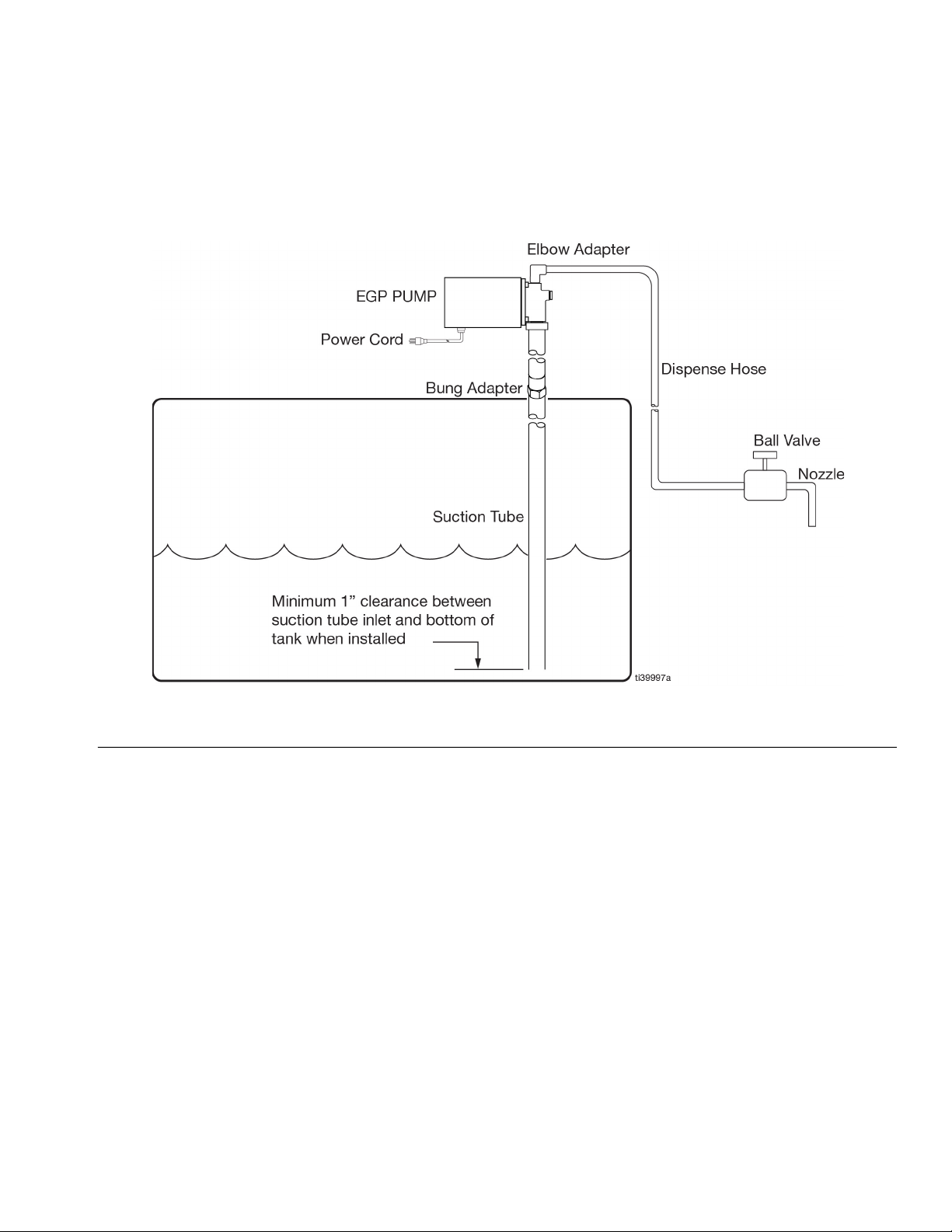

FIG. 1: Typical Installation

Installation
6 3A8558C
Installation
Grounding
Pump
NOTE: The reference numbers in the following section
refer to Notes:, page 17.
NOTE: Pipe/thread sealant is user supplied, do not use
the PVC cement supplied with the product.
The oil transfer pumps are positive displacement
pumps. The motors are drip proof rated and have
sealed bearings and require minimal maintenance. All
models come with hose, nozzle, 34 in. (864 mm)
suction tube assembly, and bung adapter.
Mount Pump on Drum
1. Install the bung adapter (14) in the drum bung and
tighten.
2. Assemble the suction tube sections (18) by
applying PVC cement (21) to the inside diameter of
the PVC couplers (19, 20). Make sure that the PVC
cement (21) is applied to the complete inside
diameter and slide the pipe sections into the
coupler with a twisting motion.
3. Apply pipe sealant to the threaded end of the
suction tube, then screw the tube into the pump
inlet port, making sure that the tube is tight.
4. Insert the suction tube attached to the pump
through the bung adapter, and lower the pump
onto the bung adapter. Position the pump, as
desired, then tighten the swivel nut (23) to the bung
adapter (14).
Mount Hose and Nozzle
1. Before connecting the hose to the pump, pour 8 oz.
(0.24 l) of oil into the pump outlet port so that the
pump does not run dry during the initial startup.
2. Apply pipe sealant to the male threads of the elbow
(12), then secure the elbow into the outlet port.
3. Apply pipe sealant to one end of the hose assembly
(17), then twist the hose end into the elbow.
4. Apply pipe sealant to the other end of the hose
assembly (17).
5. Apply thread sealant onto the nozzle (15) end that
connects to the ball valve (16).
6. Fasten the ball valve and nozzle (15, 16) onto the
hose assembly, positioning the nozzle (15) down for
dispensing.
Electrical Installation
230 VAC
The 230 VAC model is shipped with a power cord with
no electrical plug. An appropriate electrical plug that
meets local electrical codes must be installed.
The equipment must be grounded to reduce the risk
of static sparking and electric shock. Electric or static
sparking can cause fumes to ignite or explode.
Improper grounding can cause electric shock.
Grounding provides an escape wire for the electric
current.
All electrical wiring must be done by a qualified
electrician and comply with all local codes and
regulations.
Wires Connect to
Brown Line
Blue Neutral
Green with yellow Ground

Operation
3A8558C 7
Operation
Pressure Relief Procedure
Follow the Pressure Relief Procedure whenever
you see this symbol.
1. Turn off and disconnect the power supply.
2. Trigger the dispense valve into a grounded waste
container to relieve pressure.
Duty Cycle
The pump is designed to operate for a 50% duty cycle.
It can operate up to a maximum of 30 minutes of run
time, with an equal amount of down time.
Thermal Overload
The motor has a thermal overload switch that shuts the
motor down when overheated. If the unit overheats,
allow approximately 45 minutes for the unit to cool.
Once the unit has cooled down, the switch will close
and the unit will restart.
Pump Start Up
1. Check that the ball valve is in the OFF position.
2. Turn the power switch, located on the back of the
motor, to the ON position to start the pump.
NOTE: The pump has an internal bypass valve
(Pressure Relief Valve) that opens when the pump
discharge pressure exceeds 65 psi. If the flow is
blocked, the fluid will bypass within the pump.
3. Insert the nozzle (15) into the container and open
the ball valve (16) to dispense fluid.
4. Turn the switch to the OFF position immediately
after finishing dispensing.
5. Close the ball valve (16).
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury from
pressurized fluid, such as splashing fluid and moving
parts, follow the Pressure Relief Procedure when you
stop dispensing and before cleaning, checking, or
servicing the equipment.
NOTICE
Never allow the pump to operate dry. Make sure that
the pump has fluid in it when the pump is initially
installed. Do not run the pump for more than five (5)
minutes with the pump discharge blocked. Do not
operate the pump continuously more than 30 minutes
in one (1) hour. Failure to follow these instructions can
result in damage to the pump.
To reduce risk of injury from motor starting
unexpectedly when it cools, always turn the power
switch to OFF if the motor shuts down.

Recycling and Disposal
8 3A8558C
Recycling and Disposal
End of Product Life
At the end of the product’s useful life, dismantle and
recycle it in a responsible manner.
• Perform the Pressure Relief Procedure.
• Drain and dispose of fluids according to applicable
regulations. Refer to the material manufacturer’s
Safety Data Sheet.
• Remove motor and power cord components.
Recycle according to applicable regulations.
• Deliver remaining product to a recycling facility.

Troubleshooting
3A8558C 9
Troubleshooting
1. Follow Pressure Relief Procedure, page 7, before
checking or repairing the equipment.
2. Check all possible problems and causes before
disassembling the equipment.
Problem Cause Solution
Motor is running, but the pump
will not prime.
There is dirt under the pressure relief
valve.
Remove the pressure relief valve and
inspect. Clean or replace the pump
housing assembly.
The gears are worn or damaged. Remove the cover and inspect the
gears. If damaged, replace the pump
housing assembly.
The oil level is low. Refill the drum.
There is an air leak in the suction
tube.
Inspect all joints in the suction tube
making sure that all threaded joints
have sealant applied properly. Fill
pump outlet port with oil.
There is an air lock in the system. Fill the system with fluid by keeping
nozzle open by operating the pump.
The motor does not run at the proper
speed.
Check the electric connections.
Ensure the supply voltage is at the
proper level.
Oil is leaking in the motor
mount.
A faulty or damaged motor shaft seal. Replace the pump housing
assembly.
The nozzle was closed for an
extended period of time during pump
operation.
Do not exceed five (5) minutes of
operation with the nozzle closed.
A worn motor shaft. Replace with a new pump.

Troubleshooting
10 3A8558C
The unit pumps, but the output
flow is low.
The inlet suction screen is clogged
(used oil).
Remove the inlet suction screen
using a 3/4 in. (19 mm) hex wrench.
Clean or replace the inlet suction
screen.
There is an air leak in the suction
tube.
Inspect all joints in the suction tube
making sure that they are sealed.
The suction tube is too close to the
drum bottom.
The suction tube must have a 1 in.
(25.4 mm) minimum clearance.
The drum is empty. Refill or replace the drum.
The drum is not vented. Vent the drum to atmosphere.
The gears are worn or damaged. Remove the cover and inspect the
gears. If damaged, replace the pump
housing assembly.
The motor does not run at the proper
speed.
Check the electrical connection and
verify the supply voltage.
The suction tube, hose, or nozzle is
clogged.
Inspect and clean the suction tube,
hose, or nozzle, and replace as
needed.
The motor stalls when the
nozzle is closed.
The bypass relief valve is stuck. Remove and inspect the pressure
relief valve. Clean, or replace if it is
damaged.
The supply voltage is low. Check the supply voltage.
The gears are damaged and binding. Inspect the gears. If they do not turn
freely, or are damaged, replace the
pump housing assembly.
The motor is faulty. Replace with a new pump.
The motor overheats. The gears are binding. Inspect the gears. If they do not turn
freely, or are damaged, replace the
pump housing assembly.
The nozzle was closed for an
extended time during pump
operation.
Do not exceed five (5) minutes of
operation with the nozzle closed.
The inlet suction screen is clogged. Remove the inlet suction screen
using a 3/4 in. (19 mm) hex wrench.
Clean or replace the inlet suction
screen.
The suction tube, hose, or nozzle is
clogged.
Inspect and clean the suction tube,
hose, or nozzle.
Operating the pump for more than 30
minutes of continuous duty.
Limit operation to 30 minutes per
hour.
Problem Cause Solution

Troubleshooting
3A8558C 11
The switch does not turn the
pump on.
The fuse or circuit breaker is blown. Check the electrical supply.
There is an electrical problem. Check that proper supply voltage is
getting to the pump.
There is a defective switch. Replace with a new pump.
The motor is damaged or defective.
The motor thermal overload switch is
activated.
Allow the unit to cool down for
approximately 45 minutes. After it
has cooled down, inspect the pump
for any overload condition.
Problem Cause Solution

Repair
12 3A8558C
Repair
Refer to Parts, on page 18 for the numbers in this
section.
Replace/Clean Suction Filter
P/N 133377
Disassembly
1. Follow Pressure Relief Procedure. page 7.
2. Turn off and disconnect the power to the pump.
3. Remove the pump from the tank.
4. Remove the suction tube from the pump.
5. Remove the suction filter (22) using a 3/4 in. (19
mm) hex wrench (FIG. 2).
6. Inspect the suction filter (22) and either clean or
replace, as needed.
Reassembly
1. Tighten the suction filter (22) into the pump inlet,
using a 3/4 in. (19 mm) hex wrench (Torque 30
ft-lbs, 40.7 N•m) (FIG. 2).
2. Complete using the Installation information
beginning on page 6.
Pump Housing Assembly P/N
133372
Disassembly
1. Follow Pressure Relief Procedure. page 7.
2. Turn off and disconnect the power to the pump.
3. Remove the pump from the tank.
4. Remove the suction tube from the pump.

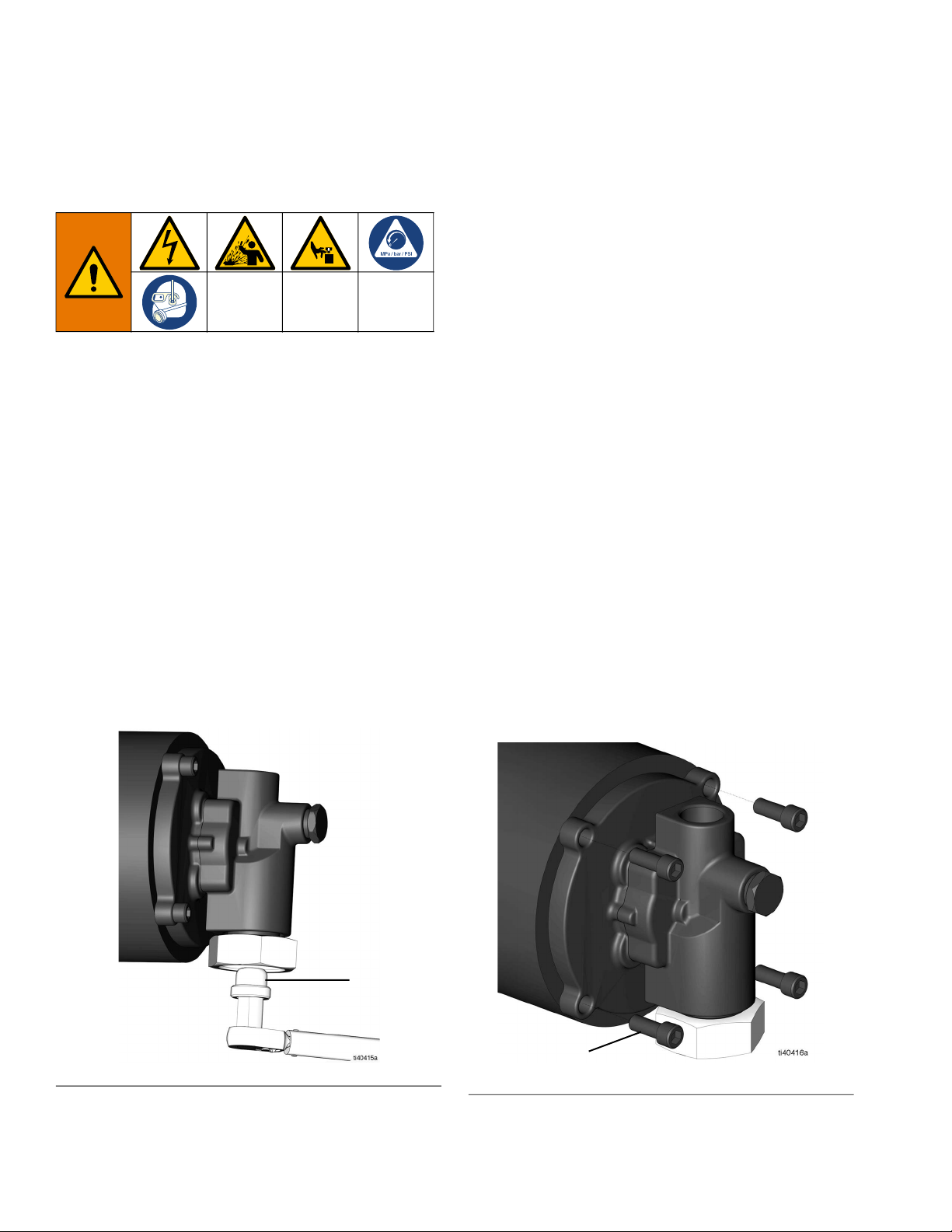

5. Remove the four Allen screws (6) using an 5/16 in.
(8 mm) hex wrench (FIG. 3).
FIG. 2
22
FIG. 3
6

Repair
3A8558C 13

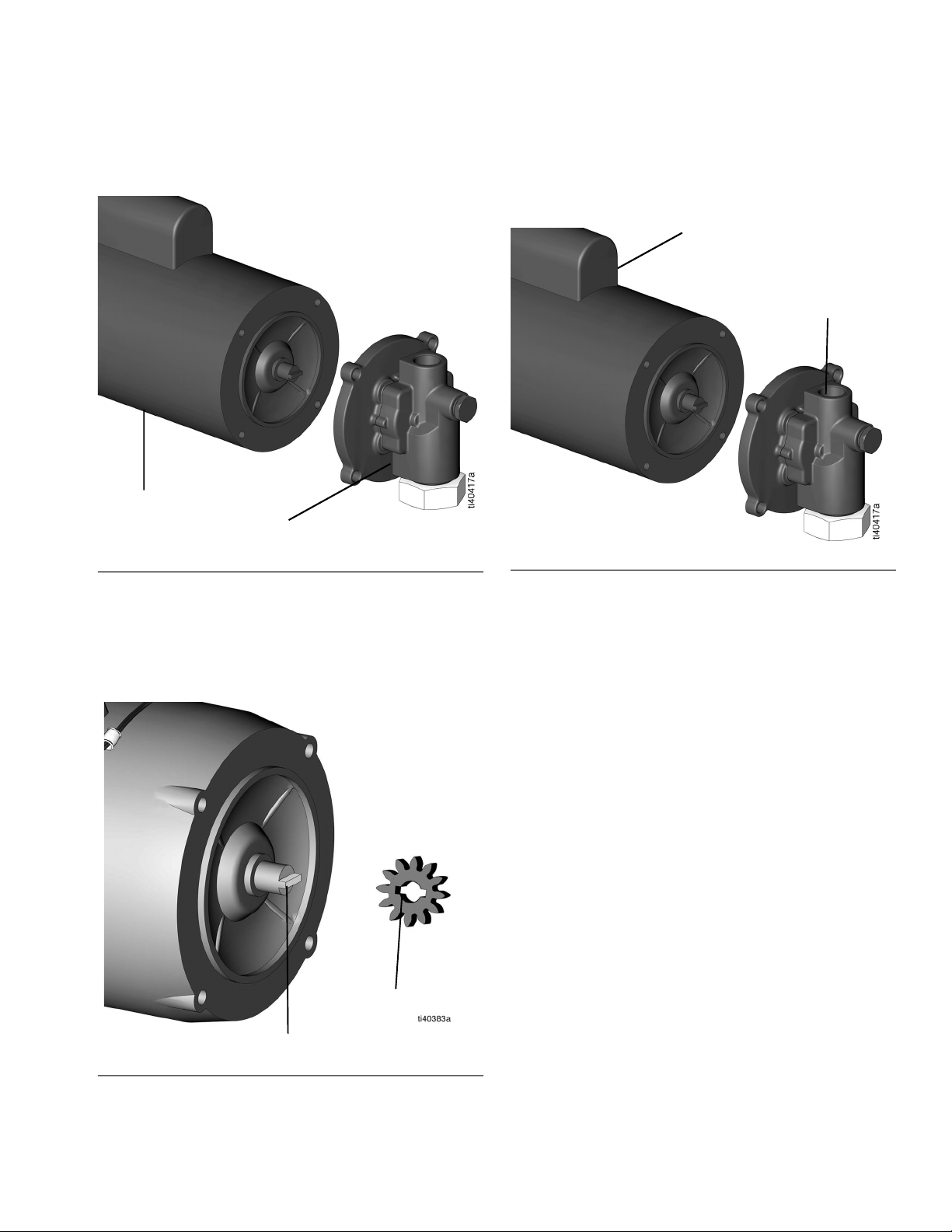

6. Remove the pump housing assembly from the
motor (FIG. 4).
Reassembly
1. Put the pump housing assembly onto the motor.
The motor shaft key should match the slot on the
gear on the inside cover (FIG. 5).
2. The pump outlet should face up and the motor
capacitor and the outlet should both be on top (FIG.
6).
3. Place and tighten the four Allen screws (6) using an
5/16 in. (8 mm) hex wrench (Torque 20 ft-lbs, 27.1
N•m) (see FIG. 3).
4. Complete using the Installation information
beginning on page 6.
Clean and Inspect Pump Gears
Disassembly
1. Follow Pressure Relief Procedure. page 7.
2. Turn off and disconnect the power to the pump.
3. Remove the pump from the tank.
4. Remove the suction tube from the pump.
FIG. 4
FIG. 5
Pump Housing Assembly
Motor
Motor Shaft Key
Gear Slot
FIG. 6
Motor Capacitor
Outlet

Repair
14 3A8558C

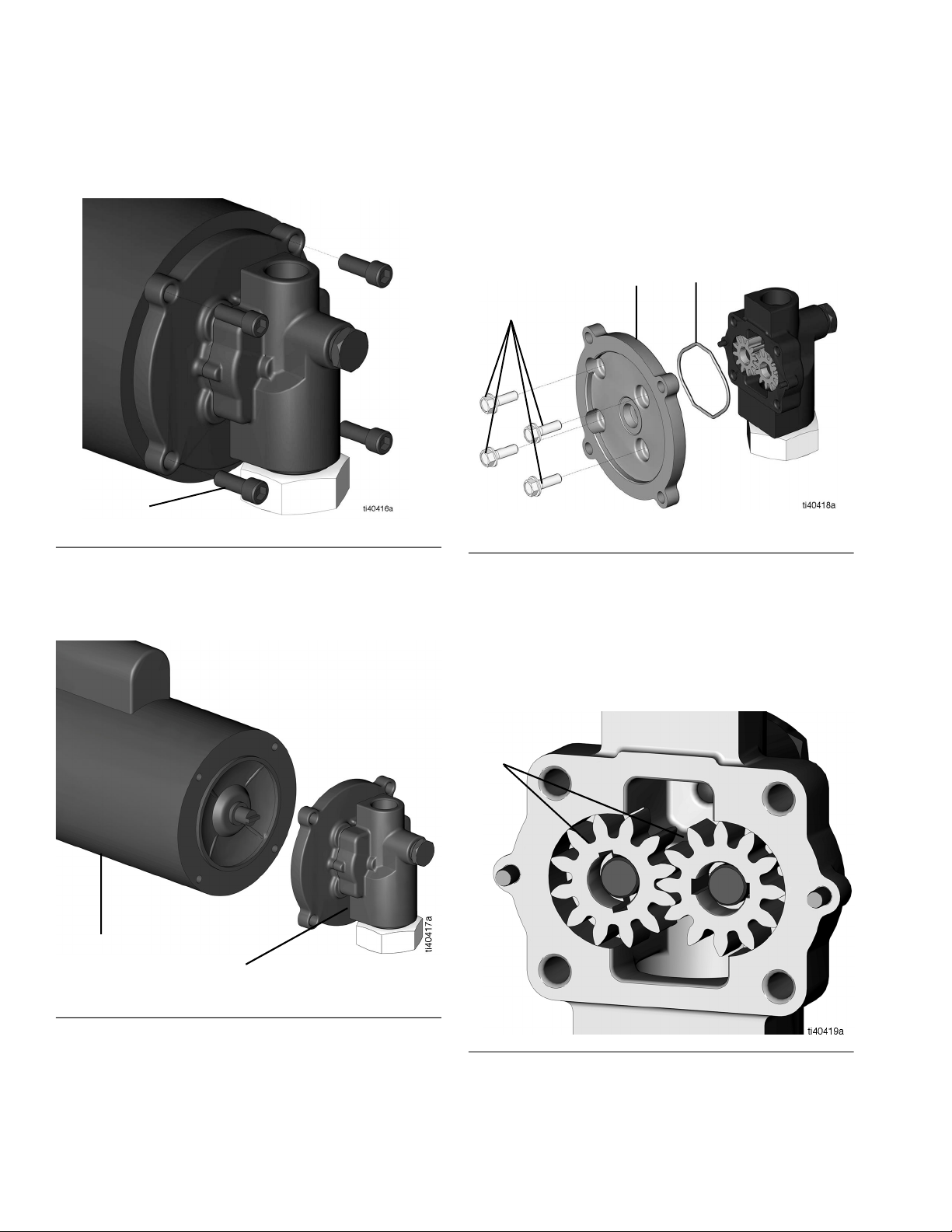

5. Remove the four Allen screws (6) using an 5/16 in.
(8 mm) hex wrench (FIG. 7).
6. Remove the pump housing assembly from the
motor (FIG. 8).
7. Remove four screws (13) on the adapter plate (2)
using a 1/2 in. socket wrench (FIG. 9).
8. Remove the adapter plate (2) (FIG. 9).
9. Remove the o-ring (5) (FIG. 9).
10. Remove both of the pump gears (3) (FIG. 10).
11. Inspect the pump cavity and pump gears (3) for
damage or excessive wear. If there is damage or
wear, replace the pump housing assembly. If
neither is present, clean the pump cavity and gears
(3) (FIG. 10).
FIG. 7
FIG. 8
6
Pump Housing Assembly
Motor
FIG. 9
FIG. 10
13
25
3

Repair
3A8558C 15
Reassembly

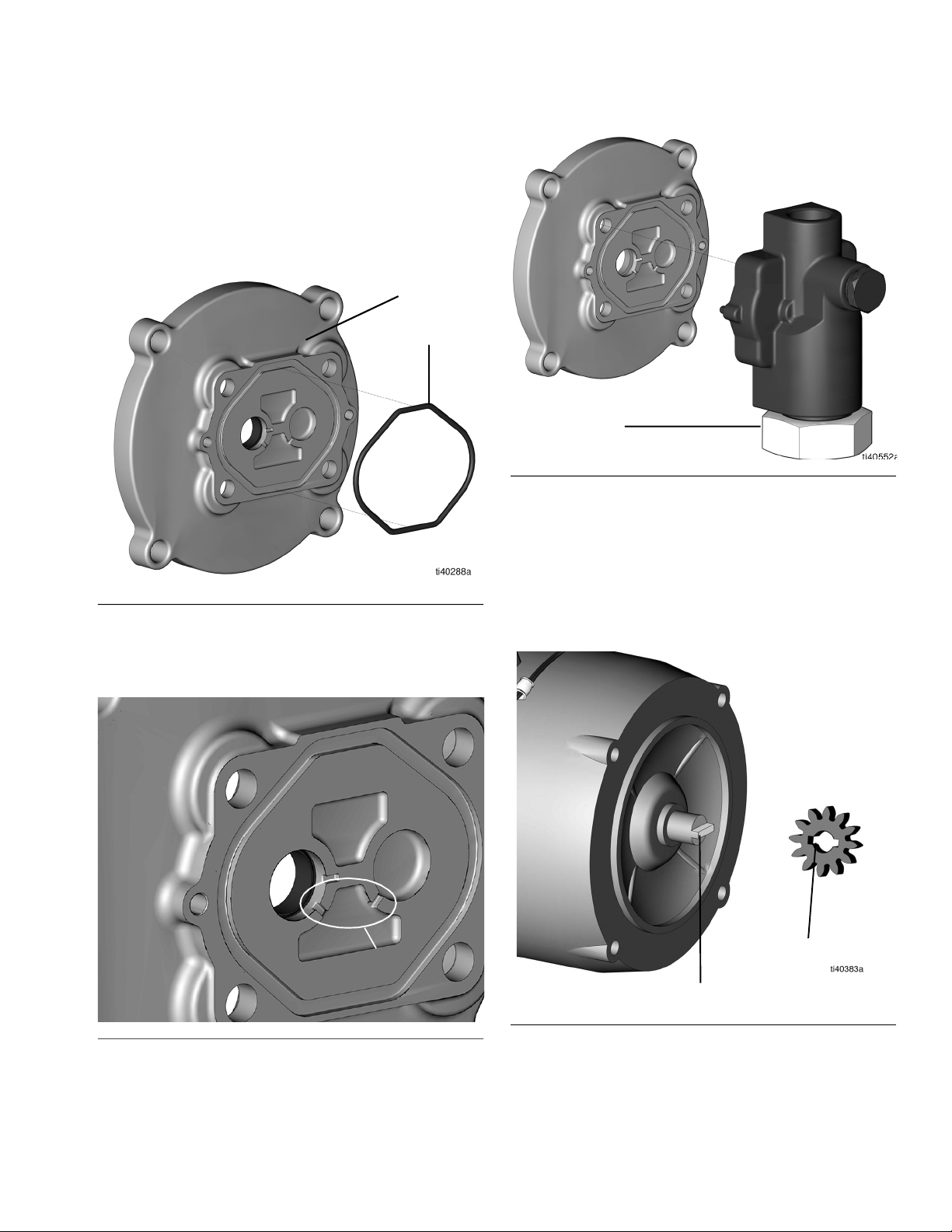

1. Place the pump gears (3) into the pump cavity,
making sure that they spin freely (see FIG. 10).
2. Put the o-ring (5) into the groove on the adapter
plate (2) cover (FIG. 11).
3. Position the adapter plate on the pump housing so
that the notches point toward the pump inlet (FIG.
12 and FIG. 13).
4. Push the four screws (13) through the adapter plate
(2) and use a 1/2 in. socket wrench to tighten
(Torque 30 ft-lbs, 40.7 N•m) (see FIG. 9).
5. Put the pump housing assembly onto the motor (9).
The motor shaft key should match the slot on the
gear on the inside cover (FIG. 14).
6. The pump outlet should face up and the motor
capacitor and the outlet should both be on top (FIG.
15).
FIG. 11
FIG. 12
2
5
Notches
FIG. 13
FIG. 14
Pump Inlet
Motor Shaft Key
Gear Slot

Repair
16 3A8558C
7. Place and tighten the four Allen screws (6) using an
5/15 in. (8 mm) hex wrench (Torque 20 ft-lbs, 27.1
N•m) (see FIG. 7).
8. Complete using the Installation information
beginning on page 6.
Clean and Inspect Pressure
Relief Valve Assembly
Disassembly
1. Follow Pressure Relief Procedure. page 7.
2. Turn off and disconnect the power to the pump.
3. Remove the pump from the tank.
4. Remove the suction tube from the pump.
5. Remove the relief valve plug (11) (FIG. 16).
6. Remove the spring (10) (FIG. 16).
7. Remove the pin (8) (FIG. 16).
8. Remove the relief ball (7) (FIG. 16).
9. Inspect for damage, excessive wear of the ball and
the ball seat, and for any contamination. If
damaged or excessive wear is present, replace the
pump housing assembly. If neither is present,
proceed to reassembly.
Reassembly
1. Place the relief ball (7) into position in the pump
housing (see FIG. 16).
2. Replace the spring (10) and pin (8) (see FIG. 16).
3. Tighten the relief valve plug (11) (see FIG. 16).
4. Complete using the Installation information
beginning on page 6.
FIG. 15
Motor Capacitor
Outlet
FIG. 16
7810
11

Notes:
3A8558C 17
Notes:

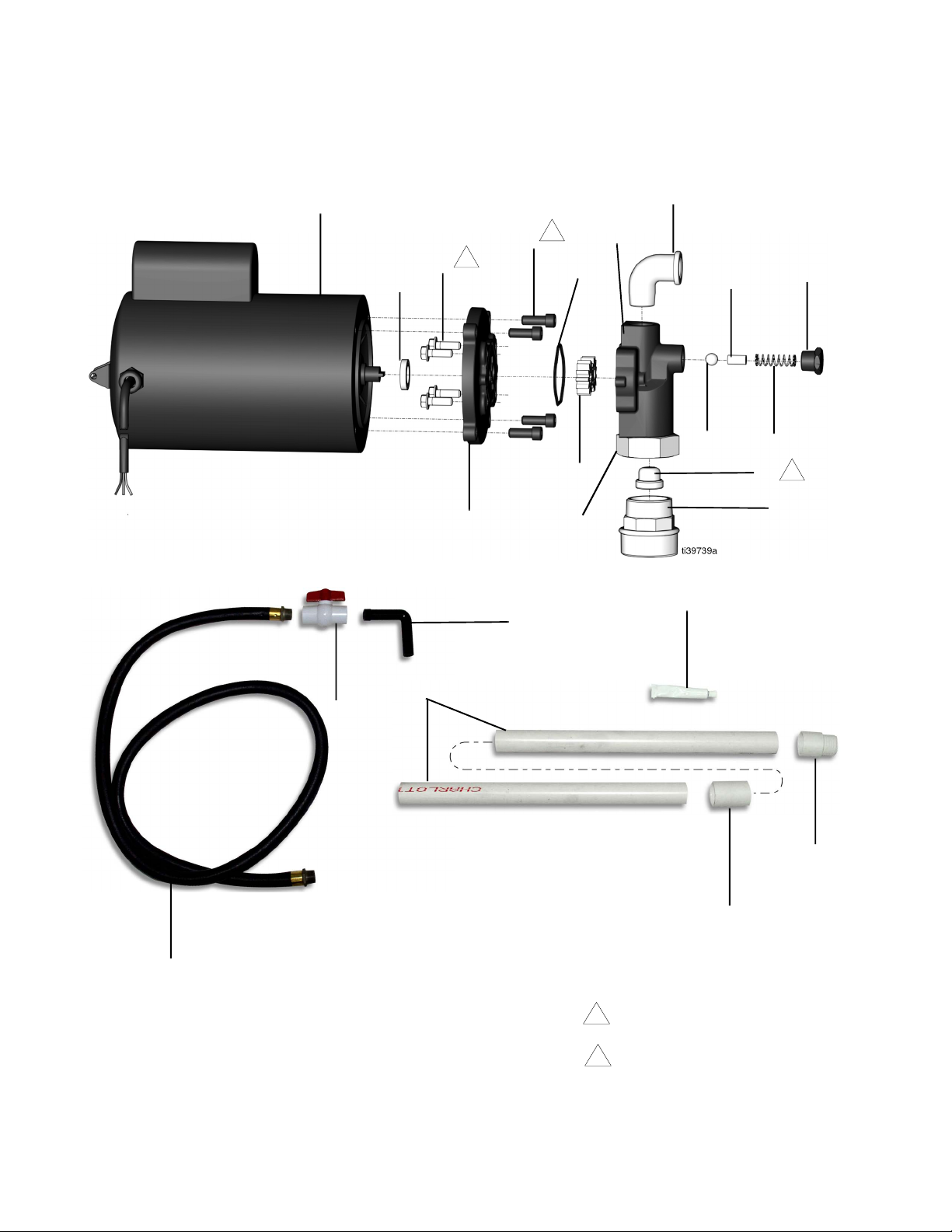

Parts
18 3A8558C
Parts
9
2
13
18
6
5
4
3
1
12
7
8
10
11
22
14
20
19
21
15
16
17
23
1
2
Torque value 20 ft.-lb (27.1 N•m)
1
2
Torque value 30 ft.-lb (40.7 N•m)
2

Parts
3A8558C 19
▲ Replacement safety labels, tags, and cards are available at
no cost.
‡ Part of 133372 Pump Housing assembly
† Part of 133376 Dispense Kit
*Part of 133375 Suction Kit
Ref. Part No. Description Qty.
1‡Pump body 1
2‡Adapter, pump motor 1
3‡Gear, pump 2
4‡Seal, shaft 1
5‡O-ring 1
6‡Screw, 3/8 - 16 socket head, cap 4
7‡Ball, relief valve 1
8‡PIN, dowel, steel 3/8 x 3/4 1
9‡MOTOR, 230 VAC 1
10‡SPRING, relief valve 1
11‡PLUG, 12 npt 1
12† ELBOW, street, 3/4 npt 1
13‡SCREW, cap, 5/16-18 4
14* ADAPTER, bung 1
15† NOZZLE 1
16† VALVE, ball 1
17† HOSE, petroleum 1
18* PIPE, PVC 2
19* COUPLER, PVC, female 1
20* ADAPTER, PVC, male 1
21* CEMENT, PVC 1
22‡133377 Suction Filter 1
23‡Swivel Nut 1
24▲133202 Warning label (not shown) 1

Kits and Accessories
20 3A8558C
Kits and Accessories
Part Number Description
133412 Wall mounting kit
260238 Y strainer
260124 Suction tube with inlet check assembly
133376 Dispense kit
