Graco Husky 1050 Series Instruction Manual

Operation
Husky®1050 Air-Operated
Diaphragm Pump 312877ZAD
EN
1-inch pump with modular air valve for fluid transfer applications. For professional use
only.
See page 4 for model information, including approvals.
125 psi (0.86 MPa, 8.6 bar) Maximum Fluid Working Pressure
125 psi (0.86 MPa, 8.6 bar) Maximum Air Input Pressure
Center
Flange
ti13844a
ti13843a
End
Flange
1050P Polypropylene
1050C Conductive
Polypropylene
1050F PVDF
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
1050S Stainless Steel
1050H Hastelloy
ti14342a
1050A Aluminum
ti13946a

Related Manuals
2 312877ZAD
Contents
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
To Find Your Nearest Distributor . . . . . . . . . . . . . . 3
To Specify the Configuration of a New Pump . . . . 3
To Order Replacement Parts . . . . . . . . . . . . . . . . . 3
Distributor Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Configuration Number Matrix . . . . . . . . . . . . . . . . . 4
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Tighten Fasteners Before Setup . . . . . . . . . . . . . 8
Tips to Reduce Cavitation . . . . . . . . . . . . . . . . . . 8
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Air Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Reed Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Air Exhaust Ventilation . . . . . . . . . . . . . . . . . . . 11
Fluid Supply Line . . . . . . . . . . . . . . . . . . . . . . . 12
Fluid Outlet Line . . . . . . . . . . . . . . . . . . . . . . . . 12
Fluid Inlet and Outlet Ports . . . . . . . . . . . . . . . . 14
Fluid Pressure Relief Valve . . . . . . . . . . . . . . . . 15
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Pressure Relief Procedure . . . . . . . . . . . . . . . . 16
Flush the Pump Before First Use . . . . . . . . . . . 16
Tighten Fasteners Before Setup . . . . . . . . . . . . 16
Starting and Adjusting the Pump . . . . . . . . . . . 16
DataTrak Operation . . . . . . . . . . . . . . . . . . . . . 17
Pump Shutdown . . . . . . . . . . . . . . . . . . . . . . . . 17
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Maintenance Schedule . . . . . . . . . . . . . . . . . . . 17
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Tighten Threaded Connections . . . . . . . . . . . . . 17
Flushing and Storage . . . . . . . . . . . . . . . . . . . . 17
Torque Instructions . . . . . . . . . . . . . . . . . . . . . . 18
Dimensions and Mounting . . . . . . . . . . . . . . . . . . 19
Aluminum (1050A) . . . . . . . . . . . . . . . . . . . . . . . 19
Polypropylene (1050P), Conductive Polypropylene
(1050C) and PVDF (1050F) . . . . . . . . . . . . 20
Hastelloy (1050H) and Stainless Steel
(1050S) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Stainless steel (1050S) with center
flange manifold . . . . . . . . . . . . . . . . . . . . . . 22
Stainless steel (1050S) with center tri-clamp
manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Performance Charts . . . . . . . . . . . . . . . . . . . . . . . . 24
Technical Specifications . . . . . . . . . . . . . . . . . . . . 25
Graco Standard Husky Pump Warranty . . . . . . . . 28
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 28
Related Manuals
Manual Description
313435 Husky 1050 Air-Operated Diaphragm Pump, Repair/Parts
313597 Husky 1050A UL-Listed Diaphragm Pump, Operation
313598 Husky 1050A CSA-Certified Diaphragm Pump, Operation
313840 DataTrak, Instructions/Parts
406824 Pulse Count Kits, Instructions

To Find Your Nearest Distributor
312877ZAD 3
To Find Your Nearest Distributor
1. Visit www.graco.com.
2. Click on Where to Buy and use the Distributor Locator.
To Specify the Configuration of a New Pump
Please call your distributor. OR
1. Use the Online Husky Selector Tool at wwwd.graco.com/training/husky/index.html.
2. If the link does not work, you will find the selector tool on the Process Equipment page at www.graco.com.
To Order Replacement Parts
Please call your distributor.
Distributor Note
1. To find part numbers for new pumps or kits, use the Online Husky Selector Tool.
2. To find part numbers for replacement parts:
a. Use the configuration number from the ID plate on the pump. If you only have the Graco 6-digit part num-
ber, use the selector tool to find the corresponding configuration number.
b. Use the Configuration Number Matrix on the next page to understand which parts are described by each
digit.
c. Use the Repair/Parts Manual. Refer to the main Parts illustration and to the Parts/Kits Quick Reference.
Follow the page references on these two pages for further ordering information, as needed.
3. Please call Graco Customer Service to order.

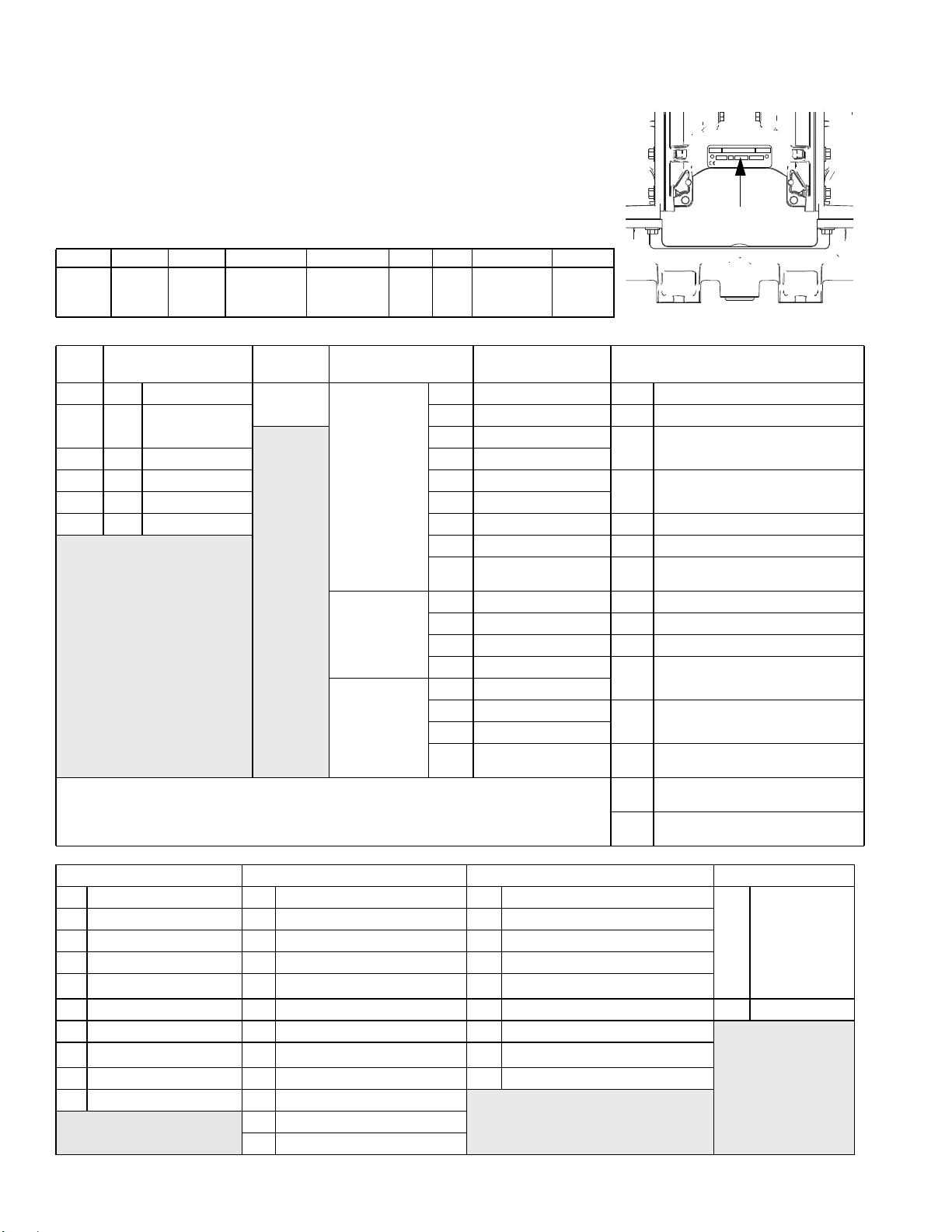

Pump Matrix
4 312877ZAD
Pump Matrix
Check the identification plate (ID) for the Configuration Number of your
pump. Use the following matrix to define the components of your pump.
Sample Configuration Number: 1050A-PA01AA1SSBNBNPT
1050 A P A01A A1 SS BN BN PT
Pump
Size Wetted Section
Material
Drive
Identifier Center Section and
Air Valve
Fluid
Covers and
Manifolds
Seats Balls Diaphragms Manifold
O-Rings
CONFIGURATIONNO.PARTNO. SERIAL NO.
SERIESDATECODE MAX WPR PSI-bar MADEIN
ID
ti14103
a
Pump
Size Wetted Section Material Drive Identifier Center Section and Air Valve Material Air Valve/Monitoring Fluid Covers and Manifolds
1050 A Aluminum P
Pneumatic
Aluminum
A01A Standard A1 Aluminum, standard ports, inch
1050 C Conductive
Polypropylene A01B Pulse Count  A2 Aluminum, standard ports, metric
A01C DataTrakC1 Conductive polypropylene, center
flange
1050 F PVDF A01D Remote
1050 H‡Hastelloy A01E Optional FKM Seals C2 Conductive polypropylene, end
flange
1050 P Polypropylene A01H Standard, Gray
1050 S‡Stainless Steel AC1A CSA-Compliant F1 PVDF, center flange
AU1A UL-Listed; Fuel transfer F2 PVDF, end flange
AU3A UL-Listed; Fuel
dispense
H1 Hastelloy, standard ports, inch
Conductive
Polypropylene
C01A Standard H2 Hastelloy, standard ports, metric
C01B Pulse CountP1 Polypropylene, center flange
C01C DataTrakP2 Polypropylene, end flange
C01D Remote S1 Stainless steel, standard ports, inch
Polypropylene
P01A Standard
P01B Pulse CountS2 Stainless steel, standard ports,
metric
P01C DataTrak
P01D Remote S5-1 Stainless steel, center flange,
horizontal outlet port
, ‡, , or : See ATEX Certifications, page 5.
Contains pressure relief valve.
S5-2 Stainlesssteel,centerflange,vertical
outlet port
S5-3 Stainless steel, center tri-clamp,
horizontal inlet and outlet port
Check Valve Seats Check Valve Balls Diaphragm Manifold O-Rings
AC Acetal AC Acetal BN Buna-N —Models with
Buna-N, FKM
Fluoroelastomer
or TPE seats do
not use o-rings.
AL Aluminum BN Buna-N CO Polychloroprene Overmolded
BN Buna-N CR Polychloroprene Standard FK FKM Fluoroelastomer
FK FKM Fluoroelastomer CW Polychloroprene Weighted GE Geolast
GE Geolast®EP EPDM PO PTFE/EPDM Overmolded
PP Polypropylene FK FKM Fluoroelastomer PS PTFE/Santoprene Two-Piece PT PTFE
PV PVDF GE Geolast PT PTFE/EPDM Two-Piece
SP Santoprene®PT PTFE SP Santoprene
SS 316 Stainless Steel SD 440C Stainless Steel TP TPE
TP TPE SP Santoprene
SS 316 Stainless Steel
TP TPE

ATEX Certifications
312877ZAD 5
ATEX Certifications
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama-
tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. When
these symbols appear in the body of this manual, refer back to these warnings. Additional, product-specific warnings
may be found throughout the body of this manual where applicable.
All 1050A (Aluminum) and
1050C (Conductive
Polypropylene) pumps are
certified:
‡ 1050S (Stainless Steel) and 1050H
(Hastelloy) pumps with aluminum or
conductive polypropylene centers are
certified:
1050A (Aluminum) and 1050C (Conductive
Polypropylene) pumps with DataTrak or Pulse Count
AND 1050S (Stainless Steel) and 1050H (Hastelloy)
pumps with aluminum or conductive polypropylene
centers and fitted with DataTrak or Pulse Count are
certified:
II 2 GD II 2 GD II 2(1) G
Ex h IIC 66°C...135°C Gb
Ex h IIIC T135°C Db Ex h IIC 66°C...135°C Gb Ex h IIIC T135°C Db Ex h [ia Ga] IIA T3 Gb X
ATEX T-code rating is dependent on the temperature of the fluid being
pumped. Fluid temperature is limited by the materials of the pump interior
wetted parts. See Technical Data for the maximum fluid operating
temperature for your specific pump model.
DataTrak and Pulse Count are certified:
II 1 G
9902471
Class I, Div. 1,
Group D T3A
Ex ia IIA T3 Ga
ITS13ATEX27862X
2575
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent
fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes
are present.
• Ground all equipment in the work area. See Grounding instructions.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail.
• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
Static charge may build up on plastic parts during cleaning and could discharge and ignite flammable
materials and gases. To help prevent fire and explosion:
• Clean plastic parts in a well ventilated area.
• Do not clean with a dry cloth.
• Do not operate electrostatic guns in equipment work area.

Warnings
6 312877ZAD
SPECIAL CONDITIONS FOR SAFE USE
Equipment must comply with the following conditions to avoid a hazardous condition which can cause
fire or explosion.
• All label and marking material must be cleaned with a damp cloth (or equivalent).
• The electronic monitoring system is required to be grounded. See Grounding instructions.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Specifications in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical
Specifications in all equipment manuals. Read fluid and solvent manufacturer’s warnings. For
complete information about your material, request MSDS from distributor or retailer.
• Do not leave the work area while equipment is energized or under pressure. Turn off all equipment
and follow the Pressure Relief Procedure in this manual when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
PRESSURIZED EQUIPMENT HAZARD
Fluid from the gun/dispense valve, leaks, or ruptured components can splash in the eyes or on skin and
cause serious injury.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.
THERMAL EXPANSION HAZARD
Fluids subjected to heat in confined spaces, including hoses, can create a rapid rise in pressure due to
the thermal expansion. Over-pressurization can result in equipment rupture and serious injury.
• Open a valve to relieve the fluid expansion during heating.
• Replace hoses proactively at regular intervals based on your operating conditions.
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical
reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or
property damage.
• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or
fluids containing such solvents.
• Many other fluids may contain chemicals that can react with aluminum. Contact your material
supplier for compatibility.
WARNING

Warnings
312877ZAD 7
PLASTIC PARTS CLEANING SOLVENT HAZARD
Use only compatible water-based solvents to clean plastic structural or pressure-containing parts. Many
solvents can degrade plastic parts and cause them to fail, which could cause serious injury or property
damage. See Technical Specifications in this and all other equipment instruction manuals. Read fluid
and solvent manufacturer’s warnings.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read MSDS’s to know the specific hazards of the fluids you are using.
• Route exhaust away from work area. If diaphragm ruptures, fluid may be exhausted with air.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
BURN HAZARD
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe
burns:
• Do not touch hot fluid or equipment.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic
fumes, burns, and hearing loss. This equipment includes but is not limited to:
• Clothing and respirator as recommended by the fluid and solvent manufacturer
• Protective eyewear, gloves, and hearing protection
WARNING

Installation
8 312877ZAD
Installation
The Typical Installation shown in FIG. 4 is only a guide
for selecting and installing system components. Contact
your Graco distributor for assistance in planning a
system to suit your needs.
Tighten Fasteners Before Setup
Before using the pump for the first time, check and
retorque all external fasteners. Follow Torque
Instructions, page 18.
Tips to Reduce Cavitation
Cavitation in a diaphragm pump is the formation and
collapse of bubbles in the pumped liquid. Frequent or
excessive cavitation can cause serious damage,
including pitting and early wear of fluid chambers, balls,
and seats. It may result in reduced efficiency of the
pump. Cavitation damage and reduced efficiency both
result in increased operating costs.
Cavitation depends on the vapor pressure of the
pumped liquid, the system suction pressure, and the
velocity pressure. It can be reduced by changing any of
these factors.
1. Reduce vapor pressure: Decrease the temperature
of the pumped liquid.
2. Increase suction pressure:
a. Lower the installed position of the pump relative
to the liquid level in the supply.
b. Reduce the friction length of the suction piping.
Remember that fittings add friction length to the
piping. Reduce the number of fittings to reduce
the friction length.
c. Increase the size of the suction piping.
NOTE: Be sure the inlet fluid pressure does not exceed
25% of the outlet working pressure.
3. Reduce liquid velocity: Slow the cyclic rate of the
pump.
Pumped liquid viscosity is also very important but
normally is controlled by factors that are process
dependent and cannot be changed to reduce cavitation.
Viscous liquids are more difficult to pump and more
prone to cavitation.
Graco recommends taking all of the above factors into
account in system design. To maintain pump efficiency,
supply only enough power to the pump to achieve the
required flow.
Graco distributors can supply site specific suggestions
to improve pump performance and reduce operating
costs.

Installation
312877ZAD 9
Mounting
1. For wall mounting, order Graco Kit 24C637.
2. Be sure the mounting surface can support the
weight of the pump, hoses, and accessories, as well
as the stress caused during operation.
3. For all mountings, be sure the pump is bolted
directly to the mounting surface.
4. For ease of operation and service, mount the pump
so air valve, air inlet, fluid inlet and fluid outlet ports
are easily accessible.
5. Rubber Foot Mounting Kit 236452 is available to
reduce noise and vibration during operation.
6. Prolonged exposure to UV radiation will degrade
natural polypropylene components of the pumps. To
prevent potential injury or equipment damage, do
not expose pump or the plastic components to direct
sunlight for prolonged periods.
Grounding
Pump: See FIG. 1. Loosen the grounding screw (GS).
Insert one end of a 12 ga. minimum ground wire (R)
behind the grounding screw and tighten the screw
securely. Do not exceed 15 in-lb (1.7 N•m). Connect the
clamp end of the ground wire to a true earth ground. A
ground wire and clamp, Part 238909, is available from
Graco.
Air and fluid hoses: Use only grounded hoses with a
maximum of 500 ft (150 m) combined hose length to
ensure grounding continuity.
Air compressor: Follow manufacturer’s
recommendations.
Fluid supply container: Follow local code.
Solvent pails used when flushing: Follow local code.
Use only conductive metal pails, placed on a grounded
surface. Do not place the pail on a nonconductive
surface, such as paper or cardboard, which interrupts
grounding continuity.
Check your system electrical continuity after the initial
installation, and then set up a regular schedule for
checking continuity to be sure proper grounding is
maintained.
• The pump exhaust air may contain contaminants.
Ventilate to a remote area. See Air Exhaust
Ventilation on page 11.
• Never move or lift a pump under pressure. If
dropped, the fluid section may rupture. Always
follow the Pressure Relief Procedure on page 16
before moving or lifting the pump.
The equipment must be grounded to reduce the risk of
static sparking. Static sparking can cause fumes to
ignite or explode. Grounding provides an escape wire
for the electric current.
Polypropylene and PVDF: Only aluminum,
conductive polypropylene, hastelloy, and stainless
steel pumps have a ground screw. Standard
polypropylene and PVDF pumps are not conductive.
Never use a non-conductive polypropylene or PVDF
pump with non-conductive flammable fluids. Follow
your local fire codes. When pumping conductive
flammable fluids, always ground the entire fluid
system as described.
FIG. 1. Grounding screw and wire ti12214a
GS R

Installation
10 312877ZAD
Air Line
See FIG. 4, page 13.
1. Install an air regulator (C) and gauge to control the
fluid pressure. The fluid stall pressure will be the
same as the setting of the air regulator.
2. Locate a bleed-type master air valve (B) close to the
pump and use it to relieve trapped air. Be sure the
valve is easily accessible from the pump and
located downstream from the regulator.
3. Locate another master air valve (E) upstream from
all air line accessories and use it to isolate them
during cleaning and repair.
4. An air line filter (F) removes harmful dirt and
moisture from the compressed air supply.
5. Install a grounded, flexible air hose (A) between the
accessories and the 1/2 npt(f) pump air inlet (D).
Use a minimum 3/8 in. (10 mm) ID air hose.
Installation of Remote Pilot Air Lines
1. Connect an air supply line to the pump (A, FIG. 3,
page 11).
2. Insert 5/32 OD tubing into the push-to-connect
fitting on each pilot valve (113).
3. Connect remaining ends of tubes to external air
signal, such as Graco’s CycleFlo™(PN 195264) or
CycleFlo II (PN 195265) controllers.
Reed Switch
Pulse Count models are intended for use with
customer-supplied fluid management or inventory
tracking systems. Attach an M12, 5-pin female cable to
connect the reed switch to your data monitoring system.
See Manual 406824.
Trapped air can cause the pump to cycle
unexpectedly, which could result in serious injury from
splashing.
NOTICE
Pilot supply pressure should not exceed 25-50% of
main air supply pressure. If pilot supply pressure is
too high, the pump could leak air or exhaust
excessive air at stall.

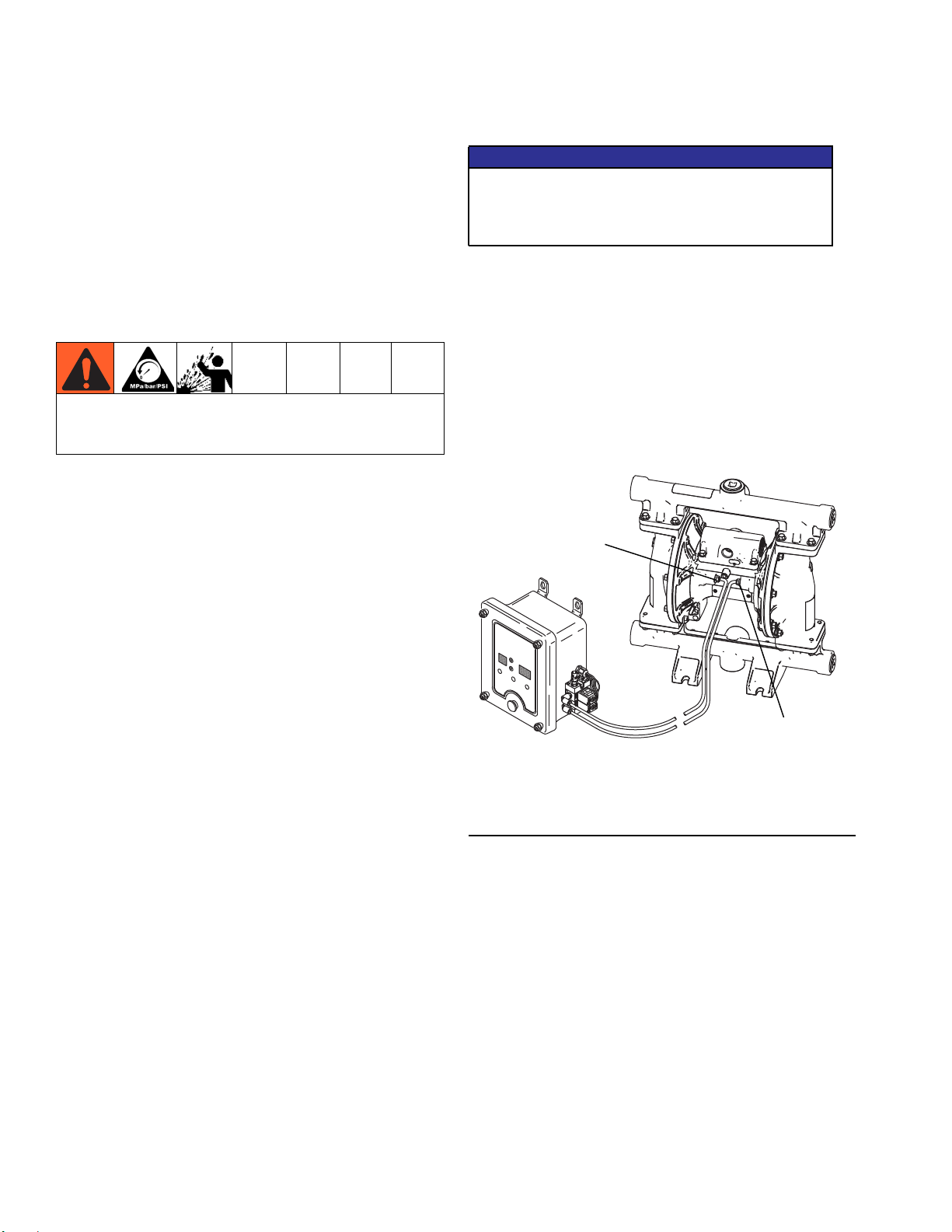

FIG. 2. Connect Remote Air Control
ti16894a
113
113
Graco
CycleFlo

Installation
312877ZAD 11
Air Exhaust Ventilation
The air exhaust port is 3/4 npt(f). Do not restrict the air
exhaust port. Excessive exhaust restriction can cause
erratic pump operation.
To provide a remote exhaust:
1. Remove the muffler (T) from the pump air exhaust
port.
2. Install a grounded air exhaust hose (U) and connect
the muffler (T) to the other end of the hose. The
minimum size for the air exhaust hose is 3/4 in. (19
mm) ID. If a hose longer than 15 ft (4.57 m) is
required, use a larger diameter hose. Avoid sharp
bends or kinks in the hose.
3. Place a container at the end of the air exhaust line
to catch fluid in case a diaphragm ruptures. If the
diaphragm ruptures, the fluid being pumped will
exhaust with the air.
FIG. 3. Vent exhaust air
Key: A Air supply
line
B Bleed-type
master air
valve
C Air
filter/regulato
r assembly
D Air inlet
E Master air
A
B
CD
E
T
U
V
ti14219b

Installation
12 312877ZAD
Fluid Supply Line
See FIG. 4, page 13.
1. Use grounded, flexible fluid supply lines (G). See
Grounding, page 9.
2. If the inlet fluid pressure to the pump is more than
25% of the outlet working pressure, the ball check
valves will not close fast enough, resulting in
inefficient pump operation. Excessive inlet fluid
pressure also will shorten diaphragm life.
Approximately 3 - 5 psi (0.02- 0.03 MPa, 0.21-0.34
bar) should be adequate for most materials.
3. For maximum suction lift (wet and dry), see
Technical Specifications, page 25. For best
results, always install the pump as close as possible
to the material source.
Fluid Outlet Line
See FIG. 4, page13.
1. Use grounded, flexible fluid hoses (L). See
Grounding, page 9.
2. Install a fluid drain valve (J) near the fluid outlet.
3. Install a shutoff valve (K) in the fluid outlet line.

Installation
312877ZAD 13

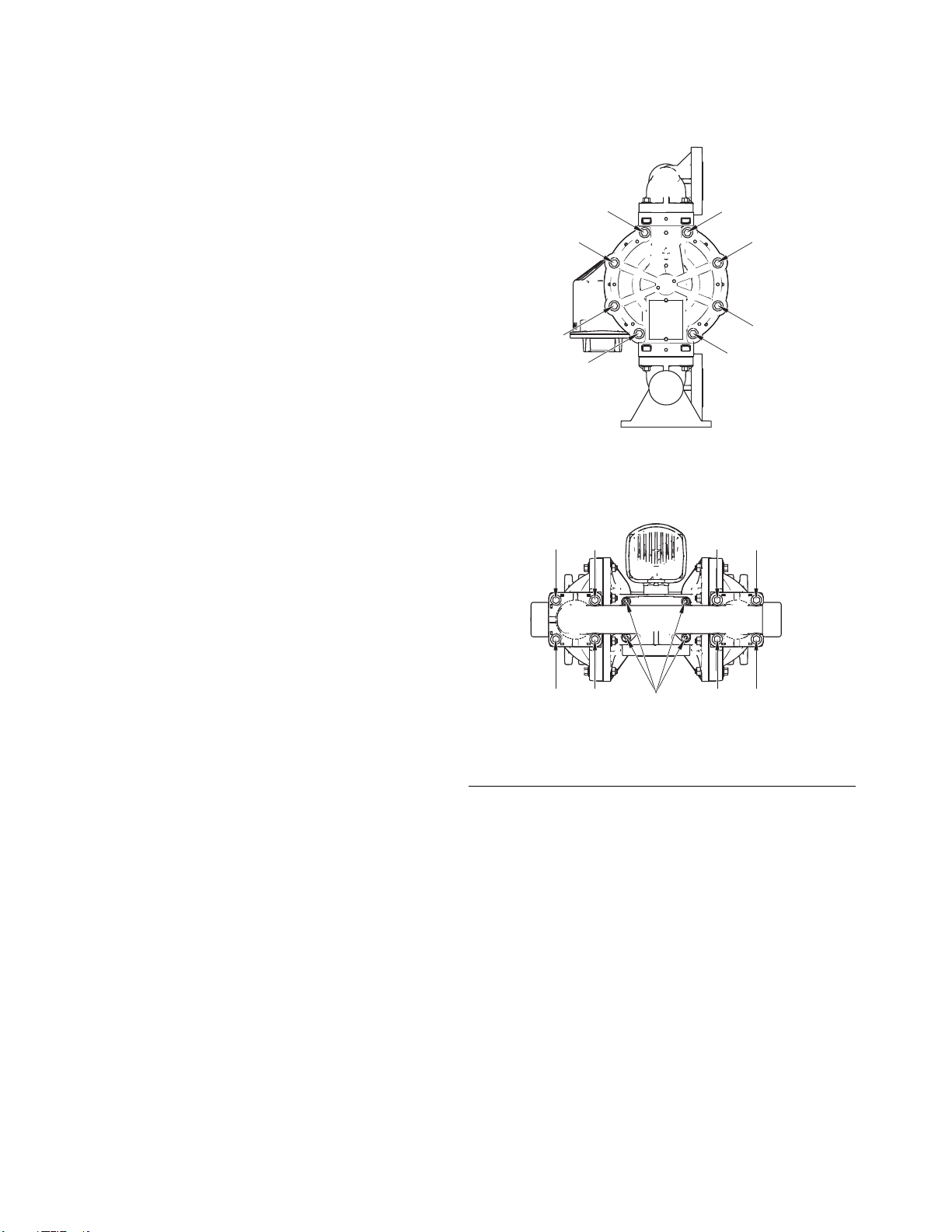

Key for FIG. 4:
A Air supply line
B Bleed-type master air valve (required for pump)
C Air filter/regulator assembly
D Air inlet
E Master air valve (for accessories)
G Grounded, flexible fluid supply line
J Fluid drain valve (required)
K Fluid shutoff valve
L Grounded, flexible fluid outlet line
M Fluid inlet (Aluminum, not pictured, four ports;
Plastic, FIG. 4, center or end flanges available;
Hastelloy and stainless steel, not pictured, one port)
N Fluid outlet (Aluminum, not pictured, four ports;
Plastic, FIG. 4, center or end flanges available;
Hastelloy and stainless steel, not pictured, one port)
R Ground wire (required for aluminum, conductive
polypropylene,hastelloy,andstainlesssteelpumps;
see page 9 for installation instructions)
FIG. 4. Typical floor-mount installation (polypropylene, 1050P, pump shown)
E
C
B
A
KL
J
R
D
G
M
N
ti14164b

Installation
14 312877ZAD
Fluid Inlet and Outlet Ports
NOTE: Remove and reverse the manifold(s) to change
the orientation of inlet or outlet port(s). Follow Torque
Instructions on page 18.
Aluminum (1050A)
The fluid inlet and outlet manifolds each have four 1 in.
npt(f) or bspt threaded ports. Close off the unused ports,
using the supplied plugs.
Plastic (1050P, 1050C, 1050F)
The fluid inlet and outlet manifolds each have a 1 in.
raised face ANSI/DIN flange (FIG. 4, M, N) in either a
center or end location. Connect 1 in. standard flanged
plastic pipe to the pump. See FIG. 5.
Graco standard pipe flange kits are available in
polypropylene (239005), stainless steel (239008), and
PVDF (239009). These kits include:
• the pipe flange
• a PTFE gasket
• four 1/2 in. bolts, spring lock washers, flat
washers and nuts.
Be sure to lubricate the threads of the bolts and torque
to 10-15 ft-lb (14-20 N•m). Follow the bolt tightening
sequence and do not over-torque.
Hastelloy (1050H) or Stainless Steel
(1050S)
The fluid inlet and outlet manifolds each have one 1 in.
npt (f) or bspt threaded port. The models with stainless
steel flanged center ports have ANSI/DIN flanges.
FIG. 5. Flange connections (plastic pumps only, 1050P, 1050C, and 1050F models)
1
2
3
4
98
1
7
6
8:
;
0

Bolt tightening sequence
ti14182a
ti14181b
Key:
M 1 in. fluid inlet flange
N 1 in. fluid outlet flange
S 1 in. standard pipe flange
T PTFE gasket
U Flat washer
V Nut
W Lock washer
X Bolt
1Torque to 10-15 ft-lb (14-20 N•m). Do
not over-torque.

Installation
312877ZAD 15
Fluid Pressure Relief Valve
FIG. 6. Fluid pressure relief kit (Aluminum pumps only, 1050A models)
Some systems may require installation of a pressure
relief valve at the pump outlet to prevent
overpressurization and rupture of the pump or hose.
Thermal expansion of fluid in the outlet line can cause
overpressurization. Thermal expansion can occur when
using long fluid lines exposed to sunlight or ambient
heat, or when pumping from a cool to a warm area (for
example, from an underground tank).
Overpressurization also can occur if the Husky pump is
used to feed fluid to a piston pump, and the intake valve
of the piston pump does not close, causing fluid to back
up in the outlet line.
FIG. 6 shows Fluid Pressure Relief Kit 238428 for
aluminum pumps. Use Fluid Pressure Relief Kit
112119, not shown, for plastic pumps.




Apply thread sealant on threaded connec-
tions and install kit between fluid inlet and
outlet manifolds.
Connect fluid inlet line in one of the
optional ports.
2
Connect fluid outlet line in one of the
optional ports.
3
ti14214b
1

Operation
16 312877ZAD
Operation
Pressure Relief Procedure
1. Shut off the air supply to the pump.
2. Open the dispensing valve, if used.
3. Open the fluid drain valve to relieve fluid pressure.
Have a container ready to catch the drainage.
Flush the Pump Before First Use
The pump was tested in water. If water could
contaminate the fluid you are pumping, flush the pump
thoroughly with a compatible solvent. See Flushing and
Storage, page 17.
Tighten Fasteners Before Setup
Before using the pump for the first time, check and
retorque all external fasteners. Follow Torque
Instructions, page 18. After the first day of operation,
retorque the fasteners.
Starting and Adjusting the Pump
1. Be sure the pump is properly grounded. Refer to
Grounding on page 9.
2. Check fittings to be sure they are tight. Use a
compatible liquid thread sealant on male threads.
Tighten fluid inlet and outlet fittings securely.
3. Place the suction tube (if used) in fluid to be
pumped.
NOTE: If fluid inlet pressure to the pump is more than
25% of outlet working pressure, the ball check valves
will not close fast enough, resulting in inefficient pump
operation.
4. Place the end of the fluid hose into an appropriate
container.
5. Close the fluid drain valve.
6. Back out the air regulator knob, and open all
bleed-type master air valves.
7. If the fluid hose has a dispensing device, hold it
open.
8. Pumps with runaway protection: Enable the
prime/flush function by pushing the prime/flush
button on the DataTrak.
9. Slowly increase air pressure with the air regulator
just until the pump starts to cycle. Allow the pump to
cycle slowly until all air is pushed out of the lines
and the pump is primed.
NOTE: Use lowest possible air pressure to prime, just
enough to cycle the pump. If the pump does not prime
as expected, turn air pressure DOWN.
Trapped air can cause the pump to cycle
unexpectedly, which could result in serious injury from
splashing.
NOTICE
When replacing Husky 1040s: The Husky 1050
operates more efficiently than did the 1040. Reduce air
inlet pressure by approximately 20 percent to maintain
an equivalent fluid output.

Maintenance
312877ZAD 17
10. If you are flushing, run the pump long enough to
thoroughly clean the pump and hoses.
11. Close the dispensing valve, if used.
12. Close the bleed-type master air valve.
13. Pumps with runaway protection: Disable the
prime/flush function by pushing the prime/flush
button on the DataTrak.
DataTrak Operation
See DataTrak manual 313840 for all DataTrak
information and parts, including detailed operation
instructions.
Pump Shutdown
At the end of the work shift and before you check,
adjust, clean or repair the system, follow Pressure
Relief Procedure, page 16.
Maintenance
Maintenance Schedule
Establish a preventive maintenance schedule, based on
the pump’s service history. Scheduled maintenance is
especially important to prevent spills or leakage due to
diaphragm failure.
Lubrication
The pump is lubricated at the factory. It is designed to
require no further lubrication for the life of the pump.
There is no need to add an inline lubricator under
normal operating conditions.
Tighten Threaded Connections
Before each use, check all hoses for wear or damage
and replace as necessary. Check to be sure all threaded
connections are tight and leak-free. Check fasteners.
Tighten or retorque as necessary. Although pump use
varies, a general guideline is to retorque fasteners every
two months. See Torque Instructions, page 18.
Flushing and Storage
• Flush before fluid can dry in the equipment, at the
end of the day, before storing, and before repairing
equipment.
• Flush at the lowest pressure possible. Check
connectors for leaks and tighten as necessary.
• Flush with a fluid that is compatible with the fluid
being dispensed and the equipment wetted parts.
Flush the pump often enough to prevent the fluid you
are pumping from drying or freezing in the pump and
damaging it. Use a compatible solvent.
Always flush the pump and relieve the pressure before
storing it for any length of time.

Maintenance
18 312877ZAD
Torque Instructions
NOTE: Fluid cover and manifold fasteners have a
thread-locking adhesive patch applied to the threads. If
this patch is excessively worn, the fasteners may loosen
during operation. Replace screws with new ones or
apply medium-strength (blue) Loctite or equivalent to
the threads.
If fluid cover or manifold fasteners have been loosened,
it is important to torque them using the following
procedure to improve sealing.
NOTE: Always completely torque fluid covers before
torquing manifolds.
Start all fluid cover screws a few turns. Then turn down
each screw just until head contacts cover. Then turn
each screw by 1/2 turn or less working in a crisscross
pattern to specified torque. Repeat for manifolds.
Fluid cover and manifold fasteners:
90 in-lb (10.2 N•m)
Retorque the air valve fasteners (V) in a crisscross
pattern to specified torque.
Plastic center sections: 55 in-lb (6.2 N•m)
Metal center sections: 80 in-lb (9.0 N•m)
FIG. 7. Torque sequence








 





 9
ti18448a
ti18449a

Dimensions and Mounting
312877ZAD 19
Dimensions and Mounting
Aluminum (1050A)
5.0 in.
5.5 in.
(140 mm)
(127 mm)
K
J
H
&
%
E
A
1
0
3
/
G
F
D
ti12212b ti12211b
ti12213b ti14540b
A12.7 in. (323 mm)
B14.4 in. (366 mm)
C15.9 in. (404 mm)
D10.9 in. (277 mm)
E1.8 in. (46 mm)
F7.3 in. (185 mm)
G14.7 in. (373 mm)
H6.2 in. (158 mm)
J3.9 in. (99 mm)
K10.2 in. (258 mm)
L1/2 npt(f) air inlet
M1 in. npt(f) or 1 in. bspt fluid inlet
ports (4)
N1 in. npt(f) or 1 in. bspt fluid outlet
ports (4)
P3/4 npt(f) air exhaust port

Dimensions and Mounting
20 312877ZAD
Polypropylene (1050P), Conductive Polypropylene (1050C) and
PVDF (1050F)
NOTE: Listed dimensions are accurate for both center and
end flange models, except where noted.
&
%
(
$
1
0
3
.
-
+
*
)
'/
ti13845b ti13847b
ti13846b
A13.2 in. (335 mm)
B15.7 in. (399 mm)
C17.8 in. (452 mm)
D12.0 in. (305 mm)
E2.5 in. (63.5 mm)
F8.0 in. (203 mm)
G Center Flange: 16.0 in. (406 mm)
End Flange: 15.2 in. (386 mm)
H6.2 in. (158 mm)
J3.9 in. (99 mm)
K10.2 in. (258 mm)
L1/2 npt(f) air inlet
M1 in. ANSI/DIN flange
N1 in. ANSI/DIN flange
P3/4 npt(f) air exhaust port
R Polypropylene (1050P):
10.42 in. (265 mm)
Conductive Polypropylene (1050C):
10.55 in. (268 mm)
PVDF (1050F): 10.37 in. (263.4 mm)
S5.0 in. (127 mm)
