Graco G Series Operation manual

307026S
EN
Instructions – Parts List
2:1 Ratio Standard Pump
360 psi (25 bar) Maximum Fluid Working Pressure
180 psi (12.5 bar) Maximum Air Input Pressure
Model 226040, Series G
Stainless Steel, PTFE, Packed
Important Safety Instructions.
Read all warnings and instructions. Save
these instructions.
Table of Contents
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Pump Service (Model 226040) . . . . . . . . . . . . . . . . . . 10
Pump Service (Model 223954) . . . . . . . . . . . . . . . . . . 11
Pump Parts (Model 226040) . . . . . . . . . . . . . . . . . . . 12
Pump Parts (Model 223954) . . . . . . . . . . . . . . . . . . . 13
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . . . 22
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Model 223954 Shown
2575
II 1/2 G T6
ITS03ATEX11227

2 307026
Symbols
Warning Symbol
This symbol alerts you to the possibility of serious injury or
death if you do not follow the instructions.
Caution Symbol
This symbol alerts you to the possibility of damage to or
destruction of equipment if you do not follow the
instructions.
Warning
Caution
WARNING
INSTRUCTIONS
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.
• This equipment is for professional use only.
• Read all instruction manuals, tags, and labels before operating the equipment.
• Use the equipment only for its intended purpose. If you are uncertain about usage, call your
Graco distributor.
• Do not alter or modify this equipment. Use only genuine Graco parts and accessories.
• Check equipment daily. Repair or replace worn or damaged parts immediately.
• Do not exceed the maximum working pressure stated on the equipment or in the Technical Data
for your equipment. Do not exceed the maximum working pressure of the lowest rated component
in your system.
• Use fluids and solvents which are compatible with the equipment wetted parts. Refer to the
Technical Data section of all equipment manuals. Read the fluid and solvent manufacturer’s
warnings.
• Securely mount the pump. Do not attempt to operate it while holding it.
• Do not use hoses to pull equipment.
• Route hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not
expose Graco hoses to temperatures above 82°C (180°F) or below –40°C (–40°F).
• Wear hearing protection when operating this equipment.
• Do not lift pressurized equipment.
• Comply with all applicable local, state, and national fire, electrical, and safety regulations.

307026 3

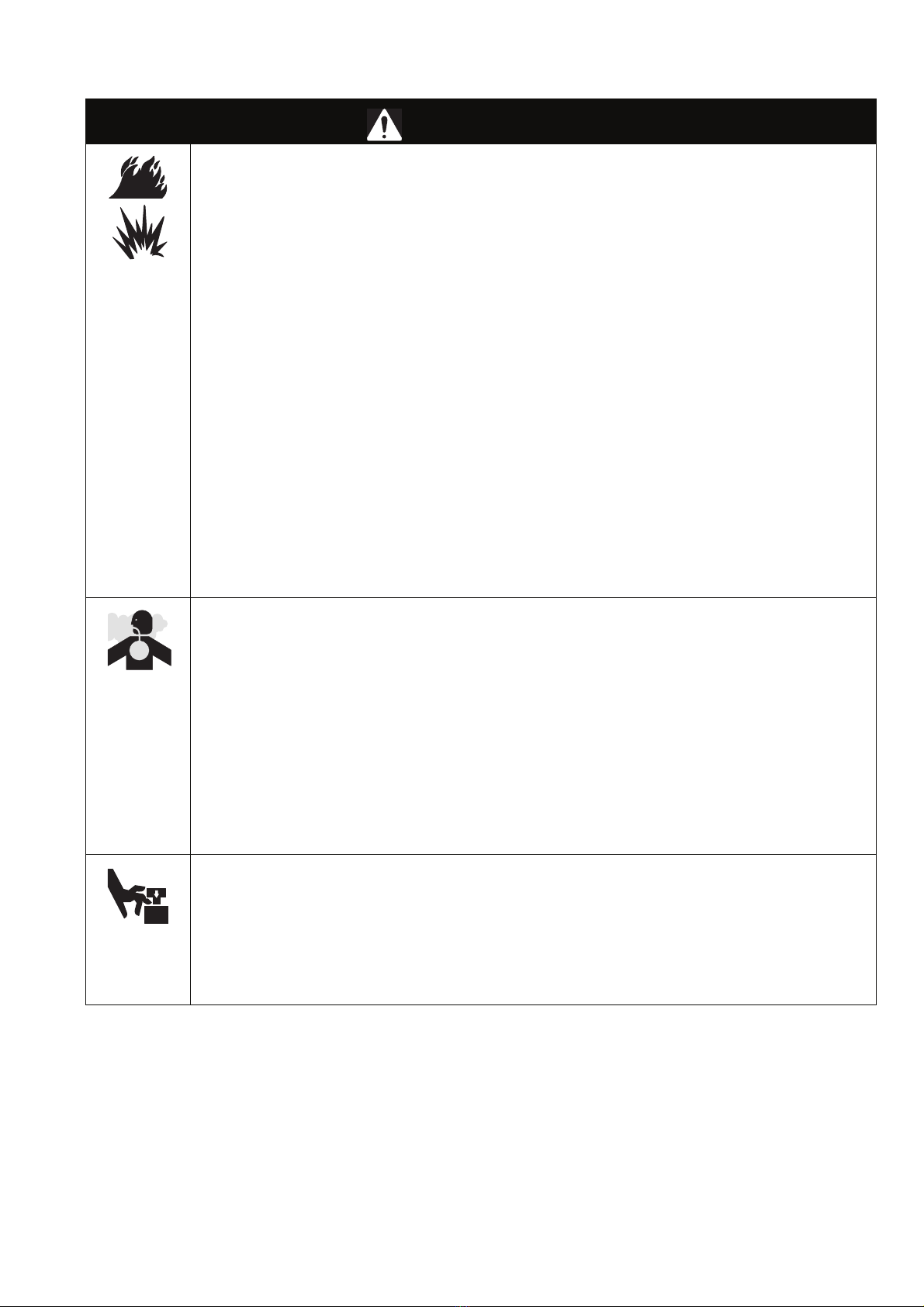

FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and
result in a fire or explosion and serious injury.
• Ground the equipment and the object being sprayed. Refer to Grounding the System on page 4.
• If there is any static sparking or you feel an electric shock while using this equipment, stop
spraying/dispensing immediately. Do not use the equipment until you identify and correct the
problem.
• Provide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid
being sprayed/dispensed.
• Keep the spray/dispense area free of debris, including solvent, rags, and gasoline.
• Electrically disconnect all equipment in the spray/dispense area.
• Extinguish all open flames or pilot lights in the spray/dispense area.
• Do not smoke in the spray/dispense area.
• Do not turn on or off any light switch in the spray/dispense area while operating or if fumes are
present.
• Do not operate a gasoline engine in the spray/dispense area.
TOXIC FLUID HAZARD
Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin,
inhaled, or swallowed.
• Know the specific hazards of the fluid you are using.
• Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,
state and national guidelines.
• Any additives to the air supply, such as oil or anti-freeze will be exhausted into the atmosphere.
• Always wear protective eyewear, gloves, clothing and respirator as recommended by the fluid
and solvent manufacturer.
MOVING PARTS HAZARD
Moving parts can pinch or amputate your fingers.
• Keep clear of all moving parts when starting or operating the pump.
• Before servicing the equipment, follow the Pressure Relief Procedure on page 7 to prevent the
equipment from starting unexpectedly.
WARNING

4 307026
Installation
General Information
1. The Typical Installation shown in Fig. 2 is only a guide
for selecting and installing system components.
Contact your Graco distributor for assistance in
planning a system to suit your needs.
2. Always use Genuine Graco Parts and Accessories.
3. Reference numbers and letters in parentheses refer
to the callouts in the figures and the partslists on
pages 12 through 15.
Grounding the System
To reduce the risk of static sparking, ground the pump and
all other equipment used or located in the pumping area.
Check your local electrical code for detailed grounding
instructions for your area and type of equipment. Ground
all of this equipment.

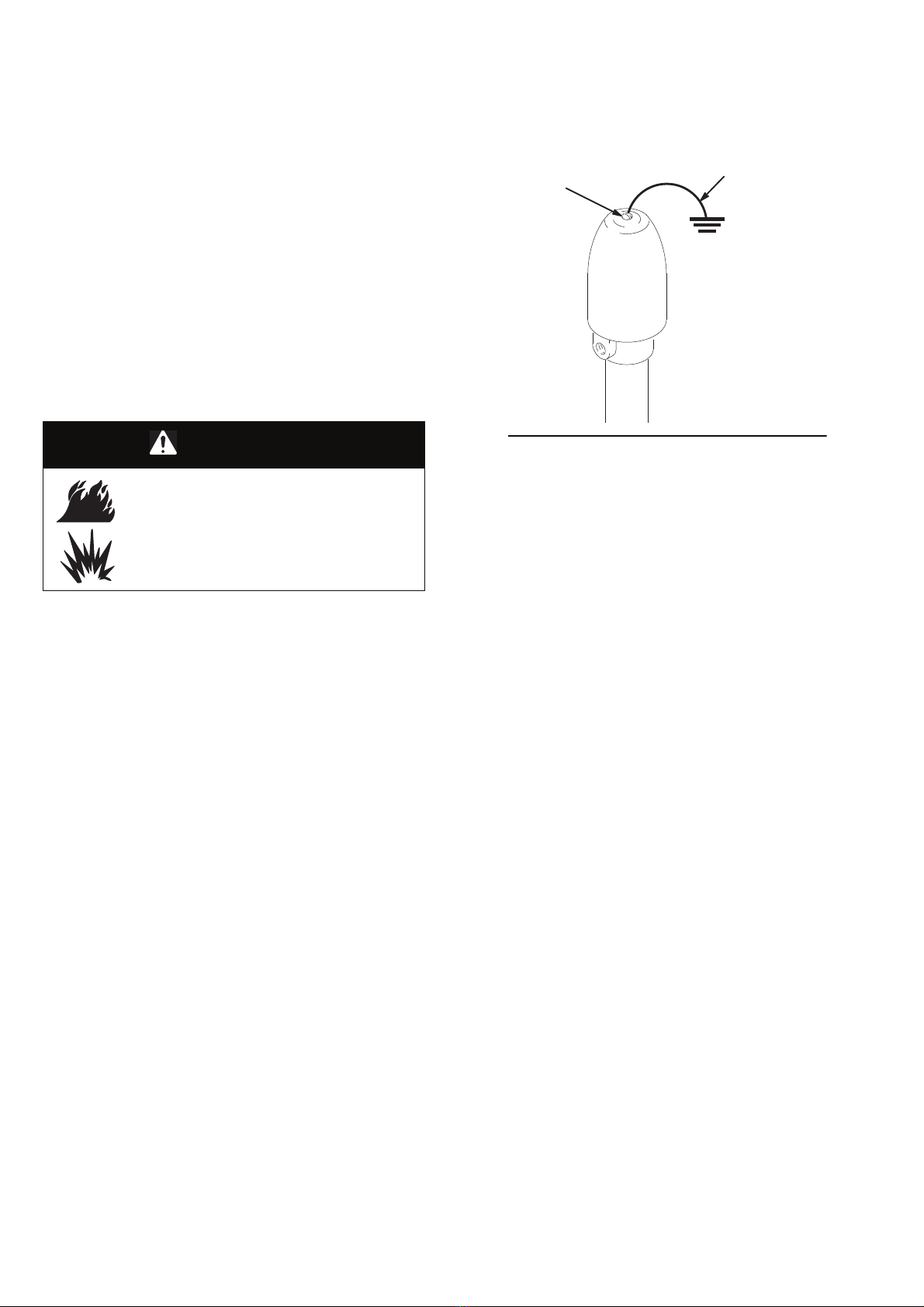

1. Pump: connect a ground wire and clamp as shown in
Fig. 1. Loosen the air motor shield retaining screw
(X). Connect one end of a 12 ga (1.5 mm) minimum
ground wire (Y) to the screw (X) and tighten the screw
securely. See Fig. 1. Connect the other end of the
wire to a true earth ground. See the ACCESSORIES
section to order a ground wire and clamp.
Fig. 1
2. Air compressor: according to manufacturer’s
recommendations.
3. Fluid hoses: use only grounded hoses with a
maximum of 500 ft (150 m) combined hose length to
ensure grounding continuity. Refer to Hose
Grounding Continuity.
4. Dispensing valve: grounding is obtained through
connection to a properly grounded fluid hose and
pump.
5. Object being sprayed: according to local code.
6. Fluid supply container: according to local code.
7. All solvent pails used when flushing, according to
local code. Use only metal pails, which are
conductive. Do not place the pail on a non-conductive
surface, such as paper or cardboard, which interrupts
the grounding continuity.
8. To maintain grounding continuity when flushing or
relieving pressure, always hold a metal part of the
spray gun/dispensing valve firmly to the side of a
grounded metal pail, then trigger the gun/valve.
WARNING
FIRE AND EXPLOSION HAZARD
This pump must be grounded. Before
operating the pump, ground the system as
explained below. Also read the section
FIRE AND EXPLOSION HAZARD on
page 3.
Y
X

307026 5
Installation
Fig. 2
Mounting the Pump
To mount the pump on a closed-head drum, screw the
threaded pump base into the 2 in. npt bung hole and adjust
to hold the pump 1/2 in. (13 mm) off the bottom of the drum
or pail. The pump dimensions are shown on page 18. Turn
the bung locknut (L) down to secure the pump in position.
Loosen the drum vent plug to avoid creating a vacuum.
A clamp is available to mount the pump on an openhead
drum. A bracket is available to wall mount Pump Model
223954. See Accessories on page 16.
Stainless Steel Pail Cover Accessory Kit 224302 is
available for use in general purpose applications, to mount
Pump Model 223954 to a 5 gallon (19 liter) pail. See page
17.
Pail Cover Accessory Kit 224004 is available for use in
rotary label applications, to mount Pump Model 223954 to
a 5 gallon (19 liter) pail. See page 17.
J
A BC D
E
F
G
H
K
L
M
Y
Y
D
KEY
APump Air Regulator
BAir Line Lubricator
CAir Line Filter
DBleed-Type Master Air Valve (required,
for pump)
EFluid Drain Valve (required)
F3/8 npt(f) Fluid Return Inlet
GGrounded Air Hose
HGrounded Fluid Hose
JPump Fluid Inlet
K1/4 npt(f) Pump Air Inlet
LBung Locknut
M1/2 npt(f) Pump Fluid Outlet
YGround Wire (required; see page 4 for
installation instructions)

6 307026
Installation
System Accessories
Refer to Fig. 2 and the Accessories section.
NOTE: To ensure maximum pump performance, be sure
that all accessories used are properly sized to meet your
system’s requirements.
Air Line Accessories
Install the following accessories in the order shown in the
Typical Installation, using adapters as necessary:
•An air line lubricator (B) provides automatic air
motor lubrication.
•A bleed-type master air valve (D) is required in your
system to relieve air trapped between it and the air
motor when the valve is closed (see the WARNING
above). Be sure the bleed valve is easily accessible
from the pump, and is located downstream from the
air regulator.
•An air regulator (A) controls pump speed and outlet
pressure by adjusting the air pressure to the pump.
Locate the regulator close to the pump, but upstream
from the bleed-type master air valve.
•An air line filter (C) removes harmful dirt and
moisture from the compressed air supply.
•A second bleed-type air valve (D) isolates the air
line accessories for servicing. Locate upstream from
all other air line accessories.
Fluid Line Accessories
A fluid drain valve (E) is required in your system to
relieve fluid pressure in the hose and gun (see the
WARNING at left). Install the drain valve pointing down,
but so the handle points up when the valve is opened.

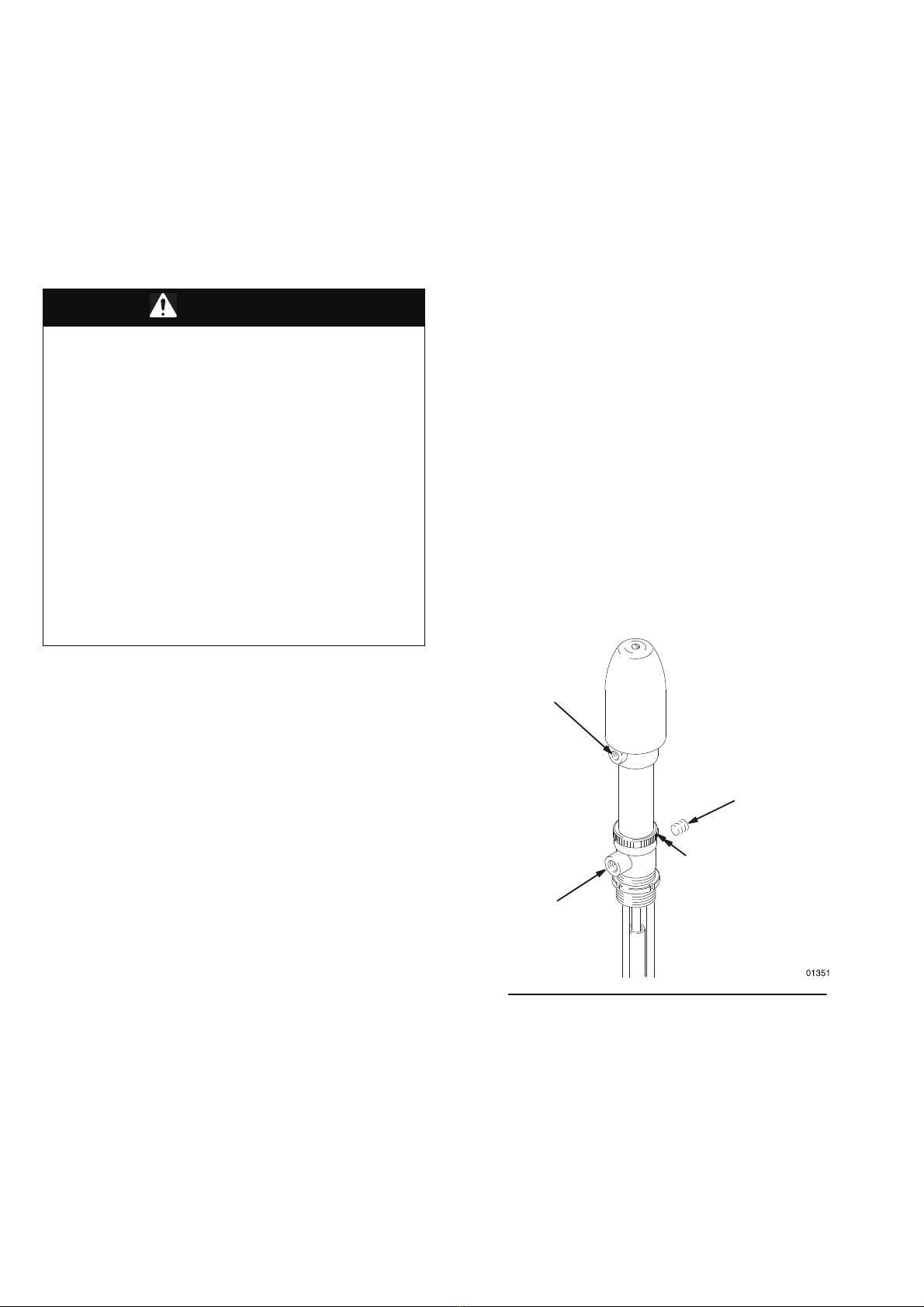

CONNECT THE HOSES
Connect a grounded air supply hose (G) to supply air to
the pump’s 1/4 npt(f) air inlet (K). Connect a grounded fluid
hose (H) to the 1/2 npt(f) fluid outlet (M). In a circulating
system, remove the pipe plug and connect a fluid return
line to the 3/8 npt(f) return port (F). See Fig. 3 and the
Typical Installation drawing, Fig. 2.
To use Model 223954 in a fixed mounting, connect a
supply line to the 3/4 npt fluid inlet (J).
Fig. 3
WARNING
A bleed-type master air valve (D) and a fluid drain valve
(E) are required in your system, to help reduce the risk
of serious injury, including splashing fluid in the eyes or
on the skin, and injury from moving parts if you are
adjusting or repairing the pump.
The bleed-type master air valve (D) relieves air trapped
between this valve and the pump after the pump is shut
off. Trapped air can cause the pump to cycle
unexpectedly and result in serious injury, including
amputation. Locate the valve close to the pump.
The fluid drain valve (E) helps relieve pressure in the
displacement pump, hose, and dispensing valve when
shutting off the pump. Actuating the dispensing valve to
relieve pressure may not be sufficient, especially if there
is a clog in the hose or the dispensing valve.
F
K
M
PIPE
PLUG

307026 7
Operation
Pressure Relief Procedure
1. Shut off the air to the pump.
2. Close the bleed-type master air valve (required in
your system).
3. Hold a metal part of the dispensing valve firmly to the
side of a grounded metal pail, and trigger the valve to
relieve pressure.
4. Open the fluid drain valve (required in your system) to
relieve all fluid pressure, having a container ready to
catch the drainage.
5. Leave the drain valve open until you are ready to
dispense again.
If you suspect that the nozzle or hose is completely
clogged, or that pressure has not been fully relieved after
following the steps above, very slowly loosen the hose
end coupling and relieve pressure gradually, then loosen
completely. Now clear the nozzle or hose.
Flush the Pump Before Using
The pump was tested in lightweight oil, which was left in to
protect pump parts. To prevent contamination of the fluid
you are pumping, flush the pump with a compatible solvent
before using it.
To flush the pump, connect a short hose to the pump
outlet, insert the pump intake into a pail of compatible
solvent, direct the hose into a pail, and start the pump as
explained at right.
Cycle the pump slowly for at least 5 minutes, then stop and
disconnect the air hose. Push up on the ball of the intake
valve (J) to drain the lower part of the pump. See Fig. 4.
Turn the pump over to drain the upper part of the pump.
Fig. 4
Starting and Adjusting the Pump
1. Mount the pump and connect to a fluid supply as
explained on page 5.
2. See the INSTALLATION on page 6. Be sure the air
regulator (A) and bleed-type master air valve (D) are
closed.
3. Hold a metal part of the spray gun/dispensing valve
firmly to the side of a grounded metal pail and hold
the trigger open. Then open the pump’s bleed-type
master air valve (D). Now slowly open the air
regulator (A) until the pump starts.
4. Run the pump slowly until all the air is pushed out of
the pump and hose. Always use the lowest pressure
necessary to get the desired results. Higher
pressures waste fluid and cause premature system
wear.
5. After all the air is purged, release the gun/dispensing
valve trigger. In a direct supply system, the pump will
start and stop as the gun/valve is opened and closed.
In a circulating system, the pump will run continuously
and will speed up or slow down as supply demands,
until the air supply is shut off.
Never allow the pump to run dry of the fluid being pumped.
A dry pump will quickly accelerate to a high speed,
possibly damaging itself. If your pump accelerates quickly,
or is running too fast, stop it immediately and check the
fluid supply. If the supply container is empty and air has
been pumped into the lines, refill the container and prime
the pump and the lines with fluid, or flush and leave it filled
with a compatible solvent. Be sure to eliminate all air from
the fluid system.
Shutdown and Care of the Pump
For overnight shutdown, follow the Pressure Relief
Procedure Warning at left. Always stop the pump at the
bottom of the stroke to prevent the fluid from drying on the
exposed displacement rod and damaging the throat
packings.
WARNING
PRESSURIZED EQUIPMENT HAZARD
The system pressure must be manually relieved to
prevent the system from starting or spraying
accidentally. To reduce the risk of an injury from
accidental spray from the gun, splashing fluid, or
moving parts, follow the Pressure Relief Procedure
whenever you:
• are instructed to relieve the pressure,
• stop spraying,
• check or service any of the system equipment,
• or install or clean the spray nozzle.
03765
J

8 307026
Operation
Corrosion Protection for Pump Lubrication
If you are not using an accessory air line lubricator,
manually lubricate the motor daily. Disconnect the air
regulator, place about 15 drops of light machine oil in the
pump air inlet, reconnect the regulator and turn on the air
supply to blow oil into the motor.
Troubleshooting
1. Relieve the pressure.
2. Check all other possible remedies before
disassembling the pump.
CAUTION
Water, or even moist air, can cause your pump to
corrode. To help prevent corrosion, NEVER leave the
pump filled with water or air. After normal flushing, flush
the pump again with mineral spirits solvent (also called
white spirits) or oil-based solvent, relieve pressure, and
leave the mineral spirits solvent (also called white
spirits) in the pump. Be sure to follow the Pressure
Relief Procedure Warning at left.
WARNING
To reduce the risk of serious injury whenever you are
instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 7.
PROBLEM CAUSE SOLUTION
The pump fails to operate. Dirty or worn air motor. Clean, service; see the separate
motor manual 307851.
Inadequate air supply or restricted
lines.
Clean lines or increase the air supply
(see Technical Data).
Closed or clogged air valves. Open or clear the valves.
Clogged fluid hose or valve. Clear the hose or valves.
Worn or damaged valves or seals. Service the valves or seals.
The pump operates, but the output is
low on both strokes.
Clogged fluid hose or valve. Clear the hose or valves.
Exhausted fluid supply. Refill the fluid supply and reprime the
pump.
Worn or damaged valves or seals. Service the valves or seals.
The pump operates, but the output is
low on the downstroke.
Held open or worn intake valve. Clear or service the valve.
Worn or damaged valves or seals. Service the valves or seals.
The pump operates, but the output is
low on the upstroke.
Held open or worn piston valve. Clear or service the valve.
Worn or damaged valves or seals. Service the valves or seals.
Erratic or accelerated operation. Exhausted fluid supply. Refill the fluid supply and reprime the
pump.
Broken air motor compression spring. Replace the spring.

307026 9

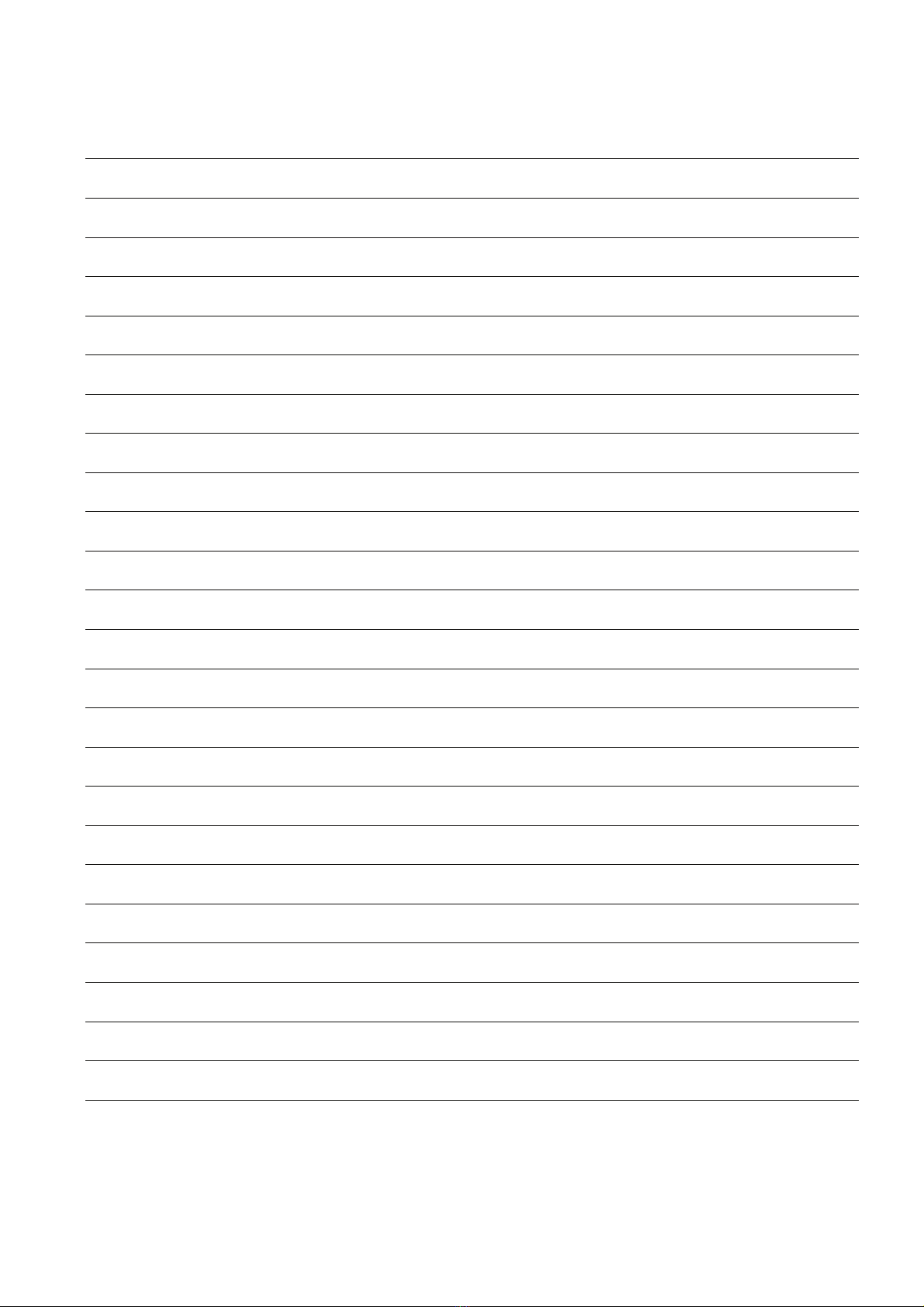

NOTES

10 307026
Pump Service (Model 226040)
BEFORE YOU START
1. Have all the necessary repair parts on hand.
Recommended spare parts are marked with an
asterisk (for example, 113*). Tool 233582, mentioned
in this procedure, is located on the accessories page
of this manual.
2. Repair Kit 224005 is available. For the best results,
use all the new parts in the kit. Parts in the kit are
marked with two asterisks (for example, 107**).
3. Use a compatible solvent to clean parts. Inspect parts
for wear or damage and replace as needed.
4. Flush the pump if possible. Stop the pump at the
bottom of its stroke. Follow the Pressure Relief
Procedure Warning on page 7.
5. Disconnect the air and fluid hoses. Remove the pump
from its mounting. Clamp the pump in a vise.
SERVICING THE DISPLACEMENT PUMP
1. Unscrew the air motor connecting ring (AA). Lay the
pump on its side and rotate the displacement pump
until the ball on the upper connecting rod (120) comes
free of the socket in the motor piston rod. Separate
the motor from the displacement pump.
NOTE: To service the air motor, refer to separate manual
307851, supplied.
2. Unscrew the intake valve housing (117) from the
pump frame (119). Disassemble the intake valve.
3. Push down on the upper connecting rod (120) until
the fluid piston assembly is clear of the displacement
pump frame (119). Pull the piston assembly and
connecting rod out of the frame. Remove the bearing
(118) and seal (134**) from the frame.
NOTE: Scoring or irregular surfaces on the connecting
rods (120, 115) or polished inner wall of the pump frame
(119) can cause premature packing wear and leaking. To
check these parts, rub a finger over the surface or hold
the part up to the light at an angle.
4. Unscrew the piston valve housing (109) from the
lower connecting rod (115). Unscrew the piston body
(113) from the piston valve housing (109).
5. Unscrew the lower connecting rod (115) from the
upper connecting rod (120). Remove the cup
packings (107), bearing (108) and backup washer
(114).
6. Lubricate the packings (107**) and bearing (108**)
with no. 2 lithium-based grease. Install the backup
washer (114) on the lower connecting rod (115),
making certain that the grooves face up.
7. On the upper connecting rod (120), install one cup
packing (107**) with the lips facing up, the bearing
(108**), and the second packing (107**) with the lips
facing down. Reconnect the upper and lower
connecting rods. Torque to 20-25 ft-lb (27-34 N.m).
8. Lubricate the packings (111**) and bearing (112**)
with no. 2 lithium-based grease. On the piston (113),
install one cup packing (111**) with the lips facing
down, the bearing (112**), and the second packing
(111**) with lips facing up. Install the backup washer
(110), with the grooves facing down.
9. Place the ball (104**) atop the piston body (113), then
screw the piston body and piston housing (109)
together. Torque to 30-35 ft-lb (41-48 N.m). Screw
the piston valve housing onto the lower connecting
rod (115). Install the seal (134**), with the lips facing
down, in the displacement pump frame (119), then
install the bearing (118**). The seal (134**) should be
installed from the bottom of the frame using tool
233582. See fig. 5. Use a turning motion to work the
connecting rod and piston back into the pump frame
(119).
Fig. 5
10. Reinstall the ball (105**) and ball stop pin (116) in the
intake valve housing (117), and screw the housing
into the displacement pump frame (119).
11. Lay the pump on its side and reconnect the upper
connecting rod (120) with the air motor piston rod.
Tighten the air motor connecting ring (AA).
12. Reinstall the pump on its mounting. If the grounding
wire was disconnected during service, reconnect it
before operating the pump.
TI0894

12 307026
Pump Parts
Model 226040, Series G
Stainless Steel, PTFE Packed
106
118**
107**
103
119
120
115
107**
108**
114
109
104**
112**
**105
117
116*
110
111**
111**
113*
131
132
101
AA
134**
150
TORQUE TO
30-35 ft-lb
(41-48 N•m)
LIPS FACE DOWN
LIPS FACE UP
GROOVES
FACE UP
LIPS FACE
DOWN
TORQUE TO
20-25 ft-lb
(27-34 N•m)
GROOVES
FACE DOWN
LIPS FACE UP
LIPS FACE
DOWN

307026 13
Pump Parts
Model 226040, Series G
Stainless Steel, PTFE Packed
Ref.
No. Part No. Description Qty.
101 204722 AIR MOTOR;
See 307851 for parts 1
102 204724 DISPLACEMENT PUMP ASSY
Series F Includes items 103-120, 134 1
103 101748 . PLUG, pipe 1
104 101750** . BALL, piston valve 1
105 101917** . BALL, intake valve 1
106 161784 . NUT, bung lock; 2” npsm 1
107 161788** . PACKING, cup; PTFE 2
108 186647** . BEARING, piston; PEEK 1
109 161791 . HOUSING, piston valve 1
110 161792 . WASHER, back-up;
stainless steel 1
111 161793** . PACKING, cup; PTFE 2
112 186648** . BEARING, piston; PEEK 1
113 161795* . BODY, piston 1
114 162238 . WASHER, back-up;
stainless steel 1
115 162239 . ROD, lower connecting;
6.67” (169.4 mm) long 1
116 164250* . PIN, ball stop 1
117 164251 . HOUSING, intake valve 1
REF
NO.
PART
NO. DESCRIPTION QTY
118 166564** . BEARING, connecting rod 1
119 204725 . FRAME, displacement pump 1
120 204885 . ROD, upper connecting;
32.84” (854 mm) long 1
131 101870 SCREW, shield retaining 1
132 164796 SHIELD, air motor 1
134 111791** SEAL; glass-reinforced PTFE;
with stainless steel spring 1
150 104071 PLUG, pipe 1
223582‡ TOOL, insert 1
* Recommended “tool box" spare parts. Keep on hand to
reduce downtime.
** Included in Repair Kit 224005.
‡ This tool is ordered as a separate part item. It is located
on the accessories page of this manual.
307 number in description refers to separate instruction
manual, supplied.
Conversion Kit 224017 is available to convert the pump to
UHMWPE packings. Refer to the Accessories section.

16 307026
Accessories
Must be purchased separately.
GROUNDING CLAMP 103538
GROUND WIRE 208950
25 ft (7.6 m) long,
12 gauge (1.5 mm2)
BLEED-TYPE MASTER AIR VALVE
300 psi (21 bar) MAXIMUM WORKING PRESSURE
107142 1/2 npt(m) inlet x 1/2 npt(f) outlet
Relieves air trapped in
the air line between the
pump air inlet and this
valve when closed.
AIR LINE FILTER
250 psi (17.5 bar) MAXIMUM WORKING PRESSURE
106149 1/2 npt(f)
inlet and outlet
AIR LINE LUBRICATOR
250 psi (17.5 bar) MAXIMUM WORKING PRESSURE
214848 8 oz (0.24 liter)
bowl capacity. 1/2
npt(f) inlet and outlet
AIR LINE FILTER AND REGULATOR 202660
180 psi (13 bar) MAXIMUM WORKING PRESSURE
To regulate and filter compressed
air supply to the gun. Includes
gauge and two 1/4 npt(m) outlet
valves, 50 micron filter element
with 100 mesh inlet strainer. 1/2
npt(f) inlet. Flow rate is over 50
scfm (1.4 m3/min).
AIR REGULATOR AND GAUGE
300 psi (21 bar) MAXIMUM WORKING PRESSURE
202156 0-200 psi (0-14 bar)
Regulated Pressure Range;
3/8 npt(f) inlet and outlet.
FLUID DRAIN VALVE
500 psi (35 bar) MAXIMUM WORKING PRESSURE
Relieves fluid pressure in the hose and gun.
208630 1/2 npt(m) x 3/8 npt(f);
for non-corrosive fluids;
carbon steel and PTFE
210071 3/8 npt(m) x 3/8 npt(f);
for corrosive fluids; stainless
steel and PTFE
FLUID PRESSURE REGULATOR
250 psi (17.5 bar) MAXIMUM WORKING PRESSURE
Use on circulating line drops to regulate fluid pressure to
each air spray gun or dispensing valve. 3/8 npsm(f) inlet;
3/8 npsm(m) and 3/8 npt(f) outlets.
203831 Carbon steel; 0-60 psi (0-4 bar) regulated fluid
pressure range; 2 gpm (7.6 liter/min) maximum flow rate
209030 Stainless steel; 5-100 psi (0.4-7 bar) regulated
fluid pressure range; 3 gpm (11.3 liter/min) maximum flow
rate
203831 Carbon steel; 0-60 psi
(0-4 bar) regulated fluid pressure
range; 2 gpm (7.6 liter/min)
maximum flow rate
209030 Stainless steel; 5-100 psi
(0.4-7 bar) regulated fluid
pressure range; 3 gpm (11.3
liter/min) maximum flow rate

307026 17
Accessories
FLUID FILTER
300 psi (21 bar) MAXIMUM WORKING PRESSURE
For filtering paint in a circulating system. 6 gpm (22.7
liter/min) maximum volume. 3/4 npt(f) inlet and outlet.
213057 30 mesh
213058 60 mesh
213059 100 mesh
PTFE FLUID HOSE 204865
1000 psi (70 bar) MAXIMUM WORKING PRESSURE
For connecting pump to fluid line.
6 ft (1.8 m); 1/2 in. (13 mm) ID; coupled 1/2 npt (mbe).
UHMWPE PACKING CONVERSION KIT 224017
Converts Model 226040 to use Ultra-High Molecular
Weight Polyethylene cup packings. Includes cup
packings, bearings, and instructions.
STAINLESS STEEL PAIL COVER KIT 224302
For general purpose applications. Allows mounting of
Model 223954 on a 5 gallon (19 liter) pail. Includes pail
cover with agitator and return ports, return tube, mounting
hardware, and assembly instructions.
PAIL MOUNT KIT 224004
For rotary label applications only. Allows mounting of
Model 223954 on a 5 gallon (19 liter) pail. Includes pail
cover, mounting hardware, pump air inlet valve, and
assembly instructions.
PUMP CLAMP 204858
For mounting pump in open head drums or other
containers. Corrosion-resistant.
MOUNTING BRACKET 203987
For mounting Model 223954 to a wall.
Tool 233583 (19” long)
For installation of seals.
Tool 233582 (5–1/2” long)
For installation of seals.

18 307026
Dimensions
A
B
(Adjustable)
1/4 npt(f)
AIR INLET
1/2 npt(f)
FLUID OUTLET
2” npsm
3/4 npt(f)
FLUID INTAKE
(MODEL 223954
ONLY)
3/8 npt(f)
RETURN
Pump No.
A
Overall Length
B
Pump Length Weight
226040 50.25 in
(1276 mm)
32.375-33.875 in.
(822-860 mm)
17 lb (7.7 kg)
223954 30.5 in.
(775 mm)
13.70-14.10 in.
(348-358 mm)
1.5 lb (5.2 kg)

307026 19
Service Information
Listed below by the assembly changed are Old, New, and
Added parts.
INTERCHANGEABILITY NOTE: New parts replace the
Old parts listed directly above them.
Pump Model 226040 is advanced to Series G.
Displacement Pump Model 204724 is advanced to Series
F.
Pump Model 223954 is advanced to Series B.
Displacement Pump Model 223955 is advanced to Series
B.
Pump Model 206780 is obsolete and is removed from the
manual.
Repair Kit 214730 is obsolete and is superseded by Repair
Kit 224005.
Assembly Changed Status Ref. No Part No. Name
204724 Displ. Pump
to Series F
Old 161789 Bearing
New 108 186647 Bearing
Old 161794 Bearing
New 112 186648 Bearing
Added 134 111791 Seal
223955 Disp. Pump
to Series B
Old 186563 Adapter
New 321 188037 Adapter
Added 334 111791 Seal

20 307026
Technical Data
Category Data
Maximum fluid working pressure 360 psi (25 bar)
Air input pressure operating range 30-180 psi (2-12 bar)
Pump cycles per 1 gallon (3.8 liters) 40 (50 for Model 223954)
Maximum recommended pump speed for
continuous operation
100 cycles per min
Air consumption approx. 3 scfm (0.09 m#/min) at 1 gpm (3.8 liters/min) at 100 psi (7
bar) air pressure
Maximum Ambient temperature for T6
hazardous location use
120

F (50

C)
Maximum Fluid temperature for T6
hazardous location use
180

F (82

C)
Wetted parts Stainless Steel, PTFE, Polyetheretherketone (PEEK)
Sound Pressure 88.7 dB(A) @ 80 psi (550 kPa, 5.5 bar)
Sound Power, per ISO 9614–2 96.8 dB(A) @ 80 psi (550 kPa, 5.5 bar)

307026 21
Technical Data

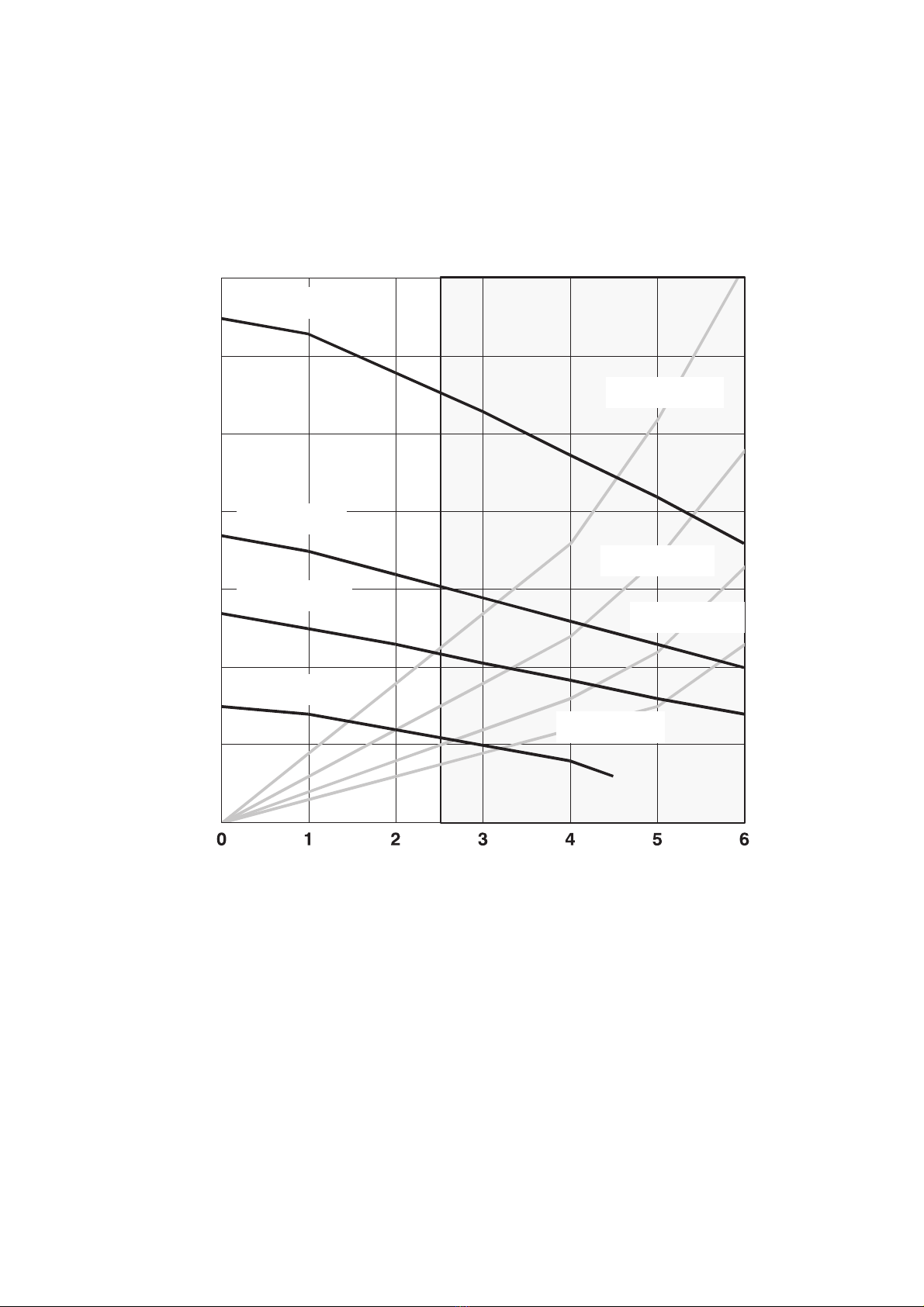

KEY: Fluid Outlet Pressure - Black Curves
Air Consumption - Gray Curves
NOTE: Pump may be operated continuously to shaded
area (100 cpm). Area shown is for Model 226040 only. For
Model 223954, 100 cpm line is at 1.5 gpm.
FLUID FLOW (TEST FLUID: NO. 10 WEIGHT OIL)
To find Fluid Outlet Pressure (psi/bar) at a specific fluid
flow (gpm/lpm) and operating air pressure (psi/bar):
1. Locate desired flow along bottom of chart.
2. Follow vertical line up to intersection with selected
fluid outlet pressure curve (black). Follow left to scale
to read fluid outlet pressure.
To find Pump Air Consumption (scfm or m/min) at a
specific fluid flow (gpm/lpm) and air pressure (psi/bar):
1. Locate desired flow along bottom of chart.
2. Read vertical line up to intersection with selected air
consumption curve (gray). Follow right to scale to
read air consumption.
180 psi (12 bar)
air pressure
100 psi (7 bar)
air pressure
70 psi (4.9 bar)
air pressure
40 psi (3 bar)
air pressure
180 psi (12 bar)
air pressure
100 psi (7 bar)
air pressure
70 psi (4.9 bar)
air pressure
40 psi (3 bar)
air pressure
350
24.5
300
21.0
250
17.5
200
14.0
150
10.5
100
7.0
50
3.5
0
cycles/min (Model 223954) 50 100 125 150 200 250
cycles/min (Other Models) 40 80 100 120 160 200
scfm
m3/min
24.0
0.672
20.0
0.560
16.0
0.448
12.0
0.336
8.0
0.224
4.0
0.112
(3.8) (7.6) (11.4) (15.2) (19.0) (22.8)
0.75 1.5 2.25 3.0 3.75 4.5
(2.85) (5.7) (8.55) (11.4) (14.25) (17.1)
FLUID PRESSURE
psi
bar
gpm (liters/min)
(Other Models)
gpm (liters/min)
(Model 223954)

22 307026
Graco Standard Warranty
Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship on
the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco,
Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be
defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by
faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or
substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility
of Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect
in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and
transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other
remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any
other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose in connection
with accessories, equipment, materials or components sold but not manufactured by Graco. These items sold, but not manufactured
by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide
purchaser with reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,
breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings
entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties
reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures
judiciaires exécutés, donnés ou intentés à la suite de ou en rapport, directement ou indirectement, avec les procedures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: [phone] or Toll Free: 1–800–328–0211 Fax: [phone]
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 307026
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440–1441 • USA
Copyright 1970, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revised 7/2019
