Graco Glutton 400 Series Datasheet

STAINLESS STEEL OR CARBON STEEL
Air–Powered Gluttonr
Pumps
100 psi (0.7 MPa, 7 bar) Maximum Incoming Air Pressure
400 Series Pumps
400 psi (2.8 MPa, 28 bar) Maximum Fluid Working Pressure
Model 220663, Series D
Model 237008, Series A
Carbon steel pumps*
Model 220666, Series D
Model 237011, Series A
Stainless steel pumps*
Electro-polished for use with waterborne coatings
1200 Series Pumps
1200 psi (8 MPa, 83 bar) Maximum
Fluid Working Pressure
Model 220664, Series D
Model 237009, Series A
Carbon steel pumps*
Model 220667, Series D
Model 237012, Series A
Stainless steel pumps*
Electro-polished for use with waterborne coatings
2500 Series Pumps
2500 psi (17 MPa, 170 bar) Maximum Fluid
Working Pressure
Model 220665, Series D
Model 237010, Series A
Carbon steel pumps*
Model 220668, Series D
Model 237013, Series A
Stainless steel pumps*
Electro-polished for use with waterborne coatings
*See TECHNICAL DATA on pages 44 through 46
for a complete materials list.
Instructions–Parts List
307843ZAF
EN
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.

2 307843
Table of Contents
Warnings 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Drawing and List
400 Series Carbon Steel Pumps, Models 220663 and 237008 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
400 Series Stainless Steel Pumps, Models 220666 and 237011 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1200 Series Carbon Steel Pumps, Models 220664 and 237009 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1200 Series Stainless Steel Pumps, Models 220667 and 237012 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2500 Series Carbon Steel Pumps, Models 220665 and 237010 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2500 Series Stainless Steel Pumps, Models 220668 and 237013 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air Control Valve 220902 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pilot Valve 221133 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Repair and Conversion Kits 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filter, Regulator, Lubricator Kit 222345 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drum Cover Kit 222655 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Return Tube Kit 223319 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suction Kit 208259 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data and Performance Chart
400 Series Pumps 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1200 Series Pumps 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2500 Series Pumps 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensional Drawing 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting Hole Layout 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Standard Warranty 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Information 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

307843 3
Warnings
Warning Symbol
WARNING
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
WARNING
SKIN INJECTION HAZARD
Spray from the gun, leaks or ruptured components can inject fluid into your body and cause extremely
serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin can also
cause serious injury.
DFluid injected into the skin might look like just a cut, but it is a serious injury. Get immediate
surgical treatment.
DDo not point the gun at anyone or at any part of the body.
DDo not put your hand or fingers over the spray tip.
DDo not stop or deflect leaks with your hand, body, glove or rag.
DDo not “blow back” fluid; this is not an air spray system.
DAlways have the tip guard and the trigger guard on the gun when spraying.
DCheck the gun diffuser operation weekly. Refer to the gun manual.
DBe sure the gun trigger safety operates before spraying.
DLock the gun trigger safety when you stop spraying.
DFollow the Pressure Relief Procedure on page 10 whenever you: are instructed to relieve pres-
sure; stop spraying; clean, check, or service the equipment; and install or clean the spray tip.
DTighten all fluid connections before operating the equipment.
DCheck the hoses, tubes, and couplings daily. Replace worn or damaged parts immediately. Perma-
nently coupled hoses cannot be repaired; replace the entire hose.
DUse only Graco approved hoses. Do not remove the spring guard that is used to help protect the
hose from rupture caused by kinks or bends near the couplings.

4 307843
WARNING
INSTRUCTIONS
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.
DThis equipment is for professional use only.
DRead all instruction manuals, tags, and labels before operating the equipment.
DUse the equipment only for its intended purpose. If you are uncertain about usage, call your Graco
distributor.
DDo not alter or modify this equipment. Use only genuine Graco parts and accessories.
DCheck equipment daily. Repair or replace worn or damaged parts immediately.
DDo not exceed the maximum working pressure of the lowest rated system component. Refer to the
Technical Data section on pages 44 through 46 for the maximum working pressure of this equip-
ment.
DUse fluids and solvents which are compatible with the equipment wetted parts. Refer to the Tech-
nical Data section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.
DDo not use hoses to pull equipment.
DRoute hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not expose
Graco hoses to temperatures above 82_C (180_F) or below –40_C (–40_F).
DDo not lift pressurized equipment.
DComply with all applicable local, state, and national fire, electrical, and safety regulations.
DNever place your hands on or near the pump fluid inlet. Powerful suction could cause serious
bodily injury.
MOVING PARTS HAZARD
Moving parts can pinch or amputate your fingers or other body parts.
DKeep clear of all moving parts when starting or operating the equipment.
DBefore servicing the equipment, follow the Pressure Relief Procedure on page 10 to prevent the
equipment from starting unexpectedly.
DNever operate the motor with the pump housing removed.

307843 5
WARNING
FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation, open flames, or sparks can cause a hazardous condition and
result in a fire or explosion and serious injury.
DGround the equipment and the object being sprayed. See Grounding on page 7.
DProper hose grounding continuity is essential in maintaining a grounded spray/dispense system.
Check the electrical resistance of your air and fluid hoses at least once a week. If your hose does
not have a tag on it that specifies the maximum electrical resistance, contact the hose supplier or
manufacturer for the maximum resistance limits. Use a resistance meter in the appropriate range
for your hose to check the resistance. If the resistance exceeds the recommended limits, replace it
immediately.
DIf there is any static sparking or you feel an electric shock while using this equipment, stop spray-
ing immediately. Do not use the equipment until you identify and correct the problem.
DProvide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid
being sprayed.
DKeep the spray area free of debris, including solvent, rags, and gasoline.
DElectrically disconnect all equipment in the spray area.
DExtinguish all open flames or pilot lights in the spray area.
DDo not smoke in the spray area.
DDo not turn on or off any light switch in the spray area while operating or if fumes are present.
DDo not operate a gasoline engine in the spray area.
HAZARDOUS FLUIDS
Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin,
inhaled, or swallowed.
DBe sure all fluids and solvents used are chemically compatible with the wetted parts shown in the
TECHNICAL DATA for your pump model. Always read the fluid and solvent manufacturer’s litera-
ture before using the fluid or solvent in this pump.
DKnow the specific hazards of the fluid you are using.
DStore hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,
state and national guidelines.
DAlways wear protective eyewear, gloves, clothing and respirator as recommended by the fluid and
solvent manufacturer.
DProvide for safe piping and disposal of exhaust air.
DSecure the fluid outlet house tightly into the receiving container to prevent the hose from coming
loose and creating a fluid spill.
DProvide proper ventilation in accordance with accepted industry standards and government regula-
tions.
United States Government safety standards have been adopted under the Occupational Safety and Health Act. You
should consult these standards – particularly the General Standards, Part 1910, and the Construction Standards,
Part 1926.

6 307843
Installation
Mounting the Pump

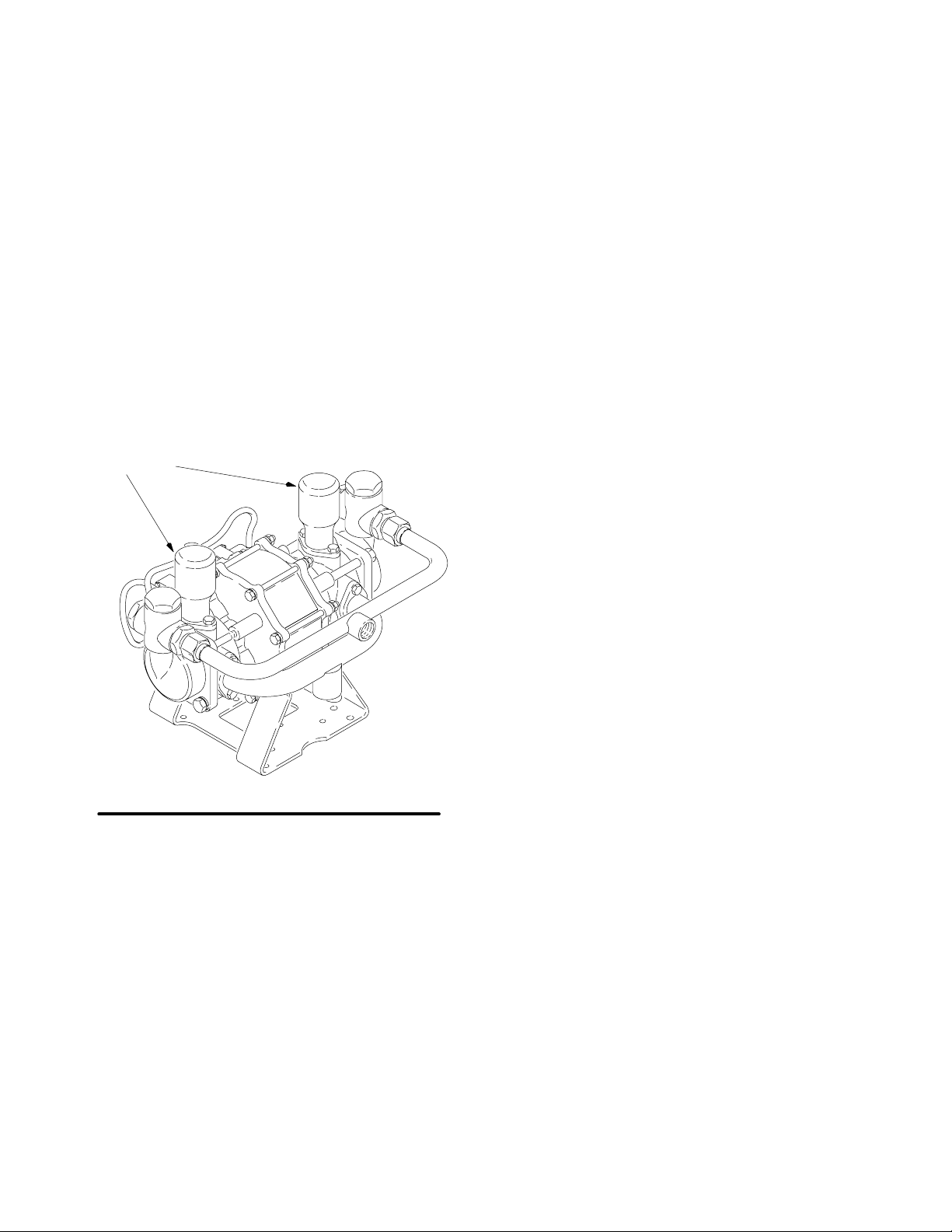

D400 and 1200 Series Pumps: Mount the pump
with the accumulators in the top position as shown
in Fig. 1. The accumulators must be in the position
shown or the pump will not prime.
DBe sure the pump is securely bolted to its mounting
and that the mounting can support the weight of the
pump, hoses, and stress caused during operation.
DThe outlet manifold can be removed and turned 180
degrees to change the direction of the outlet and
ease installation, as shown in Fig. 3.
General Information
DThe installation shown in Fig. 4 is only a guide for
selecting and installing system components. Con-
tact your Graco distributor for assistance in plan-
ning a system to suit your needs.
DSee pages 38 through 43 for accessories and kits
available from Graco. Always use Genuine Graco
Parts and Accessories.
DUse a thread sealant compatible with the fluid being
pumped on all male pipe threads. Tighten all con-
nections firmly to avoid air or fluid leaks.
DReference numbers and letters in parentheses in
the text refer to the figure illustrations.
Fig. 1
accumulators
02321

307843 7
Installation
Grounding
WARNING
This pump must be grounded. The steps for
grounding may differ from the way you ground
other pumps. Carefully read and follow these
grounding instructions. See FIRE AND EXPLO-
SION HAZARD on page 5 before you operate the
pump.
Static electricity is created by the high-velocity flow of
fluid through the pump and hose. If every part of the
equipment is not properly grounded, sparking may oc-
cur. To reduce the risk of static sparking, ground the
pump and all other equipment used or located in the
pumping area. Check your local electrical code for de-
tailed grounding instructions for your area and type of
equipment. Ground all of the following equipment:
DPump: use a ground wire and clamp as shown in
Fig. 2.
DFluid and air hoses: use only grounded hoses with
a maximum of 500 feet (150 m) combined hose
length to ensure grounding continuity.
DAir Compressor: Follow the manufacturer’s recom-
mendations.
DSpray gun or dispensing valve: Obtain grounding
through connection to a properly grounded fluid
hose and pump.
DFluid supply container: Follow the local code.
DObject being sprayed: Follow the local code.
DAll solvent pails used when flushing: Follow the
local code. Use only metal pails, which are conduc-
tive. Do not place the pail on a non-conductive
surface, such as paper or cardboard, which inter-
rupts the grounding continuity.
To ground the pump: Loosen the grounding lug lock-
nut (W) and washer (X). Insert one end of a 12 ga (1.5
mm@) minimum ground wire (Y) into the slot (Z) of the
grounding lug, and tighten the locknut securely. Con-
nect the clamp end of the ground wire to a true earth
ground. To order a ground wire and clamp, order Part
No. 222011.
Fig. 2
02322
Z
W
X
Y
grounding lug

Fig. 3
ME
F
H
0232
5
J
8 307843
Installation
Connect the Fluid Lines
1. Use grounded fluid hoses.
a. The pump fluid outlet (J) on the 400 and
1200 Series Pumps is 1 npt(f) .
b. The pump fluid outlet (J) on the 2500 Series
Pump is 3/4 npt(f).
2. Install a fluid filter (F) and drain valve (E) near the
fluid outlet. See Fig. 3.
WARNING
A fluid drain valve (E) is required in your system to
relieve pressure in the fluid outlet hose (H) if the
hose becomes plugged. See Fig. 3. Install a drain
valve close to the pump’s fluid outlet. The drain
valve reduces the risk of property damage or
serious bodily injury, including splashing in the eyes
or on the skin, or contamination from hazardous
fluids.
3. Install a control device, such as a gun, dispensing
valve, or shutoff valve, on the grounded fluid
hose (H).
Connect the Fluid Suction Line
CAUTION
The pump must be suction fed in order to operate
properly. Pressure feeding or exceeding 15 psi (104
kPa, 1.04 bar) maximum fluid inlet pressure may
cause premature bellows seal failure.
Connect the fluid suction hose (S) to the pump fluid
inlet (M). See Fig. 4.
DThe pump fluid inlet (M) is 1.25 npt(f).
DThe maximum suction lift is 15 ft (4.57m) for the
400 Series and 1200 Series Pumps, and 6 ft (1.83
m) for the 2500 Series Pump.
WARNING
SUCTION HAZARD
Never place your hands on or near the pump fluid
inlet. Powerful suction could cause serious bodily
injury.

307843 9
Installation
Connect the Air Lines
1. Install the air line accessories to the left of the
pump as shown in Fig. 4. Mount these accessories
on the wall or on a bracket. Be sure the air line
supplying the accessories is grounded.
2. Install a flexible air hose between the accessories
and the 1/2 in. npt(f) air inlet (G). Use a minimum
1/2 in. ID air hose.
3. Install an air line lubricator (B) upstream from the
pump air inlet for automatic pump lubrication.
4. Install a pump runaway valve (T) to sense when
the pump is running too fast and shut off the air
supply to the motor. To order a pump runaway
valve, order Part No. 224040.
5. Install an air regulator (D) to control air inlet pres-
sure.
WARNING
A bleed-type master air valve (C) is required in
your system to relieve air trapped between this
valve and the pump after the air regulator is closed.
Trapped air can cause the pump to cycle unexpect-
edly, which could result in serious bodily injury,
including splashing in the eyes, injury from moving
parts, or contamination from hazardous fluids.
6. Install one bleed-type master air valve (C) down-
stream from the air regulator and use it to relieve
trapped air. Locate the other master air valve up-
stream from all air line accessories and use it to
isolate the accessories during cleaning and repair.
7. Install an air line filter (A) to remove harmful dirt
and moisture from your compressed air supply.
8. Install a grounded air supply line (P) with a mini-
mum 1/2 in. ID. See Fig. 4.
Ventilate the Air Exhaust
WARNING
Improper handling of hazardous fluids or inhaling
their vapors can cause serious bodily injury, even
death. For your safety, it is imperative that you read
all product warning labels and Material Safety Data
Sheets (MSDS) for the fluids you are using. An
MSDS can be obtained from your fluid suppliers. It
is also important that you read and understand the
warnings and precautions regarding HAZARDOUS
FLUID HAZARD on page 5 before you operate.
All systems using hazardous fluid in enclosed
areas or within buildings should have a properly
designed and installed ventilation system. Consult
your local building code and other industrial and
governmental standards for proper design criteria.
Fig. 4
KEY
AAir line filter
BAir line lubricator
CBleed-type master air valve
DAir regulator
EFluid drain valve
FFluid filter
GPump air inlet
HGrounded fluid line
JOutlet manifold
KMain air line
LGround wire
MIntake manifold
NGlutton pump
PGrounded air line
RFluid supply
SFluid suction hose
TRunaway valve
0232
3
K
C
C
D
AB
T
G
L
NJF H
S
R
M
E
P

10 307843
Operation
Pressure Relief Procedure
WARNING
The system pressure must be manually relieved to
prevent the system from starting or spraying acci-
dentally. To reduce the risk of an injury from acci-
dental spray from the gun, splashing fluid, or
moving parts, always follow the Pressure Relief
Procedure whenever you
Dare instructed to relieve the pressure
DStop spraying
DCheck or service any of the system equipment
Dinstall or clean the spray nozzle.
1. * Engage the spray gun or dispensing valve safety
latch.
2. Shut off the air supply.
3. * Disengage the gun or dispensing valve safety
latch.
4. * Hold a metal part of the gun or valve firmly to a
grounded metal waste container and trigger it to
relieve the fluid pressure.
5. * Engage the safety latch again.
6. Open the pump drain valve (required in system),
and have a container ready to catch the drainage.
7. Leave the drain valve open until you are ready to
spray again.
* Applies only when using a spray gun or dispensing
valve.
If you suspect that the spray tip, nozzle, or hose is
clogged or that pressure has not been fully relieved
after following the steps above, very slowly loosen the
hose end coupling and relieve pressure gradually, then
loosen completely, then clear the tip, nozzle, or hose
obstruction.
Flush the Pump Before First Use
WARNING
To reduce the risk of fluid injection injury, static
sparking and splashing, read and follow Flushing
Safety under FIRE OR EXPLOSION HAZARD on
page 5.
The pump was tested with lightweight oil, which is left
in to protect the pump parts. If this solution could con-
taminate the fluid you are pumping, flush it thoroughly
with a compatible solvent. To start the pump, follow the
procedure in Start and Adjust the Pump, below.
Start and Adjust the Pump
NOTE: Check all fittings to be sure they are tight. Be
sure to use a thread sealant compatible with the fluid
being pumped on all male pipe threads.
1. Place the suction hose (S) in the fluid to be
pumped. See Fig. 5.
2. Close the fluid drain valve (E).
3. With the air regulator (D) closed, open both bleed-
type master air valves (C).
4. Open the fluid control device while continuing with
the following steps.
5. Slowly open the air regulator (D). Adjust it until the
pump runs smoothly.
6. Allow the pump to cycle slowly until all air is
pushed out of the lines (the fluid will be flowing in a
steady stream from the fluid outlet) and the pump
is primed.
WARNING
To reduce the risk of component rupture, which
could cause serious bodily injury, never exceed
100 psi (0.7 MPa, 7 bar) air supply pressure to the
pump. Read the warning section EQUIPMENT
MISUSE HAZARD on page 4.

307843 11
Operation
7. If you are flushing:
a. Run the pump long enough to thoroughly clean
the pump and hoses.
b. Close the fluid control device and air regulator
(D).
c. Remove the suction hose (S) from the solvent
and place it in the fluid to be pumped.
8. If you are going to use the pump:
a. Start the pump. Be sure the suction hose is in
the supply container.
b. If you are using this pump to spray fluid, re-
lieve the pressure, then install a spray tip in
the gun. Trigger the gun into a grounded metal
waste container to prime the hose. Adjust the
pump pressure just enough to completely at-
omize the fluid. Higher pressures cause pre-
mature spray tip and pump wear.
WARNING
PRESSURIZED EQUIPMENT HAZARD
To reduce the risk of a serious injury whenever you
are instructed to relieve pressure, follow the Pres-
sure Relief Procedure on page 10.
c. In a direct supply system,the pump will start
and stop as the spray gun, dispensing valve,
or fluid outlet valve is opened and closed.
d. In a circulating system, the pump runs continu-
ously and speeds up or slows down as supply
demands until the air supply is shut off.
CAUTION
Never allow the pump to run dry of fluid. A dry pump
will accelerate to a high speed, possibly damaging
itself. If your pump accelerates quickly, or is running
too fast, stop it immediately and check the fluid
supply. If the supply is empty and air has been
pumped into the lines, refill the container and prime
the pump and lines with fluid, or flush and leave filled
with compatible solvent. Be sure to eliminate all air
from the system. A Pump Runaway Valve, Part No.
224040, is available.
9. If you are shutting down the pump:
a. Flush the pump before shutting down, espe-
cially if pumping a material that will set up.
b. Remove the suction hose from the fluid con-
tainer and run the pump until the fluid is forced
out of the system, then shut off the air supply
immediately.
c. Relieve the pressure.
WARNING
PRESSURIZED EQUIPMENT HAZARD
To reduce the risk of a serious injury whenever you
are instructed to relieve pressure, follow the Pres-
sure Relief Procedure on page 10.
d. Refer to the Maintenance instructions on
page 14.
Fig. 5
D
CC
S
E
0232
3

12 307843
Troubleshooting
Relieve the pressure, and check all probable causes
before disassembling the pump. WARNING
PRESSURIZED EQUIPMENT HAZARD
To reduce the risk of a serious injury whenever you
are instructed to relieve pressure, follow the Pres-
sure Relief Procedure on page 10.
SYMPTOM PROBABLE CAUSE TEST PROCEDURE REMEDY
1. Pump will not
prime
Air is getting into the intake
housing:
a. Defective o-ring (19) on in-
take manifold or accumu-
lator
b. Suction hose/tube not
sealed
a. Replace o-ring.
See page 15.
b. Tighten, or add
sealant to threads
2. Pump will not
run
a. Air supply turned off
b. Fluid valve turned off
c. Air pressure regulator
set too low
d Pilot valve assemblies
worn
e. Air control valve
defective
f. Air piston quad ring (28)
worn
c. Minimum air pressure
on regulator 25 psi (175
kPa, 1.95 bar), depend-
ing on fluid being
pumped
d. Remove tube ends from
hose studs. With air
supply on, alternately
plug tube ends. If pump
runs, remove pilot
valves, inspect
e. Check for air coming
from exhaust when
pump is not running
a. Turn air supply on
b. Turn fluid supply
valve on
c. Increase air pressure
regulator adjustment
d. Repair or replace pilot
valve assembly. See
page 22.
e. Repair or replace air
control valve. See page
20.
f. Replace quad ring. See
page 18.

307843 13
Troubleshooting
SYMPTOM PROBABLE CAUSE TEST PROCEDURE REMEDY
3. Pump runs but
does not main-
tain constant
pressure
a. Air in fluid line
b. Air line too small
c. Obstructed or worn ball
(57) and seat (49)
d. Worn fluid piston (17)
and/or piston seal (13)
e. Air control valve
mufflers (38) plugged
f. Air control valve dirty or
worn
g. Lack of lubrication
h. Dirty air passages
a. Check for spitting at
fluid line outlet
c. Pump fast cycles on
one end of stroke
indicates that side is by-
passing
d. Pump fast cycles on
one end of stroke
indicates that side is by-
passing
e. Check for slow air flow
at muffler
g. Pump reacts slowly
h. Check for sluggish air
control valve operation
a. Bleed fluid line until con-
stant flow is
obtained
b. Install larger air line,
minimum size 1/2 in.
c. Remove, clean, and in-
spect seat, ball, and ball
guide (56). Replace if
worn. See page 15.
d. Replace piston and/or
seal. See page 16.
e. Remove and clean muf-
flers
f. Repair or replace air
control valve. See page
20.
g. Adjust lubricator
h. Clean air passages; do
not enlarge orifices.
Empty air line filter and/
or control valve filter
(40q). See step 5 in Dis-
assembly on page 20.
4. Paint dripping
externally
around piston
rod
a. Ruptured bellows seal
(14)
a. Check for presence of
paint around piston
shaft (15)
a. Replace bellows seal.
See page 16. Be sure
to suction feed, not
pressure feed, pump.
Maximum fluid inlet
pressure is 15 psi (104
kPa, 1.04 bar)

14 307843
Maintenance
Flush the Pump With Compatible Solvent
WARNING
To reduce the risk of fluid injection injury, static
sparking and splashing, read and follow Flushing
Safety under FIRE OR EXPLOSION HAZARD on
page 5.
1. Flush often enough to prevent fluid from drying in
the pump and damaging it.
2. Always flush before storing.
a. If you are pumping water-based fluid, first flush
the pump with water, then with mineral spirits
or a compatible oil-based solvent.
b. Leave the mineral spirits or oil-based solvent
in the pump to protect the pump parts from
corrosion.
3. Be sure to eliminate all air from the system.
Tighten Threaded Connections
1. Before each use, check all hoses for wear or dam-
age and replace as necessary. Be sure all
threaded connections are tight, and leak-free.
2. At least every six months, check and tighten all
threaded connections, including manifold screws,
clamps, plugs, and valve screws.
Check and Service the Lubricator, Regula-
tor, and Filter
Check and service according to the instructions sup-
plied with them. See Manual 308169 for oil recommen-
dations.

307843 15
Service
Repairing the Ball Check Valves
NOTE: Parts marked with an asterisk are included in a
repair kit, for example, (54*). See pages 38 and 39 for
repair kit part numbers. Use all the parts in the kit for
the best results.
Disassembly
1. Relieve the pressure.
WARNING
PRESSURIZED EQUIPMENT HAZARD
To reduce the risk of a serious injury whenever you
are instructed to relieve pressure, follow the Pres-
sure Relief Procedure on page 10.
2. Disconnect the air and fluid lines, remove the
pump from its mounting, and place it on a bench.
3. Remove the cap (53) from each side of the outlet
housing (33). See Fig. 6.
4. Remove the ball guide (56), ball (57), valve seat
(49), and o-ring (48*) on each side of the outlet
housing.
5. Inspect the ball stop (55) inside the cap (53) for
wear. Remove o–ring (54). Replace if necessary.
6. Clean all parts and inspect for wear or damage.
Replace as needed.
Assembly
1. Lubricate the o-rings (48*) and place one in the
groove on each valve seat (49).
2. Install the valve seat (49) with the o-ring (48) fac-
ing down, ball (57), and ball guide (56) into each
outlet housing (33).
NOTE: Stainless steel seats are reversible.
3. Lubricate the o-rings (54*) and the cap (53)
threads. Place one o-ring on each cap. Screw the
caps into the housing and torque them to 55 to 85
ft-lb (75 to 115 NSm).
NOTE: On stainless steel pumps (Models 220666
through 220668 and Models 237011 to 237013), apply
anti-seize lubricant to the threads of the cap (53).
Repairing the Fluid Piston and Seal
NOTE: Parts marked with an asterisk are included in a
repair kit, for example, (52*). See pages 38 and 39 for
repair kit part numbers. Use all the parts in the kit for
the best results.
Disassembly
1. Relieve the pressure.
WARNING
PRESSURIZED EQUIPMENT HAZARD
To reduce the risk of a serious injury whenever you
are instructed to relieve pressure, follow the Pres-
sure Relief Procedure on page 10.
2. Loosen the tube nuts (A) and remove the outlet
manifold (50). Unscrew the connectors (51). Re-
move the o–ring (52). See Fig. 6.
3. Remove the screws (34), washers (35), outlet
housing (33), piston seal (13*) and retaining plate
(12). Remove the o–ring (18). Repeat on the other
side of the pump.
4. Holding the screw (16) on one side of the pump,
loosen the screw three or four turns on the oppo-
site side of the pump, using a socket and breaker
bar.
5. Remove the piston (17) by grasping it with your
hand and and hit screw (16) with a plastic mallet to
drive piston loose from shaft. Remove screw (16)
and piston (17).
6. Remove the screws (32), washers (46 or 61), and
inlet manifold (47). Remove o–rings (19).
7. Remove the intake housing (36), bellows (14*),
and retaining plate (20).
8. Holding the piston shaft (15) flats with a wrench,
remove the remaining screw (16).
9. Repeat steps 6 and 7 on the opposite end of the
pump. Clean all parts and inspect for wear or dam-
age. Replace as needed.

16 307843
Service
Assembly
1. Slide the retaining plate (20), bellows (14*), and
intake housing (36) onto the piston shaft (15). Do
not force the bellows. Repeat on the other side.
CAUTION
To avoid damaging the bellows (14), do not force it
onto the shaft. The bellows will press into place when
the piston (17) is secured.
2. Install the piston (17) on the shaft (15) and secure
it with the screw (16). Repeat on the opposite end
of the pump.
3. Using a socket and breaker bar, torque one screw
(16) to 40 to 50 ft-lb (54 to 67 NSm), then repeat
with the other screw.
4. Grease and install an o-ring (19*) in each inlet.
Install inlet manifold (47) with screws (32) and
washers (46 or 61). Don’t torque screws yet.
CAUTION
To avoid loosening the piston stud (30) during disas-
sembly, do not overtighten the screws (16).
NOTE: If using a formed UHMWPE seal, proceed to
step 5. If using a flat nylon seal, proceed to step 6.
5. Grease and install the o-ring (18*) in the groove in
the tapered side of the retaining plate (12). Grease
the outlet housing (33) and install the piston seal
(13*) and retaining plate (12). Be sure the flat side
of the retaining plate faces the piston seal. Secure
with the four screws (34) and washers (35).
6. Apply 10 psi air to move the piston to one side and
hold it there. Replace the o–ring (18*) in the
groove in the tapered side of the retaining plate
(12).
Grease the oulet housing groove and set the nylon
seal (13) inside the groove. Carefully tip the hous-
ing (33) onto the inlet housing. Be sure the flat side
of the retaining plate (12) faces the piston seal.
Secure with the four screws (34) and washers
(35).
Increase the air pressure to about 50 psi until the
pump cycles and the piston drives to the other
side.
Reduce the air pressure to 10 psi to hold in posi-
tion. Repeat the seal installation pattern.
Increase the air pressure to 50 psi again to cause
the pump to cycle again and form the seal on the
first side.
NOTE: Torque the screws, on 400 and 1200 Series
pumps, to 40 to 50 ft-lb (54 to 68 N-m). Torque the
screws on the 2500 Series pump, to 35 to 40 ft-lb (47
to 54 N-m).
7. Torque the inlet manifold screws (32) to 7.4 to 12.5
ft-lb (10 to 17 N-m).
8. Replace the o-ring (52*) in each outlet manifold
connector (51) and lubricate the threads. Install the
outlet manifold (50), torquing the connectors to 55
to 85 ft-lb (75 to 115 NSm).
NOTE: On stainless steel pumps (Models 220666
through 220668 and Models 237011 to 237013), apply
anti-seize lubricant to the threads of the connector
(51).

307843 17
Service
NOTES:
Lubricate threads. Torque to
55 to 85 ft-lb (75 to 115 NSm)
Fit o-ring into groove
400 & 1200 Series pumps: Torque to
40 to 50 ft-lb (54 to 68 NSm)
2500 Series pumps: Torque to 35
to 40 ft-lb (47 to 54 NSm)
223111 & 220487 :Torque to 110 to 120 ft-lb (149 to 162 NSm)
220491 & 220485: Torque to 140 to 150 ft-lb (190 to 203 NSm)
See model and part number for specification.
Torque to 40 to 50 ft-lb (54 to 67 NSm)
Torque to 7.4 to 12.5 ft-lb (10 to 17 NSm)
Item 61 is used on stainless steel models only
On stainless steel pumps (Models 220666 through 220668 and Models 237011
to 237013), apply anti-seize lubricant to the threads.
Fig. 6
02326
1
2
3
50
4
5
6
A
5
2
1
3
4
5
6
53
54*
57
56
49
48
33
34
35
51
13*
12 18*
16
17
36
19*
47
46 or 61
32
16
14*
20
15
1
52*
55
7
7
8
8
8
58
8
73

18 307843
Service
Repairing the Air Motor and Piston
NOTE: Parts marked with an asterisk are included in a
repair kit, for example, (23*). See pages 38 and 39 for
repair kit part numbers. Use all the parts in the kit for
the best results.
Disassembly
1. Relieve the pressure.
WARNING
PRESSURIZED EQUIPMENT HAZARD
To reduce the risk of a serious injury whenever you
are instructed to relieve pressure, follow the Pres-
sure Relief Procedure on page 10.
2. Disassemble the pump as instructed under Re-
pairing the Fluid Piston and Seal.
3. Remove the screws (3 & 4), washers (46), nuts
(1), and lockwashers (2) from the cylinder cap

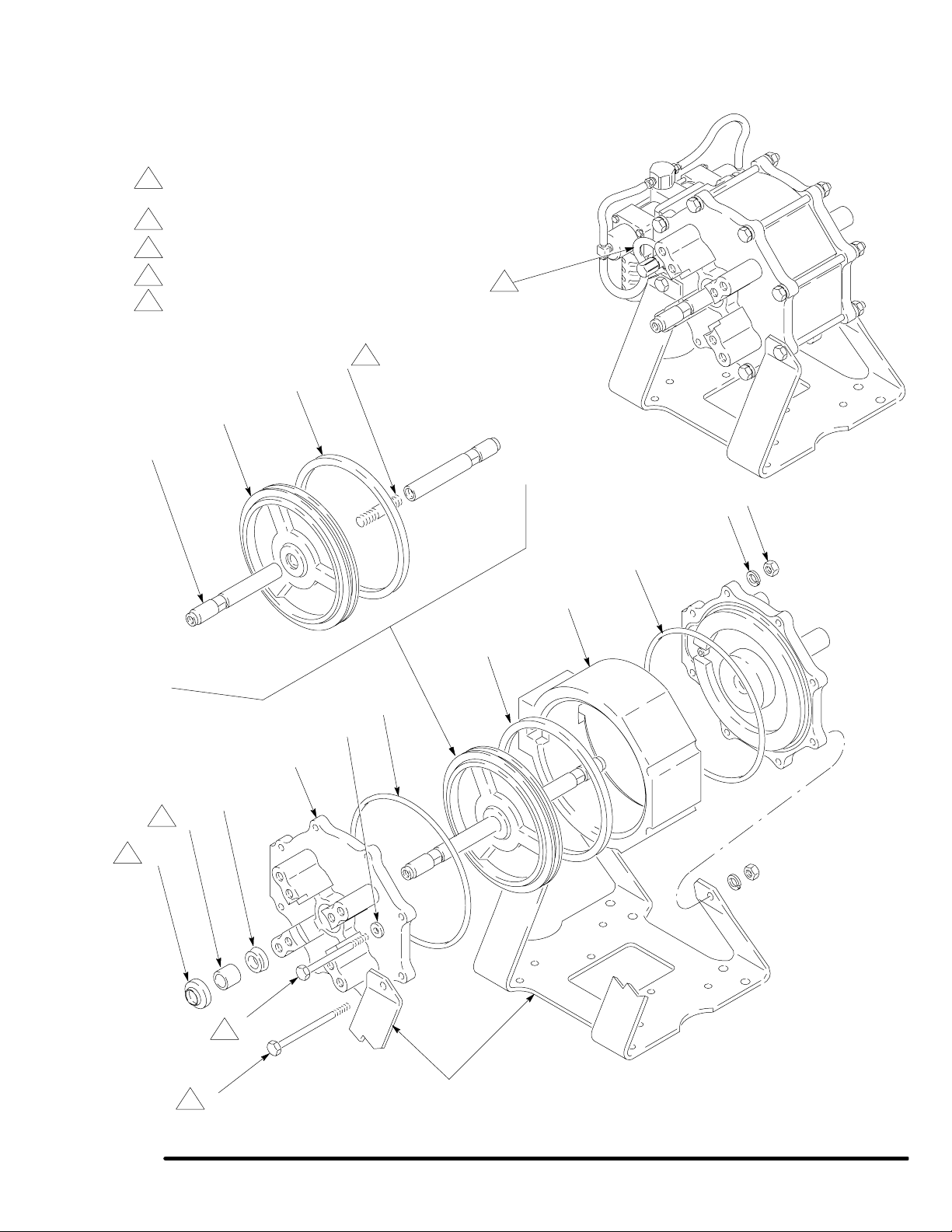

(25). See Fig. 7.
4. Remove the pump from the mounting bracket (44).
5. Remove the cylinder cap (25) from each end of the
air motor. If the hoses aren’t disconnected or the
pilot valves removed, be careful not to pull on the
hoses when removing the caps.
CAUTION
The shaft wiper (21) and bearing (22) are meant to
remain in place. Remove only to replace. Removal
will damage them.
6. Remove the shaft wiper (21) and bearing (22); only
if they need to be replaced, and u-cup (23*) from
each of the cylinder caps (25). Use a 0.875 in. di-
ameter shaft to remove the bearing.
7. Remove the piston assembly (A) from the air mo-
tor cylinder (27). Remove the seal (28).
8. Do not remove the piston shafts (15) unless re-
placement is necessary as a high strength sealant
was used on the threads. If the rods must be re-
moved, heating the joint to 300_F will ease disas-
sembly. Place wrenches on the flats of the piston
shaft to disconnect them from the piston stud (30).
9. Clean all parts and inspect for wear or damage.
Replace as needed.
Assembly
1. Apply lithium base grease to all packings, seals,
and the inside of the air motor cylinder (27) before
assembling.
2. If the piston shafts (15) were removed from the
piston stud (30), apply high strength sealant (such
as Loctiter) to the threads of the piston stud, and
assemble as shown in Fig. 7.
3. Install the quad ring (28*) in the groove on the pis-
ton (29). Install the piston assembly (A) into the air
motor cylinder (27).
4. Install a u-cup (23*) into each of the cylinder caps
(25). The lips of the u-cup must face in, towards
the center of the pump, as shown in Fig. 8.
5. If the bearings (22) were removed, install a bearing
into each cylinder cap (25). Press fit the bearing to
flush, using an arbor press.
6. Install a shaft wiper (21) into each cylinder cap
(25) with the brass part of the wiper facing out,
away from the center of the pump, as shown in
Fig. 8. Carefully press the wiper into place, taking
care to avoid damaging the brass piece.
7. Install an o-ring (26*) into the groove in each of the
cylinder caps (25). Slide a cylinder cap (25) onto
each end of the air motor. Align flat edges with air
valve.
8. Secure the mounting bracket (44) and cylinder
caps (25) on the pump with the screws (3 and 4),
washers (46), nuts (1), and lockwashers (2). Tor-
que the screws oppositely and evenly to 7.4 to
12.5 ft-lb (10 to 17 NSm).

307843 19
Service
Fig. 7
28*
REF
A
NOTES:
Take care not damage tubes when re-
moving cap (25)
Apply high-strength sealant to threads
Torque to 7.4 to 12.5 ft-lb (10 to 17 NSm)
Press fit to flush
Press fit to bottom
2
1
3
4
5
1
0232
7
3
4
5
30
29
15
1
2
26*
28*
27
25
46
23
22
21
4
344
3
2
26*

20 307843
Service
Repairing the Air Control Valve
NOTE: Air Valve and Pilot Valve Repair Kit 220656 is
available. See page 38 to order. Parts included in the
kit are marked with an asterisk, for example, (40p*).
Use all the parts in the kit for the best results.
Disassembly
1. Relieve the pressure.
WARNING
PRESSURIZED EQUIPMENT HAZARD
To reduce the risk of a serious injury whenever you
are instructed to relieve pressure, follow the Pres-
sure Relief Procedure on page 10.
2. Cut a small slit in the tube ends (72*, 42*, 40p*)
and disconnect them from the pilot valve fittings
(5h), air valve tees (40n), and barb fittings (40s).
See Fig. 8.
3. Remove the valve end housings (40b) by unscrew-
ing the screws (40k) and nuts (40m).
4. Center the valve spools (40c) in the housing (40a).
Remove the spools and stem (40d) by applying
opposing force with wrenches on the spool (40c)
flats.
5. If the air filter (40q) needs cleaning or replace-
ment, unscrew the filter housing (40r) and remove
the filter. To clean them, soak the filter housing and
the filter in solvent until they are clean. Blow them
dry with low pressure air [under 30 psi (207 MPa,
2.1 bar)]. Press fit the filter into the housing, using
40 to 60 lb (18 to 27 kg) of force. Refer to Fig. 8.
Apply sealant to the filter housing threads and turn
it into the center housing (40a).
Assembly
1. Apply lithium-base grease to all o-rings, u-cups,
gaskets and to the complete spool assembly be-
fore installing them.
2. Remove the seal retainers (40e) from each side of
the center housing (40a). Replace the u-cup (40j*),
with the lips facing into the housing. Install the re-
tainers with the flat side facing into the housing.
3. Replace the spools (40c) if damaged. Replace the
o-ring (40h*) and u-cup (40i*) on each spool, being
sure to seat them in the grooves. Install the u-cup
with the lips facing towards the housing (40a).
4. Apply medium strength thread sealant to the spool
stem (40d) threads. Remove the excess sealant.
5. Thread one spool (40c) onto the stem (40d) and
insert it into the center housing (40a); be careful
not to dislodge the u-cups (40j) and retainers
(40e). Thread the other spool onto the stem. With
wrenches on the flats of the spools, apply oppos-
ing force and tighten until snug; 7 to 13 in-lb (0.79
to 1.47 NSm). Do not overtighten.
CAUTION
Do not overtighten the spools (40c) as this can
shear the spool threads.
6. Replace the gasket (40f*) in each end housing
(40b) and the o-ring (40g*) on each end housing
shoulder.
7. With the mufflers facing down, install the end
housings (40b), onto the center housing (40a); be
careful not to move the spool and dislodge the u-
cups (40j) and retainers (40e). Secure the end
housings with the four screws (40k) and nuts
(40m), torquing them to 2.2 to 3.7 ft-lb (3 to 5
NSm).
CAUTION
If mufflers (38) are replaced, they must be installed
with the lock rings (39) to avoid damage to the spool
and o-rings during operation.
8. Replace the two o-rings (40h*) in the center hous-
ing (40a).
9. Install the air valve on the pump with the four cap
screws (43). Torque them alternately and evenly to
2.2 to 3.7 ft-lb (3 to 5 NSm).
10. Connect the new tubes (72*, 42*, 40p*) to the pilot
valve fittings (5h), air valve tees (40n), and barb
fittings (40s), as shown in Fig. 8.
