Graco QUANTM QTC Series User manual

Instructions, Limited Release
QUANTM™ Pumps
Electric-operated diaphragm (EODD) pumps with an integral electric drive for fluid
transfer applications. Not for use with gasoline. Not approved for use in explosive
atmospheres or hazardous (classified) locations. For professional use only.
Industrial and Hygienic Models
See pages 6–10 for model information.
See pages 63–67 for maximum working pressure and electrical ratings.
Important Safety Instructions
Read all warnings and instructions in this
manual and related manuals before using
the equipment. Save these instructions.
Q-C Model
Industrial model shown Q-D Model
Industrial model shown Q-E Model
Industrial model shown
3A8947A
EN

2 3A8947A
Contents
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Configuration Matrix . . . . . . . . . . . . . . . . . . . . . . . . 6
Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

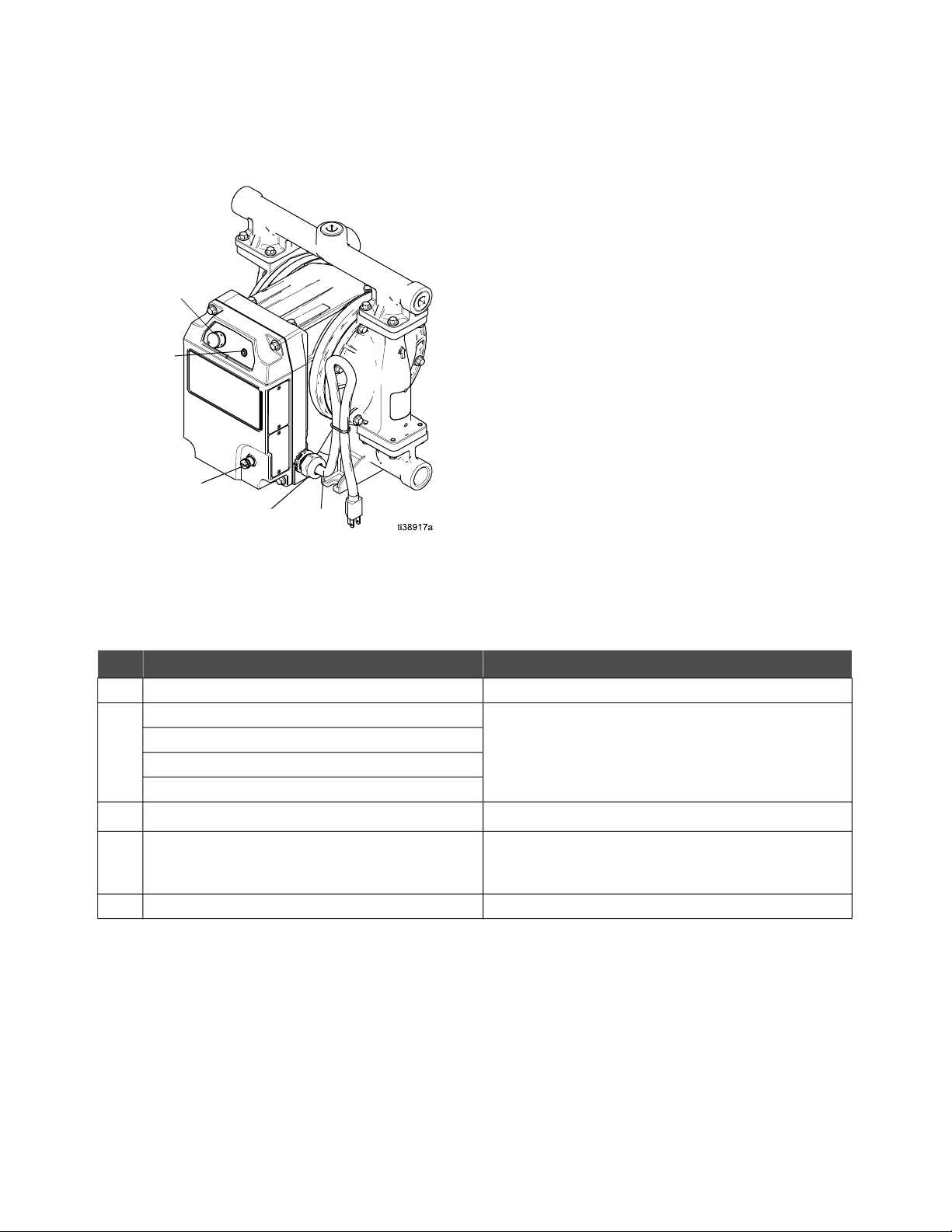

Component Identification . . . . . . . . . . . . . . . . . . . 11
Typical Installation . . . . . . . . . . . . . . . . . . . . . . . . . 12
General Information . . . . . . . . . . . . . . . . . . . . . . 12
Typical Installation . . . . . . . . . . . . . . . . . . . . . . . 12
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Mount the Pump . . . . . . . . . . . . . . . . . . . . . . . . 13
Connect Fluid Lines . . . . . . . . . . . . . . . . . . . . . . 13
Install Accessories . . . . . . . . . . . . . . . . . . . . . . . 14
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Before First Use . . . . . . . . . . . . . . . . . . . . . . . . . 16
Electrical Connections and Wiring . . . . . . . . . . . . 17

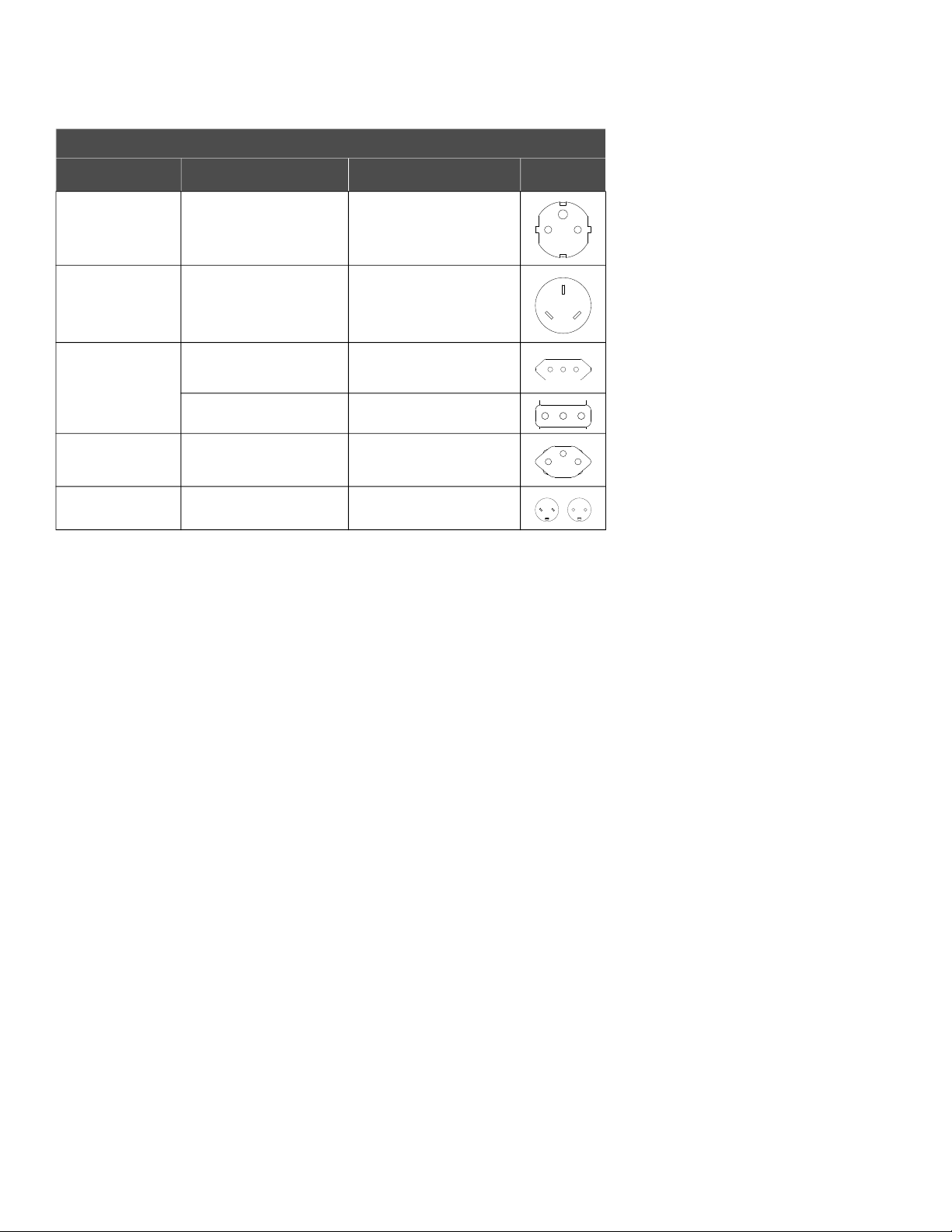

Required Power and Plugs . . . . . . . . . . . . . . . . 17
I/O Pin Connection. . . . . . . . . . . . . . . . . . . . . . . 19
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Pressure Relief Procedure . . . . . . . . . . . . . . . . . 21
Before Each Use . . . . . . . . . . . . . . . . . . . . . . . . 21
Start the Equipment. . . . . . . . . . . . . . . . . . . . . . 22
Shut Down the Equipment. . . . . . . . . . . . . . . . . 23
LED Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
LED Indicator Overview . . . . . . . . . . . . . . . . . . . 24
Troubleshoot LED Indicator Event Errors. . . . . . 25
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Lubricate the Equipment . . . . . . . . . . . . . . . . . . 27
Flush the Equipment . . . . . . . . . . . . . . . . . . . . . 28
Store the Equipment . . . . . . . . . . . . . . . . . . . . . 28
Clean the Wetted Contact Section . . . . . . . . . . 28
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Repair. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Prepare Equipment for Repair . . . . . . . . . . . . . . 32
Repair the Check Valves . . . . . . . . . . . . . . . . . . 33
Repair the Standard Diaphragms . . . . . . . . . . . . 35
Repair the Overmolded Diaphragms . . . . . . . . . 40
Recycling and Disposal . . . . . . . . . . . . . . . . . . . . . 42
End of Equipment Life . . . . . . . . . . . . . . . . . . . . 42
Torque Fasteners . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Torque Instructions. . . . . . . . . . . . . . . . . . . . . . . 43
Torque Sequence . . . . . . . . . . . . . . . . . . . . . . . . 43
Performance Charts . . . . . . . . . . . . . . . . . . . . . . . . 46
Performance Chart for Q-C Models . . . . . . . . . . 46
Performance Chart for Q-D Models . . . . . . . . . . 47
Performance Chart for Q-E Models . . . . . . . . . . 47
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Dimensions for QTC Models . . . . . . . . . . . . . . . 48
Dimensions for QHC Models . . . . . . . . . . . . . . . 50
Dimensions for QTD Models . . . . . . . . . . . . . . . 53
Dimensions for QHD Models . . . . . . . . . . . . . . . 55
Dimensions for QTE Models. . . . . . . . . . . . . . . . 58
Dimensions for QHE Models . . . . . . . . . . . . . . . 60
Technical Specifications . . . . . . . . . . . . . . . . . . . . 63
Fluid Temperature Range . . . . . . . . . . . . . . . . . . 63
Technical Specifications for Q-C Models . . . . . . 64
Technical Specifications for Q-D Models . . . . . . 65
Technical Specifications for Q-E Models . . . . . . 66
Graco Standard Warranty. . . . . . . . . . . . . . . . . . . . 68
Related Manuals
English Manual
Number Description Reference
3A8948 QUANTM Electric Motor, Repair-Parts, Limited Release Motor Manual
3A8949 QUANTM Pumps, Parts, Limited Release Parts Manual

Warnings
3A8947A 3
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks.
When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings.
Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this
manual where applicable.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. Paint or
solvent flowing through the equipment can cause static sparking. To help prevent fire and explosion:
• Use equipment only in well-ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic
drop cloths (potential static sparking).

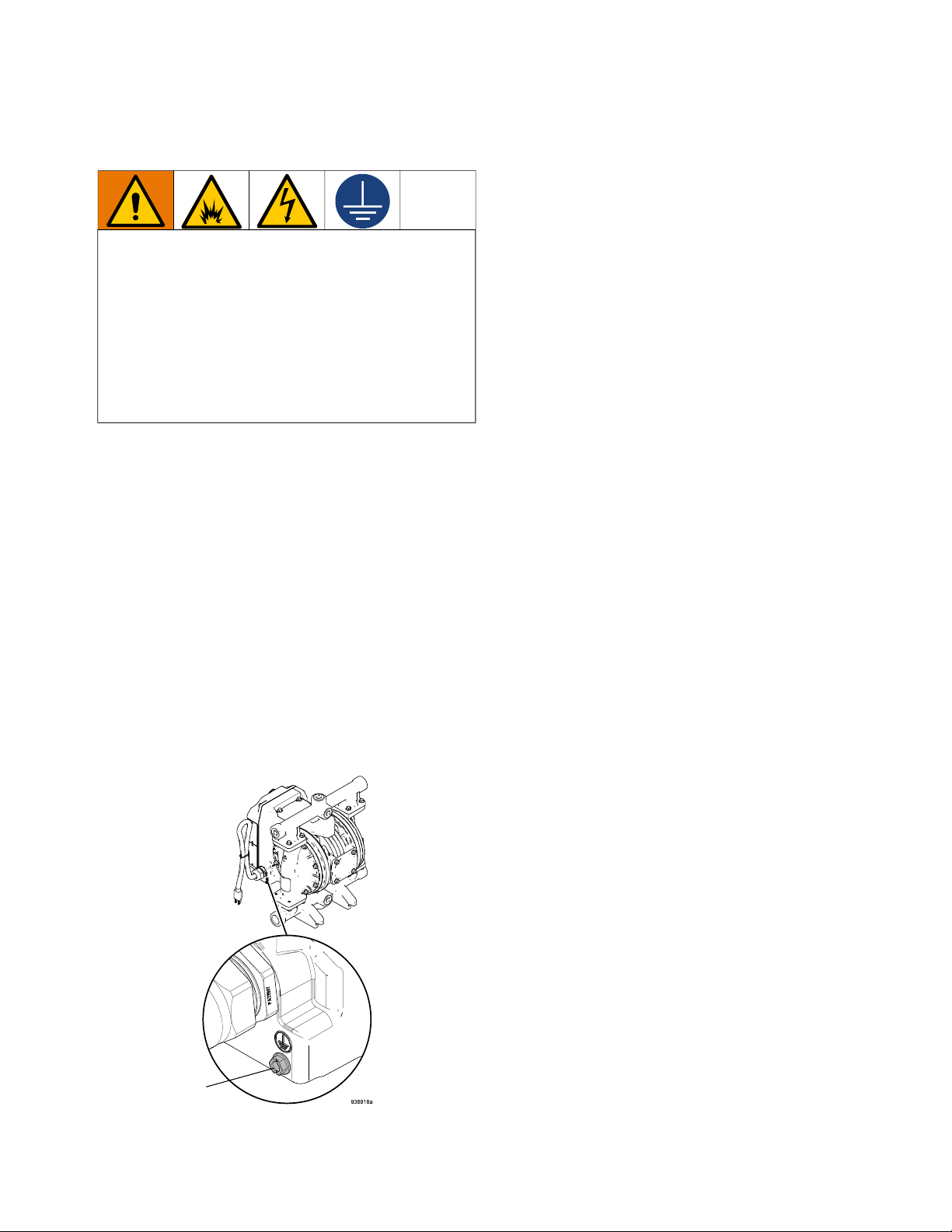

• Ground all equipment in the work area. See Grounding instructions.
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes
are present.
• Use only conductive grounded fluid lines.
•Stop operation immediately if static sparking occurs or you feel a shock. Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
Static charge may build up on plastic parts during cleaning and could discharge and ignite flammable
vapors. To help prevent fire and explosion:
• Clean plastic parts only in well-ventilated area.
• Do not clean with a dry cloth.
ELECTRIC SHOCK HAZARD
This equipment must be grounded. Improper grounding, setup, or usage of the system can cause
electric shock.
• Turn off and disconnect power cord before servicing equipment.
• Connect only to grounded electrical outlets.
• Only use 3-wire extension cords for 2-phase models. Only use 4-wire extension cords for 3-phase
models.
• Ensure ground prongs are intact on power and extension cords.
• Do not expose to rain. Store indoors.
• Wait five minutes after disconnecting power cord before servicing.

Warnings
4 3A8947A
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Specifications in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical
Specifications in all equipment manuals. Read fluid and solvent manufacturer’s warnings. For
complete information about your material, request Safety Data Sheets (SDSs) from distributor or
retailer.
• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals and
create safety hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route fluid lines, cords, and cables away from traffic areas, sharp edges, moving parts, and hot
surfaces.
• Do not kink or over-bend fluid lines, cords, or cables. Do not use fluid lines, cords, or cables to pull
equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
PLASTIC PARTS CLEANING SOLVENT HAZARD
Many cleaning solvents can degrade plastic parts and cause them to fail, which could cause serious
injury or property damage.
• Use only compatible solvents to clean plastic structural or pressure-containing parts.
• See Technical Specifications in all equipment manuals for materials of construction. Consult the
solvent manufacturer for information and recommendations about compatibility.
PRESSURIZED EQUIPMENT HAZARD
Fluid from the equipment, leaks, or ruptured components can splash in the eyes or on skin and cause
serious injury.
• Follow the Pressure Relief Procedure when you stop spraying/dispensing and before cleaning,
checking, or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check fluid lines and connections daily. Replace worn or damaged parts immediately.
WARNING

Warnings
3A8947A 5
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious
chemical reaction and equipment rupture. Failure to follow this warning can result in death, serious
injury, or property damage.
• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or
fluids containing such solvents.
• Do not use chlorine bleach.
• Many other fluids may contain chemicals that can react with aluminum. Contact your material
supplier for compatibility.
THERMAL EXPANSION HAZARD
Fluids subjected to heat in confined spaces, including fluid lines, can create a rapid rise in pressure
due to the thermal expansion. Over-pressurization can result in equipment rupture and serious injury.
• Open a valve to relieve the fluid expansion during heating.
• Replace fluid lines proactively at regular intervals based on your operating conditions.
ENTANGLEMENT HAZARD
Rotating parts can cause serious injury.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Do not wear loose clothing, jewelry or long hair while operating equipment.
• Equipment can start without warning. Before checking, moving, or servicing equipment, follow the
Pressure Relief Procedure and disconnect all power sources.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read Safety Data Sheets (SDSs) to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
BURN HAZARD
Equipment surfaces and fluid that is heated can become very hot during operation. To avoid severe
burns:
• Do not touch hot fluid or equipment.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury, including
eye injury, hearing loss, inhalation of toxic fumes, and burns. Protective equipment includes but is not
limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent
manufacturer.
WARNING

Configuration Matrix
6 3A8947A
Configuration Matrix
Record the model part number and configuration
sequence found on your equipment identification plate
(ID) to assist you when ordering replacement parts.
Model Part Number:
_______________________________________________
Configuration Sequence:
_______________________________________________
NOTE: Some combinations are not possible. Check with your local distributor.
ID
Sample Configuration Sequence: QTC-ACFC1ACACBNBNA10021
Q T C AC FC1 AC AC BN BN A1 00 21
Brand Application Model Wetted
Section
Material
Motor Seat
Material
Check
Material
Diaphragm
Material
Manifold
Seal
Material
Connection Options Material
Certifications
Brand Application Model Wetted Section Material
QQUANTM TIndustrial C30 (1 in. port) AC Acetal
HHygienic D60 (1-1/2 in. port) AL Aluminum
E120 (2 in. port) CI Cast Iron
CP Conductive Polypropylene
FG Food Grade, Stainless Steel, 125 micro finish
(cast CF8M)
HS Hygienic, Stainless Steel, 32 micro finish
HT Hastelloy
PH Pharmaceutical, Stainless Steel, 20 micro finish
PP Polypropylene
PV PVDF
SS 316 Stainless Steel
3A 3-A Hygienic, Stainless Steel, 32 micro finish

Configuration Matrix
3A8947A 7
Motor
Drive Coat Input
Voltage Phase Location Cord/Cable
Termination
FC1 Aluminum Direct
Drive
Black powder
coat
200–240 V 3-Phase Industrial, Ordinary Locations Cord with plug
FC2 Aluminum Direct
Drive
Black powder
coat
200–240 V Single-Phase Industrial, Ordinary Locations Cord with plug
FC5 Aluminum Direct
Drive
Black powder
coat
100–120 V Single-Phase Industrial, Ordinary Locations Cord with plug
FF1 Aluminum Direct
Drive
Fluorinated
ethylene
propylene
(FEP) coat
200–240 V 3-Phase Hygienic, Ordinary Locations Cord with plug
FF2 Aluminum Direct
Drive
FEP coat 200–240 V Single-Phase Hygienic, Ordinary Locations Cord with plug
FF5 Aluminum Direct
Drive
FEP coat 100–120 V Single-Phase Hygienic, Ordinary Locations Cord with plug

Configuration Matrix
8 3A8947A
Seat Material Check Material Diaphragm Material Manifold Seal Material
AC Acetal AC Acetal, ball BN Buna-N -- None
AL Aluminum BN Buna-N, ball CO Polychloroprene
Overmold
BN Buna-N
BN* Buna-N CR Polychloroprene,
standard, ball
CR Polychloroprene EP EPDM
FK* Fluoroelastomer CW Polychloroprene,
weighted, ball
EO EPDM Overmold FK Fluoroelastomer
FL Flapper, for hygienic
models only
EP EPDM, ball FK Fluoroelastomer PF PTFE Encapsulated
Fluoroelastomer
GE Geolast FK Fluoroelastomer,
ball
GE Geolast PT PTFE
PP Polypropylene FL Flapper, Stainless
Steel
PO PTFE/EPDM Overmold
PV PVDF GE Geolast, ball PS PTFE/Santoprene,
two-piece
SA 17-4PH Stainless Steel
with PTFE seals
PT PTFE, ball PT PTFE/Neoprene,
two-piece
SB 316 Stainless Steel with
Fluoroelastomer seals
SD 440C Stainless
Steel, ball
PU PTFE/polyurethane,
two-piece
SD 316 Stainless Steel with
PTFE seals
SP Santoprene, ball SP Santoprene
SP Santoprene SS 316 Stainless
Steel, ball
TP TPE
SS 316 Stainless Steel TP TPE, ball
TP* TPE
* Models with BN, FK, or TP seats do not use manifold seals.

Configuration Matrix
3A8947A 9
Connection Options Material Certifications
A1 Aluminum, standard ports, NPT 00 Standard 21 EN 10204 type 2.1
A2 Aluminum, standard ports, BSP DP Drum Pump 31 EN 10204 type 3.1
A26 Aluminum, standard ports, BSP, no plugs FH Flapper, horizontal
AC3 Acetal, standard ports, NPT OD Open Down Port
AC4 Acetal, standard ports, BSP OR Outlet Reversed
C1 Conductive Polypropylene, center flange RE Remote
C2 Conductive Polypropylene, end flange SF Sanitary Flapper
C3 Conductive Polypropylene, standard ports, NPT SM Split Manifold
C4 Conductive Polypropylene, standard ports, BSP SS Stroke Sensor
F1 PVDF, center flange
F2 PVDF, end flange
F3 PVDF, standard ports, NPT
F4 PVDF, standard ports, BSP
H1 Hastelloy, standard ports, NPT
H2 Hastelloy, standard ports, BSP
I1 Iron, standard ports, NPT
I2 Iron, standard ports, BSP
P1 Polypropylene, center flange
P2 Polypropylene, end flange
P3 Polypropylene, standard ports, NPT
P4 Polypropylene, standard ports, BSP
S1 Stainless Steel, standard ports, NPT
S2 Stainless Steel, standard ports, BSP
S3 Stainless Steel, standard ports, oil-certified, NPT
S4 Stainless Steel, standard ports, spring check, NPT
S13 Stainless Steel, standard ports, hygienic clamp
S14 Stainless Steel, standard ports, DIN
S51 Stainless Steel, center flange, horizontal outlet
S52 Stainless Steel, center flange, vertical outlet
SSA Center-ported tri-clamp
SSB Center-ported DIN

Approvals
10 3A8947A
Approvals
* See Configuration Matrix, starting on page 6, for detailed descriptions.
Model Information* Approvals
Motors
For motor approvals, see your
related motor manual. See
Related Manuals, page 2.
All pump models are approved to:
QH models with diaphragm materials coded PO combined with PT or FL
checks comply with: EC 1935/2004
QH models with diaphragm materials coded EO, PT, or PS combined with
EP, PT, or FL checks comply with:
EC 1935/2004
Class VI
Wetted contact section materials in QH models are FDA-compliant and meet the United States Code of Federal
Regulations (CFR).

Component Identification
3A8947A 11
Component Identification
FIG. 1: Component Identification (QTC Industrial model
shown)
Models include a cord with a plug and Input/Output
(I/O) port.
BB
EA
K
CC
Ref. Component Description
APower Cord/Cable 15 ft (4.6 m) cord with plug*
BB I/O Port/Cable
M12, 5-pin connector**
On/Off Control, Digital Input
Error Status, Digital Output
Speed Control, Analog Input
CC LED Indicator♦Standard
EExternal Ground Fastener, Ground Symbol The equipment is marked per IEC 417,
Symbol 5019:
KControl Knob Turn clockwise (right) to increase fluid output
* See Required Power and Plugs, page 17.
** See I/O Pin Connection, page 19.
♦ See LED Indicator, page 24.

Typical Installation
12 3A8947A
Typical Installation
General Information
A typical installations is shown in FIG. 2. The figure is
only a guide for selecting and installing system
components. Contact your local distributor for
assistance in planning a system to suit your needs.
Always use Genuine Graco Parts and accessories. Be
sure all accessories are adequately sized and
pressure-rated to meet the requirements of the system.
Reference letters in the text, for example, (A), refer to
the callouts in the figures.
Typical Installation
FIG. 2: Typical Installation (cord and plug connection) (QTC Industrial model shown)
A
B
C
D
E
F
G
H
J
M
N
K
L
Pump Components
A‡Power cord
BFluid inlet port
CFluid outlet port
DMounting feet
EGround fastener
KFluid output control knob
L▼Diaphragm access ports (not shown)
‡ Connect to a circuit with a main electrical disconnect. Install
a branch circuit protective device in each ungrounded
phase. Follow local codes and regulations.
▼ Install accessories. See Install Monitoring Accessories,
page 14, or Install Fluid Leak Line Accessories, page 14.
Accessories (Not Supplied)
F* Conductive, flexible fluid supply line
G* Fluid drain valve
HFluid shutoff valve
J* Conductive, flexible fluid outlet line
MFluid pressure gauge
NI/O Cable
* Required, not supplied.

Installation
3A8947A 13
Installation

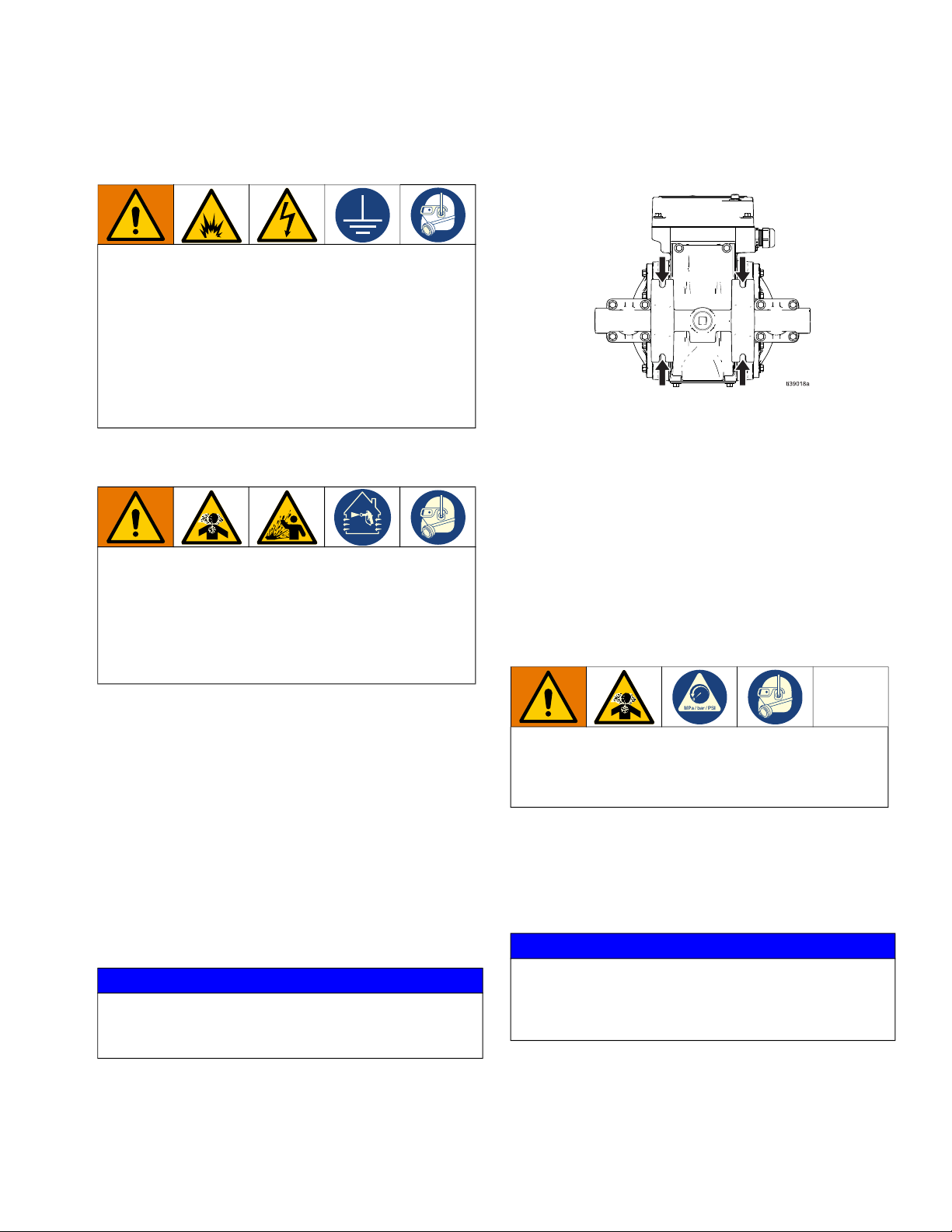

Mount the Pump
1. Ensure that the mounting surface is level.
2. Ensure that the mounting surface and mounting
hardware is strong enough to support the weight of
the pump, fluid lines, accessories, and fluid, as well
as the stress caused during operation.
3. For all mountings, be sure the pump is secured with
fasteners through the mounting holes on the base.
See FIG. 3. See Dimensions, starting on page 48.
NOTE: For ease of operation and service, mount
the pump so the control knob (K), LED indicator
(CC), I/O port/cable (BB), and fluid inlet and outlet
ports (B, C) are easily accessible.
FIG. 3: Mounting Holes (Industrial model shown)
Connect Fluid Lines
Use conductive, flexible fluid lines for fluid supply (F)
and fluid outlet (J) lines.
NOTE: For proper priming, ensure the fluid outlet
port (C) is mounted higher than the fluid inlet port (B).
See FIG. 2.
1. Install conductive, flexible fluid lines (F and J).
2. Install a fluid drain valve (G) near the fluid outlet.
See FIG. 2.
3. Install a fluid shutoff valve (H) in the fluid outlet line
(J) downstream from the fluid drain valve (G).
NOTE: Install the equipment as close as possible to the
material source. See Technical Specifications,
starting on page 63, for maximum suction lift.
Installation of this equipment involves potentially
hazardous procedures. Only trained and qualified
personnel who have read and who understand the
information in this manual should install this
equipment.
To avoid injury from fire, explosion, or electric
shock, all electrical wiring must be done by a
qualified electrician and comply with all local codes
and regulations.
The pump may be very heavy (see Technical
Specifications, starting on page 63, for specific
weights). If the pump must be moved, follow the
Pressure Relief Procedure, page 21. Use at least
two straps and appropriate lifting equipment or have
two people lift the pump. Do not use the outlet
manifold alone to lift the pump.
NOTICE
To avoid pump damage, mount the pump to the
mounting location using fasteners though each hole
of the feet. See FIG. 3.
A fluid drain valve (G) is required to relieve pressure
in the fluid outlet line. The drain valve reduces the risk
of serious injury, including splashing in the eyes or on
the skin, when relieving pressure.
NOTICE
The pump can be damaged if flexible fluid lines are
not used. If hard-plumbed fluid lines are used in the
system, use a short length of conductive, flexible
fluid line to connect to the pump.

Installation
14 3A8947A
Install Accessories
Install Monitoring Accessories
Install the following accessory to monitor equipment
performance.
•Leak Sensor: Monitors for leaks in the pump due
to diaphragm rupture. Automatically stops pump
operation and triggers the LED Indicator if a leak is
detected. Not provided with the equipment.
Accessory kits are available (purchase separately).
See your related motor manual. See Related
Manuals, page 2.
Install Fluid Line Accessories
Install the following accessories in the order shown in
FIG. 2, using adapters as needed.
•Fluid drain valve (G): Required. Relieves fluid
pressure in the system.
•Fluid shutoff valve (H): Shuts off fluid flow.
•Fluid pressure gauge (M): For more precise
adjustment of the fluid pressure.
•Fluid outlet line (J): To dispense fluid.
•Fluid supply line (F): Enables the equipment to
draw fluid from a container.
Install Fluid Leak Line Accessories
If a leak sensor is not installed in the pump, install the
following accessory as shown in FIG. 4, using adapters
as needed.
NOTE: To monitor for leaks in the pump due to
diaphragm rupture, install a leak sensor. See Install
Monitoring Accessories, page 14.
•Fluid Leak line (L2): Routes fluid to a drain location
if fluid leaks due to diaphragm rupture.
1. Remove the plugs (if applicable) in the diaphragm
access ports (L).
2. Install conductive, flexible fluid leak lines (L2) to the
diaphragm access ports (L).
3. Route the fluid leak lines (L2) to a grounded end
container (L3) to catch leaking fluid. Follow local
codes and regulations for grounding.
FIG. 4: Typical Installation of Fluid Leak Lines (Industrial
model shown)
NOTICE
To avoid pump damage, install a leak sensor to
detect leaks in the equipment due to diaphragm
rupture.
If a leak sensor is not installed in the pump and the
diaphragm ruptures, the equipment will fill with fluid
or fluid will drain into the work area. To avoid injury
from leaking fluid, toxic fluid, toxic fumes, splashing
fluid, or hot fluid, install fluid drain lines to route fluid
leaks due to diaphragm rupture.
NOTICE
To avoid pump damage due to diaphragm rupture,
install a leak sensor to detect leaks in the equipment
and automatically stop pump operation. See Install
Monitoring Accessories, page 14.
NOTICE
The pump can be damaged if flexible fluid lines are
not used. If hard-plumbed fluid lines are used in the
system, use a short length of conductive, flexible
fluid line to connect to the pump.
L2
L3
L
L

Installation
3A8947A 15
Grounding
Before operating the equipment, ground the system as
follows.
Ground the Pump
Connect a Static Ground
See FIG. 5.
1. Loosen the ground fastener (E).
2. Insert one end of a 12-gauge or thicker ground wire
behind the ground fastener and securely tighten the
ground fastener (E).
3. Connect the clamp end of the ground wire to a true
earth ground.
NOTE: A ground wire and clamp (part number 238909)
is available (purchase separately).
FIG. 5: Equipment Ground Fastener (Industrial model
shown)
Connect the Electrical Ground
Ground through the provided power cord and plug.
Connect the plug to a power outlet that is properly
installed and grounded to a true earth ground.
Ground the Fluid Lines
Use only conductive fluid lines with a maximum of 500
ft (150 m) combined line length to ensure grounding
continuity. Check electrical resistance of the fluid lines.
Ground the Fluid Supply Container
Follow local codes and regulations.
Ground the Pails for Solvents and
Sanitizing Solution Used when Flushing
Follow local codes and regulations. Use only
conductive metal pails, placed on a grounded surface.
Do not place the pail on a non-conductive surface,
such as paper or cardboard, which interrupts
grounding continuity.
Verify Ground Continuity
Check the pump ground continuity after the initial
installation. Set a regular schedule for checking ground
continuity to maintain proper grounding. Do not exceed
1 ohm resistance from earth ground to the pump.
The equipment must be grounded to reduce the risk
of static sparking and electric shock. Electric or static
sparking can cause fumes to ignite or explode.
Improper grounding can cause electric shock.
Grounding provides an escape wire for the electric
current.
• Always ground the entire fluid system as
described in this section.
• Follow local codes and regulations.
E

Installation
16 3A8947A
Before First Use
Tighten Fasteners
Before using the equipment for the first time, check and
torque all fasteners. Follow Torque Fasteners,
page 43.
After the first day of operation, re-torque the fasteners.
Tighten Connections
Check and tighten all fluid connections before operating
the equipment. Replace worn or damaged parts as
needed.
Flush the Equipment
Before using the equipment for the first time, flush the
equipment. Follow Flush the Equipment, page 28.
For QH (Hygienic) Models: The equipment was tested
using a food grade lubricant. If a food grade lubricant
could contaminate the fluid being dispensed, flush the
equipment thoroughly with a sanitizing solution before
first use.
For QT (Industrial) Models: The equipment was tested
with water. If water could contaminate the fluid being
dispensed, flush the equipment with a compatible
solvent before first use.
NOTICE
To avoid pump damage, do not over-torque the
fasteners on the equipment.
NOTICE
Firmly tighten all connections to avoid leaks and
damage to equipment parts.

Electrical Connections and Wiring
3A8947A 17
Electrical Connections and Wiring
Required Power and Plugs
NOTE: For equipment provided with a cable and flying
leads (no plug), install a main electrical disconnect per
local codes and regulations.
To avoid injury from fire, explosion, or electric
shock, all electrical wiring must be done by a
qualified electrician and comply with all local codes
and regulations.
Required Power and Plugs
Motor
Configuration
Code*
Model
Power Requirements
Cord/Cable Termination Plug
Input
Voltage Phase‡Hertz Current
F-1 Q-C, Q-D,
Q-E 200–240 V 3 50/60 Hz 7.5 A NEMA L15-20 Plug
F-2
Q-C 200–240 V 1 50/60 Hz 10 A IEC 60320-C14 Plug#
Q-D, Q-E 200–240 V 1 50/60 Hz 15 A IEC 60320-C20 Plug#
F-5 Q-C 100–120 V 1 50/60 Hz 12 A NEMA 5-15 Plug
* See Configuration Matrix, starting on page 6, for detailed descriptions.
‡ Connect to a circuit with a main electrical disconnect. Install a branch circuit protective device in each ungrounded phase.
Follow local codes and regulations.
# Adapter plugs are available from Graco. See the table on the next page for available adapter kits by region.

Electrical Connections and Wiring
18 3A8947A
Adapter Kits for C14 and C20 Plugs by Region
Region C14 Plug Adapter Kits* C20 Plug Adapters Kits‡Plug
Europe 242001 15G958
Australia/China 242005 17A242
Italy
242002 --
-- 15G959
Switzerland 242003 15G961
Denmark 242003 --
* A C14 plug retainer clip (195551) can be purchased separately from Graco.
‡ A C20 plug retainer clip (121249) can be purchased separately from Graco.

Electrical Connections and Wiring
3A8947A 19
I/O Pin Connection
NOTE: All I/O connectors are capable of 30 VDC (volts
of direct current) and are reverse-polarity protected.
For wiring, see Equivalent Electrical Circuits for I/O
Pin Connection, page 20.
FIG. 6: M12, 5-pin Connector
To avoid injury from fire, explosion, or electric
shock, all electrical wiring must be done by a
qualified electrician and comply with all local codes
and regulations.
I/O Connector Pinout
Pin Connector Type Description
Pin 1 Digital Input Digital input has an internal 5 VDC pull-up for dry-contact or current-sinking
circuits. Digital input is internally clamped for push-pull outputs. Pull the input
low to stop the equipment from running. Release or drive the input high to
re-enable the equipment.
Pin 2 Digital Output
(Equipment Running)
Digital output is current-sinking with a current capacity up to 100 mA. Digital
output is internally clamped for driving large inductive loads. The output is
automatically pulled low when the equipment is running and automatically
released when the equipment is not running.
Pin 3 GND/Common Earth ground, common connection.
Pin 4 Analog Input, Positive Analog inputs are 4–20 mA current-controlled. When the analog input is
connected and driving current, the equipment disables the control knob (K)
and uses the analog input to control the speed and pressure of the
equipment. The control knob (K) can still be used to shut off the equipment by
turning the knob to off (0). To re-enable the equipment at the speed and
pressure commanded by the analog input, turn the control knob up
(clockwise).
To disable the analog input control and enable the control knob (K):
1. Shut down the equipment. See Shut Down the Equipment, page 23.
Ensure the LED indicator is off (no light).
2. Disconnect power to the system.
3. Disconnect the analog input (Pin 4, Pin 5).
4. Connect the unit to a power source to turn on the equipment and enable
the control knob (K) on the equipment.
Pin 5 Analog Input, Negative
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5

Electrical Connections and Wiring
20 3A8947A
Equivalent Electrical Circuits for I/O Pin Connection
Equivalent Electrical Circuits for I/O Pin
Connection
I/O Circuit Equivalent Circuit
Digital Input
Compatible Drivers for Digital Input
Switch or
Relay
Open
Collector
(NPN)
Push-Pull
Driver
M12,
Pin 1
4.7
Kiloohms
+
Logic:
Low (Run) < 2.0 V
High (Stop) > 3.0 V
5 VDC
M12,
Pin 3
–Maximum
30 VDC
+
–
+
–
+
–
Maximum 30 VDC
Digital
Output
Analog
Input
Equivalent Electrical Circuits for I/O Pin
Connection
I/O Circuit Equivalent Circuit
+
–
M12,
Pin 3
M12,
Pin 2
Logic:
Pump Running: Active
Pump Stopped: Inactive
Maximum 30 VDC,
Maximum 100 mA
+
–
M12,
Pin 5
M12,
Pin 4
Maximum 30 VDC
Maximum
2.0 W
440 Ohms
