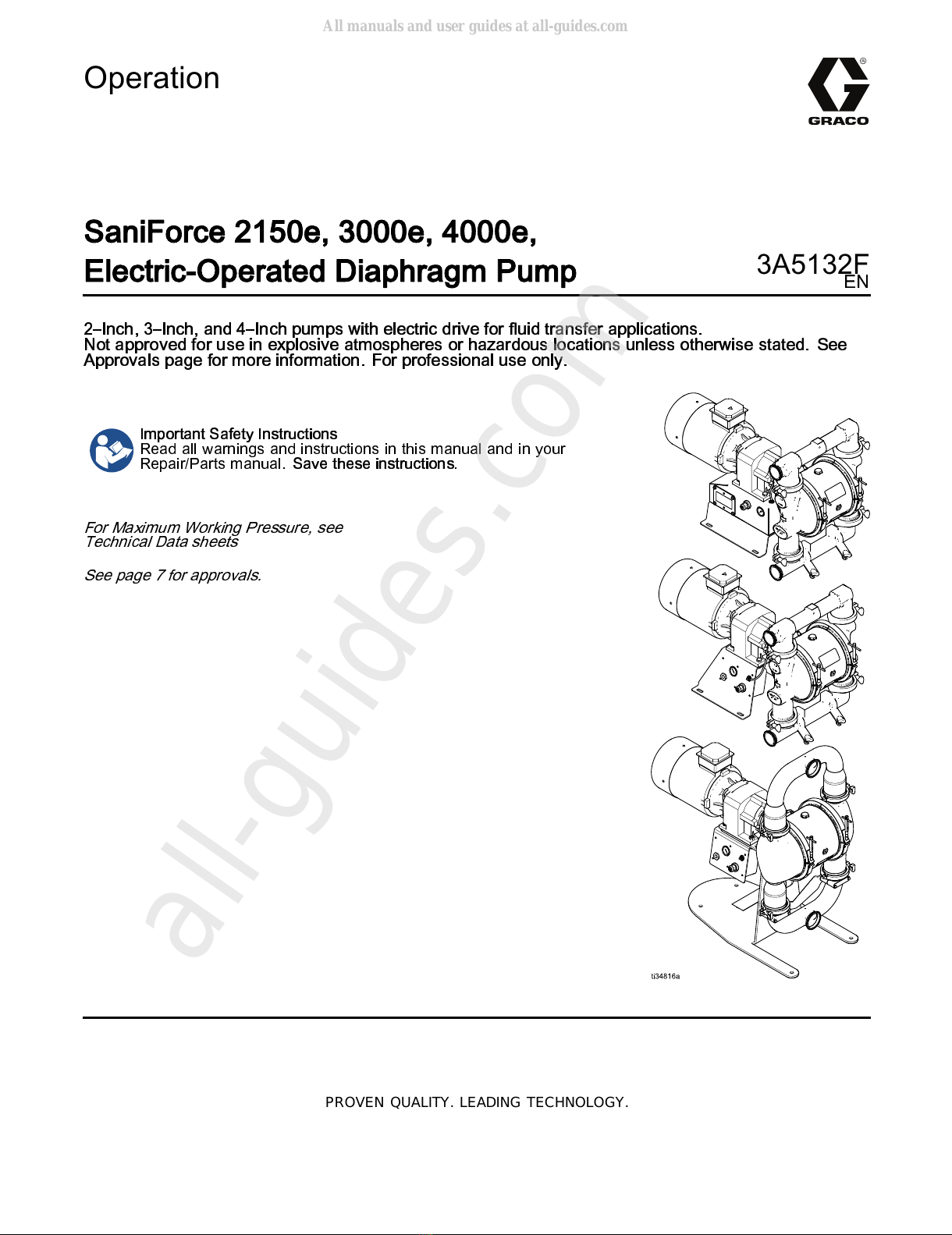

Graco SaniForce 2150e Instruction Manual

Operation
SaniForce 2150e, 3000e, 4000e,
Electric-Operated Diaphragm Pump 3A5132F
EN
2–Inch, 3–Inch, and 4–Inch pumps with electric drive for fluid transfer applications.
Not approved for use in explosive atmospheres or hazardous locations unless otherwise stated. See
Approvals pa e for more information. For professional use only.
Important Safety Instructions
Read all warnings and instructions in this manual and in your
Repair/Parts manual. Save these instructions.
For Maximum Working Pressure, see
Technical Data sheets
See page 7 for approvals.
PROVEN QUALITY. LEADING TECHNOLOGY.
All manuals and user guides at all-guides.com
all-guides.com

Content
Related Manuals ................................................ 2
Warnings ........................................................... 3
Configuration Number Matrix...............................
Ordering Information........................................... 8
Installation.......................................................... 9
General Information ..................................... 9
Tighten Clamps Before First Use .................. 9
Tips to Reduce Cavitation............................. 9

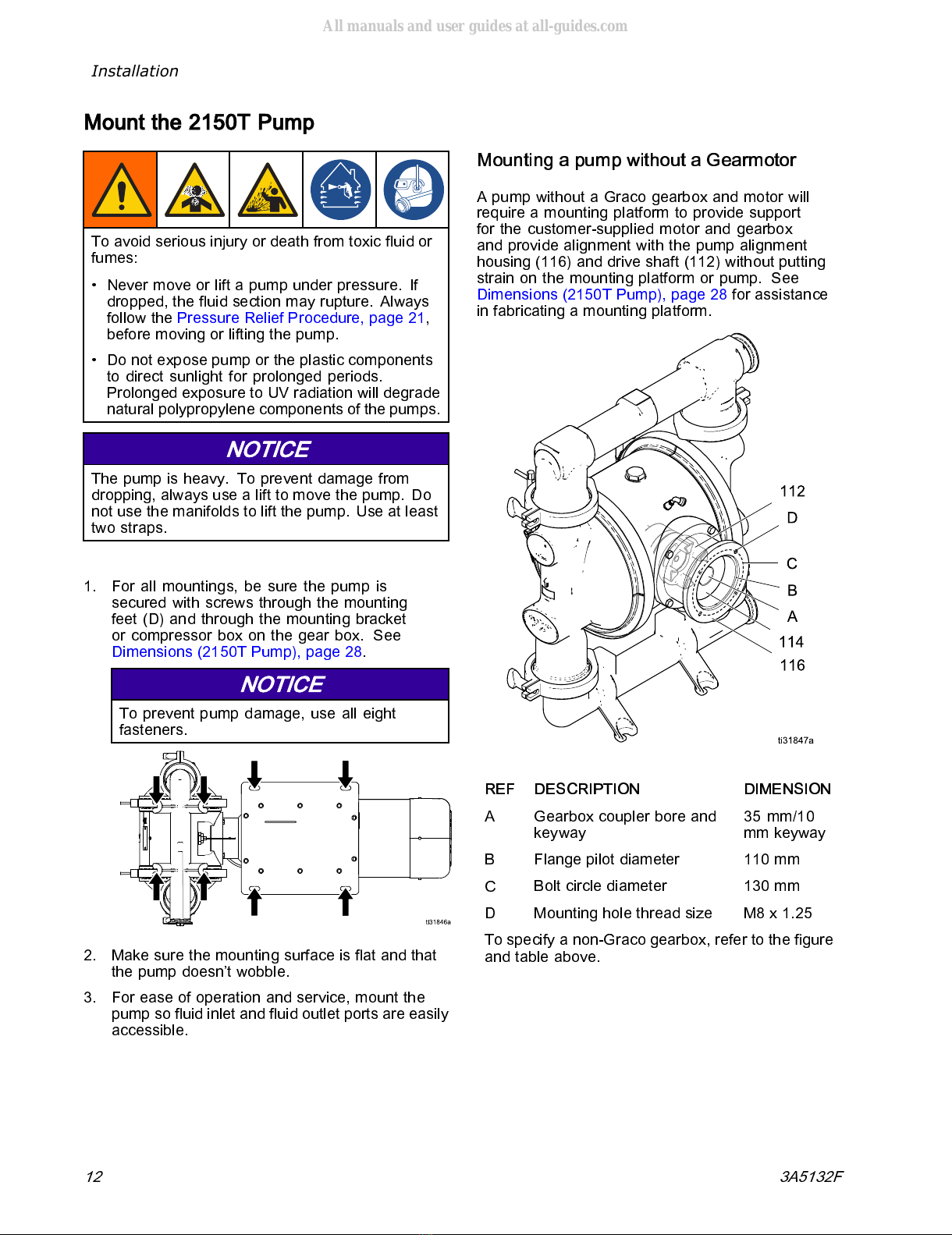

Mount the 2150T Pump................................ 12
Mount the HS Pump..................................... 13

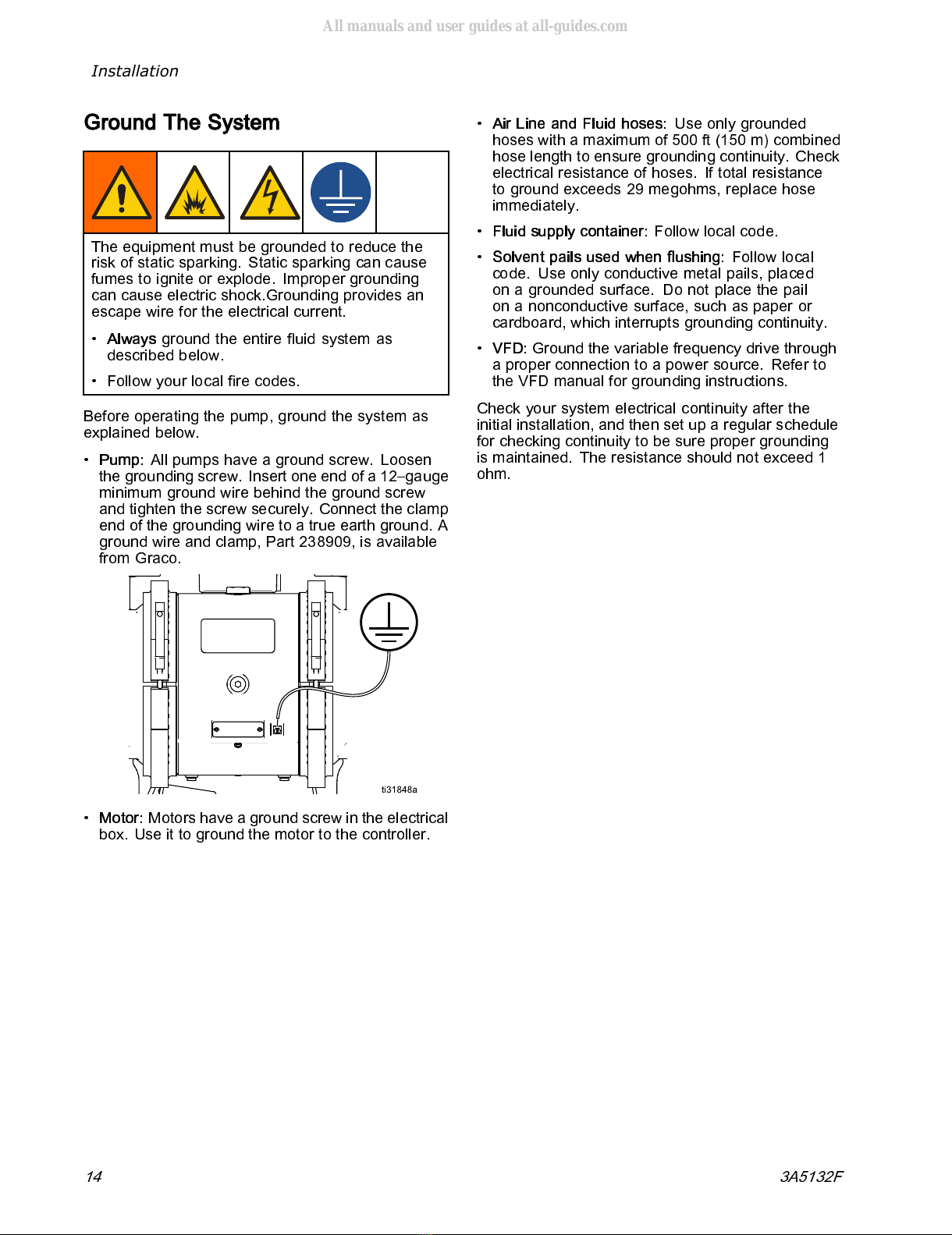

Ground The System..................................... 14

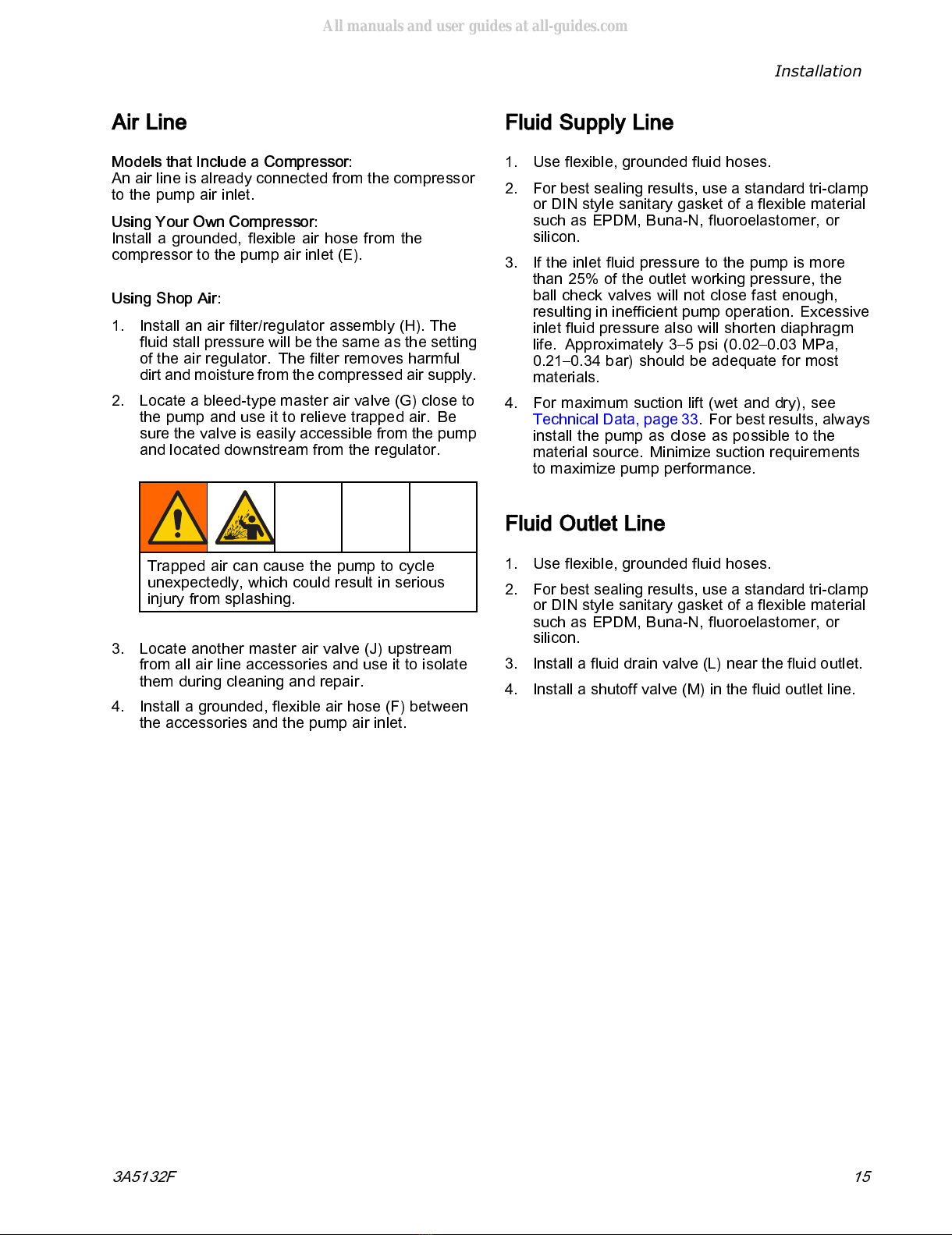

Air Line........................................................ 15
Fluid Supply Line .........................................15
Fluid Outlet Line........................................... 15

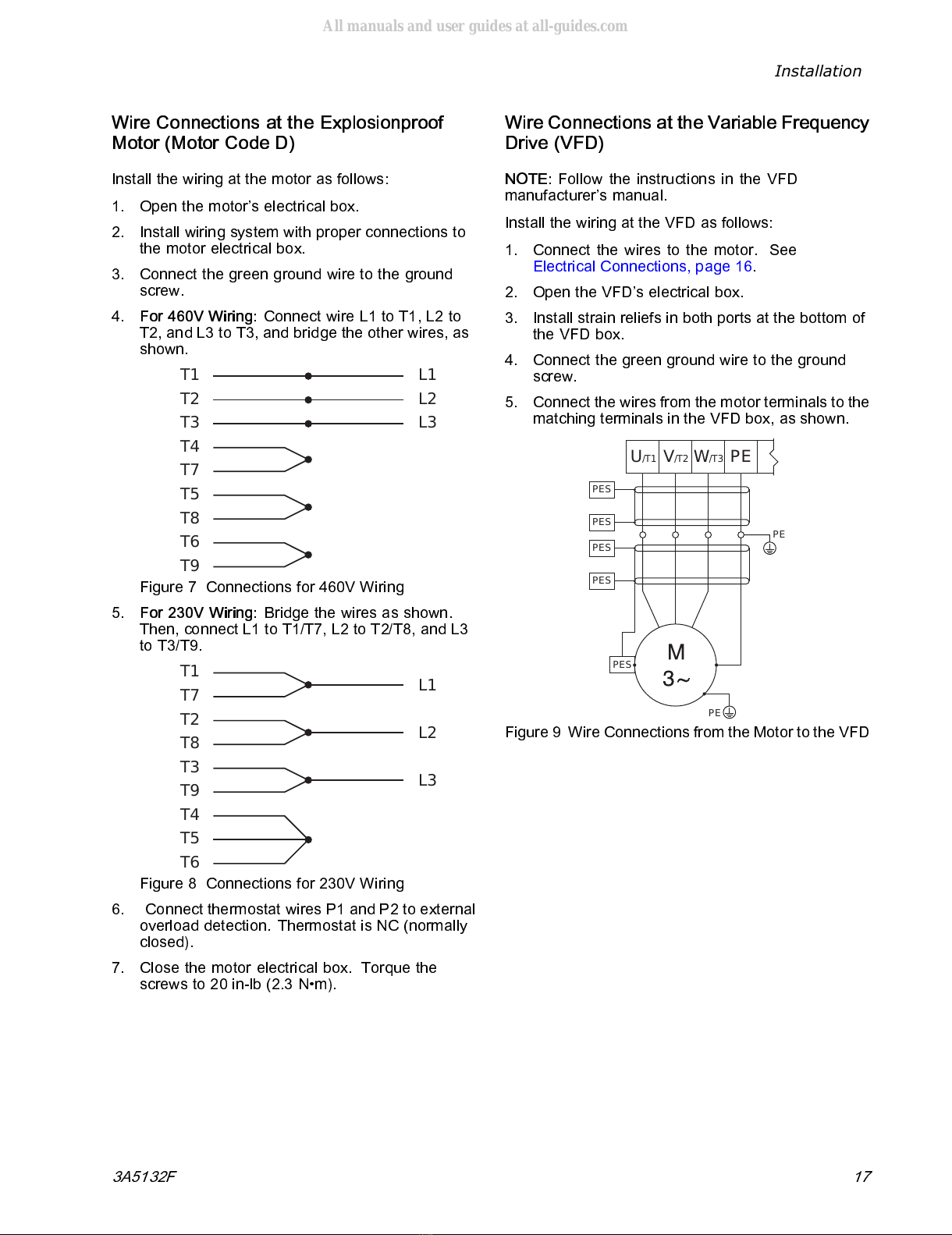

Electrical Connections.................................. 1
Leak Sensor Wiring...................................... 18
Compressor Wiring ...................................... 19

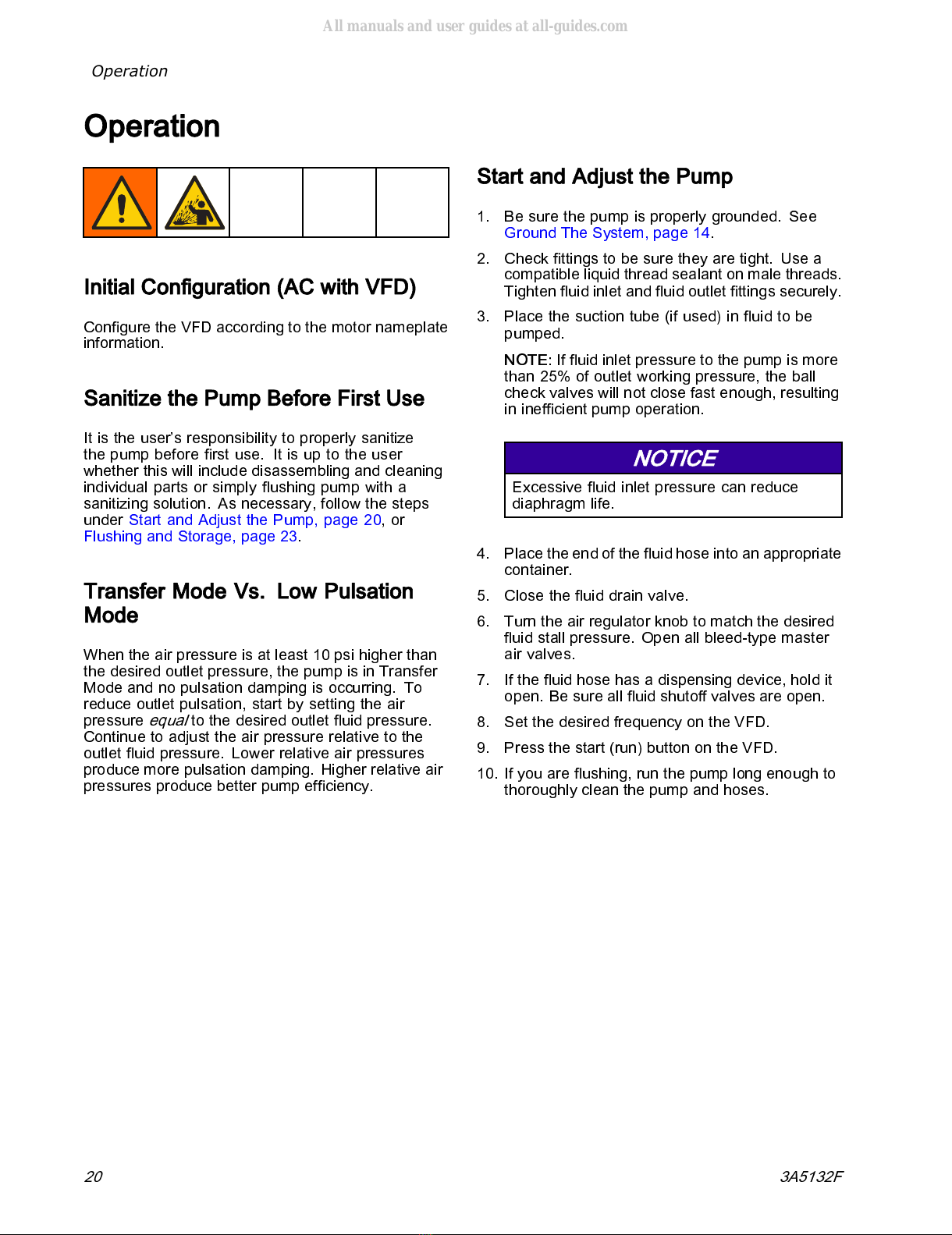

Operation........................................................... 20
Initial Configuration (AC with VFD)................ 20
Sanitize the Pump Before First Use............... 20
Transfer Mode Vs. Low Pulsation
Mode ............................................. 20
Start and Adjust the Pump............................ 20
Pressure Relief Procedure............................ 21
Pump Shutdown .......................................... 21
VFD Operation ................................................... 22
VFD Control Panel....................................... 22
Adjust the Speed ......................................... 22
Maintenance ...................................................... 23
Maintenance Schedule................................. 23
Lubrication................................................... 23
Tighten Connections .................................... 23
Flushing and Storage ................................... 23
Performance Data .............................................. 24
Dimensions (2150T Pump).................................. 28
Dimensions (3000HS Flapper Pumps) ................. 31
Technical Data ................................................... 33
Related Manual
Manual Number Title
3A5133 SaniForce™ 2150e, 3000e, 4000e, Electric-Operated Diaphragm Pump,
Repair/Parts
23 5132F
All manuals and user guides at all-guides.com

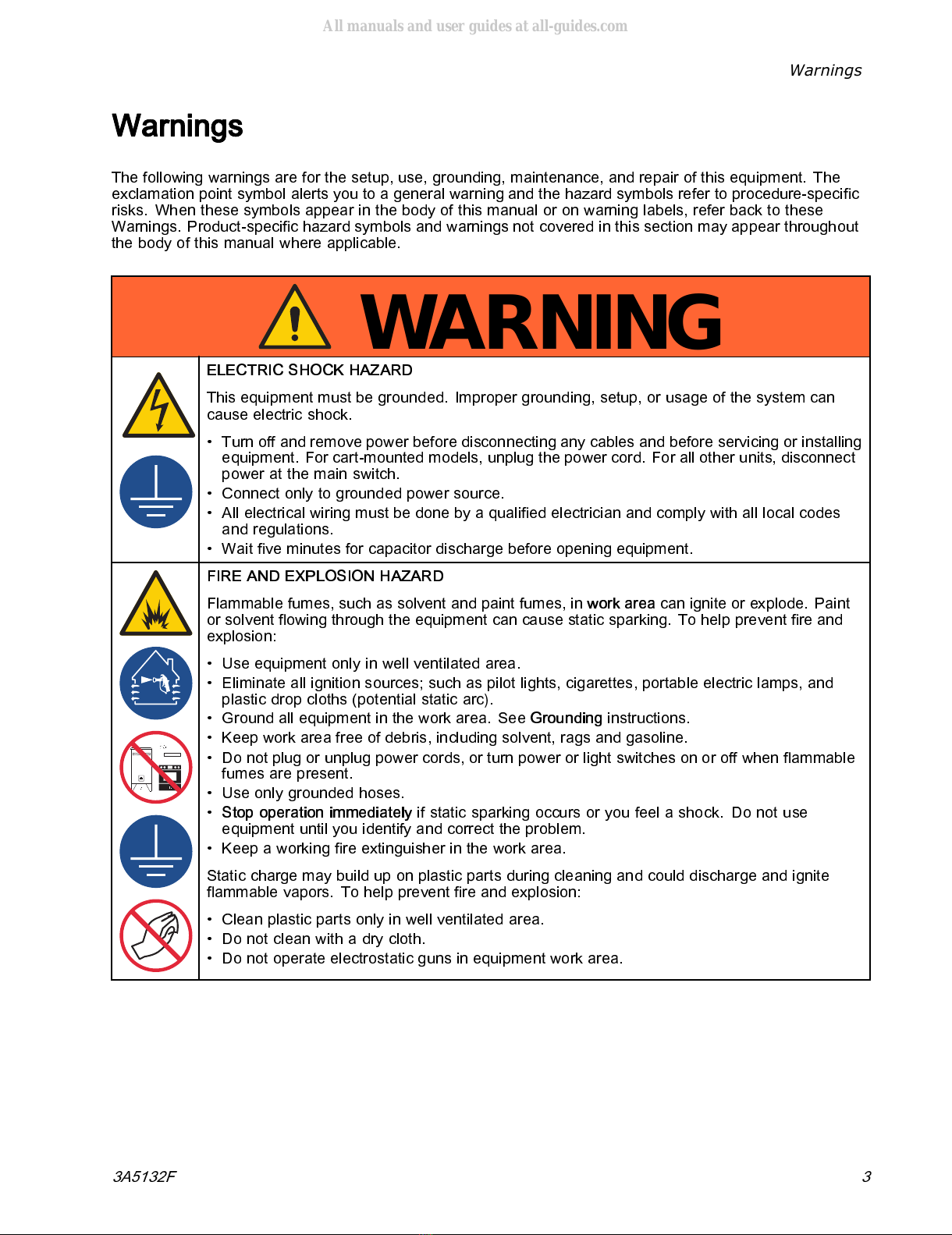

Warnings
Warning
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific
risks. When these symbols appear in the body of this manual or on warning labels, refer back to these
Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout
the body of this manual where applicable.
WARNING
ELECTRIC SHOCK HAZARD
This equipment must be grounded. Improper grounding, setup, or usage of the system can
cause electric shock.
• Turn off and remove power before disconnecting any cables and before servicing or installing
equipment. For cart-mounted models, unplug the power cord. For all other units, disconnect
power at the main switch.
• Connect only to grounded power source.
• All electrical wiring must be done by a qualified electrician and comply with all local codes
and regulations.
• Wait five minutes for capacitor discharge before opening equipment.
FIRE A D EXPLOSIO HAZARD
Flammable fumes, such as solvent and paint fumes, in work area canigniteorexplode.Paint
or solvent flowing through the equipment can cause static sparking. To help prevent fire and
explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and
plastic drop cloths (potential static arc).
• Ground all equipment in the work area. See Grounding instructions.
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable
fumes are present.
• Use only grounded hoses.
• Stop operation immediately if static sparking occurs or you feel a shock . Do not use
equipment until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
Static charge may build up on plastic parts during cleaning and could discharge and ignite
flammable vapors. To help prevent fire and explosion:
• Clean plastic parts only in well ventilated area.
• Donotcleanwithadrycloth.
• Do not operate electrostatic guns in equipment work area.
3 5132F 3
All manuals and user guides at all-guides.com

Warnings
WARNING
PRESSURIZED EQUIPME T HAZARD
Fluid from the equipment, leaks, or ruptured components can splash in the eyes or on skin
and cause serious injury.
• Follow the Pressure Relief Procedure when you stop spraying/dispensing and before
cleaning, checking, or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.
EQUIPME T MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated
system component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data
in all equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete
information about your material, request Safety Data Sheet (SDS) from distributor or retailer.
• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals
and create safety hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
PRESSURIZED ALUMI UM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious
chemical reaction and equipment rupture. Failure to follow this warning can result in death,
serious injury, or property damage.
• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon
solvents or fluids containing such solvents.
• Do not use chlorine bleach.
• Many other fluids may contain chemicals that can react with aluminum. Contact your material
supplier for compatibility.
43 5132F
All manuals and user guides at all-guides.com

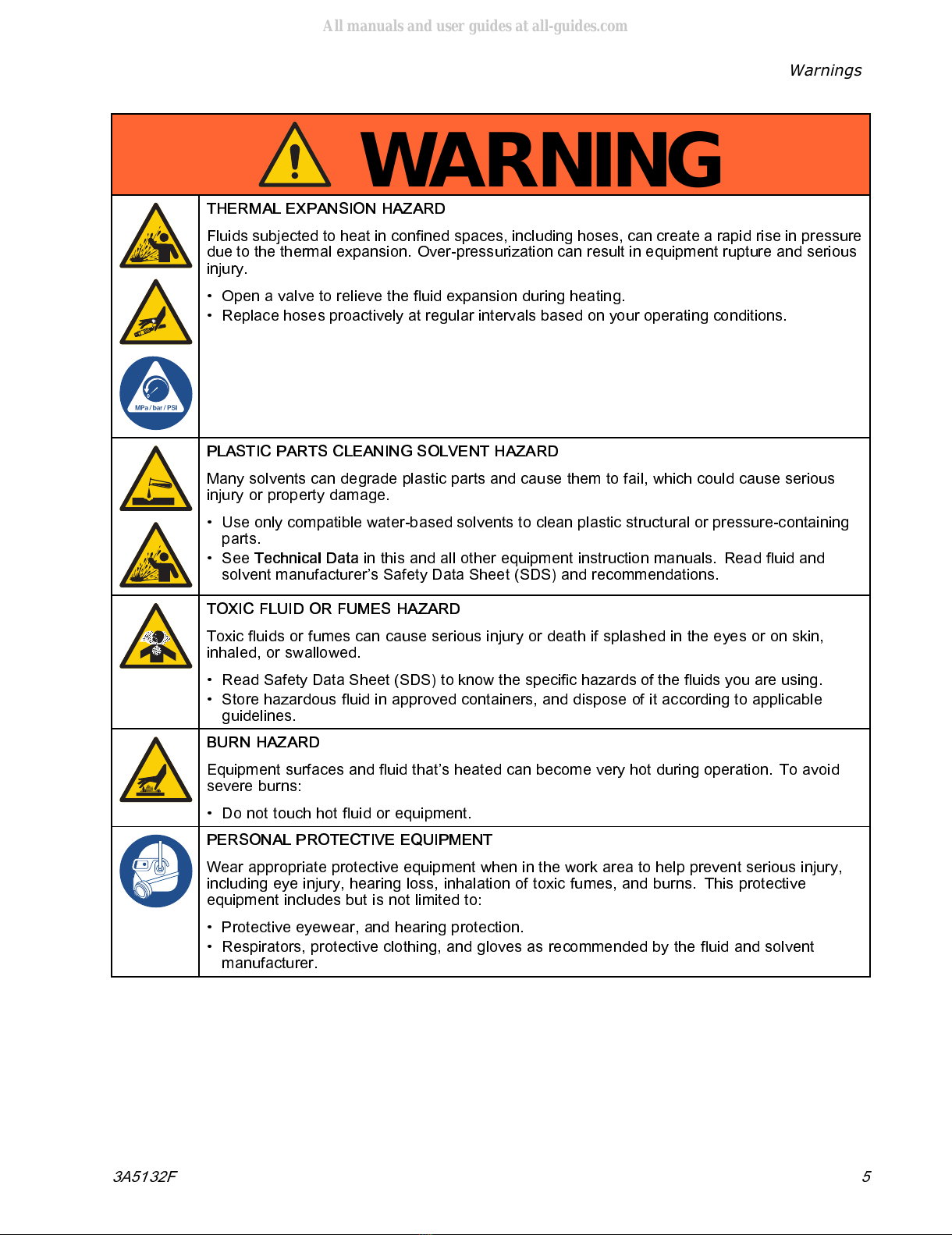

Warnings
WARNING
THERMAL EXPA SIO HAZARD
Fluidssubjectedtoheatinconfinedspaces,includinghoses,cancreatearapidriseinpressure
due to the thermal expansion. Over-pressurization can result in equipment rupture and serious
injury.
• Openavalvetorelievethefluidexpansionduringheating.
• Replace hoses proactively at regular intervals based on your operating conditions.
PLASTIC PARTS CLEA I G SOLVE T HAZARD
Many solvents can degrade plastic parts and cause them to fail, which could cause serious
injury or property damage.
• Use only compatible water-based solvents to clean plastic structural or pressure-containing
parts.
•See Technical Data in this and all other equipment instruction manuals. Read fluid and
solvent manufacturer’s Safety Data Sheet (SDS) and recommendations.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin,
inhaled, or swallowed.
• Read Safety Data Sheet (SDS) to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable
guidelines.
BUR HAZARD
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid
severe burns:
• Do not touch hot fluid or equipment.
PERSO AL PROTECTIVE EQUIPME T
Wear appropriate protective equipment when in the work area to help prevent serious injury,
including eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective
equipment includes but is not limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent
manufacturer.
3 5132F 5
All manuals and user guides at all-guides.com

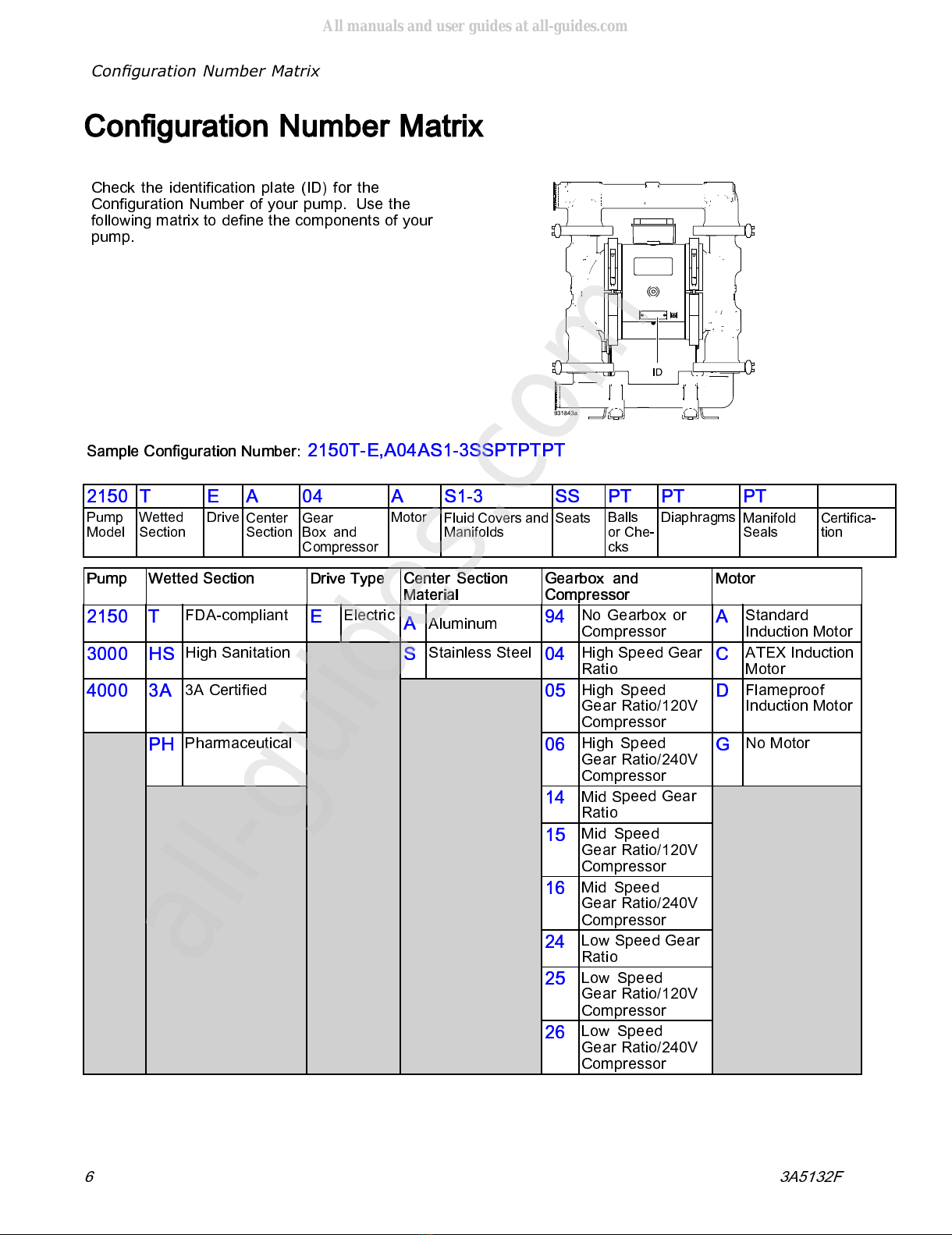

Configuration Number Matrix
Configuration Number Matrix
Check the identification plate (ID) for the
Configuration Number of your pump. Use the
following matrix to define the components of your
pump.
Sample Configuration umber: 2150T-E,A04AS1-3SSPTPTPT
2150 TEA 04 AS1-3 SS PT PT PT
Pump
Model Wetted Section Drive Center
Section Gear Box and
Compressor
Motor Fluid Covers and
Manifolds Seats Balls
or Che-
cks
Diaphragms Manifold
Seals Certifica- tion
Pump Wetted Section Drive Type Center Section
Material Gearbox and Compressor Motor
2150 T
FDA-compliant
E
Electric
A
Aluminum
94
No Gearbox or
Compressor
A
Standard
Induction Motor
3000 HS
High Sanitation
S
Stainless Steel
04
High Speed Gear
Ratio
C
ATEX Induction
Motor
4000 3A
3A Certified
05
High Speed
Gear Ratio/120V
Compressor
D
Flameproof
Induction Motor
PH
Pharmaceutical
06
High Speed
Gear Ratio/240V
Compressor
G
No Motor
14
Mid Speed Gear
Ratio
15
Mid Speed
Gear Ratio/120V
Compressor
16
Mid Speed
Gear Ratio/240V
Compressor
24
Low Speed Gear
Ratio
25
Low Speed
Gear Ratio/120V
Compressor
26
Low Speed
Gear Ratio/240V
Compressor
63 5132F
All manuals and user guides at all-guides.com
all-guides.com

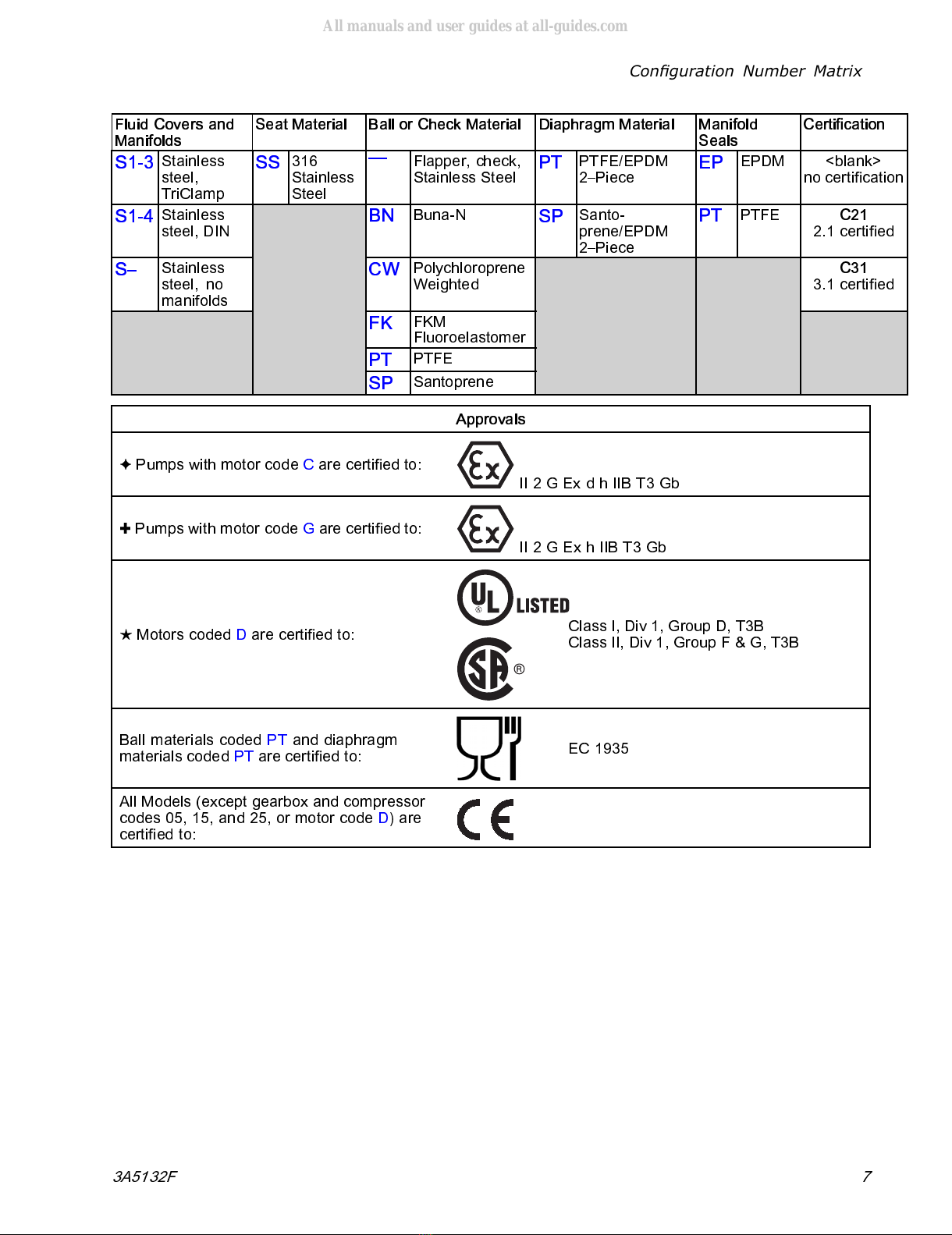

Configuration Number Matrix
Fluid Covers and
Manifolds Seat Material Ball or Check Material Diaphragm Material Manifold Seals Certification
S1-3
Stainless
steel,
TriClamp
SS
31
Stainless
Steel
—
Flapper, check,
Stainless Steel
PT
PTFE/EPDM
2–Piece
EP
EPDM <blank>
no certification
S1-4
Stainless
steel, DIN
BN
Buna-N
SP
Santo-
prene/EPDM
2–Piece
PT
PTFE
C21
2.1 certified
S–
Stainless
steel, no
manifolds
CW
Polychloroprene
Weighted
C31
3.1 certified
FK
FKM
Fluoroelastomer
PT
PTFE
SP
Santoprene
Approvals
✦ Pumps with motor code Care certified to: II 2 G Ex d h IIB T3 Gb
✚ Pumps with motor code Garecertifiedto: II2GExhIIBT3Gb
★ Motors coded Darecertifiedto: Class I, Div 1, Group D, T3B
Class II, Div 1, Group F & G, T3B
Ball materials coded PT and diaphragm
materials coded PT are certified to: EC 1935
All Models (except gearbox and compressor
codes 05, 15, and 25, or motor code D)are
certified to:
3 5132F 7
All manuals and user guides at all-guides.com

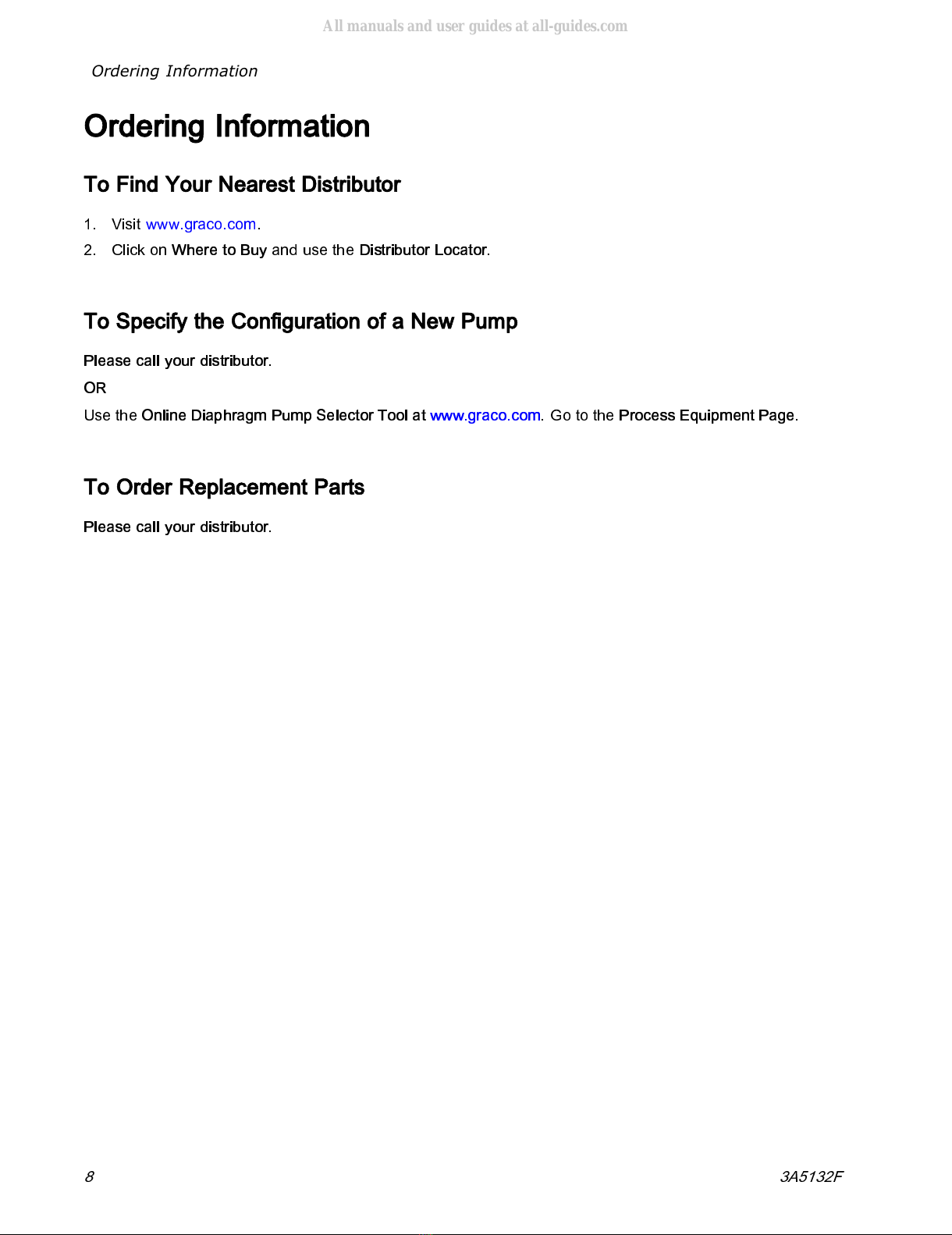

Ordering Information
Ordering Information
To Find Your Nearest Distributor
1. Visit www.graco.com.
2. Click on Where to Buy and use the Distributor Locator.
To Specify the Configuration of a New Pump
Please call your distributor.
OR
Use the Online Diaphragm Pump Selector Tool at www.graco.com. Go to the Process Equipment Page.
To Order Rep acement Parts
Please call your distributor.
83 5132F
All manuals and user guides at all-guides.com

Installation
In tallation
Installation of this equipment involves potentially
hazardous procedures. Only trained and qualified
personnel who have read and who understand
the information in this manual should install this
equipment.
• All electrical wiring must be done by a qualified
electrician and comply with all local codes and
regulations
Genera Information
The Typical Installation shown is only a guide for
selecting and installing system components. Contact
your Graco distributor for assistance in planning a
system to suit your needs. Always use Genuine
Graco Parts and accessories. Be sure all accessories
are adequately sized and pressure rated to meet the
system’s requirements.
Reference letters in the text, for example (A), refer to
the callouts in the figures.
Tighten C amps Before First Use
After you unpack the pump, and before you use it
for the first time, check all clamps and tighten as
necessary.
Tips to Reduce Cavitation
Cavitation in a double diaphragm pump is the
formation and collapse of bubbles in the pumped
liquid. Frequent or excessive cavitation can cause
serious damage, including pitting and early wear of
fluid chambers, balls, and seats. It may result in
reduced efficiency of the pump. Cavitation damage
and reduced efficiency both result in increased
operating costs.
Cavitation depends on the vapor pressure of the
pumped liquid, the system suction pressure, and the
velocity pressure. It can be reduced by changing any
of these factors.
1. Reduce vapor pressure: Decrease the
temperature of the pumped liquid.
2. Increase suction pressure:
a. Lower the installed position of the pump
relative to the liquid level in the supply.
b. Reduce the friction length of the suction
piping. Remember that fittings add friction
length to the piping. Reduce the number of
fittings to reduce the friction length.
c. Increase the size of the suction piping.
OTE: Be sure the inlet fluid pressure does not
exceed 25% of the outlet working pressure.
3. Reduce liquid velocity: Slow the cyclic rate of
the pump.
Pumped liquid viscosity is also very important but
normally is controlled by factors that are process
dependent and cannot be changed to reduce
cavitation. Viscous liquids are more difficult to pump
and more prone to cavitation.
Graco recommends taking all the above factors
into account in system design. To maintain pump
efficiency, supply only enough power to the pump to
achieve the required flow.
Graco distributors can supply site specific
suggestions to improve pump performance and
reduce operating costs.
3 5132F 9
All manuals and user guides at all-guides.com

Installation
Figure 1 Typical Installation for pumps without a
compressor
System Components Accessories/Components ot Supplied
B Fluid inlet port A* Power cord to VFD
C Fluid outlet port F* Grounded, flexible air supply line
D Mounting feet G Bleed-type master air valve
E Air inlet port H Air filter/regulator assembly
P Pump Ground J Master air valve (for accessories)
R Center section regulator K* Grounded, flexible fluid supply line
L Fluid drain valve (may be required for your
pump installation)
MFluid shutoff valve
N* Grounded, flexible fluid outlet line
* Required. Supplied by customer.
10 3 5132F
All manuals and user guides at all-guides.com

Installation

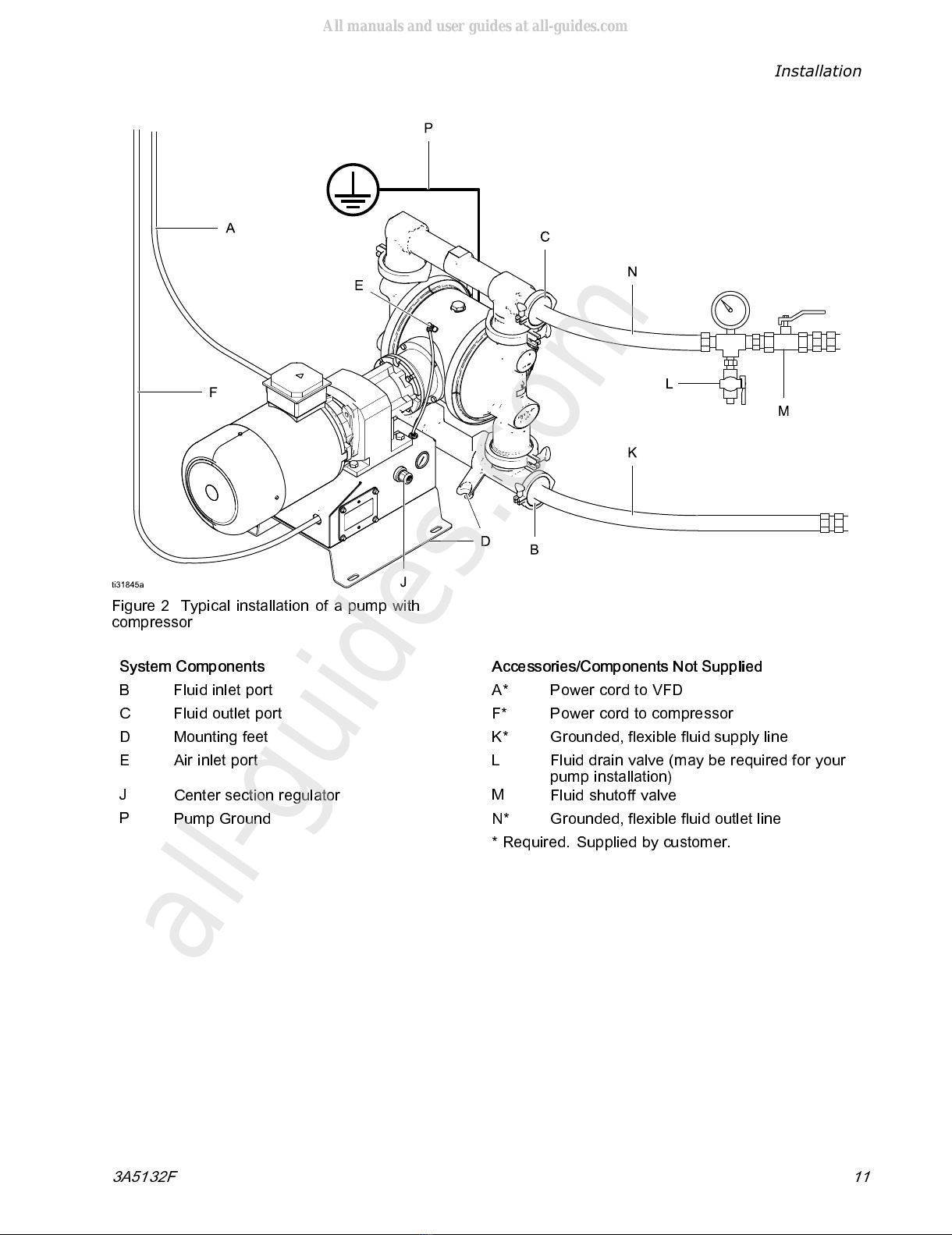

Figure 2 Typical installation of a pump with
compressor
System Components Accessories/Components ot Supplied
B Fluid inlet port A* Power cord to VFD
CFluid outlet port F* Power cord to compressor
DMounting feet K* Grounded, flexible fluid supply line
E Air inlet port L Fluiddrainvalve(mayberequiredforyour
pump installation)
JCenter section regulator MFluid shutoff valve
PPump Ground N* Grounded, flexible fluid outlet line
* Required. Supplied by customer.
3 5132F 11
All manuals and user guides at all-guides.com
all-guides.com

Installation
Mount the 2150T Pump
To avoid serious injury or death from toxic fluid or
fumes:
• Never move or lift a pump under pressure. If
dropped, the fluid section may rupture. Always
follow the Pressure Relief Procedure, page 21,
before moving or lifting the pump.
• Do not expose pump or the plastic components
to direct sunlight for prolonged periods.
Prolonged exposure to UV radiation will degrade
natural polypropylene components of the pumps.
NOTICE
The pump is heavy. To prevent damage from
dropping, always use a lift to move the pump. Do
not use the manifolds to lift the pump. Use at least
two straps.
1. For all mountings, be sure the pump is
secured with screws through the mounting
feet (D) and through the mounting bracket
or compressor box on the gear box. See
Dimensions (2150T Pump), page 28.
NOTICE
To prevent pump damage, use all eight
fasteners.
2. Make sure the mounting surface is flat and that
the pump doesn’t wobble.
3. For ease of operation and service, mount the
pump so fluid inlet and fluid outlet ports are easily
accessible.
Mount ng a pump w thout a Gearmotor
A pump without a Graco gearbox and motor will
require a mounting platform to provide support
for the customer-supplied motor and gearbox
and provide alignment with the pump alignment
housing (11 ) and drive shaft (112) without putting
strain on the mounting platform or pump. See
Dimensions (2150T Pump), page 28 for assistance
in fabricating a mounting platform.
REF DESCRIPTIO DIME SIO
AGearbox coupler bore and
keyway 35 mm/10 mm keyway
B Flange pilot diameter 110 mm
CBolt circle diameter 130 mm
D Mounting hole thread size M8 x 1.25
To specify a non-Graco gearbox, refer to the figure
and table above.
12 3 5132F
All manuals and user guides at all-guides.com

Installation
Mount the HS Pump
To avoid serious injury or death from toxic fluid or
fumes:
• Never move or lift a pump under pressure. If
dropped, the fluid section may rupture. Always
follow the Pressure Relief Procedure, page 21,
before moving or lifting the pump.
NOTICE
The pump is heavy. To prevent damage from
dropping, always use a lift to move the pump. Do
not use the manifolds to lift the pump. Use at least
two straps.
1. For all mountings, be sure the pump is secured
with screws through the mounting bracket.
2. Make sure the mounting surface is flat and
that the pump base doesn’t wobble. See
Dimensions (3000HS Flapper Pumps), page 31.
NOTICE
To prevent pump damage, use all fasteners.
3. For ease of operation and service, mount the
pump so fluid inlet and fluid outlet ports are easily
accessible.
4. Attachthepumpbasetothemountingsurface.
3 5132F 13
All manuals and user guides at all-guides.com

Installation
Ground The System
The equipment must be grounded to reduce the
risk of static sparking. Static sparking can cause
fumes to ignite or explode. Improper grounding
can cause electric shock.Grounding provides an
escape wire for the electrical current.
• Always groundtheentirefluidsystemas
described below.
•Followyou
r local fire codes.
Before operating the pump, ground the system as
explained below.
• Pump: All pumps have a ground screw. Loosen
the grounding screw. Insert one end of a 12–gauge
minimum ground wire behind the ground screw
and tighten the screw securely. Connect the clamp
end of the grounding wire to a true earth ground. A
ground wire and clamp, Part 238909, is available
from Graco.
• Motor: Motors have a ground screw in the electrical
box. Use it to ground the motor to the controller.
• Air Line and Fluid hoses: Use only grounded
hoses with a maximum of 500 ft (150 m) combined
hose length to ensure grounding continuity. Check
electrical resistance of hoses. If total resistance
to ground exceeds 29 megohms, replace hose
immediately.
• Fluid supply container: Follow local code.
• Solvent pails used when flushing: Follow local
code. Use only conductive metal pails, placed
onagroundedsurface. Donotplacethepail
on a nonconductive surface, such as paper or
cardboard, which interrupts grounding continuity.
• VFD: Ground the variable frequency drive through
aproperconnectiontoapowersource. Referto
the VFD manual for grounding instructions.
Check your system electrical continuity after the
initial installation, and then set up a regular schedule
for checking continuity to be sure proper grounding
is maintained. The resistance should not exceed 1
ohm.
14 3 5132F
All manuals and user guides at all-guides.com

Installation
Air Line
Models that Include a Compressor:
An air line is already connected from the compressor
to the pump air inlet.
Using Your Own Compressor:
Install a grounded, flexible air hose from the
compressor to the pump air inlet (E).
UsingShopAir:
1. Install an air filter/regulator assembly (H). The
fluid stall pressure will be the same as the setting
of the air regulator. The filter removes harmful
dirt and moisture from the compressed air supply.
2. Locate a bleed-type master air valve (G) close to
the pump and use it to relieve trapped air. Be
sure the valve is easily accessible from the pump
and located downstream from the regulator.
Trapped air can cause the pump to cycle
unexpectedly, which could result in serious
injury from splashing.
3. Locate another master air valve (J) upstream
from all air line accessories and use it to isolate
them during cleaning and repair.
4. Install a grounded, flexible air hose (F) between
the accessories and the pump air inlet.
F uid Supp y Line
1. Use flexible, grounded fluid hoses.
2. For best sealing results, use a standard tri-clamp
or DIN style sanitary gasket of a flexible material
such as EPDM, Buna-N, fluoroelastomer, or
silicon.
3. If the inlet fluid pressure to the pump is more
than 25% of the outlet working pressure, the
ball check valves will not close fast enough,
resulting in inefficient pump operation. Excessive
inlet fluid pressure also will shorten diaphragm
life. Approximately 3–5 psi (0.02–0.03 MPa,
0.21–0.34 bar) should be adequate for most
materials.
4. For maximum suction lift (wet and dry), see
Technical Data, page 33. For best results, always
install the pump as close as possible to the
material source. Minimize suction requirements
to maximize pump performance.
F uid Out et Line
1. Use flexible, grounded fluid hoses.
2. For best sealing results, use a standard tri-clamp
or DIN style sanitary gasket of a flexible material
such as EPDM, Buna-N, fluoroelastomer, or
silicon.
3. Install a fluid drain valve (L) near the fluid outlet.
4. Install a shutoff valve (M) in the fluid outlet line.
3 5132F 15
All manuals and user guides at all-guides.com

Installation
E ectrica Connections
W re Connect ons at the Motor
(Motor Code A)
OTE: Follow the instructions in the motor
manufacturer’s manual. Use a motor starter with
overload protection. Wire size, fuse size, and other
electrical devices must comply with all local codes
and regulations.
The motor must be wired to the VFD. Install the
wiring at the motor as follows:
1. Remove 4 bolts to open the motor’s electrical
box.
2. Install a strain relief in one of the ports at the
bottom of the junction box.
3. Connect the green ground wire to the ground
screw.
4. For 230 V motors: Bridge as shown, then
connect L1 to T1, L2 to T2, and L3 to T3.
T4 T5 T6
L2 L3L1
T7 T8 T9
T1 T2 T3
Figure 3 Wire Connections for a 230 V Motor
5. For 460 V motors:
Bridge as shown, then
connect L1 to T1, L2 to T2, and L3 to T3.
T4 T5 T6
L2 L3L1
T7 T8 T9
T1 T2 T3
Figure 4 Wire Connections for a 4 0 V Motor
. Close the motor electrical box. Torque the bolts
to 20 in-lb (2.2 N•m).
W re Connect ons at the ATEX Motor
(Motor Code C)
Install the wiring at the motor as follows:
1. Open the motor’s electrical box.
2. Install wiring system with proper connections to
the motor electrical box.
3. Connect the green ground wire to the ground
screw.
4. For 400V Wiring: Bridge as shown, then connect
wire L1 to U1, L2 to V1, and L3 to W1.
W2 U2 V2
L2 L3L1
U1 V1 W1
Figure 5 Connections for 400V Wiring
5. For 230V Wiring: ConnectwireL1toU1,L2to
V1, and L3 to W1. Bridge as shown.
W2 U2 V2
L2 L3L1
U1 V1 W1
Figure Connections for 230V Wiring
. Torque terminals to 20 in-lb (2.3 N•m).
7. Close the motor electrical box. Torque the
screwsto20in-lb(2.3N•m).
8. Connect thermostat wires P1 and P2 to external
overload detection. Thermostat is NC (normally
closed).
16 3 5132F
All manuals and user guides at all-guides.com
all-guides.com

Installation
W re Connect ons at the Explos onproof
Motor (Motor Code D)
Install the wiring at the motor as follows:
1. Open the motor’s electrical box.
2. Install wiring system with proper connections to
the motor electrical box.
3. Connect the green ground wire to the ground
screw.
4. For 460V Wiring: ConnectwireL1toT1,L2to
T2, and L3 to T3, and bridge the other wires, as
shown.
T1
T2
T3
L1
L2
L3
T4
T7
T5
T8
T6
T9
Figure 7 Connections for 4 0V Wiring
5. For 230V Wiring: Bridge the wires as shown.
Then, connect L1 to T1/T7, L2 to T2/T8, and L3
to T3/T9.
T1
T7
T2
L1
L2
L3
T8
T3
T9
T4
T5
T6
Figure 8 Connections for 230V Wiring
. Connect thermostat wires P1 and P2 to external
overload detection. Thermostat is NC (normally
closed).
7. Close the motor electrical box. Torque the
screws to 20 in-lb (2.3 N•m).
W re Connect ons at the Var able Frequency
Dr ve (VFD)
OTE: Follow the instructions in the VFD
manufacturer’s manual.
Install the wiring at the VFD as follows:
1. Connect the wires to the motor. See
Electrical Connections, page 1 .
2. Open the VFD’s electrical box.
3. Install strain reliefs in both ports at the bottom of
the VFD box.
4. Connect the green ground wire to the ground
screw.
5. Connect the wires from the motor terminals to the
matching terminals in the VFD box, as shown.
U/T1 V/T2 W/T3 PE
PE
PES
PES
PES
PES
PES
PE
Figure 9 Wire Connections from the Motor to the VFD
3 5132F 17
All manuals and user guides at all-guides.com

Installation
Ma n Power Connect ons at the VFD
All electrical wiring must be completed by a
qualified electrician and comply with all local codes
and regulations.
Connect the power supply wires to the VFD, as
follows:
1. Connect the wiring between the motor and VFD,
as detailed above.
2. Connect the green ground wire of the power
supply to the ground screw. The ground wire
from the motor is also connected to this screw.
3. Connect the power supply wires to the power
terminals in the VFD box, following all local codes
and regulations.
4. Close the VFD electrical box.
Leak Sensor Wiring
Follow these instructions to wire the Leak Sensor to
aVFD.
OTE : The leak sensor is designed to operate as
a normally-closed circuit.
1. Turn off power to the VFD.
2. Open the access cover on the VFD.
3. For a Graco VFD, perform the following:
a. Wire one lead to terminal 4 on the rail.
b. Wire a second lead to terminal 13A on the
rail.
c. Close the access cover.
d. Turn on power to the VFD.
e. Go to screen P121.
f. Change the value to 21 and press the Mode
button.
4. For a non-Graco VFD, perform the following:
a. Attach the two leads to the detection circuit
in the VFD.
OTE : Refer to the VFD manual for proper
connection points.
b. Close the access cover.
c. Turn on power to the VFD.
d. Configure the VFD to monitor the leak sensor
circuit.
5. Refer to the VFD manual for information on how
to configure the VFD to generate a fault or stop
thepumpwhenaleakisdetected.
18 3 5132F
All manuals and user guides at all-guides.com

Installation
Compressor Wiring
To avoid injury from fire, explosion, or electric
shock, all electrical wiring must be done by a
qualified electrician and comply with all local codes
and regulations.
Follow these instructions to wire Graco Compressor
24Y544 (120V) or 24Y545 (240V).
OTE: Use only copper wire with an insulation rating
of 75°C or higher.
1. Remove the cover from the compressor’s
electrical box.
2. Install wiring system with proper connections (i.e.
conduit/fittings, power cable/cable grip) to the
compressor electrical box.
3. Connect line power (120VAC or 240 VAC,
depending on your compressor) to L1 and L2/N.
Connect supply ground to . Use minimum
12 AWG (4 mm
2
)wirewhenthesystemis
configuredfora1 Acircuitand14AWG(2.5
mm
2
) when configured for a 12A circuit. Torque
terminals to 10 in-lb (1.2 N•m).
4. Reinstall the cover of the electrical box. Torque
screws to 0 in-lb ( .8 N•m).
Figure 10
L1
L2
A
KEY
A To power supply
3 5132F 19
All manuals and user guides at all-guides.com

Operation
Operation
Initia Configuration (AC with VFD)
Configure the VFD according to the motor nameplate
information.
Sanitize the Pump Before First Use
It is the user’s responsibility to properly sanitize
the pump before first use. It is up to the user
whether this will include disassembling and cleaning
individual parts or simply flushing pump with a
sanitizing solution. As necessary, follow the steps
under Start and Adjust the Pump, page 20,or
Flushing and Storage, page 23.
Transfer Mode Vs. Low Pu sation
Mode
When the air pressure is at least 10 psi higher than
the desired outlet pressure, the pump is in Transfer
Mode and no pulsation damping is occurring. To
reduce outlet pulsation, start by setting the air
pressure equal to the desired outlet fluid pressure.
Continue to adjust the air pressure relative to the
outlet fluid pressure. Lower relative air pressures
produce more pulsation damping. Higher relative air
pressures produce better pump efficiency.
Start and Adjust the Pump
1. Be sure the pump is properly grounded. See
Ground The System, page 14.
2. Check fittings to be sure they are tight. Use a
compatible liquid thread sealant on male threads.
Tighten fluid inlet and fluid outlet fittings securely.
3. Placethesuctiontube(ifused)influidtobe
pumped.
OTE: If fluid inlet pressure to the pump is more
than 25% of outlet working pressure, the ball
check valves will not close fast enough, resulting
in inefficient pump operation.
NOTICE
Excessive fluid inlet pressure can reduce
diaphragm life.
4. Place the end of the fluid hose into an appropriate
container.
5. Close the fluid drain valve.
. Turn the air regulator knob to match the desired
fluid stall pressure. Open all bleed-type master
air valves.
7. If the fluid hose has a dispensing device, hold it
open. Be sure all fluid shutoff valves are open.
8. Set the desired frequency on the VFD.
9. Press the start (run) button on the VFD.
10. If you are flushing, run the pump long enough to
thoroughly clean the pump and hoses.
20 3 5132F
All manuals and user guides at all-guides.com
