Graco Series A User manual

309577T
EN
Instructions

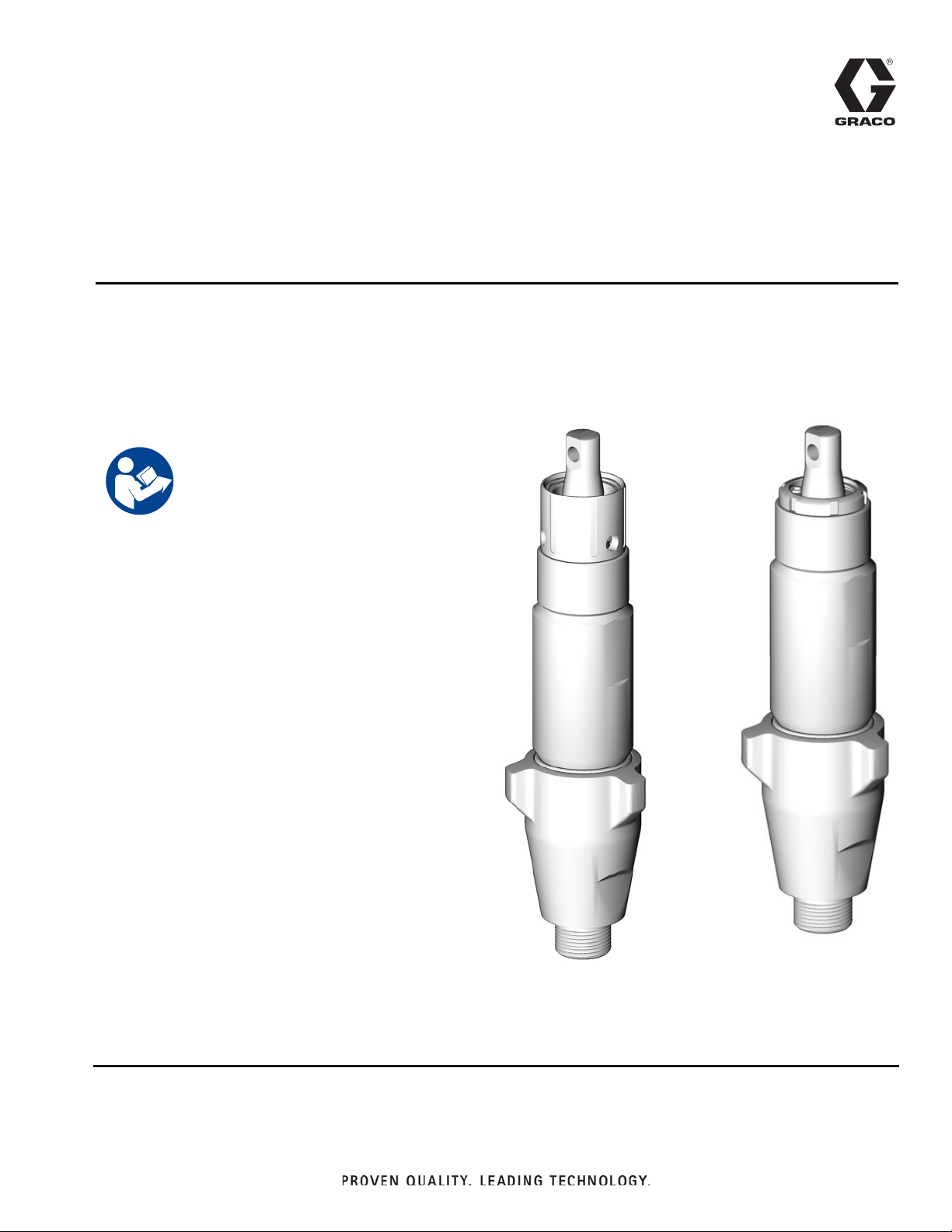

Displacement Pump
For use with Reactor®air and electric proportioners. For professional use only.
3500 psi (24.5 MPa, 245 bar) Maximum Working Pressure
See page 2 for model information.
Important Safety Instructions
Read all warnings and instructions in
this manual before using the equipment.
Save these instructions.
TI2663
TI3733

Model Numbers
2 309577T
Contents
Model Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Isocyanate (ISO) Information . . . . . . . . 6
Isocyanate Conditions . . . . . . . . . . . . . . . . . . . . . 6
Keep Components A and B Separate . . . . . . . . . 7
Moisture Sensitivity of Isocyanates . . . . . . . . . . . 7
Foam Resins with 245 fa Blowing Agents . . . . . . 7
Changing Materials . . . . . . . . . . . . . . . . . . . . . . . 7
Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Pressure Relief Procedure . . . . . . . . . . . . . . . . . 8

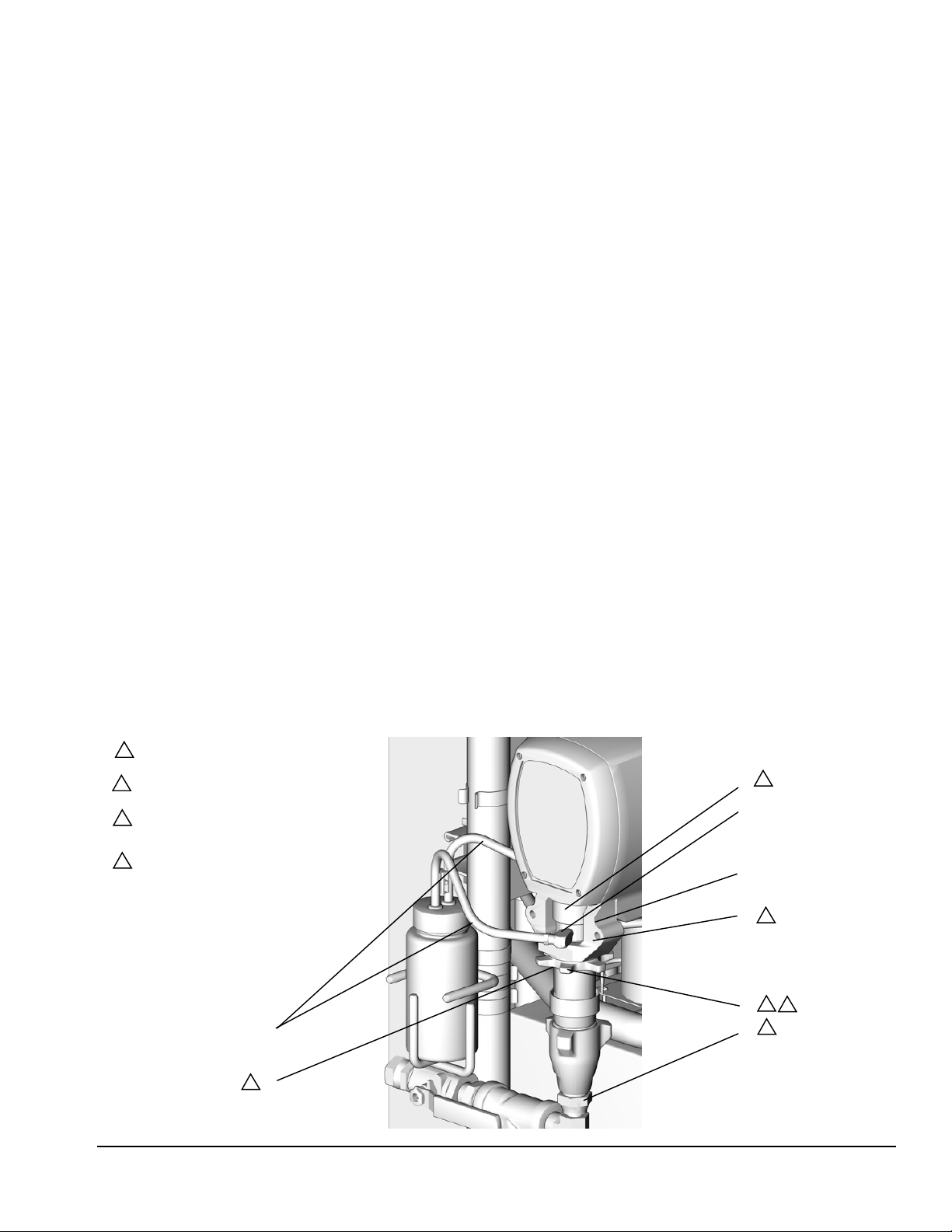

Fill the Wet-Cups . . . . . . . . . . . . . . . . . . . . . . . . 9
Tools Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Repair Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Clean and Inspect Parts . . . . . . . . . . . . . . . . . . . 9

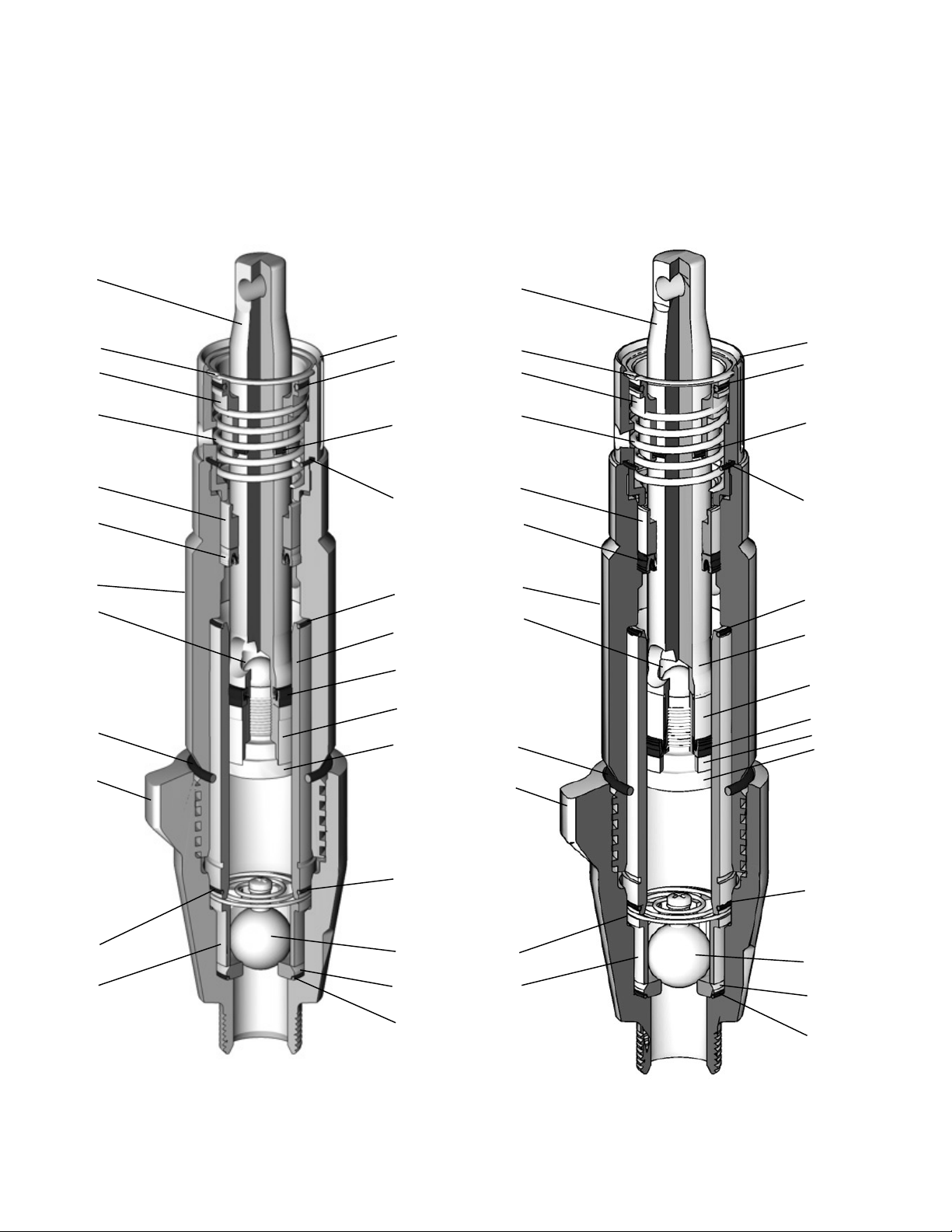

Cutaway Views . . . . . . . . . . . . . . . . . . . . . . . . . 10

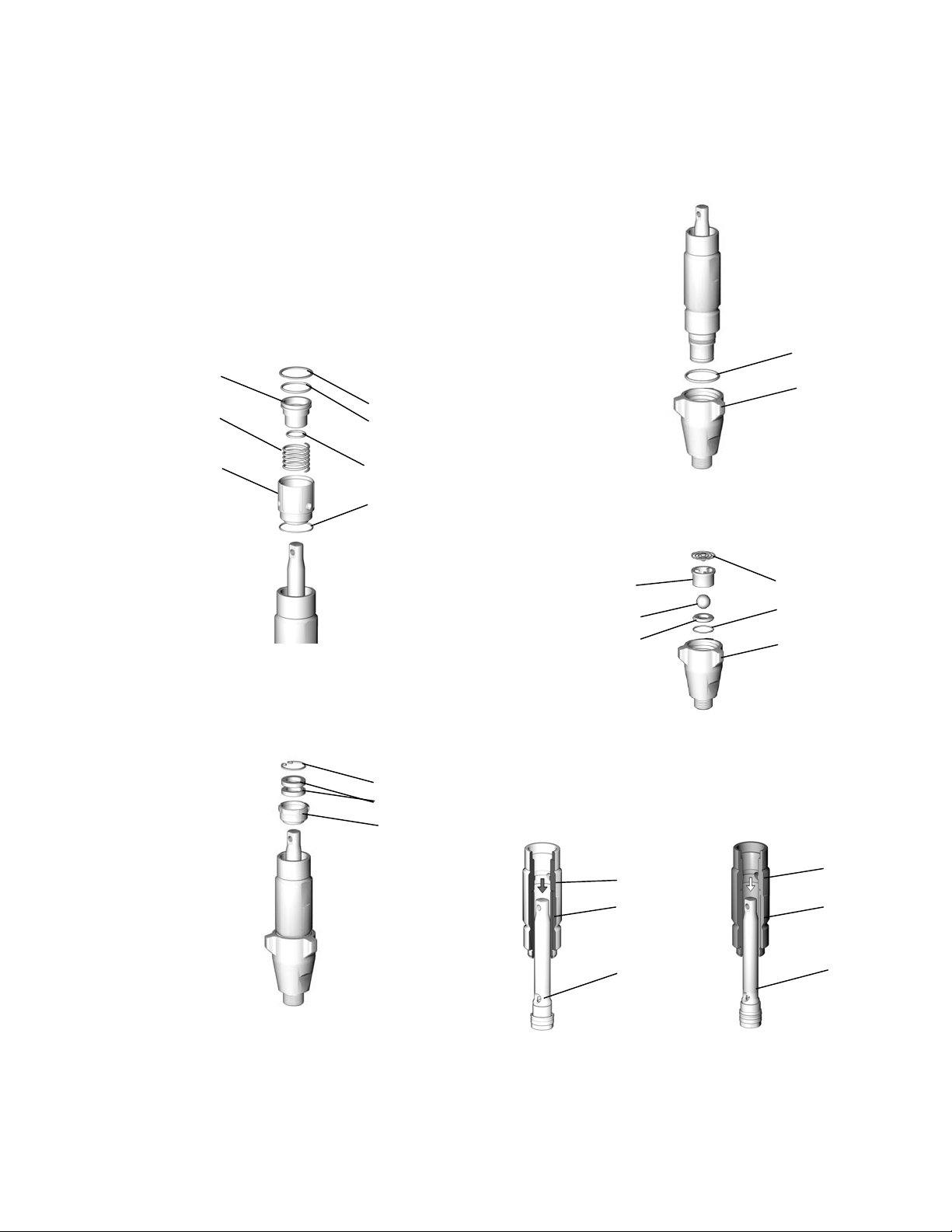

Disassemble the Pump . . . . . . . . . . . . . . . . . . . 12

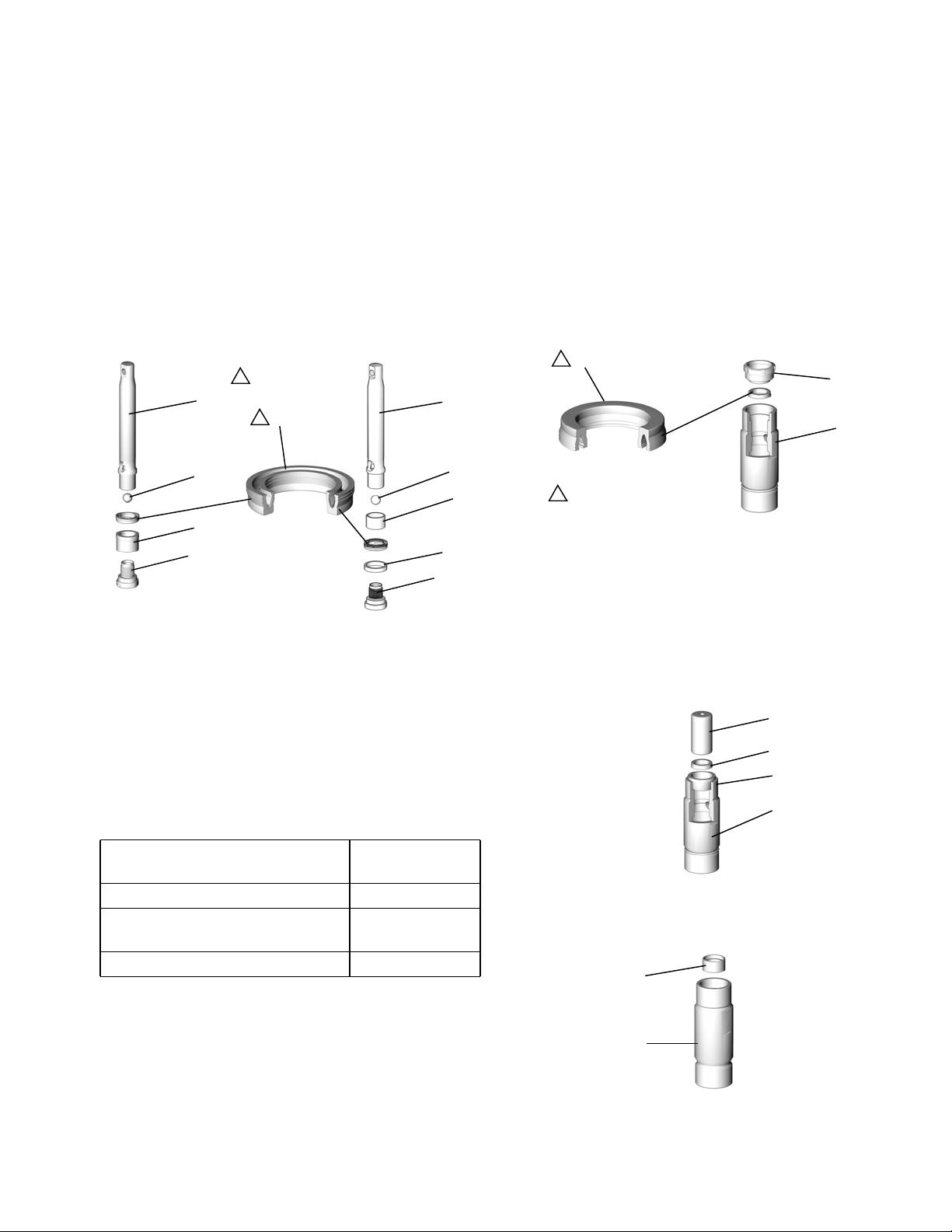

Reassemble the Pump . . . . . . . . . . . . . . . . . . . 15

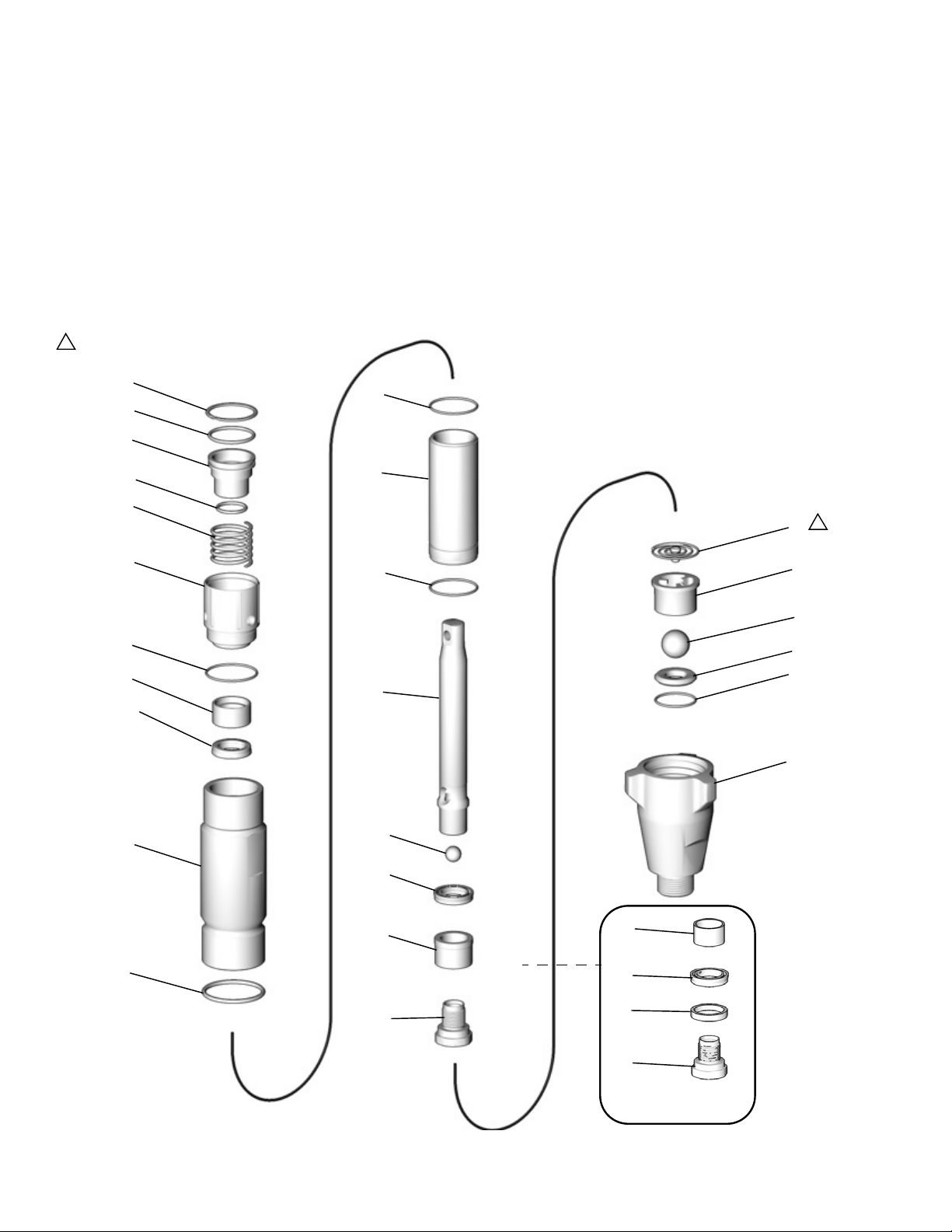

Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Component A (ISO) Pumps, with wet-cup flush
feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Component B (Resin) Pumps . . . . . . . . . . . . . . 25
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Wet-Cup Conversion Kits . . . . . . . . . . . . . . . . . 30
246928 Reservoir Kit . . . . . . . . . . . . . . . . . . . . 30
Throat Seal Liquid . . . . . . . . . . . . . . . . . . . . . . . 30
217374 ISO Pump Oil . . . . . . . . . . . . . . . . . . . . 30
Technical Specifications . . . . . . . . . . . . . . . . . . . . 31
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 32
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 32
Model Numbers
Related Manuals
The following manuals are available for the Reactor.
Refer to these manuals for detailed equipment
information.
Part, Series Effective Area of Displacement
Component A (ISO) Pumps
with wet-cup flush feature
246830, Series A 0.396 in.2(2.55 cm2)
246831, Series B 0.552 in.2(3.56 cm2)
246832, Series A 0.743 in.2(4.79 cm2)
262647, Series A 0.552 in.2(3.56 cm2)
24Y175, Series A 0.396 in.2(2.55 cm2)
Component B (Resin) Pumps
245970, Series A 0.396 in.2(2.55 cm2)
245971, Series B 0.552 in.2(3.56 cm2)
245972, Series A 0.743 in.2(4.79 cm2)
262648, Series A 0.552 in.2(3.56 cm2)
24Y174, Series A 0.396 in.2(2.55 cm2)
Reactor Electric Proportioner
Manual in English Description
309551 or 312065 Reactor Electric Proportioner,
Operation Manual
309574 or 312066 Reactor Electric Proportioner,
Repair-Parts Manual
309911 Reactor Pump Wet-Cup Flush
Kits

Warnings
309577T 3
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks.
When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings.
Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this
manual where applicable.
WARNING
SKIN INJECTION HAZARD
High-pressure fluid from dispensing device, hose leaks, or ruptured components will pierce skin. This
may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical
treatment.
• Engage trigger lock when not dispensing.
• Do not point dispensing device at anyone or at any part of the body.
• Do not put your hand over the fluid outlet.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Follow the Pressure Relief Procedure when you stop dispensing and before cleaning, checking,
or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses and couplings daily. Replace worn or damaged parts immediately.
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. Paint or
solvent flowing through the equipment can cause static sparking. To help prevent fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic
drop cloths (potential static sparking).
• Ground all equipment in the work area. See Grounding instructions in related manuals.
• Never spray or flush solvent at high pressure.
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes
are present.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless they
are anti-static or conductive.
•Stop operation immediately if static sparking occurs or you feel a shock.Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.

Warnings
4 309577T
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Specifications in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical
Specifications in all equipment manuals. Read fluid and solvent manufacturer’s warnings. For
complete information about your material, request Safety Data Sheet (SDS) from distributor or
retailer.
• Do not leave the work area while equipment is energized or under pressure.
• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals and
create safety hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
MOVING PARTS HAZARD
Moving parts can pinch, cut, or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing
equipment, follow the Pressure Relief Procedure and disconnect all power sources.
BURN HAZARD
Equipment surfaces and fluid that is heated can become very hot during operation. To avoid severe
burns:
• Do not touch hot fluid or equipment.
WARNING

Warnings
309577T 5
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled or
swallowed.
• Read Safety Data Sheet (SDS) for handling instructions and to know the specific hazards of the
fluids you are using, including the effects of long-term exposure.
• When spraying, servicing equipment, or when in the work area, always keep work area well
ventilated and always wear appropriate personal protective equipment. See Personal Protective
Equipment warnings in this manual.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
PERSONAL PROTECTIVE EQUIPMENT
Always wear appropriate personal protective equipment and cover all skin when spraying, servicing
equipment, or when in the work area. Protective equipment helps prevent serious injury, including
long-term exposure; inhalation of toxic fumes, mists or vapors; allergic reaction; burns; eye injury and
hearing loss. This protective equipment includes but is not limited to:
• A properly fitting respirator, which may include a supplied-air respirator, chemically impermeable
gloves, protective clothing and foot coverings as recommended by the fluid manufacturer and local
regulatory authority.
• Protective eyewear and hearing protection.
WARNING

Important Isocyanate (ISO) Information
6 309577T
Important Isocyanate (ISO) Information
Isocyanates (ISO) are catalysts used in two component materials.
Isocyanate Conditions
Spraying or dispensing fluids that contain isocyanates creates potentially harmful mists, vapors, and atomized
particulates.
• Read and understand the fluid manufacturer’s warnings and Safety Data Sheet (SDS) to know specific
hazards and precautions related to isocyanates.
• Use of isocyanates involves potentially hazardous procedures. Do not spray with this equipment unless you
are trained, qualified, and have read and understood the information in this manual and in the fluid
manufacturer’s application instructions and SDS.
• Use of incorrectly maintained or mis-adjusted equipment may result in improperly cured material.which could
cause off gassing and offensive odors. Equipment must be carefully maintained and adjusted according to
instructions in the manual.
• To prevent inhalation of isocyanate mists, vapors and atomized particulates, everyone in the work area must
wear appropriate respiratory protection. Always wear a properly fitting respirator, which may include a
supplied-air respirator. Ventilate the work area according to instructions in the fluid manufacturer’s SDS.
• Avoid all skin contact with isocyanates. Everyone in the work area must wear chemically impermeable
gloves, protective clothing and foot coverings as recommended by the fluid manufacturer and local
regulatory authority. Follow all fluid manufacturer recommendations, including those regarding handling of
contaminated clothing. After spraying, wash hands and face before eating or drinking.
• Hazard from exposure to isocyanates continues after spraying. Anyone without appropriate personal
protective equipment must stay out of the work area during application and after application for the time
period specified by the fluid manufacturer. Generally this time period is at least 24 hours.
• Warn others who may enter work area of hazard from exposure to isocyanates. Follow the recommendations
of the fluid manufacturer and local regulatory authority. Posting a placard such as the following outside the
work area is recommended:
TOXIC FUMES
HAZARD
DO NOT ENTER DURING
SPRAY FOAM APPLICATION
OR FOR ___ HOURS AFTER
APPLICATION IS COMPLETE
DO NOT ENTER UNTIL:
DATE:
TIME:
____________
____________

Important Isocyanate (ISO) Information
309577T 7
Keep Components A and B
Separate
Moisture Sensitivity of
Isocyanates
Exposure to moisture (such as humidity) will cause ISO
to partially cure, forming small, hard, abrasive crystal
that become suspended in the fluid. Eventually a film will
form on the surface and the ISO will begin to gel,
increasing in viscosity.
NOTE: The amount of film formation and rate of
crystallization varies depending on the blend of ISO, the
humidity, and the temperature.
Foam Resins with 245 fa
Blowing Agents
Some foam blowing agents will froth at temperatures
above 90°F (33°C) when not under pressure, especially
if agitated. To reduce frothing, minimize preheating in a
circulation system.
Changing Materials
Cross-contamination can result in cured material in
fluid lines which could cause serious injury or damage
equipment. To prevent cross-contamination:
• Never interchange component A and component
B wetted parts.
• Never use solvent on one side if it has been
contaminated from the other side.
NOTICE
Partially cured ISO will reduce performance and the life
of all wetted parts.
• Always use a sealed container with a desiccant
dryer in the vent, or a nitrogen atmosphere. Never
store ISO in an open container.
• Keep the ISO pump wet cup or reservoir (if
installed) filled with appropriate lubricant. The
lubricant creates a barrier between the ISO and the
atmosphere.
• Use only moisture-proof hoses compatible with
ISO.
• Never use reclaimed solvents, which may contain
moisture. Always keep solvent containers closed
when not in use.
• Always lubricate threaded parts with an appropriate
lubricant when reassembling.
NOTICE
Changing the material types used in your equipment
requires special attention to avoid equipment damage
and downtime.
• When changing materials, flush the equipment
multiple times to ensure it is thoroughly clean.
• Always clean the fluid inlet strainers after flushing.
• Check with your material manufacturer for
chemical compatibility.
• When changing between epoxies and urethanes
or polyureas, disassemble and clean all fluid
components and change hoses. Epoxies often
have amines on the B (hardener) side. Polyureas
often have amines on the B (resin) side.

Repair
8 309577T
Repair
Pressure Relief Procedure
Follow the Pressure Relief Procedure whenever
you see this symbol.
1. Relieve pressure in gun and perform gun shutdown
procedure. See gun manual.
2. Close gun fluid manifold valves A and B.
3. Shut off feed pumps and agitator, if used.
4. Turn PRESSURE RELIEF/SPRAY valves (ASA,
SB) to PRESSURE RELIEF. Route fluid to waste
containers or supply tanks. Ensure that gauges drop
to 0.
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury from
pressurized fluid, such as skin injection, splashing
fluid and moving parts, follow the Pressure Relief Pro-
cedure when you stop spraying and before cleaning,
checking, or servicing the equipment.
TI2421A
TI2481a
SA SB

Repair
309577T 9
Fill the Wet-Cups
1. Component A (ISO) Pump: Keep reservoir (R) 3/4
filled with Graco Throat Seal Liquid (TSL), Part No.
206995. Wet-cup piston (28) circulates TSL through
packing nut/wet-cup (19), to carry away isocyanate
film on displacement rod.
After some time TSL will thicken and darken, and
must be replaced. Thick, dirty TSL will not pump
through lines and will harden in wet-cup. Check
condition of TSL every week, minimum, and change
when needed.
2. Component B (Resin) Pump: Check felt washers
(21) in packing nut/wet-cup (19) daily. Keep
saturated with Graco Throat Seal Liquid (TSL), Part
No. 206995, to prevent material from hardening on
displacement rod. Replace felt washers when worn
or contaminated with hardened material.
Tools Needed
• Vise with flat jaws
• 12 in. adjustable, open end wrench (2)
• Non-sparking hammer, 20 oz maximum
• Small screwdriver
• Throat Seal Liquid (TSL), Graco Part No. 206995
• ISO Pump Oil, Graco Part No. 217374
• Pick or long small screwdriver
• Snap-ring pliers
• 1/2 in. (13 mm) diameter plastic rod
• 7/8 in. deep-well socket (246830 and 245970 only)
• 1/2 in. (13 mm) x 2.5 in. (64 mm) bolt with washers
and nut
• Channel locks
• Dropcloth and rags
Repair Kits
A repair kit is available for your pump. Kit parts are
marked with an asterisk, for example (3*). See page 22.
Kit must be purchased separately. For best results, use
all parts in the kit.
Clean and Inspect Parts
1. Clean and inspect all parts. Intake and piston ball
seats, sleeve, and displacement rod must not be
worn, scratched, or damaged.
2. Remove and clean sleeve when repacking pump.
Pump rod and connecting rod move during operation.
Moving parts can cause serious injury such as pinch-
ing or amputation. Keep hands and fingers away from
wet-cup during operation.
Turn main power OFF before filling wet cup.
R
TI3765a
19
TI3765a

Repair
10 309577T
Cutaway Views
Component A (ISO) Pump
1
19†
†*22
†25
24*†
*17
*20
2
*16
*15
5
3*
4
14*
7
13*
3*
11*
9
10*
‡*8
12
TI3734b
26*†
27*†
†28
246830
246832
1
19†
†*22
†25
24*†
*17
*20
2
*16
*15
5
3*
4
13*
7
18*
3*
11*
9
10*
‡*8
12
TI3734C
26*†
27*†
†28
14*
246831
262647
24Y175

Repair
309577T 11
Component B (Resin) Pump
1
19†
*22
*21
*17
*20
2
*16
*15
5
3*
4
14
*
7
13*
3*
11
*
9
10
*
‡*8
12
TI2668b
245970
245972
1
19†
*22
*21
*17
*20
2
*16
*15
5
3*
4
14*
7
13*
3*
11*
9
10*
‡*8
12
TI2668C
18*
245971
262648
24Y174

Repair
12 309577T
Disassemble the Pump
1. Shut off , , and heat zones.
2. Flush the pumps. See your Reactor manual.
3. Relieve the pressure. Follow the Pressure Relief
Procedure, page 8.
4. Press . The motor will run until the pumps are
at the bottom of their strokes, then shut off.
5. Turn the main power OFF . Disconnect the
power supply.
NOTE: Steps 6-8 apply to pump A. See FIG. 1. To
disconnect pump B, go to steps 9 and 10. Use dropcloth
or rags to protect Reactor and surrounding area from
spills.
6. Disconnect the fluid inlet (C) and outlet (D). Also
disconnect the steel outlet tube from the heater
inlet.
7. Disconnect the tubes (T). Remove the tube fittings
(U) from the wet-cup.
8. Loosen the star-shaped locknut (G) by hitting firmly
with a non-sparking hammer. Unscrew the pump far
enough to expose the retaining pin under the plastic
finger guard. Push the retaining spring up. Push the
pin out. Continue unscrewing the pump.
NOTE: Steps 9 and 10 apply to the pump B. See FIG. 2.
Use a dropcloth or rags to protect the Reactor and
surrounding area from spills.
9. Disconnect the fluid inlet (C) and outlet (D). Also
disconnect the steel outlet tube from the heater
inlet.
10. Push the retaining spring (E) up. Push the pin (F)
out. Loosen the star-shaped locknut (G) by hitting
firmly with a non-sparking hammer. Unscrew the
pump.
Pump rod and connecting rod move during operation.
Moving parts can cause serious injury such as pinch-
ing or amputation. Keep hands and fingers away from
connecting rod during operation.
AB

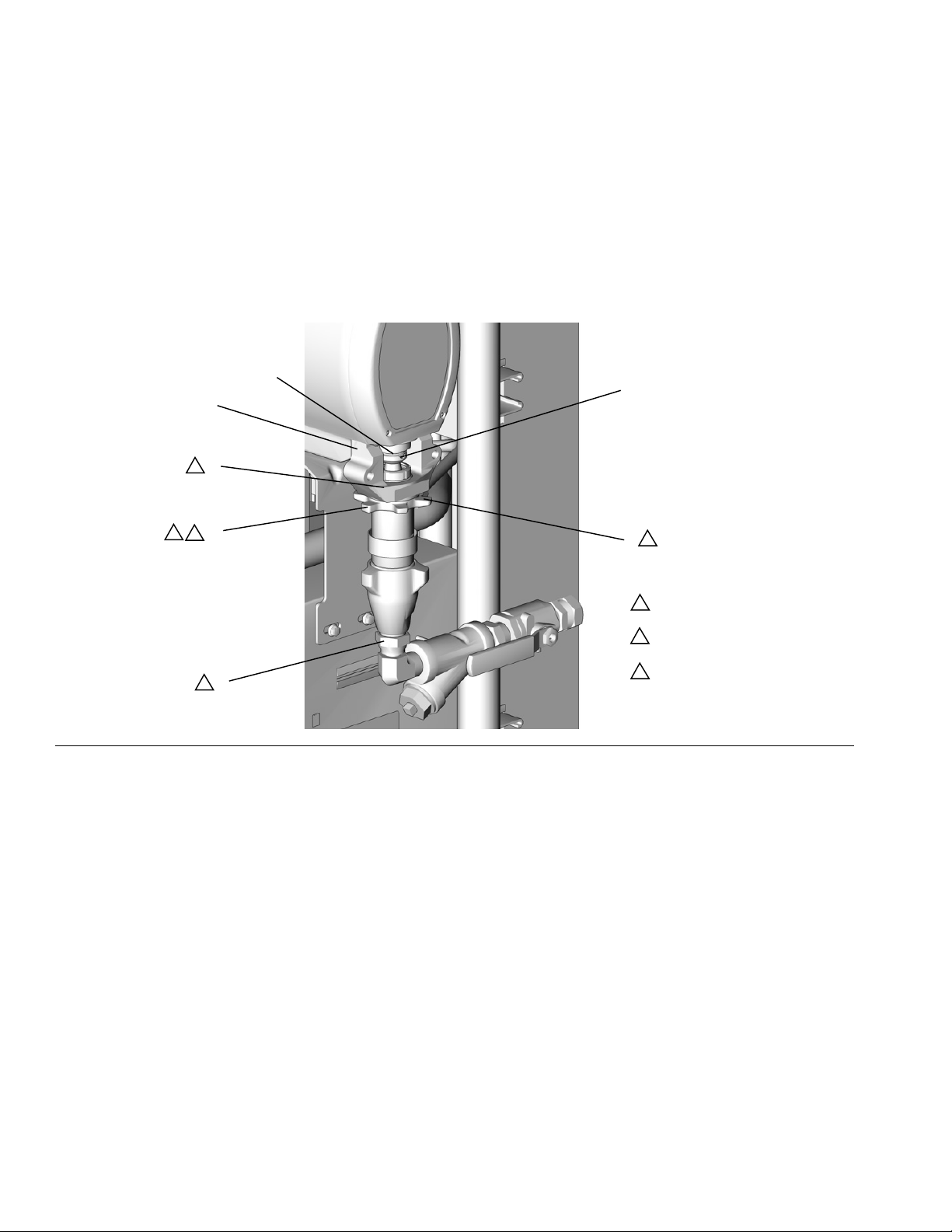

FIG. 1 Disconnect Pump A
FIG. 2 Disconnect Pump B
TI3765a-2
C
U
G
D
T
TI3765a-1
C
F
G
D
E

Repair
309577T 13

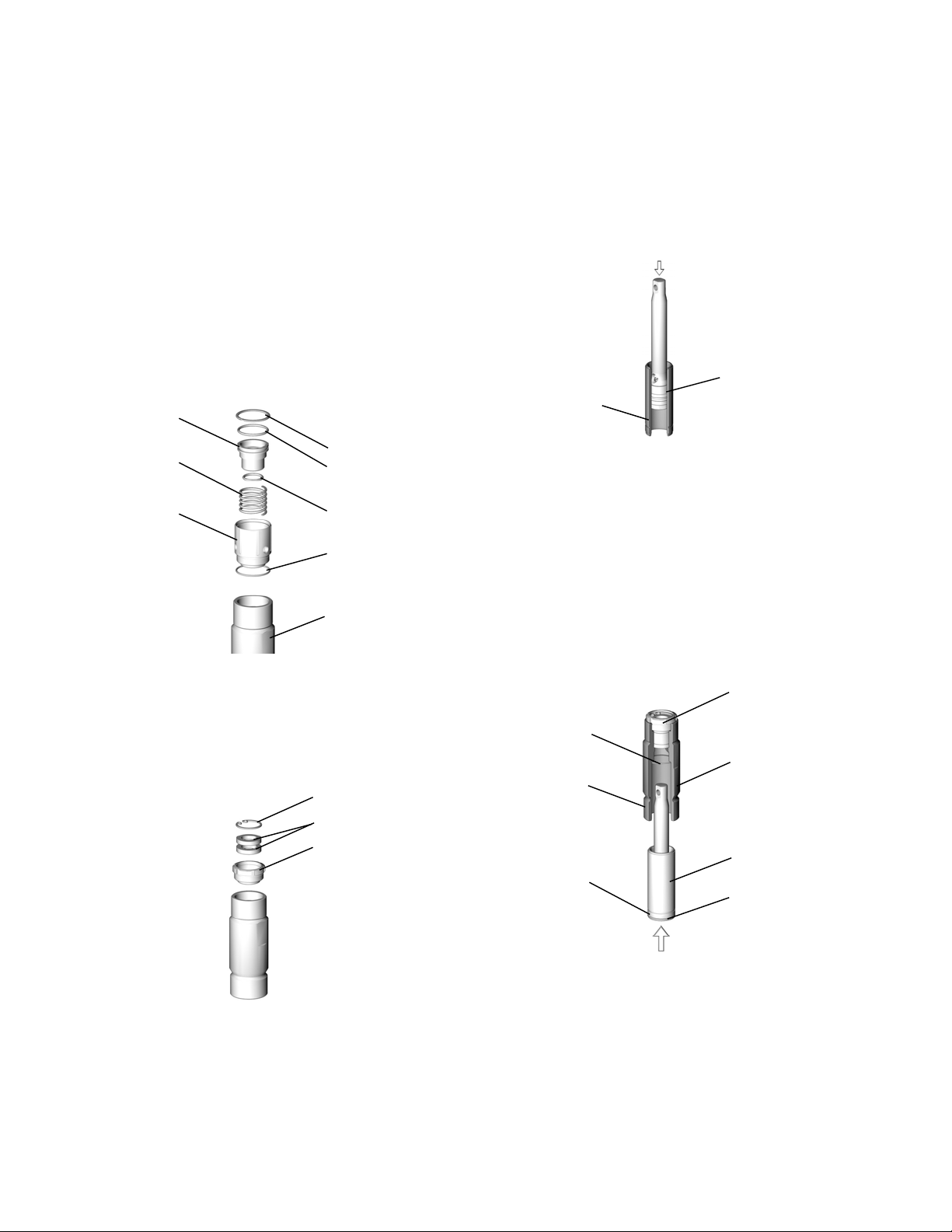

11. Remove the packing wet-cup as follows:
a. Component A (ISO) Pumps:
- Remove the packing wet-cup assembly.
- Compress the piston (28) into the wet-cup (19),
using a 1/2 in. (13 mm) x 2.5 in. (64 mm) bolt
with washers and nut.
- Remove the retaining ring (22).
- Remove the bolt, washers, and nut.
- Remove the piston (28), spring (25), and o-rings
(24, 26, 27).
b. Component B (Resin) Pumps:
Unscrew the packing nut (19). Remove the retaining
ring (22) and felt washers (21).
12. Loosen the intake valve housing (5) with a
non-sparking hammer, then unscrew. Remove the
o-ring (15).
13. Disassemble the intake valve. Be sure to remove
the o-ring (10).
NOTE: The spring (8) is on Models 246832 and 245972
only.
14. Tap the rod (1) with a non-sparking hammer to drive
it out of the cylinder (2).
NOTE: The sleeve (4) may come out with the rod.
TI3735a
19
25
28
24
22
26
27
TI2662A
19
22
21
TI2664A
15
5
TI2665A
5
11
9
10
8
12
TI2672A
1
2
4
TI2672B
1
2
4
246831, 262647, 245971,
262648, 24Y175, and
24Y174 only
T
ypical configuration

Repair
14 309577T
15. Using a screwdriver in the groove (H), remove hte
sleeve (4) from the cylinder (2), or pull it off of the
rod. Remove the o-rings (3).
NOTE: Be sure the top o-ring (3) comes out.
16. Remove the bushing (17).
17. Unscrew the piston (7) from the rod (1). Remove the
ball (16), u-cup (13), and bushing (14).
18. Insert the piston end of the rod (1) into the cylinder
(2) and push the u-cup (20) out.
TI2670A
2
3
4
H
3
TI2669B
17
2
TI2666A
1
16
13
7
14
1
16
18
13
7
14
TI2666B
246831, 262647, 245971,
262648, 24Y175, and
24Y174 only
Typical configuration
TI2671A
1
2
20

Repair
309577T 15
Reassemble the Pump
NOTE: Coat all non-thread sealed parts with ISO Pump
Oil before reassembly, to ease future disassembly.
1. Install the ball (16*) in the rod (1). Center the u-cup
(13*) on the rod (1). The lips of the u-cup must face
up. Use the piston (7) to evenly push the u-cup onto
the rod, then remove the piston. Slide the bushing
(14*) onto the rod (1). The wide end of the bushing
must face up, toward the u-cup.
NOTE: Sealing the patch on the piston threads is good
for four repackings. Use Loctite on the piston threads
after four repackings; be sure none gets on the ball.
2. Install the piston (7). Be careful not to damage the
sealing edges of the u-cup. Torque as specified
below.
3. Install the throat u-cup as follows:
a. Models 246831, 262647, 246832, 245971,
262648, 245972, 24Y174, and 24Y175: Grease
the u-cup (20*) and cylinder (2). Place the u-cup
in the cylinder with the lips facing down. Be
careful not to damage the sealing edges of the
u-cup. Install the packing nut (19) to properly
insert and align the u-cup, then remove the
packing nut.
b. Models 246830 and 245970: Grease the u-cup
(20*) and cylinder (2). Place the seal installation
tool (23*) in the cylinder. Place the u-cup in tool
with lips facing down. Be careful not to damage
the sealing edges of the u-cup. Press the u-cup
in place with 7/8 in. deep-well socket (S).
Remove the socket and tool.
4. Insert bushing (17*). Press bushing in place to seat
u-cup.
5. Assemble the packing nut as follows:
Model Torque
ft-lb (N•m)
246830 and 245970 24-30 (32-40)
246831, 245971, 262648, and
24Y174
47-53 (63-71)
246832 and 245972 95-105 (129-143)
TI2666b
1
16*
18*
*13
7
TI2818A
1
Lips face up.
1
14
246831, 262647, 245971,
262648, 24Y174, and
24Y175 only
Typical configuration
1
16*
7
14
TI2666a
TI2675A
19
20*
2
TI2818A-
1
Lips face down.
1
TI2700A
23*
20*
2
S
TI2669B
*17
2

Repair
16 309577T
a. Component A (ISO) Pump:
• Install spring (25) in the wet-cup (19).
• Install o-rings (24*, 26*) on the piston (28) and
insert the piston in the wet-cup.
• Compress the piston (28) into the wet-cup,
using a 1/2 in. (13 mm) x 2.5 in. (64 mm) bolt
with washers and nut.
• Install the retaining ring (22*) in the groove.
• Remove the bolt, washers, and nut.
• Install the o-ring (27*) on the wet-cup.
• Install the packing wet-cup assembly handtight.
Screw the assembly all the way down, so the
external o-ring (27) seats on top of the cylinder
(2).
b. Component B (Resin) Pump:
• Install felt washers (21*) into the packing nut
(19).
• Install the retaining ring (22*).
• Install the packing nut handtight.
NOTE: The groove (H) in the sleeve outer surface must
be toward the bottom.
6. Lubricate the piston u-cup and sleeve top edge.
Push the piston assembly into the top of the sleeve
(4). Drive in with a non-sparking hammer.
7. Lubricate the top 1-2 in. (25-50 mm) of the
displacement rod (1) and outside of the sleeve (4).
Grease the o-rings (3*) and place one in the cylinder
and other on the bottom of the sleeve.
8. Slide the sleeve into the bottom of the cylinder (2).
Drive in with a hammer until the top of the groove
(H) aligns with the bottom of the cylinder (L). Use a
plastic rod to drive the displacement rod until 1/4-3/8
in. (6-10 mm) of its greatest diameter is visible
above the packing nut (19).
TI3735b
19
25
28
24*
22*
26*
27*
2
TI2701A
22*
21*
19
TI2673A
H
4
TI2674A
19
*3
2
L
4
3*
H

Repair
309577T 17
9. Reassemble the intake valve with o-ring (10*), seat
(9), and ball (11*). Install ball guide (12).
Models 246832 and 245972 only:Install spring (8*)
with screw at top.
NOTE: The seat may be flipped over and used on the
other side. Clean the seat thoroughly. No scratches are
permitted on the sealing edge.
10. Replace the o-ring (15*). Install the intake valve.
Torque the housing (5) as follows, or be sure the
intake valve is snug against the cylinder.
11. Tighten the wet-cup.
NOTE: Do not overtighten the wet-cup. The throat u-cup
(20) is not adjustable.
a. Pump A: Wrap the base of the wet-cup (19) with
a rag and tighten securely with channel locks.
b. Pump B: Pump B: Torque the packing nut (19)
to 130-150 in-lb (15-17 N•m).
12. Reconnect the power supply. Turn the main power
ON .
13. Press . The motor will run until the pumps are
at bottom of their strokes, then shut off.
14. Turn the main power OFF . Disconnect the
power supply.
TI2665A
5
*11
9
10*
8*
12
TI2687A
15*
19
5
Model Torque
ft-lb (N•m)
246830 and 245970 65-75 (88-101)
246831, 262647, 245971,
262648, 24Y174, and 24Y175
75-85 (101-114)
246832 and 245972 185-215 (251-291)
Pump rod and connecting rod move during operation.
Moving parts can cause serious injury such as pinch-
ing or amputation. Keep hands and fingers away from
connecting rod during operation.

Repair
18 309577T
NOTE: Steps 15-18 apply to pump B. See FIG. 3. To
reconnect pump A, go to step 19.
15. Ensure that the star-shaped locknut (G) is screwed
on the pump with the flat side up. Screw the pump
into the bearing housing (M) until the pin holes align.
Push the pin (F) in. Pull the retaining spring (E)
down.
16. Continue screwing the pump into the housing until
the fluid outlet (D) is aligned with the steel tube and
top threads are +/- 1/16 in. (2 mm) of the bearing
face (N).
17. Tighten the star-shaped locknut (G) by hitting firmly
with a non-sparking hammer.
18. Reconnect the fluid inlet (C) and outlet (D).
FIG. 3 Reconnect Pump B
C
D
F
E
G
M
N
1
TI3765a-1
Flat side faces up.
1
Lubricate threads with ISO oil
or grease.
2
22
2
3
Pump top threads must be nearly
flush with bearing face (N).
3

Repair
309577T 19
NOTE: Steps 19-32 apply to pump A only. See FIG. 4.
19. Screw the pump into the bearing housing (M) until
the top threads are level with the bearing face (N).
Rotate the pump to align the pump outlet fitting to
outlet tube.
20. The wet-cup has four 1/8 npt ports. Two will be
inaccessible when the pump is installed. Note or
mark these ports. Remove the pump. Apply thread
sealant and install the plugs in the two ports. Torque
the plugs to 10-15 ft-lb (14-20 N•m). Do not
overtighten.
21. Ensure that the star-shaped locknut (G) is screwed
on the pump with the flat side up. Carefully twist and
extend the rod (1) 2 in. (51 mm) above the wet-cup
assembly.
22. Start threading the pump into the bearing housing
(M). Place a finger guard (P) over the rod when it is
accessible through the window of the bearing
housing. When the pin holes align, insert the pin.
Pull the retaining spring down.
NOTE: A finger guard is not used on Model E-30.
23. Seat a finger guard (P) on the wet-cup (19).
Continue threading the pump into the bearing
housing (M) until the top threads are +/- 1/16 in. (2
mm) of the bearing face (N).
24. Apply thread sealant and screw the barbed fitting
into the motor side of the wet-cup. Torque to 10-15
ft-lb (14-20 N•m). Do not overtighten.
25. Apply thread sealant and screw the elbow (U) into
the remaining wet-cup port. Torque to 10-15 ft-lb
(14-20 N•m). Do not overtighten.
26. Apply thread sealant and screw the barbed fitting
into the elbow (U). Torque to 10-15 ft-lb (14-20
N•m). Do not overtighten.
27. Connect component A outlet tube loosely at the
pump and at the heater. Line up the tube, then
tighten the fittings securely.
28. Tighten the star-shaped locknut (G) by hitting firmly
with a non-sparking hammer.
29. Apply thread sealant and screw the barbed fitting
into the elbow (U). Torque to 10-15 ft-lb (14-20
N•m). Do not overtighten.
30. Apply a thin film of TSL to the barbed fittings. Using
two hands, support the tubes (T) while pushing
straight onto the barbed fittings. Do not let tubes
kink or buckle. Secure each tube with a wire tie
between two barbs.
31. Reconnect the fluid inlet (C) and outlet (D).
32. Purge air and prime the system. See your Reactor
operation manual.
FIG. 4 Reconnect Pump A
C
D
T
G
M
N
1
TI3765a-2
Flat side faces up.
1
Lubricate threads with ISO oil
or grease.
2
2
2
2
3
Pump top threads must be nearly
flush with bearing face (N).
3
U
P
Finger guard (P) not used on
Model E-30.
4
4

Parts
20 309577T
Parts
Component A (ISO) Pumps, with wet-cup flush feature
Part 246830 E-20 and E-XP1; includes items 1-7, 9-28
Part 246831 E-XP2; includes items 1-7, 9-22, 24-28
Part 262647 A-25; includes items 1-7, 9-22, 24-28
Part 246832 E-30; includes items 1-17, 19-22, 24-28 (shown)
Part 24Y175 A-XP1; includes 1-7, 9-22, 24-28
1
2
*3
*3
4
5
7
8*
10*
9
11*
12
*15
*16
*17
†19
*20
†25
TI3736
Used on 246832 only.
1
1
†28
†*24
†*22
†*26
†*27
*14
*13
*18
*13
7
*14
}
246831, 262647, and
24Y175 only
