Graham Field Lumex FR577RG Series User manual

Series FR577RG Clinical Care Recliner
Series FR577RGH Clinical Care Recliner
with Heat and Massage
Assembly and Operating Instructions
IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR LUMEX
FR577RG / FR577RGH CLINICAL CARE RECLINER.
SAVE THIS MANUAL FOR FUTURE USE.
THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT
www.grahameld.com.
FR577RG-INS-LAB-RevH20

FR577RG-INS-LAB-RevH20 2
CONTENTS
INTRODUCTION.......................................................................................................................................................3
INTENDED USE .................................................................................................................................................3
IMPORTANT SAFETY PRECAUTIONS—PLEASE READ BEFORE USE .......................................................3
WARNINGS..................................................................................................................................................3
ASSEMBLY...............................................................................................................................................................5
UNPACKING.......................................................................................................................................................5
PRODUCT DESCRIPTION.................................................................................................................................5
UPHOLSTERED BACK ASSEMBLY...........................................................................................................5
OPERATION .............................................................................................................................................................8
TENTE®CASTERS.............................................................................................................................................8
SIDE TABLE OPERATION.................................................................................................................................8
TO RAISE TABLE........................................................................................................................................8
TO LOWER TABLE......................................................................................................................................8
SIDE PANEL OPERATION.................................................................................................................................9
TO REMOVE SIDE PANEL..........................................................................................................................9
TO INSTALL SIDE PANEL...........................................................................................................................9
RECLINER OPERATION..................................................................................................................................10
FIRST POSITION (UPRIGHT POSITION) .................................................................................................10
SECOND POSITION (FIRST RECLINE POSITION) .................................................................................10
THIRD POSITION (SECOND RECLINE POSITION).................................................................................10
ARTICULATING HEADREST .................................................................................................................... 11
TRENDELENBURG POSITION (ALSO KNOWN AS SHOCK POSITION) .............................................. 11
GAS SPRING TROUBLESHOOTING GUIDE .................................................................................................12
ADJUSTING CABLE TENSION ................................................................................................................12
LUMEX FR577RGH WITH HEAT AND MASSAGE FEATURE..............................................................................13
INSTALLATION AND OPERATING GUIDE .....................................................................................................13
DESCRIPTION ...........................................................................................................................................13
CONNECTION ...........................................................................................................................................13
MAIN COMPONENTS................................................................................................................................13
HEAT AND MASSAGE INSTALLATION INSTRUCTIONS .......................................................................14
HEAT AND MASSAGE UNIT OPERATION INSTRUCTIONS FOR GEN 3 UNIT.....................................16
HEAT AND MASSAGE UNIT TROUBLESHOOTING GUIDE...................................................................18
CARE AND MAINTENANCE ..................................................................................................................................19
EVERY THREE MONTHS ................................................................................................................................19
UPHOLSTERY MAINTENANCE AND STAIN REMOVAL ...............................................................................19
PERMABLOK3®CARE AND CLEANING GUIDE — ADVANCED VINYL PROTECTION .......................19
CDC RECOMMENDATIONS ............................................................................................................................20
CE CERTIFICATION (SERIES FR577RG ONLY)...................................................................................................22
TECHNICAL SPECIFICATIONS.............................................................................................................................22
LIMITED WARRANTY ............................................................................................................................................23

FR577RG-INS-LAB-RevH20 3
INTRODUCTION
This manual contains assembly, operation, and maintenance instructions for the Lumex
Clinical Care Recliners Series FR577RG and FR577RGH. Read the entire manual carefully
before using your recliner, and refer to it during use if you have questions. If you have
further questions, please call Graham-Field / Lumex Technical Support at 1.770.368.4700.
INTENDED USE
Lumex Clinical Care Recliners are intended to make the care, treatment and recovery of
patients easier and more comfortable. Lumex Clinical Care Recliners are used in a wide
range of healthcare applications including Dialysis, Oncology, Drug Delivery, Same Day
Surgery and Post-Operative Recovery. Lumex Clinical Care Recliners are ideal for use in
hospitals, clinics and rehabilitation centers.
Lumex Series FR577RG and FR577RGH supports patient weights up to 290 lb (131 kg) when
evenly distributed.
IMPORTANT SAFETY PRECAUTIONS—PLEASE READ BEFORE USE
The safety statements presented in this chapter refer to the basic safety information that
the FR577RG / FR577RGH user must pay attention to and abide by. There are additional
safety statements in other chapters or sections, which may be the same as or similar to the
following, or specic to the operations. Please note the following special statements, used
throughout this manual, and their signicance:
WARNING: Indicates a potential hazard situation or unsafe practice that, if not
avoided, could result in death or serious personal injury.
CAUTION: Indicates a potential hazard or unsafe practice that, if not avoided, could
result in minor or moderate personal injury.
sNOTICE: Indicates a potential hazard or unsafe practice that, if not avoided, could
result in product or property damage.
Info: Provides application recommendations or other useful information to
ensure that you get the most from your product.
WARNINGS
WARNING: Read this entire manual before assembly or operation.
WARNING: Periodically inspect all parts and replace as needed.
 WARNING:Donotusenearanopename,asthechaircouldbeacombustion
source,resultinginre,propertydamage,andseverephysicalinjury.
WARNING: Service and repair of the Lumex FR577RG / FR577RGH Clinical
Care Recliner must be performed by a Graham-Field authorized distributor. GF
Health Products, Inc. is not responsible for any consequence resulting from any
unauthorized service or repair.

FR577RG-INS-LAB-RevH20 4
WARNING: The electronics and actuator contain no serviceable components. If
service is required, the unit must be returned to the factory for repair. DO NOT
attempt to open the electronics or actuator or obtain local service; this will void
the warranty and may result in damage to the unit. Consult your Graham-Field
authorized distributor for further information.
WARNING: This product has a maximum weight capacity of 290 lb (131 kg), EVENLY
DISTRIBUTED.
WARNING: Casters must be locked at all times, except during transport.
 WARNING:Unauthorizedmodicationofyourreclinerortheuseofnon-Lumex
replacement parts may change the structure of the recliner and could create a
hazardous condition, which may result in serious injury and will void the warranty.
WARNING: This product can expose you to chemicals including
Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause
cancer and birth defects or other reproductive harm. For more information go to
www.p65warnings.ca.gov/furniture.
 WARNING:GFHealthProducts,Inc.specicallydisclaimsresponsibilityforany
bodily injury or property damage which may occur during any use which does not
comply with federal, state or local laws or ordinances.

FR577RG-INS-LAB-RevH20 5
ASSEMBLY
UNPACKING
1. Check for obvious damage to the carton or its contents. If damage is evident, please
notify the carrier and your Graham-Field authorized distributor.
2. Remove all packaging materials from recliner base.
PRODUCT DESCRIPTION
upholstered back
upholstered armrest
upholstered seat
upholstered
legrest / skirt
upholstered
footrest
fold down side table
frame
removable side panel
padded
push handle
gas spring
actuating lever
total locking caster
(total of 3 on recliner; black locking tab)
rear directional (swivel) locking caster
(right rear leg only; green locking tab)
Clinical Care Recliner Series FR577RG
Upholstered Back Assembly
1. After removing all components from the
carton, engage all four locks on the casters
before beginning assembly.
2. Back Assembly at right shows the location
of three clevis pins, two ring cotter clips
and two large cotter pins.
Info: The three center clevis pins are 5/16"
in diameter. The two outside clevis pins
are 3/8" in diameter.
back brace with
U-brackets
bridge
clip
3
/ 8 " diameter
clevis pin
Back Assembly

FR577RG-INS-LAB-RevH20 6
3. Remove cardboard shipping retainers
and tape from around gas spring cylinder.
Rotate the gas spring hinge section so
that it is perpendicular to the upholstered
back, as shown at right.
4. Remove upholstered side panels
from frame: Depress the two
push buttons located on the
lower sides of frame. Pull side
panel gently away and down
from frame. There are tabs on
the frame underneath the
armrest that hold the side panel
in place.
5. Lift the upholstered back from the
sides and place it horizontally with
the upright back tubes resting on
the recliner frame.
6. Align the holes on the
upright back tubes of the
upholstered back with the
holes on the seat frame.
Place the 3/8" diameter
clevis pins through the
mounting holes in the frame
and back as shown at right.
7. Secure the two clevis pins
by placing a large cotter
pin through the hole in the
clevis pin (one for each
side) as shown at right.
push button
panel tabs
side panel
clevis pin
cotter pin
Remove Side Panel
Clevis Pin and Cotter Pin
Align Holes Place Clevis Pins
Place Cotter Pin Cotter Pin
gas spring hinge
Rotate HInge

FR577RG-INS-LAB-RevH20 7
8. Raise the upholstered back to vertical position.
Tuck the plastic skirt at rear of upholstered
back behind cross brace of seat frame. Align the
hinges at the bottom of the gas spring with
the holes in the U-brackets on the seat frame
cross brace. While holding the back in position
with one hand, secure the gas spring hinge to
the U-bracket by placing the 5/16" diameter
clevis pins through the U-bracket and hinge
with the other hand.
9. Secure the clevis pin by placing the ring cotter
pin through the hole in the clevis pin as shown
at right.
10. Replace side panels:
Insert side panel into recliner
frame by locating the tabs
underneath the armrest.
Make sure side panel is
properly aligned and that the
top edge is behind the locking
tabs. Press side panel into
frame sides. Make sure that
both push buttons are
protruding into side panel to
ensure side panel is locked in
place.
Place Clevis Pins
Place Cotter Pins
push button
panel tabs
side panel
Replace Side Panel

FR577RG-INS-LAB-RevH20 8
OPERATION
WARNING: Disconnection of the Device: In case of emergency, always disconnect
the device by removing the power cord plug from the power outlet.
TENTE®CASTERS
WARNING: Casters must be locked at all times, except during transport.
All Lumex Clinical Care Recliners now feature
the latest design, all-plastic casters from TENTE.
Specically designed for use in healthcare
environments, the new casters are easier to clean,
easier to move, and tolerate a wide array of cleaners
and chemicals. Each caster is made from high-
grade synthetic materials and features a double-ball
bearing swivel head. The wheel center is made of
polypropylene and the tire tread of TENTEprene
(thermoplastic rubber). The gray non-marking tires
feature precision ball bearings.
Locking casters: Each Lumex Clinical Care Recliner
features three total locking casters, identied by
black actuator tabs, that lock both the wheel and the swivel. To activate the total lock,
simply press down on the BLACK actuator tab until it locks. To release the total lock, press
on the raised portion of the actuator tab until the lever is back in the normal operating
position.
Directional (swivel) caster: The fourth caster, located on the right rear position of the
recliner, is a directional (swivel) locking caster only. Identied by a green actuator tab, the
directional lock caster will lock in one of two 180-degree positions relative to the frame
(forward and backward) and allows the recliner to track straight when pushed. To activate
the directional lock, simply press down on the GREEN actuator tab until it locks — you may
need to move the recliner slightly until the caster locks in a straight line with the recliner
frame. To release the directional lock, press on the raised portion of the actuator tab until
the lever is back in the normal operating position.
SIDE TABLE OPERATION
To Raise Table
Raise the side table all the
way up and slide in toward the
armrest until tabs engage slots
in mount bracket. Press down
lightly on table to ensure locking
tabs are engaged.
To Lower Table
Lift the side table up slightly until
tabs disengage slots and pull
table away from armrest. Lower
side table to self-storing position.
side table
(stored position)
side table
(engaged position)
tabs engage into
slots on side table
mount bracket
side table
mount bracket
3/8" clevis pin
attachment
armrest
side table
(disengaged position)
Side Table
green actuator tabblack actuator tab
directional (swivel)
locking caster
(right rear caster)
total
locking caster

FR577RG-INS-LAB-RevH20 9
push button
panel tabs
side panel
Removable Side Panel
SIDE PANEL OPERATION
For easy cleaning and access to the side / underside of the recliner, Lumex Clinical Care
Recliners feature easy-to-remove side panels.
To Remove Side Panel
Depress the two push buttons
located on the lower sides of
frame. Pull side panel gently away
and down from frame. There are
tabs on the frame underneath the
armrest that hold the side panel
in place.
To Install Side Panel
Insert side panel into recliner
frame by locating the tabs
underneath the armrest. Make
sure side panel is properly
aligned and that the top edge is
behind the locking tabs. Press
side panel into frame sides. Make
sure that both push buttons are
protruding into side panel to
ensure side panel is locked into
place.

FR577RG-INS-LAB-RevH20 10
RECLINER OPERATION

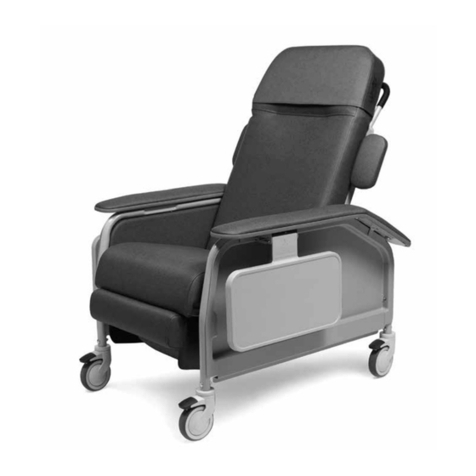

The Lumex Series FR577RG and FR577RGH Recliners feature three positions for patient
comfort. The fourth position is a Trendelenburg (or Shock Position) that must be activated
by a caregiver. The Trendelenburg Position CANNOT be activated by a patient while in the
recliner. In addition, the Series FR577RG features a back that can be repositioned via the
Adjustment Lever located on the Push Handle on the back of the recliner.
First Position (Upright Position)
The rst position is the Upright Position. This position is
ideal for patient transport and can be used to initiate patient
treatment / therapy.
Second Position (First Recline Position)
The second position is the First Recline Position and is also
known as the “TV” position. This position is ideal for patient
treatment, rest and reading.
To Achieve Second Position / First Recline Position:
• By the Patient: Place hands on armrest and push body
against recliner back to recline yourself to desired
position. To bring yourself up, place hands on armrest
and pull yourself up while leaning your body forward,
away from the recliner back, while at the same time
pushing down evenly on the footrest with your legs.
• Reclining by Attendant: Standing on either side of the
recliner, grasp the armrest with one hand and push
handle with the other hand. Push back on push handle to
recline. To return, grasp push handle and pull forward to
raise the recliner back.
sNOTICE: DO NOT use the footrest by itself to
return the recliner to an upright position from any
recline position. Doing so may damage the recliner
mechanism. Please follow the instructions above to
operate the recliner.
Third Position (Second Recline Position)
The third position is the Second Recline Position and is also known as the “Full Recline”
position. This position is ideal for patient treatment, rest and reading.
To Achieve Third Position / Second Recline Position:
• Reclining by patient: From the First Recline Position continue to push against the back
by placing your hands on armrests and continue to recline yourself to the Second
Recline Position. To bring yourself up, place hands on armrests and pull yourself up
while leaning your body forward away from the recliner back while at the same time
pushing down evenly on the footrest with your legs.
• Reclining by attendant: Standing on either side of the recliner, grasp the armrest with
one hand and push handle with the other hand. Push back on push handle to recline. To
return, grasp push handle and pull forward to raise the recliner back.
Upright Position
First Recline Position
(TV Position)
Second Recline Position
(Full Recline Position)
Trendelenburg Position
(Shock Position)

FR577RG-INS-LAB-RevH20 11
Articulating Headrest
The Series FR577RG and FR577RGH
feature an articulating headrest
for additional patient comfort. The
upper section of the back features
a self-contained headrest, shown
at right. To reposition the headrest
section, pull forward on the upper
section of the back to increase the
angle of the headrest section. To
return headrest to normal position,
push headrest section back so
that it is even with the back of the
recliner.
Trendelenburg Position (Also
Known as Shock Position)
Info: This position can only be
achieved by a caregiver.
Standing at the back of the recliner,
grasp the push handle with one
hand while actuating the lever
located on the rear push handle
with the other. Slowly guide the
back down fully until it stops and
release the lever. If the articulating
headrest is in the forward position,
push back so that it is even with
the back of the recliner. The
Trendelenburg Position can be
obtained from any position.
To bring recliner out of
Trendelenburg, stand at the back of
the recliner and actuate the lever.
Slowly guide the back upright and
release the lever. Recliner can then
be placed in the desired position.
Upright Position
First Recline Position
(TV Position)
Second Recline Position
(Full Recline Position)
Trendelenburg Position
(Shock Position)
Articulating Headrest Move Headrest Forward
Lever

FR577RG-INS-LAB-RevH20 12
GAS SPRING TROUBLESHOOTING GUIDE
Info: The gas spring has been pre-adjusted at factory.
The gas spring on your recliner provides counterbalancing forces, and is self-locking for
innite, precise positioning. Unlocking the gas spring is controlled by actuating the lever
located on the padded push handle on the back of the recliner. When the lever is actuated
it pulls on the cable which in turn pulls on a hinge, depressing a button at the end of the
gas spring rod. If the gas spring does not unlock when the lever is actuated or if it remains
permanently unlocked when the lever is actuated, the cable must be adjusted.
Adjusting Cable Tension
1. Remove the one screw and cable clip which secure the
cable to the upholstered back. Remove the gas spring
from the recliner by disassembling the two ring cotter
pins and the two clevis pins that secure the gas spring to
the back / frame.
2. Lower the back until it rests on the stop bars on the
recliner frame. Loosen the lock nut on the gas spring.
3. Hold the hinge assembly while turning the gas spring until
the cable just becomes taut. Back off the gas spring an
additional half turn.
Info: If the gas spring was not unlocking when the
lever was actuated, the gas spring must be turned
clockwise. If the gas spring was not locking when the
lever was released, the gas spring must be turned
counter-clockwise.
4. Retighten the lock nut.
5. Reassemble the gas spring to the back of the recliner by
replacing the clevis pins, bridge pins, and re-attach cable
to back of recliner with the screw and cable clip.
6. Actuate the recliner in accordance with the operating
instructions to verify correct adjustment.
Adjusting Cable Tension 2
Adjusting Cable Tension 1

FR577RG-INS-LAB-RevH20 13
LUMEX FR577RGH WITH HEAT AND MASSAGE FEATURE
INSTALLATION AND OPERATING GUIDE
WARNING: Important! Read and understand these instructions before assembling
or using the Lumex Specialty Healthcare Seating Heat and Massage Unit. If you
do not understand any part of these warnings, cautions or instructions, contact
a healthcare professional for direction in the use of this product. If the Heat and
Massage Unit is not properly assembled, personal injury and damage to the Heat and
Massage Unit could result.
WARNING: The recliner seat and back heating elements are wired to operate in
series only. Do not change the system wiring in any way.
WARNING: If components are damaged or missing, contact your Graham-Field
authorized distributor immediately. DO NOT use substitute parts. Use only Lumex
replacement parts. The use of non-Lumex replacement parts could cause personal
injury, property damage, and void the warranty.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or
injury caused by improper assembly or use of this product.
Description
The Lumex Healthcare Seating Heat and Massage Unit is a low-voltage (12V) Heat and
Massage Unit, controllable by the user and / or caregiver via a handheld pendant. It is
designed to enhance the comfort of the patient / resident during the use of Lumex Clinical
Care Recliners. The Heat and Massage Unit offers three levels of seat and back heat, as well
as a gentle or rm massage function for just the lower back or both lower and upper back.
Connection
The Heat and Massage Unit comes pre-installed in Lumex Clinical Care Recliners with the
Heat and Massage Option.
Info: Model FR577RGH requires two connections; one for the massage motor and
the other at the control box.
Main Components
1. All Heat and Massage functions are controlled by the
handheld pendant.
The handheld pendant comes pre-installed and is wrapped
to the bottom of the seat for model FR577RGH. To store
the pendant when not in use or for caregiver use, place it
in the pendant storage bracket mounted on the back of the
recliner as shown at right.
Handheld Heat and Massage
Pendant Shown in Storage Bracket
on Back of Recliner

FR577RG-INS-LAB-RevH20 14
Control Module and Transformer Unit Showing All Connections Correctly Made
2. The Control Module and Transformer, shown above, are contained in a single unit
mounted in the back compartment. The 8-foot power cord plugs into the wall AC outlet.
Heat and Massage Installation Instructions
During recliner shipment, the Heat and Massage cable connections are disconnected. Just
two easy connections are required to make the unit functional.
CAUTION: To prevent personal injury and damage to the recliner always obtain
assistance when positioning the recliner as instructed in the following sections.
Control Module and Transformer Unit Showing All Connections Correctly Made
1. Install the back assembly and gas spring on the seat frame with the clevis pins and
clips supplied with the recliner as indicated in your recliner’s Assembly and Operating
Manual.
Handheld
Pendant
Power Cord
Handheld
Pendant
Insert
Back
Massage
Connector
Here

FR577RG-INS-LAB-RevH20 15
2. Remove the left side table, shown at right, from the
recliner to prevent damage to it during setup: Withdraw
the ball lock pin, shown at right, and set ball lock pin and
table aside.
3. Place a protective cover or drop cloth on your
workbench or oor to protect the recliner frame nish
and upholstery. With assistance, carefully roll the recliner
and rest it on its left side to provide access to the seat
bottom, as shown at right. If desired, for better access,
you may roll the recliner completely upside down.
Carefully extend the footrest partway for access to the
components, as shown at right.
WARNING: DO NOT place your hands in the path of the
moving recliner mechanism. Moving parts could cause
personal injury.
4. Insert the cable connector labeled BACK into the control
module connector (see picture of control module on
previous page) until its locking tab snaps into place.
5. Locate the black plastic corrugated tube at the lower
back of the Recliner.
6. Pull on the red wires coming out of the plastic tube.
Locate MASSAGE MOTOR
Connector within Corrugated Tube
Connect MASSAGE MOTOR wires
Connect Massage Motor Wires
7. There is a connector within the plastic tube labeled
“Massage Motors” — connect this connector to the other
Massage Motor connector shown above.
8. If you need to replace the Handheld Pendant, remove the
small white connector security lock as shown at right.
9. With assistance, carefully return the recliner to its upright position.
10. Reinstall the left side table with the ball lock pin.
11. The Heat and Massage Unit is now ready for operation. Instructions for use follow.
sNOTICE: Before rolling the recliner, ensure the power cord is unplugged from the AC
outlet.
Insert Cable Connector
Labeled SEAT
Through Bushing
Connector Security Lock
Connector
Security Lock
Roll Recliner
onto its Left Side
Remove
Left Side Table
balllock pin left sidetable

FR577RG-INS-LAB-RevH20 16
Heat and Massage Unit Operation Instructions for Gen 3 Unit
1. Plug the power cord into any grounded outlet.
Heat and Massage Handheld Pendant
2. The Heat and Massage Unit is operated using the handheld pendant, shown above.
Faceplate Selector Switch,
Heat and Massage Handheld Pendant
3. The Pendant has two membrane switches. The left switch controls the Massage Function
and the right switch controls the Heat Function, as shown above on the Handheld
Pendant Selector Switch Faceplate. You can use either the Heat or Massage or both
functions at the same time.

FR577RG-INS-LAB-RevH20 17
4. Press the left switch to start the Massage function. The Massage Function Settings are as
follows:
a) Press selector switch for Setting 1: Gentle Lower Back Massage.
b) Press selector switch AGAIN for Setting 2: Firm Lower Back Massage.
c) Press selector switch AGAIN for Setting 3: Gentle Upper and Lower Back Massage.
d) Press selector switch AGAIN for Setting 4: Firm Upper and Lower Back Massage.
e) Press selector switch AGAIN: Massage function Shuts Off.
5. Press the right switch to start the Heat function. The Heat Function Settings are as
follows:
a) Press selector switch for Setting 1: High Heat, 104°F (40°C), brightest LED.
b) Press selector switch AGAIN for Setting 2: Medium Heat, 101°F (38.6°C), bright LED.
c) Press selector switch AGAIN for Setting 3: Low Heat, 100°F (37.8°C), dim LED.
d) Press selector switch AGAIN: Heat function shuts off.
e) There is a small red indicator light, which illuminates only during the Heat function, in
the selector switch. The light’s brightness is determined by the Heat level being used:
Brightest = High Heat; Dimmest = Low Heat.
6. The Heat and Massage Unit automatically shuts off at the following times:
a) HEAT FUNCTION: After one hour of continuous use at the same level.
b) MASSAGE FUNCTION: After fteen minutes of continuous use at the same level.
c) To restart the Heat and Massage Unit, follow previous steps 4 and 5.

FR577RG-INS-LAB-RevH20 18
Heat and Massage Unit Troubleshooting Guide
The cables and connections need to be validated. This will require the services of a
maintenance person and a clear working area.
1. INSPECTION: Perform the following checks. If a working recliner of the same model is
available, use it for comparison.
a) Is the AC cord properly connected to the power supply? Is the cable from the power
supply to the control module junction box in place?
b) With the power supply AC cord plugged into a live AC outlet, does the small light to
the left of the white seat symbol (located on the switch) light up when the switch is
pressed repeatedly or is there any indication of massage operation?
WARNING: Disconnect the power cord from the AC outlet before performing the
following steps!
c) Is there any sign of external damage to the handheld pendant or wire?
d) Is there any sign of external damage to the recliner?
e) Do any of the cables show any sign of damage or pinch points?
f) Are all cable connections to the control module in place? Are the connectors fully
engaged?
g) Are any of the connectors damaged?
h) Are the wires within the connectors attached to the pins? Each wire may have to be
tugged lightly to check if the wire is still crimped to the pin.
2. POST-INSPECTION:
a) If improper or loose connections are found, reconnect them rmly (unless a loose
wire has been found). Plug the power supply AC cord into a live wall socket and
operate the unit through all functions.
b) If the handheld pendant or wire is damaged, notify Graham-Field so that a handheld
pendant can be sent for replacement.
c) If damage to any other electrical cable or component, or disconnected wires are
found, please notify Graham-Field.
3. ACTIONS:
a) If full operation is restored, please advise Graham-Field of your successful outcome.
b) If the fault cannot be corrected by simple re-connection, please inform Graham-Field
of the results of your inspection in detail so that we may determine the appropriate
action to be taken.
If you have any questions about the setup and / or operation of the Heat and Massage Unit,
call the Graham-Field Technical Support Group at 1.770.368.4700.

FR577RG-INS-LAB-RevH20 19
CARE AND MAINTENANCE
WARNING: Inspect all components periodically and replace as needed.
EVERY THREE MONTHS
• Check and clean casters.
• Tighten bolts in each leg that secure casters into frame.
• Check brakes on casters.
• Check and clean lock recline mechanism.
• Check recliner mechanism for operation in all positions, including Trendelenburg
Position, with assistant seated in recliner.
UPHOLSTERY MAINTENANCE AND STAIN REMOVAL
• Ordinary dirt: wash with warm water and a mild soap or detergent.
• Stubborn dirt: using a soft bristle brush, wash with warm water and a mild soap or
detergent.
• Ground-in dirt: scrub with powdered cleanser or similar detergent.
• Chewing gum: scrape carefully; remove with kerosene or naphtha.
• Nail polish and remover: Blot immediately to prevent damage.
• Ball point pen: blot immediately with a white cloth dampened in water or mineral oil.
• Paint, shoe polish, heel marks: remove immediately! Use a white cloth dampened in
kerosene, naphtha or turpentine. Do not use paint remover or liquid brush cleaners.
• Tars, asphalt, creosote: remove to prevent staining. Clean area with kerosene or
naphtha.
WARNING: When using kerosene or naphtha, do so in a well ventilated area and keep
itawayfromre,ame,andreclineroccupant.
• Waxing and renishing: improves wearability. Use any quality paste wax.
• A diluted solution of 10% (or less) of bleach or Clorox may be used when cleaning this
recliner.
PERMABLOK3®Care and Cleaning Guide — Advanced Vinyl Protection
• Step 1 (eye shadow, mascara, grease, black felt tip pen, crayon, chocolate, suntan lotion,
hair and body oils): remove excess spill with a damp cloth. Clean with a 1:1 mix of Ivory®
liquid soap and water. Next, rinse with clean water and dry.
• Step 2 (red lipstick): use a straight application of concentrated cleaners such as Formula
409®or Fantastik®spray cleaner. Wipe with a clean cloth, rinse with water, and dry.
• Step 3 (blood, urine, feces, oil base paint, tar, and asphalt): use a 1:1 mix of ammonia and
water, or a 1:4 mix of bleach and water. Rinse with clean water and dry.
• Step 4 (all other tough stains): use a straight application of naphtha (lighter uid). Rinse
thoroughly with clean water and pat surface dry. If the stain persists, go to step 5.
• Step 5: use a 1:1 mix of isopropyl alcohol and water. If the stain persists, use straight
alcohol. Rinse thoroughly with clean water and pat dry.
Info: For cleaning that requires step 4 or 5, use a soft cotton cloth saturated with
the cleaning material and rub the stain in circles 10 times. Pat dry with another
soft cotton cloth and check the results.

FR577RG-INS-LAB-RevH20 20
The information published in this care guide refers to the performance of PERMABLOK3
products in specic tests conducted under laboratory conditions. Results may vary under
actual conditions.
This information is not a guarantee and does not relieve the user from the responsibility of
the proper and safe use of the product and all cleaning agents. The use of certain agents can
be harmful to the surface appearance and lifespan of vinyl. Spradling, its agents, and assigns
assume no responsibility resulting from the use of such cleaning agents to the vinyl.
Please check compatibility when using this product in combination with painted or
varnished surfaces.
PERMABLOK3 is a registered trademark of Spradling Holdings, Inc.
Ivory is a registered trademark of Procter and Gamble.
Formula 409 is a registered trademark of The Clorox Company.
Fantastik is a registered trademark of S.C. Johnson & Son, Inc.
Spradling International is not sponsored by, afliated with, or endorsed by such trademark
owners.
CDC RECOMMENDATIONS
CLEANING AND DISINFECTING STRATEGIES FOR ENVIRONMENTAL SURFACES IN
PATIENT-CARE AREAS FOR VINYL UPHOLSTERY, WALL COVERINGS AND FLOORING
• Select EPA-registered disinfectants, if available, and use them in accordance with the
manufacturer’s instructions.
• Do not use high-level disinfectants / liquid chemical sterilants for disinfection of either
noncritical instruments and devices or any environmental surfaces; such use is counter
to label instructions for these toxic chemicals.
• Follow manufacturers’ instructions for cleaning and maintaining noncritical medical
equipment.
• In the absence of a manufacturer’s cleaning instructions, follow certain procedures:
• Clean noncritical medical equipment surfaces with a detergent / disinfectant.
• Do not use alcohol to disinfect large environmental surfaces.
• Use barrier protective coverings as appropriate for noncritical surfaces that are:
• Touched frequently with gloved hands during the delivery of patient care.
• Likely to become contaminated with blood or body substances.
• Difcult to clean (e.g., computer keyboards).
• Keep housekeeping surfaces (e.g., oors, walls, tabletops) visibly clean on a regular
basis and clean up spills promptly.
• Use a one-step process and an EPA-registered hospital detergent / disinfectant designed
for general housekeeping purposes in patient-care areas where:
• Uncertainty exists as to the nature of the soil on the surfaces (whether it is blood or
body uid or just normal dust or dirt).
• Uncertainty exists regarding the presence of multi drug resistant organisms on such
surfaces.
