Graham Field LUMEX AltaDyne 750000 User manual

750000
ALTERNATING PRESSURE /
LOW AIR LOSS MATTRESS SYSTEM
USER MANUAL
Important: Do not operate the Mattress System
without rst reading and understanding this manual!
Save this manual for future use.
750000-INS-LAB-RevA08

2 750000-INS-LAB-RevA08
CONTENTS
INTRODUCTION ..................................................................................... 3
INTENDED USE OF THIS DEVICE ........................................................ 3
IMPORTANT SAFETY PRECAUTIONS .................................................. 3
DANGER ................................................................................................. 4
WARNING ............................................................................................... 4
CAUTION ................................................................................................ 5
EQUIPMENT SYMBOLS ......................................................................... 6
PRODUCT DESCRIPTION...................................................................... 7
PUMP AND MATTRESS SYSTEM ......................................................... 7
PUMP: FRONT................................................................................. 7
PUMP: REAR ................................................................................... 8
PUMP: TOP PANEL ......................................................................... 8
INSTALLATION ........................................................................................ 9
UNPACKING ........................................................................................... 9
PUMP AND MATTRESS INSTALLATION .............................................. 9
OPERATION........................................................................................... 11
PRESSURE ADJUSTMENT ................................................................. 11
QUICK DISCONNECT.......................................................................... 12
TRANSPORT CAP ................................................................................ 12
CPR FUNCTION ................................................................................... 12
MAINTENANCE..................................................................................... 12
CLEANING ............................................................................................ 12
GENERAL MAINTENANCE.................................................................. 13
FUSE REPLACEMENT .................................................................. 13
AIR FILTER REPLACEMENT ........................................................ 14
STORAGE ............................................................................................. 14
SPECIFICATIONS.................................................................................. 14
WARRANTY........................................................................................... 15
GF, Graham-Field, Lumex and AltaDyne are registered trademarks of
GF Health Products, Inc.
GF Health Products, Inc. is not responsible for typographical errors.
Packaging, warranties, specifications and products are subject to change
without notice.

750000-INS-LAB-RevA08 3
INTRODUCTION
Use this manual for set-up and operation of the Alternating
Pressure / Low Air Loss Mattress System. Read all instruc-
tions before using the mattress system. Save this manual
for future reference.
INTENDED USE OF THIS DEVICE
The intended use of the Alternating Pressure / Low Air
Loss Mattress System is:
• The treatment of pressure ulcers while optimizing user
comfort.
• Pain management as prescribed by a physician.
• As described above, in either a homecare or long-term
care setting.
IMPORTANT SAFETY PRECAUTIONS
The safety statements presented in this chapter refer to
the basic safety information that should be observed by
those using the Alternating Pressure / Low Air Loss Mat-
tress System. There are additional safety statements in
other chapters or sections, which may be the same as or
similar to the following, or specic to the operations.
DANGER: Indicates an imminent hazard situation
that, if not avoided, will result in death or serious
injury.
WARNING: Indicates a potential hazard situation or
unsafe practice that, if not avoided, could result in
death or serious injury.
sCaution: Indicates a potential hazard or unsafe prac-
tice that, if not avoided, could result in minor person-
al injury or product/property damage.
Note: Provides application recommendations or other
useful information to ensure that you get the most from your
product.

4 750000-INS-LAB-RevA08
DANGER
To reduce the risk of electrocution:
DANGER: Always unplug this product immediately
after using.
DANGER: Do not use this product while bathing.
DANGER: Do not place or store this product where it
can fall or be pulled into a tub or sink.
DANGER: Do not place this product in or drop into
water or other liquid.
DANGER: Do not reach for a product that has fallen
into water. Unplug it immediately.
WARNING
To reduce the risk of burns, electrocution, re, or
personal injury:
WARNING: Do not leave this product unattended
when plugged in.
WARNING: Always use close supervision when this
product is used by, on, or near children or those who
require close supervision.
WARNING: Use this product only as intended and
described in this manual. Do not use attachments or
accessories not recommended by Graham-Field.
WARNING: Never operate this product if
a) it has a damaged cord or plug
b) it is not working properly
c) it has been dropped or damaged
d) it has been dropped into water.
Return the product to your Graham-Field equipment
provider.

750000-INS-LAB-RevA08 5
WARNING: Keep the cord away from heated surfaces.
WARNING: Never block the air openings of this
product or place it on a soft surface, such as a bed
or couch, where the openings may be blocked. Keep
the air opening free of lint, hair, and other similar
particles.
WARNING: Never drop or insert any object into any
opening or hose.
WARNING: Do not use this product in the presence
of ammable anesthesia, or where oxygen or nitrous
oxide is being administered.
WARNING: Connect this product only to a properly
grounded power outlet.
WARNING: Maximum patient weight capacity for this
product is 350 lb (159 kg).
CAUTION
sCaution: The pump can be used only with the accom-
panying mattress. Do not use it for any other purpose.

6 750000-INS-LAB-RevA08

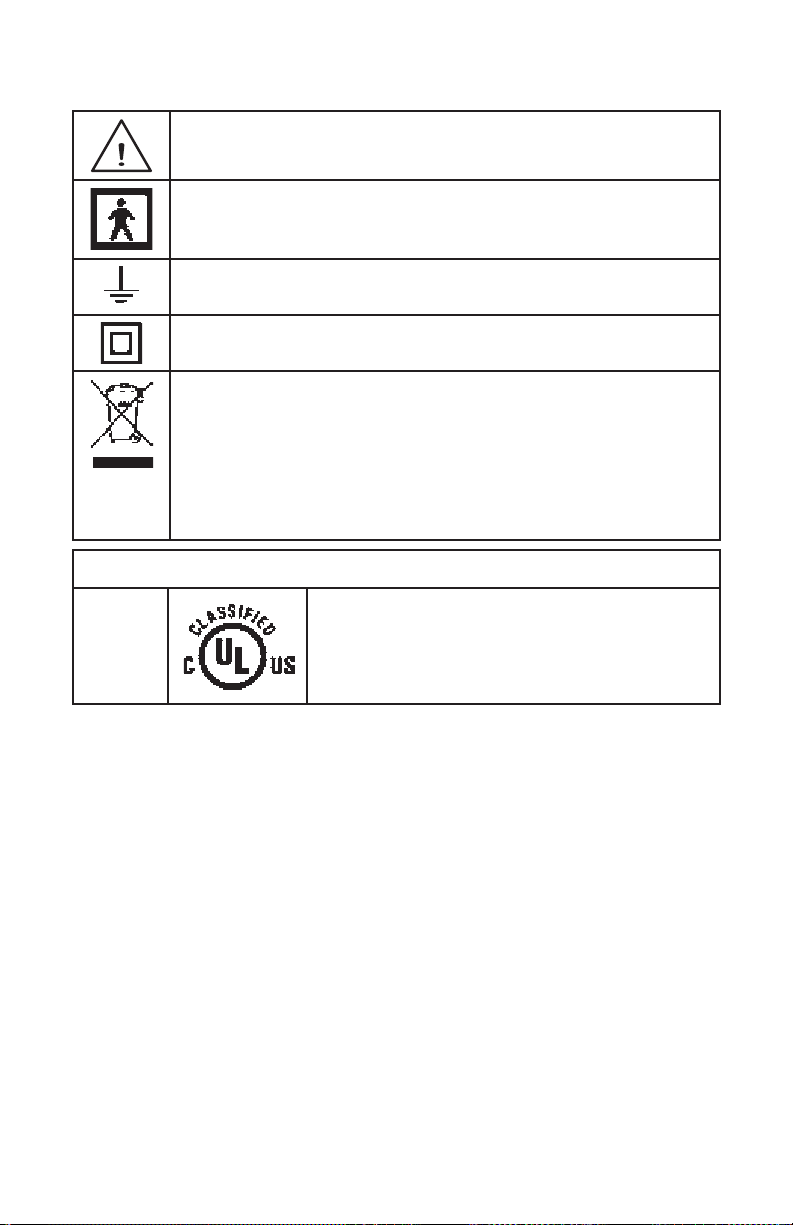

EQUIPMENT SYMBOLS
Attention! Consult accompanying documents (this manual)
Indicates that this product is according to the degree of
protection against electric shock for type BF equipment
Functional earth (for UL only)
Class II (for UL only)
Disposal of Electrical & Electronic Equipment (WEEE):
Do not treat this product as household waste. For more
detailed information with regard to returning and recycling
this product, please consult your local city ofce, household
waste disposal service, or Graham-Field Health Products
equipment provider.
For U.S. and Canada only
E228589
53DG
Medical Equipment: Air Pump
with respect to electrical shock, re and
mechanical hazards only in accordance with
UL60601-1 and CAN/CSA C22.2 No. 601.1

750000-INS-LAB-RevA08 7
PRODUCT DESCRIPTION
PUMP AND MATTRESS SYSTEM
pump and mattress system
CPR valves
mattress-pump
connectors
mattress
foot end
symbol
pump
Pump: front
quick connector

8 750000-INS-LAB-RevA08

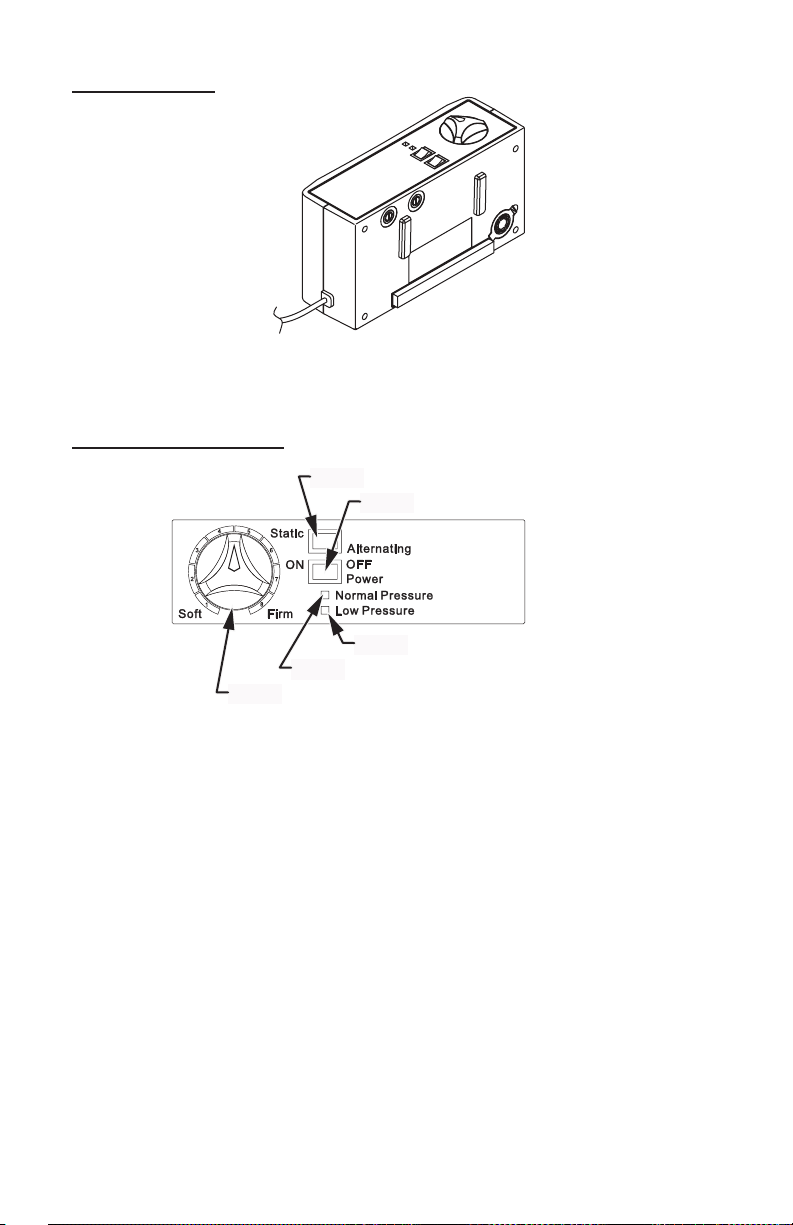

Pump: rear
Pump: top panel
pressure adjustment knob
normal pressure indicator
low pressure indicator
main power switch
static function switch
Pressure adjust knob: The pressure adjust knob controls
the air pressure output. Turn it clockwise to increase
output pressure (rmer); turn it counter-clockwise to de-
crease air output pressure (softer). Higher pressure output
will better support the heavier-weight user. The setting is
measured in kilograms (kg). Please consult your physician
for an appropriate setting.
Normal pressure indicator: The green normal pressure LED
illuminates when the pressure inside the air mattress has
reached the selected pressure setting.
Low pressure indicator: The yellow low pressure LED illu-
minates when the pressure inside the air mattress is below
the selected setting.

750000-INS-LAB-RevA08 9
Static function switch: Press the static function switch to
suspend alternating function, if needed; the pressure inside
the air tubes will then be adjusted to identical pressure.
Press the static function switch again to change back to al-
ternating mode. The static function switch toggles between
static and alternating modes.
Main power switch: The main power switch toggles be-
tween ON and OFF. When power is ON, either the normal
or low pressure indicator illuminates.
INSTALLATION
UNPACKING
1. Before unpacking, check for obvious damage to the car-
ton or its contents. If damage is evident, please notify
the carrier and your Graham-Field equipment provider.
2. Remove all loose packing from the carton.
3. Carefully remove all components from the carton.
4. Inspect all components. If damage is evident, please
notify the carrier and your Graham-Field equipment
provider.

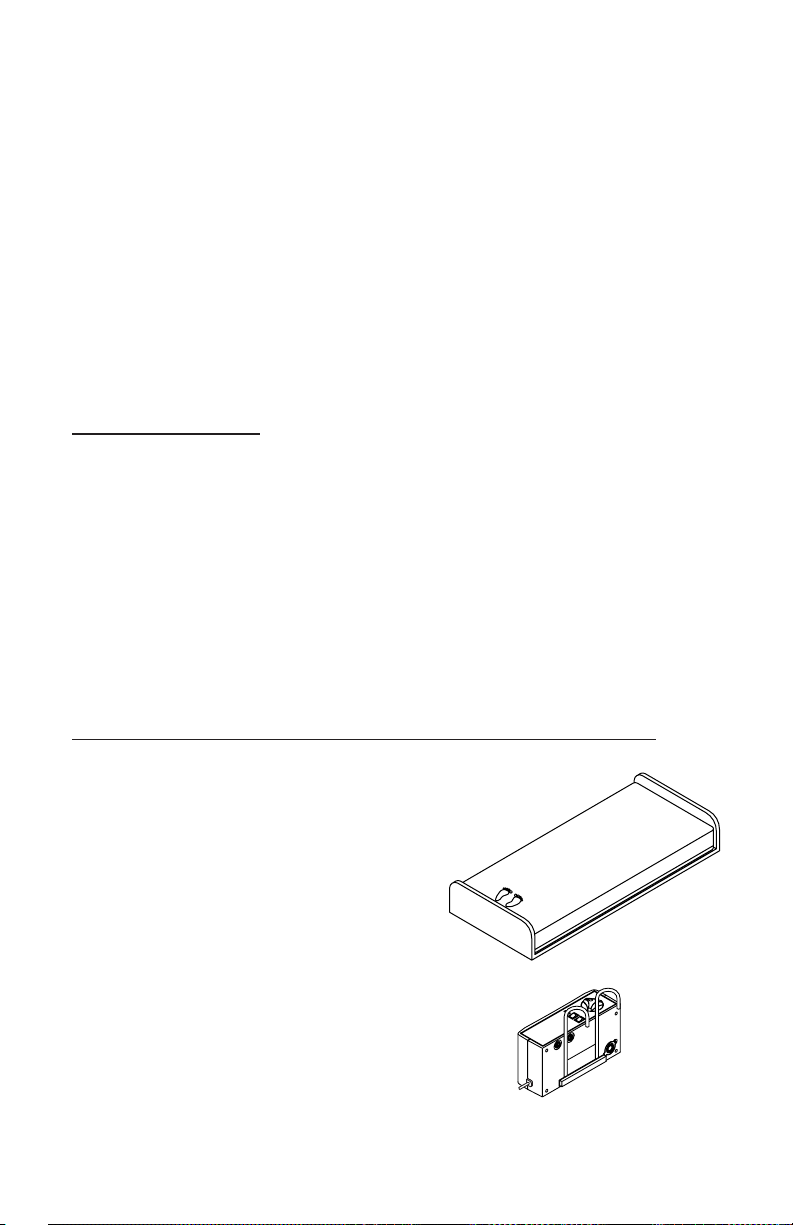

PUMP AND MATTRESS INSTALLATION
1. Remove all sheets, blankets, and pillows from the bed.
2. Place the mattress on top of
the bed frame; ensure that
the foot end symbol faces
up at foot end as shown at
right.
3. Fold open the wire hangers
on the back of the pump as
shown at right.

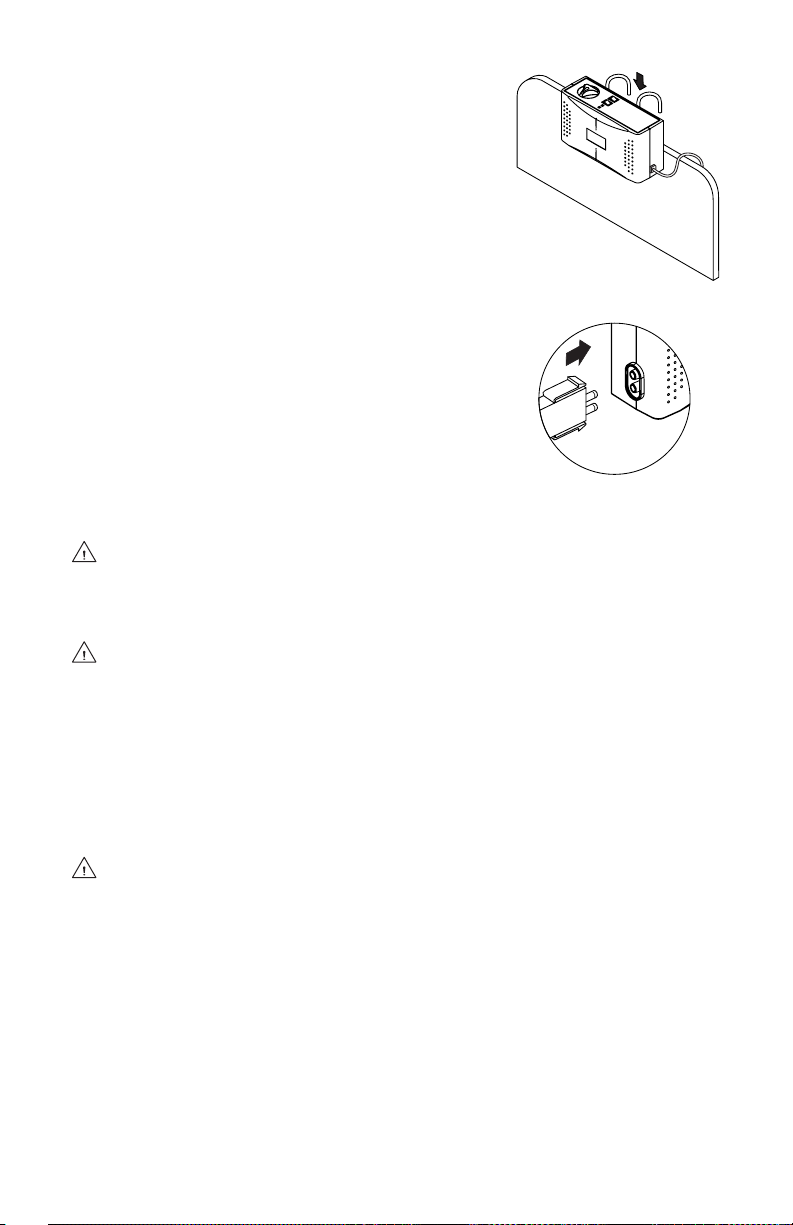

4. Either hang the pump on the bed's
foot end as shown at right, or

10 750000-INS-LAB-RevA08
place the pump on a at surface
easily accessible to the user, care-
giver, and/or doctor.
sCaution: Place the device in a po-
sition where the user, caregiver,
and/or doctor can access it easily.
5. Connect the mattress-pump air
hose quick connector; ensure that
the connector has clicked securely
into place before continuing.
sCaution: Ensure that the air hoses
are not kinked or tucked under the
mattress.
WARNING: Locate all cords so that they will not be
stepped on, tripped over, or otherwise subjected to
damage or stress.
WARNING: Do not use a household extension cord if
the electrical cord does not reach the power outlet.
Use of an improper extension cord could result in
re and electric shock. If an extension cord must
be used, use a three conductor cord with ground,
properly wired, in good electrical condition, and keep
it as short as possible.
WARNING: Ensure that the local power voltage is
appropriate for the pump unit.
5. Plug the power cord into a properly grounded electrical
outlet.

750000-INS-LAB-RevA08 11
OPERATION
1. Turn the power switch
to the ON position.
2. Adjust the pressure
adjust knob to the maxi-
mum position.
Note: Set the pressure adjust knob to the maximum position
for the quickest inflation at set-up; the mattress can then be
adjusted to the desired pressure.
3. The pump will begin
delivering air into the
mattress. While the mat-
tress is lling, the low
pressure indicator (yellow LED) will illuminate.
4. When the selected pres-
sure level is reached,
the low pressure indica-
tor will de-illuminate,
and the normal pressure indicator (green LED) will
automatically illuminate.
5. Replace all sheets, blankets, and pillows on the bed.
PRESSURE ADJUSTMENT
Generally, a lighter patient will need a lower (softer) set-
ting while a heavier patient will need a higher (rmer)
setting, but pressure adjustment must ultimately be based
on the patient's weight distribution. A short, stocky person
may be the same weight as a tall, thin person, but their
settings will not be the same. The mattress should be rm
enough to support the patient, yet soft enough so the
patient will sink down to eliminate pressure points.Test the
pressure by placing four ngers below the mattress under

12 750000-INS-LAB-RevA08
the patient's buttock area; your ngers should just t. If the
it is too loose, decrease the setting. If your ngers do not
t well, increase the setting two notches rmer. Wait ten
minutes and then check again. You should only have to ad-
just this setting one time per patient. Please consult your
physician for an appropriate setting.
QUICK DISCONNECT
Pull the power plug from the wall connector to disconnect
the device quickly.

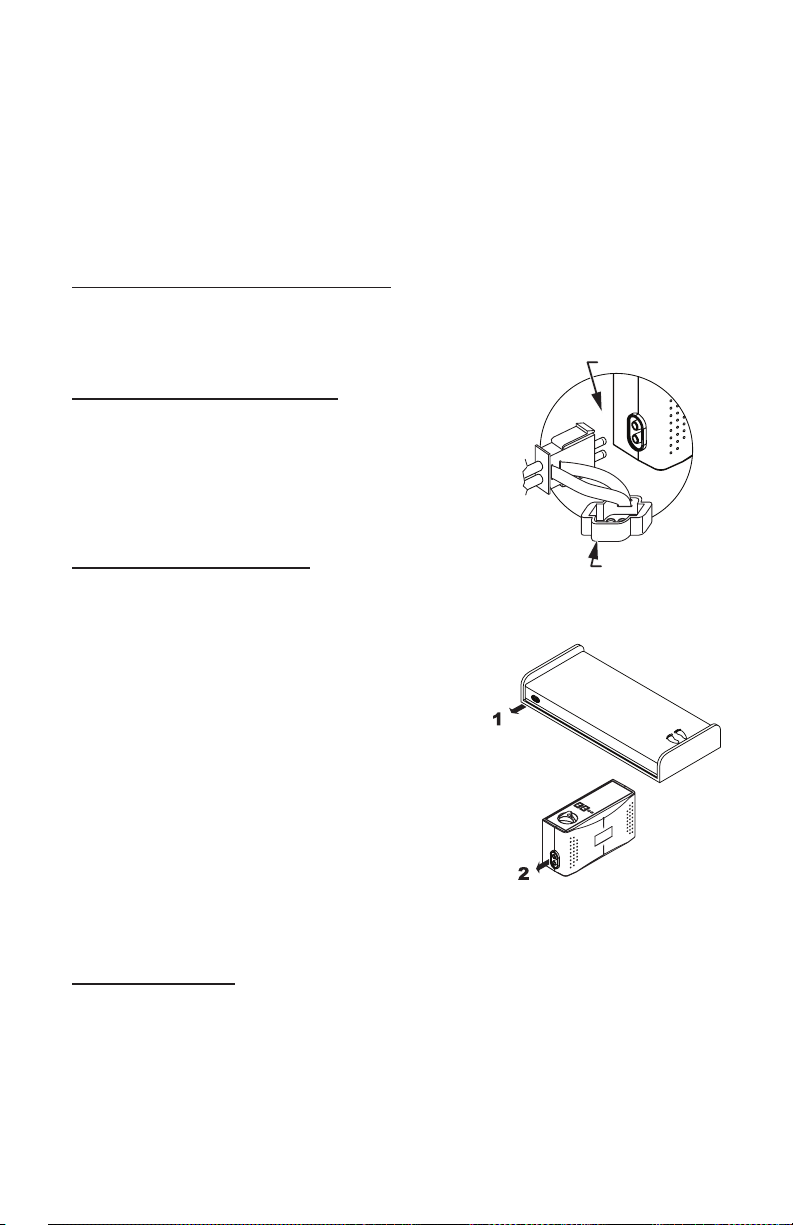

TRANSPORT CAP
In case of power failure or transport:
Disconnect the quick connector and
cap the mattress with the transport
cap to slow deation.
CPR FUNCTION
If CPR must be performed on the
patient while the mattress is in use,
to immediately deate the mattress,
either:
1. Pull the CPR valves from the
mattress in the location of the
arrow shown at right, or
2. Disconnect the quick connector
from the pump in the location of
the arrow shown at right.
MAINTENANCE
CLEANING
Perform the following cleaning procedures before use.
Pump: Wipe the pump with a clean, damp cloth and mild
detergent, and keep it away from dust. Air dry.
quick connector
transport cap

750000-INS-LAB-RevA08 13
sCaution: Do not use corrosive or powdered cleansers
to clean the pump.
sCaution: Do not immerse or soak the pump.
sCaution: Do not clean with phenolic products.
Mattress: Wipe the mattress unit with a clean, damp cloth
and mild detergent. The mattress may also be cleaned us-
ing a 10% solution of sodium hypochlorite (bleach) diluted
in water. Air dry all parts thoroughly before use.
sCaution: Do not clean with phenolic products.
sCaution: After cleaning, air dry the mattress without
direct exposure to sunlight.
GENERAL MAINTENANCE
1. Check main power cord and plug for abrasion or exces-
sive wear.
2. Check mattress cover for signs of wear or damage. En-
sure mattress cover and tubes are connected correctly.
3. Check airow from the air hose connector. The airow
should alternate between each connector every half-
cycle time if it’s in alternating mode.
4. Check the air hoses for any kink or break. For replace-
ment, please contact your GF equipment provider.
Fuse replacement
tool needed: small screwdriver
1. If you suspect a blown fuse, discon-
nect the plug from the wall outlet
immediately.
2. Use a small screwdriver to remove
the cover of the fuse holder (fuse lo-
cations are shown in picture at right).
3. Insert a new fuse of the correct rating (T1A/250V, VDE
approved).
4. Replace the fuse holder cover.

14 750000-INS-LAB-RevA08

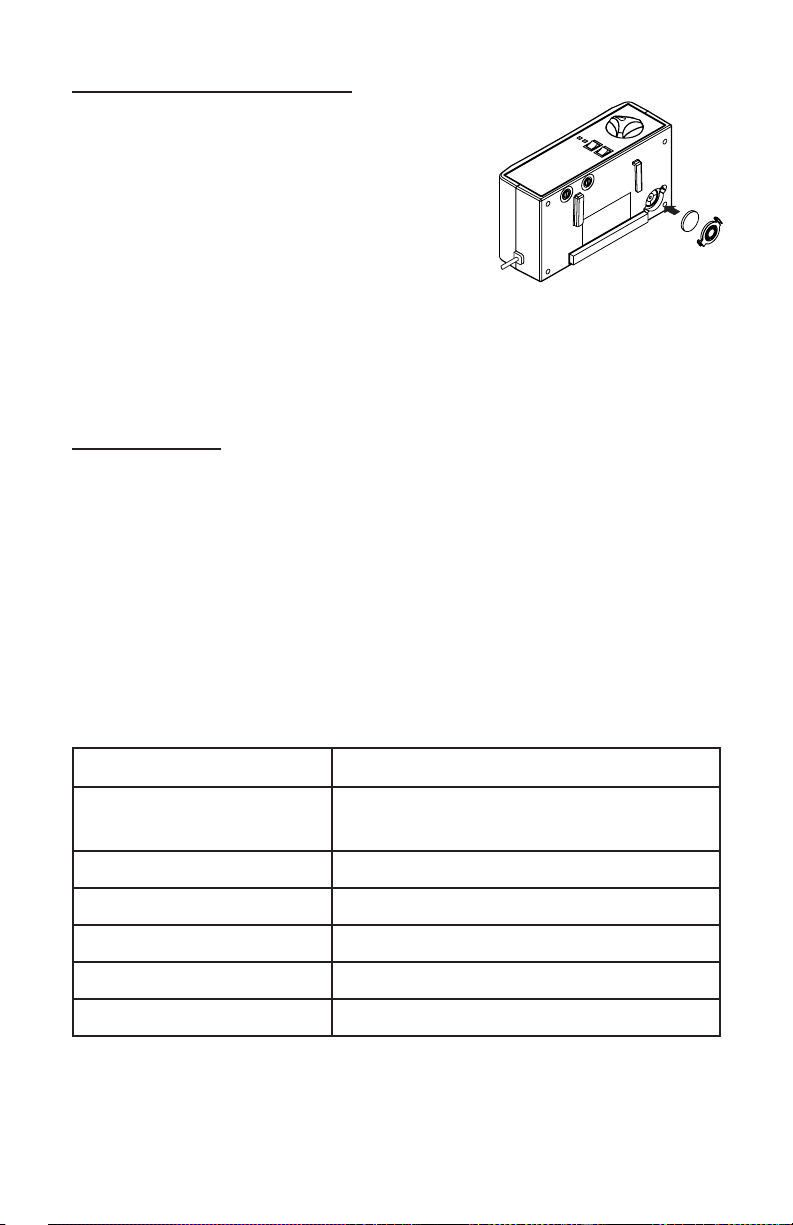

Air lter replacement
1. Remove the air lter plate locat-
ed at rear of pump (lter location
shown in picture at right).
2. Remove the lter. The lter is
reusable, if not torn, and can be
washed gently with a mild de-
tergent and water. Dry the lter
before use.
3. Replace the air lter regularly if it is gray, torn, or the
environment is dirty.
STORAGE
1. Lay the mattress out at and upside down.
2. Roll from the head end toward the foot end.
3. Stretch the foot-end strap around the rolled mattress to
prevent unrolling.
4. Store mattress and pump in a dust-free environment
with no exposure to direct sunlight.
sCaution: Do not fold, crease or stack mattress.
SPECIFICATIONS
Pump Specication
Power Supply 120V System: AC 120V 60 Hz
Note: see rating label on product
Fuse Rating T1A, 250V
Cycle time 8 minutes
Air input >4 LPM
Dimensions (L x W x H) 9.8" x 5.3" x 3.7" (25 x 13.5 x 9.5 cm)
Weight 4 lb (1.8 kg)

750000-INS-LAB-RevA08 15
Specications continued
Pump Specication
Environment Temperature Operation: 50°F to 104°F (10°C to 40°C)
Storage: 5°F to 122°F ( -15°C to 50°C)
Shipping: 5°F to 158°F ( -15°C to 70°C)
Humidity Operation: 10% to 90% non-condensing
Storage: 10% to 90% non-condensing
Shipping: 10% to 90% non-condensing
Classication Class II, Type BF, IPX0
Applied Part: Air Mattress
Not suitable for use in the presence of a
ammable anesthetic mixture (No AP or
APG protection)
Mattress Specication
Model 8" mattress
Dimensions (L x W x H) 78.7" x 35.4" x 8" (200 x 90 x 20.3 cm)
Weight 22.1 lb (10.0 kg)
Arrangement 20 x 8" bladders
Material Cover Nylon/PU
Cells Nylon/PU
Base PVC Tarpaulin
WARRANTY
GF Health Products, Inc. warrants the Lumex AltaDyne
750000 Alternating Pressure / Low Air Loss Mattress Sys-
tem for a period of twelve months for defects in workman-
ship and materials. During the warranty period, defective
items will be repaired or replaced at GF Health Products'
option at no charge.

USA, Corporate Headquarters:
Graham-Field Health Products
2935 Northeast Parkway
Atlanta, Georgia 30360
telephone: [phone]
fax: [phone]
www.grahamfield.com
750000-INS-LAB-RevA08
© 2008 GF Health Products, Inc.
