Gram KF3135-90 User manual

KF3135-90
Fridge / Freezer
User Guide

Please read this manual first!
Dear Customer,
Your product has been produced in modern plants and checked under the most
meticulous quality control and we hope that it will provide you with an effective
service.
We recommend you to carefully read the entire user guide before using your
product and keep the user guide at hand for future references.
This user guide
t8JMMIFMQZPVVTFZPVSBQQMJBODFJOBGBTUBOETBGFXBZt3FBEUIFVTFSHVJEFCFGPSFJOTUBMMJOHBOEPQFSBUJOHZPVSQSPEVDUt'PMMPXUIFJOTUSVDUJPOTFTQFDJBMMZUIPTFGPSTBGFUZt,FFQUIFVTFSHVJEFJOBOFBTJMZBDDFTTJCMFQMBDFBTZPVNBZOFFEJUMBUFSt#FTJEFTSFBEBMTPUIFPUIFSEPDVNFOUTQSPWJEFEXJUIZPVSQSPEVDUPlease note that this user guide may be valid for other models as well.
Symbols and their descriptions
This user guide contains the following symbols:
Important information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.
This product is supplied with the selective sorting symbol for waste electrical
and electronic equipment (WEEE).
This means that this product must be handled pursuant to European Directive
2002/96/EC in order to be recycled or dismantled to minimise its impact on
the environment. For further information, please contact your local or regional
authorities.
Electronic products not included in the selective sorting process are potentially
dangerous for the environment and human health due to the presence of
hazardous substances.
Recycling

EN
2
CONTENTS
1 Your fridge/freezer 3
2 Important information 4
Intended use .....................................4
General safety ...................................4
Energy-saving precautions.................6
3 Installation 7
Points to be considered when re-
transporting your fridge/freezer..........7
#FGPSFPQFSBUJOHZPVSGSJEHFGSFF[FS...7
Electric connection ............................8
Disposing of your old fridge/freezer....8
Placing and installation ......................8
3FQMBDJOHUIFJOUFSJPSMJHIUCVMC.........9
Adjusting the legs ............................10
Installation (Under the counter) ........10
How to reverse the door..................12
Door in the freezer compartment .....12
4 Preparation 14
5 Using your fridge/
freezer 15
Freezing...........................................15
Freezing food...................................15
Making ice cubes ............................16
Defrosting the appliance ..................16
Cooling............................................17
Food storage...................................17
Using the interior compartments.....17
Defrosting the appliance ..................17
6 Maintenance and
cleaning 18
Protection of plastic surfaces ..........18
7 Recommended solutions
for the problems 19

EN
3
1Your fridge/freezer
1. Freezing compartment

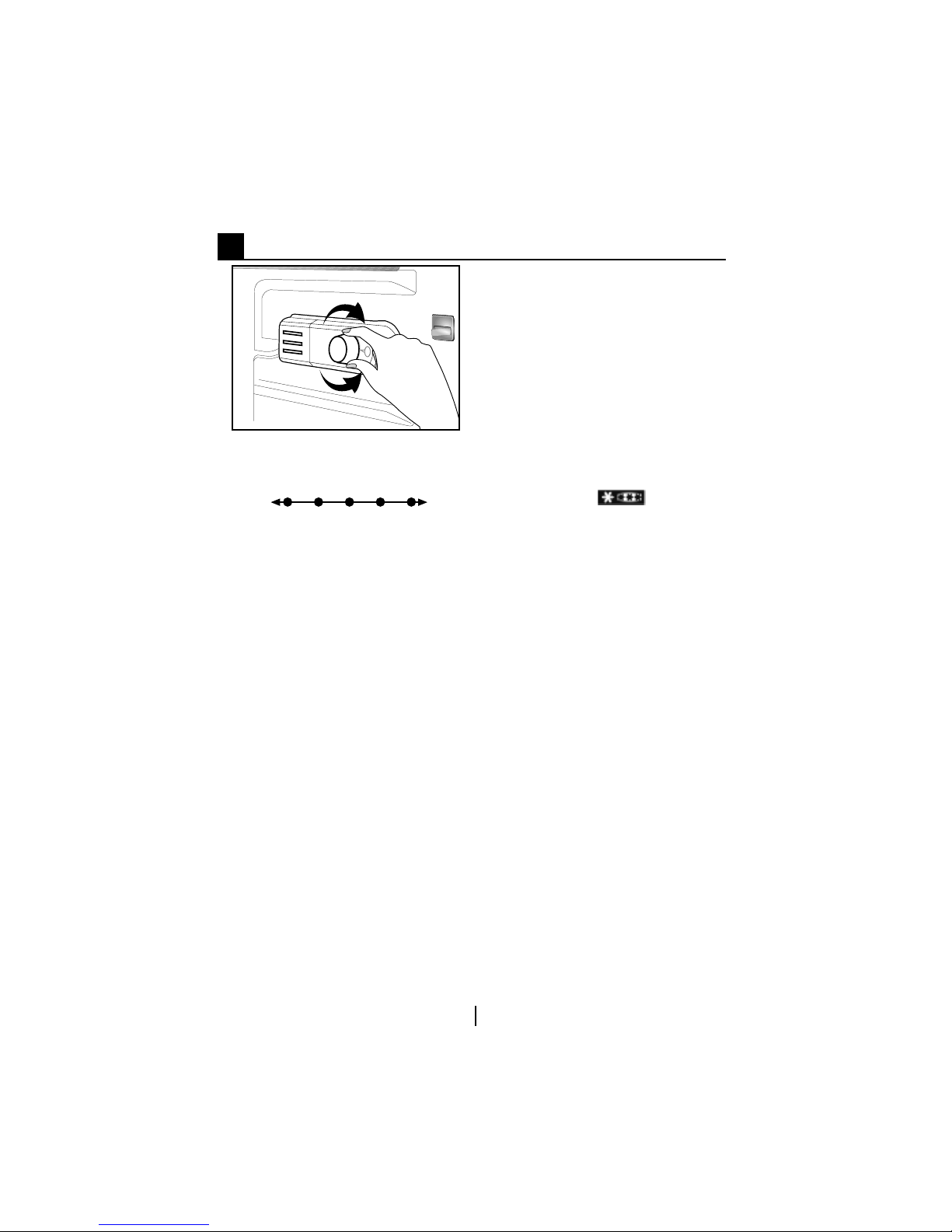

2. Interior light & Thermostat knob
3. Movable shelves
4. Defrost water collection channel - Drain
tube
5. Glass shelf
6. Vegetable drawer
7. Adjustable front feet
8. Door shelves
9. Table-top
9
3
5
6
3
7
4
1
2
8
8
8

EN
4
2Important information
Please read through the following
information.If this information is not
followed, personal injury or material
damage may occur and all warranty
and reliability commitments will
become invalid.
Intended use
t5IJTQSPEVDUJTEFTJHOFEGPSEPNFTUJDuse.
t*UTIPVMEOPUCFVTFEPVUEPPST*UJTnot appropriate to use it outdoor even
if the place is covered with a roof.
General safety
t8IFOUIJTQSPEVDUJTXPSOPVUZPVmust not treat it as household waste.
Instead it has to be handed over to
the existing place of collection for the
recycling of electrical and electronic
equipment.
t$POTVMU(3".TFSWJDFGPSBMMZPVSquestions and problems related to the
fridge/freezer.
t7BQPSBOEWBQPSJ[FEDMFBOJOHmaterials should never be used in
connection with the cleaning and
defrosting of your refrigerator. In such
cases, the vapor might get in contact
with the electrical parts and cause
short circuit or electric shock.
t/FWFSVTFUIFFRVJQNFOUGSPNZPVSrefrigerator such as the door as a
support or a step.
t%POPUEBNBHFUIFDPPMJOHDJSDVJUwhere the refrigerant is circulating,
with drilling or cutting tools. The
refrigerant that might blow out when
the gas channels of the evaporator,
pipe extensions or surface coatings
are punctured may cause skin
irritations and eye injuries.
t%POPUDPWFSPSCMPDLUIFWFOUJMBUJPOholes on your fridge/freezer.
t3FQBJSTPGUIFFMFDUSJDBMBQQMJBODFTmust only be made by authorised
UFDIOJDJBOT3FQBJSTQFSGPSNFECZunauthorised people may cause a risk
for the user.
t*ODBTFPGBOZGBJMVSFNBJOUFOBODFPSrepair, disconnect your fridge/freezer
mains supply by either turning off the
relevant fuse or by unplugging your
appliance.
t%POPUQVMMUIFDBCMFXIFOQVMMJOHPVUthe plug.
t'MBNNBCMFJUFNTPSQSPEVDUTUIBUcontain flammable gases (e.g. spray)
as well as explosive materials must
never be kept in the appliance.
t%POPUVTFNFDIBOJDBMEFWJDFTor other means to accelerate the
defrosting proces, other than the ones
recommended by the manufacturer.
t%POPUPQFSBUFBEBNBHFEGSJEHFGSFF[FS$POTVMU(3".TFSWJDFJGZPVhave any doubts.
t5IFFMFDUSJDBMTBGFUZPGZPVSGSJEHFfreezer will only be covered by
the guaranteebe covered by the
guarantee if the earth system in your
house complies with standards.
t&YQPTJOHUIFQSPEVDUUPSBJOTOPXsun and wind is dangerous with
respect to electrical safety.
t$POUBDU(3".TFSWJDFXIFOUIFSFJTa power cable damage and etc. so
that it will not create a danger for you.

EN
5
t/FWFSQMVHUIFGSJEHFGSFF[FSJOUPUIFoutlet during installation or a risk of
death or serious injury may occur.
t5IJTGSJEHFGSFF[FSJTPOMZPOMZdesigned for storing food. It should
not be used for any other purposes.
t5IFMBCFMUIBUEFTDSJCFTUIFUFDIOJDBMspecification of the product is located
on the inner left side of the fridge/
freezer.
t%POPUDPOOFDUUIFGSJEHFGSFF[FSto electronic energy saving systems
which turn off the electricity as they
may damage the product.
t*GUIFQPXFSTVQQMZJTEJTDPOOFDUFEin manually controlled fridge/freezers
please wait for at least 5 minutes
before reconnecting the power.
t5IJTVTFSHVJEFTIPVMECFQBTTFEUPthe next owner of the fridge/freezer if
the ownership changes.
t8IFONPWJOHUIFGSJEHFGSFF[FSNBLFsure that you do not damage the
power cord. In order to prevent fire
the power cord must not be twisted.
Heavy objects should not be placed
on the power cord. When the fridge/
freezer is plugged into the socket do
not touch the power outlet with wet
hands.
t%POPUDPOOFDUUIFGSJEHFGSFF[FSJGthe electric outlet is loose.
t%POPUTQMBTIXBUFSEJSFDUMZPOUIFouter or inner parts of the fridge/
freezer.
t%POPUTQSBZJOGMBNNBCMFNBUFSJBMTsuch as propane gas etc. near the
fridge/freezer due to the risk of fire and
explosion.
t%POPUQMBDFPCKFDUTGJMMFEXJUIXBUFSon top of the fridge/freezer as it may
result in electric shock or fire.
t%POPUPWFSMPBEUIFGSJEHFGSFF[FSXJUIexcess food. The excess food may fall
out when the door is opened resulting
in injuring you or damaging fridge/
freezer. Do not place objects on top of
the fridge/freezer as the objects may
fall out when opening or closing the
fridge/freezer door.
t*GUIFGSJEHFGSFF[FSXJMMOPUCFoperated for an extended period
of time it should be unplugged.
A problem in the electrical cable
insulation may result in fire.
t5IFUJQPGUIFFMFDUSJDQMVHTIPVMECFcleaned regularly otherwise it may
cause fire.
t5IFGSJEHFGSFF[FSNBZNPWFXIFOthe adjustable legs are not positioned
GJSNMZPOUIFGMPPS#ZVTJOHUIFadjustable legs you can ensure that
the fridge/freezer is positioned firmly
on the floor.
t%POPUQVMMUIFGSJEHFGSFF[FSCZthe door handle when moving the
product as it may disconnect the
handle from the fridge/freezer.

EN
6
Child safety
t$IJMESFOTIPVMECFTVQFSWJTFEUPensure that they do not play with the
appliance.
HCA Warning
tThis product is equipped with
a cooling system that contains
R600a:
This gas is flammable. Therefore, pay
attention not to damage the cooling
system and piping during usage
and transportation. In the event of
damage, keep your product away
from potential fire sources that can
cause the product to catch a fire and
ventilate the room in which the unit is
placed.
Energy-saving precautions
t%POPUMFBWFUIFEPPSPGZPVSGSJEHFfreezer open for a long time.
t%POPUPWFSMPBEZPVSGSJEHFGSFF[FSTPthat the air circulation inside of it is not
prevented.
t%POPUJOTUBMMZPVSGSJEHFGSFF[FSunder direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators.
t1BZBUUFOUJPOUPLFFQZPVSGPPEJOclosed containers.

EN
7
3Installation
BPlease remember that the
manufacturer shall not be held liable if
the information given in the user guide
is not observed.
Points to be considered
when re-transporting your
fridge/freezer
1. Your fridge/freezer must be
emptied and cleaned prior to any
transportation.
2. Shelves, accessories, and etc. have
to be fastened securely by adhesive
tape against any jolt before repacking
the appliance.
3. Packaging must be tied with thick
tapes and strong ropes and the
rules of transportation printed on the
package must be followed.
Please do not forget…
That recycled material is an
indispensable source for the nature
and for our national resources.
If you would like to contribute to
the recycling of the packaging, you
can get further information from
the environmental bodies or local
authorities.
Before operating your fridge/
freezer
#FGPSFTUBSUJOHUPVTFZPVSGSJEHFGSFF[FScheck the following:
1. The interior of the freezer has to be dry
and it is possible for the air to circulate
freely at the back of the applianceto
circulate freely at the back of the
appliance.

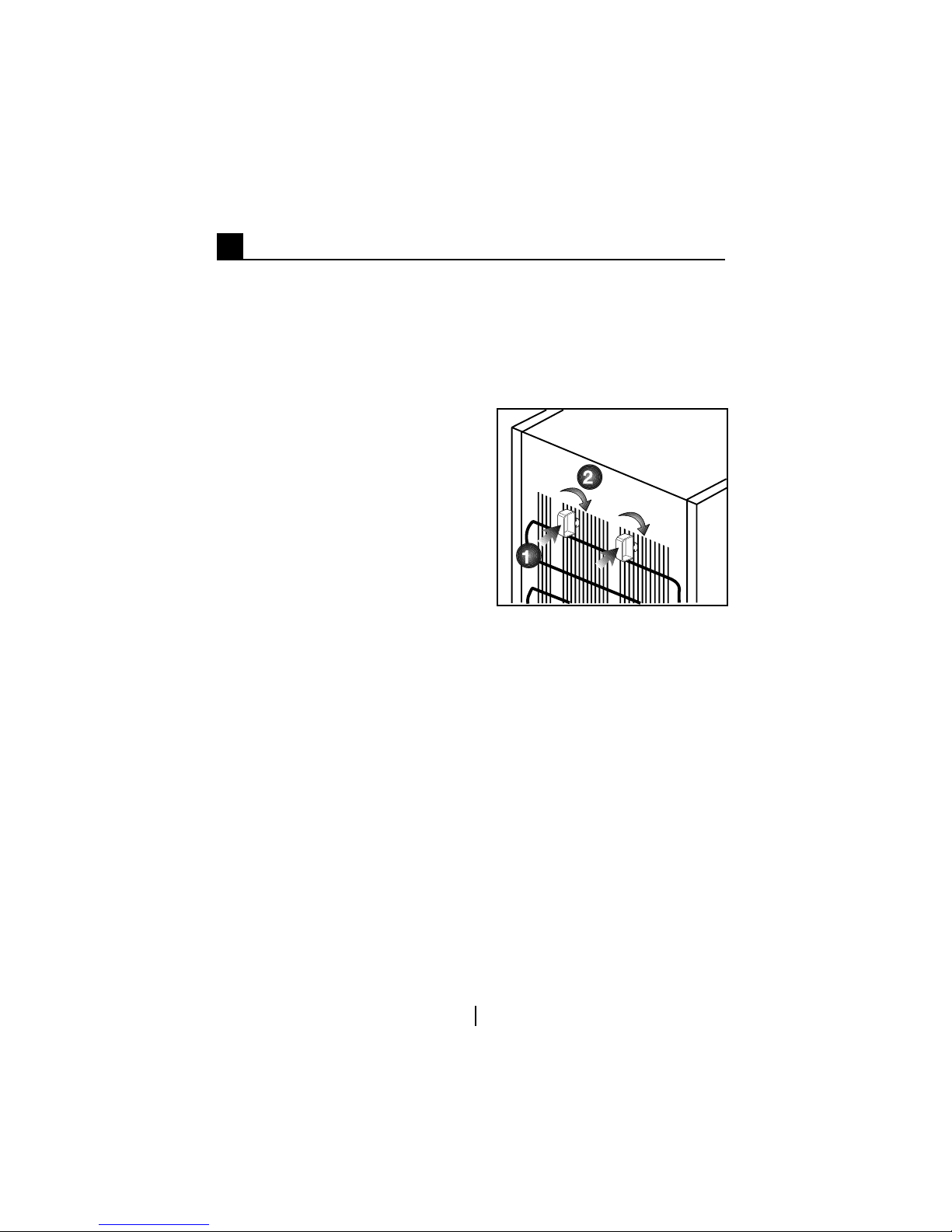

2. You can install the 2 spacers as
illustrated in the figure. Spacers
will provide the required distance
between your fridge/freezer and the
wall in order to allow the air circulation.
(The illustration is only an example and
does not match your product.)
3. Clean the interior of the freezer as
recommended in the "Maintenance
and cleaning" section.
4. Plug the refrigerator into the outlet.
When the door is open the interior
light in the refrigerator compartment
will be switched on.
5. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
even if the compressor is not running
and this is quite normal.
6. The front edges of the fridge/freezer
may feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.

EN
8
Electric connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
t5IFDPOOFDUJPONVTUCFJOaccordance with the national
regulations.
t5IFQPXFSDBCMFQMVHNVTUCFFBTJMZaccessible after installation.
t&YUFOTJPODPSETBOEDPOOFDUPSNVTUnot be used for connection.
BA damaged power cable must be
replaced by an authorised technician.
Disposing of the packaging
The packaging may be dangerous
for children. Keep it out of the reach of
children or dispose of it by classifying it in
accordance with the waste instructions.
Do not dispose of it together with the
normal household waste.
The packaging of your fridge/freezer is
made from recyclable materials.
Disposing of your old fridge/
freezer
Dispose of your old fridge/freezer
without harming the environment.
t:PVNBZDPOTVMUZPVSBVUIPSJ[FEretailer or the recycling depot in your
municpality about the disposal of your
fridge/freezer.
#FGPSFEJTQPTJOHPGZPVSGSJEHFGSFF[FScut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and installation
1. There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation.
2.Place your fridge/freezer on a level
floor to prevent jolts.
3. Do not keep your fridge/freezer in
ambient temperatures under 10°C.

EN
9
Replacing the interior light
bulb
If the light should fail to work switch
off at the socket outlet and pull out
the mains plug. Follow the below
instructions to check if the light bulb
has worked itself loose.
If the light still fails to work obtain
a replacement E14 screw cap type
15 Watt (Max) bulb from your local
electrical store and then fit it as follows:
1. Switch off the fridge/freezer at the
outlet and pull out the mains plug. You
may find it useful to remove the shelves
for easy access.

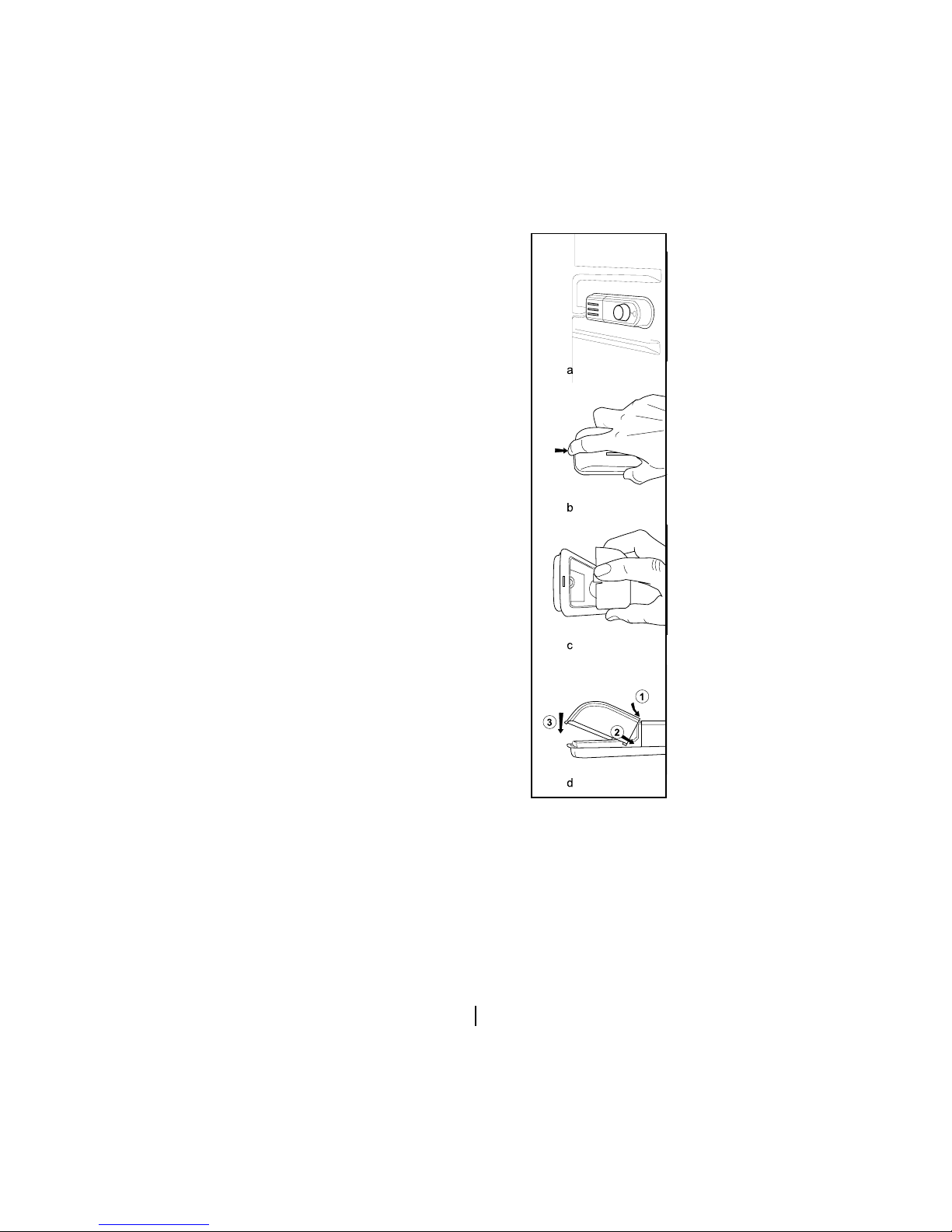

2.3FNPWFUIFMJHIUEJGGVTFSDPWFSBTshown in figure (a-b).
3.3FQMBDFUIFCVSOUPVUMJHIUCVMC4.3FBTTFNCMFUIFMJHIUEJGGVTFSDPWFSas shown in figure (c).
5. Carefully dispose of the burnt-out
light bulb immediately.

EN
10
Installation (Under the
counter)
(see the illustration on page 11)
t*OUFSOBMIFJHIUPGUIFDPVOUFSTIPVMEbe 820mm.
(!) Cookers or other heat sources must
not be placed above the counter where
the appliance is installed under the
counter.
t5IFNBJOTXBMMTPDLFUQMVHNVTUCFclose to the right or left hand side of the
appliance.

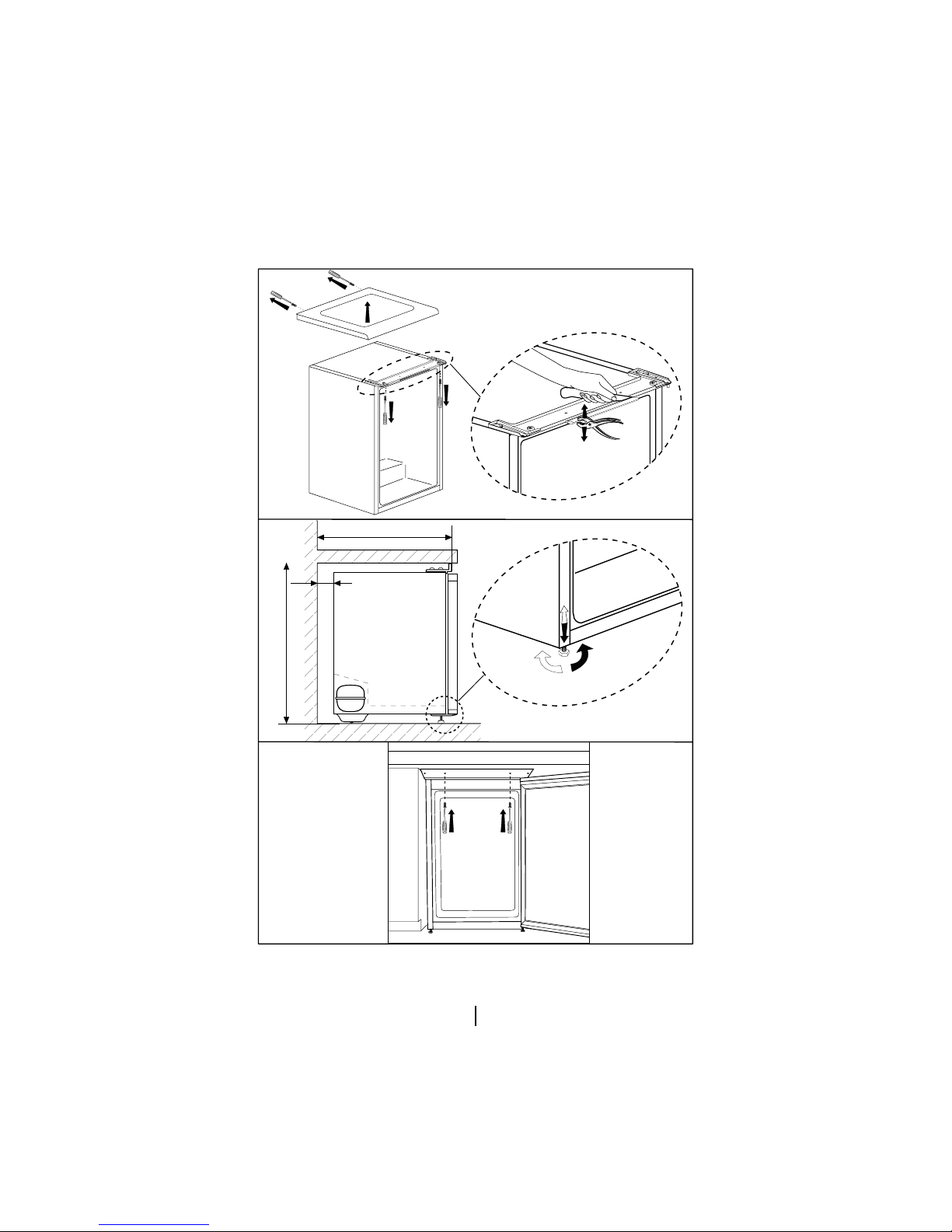

Fig. 1 t3FNPWFUIFUPQDPWFSPGUIFappliance. There are 4 screws(2 pieces
at the back, 2 pieces below the front
edge) that should be removed.
Fig. 2-3t$VUUIFQBSUTIPXOJOUIFpicture and then remove it by the help
of pliers.
t1MBDFZPVBQQMJBODFVOEFSUIFcounter and adjust the front feets until
its top touches to the counter.
In order to use the product under the
counter, the distance between the wall
and the reference indicated in the top
connection plastic must be minimum
595 mm.
Fig. 4t'JYUIFBQQMJBODFVOEFSUIFcounter by using 2 of the screws that
was removed from the top cover.
(Material of the counter must be plastics
or wood based!)
Adjusting the legs
If your refrigerator is unbalanced
you can balance your fridge/freezer
by turning the front legs as shown in
illustration below. The corner where the
leg exists is lowered when you turn in
the direction of black arrow and raised
when you turn in the opposite direction.
Getting help from someone to slightly
lift the fridge/freezer will facilitate this
process.

EN
11
1
55 mm
595 mm
820 mm
2
3
4

EN
12
How to reverse the door

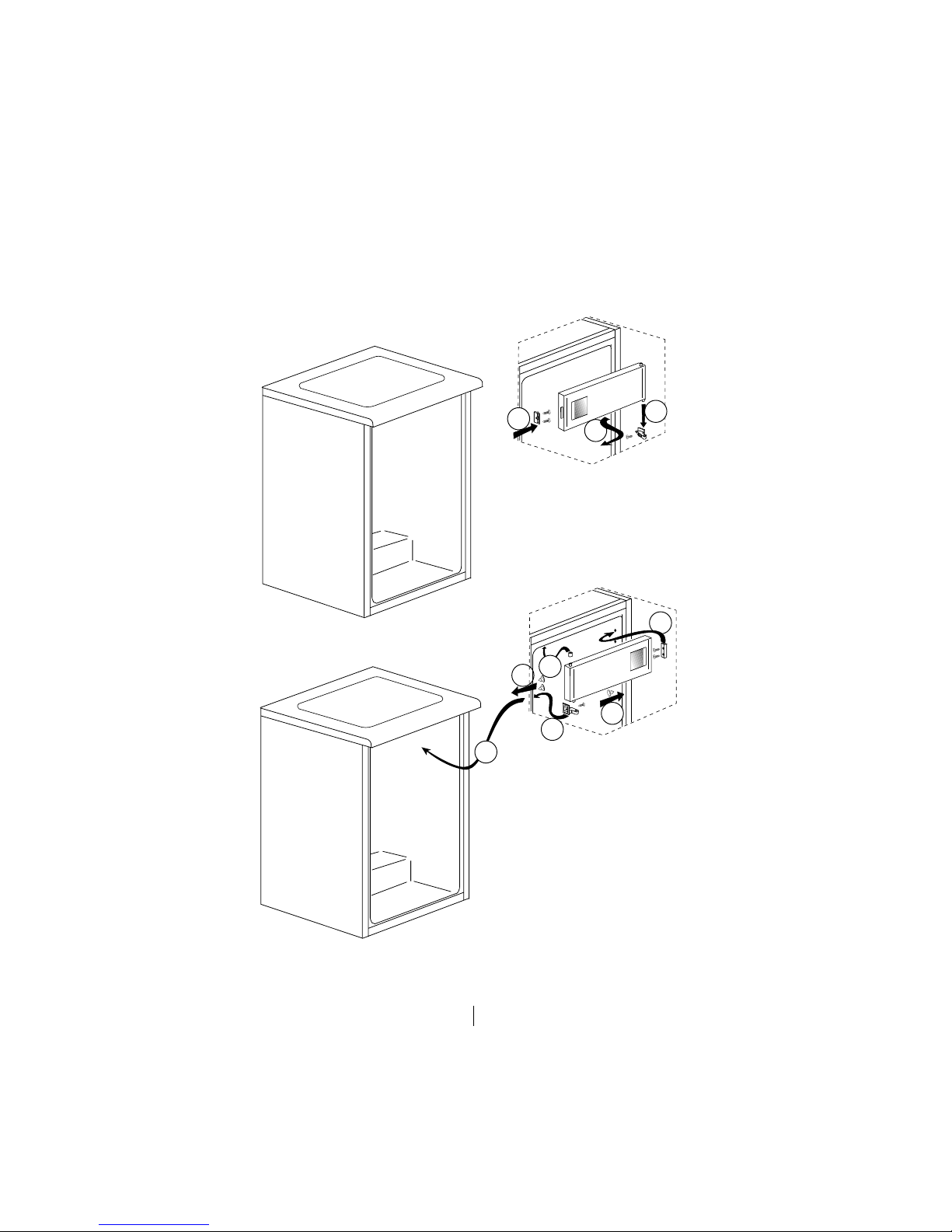

Door in the freezer compartment
a
8
7
4
5
9
6
2
31

EN
13
1
60°
9
14
60°
5
16
10
2
3
4
8
7
7
12
12
11
11
6
6
15
13
17

EN
14
Your fridge/freezer should be installed
at least 30 cm away from heat
sources such as hobs, ovens, central
heater and stoves and at least 5 cm
away from electrical ovens and should
not be located under direct sunlight.
The ambient temperature of the room
where you install your fridge/freezer
should at least be 10°C. Operating
your fridge/freezer under cooler
conditions is not recommended with
regard to its efficiency.
Please make sure that the interior
of your fridge/freezer is cleaned
thoroughly.
If you want to place two products
side by side, e.g. a refrigerator and a
freezer, as a side by side solution you
have to use a decoration kit which
contains a small mat and a decoration
part. The mat is mounted on the side
of one of the products to create a
space between the products. The
decoration part is placed between the
products to hide the gap between the
products (Fig. 2). The decoration kit is
not a part of the product but can be
delivered as an accessory.
4Preparation
When you operate your fridge/freezer
for the first time, please observe the
following instructions during the initial
six hour.
- The door should not be opened
frequently.
- It must be operated empty without
any food in it.
- Do not unplug your fridge/freezer. If
a power failure occurs out of your
control, please see the warnings in
UIFi3FDPNNFOEFETPMVUJPOTGPSthe problems” section.
Original packaging and foam
materials should be kept for future
transportations or moving.

EN
15
5Using your fridge/freezer
The operating temperature is regulated
by the temperature control.
1 = Lowest cooling setting (Warmest
setting)
5 = Highest cooling setting (Coldest
setting)
(Or)
Min. = Lowest cooling setting
(Warmest setting)
Max. = Highest cooling setting
(Coldest setting)
The average temperature inside the
fridge/freezer should be around +5°C.
Please choose the setting according
to the desired temperature.
You can stop the operation of your
appliance by turning the thermostat
control to the "0" position.
Please note that there will be different
temperatures in the cooling area.
The coldest area is just above the
vegetable compartment.
The interior temperature also depends
on ambient temperature, the frequency
with which the door is opened and the
amount of food kept inside.
Warm Cold
1 2 3 4 5
(Or) Min. Max.
Frequently opening the door causes
the interior temperature to rise.
For this reason, it is recommended
to close the door again as soon as
possible after use.
Freezing
Freezing food
The freezing compartment is marked
with this symbol.
You can use the appliance for freezing
fresh food as well as for storing pre-
frozen food.
Please refer to the recommendations
on the packaging of your food.
t"UUFOUJPODo not freeze fizzy drinks, as the bottle
may burst when the liquid in it is frozen.
Do not exceed the freezing capacity
of your appliance in 24 hours. See the
rating label.
In order to maintain the quality of the
food, the freezing must be effected as
rapidly as possible.
Thus, the freezing capacity will not be
exceeded, and the temperature inside
the freezer will not rise.
t"UUFOUJPOAlways keep the already deep-frozen
food separated from fresh food.
When deep-freezing hot food, the
cooling compressor will work until the
food is completely frozen. This can
temporarily cause excessive cooling of
the refrigeration compartment.

EN
16
If you find the freezer door difficult
to open just after you have closed it,
don’t worry. This is due to the pressure
difference which will equalize and allow
the door to open normally after a few
minutes.
You will hear a vacuum sound just after
closing the door. This is quite normal.
Making ice cubes
Fill the ice-cube tray 3/4 full with water
and place it in the freezer.
As soon as the water has turned into
ice, you can take out the ice cubes.
/FWFSVTFTIBSQPCKFDUTTVDIBTknives or forks to remove the ice cubes.
There is a risk of injury!
Instead let the ice cubes slightly thaw
or place the bottom of the tray in hot
water for a short moment.
Defrosting the appliance
Excessive build-up of ice will affect the
freezing performance of your device.
It is therefore recommended that you
defrost your appliance at least twice
a year, or whenever the ice build-up
exceeds 7 mm.
Defrost your device when there is only
little or no food in it.
Take out the deep-frozen food. Wrap
the deep-frozen food in several layers
of paper, or a blanket, and keep it in a
cold place.
Unplug the appliance or switch off the
circuit breaker to start the defrosting
process.
Take out the accessories (like shelf,
drawer etc.) from the appliance and
use a suitable container to collect the
thawing water.
Use a sponge or a soft cloth to
remove thawing water if necessary in
the freezing compartment and frozen
food compartment
Keep the door open during defrosting.
For quicker defrosting place containers
with warm water inside the appliance.
/FWFSVTFFMFDUSJDBMEFWJDFTdefrosting sprays or pointed or sharp-
edged object such as knives or forks to
remove the ice.
3FDPOOFDUUIFBQQMJBODFUPUIFNBJOTPlace the frozen food in the freezer.
After the defrosting is done, clean the
inside.

EN
17
Cooling
Food storage
The fridge compartment is for the
short-term storage of fresh food and
drinks.
Store milk products in the intended
compartment in the fridge/freezer.
#PUUMFTDBOCFTUPSFEJOUIFCPUUMFholder or in the bottle shelf of the door.
3BXNFBUJTCFTULFQUJOBQPMZFUIZMFOFbag in the compartment at the very
bottom of the refrigerator.
t"UUFOUJPODo not store explosive substances or
containers with flammable propellant
gases (such as canned cream, spray
cans etc.) in the appliance.
There is a danger of explosion.
Using the interior
compartments
3FNPWBCMFTIFMWFT5IFEJTUBODFbetween the shelves can be adjusted
when necessary.
The vegetable drawer: Vegetables and
fruits can be stored in this compartment.
5IFCPUUMFTIFMG#PUUMFTKBSTBOEUJOTcan be placed in this shelf.
Defrosting the appliance
The fridge compartment defrosts
automatically. The thawing water
flows through the drain channel into a
collection container at the back of the
appliance.

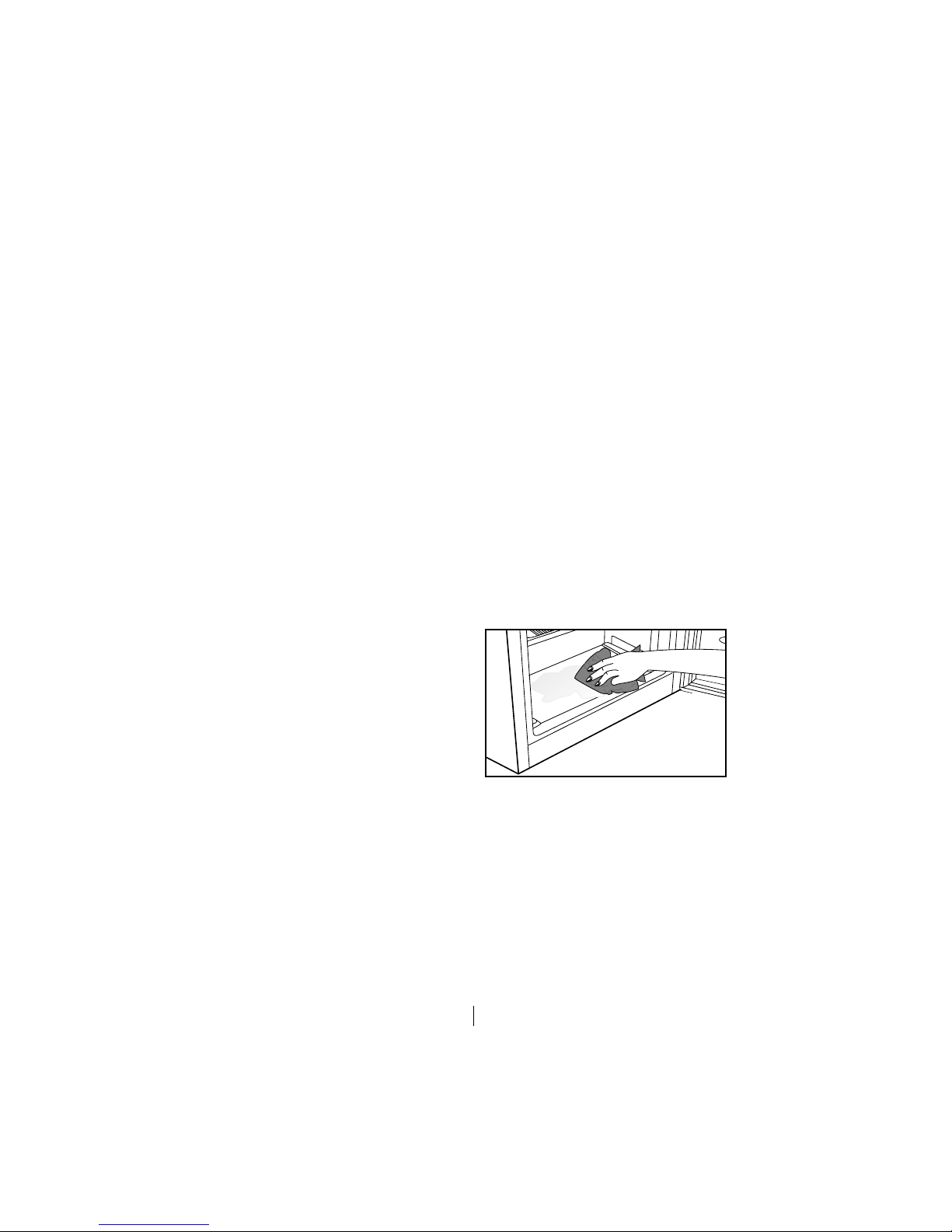

During defrosting water droplets form
at the back wall of the fridge due to the
evaporation.
If not all of the drops run down,
they may freeze again after defrosting
DPNQMFUFT3FNPWFUIFNXJUIBTPGUcloth dampened with warm water. Do
not use hard or sharp objects.

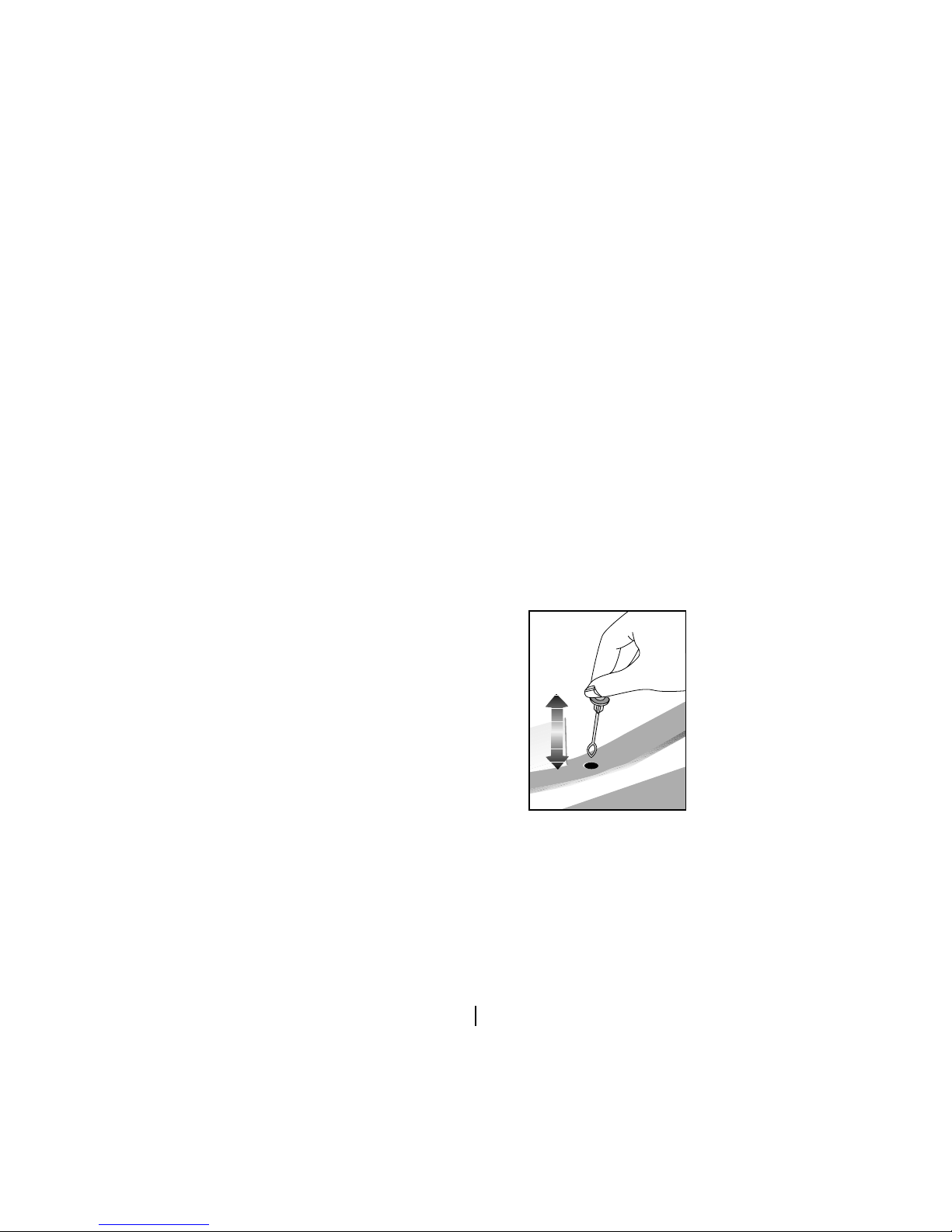

Check the flow of the thawed water
from time to time. It may become
blocked occasionally. Clean it with a
cotton bud or a similar implement.

EN
18
6Maintenance and cleaning
A/FWFSVTFHBTPMJOFCFO[FOFPSTJNJMBSsubstances for cleaning purposes.
BWe recommend that you unplug the
freezer before cleaning.
t/FWFSVTFBOZTIBSQBCSBTJWFinstrument, soap, household cleaner,
detergent and wax polish for cleaning.
t6TFMVLFXBSNXBUFSUPDMFBOUIFcabinet of your fridge/freezer and wipe
it dry.
t6TFBEBNQDMPUIXSVOHPVUJOa solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe it
dry.
t*GZPVSGSJEHFGSFF[FSJTOPUHPJOHUPCFused for a long period of time, unplug
the power cable, remove all food,
clean it and leave the door ajar.
t$IFDLEPPSTFBMTSFHVMBSMZUPFOTVSFthey are clean and free from food
particles.
Protection of plastic
surfaces
t%POPUQVUMJRVJEPJMTPSPJMDPPLFEmeals in your fridge/freezer in
unsealed containers as they may
damage the plastic surfaces of your
freezer. In case of spilling or smearing
oil on the plastic surfaces, clean and
rinse the relevant part of the surface at
once with warm water.

EN
19
7Recommended solutions for the problems
1MFBTFSFWJFXUIJTMJTUCFGPSFDBMMJOHUIF(3".TFSWJDF*UNJHIUTBWFZPVUJNFBOEmoney. This list includes frequent complaints that are not arising from defective
workmanship or material usage. Some of the features described here may not
exist in your product.
The fridge/freezer does not operate.
t*TUIFGSJEHFGSFF[FSQSPQFSMZQMVHHFEJO *OTFSUUIFQMVHUPUIFXBMMTPDLFUt*TUIFGVTFPGUIFTPDLFUUPXIJDIZPVSGSJEHFGSFF[FSJTDPOOFDUFEUPPSUIFNBJOGVTFCMPXOPVU $IFDLUIFGVTFCondensation on the side wall of the freezer.
t7FSZDPMEBNCJFOUDPOEJUJPOT'SFRVFOUPQFOJOHBOEDMPTJOHPGUIFEPPS)JHIMZhumid ambient conditions. Leaving the door ajar. Switching the thermostat
control to a colder temperature.
t%FDSFBTJOHUIFUJNFUIFEPPSJTMFGUPQFOPSVTJOHJUMFTTGSFRVFOUMZt8JQFUIFDPOEFOTBUJPOVTJOHBESZDMPUIBOEDIFDLJGJUQFSTJTUTThe compressor is not running
t*ODBTFPGBOFMFDUSJDBMDVUUIFGSFF[FSDBOOPUTUBSUVQSJHIUBXBZBTUIFcompressor has to balance the refrigerant pressure in the cooling system of the
freezer. The alignment of the refrigerant pressure will lead to a postponement of
UIFTUBSUVQCZNJOVUFT1MFBTFDPOUBDU(3".TFSWJDFJGUIFGSFF[FSEPFTOPUstart up at the end of this period.
t5IFGSJEHFGSFF[FSJTJOUIFEFGSPTUDZDMF5IJTJTOPSNBMGPSBGVMMBVUPNBUJDBMMZdefrosting fridge/freezer. The defrostning cycle occurs periodically.
t:PVSGSJEHFGSFF[FSJTOPUQMVHHFEJOUPUIFTPDLFU.BLFTVSFUIBUUIFQMVHGJUTproperly into the socket.
t"SFUIFUFNQFSBUVSFBEKVTUNFOUTDPSSFDUMZNBEF t5IFQPXFSNJHIUCFDVUPGG
