KS 3406-90F/FX

Refrigerator

User Guide

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and

checked under the most meticulous quality control procedures, will provide you

an effective service.

For this, we recommend you to carefully read the entire manual of your product

before using it and keep it at hand for future references.

This manual

t8JMMIFMQZPVVTFZPVSBQQMJBODFJOBGBTUBOETBGFXBZt3FBEUIFNBOVBMCFGPSFJOTUBMMJOHBOEPQFSBUJOHZPVSQSPEVDUt'PMMPXUIFJOTUSVDUJPOTFTQFDJBMMZUIPTFGPSTBGFUZt,FFQUIFNBOVBMJOBOFBTJMZBDDFTTJCMFQMBDFBTZPVNBZOFFEJUMBUFSt#FTJEFTSFBEBMTPUIFPUIFSEPDVNFOUTQSPWJEFEXJUIZPVSQSPEVDUPlease note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

Important information or useful usage tips.

AWarning against dangerous conditions for life and property.

BWarning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical

and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive

2002/96/EC in order to be recycled or dismantled to minimise its impact on

the environment. For further information, please contact your local or regional

authorities.

Electronic products not included in the selective sorting process are potentially

dangerous for the environment and human health due to the presence of

hazardous substances.

Recycling

CONTENTS

1 Your refrigerator 3

2 Important Safety

Warnings 4

Intended use ..................................... 4

General safety ................................... 4

Child safety........................................ 6

HCA Warning .................................... 6

Things to be done for energy saving .. 6

3 Installation 7

Points to be considered when re-

transporting your refrigerator ............. 7

#FGPSFPQFSBUJOHZPVSSFGSJHFSBUPS...... 7

Adjusting the feet............................... 8

Disposing of the packaging ............... 8

Disposing of your old refrigerator ....... 8

Placing and Installation ...................... 8

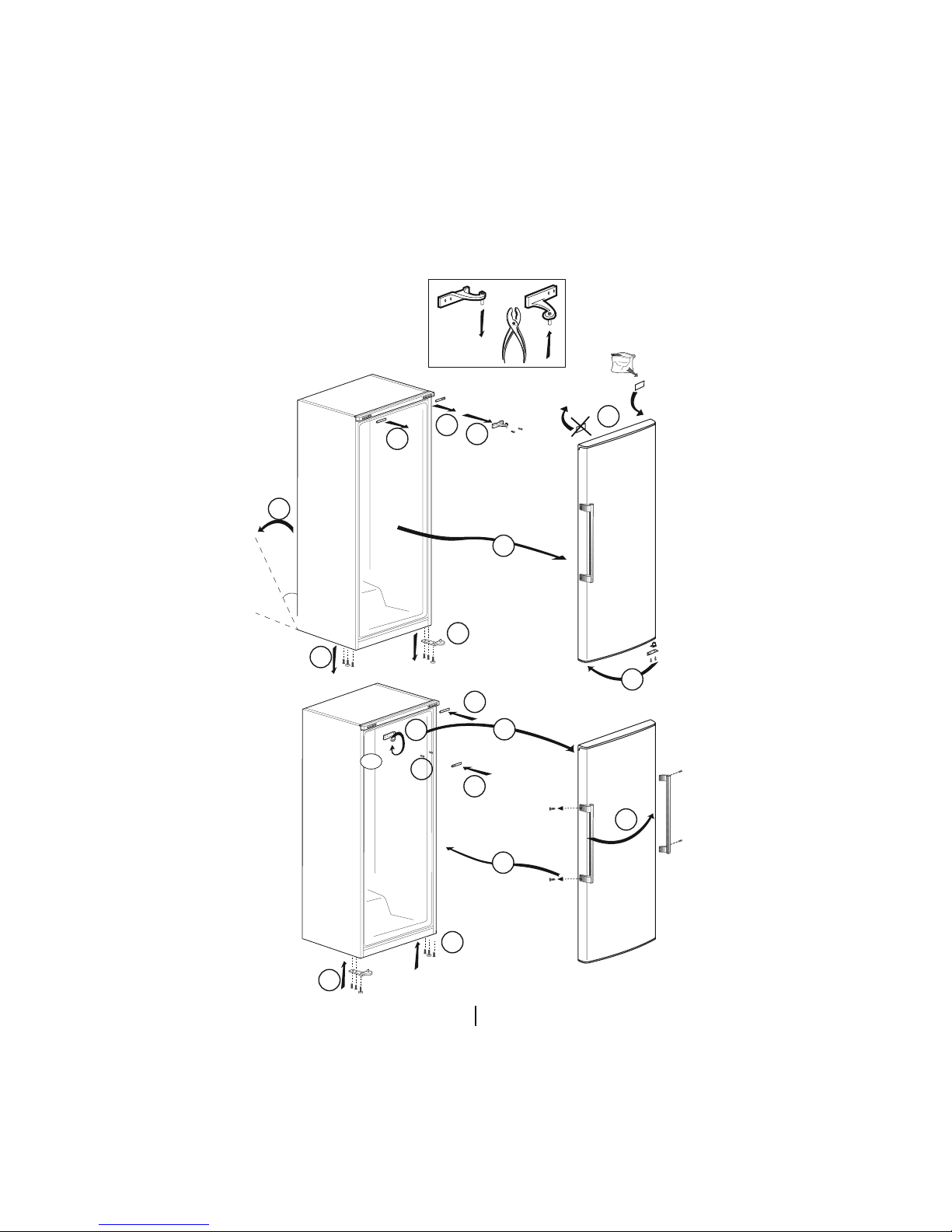

3FWFSTJOHUIFEPPS............................ 9

Proceed in numerical order. ............... 9

4 Preparation 10

5 Using your refrigerator 11

Using interior equipment.................. 11

Glass shelves: Distance between

the shelves can be adjusted when

necessary. ....................................... 11

Cooling............................................ 12

Placing the food ..............................12

Air system Fan................................. 13

FreshZone ....................................... 13

6 Maintenance and

cleaning 14

Protection of plastic surfaces .......... 14

7 Recommended solutions

for the problems 15

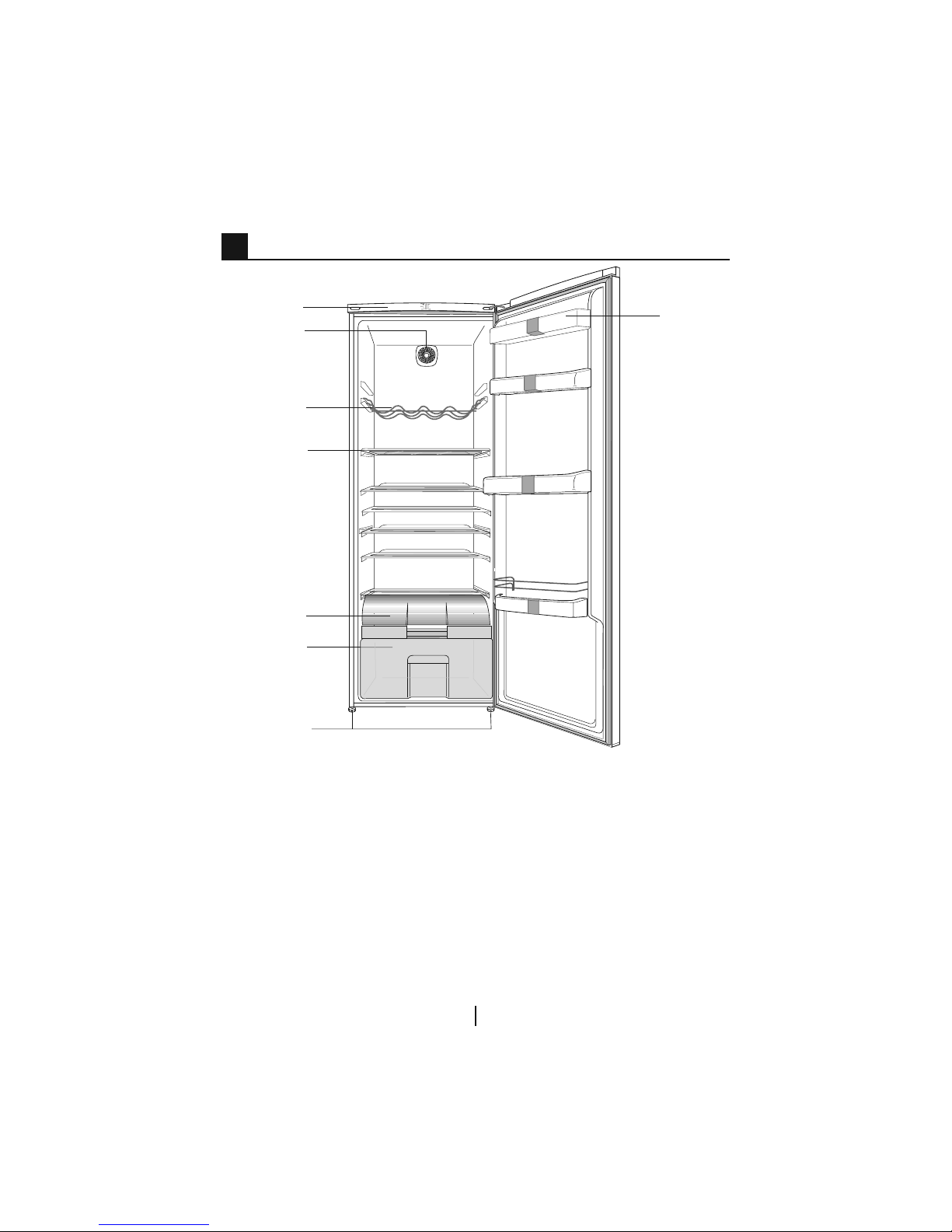

1Your refrigerator

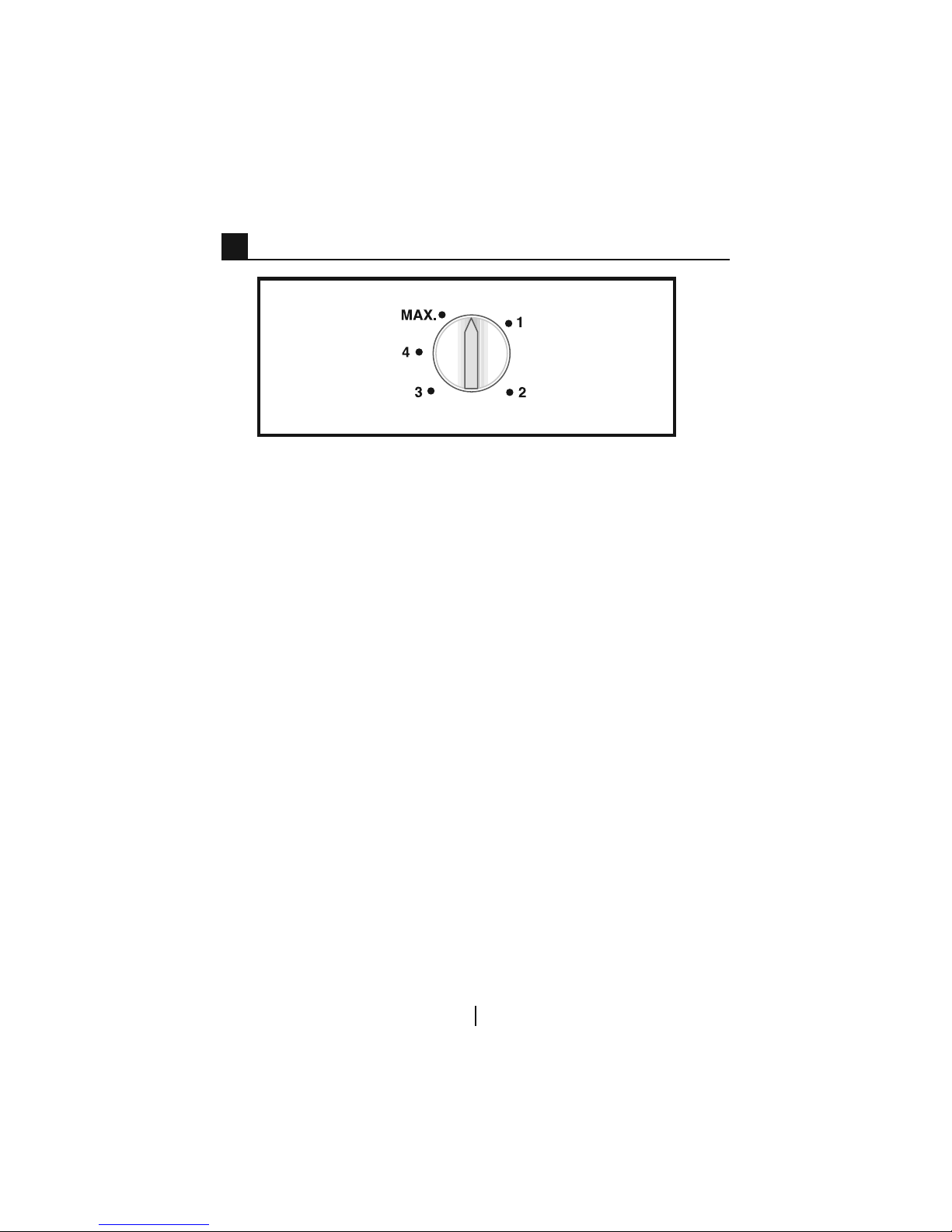

1. Control Panel

2. Fan

3. Movable shelves

4. Wine rack

Figures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the

product you have purchased, then it is valid for other models.

5. FreshZone

6. Vegetable drawer

7. Adjustable front feet

8. Doorshelves

2Important Safety Warnings

Please review the following

information. If these are not followed,

personal injury or material damage

may occur. Otherwise, all warranty and

reliability commitments will become

invalid.

Intended use

t5IJTQSPEVDUJTEFTJHOFEGPSEPNFTUJDuse.

t*UTIPVMEOPUCFVTFEPVUEPPST*UJTnot appropriate to use it outdoor even

if the place is covered with a roof.

General safety

t8IFOZPVXBOUUPEJTQPTFTDSBQthe product, we recommend you

to consult the authorized service in

order to learn the required information

and authorized bodies.

t$POTVMU(3".TFSWJDFGPSBMMZPVSquestions and problems related to

the refrigerator. Do not intervene or let

someone intervene to the refrigerator

without notifying the authorized

services.

t%POPUFBUDPOFJDFDSFBNBOEJDFcubes immediately after you take

them out of the freezer compartment!

(This may cause frostbite in your

mouth.)

t%POPUQVUCPUUMFEBOEDBOOFEliquid beverages in the freezer

compartment. Otherwise, these may

burst.

t%POPUUPVDIGSP[FOGPPECZIBOEthey may stick to your hand.

t7BQPSBOEWBQPSJ[FEDMFBOJOHmaterials should never be used in

cleaning and defrosting processes of

your refrigerator. In such cases, the

vapor might get in contact with the

electrical parts and cause short circuit

or electric shock. t/FWFSVTFUIFQBSUTPOZPVSrefrigerator such as the door as a

means of support or step.

t%POPUVTFFMFDUSJDBMEFWJDFTJOTJEFthe refrigerator.

t%POPUEBNBHFUIFDPPMJOHDJSDVJUwhere the refrigerant is circulating,

with drilling or cutting tools. The

refrigerant that might blow out when

the gas channels of the evaporator,

pipe extensions or surface coatings

are punctured may cause skin

irritations and eye injuries.

t%POPUDPWFSPSCMPDLUIFWFOUJMBUJPOholes on your refrigerator with any

material.

t3FQBJSTPGUIFFMFDUSJDBMBQQMJBODFTmust only be made by qualified

QFSTPOT3FQBJSTQFSGPSNFECZincompetent persons may create a

risk for the user.

t*ODBTFPGBOZGBJMVSFPSEVSJOHa maintenance or repair work,

disconnect your refrigerator’s mains

supply by either turning off the

relevant fuse or unplugging your

appliance.

t%POPUQVMMCZUIFDBCMFXIFOQVMMJOHoff the plug.

t1MBDFUIFCFWFSBHFXJUIIJHIFSQSPPGTtightly closed and vertically.

t'MBNNBCMFJUFNTPSQSPEVDUTUIBUcontain flammable gases (e.g.

spray) as well as the explosive

materials should never be kept in the

appliance.

t%POPUVTFNFDIBOJDBMEFWJDFTor other means to accelerate the

defrosting process, others than those

recommended by the manufacturer.

t%POPUPQFSBUFBEBNBHFESFGSJHFSBUPS$POTVMU(3".TFSWJDFJGyou have any doubts.

t&MFDUSJDBMTBGFUZPGZPVSSFGSJHFSBUPSshall be guaranteed only if the earth

system in your house complies with

standards.

t&YQPTJOHUIFQSPEVDUUPSBJOTOPXsun and wind is dangerous with

respect to electrical safety.

t$POUBDUUIF(3".TFSWJDFXIFOthere is a power cable damage and

etc. so that it will not create a danger

for you.

t/FWFSQMVHUIFSFGSJHFSBUPSJOUPthe wall outlet during installation.

Otherwise, risk of death or serious

injury may arise.

t5IJTSFGSJHFSBUPSJTEFTJHOFETPMFMZGPSstoring food. It should not be used for

any other purposes.

t5IFMBCFMUIBUEFTDSJCFTUIFUFDIOJDBMspecification of the product is

located on the inner left part of the

refrigerator.

t%POPUIPPLVQUIFSFGSJHBUPSUPelectronic energy saving systems as it

may damage the product.

t*GUIFQPXFSTVQQMZJTEJTDPOOFDUFEin manually controlled refrigerators

please wait for at least 5 minutes

before reconnectig the power.

t5IJTQSPEVDUNBOVBMTIPVMECFpassed to the next owner of the

refrigerator if the owner changes.

t8IFONPWJOHUIFSFGSJHFSBUPSNBLFsure that you do not damage the

power cord. In order to prevent

fire the power cord should not be

twisted. Heavy objects should not

be placed on the power cord. When

the refrigerator is being plugged do

not handle the power outlet with wet

hands.

t%POPUQMVHUIFSFGSJHFSBUPSJGUIFelectric outlet is loose.

t%POPUTQMBTIXBUFSEJSFDUMZPOUIFouter or inner parts of the refrigerator

due to safety.

t%POPUTQSBZJOGMBNNBCMFNBUFSJBMTsuch as propane gas etc near

refrigerator due to the risk of fire and

explosion.

t%POPUQMBDFPCKFDUTGJMMFEXJUIXBUFSon top of the refrigerator as it may

result in electric shock or fire.

t%POPUPWFSMPBEUIFSFGSJHFSBUPSXJUIexcess food. The excess food may

fall when the door is opened resulting

in injuring you or damaging the

refrigerator. Do not place objects on

top of the refrigerator as the objects

may fall when opening or closing the

refrigerator door.

t.BUFSJBMTUIBUSFRVJSFDFSUBJOtemperature conditions such as

vaccine, temperature sensitive

medicines, scientific materials etc

should not be kept in refrigerator.

t*GSFGSJHFSBUPSXJMMOPUCFPQFSBUFEGPSan extended period of time it should

be unplugged. A problem in electrical

cable insulation may result in fire.

t5IFSFGSJHFSBUPSNBZNPWFXIFOUIFadjustable feet is not positioned firmly

on the floor. Using the adjustable feet

you can unsure that the refrigerator is

positioned firmly on the floor.

t%POPUQVMMUIFSFGSJHFSBUPSWJBEPPShandle when moving the product as

it may disconnect the handle from the

refrigerator.

t0UIFSXJTFDPOEFOTBUJPONBZPDDVSon the side walls facing each other.

Child safety

t$IJMESFOTIPVMECFTVQFSWJTFEUPensure that they do not play with the

appliance

HCA Warning

tYour product is equipped with

a cooling system that contains

R600a:

This gas is flammable. Therefore, pay

attention to not damaging the cooling

system and piping during usage

and transportation. In the event of

damage, keep your product away

from potential fire sources that can

cause the product catch a fire and

ventilate the room in which the unit is

placed.

Things to be done for energy

saving

t%POPUMFBWFUIFEPPSPGZPVSrefrigerator open for a long time.

t%POPUPWFSMPBEZPVSSFGSJHFSBUPSTPthat the air circulation inside of it is not

prevented.

t%POPUJOTUBMMZPVSSFGSJHFSBUPSunder direct sunlight or near heat

emitting appliances such as ovens,

dishwashers or radiators.

t1BZBUUFOUJPOUPLFFQZPVSGPPEJOclosed containers.

3Installation

BPlease remember that the

manufacturer shall not be held liable

if the information given in the user

guide is not observed.

Points to be considered

when re-transporting your

refrigerator

1. Your refrigerator must be

emptied and cleaned prior to any

transportation.

2. Shelves, accessories, and etc.

have to be fastened securely by

adhesive tape against any jolt before

repackaging.

3. Packaging must be tied with thick

tapes and strong ropes and the

rules of transportation printed on the

package must be followed.

Please do not forget…

That recycled material is an

indispensable source for the nature

and for our national resources.

If you would like to contribute to the

recycling of the packaging materials,

you can get further information from

the environmental bodies or local

authorities.

Before operating your

refrigerator

#FGPSFTUBSUJOHUPVTFZPVSSFGSJHFSBUPScheck the following:

1. The interior of the refrigerator has to

be dry and it is possible for the air

to circulate freely at the back of the

appliance.

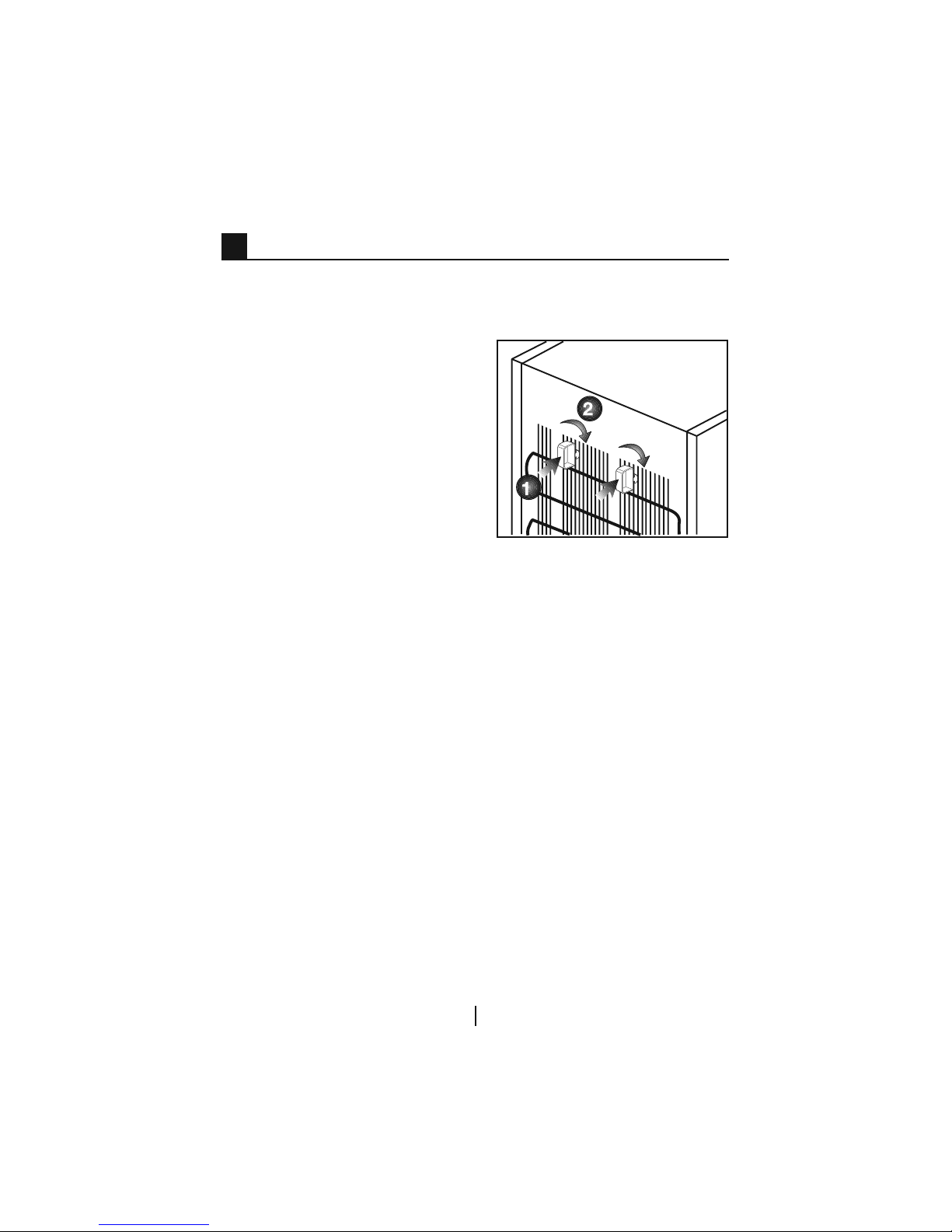

2. You can install the 2 spacers as

illustrated in the figure. Spacers

will provide the required distance

between your refrigerator and the wall

in order to allow the air circulation.

(The illustrated figure is only an

example and does not match exactly

with your product.)

3. Clean the interior of the

refrigerator as recommended in the

“Maintenance and cleaning” section.

4. Plug the refrigerator into the outlet.

When the door is open the interior

light in the refrigerator compartment

will be switched on.

5. You will hear a noise as the

compressor starts up. The liquid and

gases sealed within the refrigeration

system may also give rise to noise,

even if the compressor is not running

and this is quite normal.

6. The front

edges of the refrigerator may feel

warm. This is normal. These areas

are designed to be warm to avoid

condensation.

Adjusting the feet

*GZPVSSFGSJHFSBUPSJTVOCBMBODFEYou can balance your refrigerator by

turning the front legs as shown in the

illustration below. The corner where

the leg exists is lowered when you turn

it in the direction of black arrow and

raised when you turn in the opposite

direction. Taking help from someone to

slightly lift the refrigerator will facilitate

this process.

Electric connection

Connect your product to a grounded

socket which is being protected by a

fuse with the appropriate capacity.

Important:

t5IFDPOOFDUJPONVTUCFJOaccordance with with national

regulations.

t5IFQPXFSDBCMFQMVHNVTUCFFBTJMZaccessible after installation.

t&YUFOTJPODPSETBOEDPOOFDUPSNVTUnot be used for connection.

BA damaged power cable must be

replaced by a qualified electrician.

Disposing of the packaging

The packaging may be dangerous for

children. Keep it out of the reach of

children or dispose of it by classifying

it in accordance with the waste

instructions. Do not dispose of it

together with the normal household

waste.

The packaging of your refrigerator is

made from recyclable materials.

Disposing of your old

refrigerator

Dispose of your old refrigerator without

harming to the environment.

t:PVNBZDPOTVMUZPVSBVUIPSJ[FEretailer or the recycling depot in your

municpality about the disposal of your

refrigerator.

#FGPSFEJTQPTJOHPGZPVSSFGSJHFSBUPScut out the electric plug and, if there

are any locks on the door, make them

inoperable in order to protect children

against any danger.

Placing and Installation

1. Install your refrigerator in a place

that allows ease of use.

2. There must be appropriate air

ventilation around your refrigerator in

order to achieve an efficient operation.

3.Place your refrigerator on an even

floor surface to prevent jolts.

4. Do not keep your refrigerator in

ambient temperatures under 10°C.

Reversing the door

Proceed in numerical order.

45°

(12)

180°

Your refrigerator should be installed at

least 30 cm away from heat sources

such as hobs, ovens, central heater

and stoves and at least 5 cm away

from electrical ovens and should not

be located under direct sunlight.

The ambient temperature of

the room where you install your

refrigerator should at least be 10°C.

Operating your refrigerator under

cooler conditions than this is not

recommended with regard to its

efficiency.

Please make sure that the interior

of your refrigerator is cleaned

thoroughly.

When you operate your refrigerator

for the first time, please observe the

following instructions during the initial

six hours.

- The door should not be opened

frequently.

- It must be operated empty without

any food in it.

- Do not unplug your refrigerator. If

a power failure occurs out of your

control, please see the warnings in

UIFi3FDPNNFOEFETPMVUJPOTGPSthe problems” section.

Original packaging and foam

materials should be kept for future

transportations or moving.

4Preparation

5Using your refrigerator

Thermostat knob

The thermostat knob is located on the

top trim of the refrigerator.

Important:

When you adjust the set temperature,

there may be a short delay before the

compressor starts to operate. This is

normal and not a compressor fault.

Using interior equipment

Glass shelves: Distance between

the shelves can be adjusted when

necessary.

Vegetable drawer: Vegetables

and fruits can be stored in this

compartment.

%PPSTIFMWFT#PUUMFTKBSTBOEUJOTDBObe placed in these shelves.

Cooling

Food storage

The fridge compartment is for the

short-term storage of fresh food and

drinks.

Store milk products in the coldest part

in the refrigerator.

Bottles can be stored on the bottle

holder or in the doorshelf.

Raw meat is best kept in a

polyethylene bag in the compartment

at the very bottom of the refrigerator.

Attention

Do not store explosive substances or

containers with flammable propellant

gases (canned cream, spray cans etc.)

in the device. There is a danger of

explosion.

Placing the food

Fridge

compartment

shelves

Food in pans, covered

plates and closed

containers

Fridge

compartment door

shelves

Small and packaged

food or drinks (such

as milk, fruit juice and

beer)

Vegetable drawer Vegetables and fruits

Defrosting of the fridge

The appliance defrosts automatically.

The fridge has an automatic defrosting

system. It means that it works in

a cycle, where it refrigerates when

there is frost on the back wall, and it

defrosts when water runs down the

back wall.

The frost formed on the back wall in

the fridge compartment is removed

automatically. During the defrosting

cycle the water that contains impurity

can block the plughole. If this

happens, clean the plughole with a

cotton bud.

FreshZone

This compartment has been

developed to store frozen food which

would be thawed slowly (meat, fish,

chicken,etc.) as required.

FreshZone is the coldest place

of your refrigerator in which dairy

products (cheese, butter), meat, fish or

chicken may be kept at ideal storage

conditions.

"MTPTPNFWFHFUBCMFTBOEPSGSVJUTDBObe placed in this compartment.

Air system Fan

Air system fan is designed to

ensure homogenous distribution and

circulation of the cold air inside your

refrigerator. Operation time of the

turbo cooling fan may vary depending

on the properties of your product.

While the turbo fan works only with

the compressor in some products,

the control system determines its

operation time in some products

in accordance with the cooling

requirement. This situation is explained

on a separate warning and information

label attached on the refrigerator in

products equipped with turbo fans

running under different conditions than

the compressor.”

6Maintenance and cleaning

A/FWFSVTFHBTPMJOFCFO[FOFPSsimilar substances for cleaning

purposes.

BWe recommend that you unplug the

appliance before cleaning.

B/FWFSVTFBOZTIBSQBCSBTJWFinstrument, soap, household

cleaner, detergent and wax polish for

cleaning.

Use lukewarm water to clean the

cabinet of your refrigerator and wipe it

dry.

Use a damp cloth wrung out in

a solution of one teaspoon of

bicarbonate of soda to one pint of

water to clean the interior and wipe it

dry.

BMake sure that no water enters the

lamp housing and other electrical

items.

BIf your refrigerator is not going to be

used for a long period of time, unplug

the power cable, remove all food,

clean it and leave the door ajar.

Check door seals regularly to ensure

they are clean and free from food

particles.

ATo remove door racks, remove all the

contents and then simply push the

door rack upwards from the base.

Protection of plastic

surfaces

Do not put the liquid oils or oil-cooked

meals in your refrigerator in unsealed

containers as they damage the

plastic surfaces of your refrigerator. In

case of spilling or smearing oil on the

plastic surfaces, clean and rinse the

relevant part of the surface at once

with warm water.

7Recommended solutions for the problems

1MFBTFSFWJFXUIJTMJTUCFGPSFDBMMJOHUIF(3".TFSWJDF*UNJHIUTBWFZPVUJNFand money. This list includes frequent complaints that are not arising from

defective workmanship or material usage. Some of the features described here

may not exist in your product.

The freezer does not operate.

t*TUIFGSFF[FSQSPQFSMZQMVHHFEJO *OTFSUUIFQMVHUPUIFXBMMTPDLFUt*TUIFGVTFPGUIFTPDLFUUPXIJDIZPVSGSFF[FSJTDPOOFDUFEUPPSUIFNBJOGVTFCMPXOPVU $IFDLUIFGVTFCondensation on the side wall of the freezer.

t7FSZDPMEBNCJFOUDPOEJUJPOT'SFRVFOUPQFOJOHBOEDMPTJOHPGUIFEPPS)JHIMZhumid ambient conditions. Leaving the door ajar. Switching the thermostat

control to a colder temperature.

t%FDSFBTJOHUIFUJNFUIFEPPTJTMFGUPQFOPSVTJOHJUMFTTGSFRVFOUMZt8JQFUIFDPOEFOTBUJPOVTJOHBESZDMPUIBOEDIFDLJGJUQFSTJTUTThe compressor is not running

t*ODBTFPGBOFMFDUSJDBMDVUUIFGSFF[FSDBOOPUTUBSUVQSJHIUBXBZBTUIFcompressor has to balance the refrigerant pressure in the cooling system of the

freezer. The alignment of the refrigerant pressure will lead to a postponement of

UIFTUBSUVQCZNJOVUFT1MFBTFDPOUBDU(3".TFSWJDFJGUIFGSFF[FSEPFTOPUstart up at the end of this period.

t5IFGSFF[FSJTJOUIFEFGSPTUDZDMF5IJTJTOPSNBMGPSBGVMMBVUPNBUJDBMMZEFGSPTUJOHfreezer. The defrostning cycle occurs periodically.

t:PVSGSFF[FSJTOPUQMVHHFEJOUPUIFTPDLFU.BLFTVSFUIBUUIFQMVHGJUTQSPQFSMZinto the socket.

t"SFUIFUFNQFSBUVSFBEKVTUNFOUTDPSSFDUMZNBEF t5IFQPXFSNJHIUCFDVUPGGThe freezer is running frequently or for a long time.

t:PVSOFXQSPEVDUNBZCFXJEFSUIBOUIFQSFWJPVTPOF5IJTJTRVJUFOPSNBMLarge freezers operate for a longer period of time.

t5IFBNCJFOUSPPNUFNQFSBUVSFNBZCFIJHI5IJTJTRVJUFOPSNBMt5IFGSFF[FSNJHIUIBWFCFFOQMVHHFEJOSFDFOUMZPSNJHIUIBWFCFFOMPBEFEwith food. Cooling down of the freezer completely may last for a couple of hours

longer.

t-BSHFBNPVOUTPGIPUGPPENJHIUIBWFCFFOQVUJOUIFGSFF[FSSFDFOUMZ)PUfood causes longer running of the freezer until it reaches the safe storage

temperature.

t5IFEPPSNJHIUIBWFCFFOPQFOFEGSFRVFOUMZPSMFGUBKBSGPSBMPOHUJNF5IFwarm air that has entered into the freezer causes the freezer to run for longer

periods of time. Open the door less frequently.

t5IFGSFF[FSEPPSNJHIUIBWFCFFOMFGUBKBS$IFDLJGUIFEPPSJTUJHIUMZDMPTFEt5IFGSFF[FSJTBEKVTUFEUPBWFSZMPXUFNQFSBUVSF"EKVTUUIFGSFF[FSUFNQFSBUVSFto a warmer degree and wait until the temperature is achieved.

t5IFEPPSTFBMPGUIFGSFF[FSNBZCFTPJMFEXPSOPVUCSPLFOPSOPUQMBDFEproperly. Clean or replace the seal. A damaged or broken sea causes the freezer

to run for a longer period of time in order to maintain the current temperature.

The food kept in the fridge compartment drawers are freezing.

t5IFGSJEHFUFNQFSBUVSFNJHIUIBWFCFFOBEKVTUFEUPBWFSZMPXUFNQFSBUVSFAdjust the fridge temperature to a warmer degree and check.

The temperature in the freezer is very high.

t5IFGSJEHFUFNQFSBUVSFNJHIUIBWFCFFOBEKVTUFEUPBWFSZIJHIEFHSFF$IBOHFthe temperature of the freezer until the freezer temperature reaches to a sufficient

level.

t5IFEPPSNJHIUIBWFCFFOPQFOFEGSFRVFOUMZPSMFGUBKBSGPSBMPOHUJNFPQFOJUless frequently.

t5IFEPPSNJHIUIBWFCFFOMFGUBKBSDMPTFUIFEPPSDPNQMFUFMZt-BSHFBNPVOUPGIPUGPPENJHIUIBWFCFFOQVUJOUIFSFGSJHFSBUPSSFDFOUMZ8BJUuntil the fridge reaches the desired temperature.

t5IFSFGSJHFSBUPSNJHIUIBWFCFFOQMVHHFEJOSFDFOUMZ$PPMJOHEPXOPGUIFrefrigerator completely takes time.

The operation noise increases when the refrigerator is running.

t5IFPQFSBUJOHQFSGPSNBODFPGUIFSFGSJHFSBUPSNBZDIBOHFEVFUPUIFDIBOHFTJOthe ambient temperature. It is normal and not a fault.

Vibrations or noise.

t5IFGMPPSJTOPUMFWFMPSJUJTXFBL5IFSFGSJHFSBUPSSPDLTXIFONPWFETMPXMZMake sure that the floor is strong enough to carry the freezer, and that the floor

is level.

t5IFOPJTFNBZCFDBVTFECZUIFJUFNTQVUPOUPUIFSFGSJHFSBUPS*UFNTPOUPQPGthe refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

t-JRVJEBOEHBTGMPXTIBQQFOJOBDDPSEBODFXJUIUIFPQFSBUJOHQSJODJQMFTPGZPVSrefrigerator. It is normal and not a fault.

There is a noise like wind blowing.

t'BOTBSFVTFEJOPSEFSUPDPPMUIFSFGSJHFSBUPS*UJTOPSNBMBOEOPUBGBVMUCondensation on the inner walls of the refrigerator.

t)PUBOEIVNJEXFBUIFSJODSFBTFTJDJOHBOEDPOEFOTBUJPO*UJTOPSNBMBOEOPUBfault.

t5IFEPPSNJHIUIBWFCFFOMFGUBKBSNBLFTVSFUIBUUIFEPPSJTDMPTFEGVMMZt5IFEPPSNJHIUIBWFCFFOPQFOFEGSFRVFOUMZPSMFGUBKBSGPSBMPOHUJNFPQFOJUless frequently.

Humidity occurs on the outside of the refrigerator
