GRP2604 / GRP2604P
Quick Installation Guide
3-Line Essential IP Phone

Content
English...............................................................................1

~1~ ~2~
The GRP2604/GRP2604P is not pre-congured
to support or carry emergency calls to any type of
hospital, law enforcement agency, medical care unit
(“Emergency Service(s)”) or any other kind of Emer-
gency Service. You must make additional arrange-
ments to access Emergency Services. It is Your
responsibility to purchase SIP-compliant Internet
telephone service, properly congure the GRP2604/
GRP2604P to use that service, and periodically test
Your conguration to conrm that it works as You ex-
pect. If You don’t do so, it is Your responsibility to
purchase traditional wireless or landline telephone
services to access Emergency Services.
GRANDSTREAM DOES NOT PROVIDE CON-
NECTIONS TO EMERGENCY SERVICES VIA THE
GRP2604/GRP2604P. NEITHER GRANDSTREAM
NOR ITS OFFICERS, EMPLOYEES OR AFFILI-
ATES MAY BE HELD LIABLE FOR ANY CLAIM,
DAMAGE, OR LOSS, AND YOU HEREBY WAIVE
ANY AND ALL SUCH CLAIMS OR CAUSES OF AC-
TION ARISING FROM OR RELATING TO YOUR
INABILITY TO USE THE GRP2604/GRP2604P TO
CONTACT EMERGENCY SERVICES, AND YOUR
FAILURE TO MAKE ADDITIONAL ARRANGE-
MENTS TO ACCESS EMERGENCY SERVICES IN
ACCORDANCE WITH THE IMMEDIATELY PRE-
CEDING PARAGRAPH.
EN
Part of the GRP series of Carrier-Grade IP Phones, the GRP2604 is an
essential 3-line model designed with zero-touch provisioning for mass
deployment and easy management. It features a sleek design and a suite
of next-generation features including 4-way voice conferencing to maxi-
mize productivity, integrated PoE (GRP2604P), full HD audio on both
the speaker and handset to allow users to communicate with the utmost
clarity, EHS support for Plantronics & Jabra & Sennheiser headsets and
multi-language support. The GRP series includes carrier-grade security
features to provide enterprise-level security, including secure boot, dual
rmware images and encrypted data storage. For cloud provisioning and
centralized management, the GRP2604 is supported by Grandstream’s
Device Management System (GDMS), which provides a centralized
interface to congure, provision, manage and monitor deployments of
Grandstream endpoints. Built for the needs of desktop workers and de-
signed for easy deployment by enterprises, service providers and other
high-volume markets, the GRP2604 o󰀨ers an easy-to-use and easy-to-
deploy voice endpoint.
PACKAGE CONTENTS:
OVERVIEW:
WARNING: Please DO NOT power cycle the GRP2604/GRP2604P dur-
ing system boot up or rmware upgrade. You may corrupt rmware im-
ages and cause the unit to malfunction.

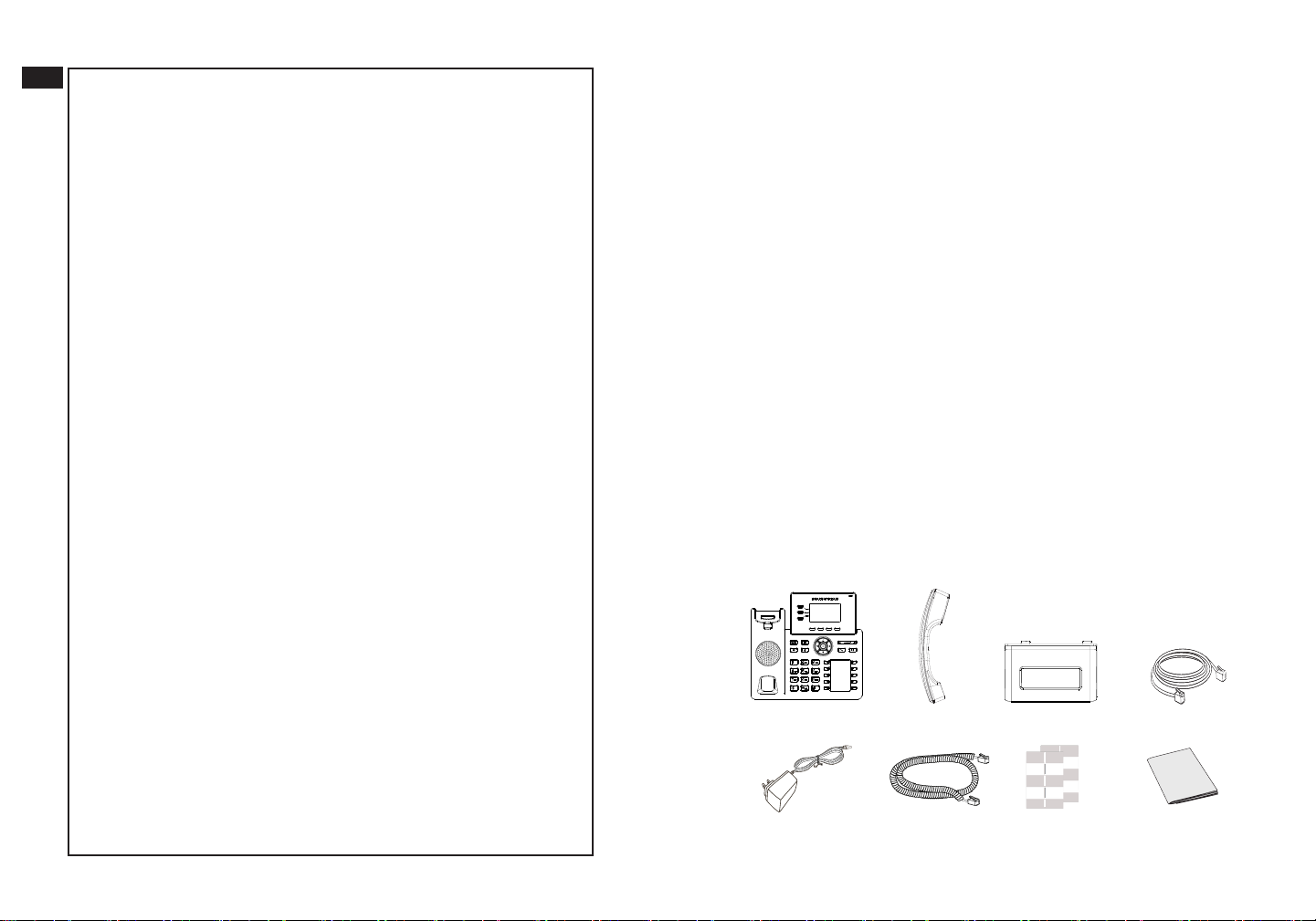

1x Phone Main Case 1x Handset
1x Phone Cord
1x Ethernet Cable1x Phone Stand
1x 5V Power adapter
(With GRP2604 only)
1x Quick
Installation Guide
PRECAUTIONS:
WARNING: Use only the power adapter included in the GRP2604 pack-
age. Using an alternative non-qualied power adapter may possibly
damage the unit.
5V
BLF Labels

~3~ ~4~

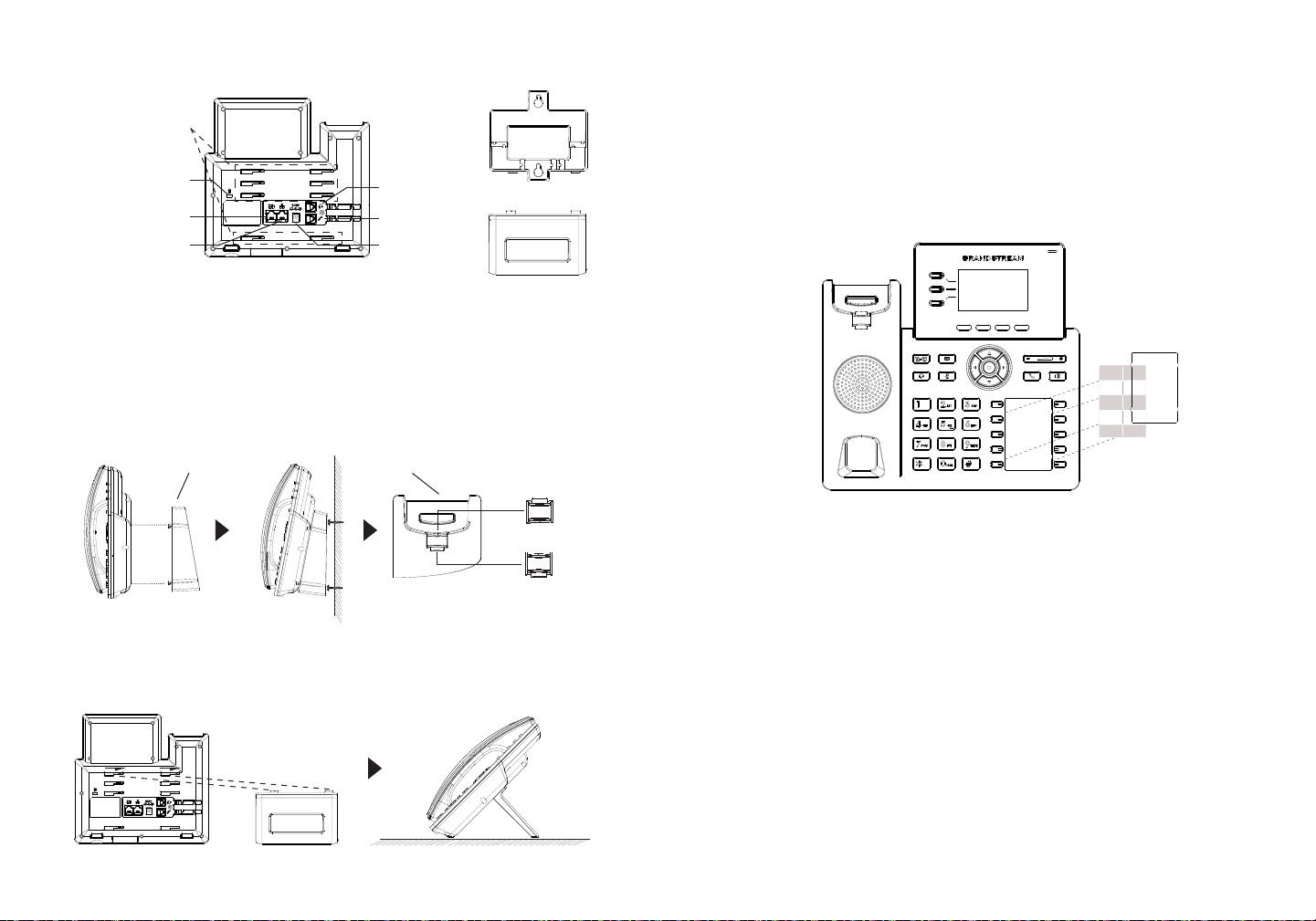

Installing the phone (Wall Mount *sold separately):
1. Attach the wall mount spacers to the slot for wall mount spacers on the back
of the phone.
2. Attach the phone to the wall via the wall mount hole.
3. Pull out the tab from the handset cradle (See gure below).
4. Rotate the tab and plug it back into the slot with the extension up to hold the
handset while the phone is mounted on the wall (See gure below).
Tab with
extension up
Handset Rest
Tab with
extension down
For installing the phone on the table with the phone stand, attach the phone stand
to the bottom of the phone where there is a slot for the phone stand. (Upper half,
bottom part).
Installing the phone (Phone Stand):
Wall mount
Installing BLF Paper label:
1. Handwrite or print the names on the dedicated space on the paper label.
2. Place the paper label in the groove of the phone.
3. Bend the plastic lm so that the protruding points on the left and right sides
snap into the grooves to complete the installation.
4. If you want to take it out, use a nail or thin card to move the slit on one side of
the lm to bend it and then take it out.
To setup the GRP2604/GRP2604P, follow the steps below:
1. Connect the handset and main phone case with the phone cord.
2. Connect the 5V DC output plug to the power jack on the phone; plug the pow-
er adapter into an electrical outlet. If PoE switch is used in step 3 (GRP2604P
only), this step could be skipped.
3. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a
router (LAN side of the router) using the Ethernet cable.
4. The LCD will display Grandstream logo. Before continuing, please wait for the
date/time display to show up.
5. Using the phone embedded web server or keypad conguration menu, you
can further congure the phone using either a static IP or DHCP.
CONNECTING THE PHONE:
PHONE SETUP:
Slots for the
wall mount
spacers and
phone stand
Wall mount
Phone Stand
PC Port
Kensington Lock
LAN Port Power
Headset Port
Handset Port
Cover
Label

~5~ ~6~
1. Make sure the phone is idle.
2. Press the MENU key to access the keypad MENU to congure the phone.
3. Select MENU → SETTINGS → ACCOUNT SETTINGS to congure settings
for SIP Proxy, Outbound Proxy, SIP User ID, SIP Auth ID and SIP Password.
4. Follow MENU options to congure the basic features of the phone. For ex-
ample: the IP address if using a static IP. For details, please check GRP260X
series User Manual.
5. Please contact your ITSP for additional settings that may be necessary to
congure the phone.
Congure the GRP2604/GRP2604P using the Keypad:
Refer to online documents and FAQ for more detailed information:
http://www.grandstream.com/our-products
The GNU GPL license terms are incorporated into the device rmware and
can be accessed via the Web user interface of the device at
http(s)://IP/gpl_license.
To obtain a CD with GPL source code information please submit a written
request to [email protected]
This product is covered by one or more of the U.S. patents (and any foreign patent
counterparts thereto) identied at www.cmspatents.com
PHONE DESCRIPTION:
1. Ensure your phone is powered up and connected to the Internet.
2. Press the “UP” button t o display the IP address .
3. Type the phone’s IP address in your PC browser.
4. Enter admin’s username and password to access the conguration menu.
(The factory default username is “admin” while the default random password
can be found on the sticker at the back of the unit).
Congure the GRP2604/GRP2604P using a Web Browser:
PHONE CONFIGURATION:
S o f t k e y s
Mute
Send/Redial
Volume
Standard keypad
H e a d s e t
MENU/OK key
T r a n s f e r
Message
Navigation keys
Speaker
Line Keys
Message Waiting
Indicator
Multi-purpose
Keys

For certification information, please refer to User Manuals:
