Grandstream Networks GAC2500 User manual

Grandstream Networks, Inc.

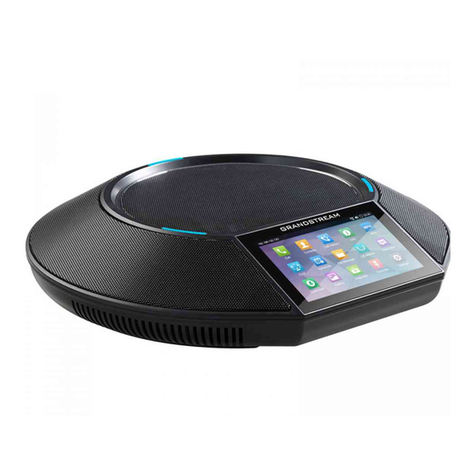

GAC2500 Audio Conference Phone for AndroidTM
User Guide
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 1 of 98
GAC2500 User Guide
Index
CHANGE LOG ..............................................................................................................................................9
FIRMWARE VERSION 1.0.1.18............................................................................................................9
FIRMWARE VERSION 1.0.1.6..............................................................................................................9
WELCOME..................................................................................................................................................10
PRODUCT OVERVIEW..............................................................................................................................12
FEATURE HIGHTLIGHTS...................................................................................................................12
SAFETY COMPLIANCES....................................................................................................................13
WARRANTY.........................................................................................................................................13
INSTALLING GAC2500...............................................................................................................................14
EQUIPMENT PACKAGE CONTENT...................................................................................................14
PRODUCT APPEARANCE..................................................................................................................14
CONNECTING GAC2500....................................................................................................................15
IP MODE.......................................................................................................................................16
USB SLAVE MODE ......................................................................................................................17
CASCADE MODE.........................................................................................................................17
MOBILE PHONE MODE ..............................................................................................................18
GETTING TO KNOW GAC2500 .................................................................................................................20
DESKTOP............................................................................................................................................20
STATUS ICONS...................................................................................................................................20
USING THE ONSCREEN KEYBOARD...............................................................................................21
ENGLISH KEYBOARD.................................................................................................................21
CHINESE KEYBOARD.................................................................................................................22
NUMBERS AND SYMBOLS.........................................................................................................22
USING THE LED INDICATOR.............................................................................................................23
ASSISTIVE TOUCH....................................................................................................................................24
USING TOUCHSCREEN.....................................................................................................................24
SHORTCUT KEYS...............................................................................................................................25
MANAGING STATUS BAR ..................................................................................................................25
DESKTOP MENU ................................................................................................................................26
EDIT WALLPAPER.......................................................................................................................26
EDIT DESKTOP............................................................................................................................27
ADDING AN ITEM TO DESKTOP................................................................................................27
MANAGING DESKTOP APPS AND ITEMS.................................................................................28
OPENING AN APP................................................................................................................28
MOVING AN APP..................................................................................................................28
REMOVING AN APP.............................................................................................................29
MANAGING APPLICATIONS...............................................................................................................29
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 2 of 98
HOME SCREEN ..................................................................................................................................30
CONNECTING TO NETWORK AND DEVICES .........................................................................................32
NETWORK...........................................................................................................................................32
ETHERNET..........................................................................................................................................32
WI-FI ....................................................................................................................................................32
TURNING WI-FI ON OR OFF ......................................................................................................33
BLUETOOTH.......................................................................................................................................33
TURNING BLUETOOTH ON OR OFF .........................................................................................33
PAIRING GAC2500 WITH A BLUETOOTH DEVICE....................................................................33
CONNECTING TO A BLUETOOTH DEVICE...............................................................................34
SENDING FILES VIA BLUETOOTH.............................................................................................35
VPN SETTINGS...................................................................................................................................35
VLAN SETTINGS.................................................................................................................................37
LLDP SETTINGS.................................................................................................................................37
802.1X MODE......................................................................................................................................37
MAKING PHONE CALLS............................................................................................................................39
ACCOUNT ...........................................................................................................................................39
MAKING A CALL..................................................................................................................................39
DIRECT DIALING.........................................................................................................................39
REDIAL..................................................................................................................................40
DIALING A NUMBER VIA CONTACT....................................................................................40
DIALING A NUMBER VIA CALL HISTORY...........................................................................40
DIRECT IP CALL...................................................................................................................40
PAGING/INTERCOM.............................................................................................................41
ANSWERING A CALL...................................................................................................................41
REJECT CALL VIA SMS ..............................................................................................................42
CALL MANAGEMENT..................................................................................................................42
CALL HOLD AND CALL RESUME........................................................................................43
CALL RECORD.....................................................................................................................44
MUTE ....................................................................................................................................45
CALL TRANSFER.........................................................................................................................45
BLIND TRANSFER................................................................................................................45
ATTENDED TRANSFER.......................................................................................................46
DND (DO NOT DISTURB)...................................................................................................................48
MISSED CALL .....................................................................................................................................49
CALL FORWARD.................................................................................................................................49
SET ON LCD ................................................................................................................................49
SET FROM WEB GUI...................................................................................................................50
7-WAY CONFERENCE........................................................................................................................50
INITIATING CONFERENCE.........................................................................................................50
CONFERENCE MANAGEMENT..................................................................................................52
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 3 of 98
INVITE MEMBERS TO CONFERENCE ...............................................................................53
REMOVING MEMBER FROM CONFERENCE....................................................................54
THIRD PARTY APPLICATIONS............................................................................................54
END CONFERENCE....................................................................................................................54
SCHEDULE CONFERENCE...............................................................................................................54
VIEW CONFERENCE DETAILS ..................................................................................................55
ADD SCHEDULED CONFERENCE.............................................................................................55
EDIT SCHEDULED CONFERENCE............................................................................................57
RESCHEDULE CONFERENCE...................................................................................................57
DELETE SCHEDULED CONFERENCE......................................................................................57
DELETE HISTORY CONFERENCE.............................................................................................58
VOICEMAIL .........................................................................................................................................59
APPLICATIONS ..........................................................................................................................................61
CONTACTS..........................................................................................................................................61
LOCAL CONTACTS......................................................................................................................61
ADD CONTACT.....................................................................................................................62
SEARCH CONTACTS...........................................................................................................65
MANAGE CONTACTS ..........................................................................................................65
GROUPS ......................................................................................................................................68
ADD NEW GROUP...............................................................................................................68
CALL GROUPS.....................................................................................................................69
DELETE GROUP ..................................................................................................................70
BLACKLIST ..................................................................................................................................70
LDAP ............................................................................................................................................72
CALL HISTORY ...................................................................................................................................75
ADD CONTACT FROM CALL HISTORY......................................................................................76
DELETE CALL HISTORY.............................................................................................................76
SCHEDULE CONFERENCE VIA CALL HISTORY......................................................................76
INTERCEPTED HISTORY ...........................................................................................................77
MPK .....................................................................................................................................................78
EVENR LIST URL.........................................................................................................................79
MPK SETTINGS...........................................................................................................................80
NOTICES.............................................................................................................................................81
VIEW NOTICES............................................................................................................................81
DELETE NOTICES.......................................................................................................................81
NOTICES SETTINGS...................................................................................................................82
FILE MANAGER ..................................................................................................................................82
COPY FILE...................................................................................................................................83
SEND FILE ...................................................................................................................................83
DELETE FILE ...............................................................................................................................83
RENAME FILE..............................................................................................................................83
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 4 of 98
RECORDER ........................................................................................................................................84
NORMAL RECORDER.................................................................................................................84
CALL RECORDER .......................................................................................................................85
RECORDER SETTINGS..............................................................................................................85
DIAGNOSIS.........................................................................................................................................86
BROWSER ..........................................................................................................................................86
GS MARKET...............................................................................................................................................87
SEARCH APPS....................................................................................................................................87
DOWNLOAD AND INSTALLAPPS......................................................................................................87
UPDATE APPS ....................................................................................................................................87
GAC2500 WEB UI FEATURES...................................................................................................................88
ACCESSING GAC2500 WEB GUI ......................................................................................................88
SAVING CHANGES.............................................................................................................................88
DEFINITIONS ......................................................................................................................................89
CALL PAGE .........................................................................................................................................90
MAKING A CALL...........................................................................................................................90
SINGLE INCOMING CALL...........................................................................................................91
CONFERENCE CONTROL..........................................................................................................91
CONTACTS PAGE...............................................................................................................................92
CONTACTS..................................................................................................................................92
CONTACTS...........................................................................................................................92
GROUPS...............................................................................................................................94
BLACKLIST...........................................................................................................................94
SCHEDULE ..................................................................................................................................95
UPCOMING CONFERENCE ................................................................................................95
HISTORY CONFERENCE ....................................................................................................95
CALL HISTORY............................................................................................................................96
LDAP ............................................................................................................................................97
EXPERIENCING GAC2500........................................................................................................................98
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 5 of 98
Table of Tables
GAC2500 User Guide
Table 1 GAC2500 Technical Specifications.................................................................................................12
Table 2 GAC2500 Package List..................................................................................................................14
Table 3 GAC2500 Interfaces Explanations.................................................................................................15
Table 4 GAC2500 Status Icons Descriptions ..............................................................................................20
Table 5 GAC2500 LED Indicator Descriptions............................................................................................23
Table 6 GAC2500 VPN File Parameters.....................................................................................................36
Table 7 GAC2500 VLAN Configuration Parameters...................................................................................37
Table 8 GAC2500 LLDP Configuration Parameters....................................................................................37
Table 9 GAC2500 802.1X Mode Parameters..............................................................................................38
Table 10 GAC2500 Import Contacts Parameters........................................................................................64
Table 11 GAC2500 Download Contacts Parameters..................................................................................65
Table 12 GAC2500 Export Contacts Parameters .......................................................................................66
Table 13 GAC2500 Blacklist Settings Parameters......................................................................................71
Table 14 GAC2500 LDAP Book Parameters ..............................................................................................73
Table 15 GAC2500 MPK Settings Parameters...........................................................................................80
Table 16 GAC2500 Users Access Permissions..........................................................................................89
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 6 of 98
Table of Figures
GAC2500 User Guide
Figure 1 GAC2500 Host Interfaces.............................................................................................................14
Figure 2 GAC2500 Connection Mode.........................................................................................................16
Figure 3 GAC2500 Slave Mode Screen......................................................................................................17
Figure 4 GAC2500 Cascade Mode Screen ................................................................................................18
Figure 5 GAC2500 Select line Sequence Screen.......................................................................................19
Figure 6 GAC2500 Multi-screens................................................................................................................20
Figure 7 GAC2500 Soft Keyboard - English Input Method.........................................................................22
Figure 8 GAC2500 English Keyboard - Uppercase....................................................................................22
Figure 9 GAC2500 Chinese Keyboard - Google Pinyin Method.................................................................22
Figure 10 GAC2500 Soft Keyboard - Symbols and Numbers ....................................................................22
Figure 11 GAC2500 Soft Keyboard - More Symbols and Numbers ...........................................................23
Figure 12 GAC2500 Finger Gestures .........................................................................................................24
Figure 13 GAC2500 Status Bar - Notifications............................................................................................25
Figure 14 GAC2500 Idle Screen Menu.......................................................................................................26
Figure 15 GAC2500 Choose Wallpaper......................................................................................................26
Figure 16 GAC2500 Edit Desktop...............................................................................................................27
Figure 17 GAC2500 Weather Forecast Screen..........................................................................................28
Figure 18 GAC2500 Move Weather Forecast to Desktop ..........................................................................29
Figure 19 GAC2500 Remove Weather Forecast from Desktop .................................................................29
Figure 20 GAC2500 Managing Applications...............................................................................................30
Figure 21 GAC2500 Home Screen.............................................................................................................30
Figure 22 GAC2500 Add Wi-Fi Screen.......................................................................................................33
Figure 23 GAC2500 Bluetooth - Paired Device..........................................................................................34
Figure 24 GAC2500 Bluetooth - Paired Device..........................................................................................35
Figure 25 GAC2500 Add VPN Files Screen ...............................................................................................36
Figure 26 GAC2500 Registered Account Status.........................................................................................39
Figure 27 GAC2500 Single Incoming Call Screen......................................................................................41
Figure 28 GAC2500 New Incoming Call Screen.........................................................................................42
Figure 29 GAC2500 Single Incoming Call Screen......................................................................................43
Figure 30 GAC2500 Call On Hold Screen..................................................................................................44
Figure 31 GAC2500 More - Start Recording...............................................................................................44
Figure 32 GAC2500 Mute Call Screen .......................................................................................................45
Figure 33 GAC2500 Transfer - Blind Transfer ............................................................................................46
Figure 34 GAC2500 Transfer - Attended Transfer......................................................................................47
Figure 35 GAC2500 Call Forward - Select Forward Mode.........................................................................47
Figure 36 GAC2500 Call Forward - Transferring........................................................................................48
Figure 37 GAC2500 Call Forward - Split.....................................................................................................48
Figure 38 GAC2500 Call Forward Type Setting Screen.............................................................................49
Figure 39 GAC2500 Call Forward Mode On Web GUI...............................................................................50
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 7 of 98
Figure 40 GAC2500 Conference Screen....................................................................................................51
Figure 41 GAC2500 Add Party To Conference...........................................................................................51
Figure 42 GAC2500 3-Way Conference.....................................................................................................52
Figure 43 GAC2500 Conference-More.......................................................................................................53
Figure 44 GAC2500 Schedule Screen........................................................................................................55
Figure 45 GAC2500 Conference Details Screen........................................................................................55
Figure 46 GAC2500 Add Conference Screen.............................................................................................56
Figure 47 GAC2500 Delete Scheduled Conference Screen ......................................................................57
Figure 48 GAC2500 Delete History Conference Screen ............................................................................58
Figure 49 GAC2500 Batch Delete History Conference Screen..................................................................59
Figure 50 GAC2500 Voice Mail Application ................................................................................................60
Figure 51 GAC2500 Contacts Screen ........................................................................................................61
Figure 52 GAC2500 Local Contacts Screnn...............................................................................................62
Figure 53 GAC2500 Add New Contact Screen...........................................................................................63
Figure 54 GAC2500 Import Contacts Parameters Screen .........................................................................63
Figure 55 GAC2500 Download Contacts Screen .......................................................................................64
Figure 56 GAC2500 Export Contacts Screen.............................................................................................66
Figure 57 GAC2500 Contacts Storage Status Screen................................................................................67
Figure 58 GAC2500 Add Google Account - Wizard 1.................................................................................67
Figure 59 GAC2500 Add Google Account - Wizard 2.................................................................................68
Figure 60 GAC2500 Groups Screen...........................................................................................................68
Figure 61 GAC2500 Add Group Screen .....................................................................................................69
Figure 62 GAC2500 Dial Group Members Screen .....................................................................................69
Figure 63 GAC2500 Edit Groups Screen....................................................................................................70
Figure 64 GAC2500 Blacklist Screen .........................................................................................................70
Figure 65 GAC2500 Manual Add Blacklist Screen .....................................................................................71
Figure 66 GAC2500 Blacklist Settings Screen ...........................................................................................71
Figure 67 GAC2500 LDAP Book Screen....................................................................................................72
Figure 68 GAC2500 LDAP Settings............................................................................................................72
Figure 69 GAC2500 Web GUI Maintenance - LDAP Book.........................................................................74
Figure 70 GAC2500 Add LDAP Contact To Local.......................................................................................74
Figure 71 GAC2500 Call History Screen ....................................................................................................75
Figure 72 GAC2500 Call History Details.....................................................................................................75
Figure 73 GAC2500 Add Contact screen....................................................................................................76
Figure 74 GAC2500 Conference Call History Screen ................................................................................77
Figure 75 GAC2500 Intercepted History Screen ........................................................................................77
Figure 76 GAC2500 Add MPK Number......................................................................................................78
Figure 77 GAC2500 MPK Number List.......................................................................................................78
Figure 78 GAC2500 Add Number from Contacts........................................................................................79
Figure 79 GAC2500 MPK Number Screen.................................................................................................79
Figure 80 GAC2500 MPK Number Screen.................................................................................................80
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 8 of 98
Figure 81 GAC2500 MPK Settings Screen.................................................................................................80
Figure 82 GAC2500 Notices Screen...........................................................................................................81
Figure 83 GAC2500 View Notices ..............................................................................................................81
Figure 84 GAC2500 Notices Setting Screen ..............................................................................................82
Figure 85 GAC2500 Incoming Call Screen.................................................................................................82
Figure 86 GAC2500 Normal Recorder........................................................................................................84
Figure 87 GAC2500 Normal Record-Recording.........................................................................................85
Figure 88 GAC2500 Call Recordings..........................................................................................................85
Figure 89 GAC2500 Recorder Settings Screen..........................................................................................86
Figure 90 GAC2500 Web GUI - Login ........................................................................................................88
Figure 91 GAC2500 Web UI Tool Bar.........................................................................................................89
Figure 92 GAC2500 Web UI - Call..............................................................................................................90
Figure 93 GAC2500 Web UI - Single Incoming Call...................................................................................91
Figure 94 GAC2500 Web UI - Minimize Call Screen..................................................................................91
Figure 95 GAC2500 Web UI - Conference Control.....................................................................................92
Figure 96 GAC2500 Web UI - Minimize Conference Screen .....................................................................92
Figure 97 GAC2500 Web UI - Contacts......................................................................................................93
Figure 98 GAC2500 Web UI –Groups .......................................................................................................94
Figure 99 GAC2500 Web Page - Blacklist..................................................................................................94
Figure 100 GAC2500 Web Page - Upcoming Conference.........................................................................95
Figure 101 GAC2500 Web Page - History Conference..............................................................................96
Figure 102 GAC2500 Web UI - Call History ...............................................................................................96
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 9 of 98
CHANGE LOG
This section documents significant changes from previous versions of GAC2500 user manuals. Only
major new features or major document updates are listed here. Minor updates for corrections or editing
are not documented here.
FIRMWARE VERSION 1.0.1.18
Increase call history to 2000 entries
Update the screenshots
Add cycle conference
Update the chapter of third party application
FIRMWARE VERSION 1.0.1.6
This is the initial version.
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 10 of 98
WELCOME
Thank you for purchasing Grandstream GAC2500 Audio Conference Phone for AndroidTM. This User
Guide describes the basic concept and tasks necessary to use and configure your GAC2500. This
document covers the topics of conference environment setups, start conference and the relevant
operations like conference reservation. To learn the advanced features and configurations, please visit
http://www.grandstream.com to download the latest "GAC2500 Administration Guide".
GAC2500 is a next generation enterprise-grade 6-line Android IP conference phone with a 4.3" capacitive
touch screen that that runs the Android Operating System and therefore offers full access to the hundreds
of thousands of Android apps in the Google Play Store, including business productivity apps such as
Skype™, Skype for Business™, and Google Hangouts™. The phone features Gigabit ports, 7-way
conference, 3x microphones, 1 Micro USB port, integrated WiFi and Bluetooth for network flexibility. The
GAC2500 delivers superior HD audio quality, rich and leading edge telephony features, automated
provisioning for easy deployment, advanced security protection for privacy, and broad interoperability with
most 3rd party SIP devices and leading SIP/NGN/IMS platforms. GAC2500 is a perfect choice for
enterprise users looking for a high performance, feature rich conference phone with superb audio quality
at competitive price.
Caution:
Changes or modifications to this product not expressly approved by Grandstream, or operation of this
product in any way other than as detailed by this User Manual, could void your manufacturer warranty.
Warning:
Please do not use a different power adaptor with the GAC2500 as it may cause damage to the products
and void the manufacturer warranty.
This document is subject to change without notice. The latest electronic version of this user manual is
available for download here:
http://www.grandstream.com/support
Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for
any purpose without the express written permission of Grandstream Networks, Inc. is not permitted.
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 11 of 98
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
For operation within 5.15 ~ 5.25GHz / 5.47 ~5.725GHz frequency range, it is restricted to indoor
environment. The band from 5600-5650MHz will be disabled by the software during the manufacturing
and cannot be changed by the end user. This device meets all the other requirements specified in Part
15E, Section 15.407 of the FCC Rules.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 12 of 98
PRODUCT OVERVIEW
FEATURE HIGHTLIGHTS
Runs Android™4.4 and offers full access to all Android™conference apps in the Google Play Store
(e.g., Skype™, Skype for Business™, Google Hangouts™, etc.)
World-class high fidelity sound quality with audio bandwidth of up to 18Khz
4.3" capacitive touch screen LCD with support for flexible layout/content customization
3x microphones (12 ft. pickup range), 1x speaker (15 ft. coverage range)
Auto-sensing Gigabit Ethernet port, Wi-Fi, PoE+, Bluetooth, Micro-USB with 3.5mm audio interface
Supports standalone IP mode or USB slave mode
Supports daisy chain (up to 2 units via RJ48 CAT5) mode in large conference room for better audio
quality
NAT-T enables the phone being the Plug and Play device
Automated provisioning using TR-069 or AES encrypted XML configuration file, TLS/SRTP/HTTPS for
advanced security and privacy protection
Table 1 GAC2500 Technical Specifications
Specification
Description
Protocols/
Standards
SIP RFC3261，TCP/IP/UDP，RTP/RTCP，HTTP/HTTPS，ARP，ICMP，DNS (A
record ，SRV ，NAPTR) ，DHCP ，PPPoE ，SSH ，TFTP ，NTP ，STUN ，
SIMPLE，LLDP，LDAP，TR-069，802.1x，TLS，SRTP，IPv6 (pending) ，
OpenVPN (pending)
Voice Codec
Support for G.711µ/a, G.722, G.726, iLBC, Opus, G.722.1, G.722.1c (pending), in-
band and out-of-band DTMF (In audio, RFC2833, SIP INFO)
Platform Bridging
Bridge SIP calls with any Android™VoIP apps such as Skype™, Skype for
Business (Lync), Google Hangouts™and more
Telephony
Features
Hold, transfer, forward (unconditional/no-answer/busy/conditional), call park/pickup,
7-way audio conference, auto answer, downloadable XML phone book (up to 2000
entries), LDAP, call waiting, call history (up to 2000 entries), flexible dial plan,
personalized music ringtones, server redundancy & fail-over
Sample
Applications
Skype™, Google Hangouts™, Skype for Business (Lync), Web browser,
Facebook™, Twitter™, YouTube, Google calendar, mobile phone data import/export
via Bluetooth, etc. API/SDK available for advanced custom application development
Application
Deployment
Allows Android 4.4 compliant applications to be deployed in the device with
provisioning control
QoS
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
User and administrator level passwords, MD5 and MD5-sess based authentication,
256-bit AES encrypted configuration file, TLS, 128/256-bit SRTP/TLS, HTTPS,
802.1x media access control
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 13 of 98
Multi-Language
English, German, Italian, French, Spanish, Portuguese, Russian, Turkish, Polish,
Chinese, Korean, Japanese, and more
Upgrade/
Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass
provisioning using TR-069 or AES encrypted XML configuration file
Network Interface
1x auto-sensing Gigabit Ethernet port, integrated 2.4GHZ auto-band Wi-Fi
(802.11a/b/g/n) and 4.0 Bluetooth.
HD Audio
3x microphones (12 ft. pickup range), 1x speaker (220-18,000 Hz, 15 ft. coverage
range up to 86dB )
Auxiliary Ports
3.5mm audio interface, Micro-USB interface, RJ48 interface, reset pin
Graphic Display
4.3" (800*480) capacitive touch screen LCD
Power & Green
Energy Efficiency
Universal power adapter included: Input: 100-240VAC 50-60Hz; Output: 12VDC, 2A
(24W)
Temperature and
Humidity
Operating: 32 - 104oF / 0 - 40oC
Storage: 14 - 140oF / -10 - 60oC
Humidity: 10% to 90% Non-condensing
Compliance
FCC: Part 15 (CFR 47) Class B; UL 60950 (power adapter)
CE：EN55022 Class B，EN55024，EN61000-3-2，EN61000-3-3，EN60950-1，
EN62479，RoHS
RCM：AS/ACIF S004；AS/NZS CISPR22/24；AS/NZS 60950；AS/NZS 4268
SAFETY COMPLIANCES
The GAC2500 complies with FCC/CE, RCM and various safety standards. The GAC2500 power adapter
is compliant with the UL standard. Use the universal power adapter provided with the GAC2500 package
only. The manufacturer’s warranty does not cover damages to the phone caused by unsupported power
adapters.
WARRANTY
If the GAC2500 phone is purchased from a reseller, please contact the company where the device is
purchased for replacement, repair or refund. If the phone is purchased directly from Grandstream, please
contact Grandstream Support for a RMA (Return Materials Authorization) number before the product is
returned. Grandstream reserves the right to remedy warranty policy without prior notification.
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 14 of 98
INSTALLING GAC2500
EQUIPMENT PACKAGE CONTENT
The GAC2500 package contains the following items:
Table 2 GAC2500 Package List
Name
Number
GAC2500 Main Case
1
12V Universal Power Adapter with power cable
1
Ethernet Cable
1
Micro-USB Cable
1
RJ48 CAT5
1
Quick Installation Guide
1
GPL license
1
PRODUCT APPEARANCE
Figure 1 GAC2500 Host Interfaces
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 15 of 98
Table 3 GAC2500 Interfaces Explanations
NO.
Name
Explanation
①
RJ48 Interface
Daisy chain (up to 2 units via RJ48 CAT5) mode in large
conference room for better audio quality.
②
RJ45 Network
Interface
Connect to LAN port.
③
12V DC Power
Supply Interface
Connect to Power Adaptor.
④
Micro USB Interface
USB OTG devices can be connected to GAC2500 via the USB
cable. For example, connect a USB flash drive to read data, or
PC USB Interface or GVC32XX SPKR Interface can be
connected to the GAC2500 USB Interface via USB cable for
audio pickup and play
⑤
3.5mm Audio
Interface
Connect to 3.5mm devices like mobile phone or PC for mobile
audio pickup and play
⑥
Reset Pin
When the GAC2500 is powered up, use a small pin to press
the button one time to reboot.
When powering up GAC2500, long press the button for 4 to
9 seconds to detect whether firmware file exists in USB
OTG device to update system.
When powering up GAC2500, long press the button for
more than 10 seconds to quick restore factory settings.
CONNECTING GAC2500
To deploy a working conferencing system, users could select standalone IP mode, USB slave mode,
cascade mode or mobile phone mode. Please connect the GAC2500 for each mode according to different
procedures.
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 16 of 98
Figure 2 GAC2500 Connection Mode
IP MODE
The GAC2500 is used as an independent phone in IP mode. Please follow the steps below to connect.
1. Connect the LAN port of the device to the external network port (the port in the office or at home) via
Ethernet cable;
2. Plug in the power adapter into the power supply interface then power up the GAC2500.
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 17 of 98
Note:
It is recommended to use IP mode in room 3.6m* 7.2m or smaller.
USB SLAVE MODE
GAC2500 can be used as auxiliary device for GVC3200 or PC for audio acquisition and play. The
conference feature will be disabled in USB slave mode. Follow the steps below to connect route.
1. Connect one end of the USB cable to the Micro USB port of the device and the other end to the USB
port of GVC3200/PC;
2. Plug in the power adapter into the power supply interface then power up the GAC2500.
The GAC2500 screen is as shown below in USB slave mode, you can tap on the volume icon to adjust
the volume of GVC3200/PC. When connecting to GVC3200, tap on "Mute", "Answer" or "Hangup" icons
for more operations.
Figure 3 GAC2500 Slave Mode Screen
CASCADE MODE
Connect two GAC2500 (s) via RJ48 CAT5 for larger space. Please follow the steps below to connect.
1. Connect the LAN port of the device to the external network port (the port in the office or at home) via
Ethernet cable;
2. Connect the RJ48 ports of two devices with RJ48 CAT5;
3. Plug in two power adapters into the power supply interfaces then power up two devices;
4. The screen is as shown below. Tap on "Yes" on the first device and set it to be the master while the
other the slave.
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 18 of 98
Figure 4 GAC2500 Cascade Mode Screen
Note:
1. It is recommended to use cascade mode in room 7.2m*12.2m or smaller.
2. Please keep a distance of 5m between two devices.
3. Please make sure the master device is connected to the network or it may not work properly.
4. The slave device will synchronize with the master device and their dial screens will be shown
synchronously.
MOBILE PHONE MODE
GAC2500 could be connected to mobile phone for expanded use. Please follow the steps to connect.
1. Connect the LAN port of the device to the external network port (the port in the office or at home) via
Ethernet cable;
2. Plug in the power adapter into the power supply interface then power up the GAC2500;
3. Connect one end of the via 3.5mm audio aux cable to 3.5mm headset interface on the mobile phone
first, then connect the other end to 3.5mm audio interface on GAC2500, once connected, it will
access 3.5mm AUX call screen;
If the audio quality is not good, it may be the line sequence issue, you can hold the screen at the top of
the status bar, drag and drop down to open the status bar, tap on line sequence notifications and select
the line sequence the same as the one of 3.5mm headset interface on the mobile phone.
http://arttel.ru
http://arttel.ru/shop/ip-telefony/grandstream-gac2500

Firmware Version 1.0.1.18
GVC2500 User Guide
Page 19 of 98
Figure 5 GAC2500 Select line Sequence Screen
4. When the mobile phone is answering an incoming call or dialing out, GAC2500 will collect and play
the sound.
Note:
1. The GAC2500 package contains no 3.5mm audio aux cable, you can buy one at electronic gadgets
store.
2. The line sequence of GAC2500 must be the same as the one of your mobile phone, or the
microphone may work improperly.
3. It is recommended to connect mobile phone first, then GAC2500.
4. You cannot dial or call a number via GAC2500 keypad directly.
5. Once mobile phone mode is enabled, the 3.5mm audio aux line is regarded as one call line.
6. Once a conference is established, the 3.5mm audio aux line is regarded as one party of the
conference.
7. Please do not unplug the 3.5mm audio aux cable or it may cause call exception.
8. The audio quality may vary according to different types of 3.5mm audio aux cable and mobile
phones.
9. Once the 3.5mm male to male cable is inserted, some types of mobile phones may be detected by
GAC2500 only after the call is established.
