Gree Livo+ LIVS09HP115V1B User manual

Models:
LIVS09HP115V1B
LIVS12HP115V1B
LIVS09HP230V1B
LIVS12HP230V1B
LIVS18HP230V1B
LIVS24HP230V1B
LIVS30HP230V1B
LIVS36HP230V1B
HIGH-WALL DUCTLESS
AIR CONDITIONING & HEATING SYSTE
OWNER’S ANUAL

Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Installation Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
System Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Operation of Wireless Remote Contoller . . . . . . . . . . . . . . . . . . 9 -16
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19
nergy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back
Thank you for choosing a
Livo Heat Pump System!
You can feel confident in your selection because the same pride in craftsmanship
and engineering knowledge that goes into millions of other Gree installed
products worldwide has gone into your unit.
Please read this owner’s manual carefully before operation and retain it for
future reference.

Superior Design for Superior Performance
Gree’s Livo Inverter-driven, Mini Split Heat Pumps are beautifully designed to deliver effective
cooling or heating, while fitting unobtrusively into any decor. The indoor unit’s aesthetically
pleasing, minimalist design blends nicely in any home or office.
Your Livo unit offers quiet, energy-efficient comfort, powered by Gree’s famous G10 Inverter
technology. To speed the process of bringing conditioned air exactly where you want it, the
unit features both horizontal and vertical air flow control. Customizable mode controls allow
you to adjust fan speeds, select sleep-time settings and more, all through the easy-to-use
wireless remote controller, or an optional Wired Tether Controller.
There’s even a Turbo, Power Failure Memory and other advanced features to make the Livo
system even more versatile, for year-round comfort and energy savings.
INTRODUCTION
2

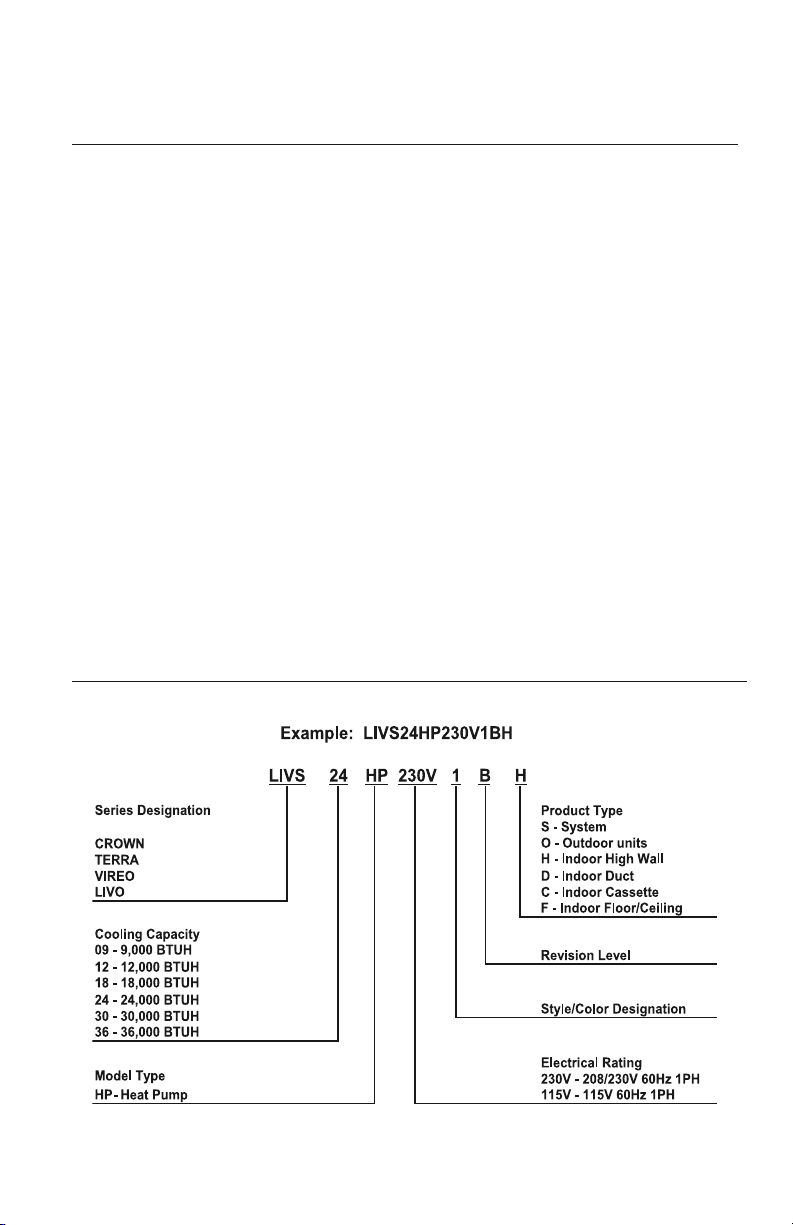

NO ENCLATURE

3
SAFETY PRECAUTIONS
Please read the following before operation.
Recognize safety information. This is the safety-alert symbol. When you see this
symbol on the unit and in instructions or manuals, be alert to the potential for personal
injury. Understand these signal words: DANGER, WARNING, and CAUTION. These
words are used with the safety-alert symbol.
DANGER identifies the most serious hazards which will result in severe personal
injury or death.
WARNING signifies hazards which could result in personal injury or death.
CAUTION is used to identify unsafe practices which may result in minor personal
injury or product and property damage.
NOTE is used to highlight suggestions which will result in enhanced installation,
reliability, or operation.
NOTE: Your actual air conditioning & heating system and related devices may differ from
the images shown in this manual.
This appliance is not intended for use by children without responsible adult supervision.
Proper care should be taken to ensure safety.
Heat pumps, air conditioners & heating equipment should be installed, started up, and
serviced only by qualified installers and service technicians. Air conditioning, heat pumps
and refrigeration systems are hazardous due to high voltage electrical components,
high refrigerant pressures, and moving parts.
WARNING
WARNING
• Disconnect electrical power to the indoor and outdoor units before performing any
maintenance or cleaning.
• Do not attempt to repair the Gree system yourself. Incorrect repairs may cause
electric shock or fire. Contact a qualified service technician for all service requirements.
• Keep combustible materials away from the unit.
WARNING

CAUTION
4
SAFETY PRECAUTIONS
Please read the following before operation.
• Do not put hands or any objects into the air inlets or outlets. This may cause personal
injury or damage the unit.
• When cleaning, be careful not to splash water on the unit. Doing this may cause electric
shock or damage to unit.
• Do not use or place any flammable, combustible or noxious substance next to the unit.
• In the event of a failure (burning smell, etc.), immediately disconnect all electrical power
to indoor and outdoor units.
• Never try repairing the system yourself; contact a qualified service technician for all repairs.

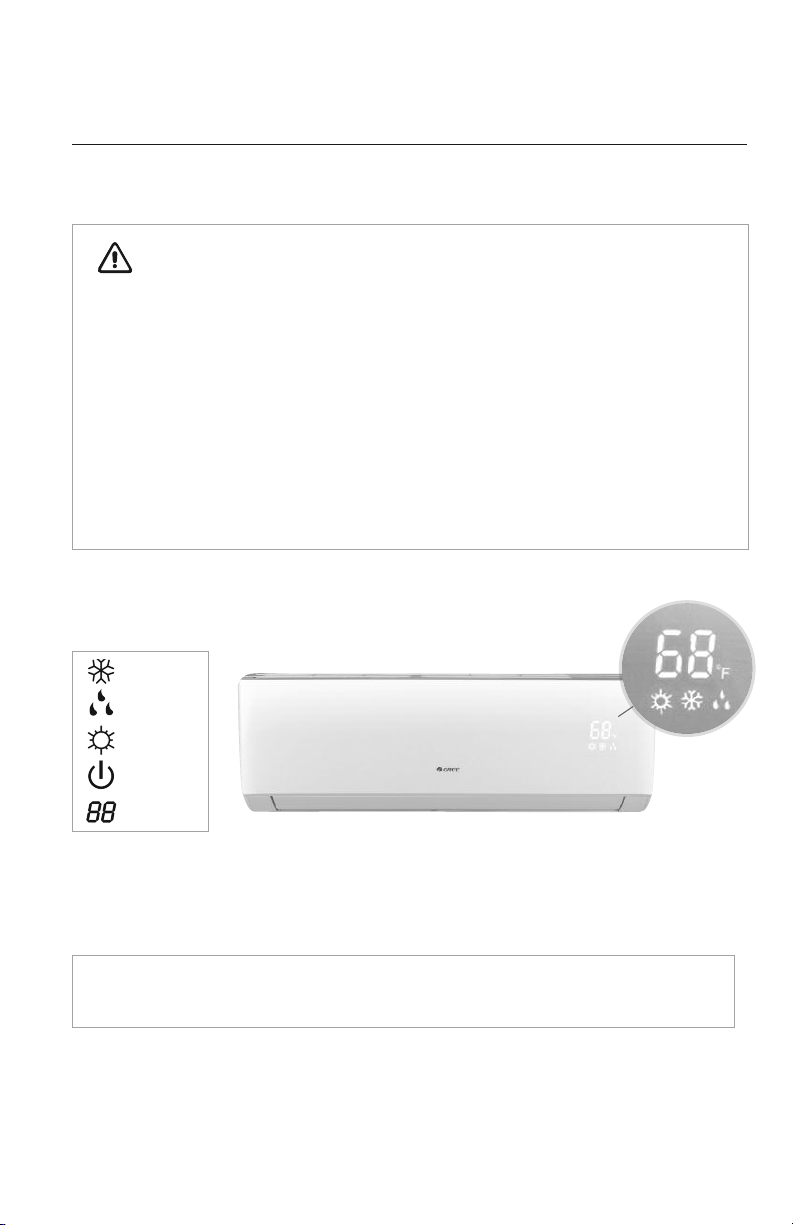

Front Panel Display
The front panel on the Livo indoor unit contains system status lights and easy-to-read L D display.
NOTE: The indoor unit display panel can be turned ON or OFF via the LIGHT button
on the remote controller. See "LIGHT" button description for more detail.
: COOL
: DRY
: HEAT
: POWER
: SET TE P
Icons Displayed

5
INSTALLATION SCHEMATIC
Indoor unit
Installation Components*
1. Front Panel
2. Aux. Button
3. Air Filter
4. Horizontal Louver
5. Remote Controller
6. X-41 Wired Tether Controller
(sold separately)
7. Inter-Connection Wire (sold separately)
8. Drain Hose (sold separately)
9. Refrigerant Lines (sold separately)
Outdoor unit
5
6
Air outlet
Air inlet
Air inlet
Air outlet
3
4
1
2
7
8
9
* Not all items in this schematic are
included with equipment purchase

SYSTE FUNCTIONS
WHISPER QUIET
Not only are the Gree systems energy efficient but they are quiet too. Livo High-Wall units
operate with sound pressure levels starting as low as 28 dB(A).
ULTI FAN SPEEDS
Whether operating in either Cooling or Heating mode, the indoor fan can be set to your choice
of four different speeds (Low, Medium, High or Turbo) to achieve maximum comfort.
INTELLIGENT PRE-HEATING
The Livo system guards against the annoying cool air blown into the room in heating mode.
The system constantly monitors the discharge air temperature. It will delay the indoor fan until
the indoor coil has warmed up to prevent blowing uncomfortable cool air into the room.
I FEEL ODE
The unit will sense room temperature at the remote controller instead of at the indoor unit
during cooling mode. It then adjusts airflow and temperature accordingly for the ultimate in
personal comfort control and energy savings.
ADJUSTABLE AIRFLOW
The Livo system has a bi-directional airflow control for maximum comfort. The indoor unit
has adjustable vertical swing louvers and can be set in multiple discharge directions from the
wireless remote controller.
TURBO ODE
Use Turbo Mode for situations where you wish to achieve the desired room temperature in the
shortest possible time. This mode runs the unit at ultra high speeds for quickest results.
FREEZE GUARD
Room Freeze Guard protection will automatically keep the room temperature from getting too
cold, where water pipes might freeze
TI ER ODE
The unit can be programmed to turn ON or OFF after a specific amount of time. The time period
is adjustable between one half and 24 hours.
6

7
SYSTE FUNCTIONS
ODE BUTTON
The unit can be set to five different operating modes: H AT, COOL, DRY, FAN ONLY and AUTO.
NOTE: AUTO MOD has fixed setpoints of 68° F heating and 77° F cooling, which
are not adjustable. The system will automatically select heating or cooling to maintain
room temperature within this band.
SLEEP ODE
The Livo offers a Sleep Mode function for your comfort. The unit will automatically adjust room
temperature during your sleep time. This slight change in temperature will not affect your
comfort level due to the natural effects that sleeping has on the body, but it will save on
energy consumption and will lower electric bills.
ENERGY SAVINGS ODE
This feature will automatically select the optimal compressor and fan speeds to allow for
energy savings while operating in Cooling or Heating modes. The compressor and fan will
automatically slow down as the room temperature reaches the set point.
SELF-DIAGNOSIS
Livo has a built-in computer which uses real-time diagnostics which help prolong the unit’s life.
The automatic diagnosis feature continuously scans for errors or malfunctions and fault codes
are shown on the unit display to facilitate troubleshooting and repair.
POWER FAILURE ODE
Power interruptions are no problem for the Livo system. User selections and system parameters
are stored in non-volatile memory. These parameters are retained during a power failure. When
power is returned, the Livo system will automatically return to the last operating mode.
INTELLIGENT DEFROST
The Livo Intelligent Defrost function increases room comfort and saves energy by eliminating
unnecessary defrost cycles. In heating mode, the unit will monitor the outdoor coil for frost
build up. Once frost buildup has been detected, the system will switch into a defrost mode to
remove the frost.

8
SYSTE FUNCTIONS
POLY ERIC AIR FILTER
The polymeric mesh filters save energy by preventing the indoor coils from being plugged
with dirt and lint. This economical and sturdy filter may be washed, vacuumed and reused.
FAHRENHEIT °F/CELSIUS °C
The remote controller and indoor wall unit front panel can be set to display in either °F or °C.
PRIVACY LOCK ODE
The wireless remote controller has a Lock feature. The Lock averts unauthorized access or
tampering with system settings.
AGENCY LISTINGS
All systems are listed with AHRI (Air conditioning, Heating, and Refrigeration Institute) and
are TL certified per UL Standards.

9
Remote Controller
INTRODUCTION FOR ICONS ON DISPLAY SCREEN
OPERATION OF WIRELESS RE OTE CONTROLLER
Part Name
1. ON/OFF Button
2. Fan Button
3. Mode Button
4. Up Button
5. Swing Button
6. Turbo Button
7. Down Button
8. Temp Button
9. Sleep Button
10. I Feel Button
11. Clock Button
12. Light Button
13. Timer On/Off Button
1
3
5
7
9
11
2
4
6
8
10
12
13
Auto Mode
Cool Mode
Dry Mode
Fan Mode
Heat Mode
Clock
Sleep Mode
I Feel Function
Light
Send Signal
Turbo Mode
Set Fan Speed
Operation ode
Temp. Display Type
Set Temperature
Set Time
Timer On/Off
Privacy Lock
Up & Down Swing
Set Temp. Indoor
Ambient Temp.
Outdoor
Ambient Temp.
Temp. Display Type
Freeze Guard

10

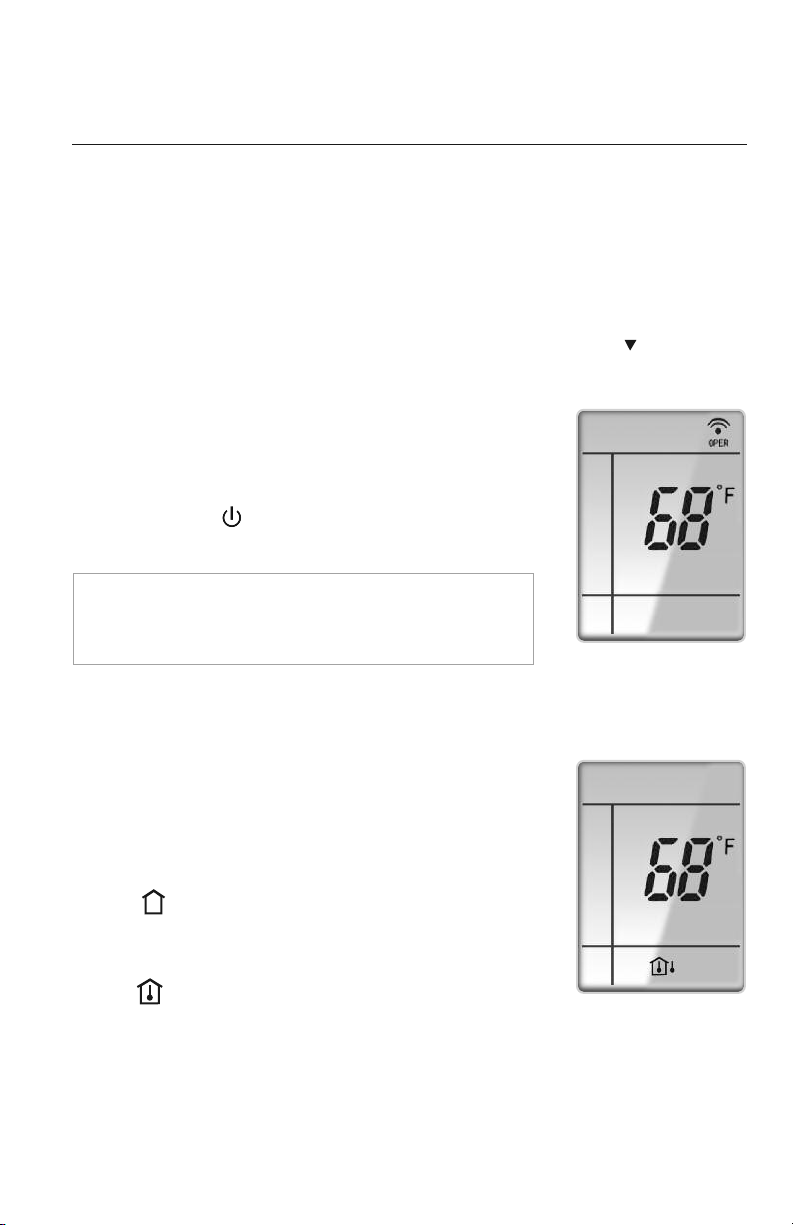

DISPLAYING SETPOINT OR INDOOR TE PERATURE
ON FRONT PANEL:
The setpoint temperature or room temperature can be displayed on
the front panel. Only setpoint temperature is displayed on the remote
controller.
When the “TE P” button is pushed once, the temperature
indicator is displayed. This indicates that the setpoint temperature
is displayed on the front panel.
When the “TE P” button is pushed a second time, the display will
show an icon with a thermometer inside a house. This indicates
that the room temperature is displayed on the front panel.
The room temperature will be displayed for only 5 seconds before
reverting back to displaying room setpoint.
OPERATION OF WIRELESS RE OTE CONTROLLER
RE OTE CONTROLLER OPERATIONS
The wireless remote controller is sleek, versatile and allows you to change room temperatures
and functions on your Vireo system from the palm of your hand. The large LCD display and
buttons make it easy-to-understand and easy-to-use.
The remote controller is set from factory to display temperatures in °F. If °C is desired, turn the
remote controller OFF with the ON/OFF button and then press “ ODE“ and “ ” buttons
on the remote simultaneously for 5 seconds.
ON/OFF BUTTON
When the system is in OFF mode, the remote controller will display
the time and last room setpoint. When you press the ON/OFF
button, this indicator will be displayed and the unit will start in
the last operating mode and room setpoint.
NOTE: If the ON/OFF button is pressed too soon after a
stop, the compressor will not start for 1 to 5 min. due to the
inherent protection against frequent compressor cycling.
ON Mode Display
Room Temperature Display

11
PRIVACY LOCK
The Privacy Lock prevents unauthorized access to the unit controls
and prevents tampering with system settings. The remote controller
can be locked by pushing the""and " " buttons simultaneously
for 5 seconds. The Privacy Lock icon will be displayed on the remote
controller. Repeat the process to unlock the remote controller.
U
Privacy Lock Display
OPERATION OF WIRELESS RE OTE CONTROLLER
VERTICAL SWING LOUVERS
• Press the Vertical Swing Louver button to select five different
vertical (up & down) air discharge directions including Continuous
Sweep. The Swing Louver icon will be displayed. Press this
button to set swing angle, which changes in direction as below:
Indicates louver swings up and down in
the five directions, as shown.
OFF
1023
4
5
Swing Louver Display
I Feel Mode
I FEEL ODE
Press this button to use the I F L function, and the ( ) icon
will be displayed. The unit will sense room temperature at the
remote controller instead of at the indoor unit during cooling
mode. It then adjusts airflow and temperature accordingly for
the ultimate in personal comfort control and energy savings.
Press the button again to exit this function. For best performance,
keep remote controller away from heat or cold temperature
sources while using this function.

12

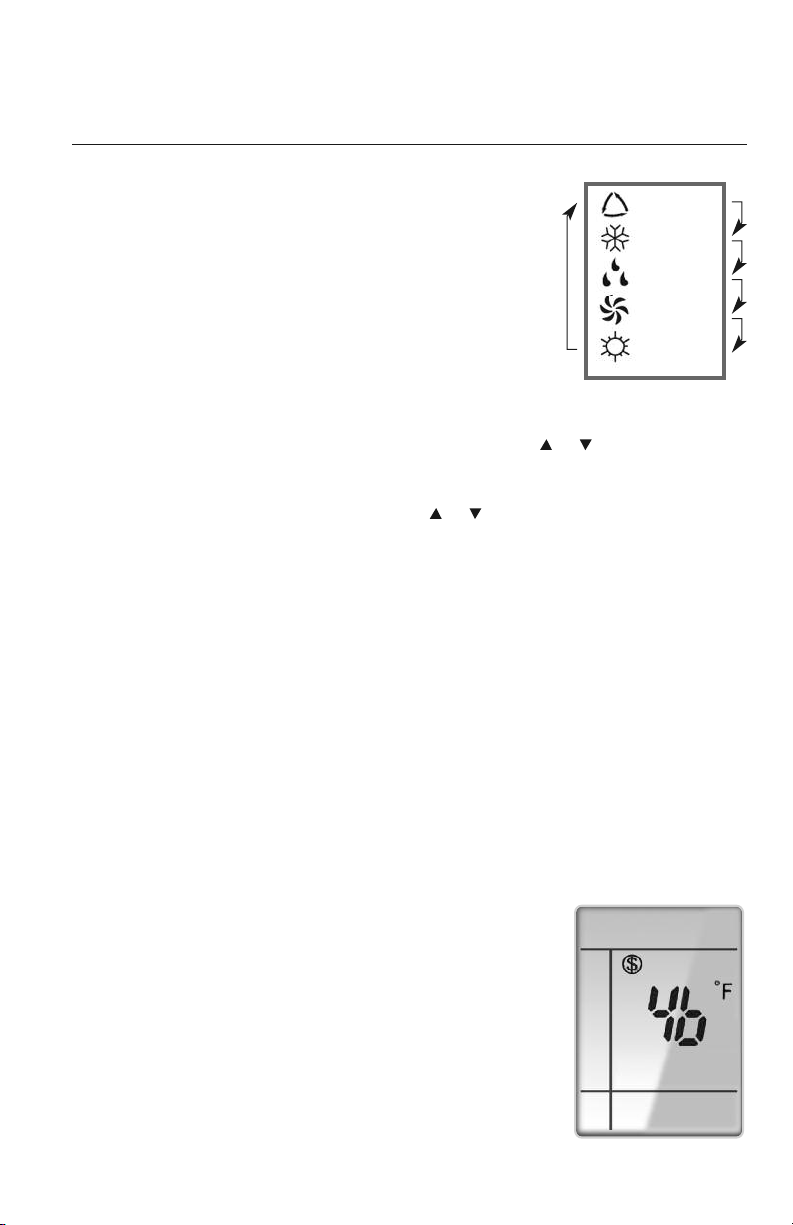

ODE BUTTON
Use the “ ODE” button to select one of the available modes.
The selected mode will be displayed on the remote controller and
the appropriate light will illuminate on the front display panel.
AUTO – Unit will automatically select heating or cooling to
maintain room temperature between 68°F and 77°F.
The remote controller will display the Auto Mode icon with
no setpoint.
COOL – To cool to selected setpoint and remove moisture. Press or to adjust
set temperature. System varies compressor speed to maintain desired temperature.
HEAT – To heat to selected room setpoint. Press or to adjust set temperature.
System varies compressor speed to maintain desired room temperature.
FAN ONLY – To circulate air without heating or cooling. Use Fan Speed button to select
speed from low to high.
DRY – Select DRY ODE to increase moisture removal during warm humid conditions.
In this mode, fan speed cannot be adjusted.
1. If the Room Temperature is more than 4°F above the set temperature, the
system will be operating in cooling mode with low fan speed.
2. If the Room Temperature is between 4°F higher than, and 4°F less than, the set
temperature, the system will cycle 6 minutes ON and 4 minutes OFF in cooling
mode. The indoor fan will be at low speed.
3. If the Room Temperature is more than 4°F below the set temperature, the system
will be OFF and the indoor fan will be at low speed.
: AUTO
: COOL
: DRY
:
FAN ONLY
: HEAT
Icons Displayed
OPERATION OF WIRELESS RE OTE CONTROLLER
FREEZE GUARD
In Heat mode, press"T MP"and "CLOCK" buttons simultaneously
to start up 46°F heating function. When this function is started up,
"($)" and "46°F" will be displayed on the remote controller, and
the unit will maintain room temperature above 46°F. Press"T MP"
and "CLOCK" buttons simultaneously again to cancel Freeze
Guard protection.
Freeze Guard Display

13
OPERATION OF WIRELESS RE OTE CONTROLLER
TI ER SETTING
Timer-ON / Timer-OFF BUTTON
To set when you want the unit to turn On at the end of a selected
time period, use the button labeled “Timer-ON /Timer-OFF”on the
remote controller. Press this button to make the clock icon disappear,
replaced with the word “ON” (blinking). Press or buttons to
adjust timer setting 1 minute at a time. Press and hold or
button to set timer more quickly. Press“Timer-ON /Timer-OFF”
button again to confirm setting, and the word “ON” will stop
blinking. To cancel, press“Timer-ON /Timer-OFF” button again.
To set when you want the unit to turn Off at the end of a selected time period, use the
same button. Press this button to make the clock icon disappear, replaced with the word
“OFF” (blinking). Adjust settings the same as with “Timer-ON /Timer-OFF” settings.
NOTE: Under Timer On and Off status, you can set“Timer-ON /Timer-OFF”simultaneously.
Before setting timer, be sure to set clock to correct time.
TURBO ODE
The desired room setpoint can be achieved faster in TURBO
mode. After selecting the“HEAT”or“COOL” mode button,
push the“TURBO”button. The TURBO icon will be
displayed on the remote controller and the unit will run at an
ultra-high speed. To deactivate the feature, push the“TURBO”
button again. The unit will return to normal operation.
Timer Setting ON/OFF
Turbo Mode Display

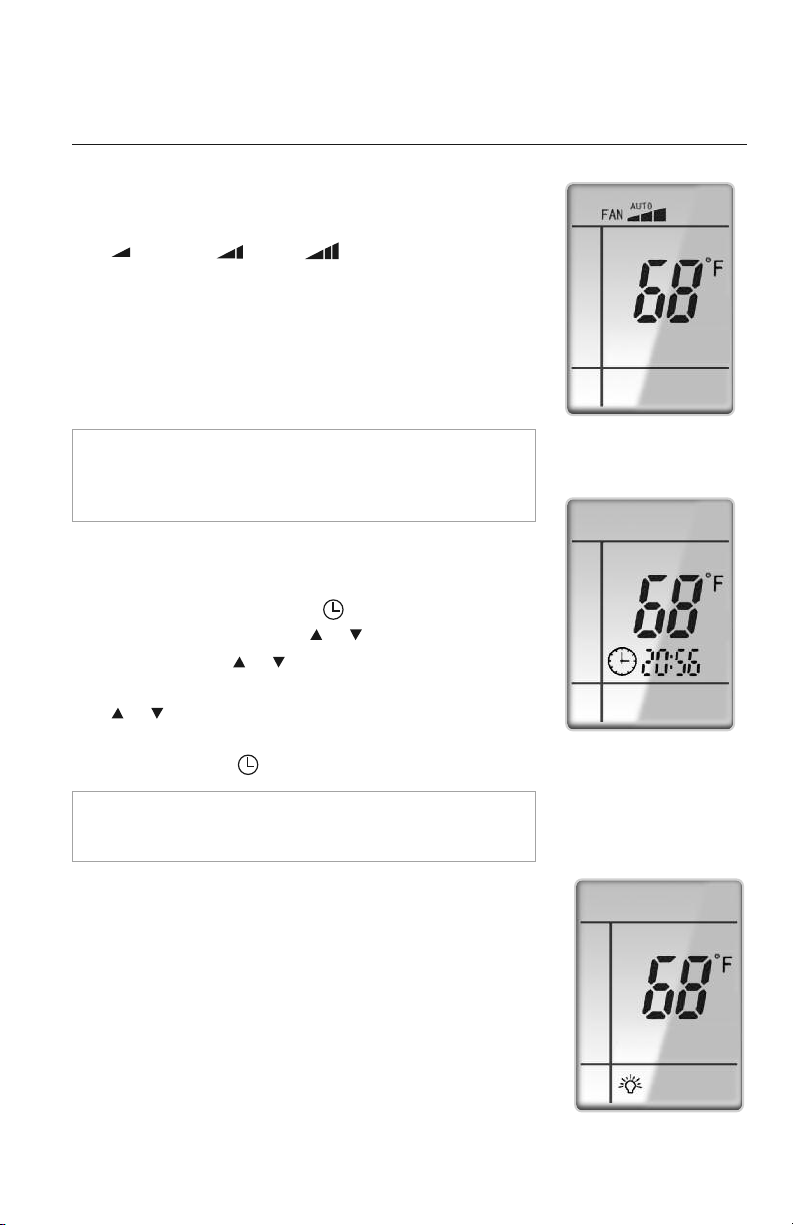

FAN BUTTON
Press the FAN button to adjust the indoor fan speed:
Low ( ), Medium ( ), High ( ), Turbo and Auto.
NOTE: Turbo function is not available in Dry and Auto Modes.
The Livo unit will select proper fan speed automatically
according to ambient temperature.
14
OPERATION OF WIRELESS RE OTE CONTROLLER
CLOCK SETTING
Press this button to set clock time.“ ” icon on remote controller
will blink. Within 5 seconds, press or button to set clock time.
With each pressing of or buttons, clock time will increase
or decrease 1 minute. To quickly adjust time setting, press and
hold or button for 2 seconds. Release button when you
have reached the desired time setting. Press “CLOCK” button to
confirm the time, and “ ” icon will stop blinking.
NOTE: Clock time adopts 24-hour mode. A 12-hour time
format is not available.
• Turbo function is not available in Dry and Auto mode.
• The fan operates at low speed in Dry and Auto modes, and the
speed cannot be adjusted.
• When Auto is selected, the unit will select the proper fan speed
automatically, according to the ambient temperature.
Fan Display
Clock Setting Display
LIGHT BUTTON
Press this button to turn off display light on indoor unit.
Press again to turn it back on.
Light Display

Cooling Mode Heating Mode
ENERGY-SAVING
In Cool mode, press"T MP" and "CLOCK" buttons simultaneously
to start the energy-saving function."S " will be shown on remote
controller, and the unit will adjust the set temperature automatically
to reach to the best energy-saving effect. Press"T MP"and "CLOCK"
buttons simultaneously again to cancel energy-saving mode.
nergy Saving Display
OPERATION OF WIRELESS RE OTE CONTROLLER
SLEEP ODE
The Livo system will automatically adjust room temperature
during your sleep time. This slight change in temperature will
not affect your comfort level due to the natural effects that
sleeping has on the body, but it will save on energy consumption
and will lower your electric bill. Press the SL P button to select
Sleep Mode or Cancel. The SL P icon will appear.
In Sleep Mode the unit will slowly relax the room set temperature
by up to 4° F until Sleep Mode is cancelled.
Sleep Mode Display
15

Use insulated object to press the Aux. button.
OPERATION OF WIRELESS RE OTE CONTROLLER

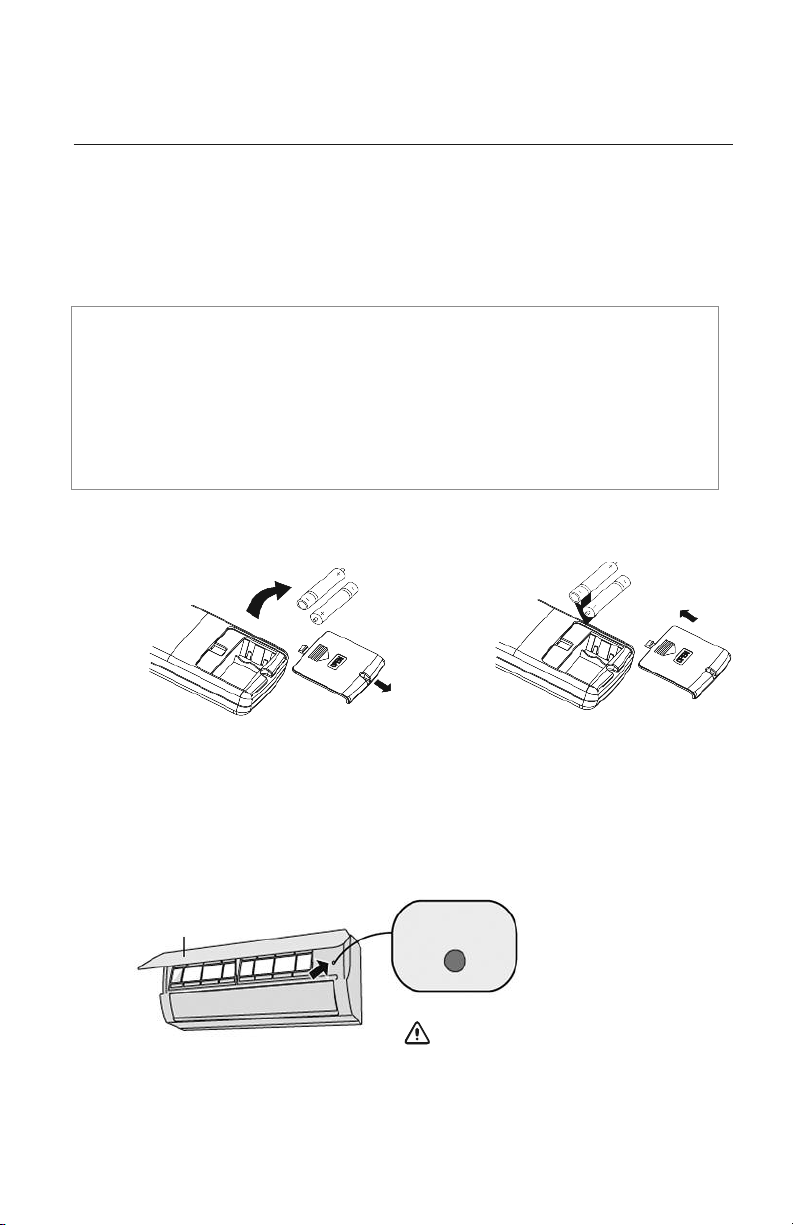

CHANGING BATTERIES AND ADDITIONAL NOTES
To change batteries, slide cover off battery compartment on back of remote controller. Remove
and safely discard old batteries. Insert two new AAA 1.5V dry batteries, using correct polarity.
Reattach back cover.
NOTE:
• If the remote controller will not be used for a long time, remove batteries to prevent
leakage damage.
• Be sure to aim the remote controller at the receiver of the main unit when operating.
• When remote emits a signal, icon will flicker; a tone will be heard when unit receives
that signal.
DA AGED OR LOST RE OTE CONTROLLER
If remote controller is lost or damaged, the Livo system can be turned off directly from the in-
door unit. Lift the front panel of the indoor wall unit, then press the AUX button to turn on or
turn off. When the unit is on, it will operate in AUTO Mode.
Remove
old batteries Install
new batteries
CHANGING BATTERIES
WARNING
Aux. Button
Panel
16

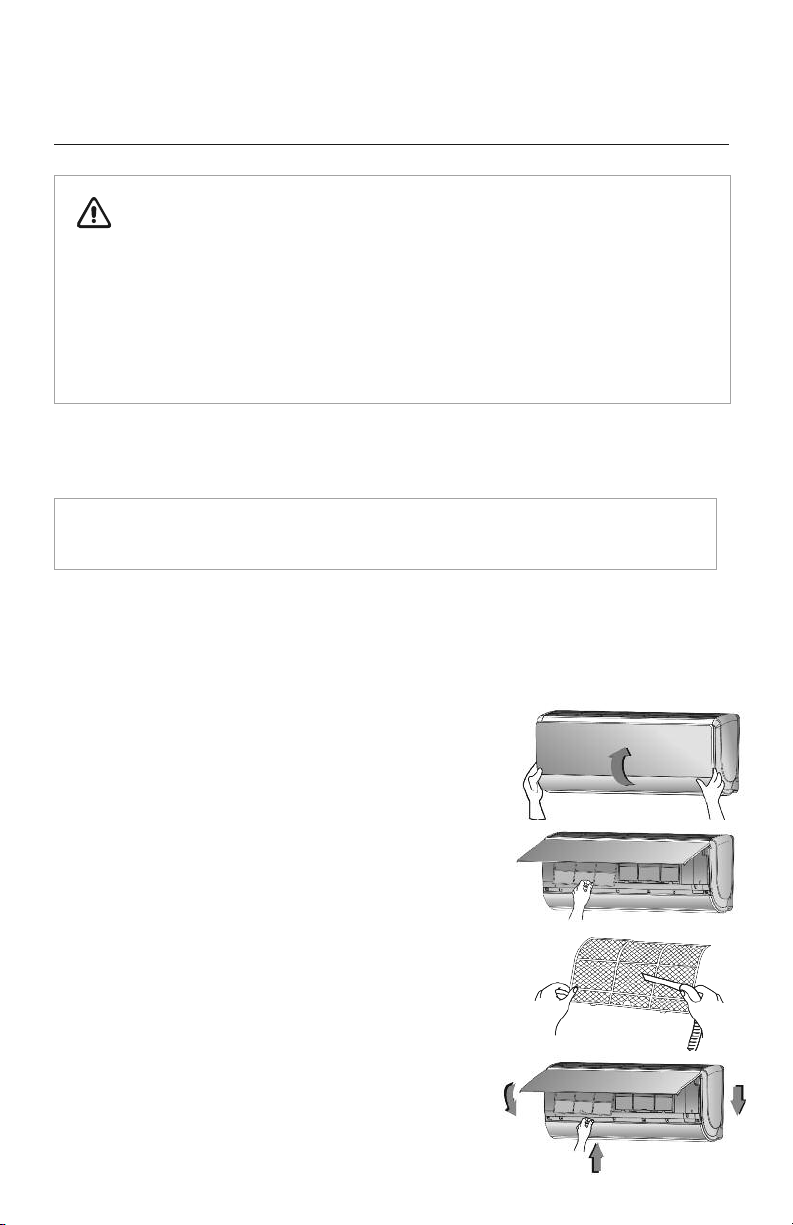

AIR FILTER CLEANING
Changing your air filter on a regular basis prevents many problems. Dirty air filters will affect
the performance and the longevity of your unit. It is recommended that air filters be cleaned
every three (3) months.
To access and clean the filter:
CARE AND CLEANING
Take notice of the following items before cleaning your Livo indoor wall unit.
• To avoid electric shock or injury, do not attempt to clean the unit unless it has been turned
off and the indoor and outdoor units have been disconnected from the main power supply.
• Do not wash the unit with water; this may cause an electric shock.
• During cleaning, be sure to use a stable and safe standing platform.
FRONT PANEL CLEANING
Wash the front panel using warm water and mild detergent with a soft cloth or soft brush.
NOTE: Do not use bleach,abrasives or water above 110°F (45°C) as it may cause
discoloration or damage to the surface of the unit.
1. Open Front Panel
Firmly grasp both sides of the front panel and pull upward
to about 60 degree angle. (NOT : do not force panel open).
2. Remove Filter
Remove the filter as indicated in the figure at right.
3. Clean Filter
Use vacuum to clean the filter.
When the filter is very dirty, use warm water (below 110 °F )
to clean it, and then dry filter before replacing.
4. Reinstall Filter
Reinstall the filter and then close the panel cover tightly.
WARNING
17

18
TROUBLESHOOTING
PROBLE
System does not restart.
Indoor unit emits unpleasant odor
when started.
You hear a“water flowing”sound.
A thin fog or vapor coming out
of the indoor unit when system is
running.
You hear a slight cracking sound
when the system stops or starts.
The system will not run.
The unit is not heating or cooling
adequately.
Water leakage from the
outdoor unit.
CAUSE/SOLUTION
Cause: The system has a built-in three-minute delay to prevent short and/or rapid
cycling of the compressor.
Solution: Wait three minutes for the protection delay to expire.
Cause: Typically unpleasant odors are the result of mold or mildew forming on
the coil surfaces or the air filter.
Solution: Wash indoor air filter in warm water with mild cleaner. If odors persist,
contact a qualified service professional to clean the coil surfaces.
Cause: It is normal for the system to make“water flowing”or“gurgling”sounds
from refrigerant pressures equalizing when the compressor starts and stops.
Solution: The noises should discontinue as the refrigerant system equalizes after
two or three minutes.
Cause: It is normal for the system to emit a slight fog or water vapor when
cooling extremely humid warm air.
Solution: The fog or water vapor will disappear as the system cools and
dehumidifies the room space.
Cause: It is normal for the system to make “slight cracking” sounds from parts
expanding and contracting during system starts and stops.
Solution: The noises will discontinue as temperature equalizes after 2 or 3 minutes.
Cause: There are a number of situations that will prevent the system from running.
Solution: Check for the following:
• Circuit breaker is “tripped” or “turned off.”
• Power button of remote is not turned on.
• Batteries in the remote controller are low.
• Remote controller is in sleep mode or timer mode.
• Otherwise, contact a qualified service professional for assistance.
Cause: There are a number of reasons for inadequate cooling or heating.
Solution: Check the following:
• Remove obstructions blocking airflow into the room.
• Clean dirty or blocked air filter that is restricting airflow into the system.
• Seal around door or windows to prevent air infiltration into the room.
• Relocate or remove heat sources from the room.
Cause: It is normal for the outdoor unit to generate condensate water in the
reverse cycle heating and defrost mode.
Solution: This is normal. No action is required.

CAUTION
TROUBLESHOOTING
PROBLE
Water leaking from the indoor
unit into the room.
Wireless remote controller
does not work.
The unit will not deliver air.
Moisture or condensation
on the discharge air louvers
or outlet vents.
CAUSE/SOLUTION
Cause: While it is normal for the system to generate condensate water in cooling
mode, it is designed to drain this water via a condensate drain system to a safe location.
Solution: If water is leaking into the room, it may indicate one of the following.
• The indoor unit is not level right to left. Level indoor unit.
• The condensate drain pipe is restricted or plugged. All restrictions must
be removed to allow continuous drainage by gravity.
• If problem persists, contact a qualified service professional for assistance.
Cause: There are a number of possible reasons.
Solution: Check the following:
• The batteries might be low. Change the batteries.
• The remote controller must be within 25 ft. (7.5 m) with no obstructions
of the indoor unit. If remote controller needs to be replaced, contact a
qualified service professional for assistance. In the meantime, use the
Aux Button to operate the system.
Cause: There are a number of system functions that will prevent air flow.
Solution: Check for the following:
• In heating mode, the indoor fan may not start for three minutes if the
room temperature is very low. This is to prevent blowing cold air.
• In heat mode, if the outdoor temperature is low and humidity is high,
the system may need to defrost for up to 10 minutes before beginning
a heating cycle.
• In dry mode, the indoor fan may stop for up to three minutes during the
compressor off delay.
• Otherwise, you should contact a qualified service professional for assistance.
Cause: It is normal for the system to develop condensation or moisture on the
discharge air louvers when cooling warm humid air for a long period of time.
Solution: The condensation or moisture will disappear as the system cools and
dehumidifies the room space.
S
top operation and call for service in the following circumstances:
• You hear a harsh or unusual sound during operation.
• Unusually foul odor is emitted during operation.
• Water is leaking in the room.
• You notice a burning smell or see smoke.
• Circuit breaker trips frequently, or unit stops abnormally often.
19
