1.0 INTRODUCTION
These installation, operation, and maintenance instructions describe how the greenfan®
bipolar ionizer shown in Figure 1 is installed, operated, and maintained in the following
field installation configurations:
•on a fan of a Heating, Ventilating, Air Conditioning (HVAC) system behind an
access panel or a cover;
•on a fan of an air purifier behind the cover; and

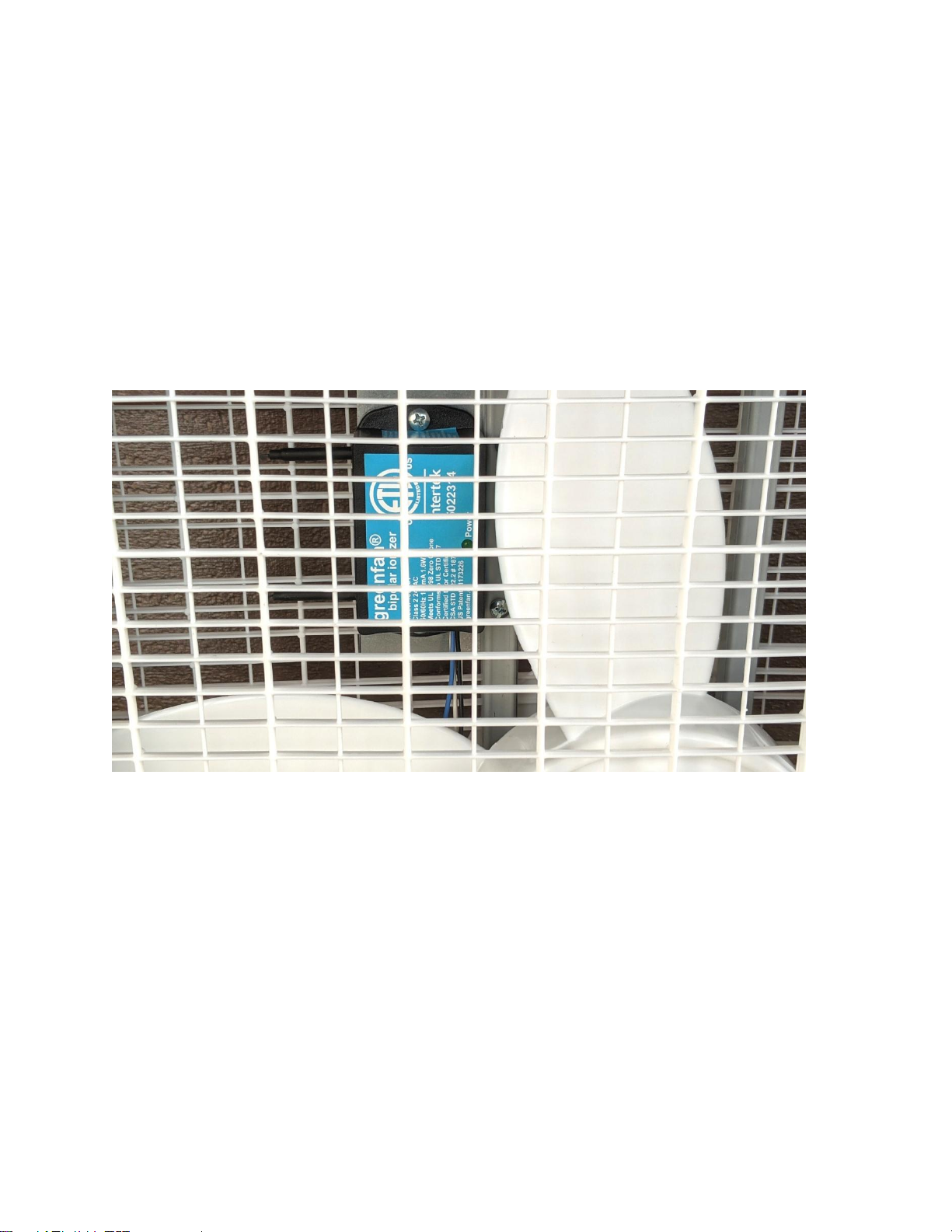

•on a ventilation fan behind a protective grill.
The product may also be installed by a manufacturer inside the HVAC system, inside
the air purifier, or inside the fan.

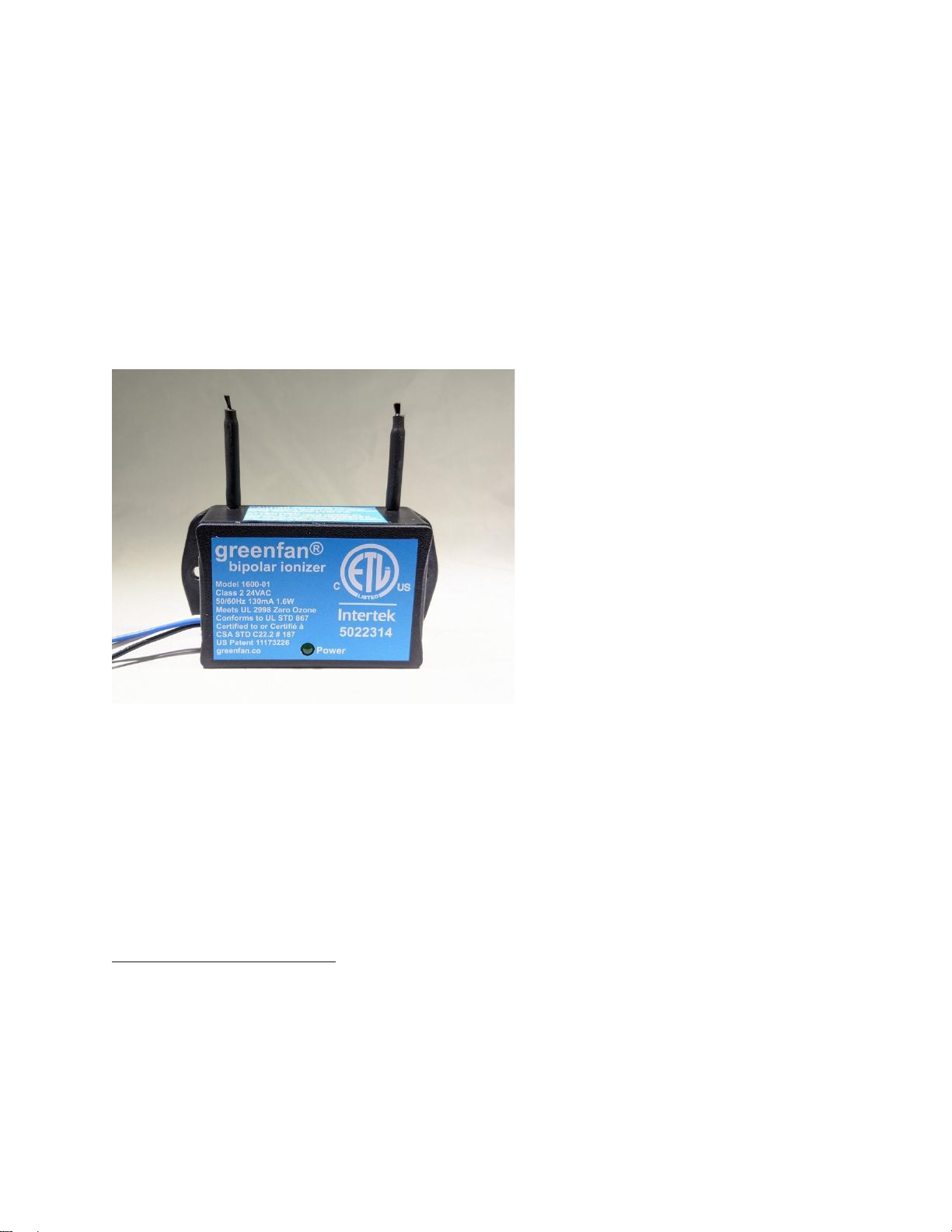

Figure 1. Three quarter view of greenfan® bipolar ionizer
The greenfan® bipolar ionizer shown in Figure 1 is an Intertek® ETL listed product and
tested by Intertek® to conform to UL STD 867 and is certified to CSA C22.2 #187.
Intertek® tests verified the 24-hour Time Weighted Average (TWA) ozone for this
product is 0.0 parts per million by volume (ppmv) when tested in a 30 m3 chamber.
The product is CARB certified and meets the Intertek® Sustainability Verified Zero
Ozone program, meets UL 2998, and does not emit more than 0.005 ppm as tested per
UL 867.
1
The product is marked as 24 Volts Alternating Current (VAC) for installation in
a Class 2 circuit.
The greenfan® bipolar ionizer unit is typically installed at the fan inlet to provide the
highest concentration of positive and negative ions to neutralize odors and aerosol
pathogens in the volumetric airflow passing through the fan.
2
Laboratory tests by
1
https://sustainabilitydirectory.intertek.com/images/certificates/524d5be7-1210-47b4-a0bc-
c138d316eb3c/ZOZ-90160-2022a.pdf
2
The greenfan® bipolar ion concentration is approximately 200 million ions per cubic centimeter (ions/cc)
at the carbon fiber electrodes and varies depending on installation and environment conditions and
declines based on the volumetric airflow and distance from the carbon fiber electrodes.

greenfan® bipolar ionizer Model 1600-01
© 2022 greenfan® inc. 2
Innovative Bioanalysis demonstrate that the greenfan® bipolar ionizer reduces an initial
SARS-CoV-2 Delta variant aerosol concentration by 97.6% in 60 minutes when installed
on a blower fan circulating 160 cubic feet per minute (cfm) of air in a 1280 cubic foot
(ft3) chamber.
3
Compared to control tests, the SARS-CoV-2 Delta variant aerosol
concentration reduction was 94.1% in 60 minutes. The SARS-CoV-2 Delta variant
causes more severe COVID-19 disease than previous strains in unvaccinated persons.
4
Actual results may vary depending on installation and environment conditions.
The greenfan® bipolar ionizer shown in Figure 3 can be installed on the fan inlet or
outlet and is electrically connected to a transformer and control signals from a
thermostat, air purifier, or ventilation fan as described in these installation instructions.
5
Figure 3. Front view of greenfan® bipolar ionizer
NOTICE
The greenfan® bipolar ionizer should only be installed and used as directed in this
installation manual or the 2-page tri-fold manual supplied with the product. Please read
the entire installation manual or the entire 2-page tri-fold manual before installation or
use. Do not use unless properly installed.
RECOMMENDATION
The American Society of Heating, Ventilating, Air-conditioning Engineers (ASHRAE)
recommends installing MERV 13 air filters or High Efficiency Particulate Air (HEPA)
3
D. Lee. 2021. Efficacy of the GreenFan® Bipolar Ionizer Against Aerosolized SARS-CoV-2 DELTA
VARIANT. Report 1112. Innovative Bioanalysis, 3188 Airway Ave., Suite D, Costa Mesa, CA 92626.
https://www.innovativebioanalysis.com/about-us/#accreditation
4
Changes to the spike protein make the Delta variant (B.1.617.2 and AY lineages) up to 50% more
transmissible than other COVID-19 variants. The Omicron (B.1.1.529) variant is like Delta Variant in
terms of transmissivity and symptoms. https://www.who.int/news/item/28-11-2021-update-on-omicron.
5
For air purifiers and ventilation fans, the greenfan® bipolar ionizer may be installed on the fan outlet.

greenfan® bipolar ionizer Model 1600-01
© 2022 greenfan® inc. 3
filters to remove airborne viral particles, dust, pollen, dust mites, pet dander, smoke,
Volatile Organic Compounds (VOCs), and other airborne particles.
6
Control VOCs at the
source and use adequate outdoor air ventilation to dilute VOCs. Do not install the
greenfan® bipolar ionizer in buildings with high VOCs. For technical product
information, please contact: [email protected].
2.0 TOOLS FOR INSTALLATION AND MAINTENANCE
a) Wire nuts and self-tapping screws (1/4” drive or Phillips x ¾” long) are supplied.
b) Screw or nut drivers to remove or install screws.
c) Wire cutter and wire stripper.
d) Multimeter to measure current and or voltage.
e) LED flashlight, vacuum cleaner or compressed air, small brush, or toothbrush.
f) For 120/208/240V installations order greenfan® accessory 120/208/240V to 24VAC
Class 2 transformer Model 1601-01 (UL 5085-3 listed E65390). Class 2 transformers
deliver 100W or less with maximum output voltage of 30VAC or less.
g) For air purifier or ventilation fan installations order greenfan® accessory 120/24VAC
class 2 transformer Model 1602-01 (UL-listed).
3.0 DISCONECT POWER BEFORE INSTALLATION
CAUTION: Do not connect unit to power before mechanical and electrical installation is
complete. For packaged units, disconnect power from the entire HVAC system. For
split-systems disconnect power to the Forced Air Unit (FAU). For air purifiers or
ventilation fans, disconnect power or unplug power cord before installation. All field
wiring must be in accordance with the National Electrical Code (NEC) or National Fire
Protection Association (NFPA) 70E-2021 and Authorities Having Jurisdiction (AHJ).
4.0 HVAC FAN INSTALLATION
4.1 HVAC Fan Mechanical Installation
a) WARNING: Do not connect unit to power before mechanical and electrical
installation are complete.
b) Mount greenfan® bipolar ionizer unit to allow access for general maintenance.
c) Install unit with two self-tapping screws (1/4” drive x ¾” long) attached through holes
in flanges on either side of unit with at least one inch clearance between carbon fiber
electrodes and metal surfaces or wires to ensure airflow over both electrodes.
Secure wires with zip ties to maintain proper clearance.
d) For HVAC system, install unit behind panel on fan inlet downstream of air filter to
reduce dust build-up on carbon fiber electrode brushes as shown in Figure 4. For
low clearance applications, locate rare-earth magnets with edges touching (e.g.,
OO), peal tape backing off magnets, and attach to back of unit shown in Figure 5.
Be careful when installing screws to not break flanges.
6
ASHRAE currently recommends using a minimum MERV 13 filter, which is at least 85% efficient at
capturing particles in 1 µm to 3 µm size range. A MERV 14 filter is at least 90% efficient at capturing
those same particles. HEPA filters are more that 99.97% efficient at capturing airborne viral particles
associated with SARS-CoV-2. ashrae.org/technical-resources/filtration-and-disinfection-faq

greenfan® bipolar ionizer Model 1600-01
© 2022 greenfan® inc. 4
e) the greenfan® bipolar ionizer is installed on the fan inlet of a packaged or split
system with airflow up to 2,400 cubic feet per minute (cfm) or 1132 liters per second
(l/s). Install more than one unit when airflow is greater than 2,400 cfm or 1132 l/s.
Figure 4. greenfan® bipolar ionizer installation at fan inlet of an HVAC system
f) Install bipolar ionizer on metal shroud and with at least one inch clearance between
electrodes and metal surfaces. Make sure screws do not interfere with the fan blade
movement. Manually rotate fan blade after installation of screws to verify screws do
not interfere with fan rotation.
Figure 5. Rare-earth magnets attached
to back of greenfan®bipolar ionizer
Figure 6. Product meets Intertek®
Sustainability Verified Zero Ozone
g) Proceed to HVAC fan electrical installation.

greenfan® bipolar ionizer Model 1600-01
© 2022 greenfan® inc. 5
4.2 HVAC Fan Electrical Installation with 24VAC Transformer
a) Use multimeter to determine if 24VAC control signal wires are available. If yes go to
step b. If no, go to step c.
b) For 24VAC HVAC systems, refer to Figure 7. Loosen screws, insert wires (as
shown), and tighten screws with all wires in place. Connect greenfan® bipolar
ionizer blue wire to C terminal or to common wire of HVAC system. Connect black
wire to fan G terminal or fan G wire of HVAC system. Connect white wire to heat W
terminal or heat W wire of HVAC system. Skip to step d.
c) For HVAC systems without accessible 24VAC control signal wires, install
120/208/240V to 24VAC Class 2 UL-listed transformer (Model 1601-01) shown in
Figure 8 and Figure 9. Connect 120/208/240V common wire of transformer to
120/208/240V common wire of HVAC system and connect greenfan® bipolar ionizer
blue wire to one of 24VAC wires from transformer shown in Figure 9. Connect
greenfan® bipolar ionizer black wire to other 24VAC wire from transformer and
connect appropriate wire from 120/208/240V transformer to 120/208/240V hot wire
of fan. Transformer wire color may vary. Install wire nut to insulate white wire of
greenfan® bipolar ionizer shown in Figure 9.
d) After completing all steps of mechanical and electrical installation for HVAC system
proceed to HVAC fan verification of proper operation.
Figure 7. Schematic of HVAC Fan Electrical Installation with 24VAC Transformer

greenfan® bipolar ionizer Model 1600-01
© 2022 greenfan® inc. 6
Figure 8. Bipolar ionizer installed with 120/208/240V to 24VAC transformer
Figure 9. Installation schematic with 120/208/240V to 24VAC transformer

greenfan® bipolar ionizer Model 1600-01
© 2022 greenfan® inc. 7
4.3 HVAC Fan Verification of Proper Operation
a) Verify all wires are correctly connected and wire nuts are tight and secure.
b) Temporarily close safety switch on access panel door and jumper fan to turn on fan
and greenfan® bipolar ionizer and verify LED lamp is illuminated on front of unit
indicating ions are being generated with airflow.
c) Turn off power and verify LED lamp is not illuminated.
d) Close access panel of HVAC system or FAU after verifying operation.
5.0 AIR PURIFIER INSTALLATION
5.1 Air Purifier Mechanical Installation
a) WARNING: Disconnect electrical power from the air purifier before and during
installation. Do not connect electrical power until installation is completed.
b) For air purifier, install unit with two self-tapping screws (1/4” drive x ¾” long)
attached through holes in flanges on either side of unit with at least one inch
clearance between carbon fiber electrodes and metal surfaces to ensure airflow over
both electrodes. Install greenfan® bipolar ionizer unit behind cover and downstream
of air filter to reduce dust build-up and allow airflow to pass over carbon fiber
electrode brushes as shown in Figure 10. Make sure screws do not interfere with
the fan blade movement. Manually rotate fan blade after installation of screws to
verify screws do not interfere with fan rotation. Make sure wires are secured with zip
ties and more than one inch away from greenfan® bipolar ionizer carbon fiber
electrode brushes.
c) After completing all steps of mechanical installation proceed to electrical installation.
Figure 10. greenfan® bipolar ionizer installation at fan inlet of an air purifier
5.2 Air Purifier Electrical Installation
a) Air purifier electrical installation requires UL-listed 120/24VAC transformer (Model
1602-01). Use multimeter to locate 120VAC wire to fan motor and use in-line splices

greenfan® bipolar ionizer Model 1600-01
© 2022 greenfan® inc. 8
to connect 120/24VAC transformer wire to 120VAC fan motor wire and 120/24VAC
transformer common wire to 120VAC neutral wire shown in Figure 11.
b) Connect greenfan® bipolar ionizer blue wire to one wire of 24VAC transformer and
connect greenfan® bipolar ionizer black wire to other wire of 24VAC transformer.
c) Install wire nut to insulate unused white wire of greenfan® bipolar ionizer.
d) The greenfan® bipolar ionizer will draw less than 130mA and 1.6W or greater at
24VAC and 50/60 Hz when air purifier or fan is energized or turned on.
e) After completing all steps of the air purifier mechanical and electrical installation
proceed to air purifier verification of proper operation.
5.3 Air Purifier Verification of Proper Operation
a) Verify all wires are correctly connected and wire nuts are tight and secure.
b) Plug in air purifier, turn on power, turn on fan, and verify green LED lamp is
illuminated on greenfan® bipolar ionizer indicating ions are being generated.
c) Turn off the power and verify LED lamp is not illuminated.
d) Install cover panel of the air purifier.
Figure 11. Installation schematic with 120/24VAC transformer
6.0 VENTILATION FAN INSTALLATION
6.1 Ventilation Fan Mechanical Installation
a) WARNING: Disconnect electrical power from the ventilation fan before and during

greenfan® bipolar ionizer Model 1600-01
© 2022 greenfan® inc. 9
installation. Do not connect electrical power until installation is completed.
b) For ventilation fan, install greenfan® bipolar ionizer behind protective grill of fan on a
22-gauge sheet metal support (supplied by installer) attached to a vertical bracket
holding fan motor with two self-tapping screws (1/4" drive x ¾" long) attached
through holes in flanges on either side of unit with at least one inch clearance
between carbon fiber electrodes and metal surfaces to ensure airflow over both
electrodes as shown in Figure 12. Make sure any wires secured with zip ties and
located more than one inch away from greenfan® bipolar ionizer carbon fiber
electrode brushes. Make sure screws do not interfere with wires or fan blade
movement. Manually rotate fan blade after installation to verify screws do not
interfere with fan rotation.
c) After completing all steps of mechanical installation proceed to electrical installation.
Figure 12. Bipolar ionizer installed at inlet of ventilation fan behind protective grill
6.2 Ventilation Fan Electrical Operation
a) Ventilation fan electrical installation requires UL-listed 120/24VAC transformer
(Model 1602-01). Use multimeter to locate 120VAC wire to fan motor and use in-line
splices to connect 120/24VAC transformer wire to 120VAC fan motor wire and
120/24VAC transformer common to 120VAC neutral wire shown in Figure 11.
b) Connect greenfan® bipolar ionizer blue wire to one wire of 24VAC transformer and
connect greenfan® bipolar ionizer black wire to other wire of 24VAC transformer.
c) Install wire nut to insulate unused white wire of greenfan® bipolar ionizer.
d) The greenfan® bipolar ionizer will draw less than 130mA and 1.6W or greater at
24VAC and 50/60 Hz when energized when ventilation fan is turned on.
e) After completing all steps of mechanical and electrical installation proceed to
ventilation fan verification of proper operation.

greenfan® bipolar ionizer Model 1600-01
© 2022 greenfan® inc. 10
6.3 Ventilation Fan Verification of Proper Operation
a) Verify all wires are correctly connected and wire nuts are tight and secure.
b) Install protective grill before turning on power to the ventilation fan.
c) Plug in ventilation fan, turn on fan, and verify green LED lamp is illuminated on
greenfan® bipolar ionizer indicating ions are being generated.
d) Turn off power and verify LED lamp is not illuminated.
7.0 OPERATING NOTES
Follow all local, state, and national electrical and building codes.
a) The greenfan® bipolar ionizer is designed to operate at temperatures at or below
140F or 60C.
b) The greenfan® bipolar ionizer is designed for 24VAC operation only.
c) When power is supplied, the greenfan® bipolar ionizer will be energized and the
LED will be illuminated.
d) The greenfan® bipolar ionizer is self-balancing and does not require any adjustment.
e) The greenfan® bipolar ionizer must be installed inside the HVAC equipment, air
purifier, or fan. L'ioniseur bipolaire greenfan® doit être installé à l'intérieur de
l'équipement CVC, du purificateur d'air ou du ventilateur.
f) This air cleaner shall not be installed on the hot-air side of duct-type systems. Ce
filtre à air ne doit pas être installé du côté air chaud des systèmes de type conduit.
8.0 TROUBLESHOOTING
a) If LED lamp is continuously illuminated when thermostat fan switch, air purifier, or
fan is turned to the ON position, then bipolar ionizer is operating properly. The
greenfan® bipolar ionizer continuously monitors high-voltage signals on the positive-
ion electrode and the negative-ion electrode to maintain consistent high-voltage and
balanced bipolar ion concentrations over a range of voltage inputs from 20 to
30VAC. For HVAC systems without easily accessible 24VAC wires nearby install a
120/208/240V to 24VAC UL-listed transformer shown in Figure 8 and Figure 9.
b) If LED lamp does not illuminate when thermostat fan switch, air purifier, or fan is
turned to the ON position, then check: 1) power supply or transformer is plugged in
and operating properly; 2) bipolar ionizer is properly connected to power supply or
transformer (check all wire nut connections); 3) verify all wire and wire nut
connections are correct and tight; and 4) reconnect any loose wires as necessary
and verify operation as described above.
c) If LED lamp is flashing when thermostat fan switch, air purifier, or fan is turned to the
ON position, then check: 1) power supply voltage input is within 20 to 30VAC; and 2)
electrical shorts on the positive-ion electrode or the negative-ion electrode.
d) If above steps do not correct flashing or non-illuminated LED lamps, then please
contact technical support.
e) Technical support: [email protected], 877-777-6756, www.greenfan.co/contact.
GreenFan® Inc., 6125 Bearclaw Ln, Bozeman, MT 59715.
9.0 MAINTENANCE
The following maintenance procedure is recommended.

greenfan® bipolar ionizer Model 1600-01
© 2022 greenfan® inc. 11
a) Turn power off to FAU or packaged HVAC system or air purifier or ventilation fan.
b) Open access panel on FAU or packaged HVAC system or cover of air purifier or fan.
c) With access panel or cover open, use LED lamp to locate greenfan® bipolar ionizer
on fan inlet and carefully clean carbon fiber electrode brushes with soft non-abrasive
cloth, small brush, or toothbrush. CAUTION: Carefully clean carbon fiber
electrode brushes to avoid damaging brushes. Inspect equipment frequently and
remove collected dirt regularly to prevent excessive accumulation that may result in
flashover or a risk of fire.
d) Install MERV 13 (or better) electrostatically charged pleated air filters with activated
carbon to remove dust, pollen, dust mites, pet dander, smoke, Volatile Organic
Compounds (VOCs), and other airborne particles.
e) Remove tools and close access panel on FAU or packaged HVAC system or cover
of air purifier or ventilation fan.
f) Turn on power to the FAU or packaged HVAC system or air purifier or fan.
10.0 SAFETY INSTRUCTIONS
a) This product complies with the maximum allowable concentration of ozone of 0.050
parts per million by volume (ppmv) in a 24-h period.
b) The 8-hr TWA ozone for this product is 0.0 ppmv when tested in a 30 m3 chamber.
c) Intertek® Sustainability Verified Zero Ozone: This product meets UL 2998 and does
not emit more than 0.005 ppm as tested per UL 867.
d) CAUTION HIGH VOLTAGE: This equipment should be inspected frequently and
collected dirt removed from it regularly to prevent excessive accumulation that may
result in flashover or a risk of fire.
CONSIGNES DE SÉCURITÉ
a) Ce produit est conforme à la concentration maximale admissible d'ozone de 0,050
partie par million en volume (ppmv) sur une période de 24 heures.
b) L'ozone TWA sur 8 heures pour ce produit est de 0,0 ppmv lorsqu'il est testé dans
une chambre de 30 m3.
c) Intertek® Sustainability Verified Zero Ozone: Ce produit est conforme à la norme UL
2998 et n'émet pas plus de 0,005 ppm selon les tests de la norme UL 867.
d) ATTENTION HAUTE TENSION: Cet équipement doit être inspecté fréquemment et
la saleté collectée doit en être retirée régulièrement pour éviter une accumulation
excessive pouvant entraîner un embrasement ou un risque d'incendie.
11.0 WARRANTY
GREENFAN® hereby warrants to the consumer that the product purchased under this
warranty be free from defects in material and workmanship under normal use when
installed, operated, and maintained in accordance with manufacturer’s instructions.
In the event of a product defect, failure, or malfunction, GREENFAN® will, for a period
of five (5) years from the date of purchase, repair or replace at its discretion the
defective, failed, or malfunctioning product purchased under this Warranty. Installation
and/or removal labor is not covered under this Warranty.

greenfan® bipolar ionizer Model 1600-01
© 2022 greenfan® inc. 12
Warranty, return, or repair requests must be processed at www.greenfan.co/contact.
The following information is required for processing a warranty, return, or repair request:
1) purchases made and received within the USA; 2) product registration or proof of
purchase may be required; 3) excludes filters and parts intended for regular
replacement; 4) normal recommended use at the recommended input voltages on the
product label or installation manual. Warranty, return, or repair requests are not
provided for products that are damaged due to incorrect installation, physical abuse,
chemical exposure, water damage, fire damage, or input voltage outside the
recommended input voltage on the product label or instruction manual, or service of
product by anyone other than GREENFAN® technicians or authorized dealers.
Products covered by the warranty, return or repair may be replaced with new or
refurbished units of the same or similar model. Liability for damages to you for any costs
whatsoever arising out of this statement of warranty shall be limited to the amount paid
for this product at the time of original purchase, and GREENFAN® shall not be liable for
any direct, indirect, consequential, or incidental damages arising out of the use or
inability to use the product. An RMA# is required for warranty, return, or repair requests.
Returned packages that do not have an RMA# will be refused. For warranty information
please contact: [email protected] or call 1-877-777-6756.
Other than as herein expressly set forth, there are no warranties, expressed or implied,
including, without limitation, the warranties of merchantability and fitness for a particular
purpose, any such warranties otherwise imposed by the law being hereby expressly
disclaimed.
Some states do not allow limitations on how long an implied warranty lasts, so the
above limitation may not apply.
GREENFAN® is not and shall under no circumstances be liable or responsible for any
special, incidental, or consequential damages, losses, or expenses arising from a
claimed or actual defect in any of the products purchased under this warranty or the
installation or use thereof or from any other cause whatsoever, including, but not limited
to, loss of profits, loss of business, loss of revenues, and other economic loss.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply.

greenfan® bipolar ionizer Model 1600-01
© 2022 greenfan® inc. 13
12.0 SPECIFICATIONS
Operational
Model 1600-01 airflow
Bipolar ion concentration
Ozone
Warranty
Standards
US Patents
SARS-CoV-2 delta
variant virus which
causes more severe
COVID-19 disease than
previous strains in
unvaccinated persons
Up to 2400 cfm or 1133 l/s
Approximately 200 million ions per cubic centimeter (ions/cc) at
the carbon fiber electrodes and varies depending on installation
and environment conditions and declines based on the
volumetric airflow and distance from the carbon fiber electrodes
24-hr TWA ozone is 0.0 ppmv when tested in a 30 m3 chamber
by Intertek®
5-years limited warranty
Intertek Sustainability Verified Zero Ozone meets UL 2998,
conforms to UL 867, certified to CSA 22.2 #184
11173226 and pending patents
Bio-Safety Level-3 (BSL-3) laboratory tests by Innovative
Bioanalysis demonstrate that the greenfan® bipolar ionizer
reduced an initial SARS-CoV-2 Delta Variant aerosol
concentration of 4.03 x 106Median Tissue Culture Infectious
Dose per milliliter of sample (TCID50/ml) to 9.85 x 104
TCID50/ml, achieving a 97.6% reduction within 60 minutes,
74.5% reduction within 30 minutes, and 45% reduction within 15
minutes when installed on the inlet of a blower fan circulating air
in a 20’ x 8’ x 8’ chamber.
Electrical
Model 1600-01
Accessory
Model 1601-01
Accessory
Model 1602-01
Input voltage
24VAC 1.6Watts, 130mAmps, 50/60Hz, resettable fuse
Provides consistent high-voltage output at carbon fiber
electrodes over a range of input voltages from 20 to 30 VAC
For 120/208/240V installations order greenfan® model 1601-01:
120/208/240V to 24VAC Class 2 transformer (UL 5085-3 listed
E65390). Class 2 refers to a transformer that delivers 100W or
less with maximum output voltage of
For 120/24VAC air purifier and ventilation fan installations order
greenfan® model 1602-01: 120/24VAC Class 2 transformer
(UL-listed)
30VAC or less
Mechanical
1600-01 dimensions
Unit Weight
3.054” W x 2.129” H x 1.25” D without flange UL 94V-0
4.053” W x 2.129” H x 1.25” D with flanges UL 94V-0
4.053” W x 3.754” H x 1.25” D with electrodes (0.28 mil 6K
carbon fiber TOW)
4.053” W x 3.754” H x 1.40” D with magnets and electrodes
(0.28 mil 6K carbon fiber TOW)
Plastic case tolerances: +/-0.015
Carbon fiber electrode height tolerance: +/- 0.030
7.1 ounces (without magnets)
8.5 ounces (with magnets installed by user)
