INSTRUCTION MANUAL
Quick Draw®
Hydraulic Knockout Drivers
52085611 © 2018 Greenlee Tools, Inc. 12/18
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
Register this product at www.greenlee.com
Quick Draw®
Quick Draw 90® Quick Draw Flex™
Español............... 13
Français.............. 25

Greenlee Tools, Inc. 2
Quick Draw®Hydraulic Knockout Drivers
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Safety
Safety is essential in the use and maintenance of
Greenlee tools and equipment. This manual and any
markings on tools provide information for avoiding
hazards and unsafe practices related to the use of the
tools. Observe all of the safety information provided
Purpose of this Manual
This manual is intended to familiarize all personnel with
the safe operation and maintenance procedures for the
following Greenlee tools:
Quick Draw Flex™
Quick Draw®
Quick Draw 90®
Keep this manual available to all personnel.
Replacement manuals are available upon request at
no charge at www.greenlee.com.
Do not discard this product or throw away!
For recycling information, go to www.greenlee.com.
Description
The Greenlee Quick Draw®Hydraulic Knockout Drivers
are hand-held, self-contained punch drivers intended to
be used with Greenlee punches, dies, and drawstuds
for punching holes through mild steel, stainless steel,
brass, copper, aluminum, berglass, and plastics.
These tools are designed to be used with the following
Greenlee tools:
• Standard punches, dies, and drawstuds
• Slug-Buster®punches, dies, and drawstuds
• Slug-Splitter®punches, dies, and drawstuds
• SPEED PUNCH®Knockout System
• Electronic connector panel punches
• Special shape punches, dies, and drawstuds (“D”,
Double “D”, Key, Square, Rectangular, and Oiltight
with notches)
Standard, Slug-Buster, Electronic Connector Panel
Punches, and special shape punches can punch holes
through mild steel, brass, copper, aluminum, berglass,
and plastics, with limited stainless steel capability.
Slug-Splitter punches, dies, and drawstuds are
capable of punching through all of these materials
and are optimized for strainless steel. Refer to the
“Capacity” section in this manual for details information
on maximum driver rating. Do not exceed the rated
capacity of the punch or driver.
All specications are nominal and may change as design
improvements occur. Greenlee Tools, Inc. shall not be liable for
damages resulting from misapplication or misuse of its products.
Kwik-Stepper, Slug-Buster, Slug-Splitter, and SPEED PUNCH are
registered trademarks and Intell-PUNCH™ is a trademark of
Greenlee Tools, Inc.
KEEP THIS MANUAL
Table of Contents
Description ..................................................................... 2
Safety ............................................................................. 2
Purpose of this Manual .................................................. 2
Important Safety Information ..................................... 3–5
Identication and Illustration .......................................... 6
Specications................................................................. 6
Setup and Operation.................................................. 7–8
Capacity ......................................................................... 9
Maintenance................................................................. 10
Troubleshooting............................................................ 11

Greenlee Tools, Inc. 3
Quick Draw®Hydraulic Knockout Drivers
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
IMPORTANT SAFETY INFORMATION
SAFETY
ALERT
SYMBOL
This symbol is used to call your attention to hazards
or unsafe practices which could result in an injury or
property damage. The signal word, dened below,
indicates the severity of the hazard. The message
after the signal word provides information for pre-
venting or avoiding the hazard.
Immediate hazards which, if not avoided, WILL result
in severe injury or death.
Hazards which, if not avoided, COULD result in
severe injury or death.
Hazards or unsafe practices which, if not avoided,
MAY result in injury or property damage.
Read and understand all of the
instructions and safety information
in this manual before operating or
servicing this tool.
Failure to observe this warning
could result in severe injury or death.
Electric shock hazard:
This tool is not insulated. When
using this unit on or near energized
electrical lines, use proper personal
protective equipment.
Failure to observe this warning
could result in severe injury or death.
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from
ying debris or hydraulic oil.
Skin injection hazard:
Do not use hands to check for oil
leaks. Oil under pressure easily
punctures skin. If injured, seek
medical attention immediately to
remove oil.
Failure to observe this warning
could result in serious injury, gan-
grene, or death.
Do not use solvents or ammable
liquids to clean the tool body.
Solvents or ammable liquids could
ignite and cause serious injury or
property damage.
Pinch points:
• Remove battery before changing
dies, adapters, or jaws.
• Keep hands away from the tool
head when punching.
Failure to observe these warnings
could result in severe injury or death.

Greenlee Tools, Inc. 4
Quick Draw®Hydraulic Knockout Drivers
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

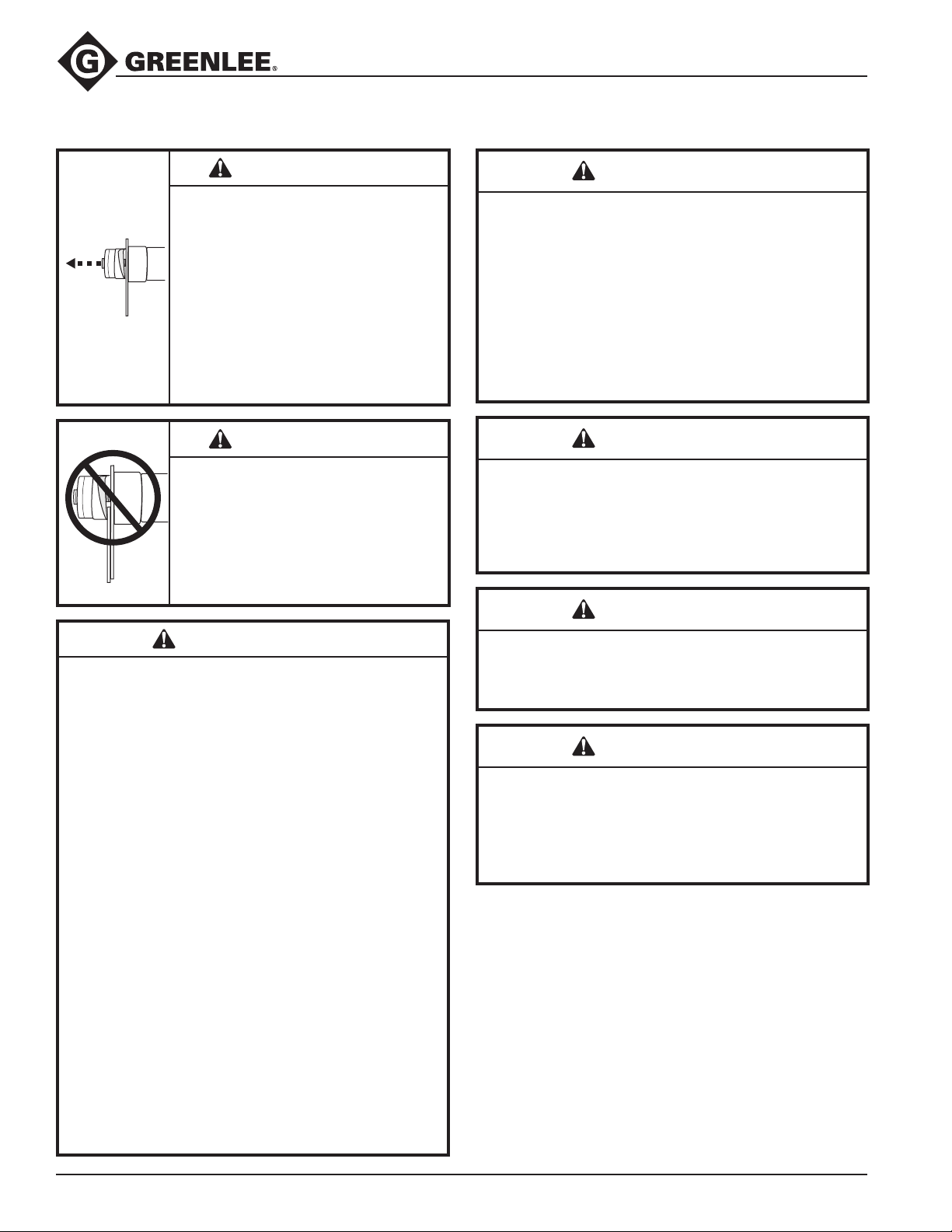

IMPORTANT SAFETY INFORMATION (cont'd)
A component failure could throw
broken parts.
• Do not allow anyone to stand in
front of the punch or behind the
hydraulic ram.
• Close access doors or covers on
any equipment that is in line with
the punch or ram.
Failure to observe this warning
could result in severe injury or death.
Do not attempt to punch a hole
through two or more layers of
material. This will bend or break the
drawstud, and could throw parts
with great force.
Failure to observe this warning
could result in severe injury or death.
Set up the tool properly. An improper setup could
cause a component to fail and strike nearby person-
nel with great force.
• Use only Greenlee punches, dies, and drawstuds.
Other manufacturers’ components might not with-
stand the forces generated by this punch driver.
• Manual Punch Setup: The punch must be
threaded completely onto the drawstud. All of the
punch threads must be engaged by the drawstud
threads. Incomplete assembly could cause a com-
ponent failure.
• Hydraulic Punch Setup: The drawstud must be
threaded completely into the driver head. The
punch must be threaded completely onto the
drawstud. All of the punch threads must be
engaged by the drawstud threads. Incomplete
assembly could cause a component failure.
• SPEED PUNCH Setup: The drawstud must be
threaded completely into the driver head. The
SPEED LOCK must fully engage and completely
close on the drawstud. Incomplete assembly
could cause a component failure.
Failure to observe these warnings could result in
severe injury or death.
• Inspect tool for wear or damage. Replace any
worn, damaged, or missing components with
Greenlee replacement parts. A damaged or
improperly assembled tool can break and strike
nearby personnel with sufcient force to cause
severe injury or death.
• Inspect the punch, die, and drawstud for wear or
damage. Replace any worn or damaged items
with Greenlee replacement parts. Replace any
punches that have dull cutting surfaces.
Do not exceed the rated capacity of this tool.
Exceeding the rated capacity could cause a
component failure, which could throw broken parts
with great force.
Failure to observe this warning could result in severe
injury or death.
Use this tool for the manufacturer's intended
purpose only. Use other than that which is described
in this manual can result in injury or property
damage.
Ensure the punch cycle is stopped after a hole is
made. Failure to do so could cause a part collision
which could throw broken parts.
Failure to observe this warning could result in severe
injury or death.

Greenlee Tools, Inc. 5
Quick Draw®Hydraulic Knockout Drivers
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
IMPORTANT SAFETY INFORMATION (cont'd)
The punch driver will fall free when the punch is
complete.
• Support the weight of the tool when punching.
• Do not allow anyone to stand beneath an over-
head punch.
Failure to observe this warning may result in injury or
property damage.
Do not secure this tool in a vise. This tool is designed
for hand-held operation.
Use this tool for the manufacturer's intended purpose
only.
Failure to observe these precautions may result in
injury.
Do not operate the pump lever after the ram stops.
Continuing to operate the pump lever after the ram
stops will damage the system.
Do not perform any service or maintenance other than
as describe in this manual. Injury or damage to the
tool may result.
Failure to observe this precaution may result in injury
and property damage.
Note: Keep all decals clean and legible, and replace when
necessary.

Greenlee Tools, Inc. 6
Quick Draw®Hydraulic Knockout Drivers
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
1
2
3
Identification and Illustration
1. Pump lever
2. Release valve knob
3. Ram
Specifications
Quick Draw Flex
Length
Without Drawstud.......................................................................................................................406 mm (16.00")
Width (with handle extended) ...........................................................................................................260 mm (10.25")
Mass/Weight ......................................................................................................................................2.60 kg (5.75 lb)
Quick Draw
Length
Without Drawstud.....................................................................................................................321 mm (12.625")
Width (with handle extended) ...........................................................................................................260 mm (10.25")
Mass/Weight ........................................................................................................................................2.49 kg (5.5 lb)
Quick Draw 90
Overall Length................................................................................................................................. 324 mm (12.75")
Mass/Weight ........................................................................................................................................3.4 kg (7.4 lb)
Miscellaneous
Overall Temperature................................................................................................. –12 ˚C to 43 ˚C (10 ˚F to 110 ˚F)
Operating Position ............................................................................................................................. No restrictions
Quick Draw®shown

Greenlee Tools, Inc. 7
Quick Draw®Hydraulic Knockout Drivers
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Setup and Operation
Punching
1. Refer to the hydraulic punch instructions manual
or proper punch, die, and drawstud selection
and setup.
2. Select the appropriate punch, die, and drawstud for
the desired hole size.
3. Determine and mark the exact location for the hole.
Use a Greenlee Kwik-Stepper®step bit to drill a pilot
hole slightly larger than the drawstud being used.
4. Turn the release valve knob counterclockwise to fully
extend the ram.
5. Thread the appropriate drawstud completely into the
ram in the punching head.
6. Slide the corresponding die onto the drawstud.
The open end of the die should face away from the
punching head.
7. Insert the drawstud through the pilot hole in the
material being punched.
8. Thread the punch (cutting edge facing the material)
onto the drawstud until the punch assembly is tight
onto the material surface.
Note:
• All of the punch threads must be engaged with
the drawstud threads. If any punch threads are
not engaged, reassemble the setup.
• For SPEED PUNCH®, slide the punch onto the
drawstud (cutting edge facing the material) and
secure the SPEED LOCK to the drawstud.
9. Close the release valve knob. Pump the lever handle
until the punch is completely through the material.
10. Open the release valve. Unscrew the punch from the
drawstud. Slide the die off the drawstud and remove
any slugs from the die.
Note: For SPEED PUNCH®, remove the SPEED
LOCK. Slide the punch off the drawstud; then slide
the die off the drawstud and remove any slugs from
the die.

Greenlee Tools, Inc. 8
Quick Draw®Hydraulic Knockout Drivers
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
• Inspect tool for wear or damage. Replace any
worn, damaged, or missing components with
Greenlee replacement parts. A damaged or
improperly assembled tool can break and strike
nearby personnel with sufcient force to cause
severe injury or death.
• Inspect the punch, die, and drawstud for wear or
damage. Replace any worn or damaged items
with Greenlee replacement parts. Replace any
punches that have dull cutting surfaces.
Electric shock hazard:
This tool is not insulated. When
using this unit on or near energized
electrical lines, use proper personal
protective equipment.
Failure to observe this warning
could result in severe injury or death.
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from
ying debris or hydraulic oil.
Pinch points:
Keep hands away from the tool
head when punching.
Failure to observe these warnings
could result in severe injury or death.
Do not secure this tool in a vise. This tool is
designed for hand-held operation.
Use this tool for the manufacturer’s intended
purpose only.
Failure to observe these precautions may result in
injury or property damage.
Setup and Operation (cont’d)

Greenlee Tools, Inc. 9
Quick Draw®Hydraulic Knockout Drivers
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Note: Please consult the hydraulic punch instruction
manual for punch, drawstud, and die selection.
Capacity
Quick Draw®Hydraulic Punch Drivers
STAINLESS STEEL
Slug-Splitter and Large Diameter Punches
Pipe and Conduit Size Maximum Driver Rating
1/2" to 1-1/4" 10 ga (0.134", 3mm)
1-1/2" to 2" 12 ga (0.104", 2.5mm)
2-1/2" to 4" N/A
MILD STEEL
Standard and Slug-Buster Punches
Pipe and Conduit Size Maximum Driver Rating
1/2" to 2" 10 ga (0.134", 3mm)
2-1/2" to 4" N/A

Greenlee Tools, Inc. 10
Quick Draw®Hydraulic Knockout Drivers
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Maintenance
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from
ying debris or hydraulic oil.
Skin injection hazard:
Do not use hands to check for oil
leaks. Oil under pressure easily
punctures skin. If injured, seek
medical attention immediately to
remove oil.
Failure to observe this warning
could result in serious injury, gan-
grene, or death.
Do not use solvents or ammable
liquids to clean the tool body.
Solvents or ammable liquids could
ignite and cause serious injury or
property damage.
Pinch points:
Keep hands away from the tool
head when punching.
Failure to observe these warnings
could result in severe injury or death.
Relief valve adjustments must be done by an
authorized service center.
Daily
Before use:
1. Inspect the tool for wear or damage, such as cracks,
gouges, or chips.
2. Inspect the tool for damage or leaks.
3. Inspect the rotation of the head assembly. Fully
return the ram. The head should rotate freely. If
damage is detected, contact Greenlee customer
service at 800-435-0786 for warranty service or
repair.
After use:
1. Use a damp cloth and mild detergent to clean the
housing. Allow the housing to dry.
2. Fully return the ram. Place the tool in the carrying
case and store in a cool, dry place.
